Broadband and Low-Loss Silicon Photonic Directional Coupler for Signal Power Tapping on the 3 μm SOI Waveguide Platform

Abstract

Silicon photonics (SiPh) has emerged as a promising technology for photonic integrated circuits (PICs). One of the basic components in SiPh is the directional coupler (DC), which plays an important role in signal monitoring with the requirement of low wavelength dependence and low loss. This paper proposes a broadband and low-loss DC designed for signal power tapping on the 3 μm silicon-on-insulator (SOI) waveguide platform. By utilizing the advantages of multi-micron waveguides and replacing one of the straight waveguides with an optimized arc-shaped waveguide in the coupling region, the proposed DC enhances spectral stability and improves transmission with negligible loss. Experimental evidence indicates that the proposed DC showcases a minimal variation in the tapping ratio. From 1470 nm to 1630 nm, the largest deviation away from the tapping ratio at 1550 nm is 1.433%. Additionally, the device exhibits a low excess loss of −0.27 dB. These results suggest that the proposed device is well-suited to reliable signal power tapping and monitoring, particularly within PICs.

1. Introduction

Silicon photonics (SiPh) has gained prominence as one of the leading technologies for integrated photonics, with a diverse range of applications in high-performance computing [1,2], optical communications [3], and optical sensors [4]. The key advantage of SiPh lies in its compatibility with standard complementary metal oxide semiconductor (CMOS) technology, resulting in cost-effective mass production. The directional coupler (DC) is a fundamental and widely employed building block in SiPh, serving as a power splitter to construct complex devices, such as Mach–Zehnder interferometers (MZIs) [5], wavelength division multiplexers (WDMs) [6], optical switches [7], and electro-optics modulators [8]. In optical communication and sensing, the DC is commonly used to construct waveguide taps to extract a portion of the light signal traveling along a primary waveguide. These taps serve monitoring purposes, allowing for the precise measurement of the light signal’s characteristics at a specific location [9]. However, coupled mode theory [10,11] demonstrates that the coupling efficiency of conventional DCs with parallel waveguides sections is highly dependent on the propagation constants. This leads to a varying amplitude of the coupling power with the operating wavelength, resulting in strong wavelength dependence, which is unfavorable for signal power tapping and monitoring applications. In the past two decades, researchers have made significant efforts in developing broadband DCs [12,13,14,15]. Adiabatic directional couplers [12] have demonstrated promising broadband operation, using tapered waveguides for achieving adiabatic transitions; however, they have the disadvantage of large footprints. Another approach [13] involves the use of sub-wavelength grating (SWG) structures to enhance the coupling strength and reduce device size while maintaining broadband operation. However, achieving this requires high fabrication accuracy to control the dimensions of waveguides. Additionally, broadband MZI-based couplers [14] which integrate MZI structures into DCs still have challenges in terms of their larger footprints compared to conventional DCs on the same SiPh platform. Consequently, the development of DCs with broadband characteristics, low loss, and high fabrication tolerance continues to be a topic that requires further exploration.

The 3 μm silicon-on-insulator (SOI) optical waveguide platform, also referred to as the thick-SOI platform, has emerged as a highly successful option for SiPh fabrication over the last ten years [16,17]. This platform has demonstrated exceptional performance in key components such as etched diffraction grating (EDG) [18], arrayed waveguide grating (AWG) [19], Ge photodetectors [20], and electro absorption modulators (EAMs) [21]. Additionally, these key building blocks have been successfully monolithically integrated [22,23]. In contrast to the majority of SiPh waveguide platforms that utilize sub-micron top silicon waveguide layers, the 3 μm SOI waveguide platform presents significant advantages for the design of ultra-wideband, low-loss, and high-fabrication-tolerance photonic integrated circuits (PICs). The multi-micron waveguide core of the thick-SOI platform boasts significantly lower effective index sensitivity, making it particularly well-suited for applications that require spectral stability [24]. Meanwhile, the larger dimensions enable complete confinement of the optical mode field, reducing sensitivity to variations in waveguide shape and resulting in negligible propagation loss of approximately −0.1 dB/cm [25]. Another notable advantage of the thick-SOI platform is its wavelength independence and robust performance across a wide range of waveguide dimensions for single-mode operation. This behavior arises from the efficient leakage of higher-order modes into the slab modes of rib waveguides, as long as the relative waveguide dimensions are well controlled. These characteristics substantially enhance the potential of the 3 μm SOI waveguide platform as an attractive choice for developing broadband, low-loss, and fabrication-tolerant SiPh devices and systems.

In this work, we present a DC for tapping signal power on the 3 μm SOI waveguide platform. The device exhibits broadband and low-loss characteristics by leveraging the platform’s effective index insensitivity and low-loss transmission. By replacing one of the two straight waveguides in the conventional coupling region with an arc-shaped waveguide, the device achieves an effectively shortened coupling length, thus reducing its sensitivity to wavelength as expected by the coupled mode theory. The proposed DC is characterized over a broad wavelength range of 1470 nm to 1630 nm, resulting in minimal fluctuations in the tapping ratio within the range of −1.373% to 1.433% when compared to its value at 1550 nm, and a low excess loss (EL) level of −0.27 dB. These results indicate that our design can serve as a fundamental component for various applications that require stable power tapping and monitoring.

2. Principle and Device Structure

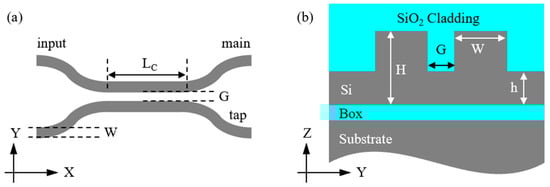

The schematic diagram of a conventional DC is presented in Figure 1. The DC is composed of two symmetric arms that have a uniform width of W. Each arm comprises a straight waveguide of length L_C and two S-bends, functioning as the input and output ports, respectively. Power exchange occurs between the two straight waveguides, and thus, the term coupling length is applicable to describe the length of the straight waveguide. In addition, the parts of the S-bends adjacent to the straight waveguides also contribute to coupling, meaning that the effective coupling length is greater than L_C. A cross-sectional view of the coupling region is shown in Figure 1b. Careful design of the rib waveguide height H, slab thickness h, gap size G, and W is required to achieve the desired coupling strength.

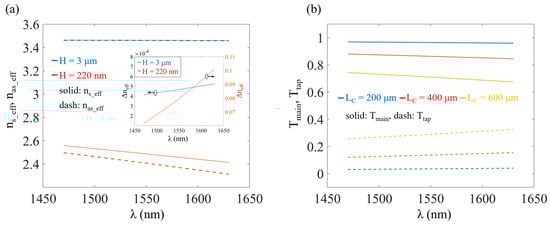

Based on the coupled mode theory or the supermode solution method, the DC’s splitting ratio correlates with the mode effective index in each arm or the effective indices of the supermodes supported by the two waveguides. However, the presence of mode dispersion constrains the operating bandwidth. In this study, we applied the Lumerical finite difference eigenmode (FDE) solver to determine the effective indices of two sets of supermodes in the coupling region, which corresponded to diverse design parameters and represented the distinct single-mode configurations on the 220 nm SOI waveguide platform and the thick-SOI platform, respectively. In Figure 2a, the effective indices of supermodes are plotted against the wavelength λ. The blue lines illustrate the design based on the 3 μm SOI waveguide platform, with dimensions of H = 3 μm, h = 1.8 μm, G = 2.2 μm, and W = 2.6 μm, while the red lines correspond to the design based on the 220 nm SOI waveguide platform, with dimensions of H = 220 nm, h = 70 nm, G = 150 nm, and W = 450 nm. The solid and dashed lines in each color represent the effective refractive indices of symmetric and antisymmetric modes, denoted by n_{s_eff} and n_{as_eff}, respectively. Within the wavelength range of 1470 nm to 1630 nm, the n_{s_eff} shifts by 0.1447 for the 220 nm waveguide-based design, whereas for the 3 μm waveguides, the shift is only 0.0031. Similarly, the n_{as_eff} shifts by 0.1841 and 0.0032 for the 220 nm and 3 μm waveguides, respectively. The comparisons confirm that the n_{s_eff} and n_{as_eff} remain almost unaffected by wavelength on the 3 μm SOI waveguide platform, which is important in extending the bandwidth of the DC. Moreover, the difference between n_{s_eff} and n_{as_eff}, represented by Δn_eff, is also examined. As shown in the insert of Figure 2a, within the wavelength range of 1470 nm to 1630 nm, the Δn_eff for 3 μm waveguides is remarkably lower (i.e., nearly two orders of magnitude) compared with 220 nm waveguides. This finding reiterates the lower wavelength sensitivity of the thick-SOI platform.

The transmission of the DC can be expressed as [11]:

$$T_{\mathit{main}}={\cos }^2\left(\pi L_C\cdot \mathsf{\Delta }{n}_{\mathit{eff}}∕\lambda \right)$$

(1)

$$T_{\mathit{tap}}={\sin }^2\left(\pi L_C\cdot \mathsf{\Delta }{n}_{\mathit{eff}}∕\lambda \right)$$

(2)

where T_main and T_tap represent the transmission of the main and tap ports, respectively. To investigate the impact of varying wavelengths on the transmission, we calculated the derivative of T_tap with respect to wavelength:

$$\frac{d{T}_{\mathit{tap}}}{d\lambda }=\pi L_C\cdot \sin \left(\frac{2\pi L_C\cdot \mathsf{\Delta }{n}_{\mathit{eff}}}{\lambda }\right)\cdot \frac{-\mathsf{\Delta }{n}_g}{{\lambda }^2}$$

(3)

where Δn_g = Δn_eff − λ·dΔn_eff/dλ. It is noteworthy that for the sine function’s argument lying between 0 and π/2, the right-hand side of Equation (3) monotonically decreases with L_C. Therefore, T_tap’s sensitivity to wavelength can be effectively minimized by employing a relatively small L_C value. To achieve the above, it is necessary for the 3 μm SOI waveguide platform-based coupling region mentioned earlier to have an L_C value of less than approximately 820 μm, meeting the sine function’s argument’s requirements by being smaller than π/2. Figure 2b illustrates the transmission as a function of wavelength for L_C values of 200 μm, 400 μm, and 600 μm. The results demonstrate that DCs with shorter coupling lengths exhibit a substantial level of splitting ratio stability. Additionally, the decrease in L_C leads to a corresponding decrease in T_tap, preventing excessive power coupling from the main-path waveguide, which is advantageous for signal power monitoring applications.

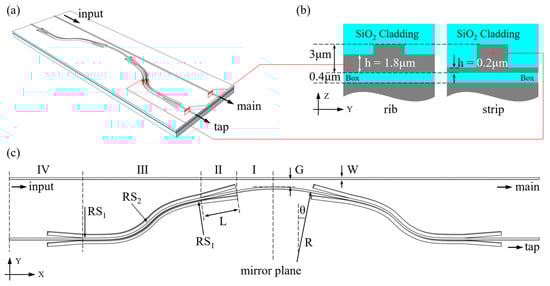

To obtain a shorter coupling length, we propose a DC design presented in Figure 3a (the SiO₂ cladding has been omitted for clarity), where the tap waveguide in the coupling region is designed as an arc shape. Two typical waveguide profiles, rib and strip, are employed in the DC (see Figure 3b for their cross-sectional views). The rib waveguide has a height of 3 μm and a slab thickness of 1.8 μm, whereas the strip waveguide shares the same height but has a significantly thinner slab of only 0.2 μm. The reduced slab thickness in the strip waveguide promotes its lateral mode confinement, leading to a decrease in the bend radius and a more compact device footprint. Furthermore, Figure 3a,b illustrate that the main path exclusively consists of the rib waveguide, whereas the tap path incorporates the rib profile in the coupling and straight regions, and utilizes the strip waveguide for the curved segment. A comprehensive description of the tap waveguide is provided in Figure 3c, revealing its adoption of a mirrored structure with four designated regions on each side, where each region serves a distinct function. Region I is an arc-shaped waveguide designed for tapping signals, with R and θ denoting its radius and angle, respectively. The geometric diagram of the coupling region reveals a progressively increased gap between the arc-shaped and main waveguides with an increase in distance from the mirror plane. This phenomenon leads to a gradual decline in the coupling strength, resulting in weak coupling in regions that are further from the mirror plane. In other words, in contrast to the conventional DC with two parallel straight waveguides, the power transfer of our proposed design takes place only in the area where the two waveguides are in close proximity. As a result, the effective coupling length is reduced, which considerably decreases the wavelength sensitivity, as apparent from Equation (3). Region II secures the mode converter [25,26] with a length L of 350 μm, achieving a low-loss transition between the rib waveguide and the strip waveguide. Region III features an S-bend that employs a pair of Euler bends [27,28,29] to provide an efficient transition between straight and curved waveguides, reducing mode mismatches, bend loss, and bend radii. In our design, the starting radius RS₁ of the Euler bend connected to the straight waveguide is 1500 μm, and the other radius RS₂ connected to the curved waveguide is 150 μm. Region IV comprises both the identical mode converter employed in Region II and a segment of the rib waveguide. Its objective is to facilitate the guidance of the tapped signal towards the tap port. The rib waveguide is designed to maintain a straight configuration, thereby enabling the tapped signal to reach the edge of the sample chip where the DC is located. Thanks to its efficient edge-coupling capability with lensed fibers, the rib waveguide greatly facilitates the straightforward connection of the DC to the optical link during subsequent testing procedures. Finally, both the main and tap waveguides in the proposed DC have a width W of 2.6 μm for single-mode operation, while the gap size G between the two waveguides along the mirror plane is also defined.

The tapping ratio S and the excess loss EL of the device are defined as follows:

$$S=T_{\mathit{tap}}∕(T_{\mathit{main}}+T_{\mathit{tap}})$$

(4)

$$\mathit{EL}=10{\mathit{log}}_{10}(T_{\mathit{main}}+T_{\mathit{tap}})$$

(5)

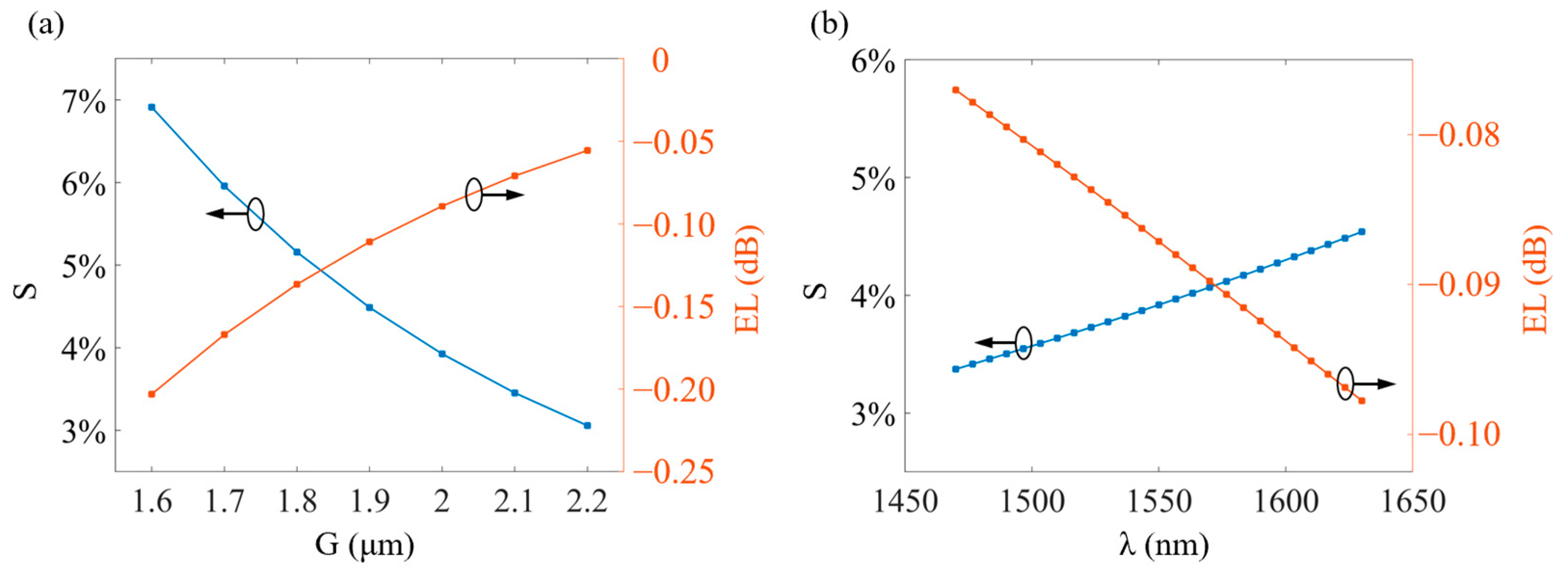

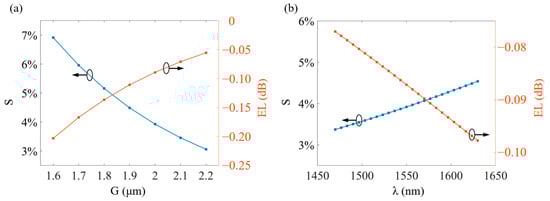

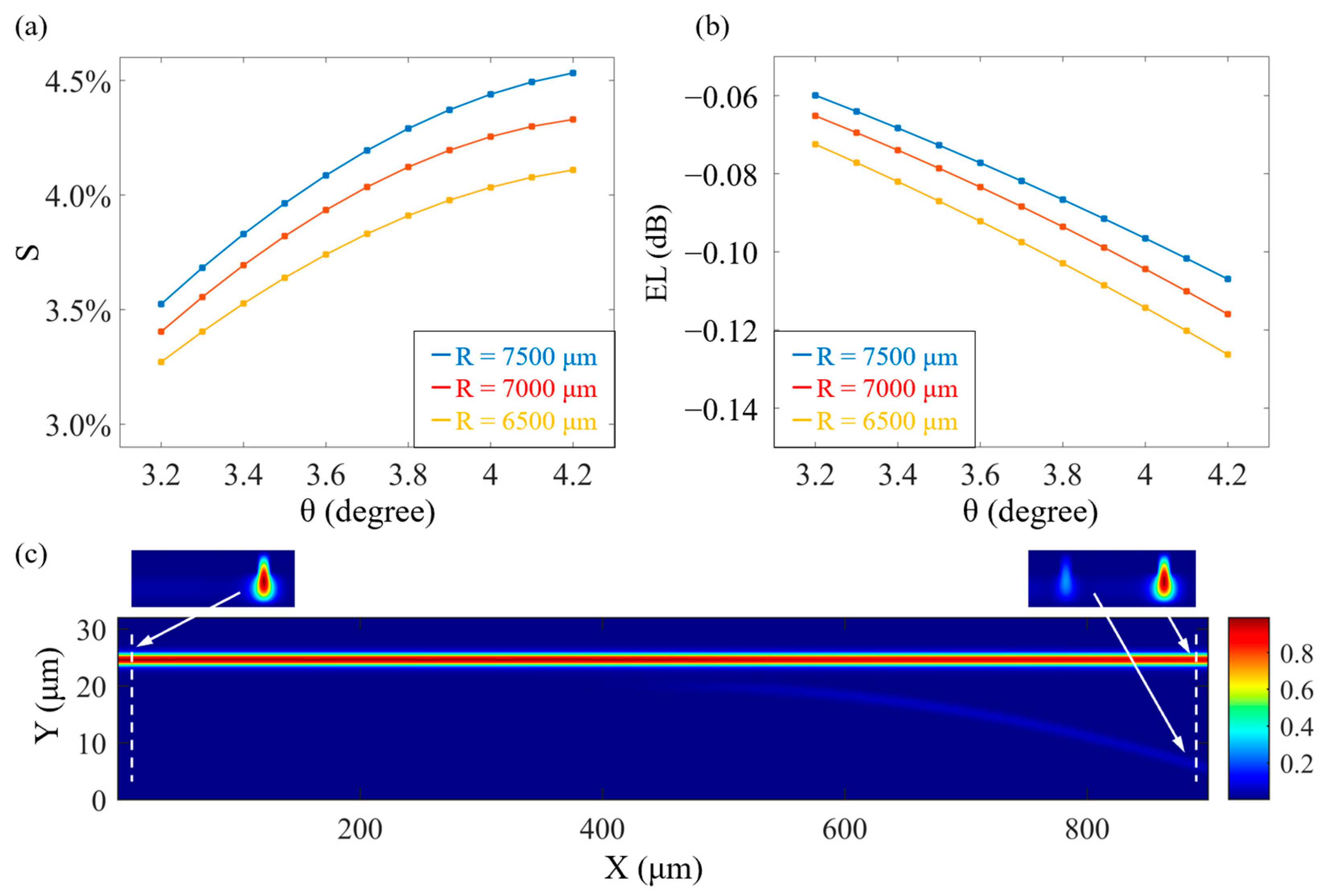

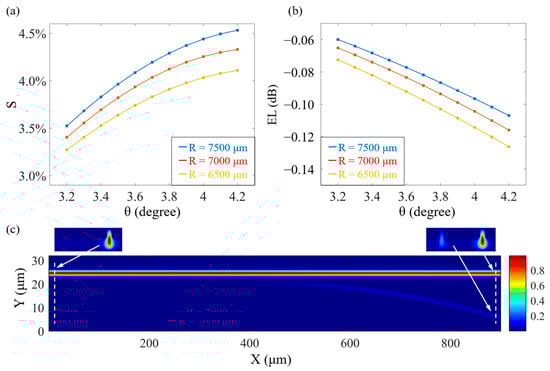

S is set as 4%. The effective coupling length of the proposed DC is ensured to stay below 820 μm, as determined by the limitations of the sine function’s argument in Equation (3). To achieve this, we initially set R to 7000 μm and θ to approximately 3.6 degrees. The eigenmode expansion (EME) solver in Lumerical is utilized to optimize the design parameters, with a cell step size of 0.5 μm for accuracy. The simulation results at a fixed G of 2 μm and at a wavelength of 1550 nm are presented in Figure 4a,b, depicting the variation of S and EL with θ for three Rs, namely 7500 μm, 7000 μm, and 6500 μm. The results from all three values of R indicate that an increase in θ leads to an increase in S, but it is also accompanied by an increased level of device loss. In addition, varying R can also affect S, but our primary interest lies in the trend of increasing R, which results in a decrease in device loss. Moreover, as R grows, the shape of the curved waveguide approaches that of the straight waveguide, and this leads to an increase in the effective coupling length of the coupling region. As previously discussed, this consequence results in a narrower bandwidth, which is undesirable for the device’s performance. By taking all of these factors into account, we selected optimal values of R = 7000 μm and θ = 3.7 degrees to maintain low EL and large operating bandwidth, with a tapping ratio of 4% for the device. Figure 4c displays the simulation results concerning the entirety of the coupling region, along with the normalized electric field distribution on the cross-sections at its endpoints (indicated by white dashed lines). This visualization enables clear observation of the power coupling, revealing that a minor fraction is transferred into the tap waveguide, with the main path effectively preserving the majority of the power.

The relationship between S (blue line) and EL (red line) as a function of G is aptly depicted in Figure 5a. It is evident that adjusting G provides a way to regulate the device’s tapping ratio. However, it must be kept in mind that reducing G would also elevate the level of loss. This is due to the fact that a narrower gap results in more energy coupling into the tap waveguide, leading to increased loss as a result of mode mismatch and waveguide bending in the curved section. Additionally, a smaller G, while enhancing coupling strength, amplifies the wavelength dependence of the device [30]. To achieve a desired S of 4% while considering these factors, we set G to 2 μm. Figure 5b presents the simulated performance of our proposed design, indicating a maximum deviation of S from its value at 1550 nm of 0.6272% across the wavelength range of 1470 nm to 1630 nm, and the largest EL is at −0.0977 dB. These results demonstrate that our designed DC offers low-loss characteristics and a wide operational bandwidth, making it appropriate for wavelength-insensitive signal power tapping and monitoring applications.

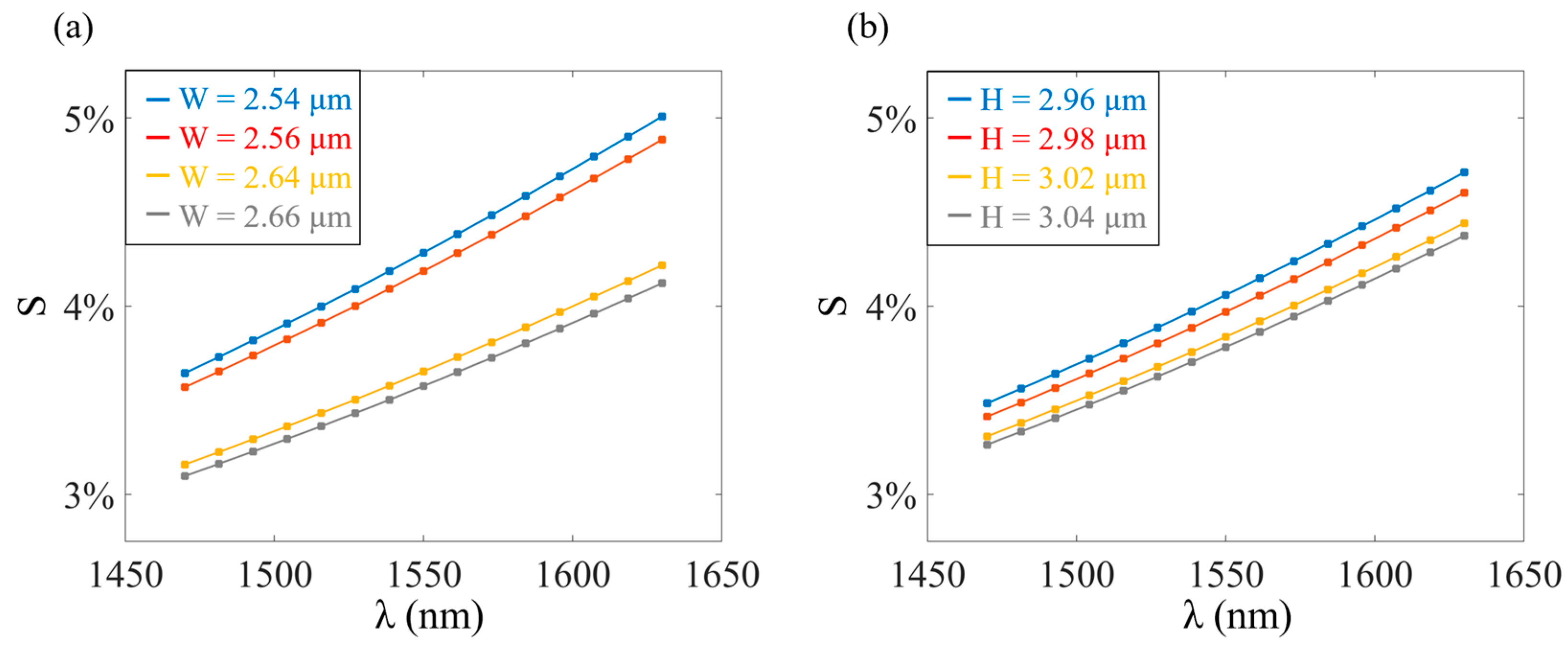

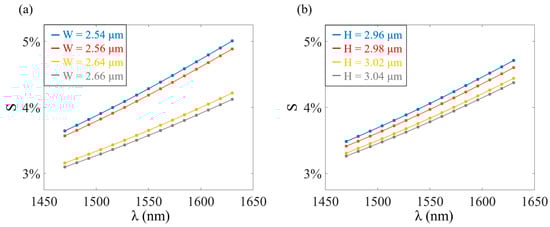

We proceeded to investigate the proposed DC’s tolerance to fabrication errors arising from deviations in waveguide geometry, which most often impact the width W and height H of the rib waveguides as specified in Figure 1b. The calculated variations in S as a function of wavelength for different waveguide geometry deviations are shown in Figure 6. In Figure 6a, various Ws ranging from 2.54 μm to 2.66 μm are introduced, with a maximum deviation of ±0.06 μm. The changes in S resulting from these waveguide profiles remained within ±1% over a wide wavelength range from 1470 nm to 1630 nm. A notable point is that the device’s wavelength sensitivity increases with decreasing W, since narrow waveguides have a higher sensitivity of the effective refractive index of the fundamental mode to the wavelength. In Figure 6b, we introduced fabrication errors of up to ±0.04 μm in the waveguide height and observed changes in S ranging from −0.73% to +0.71% across the entire optical band. These results indicate the excellent fabrication reliability of our proposed DC.

3. Experimental Results and Discussion

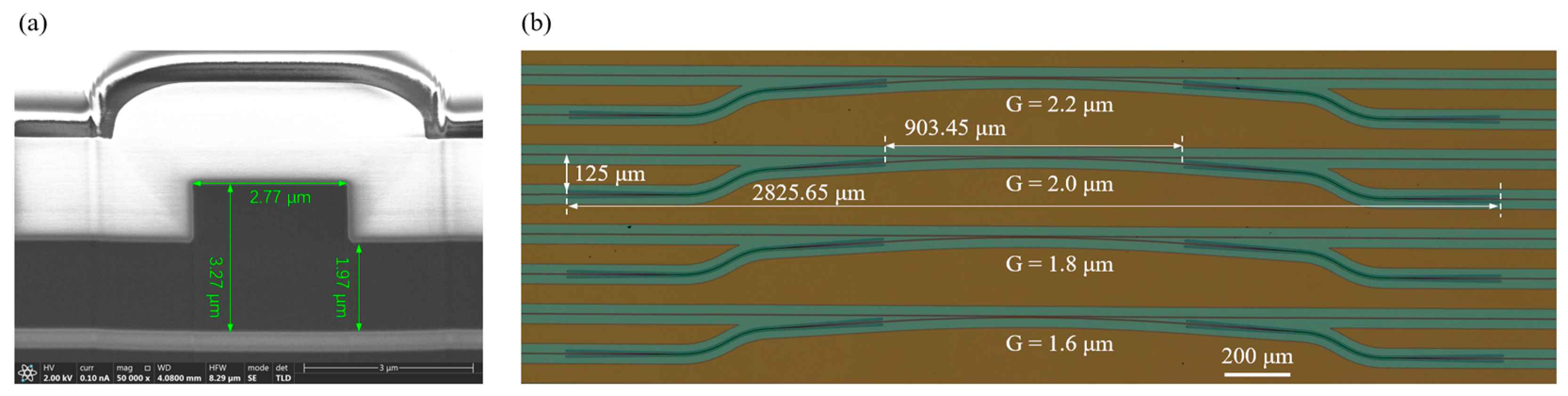

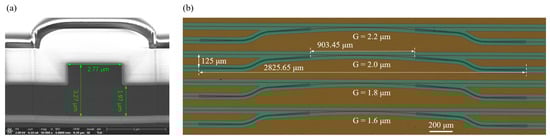

Several DCs with different values of G were fabricated on an SOI wafer comprising a 3 µm top silicon layer and a 0.4 µm buried silicon dioxide (BOX) layer, and reference straight waveguides were also fabricated on the same wafer. The fabrication process involved deep-ultraviolet (DUV) photolithography followed by dry etching. To minimize transmission loss, the etching process was optimized to smoothen the sidewalls of the waveguide. Thereafter, a cladding layer was deposited using plasma-enhanced chemical vapor deposition (PECVD), with a 2.2 µm SiO₂ layer and a 0.7 µm silicon nitride layer. Further details about the fabrication process can be found in [31]. The scanning electron microscope (SEM) image in Figure 7a shows the desired sidewall steepness of waveguides. However, it should be noted that the rib waveguide had a profile of W = 2.77 µm, H = 3.27 µm and h = 1.97 µm, reflecting errors of approximately 0.17 µm, 0.27 µm and 0.17 µm for waveguide width, height, and slab thickness, respectively. The impact of these errors on the splitting ratio of the device will be discussed later. The top-view optical microscope image of the devices with a range of G from 2.2 µm to 1.6 µm is displayed in Figure 7b. The length of the coupling region for all devices is 903.45 μm, with an overall footprint of 125 × 2825.65 μm².

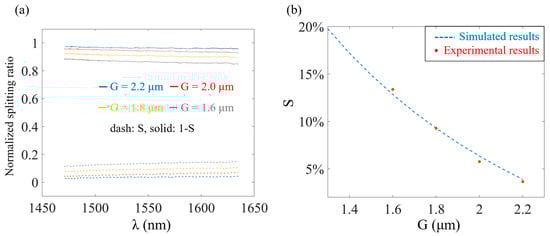

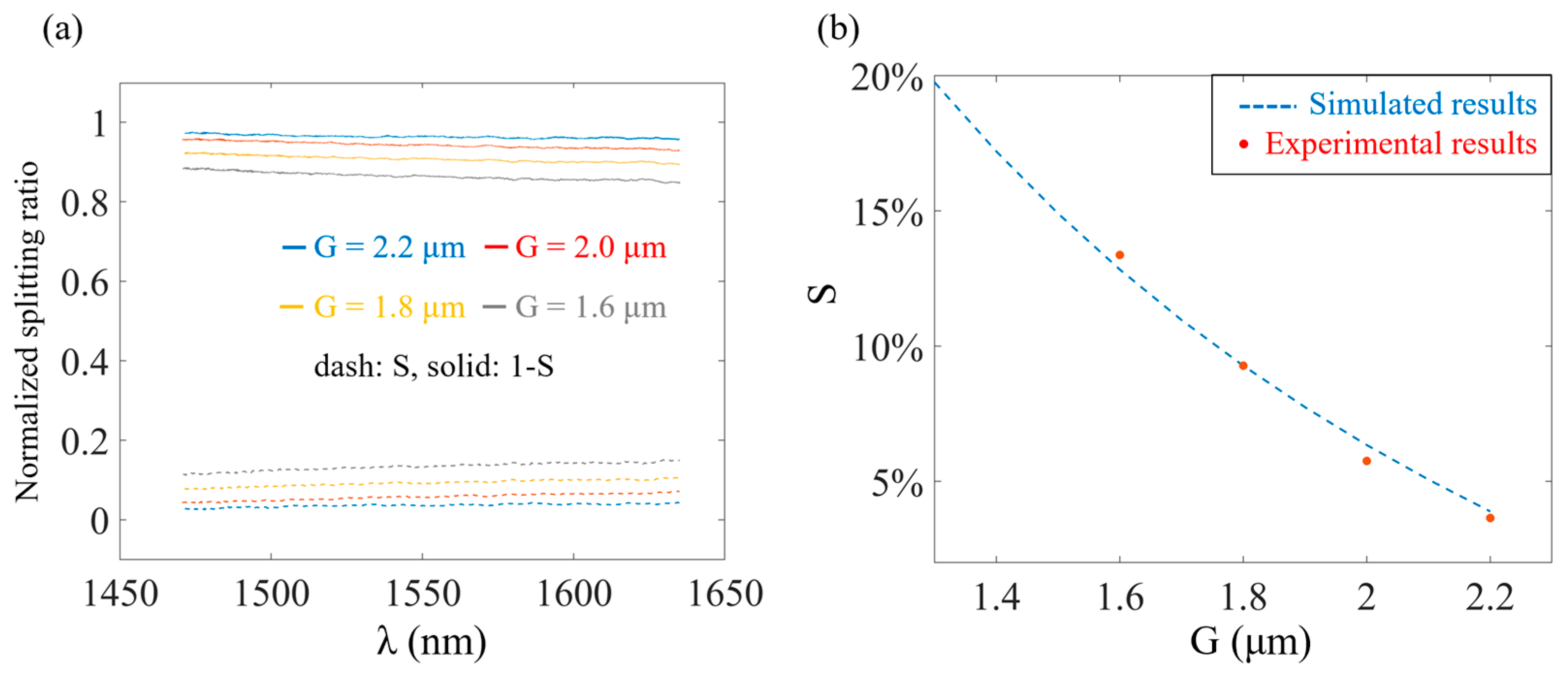

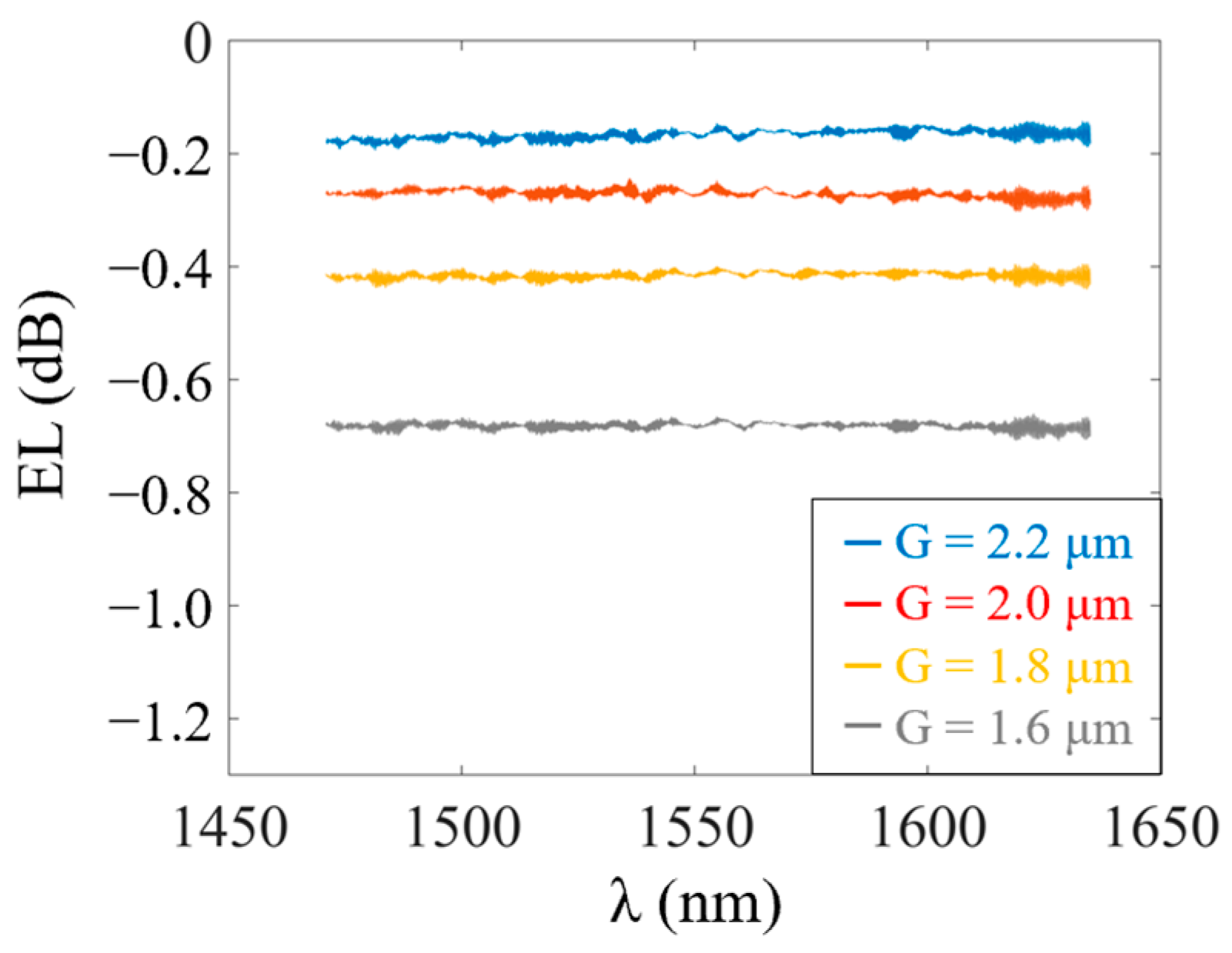

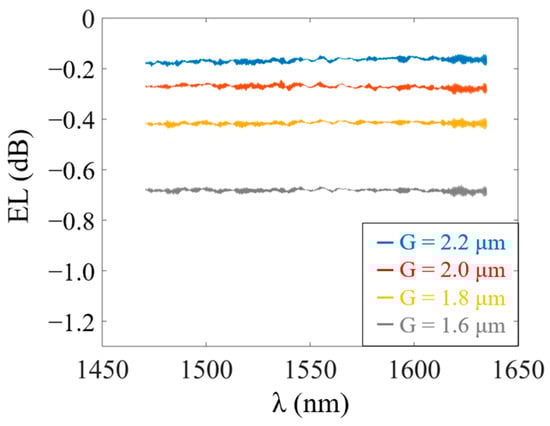

The signal originating from the tunable laser source (Keysight 8164B) was edge-coupled into the DC using a lensed fiber with a spot size of 2.5 ± 0.25 µm. Subsequently, the output signal was captured through another lensed fiber and measured using a power meter (Keysight N7744A). It is noteworthy that each interface between the fiber and waveguide introduces a coupling loss of approximately −1.53 dB. Prior to entering the DC, the signal was passed through a polarization synthesizer (Keysight N7786B) to selectively excite only the TE mode. The final transmission results were then normalized using the reference waveguide’s outcomes. In Figure 8a, normalized splitting ratios from 1470 nm to 1630 nm for different gap sizes are demonstrated. For the design focused on obtaining a 96%/4% splitting ratio, a tapping ratio of 5.753% at 1550 nm (red dash line) was attained, displaying a variation of −1.373% to 1.433% throughout the entire spectrum. Similarly, other designs with distinct gap sizes exhibit minor S deviations concerning wavelength, indicating broadband features. It should be noted that all devices yield higher S than the results calculated at 1550 nm illustrated in Figure 5a. Such difference can be attributed to the larger dimensions of the fabricated waveguides in W and h compared to the initial design. This leads to a narrower gap and a stronger coupling strength of the DC, resulting in an increased coupling ratio. To test this hypothesis, we updated the simulation model’s geometric features according to the SEM figure presented in Figure 7a. The findings from subsequent simulations, presented in Figure 8b, showed good alignment between the recalculated results (blue dashed line) and the experimental results (red dots), presenting evidence that fabricated errors can be quantified for the tapping ratio. The fabrication errors in W and h also contribute to the rise in device losses, driven by the corresponding increase in the coupling ratio. Compared to the main waveguide, the curved shape of the tap waveguide leads to higher radiation losses. Additionally, the mode overlap loss occurs in the tap path due to the mode mismatch between straight and curved waveguides. The higher coupling ratio signifies a greater amount of power coupled into the tap waveguide. However, this power experiences higher losses in comparison to the main waveguide, leading to an elevated level of excess loss in the device. Experimental results for EL are provided in Figure 9, which displays measured values of −0.17 dB, −0.27 dB, −0.42 dB, and −0.68 dB at 1550 nm, respectively, when the gap size reduces from 2.2 µm to 1.6 µm. It is worth noting that in comparison to Figure 5a, the experimental ELs of the four devices exhibit varying degrees of increase. These increments are partly due to deviations in waveguide dimensions and partly due to sidewall roughness, which is not captured in the EL simulation results. Nonetheless, since all waveguides on the same chip possess similar sidewall roughness, comparing the relative relationship of ELs for different gap sizes remains meaningful. Figure 9 verifies our previous prediction that as the gap narrows, the corresponding excess loss increases. In the forthcoming fabrication process, we will employ finer masks to achieve waveguides with precise widths and enhance the photolithography process to improve the quality of the etching profile. Additionally, we will opt for more conservative values for the bending radius in order to minimize radiation losses and mode mismatch within the tap waveguide, effectively mitigating the excess loss of the design.

Despite significant fabrication variations, our proposed DC maintains notable wavelength stability and low-loss characteristics, making it highly suitable for applications such as SiPh transmitter chips that require signal power tapping and monitoring.

Table 1. Comparison of performance with reported power splitters and this work.

Reference	Type	Wavelength Range (nm)	Maximum Variation	EL (dB)
[32]	composite-sections DC	1530~1560	2%	N/A
[33]	DC using phase control	1518~1593	1.45%	−1
[34]	DC using SWGs	1500~1600	3%	N/A
[35] 1	Adiabatic SWG DC	1400~1650	4.7%	−0.24
This work	Arc-shaped DC	1470~1630	1.433%	−0.27

¹ The data in this reference are simulation results.

provides a summary of the comparison between our demonstrated DC and state-of-the-art broadband power splitters. Compared to other devices, our design exhibits a wider bandwidth covering the S, C, and L bands, with significantly low excess loss. The outstanding performance can be attributed to two key factors—firstly, the curved-straight waveguide coupling region design, and secondly, the inherent advantages of the 3 µm SOI waveguide platform, including low wavelength sensitivity, low losses, and high fabrication tolerance. In the future, these advantages could be further exploited to produce DCs with arbitrary splitting ratios, promoting their application in large-scale SiPh integrated systems.

4. Conclusions

We have designed and experimentally demonstrated a broadband DC with low-loss characteristics based on the 3 µm SOI waveguide platform for signal power tapping. The coupling region of the DC consists of a straight waveguide and an arc-shaped waveguide that reduce the effective coupling length while maintaining efficient power splitting for tapping. The shortened coupling length and the wavelength insensitivity of the 3 µm waveguide ensure stable tapping ratios over a wide wavelength range. Experimental results demonstrate that for our design with a target splitting ratio of 96%/4%, the tap ratio variation remains within −1.373% to 1.433% from 1470 nm to 1630 nm. Additionally, the device features low excess loss of only −0.27 dB at 1550 nm. Various designs with different gap sizes were fabricated, tested, and matched well with our simulation results. Moreover, the calculated results illustrate that the proposed device exhibits significant robustness against fabrication imperfections. Given the recent advancements in SiPh industrialization, the demonstrated low-loss DC with wide bandwidth capabilities can be extensively applied in on-chip power sensing, among other areas.
