Influence of Interfacial Force Models and Population Balance Models on the k_La Value in Stirred Bioreactors

Abstract

Optimal oxygen supply is vitally important for the cultivation of aerobically growing cells, as it has a direct influence on cell growth and product formation. A process engineering parameter directly related to oxygen supply is the volumetric oxygen mass transfer coefficient $k_{L}a$. It is the influences on $k_{L}a$ and computing time of different interfacial force and population balance models in stirred bioreactors that have been evaluated in this study. For this investigation, the OpenFOAM 7 open-source toolbox was utilized. Firstly, the Euler–Euler model with a constant bubble diameter was applied to a 2$\mathrm{L}$ scale bioreactor to statistically examine the influence of different interfacial models on the $k_{L}a$ value. It was shown that the $k_L$ model and the constant bubble diameter have the greatest influence on the calculated $k_{L}a$ value. To eliminate the problem of a constant bubble diameter and to take effects such as bubble breakup and coalescence into account, the Euler–Euler model was coupled with population balance models (PBM). For this purpose, four coalescence and five bubble breakup models were examined. Ultimately, it was established that, for all of the models tested, coupling computational fluid dynamics (CFD) with PBM resulted in better agreement with the experimental data than using the Euler–Euler model. However, it should be noted that the higher accuracy of the PBM coupled models requires twice the computation time.

1. Introduction

Due to the vast potential of biopharmaceuticals, the market is growing rapidly [1]. To produce biopharmaceuticals, either cell cultures or microorganisms are used as production hosts, which, among other things, has an impact on bioreactor design and oxygen consumption [2]. As oxygen supply has a significant influence on cell growth and product yield, manufacturers are very interested in establishing how to achieve an optimal oxygen supply for specific organisms as early as the process development stage. The most commonly used bioreactors in both process development and commercial production are stirred bioreactors with forced aeration. Both computational fluid dynamics (CFD) and classical process engineering approaches are used for optimization and scaling-up of stirred bioreactor processes [3,4,5,6]. CFD is based on the laws of conservation of energy, mass, and momentum. Multiphase systems, such as aerated bioreactors, pose a particular challenge in terms of modeling, but they can be modeled with different degrees of abstraction. A promising approach to modeling polydisperse systems is to couple CFD with population balance models (PBM) [7]. This allows size distributions of gas bubbles that occur due to break-up and coalescence to be modeled. The polydisperse approach makes it possible to model a realistic oxygen supply in bioreactors. A process parameter that describes the efficiency of the oxygen supply in a bioreactor is the volumetric oxygen mass transfer coefficient $k_{L}a$.

1.1. Oxygen Demand of Cells

Oxygen plays a central role in aerobic bioprocesses, as it is constantly required by the cells for growth, maintenance, and other metabolic processes, such as product synthesis [8]. For example, Losen et al. [9] point out that in Escherichia coli, the expression of more than 200 genes depends on oxygen availability. The amount of oxygen required is characteristic for each organism and can be described by the specific oxygen uptake rate $q_{O_2}$. An overview of different specific oxygen uptake rates can be found in [7,10]. Garcia-Ochoa and Gómez were able to show that this rate can change in the course of cultivation, nevertheless, it is typically assumed to be constant [11]. The specific oxygen consumption rate is influenced by different factors, such as cultivation temperature, medium, carbon source, pH value, and fluid mechanical stress [12,13,14,15]. To achieve targeted cell densities and product titers, sufficient oxygen must be available. However, the addition of arbitrary amounts of air or oxygen should be avoided, as the bursting of bubbles causes fluid mechanical stress, which can irreversibly damage the cells [16]. Additionally, increased sparging may also influence the pH value in buffered cell culture media, as it strips the solved carbon dioxide. Oxygen input can be achieved using various techniques that include surface gassing, hollow stirrer gassing, forced gassing, as well as external, bubble-free gassing [17,18]. Surface gassing is only used in cell culture technologies with high surface-to-volume ratios (e.g., spinner or shake flasks) or in wave-mixed bioreactors [19,20]. The most common method is forced gassing through a sparger. To be able to vary gas bubble size distribution and the point of entry, a variety of spargers exist, which are described in [21].

To avoid oxygen limitation, the amount of oxygen introduced into a reactor must be greater or equal to the oxygen that is consumed by the cells [22]. The oxygen supply capacity of a bioreactor can be described by the oxygen transfer rate (OTR), which is the product of the $k_{L}a$ value and the difference between the concentrations of dissolved oxygen at the gas–liquid interphase $c_{O_2}^{*}$ and the liquid phase $c_{O_2}$ (Equation (1)). The OTR depends on the reactor geometry, the operating parameters, and the physical properties of the fluid [23,24]. The volumetric oxygen mass transfer coefficient $k_{L}a$ is the product of the liquid-side mass transfer coefficient $k_L$ and the specific interfacial area a. The specific interfacial area corresponds to the surface area of all gas bubbles and the free liquid surface per volume and can be calculated via the relative gas fraction $\alpha$ and the Sauter mean diameter $d_{32}$ (Equation (2)). A large number of empirical and dimensionless formulae exist to describe the individual factors $k_L$, a and $k_{L}a$[23,25,26,27,28]. On the biological side, the oxygen uptake rate (OUR) can be calculated as the product of cell concentration $c_x$ and the specific oxygen uptake rate $q_{O_2}$ (Equation (3)). By combining OTR and OUR calculations, a sufficient oxygen supply can be ensured.

$$\mathrm{OTR}=k_{L}a(c_{O_2}^{*}-c_{O_2})$$

(1)

$$a=\frac{A_g}{V}=\frac{6\alpha }{d_{32}}$$

(2)

$$\mathrm{OUR}=c_x{q}_{O_2}$$

(3)

1.2. Breakup and Coalescence

In forced aeration, gas bubbles rise from the sparger through the medium to the liquid surface. The behavior of gas bubbles in the often turbulent flows is difficult to describe precisely, as it is a very complex phenomenon. Gas bubbles are deformable, which affects their specific surface area, they can break apart into two or more gas bubbles, or they can coalesce [29]. Four different mechanisms of gas bubble breakage (turbulent fluctuations and collisions, viscous shear stress, shearing-off processes and interfacial instability) are described in the literature [7,30]. Liao and Lucas [30] provide an overview of different breakup frequency models and daughter size distribution (DSD) models. In addition to bubble–liquid interaction, bubble-bubble interaction is also involved in the process of coalescence [31]. Three different theories describing the coalescence process are mentioned in the literature, with Lehr’s theory being the most recent [32,33,34]. An overview of different coalescence models can be found in [35].

1.3. Population Balance Modeling

PBM, which is based on the population balance equation (PBE), can be used to describe the temporal and spatial development of a population [36,37,38]. As particles can be described as individuals within a population, PBM is suitable for modeling gas bubble size distributions in polydisperse gas-liquid systems, such as aerated bioreactors [39,40]. The PBE describes the change in the number density function (NDF) of one or more inner coordinates. A distinction can be made between inner and outer coordinates, with space and time considered as outer coordinates and the characteristics of an individual in the population as inner coordinates. However, due to exponentially increasing computational costs, typically only one inner coordinate is considered. In polydisperse gas-liquid systems, this is the gas bubble diameter [41]. Different PBEs exist, which typically include accumulation, convection, and diffusion terms for each spatial coordinate, as well as a source term that accounts for the birth and death of individuals (Equation (4)) [42,43,44]. The source term for gas bubble size distribution is calculated using the following four individual terms: Death by coalescence $D_{\mathrm{coal}}$, Birth by coalescence $B_{\mathrm{coal}}$, Death by breakup $D_{\mathrm{br}}$, Birth by breakup $B_{\mathrm{br}}$ (Equations (5)–(8)). The differential equation and the four source terms cannot be determined directly and have to be closed using the coalescence and breakup model described in Section 1.2 [45]. Different approaches can be used to solve the PBE, and the most frequently used algorithms can be found in [39,46]. These approaches can then be coupled with CFD [43]. The most commonly used method is the method of moments (MOM) and its various modifications. The fixed pivot method, which belongs to the class method, is also frequently used and is the standard method in OpenFOAM 7. In the class method, the continuous NDF is approximated by a discrete distribution. The number of classes has a direct influence on accuracy and must be defined manually, just like the class size. The discretised function of the NDF for breakup and coalescence can be represented and solved according to Equations (9) and (10) [47].

$$\frac{\partial n(V_b,t)}{\partial t}+\nabla \left[\overrightarrow{v_b}n(V_b,t)\right]=B_{\mathrm{coal}}-D_{\mathrm{coal}}+B_{\mathrm{br}}-D_{\mathrm{br}}$$

(4)

$$B_{\mathrm{coal}}=\frac{1}{2}{\int }_0^{V_b}n(V_b-V_b^{\prime },t)n(V_b^{\prime },t)a(V_b-V_b^{\prime },V_b)\mathrm{d}{V}_b^{\prime }$$

(5)

$$D_{\mathrm{coal}}={\int }_0^{inf}n(V_b,t)n(V_b^{\prime },t)a(V_b,V_b^{\prime })\mathrm{d}{V}_b^{\prime }$$

(6)

$$B_{\mathrm{br}}={\int }_0^{inf}\beta (V_b,V_b^{\prime })\Gamma \left(V_b^{\prime }\right)n(V_b^{\prime },t)\mathrm{d}{V}_b^{\prime }$$

(7)

$$D_{\mathrm{br}}=\Gamma \left(V_b\right)n(V_b,t)$$

(8)

$$\begin{array}{c}\hfill \frac{\mathrm{d}{N}_i\left(t\right)}{\mathrm{d}t}=\sum _{\begin{array}{c}j,k\\ x_{i-1}\le (x_j+x_k)\le x_{i+1}\end{array}}^{j\ge k}\left(1-\frac{1}{2}{\delta }_{j,k}\right)\eta Q_{j,k}{N}_j\left(t\right)N_k\left(t\right)-N_i\left(t\right)\sum _{k=1}^M{Q}_{i,k}{N}_k\left(t\right)\\ \hfill +\sum _{k=i}^M{n}_{i,k}{\Gamma }_k{N}_k\left(t\right)-{\Gamma }_i{N}_i\left(t\right)\end{array}$$

(9)

$$\eta =\left\{\begin{array}{cc}\frac{x_{i+1}-V_b}{x_{i+1}-x_i},\hfill & \mathrm{if}{x}_i\le V_b\le x_{i+1}\hfill \\ \frac{V_b-x_{i-1}}{x_i-x_{i-1}},\hfill & \mathrm{otherwise}\hfill \end{array}\right.$$

(10)

1.4. Computational Fluid Dynamics

Models and methods used for continuous and disperse multiphase systems and their numerical solution are summarised in [7]. The segment, marker-and-cell, level set, and volume of fluid (VOF) methods are suitable for surface aerated bioreactors, although only the latter is of practical relevance. To solve the balance equations, a type of mixed fluid is assumed for this method.

For dispersing systems, the Euler–Euler and Euler–Lagrange methods are widely used [48]. In the Euler–Euler method, a mixed fluid is no longer used. Instead the balance equations are solved individually for each fluid and are coupled via the phase fraction (Equation (11)) [3]. This implies that the equations have to be solved iteratively for the different fluids. The continuity equations without phase transition for two fluids correspond to Equation (12). If the phase transition is to be taken into account, the volume-related mass flow would have to be considered on the right-hand side of the equation. The momentum equation for two fluids without phase transition is shown in Equation (13) [49]. $F_I$ corresponds to the sum of the volume-related interfacial forces [50]. The forces acting from the gas phase on the liquid phase are equal to the forces acting from the liquid phase on the gas phase (with reversed sign).

Momentum transfer is mainly caused by drag force (Equation (14)) [51,52,53,54]. Other forces are lift force [55,56] (Equation (15)), virtual mass force [52,56,57,58] (Equation (16)), wall lubrication force (Equation (17)) [59,60,61], turbulent dispersion force (Equation (18)) [62,63,64,65,66], basset force [67] and Brownian force [68]. A detailed description of these interfacial forces can be found in [7].

$$\sum {\alpha }_i=1\forall {\alpha }_i,\left\{{\alpha }_i\right|0\le {\alpha }_i\le 1\}$$

(11)

$$\frac{\partial \left({\alpha }_i{\rho }_i\right)}{\partial t}+\nabla \left({\alpha }_i{\rho }_i\overrightarrow{v_i}\right)=0$$

(12)

$$\frac{\partial \left({\alpha }_i{\rho }_i\overrightarrow{v_i}\right)}{\partial t}+\nabla \left({\alpha }_i{\rho }_i\overrightarrow{v_i}\overrightarrow{v_i}\right)=-\nabla \left({\alpha }_i{\tau }_i\right)-{\alpha }_i\nabla p+{\alpha }_i{\rho }_{i}g+F_{I,i}$$

(13)

$${\overrightarrow{F}}_D=C_D\frac{1}{2}{\rho }_l\frac{d_b^2\pi }{4}(\Delta \overrightarrow{v})|\Delta \overrightarrow{v}|$$

(14)

$${\overrightarrow{F}}_L=C_L{\alpha }_g{\rho }_l\Delta \overrightarrow{v}\times \left(\nabla \times {\overrightarrow{v}}_l\right)$$

(15)

$${\overrightarrow{F}}_{VM}=-{\alpha }_g{\rho }_l{C}_{VM}\left(\frac{\partial }{\partial \tau }\Delta \overrightarrow{v}+({\overrightarrow{v}}_g·\nabla )\Delta \overrightarrow{v}\right)$$

(16)

$${\overrightarrow{F}}_{WL}=-C_{WL}{r}_G{\rho }_L{|{\overrightarrow{v}}_{rel}-\left({\overrightarrow{v}}_{rel}{\overrightarrow{n}}_W\right){\overrightarrow{n}}_W|}^2{\overrightarrow{n}}_W$$

(17)

$${\overrightarrow{F}}_{TD}=-C_{TD}{\rho }_l{k}_l\nabla \alpha$$

(18)

2. Materials and Methods

The laboratory-scale case study experiments were performed using a 3 $\mathrm{L}$ HyPerforma^TM glass bioreactor with 2 $\mathrm{L}$ working volume from Thermo Fisher Scientific, San José, USA (Figure 1). A pitched four-blade stirrer with a 45 ${}^{\circ }$ angle (diameter 50 $\mathrm{m}$$\mathrm{m}$) was used together with an open pipe sparger (inner diameter 6 $\mathrm{m}$$\mathrm{m}$). The Euler–Euler model with and without PBM was applied for the CFD simulations. Validation of CFD simulations was performed using $k_{L}a$ measurements.

2.1. CFD Simulations

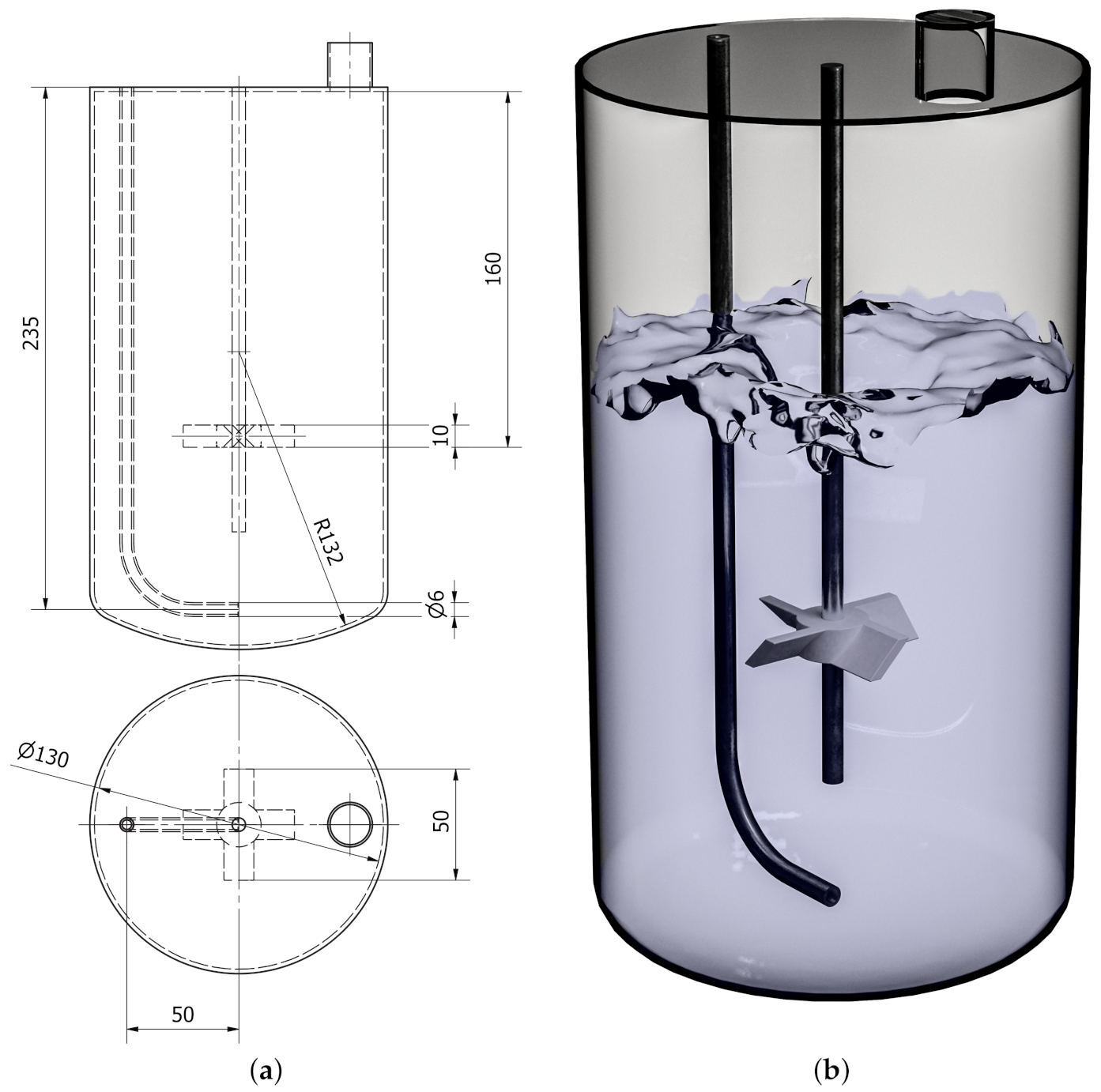

The geometry used in this study was drawn with Autodesk^® Inventor^® Professional 2020.2 (Autodesk, Inc., San Rafael, USA) [69]. Mesh generation was carried out in two steps, both of which was performed using OpenFOAM 7 [70]. The background mesh was created with the blockMesh application. Emphasis was placed on creating regular hexahedrons and thus a mesh that is as orthogonal as possible. Using the surfaceFeatures application, the required features were extracted from the respective geometry files that are used to generate the mesh using the octree algorithm (snappyHexMesh). The mesh quality was checked using the checkMesh application, with higher mesh quality requirements than the default OpenFOAM 7 settings. The reason for the higher mesh quality is that the two solvers used, twoPhaseEulerFoam and reactingTwoPhaseEulerFoam, are prone to poor mesh quality. After successfully checking the mesh quality, the mesh was renumbered to reduce the bandwidth (renumberMesh). A special feature of stirred bioreactors is that part of the geometry rotates. To consider the stirrer movement, the moving reference frame (MRF) approach was used for all of the simulations. In the MRF zone, the conservation equations were solved in a rotating reference frame involving Coriolis and centrifugal forces. For all two-phase simulations, the PIMPLE algorithm for pressure-velocity coupling was used [71]. For the transient calculation, an adaptive time step size was used, with a maximum Courant–Friedrichs–Lewy-number (CFL-number) of $0.5$ in each case [72]. The Gauss linear method was generally used for discretization. For all simulations in the turbulent range, turbulence was modeled using the Reynolds-averaged Navier–Stokes (RANS) approach. The standard k-$\epsilon$ model of Launder and Spalding [73], which is the most commonly used in the industry, was applied (Equations (19) and (20)) [74]. The physical properties listed in

Table 1. Physical properties for all CFD simulations based on [75].

Water
Property	Value
Density ${\rho }_w$	$997.05$$\mathrm{k}\mathrm{g}$ m−3
Kinematic viscosity ${\nu }_w$	0.8927 · 10−6 m2 s−1
Molecular weight $m_w$	18 $\mathrm{u}$
Prandtl number ${\mathrm{Pr}}_w$	$6.13$
Rheology model	Newtonian fluid
Specific heat capacity $c_{p_w}$	4182 J kg−1 K−1
Temperature $T_w$	$298.15$$\mathrm{K}$
Air
Property	Value
Density ${\rho }_a$	1.1839 kg m−3
Kinematic viscosity ${\nu }_a$	1.579 · 10−9 m2 s−1
Molecular weight $m_a$	$28.9$$\mathrm{u}$
Prandtl number ${\mathrm{Pr}}_a$	$0.707$
Rheology model	Newtonian fluid
Specific heat capacity $c_{p_a}$	1007 J kg−1 K−1
Temperature $T_a$	$298.15$$\mathrm{K}$
General
Property	Value
Atmospheric pressure $p_{atm}$	$101.325$$\mathrm{Pa}$
Gravitational acceleration g	$-9.81$ m s−2
Surface tension ${\sigma }_{w,a}$	$0.071968$ N m−1

were taken for all of the simulations. The boundary conditions are listed in the Appendix A

Table A1. Boundary conditions.

Field	Fixed Walls (Vessel, Sparger)	Moving Walls (Stirrer, Shaft)	Inlet	Outlet
alpha.air	zeroGradient	zeroGradient	fixedValue (uniform 1)	inletOutlet
alphat.${}^{*}$	compressible:: alphatWallFunction	compressible:: alphatWallFunction	calculated	calculated
epsilon ${}^{*}$	epsilonWall-Function	epsilonWall-Function	fixedValue (uniform 0.00015)	zeroGradient
k ${}^{*}$	kqRWallFunction	kqRWallFunction	fixedValue (uniform 3.75 · 10−5)	zeroGradient
nut.${}^{*}$	nutkWallFunction	nutkWallFunction	fixedValue (uniform 1 · 10−8)	inletOutlet
p	calculated	calculated	calculated	calculated
p_rgh	fixedFluxPressure (uniform 1 · 105)	fixedFluxPressure (uniform 1 · 105)	fixedFlux-Pressure	prghPressure
Theta	zeroGradient	zeroGradient	fixedValue (uniform 1.0 · 10−7)	inletOutlet
T.${}^{*}$	zeroGradient	zeroGradient	fixedValue (uniform 298.15)	inletOutlet
U.air	fixedValue	movingWall-Velocity	fixedValue uniform (x 0 0)	pressureInlet-OutletVelocity
U.water	fixedValue	movingWall-Velocity	fixedValue uniform (0 0 0)	pressureInlet-OutletVelocity

x ${}^{*}$ for both air and water. In U.air x represents the gas input velocity.

.

To scrutinize the interfacial force models, the standard Euler–Euler model was selected, with the twoPhaseEulerFoam The OpenFOAM solver being utilized for this purpose. The interfacial force models examined are listed in

Table 2. Examined interfacial force, breakup and coalescence models.

Interfacial Force Models
Interfacial Force Coefficient	Model
Drag	Schiller and Naumann [76] Schiller and Naumann with swarm correction [76] Ergun [77] Ishii and Zuber [78] Tomiyama correlated [79] Gidaspow, Ergun, Wen, and Yu [80]
Lift	Tomiyama [81] Legendre and Magnaudet [82] Constant lift coefficient $C_L=0.5$ Neglecting the lift force $C_L=0$
Virtual mass	Lamb [83] Constant virtual mass coefficient $C_{VM}=0.5$ Neglecting the virtual mass force $C_{VM}=0$
Turbulent dispersion	Gosman [64] Neglecting the turbulent dispersion force $C_{TD}=0$
Breakup and coalescence models
Phenomenon	Model
Breakup	Exponential kernel Laakkonen, Alopaeus, and Aittamaa with DSD [84] Laakkonen, Alopaeus, and Aittamaa without DSD [84] Lehr, Millies, and Mewes [32] Luo and Svendsen [85]
Coalescence	Coulaloglou and Tavlarides [86] Luo [87] Prince and Blanch [88] Lehr, Millies, and Mewes [32]

.

The constant bubble diameter, with an aspect ratio of 1, was varied for the different investigations. For the coupling of CFD with PBM, the reactingTwoPhaseEulerFoam solver was used, and the class method applied. The number of classes and the associated initial gas bubble size distribution were varied for the studies. The coalescence and breakup models used and compared are listed in Table 2.

$$\frac{\partial \left({\alpha }_i{\rho }_{i}k\right)}{\partial t}+\nabla \left({\alpha }_i{\rho }_i\overrightarrow{v_i}k\right)=-\nabla \left({\alpha }_i\frac{{\mu }_{t,i}}{{\sigma }_k}\nabla k\right)+{\alpha }_i({\tau }_i:\nabla \overrightarrow{v_i}-{\rho }_i\epsilon )$$

(19)

$$\frac{\partial \left({\alpha }_i{\rho }_i\epsilon \right)}{\partial t}+\nabla \left({\alpha }_i{\rho }_i\overrightarrow{v_i}\epsilon \right)=-\nabla \left({\alpha }_i\frac{{\mu }_{t,i}}{{\sigma }_{\epsilon }}\nabla \epsilon \right)+{\alpha }_i\left(C_{\epsilon ,1}\frac{\epsilon }{k}({\tau }_i:\nabla \overrightarrow{v_i})-C_{\epsilon ,2}{\rho }_i\frac{{\epsilon }^2}{k}\right)$$

(20)

The high-performance computing (HPC) system at the ZHAW was used to parallelize the calculations on up to 32 physical cores. The HPC system consists of a total of 880 physical central processing units (CPU) with a total of $4.75$ $\mathrm{T}$$\mathrm{B}$ RAM (HPE ProLiant XL230k Gen. 10 HPC servers with Xeon-Gold 6142). An enhanced data rate InfiniBand^TM interface is available to manage the high data transfer for parallel computing. The interface allows a data throughput of up to 100 $\mathrm{G}$$\mathrm{b}$ s⁻¹ and a latency of $0.61$ $\mathsf{\mu }$$\mathrm{s}$. A Linux CentOS 7 operating system (release 7.5.1804) was installed on the cluster. All fluid dynamics simulations were performed using the OpenFOAM 7 open-source C++ toolbox (OpenFOAM Foundation version). The calculation on the HPC system used, Open MPI 3.1.3 [89] (The Open MPI Project), as recommended by the OpenFOAM foundation for parallelization. Slurm 17.11.8 (SchedMD LLC) was used to manage the jobs on the HPC system [90]. Post-processing of the simulations was performed with Paraview 5.4.1 [91] and Python^® 3.8.0 [92].

2.2. Richardson Extrapolation

A widely used method to estimate the discretization error of the mesh is the Richardson extrapolation [93,94,95]. Simulations are performed with at least three meshes of different refinements that are already so fine that asymptotic convergence can be assumed. Asymptotic convergence can be assumed if the pointwise error for each grid cell j can be described according to Equations (21) and (22) [96], where $\kappa$ is a cell-specific constant. The discretisation error ${\epsilon }_D$ for the individual meshes can then be estimated with Equations (23)–(27), where the three meshes with descending mesh numbers correspond to the indices 1,2 and 3. It should be noted that for the mesh study, the CFL-number was kept constant for all meshes [3], with CFL-numbers of $0.5$ chosen for all of the meshes. The goal of the mesh study was to select a computational mesh that causes as small a discretization error as possible and results in economic computing time (as computing time increases exponentially as mesh size increases).

$$E_j\left(x\right)=k_j(x,h_j)h_j^p$$

(21)

$$k_j(x,h_j)={\kappa }_j+\mathcal{O}\left(h_j\right)$$

(22)

$$r_{1,2}={\left(\frac{N_1}{N_2}\right)}^{1/D}$$

(23)

$$p=\frac{\left|\ln \left(\left|\frac{f_3-f_2}{f_2-f_1}\right|\right)+\ln \left(\frac{r_{1,2}^p-1·\mathrm{sgn}\left(\frac{f_3-f_2}{f_2-f_1}\right)}{r_{2,3}^p-1·\mathrm{sgn}\left(\frac{f_3-f_2}{f_2-f_1}\right)}\right)\right|}{\ln \left(r_{1,2}\right)}$$

(24)

$${\epsilon }_{D,1,2}\approx \frac{\left|\frac{f_1-f_2}{f_1}\right|}{r_{1,2}^p-1}$$

(25)

$${\epsilon }_{D,2,3}\approx \frac{\left|\frac{f_2-f_3}{f_2}\right|}{r_{2,3}^p-1}$$

(26)

$${\epsilon }_{D,3,2}\approx \frac{\left|\frac{f_2-f_3}{f_2}\right|r_{2,3}^p}{r_{2,3}^p-1}$$

(27)

2.3. Statistical Analysis

To determine whether an interface, a coalescent, or a breakup model has a statistically significant influence on the calculation of the $k_{L}a$ value, an analysis of variance (ANOVA) was performed. To perform a one-way ANOVA, both the normal distribution of the residuals and homoscedasticity must be ensured [97]. Using Shapiro–Wilk tests and quantile-quantile plots, the residuals were tested for a normal distribution ($\alpha =0.05$) [98]. If the $H_0$ hypothesis of a normal distribution had to be rejected, a Box–Cox transformation was carried out and a normal distribution of the residuals was achieved [99] (Equation (28)). Homoscedasticity was tested according to Bartlett [100], Levene [101] and Fligner-Killeen [102]. If the $H_0$ hypothesis of homoscedasticity ($\alpha =0.05$) had to be rejected, the non-parametric Kruskal–Wallis test was used for the analysis of variance, which has a lower power, but does not depend on the normal distribution of the residuals and homoscedasticity [103]. As ANOVA and the Kruskal–Wallis test only provide a statistical statement about all mean values, post-hoc analysis was also carried out in each case. With the help of post-hoc analysis, the mean $k_{L}a$ values can be compared pairwise. For this purpose, post-hoc analysis according to Conover [104] was used, which is also parameter-free and performs multiple comparisons using rank sums. To counteract the problem of multiple comparisons, the p values were adjusted according to the Bonferroni–Holm method [105].

$$Y_t^{\left(\lambda \right)}=\left\{\begin{array}{cc}{\displaystyle \frac{{(Y_t+c)}^{\lambda }-1}{\lambda }}& \mathrm{if}\lambda \ne 0\\ ln(Y_t+c)& \mathrm{if}\lambda =0\end{array}\right.$$

(28)

2.4. Validation

To validate the CFD results, the $k_{L}a$ value was determined experimentally. The gassing-out method according to the recommendation from the DECHEMA expert group for single-use technology was used [106]. The following points were changed from the guidelines: a temperature of $298.15$ $\mathrm{K}$ was set, as in the simulations, and ultrapure water with a conductivity of $0.055$ $\mathsf{\mu }$$\mathrm{S}$ cm⁻¹ was used instead of phosphate-buffered saline. To perform the measurement, nitrogen was injected into the bioreactor via the sparger for gassing-out, followed by air gassing. The $k_{L}a$ value was determined for an oxygen saturation range of 10–90%. The base case was measured at a stirrer speed of 600 $\mathrm{rpm}$ and an aeration rate of $0.5$ $\mathrm{vvm}$, resulting in a $k_{L}a$ value of (11.1 ± 0.2) h⁻¹, which served as a reference value for the subsequent CFD simulations. The measurements were performed eight times, using a POF-L2-5-OIM-L215 (polymer optical fiber) oxygen sensor from PreSens Precision Sensing GmbH (Regensburg, Germany). The stirrer was printed of polylactic acid using the fused filament fabrication process (Ultimaker S5, Ultimaker B.V., Utrecht, The Netherlands).

3. Results and Discussion

The investigations focus mainly on the statistical evaluation of the $k_{L}a$ values achieved by the different models and their required computing time. To examine the influence of different interfacial force models, the classical Euler–Euler model was used in the first step after the mesh analysis. In the second step, the influence of different population balance models was investigated. All results were compared with the experiments described in Section 2.4.

3.1. Mesh Study

To estimate the discretization error caused by the computational mesh, four meshes of different resolutions were created (

Table 3. Discretisation error calculated by the Richardson extrapolation for the mass transfer coefficient $k_L$.

Mesh	Cells	Average Non-Orthogonality	Mass Transfer Coefficient ${\mathit{k}}_{\mathit{L}}$ [m s ${}^{-1}$]	Discretization Error ${\mathit{k}}_{\mathit{L}}$ [%]
Mesh 1	256,253	5.024	2.33 · 10−4	4.4
Mesh 2	807,957	4.119	2.42 · 10−4	4.0
Mesh 3	1,155,407	3.808	2.39 · 10−4	2.9
Mesh 4	1,842,135	3.478	2.43 · 10−4	3.3

). The mesh study was evaluated qualitatively by considering the velocity field and the turbulent energy dissipation field, while quantitative analysis was performed using a Richardson extrapolation. For the quantitative examination, the $k_L$ value dependent on the energy dissipation rate was used. The Richardson extrapolation yielded an estimated discretization error for the $k_L$ value of $4.4$ % for the coarsest mesh. The discretization errors are summarised in Table 3. While it is desirable to keep the discretization error as small as possible, this results in an increased number of meshes and an associated exponential increase in computing time. As will be shown in the following sections, a discretization error of $4.4$% is negligibly small compared to the model errors. Therefore, for economic reasons, the computational mesh with 256,253 mesh cells was used for all further simulations.

3.2. Euler–Euler Simulations

As in the experiments, a stirrer speed of 600 $\mathrm{rpm}$ and an aeration rate of $0.5$ $\mathrm{vvm}$ was used for the basic simulation. The maximum velocity can be seen on the contour plot with unscaled velocity vectors for a stirrer circumference of 1.57 m s⁻¹ (Figure 2a). This corresponds to the theoretical tip speed of the stirrer. The flow velocity then decreases radially until it approaches 0 m s⁻¹ at the bioreactor wall through the no-slip boundary condition (Figure 2b). Due to the counterclockwise rotation, the pitched blade stirrer has a downward pumping effect (Figure 2a,b). The resulting flow pattern corresponds to that described by Aubin et al. [107]. The stirring creates a turbulent flow with a Reynolds number of 2.8 · 10⁴. The gas flowing in at 1.32 m s⁻¹ also influences the fluid flow in the bioreactor, particularly in the area around the sparger (Figure 2c). The turbulent energy dissipation rate, which is particularly interesting for the calculation of the mass transfer coefficient $k_L$, is at its maximum at the stirrer tip at 259.4 m² s⁻³ and then decreases radially (Figure 2d). As energy is also introduced into the system via the aeration process, a higher energy dissipation rate, compared to the bulk liquid, of 25.1 m² s⁻³ to 31.8 m² s⁻³ occurs at the sparger outlet (Figure 2c). A further increase in the energy dissipation rate can also be seen at the phase transition. The distribution of the gas fraction in the bioreactor is important for determining both the $k_{L}a$ value and a. Figure 2e and f show the logarithmic gas fraction at a simulation time of 30 $\mathrm{s}$. As expected, the air rises centrally below the stirrer and after passing the stirrer, radial distribution increases significantly. This remains almost constant until it reaches the liquid surface.

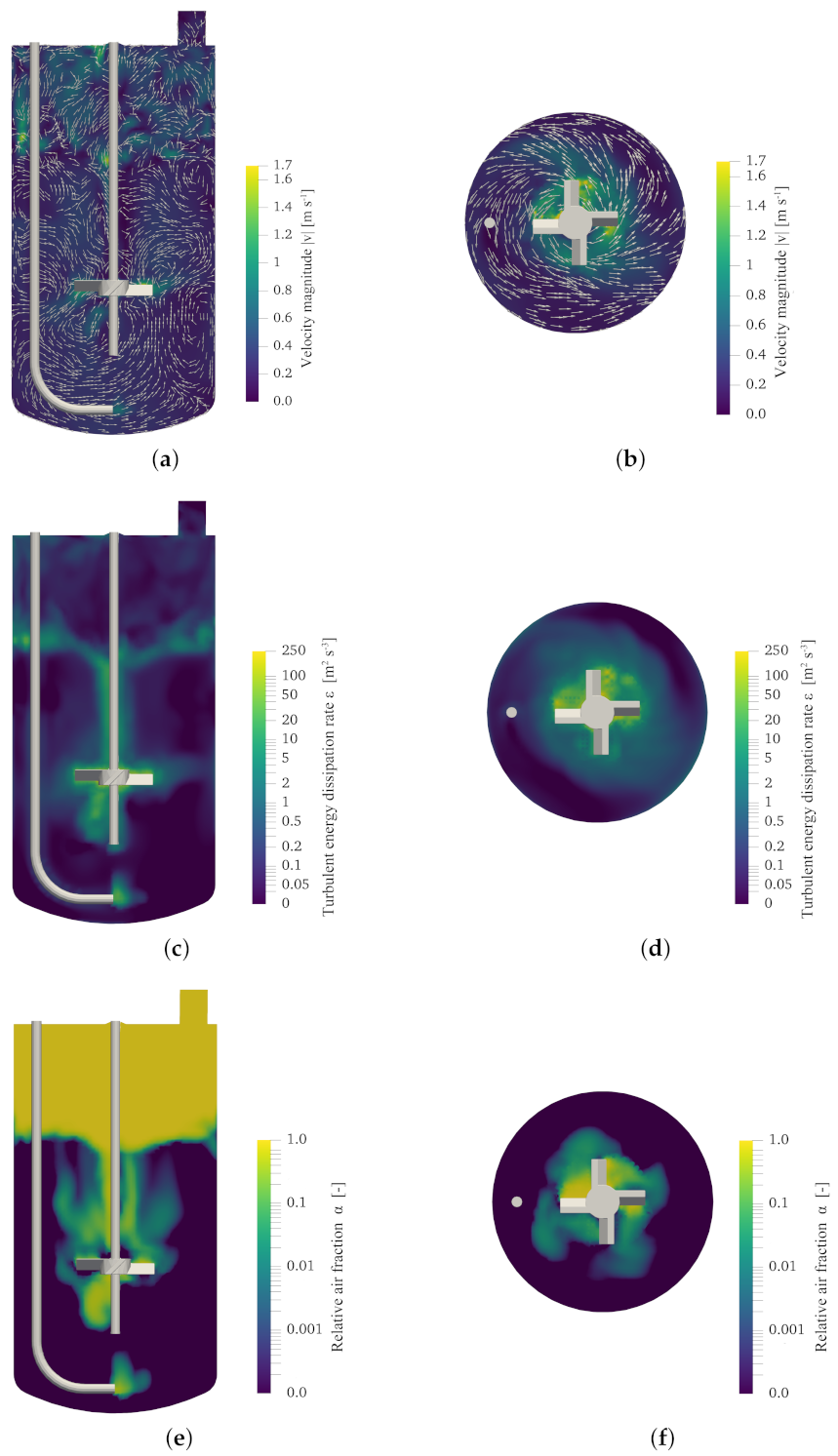

The simulation was divided into three steps. In the first 10 s, the flow field was built up without gassing. This served as a starting point for all further investigations (with the same speeds and gassing rates). For the last two steps, gassing was switched on and the last 10 s were evaluated for the $k_{L}a$. It is assumed that there is a constant $k_{L}a$ value that fluctuates around an average value. Figure 3a shows the temporal progression of $k_L$ and a after aeration was switched on. Both values rise rapidly and begin to level off after two to three seconds. The resulting product, the $k_{L}a$ value, is shown in Figure 3b, with the evaluated area marked in grey.

The two terms $k_L$ and a must be calculated individually and at each time step in each cell to determine the $k_{L}a$ value. The specific interface a can be calculated according to Equation (2) [108]. A variety of semi-empirical formulae exist for calculating the mass transfer coefficient $k_L$ that include different coefficients for the individual terms. Seven different models were tested to choose a $k_L$-model.

Table 4. Overview of different mass transfer coefficient models and their effect on the $k_{L}a$ calculation for the base simulation. The relative $k_{L}a$ difference refers to the experimentally measured $k_{L}a$ value of 11.1 h⁻¹.

Model	a [m ${}^{-1}$]	${\mathit{k}}_{\mathit{L}}$ [m s ${}^{-1}$]	${\mathit{k}}_{\mathit{L}}\mathit{a}$ [h ${}^{-1}$]	${\mathit{\Delta }}_{\mathbf{rel}.}$${\mathit{k}}_{\mathit{L}}\mathit{a}$ [%]
Johnson and Hunag [113]	$24.7$	1.83 · 10−5	$1.6$	$-85.6$
Prasher and Wills [109]	$24.7$	1.38 · 10−5	$1.2$	$-89.2$
Perez and Sandall [110]	$24.7$	5.41 · 10−3	$480.4$	$4227.9$
Akita and Yoshida [112]	$24.7$	1.83 · 10−4	$16.2$	$45.9$
Kawase and Moo-Young [115]	$24.7$	2.43 · 10−4	$21.6$	$94.6$
Garcia-Ochoa and Gómez [111]	$24.7$	9.11 · 10−4	$80.9$	$628.8$
Brüning [114]	$24.7$	2.94 · 10−4	$26.1$	$135.1$

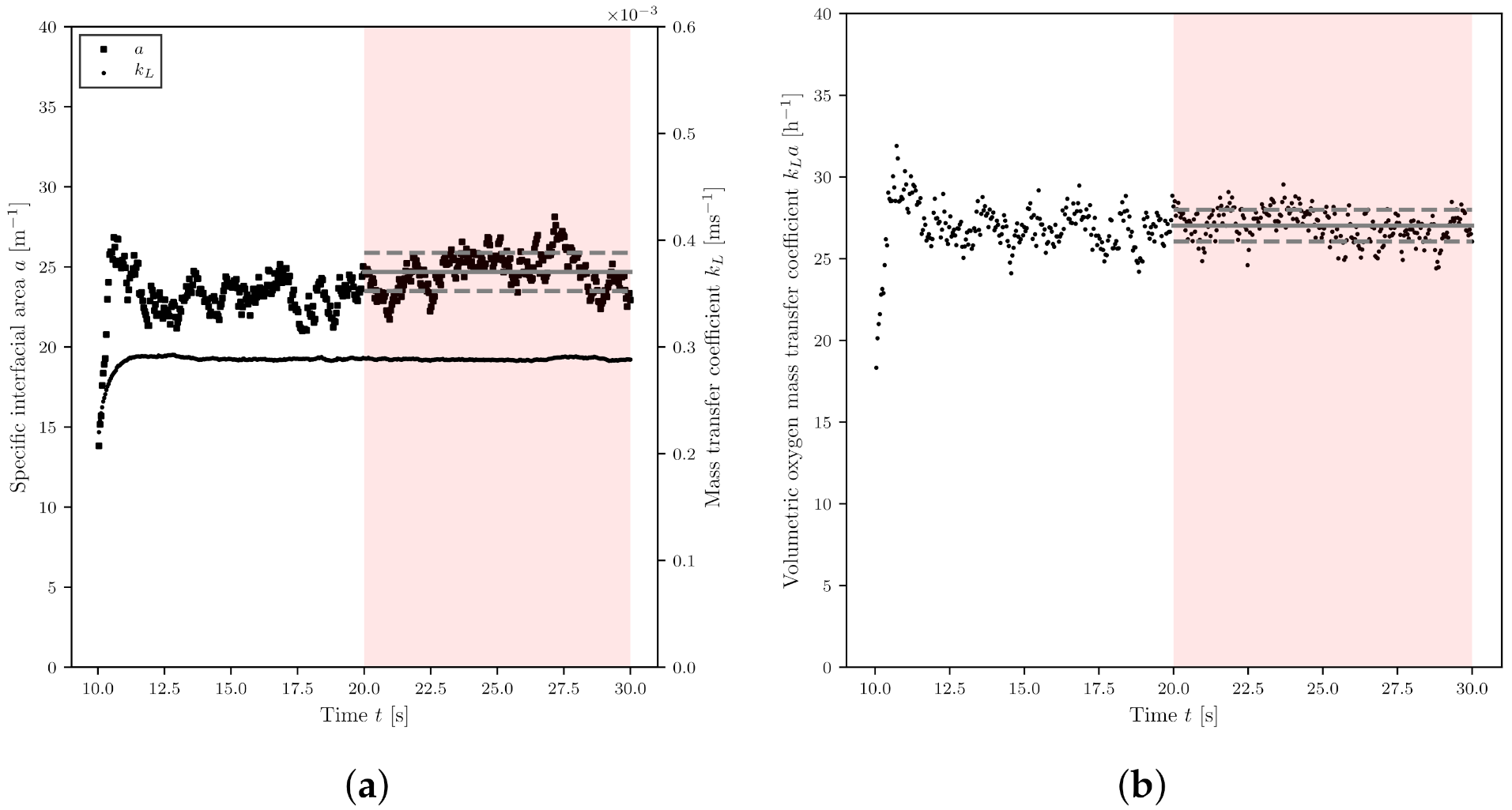

shows $k_L$, a and $k_{L}a$ for the base simulation after 30 $\mathrm{s}$. The choice of $k_L$-model had a significant influence on the resulting $k_{L}a$ value, resulting in $k_{L}a$ values that differ by two powers of ten. A $k_{L}a$ value ten times lower than the experimentally determined one was predicted by the model of Prasher and Wills [109] (1.2 h⁻¹). The models of Perez and Sandall [110] and of Garcia-Ochoa and Gómez [111], on the other hand, predicted significantly higher $k_{L}a$ values (480.4 h⁻¹ and 80.9 h⁻¹, respectively). However, it must be taken into account that the former was developed for non-Newtonian fluids. The only model that is not based on the energy dissipation rate is the model of Akita and Yoshida [112]. This model takes into account gravitational acceleration, diffusivity, density of the liquid, surface tension and the bubble diameter, which is not appropriate for the Euler–Euler simulation with its constant bubble diameter. The model of Johnson and Huang [113] is rather uninteresting for CFD applications, as only an average $k_L$ value can be calculated. Both the models of Brüning [114] and Kawase and Moo-Young [115] achieve good agreements with the experimental data. The Brüning model showed the best agreement across all of the simulations performed and was therefore used for all further simulations ( 100 $\mathrm{rpm}$ to 1200 $\mathrm{rpm}$ and $0.5$ $\mathrm{vvm}$ to 2 $\mathrm{vvm}$). No consideration was given to adjusting the factors of the model to fit the results, as this may have resulted in a loss of generality.

3.2.1. Influence of the Bubble Diameter

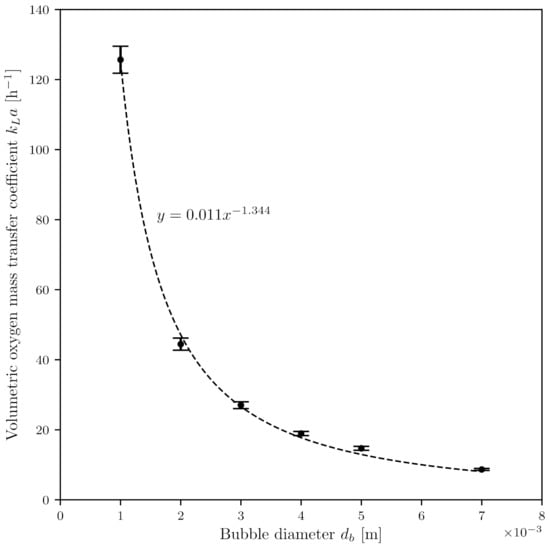

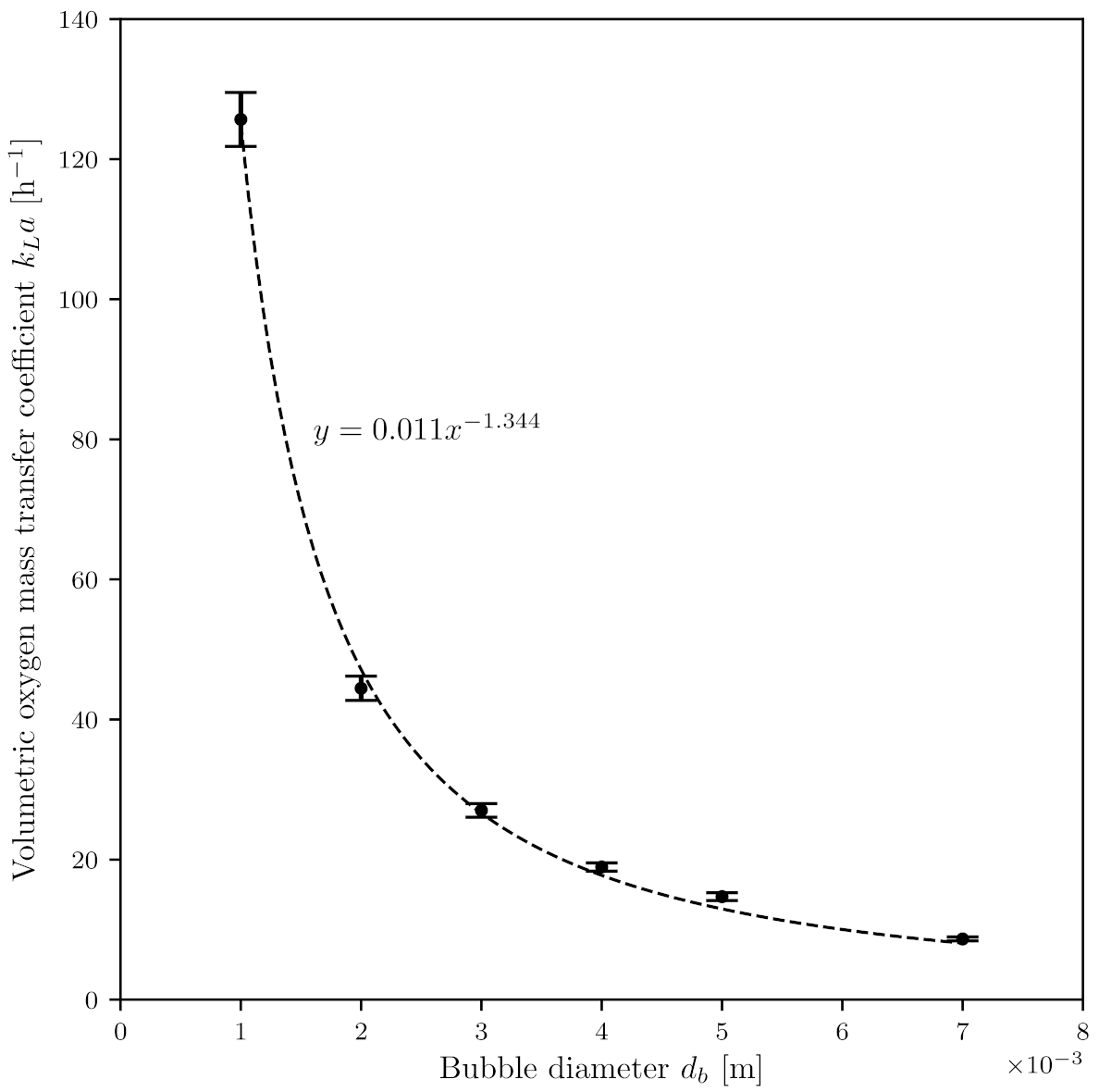

The simulations with the standard Euler–Euler model were carried out assuming a constant gas bubble diameter. As the gas bubble surface and thus the specific interface area a is directly dependent on the gas bubble diameter $d_b$, it was assumed that this has a large influence on the $k_{L}a$ value. Figure 4 shows the relationship between the calculated $k_{L}a$ value and the assumed gas bubble diameter. The decrease in the $k_{L}a$ value can be described by a power function as the bubble diameter increases. Thus, the $k_{L}a$ value is (125.7 ± 3.8) h⁻¹ for a bubble diameter of 1 $\mathrm{m}$$\mathrm{m}$ and decreases to (8.7 ± 0.3) h⁻¹ for a bubble diameter of 7 $\mathrm{m}$$\mathrm{m}$. For all further simulations, a bubble diameter of 3 $\mathrm{m}$$\mathrm{m}$ was assumed, which corresponds to the theoretical diameter calculated according to Garcia-Ochoa and Gómez (Equation (29)) [23].

$$d_b=0.7\frac{{\sigma }_{w,a}^{0.6}}{{\left(\frac{P}{V}\right)}^{0.4}{\rho }^{0.2}}{\left(\frac{{\mu }_w}{{\mu }_a}\right)}^{0.1}$$

(29)

3.2.2. Influence of Drag Force

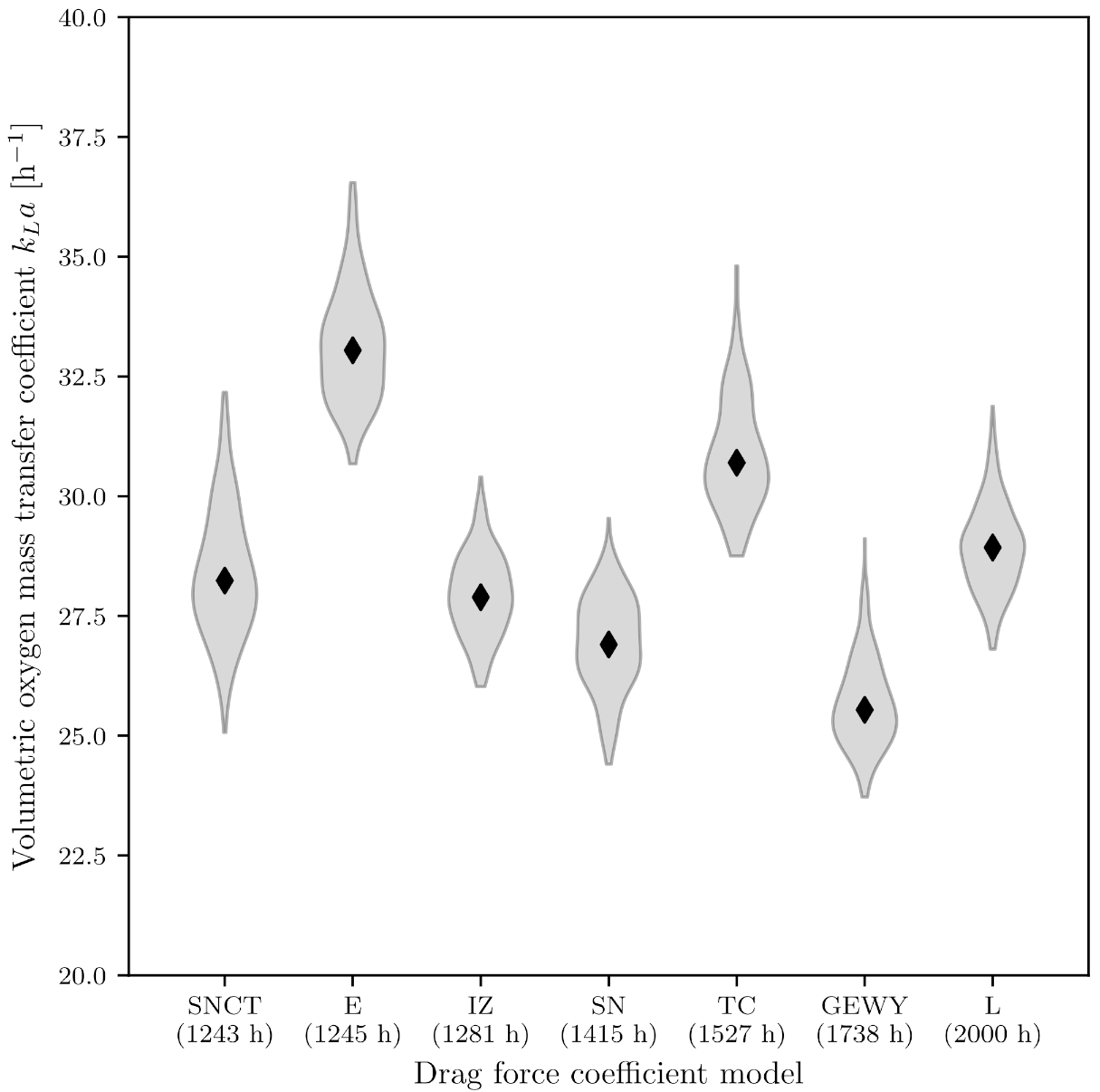

To study the influence of the drag force coefficient model on the $k_{L}a$ value, seven different models were evaluated, one of which included a bubble swarm correction. The violin plot in Figure 5 shows the mean $k_{L}a$ values and their probability density function. The $k_{L}a$ ranged from (25.6 ± 0.9) h⁻¹ when using the model of Gidaspow [80] to (33.5 ± 1.5) h⁻¹ for the Ergun model [77]. Statistical analysis was performed according to Section 2.3, rejecting the $H_0$ hypothesis of a normal distribution for Ergun’s [77], Tomiyama’s [79] and Lain’s models [116]. All of the tests rejected the $H_0$ hypothesis of homoscedasticity ($\alpha =0.05$). The Kruskal–Wallis test also rejected the $H_0$ hypothesis with $p=5.9$ · 10⁻²¹¹ ($\alpha =0.05$). It is thus assumed that the choice of model for the drag force coefficient has a statistically significant influence on the CFD predicted $k_{L}a$ value. The $H_0$ hypothesis was rejected with $\alpha =0.05$ for all of the pairwise tests. The choice of model for the drag force coefficient had a statistically significant influence on the $k_{L}a$ value, whereby the specific interface a, with a coefficient of variation of $0.17$, is significantly more influenced than the mass transfer coefficient ($c_v=0.02$). Besides the statistical influence, the change in computing time due to the choice of model is also of interest from an economic point of view. The models were ordered in the violin plot (Figure 5) according to ascending computation time. The shortest computation time, for 20 s of aeration, resulted from the Schiller Naumann [76] drag force coefficient model with a swarm correction function. The computation time (calculated for a single CPU unit) was 1243 $\mathrm{h}$. The maximum computing time required for the Lain [116] model was $1.6$ times longer and amounted to 2000 $\mathrm{h}$ CPU time.

Several authors have already indicated that drag force has a greater influence on the flow field and other parameters than other interfacial forces [53,54]. This statement is consistent with the investigations made in this study. The most frequently used models for the drag force coefficient are those of Schiller Naumann [76] and Ishii Zuber [7,78,117]. A disadvantage of both models is that they neglect the influence of turbulence. While this reduces the computational effort, it could also explain why these models often do not agree with experiments [53,118,119]. Ergun’s [77] model delivers the highest $k_{L}a$ value of (33.5 ± 1.5) h⁻¹. This model was empirically derived for Newtonian fluids in packed columns with a porosity of about $40\%$. As described by Halverson et al. [120], this model has a very small range of applications and is therefore unsuitable for use in stirred bioreactors which is consistent with the results of this work. By combining the models of Ergun [77] and Wen Yu, the model of Gidaspow [80] can be used for a wider range of applications [121]. The longer computation time described by Dey et al. [122] could be confirmed by the results of this study. This model has the second-longest calculation time of 1738 $\mathrm{h}$ and also takes the influence of turbulence into account. Lain’s model, which had the longest computing time, is also suitable for stirred bioreactors, as it also takes turbulence into account [116]. Tomiyama’s [79] model addresses both the aspect ratio of bubbles and turbulence. However, Lote et al. [117] and Colombo et al. [123] showed that this model is only suitable for high Reynolds numbers. The drag force study was carried out for a stirrer speed of 600 $\mathrm{rpm}$. Turbulence was generated, but the Reynolds number was with 2.80 · 10⁴ not very high. For this reason, it can be assumed that the correlated Tomiyama [79] model is unsuitable in this particular case, but would be suitable for simulations with higher Reynolds numbers. Several authors have been able to show that Lane’s model agreed best with the experimental results [53,119,124]. This model is currently not standard in OpenFOAM 7 and would need to be implemented for further studies.

3.2.3. Influence of Lift Force

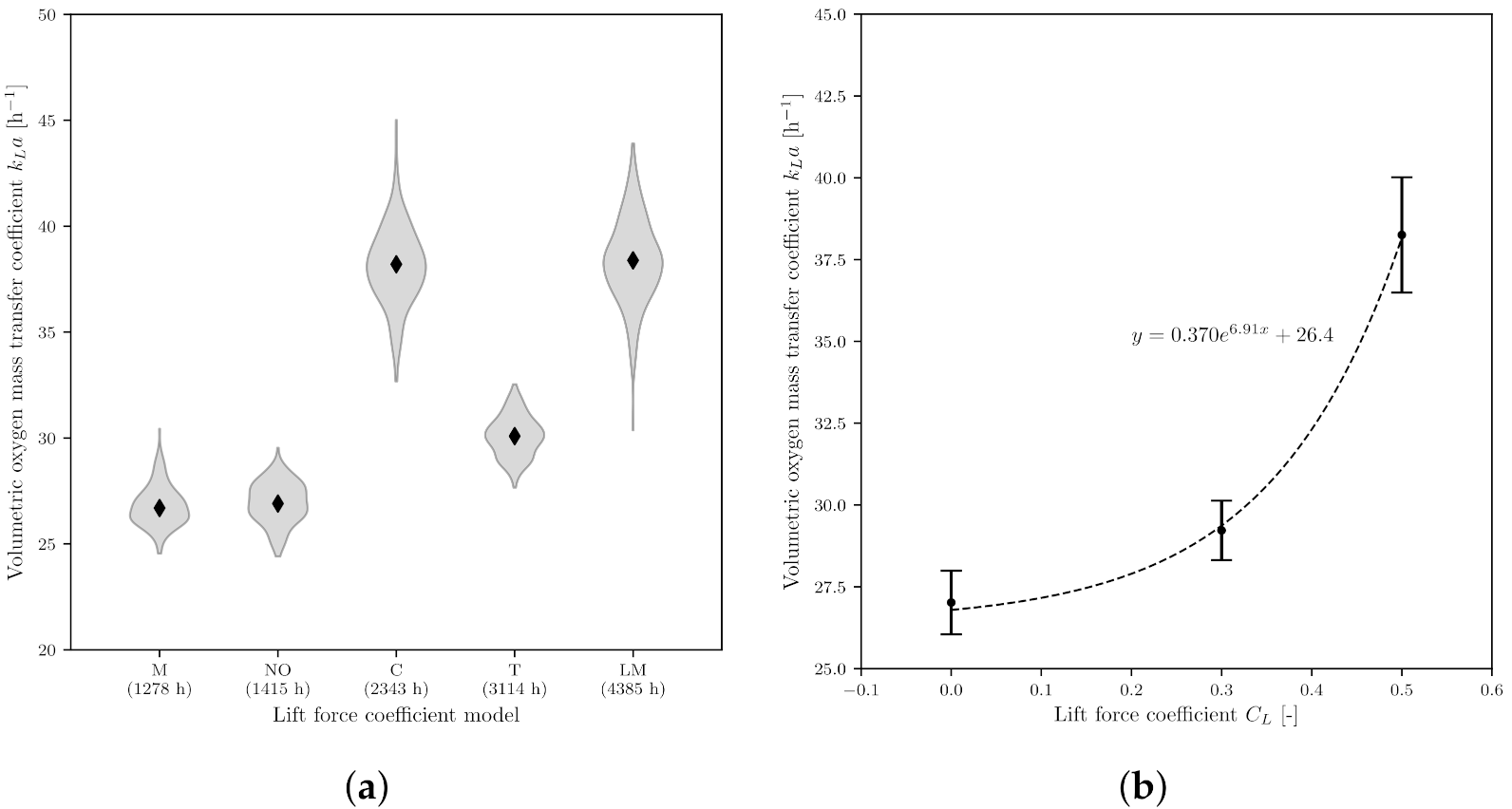

To examine the lift force coefficients, three simulations were carried out using different lift force coefficient models, one that neglected the lift force ($C_L=0$) and two with constant lift force coefficients ($C_L=0.5$ and $C_L=0.3$). The resulting $k_{L}a$ values are shown in the form of a violin plot in Figure 6a. Depending on the model, the $k_{L}a$ values vary from (23.4 ± 0.8) h⁻¹ (Morgan model) to (31.5 ± 1.3) h⁻¹ (Legendre and Magnaudet model [82]). The models were also plotted based on increasing CPU time. Morgan’s model required only 1278 $\mathrm{h}$ for 20 s of aerated simulation, while the Legendre and Magnaudet model [82] required $3.4$ fold more time to perform the same computation.

To obtain statistical information about the influence of the lift force coefficient model on the $k_{L}a$ value, the same procedure as the drag force coefficient was chosen. Except for Morgan’s model, the $H_0$ hypothesis of a normal distribution could not be rejected by the Shapiro–Wilk test. The homoscedasticity tests all rejected the $H_0$ hypothesis of homoscedasticity. The Conover post-hoc analysis showed that there is no statistically significant difference between the Morgan model and the neglection of lift force ($p=0.07$, $\alpha =0.05$). There was also no statistically significant difference between the Legendre and Magnaudet [82] model and a constant lift force coefficient of $0.5$ ($p=0.22$, $\alpha =0.05$). Similar to drag force, the variability coefficient of the specific interfacial area was $0.12$ and therefore $13.5$ times higher than the variability coefficient of the mass transfer coefficient. Several authors have been able to show that the lift force is significantly smaller or even negligible compared to the drag force [54,125]. For small ($d_b<1\mathrm{m}\mathrm{m}$) spherical gas bubbles, the lift force coefficient is $0.5$, but the coefficient is strongly influenced by the shape of the gas bubble and decreases as bubble size increases. As the simulations were performed assuming a bubble diameter of 3 $\mathrm{m}$$\mathrm{m}$, the constant lift force coefficient of $0.5$ tends to be too high. As shown in Figure 6b, the $k_{L}a$ value increases exponentially as the lift force coefficient ($0\le C_L\le 0.5$) increases. The Legendre and Magnaudet model [82] was developed for laminar systems and is therefore not particularly suitable for stirred bioreactor applications. Lucas et al. [65] describe the lift force as a not yet fully understood phenomenon and recommend further numerical and experimental investigations, especially for simulations with many particles like those found in bioreactors. Nevertheless, Lucas et al. [65] were able to achieve good agreement with experimental findings using Tomiyama’s [81] model, which cannot be refuted in this study.

3.2.4. Influence of the Virtual Mass Force

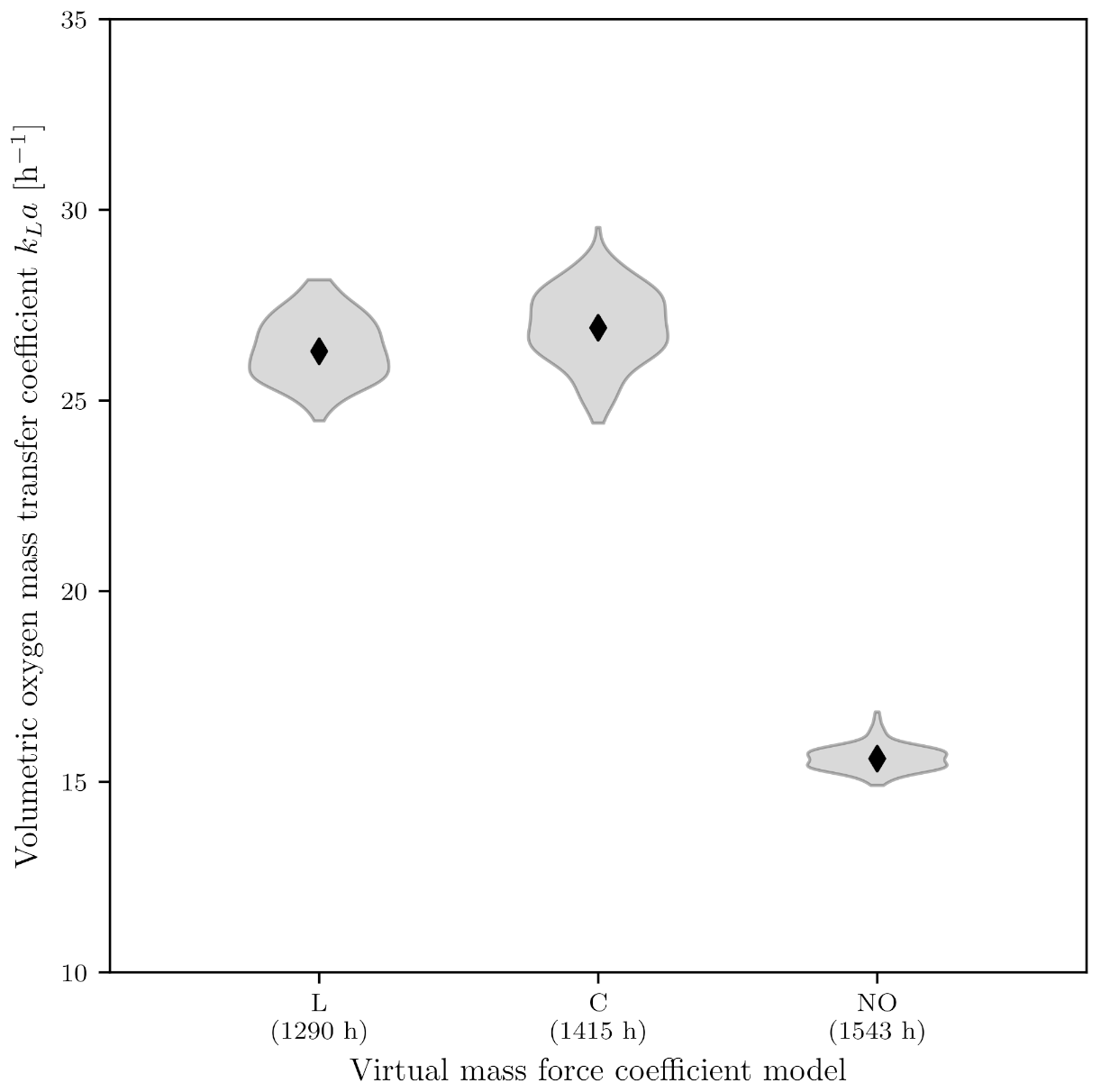

To study the influence of virtual mass force on the $k_{L}a$ value, three simulations were carried out. One simulation with a constant virtual mass force coefficient $C_{VM}=0.5$, one with Lamb’s [83] virtual mass coefficient model, and one that did not consider the virtual mass force. The results are shown graphically in Figure 7. The highest $k_{L}a$ value of (27.0 ± 1.0) h⁻¹ was calculated with the constant virtual mass force coefficient, the lowest value of (15.6 ± 0.3) h⁻¹ was calculated without considering virtual mass force. The CPU time for the calculation of 20 $\mathrm{s}$ of aeration differed by a maximum of 20% and ranged from 1290 $\mathrm{h}$ for the Lamb model [83] to 1543 $\mathrm{h}$ for the calculation that did not consider virtual mass force. As shown in Figure 7, the simulation that did not consider virtual mass differed significantly from the other two simulations and resulted in the lowest $k_{L}a$ value of all the Euler–Euler simulations without PBM. As only the residuals of $k_{L}a$ from the simulation with the constant virtual mass force coefficient were normally distributed and all tests rejected the $H_0$ hypothesis of homoscedasticity, the Kruskal–Wallis test was performed. As expected, the null hypothesis was rejected with a p value of 3.4 · 10⁻⁸⁰ ($\alpha =0.05$). The Conover post-hoc analysis also showed that there is a statistically significant difference between the calculated $k_{L}a$ values for all of the models examined.

The simulations assumed a constant aspect ratio of 1, which is justifiable for small bubbles. For spherical particles, the virtual mass force coefficient $C_{VM}$ is $0.5$. As the Lamb [83] model takes the aspect ratio into account when modeling the $C_{VM}$[126], similar $k_{L}a$ values were expected for the simulation with constant $C_{VM}$ and when using Lamb’s [83] model. Although these exhibited a statistically significant difference, the practical relevance is questionable. Lamb’s [83] model is of great interest, especially for variable aspect ratios, and is preferred over a constant $C_{VM}$ of $0.5$. Nevertheless, in the literature the virtual mass force coefficient is often not modeled and is assumed to be a constant [127]. The $k_{L}a$ value calculated without taking the virtual mass force into account differed significantly from the other two simulations. The reason for this difference could be that the phenomenon of virtual mass force is omnipresent and is of great importance especially in the vicinity of spargers [125,128]. Due to the large difference in density between gas bubbles and the continuous phase, it is possible that the virtual mass is greater than the actual mass of the dispersed particles [129]. Besides Lamb’s [83] model, there are several other available models, of which Pudasaini’s [130] is a promising one, as it is a completely analytical model. However, this model is not yet available in OpenFOAM 7 and would need to be implemented for further research.

3.2.5. Influence of Turbulent Dispersion Force

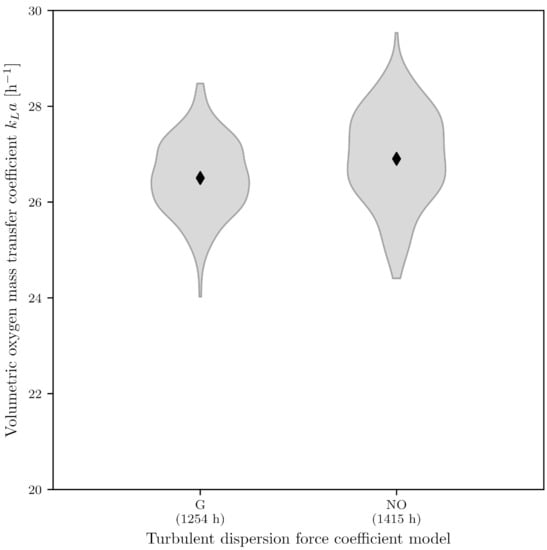

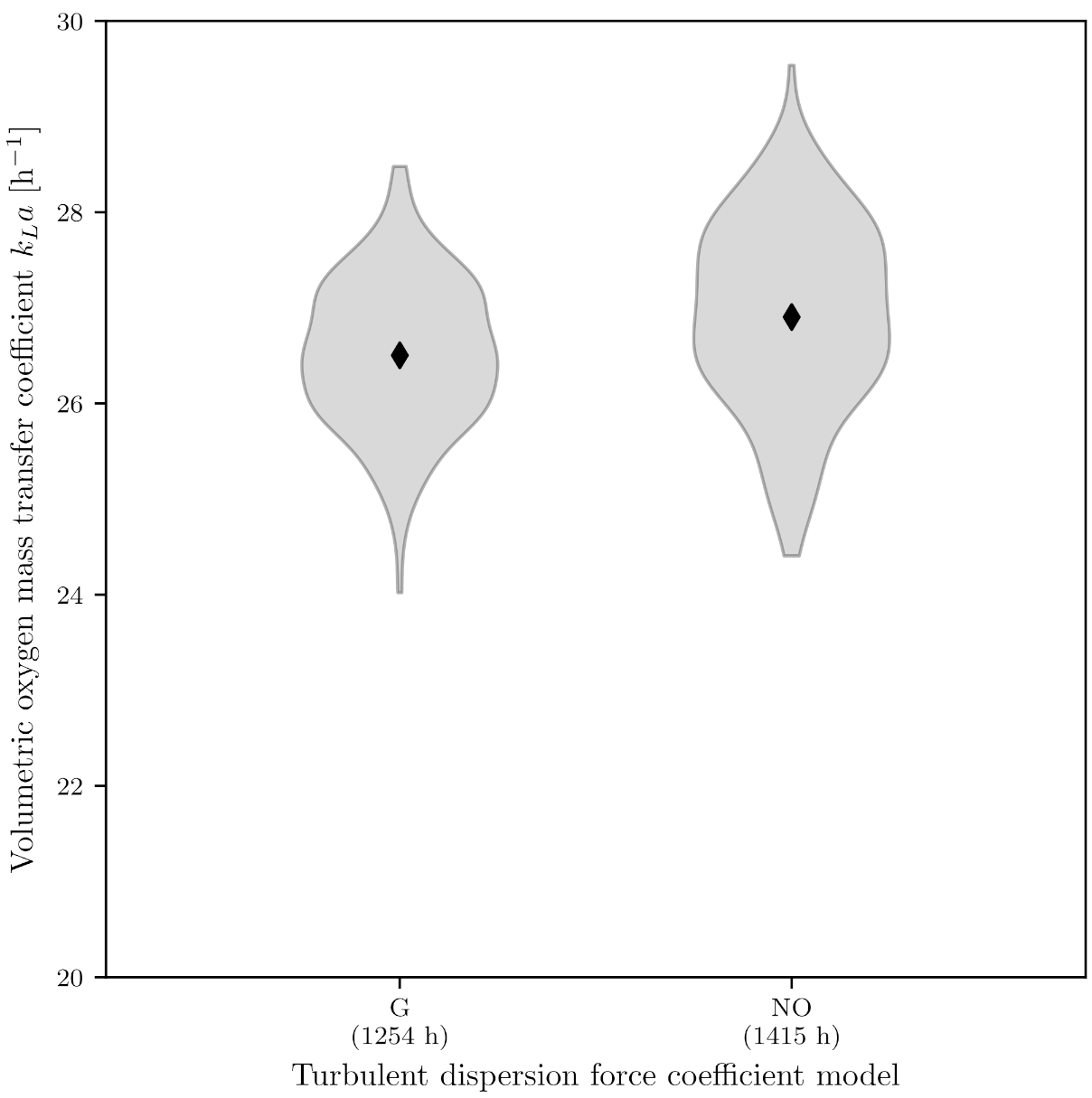

Two simulations were carried out to examine the influence of the force caused by the turbulent fluctuation of the flow velocity on the $k_{L}a$ value. A simulation without taking the turbulent dispersion force into account and one with the model according to Gosman [64] were performed. The first simulation delivered a $k_{L}a$ value of (27.0 ± 1.0) h⁻¹ and the second a $k_{L}a$ value of (26.6 ± 0.8) h⁻¹, with the Gosman [64] model requiring 10% less computational time (Figure 8). As the $H_0$ hypothesis of the Shapiro–Wilk test could not be rejected for both models, but the $H_0$ hypothesis of the homoscedasticity test had to be rejected, a t-test with unequal variance was performed. The two models were statistically shown to be significantly different, with a p value of 1.49 · 10⁻⁵ ($\alpha =0.05$).

The turbulent dispersion force is often neglected in the literature, Nevertheless, even though there was a statistically significant difference in the calculated $k_{L}a$ values, this approach has been confirmed. However, when turbulent dispersion force is modeled, the Gosman [64] model is usually applied because of its relative simplicity and robustness [131]. Although more complex models exist, these have not yet been implemented in OpenFOAM 7 [132].

3.3. Population Balance Modelling

As described in Section 3.2.1, in the classical Euler–Euler simulation, the selected bubble diameter has the greatest influence on the $k_{L}a$ value. Coupling the CFD simulation with PBM can eliminate the problem of a constant bubble diameter. This allows the two phenomena of bubble coalescence and bubble breakup to be modeled, which makes the simulations more complex, but reduces the degree of abstraction. For the following investigations, the class method was used to solve the PBE, as it is implemented in OpenFOAM 7 by default.

3.3.1. Influence of Initial Gas Bubble Size Distribution

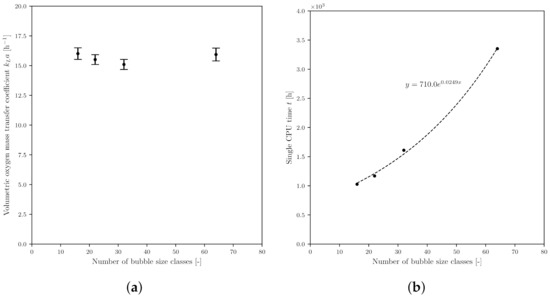

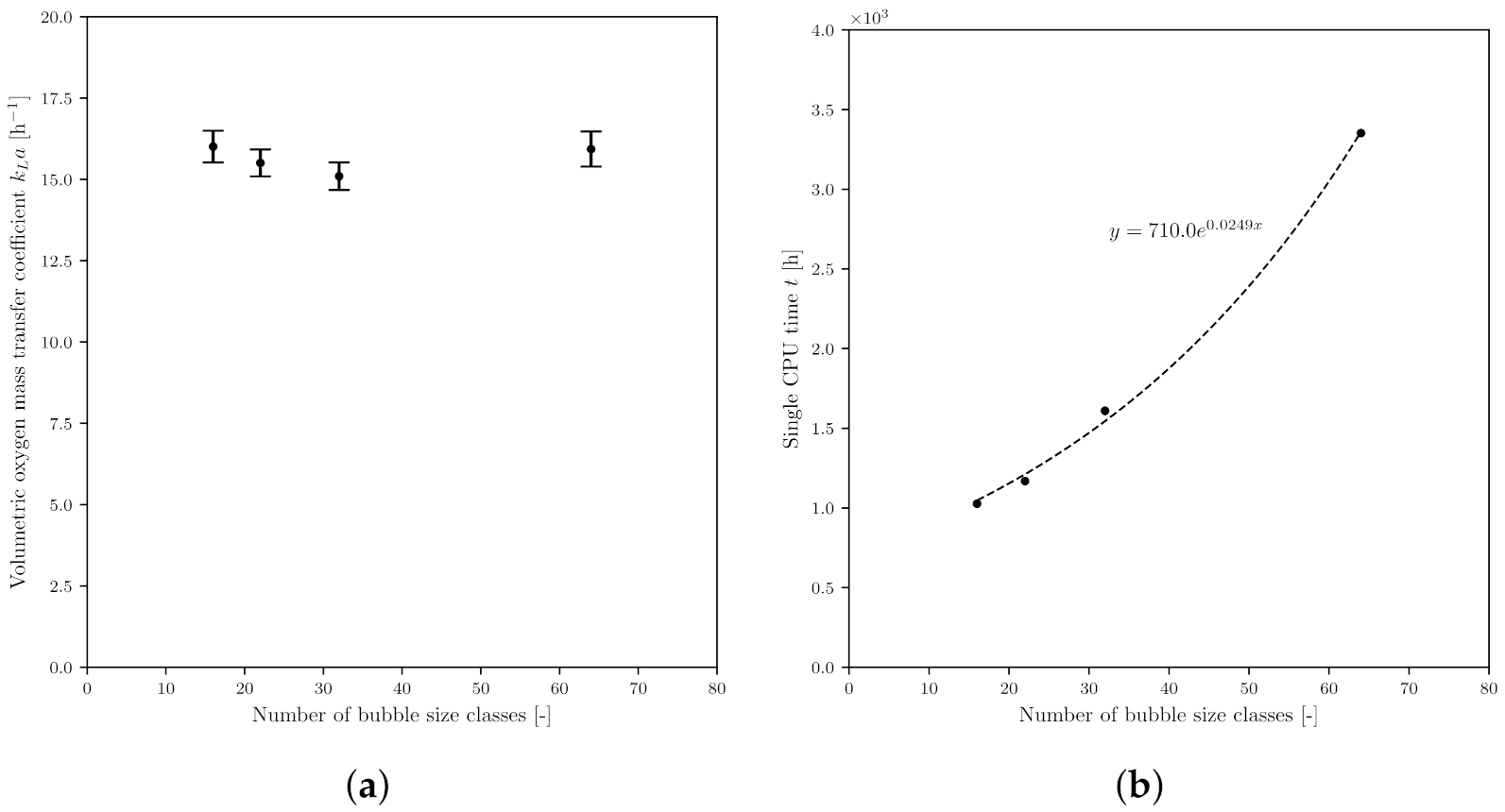

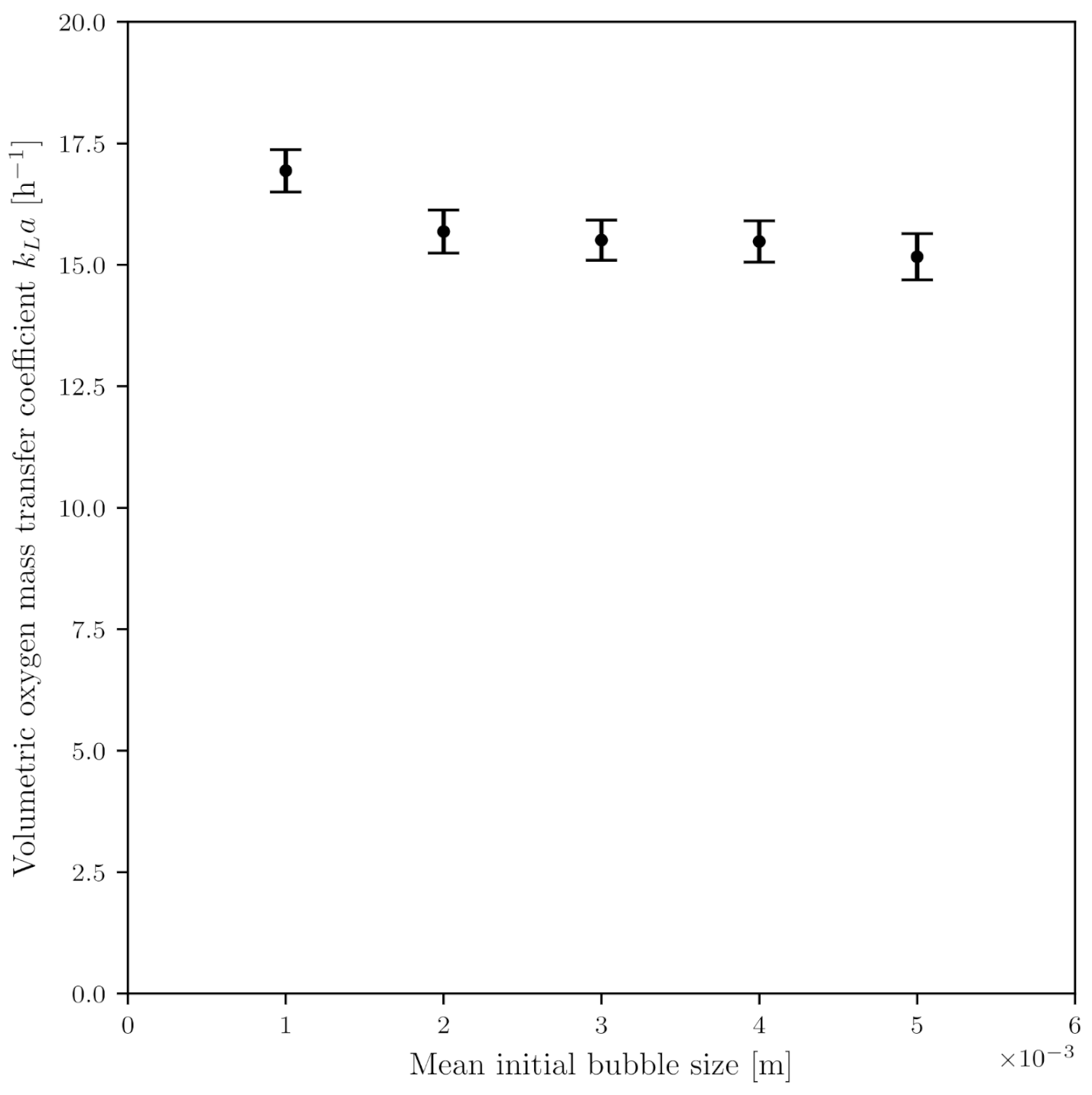

The class method is characterized by the fact that the gas bubble size distribution is discretized into classes. This allows the size distribution to be more accurately approximated as the number of classes increases. To study this effect and to obtain an optimum balance between economy and accuracy, four simulations with different numbers of classes were carried out (16, 24, 32, and 64 classes). For all simulations, the classes were chosen for a range of 1 $\mathrm{m}$$\mathrm{m}$ to 5 $\mathrm{m}$$\mathrm{m}$ and an initial bubble diameter of 3 $\mathrm{m}$$\mathrm{m}$. The calculated $k_{L}a$ value initially decreased slightly as the number of classes increased and then slightly increased again at 64 classes, with values between (15.1 ± 0.4) h⁻¹ and (16.0 ± 0.5) h⁻¹ (Figure 9a). As, in addition to accuracy, the economy is also of great interest, simulation duration was also taken into account. As shown in Figure 9b, the computing time increased exponentially as the number of classes increased, matching the conclusions of other authors [133,134]. The literature recommends using between 12 and 25 classes [133,134]. As the $k_{L}a$ value only changes minimally as the class number increased, but the computing time increased exponentially, 24 classes were used for the further simulations. 24 classes were preferred over 16 classes because, although the computation time increases, the $k_{L}a$ value is closer to the experimental data. Furthermore, five simulations with different initial bubble diameters were also carried out ( 1 $\mathrm{m}$$\mathrm{m}$ to 5 $\mathrm{m}$$\mathrm{m}$). In contrast to the free and constant bubble diameters of the Euler–Euler model (Figure 4), the influence on $k_{L}a$ was minimal. This is due to the fact that the gas bubble size distribution in the system adjusts itself when solving the PBE (Figure A1).

3.3.2. Influence of the Coalescence Model

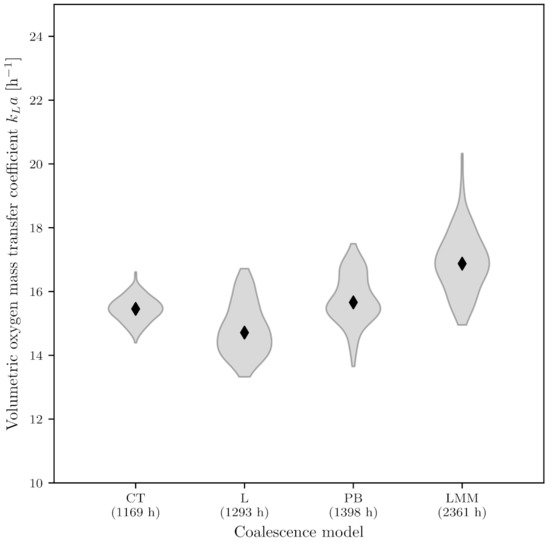

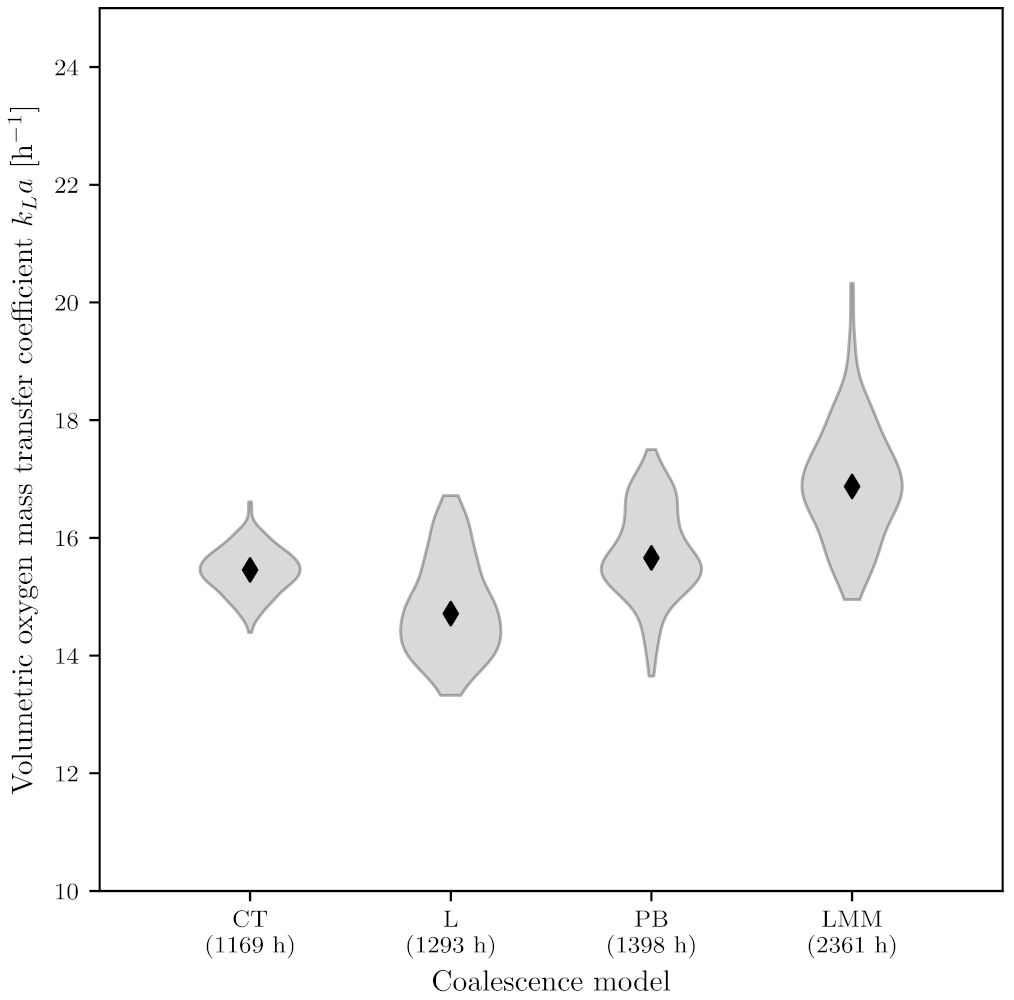

To scrutinize the effect of coalescence modeling on the $k_{L}a$ value, four models were compared, including Luo’s model, which is widely used in the literature [135]. The calculated $k_{L}a$ values are shown in Figure 10 and range from (14.8 ± 0.8) h⁻¹ for Luo’s [87] model to (17.0 ± 0.9) h⁻¹ for the model proposed by Lehr et al. [32]. The procedure described in Section 2.3 was also used for statistical analysis. The post-hoc analysis showed that there is a statistically significant difference between all of the models ($\alpha =0.05$). It should be noted that all of the values were significantly lower and thus closer to the measured $k_{L}a$ than the values from the standard Euler–Euler simulations. In terms of computing time, the models of Coulaloglou and Tavlarides [86], Luo [87] and Prince & Blanch [88] hardly differed, whereas the model of Lehr et al. [32] required about twice as long for the same simulation, making it of little interest for practical applications. Other authors, who also examined the influence of different coalescence models, came to the same conclusion that the models of Coulaloglou and Tavlarides [86], Luo [87] and Prince & Blanch [88] hardly differed [135]. Kaiser [136] was able to show in his research that the Lehr et al. [32] model overestimates the $k_{L}a$ value, which is also in line with the results presented here. Luo’s [87] model, which is used most frequently, showed the best agreement with the experimental investigations and is characterized by an economic calculation time.

3.3.3. Influence of the Breakup Model

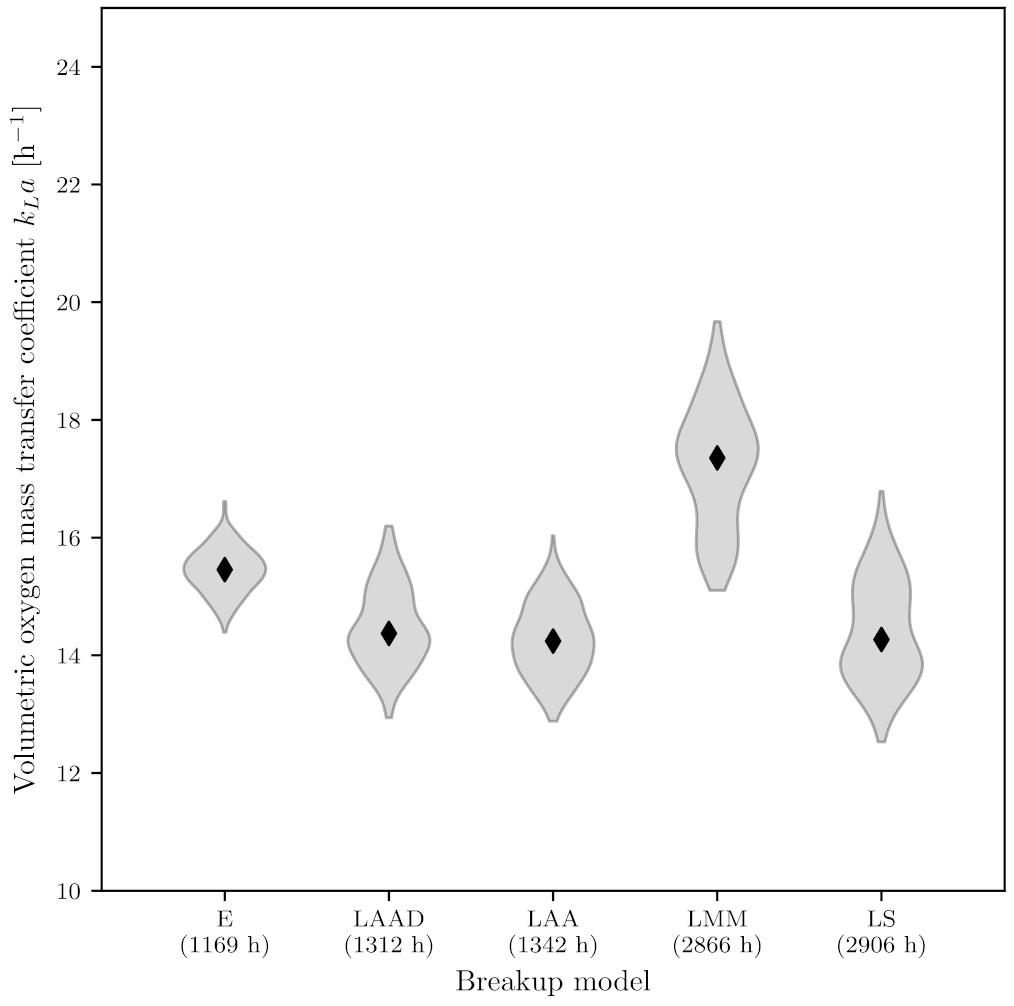

In addition to the four coalescence models investigated, four breakup models were also examined to determine their influence on the $k_{L}a$. An exponential kernel [137] was tested, which often serves as a basis for other models, as well as the models of Luo and Svendsen [85], Laakkonen et al. [84] and Lehr et al. [32]. Binary bubble breakup was modelled in each case. In addition, a simulation was also carried out using the model of Laakkonen et al. [84] that modeled the daughter gas bubble size distribution. The resulting $k_{L}a$ values are shown in Figure 11 and range from (14.3 ± 0.6) h⁻¹ for the model of Laakkonen et al. [84] to (17.3 ± 1.0) h⁻¹ for the model of Lehr et al. [32]. Based on post-hoc analysis according to Conover, it can be concluded that there is no statistically significant difference between the $k_{L}a$ values calculated using the model of Laakkonen et al. [84] and the model of Luo and Svendsen [85] ($\alpha =0.05$). There was, however, a statistically significant difference in terms of the $k_{L}a$ value from the other models. The computation time for the models of Lehr et al. [32] and Luo and Svendsen [85] are close to each other and are over twice as high as the computation times of the other models. The model of Lehr et al. [32] behaves like their coalescence [32], both in terms of overestimating the $k_{L}a$ value and the long computing time. In addition to the economic aspect, another argument against the model is that it is not designed for high $k_{L}a$ values, which are of decisive importance in microbial processes. There was no statistically significant difference in $k_{L}a$ values calculated using the Luo and Svendsen [85] model or the Laakkonen et al. [84] model, but the computing time for the Luo and Svendsen model was more than twice as long, therefore this model is less interesting. The exponential kernel requires the shortest computing time, but it is questionable whether more complex systems can be modeled realistically using it. The most promising results in terms of $k_{L}a$ value and computation time were obtained using the model of Laakkonen et al. [84] with binary bubble breakup and modeled daughter gas bubble size distribution. This model was developed for stirred reactors and is accordingly widely used, which can be confirmed in this study [84]. Despite the promising model of Laakkonen et al. [84], a difference between simulation ($k_{L}a$ = (14.3 ± 0.6) h⁻¹) and experiment ($k_{L}a$ = (11.1 ± 0.2) h⁻¹) remains. It is not clearly identifiable how the remaining difference is composed; it could be due to a systematic measurement error in the experiments, the discretisation error described in Section 3.1 or the large number of different models leading to an accumulation of small errors [7].

4. Conclusions

This work aimed to investigate the influence of different interfacial force models and PBM on the calculation of the volumetric oxygen mass transfer coefficient in stirred and aerated bioreactors using CFD. Using the Euler–Euler model, it was shown that the selected bubble diameter has a significant influence on the calculated $k_{L}a$ value. Furthermore, modeling of the mass transfer coefficient also has a significant influence. The $k_L$ model of Brüning [114] showed the best agreement with the experimental data for the examined system. The analysis of the interfacial force models showed that the majority of the models calculate statistically significantly different $k_{L}a$ values. The studies also considered economy in terms of computing time. For an economic calculation of the $k_{L}a$ value using the Euler–Euler model in a stirred and aerated 2 $\mathrm{L}$ bioreactor with turbulent flow, it was shown that the $k_{L}a$ values agree best with the experimental values when the following interfacial models are used: the model of Schiller and Naumann [76] for the calculation of drag force, the model of Tomiyama et al. [81] for lift force and the model of Lamb [83], for virtual mass force. The turbulent dispersion force can be neglected. Although statistically significant different $k_{L}a$ values could be described by the models, they are insignificant for practical applications. The often unknown mean gas bubble diameter should be estimated according to Garcia-Ochoa and Gómez [23]. The calculated $k_{L}a$ values are comparable to those calculated by semi-empirical formulae like those of Van’t Riet [138]. It was found that the calculated $k_{L}a$ values are about 50% higher than those in the experiments. One reason for this could be the lack of consideration of gas bubble breakup and coalescence. For this reason, various simulations were carried out with a PBM-coupled Euler–Euler model. All models examined resulted in better agreement with the experimentally determined $k_{L}a$ values. The best agreement was obtained with the breakup model of Laakkonen et al. [84] and with the coalescence model of Luo [87]. However, the additional time should be accepted if the $k_{L}a$ value is of interest. As a next step, further validation work should be carried out in the form of $k_{L}a$ measurements and Shadowgraphy. The CFD model should also be optimized using the sliding mesh approach and other recent interfacial force models. Using the established PBM-coupled CFD model, it is possible to calculate the $k_{L}a$ value for stirred and aerated bioreactors using OpenFOAM. This makes it possible to design new bioreactors for the biopharmaceutical industry in such a way that the oxygen supply is already optimal and adapted to process requirements. It also offers the possibility to determine optimal operating parameters, such as stirrer speed and aeration rate in advance in silico. By optimizing the bioprocesses with regard to the $k_{L}a$ value, it should be possible to achieve a higher cell density, and with the same specific product formation rate, this would lead to a total increase in product and thus to higher profits. Although a good agreement between simulation and experiments could be achieved using the proposed models (measured $k_{L}a$ of (11.1 ± 0.2) h⁻¹ and simulated $k_{L}a$ (14.3 ± 0.6) h⁻¹ for the base simulation), success depends on many factors and it is questionable how useful it is to couple exact equations such as the Navier-Stokes equation with empirical approximations (e.g., $k_L$ models).
