Solubilization, Hansen Solubility Parameters, Solution Thermodynamics and Solvation Behavior of Flufenamic Acid in (Carbitol + Water) Mixtures

Abstract

The solubilization, solution thermodynamics, solvation behavior and Hansen solubility parameters (HSPs) of an anti-inflammatory medicine flufenamic acid (FFA) in various Carbitol + water mixtures were evaluated in this study. The experimental solubility of FFA in mole fraction (x_e) was measured at T = 298.2–318.2 K and p = 0.1 MPa using a static equilibrium method. The x_e values of FFA in various Carbitol + water mixtures were correlated with van’t Hoff, Apelblat, Yalkowsky–Roseman, Jouyban–Acree and Jouyban–Acree–van’t Hoff models. All the studied models showed good correlation with mean error values of less than 2%. The x_e value of FFA was found to increase significantly with the increase in temperature and Carbitol mass fraction in all Carbitol + water mixtures evaluated. The maximum and minimum x_e values of FFA were recorded in pure Carbitol (2.81 × 10⁻¹) at T = 318.2 K and pure water (5.80 × 10⁻⁷) at T = 298.2 K, respectively. Moreover, the HSP of FFA was found to be more closed with that of pure Carbitol, indicating the maximum solubility of FFA in pure Carbitol. The estimated values of activity coefficients showed higher molecular interactions in FFA–Carbitol combinations compared with FFA–water combinations. Thermodynamic studies indicated an endothermic and entropy-driven dissolution of FFA in all Carbitol + water mixtures. The solvation behavior of FFA was observed as enthalpy driven in all Carbitol + water combinations evaluated.

1. Introduction

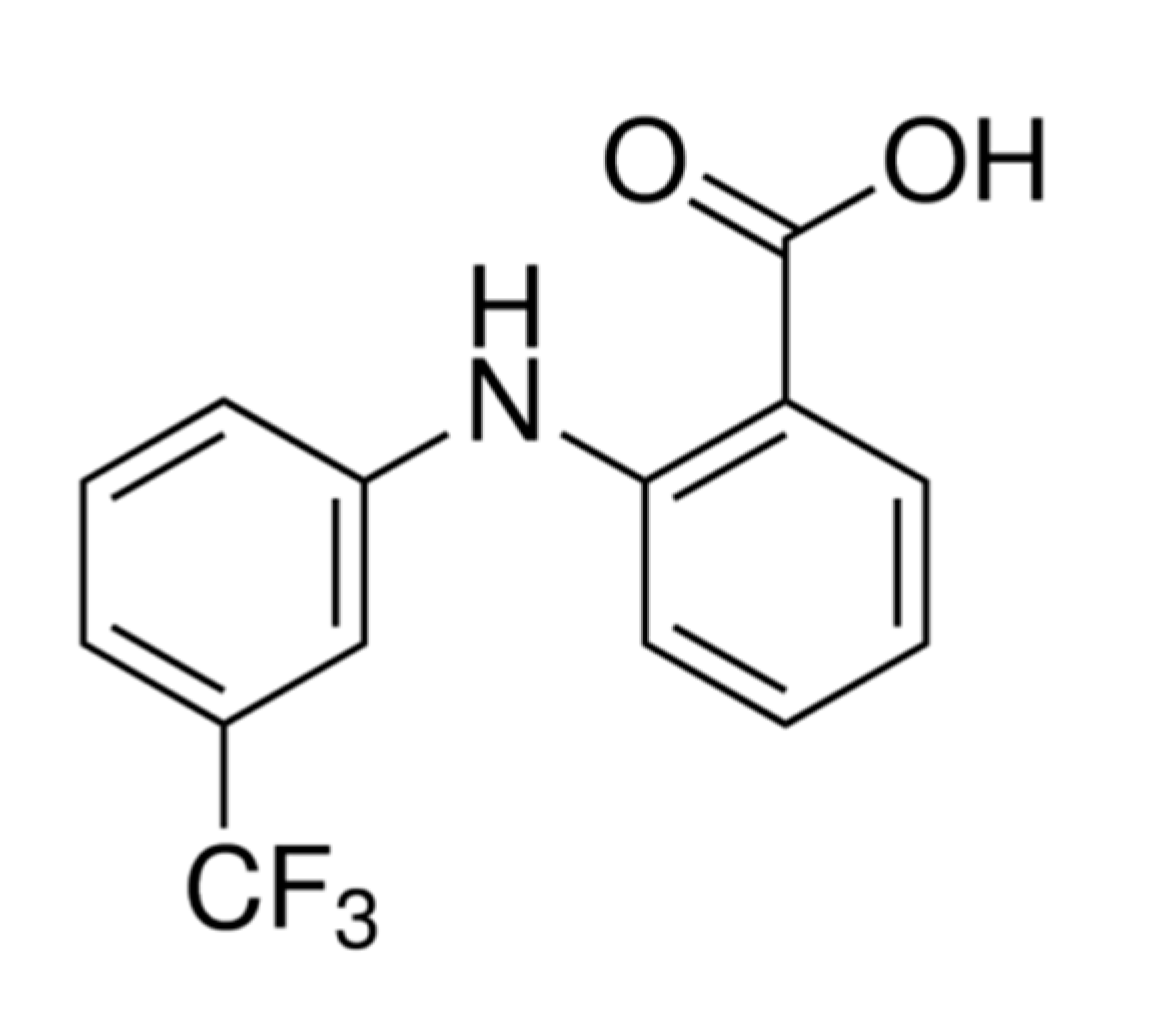

Flufenamic acid (FFA; Figure 1) is a small molecule non-steroidal anti-inflammatory drug (NSAID) which is used in the treatment of pain and inflammation associated with different diseases [1,2]. It is available in oral and topical dosage forms on the market [2,3]. It is a potent NSAID and has a pK_a value of 3.9, with a high octanol/water partition coefficient (log P = 4.88) [3].

FFA is practically insoluble in an aqueous media such as water. Hence, its dosage form design, especially in terms of liquid dosage forms, such as syrups and injections, is difficult [4]. Various methods of solubility enhancement have been reported in literature [5,6,7]. However, the cosolvency method of solubility enhancement is the simplest and most convenient [5]. The solubility values, solubility parameters and other physicochemical characteristics of drugs in cosolvent–water mixtures are important for drug discovery research and dosage form development [6,7,8]. Hence, this physicochemical behavior of FFA in cosolvent–water combinations must be investigated in order to get its proper physicochemical data [8]. The commonly used cosolvents for solubility enhancement are ethanol, propylene glycol and polyethylene glycol 400 (PEG 400) [6,9]. However, Carbitol [also known as Transcutol or 2-(2-ethoxyethoxy) ethanol] has also been reported as a potent cosolvent in the solubility enhancement of various poorly-soluble drugs in addition to its complete miscibility with water [10,11,12]. The efficiency of Carbitol had been investigated in the solubilization of different, poorly water-soluble compounds in literature [10,11,12,13,14,15]. The solubility of FFA in water, light mineral oil and polyethylene glycol 400 (PEG 400) at T = 295.2 K, T = 305.2 K and T = 298.2 K, respectively, has been reported elsewhere [3,16,17,18]. The solubility of FFA in some organic solvents like hexane, methyl benzene and ethanol at T = 298.2 K has also been reported [19]. Temperature-dependent solubility values of FFA in hexane and 1-octanol at T = 293.2–315.2 K was also reported [2,20]. Some researchers also reported the temperature-dependent solubility values of FFA in ethanol and 1-octanol at T = 298.8–322.3 K [21]. Temperature-dependent solubility values of FFA in eleven different pure solvents, including water, methanol, ethanol, isopropanol, 1-butanol, 2-butanol, ethylene glycol, propylene glycol, PEG 400, Carbitol and dimethyl sulfoxide at T = 298.2–318.2 K was also reported elsewhere [4]. However, the solubility values of FFA in different Carbitol + water mixtures have not been studied and reported so far. Therefore, solubilization, Hansen solubility parameters, solvation behavior and solution thermodynamics of FFA in various Carbitol + water mixtures, including pure solvents (Carbitol and water), at T = 298.2–318.2 K and p = 0.1 MPa, were evaluated and reported in this work. The obtained solubility values of FFA were correlated using van’t Hoff, Apelblat, Yalkowsky–Roseman, Jouyban–Acree and Jouyban–Acree–van’t Hoff models. The solubility values and physicochemical data of FFA reported in this research could be applicable in the drug discovery process and dosage form design of FFA.

2. Materials and Methods

2.1. Materials

FFA was procured from Sigma-Aldrich (St. Louis, MO, USA). Carbitol was obtained from Gattefossé (Lyon, France). The deionized/chromatography-grade water was obtained from a Milli-Q water purification unit. The details of the materials are presented in

Table 1. A sample table for materials.

Material	Molecular Formula	Molar Mass (g mol−1)	CAS Registry No.	Purification Method	Mass Fraction Purity	Analysis Method	Source
FFA	C14H10F3NO2	281.23	530-78-9	None	>0.97	HPLC	Sigma-Aldrich
Carbitol	C6H14O3	134.17	111-90-0	None	>0.99	GC	Gattefossé
Water	H2O	18.07	7732-18-5	None	-	-	Milli-Q

The purity and analysis methods were obtained directly from the supplier; FFA: flufenamic acid; HPLC: high-performance liquid chromatography; GC: gas chromatography.

.

2.2. Solvent Mixture Preparations

All Carbitol + water mixtures were prepared by mass, using an OHAUS Pioneer (Parsippany, NJ, USA) analytical balance with sensitivity of ±0.10 mg. The mass fraction of Carbitol for different binary mixtures was prepared by varying 0.10 from 0.10–0.90.

2.3. FFA Solubility Determination

The solubility of FFA in various Carbitol + water mixtures (m = 0.1–0.9; m is the mass fraction of Carbitol in mixed solvent systems), including pure water (m = 0.0) and pure Carbitol (m = 1.0), was determined at T = 298.2–318.2 K and p = 0.1 MPa, using a static equilibrium method [22]. Prior to the solubility determination of FFA, the reliability of the experimental technique was verified by measuring the solubility of sodium chloride in neat water at T = 298.15 and T = 323.15 K. The solubility of sodium chloride in neat water was also compared with its reported values [23]. For the solubility determination of FFA, the excess amount of FFA was dispensed in known amounts of various mixed solvents, including pure water and pure Carbitol. Each procedure was carried out in three replicates (n = 3). The obtained mixtures were sonicated for about 10 min and kept in a WiseBath^® WSB Shaking Water Bath (model WSB-18/30/-45, Daihan Scientific Co. Ltd., Seoul, Korea) for equilibrium. Each sample in the shaker was rotated at 100 rpm for a period of 72 h [4]. After saturation, each sample was withdrawn carefully and centrifuged at 5000 rpm for 30 min. The supernatant from each sample was taken and utilized for the estimation of FFA content using a high-performance liquid chromatography technique at 245 nm [4]. The binary combination of methanol and ethanol (80:20%, v/v) was utilized as the mobile phase for FFA estimation. The solubility of FFA in the mole fraction (x_e) was determined using its standard formulate, described previously [12,13].

2.4. Hansen Solubility Parameters (HSPs) of FFA and Pure Solvents

The HSP of drug molecules is related to its solubility in neat solvent or cosolvent–water mixtures. It has been reported that the closed HSP value of drug molecules with that of a particular solvent could result in the maximum solubility of the drug molecule in that particular solvent [24]. Therefore, HSP for FFA, neat Carbitol and neat water were estimated in this work. The total HSP (δ_t) value for FFA, pure Carbitol and pure water was estimated using the following equation [25,26,27,28]:

$${\delta }_t^2={\delta }_d^2+{\delta }_p^2+{\delta }_h^2$$

(1)

where δ_t = total HSP, δ_d = dispersion HSP, δ_p = polar HSP and δ_h = hydrogen-bonded HSP. These values for FFA and pure solvents were estimated using HSPiP software (version 4.1.07, Louisville, KY, USA) by putting the simplified molecular-input line-entry system (SMILES) of each component into the software [26].

2.5. Solute-Solvent Interactions and Determination of Ideal Solubility and Activity Coefficients

The ideal solubility (x^idl) of FFA at T = 298.2–318.2 K was obtained using the following equation [29]:

$$ln{x}^{idl}=\frac{-\Delta H_{fus}\left(T_{fus}-T\right)}{R{T}_{fus}T}+\left(\frac{\Delta C_p}{R}\right)[\frac{T_{fus}-T}{T}+\ln \left(\frac{T}{T_{fus}}\right)]$$

(2)

where T_fus = fusion temperature of FFA, R = universal gas constant, ΔH_fus = fusion enthalpy of FFA and ΔC_p = molar heat capacity different between the solid state and liquid state of FFA [29,30]. The values of T_fus, ΔH_fus and ΔC_p for FFA were taken as 407.77 K, 29.85 kJ mol⁻¹ and 73.29 J mol⁻¹ K⁻¹, respectively, from reference [4].

The activity coefficient (γ_i) for FFA in a mixed solvent system was calculated using the following equation [29,31]:

$${\gamma }_i=\frac{x^{idl}}{x_e}$$

(3)

The solute-solvent interactions at the molecular level were explained based on the quantitative values of γ_i.

2.6. Apparent Thermodynamic Analysis of FFA Solution

The dissolution characteristics of FFA in mixed solvent systems and pure solvents were investigated using apparent thermodynamic analysis with the help of van’t Hoff and Gibbs equations. The van’t Hoff equation was applied to determine apparent thermodynamic parameters of FFA in the mixed solvent system. The van’t Hoff equation was recorded at the mean harmonic temperature (T_hm) of 308 K at T = 298.2–318.2 K, expressed using the following equation [29,32]:

$${\left(\frac{\partial ln{x}_e}{\partial \left(\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T$}\right.-\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T_{hm}$}\right.\right)}\right)}_P=-\frac{{\Delta }_{sol}{H}^0}{R}$$

(4)

where Δ_solH⁰ = apparent standard enthalpy for FFA.

By making the graphs between ln x_e values of FFA and $\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T$}\right.-\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T_{hm}$}\right.$ (supplementary Figure S1), the Δ_solH⁰ and apparent standard Gibbs energy (Δ_solG⁰) values for FFA were calculated from the slope and intercept, respectively, by applying the following equations [33]:

$${\Delta }_{sol}{H}^0=-R{\left(\frac{\partial ln{x}_e}{\partial \left(\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T$}\right.-\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T_{hm}$}\right.\right)}\right)}_P$$

(5)

$${\Delta }_{sol}{G}^0=-R{T}_{hm}\times intercept$$

(6)

The apparent standard entropy (Δ_solS⁰) value for FFA in mixed solvent systems and pure solvents was calculated using the Gibbs equation, expressed as follows [29,32,33]:

$${\Delta }_{sol}{S}^0=\frac{{\Delta }_{sol}{H}^0-{\Delta }_{sol}{G}^0}{T_{hm}}$$

(7)

2.7. Enthalpy–Entropy Compensation Analysis

The solvation behavior of FFA in mixed solvent systems and pure solvents was investigated using enthalpy–entropy compensation analysis [12,32]. Such analysis was carried out by plotting the weighted graphs of Δ_solH° vs. Δ_solG° at T_hm = 308 K [12].

2.8. Computational Modeling

The solubilities of FFA recorded in this work were regressed using various computational models like the van’t Hoff, Apelblat, Yalkowsky–Roseman, Jouyban–Acree and Jouyban–Acree–van’t Hoff models [34,35,36,37,38,39,40].

The van’t Hoff model solubility (x^Van’t) of FFA in mixed solvent systems and pure solvents was calculated using the following equation [34]:

$$ln{x}^{Va{n}^{\prime }t}=a+\frac{b}{T}$$

(8)

where a and b = model coefficients of Equation (8) and the values of these model coefficients were obtained using the least square method. The correlation between the experimental and van’t Hoff model solubilities of FFA was performed in terms of root mean square deviation (RMSD) and determination coefficient (R²). The RMSD was calculated using the following equation:

$$RMSD={\left[\frac{1}{N}{\displaystyle \sum }_{i=1}^N{\left(\frac{x_c-x_e}{x_e}\right)}^2\right]}^{\frac{1}{2}}$$

(9)

where N = number of experimental data points and x_c = calculated solubility of the respective model. The Apelblat model solubility (x^Apl) of FFA in mixed solvent systems, including pure solvents, was estimated using the following equation [35,36]:

$$ln{x}^{Apl}=A+\frac{B}{T}+Cln\left(T\right)$$

(10)

where A, B and C = model coefficients of Equation (10) and the values of these model coefficients were obtained by adopting a nonlinear multivariate regression analysis of experimental solubilities of FFA provided in

Table 2. Experimental mole fraction solubilities (x_e) of flufenamic acid (FFA) in various Carbitol + water mixtures (m) at T = 298.2–318.2 K and p = 0.1 MPa ^a.

m	xe
	T = 298.2 K	T = 303.2 K	T = 308.2 K	T = 313.2 K	T = 318.2 K
0	5.80 × 10−7	8.01 × 10−7	1.06 × 10−6	1.32 × 10−6	1.63 × 10−6
0.1	2.16 × 10−6	2.83 × 10−6	3.70 × 10−6	4.54 × 10−6	5.54 × 10−6
0.2	7.42 × 10−6	9.76 × 10−6	1.27 × 10−5	1.53 × 10−5	1.86 × 10−5
0.3	2.67 × 10−5	3.43 × 10−5	4.30 × 10−5	5.11 × 10−5	6.10 × 10−5
0.4	9.39 × 10−5	1.22 × 10−4	1.49 × 10−4	1.76 × 10−4	2.11 × 10−4
0.5	3.36 × 10−4	4.12 × 10−4	4.99 × 10−4	5.84 × 10−4	6.83 × 10−4
0.6	1.21 × 10−3	1.43 × 10−3	1.73 × 10−3	1.99 × 10−3	2.32 × 10−3
0.7	4.25 × 10−3	4.95 × 10−3	5.81 × 10−3	6.62 × 10−3	7.58 × 10−3
0.8	1.53 × 10−2	1.73 × 10−2	2.00 × 10−2	2.24 × 10−2	2.55 × 10−2
0.9	5.37 × 10−2	5.99 × 10−2	6.78 × 10−2	7.51 × 10−2	8.44 × 10−2
1	1.90 × 10−1	2.07 × 10−1	2.31 × 10−1	2.53 × 10−1	2.81 × 10−1
xidl	6.35 × 10−2	7.36 × 10−2	8.50 × 10−2	9.79 × 10−2	1.12 × 10−1

^a The relative uncertainties u_r are u_r(T) = 0.01 K, u_r(m) = 0.00, u_r(p) = 0.00 and u_r(x_e) = 0.01.

[34]. The correlation between the experimental and Apelblat model solubilities of FFA was also performed in terms of RMSD and R².

The logarithmic solubility of Yalkowsky–Roseman model (log x^Yal) for FFA in mixed solvent systems was predicted using the following equation [37]:

$$Log{x}^{Yal}=m_{1}log{x}_1+m_{2}log{x}_2$$

(11)

where x₁ = mole fraction solubility of FFA in pure Carbitol, x₂ = mole fraction solubility of FFA in pure water, m₁ = Carbitol mass fraction and m₂ = water mass fraction. The correlation between the experimental and Yalkowsky–Roseman solubilities of FFA was performed in terms of RMSD.

The Jouyban–Acree model solubility (x_m,T) of FFA in mixed solvent systems was predicted using the following equation [38,39,40]:

$$ln{x}_{m,T}=m_{1}ln{x}_1+m_{2}ln{x}_2+\lceil m_1{m}_2{\displaystyle \sum }_{i=0}^2\frac{J_i}{T}{\left(m_1-m_2\right)}^i\rceil$$

(12)

where J_i = model coefficient of Equation (12) and was predicted using no-intercept regression analysis [41]. The correlation between the experimental and Jouyban–Acree model solubilities of FFA was performed in terms of RMSD.

The Jouyban–Acree–van’t Hoff solubility of FFA in mixed solvent systems was predicted using the following equation [41,42]:

$$ln{x}_{m,T}=m_1\left(A_1+\frac{B_1}{T}\right)+m_2\left(A_2+\frac{B_2}{T}\right)+\left[\frac{m_1{m}_2}{T}{\displaystyle \sum }_{i=0}^2{J}_i{\left(m_1-m_2\right)}^i\right]$$

(13)

where A₁, B₁, A₂, B₂ and J_i = model coefficients of Equation (13). The correlation between the experimental and Jouyban–Acree–van’t Hoff model solubilities of FFA was performed in term of RMSD.

2.9. Statistical Evaluation

Statistical evaluation was carried out using the Kruskal–Wallis test, followed by Dunn’s test using GraphPad InStat software (San Diego, CA, USA). This test was performed to evaluate the statistical differences of FFA solubility. The p < 0.05 was taken as a significant value.

3. Results and Discussion

3.1. Solubility Data of FFA in Various Carbitol + Water Mixtures and Their Literature Comparison

The experimental solubilities of FFA in mixed solvent systems and neat solvents at T = 298.2–318.2 K and p = 0.1 MPa are tabulated in Table 2.

The solubility of FFA in different Carbitol + water mixtures has not been studied and reported so far. However, the mole fraction solubility of FFA in pure water at T = 295.2 K was found as 4.29 × 10⁻⁷ in literature [3]. In another report, the mole fraction solubility of FFA in pure water at T = 298.2 K has been reported as 5.83 × 10⁻⁷ [4]. The mole fraction solubility of FFA in pure water at T = 298.2 K was determined as 5.80 × 10⁻⁷ in the present study (Table 2). The mole fraction solubility of FFA in pure water recorded in the present work was in accordance with those reported in literature. The mole fraction solubility of FFA in pure Carbitol at T = 298.2 K has been reported as 1.93 × 10⁻¹ in literature [4]. The mole fraction solubility of FFA in neat Carbitol at T = 298.2 K was determined as 1.90 × 10⁻¹ in the present study (Table 2). The mole fraction solubility of FFA in pure Carbitol recorded in the present work was also in accordance with its literature value [4].

The mole fraction solubilities of FFA in pure water and pure Carbitol at five different temperatures, i.e., T = 298.2–318.2 K, have also been studied and reported in literature [4]. The graphical correlation of the x_e value of FFA in pure water and pure Carbitol at T = 298.2–318.2 K is summarized in Figure 2A and B, respectively, showing a good correlation of x_e data of FFA with those reported in literature. The RMSD values between the experimental and literature solubilities of FFA in neat water and neat Carbitol at five different temperatures were recorded as 2.21% and 1.22%, respectively. These results suggested good agreement of experimental solubilities of FFA with its literature values.

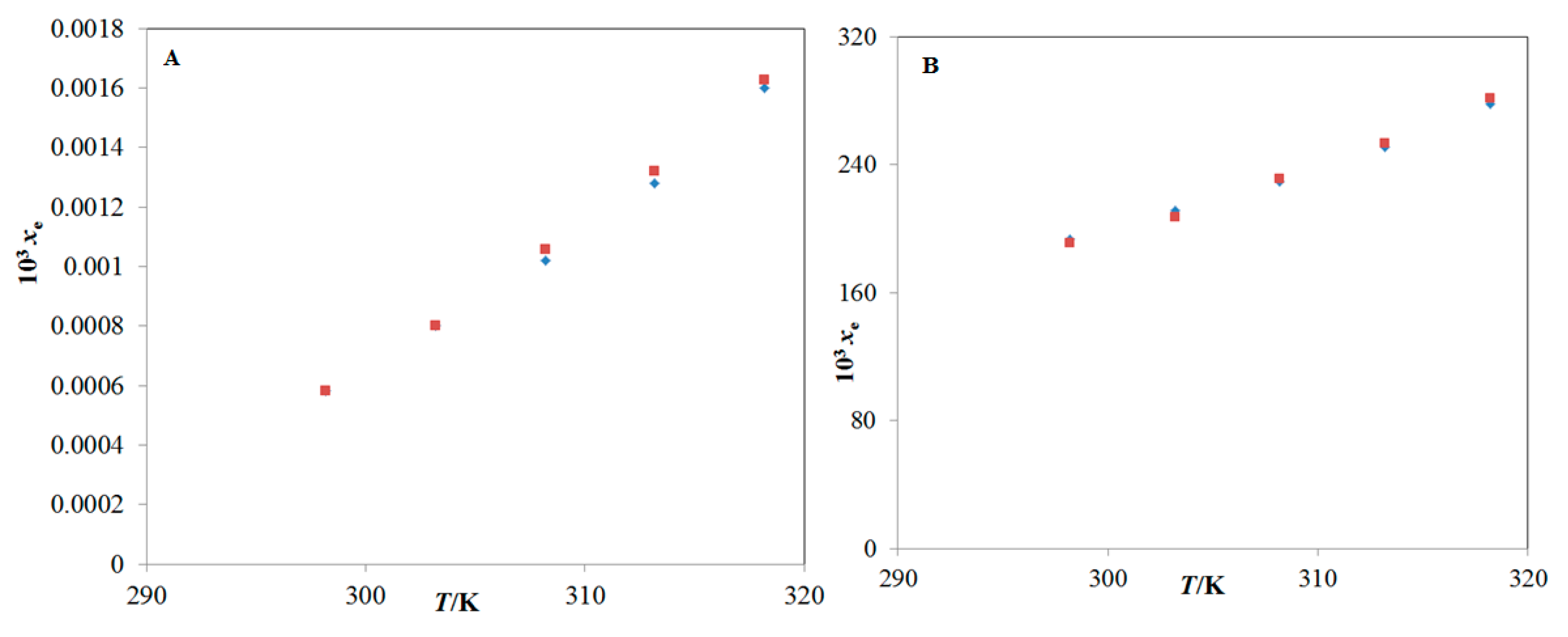

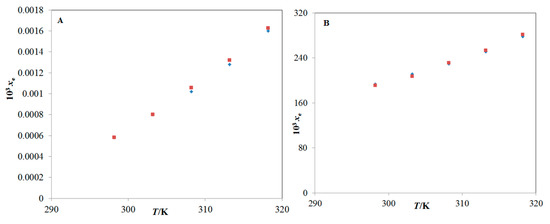

The experimental reliability proof of the method of solubility measurement was verified by the measurement of the solubility of sodium chloride in neat water at T = 298.15 K and T = 323.15 K. The solubility of sodium chloride in neat water at T = 298.15 K and T = 323.15 K was found as 0.26483 in mass fraction (converted to 9.99 × 10⁻² in mole fraction) and 0.26889 in mass fraction (converted to 1.02 × 10⁻¹ in fraction), respectively [23]. The mole fraction solubility of sodium chloride in neat water at T = 298.15 K and T = 323.15 K was obtained as 9.96 × 10⁻² and 1.04 × 10⁻¹, respectively, in the present work. The RMSD between the experimental and literature solubility of sodium chloride was found to be 1.23%. These observations suggested that the solubility of sodium chloride in pure water obtained using the current method was in accordance with its literature data [23]. Therefore, the present method of solubility measurement was reliable and precise for the solubility determination of FFA.

From the data summarized in Table 2, it was observed that the solubilities of FFA were found to enhance linearly with an increase in temperature and Carbitol mass fraction in all mixed solvent systems and pure solvents (p ˂ 0.05). Therefore, the maximum solubility of FFA was obtained in pure Carbitol (2.81 × 10⁻¹ at T = 318.2 K), and the minimum one was found in pure water (5.80 × 10⁻⁷ at T = 298.2 K). The maximum solubility of FFA in pure Carbitol was probably due to the lower polarity and lower HSP of Carbitol compared with water [13,14,15]. The influence of Carbitol mass fraction on logarithmic solubility (ln x_e) value of FFA at T = 298.2–318.2 K was also studied, and the results are presented in Figure 3.

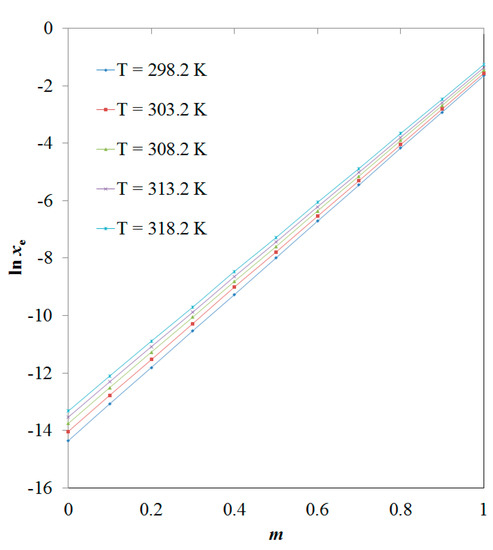

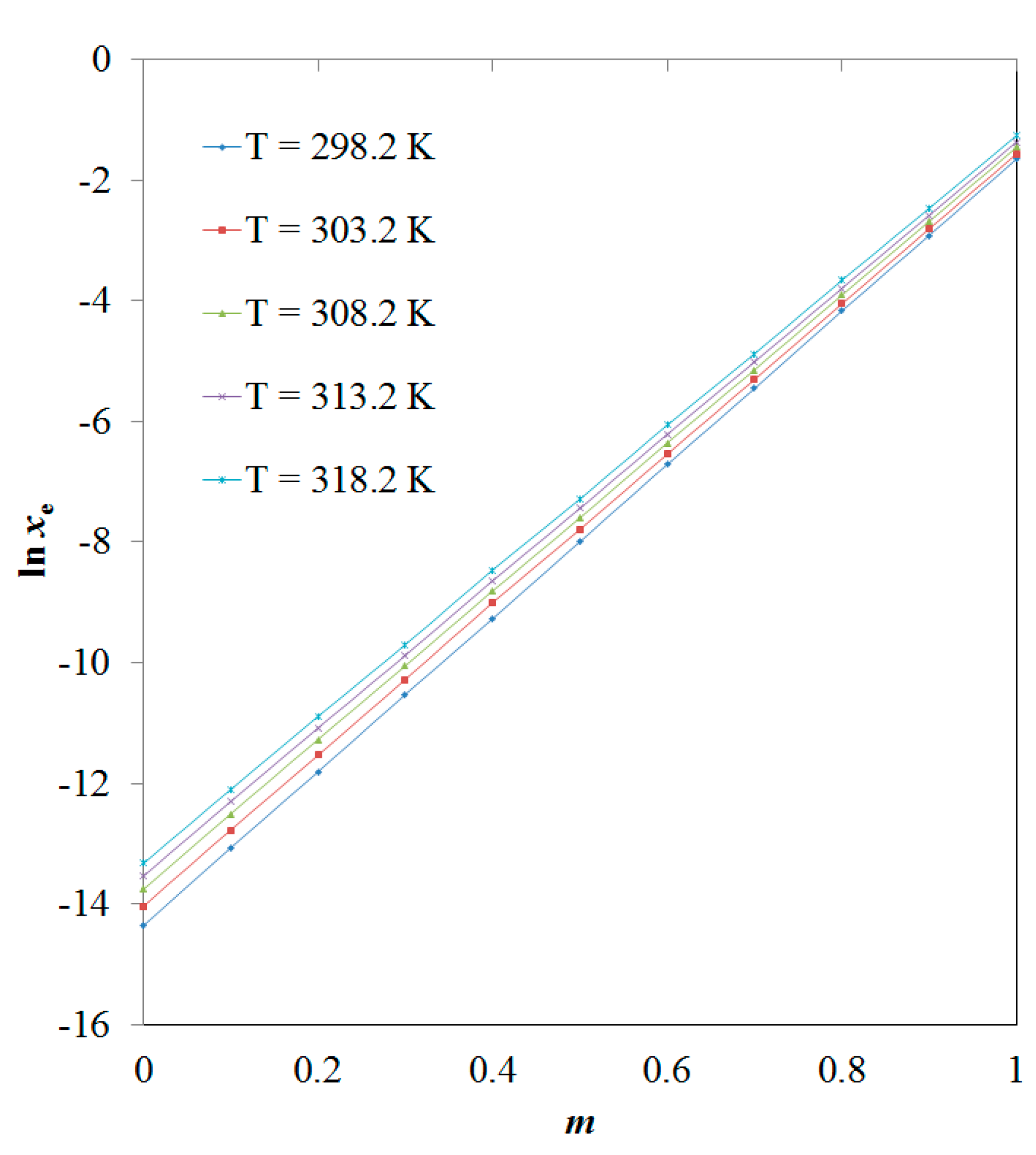

The results presented in Figure 3 indicate a significant enhancement in the logarithmic solubility of FFA with an increase in Carbitol mass fraction in mixed solvent systems at T = 298.2–318.2 K (p ˂ 0.05). It was also noted that the logarithmic solubilities of FFA increased significantly from pure water to pure Carbitol (p ˂ 0.05) at each temperature studied. Hence, Carbitol can be used as a potential cosolvent in the liquid formulation design of FFA.

3.2. HSPs

Hansen solubility parameters provide a numerical estimate of the degree of interaction between the solute and solvent and could be a good indication of solubility/miscibility [24]. The solute and solvents with similar solubility parameters are likely to be soluble/miscible with each other [43]. Similar solubility parameters also indicate a similar polarity between the solute and solvent. Hence, Hansen solubility parameters of FFA, pure water and pure Carbitol were estimated in this work. The estimation of Hansen solubility parameters have various applications in different areas of research [24,43]. In the current work, the main application was to obtain information about the solubility/miscibility between the solute and solvent. The δ_t value for FFA was estimated as 20.90 MPa^1/2 using HSPiP software. However, the values of δ₁ for pure Carbitol and δ₂ for pure water were estimated as 21.40 and 47.80 MPa^1/2, respectively, using HSPiP software. The HSP of pure Carbitol (δ₁ = 21.40 MPa^1/2) was found to be closest to that of FFA (δ_t = 20.90 MPa^1/2). Hence, FFA was highly soluble/miscible in Carbitol compared with water. The recorded data of the HSPs were in accordance with x_e values of FFA in mixed solvent systems.

3.3. Solute-Solvent Interactions and Determination of Ideal Solubility and Activity Coefficients

The x^idl values of FFA at T = 298.2–318.2 K are tabulated in Table 2. The x^idl values of FFA were found as 6.35 × 10⁻² to 1.12 × 10⁻¹ at T = 298.2–318.2 K. The x^idl values of FFA were significantly higher compared to its experimental solubilities in water (p ˂ 0.05), while the x^idl values of FFA were significantly lower compared to its experimental solubilities in Carbitol (p ˂ 0.05). Due to the maximum experimental solubility of FFA in Carbitol, it can be used as an ideal cosolvent for the solubility enhancement of FFA.

The γ_i values for FFA in mixed solvent systems at T = 298.2–318.2 K are tabulated in

Table 3. Activity coefficients (γ_i) of FFA in various Carbitol + water mixtures (m) at T = 298.2–318.2 K.

m	γi
	T = 298.2 K	T = 303.2 K	T = 308.2 K	T = 313.2 K	T = 318.2 K
0.0	110,000	91,900.0	80,400.0	74,200.0	69,200.0
0.1	30,323.3	25,981.8	22,959.3	21,588.6	20,326.8
0.2	8567.52	7541.16	6691.26	6385.92	6056.82
0.3	2379.81	2148.02	1977.9	1916.43	1846.53
0.4	677.404	601.039	570.85	555.446	534.634
0.5	188.975	178.627	170.372	167.843	164.91
0.6	52.4835	51.2066	49.1446	49.0884	48.3886
0.7	14.9338	14.8694	14.6094	14.7924	14.8495
0.8	4.13227	4.24933	4.24812	4.37149	4.4018
0.9	1.18203	1.22716	1.2527	1.30404	1.3335
1	0.333385	0.355174	0.367864	0.387139	0.400476

.

The γ_i values for FFA were found to be larger in pure water compared to pure Carbitol and mixed solvent systems at each temperature investigated (p ˂ 0.05). However, the γ_i values for FFA were observed to be the minimum in pure Carbitol at each temperature investigated. The γ_i values were obtained as ˂1.0 in pure Carbitol. The γ_i values for FFA were found to reduce significantly with the rise in temperature at m = 0.0–0.5 (p ˂ 0.05). However, there was no significant change in γ_i values of FFA at m = 0.6–1.0 (p ˃ 0.05). The γ_i values for FFA were found to decrease significantly from neat water to neat Carbitol (p ˂ 0.05). The larger γ_i of FFA in neat water might be due to the minimum solubility of FFA in water compared with neat Carbitol [12,13]. The obtained data of activity coefficients for FFA in mixed solvent systems were in accordance with their solubility results [13]. Based on these results, higher solute-solvent interactions were considered in FFA–Carbitol compared to FFA–water.

3.4. Apparent Thermodynamic Analysis of FFA Solution

The physical quantities of different apparent thermodynamic parameters for FFA dissolution in mixed solvent systems and pure solvents are tabulated in

Table 4. Apparent standard enthalpy (Δ_solH⁰), apparent standard Gibbs energy (Δ_solG⁰), apparent standard entropy (Δ_solS⁰) and determination coefficient (R²) values for FFA dissolution in various Carbitol + water mixtures (m) ^b.

m	ΔsolH0/kJ mol−1	ΔsolG0/kJ mol−1	ΔsolS0/J mol−1 K−1	R2
0	40.56	35.35	16.91	0.9942
0.1	38.08	32.14	19.31	0.9943
0.2	36.21	28.98	23.45	0.9946
0.3	32.43	25.83	21.41	0.9956
0.4	31.34	22.63	28.26	0.9937
0.5	27.88	19.52	27.14	0.998
0.6	25.82	16.33	30.79	0.9989
0.7	22.84	13.21	31.25	0.9992
0.8	20.12	10.04	32.74	0.9987
0.9	17.8	6.9	35.37	0.9992
1	15.41	3.75	37.83	0.9973

^b Mean relative uncertainties are u(Δ_solH⁰) = 0.30, u(Δ_solG⁰) = 0.53 and u(Δ_solS⁰) = 0.24.

.

The Δ_solH⁰ values for FFA in mixed solvent systems and neat solvents were recorded as 15.41–40.55 kJ mol⁻¹. The Δ_solH⁰ values of FFA were recorded as decreasing with an increase in the m value of Carbitol in mixed solvent systems and solubilities of FFA. Therefore, the maximum Δ_solH⁰ was obtained in neat water (40.56 kJ mol⁻¹), while the minimum one was estimated in neat Carbitol (15.41 kJ mol⁻¹).

The Δ_solG⁰ values for FFA in mixed solvent systems were found as 3.75–35.35 kJ mol⁻¹. The Δ_solG⁰ values for FFA also decreased with an increase in m value of Carbitol in mixed solvent systems and solubilities of FFA. The maximum and minimum Δ_solG⁰ for FFA was estimated in neat water (35.35 kJ mol⁻¹) and neat Carbitol (3.75 kJ mol⁻¹), respectively. The recorded positive value of Δ_solH⁰ and Δ_solG⁰ for FFA suggested an endothermic dissolution of FFA in all Carbitol + water mixtures investigated [25,26].

The Δ_solS⁰ values for FFA in mixed solvent systems were estimated as 16.91–37.83 J mol⁻¹ K⁻¹, indicating the entropy-driven dissolution of FFA in all mixed solvent systems, including neat water and neat Carbitol [26]. The average relative uncertainties in Δ_solH⁰, Δ_solG⁰ and Δ_solS⁰ were recorded as 0.30, 0.53 and 0.24, respectively. Based on recorded thermodynamic quantities, the final dissolution of FFA was proposed as endothermic and entropy-driven in all mixed solvent systems and neat solvents [25,26].

3.5. Enthalpy–Entropy Compensation Analysis

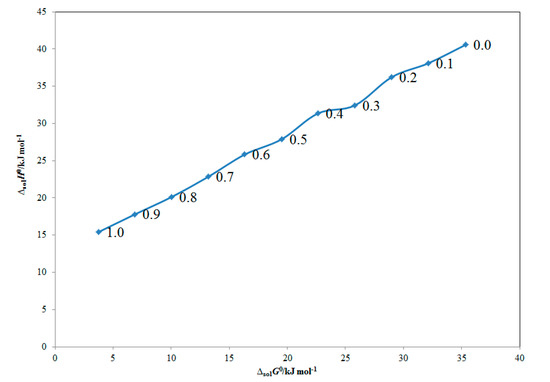

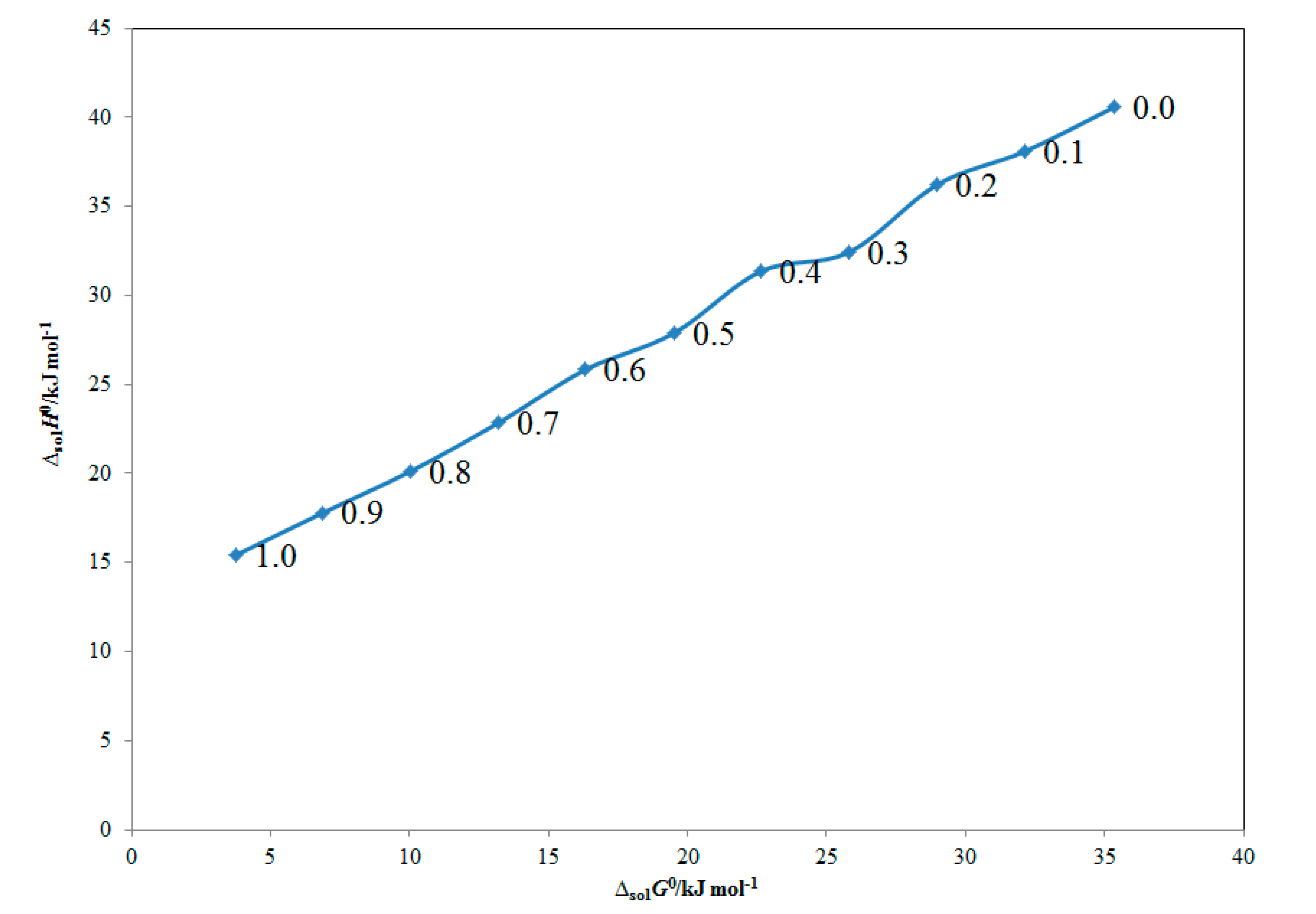

The solvation property of FFA in mixed solvent systems was evaluated by applying enthalpy–entropy compensation analysis. The results are shown in Figure 4.

It was observed that FFA in all mixed solvent systems and neat solvents showed a non-linear Δ_solH° vs. Δ_solG° graph, and the value of the slope was positive. Based on such observation, the driving mechanism for FFA solvation was considered as enthalpy-driven in all mixed solvent systems and neat solvents. This observation was possible due to the higher solvation of FFA in neat Carbitol molecules compared with neat water molecules [32]. The solvation property of FFA in mixed solvent systems was in accordance with those reported for the solvation properties of various poorly water-soluble drugs, such as sunitinib malate, apigenin, apremilast, pyridazinone derivative, celecoxib and lamotrigine, in various Carbitol + water mixtures [10,11,12,13,14,15].

3.6. Computation Modeling

The experimental solubilities of FFA were validated with van’t Hoff, Apelblat, Yalkowsky–Roseman, Jouyban–Acree and Jouyban–Acree–van’t Hoff models [34,35,36,37,38,39,40]. The results of the van’t Hoff model for FFA in mixed solvent systems, including neat solvents, are tabulated in

Table 5. The parameters of van’t Hoff model (a and b) along with R² and root mean square deviations (% RMSDs) for FFA in various Carbitol + water combinations (m) ^c.

m	a	b	R2	RMSD (%)	Overall RMSD (%)
0	2.01	−4872.80	0.9944	2.73
0.1	2.3	−4575.50	0.9945	2.53
0.2	2.8	−4350.00	0.9947	2.35
0.3	2.55	−3896.20	0.9957	2.03
0.4	3.38	−3765.20	0.9939	2.2
0.5	3.24	−3349.90	0.9981	1.39	1.58
0.6	3.68	−3101.10	0.9989	1.03
0.7	3.74	−2744.30	0.9992	0.84
0.8	3.92	−2417.60	0.9987	0.97
0.9	4.24	−2138.30	0.9992	0.62
1	4.54	−1850.90	0.9972	0.73

^c The average relative uncertainties are u(a) = 0.24 and u(b) = 0.30.

.

RMSDs for FFA in mixed solvent systems and neat solvents were recorded as 0.62 to 2.73%, with a mean RMSD value of 1.58%. The R² values for the van’t Hoff model were predicted as 0.9939–0.9992. The graphical correlation between the experimental and van’t Hoff model solubilities of FFA is shown in Figure S2, suggesting a good correlation of experimental solubilities of FFA with the van’t Hoff model.

The results of the Apelblat model for FFA in mixed solvent systems and neat solvents are tabulated in

Table 6. The parameters of Apelblat model (A, B and C) along with R² and % RMSDs for FFA in various Carbitol + water combinations (m) ^d.

m	A	B	C	R2	RMSD (%)	Overall RMSD (%)
0	939.33	−47,907.30	−139.18	0.9993	1.43
0.1	846.56	−43,337.80	−125.36	0.999	1.37
0.2	750.42	−38,676.20	−111.01	0.9985	1.31
0.3	618.72	−32,187.80	−91.49	0.999	1.16
0.4	677.29	−34,706.60	−100.07	0.9982	1.46
0.5	354.45	−19,479.00	−52.14	0.9995	0.7	0.95
0.6	143.72	−9538.04	−20.79	0.999	0.64
0.7	110.9	−7670.58	−15.90	0.9993	0.55
0.8	−132.19	3822.7	20.21	0.999	0.78
0.9	−97.61	2530.17	15.13	0.9994	0.41
1	−219.47	8425.15	33.27	0.9992	0.64

^d The average relative uncertainties are u(A) = 1.16, u(B) = 1.02 and u(C) = 1.17.

.

The RMSDs for FFA in mixed solvent systems and neat solvents were obtained as 0.41–1.46%, with a mean RMSD of 0.95%. The R² values for the Apelblat model were predicted as 0.9982–0.9995. Graphical correlation between the experimental and Apelblat model solubilities of FFA is shown in Figure S3 and shows good correlation of the experimental solubilities of FFA with the Apelblat model.

The results of the Yalkowsky–Roseman model for FFA in mixed solvent systems are included in

Table 7. Logx^Yal values of FFA obtained by Yalkowsky–Roseman model in various Carbitol + water combinations (m) at T = 298.2–318.2 K.

m	LogxYal					RMSD (%)	Overall RMSD (%)
	298.2 K	303.2 K	308.2 K	313.2 K	318.2 K
0.1	−5.68	−5.55	−5.44	−5.35	−5.26	1.83
0.2	−5.13	−5.01	−4.90	−4.82	−4.74	1.8
0.3	−4.58	−4.47	−4.37	−4.29	−4.21	1.35
0.4	−4.02	−3.93	−3.83	−3.76	−3.69	3.14
0.5	−3.47	−3.38	−3.30	−3.23	−3.16	0.99	1.53
0.6	−2.92	−2.84	−2.77	−2.70	−2.64	2.23
0.7	−2.37	−2.30	−2.23	−2.18	−2.12	0.55
0.8	−1.82	−1.76	−1.70	−1.65	−1.59	1.46
0.9	−1.27	−1.22	−1.17	−1.12	−1.07	0.42

. The RMSDs for this model were predicted as 0.42–3.14%, with a mean RMSD value of 1.53%.

Results of the Jouyban–Acree model and Jouyban–Acree–van’t Hoff models for FFA in mixed solvent systems are tabulated in

Table 8. The parameters of Jouyban–Acree and Jouyban–Acree–van’t Hoff models for FFA in Carbitol + water mixtures.

System	Jouyban–Acree		Jouyban–Acree–van’t Hoff
			A1	4.54
Carbitol + water	Ji	86.01	B1	−1850.90
			A2	2.01
			B2	−4872.80
			Ji	74.42
RMSD (%)	0.76		0.88

. The mean RMSD for the Jouyban–Acree model was predicted as 0.76%, and the mean RMSD for the Jouyban–Acree–van’t Hoff model was predicted as 0.88%.

Overall, all models demonstrated good correlation based on low RMSD values. However, the error values of each model were not comparable to each other. The error values of all models were closed to the experimental uncertainties. This observation suggested that all studied models reproduced the experimental solubility data with minimum error values. Apelblat and van’t Hoff models are semi-predictive models and correlate the solubility at different temperatures at the given set of cosolvent mixtures. Jouyban–Acree and Jouyban–Acree–van’t Hoff models predict the solubility in the mixed solvents at the given set of temperatures. The Yalkowsky–Roseman model is a special case of the Jouyban–Acree model with the adjustable parameter fixed and equal to zero. Among different computational models utilizing adjustable parameters, the performance of the Jouyban–Acree model was the best because it utilized the least number of adjustable parameters compared to other models. Hence, the Jouyban–Acree model can be utilized as the best model for solubility correlation compared to other models utilizing adjustable parameters. Among the five different models studied, the Yalkowsky–Roseman model had a serious advantage as it did not require any adjustable parameter. Based on these observations, the Yalkowsky–Roseman model was found to be the best model among all five different models for the correlation as it utilized no adjustable parameters.

4. Conclusions

The solubilization, HSPs, solvation behavior and solution thermodynamics of FFA in various Carbitol + water mixtures and neat solvents at T = 298.2–318.2 K and p = 0.1 MPa were evaluated in this study. The recorded solubility of FFA was regressed with the van’t Hoff, Apelblat, Yalkowsky–Roseman, Jouyban–Acree and Jouyban–Acree–van’t Hoff models. The solubility of FFA was found to be enhanced significantly with an increase in temperature and Carbitol mass fraction in all mixed solvent systems and pure solvents. The solubility data of FFA was in accordance with its HSPs. The results of activity coefficients suggested higher molecular interactions in FFA–Carbitol compared to FFA–water. Thermodynamic studies indicated an endothermic and entropy-driven dissolution of FFA in all mixed solvent systems and neat solvents. Enthalpy–entropy compensation analysis studies showed that the solvation of FFA was enthalpy driven in all mixed solvent systems and neat solvents.
