Study on the Spatiotemporal Dynamic Evolution Law of a Deep Thick Hard Roof and Coal Seam

Abstract

Underground mining in coal mines causes strong disturbance to geological structures and releases a large amount of elastic strain energy. When the roof is a hard and thick rock layer, it is easy to cause dynamic disasters such as rock burst. To analyze the impact of a deep thick and hard roof fracture on the safe mining of thick coal seams, this paper studied the dynamic evolution process of the stress field, displacement field, energy field, and plastic zone of the coal seam and overlying strata during the mining process using FLAC3D numerical simulation. The results show that as the working face continues to be mined, the concentrated stress in the overlying strata first increases and then decreases, and the support pressure in front of the working face continues to increase. When it advances to 100 m, collapse occurs, and the stress increases sharply; the bottom plate undergoes plastic failure, resulting in floor heave. The overlying strata mass in the top plate exhibits downward vertical displacement, while the rock mass in the bottom plate exhibits upward vertical displacement, with a maximum subsidence of 4.51 m; energy concentration areas are generated around the working face roadway, forming an inverted “U” shape. When collapse occurs, the energy density decreases slightly; the direction of the plastic zone changes from “saddle shaped” to complete failure of the upper rock layer, and the overlying strata is mainly shear failure, which expands with the increase in mining distance. The research results have important practical significance for guiding the safe mining of deep thick and hard roof working faces.

1. Introduction

China has abundant coal resources and a wide distribution area. Coal occupies a dominant position in the composition of disposable energy in China. With the rapid development of the social economy and the improvement in people’s living standards, the demand for raw coal is also increasing year by year [1,2]. In recent years, with the gradual depletion in shallow mineral resources in mining areas in eastern China, deep mining has become an inevitable trend for future development. Due to various factors such as tectonic stress, self-weight of overlying load, and complex geological structure, there are significant differences in the stress field of the original rock in deep coal seams compared to shallow coal seams. The deep environment accumulates more elastic energy in the coal seam, roof, and floor, and their combined structures during coal seam disturbance, resulting in high energy in the deep and frequent occurrence of large-scale coal rock dynamic disasters [3,4,5,6,7]. Thick and hard roof slabs are distributed in more than half of China’s mining areas, and the occurrence conditions of coal seams are relatively complex. Today, with the widespread use of fully mechanized mining technology, nearly 40% of fully mechanized mining faces have experienced the phenomenon of thick and hard roof falling violently for the first time [8,9,10]. Therefore, it is particularly important to master the temporal and spatial evolution law of overlying strata movement and energy under the condition of a deep thick and hard roof.

In recent years, many researchers at home and abroad have done a lot of work for the mining of coal seams under thick and hard roof conditions [11,12,13]. Ma et al. [14] used a variety of research methods to reveal the deformation and failure mechanism of roadway-surrounding rock in a gently inclined soft coal seam under different factors under the condition of a thick and hard roof, and put forward corresponding treatment plans. Wang et al. [15] studied the ground pressure behavior law of a fully mechanized top coal caving face under the condition of a shallow buried thick hard roof, and used fracturing technology to pre-crack the thick hard roof of the face, and achieved good results. Tan et al. [16] studied the mechanism of hard-roof-type rock burst, and the results showed that the two characteristics of stress mutation and energy increase can serve as important indicators of precursor information of rock burst. Zhang et al. [17] used a comprehensive research method to study the distribution law of mining-induced stress during the mining process of the working face. The results showed that the thick and hard roof overlying the coal seam is the main influencing factor of mining-induced stress, and the closer the coal seam is to the thick and hard roof, the more concentrated the mining-induced stress is. Kang et al. [18] used a comprehensive research method to study the failure and movement patterns of thick and hard roof structures, and obtained the deformation and stress distribution patterns of the roof. Liang et al. [19] established a mechanical analysis model to study the relationship between different influencing factors on the advanced fracture position and initial fracture distance of a thick and hard roof, and compared the analysis results with on-site monitoring data to verify the accuracy of the model. Li et al. [20] used five working faces of Chenghe No.2 Coal Mine as an example to study the failure mechanism of the roof and floor of the No.2 coal seam using a combination of on-site testing and numerical simulation. They also analyzed the distribution patterns of stress and displacement fields and plastic zone evolution characteristics of the roof and floor with different degrees of advancement of the working face. Xiong et al. [21] established a mechanical model for coal face failure under repeated mining conditions. Through similar simulation experiments and numerical simulation methods, the development of coal seam roof structure and surrounding rock fractures under repeated mining conditions was studied. The results showed that under the same roof pressure, the development of coal face fractures was more complete, the coal strength was lower, and the coal face was more prone to failure. Yang et al. [22] constructed a 3D physical simulation test under the condition of a thick and hard roof, and obtained the evolution law of the overburden displacement field and the dynamic evolution characteristics of “three belts” during thick seam mining. Bu et al. [23] constructed a mechanical model for the mining bearing capacity of a thick and hard roof, and from the perspective of energy, analyzed the relationship between the energy accumulated due to the fracture of the thick and hard roof in the mining area and the strong dynamic pressure manifestation, revealing the characteristics of the impact of the fracture instability of the thick and hard roof on the strong rock pressure manifestation.

In summary, when researching the instability of a coal seam under the conditions of a thick, hard roof, researchers both domestically and internationally primarily concentrate on one or two of the stress field, displacement field, and energy field, ignoring the investigation of the space–time evolution law of multiple fields. Numerical simulation techniques for engineering geology are maturing and getting better with the broad usage of computer technology. These techniques are also gradually being applied to solve engineering geological problems. The mutual verification between the results of numerical simulation calculations, experimental findings, and engineering practice has expanded the scope of problem solving in engineering geology, deepened the exploration of research topics, and effectively advanced the quantitative advancement of the engineering geological discipline [24,25,26]. Therefore, during the mining process of deep, thick, and hard roof working faces, this research employs FLAC3D V4.0 numerical simulation software to simulate and examine the dynamic evolution process of the stress field, displacement field, energy field, and plastic zone of the coal seam and overlaying strata. Additionally, the distribution law and process of mining stress and thick hard impact roof impact on the alteration of coal elastic energy under deep high-stress conditions were examined. Under the limit conditions of gas containing coal failure and instability (outburst), obtain the dynamic distribution state, dynamic transfer process, and superposition effect with the high-energy elastic performance of the thick and hard roof. Then, analyze the spatial dynamic evolution law of the stress field and energy field. The study’s findings can serve as a guide for safe mining in comparable circumstances.

2. Three-Dimensional Numerical Model of Coal Seam in Deep Thick and Hard Roof Working Face

A growing number of researchers are turning to numerical simulation techniques to address engineering geology-related issues as the field’s numerical simulation technology matures. Using three-dimensional rapid Lagrangian analysis technology, FLAC3D is a numerical modeling tool that accurately models the behavior of materials in yield, plastic flow, softening, and massive deformation. The program is extensively used because of its strong functionality and good universality. Its distinctive advantages have been shown, particularly in the research on major deformation, simulation of construction processes, and material elasticity and plasticity analyses. Because of this reason, this study analyzes the working face mining process using FLAC3D V4.0 software while a thick, hard ceiling is present.

2.1. Selection of Constitutive Model

The rock mass in this simulation is mainly composed of sandstone and mudstone, which exhibit obvious elastic–plastic deformation characteristics under different confining pressures. The failure modes of the rock include plastic failure, tensile failure, and shear failure. Therefore, a Mohr–Coulomb constitutive model can be used [27].

2.1.1. Mohr–Coulomb Incremental Elasticity Theory

The Mohr–Coulomb criterion in FLAC3D is represented by principal stress ${\sigma }_1$, ${\sigma }_2$, ${\sigma }_3$ and strain increment $\Delta {\epsilon }_1$, $\Delta {\epsilon }_2$, $\Delta {\epsilon }_3$, respectively. The incremental expression of Hooke’s law in terms of generalized stress and stress has the following form:

$$\{\begin{array}{l}\Delta {\sigma }_1={\alpha }_1\Delta {\epsilon }_1^e+{\alpha }_2(\Delta {\epsilon }_2^e+\Delta {\epsilon }_3^e)\\ \Delta {\sigma }_2={\alpha }_1\Delta {\epsilon }_2^e+{\alpha }_2(\Delta {\epsilon }_1^e+\Delta {\epsilon }_3^e)\\ \Delta {\sigma }_3={\alpha }_1\Delta {\epsilon }_3^e+{\alpha }_2(\Delta {\epsilon }_1^e+\Delta {\epsilon }_2^e)\end{array}$$

(1)

In the formula, $\Delta {\epsilon }_{\mathrm{i}}^{\mathrm{e}}$ represents the increment of elastic strain; ${\alpha }_1$ and ${\alpha }_2$ are material constants defined in terms of the shear modulus, G, and bulk modulus, K, as follows:

$${\alpha }_1=K+(4/3)G$$

(2)

$${\alpha }_2=K-(2/3)G$$

(3)

2.1.2. Mohr–Coulomb Yield Criterion

The failure envelope defined by the Mohr–Coulomb yield function from point A to point B is

$$f^s={\sigma }_1-{\sigma }_3{N}_{\varphi }+2c\sqrt{N_{\varphi }}$$

(4)

The yield function of tensile stress from point B to point C is defined as

$$f^t={\sigma }^t-{\sigma }_3$$

(5)

In the formula, $\varphi$ is the friction angle, c is the cohesion force, and ${\sigma }^t$ is the tensile strength, and

$$N_{\varphi }=\frac{1+\sin \varphi }{1-\sin \varphi }$$

(6)

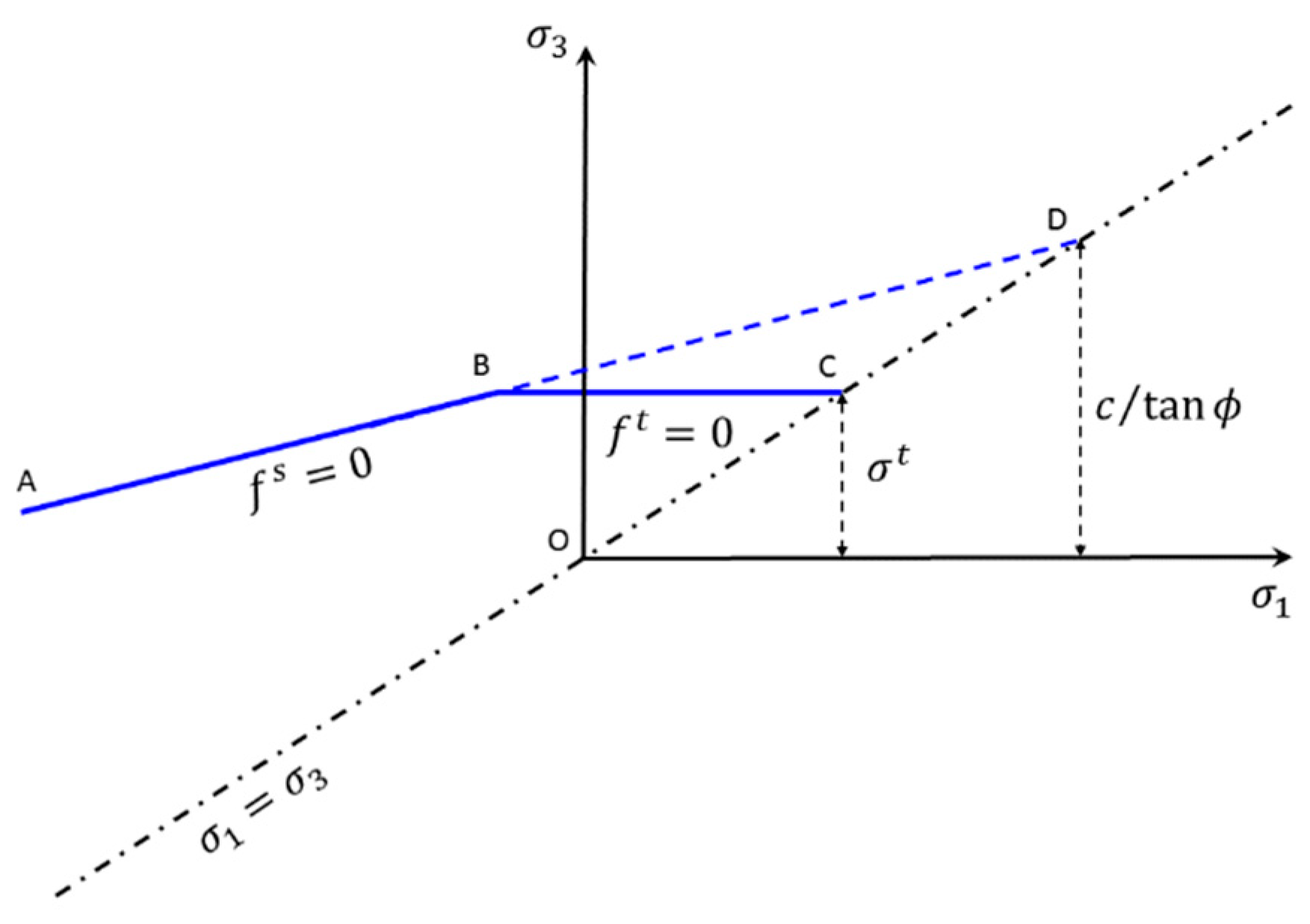

As shown in Figure 1, when $f^s\ge 0$, the material will undergo shear failure. After reaching the yield limit, the material undergoes plastic deformation at a constant stress level [28]. In the state of tensile stress, if the tensile stress exceeds the tensile strength of the material, the material will fail. And the strength of the material cannot exceed the ${\sigma }_{\max }^t$ value defined below, namely

$${\sigma }_{\max }^t=\frac{c}{\tan \varphi }$$

(7)

2.1.3. Mohr–Coulomb Flow Criterion

The shear potential function $g^s$ corresponds to the non-correlated flow law, namely

$$g^s={\sigma }_1-{\sigma }_3{N}_{\varphi }$$

(8)

The potential function $g^t$ corresponds to the correlated flow law of tensile stress failure, namely

$$g^t=-{\sigma }_3$$

(9)

For the case of shear tensile stress near the boundary, the flow criterion of the Mohr–Coulomb model can be used to calculate by defining a mixed yield function near the boundary in a three-dimensional stress space. Define function $h\left({\sigma }_1,{\sigma }_3\right)=0$ to represent the diagonal of the curves represented by $f^s=0$ and $f^t=0$ in the $\left({\sigma }_1,{\sigma }_3\right)$ plane. The expression for this function is

$$h={\sigma }_3-{\sigma }^t+{\alpha }^p\left({\sigma }_1-{\sigma }^p\right)$$

(10)

In the formula

$${\alpha }^p=\sqrt{1+N_{\varphi }}+N_{\varphi }$$

(11)

$${\sigma }^p={\sigma }^t{N}_{\varphi }-2c\sqrt{N_{\varphi }}$$

(12)

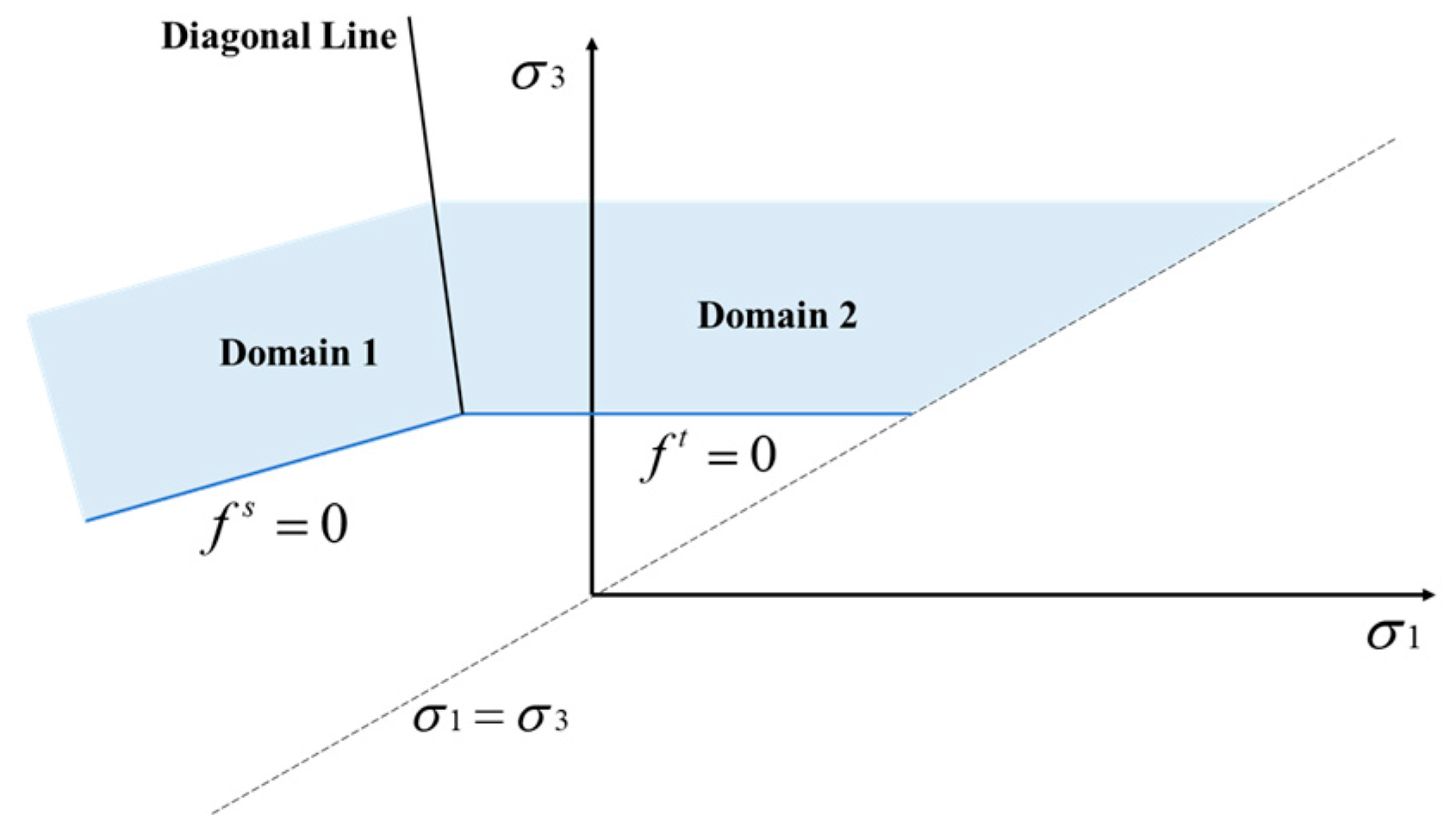

The form of damage is represented by Zone 1 or Zone 2 in the $\left({\sigma }_1,{\sigma }_3\right)$ plane in Figure 2. If located in Zone 1, it is shear failure. Applying the flow criterion determined with potential function $g^s$, the stress points are regressed to the curve of $f^s=0$. If located in Zone 2, it is tensile stress failure. Applying the flow criterion determined with potential function $g^t$, the stress points are regressed to the curve of $f^t=0$ [29].

2.2. Establishment of a Three-Dimensional Numerical Model

The coal seam mined using a fully mechanized mining face in a certain coal mine had a gentle attitude and well-developed fractures. The thickness of the coal seam was 3.1~5.7 m, with a local thickness of 6.2 m and an average coal thickness of 4 m. The structure of the coal seam was relatively complex, containing 1~3 layers of gangue, and the lithology of the gangue was mostly siltstone. The dip angle of the coal seam was 0~10°, with an average of 4°. It was a nearly horizontal coal seam. The length of the working face was 150 m, and the burial depth of the working face was about 670 m. The roof of the coal seam was mainly composed of sandy mudstone and mudstone, while the floor was mainly composed of sandstone.

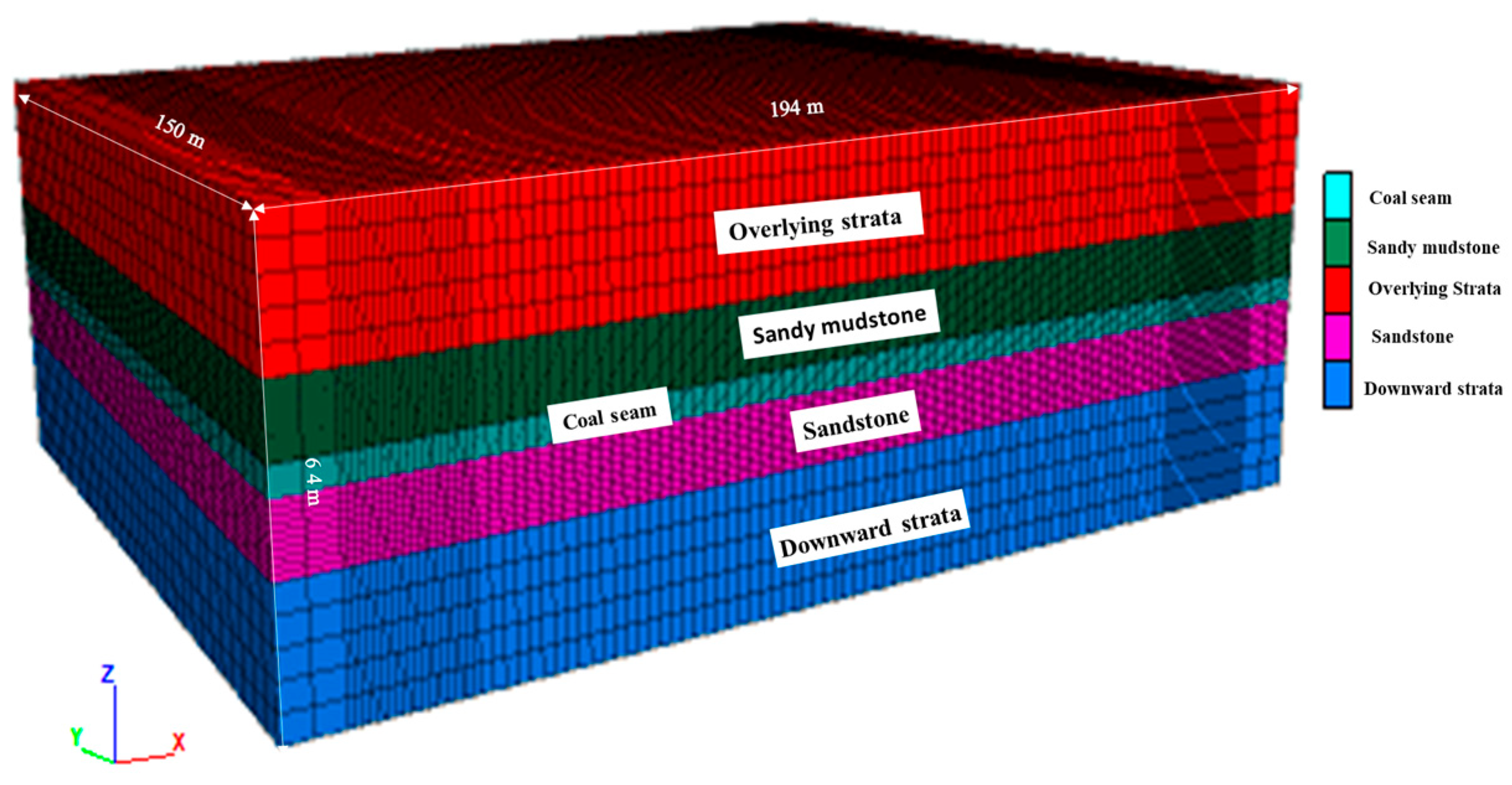

Taking the production geological conditions of the mining face as an example, a FLAC3D numerical physical model was established, as shown in Figure 3. The model size was 194 m × 150 m × 64 m, totally divided into five layers, of which the coal seam was 4 m thick. Because the coal seam was near horizontal, this simulation did not consider the issue of dip angle, and the dip angle of the coal seam was 0°. The number of zones generated was 159,840, and the number of grid points was 173,600. The X-axis direction of the model was defined as the inclination of the working face. The negative direction of the Y-axis was defined as the strike of the working face. The direction of rock deposits and reserves was defined as the Z-axis. A 10 m protective coal pillar was left in both the inclined and strike directions. This simulation used the Mohr–Coulomb constitutive model and activated the large deformation mode. Advance the mining along the Y-axis direction (mining direction of the working face), with a starting line of Y = 10 m and a mining step distance of 100 m. The mining was completed five times with a mining distance of 20 m. The boundaries around the model restricted horizontal displacement, with a fixed bottom and a free boundary at the top. A stress of 16 MPa was applied at the top to simulate the self-weight of the overlying strata. The lateral pressure coefficient was 1.1. The average unit weight of rock was 25 KN/m³. The gas pressure was taken as 0.5 MPa [30,31]. The mechanical parameters used in the model are shown in

Table 1. Mechanical parameters of coal seam roof and floor.

Rock Strata	Thickness/ (m)	Density/ (kg·m−3)	Friction Angle/(°)	Cohesion/ MPa	Bulk Modulus/MPa	Shear Modulus/MPa	Tensile Strength/MPa
Overlying strata	20	1914	46.5	5.45	3.12	2.41	5.51
Sandy mudstone	10	2544.45	37.5	4.40	3.48	2.26	4.29
Coal seam	4	1625.75	24	3.30	1.52	0.81	1.25
Sandstone	10	2454	38.5	4.55	2.67	2.25	3.99
Downward strata	20	2314	46.5	5.45	2.41	2.41	5.41

.

3. Analysis of Numerical Simulation Results

This simulation studied the spatiotemporal evolution of the stress field, displacement field, energy field, and plastic zone in the coal seam and overlying strata of the deep thick and hard roof working face during the excavation process of the model Y = 10 m to Y = 110 m, with a mining distance of 100 m. In order to better display the spatiotemporal evolution laws of the stress field, displacement field, energy field, and plastic zone of the coal seam and overlying strata during the mining period of the deep thick and hard roof working face from multiple angles, a horizontal section is made for the overlying strata above the parallel coal seam, a vertical section is made for the parallel advancing direction, and monitoring lines are arranged at different distances from the bottom of the coal seam to monitor the changes in stress, displacement, and energy of the coal seam and overlying strata in real time every 20 m of advancing of the working face [32]. Three monitoring lines are arranged at Y = 115 m, with distances of 2 m, 12 m, and 22 m from the bottom of the coal seam, respectively; the total length of the monitoring line is 150 m, with a total of 16 monitoring points per layer, with a spacing of 10 m.

3.1. The Spatiotemporal Evolution Law of the Stress Field in the Coal Seam and Overlying Strata during the Mining Period of the Working Face

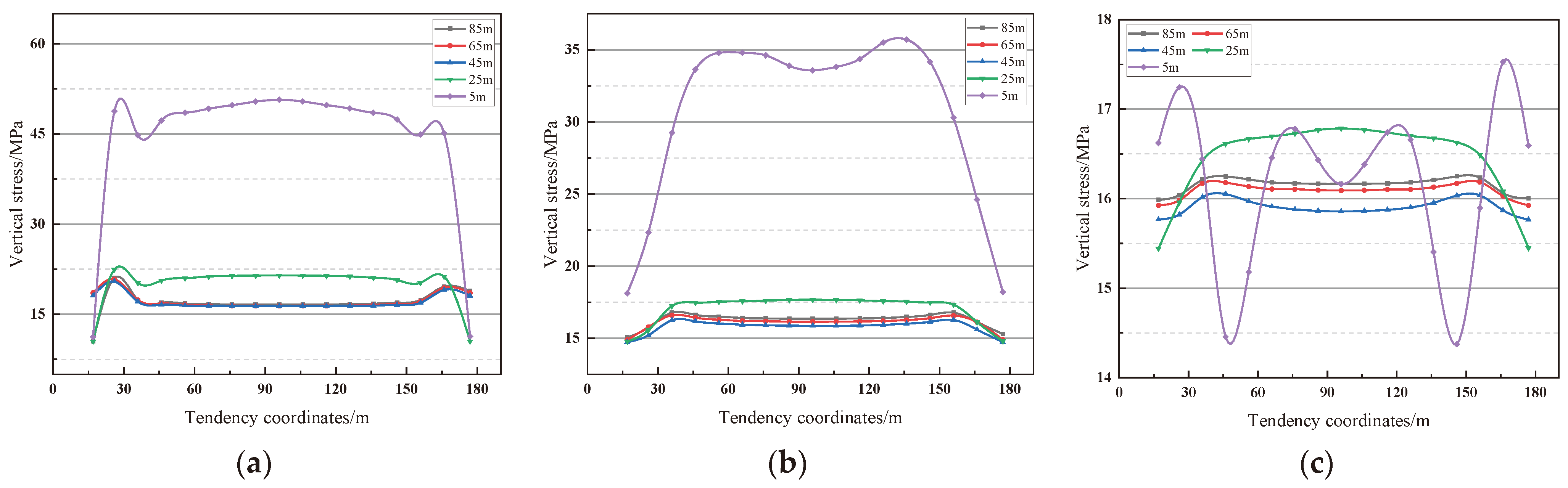

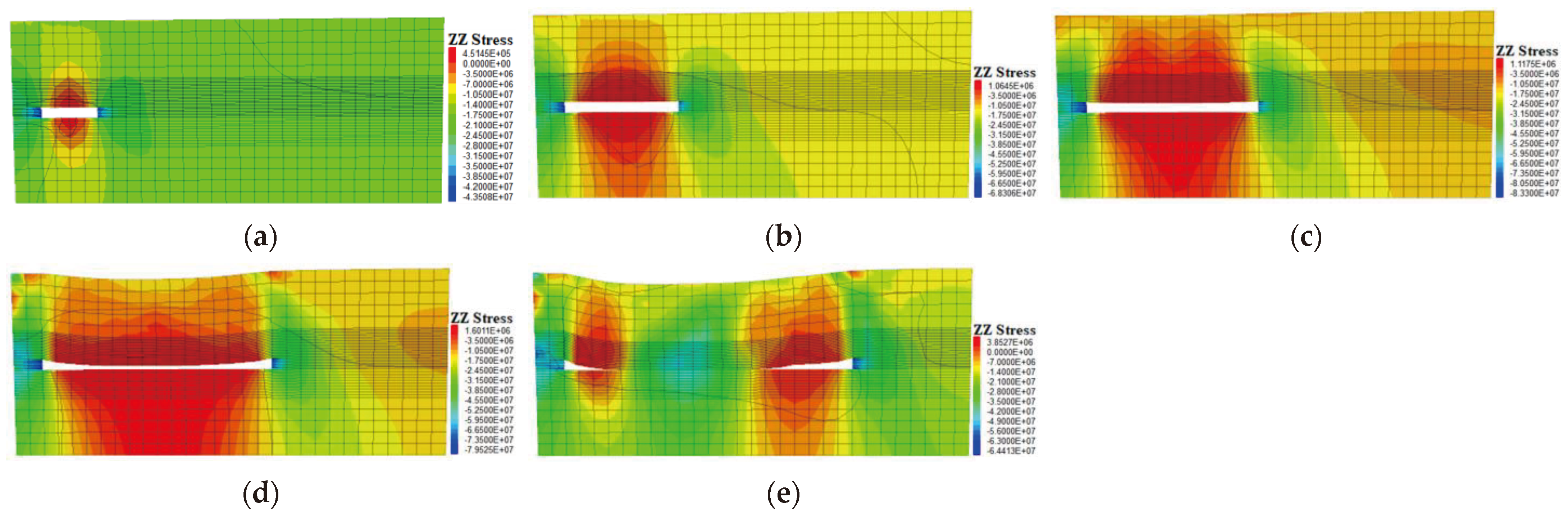

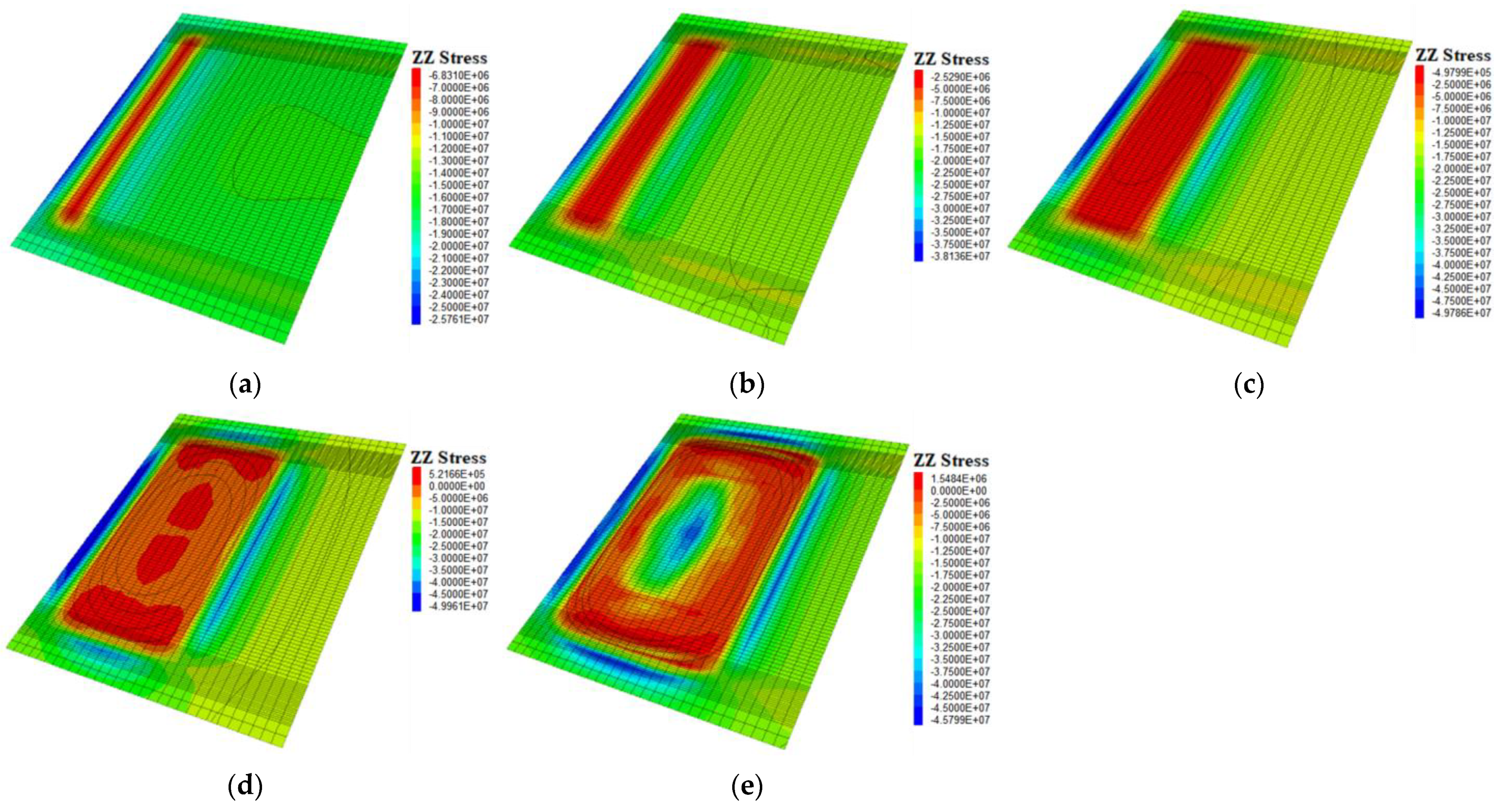

During the mining process of the working face, the stress field distribution of the overlying strata in the parallel and vertical directions of the working face is shown in Figure 4 and Figure 5, respectively. The stress distribution of the overlying strata at different distances from the coal seam floor is shown in Figure 6.

As shown in Figure 4, Figure 5 and Figure 6, as the working face continues to be mined, the support pressure in front of the working face continues to increase, leading to a gradual expansion of the scope of overlying strata failure; the farther away from the coal seam, the smaller the changes in overlying strata stress and displacement due to mining disturbance. As shown in Figure 4, as the working face advances, the stress concentration area of the overlying strata continues to expand, and the concentrated stress shows a trend of first increasing and then decreasing (it has increased from 25.7 MPa to 49.9 MPa and then decreased to 45.8 MPa). This is because collapse occurred when the excavation reached 100 m, resulting in partial stress release and a small decrease in concentrated stress. The overlying strata stress is mainly concentrated in the front of the working face and on both sides of the roadway. The stress in the overlying strata at the goaf is relatively low, which is the result of the movement of overlying strata during the extraction of coal seams. From Figure 4e, it can be seen that the mining of coal forms a goaf, and the stress in the surrounding coal and rock mass redistributes. The vertical stress around the mining face increases. As the roof collapses, the interior of the goaf is filled until it returns to the original rock stress state. From Figure 5, it can be seen that as the mining face continues to advance, the stress in the overlying strata behind the face gradually decreases, and the stress reduction area continues to expand. The overlying strata has a pressure relief zone, and the stress value gradually decreases with the coal seam mining and develops upwards. When the working face advances 100 m, collapse occurs and the stress increases sharply. As shown in Figure 6, when the advancing distance of the working face reaches 60 m, the stress in the overlying strata remains almost unchanged. When the advancing distance reaches 80 m, the stress increases slightly. When the advancing distance reaches 100 m, the stress at 2 m and 12 m away from the coal seam floor increases significantly, and the stress in the overlying strata at 22 m away from the coal seam floor changes sharply.

3.2. The Spatiotemporal Evolution Law of the Displacement Field of Coal Seams and Overlying Strata during the Mining Period of the Working Face

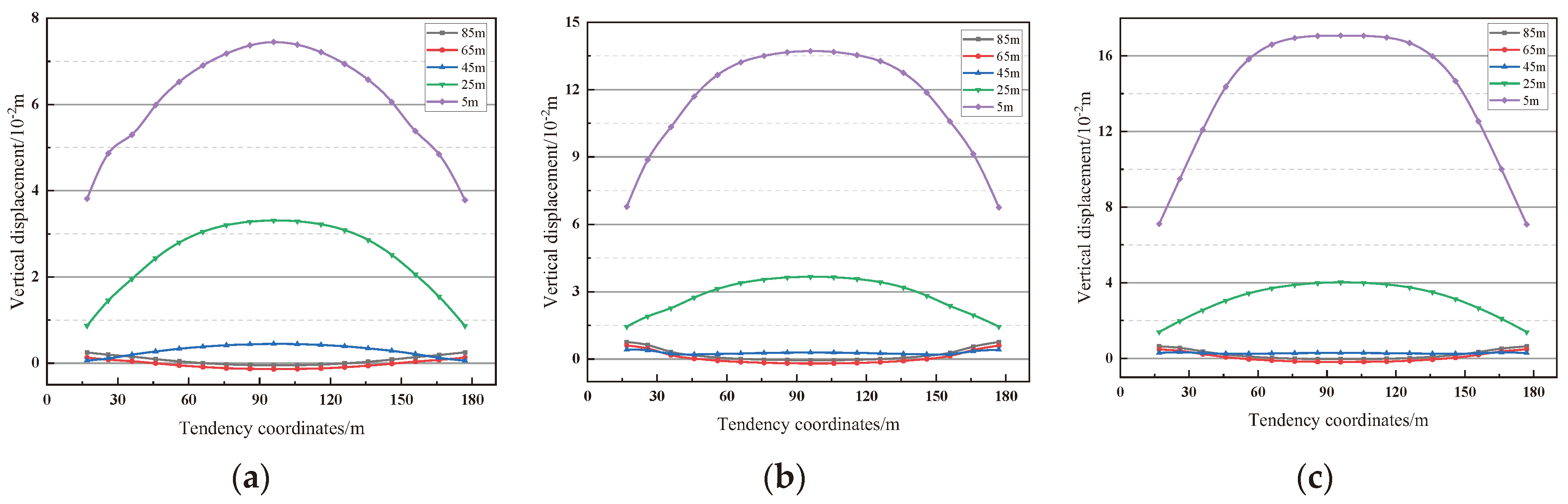

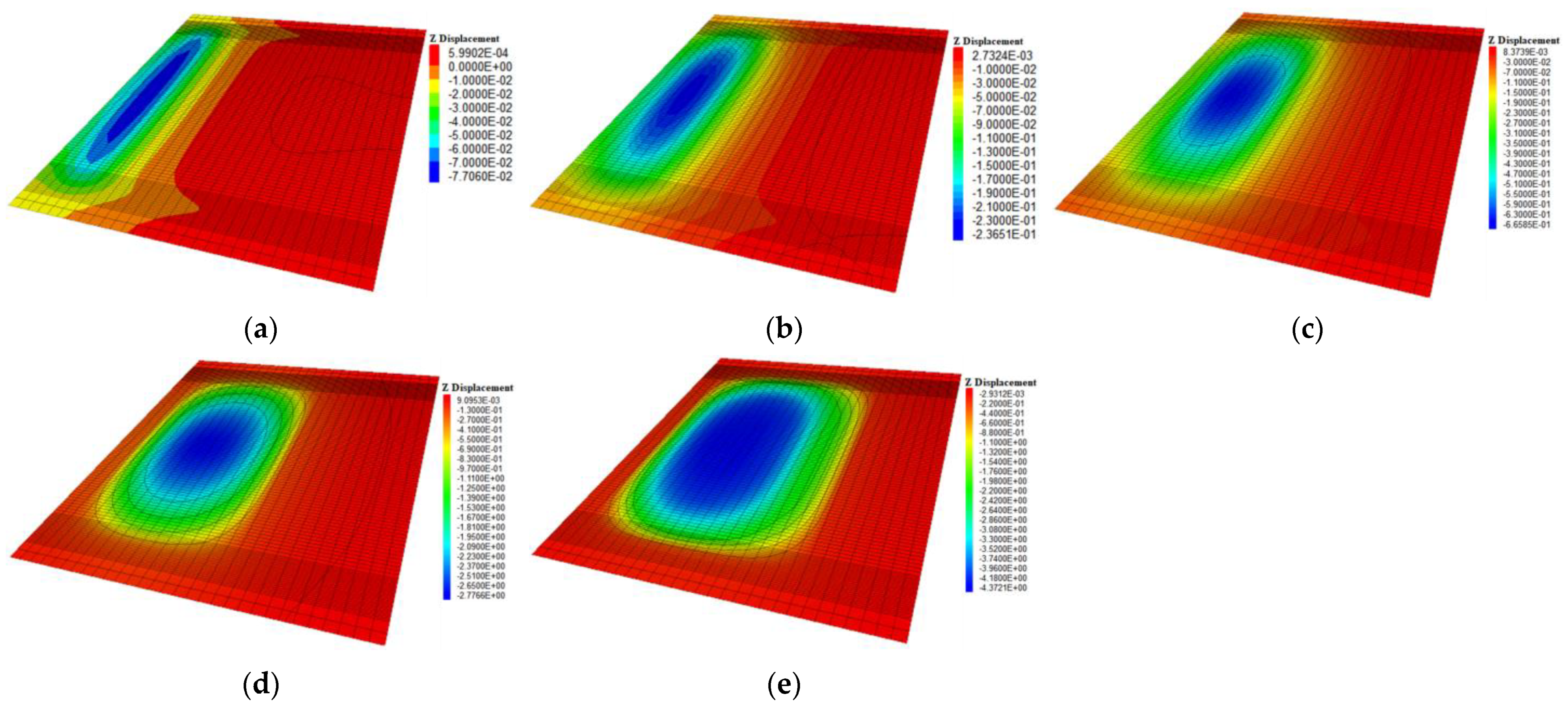

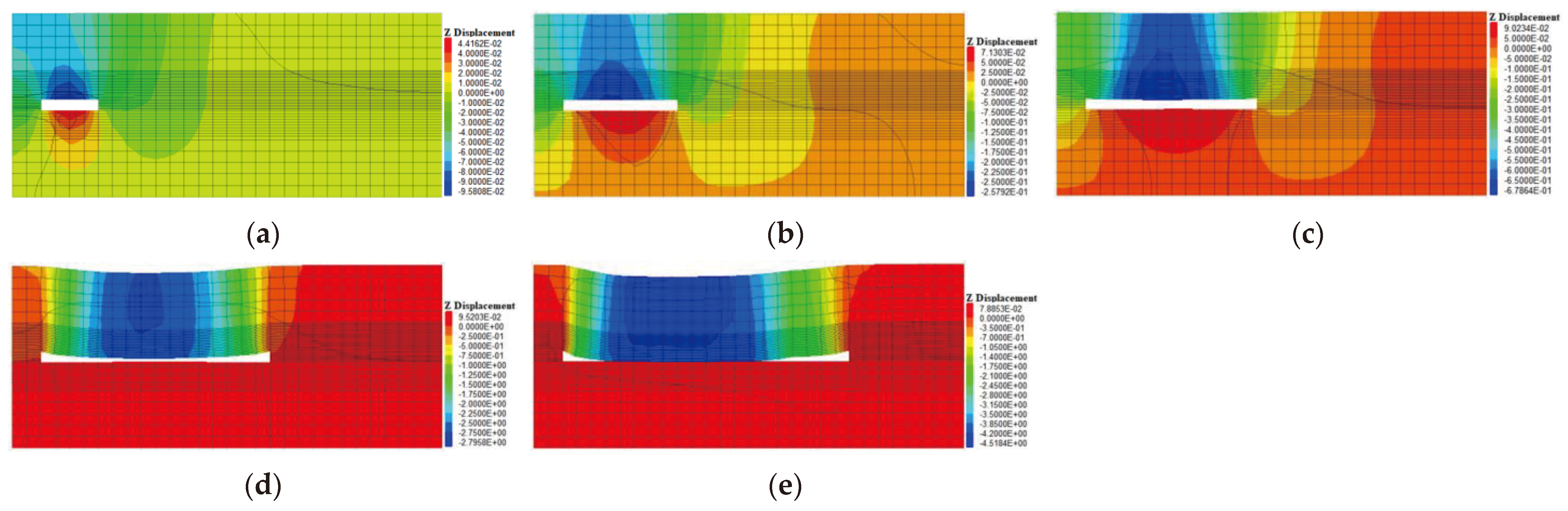

During the mining process of the working face, the distribution of the displacement field of the overlying strata in the parallel and vertical directions of the working face is shown in Figure 7 and Figure 8, and the distribution of the displacement curve of the overlying strata at different distances from the coal seam floor is shown in Figure 9.

From Figure 7 and Figure 8, it can be seen that with the continuous mining of the working face, the rock mass on the top and bottom of the coal seam exhibits obvious displacement characteristics. The overlying strata mass in the working face roof mainly exhibits downward vertical displacement, while the rock mass in the bottom plate mainly exhibits upward vertical displacement. The displacement of the roof increases as the working face advances. When the working face advances to 80 m, there is a significant collapse, and when it advances to 100 m, there is a complete collapse with a maximum subsidence of 4.51 m. There was a significant upward displacement of the bottom plate at a distance of 80 m, increasing from 4.4 mm to the final 7.8 mm. This indicates that as the working face advances, the bottom plate undergoes plastic failure and produces a phenomenon of floor heave. From Figure 9, it can be seen that when the working face advances to 60 m, the displacement of the roof does not change significantly. When it advances to 80 m, the displacement slightly increases, while when it advances to 100 m, the displacement increases significantly. In addition, as the distance between the roof and the coal seam floor increases, its displacement also increases.

3.3. The Spatiotemporal Evolution Law of the Energy Field of Coal Seams and Overlying Strata during the Mining Period of the Working Face

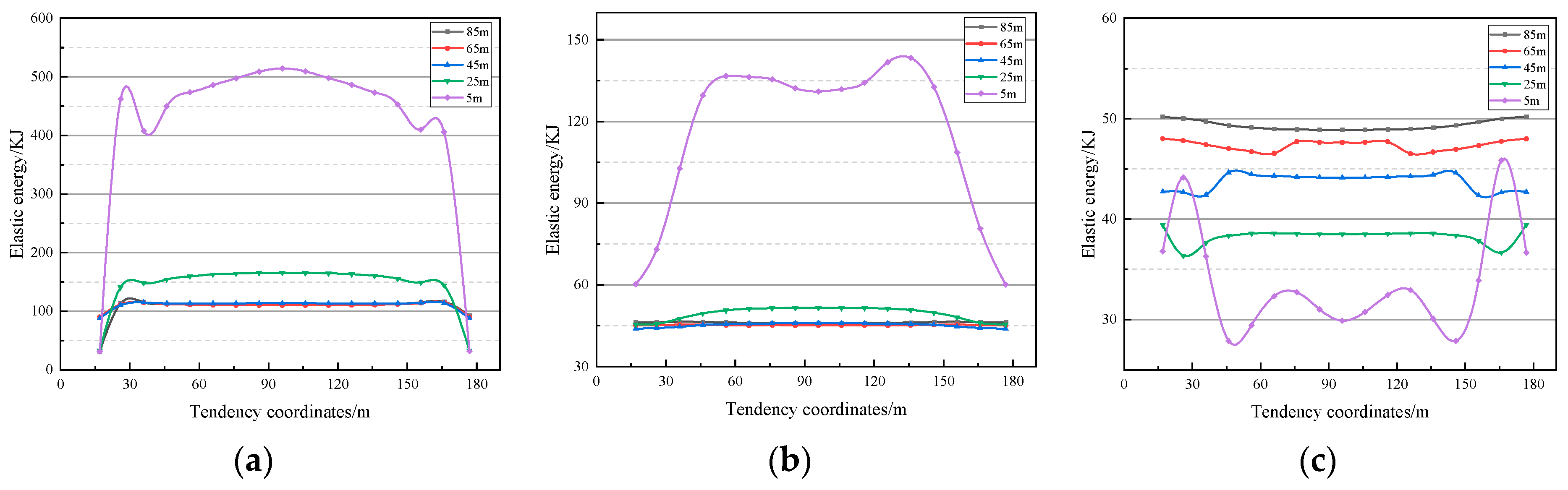

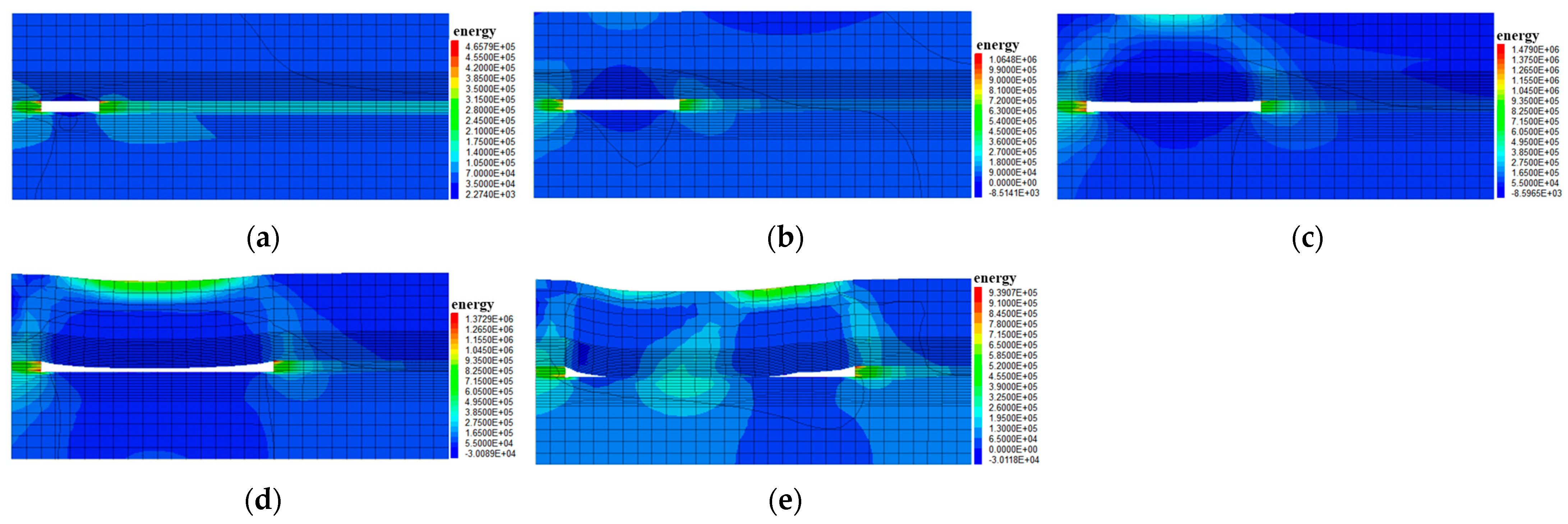

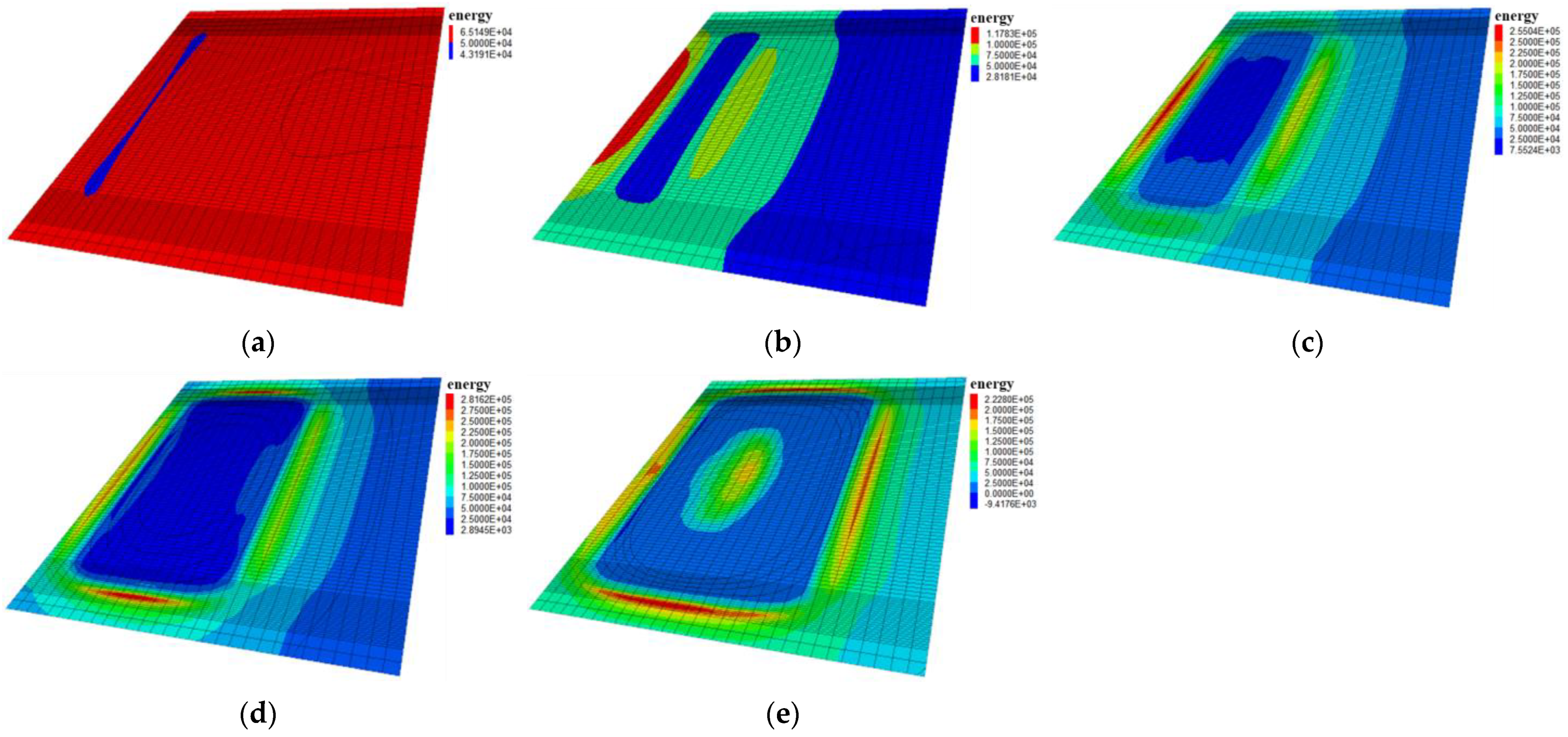

During the mining process of this working face, the energy field distribution of the overlying strata in the parallel and vertical directions of the working face is shown in Figure 10 and Figure 11, and the elastic energy distribution of the overlying strata at different distances from the coal seam floor is shown in Figure 12. The formula for calculating the elastic energy of the roof and coal seam is as follows:

$$U=\frac{{\sigma }_1^2+{\sigma }_2^2+{\sigma }_3^2-2\nu ({\sigma }_1{\sigma }_2+{\sigma }_1{\sigma }_3+{\sigma }_2{\sigma }_3)}{2E}$$

(13)

From Figure 10 and Figure 11, it can be seen that the elastic energy after coal seam excavation is mainly concentrated in the overlying strata behind the working face and on both sides of the tunnel. Due to the soft nature of the coal body, the elastic deformation generated with the force is relatively large, and the stored elastic energy is relatively high, with a high energy density. Once the overlying strata is broken, the large amount of elastic energy stored in the coal and rock mass due to self-weight will be suddenly released, causing dangerous accidents. It can be seen that with the continuous mining of the working face, there is a significant energy concentration area around the working face roadway. When the working face is mined to 60 m, energy is connected at both ends of the roadway and the roof, forming an inverted “U” shape. And during the continuous mining process, this area also expands accordingly, reaching its maximum value when the working face advances to 100 m, but collapse occurs at this time and the energy density decreases slightly. From Figure 12, it can be seen that the upper and lower end areas are affected by the concentrated lateral support pressure of the mining face, resulting in energy accumulation. At a distance of 2 m and 12 m from the coal seam floor, a large amount of energy accumulation is generated in front of the working face due to mining disturbance, and the energy accumulation is relatively small at a distance of 22 m from the coal seam floor. Overall, the closer to the coal seam floor, the higher the accumulated elastic energy.

3.4. Plastic Failure Characteristics of Overlying Strata during Mining

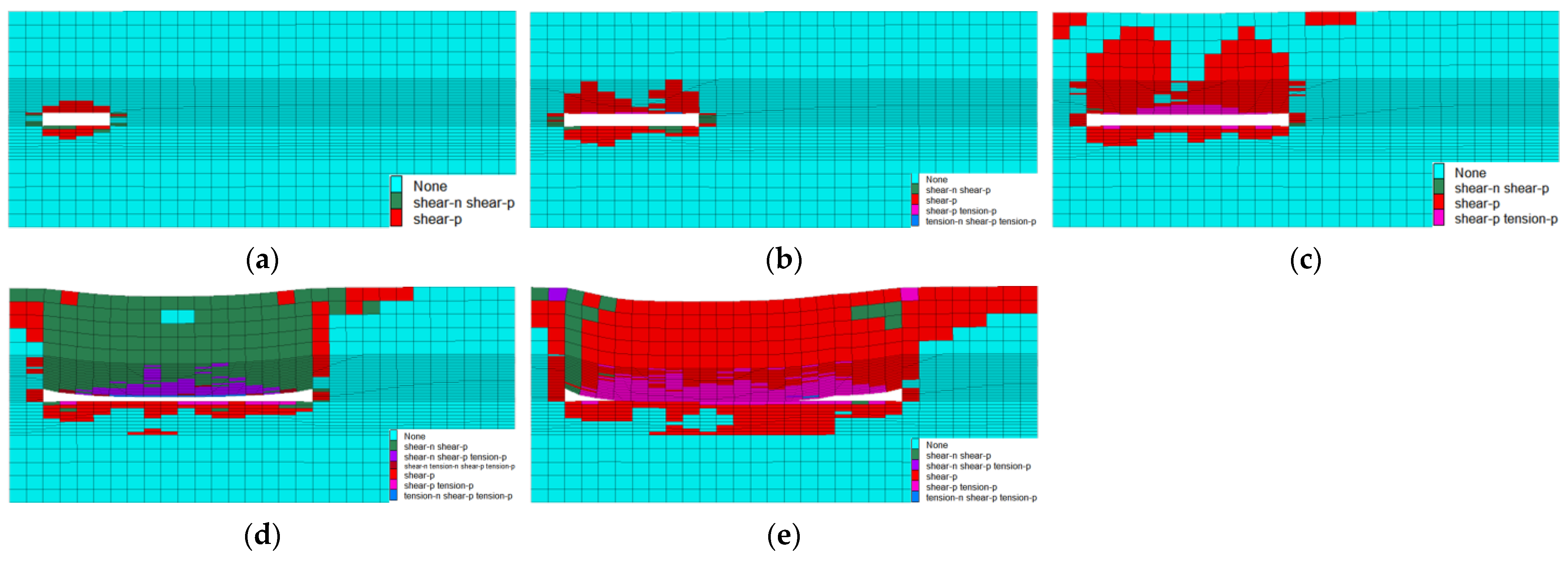

From Figure 13, it can be seen that when the mining distance of the working face is short, the top and bottom rock layers undergo shear failure, a small portion undergoes tensile failure, and shear failure occurs in front of the coal wall and at the opening of the working face. As the working face continues to be mined, the height of plastic zone damage gradually increases, and the scope of damage gradually expands; when the working face is mined to a depth of 20 m, shear failure occurs in the top and bottom rock layers of the goaf. When mined to a depth of 40 m, a small amount of tensile failure occurs in the overlying strata of the roof. As the working face continues to advance, the scope of tensile failure gradually expands; as shown in Figure 13c, when the working face is mined to 60 m, the plastic zone of the overlying rock above the entire goaf presents a “saddle shaped” shape with high ends and a low middle, and the plastic zone is mainly characterized by shear failure. As shown in Figure 13d,e, with the mining of the working face, the plastic zone changes from “saddle shaped” to a direction where all the rock layers in the upper part of the goaf are destroyed. This is because when the mining reaches 80 m, the overlying strata above the goaf undergoes significant subsidence, the stress balance of the sur-rounding rock is disrupted, and the stress is redistributed, leading to further expansion of the height of the plastic zone on the roof until it penetrates.

3.5. The Distribution Characteristics of Stress, Displacement, and Plastic Zone in the Coal Seam and Overlying Strata in the Central Goaf

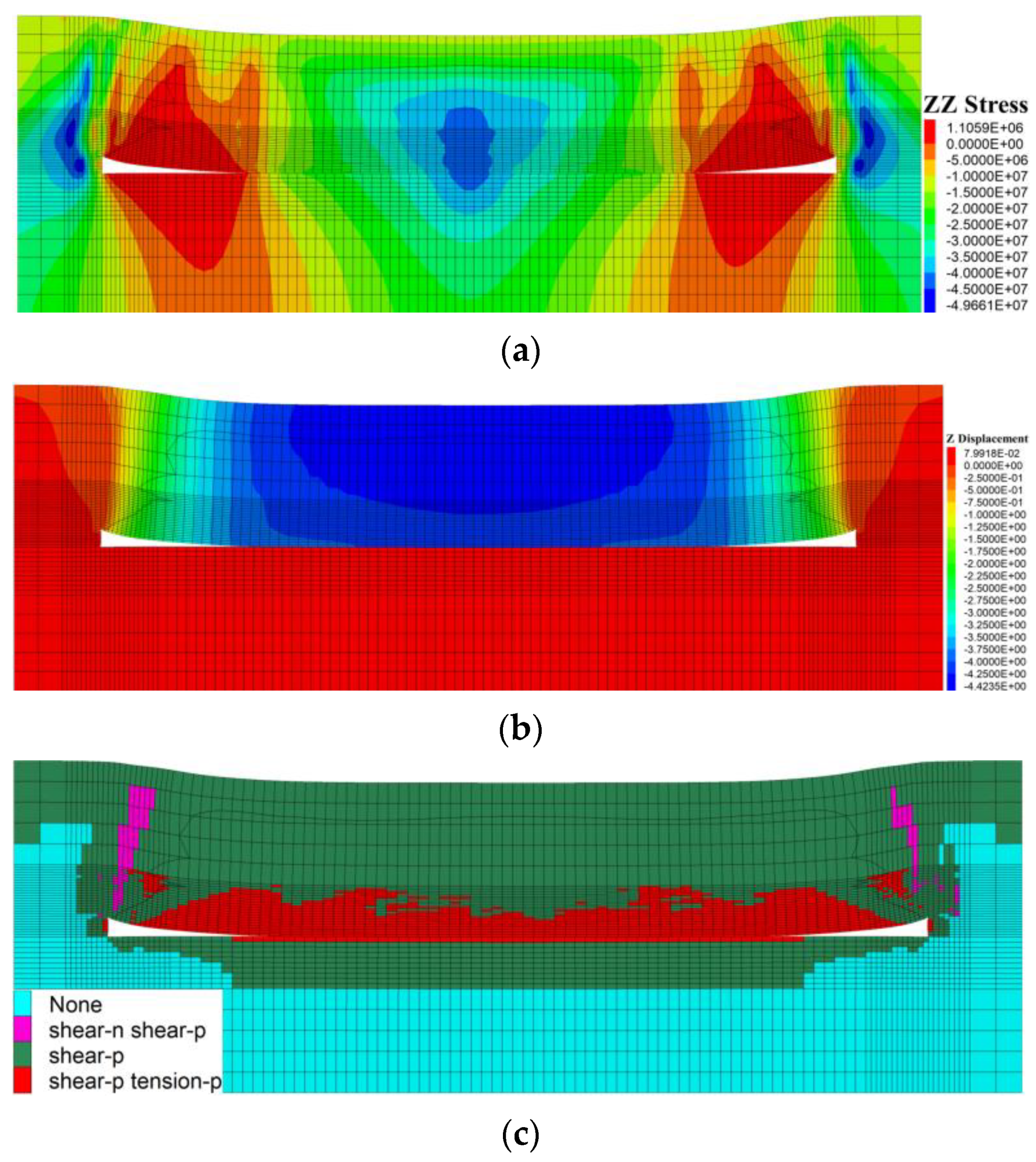

When the working face is mined to a depth of Y = 110 m, the vertical stress, displacement, and plastic zone distribution of the overlying rock in the middle of the goaf at Y = 60 m are shown in Figure 14.

From Figure 14a,b, it can be seen that in the middle of the working face, the overlying strata completely collapses and its vertical stress and displacement reach their maximum, decreasing towards both sides. From Figure 14c, it can be seen that the plastic zone exhibits a typical symmetrical distribution pattern with a larger range of roof failure and smaller two sides. The top plate undergoes tensile shear failure, the overlying strata undergoes large-scale shear failure, and the bottom plate undergoes small-scale shear failure.

4. Discussion

This study introduces the stress, displacement, and energy evolution characteristics of coal seam mining under the condition of a thick and hard roof. FLAC3D, as a simulation research tool, utilizes three-dimensional fast Lagrangian analysis technology and built-in multiple rock mechanics models. It can simulate the mechanical behavior of different types of rocks and soils, accurately simulating the behavior of materials in yield, plastic flow, softening, and large deformation. Moreover, it provides an intuitive graphical user interface that supports parallel computing, greatly improving work efficiency and demonstrating its unique advantages. Therefore, this article systematically analyzes the dynamic evolution process of the stress field, displacement field, energy field, and plastic zone of the coal seam and overlying rock during the mining process of the working face using FLAC3D V4.0 simulation software. The influence process and distribution law of mining stress and thick hard roof fracture on the elastic energy change in coal under a deep high-stress environment were studied, and the dynamic distribution state of high-energy elastic performance accumulation in a thick hard roof under the condition of gas containing coal instability and failure was obtained.

The rock deformation and fracture caused by coal mining may lead to the formation of stress concentration areas and high-stress areas in specific areas, which may lead to rock instability and other problems. Through simulation research, we can understand the stress changes in coal seams and overlying strata during the mining process of deep thick and hard roof working faces, which is of great significance for evaluating the possible stress concentration areas, high-stress areas, and stress transmission mechanisms in coal mining. At the same time, the study analyzed the change process and distribution law of a thick and hard roof on the elastic energy of coal, which helps to understand the impact of a thick and hard roof on the safety of coal seam mining and provides a basis for designing reasonable support methods and mining processes.

The underground mining activities in coal mines result in the accumulation of a large amount of elastic strain energy in coal layers, especially when the top plate is a hard and thick rock layer, which can easily cause dynamic disasters. Therefore, the safe mining of coal seams under a thick and hard roof is of great significance, but there is currently little research on the spatiotemporal evolution law of multiple fields, and a systematic analysis of the dynamic evolution law of the stress field, displacement field, energy field, and plastic zone during the mining process of deep thick and hard roof working faces. In addition, although the numerical simulation research results are not as accurate as the on-site measurement results, their general trend is the same. Compared to the on-site measurement, the numerical simulation requires less manpower, energy, and financial investment. The results can be mutually verified with the on-site measurement results, providing scientific basis for safety management and coal mining technology in coal mine production.

In this study, the working face is a nearly horizontal coal seam. Due to the simplification of the model, the dip angle of the coal seam in the model is taken as 0°. But even in nearly horizontal coal seams, there may still be some slight tilting or non-uniformity in actual situations. These small inclinations or non-uniformities may have a certain impact on stress distribution, roof stability, and gas extraction. In terms of direction, the mesh division of the model is not dense, and the height of the model is also simplified to a certain extent, which has a certain impact on the analysis of the plastic zone.

5. Conclusions

Thick and hard roofs are widely distributed in more than half of China’s mining areas. When the roof is a hard and thick rock layer, it is easy to accumulate a large amount of elastic energy during coal seam mining, leading to dynamic disasters such as rock burst. This study utilized FLAC3D V4.0 numerical simulation software to simulate the dynamic evolution process of the stress field, displacement field, energy field, and plastic zone in coal seams and overlying strata during the mining process of deep thick and hard roof working faces, and analyzed the influence process and distribution law of mining stress and a thick hard impact roof on the change in coal elastic energy under a deep high-stress environment. The corresponding conclusions are as follows:

(1)

With the continuous mining of the working face, the support pressure in front of the working face continues to increase, the stress in the overlying strata behind the working face continues to decrease, and the range of overlying strata failure continues to expand; the farther away from the coal seam, the smaller the impact of overlying strata stress due to mining disturbance.

(2)

With the continuous mining of the working face, the rock mass on the top and bottom of the coal seam shows obvious displacement characteristics: the overlying strata mass inside the working face roof mainly shows downward vertical displacement, and the rock mass inside the bottom plate produces floor heave, mainly showing upward vertical displacement.

(3)

With the continuous mining of the working face, there is a clear energy concentration area around the working face roadway. When the working face is mined to 60 m, the energy at both ends of the roadway intersects with the roof, forming an inverted “U” shape. The area expands as the mining distance of the working face increases, reaching its maximum at 100 m. At this point, collapse occurs and the energy density decreases slightly.

(4)

With the continuous mining of the working face, the damage range of the plastic zone of the rock layer gradually expands. When the working face is mined to 60 m, the plastic zone presents a “saddle shaped” distribution, mainly characterized by shear failure. After mining to 80 m, the rock layer above the goaf shows significant subsidence, and the surrounding rock stress is redistributed. The plastic zone is divided into penetrating the top, and the tensile failure gradually increases.
