Flexible Design and Operation of Multi-Stage Flash (MSF) Desalination Process Subject to Variable Fouling and Variable Freshwater Demand
Said Alforjani Said 1, Mansour Emtir 2 and Iqbal M. Mujtaba 3,*
1
Maintenance and Projects Department, National Oil Corporation, P.O. Box 2655, Tripoli 00, Libya; E-Mail: said_forjani@yahoo.com
2
Industrial Department, National Oil Corporation, P.O. Box 2655, Tripoli 00, Libya; E-Mail: memtir@yahoo.com
3
School of Engineering Design & Technology, University of Bradford, Bradford, West Yorkshire BD7 1DP, UK
*
Author to whom correspondence should be addressed; E-Mail: i.m.mujtaba@bradford.ac.uk; Tel.: +44-1274-233645.
Received: 25 June 2013; in revised form: 1 August 2013 / Accepted: 13 August 2013 /
Published: 11 October 2013

Abstract

: This work describes how the design and operation parameters of the Multi-Stage Flash (MSF) desalination process are optimised when the process is subject to variation in seawater temperature, fouling and freshwater demand throughout the day. A simple polynomial based dynamic seawater temperature and variable freshwater demand correlations are developed based on actual data which are incorporated in the MSF mathematical model using gPROMS models builder 3.0.3. In addition, a fouling model based on stage temperature is considered. The fouling and the effect of noncondensable gases are incorporated into the calculation of overall heat transfer co-efficient for condensers. Finally, an optimisation problem is developed where the total daily operating cost of the MSF process is minimised by optimising the design (no of stages) and the operating (seawater rejected flowrate and brine recycle flowrate) parameters.
Keywords:
freshwater demand; storage tank; dynamic optimisation; total operating cost

1. Introduction

At present, there is a shortage in the freshwater resources all over the world. About 40% of the world’s populations are suffering from the water crisis. This is due to the continuous growth of the world population and economic activities. Moreover, 96% of the water on the earth is located in oceans and seas and out of 1.7% groundwater only 0.8% is considered to be the freshwater [1]. Desalination is a technique of producing freshwater from saline water. Industrial desalination of sea water is becoming an essential part in providing sustainable source of freshwater for a large number of countries around the world [2]. Among different desalination processes, thermal process is the oldest and most dominating for large scale production of freshwater in today’s world. Amongst various thermal processes, the Multi-Stage Flash (MSF) distillation process has been used for many years and now is one of the largest sectors in the desalination industry.

During the last decades, modelling played a very important role in the simulation, optimisation and control of multistage flash (MSF) desalination process. Many models have been developed to find a functional relationship between the design and operating variables [3]. For a given design, optimisation of operating variables led to an increase in distillate production rates and lower operating costs. The top brine temperature, brine recirculation rate, intake flow rate, and steam condition and flow rate can be manipulated to enhance plant performance and achieve an incremental increase in plant capacity. In addition, the selection of optimum design and operation of MSF desalination is aimed at reducing energy and operation costs such as steam, electric power, anti-scale, etc.

A recent study [4] shows that for a fixed design and operating conditions the production of fresh water from MSF process can significantly vary with seasonal variation of seawater temperature producing more water in winter than in summer. However, the freshwater demand is continuously increasing and of course there is more demand in summer than in winter. Furthermore, to supply freshwater meeting a fixed demand, the operation of MSF process has to be adjusted with the variation of seawater temperature to reduce the energy and operation cost such as steam and antiscale [5,6]. Also, apart from seasonal variation, the seawater temperature varies during the day [7]. More importantly, there is variation in water demand during 24 h of a day (peak and off-peak hours) [8]. These variations in the seawater temperature will affect the rate of production of freshwater using MSF process during a day and throughout the year. Therefore, an optimal design and operation of MSF processes should be performed to cope with these variations so that the freshwater demand during a day and throughout the year is maintained.

Most recently, [9] provided a study on the design and operation of the MSF process with constant fouling resistance in the brine heater only and variable seawater temperature and freshwater demand during a day and throughout the year. However, the dynamic variation in freshwater demand during the week days is not the same as weekends [10]. Also, the changing seawater temperature during the day will affect the stage temperature which will affect the fouling profile of the stages. Unlike Hawaidi and Mujtaba [9], we have proposed a fouling model [11,12] as a function of stage temperature which is incorporated into the MSF process model. In addition to fouling, the effect of non-condensable gases [13] on the condenser overall heat transfer co-efficient is built up in the process model. Like Hawaidi and Mujtaba [9], an intermediate storage tank between the plant and the client is considered to provide additional flexibility in operation and maintenance of the MSF process throughout the day. However, instead of a neural network based freshwater demand model, simple polynomial based dynamic freshwater demand correlation is developed using actual data from literature. These correlations with a dynamic model for the storage tank and the CaCO3 fouling resistance model developed earlier [11,12] are incorporated in the full steady state MSF mathematical model by using gPROMS model builder 3.0.3 [14]. For a different number of flash stages, operating parameters such as seawater rejected flow rate and brine recycle flow rate are optimised, while the total daily operating cost of the MSF process is selected to minimise.

2. Dynamic Freshwater Demand

Figure 1 shows the average freshwater consumption for the 24 h of a weekend (Saturday) [10]. The average consumption slopes down from 0.00 to 6.00 and grows up from 6:00 am till 12:00 am. From 14:00 the curve goes down till 24:00. In addition and by using linear regression analysis, the following polynomial relationship (Equation (1)) is obtained with a correlation coefficient greater than 90%.

Processes 01 00279 g001 200
Figure 1. Fresh water consumption profile on holiday (Saturday).

Click here to enlarge figure

Figure 1. Fresh water consumption profile on holiday (Saturday).
Processes 01 00279 g001 1024
Processes 01 00279 i001

3. Seawater Temperature Dynamic Profiles

The variation in seawater temperature throughout the day is shown in Figure 2 [7]. By using regression analysis, the relationship between the seawater temperature and time (h) can be represents by Equation (13). The temperature at t = 0 represents the seawater temperature at night-time.

Processes 01 00279 i002

Processes 01 00279 g002 200

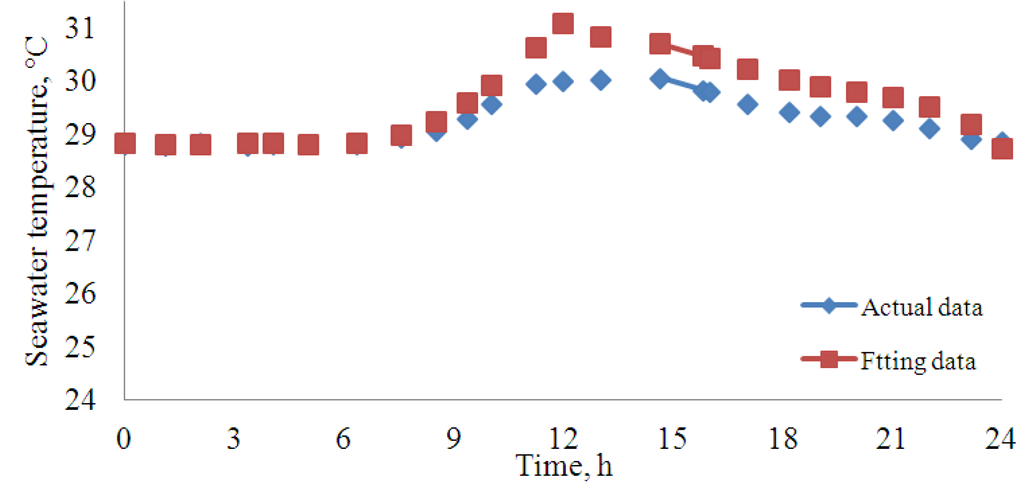

Figure 2. Seawater temperature profile during the day and night.

Click here to enlarge figure

Figure 2. Seawater temperature profile during the day and night.
Processes 01 00279 g002 1024

Note, between 0 and 10 h, 5th order polynomial shows a very good mapping with the actual data. Beyond 10 h, although the polynomials do not show a close map, the trend of temperature change is retained.

4. MSF Process Model

4.1. MSF Process Description

The MSF process mainly consists of three sections: brine heater section, recovery section with NR stage and rejection sections with NJ stage (Figure 3). Seawater enters into the last stage of the rejection stages (WS) and passes through series of tubes to remove heat from the stages. Before the recovery section seawater is partly discharged to the sea (CW) to balance the heat. The other part (F) is mixed with recycled brine (R) from the last stage of the rejection section and fed (WR) before the last stage of the recovery section. Seawater is flowing through the tubes in difference stages to recover heat from the stages and the brine heater raises the seawater temperature to the maximum attainable temperature (Top brine temperature TBT). After that it (B0) enters into the first flashing stage and produce flashing vapour. This process continues until the last stage of the rejection section. The concentrated brine (BN) from the last stage is partly discharged to the sea (BD) and the remaining (R) is recycled as mentioned before. The vapour from each stage is collected in a distillate tray to finally produce the fresh water (DN). Vapour from each stage is collected in a distillate tray to finally produce the fresh water (DN).

Processes 01 00279 g003 200

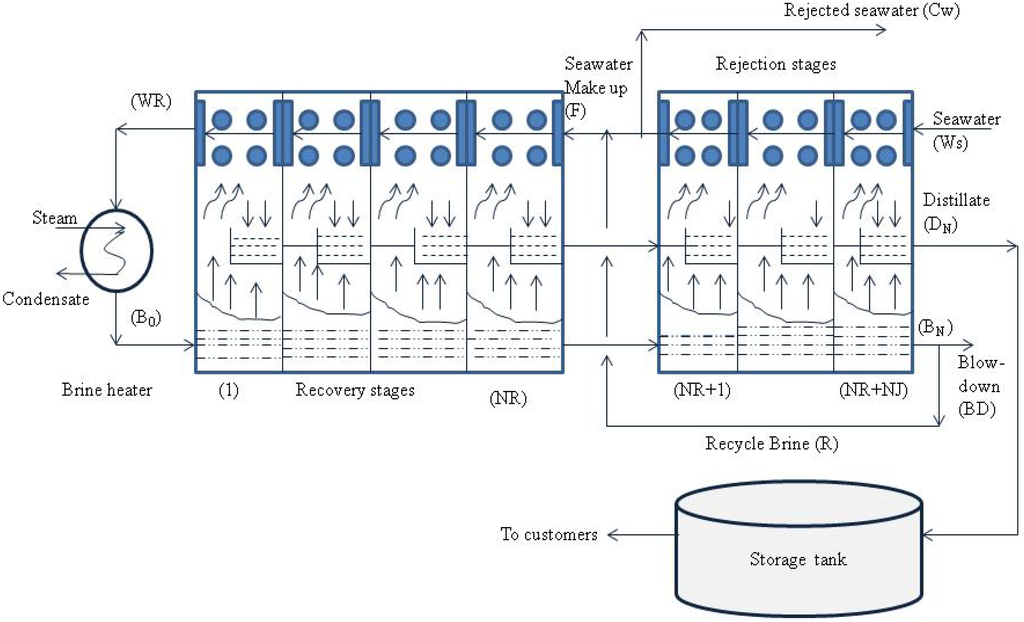

Figure 3. Typical Multi-Stage Flash (MSF) Process.

Click here to enlarge figure

Figure 3. Typical Multi-Stage Flash (MSF) Process.
Processes 01 00279 g003 1024

4.2. Steady State MSF Process Model

With reference to Figure 3, models for flash stages; brine heater, mixers, splitter, etc., are developed using gPROMS software. The steady state model is based on the total and component mass balances and enthalpy balances coupled with heat and mass flowrate coefficients. The model also includes the thermodynamic losses from stage to stage, tube velocity, tube materials, and chamber geometry. The model equations presented here are reported by [13,15]. The physical properties correlations are defined in the original references [15,16,17]. Note, a calcium carbonate fouling resistance model (Equation (11)) has been implemented in the MSF steady state model in this work. This model takes into consideration the effect of stage temperature on the calcium carbonate fouling resistance and consequently on the overall heat transfer coefficient in the flashing champers in the heat recovery section, heat rejection section, and brine heaters of MSF process at fluid velocity 1 m/s.

The following assumptions are made in the model:

  • The distillated from any stage is salt free

  • Heat of mixing are negligible

  • No sub cooling of condensate leaving the brine heater

  • There are no heat losses and

  • There is no entrainment of mist by the flashed vapour.

The model equations are presented below for the sake of completeness.

4.2.1. Stage Model

Mass Balance in the flash chamber:

Processes 01 00279 i003
Mass Balance for the distillate tray:
Processes 01 00279 i004
Enthalpy balance on flash brine:
Processes 01 00279 i005
Processes 01 00279 i006
Processes 01 00279 i007
Overall Energy Balance:
Processes 01 00279 i008
Heat transfer equation:
Processes 01 00279 i009
(replace WR for WS rejection stage)
Processes 01 00279 i010
Where,
Processes 01 00279 i011
Processes 01 00279 i012
Processes 01 00279 i013

The logarithmic mean temperature difference in the recovery and rejection stages:

Processes 01 00279 i014
(replace WR for Ws rejection stage)

Heat capacity of cooling brine leaving stage j:

Processes 01 00279 i015
Heat capacity of distillate leaving stage j
Processes 01 00279 i016
Heat capacity of flashing brine leaving stage j
Processes 01 00279 i017
Distillate and flashing brine temperature correlation:
Processes 01 00279 i018
Distillate and flashing steam correlation:
Processes 01 00279 i019
Temperature loss due to demister
Processes 01 00279 i020
Boiling point elevation at stage j
Processes 01 00279 i021
Non-equilibrium allowance at stage j
Processes 01 00279 i022

4.2.2. Brine Heater Model

Mass and salt balance for the brine heater

Processes 01 00279 i023
Processes 01 00279 i024
Overall enthalpy balance
Processes 01 00279 i025
Processes 01 00279 i026
Heat transfer equation
Processes 01 00279 i027
The logarithmic mean temperature difference in brine heater (LMTDH)
Processes 01 00279 i028
Overall heat transfer coefficient in brine heater
Processes 01 00279 i029
Heat capacity of brine in brine heater
Processes 01 00279 i030

4.2.3. Splitter Model

Mass balance on seawater splitter

Processes 01 00279 i031
Processes 01 00279 i032

4.2.4. Mixers Model

Mass balance on mixer

Processes 01 00279 i033
Processes 01 00279 i034
Enthalpy balance on mixer:
Processes 01 00279 i035
Processes 01 00279 i036
Processes 01 00279 i037

5. Storage Tank and Level Control Models

These models are taken from Hawaidi and Mujtaba [9] and are presented here for the sake of completeness of the process model.

5.1. Storage Tank Model

The dynamic mathematical model of the tank process shown in Figure 4 is as the follows: Mass balance

Processes 01 00279 i038
Relation between liquid level and holdup:
Processes 01 00279 i039
Note, Flowout represents the freshwater demand described by Equation (1).

Processes 01 00279 g004 200

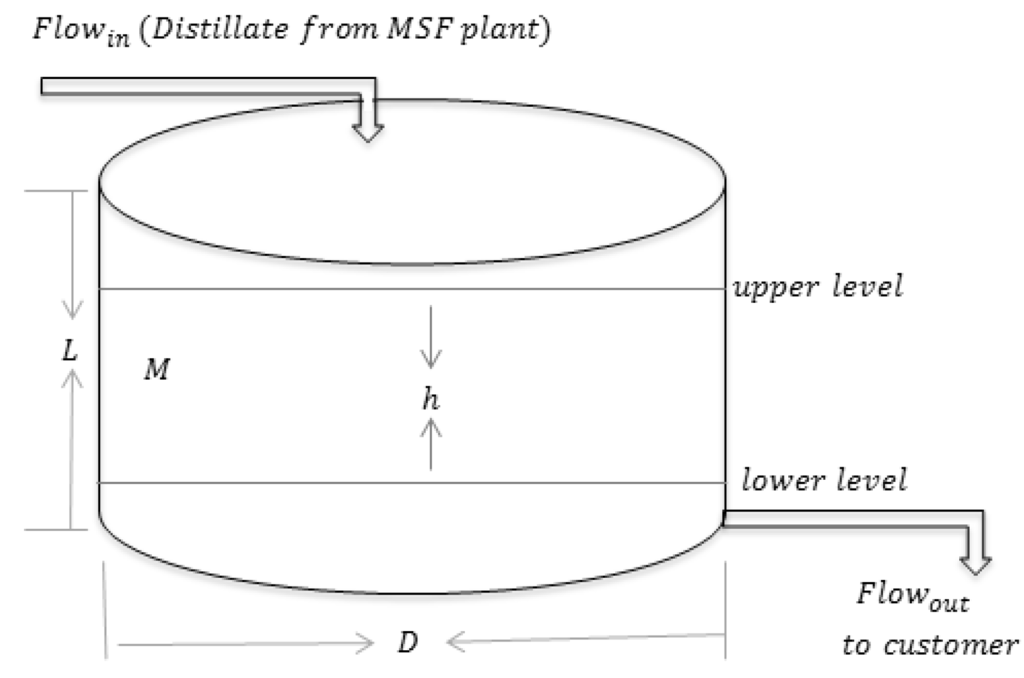

Figure 4. Storage tank.

Click here to enlarge figure

Figure 4. Storage tank.
Processes 01 00279 g004 1024

5.2. Storage Tank Level Control Model

The storage tank described above is assumed to operate without any control on the level(h), therefore and during the MSF operation process, the tank level goes above the maximum level (hmax) or below the minimum level (hmin) as shown in Figure 5(a). At any time, this violation (V1, V2) of safe operation can be defined as [9]:

Processes 01 00279 i040
and
Processes 01 00279 i041

A typical plot of V1 and V2 versus time t is shown in Figure 5(b). The total accumulated violation for the entire period can be written using

Processes 01 00279 i042
Therefore,
Processes 01 00279 i043
Equation (43) is added to the overall process model equations. Also the following addition terminal constraint is added in the optimisation problem formulations.

Processes 01 00279 i044
where ε is a very small finite positive number. The above constraint will ensure h(t) that will always be ≤hmax and ≥hmin throughout the 24 h operation.

Processes 01 00279 g005 200

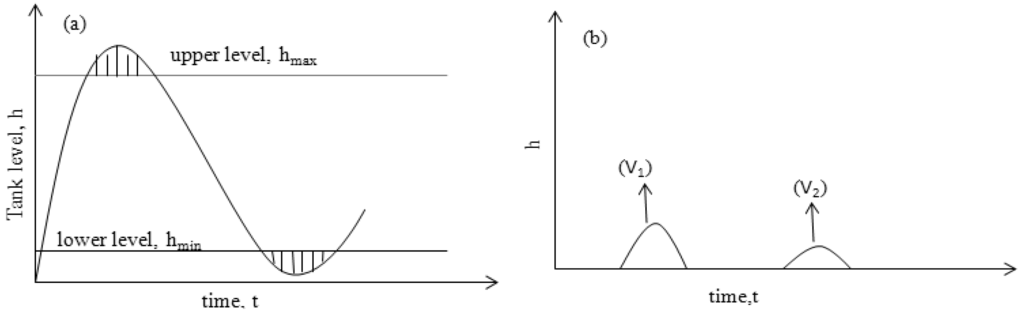

Figure 5. (a) Tank level profile and (b) tank level violations during the MSF operation.

Click here to enlarge figure

Figure 5. (a) Tank level profile and (b) tank level violations during the MSF operation.
Processes 01 00279 g005 1024

6. Optimisation of MSF Parameters

The seawater temperature and the freshwater demand are subject to vary during a day. Therefore, to supply freshwater meeting a variation in the seawater temperature and variable freshwater demand throughout the day, the operation parameters of the MSF process has to be adjusted. In this section, the MSF process model and the CaCO3 fouling resistance model coupled with the storage tank model developed has been used to adequate the variations in the seawater temperature and freshwater demand during a day. For different number of flash stages, operating parameters such as seawater rejected flow rate and brine recycle flow rate are optimised, while the total annual operating cost of the MSF process is selected to minimise using gPROMS models builder 3.0.3 (version 3.0.3.; PSE: London, UK).

Optimisation Problem Formulation

The optimisation problem is described as:

Given: Design specifications of each stage, fixed amount of seawater flow, heat exchanger areas in stages, variable seawater temperature, steam temperature, freshwater demand profile, and volume of the storage tank.

Optimise: Recycle brine flow rate, rejected seawater flow rate, at different time intervals within 24 h.

To minimise: The total operation cost (TOC, $/day).

The optimisation problem (OP) can be described mathematically by:

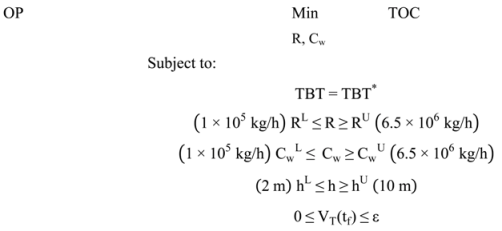

Processes 01 00279 i045
Where, is the top brine temperature and TBT* is the fixed top brine temperature. R is the recycle flowrate and Cw is the rejected seawater flowrate. Subscripts L and U refer to lower and upper bounds of the parameters.

The objective function, TOC (total operating cost) is defined as [18]:

Processes 01 00279 i046
Where,
Processes 01 00279 i047
Where, WS is steam consumption in kg/hr, Ts is steam temperature in °C
Processes 01 00279 i048
Where, WM is make-up flow rate in kg/hr, ρB is brine density in kg/m3
Processes 01 00279 i049
Where, Wd is distillate product in kg/hr, ρw is water density in kg/m3
Processes 01 00279 i050
Processes 01 00279 i051

This optimisation problem minimises the total operating cost while optimises R and Cw for variable seawater temperature and freshwater demand throughout 24 h. Note, the actual freshwater consumption at any time is assumed to be 40,000 times more than that shown in Figure 1.

7. Case Study

A steady state process model for the MSF process coupled with a dynamic model for the storage tank (as described earlier) has been used in the case study. The constant parameters of the MSF process model equations including various dimensions of the brine heater and flash stages are listed in Table 1. The rejection section consists of three stages but the number of stages in the recovery section varies in each case (see Table 2) considered here. The feed seawater flow rate is 1.13 × 107 kg/h with salinity 5.7 wt. %. The intermediate storage tank has diameter D = 18 m, and aspect ratio = L/D = 0.5.

Table 1. Constant parameters.

Click here to display table

Table 1. Constant parameters.
UnitAj/AHDji/DHiDj0/DH0wj/Lj/LHHj
Brine heater35300.0220.024412.2
Recovery stage39950.0220.024412.20.457
Rejection stage35300.0240.025410.70.457
Table 2. Summary of optimisation results.

Click here to display table

Table 2. Summary of optimisation results.
Case NC1, $/dC2, $/dC3, $/dC4, $/dC5, $/dTOC, $/d
11646,184,58337,498,04717,220,25612,954,68815,798,400129,655,973
21744,026,30137,597,62817,358,81713,058,92715,925,521127,967,194
31841,403,74637,222,95617,250,64212,977,54715,826,277124,681,167

Six time intervals within 24 h are considered within which both R and CW are optimised with the interval lengths. The total operating cost on daily basis and the other plant cost (steam cost (C1), chemical cost (C2), power cost (C3), spare cost (C4) and labour cost (C5)) for three different number of stages (16, 17 and 18) are listed in Table 2. The total daily operating cost (TOC represented as $/day) is found to decrease as the number of stage increases. This is due to lower steam consumption rate with increasing number of stages contributing significantly to the TOC compared to any other cost components (chemical, power, etc.). Note, there is a small change in the C2, C3, C4 and C5 while a change in the C1 is relatively high (Table 2).

Figure 6 shows the stage temperature (calculated using the process model) and fouling resistance (calculated using Equation (11)) at different stages for N = 18 and seawater temperature at time t = 00:00. The fouling resistance in stage 1 is about 300 times more than that in stage 1 and certainly it will affect the overall heat transfer co-efficient profile (calculated using Equation (10)) significantly. Figure 6 clearly shows that the fouling resistance is not constant throughout the stages as considered earlier by Hawaidi and Mujtaba [9] and Rosso et al. [15].

Processes 01 00279 g006 200
Figure 6. Stage temperature and fouling profile (N = 18). Note: In y axis, E+00 = 100; E−06 = 10−6 and likewise.

Click here to enlarge figure

Figure 6. Stage temperature and fouling profile (N = 18). Note: In y axis, E+00 = 100; E−06 = 10−6 and likewise.
Processes 01 00279 g006 1024

Figure 7 and Figure 8 show the optimum results of seawater rejected flow rate (Cw) and recycle flow rate (R) throughout 24 h at different number of stages. The plant operates at the high flow rate of Cw (Figure 7) and low R (Figure 8) from 00:00 to 08:00 when the water production rate is low due to low water demand (Figure 9 and Figure 10). However, the water production rate is sufficient to cover the demand (decreasing between 00:00 and 05:00) as well as to store meeting the increasing demand (beyond 06:00) (Figure 10 and Figure 11).

Processes 01 00279 g007 200
Figure 7. Optimum rejected seawater flow rate throughout profile. Note: In y axis, E+05 = 105 and likewise.

Click here to enlarge figure

Figure 7. Optimum rejected seawater flow rate throughout profile. Note: In y axis, E+05 = 105 and likewise.
Processes 01 00279 g007 1024
Processes 01 00279 g008 200

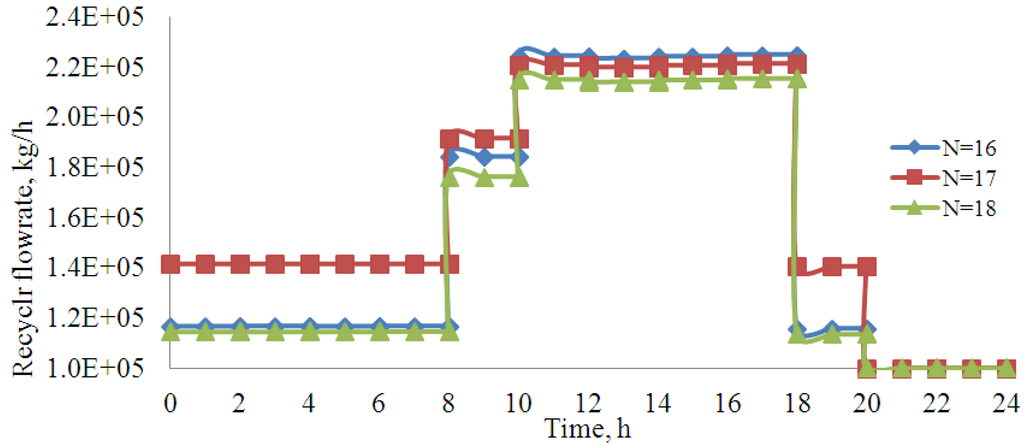

Figure 8. Optimum brine recycle flow rate throughout profile. Note: In y axis, E+05 = 105 and likewise.

Click here to enlarge figure

Figure 8. Optimum brine recycle flow rate throughout profile. Note: In y axis, E+05 = 105 and likewise.
Processes 01 00279 g008 1024
Processes 01 00279 g009 200
Figure 9. Fresh water plant production profile. Note: In y axis, E+05 = 105 and likewise.

Click here to enlarge figure

Figure 9. Fresh water plant production profile. Note: In y axis, E+05 = 105 and likewise.
Processes 01 00279 g009 1024
Processes 01 00279 g010 200
Figure 10. Fresh water demand profile. Note: In y axis, E+05 = 105 and likewise.

Click here to enlarge figure

Figure 10. Fresh water demand profile. Note: In y axis, E+05 = 105 and likewise.
Processes 01 00279 g010 1024
Processes 01 00279 g011 200

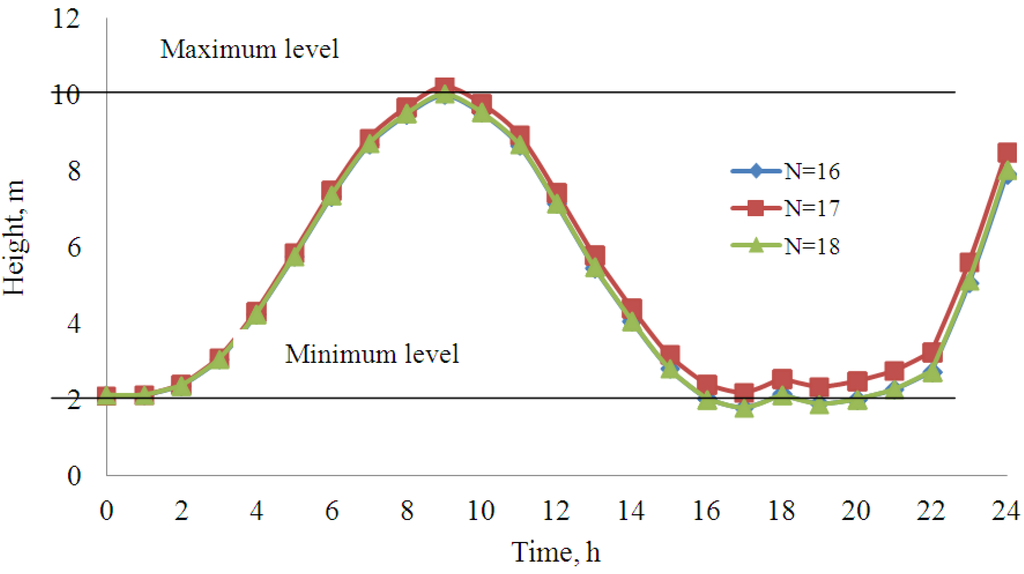

Figure 11. Storage tank level profiles (case 1).

Click here to enlarge figure

Figure 11. Storage tank level profiles (case 1).
Processes 01 00279 g011 1024

As the water demand increases between 05:00 and 12:00 (Figure 10), Cw and R reverse their profiles (Figure 7 and Figure 8) to increase the water production rate (Figure 9). Interestingly, up to 09.00, the water production rate is still more than the demand (thus increasing the storage tank level). Beyond 09:00, the water production rate is not sufficient to meet the demand and therefore it is being subsidized from the stored water (thus decreasing the tank level) (Figure 11). Although, the water demand drops down beyond 12:00, the trend of Cw, R and water production rate continues at the same level right up to 18:00. During this period, storage tank level continues to drop down to the minimum. Beyond 18:00 Cw are R are adjusted to have sufficient water production to meet the demand until 24:00 and to store at the same time.

However, the intermediate storage tank adds the operational flexibility, and maintenance could be carried out without interrupting the production of water or full plant shut-downs at any time throughout the day by adjusting the number of stage. Note, the optimal results in this case are almost the same for the all the number of stages considered.

8. Conclusions

In this work, for a given design, an optimal operation scheme for an MSF desalination process subject to variable seawater temperature and variable freshwater demand is considered. An intermediate storage tank is considered between the MSF process and the customer to add flexibility in meeting the customer demand. A dynamic model for the storage tank level has been implemented with steady state MSF process model using gPROMS 3.0.3 model builder. Unlike previous work, a stage temperature based fouling correlation is added and the effect of non-condensable gases on the condenser heat transfer co-efficient is reflected into the process model.

For several process configurations (the design), some of the operation parameters of the MSF process such as seawater recycle flow rate and brine recycle flow rate at discrete time interval are optimised, while minimising the total daily operating costs. The optimisation results show increase in the total operating cost with decreasing number of stages. During the low consumption of freshwater, there is an increase in the tank level and plant production. Consequently, the plant operates at maximum value of rejected seawater flowrate and at minimum value of recycled brine flowrate. On the other hand, optimum results show decrease in the plant production and tank level when there is an increase in the freshwater consumption and consequently the plant operate at minimum value of rejected seawater flowrate and slightly increase in recycled brine flowrate. The results also clearly show that the use of the intermediate storage tank adds flexible scheduling in the MSF plant to meet the variation in freshwater demand with varying seawater temperatures without interrupting or fully shutting down the plant at any time during the day by connecting the desired number of stages (see [19] for the concept).

Nomenclature

AHHeat transfer area of brine heater (m2)
AjHeat transfer area of stage j (m2)
AScross sectional area of storage tank (m2)
B0Flashing brine mass flow rate leaving brine heater (kg/h)
BBTBottom brine temperature (°C)
BDBlow-down mass flow rate (kg/h)
BjFlashing brine mass flow rate leaving stage j (kg/h)
CB0Salt concentration in flashing brine leaving brine heater (wt. %)
CBjSalt concentration in flashing brine leaving stage j (wt. %)
CBNSSalt concentration in brine recycle (R) (wt. %)
CRSalt concentration in feed seawater (WR) (wt. %)
CSSalt concentration in makeup seawater (F) (wt. %)
CWRejected seawater mass flow rate (kg/h)
DjDistillate flow rate leaving stage j (kg/h)
DDiameter of storage tank (m)
EXjNon-equilibrium allowance at stage j
FMake-up seawater mass flow rate (kg/h)
fjHBrine heater fouling factor ( h m2 °C/kcal)
fjiFouling factor at stage j ( h m2 °C/kcal)
hfreshwater level in the storage tank (m)
hBjSpecific enthalpy of flashing brine at stage j (kcal/kg)
hRSpecific enthalpy of flashing brine at TF (kcal/kg)
hvjSpecific enthalpy of flashing vapor at stage j (kcal/kg)
hWSpecific enthalpy of brine at TF (kcal/kg)
HjHeight of brine pool at stage j (m)
LHLength of brine heater tubes (m)
LLength of storage tank (m)
Ljlength of tubes at stage j (m)
Mstorage tank holdup
IDInternal diameter of tubes (m)
ODExternal diameter of tubes (m)
WsteamSteam mass flow rate (kg/h)
RRecycle stream mass flow rate (kg/h)
SBjHeat capacity of flashing brine leaving stage j (kcal/kg/°C)
SDjHeat capacity of distillate leaving stage j (kcal/kg/°C)
SRjHeat capacity of cooling brine leaving stage j (kcal/kg/°C)
TBTTop brine temperature (°C)
TBjTemperature of flashing brine leaving stage j (°C)
TBNSTemperature of the brine in the recycle flowrate (°C)
TBOTemperature of flashing brine leaving brine heater (°C)
TDjTemperature of distillate leaving stage j (°C)
TEjBoiling point elevation at stage j (°C)
TFj+1Temperature of cooling brine leaving stage j (°C)
TFNR+1Temperature of makeup flowrate (F) (°C)
TFmTemperature of the brine in feed entering recovery stage (°C)
TVjTemperature of flashed vapour at stage j (°C)
TsteamSteam temperature (°C)
TseawaterSeawater temperature (°C)
UHOverall heat transfer coefficient at brine heater (Kcal/m2 h K)
UjOverall heat transfer coefficient at stage j (Kcal/m2 h K)
wwjWidth of stage j (m)
WSSeawater mass flow rate (kg/h)
XLMTD, logarithmic mean temperature difference at stages
YLMTD, logarithmic mean temperature difference at brine heater
ΔjTemperature loss due to demister (°C)
ρjBrine density (kg/h)
λsLatent heat of steam to the brine heater (kcal/kg)

IDEX

HBrine heater
jStage index
*Reference value

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Assiry, A.M.; Gaily, M.H.; Alsamee, M.; Sarifudin, A. Electrical conductivity of seawater during ohmic heating. Desalination 2010, 260, 7–19.
  2. El-Dessouky, H.T.; Eltouney, H.M. Fundamentals of Salt Water Desalination; Elsevier Science, Ltd.: Amsterdam, The Netherlands, 2002.
  3. Alasfour, F.N.; Abdulrahim, H.K. Rigorous steady state modeling of MSF-BR desalination system. Desalin. Water Treat. 2009, 1, 259–276, doi:10.5004/dwt.2009.300.
  4. Tanvir, M.S.; Mujtaba, I.M. Optimisation of MSF desalination process for fixed water demand using gPROMS. Comput. Aided Chem. Eng. 2007, 24, 763, doi:10.1016/S1570-7946(07)80150-7.
  5. Tanvir, M.S.; Mujtaba, I.M. Optimisation of design and operation of MSF desalination process using MINLP technique in gPROMS. Desalination 2008, 222, 419–430, doi:10.1016/j.desal.2007.02.068.
  6. Hawaidi, E.A.; Mujtaba, I.M. Freshwater production by MSF desalination process: Coping with variable demand by flexible design and operation. Comput. Aided Chem. Eng. 2011, 29, 1180–1184, doi:10.1016/B978-0-444-54298-4.50015-5.
  7. Yasunaga, K.; Fujita, M.; Ushiyama, T.; Yoneyama, K.; Takayabu, Y.N.; Yoshizaki, M. Diurnal variations in precipitable water observed by shipborne GPS over the tropical indian ocean. SOLA 2008, 4, 97–100, doi:10.2151/sola.2008-025.
  8. Alvisi, M.A.; Franchini, M.; Marinelli, A. A short-term pattern-based model for water-demand forecasting. J. Hydroinform. 2007, 91, 39–50.
  9. Hawaidi, E.A.; Mujtaba, I.M. Meeting variable freshwater demand by flexible design and operation of the Multistage Flash Desalination process. Ind. Eng. Chem. Res. 2011, 50, 10604–10614, doi:10.1021/ie200253g.
  10. Herrera, M.; Torgo, L.; Izquierdo, J.; Perez-Garcıa, R. Predictive models for forecasting hourly urban water demand. J. Hydrol. 2010, 387, 141–150, doi:10.1016/j.jhydrol.2010.04.005.
  11. Said, S.; Mujtaba, I.M.; Emtir, M. Effect of Fouling Factors on the Optimisation of MSF Desalination Process for Fixed Water Demand Using gPROMS. In Proceeding of the 9th International Conference on Computational Management, London, UK, 18–20 April 2012.
  12. Said, S.A. MSF Process Modelling, Simulation and Optimisation: Impact of Noncondensable Gases and Fouling Factor on Design and Operation. Ph.D. Thesis, University of Bradford, Yorkshire, UK, 2012.
  13. Said, S.; Mujtaba, I.M.; Emtir, M. Modelling and simulation of the effect of non-condensable gases on heat transfer in the MSF desalination plants using gPROMS software. Comput. Aided Process Eng. 2010, 28, 25–30, doi:10.1016/S1570-7946(10)28005-7.
  14. gPROMS. In gPROMS User Guide 2005; Process System Enterprise, Ltd. (PSE): London, UK, 2005.
  15. Rosso, M.; Beltramini, A.; Mazzotti, M.; Morbidelli, M. Modelling of multistage flash desalination plants. Desalination 1996, 108, 365–374.
  16. Helal, A.; Medani, M.; Soliman, M.; Flower, J. Tridiagonal matrix model for multistage flash desalination plants. Comput. Chem. Eng. 1986, 10, 327–342, doi:10.1016/0098-1354(86)87003-X.
  17. Hussain, A.; Hassan, A.; Al-Gobaisi, D.; Al-Radif, A.; Woldai, A.; Sommariva, C. Modeling, simulation, optimization and control of multistage flash (MSF) desalination plants Part2: Modeling and simulation. Desalination 1993, 92, 21–41, doi:10.1016/0011-9164(93)80073-V.
  18. Helal, A.M.; El-Nashar, A.M.; Al-Kahtheeri, E.; Al-Malek, S. Optimal design of hybrid RO/MSF desalination plants Part I: Modeling and algorithms. Desalination 2003, 154, 43–66, doi:10.1016/S0011-9164(03)00207-8.
  19. Sowgath, T.; Mujtaba, I.M. Less of the foul play: Flexible design and operation can cut fouling and shutdown of desalination plants. tce 2008, June, 28–29.
Processes EISSN 2227-9717 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
