Functional Modulation of Human Macrophages by Secreted Phospholipases A₂: Implications in Cancer

Abstract

Cancer-related inflammation has recently emerged as an important component of cancer pathogenesis that is able to promote tumor initiation and progression, and the acquisition of the known hallmark capabilities, including evasion from immunosurveillance. Several soluble and cellular mediators participate in tumor microenvironment formation, leading to cancer initiation and progression. In this view, Tumor-Associated Macrophages (TAMs) are pivotal players and, due to their characteristic plasticity, can acquire a variety of distinct phenotypes and contribute in different ways to the different phases of carcinogenesis. Different stimuli have been shown to modulate macrophage polarization. Secreted phospholipase A₂ enzymes (sPLA₂s) exert multiple biological effects on cancer-related inflammation due to their enzymatic activity and ability to activate inflammatory cells by non-enzymatic mechanisms. Among the different sPLA₂ isoforms, several studies have suggested that group IIA and group X are mainly involved in a wide variety of cancer types. A deeper insight into the molecular mechanisms regulating the link between tumor-infiltrating immune cells and cancer could lead to identifying new prognostic/predictive biomarkers and a broader view of cancer immunotherapy.

1. Introduction

In their seminal paper dated 2011, Hanahan and Weimberg revised their paradigm, shedding new light on the role of chronic inflammation as an enabling characteristic of cancer. Indeed, for a long time, the presence of an immune infiltrate within the tumor was attributed to the effort of the immune system to fight against tumors [1,2,3]. By contrast, in the last two decades, cancer-related inflammation (CRI) emerged as an important component of cancer, with the unexpected function of promoting tumor initiation and progression, supporting the acquisition of the known hallmark capabilities, including evasion from immunosurveillance. This evidence has dramatically changed the theoretical approach to cancer, transforming it from a “tumor cell centered” point of view to a point of view focused on the tumor microenvironment (TME) [2,3].

Among all components of the TME, Tumor-Associated Macrophages (TAMs) play a central role and are key orchestrators of CRI. Macrophage infiltration is evident in almost all tumor types, and these cells can represent the main mediators between inflammatory responses and cancer development and progression. Indeed, they are characterized by a peculiar plasticity, which consists in the ability to acquire distinct phenotypes and respond with specific functional outputs in response to signals derived from the microenvironment. In response to several stimuli, macrophages undergo reprogramming, which induces the development of a spectrum of distinct functional phenotypes [4,5]. Mimicking the Th1/Th2 paradigm, macrophages experience two different polarization states. Classically activated M1 macrophages are induced by interferon γ (IFNγ) alone or in concert with microbial stimuli (e.g., lipopolysaccharide (LPS)). In contrast, interleukin (IL)-4 and IL-13 inhibit this classical activation and induce the alternative M2 form of macrophage activation [6]. Classical M1 cells play a role as inducer and effector cells inTh1 responses and in mediating resistance against intracellular parasites and tumors. Indeed, they present an IL-12^high, IL-23^high, IL-10^low phenotype, and produce effectors molecules such as reactive oxygen and nitrogen intermediates and pro-inflammatory cytokines (e.g., IL-1β, tumor necrosis factor (TNF), IL-6) [5]. On the contrary, M2 macrophages display an IL-12^low, IL-23^low, IL-10^high phenotype and poor antigen-presenting capacity, suppress Th1 adaptive immunity, scavenge debris, take part in the dampening of inflammation, and promote wound healing, angiogenesis, tissue remodeling and tumor progression [4].

Phospholipase A₂ (PLA₂s) are mainly known as enzymes that hydrolyze the sn-2 acyl bond of glycerophospholipids (GPLs) to release lysophospholipids (LPLs) and free fatty acids (e.g., arachidonic acid), which are the main precursors of several biological active molecules, such as leukotrienes and prostaglandins [7,8,9]. Four major subfamilies of PLA₂s are currently recognized: (1) high-molecular-weight cytosolic PLA₂s (cPLA₂s), (2) calcium-independent PLA₂s (iPLA₂s), (3) low-molecular-weight secreted PLA₂s (sPLA₂s), and (4) lipoprotein-associated PLA₂ (Lp-PLA₂). While cPLA₂s, iPLA₂s, and Lp-PLA₂ mainly act as enzymes, sPLA₂s can also act as extracellular mediators by exerting several additional functions, far beyond their enzymatic activity [10,11]. Currently, ten different isoforms of human sPLA₂s have been identified. Some of them have been retrieved in TME, are widely reported to be involved in oncologic diseases and have a recognized role in human cancer [12,13].

In this review, we will recapitulate the main biological aspects of TAMs and their roles in cancer initiation and progression. We will explore the main functions of human sPLA₂s in human cancers and the effects of human sPLA₂s on macrophages in the context of cancer. Finally, we will discuss the roles of these multivalent mediators, and these tumor-infiltrating immune cells as means or targets of old and new anti-cancer therapeutic approaches.

2. Inflammation and Cancer: A Deadly Alliance

Inflammation is an ancestral physiological response aimed at containing damage and promoting tissue repair. In some conditions, this mechanism is circumvented, leading to chronic inflammation. In the case of a nascent neoplasia, the growing tumor can first elicit a physiological immune response, which, once bypassed, can give rise to a chronic inflammatory reaction, which prevents the resolution of the process and amplifies the cellular and molecular networks, sustaining the tumor growth and progression [1].

Chronic inflammation is now a well-recognized tumor-enabling capability, which can promote cancer development [2,14,15]. Tumors can generate an inflammatory response through several mechanisms. First, tumor cells can release chemotactic molecules that recruit innate immune cells, such as macrophages, mast cells and neutrophils [16]. In addition, the tumor can damage the normal tissue and induce the release of damage-associated molecular patterns (DAMPs), which further activate innate immune cells. These recruited cells release additional inflammatory molecules (e.g., sPLA₂s), amplifying the response. Moreover, rising tumors increase the oxygen consumption due to their increasing metabolic request but, at the same time, can compromise blood and lymphatic vessels [17]. The resulting local hypoxia promote a metabolic switch, together with the production and the release of cytokines and angiogenic growth factors, which promote neo-angiogenesis and lymphangiogenesis and further recruit macrophages. These inflammatory networks persist as long as the tumor progress, thus, giving rise to a vicious cycle that is increasingly difficult to break.

3. Roles of TAMs in Tumor Growth and Progression

Within the TME, macrophages are the most represented leukocytes. In several human cancers such as breast, bladder and gastric cancer, high TAM infiltration was correlated with poor clinical outcome [18,19,20]. For instance, a high macrophage infiltration was associated with high tumor grade, lack of hormone receptor expression, and poor outcome in breast cancer patients [21]. Similarly, high TAM density correlated with advanced disease stage, vascular invasion, and poor survival in bladder cancer patients [22]. Quite recently, CD163+ TAM infiltration inversely correlated with overall survival in non-small cell lung cancer (NSCLC) patients undergoing immune checkpoint blockers treatment [23]. In hepatocellular carcinoma (HCC), peri-tumoral TAMs correlated with patient overall survival and disease-free survival [24]. In contrast, a positive correlation was observed between TAM infiltration and patient survival in high-grade osteosarcoma patients [25] and in gastric cancer TAMs positively correlated with tumor cell apoptosis and CD8⁺ infiltration [26]. Some apparently controversial results can be explained, considering that macrophage population within a tumor is not a homogeneous population, but TAM phenotype can vary within the same tumor. Moreover, there is huge variability on the technique used to identify TAMs in tissues (CD68⁺, CD203⁺, CD206⁺, stabilin1⁺ cells, etc.), which may account for the variability of the results among studies.

From a classical point of view, macrophages were considered terminally differentiated cells, deriving from circulating monocytes recruited at the tumor site, which undergo differentiation into macrophages under the influence of tumor-derived growth factors, such as macrophage colony-stimulating factor (M-CSF) or granulocyte-macrophage colony-stimulating factor (GM-CSF) [27]. However, this classic point of view has been revolutionized by the observation of a self-renewing population of macrophages, derived from embryonic precursors, that colonizes tissues before birth and is capable of locally proliferating and differentiating, independent from circulating monocytes [28,29,30,31,32,33,34]. To date, the relevance of macrophage proliferation in humans is still a matter of debate, and its contribution to cancer development is still unclear [21,35,36].

Tumor cells themselves as well as stromal cells can produce chemotactic molecules involved in monocyte recruitment at the tumor site, such as CC chemokine ligand 2 (CCL2) and CCL5, as well as growth factors such as vascular endothelial growth factor (VEGF) and M-CSF. Besides their chemotactic functions, these factors can also retain activating properties and contribute to macrophage polarization towards specific phenotypes within the TME [37]. In a murine model of transgenic mammary epithelial cell-specific CCL2 expressing mice, the overexpression of CCL2 in mammary tissue resulted in increased macrophage infiltration, increased expression of extracellular matrix (ECM)-remodeling genes (such as matrix metalloproteinases and lysyl oxidase) and increased stromal density and collagen deposition [38]. More recently, in a murine model of bladder cancer, radiotherapy induced the release of CCL2 by irradiated cancer cells, which in turn, promoted the recruitment of bone marrow-derived CCR2-positive myeloid cells and the polarization of M1-type TAMs toward the M2 type, suggesting a radio-resistance mechanism sustained by a CCL2-M2 macrophage network [39]. Moreover, the classical monocyte chemo-attractant and growth factor M-CSF favors macrophage survival and skewing towards a tumor-promoting “M2-like” phenotype [40,41].

Once in the TME, macrophage polarization can be driven by tumor cells, as well as by “tumor-educated” immune cells releasing M2-skewing factors such as IL-4, IL-13, immunocomplexes, transforming growth factor-β (TGF-β) or M-CSF. Interestingly, in TME, hypoxia leads to the extracellular accumulation of adenosine, which contributes to the generation of an immunosuppressive microenvironment, which in turn sustains cancer progression. One of the main immunosuppressive effects mediated by adenosine is the M2-skewing of TAMs through the engagement of A_2A receptors [42].

TAMs display a number of M2-like features in several tumor types, such as renal [43], breast [44], pancreatic [45], lung [46], and cervical cancer [47], and as described by in vivo and in vitro models [48,49,50]. TAMs are able to sustain tumor cell growth through the production of growth factors such as epidermal growth factor (EGF), which induce breast cancer cell proliferation [20]. TAMs generate high levels of reactive oxygen and nitrogen species, which contribute to DNA damage and the genetic instability of cancer cells [51]. Indeed, they release proteolytic enzymes, such as matrix metalloproteases, which are involved in ECM digestion and remodeling, thus, favoring tumor cell invasion and metastasis [52]. Moreover, TAMs are high producers of angiogenic/lymphangiogenic factors, such as VEGF-A, VEGF-C, TGF-β, as well as pro-angiogenic chemokines such as CCL2 and CXCL8 [53,54,55,56]. Interestingly, tumor-associated hypoxia, as well as through the high levels of adenosine that accumulate in the hypoxic microenvironment, can modulate TAMs phenotype and metabolic features, shifting the balance towards a pro-angiogenic and lymphangiogenic TME [56]. In an elegant in vivo model, under hypoxic conditions, TAMs upregulated FcγRIIb through the activation of HIF-1 and AP-1. These FcγRIIb^high TAMs displayed a reduced capability to eliminate anti-CD20 opsonized chronic lymphocytic leukemia cells in vitro, suggesting a role for hypoxia-driven TAM phenotype in immunotherapy resistance [57]. Finally, TAMs promote tumor progression by suppressing anti-tumor immunity. Indeed, TAMs produce immunosuppressive molecules such as TGF-β, IL-10, indoleamine 2,3-dioxygenase (IDO) and arginase-1, which suppress adaptive T-cell immune response and favor Treg recruitment and functions [58,59]. In a mouse model of Colitis-Associated Cancer (CAC), macrophages produced IL-17, which in turn, increased the survival and immunosuppressive activity of granulocytic myeloid-derived suppressor cells (MDSCs), thus, fostering tumor progression [60].

However, although TAMs resemble M2 macrophages in the vast majority of cancers, the TME represents the main example of the fine modulation of macrophage polarization states. Indeed, within the TME, TAMs acquire a wide range of activation states based on the cellular and molecular milieu, which characterizes different tumors and different tumor components (i.e., tumor cells, stromal cells and immune cells). Hence, the pathways of TAM activation vary among the various tumor types and, in some cases, within the same tumor [59,61]. For example, this is the case of the variable access to oxygen in the distinct tumor areas, which is responsible for various levels of activation of metabolic pathways (e.g., the adenosine pathway) involved in tuning macrophage phenotypes [44,62].

4. Roles of sPLAs in Cancer

The sPLA₂s family includes ten different isoforms identified in human cells and tissues, which are referred to as group IB (hGIB), group IIA (hGIIA), group IID (hGIID), group IIE (hGIIE), group IIF (hGIIF), group III (hGIII), group V (hGV), group X (hGX), group XIIA (hGXIIA), and group XIIB (hGXIIB) [7]. sPLA₂s are considered proinflammatory mediators since large amounts of these proteins have been observed in biological fluids during local or systemic inflammation [10]. In addition, sPLA₂s are overexpressed in some acute or chronic inflammatory diseases of the lung (e.g., pneumonia, bronchial asthma, chronic obstructive pulmonary disease, and interstitial lung disease) [63], as well as in several types of cancer [13,64,65,66,67,68,69]. Although it has been reported that the expression of several sPLA₂ isoforms (i.e., hGIB, hGIIA, hGIIE, hGIIF, hGV, hGX, hGXIIA) is increased in neoplastic tissues, two major sPLAs isoforms—namely, hGIIA and hGX—are particularly involved in a broad variety of cancer types [12,13,68,70,71].

hGIIA plays a dual role in cancer as it can both suppress and promote tumor progression, depending on the cancer type [13]. Indeed, it was positively associated with breast cancer recurrence, metastasis and death [72,73]. hGIIA exerts also a protumorigenic effect in lung cancer, acting through the nuclear factor of κB (NF-κB) activation [74] and in esophageal cancer. Indeed, the pharmacological or genetic inhibition of hGIIA in vitro decreased the proliferation of esophageal adenocarcinoma cells, while its overexpression resulted in enhanced cancer cell growth [75]. Conversely, GIIA plays an antitumorigenic role in gastric cancer, since its overexpression inhibited gastric cancer invasion and metastasis through the Wnt/β-catenin signaling pathway [76], and it has been associated with improved patient survival [70,77].

It was initially shown that hGX contributes to colon tumorigenesis by generating prostaglandin E2₂ (PGE₂) and other lipidic mediators [78,79]. In addition, mouse (m)GX is highly expressed in the mice colon, and it is the most potent enzyme to stimulate cell proliferation and the mitogen-activated protein kinase (MAPK) activation of various colon cancer cell lines [79]. This effect is mostly due to its intrinsic catalytic activity, which induces the production of free arachidonic acid and LPLs (which are mitogenic by themselves), large amounts of PGE2 and other eicosanoids from colon cancer cell lines. However, these lipid mediators do not play a role in mGX-induced cell proliferation because inhibitors of cyclooxygenases and lipoxygenases do not prevent sPLA₂ mitogenic effects [79]. Quite recently, serum exosomal GX mRNA and protein have been associated with a more aggressive phenotype (i.e., higher stages, lymphatic node metastasis and distant metastasis) and poor overall and disease-free survival of NSCLC patients [80]. This sPLA₂ has also been shown to play a role as a possible prognostic factor in other types of cancer. Indeed, recent findings by Kudo et al. demonstrate that the pro-tumorigenic action of lymphoma-derived extracellular vesicles (EVs), including exosomes, is augmented via sPLA₂-driven lipid metabolism [81]. In particular, the hydrolysis of EV phospholipids by GX increased the production of fatty acids, LPLs, and their metabolites in the macrophages of Epstein-Barr virus lymphoma. The pharmacological inhibition of endogenous GX suppressed lymphoma growth in Epstein-Barr virus-infected humanized mice, whereas treatment with sPLA₂-modified EVs reversed this phenotype [81]. Finally, hGX has been shown to facilitate the cell-cycle progression of soft tissue leiomyosarcoma. Indeed, a higher hGX expression significantly correlated with a worse relapse-free survival in soft tissue leiomyosarcoma patients [82].

A better understanding of the underlying mechanism behind the correlation between sPLA₂s and cancer growth and progression will help to develop novel anticancer agents targeting sPLA₂s [83,84]. The inhibition of sPLA₂s can be considered as a novel advantageous strategy for preventing and treating inflammation-associated diseases and cancer [83,84,85].

5. Modulation of Macrophages Activated by Human PLA₂s

sPLA₂s exert multiple biological effects on CRI due to their enzymatic activity and ability to activate inflammatory cells by non-enzymatic mechanisms [10,86]. Macrophages are a major target of sPLA₂s since they can be activated by both mechanisms [10,86]. Through their enzymatic activity, sPLA₂s contribute to the biosynthesis of proinflammatory lipid mediators (PGs, leukotrienes, lipoxins, and platelet-activating factors) [7]. On the other hand, by non-enzymatic mechanisms involving the engagement of specific (M-type) or promiscuous receptors (mannose receptor and integrins), sPLA₂s activate several functions including exocytosis, and the production of cytokines (TNF-α, IL-6, IL-10, and IL-12), chemokines (CCL-1, CCL2, CCL3, CCL4, and CXCL8) and angiogenic/lymphangiogenic factors (VEGF-A, VEGF-C), as well as the generation of nitrogen species and cell adhesion [56,87,88,89,90,91]. The receptor engagement leads to the activation of several intracellular pathways including the PI3K/Akt system, the MAPK p38, extracellular signal-regulated kinase 1/2 (ERK1/2), and NF-κB, which are involved in the production of cytokines, chemokines and angiogenic/lymphangiogenic factors [11,56,87,88]. Both human sPLA₂s (i.e., hGIB, hGIIA, hGV, hGX) and snake venom sPLA₂s (i.e., group IA and group III) isoforms are able to activate macrophages. Nevertheless, it is conceivable that in the TME, TAMs can be exposed to human sPLA₂s produced by tumor cells, stromal cells or other tumor-infiltrating immune cells such as mast cells [12,13,92].

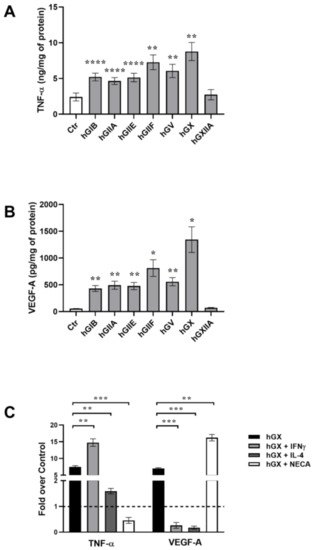

To verify the last hypothesis, we performed some experiments to compare the ability of various human sPLA₂s isoforms to activate and/or polarize human macrophages. We evaluated the effect of the equimolar concentrations (100 nM) of seven different human recombinant sPLA₂s (hGIB, hGIIA, hGIIE, hGIIF, hGV, hGX, hGXIIA) on the production of TNF-α and VEGF-A from primary human lung macrophages (HLMs) (Granata et al., unpublished observation). Figure 1 shows that, with the exception of hGXIIA, all the sPLA₂s induced a significant production of both TNF-α (A) and VEGF-A (B) from HLMs [91]. These results confirmed that most human sPLA₂s were able to activate human macrophages to produce both M1-like, and M2-like soluble mediators.

Among the isoforms tested, hGX appears to be the most potent sPLA₂ isoform able to activate HLMs. These results confirmed our previous observations suggesting that sPLA₂s are pleiotropic mediators that induce a wide activation of macrophages but appear to be unable to induce the polarization towards a M1- or M2-like functional output (Granata et al., unpublished observation). The observation that hGXIIA was unable to induce TNF-α and VEGF-A from macrophages is not surprising because the functions of this isoform seem not to rely on enzymatic activity or on its binding properties [7,93,94].

Recently, we have shown that HLMs stimulated with a snake venom group, IA sPLA₂ (svGIA), released a wide number of cytokines (TNF-α, IL-1β, IL-6, IL-10, IL-12,), chemokines (CXCL8, CCL1) and angiogenic factors (VEGF-A, ANGPT-1, ANG-PT-2) [91]. In line with previous reports, the M2-polarizing cytokine IL-4 inhibited the release of both TNF-α and VEGF-A induced by svGIA. Similarly, in line with its M1-polarizing effect [91], IFN-γ significantly enhanced TNF-α, whereas it abolished VEGF-A release from svGIA-activated macrophages. Finally, according to its M2-polarizing properties, the adenosine analog 5’-(N-Ethylcarboxamido) adenosine (NECA) significantly inhibited TNF-α, and greatly increased svGIA-induced VEGF-A release. However, in additional experiments, we observed that the M1- (IFN-γ) and M2-polarizing (IL-4) cytokines were unable to modify the release of TNF-α and VEGF-A from unstimulated (i.e., in the absence of sPLA₂) HLMs (Granata et al., unpublished observation). These results indicate that macrophages can be preferentially modulated by M1/M2 polarizing stimuli when they are activated by a driving stimulus as sPLA₂, adding a further piece to the complex puzzle of macrophage polarization states.

Since svGIA is of snake venom origin, it is unlikely that it can be retrieved at sites of tumor-growth inflammation together with M1/M2 polarizing stimuli. Therefore, we evaluated the effect of IFN-γ, IL-4 or adenosine on the release of TNF-α, and VEGF-A from HLMs activated by hGX. Figure 1C shows that IFN-γ increased hGX-induced the release of TNF-α but abolished the release of VEGF-A, according to its M1 polarizing properties. By contrast, the M2-polarizing molecule IL-4 strongly inhibited the release of both TNF-α and VEGF-A from hGX-activated macrophages, suggesting a wide inhibitory effect of this cytokine on macrophages stimulated with sPLA₂. Finally, the adenosine analog NECA inhibited the hGX-induced release of TNF-α, but strongly increased VEGF-A release, according to its M2 polarizing properties. These observations confirm that human sPLA₂s can play a role in the fine modulation of macrophage polarization and in the complex networks of the CRI.

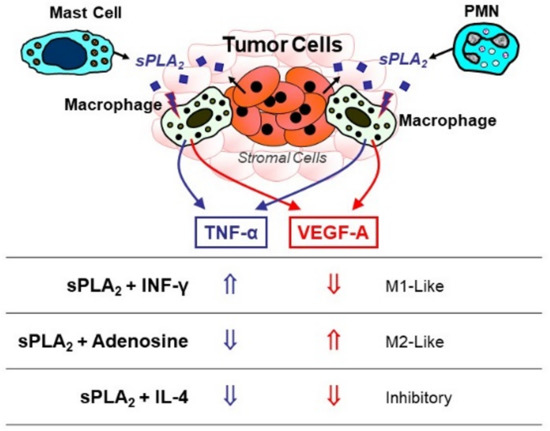

We can determine that human sPLA₂s released in the TME by tumor cells, stromal cells or other inflammatory cells infiltrating the tumor (e.g., mast cells and neutrophils) could act as a driving stimulus activating TAMs to produce cytokines, chemokines and angiogenic factors, without a clear polarization toward an M1- or M2-like functional output (Figure 2). When in the TME, such polarizing stimuli as INF-γ, adenosine or IL-4 produced together with sPLA₂s, can polarize the functional output of sPLA₂-activated TAMs toward an M1-like (e.g., stimulation of TNF-α plus inhibition of VEGF-A), M2-like (e.g., inhibition of TNF-α plus stimulation of VEGF-A), or anti-inflammatory (e.g., inhibition of TNF-α and VEGF-A) phenotype to modulate tumor growth and progression.

6. Concluding Remarks

Increasing evidence shows that tumors grow and progress within their microenvironment, with which they constantly interact. Macrophages are integrated within CRI and can participate in the various phases of malignant initiation and progression. Cancer cells, and TAMs themselves, can release several pro-tumorigenic and pro-angiogenic cytokines and chemokines. These molecules could be a suitable target for inhibiting tumor growth by blocking pro-tumor functions. Indeed, enhancing anticancer immune responses by blocking the immunosuppressive molecules (i.e., IL-10, TGF-β, cytotoxic T-lymphocyte-associated antigen 4 (CTLA-4), programmed death 1 (PD-1), and PD-L1) expressed by cancer cells and tumor-infiltrating immune cells seems to be a promising therapeutic strategy in different types of cancers. Taken together, our results add a piece to the puzzle of the multiple roles for sPLA₂s in the world of cancer-related macrophage polarization and pave the way for new sPLA₂-targeting therapeutic tools [85]. In conclusion, a deeper insight into the molecular mechanisms regulating the link between sPLAs, macrophages, and cancer could lead to the identification of new prognostic/predictive biomarkers and a more personalized therapeutic approach.
