Climate 2016, 4(3), 43; doi:10.3390/cli4030043

Polar Cyclone Identification from 4D Climate Data in a Knowledge-Driven Visualization System

1
GeoDa Center for Geospatial Analysis and Computation, School of Geographical Sciences and Urban Planning, Arizona State University, Tempe, AZ 85287-5302, USA
2
State Key Laboratory of Remote Sensing Science, The Institution of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China
*
Author to whom correspondence should be addressed.
Academic Editor: Yang Zhang
Received: 2 July 2016 / Revised: 20 August 2016 / Accepted: 23 August 2016 / Published: 5 September 2016
View Full-Text   |   Download PDF [7524 KB, uploaded 5 September 2016]   |

Abstract

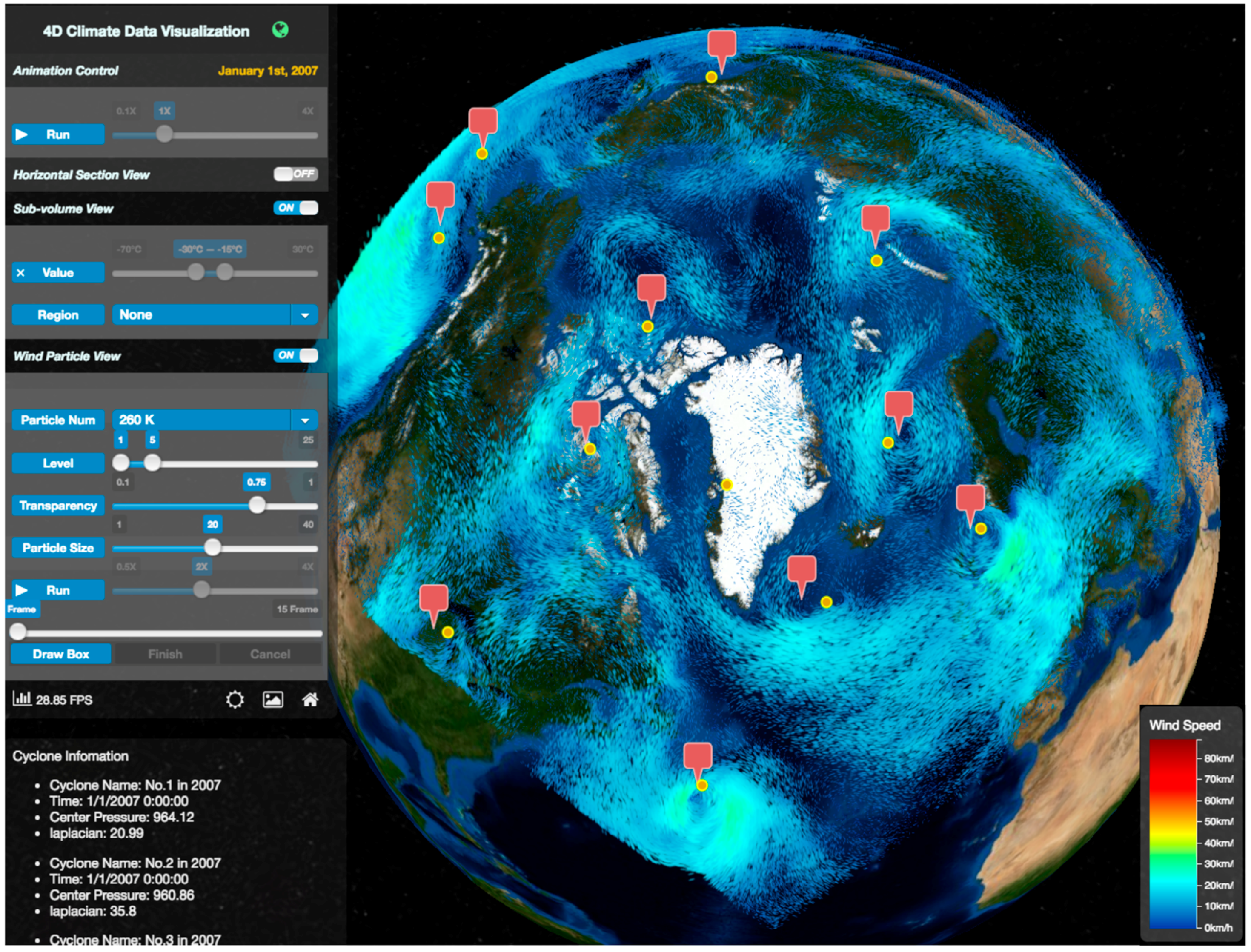

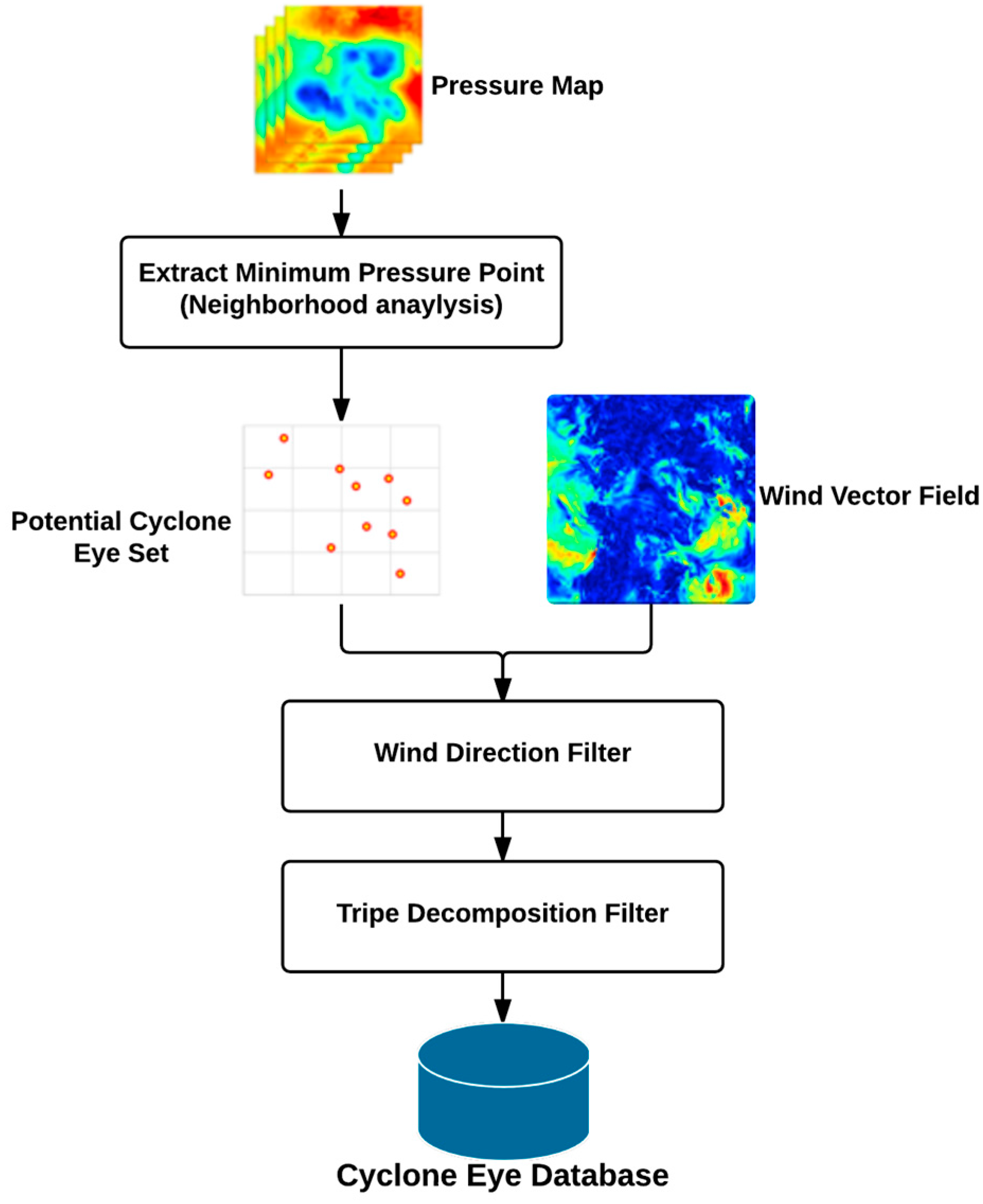

Arctic cyclone activity has a significant association with Arctic warming and Arctic ice decline. Cyclones in the North Pole are more complex and less developed than those in tropical regions. Identifying polar cyclones proves to be a task of greater complexity. To tackle this challenge, a new method which utilizes pressure level data and velocity field is proposed to improve the identification accuracy. In addition, the dynamic, simulative cyclone visualized with a 4D (four-dimensional) wind field further validated the identification result. A knowledge-driven system is eventually constructed for visualizing and analyzing an atmospheric phenomenon (cyclone) in the North Pole. The cyclone is simulated with WebGL on in a web environment using particle tracing. To achieve interactive frame rates, the graphics processing unit (GPU) is used to accelerate the process of particle advection. It is concluded with the experimental results that: (1) the cyclone identification accuracy of the proposed method is 95.6% when compared with the NCEP/NCAR (National Centers for Environmental Prediction/National Center for Atmospheric Research) reanalysis data; (2) the integrated knowledge-driven visualization system allows for streaming and rendering of millions of particles with an interactive frame rate to support knowledge discovery in the complex climate system of the Arctic region. View Full-Text
Keywords: cyclone identification; North Polar; particle tracing; 4D vector data visualization; GPGPU cyclone identification; North Polar; particle tracing; 4D vector data visualization; GPGPU
Figures

Figure 1
