Osmophore Structure and Labellum Micromorphology in Ophrys speculum (Orchidaceae): New Interpretations of Floral Features and Implications for a Specific Sexually Deceptive Pollination Interaction

Abstract

Pollination by sexual deception specifically attracts male insects, through the floral scent and particular morphological features of the flower that serve as visual and tactile stimuli. The unique bond between the Ophrys speculum orchid and the male Dasyscolia ciliata wasp primarily stems from a few distinctive semiochemicals that mimic the female wasp’s sex pheromone, although the floral scent comprises a variety of compounds. An osmophore producing highly volatile compounds has been documented in four close relatives of O. speculum and is now being also investigated in this species. Given the existing debates regarding the structure of the labellum and stigmatic cavity in O. speculum, this study details their micromorphology. Additionally, comparisons of O. speculum flowers and female D. ciliata wasps under stereomicroscopy and scanning electron microscopy are conducted to seek new evidence of visual and tactile mimicry. The findings confirm that (i) an osmophore is present at the apical margin of the labellum in O. speculum flowers; (ii) the labellum features a distinct basal field homologous to those found in other Ophrys species; and (iii) the basal labellum region closely mimics the female wasp’s thorax and wings. The implications of these novel floral features are discussed within an evolutionary context.

1. Introduction

Unlike most flowering plants, which reward their pollinators with nectar, pollen, floral oils, liquid fragrances, waxes, or resins, some species evolved a deceptive pollination, offering no real rewards but simulating their presence instead [1,2,3,4,5]. Pollination through deception has been documented across at least 32 angiosperm families, with approximately 87% of these deceptive species found within the family Orchidaceae [3]. An estimated one-third of all orchids, amounting to 6500 to 8000 species, employ deception to attract pollinators [1,3]. Most deceptive orchids are pollinated through generalised food deception, attracting food-foraging insects by mimicking the general signals of rewarding flowers [5,6]. However, a more intricate pollination syndrome, known as sexual deception, has evolved in at least 22 genera of orchids [7,8,9], which deceive only male insects by offering them a set of floral features that mimic their conspecific virgin females [4,10]. Sexual deception typically involves a nearly perfect imitation of the female’s sex pheromone combined with the appearance and texture of the labellum—the modified median petal of the orchid flower [11,12,13,14,15,16,17,18]. Because insect mating signals are species-specific [19], flowers of each sexually deceptive species almost exclusively attract males of one or a few closely related insect species, establishing a highly specialised pollination interaction [11,13,15,17,18,20,21,22,23,24]. Most co-occurring sexually deceptive orchids exhibit strong floral isolation, primarily driven by scent [23,25,26,27,28,29]. Given the weakness or non-existence of postmating barriers, these orchids rely on the robust prepollination reproductive isolation provided by their floral scents and labella to prevent hybridisation [23,24,25,26,28]. Besides floral scent—which has a primary significance for both pollinator attraction and reproductive isolation in sexually deceptive orchids—morphological features of the flowers such as shape, colour, size, and texture provide visual and tactile cues to male pollinators, playing a decisive role in effectively turning attraction into pollination [11,16,18,30,31,32,33,34,35,36,37]. Therefore, characterising the key floral traits involved in the attraction of specific pollinators is crucial to an understanding of the process of pollinator-driven speciation [28,29,36,37,38,39].

The insectiform flowers of the Euro-Mediterranean, sexually deceptive orchid genus Ophrys L. (Orchidaceae: Orchidinae) have long fascinated naturalists on account of their distinctive morphology and complex mode of reproduction [40,41,42]. Because of their unique floral scent and special characteristics of their labella, Ophrys flowers are visited by mate-searching male insects, predominantly solitary bees but also solitary parasitic wasps, eusocial bees, and certain beetles [7,11,43,44]. While performing copulatory attempts with the labellum—a behaviour known as pseudocopulation—male insects inadvertently remove pollinaria and subsequently serve as pollen vectors on their visits to Ophrys flowers [10,45].

The attraction of pollinators to Ophrys orchids is initiated by the odour bouquet emitted from the labellum, which comprises over 100 organic compounds with varied volatility and chemical origin [46,47]. This bouquet includes a small group of key semiochemicals that effectively trigger mating behaviour in specific male insects, due to their resemblance to the female’s sex pheromones [12,17,24,48,49,50,51].

The highly specific one-to-one pollination relationship between O. speculum Link and the solitary parasitic wasp Dasyscolia ciliata (Hymenoptera: Scoliidae) was first reported in the early twentieth century by Pouyanne, marking a pivotal discovery in the study of pollination by sexual deception [10,41]. The specificity of this relationship largely stems from the unique chemical mating signal emitted by the wasp, which the orchid mimics. This signal consists in a few polar, short-chained organic compounds—specifically aldehydes, ethyl esters, and three rare oxygenated carboxylic acids, two of which are in specific enantiomeric ratios [38,48]. However, the precise areas of the labellum responsible for the biosynthesis of these compounds remain unidentified and the odour bouquet of O. speculum includes a broad range of other volatile organic compounds [38].

It is likely that at least some components of the Ophrys floral scent, particularly those with higher volatility, are synthesised in a secretory structure known as an osmophore, located in the apical region of the labellum [52]. The presence of this fragrance-producing gland has been confirmed in four closely related Ophrys species: Ophrys bombyliflora Link, O. fusca Link, O. lutea Cav., and O. tenthredinifera Willd. [52,53,54]. Molecular phylogenetic analyses within the genus Ophrys have shown that O. bombyliflora, O. tenthredinifera, and section Pseudophrys Godfery (which includes O. fusca and O. lutea) together form a major clade (i.e., a monophyletic group) with O. speculum, although the interspecific relationships in this clade are not fully resolved yet [55,56,57,58]. Therefore, determining whether the labellum of O. speculum also contains an osmophore as its closest relatives and examining its floral features are fundamental to find potentially informative micromorphological data that could aid not only in clarifying the phylogenetic relationships but also in reconstructing the ancestral character states within this clade [59].

Furthermore, the pronounced visual resemblance between the flower of O. speculum and the female of its pollinator underlines the significant role that visual signals should play in facilitating successful pseudocopulation by male insects [11,43,60]. Indeed, micromorphological studies of the labellum in various Ophrys species, along with comparisons to the females of their pollinators, have identified characteristics indicative of visual and tactile mimicry [47,52,54,60,61,62,63,64,65]. Although the general micromorphology of the labellum in O. speculum is well documented [60,64,65,66], a comprehensive description of this flower’s structure is crucial due to existing debates over the configuration of the stigmatic cavity and the presence of a distinct basal field in the labellum of O. speculum [59,64,66,67,68].

The concept of basal field was initially defined, and used thereafter, as a distinct area in the basal region of the labellum of Ophrys flowers, located above the speculum and below the stigmatic cavity [66,68]. This area typically features a colouration that either contrasts with or is similar to adjacent areas. In most Ophrys species, this differentiated area is readily apparent, yet it is absent in species from the section Pseudophrys [59,66,68]. The presence of a basal field in the labellum of O. speculum, however, has sparked debate as various authors have applied the term “basal field” to different floral regions. Some suggest that in this species, the labellum only displays a poorly defined, glabrous basal field due to its flat epidermal cells [64,67]. Yet, these cells closely resemble those typically found not in the labellum but in the contiguous floor of the stigmatic cavity of other Ophrys species [52,59], casting doubt on their homology. Accurately interpreting the floral structure of O. speculum requires a detailed micromorphological comparison with other Ophrys species to establish homology between floral parts.

Building on our previous studies of the labellum micromorphology and anatomy within the clade composed of the groups of O. bombyliflora, O. tenthredinifera, O. speculum, and section Pseudophrys [52,54], the present study focuses on the two subspecies of O. speculum that occur in the western part of its geographic range: O. speculum Link subsp. lusitanica O.Danesch & E.Danesch and O. speculum Link subsp. speculum. The objectives of this study are the following: (i) to investigate the presence of an osmophore in O. speculum, detailing its structure, location, and secretion; (ii) to characterise the micromorphology of the labellum and stigmatic cavity, aiming to establish homologies between floral parts that may resolve the ongoing debate regarding the presence of a distinct basal field in the labellum of this species; and (iii) to conduct a micromorphological comparison between the flower of O. speculum and the female of its specific wasp pollinator, seeking structural similarities that could provide new evidence of visual and tactile mimicry.

2. Results

2.1. Flower Morphology

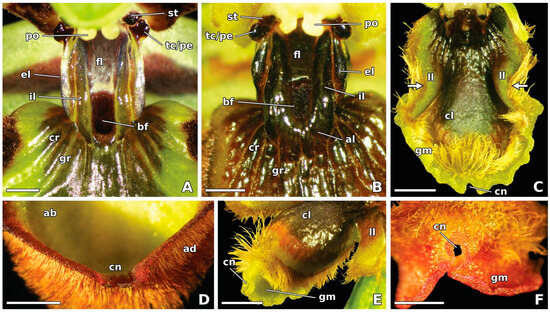

The distinctive flowers of O. speculum are easily recognised by their convex, obovate, trilobed labellum which features a wide, shiny, blue speculum bordered by an orange-to-green band and a dense, long submarginal pilosity that conceals a broad, undulated, glabrous apical margin with a central notch (Figure 1 and Figure 2C–E). In O. speculum subsp. lusitanica, the pronounced convexity of the central labellum lobe often causes the glabrous apical margin to fold longitudinally at the central notch, resulting in the two halves meeting (Figure 2C,E). The two lateral lobes of the labellum are convex with the tip bending backward due to a knee-shaped bend in the middle in O. speculum subsp. lusitanica (Figure 1A and Figure 2C,E), whereas in O. speculum subsp. speculum, they are flat with the tip pointing forward (Figure 1B).

The stigmatic cavity of O. speculum flowers features an extensive, elevated, flat floor that is bordered by two long, protruding labia or crests—one internal and another external—on each side (Figure 2A,B). These labia are considered to be forward extensions of the lower portion of the walls of the stigmatic cavity flanking its floor (Figure 2A,B). A pair of shiny, black pseudoeyes emerges from the temporal callosities, situated in the upper portion of the stigmatic cavity, directly beneath a pair of black staminodial callosities. The sticky stigmatic surface is located at the ceiling of this cavity, below the pollinaria (Figure 2A,B).

The prominent stigmatic cavity of O. speculum seems to join the basal region of the labellum in an unusual manner. A confined basal field—a part of the labellum—appears elevated and restricted to a cupuliform (cup-shaped) concavity, which is located between the distal portions of the internal labia of the stigmatic cavity and is surrounded, on its distal side, by an augmented portion of the labellum fused with these labia (Figure 2A,B). The area of the labellum directly beneath it, which is placed in a lower level, exhibits a sulcate texture due to a series of grooves and crests that diverge radially from the constricted area between the stigmatic cavity and the basal region of the labellum (Figure 1 and Figure 2A,B).

2.2. Micromorphology of the Labellum and Stigmatic Cavity

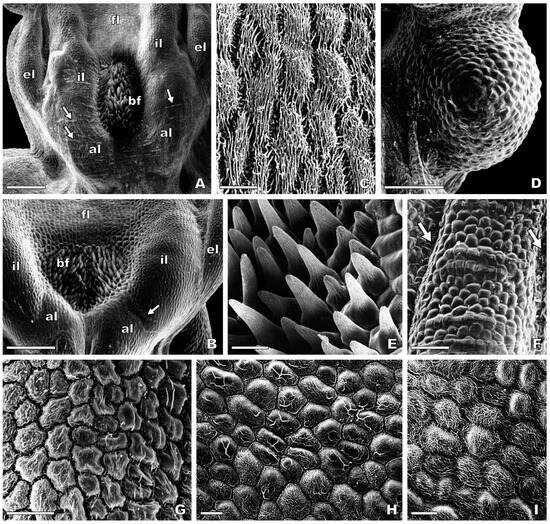

Scanning electron microscopic observations revealed that the flowers of O. speculum exhibit seven morphologically distinct epidermal cell types based on cell surface’ features in the adaxial surface of the labellum and stigmatic cavity (Figure 3 and Figure 4). The abaxial labellum surface is composed of smooth pavement cells, except for the apical margin, where large dome-shaped papillae occur.

2.2.1. Stigmatic Cavity

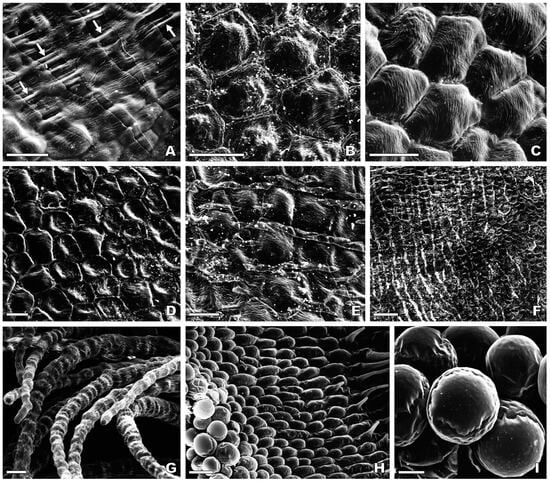

The floor of the stigmatic cavity of O. speculum is composed of flat epidermal cells with elongated, polygonal outline and dense parallel-arranged cuticular striations on their surface (cell type 1) (Figure 3C). Apart from the floor, the stigmatic cavity exhibits basically smooth, flat to lenticular cells with an isodiametric, polygonal outline (cell type 2), particularly in the pseudoeyes (temporal callosities), staminodial callosities, internal labia, and external labia (Figure 3A,B,D). Prominent cuticular ridges were found over the surface of some epidermal cells, forming perpendicular rows in the internal labia, the augmented portion of the labellum contiguous to the basal field and labellar crests and grooves (Figure 3A,B,F).

2.2.2. Basal Region of the Labellum

The basal field in O. speculum consists of sub-conical to attenuate unicellular trichomes with fine cuticular striations on their surface (cell type 3), which are restricted to the cupuliform concavity occurring in the area of confluence between the labellum and the stigmatic cavity (Figure 3A,B,E). The sulcate area of labellar crests and grooves, which extends into the lateral labellum lobes (Figure 1), is composed of either cells similar to those occurring in the internal labia in O. speculum subsp. lusitanica (cell type 2) (Figure 3F), or lenticular cells with an isodiametric, polygonal outline and a rugose surface (cell type 4), which acquire a nearly smooth appearance towards the top of the crests in O. speculum subsp. speculum (Figure 3G).

2.2.3. Lateral Labellum Lobes

The lateral lobes of the labellum in O. speculum present a wide glabrous surface surrounded by a dense marginal indumentum of long contorted unicellular trichomes (cell type 5), similar to those occurring in the sub-marginal indumentum of the central labellum lobe (Figure 4G). The glabrous portion of the lateral lobes is usually composed of lenticular cells with either a smooth or slightly striated surface (cell type 2) in O. speculum subsp. lusitanica or a densely striated surface (cell type 4) in O. speculum subsp. speculum, in which the cuticular ornamentation varies according to the area of the lateral lobe (Figure 3H,I). In the apical area of the lobe, a heterogeneous cuticular pattern consisting of irregular and prominent ridges associated with smooth zones was often found in the surface of some cells (Figure 3H).

2.2.4. Central Labellum Lobe

The major portion of the central labellum lobe in O. speculum is occupied with the speculum, which is composed of flat to slightly convex epidermal cells with a hexagonal outline and very fine, parallel cuticular striations on their outer cell wall (cell type 6) (Figure 4B,C). Lenticular cells with flattened anticlinal fields and cells with a pentagonal or heptagonal outline were occasionally found in the speculum amongst the most common cells with a hexagonal outline (Figure 4B,C). In the apical area of the speculum, several epidermal cells exhibit a central depression on their surface (Figure 4D) and long, prominent cuticular depositions were found to be laid over some contiguous cells (Figure 4E). Rows of these ordered, parallel-arranged cuticular depositions are particularly extensive near the apical margin in O. speculum subsp. lusitanica (Figure 4F) and in the basal area of the speculum. A thin film seems to cover the labellum surface in O. speculum subsp. speculum and appears to have been split into several strips in the basal area of the speculum near the labellar grooves and crests, revealing the long and dense cuticular depositions that occur underneath (Figure 4A). The speculum is surrounded by a submarginal band of long contorted trichomes (cell type 5) (Figure 4G) and then by a broad, glabrous apical margin composed of smooth, dome-shaped papillae, which become highly voluminous towards the labellum margin itself (cell type 7) (Figure 4H,I).

2.3. Micromorphology of the Female Wasp

Similar morphological features have been found in the female Dasyscolia ciliata subsp. ciliata wasp captured in Serra de Sicó for this study (Figure 5A–D) and in the three examined specimens of this wasp from Museum collections. The body and the legs of the female wasp are mostly covered by a brownish-orange-coloured pilosity (Figure 5A) which consists of long, thin, straight hairs (Figure 5B,H). The abdominal segments exhibit slightly spiralled hairs grouped in tufts that are arranged into a band around each segment (Figure 5D–F).

The two pairs of wings are basically glabrous (Figure 5H,I). The two crossed forewings, which partially overlap each other, form a small inverted V at the apex (Figure 5A,C) and are provided with several conspicuous veins, particularly at the proximal area (Figure 5B). The prominent costal veins in the proximal area of the crossed forewings (Figure 5H) compare roughly with the two pairs of labia of the stigmatic cavity of the flower (Figure 3A,B). The veins of the median area of the wings (Figure 5B) are reminiscent of the series of labellar grooves and crests (Figure 2A,B). The forewings’ surface is rippled due to a series of parallel, longitudinal striations (Figure 5C,I) which are frequently associated with cuticular folds and irregular wrinkles (Figure 5J,K). The rippled surface of the wings’ distal area (Figure 5C,I) compares with the rows of ordered cuticular depositions that appeared parallel to the apical margin of the labellum (Figure 4F). Also, the cuticular wrinkles of the wings (Figure 5J,K) resemble the heterogeneous cuticular pattern of the lateral labellum lobes (Figure 3H).

A glabrous scale-like sclerite, the tegula, covers the base of the wings near the point of attachment to the thorax (Figure 5A,B,G). The two tegulae have resemblance with the pseudoeyes of the flower (Figure 3D). Two distinct areas are visible in the dorsal region of the mesothorax: (i) the scutum, a glabrous black-shining area; and (ii) the scutellum, a smaller hairy area that presents a pilosity similar to the region occurring immediately below, the metanotum (Figure 5A,B,H). The glabrous scutum of the wasp (Figure 5B) compares well with the glabrous floor of the stigmatic cavity of the orchid flower (Figure 2A,B). A hairy triangle is visible between the proximal areas of the crossed forewings, showing the hairiness of the portions of the scutellum and the metanotum not hidden by the wings (Figure 5B,H). This triangular-shaped area roughly compares to the oblong to shield-shaped basal field confined to the cupuliform concavity of the labellum (Figure 2A,B and Figure 3A,B).

2.4. Location, Structure, and Secretion of the Osmophore

Flowers of the two studied subspecies of O. speculum emanate a faint-smelling scent and exhibit a period of anthesis that lasts 12–17 d (A. Francisco, personal observation). The glabrous apical margin of the labellum of freshly opened flowers of O. speculum subsp. lusitanica stained an intense red rapidly after immersion in diluted neutral red (Figure 2F). Flowers of O. speculum subsp. speculum were not tested with this stain because of the natural magenta-to-red pigmentation of the epidermal cells occurring in the apical labellum margin (Figure 2D), which would interfere with the result of the test. The quick absorption of the diluted neutral red by the dome-shaped papillae of the apical margin provided a first indication of their secretory nature, which was subsequently confirmed by the results of the anatomical and histochemical study (Figure 6 and Figure 7).

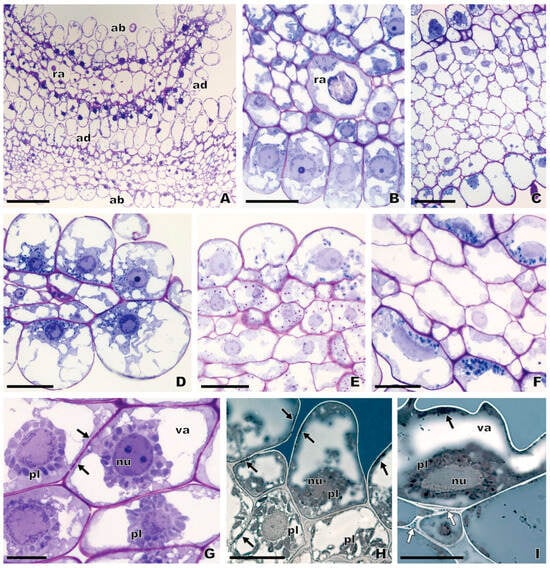

Indeed, contrary to the other regions of the labellum, these dome-shaped papillae present typical features of secretory cells, namely a dense cytoplasm, a large nucleus lying at the base of the cell, numerous plastids, several small vacuoles at the cell apex, and thin cell walls (Figure 6 and Figure 7A). Primary pit fields were also found between epidermal cells (Figure 6G). The pleiomorphic plastids in the domed papillae exhibit typical perinuclear distribution (Figure 6G–I and Figure 7A,E) and lack chlorophyll pigments, since they did not show their characteristic red autofluorescence under blue light (Figure 7E). Conversely, large fusiform to oblong chloroplasts abound in the subepidermal parenchyma cells of the apical labellum margin (Figure 6H and Figure 7A,B,E). A few starch grains were found in these plastids only at the earliest stage of the flower development (Figure 6E,F). Crystal idioblasts containing raphides are frequent in the parenchyma tissue of the glabrous margin, basal field, and speculum, especially in early buds (Figure 6A,B and Figure 8A). In contrast to the other labellum areas, which exhibit highly vacuolated epidermal cells at the stages of late bud and open flower (Figure 6C and Figure 8G,I,J), the cells at the glabrous apical margin maintain their secretory characteristics, such as dense cytoplasm, throughout the flower’s development, even though an increase in cell vacuolisation had occurred from early buds to flowers at anthesis (Figure 6B,E,F,H,I). These histological features indicate that an osmophore occurs in the glabrous apical margin, which appears restricted to the area nearest the margin itself, where the labellum thickness reaches a maximum of three-to-four layers of parenchyma cells (Figure 6A,D,F). This finding is consistent with the most intense staining that this area exhibited after immersion in diluted neutral red (Figure 2F). The osmophore of O. speculum is thus composed of the dome-shaped papillae, together with the underlying two-to-three layers of parenchyma cells, which occur in both the abaxial and the adaxial surfaces of the apical region of the labellum nearest the margin.

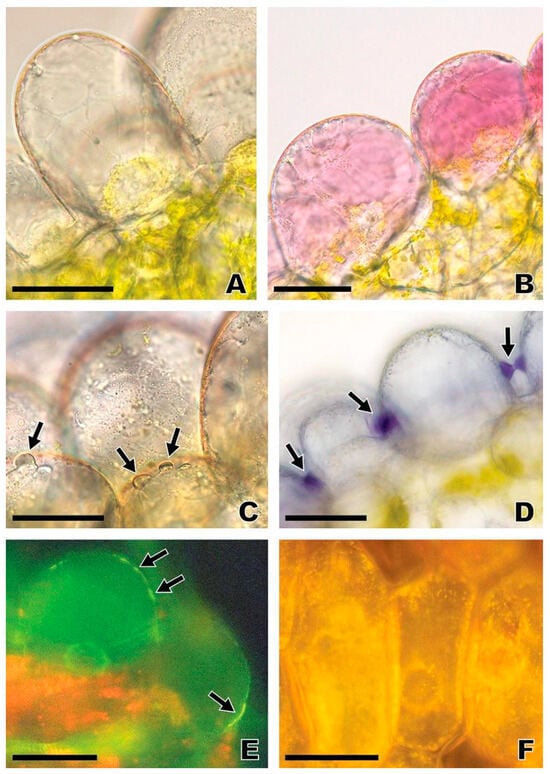

The histochemical tests revealed a low amount of a lipophilic secretion associated with the domed papillae at the apical labellum margin of O. speculum (Figure 6H,I and Figure 7C–F). The translucent droplets that were often observed on the surface of the domed papillae in fresh material (Figure 7C) stained violet with the Nadi reagent (Figure 7D), which indicates the presence of terpenoids with low molecular mass. A Sudan-positive lipophilic secretion was observed in close association with the epidermal cell walls, most likely in the periplasmic space and in the loose inner cell walls (Figure 6H,I), and some lipophilic inclusions were also detected in the cortical cytoplasm of the domed papillae (Figure 7F). In addition, an autofluorescence in blue (under UV light; not shown) that changed to an autofluorescence in bright green (under blue light), which are assigned to phenolic compounds, were detected near the outer epidermal cell walls (Figure 7E).

2.5. Anatomy of the Basal Field and Speculum

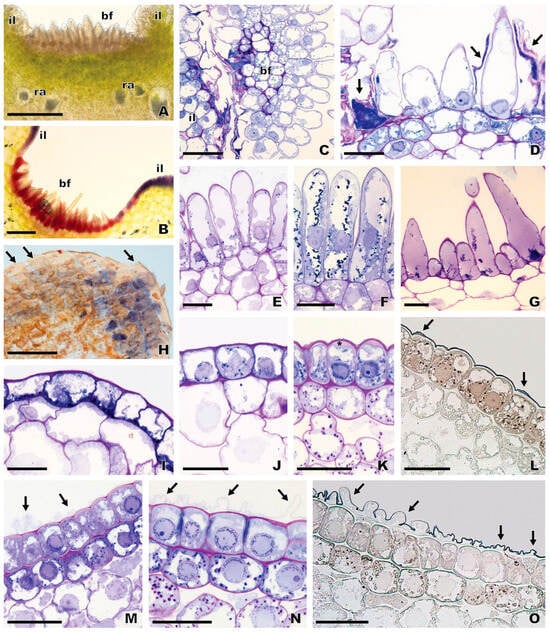

The distinctive basal field of O. speculum is composed of densely packed trichomes located in a cupuliform concavity (Figure 8A,B), which appeared oblong in transverse and longitudinal sections and exhibited granular phenolic inclusions in their vacuoles (Figure 8E–G). In some early buds of O. speculum subsp. lusitanica, certain trichomes were found to be collapsed, a finding that was shown by the intense dark blue colour of their protoplasm in sections stained with toluidine blue (Figure 8C,D). However, we did not find any indication of collapsed cells at later stages of flower development in O. speculum subsp. lusitanica (Figure 8E) nor did we at early buds, late buds, or flowers at anthesis of O. speculum subsp. speculum (Figure 8F,G).

The epidermis of the speculum consists of cells that appeared quadrangular to rectangular in the transverse section, which exhibited a nearly smooth cuticle at the stages of late bud and open flower (Figure 8J), and a slightly ridged cuticle (Figure 8K,L), which occasionally acquired an uncommon configuration, in the lateral area of the speculum at the early bud stage (Figure 8M–O). Indeed, the portion of the speculum that is folded over itself in an early bud of O. speculum subsp. speculum displayed a series of contiguous epidermal cells whose cuticle had been detached from their outer tangential walls, in such a way that irregular cuticular projections had been formed with an underlying subcuticular space (Figure 8M–O). Apparently, the content of this subcuticular space did not stain with any staining procedure used here. Conversely, in O. speculum subsp. lusitanica, the cuticle of some speculum cells was found to be distended at some places, forming small subcuticular spaces where a Sudan-positive lipophilic material seemed to accumulate (Figure 8L). Also, some of these epidermal cells exhibited a conspicuous periplasmic space which appeared pink after staining with PAS reagent plus toluidine blue (Figure 8K).

3. Discussion

3.1. The Basal Field of Ophrys speculum

By definition, the basal field in Ophrys flowers is a distinct area of the basal region of the labellum, situated above and adjacent to the speculum, separating the labellum from the stigmatic cavity [66,68]. In most Ophrys species, such as O. tenthredinifera and O. scolopax Cav., the basal field is a clearly distinguishable feature of the labellum. However, in species from the section Pseudophrys, like O. lutea and O. fusca, the labellum lacks this differentiated area [59,66,68].

The controversy regarding the presence of a basal field in O. speculum arises from varying interpretations of the flower’s structure by different researchers [52,59,64,67]. This issue can only be resolved through a detailed micromorphological comparison of the labellum and stigmatic cavity between O. speculum and other Ophrys species, aiming to establish homology between the floral areas. Homology is typically assessed based on three criteria: (i) similarity in relative position; (ii) sharing a common special feature; and/or (iii) the presence of intermediate forms [69,70]. In this context, our observations provide two lines of evidence supporting the existence of a basal field in the flowers of O. speculum.

Firstly, the flat epidermal cells with a densely ridged surface found in the glabrous floor of the stigmatic cavity in O. speculum are similar to those in the floor of the stigmatic cavity in other Ophrys species, particularly in its close relatives O. bombyliflora and O. tenthredinifera but also in O. scolopax [52,59]. Additionally, despite being longer, the floor of the stigmatic cavity in O. speculum occupies the same relative position as the floor of the stigmatic cavity in those Ophrys species, being framed by two pairs of elongated crests or labia, which are also part of the stigmatic cavity. Consequently, we interpret this glabrous area in O. speculum as an exceptionally long, narrow floor homologous to the floor of the stigmatic cavity of other Ophrys species [52,59], thereby challenging previous interpretations that misidentify this area as a poorly defined basal field in O. speculum [64,67].

Secondly, the basal region of the labellum in O. speculum also presents an area covered with trichomes, positioned above the speculum and directly below—and contiguous to—the floor of the stigmatic cavity, similar to the basal labellum region in other Ophrys species [52,54,59,64]. In O. speculum, this area of trichomes is confined to the cup-shaped concavity located between the distal ends of the internal labia of the stigmatic cavity and it is enclosed by an augmented portion of the labellum. Despite its unique location, this circumscribed area of the labellum of O. speculum presents the same relative position and shares the same type of epidermal cells (trichomes) as the basal field of other Ophrys species, although these trichomes vary in height and shape across species [52,59]. Meeting the first two criteria for homology [69,70], we categorise this distinctive cupuliform concavity as a definitive basal field. Supporting our interpretation are observations of collapsed trichomes in early buds of O. speculum subsp. lusitanica, the subspecies with the narrowest floor and most pronounced internal labia. This phenomenon likely results from the trichomes being compactly packed into the limited space between the enlarged labia of the stigmatic cavity, and thereby subjected to significant compression. This suggests that cell collapse may be a way to create additional space necessary for the complete development of typical basal field trichomes. Further ultrastructural studies are recommended to clarify the cause of this cellular collapse.

Although the identification of a distinct circumscribed area—corresponding to the cupuliform concavity detailed here—in the basal region of the labellum of O. speculum has been well documented [47,60,64,66,67,68], this study is the first to demonstrate that this specific area represents the basal field of the species.

In conclusion, based on its relative position within the flower and its micromorphological characteristics, we suggest that the cupuliform concavity of O. speculum, provided with sub-conical to attenuate trichomes, constitutes a well-defined basal field, and this area is homologous to the basal fields found in the labella of other Ophrys species [52,59], rather than being a structure exclusive to the O. speculum group [64]. However, the unique location and distinct characteristics of the basal field of O. speculum appear to be unparalleled within the genus Ophrys.

The significance of discussing whether O. speculum displays a clear basal field in the labellum extends beyond mere theoretical considerations. Indeed, analysing the floral structure of O. speculum has enabled the identification of homologies between floral parts across the genus Ophrys, forming the basis of the character definition necessary for conducting morphological phylogenetic analyses [71,72]. In effect, the micromorphological and anatomical data gathered on O. speculum in this study has previously been combined with equivalent data from representative species of the other three closely related species groups and used for aiding in reconstructing the phylogenetic relationships and the ancestral states of floral characters within this clade [59].

3.2. Micromorphology and Pollination

3.2.1. Morphologically Distinct Epidermal Cell Types

Here, we show precise micromorphological data on the labellum and stigmatic cavity of O. speculum, which can be accurately compared with similar data from closely related species and used in phylogenetic analyses of the genus Ophrys [58,59].

This study reveals that the adaxial surface of the labellum and stigmatic cavity of O. speculum presents seven different morphologically distinct epidermal cell types, closely matching the cell diversity found in O. tenthredinifera and O. scolopax, which both exhibit eight different types. This contrasts with the 11 cell types displayed by O. bombyliflora and the no more than three cell types found in O. fusca, O. lutea, and other species from section Pseudophrys [52,54,59,64]. Revisiting our criteria for defining morphologically distinct epidermal cell types [73], we revised our previous assumption that O. fusca and O. lutea had four different types [54]; we now recognise only three cell types. This adjustment is necessary since the long attenuated trichomes with enlarged bases found in the basal region of the labellum are actually rather similar to those trichomes covering the apical region, previously misidentified as acuminate trichomes by Ascensão et al. [54]. These trichomes, whether straight or sinuate, do not represent a fourth cell type. Contrasting with the lower diversity reported by Bradshaw et al. [64], who noted only four cell types in O. speculum—misinterpreting a single cell type as occurring across the speculum, pseudoeyes, and the floor of the stigmatic cavity, erroneously considered as a basal field by the same authors—our findings highlight that each of these areas has a morphologically distinct epidermal cell type, with only the pseudoeyes presenting smooth, flat lenticular cells.

The speculum of the flowers examined in our study consists of flat to lenticular cells with very fine parallel-arranged cuticular striations, a finding that is somewhat inconsistent with what was described by Bradshaw et al. [64] and Vignolini et al. [65]. Although comparable striations are evident on the surface of the speculum cells of O. speculum subsp. lusitanica in their scanning and transmission electron micrographs, Bradshaw et al. [64] considered these cells as totally smooth. Likewise, in their subsequent investigation focused on the speculum of O. speculum, the authors confirmed the extremely flat and smooth surface of these cells [65]. The apparent discrepancy between our findings and those reported by Bradshaw et al. [64] and particularly by Vignolini et al. [65] may be attributable to the different provenance of the flowers examined in the three studies, namely flowers from naturally occurring plants in our study versus flowers predominantly [64] or exclusively [65] collected from seed-grown plants in greenhouse conditions. Edaphoclimatic factors such as soil moisture, light intensity, air temperature, and humidity vary significantly between wild and cultivated environments and could influence the process of cuticular wax deposition and, consequently, cuticle micromorphology [74]. Furthermore, this discrepancy may also stem from the analysis of flowers at different developmental stages across the different studies. Additionally, the sample size examined so far may not fully capture the intraspecific natural variability.

Regardless of whether the speculum cells of O. speculum are completely smooth or finely ridged, it is clear that these cells create a highly reflective, mirror-like surface, which is a primary factor in the glossiness and intense specular reflection of light observed in the speculum area of this species [65]. The thin film we detected in the basal region of the speculum could be associated with the mirror-coating effect of its surface, as described by Vignolini et al. [65]. This film may represent the thin epicuticular wax film that virtually occurs on all plant surfaces covered with a cuticle, although it is often challenging to detect by scanning electron microscopy [73,75,76,77]. Additional histochemical tests are recommended to substantiate this hypothesis. Furthermore, the irregular cuticular projections noted in an early bud at the portion of the speculum that undergoes more drastic distension during labellum expansion, prior to flower anthesis, are expected to stretch and disappear, resulting in a nearly smooth cuticular coating over the speculum in open flowers. Similar changes in the cuticle morphology were observed during the development of grape berries [78].

The presence of flat lenticular cells in the speculum is shared with the closely related O. bombyliflora and O. tenthredinifera [52,64], yet the parallel arrangement of the fine cuticular striations in O. speculum distinguishes it within the genus, contrasting with the typical spiralled cuticular pattern seen in the speculum’s cells in other Ophrys species [52,54,62,64]. Apart from O. speculum, only a few species within the group of O. bertolonii Moretti, which are pollinated by Chalicodoma bees [68], were found to exhibit exclusively flat epidermal cells in the speculum [64]. Additionally, the speculum’s epidermis in O. speculum predominantly exhibits cells with a hexagonal outline, occasionally mixed with cells with a pentagonal or a heptagonal outline, a pattern analogous to that of the exoskeleton of an iridescent beetle [79]. The inclusion of topological defects (five- and seven-sided polygons) in a hexagonal lattice, necessary to outline a curved surface [80,81], may explain the cell arrangement in the speculum area of O. speculum. This area covers the majority of the convex central labellum lobe, which is itself a notably curved surface.

3.2.2. Visual and Tactile Mimicry

From our detailed micromorphological comparative study, we propose new evidence of mimicry between the basal labellum region of the O. speculum flower and the thorax and wings of the female of its wasp pollinator, Dasyscolia ciliata, specifically between the following: (i) the oblong to shield-shaped basal field within the cupuliform concavity of the flower and the hairy triangular area corresponding to the pilosity of the scutellum and metanotum, on the wasp’s thorax, not covered by the crossed forewings; (ii) the two pairs of labia of the stigmatic cavity of the flower and the prominent costal veins in the proximal area of the crossed wings; (iii) the glabrous floor of the stigmatic cavity and the shiny scutum of the wasp’s thorax; (iv) the series of labellar grooves and crests and the veins of the median area of the wings; (v) the orderly rows of cuticular depositions parallel to the apical margin of the labellum and the rippled surface of the distal area of the wings; and (vi) the heterogeneous cuticular pattern in the lateral labellum lobes and the cuticular wrinkles on the dorsal surface of the wings.

Moreover, our findings align with other previously recognised similarities between the flower of O. speculum and the female wasp. For instance, we concur with Devillers and Devillers-Terschuren [66] and Paulus [43] that the flower’s pseudoeyes mimic the wasp’s tegulae, although they are positioned higher in the flower. The submarginal band of contorted trichomes around the labellum resembles the brownish-orange-coloured hairiness of the legs and the abdomen of the female wasp, the latter being composed of slightly spiralled hairs, as also described by Ågren et al. [60]. Notably, Paulus [43] noted that this colouration match is found only between O. speculum subsp. speculum and D. ciliata subsp. ciliata, the wasp subspecies that is predominantly distributed over the western Mediterranean region [82]. The other subspecies of this wasp, i.e., D. ciliata subsp. araratica (Radoskovsky, 1890), which occurs only in the eastern Mediterranean region [82], exhibits a darker colouration that is reminiscent of the darker-coloured flowers of an eastern population of this orchid, O. speculum Link var. orientalis (Paulus) Kreutz [43].

Both the submarginal hairiness and the unique configuration of the stigmatic cavity and basal labellum region of O. speculum should provide tactile stimuli to male wasps, similarly to those offered by the hairiness of the female, hence guiding males to the correct position upon the labellum so that effective pollination could take place [11,37,41,43,60]. The importance of tactile cues for the success of pseudocopulation in Ophrys was also inferred from certain micromorphological details on the labellum of other species [42,52,54,60] and has long been tested in the field through choice experiments with their respective male insect pollinators [11,37,46,83].

Our observations support the widely accepted theory that the speculum of this Ophrys flower mimics the crossed wings of a virgin female of the D. ciliata wasp on the ground [11,41,43,60]. Specifically, the outline of the apical region of the speculum is quite similar to the small, inverted V formed by the partial overlapping of the wasp’ forewings, a feature also described by Ågren et al. [60]. Remarkably, the wings of this wasp exhibit a nearly hairless, rippled dorsal surface [47,60], similar to those of another scoliid wasp [84]. In contrast, the dorsal wings’ surface from females of other Ophrys pollinators is provided with short hairs that are either uniformly distributed along the veins and the wing membrane, as seen in Argogorytes wasps and Andrena bees, or densely packed on the veins, as in Eucera bees [47,60]. The fact that the wings’ surface of a female D. ciliata wasp is nearly hairless may thus explain why the speculum of O. speculum is entirely composed of flat to slightly convex cells, which contrast with the papillae and/or short trichomes with flattened bases typically found in the speculum of Ophrys species pollinated by males of those insect genera [52,54,59,62,64]. In addition to mimicking the shape, blue reflection, and glabrous surface of the female wasp’s crossed wings, the speculum of O. speculum also mimics the strong UV reflectance typical of the wasps’ wings, which was found to be a highly attractive visual signal for male hymenopterans [11,33,43,65,85]. Consequently, the speculum constitutes a secondary key visual stimulus that, in combination with the primary key odour signal, seems to play a decisive role in the short-range attraction of male insect pollinators to the flower [11,43]. Further field experiments with diverse Ophrys species and their respective insect pollinators are yet needed to demonstrate which labellar features act effectively as visual stimuli for pollinators [30,32,36,37,39].

Among the two investigated subspecies of O. speculum, only O. speculum subsp. speculum, which is widespread around the Mediterranean Basin, is consistently pollinated by male D. ciliata wasps [11,20,86,87]. Conversely, for O. speculum subsp. lusitanica, confined to the southwest of the Iberian Peninsula [67,68,86], the specific pollinator remains unidentified due to limited pollination records [88]. The practically similar flower structure and micromorphology observed between these two subspecies, along with their strong resemblance to the female D. ciliata wasp, suggest that males of this wasp may be potential pollinators of O. speculum subsp. lusitanica. Nonetheless, this hypothesis can only be tested after analysing the floral scent of this subspecies and conducting behavioural field tests with males of that particular wasp, given the primary role of the scent in attracting pollinators [24]. Furthermore, a third taxon, O. speculum Link subsp. regis-ferdinandii Acht. & Kellerer ex Kuzmanov (synonym: O. regis-ferdinandii (Renz) Buttler), is closely related to the two studied taxa, hence forming the so-called ‘O. speculum group’ recognised by several authors [39,56,58,66,68], but its distribution is restricted to the eastern Aegean islands and neighbouring parts of Anatolia [20,68,86]. While the flower morphology of O. speculum subsp. regis-ferdinandii appears similar to the other two subspecies [39,64], its potential pollinator might be a male of the distantly related bee-like hoverfly Merodon velox (Diptera: Syrphidae) [43].

3.3. The Significance of the Osmophore in Ophrys speculum

3.3.1. Osmophore Location, Structure, and Secretion

This study provides evidence for the presence of an osmophore in the apical region of the labellum of O. speculum. The characteristics exhibited by the dome-shaped papillae and the underlying two-to-three layers of parenchyma cells at the apical margin of the labellum are comparable to most features representative of an osmophore [53,89,90,91,92,93]. These papillae present typical features of secretory cells [94] and are also similar to the glandular cells occurring in the labellum margin and/or in the apical appendix of other Ophrys species with an osmophore [52,54,59], including O. bombyliflora, O. tenthredinifera, and species in the section Pseudophrys such as O. fusca and O. lutea, which together form a clade with O. speculum in molecular phylogenetic analyses [55,56,57,58]. The osmophore in O. speculum appears to be restricted to the area of the glabrous apical margin of the labellum nearest the margin itself, occupying both the abaxial and the adaxial surfaces of the labellum. In contrast, in O. fusca and O. lutea, two species that share the absence of an apical appendix in the labellum with O. speculum, the osmophore extends to the entire labellum margin and to the abaxial surface of the apical labellar region [54], whereas in the other three osmophore-containing Ophrys species, this glandular structure occurs in the apical appendix and also occupies the apical labellum margin in two of them [52,59]. The location of the osmophores of O. speculum and other Ophrys species in the apical region of the labellum agrees with the most common location of these glands in the flower, i.e., the tips, margins, or prominent areas of sepals, petals, or labella [90,92,93,95].

Our finding that a low amount of a lipophilic secretion with terpenoid compounds was detected in the osmophore cells of O. speculum is consistent with the chemical analyses of the flower scent previously performed for this species, which revealed several monoterpenes, sesquiterpenes (primarily cyclosativene), and other terpenoids among the odour compounds [38,47,96]. The detection of such a secretion in the osmophore of O. speculum suggests that this glandular structure is likely the site of biosynthesis and release of part of the highly volatile fraction of the odour bouquet, in accordance with what was also proposed for other Ophrys species [52]. Although morpho-anatomical and histochemical evidence has been provided for the occurrence of an osmophore in the labellum of seven Ophrys taxa ([52,54,59], present study), the functional role of this secretory structure must be confirmed by analysing the spatial distribution of scent emissions in the labellum, including scent chemical composition, ultrastructure of the secretory cells, and gene expression. Previous studies have demonstrated the involvement of osmophore tissues in scent emission in other species with osmophores [91,97,98].

However, unlike the osmophores in other Ophrys species, only a minimal starch content was observed in the osmophore of O. speculum, specifically in two to three layers of parenchyma cells beneath the glandular epidermis. Its location is similar to that found in O. bombyliflora, O. tenthredinifera, and O. scolopax [52,59] but contrasts to that of O. fusca and O. lutea, which exhibit abundant starch-rich plastids in the secretory epidermal cells [53,54]. Similarly, no starch was detected in the osmophores of some other terrestrial orchids, which instead contain lipid inclusions in the cytoplasm [53,95,99,100]. Conversely, most species with osmophores exhibit a substantial amount of starch in the subsecretory tissues (e.g., [89,91]). Starch and lipid reserves within osmophore tissues are believed to be important sources of energy and/or precursor molecules for the intense and continuous biosynthesis of the volatile organic compounds of the secretion, which are likely to be emitted continuously from the secretory epidermal cells due to their high volatility [53,89,100]. The minimal starch content in the osmophore tissues of O. speculum may suggest low metabolic activity in this secretory structure. However, the glandular epidermal cells have voluminous, occasionally lobed nuclei, indicating intense gene expression potentially linked to partial progressive endoreplication, a phenomenon recently described in the labellum of O. speculum, especially in the adjacent submarginal trichomes [101].

3.3.2. The Role of the Osmophore in Pollination and in an Evolutionary Context

The key semiochemicals used by O. speculum for attracting males of its specific D. ciliata wasp pollinator are three uncommon short-chained oxygenated carboxylic acids: 9-oxodecanoic acid, 9-hydroxydecanoic acid, and 7-hydroxyoctanoic acid [48]. These compounds are presumably more volatile than the long-chained hydrocarbons typically used by various Ophrys species as primary attractants for their Andrena or Colletes bee pollinators [12,38,49,50]. Indeed, despite the fact that equivalent series of long-chained n-alkenes were also detected in high amounts in the cuticle solvent extracts of the labellum of O. speculum, these compounds do not constitute the behaviourally active compounds in this species [48], unlike in Ophrys species pollinated by solitary bees from the genera Andrena and Colletes [26,27,49,50,102,103]. Most of these long-chained cuticular hydrocarbons have low vapour pressure at room temperature and are expected to be effective only upon contact or at close range, like some contact sex pheromones in insects [38,104]. For Ophrys species that utilise hydrocarbons as the key semiochemicals, it is likely that more volatile compounds, possibly synthesised in the osmophore, are responsible for attracting male pollinators from greater distances [52]. This hypothesis aligns with findings that a highly volatile monoterpene, linalool, emitted from the labellum of O. exaltata Ten., serves as an efficient long-range attractant for its specific pollinator, male Colletes cunicularius bees [49]. A comparable phenomenon was found in a Neotropical orchid, Mormolyca ringens (Lindl.) Schltr., which uses an alkanol (2-heptanol) as long-range attractant, in complement to the long-chained 9-alkene/alkane series that acts at a shorter distance as a sexual behaviour elicitor in its specific eusocial bee pollinator [22]. We have previously proposed a model of pollinator attraction predicting that two different sources of chemical signals play complementary roles in Ophrys pollination: (i) highly volatile organic compounds synthesised in the osmophore, primarily located at the apical region of the labellum, serving as long-range attractants; and (ii) long-chained n-alkenes generally found among the constituents of the cuticular waxes [105], which spread probably over the entire labellum surface, acting mainly at close distances or upon contact [52].

In O. speculum, the higher volatility of the key signal provided by the short-chained oxygenated carboxylic acids [48] suggests that these compounds may also serve as medium- or long-range attractants for male D. ciliata wasps. However, it remains unclear which epidermal cells produce the three key oxygenated carboxylic acids of O. speculum, found in minute amounts in the labellum’s cuticle extracts [38,48]. Due to their low molecular mass, it is plausible that these key semiochemicals could be synthesised in the osmophore and extracted from the cuticle of the epidermal cells located at the apical labellum margin. This hypothesis warrants testing through differential analyses of the scent emitted from the osmophore region and the other areas of the labellum, employing both solvent extraction and headspace sorption sampling techniques [24].

Alternatively, the osmophore of O. speculum may serve as an additional source of highly volatile semiochemicals, enriching its diverse odour bouquet and offering evolutionary potential for attracting new pollinators. This secretory structure is particularly significant in an orchid species which maintains a fixed one-to-one relationship with a wasp pollinator species that has evolved an unusual mating signal consisting of a few unique compounds, thereby effectively isolating it from other scoliid wasps and sympatric insect species [43,48]. A pollinator shift in O. speculum may thus imply a jump to a different taxonomic group of insect pollinators [42], as seen in the case of O. speculum subsp. regis-ferdinandii if its suspected hoverfly pollinator [43] is confirmed.

The role of the osmophore of O. speculum warrants discussion within an evolutionary framework. Molecular phylogenetic analyses conducted in genus Ophrys and subtribe Orchidinae showed consistently that O. speculum forms a major clade together with O. bombyliflora, O. tenthredinifera, and section Pseudophrys, although the interspecific relationships in this clade vary among analyses [55,56,57,58,106,107]. The two most likely trees derived from the latest morphological phylogenetic analysis for this clade suggest that O. bombyliflora and O. tenthredinifera are not sister groups [59]. This supports the topology of molecular trees based not only on nuclear ITS data, either alone or in combination with plastid and/or mitochondrial datasets [8,56,106,107], but also on the RAD sequencing data [58] and rejects both the previous morphological cladistic hypothesis [66] and the molecular phylogenetic trees based solely on plastid data [55,56,107].

Additionally, the findings by Francisco et al. [59] align relatively well with the latest molecular phylogenetic analyses in genus Ophrys [57,58]. According to the phylogenetic trees obtained by Breitkopf et al. [57] and Bateman et al. [58], O. speculum appears as an early-diverging lineage at the base of the clade, forming a sister group to the other three species groups, which have diverged according to the branching order O. bombyliflora—O. tenthredinifera—section Pseudophrys, all nodes receiving strong support level. This topology represents exactly the reverse branching sequence of one of the two most likely trees found by Francisco et al. [59] but is relatively congruent with the topology of the other most likely tree from the same study, which recovered two associations (O. speculum–O. bombyliflora and O. tenthredinifera–section Pseudophrys) whose divergence time was impossible to infer by these authors [59]. The phylogenetic analysis by Breitkopf et al. [57], however, estimated that the clade of O. speculum had diverged early in the genus, following the split of the earliest diverging lineage of O. insectifera L., which was placed with strong support as basally divergent in the genus. Therefore, according to the phylogenetic hypotheses by Breitkopf et al. [57] and Bateman et al. [58], sexual deceptive pollination by wasps seems to be the ancestral state of Ophrys orchids, with O. insectifera and O. speculum emerging as the two earliest branching lineages in the genus, aligning with a previous hypothesis by Kullenberg and Bergström [83].

The diversification of genus Ophrys appears to have been driven by ecological opportunities, particularly the availability of new groups of pollinators, the shifts from wasp to bee pollinators being the main promoting factor of species diversification in this orchid genus [57]. Such transitions, progressing from wasps to Eucera bees and then to Andrena bees and other bee pollinators, may have been facilitated by the presence of n-alkenes in the cuticular waxes spread over the labellum of Ophrys flowers [17,57], which were found to be widespread in subtribe Orchidinae and the ancestral state in genus Ophrys [108].

Given the prevalence of osmophores in the genus Ophrys ([52,53,54,59], present study) and their occurrence in some species within the subtribe Orchidinae [53,99,109], including species of closely related genera to Ophrys, such as Serapias and Himantoglossum [107], it is likely that the occurrence of an osmophore in the labellum represents a plesiomorphic feature that may have already been present in the most recent common ancestor of genus Ophrys. In the light of this, we suggest that shifts in pollinators have been facilitated by the production of highly volatile compounds synthesised in the osmophore.

4. Materials and Methods

4.1. Taxon Sampling

Inflorescences of O. speculum Link subsp. lusitanica O.Danesch & E.Danesch (synonym: O. vernixia Brot.) and O. speculum Link subsp. speculum (synonym: O. ciliata Biv.) were collected in March and April, between 2005 and 2009, from natural populations in Portugal, in the municipalities of Loures (about 25 km north of Lisbon) and Sesimbra (about 40 km south of Lisbon), respectively. The taxonomic classification adopted here follows Aldasoro and Sáez [67]. A voucher specimen of each taxon was deposited in the Herbarium of the University of Lisbon Botanical Garden (LISU) in Portugal, under the accession numbers LISU 231242 and LISU 231246.

Flowers at three developmental stages were examined in the present study: (1) early bud; (2) late bud; and (3) open flower. The dimensions and age associated with each developmental stage per investigated taxon are shown in

Table 1. Dimensions and age associated with the three developmental stages of the flowers of Ophrys speculum subsp. lusitanica and Ophrys speculum subsp. speculum.

	Dimensions			Age (Number of Days)
	(Length × Width; mm)			Before Anthesis/At Anthesis
	Early Bud a,*	Late Bud b,*	Open Flower c,T	Early Bud a,*	Late Bud b,*	Open Flower c,Y
Ophrys speculum subsp. lusitanica	5 × 3 to 6 × 4	7 × 4 to 8 × 6	13 (2) × 10 (1)	4 to 6	1 to 3	1 to 10 (6)
Ophrys speculum subsp. speculum	5 × 3 to 7 × 3	7 × 4 to 9 × 6	13 (2) × 11 (2)	3 to 7	1 to 2	1 to 12 (5)

^a Early buds exhibit a yellowish-green to green colouration in the labellum and stigmatic cavity, except for the whitish speculum area and the yellowish (in O. speculum subsp. lusitanica) to pale brown (in O. speculum subsp. speculum) submarginal hairiness. ^b Late buds exhibit a colouration that is becoming increasingly closer to the typical colouration of open flowers: dark-coloured stigmatic cavity and basal labellum region; deep-blue speculum; light-yellowish-brown (in O. speculum subsp. lusitanica) or dark-reddish (in O. speculum subsp. speculum) submarginal hairiness; yellow to greenish-yellow (in O. speculum subsp. lusitanica) or dark reddish (in O. speculum subsp. speculum) glabrous labellum margin. ^c Open flowers are fully expanded flowers that present a fresh appearance and vivid colours in the labellum and stigmatic cavity. * Sample size (n): O. speculum subsp. lusitanica n = 24; O. speculum subsp. speculum n = 44. ^T Mean dimensions of the labellum (incl. associated stigmatic cavity); standard deviation is given in brackets; sample size (n): O. speculum subsp. lusitanica n = 13; O. speculum subsp. speculum n = 20. ^Y The minimum number of days in which the flowers exhibit a fresh appearance is given in brackets; sample size (n): O. speculum subsp. lusitanica n = 14; O. speculum subsp. speculum n = 26.

.

One female of Dasyscolia ciliata subsp. ciliata wasp (Fabricius, 1787; Hymenoptera: Scoliidae), which is the reported pollinator of O. speculum subsp. speculum [11,20,87], was captured in April 2008 in the vicinity of a population of this subspecies in Serra de Sicó (central-littoral region of Portugal) and examined. Observations were verified on three other specimens of females of Dasyscolia ciliata subsp. ciliata deposited in Museum collections, namely two specimens deposited in the National Museum of Natural History and Science of the University of Lisbon (MUHNAC; MB07-033829 and MB07-035499) and one specimen deposited in the Science Museum of the University of Coimbra (MCUC; MCUC, ZOO.0005657) in Portugal.

4.2. Scanning Electron Microscopy

Four open flowers and two late buds of each of the two subspecies of O. speculum and the female wasp captured in Serra de Sicó were fixed with 2.5% glutaraldehyde in 0.1 M sodium phosphate buffer, at pH 7.2, dehydrated in a graded acetone series, critical-point dried and then mounted, sputter-coated with gold, and observed on a JEOL T220 scanning electron microscope (JEOL Ltd., Tokyo, Japan) at 15 or 20 kV.

Flower morphology was described using the terminology of Devillers and Devillers-Terschuren [66]. Morphologically distinct epidermal cell types were defined considering the features of the cell surface, namely, the curvature of the outer cell wall, the cell outline, and the cuticular sculpture (

Table 2. Morphologically distinct epidermal cell types based on features of the cell surface, found in the adaxial surface of the labellum and the stigmatic cavity in Ophrys speculum.

Morphologically Distinct Epidermal Cell Types	Surface Features of the Epidermal Cells
	Curvature of the Outer Cell Wall	Cell Outline	Cuticular Ornamentation
1	flat cells	elongated, polygonal outline	very dense, parallel cuticular striations
2	flat to lenticular cells	isodiametric, polygonal outline	no cuticular striations (smooth surface)
3	sub-conical to attenuate unicellular trichomes	n/a	fine cuticular striations
4	lenticular cells	isodiametric, polygonal outline	dense cuticular striations
5	long, contorted unicellular trichomes	n/a	fine cuticular striations
6	flat to slightly convex cells	isodiametric, hexagonal (occasionally pentagonal or heptagonal) outline	very fine, parallel cuticular striations
7	dome-shaped papillae	n/a	no cuticular striations (smooth surface)

), following the terminology of Kay et al. [110] and Koch et al. [73]. The terminology used for describing the insect morphology followed the glossary of the Hymenoptera Anatomy Ontology [111].

4.3. Stereomicroscopy

Fresh buds and open flowers of the two subspecies of O. speculum and the female wasp individual captured in Serra de Sicó were examined under an Olympus SZH-ILLK stereomicroscope (Olympus Optical Co., Ltd., Tokyo, Japan). For the macroscopic visualisation of the scent-producing areas of the flower, two intact freshly opened flowers of O. speculum subsp. lusitanica were immersed in 0.01% neutral red for 2–4 h [53], rinsed in tap water, and examined. Images were recorded digitally using an Olympus C-7070 Wide Zoom digital camera (Olympus Imaging Corp., Tokyo, Japan).

The three female wasp specimens from Museum collections were examined under the Leica MS5 and MZ95 stereomicroscopes (Leica Microsystems GmbH, Wetzlar, Germany) and photographed using an AmScope MU500 digital microscope camera (AmScope, Irvine, CA, USA) and the ToupTek ToupView software (v. 3.7.6701).

4.4. Light Microscopy

For the anatomical study, pieces of the labellum of both subspecies of O. speculum in the aforementioned developmental stages (three flowers at each stage, on average) were fixed as described for SEM, embedded in Leica Historesin, sectioned (2 µm thick) using a Leica RM-2155 microtome (Leica Microsystems, Nussloch, Germany), and stained with toluidine blue O with post-staining with dilute Lugol [112] or periodic acid–Schiff (PAS) reagent/toluidine blue O [113] for general histology, starch, and total polysaccharides; they were stained with Sudan Black B [114] for the detection of lipids. Appropriate controls were also performed.

Segments of the apical margin of the labellum from flowers of O. speculum subsp. lusitanica, at all three developmental stages, were also fixed with glutaraldehyde, post-fixed with osmium tetroxide, and embedded in Epon-Araldite resin (Electron Microscopy Sciences, Fort Washington, PA, USA), following the procedure described in Francisco and Ascensão [52]. Semi-thin sections (~0.5 µm thick) were obtained with a Sorvall MT-1 ultramicrotome (Sorvall Inc., Norwalk, CT, USA) and stained with Sudan Black B for lipids [114].

For the histochemical characterisation of the osmophore, transverse and longitudinal hand-cut sections of the glabrous apical margin of the labellum were made in fresh late buds and open flowers of the two subspecies of O. speculum. The main classes of compounds generally present in the flower scents were investigated using Sudan Black B [115] and neutral red under UV and blue light [116] for the detection of total lipids, and Nadi reagent [117] was used for the detection of terpenoids. Phenolic compounds were detected by their autofluorescence under UV and blue light [118]. Hand-cut sections of the basal and median labellar regions from fresh buds and open flowers of both subspecies were also made and tested for lipids with Sudan IV [115]. Control reactions were performed simultaneously.

Observations were made with a Leica DM-2500 microscope (Leica Microsystems, Wetzlar, Germany) and images were recorded digitally with a Leica DFC-420 camera (Leica Microsystems, Heerbrugg, Switzerland) and the Leica Application Suite software (ver. 2.8.1). For observations under UV and blue light, a Leitz SM-LUX epifluorescence microscope (Leitz-Wetzlar, Wetzlar, Germany) equipped with an HBO 50 W mercury vapour lamp, filter block A (excitation filter BP 340–380, dichroic mirror 450, and barrier filter LP-430), and filter block I2 (excitation filter BP 450–490, barrier filter LP-515) was used.

5. Conclusions

This study provides the first evidence for the presence of an osmophore, a fragrance-producing secretory structure, in the labellum of O. speculum subsp. lusitanica and O. speculum subsp. speculum, the two representative subspecies of O. speculum in the westernmost area of its geographical range, and it sheds new light on the structure of the uncommon stigmatic cavity and labellum of O. speculum. In fact, this study is the first to show micromorphological and anatomical evidence for the presence of a distinct basal field in the labellum of this species—located in a unique cup-shaped concavity—and to demonstrate its homology to the basal field found in the labellum of other Ophrys species. Additionally, comparisons between the labellum and the female of its specific wasp pollinator, Dasyscolia ciliata, details structural similarities that represent new evidence of visual and tactile mimicry—especially between the basal region of the labellum and the female wasp’s thorax and wings—featuring the importance of visual and tactile cues for the success of pollination by sexual deception in O. speculum. Analysing these findings in an evolutionary context enabled us to suggest that the presence of an osmophore in the labellum is a plesiomorphic feature in the Ophrys genus and the biosynthesis of highly volatile organic compounds in this secretory structure may have facilitated the shifts in pollinators throughout the evolutionary history of these orchids.
