A Genome-Wide Identification and Expression Pattern of LMCO Gene Family from Turnip (Brassica rapa L.) under Various Abiotic Stresses

by
Waqar Khan
1,†,
Ahmed M. El-Shehawi
2,†,
Fayaz Ali
3,*,
Murad Ali
4,
Mohammed Alqurashi
2,
Mohammed M. Althaqafi
2 and
Siraj B. Alharthi
5
1
State Key Laboratory of Crop Genetics and Germplasm Enhancement, Nanjing Agricultural University, Nanjing 210095, China
2
Department of Biotechnology, College of Science, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
3
Department of Botany, Shaheed Benazir Bhutto University, Sheringal, Dir Upper P.O. Box 18050, Pakistan
4
Department of Botany, Hazara University Mansehra, Mansehra P.O. Box 21300, Pakistan
5
Department of Biological Sciences, King Abdulaziz University, P.O. Box 16834, Jeddah 21474, Saudi Arabia
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(9), 1904; https://doi.org/10.3390/plants12091904
Submission received: 29 March 2023 / Revised: 29 April 2023 / Accepted: 3 May 2023 / Published: 7 May 2023
(This article belongs to the Special Issue Plant Protection Strategies against Abiotic and Biotic Stresses)
Browse Figures
Review Reports Versions Notes

Abstract

:
Laccase-like multi-copper oxidases (LMCOs) are a group of enzymes involved in the oxidation of numerous substrates. Recently, these enzymes have become extremely popular due to their practical applications in various fields of biology. LMCOs generally oxidize various substrates by linking four-electron reduction of the final acceptor, molecular oxygen (O2), to water. Multi-copper oxidases related to laccase are extensively distributed as multi-gene families in the genome sequences of higher plants. The current study thoroughly investigated the LMCO gene family (Br-Lac) and its expression pattern under various abiotic stresses in B. rapa L. A total of 18 Br-Lac gene family members located on five different chromosomes were identified. Phylogenetic analysis classified the documented Br-Lac genes into seven groups: Group-I (four genes), Group-II (nine genes), Group-III (eight genes), Group-IV (four genes), Group-V (six genes), and Group-VI and Group-VII (one gene each). The key features of gene structure and responsive motifs shared the utmost resemblance within the same groups. Additionally, a divergence study also assessed the evolutionary features of Br-Lac genes. The anticipated period of divergence ranged from 12.365 to 39.250 MYA (million years ago). We also identified the pivotal role of the 18 documented members of the LMCO (Br-lac) gene family using quantitative real-time qRT-PCR. Br-Lac-6, Br-Lac-7, Br-Lac-8, Br-Lac-16, Br-Lac-17, and Br-Lac-22 responded positively to abiotic stresses (i.e., drought, heat, and salinity). These findings set the stage for the functional diversity of the LMCO genes in B. rapa.

1. Introduction

Multi-copper oxidases (MCOs) are a group of enzymes from the kingdom Fungi that contain laccases and peroxidases [1,2], metal oxidases from bacteria [3], and ascorbate oxidases from the kingdom Plantae [4]. LMCOs, commonly known as “laccases”, are mainly involved in the oxidation of industrial substrates as well as in developmental processes in plants. Some of the prominent developmental processes include polymerization of lignin and flavonoids and anthocyanin degradation. These are very helpful in the browning of the pericarp during postharvest in litchi fruit [5]. Lignin digestion in fungi [6], metabolic activities (e.g., pigment production), and several other activities, such as pathogenic virulence in bacteria and plant species, are other key features of these enzymes [7,8]. Metal transportation and homeostasis in bacterial cells [9,10], healing of wounds, and lignin production in higher plants are also associated with laccases [11,12].
The genomes (transcriptomes) of different members of the kingdom Plantae (woody and herbaceous) provide valuable information for identifying oxidative enzymes from the laccase family. Genomes of different plant species, including Prunus avium L., Trametes trogii, Arabidopsis thaliana, Liriodendron tulipifera, and Setosphaeria turcica, etc., have been extensively studied for the identification of these LMCO genes. However, there is a dearth of studies about the LMCO genes in members of the family Brassicaceae. Several members of this family are being utilized as vegetables, oilseed, and feed crops across the globe, and they play an important role in uplifting living conditions of concern. According to “whole genome triplication” (WGT), Brassica and Arabidopsis diverged from a common ancestor approximately 20 MYA. Similarly, B. rapa and B. oleracea came into existence from a common ancestor approximately 3.75 MYA [13,14]. The genomic materials in Brassica species have increased through whole genome triplication (WGT) and tandem duplication (TD), which make it an excellent model [14]. B. rapa L. is an economically important member of Brassicaceae, formerly known as Cruciferae. This plant species is an important source of vegetables that are rich in carotenoids (lutein, zeaxanthin, etc.), β-carotene, glucosinolates, iron, and calcium contents [15].
Five subgroups of the LMCO gene family have been reported through functional analysis in A. thaliana. At-Lac-12, At-Lac-13, and At-Lac-22 have been reported to enhance drought tolerance in A. thaliana [16]. Drought and salt stress tolerance in Oryza sativa were enhanced by overexpressing Os-LAC-6 and Os-LAC-8 [17]. LAC-12, LAC-13, and LAC-22 promote drought resistance, while LAC-6 and LAC-8 promote salinity resistance in A. thaliana [17]. Previous studies have shown that the LMCO gene family enhances tolerances under different stress conditions in various plants, but no such studies exist for the genome of B. rapa L. [14,18]. In the current study, we attempted to analyze the phylogeny, domain, motif, gene structure, chromosome placement, gene duplication, and gene expression of the LMCO (Br-Lac) gene family in B. rapa. This study’s findings will help lay the groundwork for future research on its biological function.

2. Results

2.1. Identification and Classification Pattern of the LMCO Gene Family in B. rapa

We identified 18 Br-Lac (LMCO) genes in B. rapa, which were further confirmed from the SMART and NCBI websites for domain validation. The names for the identified genes were given in sequence (e.g., from Br-Lac-1 to Br-Lac-17 in a row and Br-Lac-22). The nomenclature was purely based on information from A. thaliana due to sequence similarity. The phylogenetic tree divided the 18-member LMCO gene family into seven groups: Group-I (Br-Lac-2 and Br-Lac-17), Group-II (Br-Lac-4, Br-Lac-10, Br-Lac-11, and Br-Lac-22), Group-III (Br-Lac-3, Br-Lac-5, Br-Lac-12, and Br-Lac-13), Group-IV (Br-Lac-14 and Br-Lac-15), Group-V (Br-Lac-7, Br-Lac-8, and Br-Lac-9), Group-VI (Br-Lac-1), and Group-VII (Br-Lac-6) (Figure 1). A supplementary table (Table S1) provides a detailed list of the current classifications.

2.2. Synteny Analysis of Br-Lac Genes

The 18 documented putative LMCO genes were mapped on five different chromosomes: chromosome A02 consists of Br-Lac-10–Br-Lac-12 and Br-Lac-15. Chromosome A03 consists of Br-Lac-6, Br-Lac-9, and Br-Lac-17. Chromosome A05 consists of Br-Lac-2–Br-Lac-4, Br-Lac-7, and Br-Lac-22, whereas chromosome A01 contains only one of the reported genes (i.e., Br-Lac-1). Chromosome A10 consists of Br-Lac-13, Br-Lac-14, and Br-Lac-16 (Figure 2).

2.3. Classification of A. thaliana and B. rapa LMCO Genes

A maximum likelihood (ML) phylogenetic tree was constructed for the 35 reported LMCO genes (i.e., 17 from A. thaliana (At-Lac) and 18 from B. rapa (Br-Lac)). The ML phylogenetic tree divided all the documented 35 LMCO genes into seven groups (Table S1).
The protein lengths of the Br-Lac genes from B. rapa ranged from 558 to 582 amino acids (aa). The molecular weights of the resultant proteins were between 61.22 and 65.75 kDa, while pIs varied from 6.07 to 9.73. These proteins possess a negative grand average of hydropathicity (GRAVY), indicating hydrophilic behavior. Understanding plant functions requires knowledge of subcellular localization, and our results showed that most of the proteins were found in the chloroplast and vacuoles (Table 1).
Additionally, the exon–intron structures of the 35 LMCO genes were positioned according to their phylogenetic relationships. LMCO genes of the same group showed more similarities with the LMCO protein sequences. The exon and intron numbers differed between the LMCO genes of A. thaliana and those of B. rapa. The number of exons in the At-Lac and Br-Lac genes was five to seven in A. thaliana and B. rapa (Figure 3).

2.4. Conserved Motif Distribution

Fifteen conserved motifs were identified in A. thaliana and B. rapa LMCO proteins using the MEME tool and MEME suite web server to acquire the logos (Figure 4; Supplementary Figure S1). Motifs 1–8, 10, 12, and 15 were conserved in all LMCO genes of A. thaliana and B. rapa. Motif 9 was conserved, except in Br-Lac-1, while Motif 11 was missing in At-Lac-14 and Br-Lac-14. Motif 13 was conserved in all LMCO genes of A. thaliana and B. rapa, except At-Lac-6 and Br-Lac-6. Motif 14 was found in At-Lac-1–At-Lac-17, except for At-Lac-15, and in Br-Lac-1–Br-Lac-17, except for Br-Lac-15 and Br-Lac-22. Motif 9 was found in At-Lac-1, At-Lac-2, At-Lac-3, At-Lac-4, At-Lac-5, At-Lac-6, At-Lac-7, At-Lac-8, At-Lac-9, At-Lac-10, At-Lac-11, At-Lac-12, At-Lac-13, At-Lac-14, At-Lac-15, At-Lac-16, and At-Lac-17 from Arabidopsis and Br-Lac-2, Br-Lac-3, Br-Lac-4, Br-Lac-5, Br-Lac-6, Br-Lac-7, Br-Lac-8, Br-Lac-9, Br-Lac-10, Br-Lac-11, Br-Lac-12, Br-Lac-13, Br-Lac-14, Br-Lac-15, Br-Lac-16, Br-Lac-17, and Br-Lac-22, while motif 9 was missing in Br-Lac-1.

2.5. Calculating the Non-Synonymous (Ka) and Synonymous (Ks) Substitution Rates

As part of the divergence analysis, the non-synonymous substitution per non-synonymous site (Ka) and synonymous substitution per synonymous site (Ks) for each pair of paralogous Br-Lac genes were calculated according to the phylogenetic tree server (Figure S2). This was carried out to understand the degree of evolutionary discretion among Br-Lac genes. A Ka/Ks value lower than 1 demonstrated the presence of purifying selection pressure during evolution. Each pair of Br-Lac genes went through a period of divergence approximately 12.365 to 39.250 million years ago (Table 2).

2.6. Protein Structure Analysis of Br-Lac Genes

To obtain a more in-depth comprehension of the framework of the Br-Lac genes, the secondary and tertiary structures of the Br-Lac proteins were investigated (Table 3, Figure 5). Both folding and coiling helped in understanding the secondary structure of the Br-Lac proteins. The secondary structure of the Br-Lac proteins was made up of four basic components: the helix (H%), the turn (T%), the extended chain (E%), and the random coil (RC%). Following the helix (H%), which varied from 12.2% (Br-Lac-9) to 21.11% (Br-Lac-9), the random coil (RC%) in the secondary structure of Br-Lac proteins had the greatest value, ranging from 36.67% (Br-Lac-10) to 45.7% (Br-Lac9). The extended chain (E%) ranged from 28.77% (Br-Lac-3) to 32.99% (Br-Lac-1). The secondary structure of Br-Lac proteins was also supported by the tertiary structures of the proteins, as shown using ExPASy (https://swissmodel.expasy.org/) (accessed on 7 January 2023).

2.7. Expression Patterns of LMCO Genes under Abiotic Stress

We exposed B. rapa seedlings to various abiotic stresses (drought, salinity, and heat) to expose the expression patterns of its 18 documented LMCO genes. QRT-PCR was performed on the 18 Br-Lac genes at different time intervals after various abiotic treatments, and the expression levels were calculated (Figure 5). The expression patterns of the 18 Br-Lac genes showed transcriptional changes under abiotic stress. It was concluded that members of the LMCO gene family show a response to multiple stresses. Five genes (Br-Lac-1, Br-Lac-2, Br-Lac-6, Br-Lac-7, and Br-Lac-8) of the 18 Br-Lac genes were noted to have low expression levels in response to drought stress. At different time intervals, the expression levels of these five genes were down-regulated, while four genes (Br-Lac-4, Br-Lac-5, Br-Lac-16, and Br-Lac-17) were up-regulated. The expression level of Br-Lac-5 was increased at 12 h and 24 h but suddenly reversed at 48 h and 72 h. After drought treatment, the up-regulated genes (Br-Lac-4, Br-Lac-5, Br-Lac-16, and Br-Lac-17) may be related to drought tolerance (Figure 6).
Different expression levels of the 18 Br-Lac genes were observed under salinity stress conditions; seven genes (Br-Lac-1, Br-Lac-3, Br-Lac-9, Br-Lac-12, Br-Lac-14, Br-Lac-15, and Br-Lac-16) under salinity stress were up-regulated. The Br-Lac-12 gene showed high regulation at 12 h, while Br-Lac-14 showed up-regulation at 24 h (Figure 7). Three genes, Br-Lac-6, Br-Lac-7, and Br-Lac-17, were noted to have down-regulation due to salinity stress at different time intervals. The up-regulation of different genes (Br-Lac-1, Br-Lac-3, Br-Lac-9, Br-Lac-12, Br-Lac-14, Br-Lac-15, and Br-Lac-16) under salinity stress at varied time intervals suggests that some Br-Lac genes may be induced under serious salinity stress. Similarly, seven Br-Lac genes were up-regulated (Br-Lac-4, Br-Lac-8, Br-Lac-9, Br-Lac-10, Br-Lac-13, Br-Lac-14, and Br-Lac-16) upon exposure to heat. The different expression levels can be seen in Figure 8, at different time intervals, under heat stress treatment. At the same time, only three genes were down-regulated under heat stress conditions (Br-Lac-2, Br-Lac-6, and Br-Lac-7). Noteworthy, our findings suggest that the expression levels of Br-Lac-4, Br-Lac-9, and Br-Lac-16 were induced by drought, heat, and salinity stresses, suggesting that these genes might be important for resistance to abiotic stresses. A list of the primers is given in Table S2.

3. Discussion

Determining the physiological functions of LMCOs is comparatively difficult due to their wide distribution and complex nature across various plant species. These factors, in combination with several others, make it very challenging to identify LMCO genes and their functions. Differentiating the xylem of Liriodendron tulipifera, Pinus taeda, Zinnia elegans, and Acer pseudoplatanus was used to isolate these enzymes [19,20,21,22]. Lignin monomers were oxidized in vitro by these enzymes, obtained from Pseudoplatanus cells, when maintained in suspension culture [23]. Prototype LMCOs (laccase) from Rhus vernicifera were found to be good in healing wounds caused either by herbivores or in response to pathogens [20,24]. The trunks of Japanese lacquer and Rhus vernicifera were reported to exhibit an oxidative polymerization reaction between laccase and the alkyl catechols in latex sap, causing a strong protective seal to form over the injury. This happens because laccase is a component of latex sap [20,25]. Furthermore, biochemical evidence also supports the idea that plant LMCOs play a role in iron metabolism [21].
A genome-wide gene family study is the initial step in understanding gene structure, function, and evolution [26]. Additionally, sequence-based searching and phylogenetic characterization are the most efficient techniques for identifying laccase genomes [27,28,29,30,31]. We carried out a thorough search for LMCO genes across the B. rapa genome and found a total of 18 genes. Based on domain organization and evolutionary analyses, these genes were further classified into seven subgroups (Figure 1). According to a synteny study, B. rapa and A. thaliana LMCO genes have significant similarities (Figure 3 and Figure 4). These results are remarkably consistent with those of earlier studies [20,32].
Isoelectric focusing points (pIs) have been used as the primary classification method for plant LMCOs, with the implicit belief that pI may be related to substrate kinetics and enzyme activity [6,20]. A search for the conserved domain, motif, and structure was carried out to better understand the shared characteristics and biological roles of LMCO genes (Figure 3 and Figure 4). The persistence of ancient and more modern gene duplication events showed that both purifying and diversifying selection lead to the emergence of new gene functions over time [32,33,34,35]. The current work identified and analyzed 18 LMCO genes in B. rapa and 17 LMCO genes in A. thaliana.
Biotic and abiotic stresses define the patterns of both gene expression and function [36]. QRT-PCR has been used in several research studies to investigate transcript levels, such as the expression profile of At-Lac-12 and At-Lac-14 in response to abiotic stresses. A. thaliana LMCO proteins were successfully involved in the process of drought tolerance [37]. To obtain further insights into the regulation of Br-Lac in response to abiotic stress, gene expressions in B. rapa were analyzed using real-time RT-PCR, as shown in Figure 6, Figure 7 and Figure 8. Four genes (Br-Lac-4, Br-Lac-5, Br-Lac-16, and Br-Lac-17) were up-regulated at different time intervals. For gene Br-Lac-5, the expression level was increased at 12 h and 24 h, and sudden down-expression was noted at 48 h and 72 h. Seven genes (Br-Lac-1, Br-Lac-3, Br-Lac-9, Br-Lac-12, Br-Lac-14, Br-Lac-15, and Br-Lac-16) under salinity stress were up-regulated. Under heat stress conditions (at different time intervals), seven Br-Lac genes were up-regulated (Br-Lac-4, Br-Lac-8, Br-Lac-9, Br-Lac-10, Br-Lac-13, Br-Lac-14, and Br-Lac-16). Zhang et al. [38] reported that expressions of the At-Lac-12 and At-Lac-14 genes were very limited in heat and drought stress conditions. In another study, At-Lac-17 and At-Lac-22 overexpression promoted drought resistance in A. thaliana, whereas the expression levels of At-Lac-9, At-Lac-11, and At-Lac-15 were inhibited by drought and salinity stress.
There has only been relatively little research on the LMCO gene family in plants. The LMCO gene family’s intron–exon configurations may cause functional variability. Such findings could be attributable to a homology structure separate from the domain sequences [21,33]. This study established a baseline for understanding the molecular function and response to abiotic stresses of Br-Lac genes and recommends future research for examining these genes concerning various biological functions.

4. Materials and Methods

4.1. Identification of LMCO Genes in A. thaliana and B. rapa L.

The protein sequences of the LMCO genes in A. thaliana, i.e., At-Lac-1 (At1g18140), At-Lac-2 (At2g29130), At-Lac-3 (At2g30210), At-Lac-4 (At2g38080), At-Lac-5 (At2g40370), At-Lac-6 (At2g46570), At-Lac-7 (At3g09220), At-Lac-8 (At5g01040), At-Lac-9 (At5g01050), At-Lac-10 (At5g01190), At-Lac-11 (At5g03260), At-Lac-12 (At5g05390), At-Lac-13 (At5g07130), At-Lac-14 (At5g09360), At-Lac-15 (At5g48100), At-Lac-16 (At5g58910), and At-Lac-17 (At5g60020), were searched and downloaded using TAIR10 (http://www.arabidopsis.org/) (accessed on 20 December 2022). These sequences were then used as queries to implement BLASTP searches in the B. rapa genome to find LMCO gene sequences. Phytozome was used to search and download Brassica genome sequences (http://phytozome.jgi.doe.gov/pz/portal.html#) (accessed on 22 December 2022). A Hidden Markov Model (HMM) profile for laccase (IPR017761) was obtained from the Pfam database (http://pfam.xfam.org/) (accessed on 29 April 2023) using HMMER3 software to search for LMCO homologous genes [39]. After removing all the redundant sequences, the SMART (http://smart.embl-heidelberg.de/) (accessed on 25 December 2022) and Pfam databases were used to examine the required sequences [40]. The physicochemical properties of the full-length proteins were assessed using the ProtParam tool (http://web.expasy.org/protparam/) (accessed on 28 December 2022) [41].

4.2. Phylogenetic Analysis

A phylogenetic tree for the full-length LMCO protein sequences of A. thaliana and B. rapa was constructed using MEGA software version 7.0. [42]. The ClustalW program was used to align the full-length LMCO protein sequences. The pairwise deletion option was selected, and the Poisson model with a 1000 bootstrap sample was used by applying the maximum likelihood method to make an LMCO tree.

4.3. Localization of the Chromosomes and Synteny Analysis

We examined genome data for the location of LMCO genes on the B. rapa chromosome. Syntenic relationships in the Brassica genomes were constructed using a method similar to the Plant Genome Duplication Database (PGDD; http://chibba.agtec.uga.edu/duplication/) (accessed on 28 December 2022) [43]. The syntenic link between the genes of the LMCO family was examined using TBtools for the investigation of evolutionary history [44].

4.4. Study of Gene and Protein Motifs

Conserved motifs in the full-length LMCO protein sequences were identified using MEME tools (http://meme-suite.org/tools/meme) (accessed on 29 December 2022) [45,46]. The Gene Structure Display Server (GSDS 2.0) (http://gsds.cbi.pku.edu.cn/) (accessed on 30 December 2022) was utilized to study the structure of the LMCO gene following the standard procedure of Hu et al. [47].

4.5. LMCO Gene–Protein Structure Analysis

The online secondary structure prediction tool SOPMA (https://npsa-prabi.ibcp.fr/cgi-in/secpredsopma.pl) (accessed on 3 January 2022) was used to determine the structural makeup of the 18 Br-Lac genes. Similarly, the protein structural makeup of the 18 LMCO genes was also determined through an online tool (https://swissmodel.expasy.org/) (accessed on 7 January 2022) [48].

4.6. Protein Physicochemical Properties of LMCO

The NCBI database (https://www.ncbi.nlm.nih.gov/) (accessed on 7 January 2022) was used to determine amino acid (bp), CDS (bp), and location on the chromosome of the LMCO gene to clarify its physicochemical characteristics. Isoelectric points (pI), molecular weight (MW), grand average of hydropathicity (GRAVY), and the formula of the individual LMCO gene in B. rapa were assessed through the ProtParam tool on the ExPASy server (http://web.expasy.org/protparam) (accessed on 29 April 2023). We also used the WoLF PSORT service for plant protein location (https://wolfpsort.hgc.jp/) (accessed on 29 April 2023) to assess LMCO protein in Brassica [49].

4.7. Calculating Ka and Ks

The substitution rates of Ka and Ks of the syntenic gene pairs were measured with Nei–Gojobori using TBtools software. We used the KaKs calculator 2.0 with the Nei–Gojobori method, as practiced by several workers [48,49,50].

4.8. Plant Materials and Stress Treatments

B. rapa seeds were soaked in water (2 days) for the process of germination. The soaked seeds were then cultured in 10 cm plastic pots. The germinated seedlings were then allowed to grow in a chamber room under light and dark (16/8) at 25 °C until the four-leaf stage. Different abiotic stresses (i.e., drought, heat, and salinity) were applied to the growing seedlings [51]. For drought conditions, the germinated seedlings were treated with 20% polyethylene glycol-6000 (PEG-6000), while 200 mM NaCl was used to initiate salinity stress. For heat stress, the germinated seedlings were exposed to a high temperature of 40 °C. To calculate the seedlings’ response to drought stress, we collected leaf samples after 3, 6, 12, 24, 48, and 72 h [52]. In a similar pattern, young leaves were collected after 3, 6, 12, 24, and 48 h to document resistance to salinity stress. After collection, the leaf samples were kept in liquid nitrogen and stored at −80 °C for RNA isolation.

4.9. RNA Extraction and Real-Time qRT-PCR

A Plant Total RNA Isolation Kit (FOREGENE, China) was used for total RNA extraction from differently treated samples (i.e., drought, salinity, or heat). A RevertAid First Strand cDNA Synthesis Kit (Thermo Fisher Scientific, (Waltham, Massachusetts, USA) was used to synthesize purified cDNA with 1 μg of total RNA and oligo primers [53]. Light Cycler® 480 II (Mannheim, Roche, Germany) and SYBR Green I Master Mix (Roche, Germany) were used to perform qPCR. The gene-specific primers were designed using the NCBI online software primer designing tool (https://www.ncbi.nlm.nih.gov/tools/primer-blast/) (accessed on 15 January 2023) (Table S2). Each qPCR reaction was conducted as follows: 0.2 μL of cDNA, 5 μL of 0.5 μM gene-specific primer pre-mixture, 10 μL of 2 × SYBR Green Master Mix, and 4.8 μL of water. Actin7 was used as the internal standard to normalize the expression levels for target genes. A melting curve was used to evaluate the specificity of amplification. All experiments had three biological replicates and technical replicates. The 2−ΔCT method was used for data calculation. Graph Pad Prism 9 was used to analyze and graph the expression data.

5. Conclusions

In conclusion, 18 LMCO genes were found in B. rapa during this investigation. They were categorized into seven groups based on phylogenetic analysis and similarities in amino acid sequences. The basic gene parameters, such as amino acid and CDS length, molecular weight (MW/kDa), isoelectric point (PI), and GRAVY, as well as the fact that the majority of Br-Lac genes were located in chloroplasts, were unearthed by the physicochemical properties of Br-Lac genes. The divergence study further illuminated the Br-Lac genes’ evolutionary history, which revealed that the time of divergence ranged from 12.365 to 39.250 MYA. These findings point to a shared biological function of Br-Lac genes in response to enzymatic activity and offer helpful hints for further research into the diversity and function of Br-Lac genes. Expression analyses of the Br-Lac gene family were performed in this study for abiotic stress. The findings suggest that Br-lac genes resist heat, drought, and salinity stress.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12091904/s1, Figure S1. Fifteen conserved motifs were identified in Arabidopsis and Brassica LMCO proteins using the MEME tool and MEME suite web server to acquire the logos; Figure S2. Pair of paralogous Br-Lac genes according to the phylogenetic tree server; Table S1, Groups base on the phylogenetic tree and motifs analysis of Arabidopsis and Brassica LMCO genes; Table S2, List of LMCO genes primers for qRT-PCR.

Author Contributions

W.K., M.A. (Murad Ali) and F.A. conceived the study; M.A. (Mohammed Alqurashi) and M.M.A. wrote the manuscript. S.B.A., W.K., M.A. (Mohammed Alqurashi) and A.M.E.-S. reviewed and finalized the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research, Taif University, for funding this work.

Data Availability Statement

The datasets generated and analyzed during the current study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research, Taif University, for funding this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Reiss, R.; Ihssen, J.; Richter, M.; Eichhorn, E.; Schilling, B.; Thöny-Meyer, L. Laccase versus laccase-like multi-copper oxidase: A comparative study of similar enzymes with diverse substrate spectra. PLoS ONE 2013, 8, e65633. [Google Scholar] [CrossRef] [PubMed]
  2. Stoj, C.S.; Augustine, A.J.; Zeigler, L.; Solomon, E.I.; Kosman, D.J. Structural basis of the ferrous iron specificity of the yeast ferroxidase, Fet3p. Biochemistry 2006, 45, 12741–12749. [Google Scholar] [CrossRef]
  3. Kishishita, S.I.; Okajima, T.; Kim, M.; Yamaguchi, H.; Hirota, S.; Suzuki, S.; Mure, M. Role of copper ion in bacterial copper amine oxidase: Spectroscopic and crystallo-graphic studies of metal-substituted enzymes. J. Am. Chem. Soc. 2003, 125, 1041–1055. [Google Scholar] [CrossRef]
  4. Abdelgawad, F.K.; El-Mogy, M.; Mohamed, M.I.A.; Garchery, M.; Stevens, C.R. Increasing ascorbic acid content and salinity tolerance of cherry tomato plants by sup-pressed expression of the ascorbate oxidase gene. Agronomy 2019, 9, 51. [Google Scholar] [CrossRef]
  5. Yihui, G.; Song, J.; Du, L.; Vinqvist, M.; Palmer, L.C.; Fillmore, S.; Zhang, Z. Characterization of laccase from apple fruit during postharvest storage and its response to diphenylamine and 1-methylcyclopropene treatments. Food Chem. 2018, 253, 314–321. [Google Scholar] [CrossRef]
  6. Janusz, G.; Pawlik, A.; Świderska-Burek, U.; Polak, J.; Sulej, J.; Jarosz-Wilkołazka, A.; Paszczyński, A. Laccase properties, physiological functions, and evolution. Int. J. Mol. Sci. 2020, 21, 966. [Google Scholar] [CrossRef]
  7. Mulders, K.J.; Lamers, P.P.; Martens, D.E.; Wijffels, R.H. Phototrophic pigment production with microalgae: Biological constraints and opportunities. J. Phycol. 2014, 50, 229–242. [Google Scholar] [CrossRef]
  8. Kao, C.Y.; Sheu, B.S.; Wu, J.J. Helicobacter pylori infection: An overview of bacterial virulence factors and pathogenesis. Biomed. J. 2016, 39, 14–23. [Google Scholar] [CrossRef] [PubMed]
  9. Hernández-Montes, G.; Argüello, J.M.; Valderrama, B. Evolution and diversity of periplasmic proteins involved in copper homeostasis in gamma proteobacteria. BMC Microbiol. 2012, 12, 1–14. [Google Scholar] [CrossRef]
  10. Argüello, J.M.; Raimunda, D.; Padilla-Benavides, T. Mechanisms of copper homeostasis in bacteria. Front. Cell. Infect. Microbiol. 2013, 3, 73. [Google Scholar] [CrossRef] [PubMed]
  11. Awasthi, M.; Jaiswal, N.; Singh, S.; Pandey, V.P.; Dwivedi, U.N. Molecular docking and dynamics simulation analyses unraveling the differential enzymatic catalysis by plant and fungal laccases with respect to lignin biosynthesis and degradation. J. Biomol. Struct. Dyn. 2015, 33, 1835–1849. [Google Scholar] [CrossRef] [PubMed]
  12. Berthet, S.; Thevenin, J.; Baratiny, D.; Demont-Caulet, N.; Debeaujon, I.; Bidzinski, P.; Jouanin, L. Role of plant laccases in lignin polymerization. In Advances in Botanical Research; Academic Press: Cambridge, MA, USA, 2012; Volume 61, pp. 145–172. [Google Scholar] [CrossRef]
  13. Town, C.D.; Cheung, F.; Maiti, R.; Crabtree, J.; Haas, B.J.; Wortman, J.R. Com-parative genomics of Brassica oleracea and Arabidopsis thaliana reveal gene loss, frag-mentation, and dispersal after polyploidy. Plant Cell 2006, 18, 1348–1359. [Google Scholar] [CrossRef] [PubMed]
  14. Chalhoub, B.; Denoeud, F.; Liu, S.Y.; Parkin, I.A.P.; Tang, H.B.; Wang, X.Y. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome. Science 2014, 345, 950–953. [Google Scholar] [CrossRef] [PubMed]
  15. Sathasivam, R.; Park, S.U.; Kim, J.K.; Park, Y.J.; Kim, M.C.; Nguyen, B.V.; Lee, S.Y. Metabolic profiling of primary and secondary metabolites in kohlrabi (Brassica oleracea var. gongylodes) sprouts exposed to different light-emitting diodes. Plants 2023, 12, 1296. [Google Scholar] [CrossRef]
  16. McCaig, B.C.; Meagher, R.B.; Dean, J.F. Gene structure and molecular analysis of the laccase-like multicopper oxidase (LMCO) gene family in Arabidopsis thaliana. Planta 2005, 221, 619–636. [Google Scholar] [CrossRef]
  17. Liu, Q.; Luo, L.; Wang, X.; Shen, Z.; Zheng, L. Comprehensive analysis of rice laccase gene (OsLAC) family and ectopic expression of OsLAC10 enhances tolerance to copper stress in Arabidopsis. Int. J. Mol. Sci. 2017, 18, 209. [Google Scholar] [CrossRef]
  18. Liu, S.Y.; Liu, Y.M.; Yang, X.H.; Tong, C.B.; Edwards, D.; Parkin, I.A.P.; Zhao, M.X.; Ma, J.X.; Yu, J.Y.; Huang, S.M. The Brassica oleracea genome reveals the asymmetrical evolution of polyploidy genomes. Nat. Commun. 2014, 5, 3930. [Google Scholar] [CrossRef]
  19. Sato, Y.; Whetten, R.W. Characterization of two laccases of loblolly pine (Pinus taeda) expressed in tobacco BY-2 cells. J. Plant Res. 2006, 119, 581–588. [Google Scholar] [CrossRef]
  20. Hoopes, J.T.; Dean, J.F. Ferroxidase activity in a laccase-like multicopper oxidase from Liriodendron tulipifera. Plant Physiol. Biochem. 2004, 42, 27–33. [Google Scholar] [CrossRef]
  21. Richardson, A.; Duncan, J.; McDougall, G.J. Oxidase activity in lignifying xylem of a taxonomically diverse range of trees: Identification of a conifer laccase. Tree Physiol. 2000, 20, 1039–1047. [Google Scholar] [CrossRef]
  22. Christiernin, M.; Ohlsson, A.B.; Berglund, T.; Henriksson, G. Lignin isolated from primary walls of hybrid aspen cell cultures indicates significant differences in lignin structure between primary and secondary cell wall. Plant Physiol. Biochem. 2005, 43, 777–785. [Google Scholar] [CrossRef] [PubMed]
  23. Mayer, A.M.; Staples, R.C. Laccase: New functions for an old enzyme. Phyto-Chem. 2002, 60, 551–565. [Google Scholar] [CrossRef] [PubMed]
  24. Messerschmidt, A. (Ed.) Multi-Copper Oxidases; World Scientific: Singapore, 1997. [Google Scholar]
  25. Lin, Y.X.; Jiang, H.Y.; Chu, Z.X.; Tang, X.L.; Zhu, S.W.; Cheng, B.J. Ge-nome-wide identification, classification and analysis of heat shock transcription factor family in maize. BMC Genom. 2011, 12, 76. [Google Scholar] [CrossRef] [PubMed]
  26. Tang, C.; Qiao, X.; Zhu, X.; Khan, W.; Wu, J.; Zhang, S. Expression and evolutionary analysis of soluble inorganic pyrophosphatase gene family in pear and four other Rosaceae species. Plant Syst. Evol. 2020, 306, 1–15. [Google Scholar] [CrossRef]
  27. Khan, W.; Hussain, M.; Ali, K.; Ali, M.; Nisar, M. Distribution and phenotypic variation in Juglans regia L. growing in Hindu Kush ranges of Pakistan. Acta Ecol. Sin. 2020, 40, 363–372. [Google Scholar] [CrossRef]
  28. Fang, W.; Fang, Z.; Zhou, P.; Chang, F.; Hong, Y.; Zhang, X.; Xiao, Y. Evidence for lignin oxidation by the giant panda fecal microbiome. PLoS ONE 2012, 7, e50312. [Google Scholar] [CrossRef]
  29. Rezaei, S.; Shahverdi, A.R.; Faramarzi, M.A. Isolation, one-step affinity purification, and characterization of a polyextremotolerant laccase from the halophilic bacterium Aquisalibacillus elongatus and its application in the delignification of sugar beet pulp. Bioresour. Technol. 2017, 230, 67–75. [Google Scholar] [CrossRef]
  30. Levasseur, A.; Piumi, F.; Coutinho, P.M.; Rancurel, C.; Asther, M.; Delattre, M.; Record, E. FOLy: An integrated database for the classification and functional an-notation of fungal oxidoreductases potentially involved in the degradation of lignin and related aromatic compounds. Fungal Genet. Biol. 2008, 45, 638–645. [Google Scholar] [CrossRef]
  31. Berni, R.; Luyckx, M.; Xu, X.; Legay, S.; Sergeant, K.; Hausman, J.F.; Guerriero, G. Reactive oxygen species and heavy metal stress in plants: Impact on the cell wall and secondary metabolism. Environ. Exp. Bot. 2019, 161, 98–106. [Google Scholar] [CrossRef]
  32. Wang, D.; Zhang, Y.; Zhang, Z.; Zhu, J.; Yu, J. KaKs_Calculator 2.0: A toolkit incorporating gamma-series methods and sliding window strategies. Genom. Proteom. Bioinform. 2010, 8, 77–80. [Google Scholar] [CrossRef]
  33. Liu, N.; Cao, Z.; Cao, K.; Ma, S.; Gong, X.; Jia, H.; Dong, J. Identification of laccase-like multicopper oxidases from the pathogenic fungus Setosphaeria turcica and their expression pattern during growth and infection. Eur. J. Plant Pathol. 2019, 153, 1149–1163. [Google Scholar] [CrossRef]
  34. Wei, Y.; Pu, J.; Zhang, H.; Liu, Y.; Zhou, F.; Zhang, K.; Liu, X. The laccase gene (LAC1) is essential for Colletotrichum gloeosporioides development and virulence on mango leaves and fruits. Physiol. Mol. Plant Pathol. 2017, 99, 55–64. [Google Scholar] [CrossRef]
  35. Wang, B.; Yeun, L.H.; Xue, J.Y.; Liu, Y.; Ané, J.M.; Qiu, Y.L. Presence of three mycorrhizal genes in the common ancestor of land plants suggests a key role of mycorrhizas in the colonization of land by plants. New Phytol. 2010, 186, 514–525. [Google Scholar] [CrossRef]
  36. Ali, F.; Khan, N.; Khan, A.M.; Ali, K.; Abbas, F. Species distribution modelling of Monotheca buxifolia (Falc.) A. DC.: Present distribution and impacts of potential climate change. Heliyon 2023, 9, e13417. [Google Scholar] [CrossRef]
  37. Cho, H.Y.; Lee, C.; Hwang, S.G.; Park, Y.C.; Lim, H.L.; Jang, C.S. Overex-pression of the OsChI1 gene, encoding a putative laccase precursor, increases tolerance to drought and salinity stress in transgenic Arabidopsis. Gene 2014, 552, 98–105. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, J.W.; Long, Y.; Xue, M.D.; Xiao, X.G.; Pei, X.W. Identification of microRNAs in response to drought in common wild rice (Oryza rufipogon Griff.) shoots and roots. PLoS ONE 2017, 12, e0170330. [Google Scholar] [CrossRef] [PubMed]
  39. Eddy, S.R. Accelerated profile HMM searches. PLoS Comput. Biol. 2011, 7, e1002195. [Google Scholar] [CrossRef]
  40. Letunic, I.; Bork, P. 20 years of the SMART protein domain annotation resource. Nucleic Acids Res. 2018, 46, D493–D496. [Google Scholar] [CrossRef] [PubMed]
  41. Bhalla, K.; Chugh, M.; Mehrotra, S.; Rathore, S.; Tousif, S.; Prakash Dwivedi, V.; Ranganathan, A. Host ICAMs play a role in cell invasion by Mycobacterium tuberculosis and Plasmodium falciparum. Nat. Commun. 2015, 6, 6049. [Google Scholar] [CrossRef] [PubMed]
  42. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547. [Google Scholar] [CrossRef]
  43. Qiao, X.; Li, M.; Li, L.; Yin, H.; Wu, J.; Zhang, S. Genome-wide identification and comparative analysis of the heat shock transcription factor family in Chinese white pear (Pyrus bretschneideri) and five other Rosaceae species. BMC Plant Biol. 2015, 15, 12. [Google Scholar] [CrossRef] [PubMed]
  44. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef] [PubMed]
  45. Ali, F.; Khan, N.; Rahmonov, O. Ecosystem Services and Linkages of Naturally Managed Monotheca buxifolia (Falc.) A. DC. Forests with Local Communities across Contiguous Mountainous Ranges in Pakistan. Biology 2022, 11, 1469. [Google Scholar] [CrossRef] [PubMed]
  46. Bhowmik, S.; Gagnuly, A. A review article on ChIP-Seq tools: MACS2, HOMER, SICER, PEAKANNOTATOR and MEME. Int. J. Chem. Environ. Sci. 2019, 1, 38–45. [Google Scholar]
  47. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef]
  48. Ge, M.; Zhong, R.; Sadeghnezhad, E.; Hakeem, A.; Xiao, X.; Wang, P.; Fang, J. Genome-wide identification and expression analysis of magnesium transporter gene family in grape (Vitis vinifera). BMC Plant Biol. 2022, 22, 217. [Google Scholar] [CrossRef]
  49. Dong, Y.; Lu, J.; Liu, J.; Jalal, A.; Wang, C. Genome-wide identification and functional analysis of JmjC domain-containing genes in flower development of Rosa chinensis. Plant Mol. Biol. 2020, 102, 417–430. [Google Scholar] [CrossRef]
  50. Khan, W.; Liu, W.; Liu, Z.; Zhu, X.; Wu, J.; Wang, P. Genome-wide identification, expression analysis, and functional verification of the JMJ (Jumonji) histone demethylase gene family in pear (Pyrus bretchneideri). Tree Genet. Genomes 2023, 19, 10. [Google Scholar] [CrossRef]
  51. De Bodt, S.; Maere, S.; Van de Peer, Y. Genome duplication and the origin of angiosperms. Trends Ecol. Evol. 2005, 20, 591–597. [Google Scholar] [CrossRef]
  52. Khan, I.; Khan, U.; Khan, K.; Nawaz, M.A.; Khan, N.A.; Ali, F. In vitro anti-pseudomonal potential of Juglans regia and Otostegia limbata leaves extract against planktonic and biofilm form of Pseudomonas aeruginosa. Pak. J. Bot. 2018, 50, 827–833. [Google Scholar]
  53. Gao, F.; Li, J.; Zhang, J.; Li, N.; Tang, C.; Bakpa, E.P.; Xie, J. Genome-wide identification of the ZIP gene family in lettuce (Lactuca sativa L.) and expression analysis under different element stress. PLoS ONE 2022, 17, e0274319. [Google Scholar] [CrossRef] [PubMed]
Plants 12 01904 g001 550
Figure 1. Identification and phylogenetic analysis of LMCO gene family members in B. rapa L. (18) against A. thaliana (17) using maximum likelihood methods in MEGA7 for 35 LMCO protein sequences from A. thaliana and B. rapa L. The bootstrap consensus tree was generated using the Poisson model with 1000 bootstraps.
Figure 1. Identification and phylogenetic analysis of LMCO gene family members in B. rapa L. (18) against A. thaliana (17) using maximum likelihood methods in MEGA7 for 35 LMCO protein sequences from A. thaliana and B. rapa L. The bootstrap consensus tree was generated using the Poisson model with 1000 bootstraps.
Plants 12 01904 g001
Plants 12 01904 g002 550
Figure 2. Localization and synteny of LMCO genes in Arabidopsis and B. rapa L. Gene pairs with syntenic relationships are joined by colored lines.
Figure 2. Localization and synteny of LMCO genes in Arabidopsis and B. rapa L. Gene pairs with syntenic relationships are joined by colored lines.
Plants 12 01904 g002
Plants 12 01904 g003 550
Figure 3. Phylogenetic analysis and schematic diagram for intron/exon structures of LMCO genes from B. rapa L. and A. thaliana. The phylogenetic tree was constructed from a complete alignment of 35 LMCO proteins using the maximum likelihood method with bootstrapping analysis (1000 iterations). The orange, blue, and black colors in the gene structure diagram represent exons, introns, and UTR, respectively. Gene models are drawn to scale, as indicated at the bottom.
Figure 3. Phylogenetic analysis and schematic diagram for intron/exon structures of LMCO genes from B. rapa L. and A. thaliana. The phylogenetic tree was constructed from a complete alignment of 35 LMCO proteins using the maximum likelihood method with bootstrapping analysis (1000 iterations). The orange, blue, and black colors in the gene structure diagram represent exons, introns, and UTR, respectively. Gene models are drawn to scale, as indicated at the bottom.
Plants 12 01904 g003
Plants 12 01904 g004 550

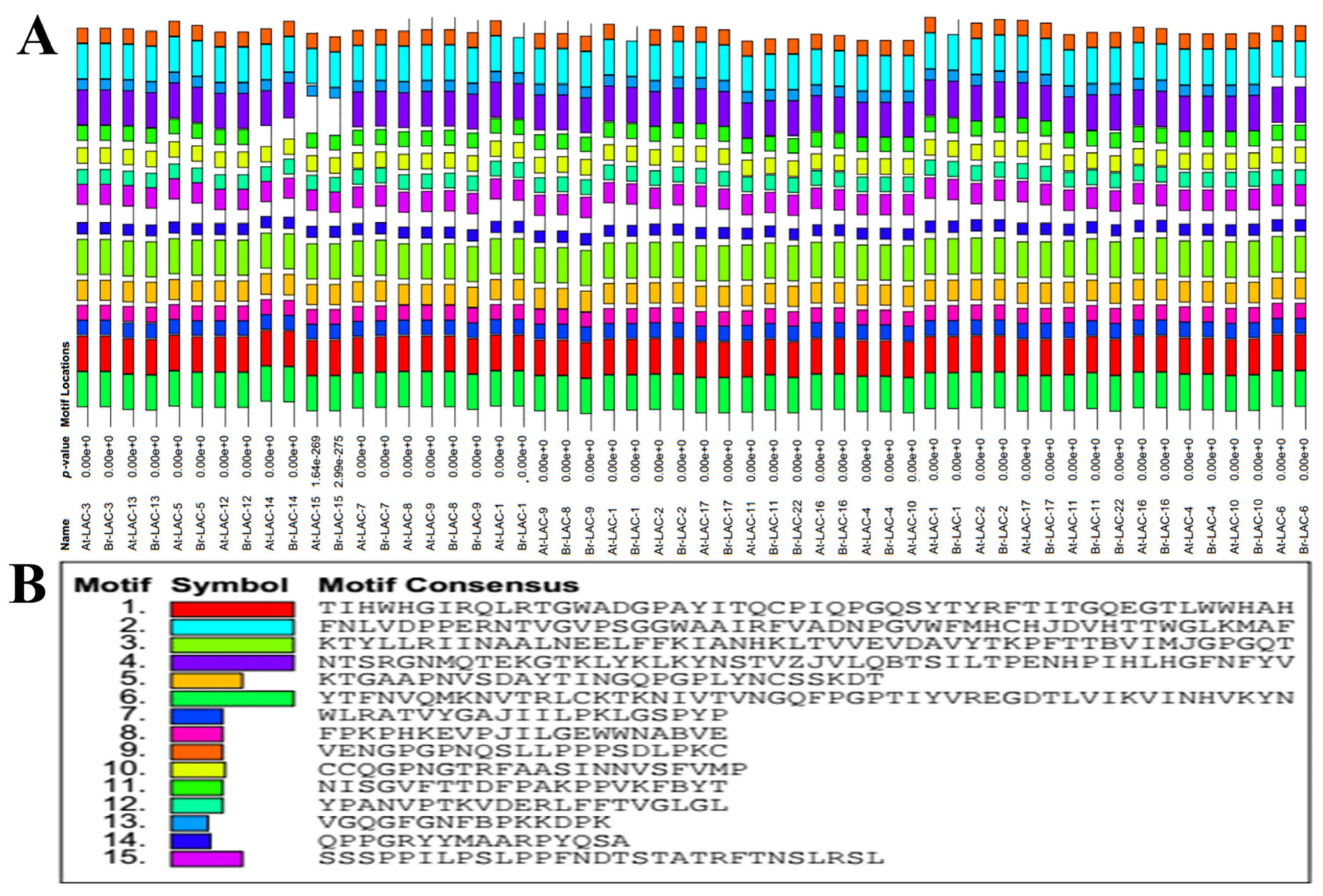

Figure 4. Motifs and sequence logos identified using MEME tools in the LMCO gene family of B. rapa L. and A. thaliana.(A) Identified motifs; (B) Location and combined p-values of the total 15 motifs in the LMCO genes of B. rapa L. and A. thaliana using the MEME tool. The scale indicates the lengths and motifs of the proteins.
Figure 4. Motifs and sequence logos identified using MEME tools in the LMCO gene family of B. rapa L. and A. thaliana.(A) Identified motifs; (B) Location and combined p-values of the total 15 motifs in the LMCO genes of B. rapa L. and A. thaliana using the MEME tool. The scale indicates the lengths and motifs of the proteins.
Plants 12 01904 g004
Plants 12 01904 g005 550

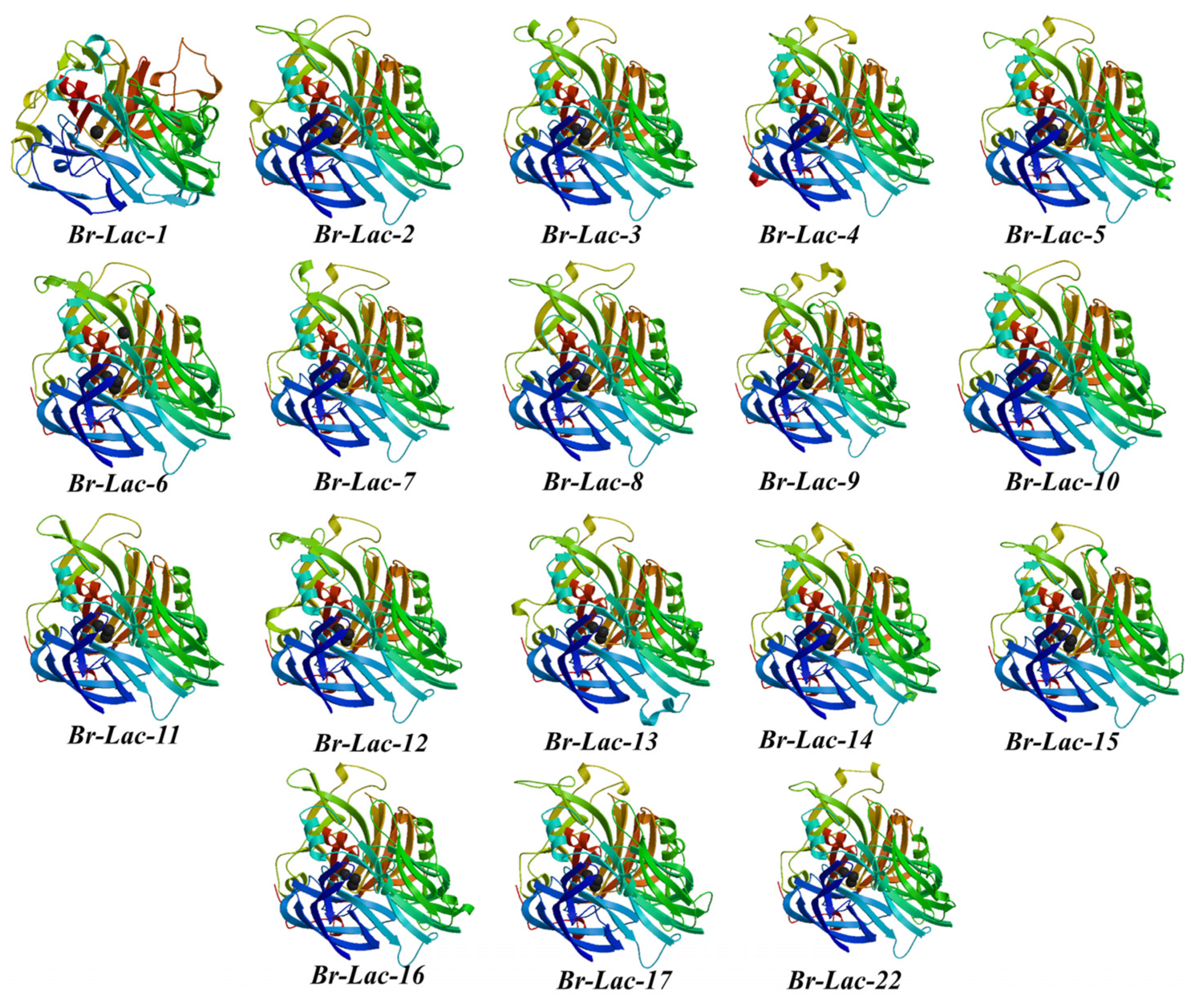

Figure 5. Illustration of the predicted tertiary structures of the 18 LMCO proteins of B. rapa L. The protein structures all have the same domain color schemes, revealing the degree of homology. The structures reveal a high degree of structural homology in most gene members.
Figure 5. Illustration of the predicted tertiary structures of the 18 LMCO proteins of B. rapa L. The protein structures all have the same domain color schemes, revealing the degree of homology. The structures reveal a high degree of structural homology in most gene members.
Plants 12 01904 g005
Plants 12 01904 g006 550

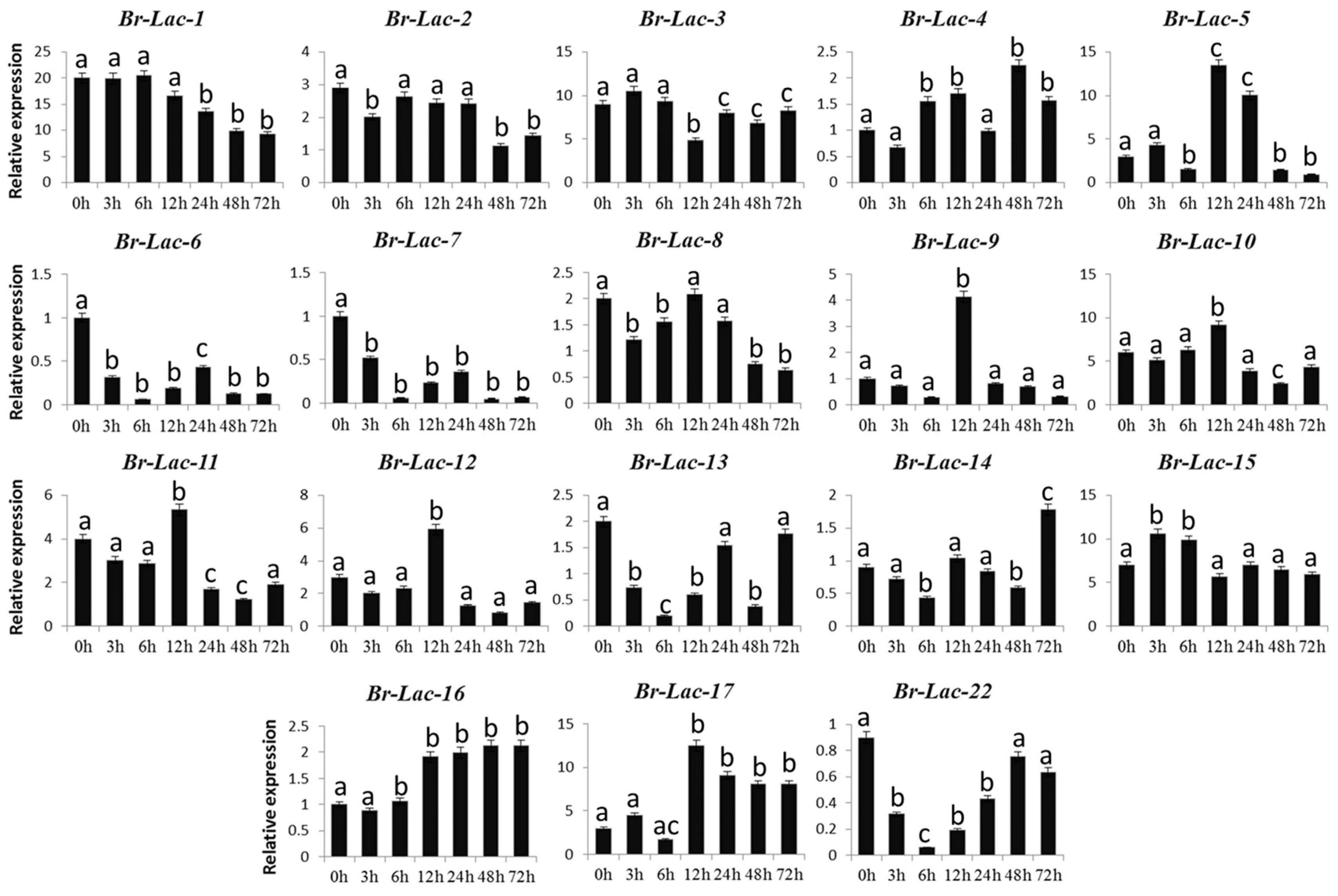

Figure 6. Expression analysis of Br-Lac (LMCO) gene family members under polyethylene glycol (PEG)-induced drought stress in B. rapa. Different letters indicate significant differences, as determined by ANOVA followed by LSD and Tukey’s multiple comparison test (p < 0.05). Data are presented as mean ± SEM.
Figure 6. Expression analysis of Br-Lac (LMCO) gene family members under polyethylene glycol (PEG)-induced drought stress in B. rapa. Different letters indicate significant differences, as determined by ANOVA followed by LSD and Tukey’s multiple comparison test (p < 0.05). Data are presented as mean ± SEM.
Plants 12 01904 g006
Plants 12 01904 g007 550
Figure 7. Expression analysis of Br-Lac (LMCO) gene family members under salinity (salt) stress in B. rapa. Different letters indicate significant differences, as determined by ANOVA followed by LSD and Tukey’s multiple comparison test (p < 0.05). Data are presented as mean ± SEM.
Figure 7. Expression analysis of Br-Lac (LMCO) gene family members under salinity (salt) stress in B. rapa. Different letters indicate significant differences, as determined by ANOVA followed by LSD and Tukey’s multiple comparison test (p < 0.05). Data are presented as mean ± SEM.
Plants 12 01904 g007
Plants 12 01904 g008 550

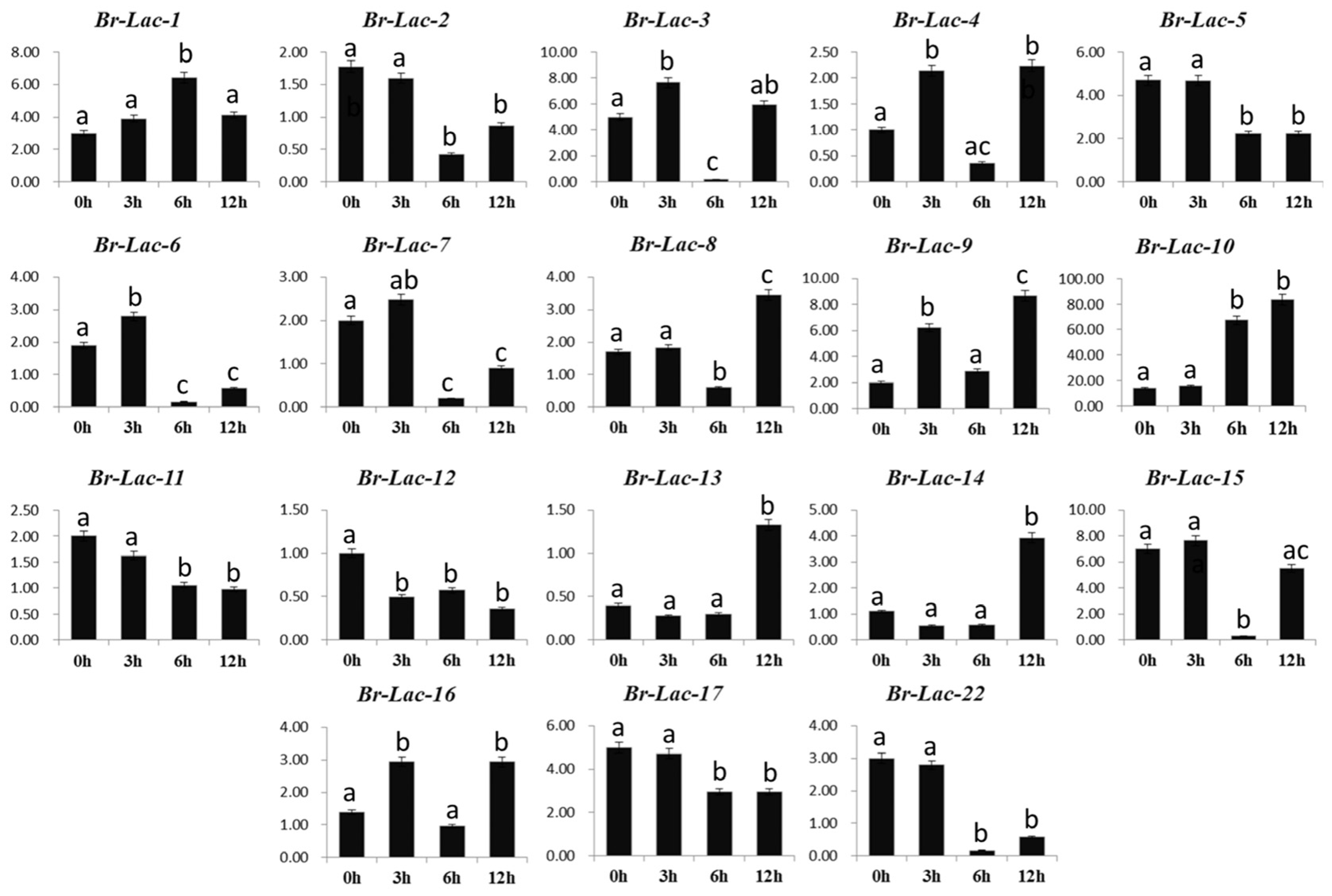

Figure 8. Expression analysis of Br-Lac (LMCO) gene family members under heat (high temperature) stress in B. rapa. Different letters indicate significant differences, as determined by ANOVA followed by LSD and Tukey’s multiple comparison test (p < 0.05). Data are presented as mean ± SEM.
Figure 8. Expression analysis of Br-Lac (LMCO) gene family members under heat (high temperature) stress in B. rapa. Different letters indicate significant differences, as determined by ANOVA followed by LSD and Tukey’s multiple comparison test (p < 0.05). Data are presented as mean ± SEM.
Plants 12 01904 g008
Table
Table 1. Characteristics of LMCO genes from B. rapa L.
Table 1. Characteristics of LMCO genes from B. rapa L.
Gene NameAccession IDChromosomeCDS Length (bp)Protein Length (aa)Molecular Weight (kDa)Isoelectric Point GRAVY Subcellular Localization
Br-LAC-1XP_009110363.1A082023579 65.13 9.12 −0.258 Chloroplast
Br-LAC-2XP_009144396.1A052284578 64.23 9.47 −0.091 Vacuole
Br-LAC-3XP_009144319.1A055873570 63.99 9.46 −0.277 Chloroplast
Br-LAC-4XP_033148764.1A052076558 61.57 9.36 −0.089 Extracellular
Br-LAC-5XP_009143220.1A058357574 63.75 8.99 −0.158 Vacuole
Br-LAC-6XP_009142428.1A042013569 63.67 7.96 −0.178 Chloroplast
Br-LAC-7XP_009146941.1A052274568 62.66 8.94 0.015 Chloroplast
Br-LAC-8XP_033142360.1A035279586 65.25 7.29 −0.056 Cytoplasmic
Br-LAC-9XP_009132200.3A032538582 64.81 6.07 −0.05 Chloroplast
Br-LAC-10XP_009125430.1A027379559 61.23 9.49 −0.034 Chloroplast
Br-LAC-11XP_009125488.1A022126560 62.05 8.63 −0.069 Extracellular
Br-LAC-12XP_009125599.1A028316565 62.65 9.52 −0.165 Chloroplast
Br-LAC-13XP_009122370.1A102223566 62.91 6.52 −0.149 Endoplasmic reticulum
Br-LAC-14XP_009122510.1A102830580 65.76 9.73 −0.301 Chloroplast
Br-LAC-15XP_009129702.1A023080559 63.49 9.15 −0.208 Vacuole
Br-LAC-16XP_009120399.1A104954565 62.52 9.15 −0.052 Chloroplast
Br-LAC-17XP_009131958.1A032101573 63.67 9.18 −0.15 Chloroplast
Br-LAC-22XP_009146739.1A052760560 61.82 8.47 −0.079 Chloroplast
Table
Table 2. Non-synonymous (Ka) and synonymous (Ks) substitution rate and divergence time of LMCO genes.
Table 2. Non-synonymous (Ka) and synonymous (Ks) substitution rate and divergence time of LMCO genes.
Node NumberGene PairsKaKsKa/Ks RatioTime (MYA)
1(Br-Lac-1)-(Br-Lac-6)0.2240.5330.42017.770
2(Br-Lac-17)-(Br-Lac-2)0.1040.5500.18818.338
4(Br-Lac-16)-(Br-Lac-4)0.0780.4120.19013.728
5(Br-Lac-22)-(Br-Lac-11)0.1290.4180.30913.932
8(Br-Lac-7)-(Br-Lac-10)0.1820.4460.40814.882
9(Br-Lac-9)-(Br-Lac-8)0.0250.1180.21339.250
10(Br-Lac-15)-(Br-Lac-14)0.1670.4040.41513.455
13(Br-Lac-12)-(Br-Lac-5)0.0650.3710.17612.365
14(Br-Lac-13)-(Br-Lac-3)0.0760.3960.19113.183
Ks = synonymous substitution rate, Ka = non-synonymous substitution rate, MYA = million years ago. Using a divergence rate of 1.5 × 10−9 mutations per synonymous site per year.
Table
Table 3. Secondary structure of 18 Br-Lac proteins.
Table 3. Secondary structure of 18 Br-Lac proteins.
GenesH (%)T (%)E (%)RC (%)
Br-Lac-114.88 11.59 33.39 40.14
Br-Lac-2 14.71 10.21 31.14 43.94
Br-Lac-3 16.84 10.88 28.77 43.51
Br-Lac-4 16.49 10.39 32.62 40.5
Br-Lac-5 18.82 9.41 30.84 40.94
Br-Lac-6 18.28 8.79 30.4 42.53
Br-Lac-7 18.84 11.09 28.87 41.2
Br-Lac-8 18.09 9.04 30.72 42.15
Br-Lac-9 12.2 9.11 32.99 45.7
Br-Lac-10 21.11 11.45 30.77 36.67
Br-Lac-11 14.11 10.71 33.75 41.43
Br-Lac-12 15.22 8.67 31.5 44.6
Br-Lac-13 15.72 9.19 31.8 43.29
Br-Lac-14 18.1 11.03 31.55 39.31
Br-Lac-15 14.49 9.3 30.77 45.44
Br-Lac-16 16.46 10.27 30.09 43.19
Br-Lac-17 15.71 8.55 30.54 45.2
Br-Lac-22 20.89 9.82 29.46 39.82
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Khan, W.; El-Shehawi, A.M.; Ali, F.; Ali, M.; Alqurashi, M.; Althaqafi, M.M.; Alharthi, S.B. A Genome-Wide Identification and Expression Pattern of LMCO Gene Family from Turnip (Brassica rapa L.) under Various Abiotic Stresses. Plants 2023, 12, 1904. https://doi.org/10.3390/plants12091904

AMA Style

Khan W, El-Shehawi AM, Ali F, Ali M, Alqurashi M, Althaqafi MM, Alharthi SB. A Genome-Wide Identification and Expression Pattern of LMCO Gene Family from Turnip (Brassica rapa L.) under Various Abiotic Stresses. Plants. 2023; 12(9):1904. https://doi.org/10.3390/plants12091904

Chicago/Turabian Style

Khan, Waqar, Ahmed M. El-Shehawi, Fayaz Ali, Murad Ali, Mohammed Alqurashi, Mohammed M. Althaqafi, and Siraj B. Alharthi. 2023. "A Genome-Wide Identification and Expression Pattern of LMCO Gene Family from Turnip (Brassica rapa L.) under Various Abiotic Stresses" Plants 12, no. 9: 1904. https://doi.org/10.3390/plants12091904

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
