Genome-Wide Identification and Characterization of Long Non-Coding RNAs in Roots of Rice Seedlings under Nitrogen Deficiency

by
Dongfeng Qiu
1,2,†,
Yan Wu
2,†,
Kuaifei Xia
3,
Mingyong Zhang
3,
Zaijun Zhang
2,* and
Zhihong Tian
1,*
1
Engineering Research Center of Ecology and Agricultural Use of Wetland, Ministry of Education, Hubei Key Laboratory of Waterlogging Disaster and Agricultural Use of Wetland, College of Life Science, Yangtze University, Jingzhou 434025, China
2
Key Laboratory of Crop Molecular Breeding, Ministry of Agriculture and Rural Affairs, Hubei Key Laboratory of Food Crop Germplasm and Genetic Improvement, Institute of Food Crops, Hubei Academy of Agricultural Sciences, Wuhan 430064, China
3
Key Laboratory of South China Agricultural Plant Molecular Analysis and Genetic Improvement, Guangdong Provincial Key Laboratory of Applied Botany, South China Botanical Garden, Chinese Academy of Sciences, Guangzhou 510650, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(23), 4047; https://doi.org/10.3390/plants12234047
Submission received: 16 October 2023 / Revised: 21 November 2023 / Accepted: 28 November 2023 / Published: 30 November 2023
(This article belongs to the Section Plant Genetics, Genomics and Biotechnology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Long non-coding RNAs (lncRNAs) regulate gene expression in eukaryotic organisms. Research suggests that lncRNAs may be involved in the regulation of nitrogen use efficiency in plants. In this study, we identified 1628 lncRNAs based on the transcriptomic sequencing of rice roots under low-nitrogen (LN) treatment through the implementation of an integrated bioinformatics pipeline. After 4 h of LN treatment, 50 lncRNAs and 373 mRNAs were significantly upregulated, and 17 lncRNAs and 578 mRNAs were significantly downregulated. After 48 h LN treatment, 43 lncRNAs and 536 mRNAs were significantly upregulated, and 42 lncRNAs and 947 mRNAs were significantly downregulated. Moreover, the interaction network among the identified lncRNAs and mRNAs was investigated and one of the LN-induced lncRNAs (lncRNA24320.6) was further characterized. lncRNA24320.6 was demonstrated to positively regulate the expression of a flavonoid 3′-hydroxylase 5 gene (OsF3′H5). The overexpression of lncRNA24320.6 was shown to improve nitrogen absorption and promote growth in rice seedlings under LN conditions. Our results provide valuable insights into the roles of lncRNAs in the rice response to nitrogen starvation.

1. Introduction

Rice is the main source of calories for more than 3.5 billion people [1]. Between 2020 and 2035, the global demand for rice is expected to rise from 763 million tons to 852 million tons, necessitating increased production. Nitrogen (N) is a crucial macronutrient for plants, and its availability is a major factor in determining plant growth and production [2]. In fact, N availability is often the major factor limiting crop yields in nutrient-poor soils [3]. The application of N fertilizer has significantly enhanced agricultural yields and helped global food security, but it has also led to significant environmental issues such as soil acidity and water eutrophication. It is therefore vitally important to improve crop nitrogen-use efficiency (NUE) in order to achieve high yields with low N inputs. Unfortunately, modern breeding programs have often focused on obtaining high yields with high N inputs, resulting in the prevalence of low-NUE cultivars [4]. There have been a considerable number of phenotypic and physiological studies of the plant response to low soil N, but many fewer studies have focused on the associated signaling pathways, molecular mechanisms, and genetic regulation.
Nitrogen deficiency leads to global changes in RNA expression, and genome-wide transcriptomic analyses have been used to broadly identify a variety of stress-responsive noncoding RNAs (ncRNAs) [5]. Long noncoding RNAs (lncRNAs) are defined as noncoding RNAs greater than 200 nucleotides (nt) in length but lacking protein-coding ability [6,7]. lncRNAs can be further subdivided into long intronic ncRNAs (incRNAs) and long intergenic ncRNAs (lincRNAs) based on their genomic position. Although many lncRNAs have been identified, few have been functionally characterized due to their low expression and poor sequence conservation [8]. However, lncRNAs have been found to affect plant development as well as abiotic and biotic stress response [9,10]. For example, the lncRNA IPS1 is responsive to N and phosphorus (P) starvation [11]. lncRNAs act through an array of mechanisms, including by regulating gene transcription and expression at both the epigenetic and transcriptional levels. Specifically, lncRNAs exhibit cis effects by regulating the expression of local and downstream genes by modulating chromatin conformation, as well as trans effects by regulating the expression of distant genes by interacting with RNA, DNA, or proteins [10,12]. Finally, lncRNAs can act as endogenous target mimics (eTMs) of miRNA to inhibit miRNA accumulation in the cytoplasm, thereby enhancing the expression of miRNA targets at the post-transcriptional level [13,14].
Here, a genome-wide analysis was conducted to detect and identify lncRNAs in rice roots under low N stress. In total, 1638 lncRNA candidates were identified, including 181 (92 repressed and 89 induced) lncRNAs specifically responsive to low N stress. The interaction network between lncRNAs, miRNAs, and mRNAs was also investigated. The lncRNA lncRNA24320.6 was demonstrated to regulate the expression of a putative flavonoid 3′-hydroxylase 5 gene (OsF3′H5, LOC_Os09g08920). The overexpression of lncRNA24320.6 was found to improve N absorption and growth in N-deficient rice seedlings. Overall, our investigation revealed that lncRNAs are important for rice’s reaction to low-nitrogen stress. This finding will encourage future study into the molecular mechanisms of lncRNAs and associated miRNA pathways that underlie rice’s reaction to nutritional deficiency.

2. Results

2.1. Genome-Wide Identification of lncRNAs in Rice

Strand-specific RNA-seq (ssRNA-Seq) was used to systematically identify lncRNAs responsive to N starvation in rice roots. Specifically, 2-week-old rice seedlings were subjected to N-deficient conditions and their roots were harvested for ssRNA-Seq (Figure 1A). In total, nine samples were generated, producing 42,068,756–59,595,776 clean reads (12.62–17.88 GB clean bases) with a Q30 of 92.07–93.36% and similar GC contents (50.10–52.69%) (Table S1). The overall alignment efficiency between reads of each sample and the reference genome ranged from 69.67% to 88.32% (Table S2). These results indicate that our RNA-seq data was of sufficiently high quality for subsequent analyses.
Based on the alignment results, variable splicing prediction analysis, and gene structure optimization analysis, 32,767 genes were identified, including 4190 new genes (Figure 1B). Following the combined CNCI (Coding–Non-Coding Index), CPC (Coding Potential Calculator), Pfam (Protein family) and CPAT (Coding Potential Assessment Tool) analysis, 1638 lncRNAs were identified (Figure 2A and Figure S1). Of these lncRNAs, intergenic lncRNAs (lincRNAs) were the most prevalent (81.6%), followed by anti-sense lncRNAs (9.7%), intronic lncRNAs (6.8%), and sense lncRNAs (2%) (Figure 2B).
To further compare differences in sequence structure between lncRNAs and mRNAs, we analyzed their transcript length, exon number, and open reading frame (ORF) length (Figure 2C–E). Our findings suggest that lncRNAs generally exhibit shorter sequence lengths (ranging from 200 to 1000 bp), whereas mRNA sequences are longer (ranging up to 3000 bp) (Figure 2C). In addition, the majority of lncRNAs consist of two or three exons, whereas mRNAs exhibit a wider distribution of exon numbers (Figure 2D). More than 90% of lncRNAs had an ORF length of ≤200 nt, while 40% of mRNAs had an ORF length of ≥200 nt (Figure 2E). Furthermore, mRNAs were more highly expressed (FPKM = 20.32) on average than lncRNAs (FPKM = 15.06) (Figure 2F). Interestingly, we also found that mRNAs generally have many more isoforms than lncRNAs (Figure 2G).

2.2. Identification and Functional Annotation of Differentially Expressed lncRNAs Involved in Nitrogen Starvation

There were more DE mRNAs and lncRNAs after 48 h of N starvation than after 4 h of N starvation (Figure 3A–C). After 4 h of N starvation, 50 lncRNAs and 373 mRNAs were significantly upregulated, while 17 lncRNAs and 578 mRNAs were downregulated (Figure 3A). After 48 h of N starvation, 43 lncRNAs and 536 mRNAs were significantly upregulated, while 42 lncRNAs and 947 mRNAs were downregulated (Figure 3B and Tables S3 and S4).
We further validated our results by randomly selecting eight DE lncRNAs and eight DE mRNAs for RT-qPCR analysis. Among these, three lncRNAs and four mRNAs exhibited upregulation after 4 h of N starvation, while five lncRNAs and four mRNAs exhibited downregulation. Overall, these expression levels were consistent with the sequencing results (Figure S2). Eighteen DE lncRNAs were consistent between 4 h and 48 h of N starvation (Figure 3C). The data were consistent with the sequencing results, which confirmed the results were reliable and could be used for intensive studies.
The biological functions of the detected lncRNAs were predicted in both cis- and trans-acting modes (Tables S5 and S6). Co-expression analysis was utilized to predict trans-regulated genes based on lncRNA expression levels. Proximal protein-coding genes located within a 100-kb lncRNA genomic window (co-localization) were defined as target genes for cis activity (Tables S5 and S6).
The GO enrichment analysis of cis- and trans-regulated genes showed that most target genes were related to starch and sucrose metabolism, carbon metabolism, and the MARP signaling pathway (Figure 3D,E). The KEGG pathway analysis of regulated target genes revealed that lncRNAs were involved in 120 pathways, with the majority related to biotic stress (plant–pathogen interaction), environmental information processing (plant signal transduction), and metabolism (starch and sucrose metabolism, phenylpropanoid biosynthesis) (Figure 3F,G, Tables S7 and S8).

2.3. Expression of lncRNA24320.6 Is Induced by Nitrogen Deficiency

To evaluate the functions of lncRNAs during N starvation in rice, one of the DE lncRNAs (lncRNA24320.6) was further characterized. According to the RNAseq data, lncRNA24320.6 expression was upregulated after 4 and 48 h of N starvation (Table S3). lncRNA24320.6 is predicted to originate from the 5′ UTR and 3′ UTR of LOC_Os09g08910 (ATP synthase F1 homolog), with a full length of 1226 bp (Figure 4A). According to the CPC database, lncRNA24320.6 had a coding potential score of 0.0108102, indicating that it is non-coding. In contrast, the coding potential score of LOC_Os09g08910 was 1 (Table 1).
The expression of lncRNA24320.6, as well as upstream and downstream genes within a 10 kb range, was analyzed in lncRNA24320.6-overexpressing transgenic rice plants (lncRNA24320.6-ox) (Figure 4B,C). The results showed that the expression of LOC_Os09g08920 (a putative flavonoid 3′-hydroxylase 5 gene, OsF3′H5), located 6 kb downstream of lncRNA24320.6, also significantly upregulated both, according to RNAseq and in lncRNA24320.6-ox plants (Figure 4C, Table S6). However, the expression levels of other genes did not change significantly, which is consistent with the RNAseq results (Figure 4C and Figure S3 and Table S6). Under normal conditions, the expression levels of lncRNA24320.6 and OsF3′H5 were similarly high in roots, leaf sheaths, and panicles, and very low in leaf blades (Figure 5A,B). These results were consistent with the GUS staining results of lncRNA24320.6 pro::GUS plants (Figure S3). The expression of lncRNA24320.6 and OsF3′H5 was also similarly induced by N deficiency (Figure 5C,D). These results suggest that lncRNA24320.6 positively regulates the expression of OsF3′H5 under N deficiency in rice.

2.4. lncRNA24320.6 Promotes Nitrogen Utilization under Low Nitrogen Conditions

To evaluate the role of lncRNA24320.6 in the rice N starvation response, lncRNA24320.6-ox plants were grown hydroponically under various N conditions. After two weeks of low N treatment, the N and C contents of roots and shoots were measured (Figure 6). Under normal N conditions, both lncRNA24320.6-ox and ‘ZH11′ plants exhibited similar growth patterns. After two weeks of low N (0N and 1/4N) treatment, the roots and shoots of both lncRNA24320.6-ox and ‘ZH11′ plants contained similar C content (Figure 6A,B). However, the lncRNA24320.6-ox plants contained significantly more N in roots and shoots than ‘ZH11′ plants (Figure 6C,D). Interestingly, under high N conditions (2N), the roots of lncRNA24320.6-ox and ‘ZH11′ plants exhibited similar N contents, but the shoots of lncRNA24320.6-ox plants exhibited a lower N content than the shoots of ‘ZH11′ plants (Figure 6C,D). These results indicated that lncRNA24320.6 can regulate the accumulation of nitrogen in rice roots.
The growth and agronomic characteristics of lncRNA24320.6-ox plants and ZH11 plants were evaluated in a controlled field with and without N fertilizer application (Figure 7). Under normal conditions (CK), lncRNA24320.6-ox plants were taller and had more tillers than ‘ZH11′ plants (Figure 7A,B), although the plants did not differ in either grain weight or seed setting rate (Figure 7C,D). Under low N conditions (LN), the plants did not differ in height (Figure 7A), but lncRNA24320.6-ox plants had more tillers, a higher grain weight, and a higher seed setting rate than ‘ZH11′ plants (Figure 7B–D). This result indicates that the overexpression of lncRNA24320.6 will not cause harm to rice growth, even improve both the growth and grain yield of rice under low N conditions.

3. Discussion

Considerable evidence indicates that lncRNAs are essential regulators of various biological processes in plants, including nutrient response, growth and development, and response to biotic and abiotic stresses [12]. In this study, a total of 181 DE lncRNAs were screened in rice roots under N deficiency. One of them (lncRNA24320.6) was found to regulate the expression of OsF3′H5 (LOC_Os09g08920) in response to N starvation.

3.1. Enrichment of lncRNAs in Response to Low Nitrogen Stress in Rice Roots

lncRNAs are known to play important roles in the plant response to stress, such as high salinity or pathogen infection [15,16]. Whole genome RNA sequencing (RNA-Seq) has been instrumental in the genome-wide identification of lncRNAs, including leading to the identification of 4373 lncRNAs in Arabidopsis thaliana, approximately 12,000 lncRNAs in Brassica napus, 10,761 lncRNAs in Zea mays (CANTATAdb2.0, http://cantata.amu.edu.pl/, 27 November 2023), and 2788 lncRNAs in O. sativa [17,18,19,20]. To date, several lncRNAs have also been functionally characterized. For example, in Arabidopsis a lncRNA ASCO (alternative splicing competitor) has been proven to bind to alternative splicing and play a crucial regulatory role in root development [21]. An antisense lncRNA, TCONS-00000966, was responsive to Sclerotinia sclerotiorum infection in Brassica napus [22]. The 1236 bp photoperiod-sensitive long-day-specific male fertility-associated RNA (LDMAR) controls male sterility in rice, and a sufficient amount of the LDMAR transcript is necessary for proper pollen formation under long-day circumstances [23].
In this study, 1638 lncRNAs were identified from the roots of rice seedlings (Figure 2A, Table S9). The lncRNAs generally exhibited shorter sequence lengths (ranging from 200 to 1000 bp) and fewer exons than mRNAs (Figure 2C,D). These features are generally consistent with previous reports, such as those on rice brown planthopper (Nilaparvata lugens) and silkworm [24,25]. The number of lncRNAs identified was less than previously reported for rice, likely due to the use of only nine N-deficient root samples. We identified 50 lncRNAs and 373 mRNAs which were significantly upregulated after 4 h of N starvation, as well as 17 lncRNAs and 578 mRNAs, which were downregulated (Figure 3A). After 48 h of N starvation, 43 lncRNAs and 536 mRNAs were significantly upregulated, while 42 lncRNAs and 947 mRNAs were downregulated (Figure 3B). Our findings may provide an important lncRNA database for further exploring the regulation of NUE via lncRNAs in rice.

3.2. A Few Pairs of DE lncRNAs and mRNAs May Influence NUE of Rice Roots

Co-expression network analysis can uncover lncRNA and mRNA interactions, which is essential to functionally characterize lncRNAs. lncRNAs enact the cis-regulation of their neighboring protein coding genes [26]. In our study, we identified 1638 co-expressed lncRNA and mRNA transcripts (Table S5), including a few genes known to influence NUE. For example, AMT3.1 (Os02g0550800), OsPTR17 (Os01g0902700), and NRT2.4 (Os01g0547600) were upregulated in response to N deficiency, consistent with the results of Shin. [23]. Based on these data, we identified two pairs of DE lncRNAs and mRNAs, which may influence the NUE of rice roots. lncRNA MSTRG.12144.19 was able to positively regulate the expression of OsNRT2.3a (LOC_Os01g50820), which plays a key role in long-distance nitrate transport from root to shoot at low nitrate supply levels in rice [27]. Another lncRNA, MSTRG.4764.4, targets a member of the plant NITRATE TRANSPORTER 1/PEPTIDE TRANSPORTER (NRT1/PTR) family (LOC4338779), and existing research has proved that these plant proteins transport a wide variety of substrates: nitrate, peptides, amino acids, dicarboxylates, glucosinolates, IAA, and ABA [28].
The identification of 181 N deficiency-responsive DE lncRNA genes in rice roots suggests that lncRNAs might play key roles in the rice response to N starvation (Table S3). Our results indicated that lncRNA24320.6 is inducible under low N conditions and plays an important role in N absorption. lncRNA24320.6 is predicted to originate from the 5′ UTR and 3′ UTR of LOC_Os09g08910 (ATP synthase F1 homolog), with a full length of 1226 bp (Figure 4A). The overexpression of lncRNA24320.6 improved both the growth and grain yield of rice under low N conditions (Figure 6 and Figure 7), and lncRNA24320.6 may positively regulate the expression of OsF3′H5 (LOC_Os09g08920) (Figure 4 and Figure 5). OsF3′H5 is predicted to encode a putative flavonoid 3′-hydroxylase 5, which is an important enzyme in determining the B-ring hydroxylation pattern of flavonoids in rice [29]. Two flavonoid 3′-hydroxylase (CYP93G1 and CYP93G2) are involved in tricin biosynthesis and affects lignification [30]. In rice leaves, nitrate deficiency can increase lignin biosynthesis and flavonoid metabolism [31]. Therefore, the lncRNA24320.6-OsF3′H5 regulatory module may affect rice leaf lignification under N deficiency, so that normal plant growth can be maintained under low nitrogen conditions.

4. Conclusions

Long non-coding RNAs (lncRNAs) play an important role in the regulation of nitrogen use efficiency in plants. In this study, we identified lncRNAs and miRNAs based on the transcriptomic sequencing of rice roots under low-nitrogen (LN) treatment. Moreover, the interaction network among the identified lncRNAs and mRNAs was investigated and one of the LN-induced lncRNAs (lncRNA24320.6) was further characterized. lncRNA24320.6 was demonstrated to positively regulate the expression of a flavonoid 3′-hydroxylase 5 gene (OsF3′H5). The overexpression of lncRNA24320.6 was shown to improve nitrogen absorption and promote growth in rice seedlings under LN conditions. Our results provide valuable insights into the roles of lncRNAs in the rice response to nitrogen starvation.

5. Materials and Methods

5.1. Plant Materials and Low-Nitrogen Treatment

The seeds of ZH11 rice were soaked and germination at 37 °C. The seeds with consistent germination were grown in a solution under hydroponic conditions for four weeks [32]. The solution was matched with deionized water and refreshed every 3 days. Four-week-old seedlings were transferred to N-deficient (LN, 0.2 mM NH4NO3) or N-sufficient (NN, 1.44 mM NH4NO3) nutrients, and the roots were harvested for RNA extraction and sequencing separately at 0, 4, and 48 h after transfer (Figure 1A). The samples were immediately frozen in liquid nitrogen and stocked in −80 °C until they were used. Three independent biological replicates were used.

5.2. RNA Extraction

Total RNA was isolated using a RNAiso Plus kit (TaKaRa, Takara Bio Inc., Dalian, Liaoning, China), according to the manufacturer’s instructions. RNA degradation and contamination were checked using 1% agarose gels. RNA concentration and purity were evaluated using a NanoDrop 2000 Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA).

5.3. Library Preparation

Library preparation and sequencing were performed by Biomarker Technologies Co. Ltd. (Beijing, China). Sequencing libraries were generated using an NEB Next Ultra Directional RNA Library Prep Kit for Illumina (New England Biolabs, Beijing, China), with index codes added to attribute sequences to each sample. Library quality was assessed using an Agilent Bioanalyzer 2100 (Agilent, Berlin, Germany) and qPCR(Roche, Basel, Switzerland).

5.4. Clustering and Sequencing

The clustering of the index-coded samples was performed on a cBot Cluster Generation System using a TruSeq PE Cluster Kitv3-cBot-HS (Illumina, San Diego, CA, USA, https://www.illumina.com.cn/, 27 November 2023). Following cluster generation, library preparations were sequenced on an Illumina platform and reads were generated.

5.5. Quality Control

Raw data in fastq format were first processed using in-house keep scripts. During this step, clean data were obtained by removing reads containing adapters and poly-N, as well as low-quality reads. The Q20, Q30, GC-content, and sequence duplication level of the clean data were also calculated. All downstream analyses were based on high-quality clean data.

5.6. Identification of lncRNAs and mRNAs

The transcriptome was assembled from clean reads using StringTie [33]. The Oryza sativa reference genome from NCBI was used for sequence alignment and subsequent analyses. Gffcompare program was used to annotate assembled transcripts. The reads with either a perfect match or one mismatch were analyzed and annotated. A flowchart of the HISAT2 StringTie analysis is shown in Figure S4. Four computational approaches, CPC (Coding Potential Calculator), CNCI (Coding–Non-Coding Index), Pfam (Protein family) and CPAT (Coding Potential Assessment Tool) were combined to screen for putative lncRNAs,. Transcripts with lengths greater than 200 nt and with more than two exons were selected as candidate lncRNAs [34,35]. All lncRNAs were distinguished using cuffcompare.

5.7. Identification of Differentially Expressed lncRNAs and mRNAs

lncRNAs and mRNAs expression was calculated according to the Fragments Per Kilobase of transcript per Million fragments mapped (FPKM) by StringTie (1.3.1) [36]. Differential expression (DE) analysis was performed using DESeq and edgeR [37,38]. Genes with an absolute value of log2 (fold change) ≥ 1 and an adjusted p-value < 0.05 were defined as DE. The p-value was calculated using the Benjamini and Hochberg approach.

5.8. Target Gene Prediction and Functional Enrichment Analysis

The predicted target genes of the lncRNAs were classified into cis- and trans-acting groups based on their regulatory patterns [39]. Perl script was used to identify potential cis target genes with the threshold of 100 kb upstream or downstream of lncRNAs [40]. In addition, trans target genes were identified by measuring the correlation between the expression levels of lncRNAs and mRNAs. Pearson’s correlation coefficient was used to evaluate the relevance of expression (|r| > 0.9 and p < 0.01) [40]. To functionally characterize target genes, we performed Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses by referencing the GO database (http://geneontology.org/, 27 November 2023) and KEGG pathway database (https://www.kegg.jp/, 27 November 2023), respectively.

5.9. Validation by Quantitative Real-Time PCR (qRT-PCR)

Total RNA was collected from the roots of rice seedlings with RNAiso plus kit (Takara, Takara Bio Inc., Dalian, China). Reverse transcription and qRT-PCR amplification were performed as previously described [41]. The rice e-EF-1α gene was used as an internal control, and the expression of differentially expressed lncRNAs were calculated using the 2−ΔΔCt method [42]. Each experiment consisted of three biological and three technical replicates. All primers are listed in Table S10.

5.10. Construction of Transgenic Rice Overexpressing lncRNA24320.6 and Pro-lncRNA24320.6::GUS

To generate the lncRNA24320.6 overexpression vector (lnc24320.6-ox), its full-length cDNA was amplified from leaves of ‘ZH11′ rice and was subcloned into the pXU1301 vector by using HindIII and BamHI sites downstream of the Ubi promoter. To generate the pro-lncRNA24320.6::GUS vector, approximately 2000 bp of genomic DNA sequence upstream of lncRNA2432.6 was subcloned into pCambia1301 using the AflII and BglII restriction sites. These vectors were introduced into Agrobacterium tumefaciens strain ‘EHA105′, and then ‘ZH11′ rice was subjected to Agrobacterium-mediated transformation using 50 mg/L hygromycin to select transgenic calli. More than ten individual homozygous or heterozygous plants were obtained, and two homozygous lines were selected for further experiments.

5.11. Phenotypic Evaluation

The homozygote generation of both transgenic (T3 and T4) and control rice plants (ZH11) were planted in the field at South China Botanical Garden, CAS, Xingke Road, Tianhe District, Guangzhou, China. The field experiment followed a randomized block design with two N levels (+N, 150 kg/ha N fertilizer; 1/2 N, 75 kg/ha N fertilizer). Under both conditions, both P and potassium (K) fertilizers were applied at a rate of 100 kg/ha. Total P and K, and 60% of N, fertilizers were applied by top-dressing prior to transplantation, and the remaining 40% of N was applied at the tillering stage. At least twenty-four plants of each line were used for phenotype analysis. Three biological replications were used, and every plant was placed randomly. Plants were spaced 13.3 cm apart, and rows were 26.6 cm apart when seedlings were planted in the field. Throughout the whole growth phase, field management was carried out according to standard agronomic practices.
We evaluated root and shoot length, total N content, and total carbon (C) content under N-deficient (LN, 0.24 mM NH4NO3), N-sufficient (NN, 1.44 mM NH4NO3), and N-excessive (2N, 2.88 mM NH4NO3) hydroponic conditions, as well as number of tillers, length of panicles, and 1000-seed-weight under +N and 1/2 N field conditions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12234047/s1, Figure S1: lncRNA analysis workflow; Figure S2: Validation of sequencing results using qRT-PCR. Figure S3: lncRNA24320.6::Pro GUS staining results. A: root; B: stem; C: leaf blade; D: leaf sheath at seedling stage; E: partial magnification of D; F: leaf sheath at maturity; G, H: glume before flowing and young spike; I: anthers. Figure S4: Flowchart of HISAT2 StringTie analysis. Table S1: Statistical analysis of lncRNA sequencing data from three samples with three biological replicates. Table S2: Sequence alignment results between sample sequencing data and the selected reference genome. Table S3: All DE lncRNAs. Table S4: All DE mRNAs. Table S5: Co-expression of mRNAs and lncRNAs. Table S6: Cis-regulated target genes of significantly downregulated lncRNAs. Table S7: KEGG functional annotation of trans-regulated target genes of significantly downregulated lncRNAs. Table S8: KEGG functional annotation of cis-regulated target genes of significantly downregulated lncRNAs. Table S9: lncRNA sequences. Table S10: All primers used in this study.

Author Contributions

D.Q. and Y.W. wrote the manuscript and interpreted the data. D.Q. and K.X. contributed to the analysis and interpretation of data. M.Z., Z.Z. and Z.T. designed the work and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Nature Science Foundation of China (32171933, 32372056), the Youth Project of Natural Science Foundation of Hubei Province (2022CFB747), the Youth Science Foundation Project of Hubei Academy of Agricultural Sciences (2023NKYJJ03), and funding from the Hubei Key Laboratory of Food Crop Germplasm and Genetic Improvement (2021lzjj04).

Data Availability Statement

The RNA sequencing data were deposited in the SRA database at the NCBI under accession number PRJDB16072. All other data and material analyzed in the current study are included in the manuscript and the Supplementary Information.

Acknowledgments

We thank Weijuan Xu and Zhengli Jiao for preparing the materials for RNAseq and the qRT-PCR identification of the RNAseq. We also thank Junhong Xia from Sun-yat Sen University valuable suggestions on the revision of this paper.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Bin Rahman, A.N.M.R.; Zhang, J. Trends in rice research: 2030 and beyond. Food Energy Secur. 2023, 12, e390. [Google Scholar] [CrossRef]
  2. Peinado-Torrubia, P.; Álvarez, R.; Lucas, M.; Franco-Navarro, J.D.; Durán-Gutiérrez, F.J.; Colmenero-Flores, J.M.; Rosales, M.A. Nitrogen assimilation and photorespiration become more efficient under chloride nutrition as a beneficial macronutrient. Front. Plant Sci. 2023, 13, 1058774. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, S.; Chen, A.; Xie, K.; Yang, X.; Luo, Z.; Chen, J.; Zeng, D.; Ren, Y.; Yang, C.; Wang, L.; et al. Functional analysis of the OsNPF4.5 nitrate transporter reveals a conserved mycorrhizal pathway of nitrogen in plants. Proc. Natl. Acad. Sci. USA 2020, 117, 16649–16659. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, Y.; Wang, H.; Jiang, Z.; Wang, W.; Xu, R.; Wang, Q.; Zhang, Z.; Li, A.; Liang, Y.; Ou, S.; et al. Genomic basis of geographical adaptation to soil nitrogen in rice. Nature 2021, 590, 600–605. [Google Scholar] [CrossRef] [PubMed]
  5. Wu, L.; Liu, S.; Qi, H.; Cai, H.; Xu, M. Research progress on plant long non-coding RNA. Plants 2020, 9, 408. [Google Scholar] [CrossRef]
  6. Jin, J.; Liu, J.; Wang, H.; Wong, L.; Chua, N.-H. PLncDB: Plant long non-coding RNA database. Bioinformatics 2013, 29, 1068–1071. [Google Scholar] [CrossRef]
  7. Gao, C.; Zheng, X.; Li, H.; Mlekwa, U.A.; Gao, Y.; Xiong, J. Roles of lncRNAs in Rice: Advances and Challenges. Rice Sci. 2020, 27, 384–395. [Google Scholar]
  8. Zhang, P.; Li, S.; Chen, M. Characterization and Function of Circular RNAs in Plants. Front. Mol. Biosci. 2020, 7, 91. [Google Scholar] [CrossRef]
  9. Yu, J.; Qiu, K.; Sun, W.; Yang, T.; Wu, T.; Song, T.; Zhang, J.; Yao, Y.; Tian, J. A long noncoding RNA functions in high-light-induced anthocyanin accumulation in apple by activating ethylene synthesis. Plant Physiol. 2022, 189, 66–83. [Google Scholar] [CrossRef]
  10. Xu, S.; Dong, Q.; Deng, M.; Lin, D.; Xiao, J.; Cheng, P.; Xing, L.; Niu, Y.; Gao, C.; Zhang, W.; et al. The vernalization-induced long non-coding RNA VAS functions with the transcription factor TaRF2b to promote TaVRN1 expression for flowering in hexaploid wheat. Mol. Plant 2021, 14, 1525–1538. [Google Scholar] [CrossRef]
  11. Shin, S.Y.; Jeong, J.S.; Lim, J.Y.; Kim, T.; Park, J.H.; Kim, J.-K.; Shin, C. Transcriptomic analyses of rice (Oryza sativa) genes and non-coding RNAs under nitrogen starvation using multiple omics technologies. BMC Genom. 2018, 19, 532. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, X.; Shen, J.; Xu, Q.; Dong, J.; Song, L.; Wang, W.; Shen, F. Long noncoding RNA lncRNA354 functions as a competing endogenous RNA of miR160b to regulate ARF genes in response to salt stress in upland cotton. Plant Cell Environ. 2021, 44, 3302–3321. [Google Scholar] [CrossRef]
  13. Fukuda, M.; Fujiwara, T.; Nishida, S. Roles of Non-Coding RNAs in Response to Nitrogen Availability in Plants. Int. J. Mol. Sci. 2020, 21, 8508. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, X.; Dong, J.; Deng, F.; Wang, W.; Cheng, Y.; Song, L.; Hu, M.; Shen, J.; Xu, Q.; Shen, F. The long non-coding RNA lncRNA973 is involved in cotton response to salt stress. BMC Plant Biol. 2019, 19, 459. [Google Scholar] [CrossRef] [PubMed]
  15. Magar, N.D.; Shah, P.; Barbadikar, K.M.; Bosamia, T.C.; Madhav, M.S.; Mangrauthia, S.K.; Pandey, M.K.; Sharma, S.; Shanker, A.K.; Neeraja, C.N.; et al. Long non-coding RNA-mediated epigenetic response for abiotic stress tolerance in plants. Plant Physiol. Biochem. 2023, 108165. [Google Scholar] [CrossRef]
  16. Shirahama, S.; Miki, A.; Kaburaki, T.; Akimitsu, N. Long non-coding RNAs involved in pathogenic infection. Front. Genet. 2020, 11, 454. [Google Scholar] [CrossRef] [PubMed]
  17. Jampala, P.; Garhewal, A.; Lodha, M. Functions of long non-coding RNA in Arabidopsis thaliana. Plant Signal. Behav. 2021, 16, 1925440. [Google Scholar] [CrossRef]
  18. Ahmed, W.; Xia, Y.; Li, R.; Bai, G.; Siddique, K.H.; Guo, P. Non-coding RNAs: Functional roles in the regulation of stress response in Brassica crops. Genomics 2020, 112, 1419–1424. [Google Scholar] [CrossRef]
  19. Yu, H.; Shen, Z.-A.; Zhou, Y.-K.; Du, P.-F. Recent advances in predicting protein-lncRNA interactions using machine learning methods. Curr. Gene Ther. 2022, 22, 228–244. [Google Scholar]
  20. Khan, I.; Khan, S.; Akhoundian, M.; Shah, D.; Shah, S.S.; Jan, S.A. Biogenesis of Non-coding RNAs (ncRNAs) and Their Biological Role in Rice (Oryza sativa L.). Plant Mol. Biol. Report. 2023, 41, 333–344. [Google Scholar] [CrossRef]
  21. Bardou, F.; Ariel, F.; Simpson, C.G.; Romero-Barrios, N.; Laporte, P.; Balzergue, S.; Brown, J.W.S.; Crespi, M. Long noncoding RNA modulates alternative splicing regulators in Arabidopsis. Dev. Cell 2014, 30, 166–176. [Google Scholar] [CrossRef]
  22. Joshi, R.K.; Megha, S.; Basu, U.; Rahman, M.H.; Kav, N.N. Genome wide identification and functional prediction of long non-coding RNAs responsive to Sclerotinia sclerotiorum infection in Brassica napus. PLoS ONE 2016, 11, e0158784. [Google Scholar] [CrossRef]
  23. Ding, J.; Lu, Q.; Ouyang, Y.; Mao, H.; Zhang, P.; Yao, J.; Xu, C.; Li, X.; Xiao, J.; Zhang, Q. A long noncoding RNA regulates photoperiod-sensitive male sterility, an essential component of hybrid rice. Proc. Natl. Acad. Sci. USA 2012, 109, 2654–2659. [Google Scholar] [CrossRef] [PubMed]
  24. Zha, W.; Li, S.; Xu, H.; Chen, J.; Liu, K.; Li, P.; Yang, G.; Chen, Z.; Shi, S.; Zhou, L.; et al. Genome-wide identification of long non-coding (lncRNA) in Nilaparvata lugens’s adaptability to resistant rice. PeerJ 2022, 10, e13587. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, Y.; Cheng, T.; Liu, C.; Liu, D.; Zhang, Q.; Long, R.; Zhao, P.; Xia, Q. Systematic identification and characterization of long non-coding RNAs in the Silkworm, Bombyx mori. PLoS ONE 2016, 11, e0147147. [Google Scholar] [CrossRef] [PubMed]
  26. Wan, S.; Zhang, Y.; Duan, M.; Huang, L.; Wang, W.; Xu, Q.; Yang, Y.; Yu, Y. Integrated analysis of long non-coding RNAs (lncRNAs) and mRNAs reveals the regulatory role of lncRNAs associated with salt resistance in Camellia sinensis. Front. Plant Sci. 2020, 11, 218. [Google Scholar] [CrossRef] [PubMed]
  27. Fan, X.; Tang, Z.; Tan, Y.; Zhang, Y.; Luo, B.; Yang, M.; Lian, X.; Shen, Q.; Miller, A.; Xu, G. Overexpression of a pH-sensitive nitrate transporter in rice increases crop yields. Proc. Natl. Acad. Sci. USA 2016, 113, 7118–7123. [Google Scholar] [CrossRef] [PubMed]
  28. Léran, S.; Varala, K.; Boyer, J.C.; Chiurazzi, M.; Crawford, N.; Daniel-Vedele, F.; Lacombe, B. A unified nomenclature of NITRATE TRANSPORTER 1/PEPTIDE TRANSPORTER family members in plants. Trends Plant Sci. 2014, 19, 5–9. [Google Scholar] [CrossRef] [PubMed]
  29. Jia, Y.; Li, B.; Zhang, Y.; Zhang, X.; Xu, Y.; Li, C. Evolutionary dynamic analyses on monocot flavonoid 3′-hydroxylase gene family reveal evidence of plant-environment interaction. BMC Plant Biol. 2019, 19, 347. [Google Scholar] [CrossRef] [PubMed]
  30. Lam, P.Y.; Liu, H.; Lo, C. Completion of Tricin Biosynthesis Pathway in Rice: Cytochrome P450 75B4 Is a Unique Chrysoeriol 5′-Hydroxylase. Plant Physiol. 2015, 168, 1527–1536. [Google Scholar] [CrossRef]
  31. Shao, C.-H.; Qiu, C.-F.; Qian, Y.-F.; Liu, G.-R. Nitrate deficiency decreased photosynthesis and oxidation-reduction processes, but increased cellular transport, lignin biosynthesis and flavonoid metabolism revealed by RNA-Seq in Oryza sativa leaves. PLoS ONE 2020, 15, e0235975. [Google Scholar] [CrossRef] [PubMed]
  32. Yoshida, S.; Forno, D.; Cock, J. Laboratory Manual for Physiological Studies of Rice; The International Rice Research Institute: Manila, Philippines, 1976. [Google Scholar]
  33. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirement. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef] [PubMed]
  34. Kong, L.; Zhang, Y.; Ye, Z.-Q.; Liu, X.-Q.; Zhao, S.-Q.; Wei, L.; Gao, G. CPC: Assess the protein-coding potential of transcripts using sequence features and support vector machine. Nucleic Acids Res. 2007, 35, W345–W349. [Google Scholar] [CrossRef] [PubMed]
  35. Sun, L.; Luo, H.; Bu, D.; Zhao, G.; Yu, K.; Zhang, C.; Liu, Y.; Chen, R.; Zhao, Y. Utilizing sequence intrinsic composition to classify protein-coding and long non-coding transcripts. Nucleic Acids Res. 2013, 41, e166. [Google Scholar] [CrossRef] [PubMed]
  36. Pertea, M.; Kim, D.; Pertea, G.M.; Leek, J.T.; Salzberg, S.L. Transcript-level expression analysis of RNA-seq experiments with HISAT, StringTie and Ballgown. Nat. Protoc. 2016, 11, 1650–1667. [Google Scholar] [CrossRef] [PubMed]
  37. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [PubMed]
  38. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. edgeR: A Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef]
  39. Wang, X.; Fan, H.; Wang, B.; Yuan, F. Research progress on the roles of lncRNAs in plant development and stress responses. Front. Plant Sci. 2023, 14, 1138901. [Google Scholar] [CrossRef]
  40. Tian, Y.; Bai, S.; Dang, Z.; Hao, J.; Zhang, J.; Hasi, A. Genome-wide identification and characterization of long non-coding RNAs involved in fruit ripening and the climacteric in Cucumis melo. BMC Plant Biol. 2019, 19, 369. [Google Scholar] [CrossRef]
  41. Jiao, Z.; Xu, W.; Zeng, X.; Xu, X.; Zhang, M.; Xia, K. Obtusifoliol 14α-demethylase OsCYP51G1 is involved in phytosterol synthesis and affects pollen and seed development. Biochem. Biophys. Res. Commun. 2020, 529, 91–96. [Google Scholar] [CrossRef]
  42. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Plants 12 04047 g001

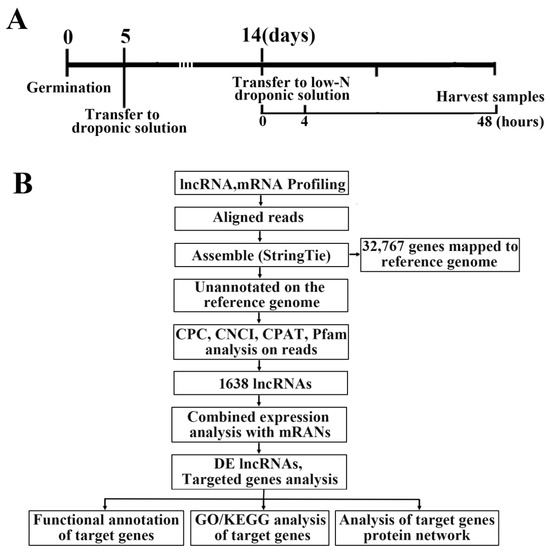

Figure 1. Identification of differentially expressed (DE) lncRNAs in rice roots under low nitrogen treatment. (A) Preparation of nitrogen-starved ‘Zhonghua 11’ (ZH11) rice seedlings for RNA sequencing. The 14-day-old rice roots were subjected to nitrogen deficiency for 4 h and 48 h prior to sampling. (B) Screening of total and DE lncRNAs.
Figure 1. Identification of differentially expressed (DE) lncRNAs in rice roots under low nitrogen treatment. (A) Preparation of nitrogen-starved ‘Zhonghua 11’ (ZH11) rice seedlings for RNA sequencing. The 14-day-old rice roots were subjected to nitrogen deficiency for 4 h and 48 h prior to sampling. (B) Screening of total and DE lncRNAs.
Plants 12 04047 g001
Plants 12 04047 g002

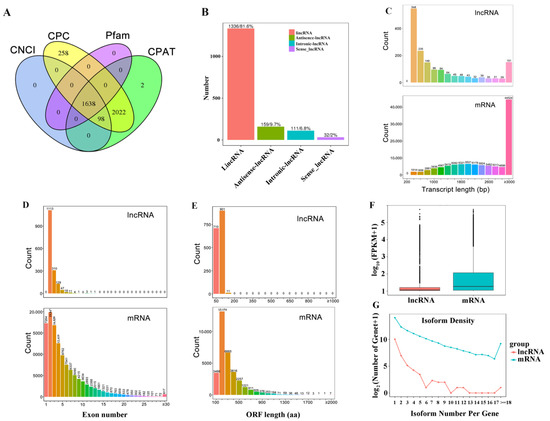

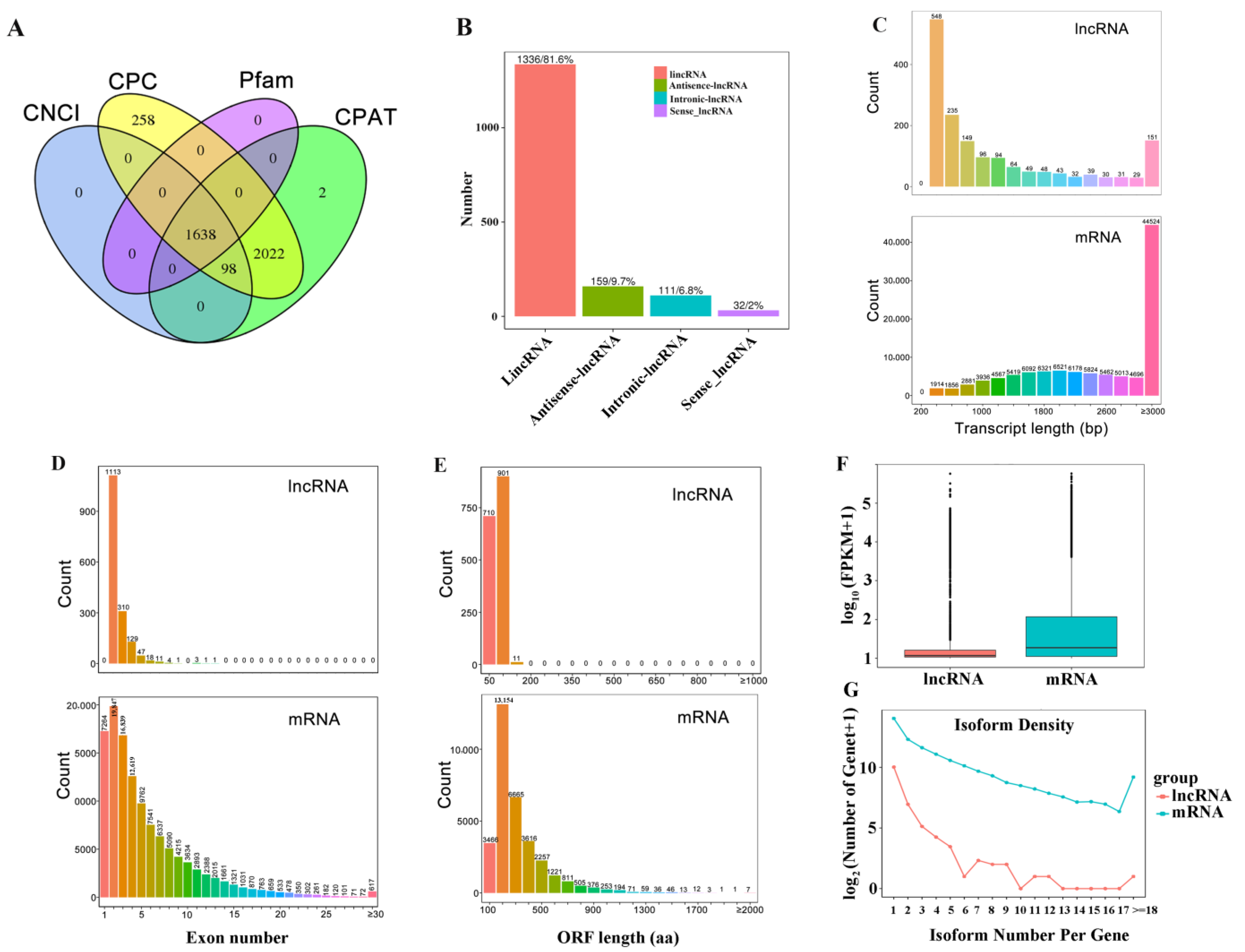

Figure 2. Identification and characterization of lncRNAs in rice seedlings. (A) Venn diagram of putative lncRNAs screened via coding potential analysis methods, including CNCI, CPC, Pfam, and CPAT. Numbers within circles represent the number of lncRNA transcripts predicted to be positive. The intersection of the four circles is taken as the prediction result. (B) lncRNA composition. lincRNA: long chain non-coding RNA in intergenic region; antisense lncRNA: antisense long chain non-coding RNA; intronic lncRNA: intronic long chain non-coding RNA; sense lncRNA: long strand non-coding RNA. (C) Comparison of lncRNA and mRNA transcript lengths. The x-axis is the length, and the y-axis is the number of lncRNAs/mRNAs whose length is distributed within the range. (D) Comparison of the number of exons between lncRNAs and mRNAs. (E) Comparison of open reading frame (ORF) lengths between lncRNAs and mRNAs. (F) Comparison of lncRNA and mRNA expression levels. The bottom of the box chart is the maximum, the upper quartile, the median, the lower quartile, and the minimum. (G) Comparison of isoform numbers per gene between lncRNAs and mRNAs. The x-axis represents the distribution of the number of variable shear isomers per gene, and the y-axis represents log2 (number of genes+1).
Figure 2. Identification and characterization of lncRNAs in rice seedlings. (A) Venn diagram of putative lncRNAs screened via coding potential analysis methods, including CNCI, CPC, Pfam, and CPAT. Numbers within circles represent the number of lncRNA transcripts predicted to be positive. The intersection of the four circles is taken as the prediction result. (B) lncRNA composition. lincRNA: long chain non-coding RNA in intergenic region; antisense lncRNA: antisense long chain non-coding RNA; intronic lncRNA: intronic long chain non-coding RNA; sense lncRNA: long strand non-coding RNA. (C) Comparison of lncRNA and mRNA transcript lengths. The x-axis is the length, and the y-axis is the number of lncRNAs/mRNAs whose length is distributed within the range. (D) Comparison of the number of exons between lncRNAs and mRNAs. (E) Comparison of open reading frame (ORF) lengths between lncRNAs and mRNAs. (F) Comparison of lncRNA and mRNA expression levels. The bottom of the box chart is the maximum, the upper quartile, the median, the lower quartile, and the minimum. (G) Comparison of isoform numbers per gene between lncRNAs and mRNAs. The x-axis represents the distribution of the number of variable shear isomers per gene, and the y-axis represents log2 (number of genes+1).
Plants 12 04047 g002
Plants 12 04047 g003

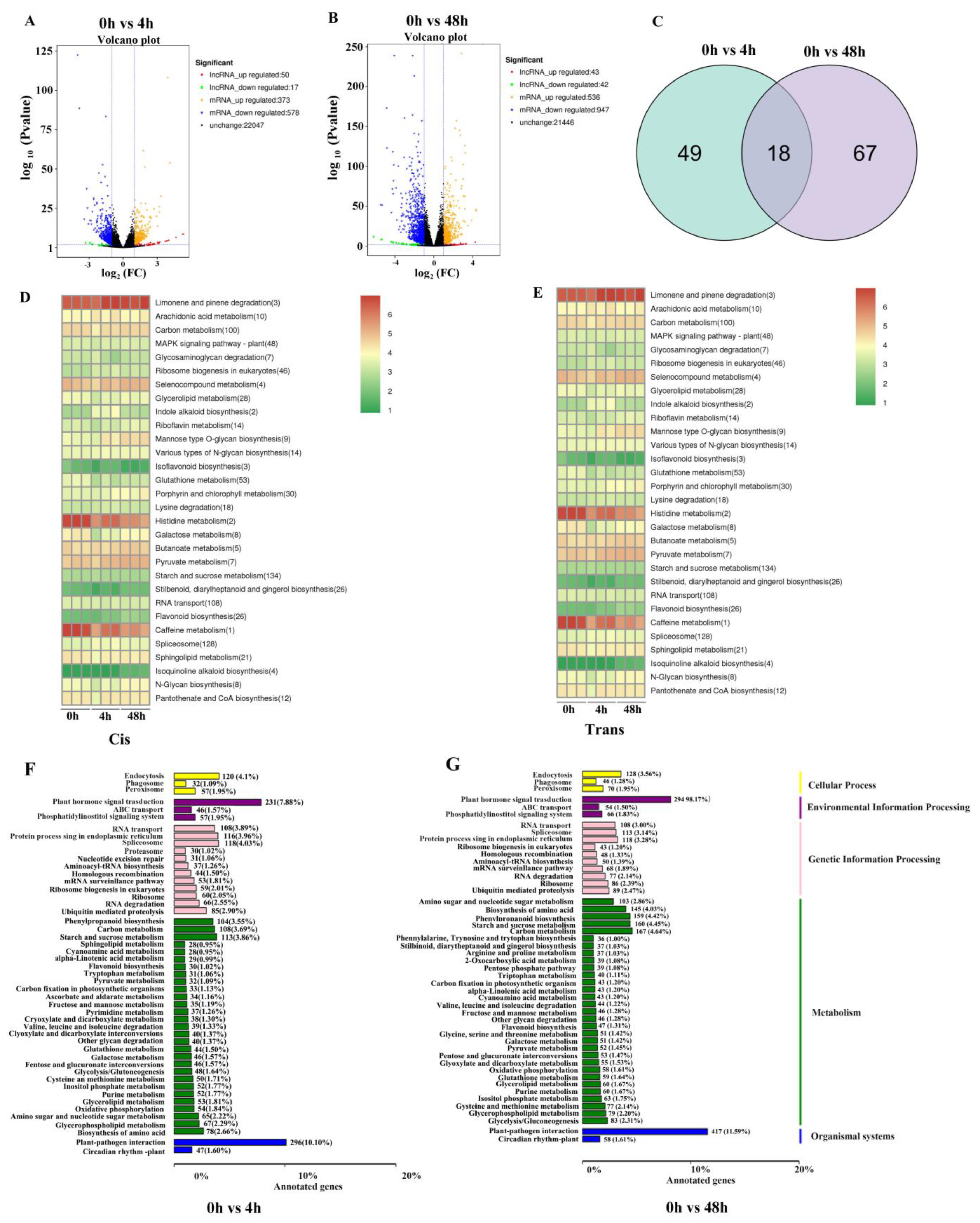

Figure 3. Differentially expressed (DE) genes and functional annotation involved in nitrogen deficiency. (A) Volcano plot of DE mRNAs and lncRNAs 4 h after nitrogen starvation. (B) Volcano plot of DE mRNAs and lncRNAs 48 h after nitrogen starvation. (C) Venn diagram of DE lncRNAs 4 h and 48 h after nitrogen starvation. (D) GO enrichment analysis of cis-regulated target genes. (E) GO enrichment analysis of trans-regulated target genes. Red represents high enrichment functional classification, and blue represents terms with relatively low enrichment. The numbers in each term label indicate the number of DE genes. (F) KEGG annotation of DE lncRNA-targeted genes 4 h after nitrogen starvation. (G) KEGG annotation of DE lncRNA-targeted genes 48 h after nitrogen starvation. The vertical axis represents the name of the KEGG metabolic pathway, and the horizontal axis represents the number of lncRNA-targeted genes annotated to this pathway and their proportion to the total number of lncRNA-targeted genes annotated.
Figure 3. Differentially expressed (DE) genes and functional annotation involved in nitrogen deficiency. (A) Volcano plot of DE mRNAs and lncRNAs 4 h after nitrogen starvation. (B) Volcano plot of DE mRNAs and lncRNAs 48 h after nitrogen starvation. (C) Venn diagram of DE lncRNAs 4 h and 48 h after nitrogen starvation. (D) GO enrichment analysis of cis-regulated target genes. (E) GO enrichment analysis of trans-regulated target genes. Red represents high enrichment functional classification, and blue represents terms with relatively low enrichment. The numbers in each term label indicate the number of DE genes. (F) KEGG annotation of DE lncRNA-targeted genes 4 h after nitrogen starvation. (G) KEGG annotation of DE lncRNA-targeted genes 48 h after nitrogen starvation. The vertical axis represents the name of the KEGG metabolic pathway, and the horizontal axis represents the number of lncRNA-targeted genes annotated to this pathway and their proportion to the total number of lncRNA-targeted genes annotated.
Plants 12 04047 g003
Plants 12 04047 g004

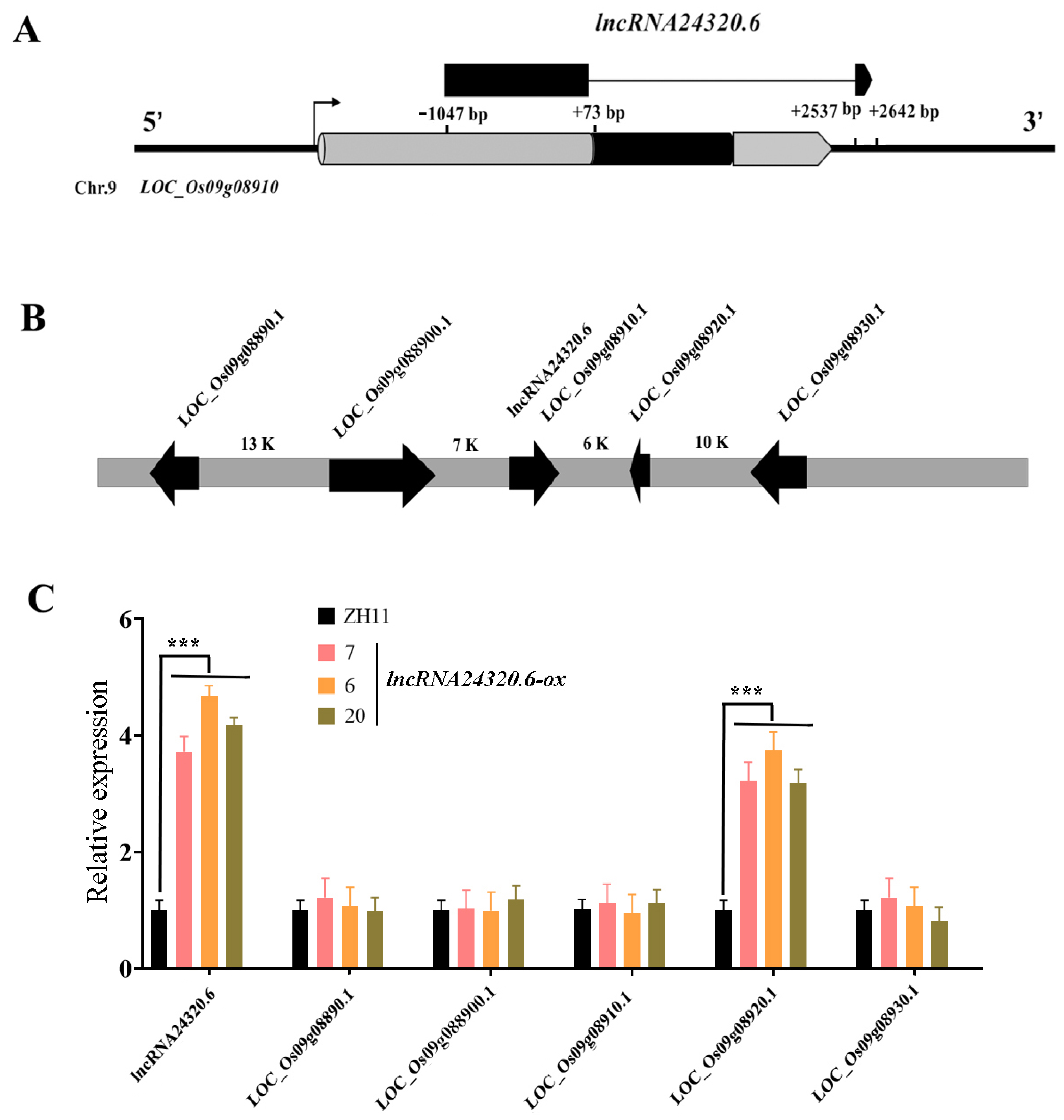

Figure 4. Location and targeted gene prediction of lncRNA24320.6. (A) Location of lncRNA24320.6. (B) Predicted genes cis-targeted by lncRNA24320.6. (C) Relative expression of lncRNA24320.6 and its predicted cis-targeted genes in lncRNA-24320.6-ox plants. The housekeeping gene eEF-1α (Os03g0178000) was used as a reference gene to normalize the relative expression. Three biological and three technical replicates were used for each experiment. *** represents p-value < 0.001.
Figure 4. Location and targeted gene prediction of lncRNA24320.6. (A) Location of lncRNA24320.6. (B) Predicted genes cis-targeted by lncRNA24320.6. (C) Relative expression of lncRNA24320.6 and its predicted cis-targeted genes in lncRNA-24320.6-ox plants. The housekeeping gene eEF-1α (Os03g0178000) was used as a reference gene to normalize the relative expression. Three biological and three technical replicates were used for each experiment. *** represents p-value < 0.001.
Plants 12 04047 g004
Plants 12 04047 g005

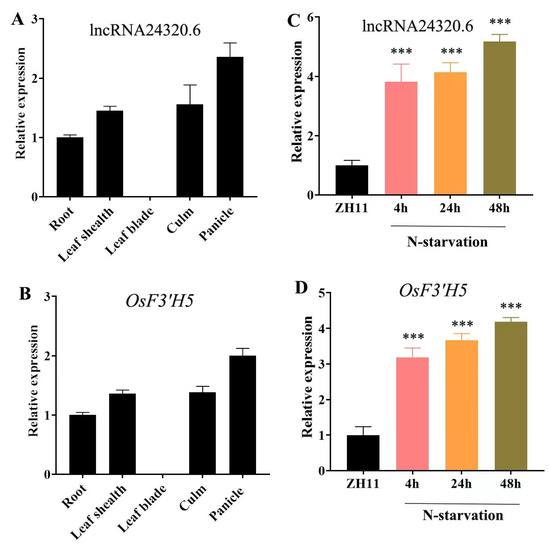

Figure 5. Expression patterns of lncRNA24320.6 and OsF3′H5. (A) Relative expression of lncRNA24320.6 in different tissues of heading rice plants. (B) Relative expression of OsF3′H5 in different tissues of heading rice plants. (C) Relative expression of lncRNA24320.6 in nitrogen-starved rice seedlings. (D) Relative expression of OsF3′H5 in nitrogen-starved rice seedlings. *** represents p-value < 0.001.
Figure 5. Expression patterns of lncRNA24320.6 and OsF3′H5. (A) Relative expression of lncRNA24320.6 in different tissues of heading rice plants. (B) Relative expression of OsF3′H5 in different tissues of heading rice plants. (C) Relative expression of lncRNA24320.6 in nitrogen-starved rice seedlings. (D) Relative expression of OsF3′H5 in nitrogen-starved rice seedlings. *** represents p-value < 0.001.
Plants 12 04047 g005
Plants 12 04047 g006

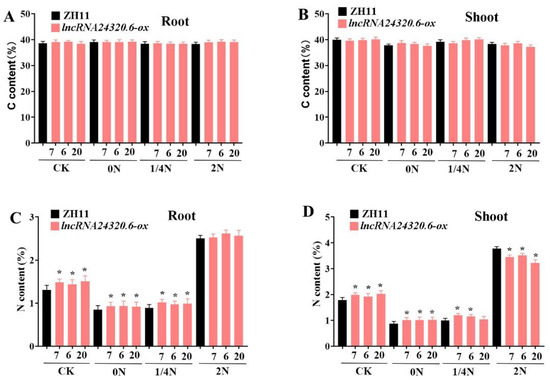

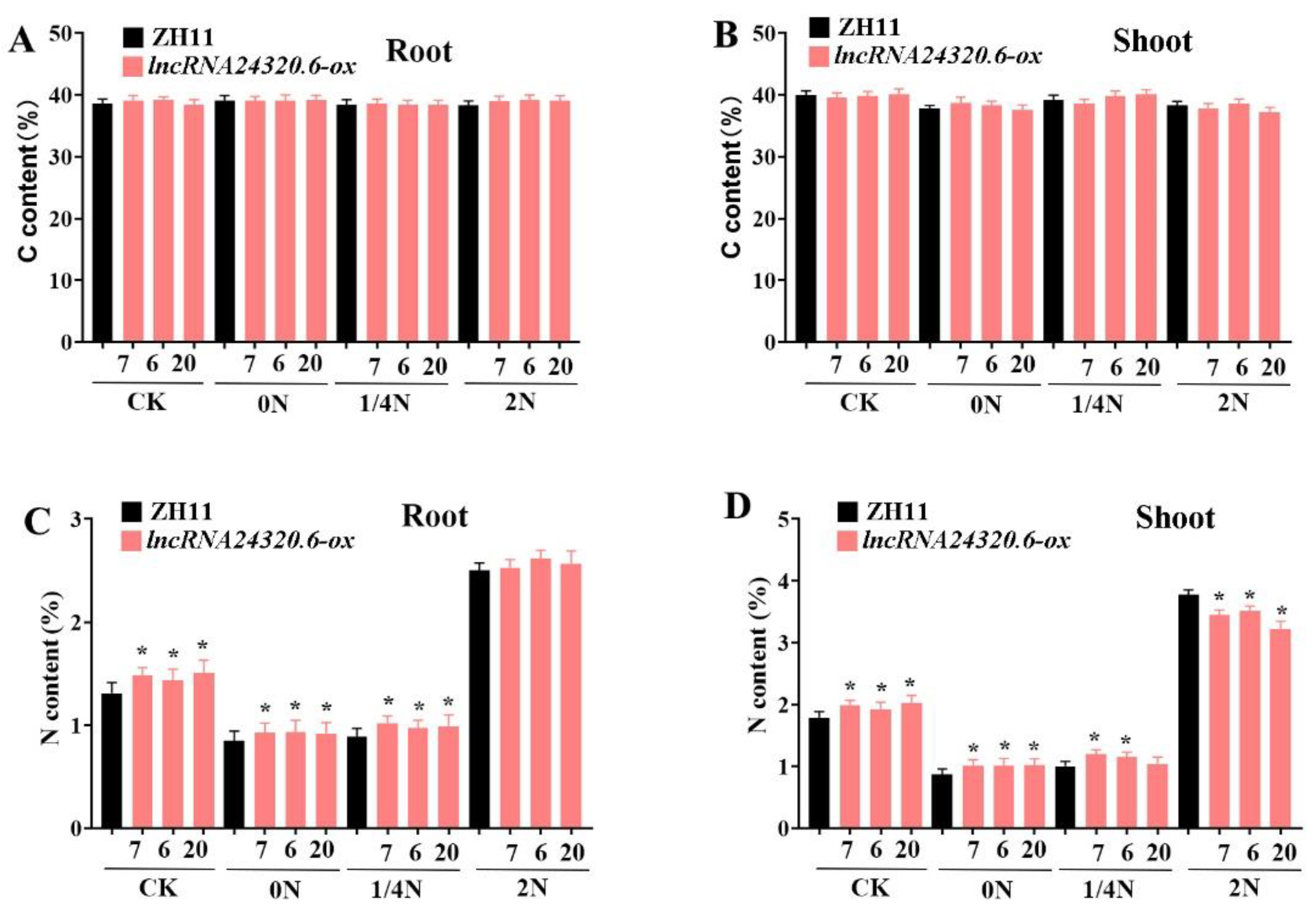

Figure 6. Total carbon and nitrogen contents in lncRNA24320.6-ox and ‘ZH11′ rice under various nitrogen conditions. (A) Total carbon content in roots. (B) Total carbon content in shoots. (C) Total nitrogen content in roots. (D) Total nitrogen content in shoots. * represents p-value < 0.05.
Figure 6. Total carbon and nitrogen contents in lncRNA24320.6-ox and ‘ZH11′ rice under various nitrogen conditions. (A) Total carbon content in roots. (B) Total carbon content in shoots. (C) Total nitrogen content in roots. (D) Total nitrogen content in shoots. * represents p-value < 0.05.
Plants 12 04047 g006
Plants 12 04047 g007

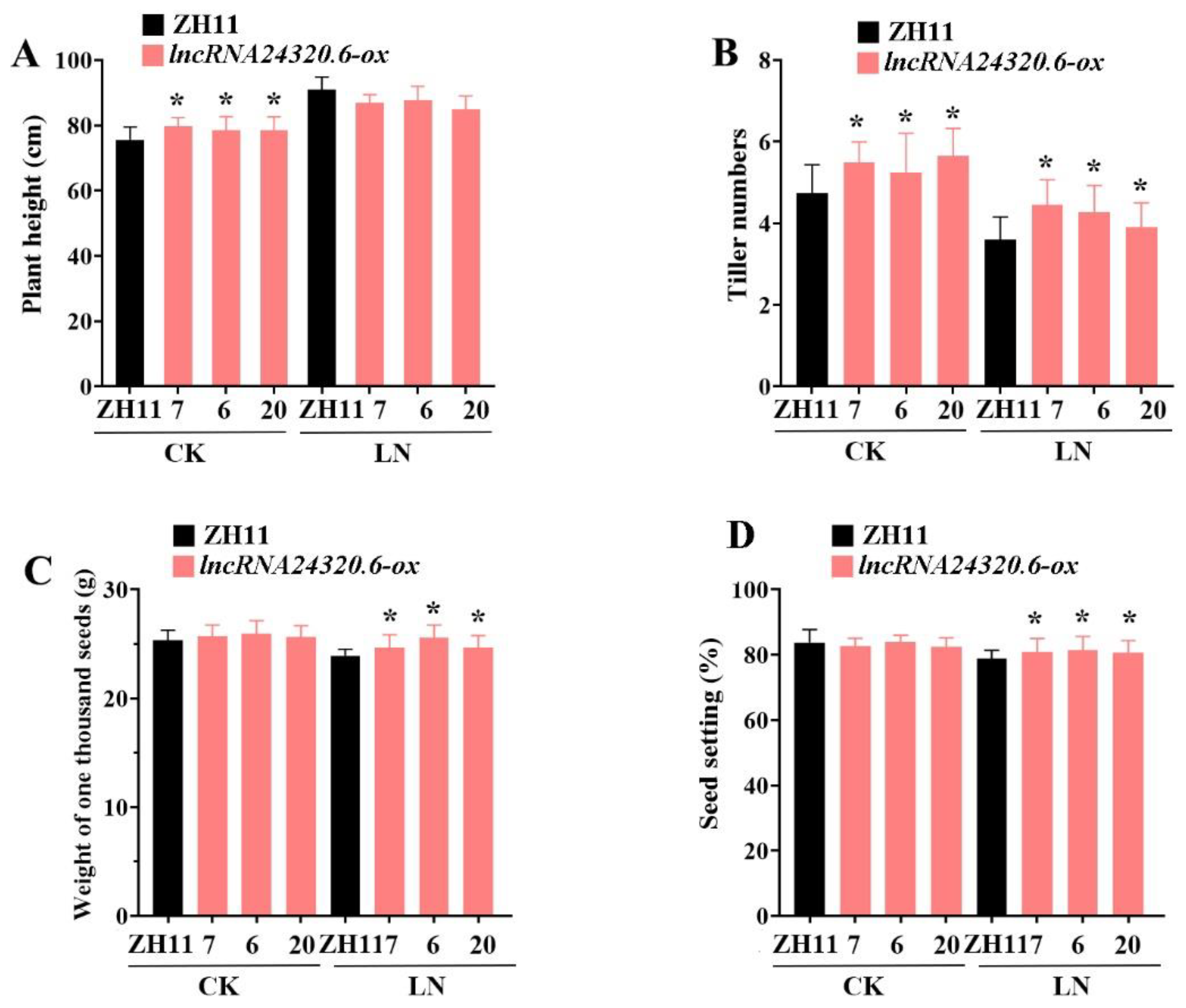

Figure 7. Agronomic traits of lncRNA24320.6-ox and ‘ZH11′ rice under normal (CK) and low nitrogen (LN) field conditions. (A) Plant height. (B) Tiller number. (C) Weight of one thousand seeds. (D) Seed setting rate. Data are the means of three biological replicates with a standard deviation (n = 30). * represents p-value < 0.05.
Figure 7. Agronomic traits of lncRNA24320.6-ox and ‘ZH11′ rice under normal (CK) and low nitrogen (LN) field conditions. (A) Plant height. (B) Tiller number. (C) Weight of one thousand seeds. (D) Seed setting rate. Data are the means of three biological replicates with a standard deviation (n = 30). * represents p-value < 0.05.
Plants 12 04047 g007
Table 1. The coding capability of lncRNA24320.6. LOC_ Os09g08910 was used as a positive control. C/NC indicates whether the coding protein is present or not. The coding potential score represents encoding capability, with a value of 1 indicating encoding ability and a value of less than 1 indicating a lack of encoding ability.
Table 1. The coding capability of lncRNA24320.6. LOC_ Os09g08910 was used as a positive control. C/NC indicates whether the coding protein is present or not. The coding potential score represents encoding capability, with a value of 1 indicating encoding ability and a value of less than 1 indicating a lack of encoding ability.
RNA NameC/NCCoding Potential Score
lncRNA24320.6Noncoding0.0108102
LOC_Os09g08910Coding1
