Article

Impact of Transgenic Cry1Ab/2Aj Maize on Abundance of Non-Target Arthropods in the Field

by
Yan Yang
1,2,†,
Yi Chen
3,4,5,†,
Jiabao Xue
1,3,4,
Yuanyuan Wang
2,
Xinyuan Song
6 and
Yunhe Li
2,*
1
Key Laboratory of Genetics and Germplasm Innovation of Tropical Special Forest Trees and Ornamental Plants, Ministry of Education, College of Forestry, Hainan University, Haikou 570228, China
2
State Key Laboratory for Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing 100193, China
3
Institute of Tropical Bioscience and Biotechnology, Chinese Academy of Tropical Agricultural Sciences, Haikou 571025, China
4
Sanya Research Institute of the Chinese Academy of Tropical Agricultural Sciences, Sanya 572022, China
5
Hainan Yazhou Bay Seed Laboratory, Sanya 572025, China
6
Agro-Biotechnology Research Institute, Jilin Academy of Agricultural Sciences, Changchun 130033, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2022, 11(19), 2520; https://doi.org/10.3390/plants11192520
Submission received: 22 August 2022 / Revised: 19 September 2022 / Accepted: 22 September 2022 / Published: 26 September 2022
(This article belongs to the Special Issue Biosafety and Ecological Assessment of Genetically Engineered and Edited Crops)
Browse Figures
Versions Notes

Abstract

:
Transgenic Bacillus thuringiensis (Bt) maize has broad prospects for application in China. Before commercialization, it is necessary to assess possible ecological impacts, including impacts on non-target arthropods (NTAs) in the field. In the present study, transgenic Bt maize expressing cry1Ab/2Aj and its corresponding non-transformed near isoline were planted under the same environmental and agricultural conditions, and arthropods in the field were collected during the three main growth stages of maize. In a one year trial, the results showed the composition of NTA communities in the transgenic and control maize fields were similar. There were no significant differences for community-level parameters of species richness (S), Shannon–Wiener diversity index (H′), evenness index (J) and Simpson’s dominant concentration (C) between the two types of maize fields. Likewise, a Bray–Curtis dissimilarity and distance analysis showed that Cry1Ab/2Aj toxin exposure did not increase community dissimilarities between Bt and non-Bt maize plots and that the structure of the NTAs community was similar on the two maize varieties. Furthermore, planting of the transgenic cry1Ab/2Aj maize did not affect the density or composition of non-target decomposers, herbivores, predators, parasitoids and pollinator guilds. In summary, our results showed that planting of Bt maize producing Cry1Ab/Cry2Aj proteins do not adversely affect population dynamics and diversity of NTAs.

1. Introduction

The past 23-year planting history (1996–2018) of genetically engineered (GE) crops have demonstrated the socioeconomic benefits of genetically engineered (GE) crops, including: (1) increased productivity and global food and feed security; (2) support for self-sufficiency in a country’s arable land; (3) protect biodiversity, prevent deforestation, and protect biodiversity reserves; (4) mitigate challenges related to climate change; and (5) improve economic, health, and social benefits [1,2]. The global area of GM crops has reached 190.4 million hectares in 2019, including over 29 countries [3]. Among them, GE maize is the third most important crop in terms of GE crop area and has reached 31% of the global maize crop area. With more than 24 years of GE maize commercialization in above ten foreign countries, the planting area reached 60.9 million hectares of GE maize in 2019 [3]. In China several GE maize lines expressing insect-resistant or/and herbicide-resistant traits has obtained biosafety certificates, and they will be approved for agricultural production in the near future [4,5]. China is the second largest maize producer and consumer in the world, with a large cultivated area and distribution throughout the whole country. Maize is not only the staple food crop, but also an important raw material for feed and industry. If GE maize is introduced and planted on a large scale, it may change the ecological environment of the original field and the living environment of pests, thus causing a series of safety problems and non-target effects [4].
The impact of Bt crops on non-target arthropods (NTAs) is an important part of an ecological risk assessment. Laboratory studies have been extensively conducted to evaluate the impact of Bt crops on NTAs, focusing the functional groups that play important ecological roles in farmland systems, such as natural enemies, pollinators, and economically important insects [6,7,8,9,10,11]. Systematic analyses of these research data found that the Bt insecticidal proteins produced by GE crops have a very narrow insecticidal spectrum, strong insecticidal specificity and generally have no negative effects on non-target arthropods [11,12,13,14]. In addition to carrying out bioassay experiments under controlled conditions in laboratories, it is generally required to further conduct field experiments to evaluate whether the planting of GE crops affects the population structure and density of NTAs [15]. Field experiments were conducted to investigate whether there are differences in NTA species, densities and genotypes when GE crops are grown in the field compared with non-GE crops. Such short-term field investigation conducted before the commercialization of GE crops normally show no effects on arthropod populations [15,16,17,18]. However, a number of long-term and large-scale monitoring studies conducted after the commercialization of a GE crop do indicate that planting of Bt crops can change the arthropod population structure and dynamics in the field, for example, the increase of certain secondary insect pest populations [19,20,21]. These effects were widely considered to be caused by the change of farmland practices, such as the reduced application of pesticides associated with reduction of target pest populations. For example, transgenic insect-resistant cotton can effectively control cotton bollworm (Helicoverpa armigera); therefore, the use of pesticides has been greatly reduced for controlling this pest, which indirectly results in the break of the non-target pest mirid bug [22].
NTA effects need to be conducted on a case-by-case basis using a weight of evidence approach and considering all relevant information [23]. In recent years, China has developed a number of GE maize lines exhibiting high efficacy in target pest control that have to undergo a strict risk assessment before going to commercial use [24]. A transgenic maize line Shuangkang 12-5 (SK12-5), developed through the Agrobacterium-mediated method [25,26] that expresses a cry1Ab/2Aj fusion gene and an EPSPS gene [27], showed efficient field resistance against lepidopteran pests Ostrinia furnacalis (Guenée) and Helicoverpa armigera (Hübner) and high herbicide tolerance to glyphosate [26]. The GE maize line has already passed regulatory approval and received a safety certification, and it may enter commercial cultivation soon in China. So far, studies have been conducted with the maize line, mainly focusing on the development of detection methods [28,29], resistance on target pests [26,30] and laboratory assessment of the potential effects on non-target arthropods, including honey bee (Apis mellifera) [31], silkworm (Bombyx mori) [32], green lacewing (Chrysoperla sinica) [33] and effects on microbial diversity [34]. Its potential effects on arthropod populations have rarely been evaluated in the field.
In the present study, the transgenic cry1Ab/2Aj maize Shuangkang 12-5 (SK12-5) and its corresponding non-transformed near isoline Lianchuang 303 (LC303) [27] were tested. Number of species, abundance and population characteristics of NTAs collected during three main growth periods of maize were compared between the two types of maize fields, and the species diversity of the arthropod community were further calculated and analyzed. The results will complement knowledge of the impact of transgenic Bt maize on the safety of NTAs in the field and will provide a reference for decision-making on commercial application of the SK12-5 maize line in China and maybe in other countries.

2. Results

2.1. Species Composition of NTAs in Different Maize Fields

During the BF (before flowering) stage, 45 species of NTAs belonging to 11 orders and 38 families were detected in non-Bt maize fields, and 53 species belonging to 10 orders and 41 families were detected in Bt maize fields. There were 39 species of NTAs detected simultaneously in both Bt and non-Bt maize fields (Table 1), and the Czekanowski Community Similarity Coefficient (CS) of the species composition of the two communities was 0.73 (Table 2). In both Bt and non-Bt maize fields, Hemiptera and Coleoptera were the dominant orders, accounting for 51.7 % and 52.8 %, and 13.1 % and 12.6 %, in transgenic and non-transgenic maize, respectively (Figure 1). The compositions of NTAs in Bt and non-Bt maize fields were not significantly different (Student’s t-test, all p > 0.05).
In the DF (during flowering) stage, the total number of species detected in non-Bt maize fields was 47, belonging to 11 orders and 35 families, and in Bt maize fields there were 50 species belonging to 10 orders and 39 families. The number of commonly detected species in both Bt and non-Bt maize fields was 37 (Table 1), and the CS of the species composition of the two communities was 0.67 (Table 2). In both Bt and non-Bt maize fields, Hemiptera and Coleoptera were the dominant orders, accounting for 59.5 % and 62.3 %, and 20.7 % and 19.9 %, in transgenic and non-transgenic maize, respectively (Figure 1). NTAs in the order Neuroptera were significantly greater in Bt maize fields than in non-Bt maize fields (Student’s t-test, F = 36.84, p = 0.009); the composition of other NTAs in Bt and non-Bt maize fields were not significantly different (Student’s t-test, all p > 0.05). In the AF (after flowering) stage, there were 36 species detected in non-Bt maize fields, belonging to 8 orders and 27 families; 51 species were detected in Bt maize fields, belonging to 9 orders and 36 families. The number of species detected in both fields were 33 (Table 1), and the CS of the two communities was 0.70 (Table 2). Further, in both Bt and non-Bt maize fields, Coleoptera and Hemiptera were the dominant orders, accounting for 51.8 % and 48.3 %, and 14.2 % and 20.4 %, in transgenic and non-transgenic maize, respectively (Figure 1). There were no significant differences in the composition of arthropod species between Bt and non-Bt maize fields (Student’s t-test, all p > 0.05).

2.2. Community Parameters of NTAs in Different Maize Fields

The NTA community structures in Bt and non-Bt maize fields were further explored using non-metric multidimensional scaling analysis (NMDS). The distance was estimated using the Bray–Curtis dissimilarity index. Differences in the composition of the NTAs community in the three main maize growth stages were visualized in an NMDS plot (Figure 2). No differences of NTA community structures among Bt and non-Bt maize fields were observed.
The species richness (S), Shannon–Wiener diversity index (H′) and evenness (J) indexes of NTAs in Bt maize fields in the BF, DF and AF maize growth stages were all higher than those in non-Bt maize fields, while the Simpson’s dominant concentration (C) in Bt maize fields were all lower than those in non-Bt maize fields (Table 2). However, the Simpson’s dominant concentration (C) between Bt and non-Bt maize fields differed significantly in the BF stage (Student’s t-test, F = 11.99, p = 0.005); differences in other parameters between Bt and non-Bt maize fields were not significant (Student’s t-test, all p > 0.05).

2.3. Dynamic Comparison of Composition and Community of NTAs at Different Time

In total, the numbers of NTA species in the DF stage were the highest and in the AF stage were the lowest among the three growth stages for both Bt and non-Bt maize fields; however, there were no significant differences for the three growth stages in both Bt and non-Bt maize fields (one-way ANOVA followed by Tukey HSD test or Mann–Whitney U-test, all p > 0.05).
For NTA community parameters (Table 2), the highest species richness (S) was in the DF stage for non-Bt maize fields and in the BF stage for Bt maize fields; the lowest S values for both Bt and non-Bt maize fields were in the AF stage. For the Shannon–Wiener diversity index (H′), the highest values for both the Bt and non-Bt maize fields were in the DF stage, and the lowest for non-Bt maize fields in the BF stage and for Bt maize fields in the AF stage. The highest evenness index (J) was in the BF stage for non-Bt maize fields and in the DF stage for Bt maize fields, and the lowest were in the AF stage for both Bt and non-Bt maize fields. For Simpson’s dominant concentration (C), the highest value for non-Bt maize fields was in the AF stage and for Bt maize fields in the BF stage, and the lowest for both Bt and non-Bt maize fields in the DF stage. There were no significant differences for the three growth stages among Bt and non-Bt maize fields (one-way ANOVA followed by Tukey HSD test, all p > 0.05).

2.4. Communities Similarity

In the case of multiple surveys and a large number of species, the NMDS model can more accurately reflect the numerical sort of information of the distance matrix. Thus, the similarities of NTAs community composition across maize type and sampling time were visualized using an NMDS based on a Bray–Curtis dissimilarity matrix. A stress function ranged from 0 to 1 was used to assess the goodness of fit between the ordination and the original data of NTAs. The stress values were 0.12, which suggested that the ordination accurately represented the dissimilarity between samples (Figure 2A). A Shepard diagram of non-metric fit illustrated that observed dissimilarities and the ordination distances were highly correlated (non-metric fit was 0.986) (Figure 2B). The samples collected in the NMDS plot were not separated by sampling time and maize type (Figure 2A,B), which was confirmed by a more detailed analysis of similarity (ANOSIM). No significant correlation was detected between arthropod community composition and sampling time (R2 = 0.023, p = 0.74). No significant correlation was detected between arthropod community composition and maize type (R2 = 0.0033, p = 0.45).

2.5. Ecosystem Functioning Composition of NTA Communities in Different Maize Fields

Five functional guilds were identified in Bt and non-Bt maize fields during the study period. The results showed that for the BF and DF stages, the most abundant guilds in Bt and non-Bt maize fields were herbivores, followed by predators, decomposers, parasitoids and pollinators. For the AF stage, the most abundant guilds in Bt and non-Bt maize fields were predators, followed by herbivores, decomposers and parasitoids. The number of pollinators increased in the DF stage and was reduced to zero in the AF stage, comprising a rare guild (Figure 3a,e). As decomposers, only Isotomidae sp. was observed in the three main maize growth stages (Figure 3b). For herbivores, Aphididae was the most abundant family, although the common species detected were not exactly the same among different stages; Rhopalosiphum padi and R. maidis were the most abundant aphids in three main growth stages (Figure 3c). For parasitoids, Trichogramma ostriniae and Family Ichneumonidae were the abundant groups for different stages (Figure 3d). For predators, the non-Bt maize field had eight common groups at the BF stage: Lasius fuliginosus, Labidura sp. Propylaea japonica, Harmonia axyridis, Orius strigicollis, Linyphiidae, Carabidae and Clubionidae, respectively, and the Bt maize field had nine common groups—the extra one was Paederus fuscipes. At the DF stage, the number of common groups was higher than at the BF stage, H. axyridis, Labidura sp. and P. japonica were the most abundant groups. At the AF stage, H. axyridis was the obvious dominant species (Figure 3f). During the entire study period, the composition of NTA communities was essentially uniform among Bt and non-Bt maize fields.

3. Discussion

Transgenic Bt crops can bring great advantages for reducing pesticide usage, increasing crop yields and increasing farm income [35,36]. On the other hand, planting of insect-resistant Bt crops may pose negative effects on the environment. It is therefore necessary to assess the potential environmental effects of Bt crops before being commercialized, including field surveys to evaluate their potential effects on the population dynamics of NTAs [15].
In the current study, SK12-5 transgenic Cry1Ab/2Aj maize was selected to assess its potential effects on the composition and community structure of NTAs since it exhibited high efficacy in controlling target pests and it may be commercially planted in China in the near future. The NTA populations were investigated during three main growth stages of maize, that is, the before flowering (BF), during flowering (DF) and after flowering (AF) stages separately. The main reasons for selecting these three periods are that: (1) the highest Cry1Ab/2Aj protein content is expressed in the pollen (data not published) and (2) beneficial insects begin to increase during the maize silking period [37].
During the three maize stages, no non-target lepidopteran species were found in both Bt and non-Bt fields. For target Lepidopteran species, such as O. furnacalis, the total number of the insects captured was only four in Bt maize field, and therefore, the lepidopteran insects were not involved for analysis. The results in this study showed no significant differences on the composition, species richness (S), Shannon–Wiener diversity index (H′), evenness index (J), Simpson’s dominant concentration (C), community similarity and ecosystem functioning composition of the NTAs community between transgenic insect-resistant maize (SK12-5 transgenic Cry1Ab/2Aj) and the non-GE maize. These results are consistent with previous studies showing that Bt maize producing Cry1Ab [18,38,39,40,41,42,43,44], Cry1Ab and Cry2Ab [45], Cry1A.105 and Cry2Ab [46,47], Cry1Ac [48,49,50], Cry1A.105 and Cry2Ab and Cry3Bb [51], Cry1Ab and Cry1Ac [52], Cry1Ab and VIP3A [53], Cry1F [54,55,56], Cry1Ah [57], Cry1Ie [58,59,60], Cry34Ab1 and Cry35Ab1 [55,61], Cry34Ab1 and Cry35Ab1 and Cry1F [55,61], Cry3Bb [62,63,64,65] and VIP 3A [66] insecticidal proteins did not affect populations of NTAs in the field. Similarly, there were no significant effects detected in the majority of such filed experiments with Bt cotton and Bt rice [37,67,68,69]. However, there are indeed studies reporting that cultivation of Bt crops can alter population structure and dynamics of non-target arthropods in the field [70]. For example, many studies show that growing of Bt crops significantly reduces the density of parasitoids that are specific to the target pests of the Bt crops, and the reduction is associated with the decrease of target pest populations [11]. In addition, it has also been frequently reported that the long-term growing of Bt crops leads to population increases of non-target pest species, for example, the cultivation of Bt cotton in China causes a rise of the secondary non-target pest mirid bugs to become the major pest [22]. The same ecological phenomenon was also found for aphids in Bt maize fields [71]. The secondary insect pest population increase has been confirmed to be the consequence that they are not susceptible to or have decreased susceptibility to the Bt proteins, and such species would have been controlled by the insecticides that were used for controlling target pests before the commercial use of the Bt crops [71]. Meanwhile, studies showed that the cultivation of transgenic insect-resistant crops could protect or improve arthropod biodiversity with the reduced use of pesticides in the field [64,72,73]. This information demonstrates that the current data with the transgenic maize SK12-5 showing no negative impact on the number and community structure of NTAs are valuable for decision-making for commercialization of the Bt maize line, but it is a short-term field investigation in small-scale field plots that cannot represent the long-term monitoring on large-scale farms, which should be conducted after commercial planting of Bt crops.
The current results showed that Hemiptera was the dominant order and aphids were the dominant species at the BF and DF stages, while at the AF stage, Coleoptera was the dominant order and H. axyridis were the dominant species. This ecological niche change may be attributed to the tritrophic interaction of aphids and ladybirds. There are micro-balances in nature, where species restrict and counter-restrict each other. The number of aphids increasing in the field will subsequently lead to the increase of the ladybug population since aphids are dominant preys of ladybirds [74]. In reverse, the growth of the aphid population will be inhibited by the increased ladybird population, which belongs to the negative feedback regulation in the biological community [75]. Notably, the same negative ecosystem feedback occurred in both Bt and non-Bt maize fields, illustrating that the cultivation of transgenic Cry1Ab/2Aj maize had a similar impact on the ecosystem with the conventional non-transgenic maize. Besides, Apis cerana was the dominant pollinator in Bt and non-Bt maize fields, but Vespidae were not observed in Bt field, which may be due to few lepidopteran pests in Bt fields, considering lepidopteran pests are the main preys of Vespidae species. Overall, the results showed that composition of NTA species between the Bt and non-Bt maize fields was similar. By comparing and analyzing the structural dynamics and similarities of the community, the degree of similarity between different communities can be more objectively reflected. CS, referring to the similarity of species composition between communities, between the Bt and non-Bt maize fields for the three growth stages were all greater than 0.5, showing that the degree of similarity between communities is high [76]. At the community level, there were no significant differences in the three growth stages in terms of overall analysis of species richness (S), Shannon–Wiener diversity index (H′), evenness index (J) and Simpson’s dominant concentration (C) of the NTA community between Bt and non-Bt maize fields. The temporal trend for each parameter was consistent, and there were no significant differences. The results indicate that transgenic Cry1Ab/2Aj maize SK12-5 has no obvious effect on the composition and community parameters of NTAs.
In recent years, NMDS analysis methods have been used for many types of ecological studies and evaluating the impact of transgenic crop cultivation on animal communities in the field [59,60,77]. This study also used this method to analyze the relationship between maize type and NTAs composition and showed that transgenic maize did not have a significant impact on NTAs. The analysis of NTA communities examined at the species and family levels demonstrated that the composition of the dominant, common and rare guilds or species and families was similar in Bt and non-Bt maize fields. Compared with populations, biological communities have higher structure and more complex diversity. Results of this study show that at the community level, insect-resistant Cry1Ab/2Aj maize had no significant ecological impacts on the NTAs community in the field. This finding complements the knowledge of potential effects of insect-resistant GE crops on arthropod populations and provides valuable information for decision-making on commercial application of the Bt maize line SK12-5 in China.

4. Material and Methods

4.1. Field Planting and Management Methods

Transgenic cry1Ab/2Aj maize Shuangkang 12-5 (SK12-5) and its corresponding non-transformed near-isoline Lianchuang 303 (LC303) seeds were sown simultaneously in experimental fields in the Jilin Academy of Agricultural Sciences, Gongzhuling City, Jilin Province, China (43°19′ N, 124°29′ W). These maize lines were grown in adjacent (50 m2) plots, with three replicate plots for each maize line. All maize plants were cultivated equally according to the common local agricultural practices in 2018; no chemical pesticides and herbicides were applied throughout the growing season of maize, and other farming operations were the same as the local routine. Thus, the two maize lines were grown under the same environmental and agricultural conditions.

4.2. Sample Collection and Identification

NTAs were sampled for 7 days monthly in three maize growth stages: before flowering stage (abbreviated BF), during flowering stage (abbreviated DF) and after flowering stage (abbreviated AF). Two sampling methods were used to collect NTAs in maize fields—direct sampling and trapping: (1) direct sampling included visual observations to capture taxa occurring on maize plants and sweep nets to capture aerial taxa. In each plot, visual inspections of plants were made row after row to collect all arthropods found every day, and a sweep net was used to capture flying arthropods every day. Sampling was conducted in the morning when arthropods were less active. (2) Trapping sampling used pitfall traps to capture surface- and ground-dwelling taxa. Five pitfall traps (a plastic cup of 11-cm depth half-filled with water and scouring agent) were established in an “X” pattern that covered the whole plot, regularly distributed over the plot length but at least 2 m from the field border. Pitfall traps were set for 24 h, and the trapping agent was changed after gathering the collected arthropods every day.
The collected arthropods were placed separately into centrifuge tubes and immediately frozen at −20 °C in a portable freezer (Alpicool ENX42, Foshan Alpicool Electrical Appliance Co., Ltd., Foshan city, China). All captured arthropods were taken to the laboratory, placed in Petri dishes over dry ice and examined using a Zeiss stereomicroscope (Carl Zeiss Digital Innovation GmbH. Germany) for taxonomic identification. The respective taxonomic levels—species, family, and order—and ecological function were determined based on a database [78]. When samples were too degraded or diagnostic morphological characters were hard to distinguish, identification was performed at the family level.

4.3. Community Parameters and Calculation Formulas

Number of individuals (N), species richness (S), Shannon–Wiener diversity index (H′), Evenness index (J) and Simpson’s dominant concentration (C) were used to analyze the structure and temporal dynamics of the NTA communities. S is the number of species within a defined region, which reflects the complexity and heterogeneity of the regional environment. H′ and C are the ways to measure the diversity of species in a community; they can reflect changes in the populations of various species. J can be used as a measure of species dominance in a community, a measure of how close different species are to each other in number. The Berger–Parker dominance index (D) was calculated separately based on the different functions in the fields. D is an index reflecting community dominance and is the most sensitive to changes in community diversity. The similarity in species composition of NTA communities was analyzed using the Czekanowski Community Similarity Coefficient (CS). CS is used to compare the similarities and differences between biological community structures in different spaces. The formulas for calculation of the above indexes are as follow [79]:
H ′ = − ∑ i = 1 s P i ln P i
J = H ′ ln S
D = N max N
D = N max N
C = ∑ i = 1 s ( n i N ) 2
C S = 2 A a + b
In the formulas: S is the species richness of the community; Pi is the ratio of the number of individuals of species i in the community to the total number of individuals in the community; ni is the number of individuals of species i; N is the total number of individuals in the community; and Nmax is the number of dominant species. When the species dominance D ≥ 0.1, it is a dominant species; when 0.01 ≤ D < 0.1, it is a common species; when D ≤ 0.01, it is a rare species [79]. A is the number of species shared by the two communities a and b, and a and b are the numbers of species in the corresponding communities a and b, respectively.

4.4. Statistical Analysis

All data are presented as mean ± standard error (SE), unless otherwise indicated. A Student’s t-test was used to compare the composition and community parameters of arthropods in SK12-5 (Bt) and LC303 (non-Bt) maize fields. Composition and characteristics of NTAs in the same maize fields at different growth stages were analyzed by one-way ANOVA followed by the Tukey HSD test. In addition, the composition of NTAs in the orders Araneae, Dermaptera, Diptera, Entomobryomorpha, Hemiptera, Hymenoptera and Thysanoptera in LC303 (non-Bt) maize fields, and the composition of NTAs in the orders of Araneae, Dermaptera, Entomobryomorpha, Hemiptera, Hymenoptera and Neuroptera in SK12-5 (Bt) maize fields were analyzed by the Mann–Whitney U-test because of the associated heterogeneity of variance. Differences were considered as significant at p < 0.05. These analyses were conducted using the SPSS Version 13.0 statistical software. Community structure was determined with NMDS (non-metric multidimensional scaling) ordinations based on Bray–Curtis dissimilarity. NMDS is a multivariate, nonlinear technique that ranks points such that distance in ordination space represents similarity among sample periods [80] (pp. 91–173). The correspondence of the ordination diagram to the similarity distances is described by a stress value, where 0 is a perfect fit. Furthermore, analysis of similarity (ANOSIM) was used to test if there was a statistical difference among the NTA communities, sample time and maize types [58,77]. This analysis was conducted with the vegan package in R (v.3.2.3; R Development Core Team).

5. Conclusions

This study collected NTAs in Bt and non-Bt maize fields during three main growing stages around maize flowering periods. By analyzing the compositions of NTAs in these three stages, the ecological niche change from domination by Hemiptera to Coleoptera was observed. Meanwhile, long-term and large-scale planting of Bt maize requires attention to the population dynamics of NTAs such as aphids and other pests to avoid pest outbreaks due to less pesticide use. The cultivation of Bt maize expressing Cry1Ab/2Aj protein did not show any negative impacts on the densities of non-target decomposers, herbivores, predators, parasitoids and pollinators. The compositions of decomposers, herbivores, predators, parasitoids and pollinators were similar in Bt and non-Bt maize fields. Taken together, results from our work support the view that planting of Bt maize producing Cry1Ab/2Aj toxins does not adversely affect populations of NTAs. Moreover, this study shows that the changes in the abundance and diversity of NTAs in maize fields are driven by time, and the Cry1Ab/2Aj toxin exposure plays a negligible, if any, role in the evolution of these NTA communities. Interactions between maize and NTAs occur over a wide range of timescales from hours to seasons and years and are mostly driven by temperature, insolation or rainfall. Hence, long-term and large-scale studies need to take into account a large variety of environmental parameters, including the effects of insecticide treatments on non-Bt crops, and it is also necessary to ensure the long-term efficacy of GE crops with reduced impact on the environment and agricultural ecosystems.

Author Contributions

Y.L. and Y.Y. designed the study, Y.Y. and Y.W. in collecting samples. Y.Y., Y.C. and J.X. analyzed the data. Y.Y. and Y.C. wrote the original draft, X.S. provided the experimental materials. All authors have read and agreed to the published version of the manuscript.

Funding

The project was supported by the Hainan Provincial Natural Science Foundation of China (2019RC137), the National GMO New Variety Breeding Program of China (2016ZX08011-001) and the Hainan Yazhou Bay Seed Laboratory (B22E10303).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Due to privacy the data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brookes, G.; Barfoot, P. Environmental impacts of genetically modified (GM) Crop use 1996–2016: Impacts on pesticide use and carbon emissions. GM Crops Food 2018, 9, 109–139. [Google Scholar] [CrossRef] [PubMed]
  2. Brookes, G.; Barfoot, P. Farm income and production impacts of using GM crop technology 1996–2016. GM Crops Food 2018, 9, 59–89. [Google Scholar] [CrossRef] [PubMed]
  3. ISAAA (International Service for the Acquisition of Agri-biotech Applications). Global Status of Commercialized Biotech/GM Crops in 2019: Biotech Crops Drive Socio-Economic Development and Sustainable Environment in the New Frontier; ISAAA Briefs, No. 55; ISAAA: Ithaca, NY, USA, 2019. [Google Scholar]
  4. Zhu, Y.; Jiang, T.; Yang, Y.Z. Research advances in arthropod community in corn fields. Plant Prot. 2017, 43, 1–5. [Google Scholar]
  5. Ren, Z.T.; Shen, W.J.; Liu, B.; Xue, K. Effects of transgenic maize on biodiversity of arthropod communities in the fields. Sci. Geol. Sin. 2017, 50, 2315–2325. [Google Scholar]
  6. Duan, J.J.; Marvier, M.; Huesing, J.; Dively, G.; Huang, Y.Z. A meta-analysis of effects of Bt crops on honey bees (Hymenoptera: Apidae). PLoS ONE 2008, 3, e1415. [Google Scholar] [CrossRef] [PubMed]
  7. Li, Y.H.; Zhang, X.J.; Chen, X.P.; Romeis, J.; Yin, X.M.; Peng, Y.F. Consumption of Bt rice pollen containing Cry1C or Cry2A does not pose a risk to Propylea japonica (Thunberg) (Coleoptera: Coccinellidae). Sci. Rep. 2015, 5, 7679. [Google Scholar] [CrossRef]
  8. Vaufleurya, A.D.; Kramarza, P.E.; Bineta, P.; Cortet, J.; Caul, S.; Andersen, M.N.; Plumey, E.; Coeurdassier, M.; Krogh, P.H. Exposure and effects assessments of Bt maize on non-target organisms (gastropods, microarthropods, mycorrhizal fungi) in microcosms. Pedobiologia 2007, 51, 185–194. [Google Scholar] [CrossRef]
  9. Yang, Y.; Liu, Y.; Cao, F.Q.; Chen, X.P.; Cheng, L.S.; Romeis, J.; Li, Y.H.; Peng, Y.F. Consumption of Bt Rice Pollen Containing Cry1C or Cry2A Protein Poses a Low to Negligible Risk to the Silkworm Bombyx mori (Lepidoptera: Bombyxidae). PLoS ONE 2014, 9, e102302. [Google Scholar] [CrossRef]
  10. Yang, Y.; Chen, X.P.; Cheng, L.S.; Cao, F.Q.; Romeis, J.; Li, Y.H.; Peng, Y.F. Toxicological and biochemical analyses demonstrate no toxic effect of Cry1C and Cry2A to Folsomia candida. Sci. Rep. 2015, 5, 15619. [Google Scholar] [CrossRef]
  11. Romeis, J.; Meissle, M.; Bigler, F. Transgenic crops expressing Bacillus thuringiensis toxins and biological control. Nat. Biotechnol. 2006, 24, 63–71. [Google Scholar] [CrossRef]
  12. Hellmich, R.L.; Albajes, R.; Bergvinson, D.; Prasifka, J.R.; Wang, Z.Y.; Weiss, M.J. The present and future role of insect-resistant genetically modified maize in IPM. In Integration of Insect-Resistant Genetically Modified Crops within IPM Programs. Progress in Biological Control; Romeis, J., Shelton, A.M., Kennedy, G.G., Eds.; Springer: Dordrecht, The Netherlands; Berlin, Germany, 2008; Volume 5, pp. 119–158. [Google Scholar] [CrossRef]
  13. Li, Y.H.; Romeis, J.; Wu, K.M.; Peng, Y.F. Tier-1 assays for assessing the toxicity of insecticidal proteins produced by genetically engineered plants to non-target arthropods. Insect Sci. 2014, 21, 125–134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Li, Y.H.; Hallerman, M.E.; Wu, K.M.; Peng, Y.F. Insect-resistant genetically engineered crops in China: Development, application, and prospects for use. Annu. Rev. Entomol. 2020, 65, 273–292. [Google Scholar] [CrossRef] [PubMed]
  15. Lu, Z.B.; Dang, C.; Wang, F.; Liu, Z.C.; Chen, J.; Wang, Y.; Yao, H.W.; Fang, Q.; Peng, Y.F.; Gatehouse, A.M.R.; et al. Does long-term Bt rice planting pose risks to spider communities and their capacity to control planthoppers? Plant Biotechnol. J. 2020, 18, 1851–1853. [Google Scholar] [CrossRef] [PubMed]
  16. Freier, B.; Schorling, M.; Traugott, M.; Juen, A.; Volkmar, C. Results of a 4-year plant survey and pitfall trapping in Bt maize and conventional maize fields regarding the occurrence of selected arthropod taxa. IOBC/WPRS Bull. 2014, 27, 79–84. [Google Scholar]
  17. Jensen, P.D.; Dively, G.P.; Swan, C.M.; Lamp, W.O. Exposure and nontarget effects of transgenic Bt corn debris in streams. Environ. Entomol. 2010, 39, 707–714. [Google Scholar] [CrossRef]
  18. Alcantara, E.P. Postcommercialization monitoring of the long-term impact of Bt corn on non-target arthropod communities in commercial farms and adjacent riparian areas in the Philippines. Environ. Entomol. 2012, 41, 1268–1276. [Google Scholar] [CrossRef]
  19. Lumbierres, B.; Albajes, R.; Pons, X. Transgenic Bt maize and Rhopalosiphum padi (Hom., Aphididae) performance. Ecol. Entomol. 2004, 29, 309–317. [Google Scholar] [CrossRef]
  20. Lumbierres, B.; Stary, P.; Pons, X. Effect of Bt maize on the plant-aphid-parasitoid tritrophic relationships. Bio. Control 2011, 56, 133–143. [Google Scholar] [CrossRef]
  21. Pons, X.; Lumbierres, B.; Lopez, C.; Albajes, R. Abundance of non-target pests in transgenic Bt-maize: A farm scale study. Eur. J. Entomol. 2005, 102, 73–79. [Google Scholar] [CrossRef]
  22. Lu, Y.; Wu, K.; Jiang, Y.; Xia, B.; Li, P.; Feng, H.; Guo, Y. Mirid bug outbreaks in multiple crops correlated with wide-scale adoption of Bt cotton in China. Science 2010, 328, 1151–1154. [Google Scholar] [CrossRef]
  23. Romeis, J.; Meissle, M.; Alvarez-Alfageme, F.; Bigler, F.; Bohan, D.A.; Devos, Y.; Malone, L.A.; Pons, X.; Rauschen, S. Potential use of an arthropod database to support the non-target risk assessment and monitoring of transgenic plants. Transgenic Res. 2014, 23, 995–1013. [Google Scholar] [CrossRef] [PubMed]
  24. Kang, L.; Chen, M. GMO biosafety management, suggestions and biotech public acceptance in China. Plant Physiol. J. 2013, 49, 637–644. [Google Scholar] [CrossRef]
  25. Zhao, Z.Y.; Gu, W.N.; Cai, T.S.; Tagliani, L.; Hondred, D.; Bond, D.; Schroeder, S.; Rudert, M.; Pierce, D. High throughput genetic transformation mediated by Agrobacterium tumefaciens in maize. Mol. Breed. 2002, 8, 323–333. [Google Scholar] [CrossRef]
  26. Sun, H.W.; Xu, X.H.; Li, F.; Gao, R.; Yang, S.K.; Lu, X.B. Resistances of transgenic maize hybrid “Ruifeng 1-double resistance 12-5” with insect and herbicide resistance against three major lepidopteran pests. Shandong Agric. Sci. 2018, 50, 109–114. [Google Scholar]
  27. Chang, X.; Lu, Z.B.; Shen, Z.C.; Peng, Y.F.; Ye, G.Y. Bitrophic and tritrophic effects of transgenic cry1Ab/cry2Aj maize on the beneficial, nontarget Harmonia axyridis (Coleoptera: Coccinellidae). Environ. Entomol. 2017, 46, 1171–1176. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, Y.; Chen, X.Y.; Peng, C.; Xu, J.F.; Shen, H.; Li, Y.Y.; Wang, X.F. Establishment of a field visual detection method for genetically modified maize “Shuangkang” 12-5 by fluorescence RPA. Hereditas 2021, 43, 802–812. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, H.Q.; Xiao, F.; Yang, L.; Miao, Q.M.; Zhang, X.D.; Zhang, X.J. Analysis of verification results by PCR methods for genetically modified double-resistant 12-5 event-specific maize. Biotechnol. Bull. 2020, 36, 48–55. [Google Scholar]
  30. Sun, H.W.; Xu, X.H.; Li, F.; Yang, S.K.; Lu, X.B. Insect resistance and tolerance to the target herbicide of the transgenic maize cultivar Shuangkang 12-5-21. J. Biosaf. 2021, 30, 43–49. [Google Scholar]
  31. Jiang, Y.Y.; Ji, Y.; Lai, Y.M.; Zhu, X.; Chen, X.Y.; Xu, J.F.; Ma, L.J.; Xu, X.L. Potential effect of genetically modified maize DR12-5 on honey bee (Apis mellifera). Acta Agric. Zhejiangensis 2019, 31, 1834–1840. [Google Scholar]
  32. Zhu, X.; Jiang, Y.Y.; Lai, Y.M.; Chen, X.Y.; Wang, X.F.; Xu, X.L.; Xu, J.F. Effects of transgenic maize (Zea mays) event DR 12-5 with Cry1Ab/cry2Aj and g10evo-epsps genes on silkworm (Bombyx mori). J. Agric. Biotechnol. 2020, 28, 1269–1276. [Google Scholar]
  33. Liu, Y.M.; Li, Y.H.; Chen, X.P.; Song, X.Y.; Shen, P.; Peng, Y.F. No detrimental effect of Bt maize pollen containing Cry1Ab/2Aj or Cry1Ac on adult green lacewings Chrysoperla sinica Tjeder. J. Integr. Agric. 2019, 18, 893–899. [Google Scholar] [CrossRef]
  34. Sun, H.W.; Zhang, Y.X.; Xu, X.H.; Gao, D.; Li, F.; Yang, S.K.; Lu, X.B. Effects of transgenic maize variety (double resistance 12-5) on enzyme activity and microbial diversity in rhizosphere soil. Soils 2019, 51, 61–67. [Google Scholar]
  35. Naranjo, S.E. Impacts of Bt crops on non-target organisms and insecticide use patterns. CAB Rev. Perspect. Agric. Vet. Sci. Nutr. Nat. Resour. 2009, 4, 11. [Google Scholar]
  36. Sanvido, O.; Romeis, J.; Bigler, F. An approach for post-market monitoring of potential environmental effects of Bt-maize expressing cry1ab on natural enemies. J. Appl. Entomol. 2010, 133, 236–248. [Google Scholar] [CrossRef]
  37. Cattaneo, M.G.; Yafuso, C.; Schmidt, C.; Huang, C.Y.; Rahman, M.; Olson, C.; Ellers-Krik, C.; Orr, B.J.; Marsh, S.E.; Antilla, L. Farm-scale evaluation of the impacts of transgenic cotton on biodiversity, pesticide use, and yield. Proc. Natl. Acad. Sci. USA 2006, 103, 7571–7576. [Google Scholar] [CrossRef]
  38. Candolfi, M.P.; Brown, K.; Grimm, C.; Reber, B.; Schmidli, H. A faunistic approach to assess potential side-effects of genetically modified Bt-corn on non-target arthropods under field conditions. Biocontrol. Sci. Technol. 2004, 14, 129–170. [Google Scholar] [CrossRef]
  39. Zwahlen, C.; Hilbeck, A.; Nentwig, W. Field decomposition of transgenic Bt maize residue and the impact on non-target soil invertebrates. Plant Soil 2007, 300, 245–257. [Google Scholar] [CrossRef]
  40. Habuštová, O.; Doležal, P.; Spitzer, L.; Svobodová, Z.; Hussein, H.; Sehnal, F. Impact of Cry1 A b toxin expression on the non-target insects dwelling on maize plants. J. Appl. Entomol. 2014, 138, 164–172. [Google Scholar] [CrossRef]
  41. Truter, J.; Van, H.H.; Van, D.B.J. Comparative diversity of arthropods on Bt maize and non-Bt maize in two different cropping systems in South Africa. Environ. Entomol. 2014, 43, 197–208. [Google Scholar] [CrossRef]
  42. Čerevková, A.; Cagáň, L. Effect of transgenic insect-resistant maize to the community structure of soil nematodes in two field trails. Helminthologia 2015, 52, 41–49. [Google Scholar] [CrossRef]
  43. Skoková Habuštová, O.; Svobodová, Z.; Spitzer, L.; Doležal, P.; Hussein, H.M.; Sehnal, F. Communities of ground-dwelling arthropods in conventional and transgenic maize: Background data for the post-market environmental monitoring. J. Appl. Entomol. 2015, 139, 31–45. [Google Scholar] [CrossRef]
  44. Ma, Y.J.; He, H.P.; Shen, W.J.; Liu, B.; Xue, K. Effects of transgenic maize on arthropod diversity. Biodivers. Sci. 2019, 27, 419. [Google Scholar] [CrossRef]
  45. Yin, Y.; Xu, Y.; Cao, K.; Qin, Z.; Zhao, X.; Dong, X.; Shi, W. Impact assessment of Bt maize expressing the Cry1Ab and Cry2Ab protein simultaneously on non-target arthropods. Environ. Sci. Pollut. Res. 2020, 27, 21552–21559. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, B.; Chang, L.; Wu, D.; Song, X. Effect of Transgenic Corn Cultivation and Sampling Location on Feeding Habits of Collembola. J. Agric. Sci. Technol. A 2014, 4, 235–242. [Google Scholar]
  47. Corrales Madrid, J.L.; Martínez Carrillo, J.L.; Osuna Martínez, M.B.; Durán Pompa, H.A.; Alonso Escobedo, J.; Javier Quiñones, F.; Garzón Tiznado, J.A.; Castro Espinoza, L.; Zavala García, F.; Espinoza Banda, A.; et al. Transportability of non-target arthropod field data for the use in environmental risk assessment of genetically modified maize in Northern Mexico. J. Appl. Entomol. 2018, 142, 525–538. [Google Scholar] [CrossRef]
  48. Guo, Y.; Feng, Y.; Ge, Y.; Tetreau, G.; Chen, X.; Dong, X.; Shi, W. The cultivation of Bt corn producing Cry1Ac toxins does not adversely affect non-target arthropods. PLoS ONE 2014, 9, e114228. [Google Scholar] [CrossRef]
  49. Liu, X.Y.; Wang, B.F.; Wang, J.; Feng, S.D.; Song, X.Y. Effects of leaf residue decomposition of cry1Ac-transgenic insect-resistant maize on community structure of soil animals. J. Plant Prot. 2016, 43, 384–390. [Google Scholar] [CrossRef]
  50. Xing, Y.; Qin, Z.; Feng, M.; Li, A.; Zhang, L.; Wang, Y.; Dong, X.; Zhang, Y.; Tan, S.; Shi, W. The impact of Bt maize expressing the Cry1Ac protein on non-target arthropods. Environ. Sci. Pollut. Res. 2019, 26, 5814–5819. [Google Scholar] [CrossRef]
  51. Schultheis, E. Faunistic Approach for an Environmental Risk Assessment of a Bt-Maize with Multiple Resistance Genes and Evaluation of Trigonotylus caelestialium (KIRKALDY) and Lumbricus terrestris LINNAEUS as Model Organisms. Master’s Thesis, RWTH Aachen University, Aachen, Germany, 2011. [Google Scholar]
  52. Al-Deeb, M.A.; Wilde, G.E.; Higgins, R.A. No effect of Bacillus thuringiensis corn and Bacillus thuringiensis on the predator Orius insidiosus (Hemiptera: Anthocoridae). Environ. Entomol. 2001, 30, 625–629. [Google Scholar] [CrossRef]
  53. Dively, G.P. Impact of transgenic VIP3A× Cry1Ab lepidopteran-resistant field corn on the nontarget arthropod community. Environ. Entomol. 2005, 34, 1267–1291. [Google Scholar] [CrossRef]
  54. Higgins, L.S.; Babcock, J.; Neese, P.; Layton, R.J.; Moellenbeck, D.J.; Storer, N. Three-year field monitoring of Cry1F, event DAS-Ø15Ø7-1, maize hybrids for nontarget arthropod effects. Environ. Entomol. 2009, 38, 281–292. [Google Scholar] [CrossRef] [PubMed]
  55. Szénási, A.; Pálinkás, Z.; Zalai, M.; Schmitz, O.J.; Balog, A. Short-term effects of different genetically modified maize varieties on arthropod food web properties: An experimental field assessment. Sci. Rep. 2014, 4, 1–7. [Google Scholar] [CrossRef] [PubMed]
  56. Resende, D.C.; Mendes, S.M.; Marucci, R.C.; Silva, A.D.C.; Campanha, M.M.; Waquil, J.M. Does Bt maize cultivation affect the non-target insect community in the agro ecosystem? Rev. Bras. Entomol. 2016, 60, 82–93. [Google Scholar] [CrossRef]
  57. Chen, Y.; Ren, M.; Pan, L.; Liu, B.; Guan, X.; Tao, J. Impact of transgenic insect-resistant maize HGK60 with Cry1Ah gene on community components and biodiversity of arthropods in the fields. PLoS ONE 2022, 17, e0269459. [Google Scholar] [CrossRef] [PubMed]
  58. Guo, J.; He, K.; Hellmich, R.L.; Bai, S.; Zhang, T.; Liu, Y.; Ahmed, T.; Wang, Z. Field trials to evaluate the effects of transgenic cry1Ie maize on the community characteristics of arthropod natural enemies. Sci. Rep. 2016, 6, 1–12. [Google Scholar] [CrossRef]
  59. Guo, J.F.; He, K.L.; Bai, S.X.; Zhang, T.T.; Liu, Y.J.; Wang, F.X.; Wang, Z.Y. Effects of transgenic cry1Ie maize on non-lepidopteran pest abundance, diversity and community composition. Transgenic Res. 2016, 25, 761–772. [Google Scholar] [CrossRef]
  60. Fan, C.; Wu, F.; Dong, J.; Wang, B.; Yin, J.; Song, X. No impact of transgenic cry1Ie maize on the diversity, abundance and composition of soil fauna in a 2-year field trial. Sci. Rep. 2019, 9, 1–9. [Google Scholar] [CrossRef]
  61. Balog, A.; Szenasi, A.; Szekeres, D.; Palinkas, Z. Analysis of soil dwelling rove beetles (Coleoptera: Staphylinidae) in cultivated maize fields containing the Bt toxins, Cry34/35Ab1 and Cry1F×Cry34/35Ab1. Biocontrol Sci. Technol. 2011, 21, 293–297. [Google Scholar] [CrossRef]
  62. Al-Deeb, M.A.; Wilde, G.E. Effect of Bt corn expressing the Cry3Bb1 toxin for corn rootworm control on aboveground nontarget arthropods. Environ. Entomol. 2003, 32, 1164–1170. [Google Scholar] [CrossRef]
  63. Al-Deeb, M.A.; Wilde, G.E.; Blair, J.M.; Todd, T.C. Effect of Bt corn for corn rootworm control on nontarget soil microarthropods and nematodes. Environ. Entomol. 2003, 32, 859–865. [Google Scholar] [CrossRef] [Green Version]
  64. Bitzer, R.J.; Rice, M.E.; Pilcher, C.D.; Pilcher, C.L.; Lam, W.K.F. Biodiversity and community structure of epedaphic and euedaphic springtails (Collembola) in transgenic rootworm Bt corn. Environ. Entomol. 2005, 34, 1346–1376. [Google Scholar] [CrossRef]
  65. Ahmad, A.; Negri, I.; Oliveira, W.; Brown, C.; Asiimwe, P.; Sammons, B.; Horak, M.; Jiang, C.; Carson, D. Transportable data from non-target arthropod field studies for the environmental risk assessment of genetically modified maize expressing an insecticidal double-stranded RNA. Transgenic Res. 2016, 25, 1–17. [Google Scholar] [CrossRef] [PubMed]
  66. Fernandes, O.A.; Faria, M.; Martinelli, S.; Schmidt, F.; Carvalho, V.F.; Moro, G. Short-term assessment of Bt maize on non-target arthropods in Brazil. Sci. Agric. 2007, 64, 249–255. [Google Scholar] [CrossRef]
  67. Li, W.D.; Wu, K.M.; Wang, X.Q.; Guo, Y.Y. Evaluation of impact of pollen grains of Cry1Ac and Cry1A+CpTI transgenic cotton on the growth and development of Chinese tussah silkworm (Antheraea pernyi). J. Agric. Biotechnol. 2003, 11, 488–493. [Google Scholar] [CrossRef]
  68. Li, F.F.; Ye, G.Y.; Wu, Q.; Peng, Y.F.; Chen, X.X. Arthropod abundance and diversity in Bt and non-Bt rice fields. Environ. Entomol. 2007, 36, 646–654. [Google Scholar] [CrossRef]
  69. Liu, Z.C.; Ye, G.Y.; Hu, C.; Datta, S.K. Impact of transgenic indica rice with a fused gene of cry1Ab/cry1Ac on the rice paddy arthropod community. Acta Entomol. Sin. 2003, 46, 454–465. [Google Scholar] [CrossRef]
  70. Jiang, W.H.; Zhang, D.J.; Liu, J.X.; Li, C.L.; Lu, Z.Y.; Yang, M.S. Comparative Analysis of Arthropod Communities in Transgenic Bt and Non-Transgenic Poplar-Cotton Composite Systems. Sci. Geol. Sin. 2018, 54, 73–79. [Google Scholar] [CrossRef]
  71. Catarino, R.; Ceddia, G.; Areal, F.J.; Park, J. The impact of secondary pests on Bacillus thuringiensis (Bt) crops. Plant Biotech. J. 2015, 13, 601–612. [Google Scholar] [CrossRef]
  72. Carpenter, J.E. Impact of GM crops on biodiversity. GM Crops 2011, 2, 7–23. [Google Scholar] [CrossRef]
  73. Bhatti, M.A.; Duan, J.; Head, G.P.; Jiang, C.J.; McKee, M.J.; Nickson, T.E.; Pilcher, C.L.; Pilcher, C.D. Field evaluation of the impact of corn rootworm (Coleoptera: Chrysomelidae)–protected Bt corn on foliage-dwelling arthropods. Environ. Entomol. 2005, 34, 1336–1345. [Google Scholar] [CrossRef] [Green Version]
  74. Pervez, A.; Omkar. Ecology and biological control application of multicoloured Asian ladybird, Harmonia axyridis: A review. Biocontrol Sci. Technol. 2006, 16, 111–128. [Google Scholar] [CrossRef]
  75. Connell, J.H.; Orias, E. The ecological regulation of species diversity. Am. Nat. 1964, 98, 399–414. [Google Scholar] [CrossRef]
  76. Liu, Y.F.; Gu, D.X.; Zhang, G.R. The community dynamics of predatory arthropods in both weed habitat and paddy field from a double cropping paddy in Guangdong. Acta Entomol. Sin. 2003, 46, 591–597. [Google Scholar] [CrossRef]
  77. Yin, J.Q.; Wang, D.M.; Liang, J.G.; Song, X.Y. Negligible Impact of Drought-Resistant Genetically Modified Maize on Arthropod Community Structure Observed in a 2-Year Field Investigation. Plants 2022, 11, 1092. [Google Scholar] [CrossRef]
  78. Yang, Y. Establishment and Trial Application of a Database of Arthropods in Chinese Main Crops Fields. Doctoral Thesis, Chinese Academy of Agricultural Sciences, Beijing, China, 2018. [Google Scholar]
  79. Zhang, L. Study on Environmental Persistence of Exogenous protein of Transgenic cry1Ab/c Rice and Its Effects on the Hydrobiont. Master’s Thesis, Nanjing Agricultural University, Nanjing, China, 2013. [Google Scholar]
  80. Ter Braak, C.J.F. Ordination. In Data Analysis Community and Landscape Ecology; Jongman, R.H.G., ter Braak, C.J.F., Van Tongeren, O.F.R., Eds.; Cambridge University Press: London, UK, 1995; pp. 91–173. [Google Scholar] [CrossRef]
Plants 11 02520 g001 550

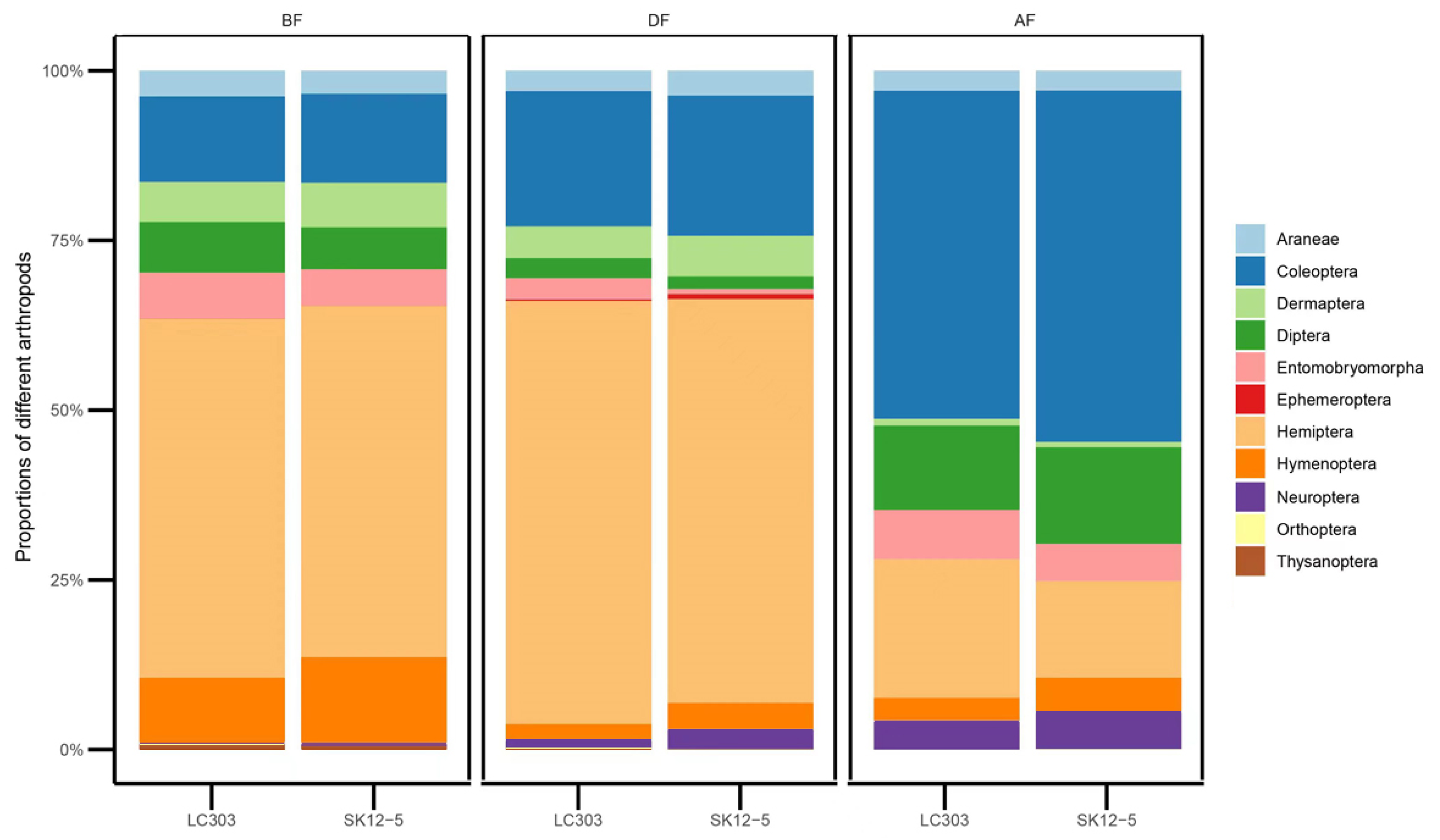

Figure 1. Proportions of all orders of non-target arthropods (NTAs) found in SK12-5 (Bt) and LC303 (non-Bt) maize fields in three main maize growth stages: BF—Before Flowering stage; DF—During Flowering stage; AF—After Flowering stage.
Figure 1. Proportions of all orders of non-target arthropods (NTAs) found in SK12-5 (Bt) and LC303 (non-Bt) maize fields in three main maize growth stages: BF—Before Flowering stage; DF—During Flowering stage; AF—After Flowering stage.
Plants 11 02520 g001
Plants 11 02520 g002 550

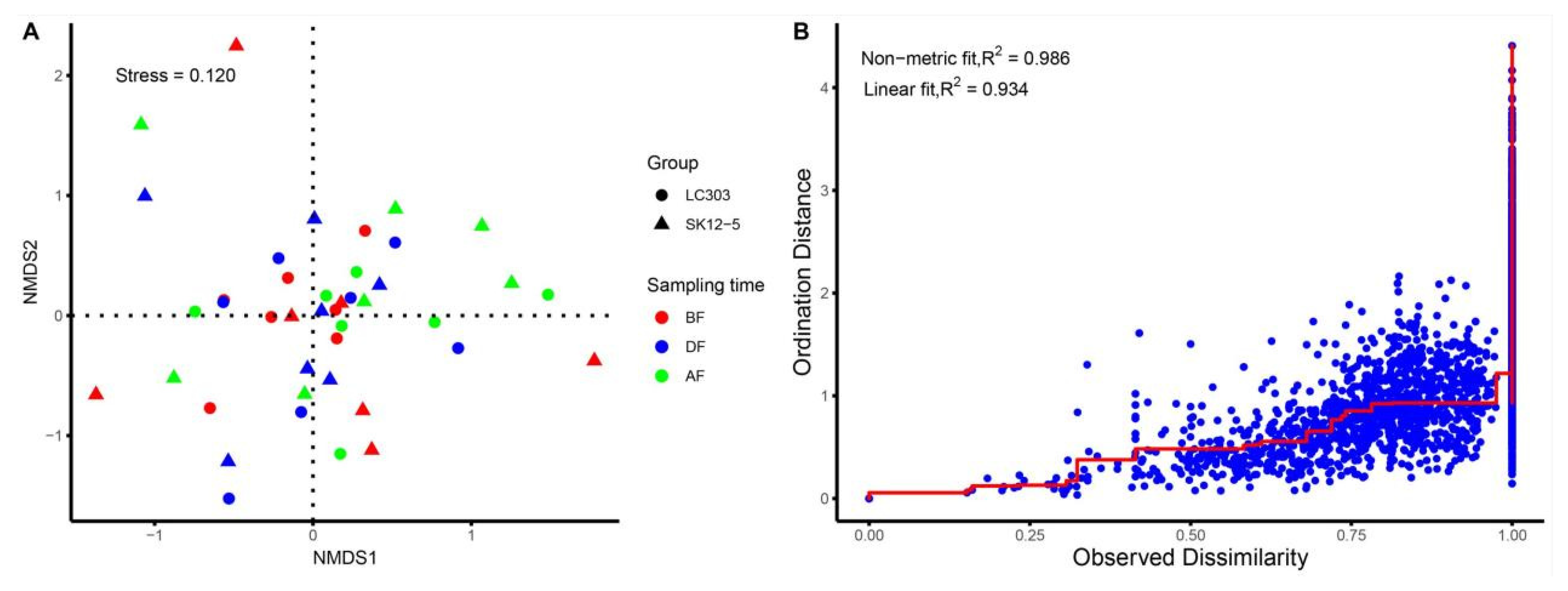

Figure 2. (A) Nonmetric Multidimensional Scaling (NMDS based on Bray–Curtis distance) plot of community structures of arthropods for three main growth stages in SK12-5 and LC303 maize fields. Triangles indicate SK12-5 (Bt) maize fields, and circles indicate LC303 (non-Bt) maize fields. Different colors indicate the three main growth stages: red indicates Before Flowering (BF) stage, blue indicates During Flowering (DF) stage and green indicates After Flowering (AF) stage. (B) NMDS Shepard plot.
Figure 2. (A) Nonmetric Multidimensional Scaling (NMDS based on Bray–Curtis distance) plot of community structures of arthropods for three main growth stages in SK12-5 and LC303 maize fields. Triangles indicate SK12-5 (Bt) maize fields, and circles indicate LC303 (non-Bt) maize fields. Different colors indicate the three main growth stages: red indicates Before Flowering (BF) stage, blue indicates During Flowering (DF) stage and green indicates After Flowering (AF) stage. (B) NMDS Shepard plot.
Plants 11 02520 g002
Plants 11 02520 g003 550

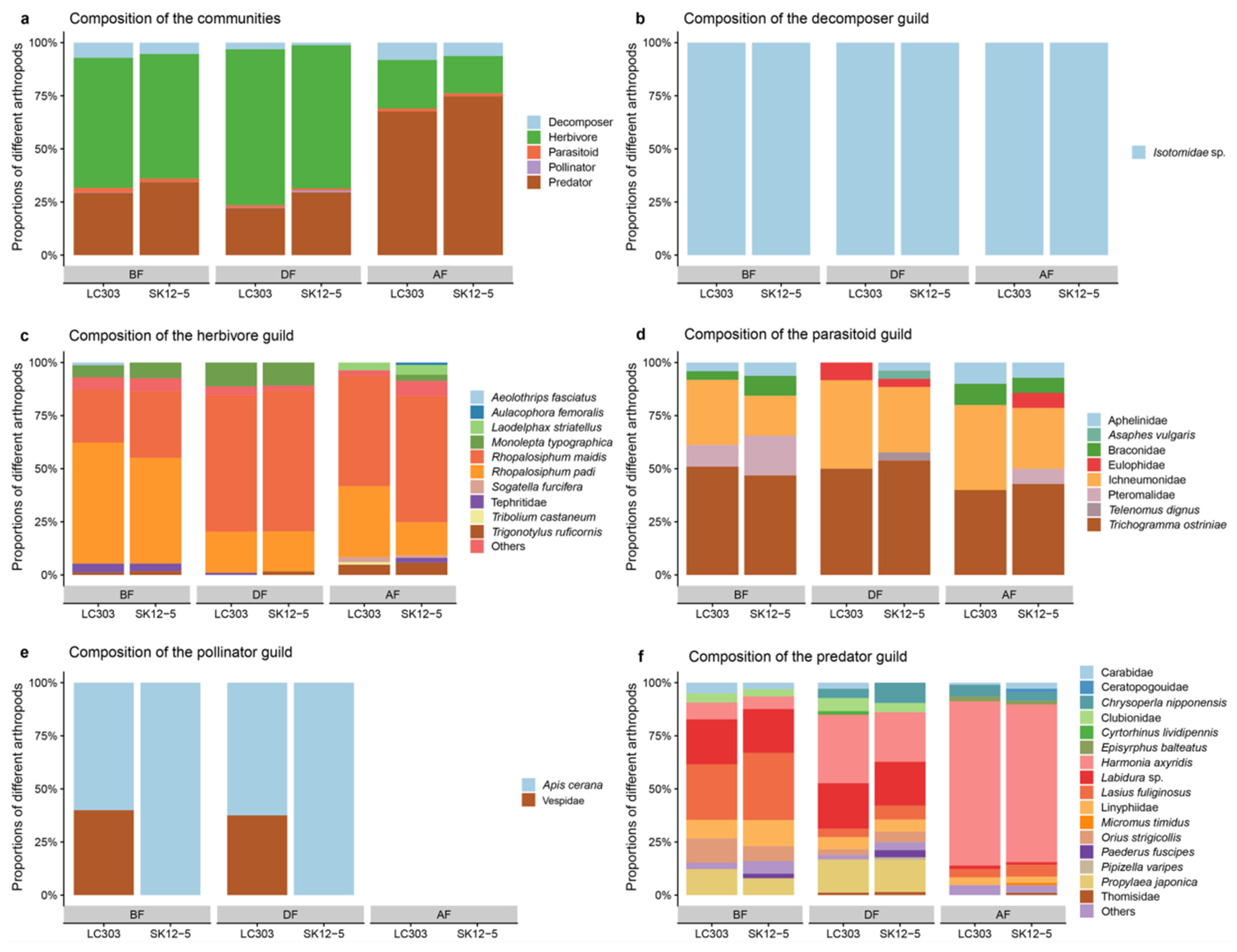

Figure 3. Composition of non-target arthropod (NTA) communities in SK12-5 (Bt) and LC303 (non-Bt) maize fields for three main maize growth stages: BF—Before Flowering, DF—During Flowering and AF—After Flowering. (a) NTA communities; (b) decomposers; (c) herbivores; (d) parasitoids; (e) pollinators; and (f) predators.
Figure 3. Composition of non-target arthropod (NTA) communities in SK12-5 (Bt) and LC303 (non-Bt) maize fields for three main maize growth stages: BF—Before Flowering, DF—During Flowering and AF—After Flowering. (a) NTA communities; (b) decomposers; (c) herbivores; (d) parasitoids; (e) pollinators; and (f) predators.
Plants 11 02520 g003
Table
Table 1. Species composition and the temporal dynamics of non-target arthropods (NTAs) in fields planted with transgenic Bt maize and non-Bt maize in Jilin, China.
Table 1. Species composition and the temporal dynamics of non-target arthropods (NTAs) in fields planted with transgenic Bt maize and non-Bt maize in Jilin, China.
OrderFamilySpeciesInvestigation Date
BF 1DF 2AF 3
Non-Bt aBtbNon-Bt aBtbNon-Bt aBtb
AraneaeAgelenidaeSpider++++++++++++
Araneida
Clubionidae
Hahniidae
Linyphiidae
Lycosidae
Pisauridae
Salticidae
Theridiidae
Thomisidae
ColeopteraCarabidae/+++++++++
Chrysomelidae/++++++++
Aulacophora femoralis (Motschulsky, 1857)++ +
Monolepta typographica (Weise, 1915)++++++++++
Pachnephorus lewisii (Baly, 1878)++
Coccinellidae/ + +
Harmonia axyridis (Pallas, 1773)++++++++++++++
Propylaea japonica (Thunberg, 1781)++++++++++
Rodolia rufopilosa (Mulsant, 1850) +
Scymnus hoffmanni (Weise, 1879) + +
Curculionidae/ + +
Elateridae/ +
Aeoloderma agnata (Candeze, 1873) +
Melanotus caudex (Lewis, 1879) +
MelolonthidaeHolotrichia oblita (Faldermann, 1835) + + +
Platypodidae/ +
RutelidaePopillia quadriguttata (Fabricius, 1787) +
StaphylinidaePaederus fuscipes (Curtis, 1826)+++++ +
TenebrionidaeOpatrum subaratum (Faldermann, 1835)++++
Tribolium castaneum (Herbst, 1797)++++++
DermapteraLabiduridaeLabidura sp.++++++++++
DipteraAsilidae/ +
CecidomyiidaeAphidoletes aphidimyza (Rondani, 1846) +
Chironomidae/+
Culicidae/++++++++++
Dolichopodidae/ +
DrosophilidaeDrosophila macquarti (Wheeler, 1981)+++ ++++
Empododae/ +
Muscidae/++++++++++++
Musca domestica (Linnaeus, 1758)+++++++
SarcophagidaeSarcophaga melanura (Meigen, 1826)+++ +
StratiomyidaeHermetia illucens (Linnaeus, 1758) +
SyrphidaeEpisyrphus balteatus (De Geer, 1776)+ + ++++
Eupeodes corollae (Fabricius, 1794) +
Melanostoma scalare (Fabricius, 1794) +
Pipizella varipes (Meigen, 1822) + +
Sphaerophoria menthastri (Linnaeus, 1758) +
Tabanidae/ + +++
Tabanus amaenus (Walker, 1848) +
Tabanus signatipennis (Portschinsky, 1887) +
Tabanus sp.+ +
Tephritidae/++++++++
EntomobryomorphaIsotomidaeIsotomidae sp.++++++++++++
EphemeropteraBaetidae/++++
HemipteraAnthocoridaeOrius strigicollis (Poppius, 1915)+++++++++
Aphididae/ ++++ ++
Rhopalosiphum maidis (Fitch, 1856)+++++++++++++++++
Rhopalosiphum padi (Linnaeus, 1758)++++++++++++++++
CicadellidaeCicadella viridis (Linnaeus, 1758) ++
Macropsis notata (Prohaska, 1923) +
Psammotettix striatus (Linnaeus, 1758)++
CydnidaeAdrisa magna (Uhler, 1861)++
Delphacidae/ +
Laodelphax striatellus (Fallén, 1826)++++++
Sogatella furcifera (Horváth, 1899)++++++
Trigonotylus ruficornis (Geoffroy in Fourcroy, 1785)++++++++
MiridaeAdelphocoris sp. + +
Apolygus lucorum (Meyer-Dur, 1843) +
Cyrtorhinus lividipennis (Reuter, 1885)+ ++
Lygus pratensis (Linnaeus, 1758) +
NabidaeNabis stenoferus (Hsiao, 1964) + +
HymenopteraFormicidaeLasius fuliginosus (Latreille, 1798)+++++ ++++
ApidaeApis cerana (Fabricius, 1793)++++
Eumenidae/ ++++
Megachilidae/ + +++
Vespidae/+ +
AphelinidaeParasitic Wasp++++++++++
Braconidae
Eulophidae
Ichneumonidae
Pteromalidae
Scelionidae
Trichogrammatidae
NeuropteraChrysopidaeChrysopa pallens (Rambur, 1838) +
Chrysoperla nipponensis (Okamoto, 1914)++++++++++
Hemerobiidae/ + ++
Micromus timidus (Hagen, 1853) + ++
OrthopteraAcrididae/+ +
CoenagrionidaeIschnura asiatica (Brauer, 1865) +
GryllidaeGryllidae sp. +
ThysanopteraAeolothripidaeAeolothrips fasciatus (Linnaeus, 1758)++ +
PhlaeothripidaeGynaikothrips uzeli (Zimmermann, 1900) +
Haplothrips aculeatus (Fabricius, 1803) +
ThripidaeAnaphothrips obscurus (Müller, 1776) +++
“1” BF—Before Flowering stage; “2” DF—During Flowering stage; “3” AF—After Flowering stage; “a” represents the LC303 fields that planted the non-transgenic near isoline maize of SK12-5; “b” represents the SK12-5 fields that planted transgenic Cry1Ab/2Aj maize; “+++” denotes dominant species; “++” denotes common species; “+” denotes rare species.
Table
Table 2. Comparison of community parameters for arthropods between fields planted with Bt maize or non-Bt maize. Values represent means ± SE, n = 7 replicates. The differences in the same maize fields among months were analyzed by a one-way ANOVA followed by the Tukey HSD test (all p > 0.05). The differences of the community parameters of arthropods between Bt and non-Bt maize fields were analyzed by a Student’s t-test (an asterisk denotes a significant difference, p < 0.05).
Table 2. Comparison of community parameters for arthropods between fields planted with Bt maize or non-Bt maize. Values represent means ± SE, n = 7 replicates. The differences in the same maize fields among months were analyzed by a one-way ANOVA followed by the Tukey HSD test (all p > 0.05). The differences of the community parameters of arthropods between Bt and non-Bt maize fields were analyzed by a Student’s t-test (an asterisk denotes a significant difference, p < 0.05).
Parameter of CommunityBF 1DF 2AF 3
Non-Bt aBtbNon-Bt aBtbNon-Bt aBtb
Species richness (S)8.43 ± 3.1411.71 ± 2.6310.71 ± 3.6011.00 ± 2.728.00 ± 1.4110.86 ± 1.90
Shannon-Wiener diversity index (H′)1.10 ± 0.241.50 ± 0.351.23 ± 0.261.53 ± 0.211.15 ± 0.181.38 ± 0.17
Evenness index (J)0.63 ± 0.0680.63 ± 0.0960.60 ± 0.110.70 ± 0.0820.58 ± 0.0600.60 ± 0.050
Simpson’s dominant concentration (C)0.47 ± 0.0620.45 ± 0.15*0.45 ± 0.110.31 ± 0.0640.48 ± 0.0710.41 ± 0.057
Czekanowski Community Similarity Coefficient (CS)0.730.670.7
“1” BF—Before Flowering stage; “2” DF—During Flowering stage; “3” AF—After Flowering stage; “a” represents the LC303 fields that were planted with the non-transgenic near isoline maize of SK12-5; “b” represents the SK12-5 fields that were planted with transgenic Cry1Ab/2Aj maize.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yang, Y.; Chen, Y.; Xue, J.; Wang, Y.; Song, X.; Li, Y. Impact of Transgenic Cry1Ab/2Aj Maize on Abundance of Non-Target Arthropods in the Field. Plants 2022, 11, 2520. https://doi.org/10.3390/plants11192520

AMA Style

Yang Y, Chen Y, Xue J, Wang Y, Song X, Li Y. Impact of Transgenic Cry1Ab/2Aj Maize on Abundance of Non-Target Arthropods in the Field. Plants. 2022; 11(19):2520. https://doi.org/10.3390/plants11192520

Chicago/Turabian Style

Yang, Yan, Yi Chen, Jiabao Xue, Yuanyuan Wang, Xinyuan Song, and Yunhe Li. 2022. "Impact of Transgenic Cry1Ab/2Aj Maize on Abundance of Non-Target Arthropods in the Field" Plants 11, no. 19: 2520. https://doi.org/10.3390/plants11192520

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
