Article

Verifying the Breeding Value of A Rare Haplotype of Chalk7, GS3, and Chalk5 to Improve Grain Appearance Quality in Rice

by
Dianwen Wang
1,2,†,
Jilin Wang
2,3,†,
Wenqiang Sun
1,4,
Xianjin Qiu
5,
Zhiyang Yuan
1,2 and
Sibin Yu
1,2,*
1
National Key Laboratory of Crop Genetic Improvement, Huazhong Agricultural University, Wuhan 430070, China
2
College of Plant Science and Technology, Huazhong Agricultural University, Wuhan 430070, China
3
Rice Research Institute, Jiangxi Academy of Agricultural Sciences, Nanchang 330200, China
4
College of Life Science and Technology, Huazhong Agricultural University, Wuhan 430070, China
5
College of Agriculture, Yangtze University, Jingzhou 434025, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this study.
Plants 2022, 11(11), 1470; https://doi.org/10.3390/plants11111470
Submission received: 29 April 2022 / Revised: 28 May 2022 / Accepted: 28 May 2022 / Published: 30 May 2022
(This article belongs to the Special Issue Genomic Breeding of Green Crops)
Browse Figures
Versions Notes

Abstract

:
Grain quality is a key determinant of commercial value in rice. Efficiently improving grain quality, without compromising grain yield, is a challenge in rice breeding programs. Here we report on the identification and application of a grain quality gene, Chalk7, which causes a slender shape and decreases grain chalkiness in rice. Three allele-specific markers for Chalk7, and two other grain genes (GS3 and Chalk5) were developed, and used to stack the desirable alleles at these loci. The effects of individual or combined alleles at the loci were evaluated using a set of near-isogenic lines, each containing one to three favorable alleles in a common background of an elite variety. We found that the favorable allele combination of the three loci, which rarely occurs in natural rice germplasm, greatly reduces chalky grains without negatively impacting on grain yield. The data for newly developed allele-specific markers and pre-breeding lines will facilitate the improvement of grain appearance quality in rice.

1. Introduction

Rice (Oryza sativa L.) is one of the most important staple crops, and provides food for nearly half of the global population. The improvement of grain quality and yield potential is a priority, in order to meet the growing demand of consumers. Grain shape and chalkiness are two important components of grain appearance quality in rice. Grain shape is characterized by grain length, grain width, and the ratio of grain length to width. Chalkiness is usually measured by the percentage of chalky grains, and the area of opaque parts in the endosperm [1]. High grain chalkiness is an undesirable feature in the marketing and consumption of rice, mainly due to its association with inferior rice milling, cooking, and eating quality [1,2]. Slender grains with low chalkiness are preferred by most consumers of rice in southeast Asia [3]. In addition, grain quality and yield seem to be irreconcilable conflicts in rice breeding. Therefore, improving rice varieties with superior grain quality and high yield is a main objective of rice breeding programs.
Both grain shape and grain chalkiness are quantitative traits controlled by quantitative trait loci (QTL), and are largely influenced by environments. Numerous loci were identified for the grain traits by QTL mapping and association analysis in rice (http://www.gramene.org, accessed on 24 April 2017). Dozens of genes conferring grain shape and/or grain chalkiness were cloned in rice, using map-based cloning strategies [4,5,6,7,8,9,10,11,12]. For example, a grain size gene, GS3, is highly associated with grain length. The C to A nucleotide substitution in the second exon of GS3 induces a loss-of-function allele (gs3), leading to long grain length [13,14,15,16,17]. Chalk5 encodes a vacuolar H+-translocating pyrophosphatase. Elevating its expression results in increased grain chalkiness. A nucleotide single polymorphism (SNP) in the Chalk5 promoter (at −721 bp from ATG) is reported to partially account for the expression variation [18]. In this case, due to its tight linkage with GW5 affecting grain width, unfavorable association of grain width and chalkiness occurred frequently in the rice breeding [5,7]. The grain-related gene GL7/GW7, encoding a TONNEAU1-recruiting motif protein, contributes to slender grain and reduced grain chalkiness [19,20]. Intriguingly, this gene does not suggest any association with grain chalkiness by using genome-wide association analysis in rice natural germplasm [21]. Recently, a white-core gene (WCR1) was identified to negatively regulate grain chalkiness in rice [22]. A functional A/G variant in the WCR1 promoter is associated with its expression level. The discovery and characterization of grain-related genes enriched our knowledge on the regulation of grain shape and chalkiness, and facilitates the marker-assisted breeding of high-yield and good quality varieties [6,23,24]. In this context, a large effort is still required to explore multiple beneficial alleles, and develop gene-specific markers for the improvement of grain quality in rice.
Developing functional markers and evaluating breeding values of particular functional alleles are prerequisites for marker-assisted selection (MAS) and genomic breeding in crops. Genome sequence analyses uncovered millions of SNP in rice germplasm, providing the possibility of generating co-dominant markers with high genomic coverage [25,26]. However, there are many challenges in the specificity and availability of use-friendly markers for MAS application [27]. Kompetitive allele-specific PCR (KASP) is a type of high-efficiency, co-dominant marker, combined with a homogeneous, fluorescence-based reporting system [28]. Due to its advantage of high-throughput without the electrophoresis process, over PCR-gel-based markers, the KASP rapidly evolved into a global benchmark technology [29,30,31].
In this study, we verified that the desired alleles of Chalk7 contribute to both grain shape and grain chalkiness, and developed three KASP markers of Chalk7 and two other grain genes (GS3 and Chalk5) for the improvement of grain quality. To evaluate the breeding values of the three genes individually, and in combination, we generated a set of near-isogenic lines (NILs) that each contained single or multiple alleles of interest. The favorable allelic combination (haplotype) at the three loci was identified. Due to this optimal haplotype rarely occurring in rice germplasm, we believe that our data, with the availability of allele-specific markers and NIL stocks, will facilitate the improvement of superior grain quality in rice.

2. Results

2.1. Chalk7 Affects Grain Chalky Rate and Chalkiness Degree in Rice

Previously, a major QTL (qSS7) for grain shape was delimited into a 23-kb region on chromosome 7 [32]. This region encompasses two candidate genes (LOC_07g41210 and LOC_07g41200). The latter is the gene GW7/GL7, for long grain length [19,20]. Up-regulation of this gene increases the ratio of grain length to width, and substantially enhances grain appearance quality [19]. Therefore, GW7/GL7 is the candidate gene for grain chalkiness, designated here as Chalk7. NIL-Chalk7Cyp, which carries the Chalk7 alleles from the Cypress variety (Cyp), has a higher ratio of grain length to width (RLW) than NIL-Chalk7ZS, harboring Chalk7ZS from variety Zhenshan97 (ZS) [32]. Besides RLW, lower chalky grain rate (CGR) and chalkiness degree (CD) are observed in NIL-Chalk7Cyp, relative to NIL-Chalk7ZS (Figure 1A–D). When examined with scanning electron microscopy, the endosperm of chalky grains of NIL-Chalk7ZS contains loosely packed starch granules with large air spaces, while those of NIL-Chalk7Cyp are filled with densely packed granules (Figure 1E,F).

2.2. Development of Functional Markers of Chalk7, GS3 and Chalk5

A comparison of sequence variation reveals a non-synonymous SNP (C/T) in the third exon of Chalk7, between ZS97 and Cyp (Figure 2A) [32]. Based on this SNP, a allele-specific KASP marker (named K-Chalk7) is developed (Table S1). It distinguishes 12 rice accessions that possess the C or T variants in the gene (Figure 2B, Table S1). GS3 is the major gene for grain size, and GS3C165A in the second exon accounts for grain length variation in rice. The gene with SNPC165 is a loss-of-function allele (e.g., GS3MH) that increases grain length (Figure 2C). There is a SNP (C/T) at –721 bp upstream of ATG in the Chalk5 promoter (Figure 2D), of which Chalk5MH, with the T variant, reduces grain chalkiness in rice. Based on these SNPs, two KASP markers (K-GS3, K-Chalk5) for corresponding genes are also developed (Table S1). The two markers also accurately recognize the corresponding alleles in the 12 rice accessions (Figure 2E,F, Table S2). To verify the specificity and applicability of the markers, an expanded panel of rice accessions (n = 115) is genotyped (Table S2). The results show that these accessions are classed into two groups with the contrasting alleles by each developed marker.

2.3. Validation of Combined Effects of Corresponding Alleles at Three Loci in Rice Germplasm

Using three developed markers, the panel of rice accessions (n = 115) is genotyped, and classed into five haplotypes (allelic combinations). Of those haplotypes, HAP1 is the majority (65.2%) of the haplotypes in the panel. ZS97 belongs to HAP1. Thus, HAP1 with the allele combination is designed as Chalk7ZS/GS3ZS/Chalk5ZS. It shows a mediate grain shape, and the highest CGR and CD among the five haplotypes (Figure 3A–C). In contrast, HAP4 (Chalk7Cyp/GS3MH/Chalk5ZS) is in the minority (4.3%), and reveals a slender shape and the lowest CGR and CD. The grain chalkiness (CGR and CD) is negatively and significantly correlated with RLW among the five haplotypes (Figure 3D,E). These results indicate that the target genes are highly associated with grain shape and chalkiness variation in rice.
In addition, seven haplotypes across the three loci are identified in a large panel of rice germplasms (n = 4694) assayed by the corresponding SNPs in Chalk7, GS3, and Chalk5 (http://ricevarmap.ncpgr.cn/hap_net/, accessed on 7 April 2022). HAP1 is consistently the majority (50.5%) of the haplotypes (Figure 3F); HAP2 occurs with less frequency (4.7%), and HAP7 (Chalk7Cyp/GS3MH/Chalk5MH) is rarely detected, with only 0.4% in the large panel of rice germplasms.

2.4. The Stacking of Chalk7Cyp, GS3MH and Chalk5MH Greatly Improved Grain Appearance Quality

To evaluate breeding values of individual or combined alleles at the three loci, a set of NILs, each containing at least one favorable allele in the common background of ZS97, is generated using the marker-assisted backcross scheme (Figure 4A and Figure S1), in which Cypress (carrying Chalk7Cyp) and Minghui63 (carrying GS3MH and Chalk5MH), as the donor parents, are crossed individually with ZS97. A comparison of pairwise NILs containing the contrasting alleles (Chalk7Cyp vs. Chalk7ZS), even in three diverse genetic backgrounds such as GS3ZS/Chalk5ZS, GS3MH/Chalk5ZS, and GS3ZS/Chalk5MH, reveal that Chalk7Cyp contributes to a significantly reduced CGR and CD and increased RLW, relative to Chalk7ZS (Figure 4B–D). Chalk7Cyp not only increases grain length by approximately 17.2% relative to Chalk7ZS, but also decreases CGR and CD by approximately 16.6% and 39.3%, respectively (Table S3). The results indicate that Chalk7Cyp is a desirable allele, contributing to reduced grain chalkiness and increased grain shape, independent of GS3 and Chalk5.
A comparison of paired NILs, different only in GS3 region, reveals that GS3MH improves grain length by approximately 15.2%, and does not significantly change grain chalkiness (Table S3). A similar comparison shows that Chalk5MH is the major allele, contributing to a decreased CGR by 41.7% and CD by 50.2%, but does not significantly change grain shape.
Regarding the combined two or three favorable alleles, the NIL that pyramids two alleles, Chalk5MH/Chalk7Cyp, increases grain length by approximately 19.4%, decreases the CGR by 52.1%, and reduces CD by 67.7%, when compared with ZS97 (Table S3). The NIL carrying GS3MH/Chalk7Cyp increases the grain length by approximately 35.6%, and reduces grain chalkiness by approximately 15.2%. The NIL stacking the three alleles (Chalk7Cyp, Chalk5MH, and GS3MH) significantly reduces CGR by 90.1%, and CD by 94.7%.
In addition, there is no significant difference in grain yield among the seven NILs, despite some alterations being observed in panicle length, panicle weight, grain number, and seed setting ratio (Table S3). These results indicate that the combination of three favorable alleles effectively enhances rice grain quality, without compromising grain yield.

3. Discussion

3.1. Validation of the Chalk7 Effect on Grain Chalkiness

The slender shape and transparency of grains are important characteristics of superior grain quality in rice. In the present study, we find that Chalk7Cyp is a desirable allele using diverse rice germplasm and NILs within the ZS97 background (Figure 3 and Figure 4). It greatly reduces CGR and CD, and increases RLW. Our data support that the qSS7 and GL7 regions are associated with grain quality [19,20,32]. Notably, the favorable effects of Chalk7Cyp on enhanced grain shape and reduced chalkiness are consistent in diverse genetic backgrounds (Figure 4). This suggests that the Chalk7 effect is independent of GS3 and Chalk5. Many cloned grain-related genes have a pleiotropic effect on agronomic traits, but act in a reverse direction [4,33]. In this case, the major chalkiness gene Chalk5 is tightly linked to the grain width gene qSW5 (GW5), which results in the unfavorable association of grain width and chalkiness. The use of Chalk5 for reduced grain chalkiness may require a large population to break this linkage in breeding schemes. Therefore, Chalk7 will be widely used as a promising gene, and for the good complementary action with other grain genes for the improvement of grain appearance quality in rice.

3.2. Stacking Chalk7, GS3 and Chalk5 for Grain Quality Improvement

The development of gene-specific markers is essential to facilitate the precise improvement of target traits by the MAS approach. Previously, many molecular markers of Chalk7, GS3, or Chalk5 were developed [18,32,34,35], but most were PCR-gel-based markers, with the disadvantages in high-throughput analysis. In this study, we successfully developed three KASP markers of the three grain quality genes, based on their functional SNPs. The specificity and applicability of the newly developed markers were verified in rice accessions. We found that the majority of rice accessions (50.5%) belongs to the same haplotype as ZS97 (Chalk7ZS/GS3ZS/Chalk5ZS), and produce medium grains with high chalkiness (Figure 3), which fail to keep pace with the current demands of grain quality by consumers. As ZS97 was one of the most widely used indica maintainer lines in hybrid breeding programs in the past three decades, we attempted to improve its grain quality, and observed that it is difficult to achieve the desired objective using a single gene. Therefore, we used a multi-gene pyramiding strategy. In this context, we found that the optimal allele combination enhances superior appearance quality. NIL-Chalk7Cyp/GS3MH/Chalk5MH shows favorable slender grains with RLW of 4.3%, CRG of 8.2%, and CD of 1.5% (Table S3), which meets the appearance criteria for the national standard of high-quality rice. In addition, the fact that the allele combination (haplotype) rarely occurs in a large rice germplasm (Figure 4F) may explain why the gene Chalk7 is not detected and associated with the grain chalkiness in rice germplasm [21]. These findings of the desired allelic combination and developed functional markers provide an optional strategy and good stocks for the genomic breeding for the improvement of appearance quality in rice.

4. Materials and Methods

4.1. Plant Materials

NILs were developed using marker-assisted backcross schemes. Briefly, NILs each containing only one introduced region covering a particular gene (Chalk7Cyp, GS3MH or Chalk5MH) in the ZS97 background, were generated by crossing ZS97 with the donor parents: a tropic japonica variety Cypress, and an indica variety Minghui63. Then, the NILs containing two or three target genes were generated by pairwise-crossing of the above NILs (Figure S1). During the progression of generations, some progenies were selected to have a background similar to that of ZS97 using 6K gene chip [36], or simple sequence repeat (SSR) markers evenly distributed on rice genomes, as previously described [37].

4.2. DNA Extraction and Kompetitive Allele Specific PCR (KASP) Marker Assays

Genomic DNA from fresh young leaves of rice was extracted using the CTAB method [38]. Polymorphic SSR markers were used for MAS. All primers were synthesized at Sangon Biotech (Shanghai, China). For KASP primer design, the functional SNPs for GS3 and Chalk5 were targeted, based on previous reports [14,16,18]. The candidate SNP for Chalk7 was selected based on the sequence variation between Chalk7Cyp and Chalk7ZS (Figure 2A). To ensure the stability and universality of markers, the primer sequences, without any other variations except a particular SNP, were designed, based on the database (http://ricevarmap.ncpgr.cn/, accessed on 4 December 2020). The primer sequences are provided in Table S1. The PCR protocol for KASP was as follows: 5 μL (20–30 ng/μL) DNA, 0.14 μL primer mixture, and 5 μL 2 × KASP Master mixture (KBS-1016-002, LGC, Hoddeston, UK). The cycling regime was as follows: 94 °C for 15 min, 10 touchdown cycles (94 °C for 20 s, touchdown at 61 °C initially, and decreasing by 0.6°C per cycle for 60 s), followed by 28 additional cycles of annealing (95 °C for 20 s, 55 °C for 60 s). The PCR products were detected using the RT-PCR system (CFX-96, BioRad®, Hercules, CA, USA).

4.3. Trait Measurement

All plant materials were planted in a randomized block design, with two replications, at the experimental station of Huazhong Agricultural University at Wuhan (114°30′ E, 30°60′ N) for phenotype investigation. Each line was grown in a 3 row plot with 10 plants per row, with a spacing of 16.7 cm between plants, and 26.6 cm between rows. The middle eight individuals of each row were harvested for the measurement of agronomic traits, including panicle weight (PW), panicle length (PL), grain number (GN), spikelet number (SN), seed setting ratio (SS), thousand-grain weight (TGW), and yield per plant (YD), as described previously [39]. The seeds were harvested at maturity, and air-dried for 30 days to measure grain-related traits, which included grain length, grain width, the ratio of grain length and width, chalky grain rate, and chalkiness degree. The grain length, grain width, and the ratio of grain length and width were measured with a scanner (5600F, CanoScan, Beijing, China), and digitization was conducted using the software Image J [40]. Chalky grain rate and chalkiness degree were measured using a grain quality analyzer (XLJQ-JMWT12, Beijing, China) [41].

4.4. Scanning Electron Microscopy Analysis

For scanning electron microscopy (SEM) analysis, grains were transversely cut with a razor blade. Starch granules were observed with a scanning electron microscope at an accelerating voltage of 12 KV (JSM-6390LV, JEOL, Akishima, Tokyo, Japan). All procedures were performed according to the manufacturer’s protocol [18].

4.5. Haplotype Analysis

The functional SNPs of Chalk7 (vg0724666398), GS3 (vg0316733441), and Chalk5 (vg0503340440) were used for haplotype analysis in a panel of 4694 rice accessions. The genomic sequences of these genes in the accession were acquired from RiceVarMap (http://ricevarmap.ncpgr.cn/hap_net/, accessed on 7 April 2022).

5. Conclusions

The grain-related gene Chalk7 was identified as a major contributor to slender grain shape and decreased grain chalkiness in rice. The allele-specific KASP markers for Chalk7 and two other grain genes (GS3 and Chalk5) were developed for marker-assisted breeding. The effects of the allelic combination at the three loci were evaluated using a series of NILs, within the common background ZS97. The NILs containing the optimal allele combination (Chalk7Cyp/GS3MH/Chalk5MH) show a superior grain quality appearance, without compromising grain yield. As this allelic combination is a rare occurrence in rice germplasm, the developed allele-specific markers will be used widely for the improvement of grain quality in the future. The superior allelic combination in the elite genetic background also provides a good startup for genomic breeding, in order to achieve slender grain shape and lower grain chalkiness in rice.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11111470/s1, Figure S1: Development of near-isogenic lines (NILs) in backcross scheme using marker-assisted selection (MAS); Table S1: Developed KASP primer information; Table S2: Information on rice accessions used in this study; Table S3: Statistical analysis of agronomic traits of different NILs under the ZS97 background.

Author Contributions

Conceptualization, S.Y.; investigation, D.W. and J.W.; data curation, D.W., J.W. and W.S.; resources, J.W., X.Q., Z.Y. and W.S.; writing—original draft, D.W. and J.W.; writing—review and editing, S.Y.; funding acquisition, S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grants from the National Natural Science Foundation of China (31971864), the Hubei Special Major Projects for Technological Innovation (2021ABA005), and the Earmarked Fund for China Agricultural Research System (CARS-01-06).

Data Availability Statement

Data is contained within the article and supplementary material.

Acknowledgments

We are grateful to Chaopu Zhang and Kun Xie for assistance in data analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fitzgerald, M.A.; McCouch, S.R.; Hall, R.D. Not just a grain of rice: The quest for quality. Trends Plant Sci. 2009, 14, 133–142. [Google Scholar] [CrossRef] [PubMed]
  2. Butardo, V.M.; Sreenivasulu, N. Improving head rice yield and milling quality: State-of-the-art and future prospects. In Rice Grain Quality. Methods in Molecular Biology; Sreenivasulu, N., Ed.; Humana Press: New York, NY, USA, 2019; Volume 1892, pp. 1–18. [Google Scholar]
  3. Calingacion, M.; Laborte, A.; Nelson, A.; Resurreccion, A.; Concepcion, J.C.; Daygon, V.D.; Mumm, R.; Reinke, R.; Dipti, S.; Bassinello, P.Z. Diversity of global rice markets and the science required for consumer-targeted rice breeding. PLoS ONE 2014, 9, e85106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wang, S.; Wu, K.; Yuan, Q.; Liu, X.; Liu, Z.; Lin, X.; Zeng, R.; Zhu, H.; Dong, G.; Qian, Q.; et al. Control of grain size, shape and quality by OsSPL16 in rice. Nat. Genet. 2012, 44, 950–954. [Google Scholar] [CrossRef] [PubMed]
  5. Huang, R.; Jiang, L.; Zheng, J.; Wang, T.; Wang, H.; Huang, Y.; Hong, Z. Genetic bases of rice grain shape: So many genes, so little known. Trends Plant Sci. 2013, 18, 218–226. [Google Scholar] [CrossRef]
  6. Zuo, J.; Li, J. Molecular genetic dissection of quantitative trait loci regulating rice grain size. Annu. Rev. Genet. 2014, 48, 99–118. [Google Scholar] [CrossRef]
  7. Zuo, J.; Li, J. Molecular dissection of complex agronomic traits of rice: A team effort by Chinese scientists in recent years. Natl. Sci. Rev. 2014, 1, 253–276. [Google Scholar] [CrossRef] [Green Version]
  8. Li, N.; Li, Y. Signaling pathways of seed size control in plants. Curr. Opin. Plant Biol. 2016, 33, 23–32. [Google Scholar] [CrossRef]
  9. Duan, P.; Xu, J.; Zeng, D.; Zhang, B.; Geng, M.; Zhang, G.; Huang, K.; Huang, L.; Xu, R.; Ge, S.; et al. Natural variation in the promoter of GSE5 contributes to grain size diversity in rice. Mol. Plant 2017, 10, 685–694. [Google Scholar] [CrossRef] [Green Version]
  10. Liu, J.; Chen, J.; Zheng, X.; Wu, F.; Lin, Q.; Heng, Y.; Tian, P.; Cheng, Z.; Yu, X.; Zhou, K.; et al. GW5 acts in the brassinosteroid signalling pathway to regulate grain width and weight in rice. Nat. Plants 2017, 3, 17043. [Google Scholar] [CrossRef]
  11. Li, N.; Xu, R.; Duan, P.; Li, Y. Control of grain size in rice. Plant Reprod. 2018, 31, 237–251. [Google Scholar] [CrossRef]
  12. Li, N.; Xu, R.; Li, Y. Molecular networks of seed size control in plants. Annu. Rev. Plant Biol. 2019, 70, 435–463. [Google Scholar] [CrossRef] [PubMed]
  13. Fan, C.; Xing, Y.; Mao, H.; Lu, T.; Han, B.; Xu, C.; Li, X.; Zhang, Q. GS3, a major QTL for grain length and weight and minor QTL for grain width and thickness in rice, encodes a putative transmembrane protein. Theor. Appl. Genet. 2006, 112, 1164–1171. [Google Scholar] [CrossRef] [PubMed]
  14. Fan, C.; Yu, S.; Wang, C.; Xing, Y. A causal C-A mutation in the second exon of GS3 highly associated with rice grain length and validated as a functional marker. Theor. Appl. Genet. 2009, 118, 465–472. [Google Scholar] [CrossRef] [PubMed]
  15. Takano-Kai, N.; Jiang, H.; Kubo, T.; Sweeney, M.; Matsumoto, T.; Kanamori, H.; Padhukasahasram, B.; Bustamante, C.; Yoshimura, A.; Doi, K.; et al. Evolutionary history of GS3, a gene conferring grain length in rice. Genetics 2009, 182, 1323–1334. [Google Scholar] [CrossRef] [Green Version]
  16. Mao, H.; Sun, S.; Yao, J.; Wang, C.; Yu, S.; Xu, C.; Li, X.; Zhang, Q. Linking differential domain functions of the GS3 protein to natural variation of grain size in rice. Proc. Natl. Acad. Sci. USA 2010, 107, 19579–19584. [Google Scholar] [CrossRef] [Green Version]
  17. Sun, S.; Wang, L.; Mao, H.; Shao, L.; Li, X.; Xiao, J.; Ouyang, Y.; Zhang, Q. A G-protein pathway determines grain size in rice. Nat. Commun. 2018, 9, 851–861. [Google Scholar] [CrossRef] [Green Version]
  18. Li, Y.; Fan, C.; Xing, Y.; Yun, P.; Luo, L.; Yan, B.; Peng, B.; Xie, W.; Wang, G.; Li, X.; et al. Chalk5 encodes a vacuolar H(+)-translocating pyrophosphatase influencing grain chalkiness in rice. Nat. Genet. 2014, 46, 398–404. [Google Scholar] [CrossRef]
  19. Wang, S.; Li, S.; Liu, Q.; Wu, K.; Zhang, J.; Wang, S.; Wang, Y.; Chen, X.; Zhang, Y.; Gao, C.; et al. The OsSPL16-GW7 regulatory module determines grain shape and simultaneously improves rice yield and grain quality. Nat. Genet. 2015, 47, 949–954. [Google Scholar] [CrossRef]
  20. Wang, Y.; Xiong, G.; Hu, J.; Jiang, L.; Yu, H.; Xu, J.; Fang, Y.; Zeng, L.; Xu, E.; Xu, J.; et al. Copy number variation at the GL7 locus contributes to grain size diversity in rice. Nat. Genet. 2015, 47, 944–948. [Google Scholar] [CrossRef]
  21. Misra, G.; Badoni, S.; Parween, S.; Singh, R.; Leung, H.; Ladejobi, O.; Mott, R.; Sreenivasulu, N. Genome-wide association coupled gene to gene interaction studies unveil novel epistatic targets among major effect loci impacting rice grain chalkiness. Plant Biotechnol. J. 2021, 19, 910–925. [Google Scholar] [CrossRef]
  22. Wu, B.; Yun, P.; Zhou, H.; Xia, D.; Li, P.; Yao, J.; Zhou, Z.; Chen, J.; Liu, R.; Cheng, S.; et al. Natural variation in WHITE-CORE RATE 1 regulates redox homeostasis in rice endosperm to affect grain quality. Plant Cell 2022, 34, 1912–1932. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, L.; Ma, B.; Bian, Z.; Li, X.; Zhang, C.; Liu, J.; Li, Q.; Liu, Q.; He, Z. Grain size selection using novel functional markers targeting 14 genes in rice. Rice 2020, 13, 63. [Google Scholar] [CrossRef] [PubMed]
  24. Pan, Y.; Chen, L.; Zhao, Y.; Guo, H.; Li, J.; Rashid, M.; Lu, C.; Zhou, W.; Yang, X.; Yang, X.; et al. Natural variation in OsMKK3 contributes to grain size and chalkiness in rice. Front. Plant Sci. 2021, 12, 784037. [Google Scholar] [CrossRef] [PubMed]
  25. Qian, Q.; Guo, L.; Smith, S.M.; Li, J. Breeding high-yield superior quality hybrid super rice by rational design. Natl. Sci. Rev. 2016, 3, 283–294. [Google Scholar] [CrossRef] [Green Version]
  26. Zeng, D.L.; Tian, Z.X.; Rao, Y.C.; Dong, G.J.; Yang, Y.L.; Huang, L.C.; Leng, Y.J.; Xu, J.; Sun, C.; Zhang, G.H.; et al. Rational design of high-yield and superior-quality rice. Nat. Plants 2017, 3, 17031. [Google Scholar] [CrossRef]
  27. Xu, Y.; McCouch, S.R.; Zhang, Q. How can we use genomics to improve cereals with rice as a reference genome? Plant Mol. Biol. 2005, 59, 7–26. [Google Scholar] [CrossRef]
  28. He, C.; Holme, J.; Anthony, J. SNP Genotyping: The KASP Assay. In Crop Breeding. Methods in Molecular Biology; Fleury, D., Whitford, R., Eds.; Humana Press: New York, NY, USA, 2014; Volume 1145, pp. 75–86. [Google Scholar]
  29. Ertiro, B.T.; Ogugo, V.; Worku, M.; Das, B.; Olsen, M.; Labuschagne, M.; Semagn, K. Comparison of Kompetitive Allele Specific PCR (KASP) and genotyping by sequencing (GBS) for quality control analysis in maize. BMC Genom. 2015, 16, 908. [Google Scholar] [CrossRef] [Green Version]
  30. Rasheed, A.; Wen, W.; Gao, F.; Zhai, S.; Jin, H.; Liu, J.; Guo, Q.; Zhang, Y.; Dreisigacker, S.; Xia, X.; et al. Development and validation of KASP assays for genes underpinning key economic traits in bread wheat. Theor. Appl. Genet. 2016, 129, 1843–1860. [Google Scholar] [CrossRef]
  31. Semagn, K.; Babu, R.; Hearne, S.; Olsen, M. Single nucleotide polymorphism genotyping using Kompetitive Allele Specific PCR (KASP): Overview of the technology and its application in crop improvement. Mol. Breed. 2014, 33, 1–14. [Google Scholar] [CrossRef]
  32. Qiu, X.; Gong, R.; Tan, Y.; Yu, S. Mapping and characterization of the major quantitative trait locus qSS7 associated with increased length and decreased width of rice seeds. Theor. Appl. Genet. 2012, 125, 1717–1726. [Google Scholar] [CrossRef]
  33. Choi, B.; Kim, Y.; Markkandan, K.; Koo, Y.; Song, J.; Seo, H. GW2 functions as an E3 ubiquitin ligase for rice expansin-like 1. Int. J. Mol. Sci. 2018, 19, 1904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ramkumar, G.; Sivaranjani, A.K.P.; Pandey, M.K.; Sakthivel, K.; Shobha Rani, N.; Sudarshan, I.; Prasad, G.S.V.; Neeraja, C.N.; Sundaram, R.M.; Viraktamath, B.C.; et al. Development of a PCR-based SNP marker system for effective selection of kernel length and kernel elongation in rice. Mol. Breed. 2010, 26, 735–740. [Google Scholar] [CrossRef]
  35. Wang, C.; Chen, S.; Yu, S. Functional markers developed from multiple loci in GS3 for fine marker-assisted selection of grain length in rice. Theor. Appl. Genet. 2011, 122, 905–913. [Google Scholar] [CrossRef] [PubMed]
  36. Yu, H.; Xie, W.; Li, J.; Zhou, F.; Zhang, Q. A whole-genome SNP array (RICE6K) for genomic breeding in rice. Plant Biotechnol. J. 2014, 12, 28–37. [Google Scholar] [CrossRef] [PubMed]
  37. Mccouch, S.R.; Teytelman, L.; Xu, Y.; Lobos, K.B.; Clare, K.; Walton, M.; Fu, B.; Maghirang, R.; Li, Z.; Xing, Y.; et al. Development and mapping of 2240 new SSR markers for rice (Oryza sativa L.). DNA Res. 2002, 9, 257–279. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Murray, M.G.; Thompson, W.F. Rapid isolation of high molecular weight plant DNA. Nucleic Acids Res. 1980, 8, 4321–4325. [Google Scholar] [CrossRef] [Green Version]
  39. Wang, P.; Zhou, G.; Yu, H.; Yu, S. Fine mapping a major QTL for flag leaf size and yield-related traits in rice. Theor. Appl. Genet. 2011, 123, 1319–1330. [Google Scholar] [CrossRef]
  40. Rha, E.Y.; Kim, J.M.; Yoo, G. Volume measurement of various tissues using the image J software. J. Craniofac. Surg. 2015, 26, 505–506. [Google Scholar] [CrossRef]
  41. Sun, W.; Zhou, Q.; Yao, Y.; Qiu, X.; Xie, K.; Yu, S. Identification of genomic regions and the isoamylase gene for reduced grain chalkiness in rice. PLoS ONE 2015, 10, e0122013. [Google Scholar] [CrossRef]
Plants 11 01470 g001 550

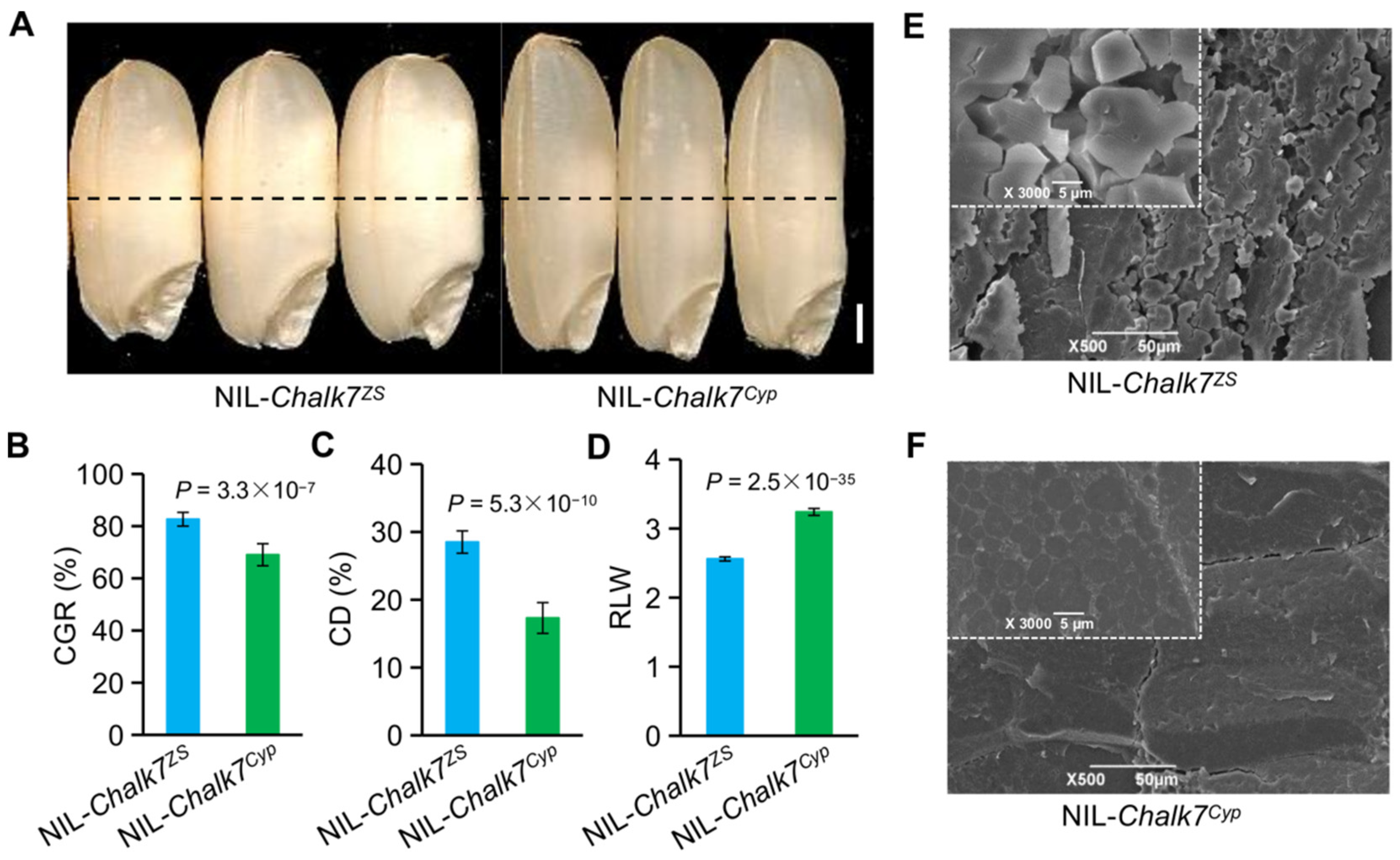

Figure 1. Chalk7 confers grain chalkiness in rice. (A) Grains of NIL-Chalk7ZS and NIL-Chalk7Cyp. Scale bar, 1 mm. (B–D) Differences of NIL-Chalk7ZS and NIL-Chalk7Cyp in chalky grain rate (CGR), chalkiness degree (CD), and the ratio of grain length to width (RLW). Data are given as the mean and SE (n = 20). Student’s t-test was used to generate p values. (E,F) Scanning electron microscopy images showing starch granule structure of the endosperm of NIL-Chalk7ZS (E) and NIL-Chalk7Cyp (F). The observed section is indicated as the dashed middle bellies of the endosperm in (A).
Figure 1. Chalk7 confers grain chalkiness in rice. (A) Grains of NIL-Chalk7ZS and NIL-Chalk7Cyp. Scale bar, 1 mm. (B–D) Differences of NIL-Chalk7ZS and NIL-Chalk7Cyp in chalky grain rate (CGR), chalkiness degree (CD), and the ratio of grain length to width (RLW). Data are given as the mean and SE (n = 20). Student’s t-test was used to generate p values. (E,F) Scanning electron microscopy images showing starch granule structure of the endosperm of NIL-Chalk7ZS (E) and NIL-Chalk7Cyp (F). The observed section is indicated as the dashed middle bellies of the endosperm in (A).
Plants 11 01470 g001
Plants 11 01470 g002 550

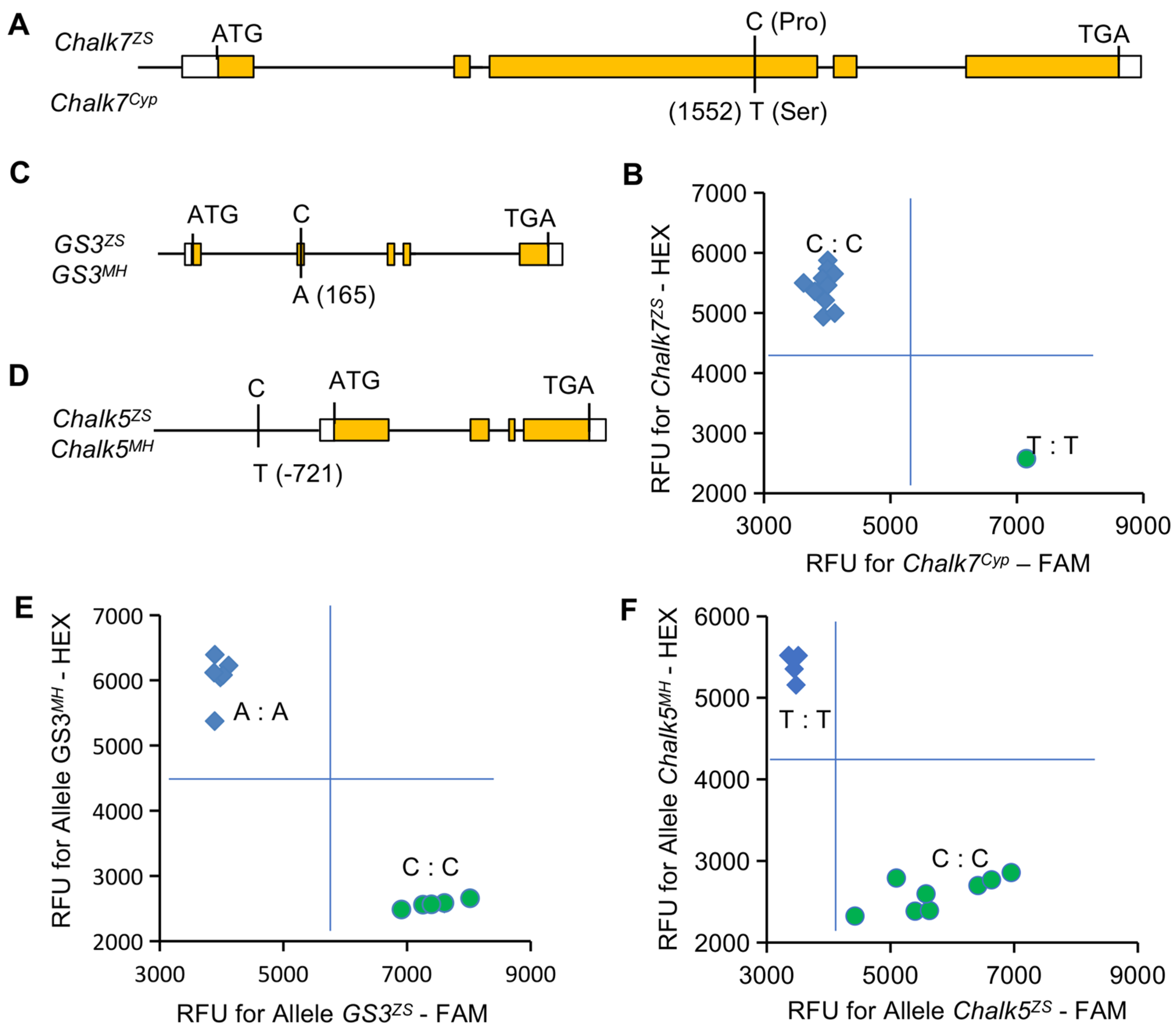

Figure 2. Development of the gene-specific markers for three grain quality genes. (A,C,D) Schematic diagram of the respective gene model showing the position of SNP for the marker development in Chalk7 (A), GS3 (C), and Chalk5 (D). (B,E,F) Genotyping of 12 rice accessions using the markers, K-Chalk7 (B), K-GS3 (E), and K-Chalk5 (F). RFU, relative fluorescence units.
Figure 2. Development of the gene-specific markers for three grain quality genes. (A,C,D) Schematic diagram of the respective gene model showing the position of SNP for the marker development in Chalk7 (A), GS3 (C), and Chalk5 (D). (B,E,F) Genotyping of 12 rice accessions using the markers, K-Chalk7 (B), K-GS3 (E), and K-Chalk5 (F). RFU, relative fluorescence units.
Plants 11 01470 g002
Plants 11 01470 g003 550

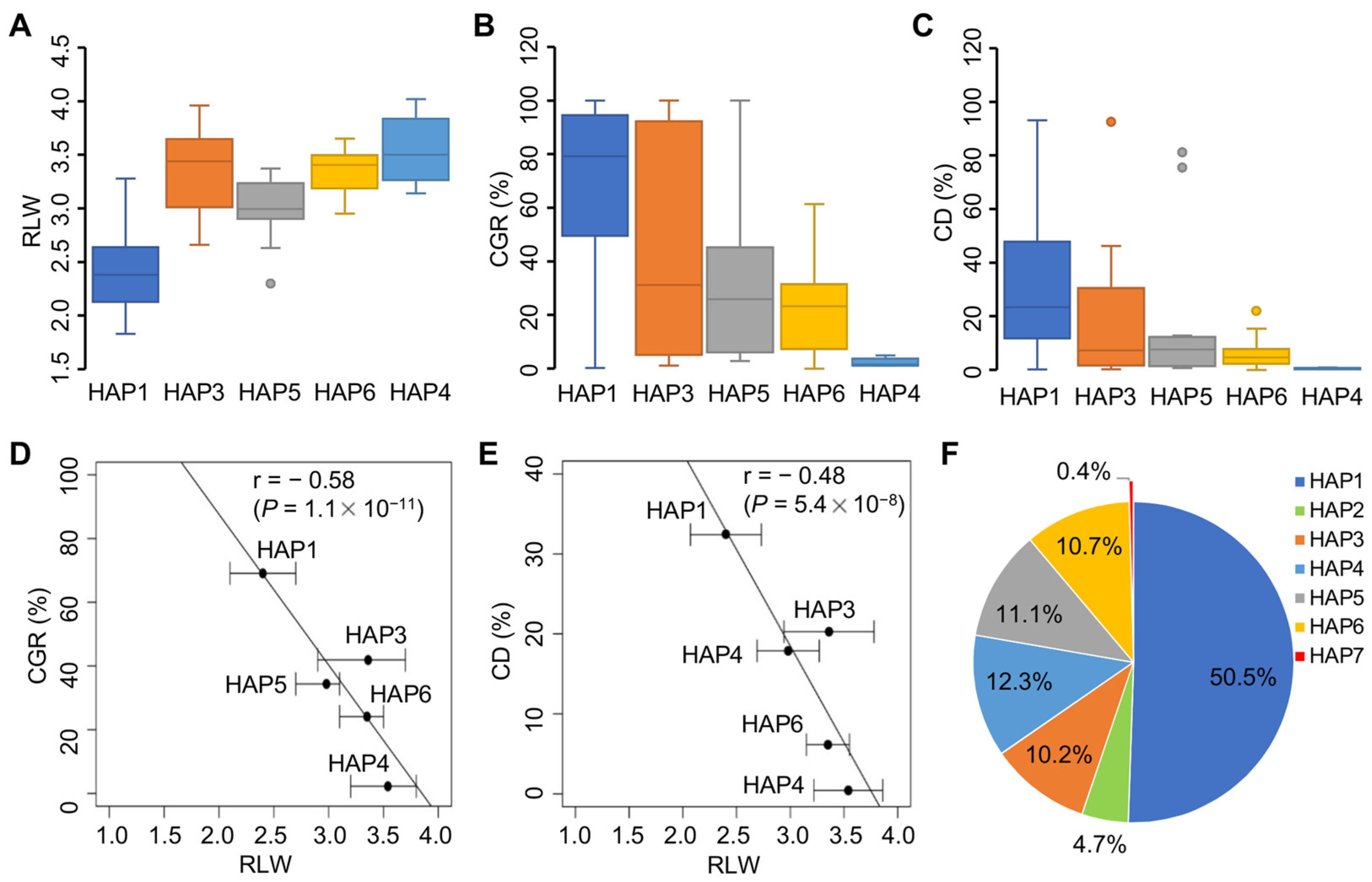

Figure 3. Boxplots showing phenotypic variation of haplotypes assayed by three genic markers in rice germplasm. (A) The ratio of grain length to width (RLW); (B) chalky grain rate (CGR); and (C) chalkiness degree (CD). Box edges represent the upper and lower quantile, with median value shown as bold line in the box. Whiskers represent 1.5 times the quantile of the data. Individuals falling outside the range are shown as open dots. (D) Correlation between RLW and CGR among five haplotypes. (E) Correlation between RLW and CD. (F) Proportions of the haplotypes in a large panel of rice accessions (n = 4694). HAP1, Chalk7ZS/GS3ZS/Chalk5ZS; HAP2, Chalk7Cyp/GS3ZS/Chalk5ZS; HAP3, Chalk7ZS/GS3MH/Chalk5ZS; HAP4, Chalk7Cyp/GS3MH/Chalk5ZS; HAP5, Chalk7ZS/GS3ZS/Chalk5MH; HAP6, Chalk7ZS/GS3MH/Chalk5MH; HAP7, Chalk7Cyp/GS3MH/Chalk5MH.
Figure 3. Boxplots showing phenotypic variation of haplotypes assayed by three genic markers in rice germplasm. (A) The ratio of grain length to width (RLW); (B) chalky grain rate (CGR); and (C) chalkiness degree (CD). Box edges represent the upper and lower quantile, with median value shown as bold line in the box. Whiskers represent 1.5 times the quantile of the data. Individuals falling outside the range are shown as open dots. (D) Correlation between RLW and CGR among five haplotypes. (E) Correlation between RLW and CD. (F) Proportions of the haplotypes in a large panel of rice accessions (n = 4694). HAP1, Chalk7ZS/GS3ZS/Chalk5ZS; HAP2, Chalk7Cyp/GS3ZS/Chalk5ZS; HAP3, Chalk7ZS/GS3MH/Chalk5ZS; HAP4, Chalk7Cyp/GS3MH/Chalk5ZS; HAP5, Chalk7ZS/GS3ZS/Chalk5MH; HAP6, Chalk7ZS/GS3MH/Chalk5MH; HAP7, Chalk7Cyp/GS3MH/Chalk5MH.
Plants 11 01470 g003
Plants 11 01470 g004 550

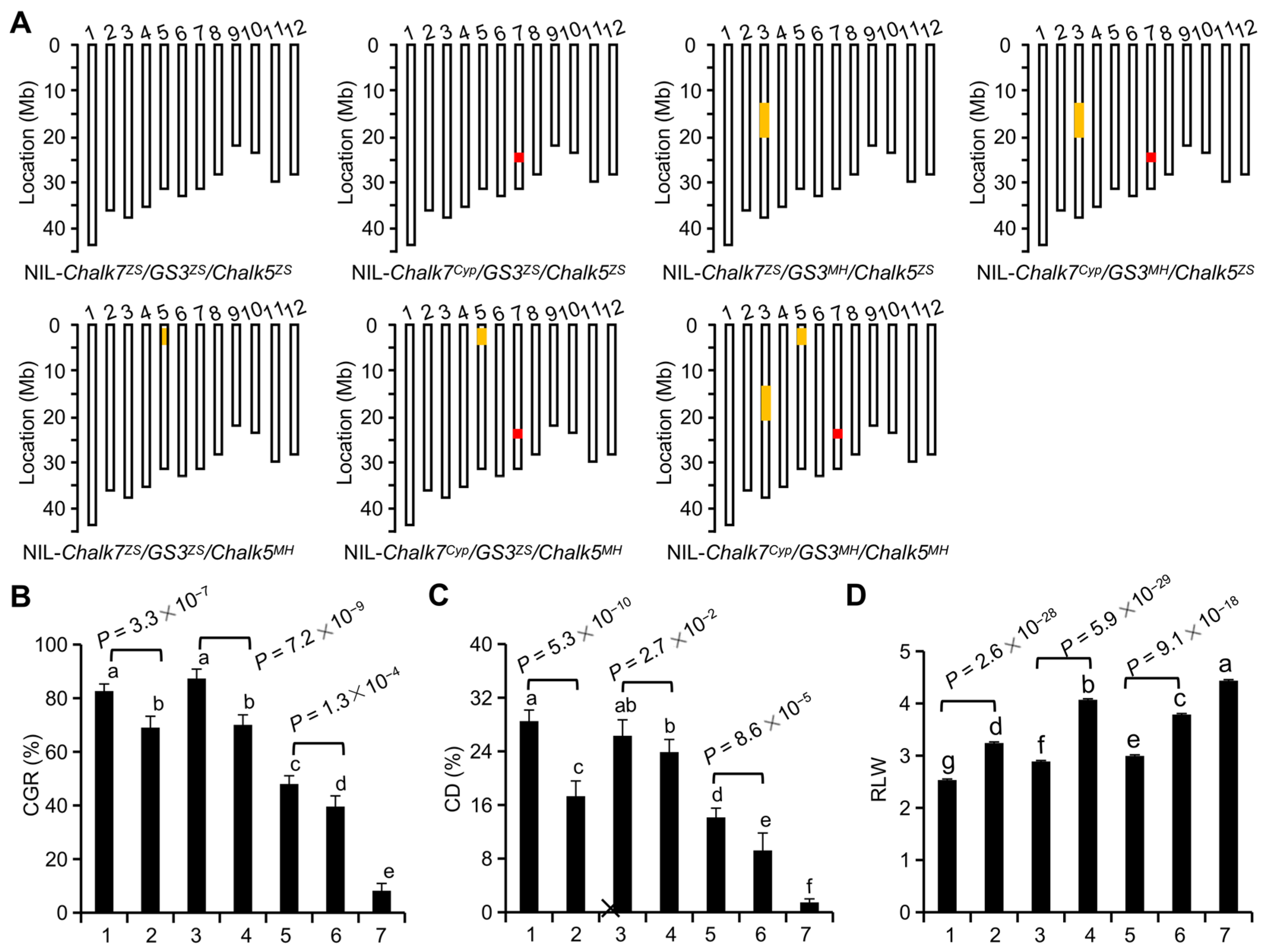

Figure 4. Improving grain quality by pyramiding the alleles, Chalk7Cyp, GS3MH, and Chalk5MH. (A) The gene content of the NILs. Chromosomal segments homozygous with respect to MH63 and Cypress are shown as filled yellow and red bars, respectively, and those homozygous with respect to ZS97 are shown as empty bars. (B–D) Comparative analysis of CGR (B), CD (C), and RLW (D) among the NILs. The number 1 on the x-axial, NIL-Chalk7ZS/GS3ZS/Chalk5ZS; 2, NIL-Chalk7Cyp/GS3ZS/Chalk5ZS; 3, NIL-Chalk7ZS/GS3MH/Chalk5ZS; 4, NIL-Chalk7Cyp/GS3MH/Chalk5ZS; 5, NIL-Chalk7ZS/GS3ZS/Chalk5MH; 6, NIL-Chalk7Cyp/GS3ZS/Chalk5MH; and 7, NIL-Chalk7Cyp/GS3MH/Chalk5MH. p values for significant differences between paired NILs are based on the student’s t-test. Different letters on the bars indicate significant differences among the NILs, based on the Tukey test (p < 0.05). Data are given as the mean and SE (n = 16).
Figure 4. Improving grain quality by pyramiding the alleles, Chalk7Cyp, GS3MH, and Chalk5MH. (A) The gene content of the NILs. Chromosomal segments homozygous with respect to MH63 and Cypress are shown as filled yellow and red bars, respectively, and those homozygous with respect to ZS97 are shown as empty bars. (B–D) Comparative analysis of CGR (B), CD (C), and RLW (D) among the NILs. The number 1 on the x-axial, NIL-Chalk7ZS/GS3ZS/Chalk5ZS; 2, NIL-Chalk7Cyp/GS3ZS/Chalk5ZS; 3, NIL-Chalk7ZS/GS3MH/Chalk5ZS; 4, NIL-Chalk7Cyp/GS3MH/Chalk5ZS; 5, NIL-Chalk7ZS/GS3ZS/Chalk5MH; 6, NIL-Chalk7Cyp/GS3ZS/Chalk5MH; and 7, NIL-Chalk7Cyp/GS3MH/Chalk5MH. p values for significant differences between paired NILs are based on the student’s t-test. Different letters on the bars indicate significant differences among the NILs, based on the Tukey test (p < 0.05). Data are given as the mean and SE (n = 16).
Plants 11 01470 g004
