Global Digital Elevation Model Comparison Criteria: An Evident Need to Consider Their Application

Abstract

From an extensive search of papers related to the comparison of Global Digital Elevation Models (hereinafter GDEMs), an analysis is carried out that aims to answer several questions such as: Which GDEMs have been compared? Where have the comparisons been made? How many comparisons have been made? How have the assessments been carried out? Which is the GDEM option with the lowest RMSE? Analysis shows that SRTM and ASTER are the most popular GDEMs, that the countries where more comparisons have been made are Brazil, India, and China, and that the main type of reference data for evaluations is the use of points surveyed by GNSS techniques. A variety of criteria have been found for the comparison of GDEMs, but the most used are the RMSE and the standard deviation of the elevation error. There are numerous criteria with a more user-centric character in thematic areas, such as morphometry, geomorphology, erosion, etc. However, in none of the thematic areas does there exist a standard method of comparison. This limits the possibilities of establishing a ranking of GDEMs based on their user-focused quality. In addition, the methods and reference data set are not adequately explained or shared, which limits the interoperability of the studies carried out and the ability to make robust comparisons between them.

1. Introduction

A digital elevation model (DEM) is a digital representation of elevations (or heights) of a topographic surface in the form of a geo-rectified point-based or area-based grid covering the Earth or other solid celestial bodies [1]. When a DEM records the bare earth, it is called a digital terrain model (DTM), and when the upper surface of biosphere elements and human-made features are included, it is called a digital surface model (DSM). DEMs are data of great importance due to their wide use in a wide variety of sciences (e.g., geology, hydrology, agronomy, forestry, etc.) and user communities (scientists, engineers, military, etc.). Due to their importance, DEMs are included in the INSPIRE themes [2], and also in the global fundamental geospatial data themes defined by the United Nations Expert Committee for Global Geospatial Information Management [3]. According to this group of experts, DEMs have a significant role in objectives 1, 2, 3, 6, 7, 11, 13, 14, and 15 of sustainable development as defined by the United Nations.

A specific type of DEM is the Global DEM (GDEM), characterized by its almost global coverage. GDEMs are commonly created by international research efforts, based on satellite platforms, and used for global studies by international user communities or organizations. The first GDEM with free access data was the SRTM (Shuttle Radar Topography Mission), which appeared in 2005 [4] and led to a revolution in the field of geoscience. Since then, many other GDEMs have been made available, such as, in chronological order: ASTER (Advanced Spaceborne Thermal Emission and Reflection Radiometer) [5,6]; WorldDEM [7,8,9]; NASADEM 1″ [10]; ALOS-AW3D30 1″ [11]; Copernicus DEM [12], MERIT (Multi-error-Removed Improved-terrain) [13]; FABDEM (Forest and Buildings removed Copernicus DEM) [14], etc. These GDEMs have different characteristics as they were created using different technologies, platforms, resolutions, processes, etc. (see

Table 1. GDEMs considered in this study.

	Data Set	Coverage	Acquisition Years	Resolution (m)	Vertical Accuracy	Datum Plain/Vertical	References
Free global DEMs	ALOS AW3D30	82° S–82° N	2006–2011	30	4.4 m (RMSE)	WGS84/EGM96	[11,19]
	ASTER	83° S–83° N	2009–2019	30	12.64 m (RMSE)	WGS84/EGM96	[5,6,20]
	SRTM	56° S–60° N	2000	90	5.6–9 m (90% LE)	WGS84/EGM96	[4,21]
				30	11.5 m (RMSE)		[22]
	TanDEMx (1)	Entire Earth	2010–2015	12	3.49 m (90% LE)		[7]
				30	10 m (90% LE)
				90	10 m (90% LE)
	Copernicus (2)	Entire Earth	2011–2015	30	4 m (90% LE)		[23]
				90	4 m (90% LE)
	FABDEM	60° S–80° N		30	1.12–2.88 m (MAE)		[14]
Error-reduced versions of SRTM	EarthEnv	60° S–83° N		90	4.13 m (RMSE)	WGS84	[24]
	NASADEM			30	6.4–12.08 m (RMSE)	WGS84/EGM96	[10,25]
	MERIT	60° S–90° N		90	5 m (LE90)	EGM96	[13]
Commercial GDEM	WorldDEM	Entire Earth					[7]
			2010–2015	12	4 m (90% LE)		[26]
			2017–2021	5	2.5 m (90% LE)		[23]

Notes: ⁽¹⁾ Proposed uses of the 12 m and 30 m global TanDEM-X DEMs are submitted for evaluation for free disposal at no charge. ⁽²⁾ The abbreviation COP will be used in the document instead of Copernicus.

). Additionally, over time, new versions are generated and some of these data sets are often tweaked and enhanced by companies. In this way, the availability of so many options introduces the need to select the most suitable GDEM for each use case; this, in turn, leads to the need to compare them. Since the appearance of ASTER, hundreds of GDEMs-data set comparison studies have been published for different proposes, in different locations, topographies, and ground conditions, and comparisons have been carried out based on different criteria, methods, and reference data. However, as indicated by Uss et al. [15], “comparison between DEMs is a complicated task”. The existence of such a large and varied offering is a serious problem for GDEM users, since they do not always have the capacity to carry out a selection process. In addition, the abundance of published papers reporting results that are not easily comparable introduces confusion. As Strobl et al. [16] indicated, “today we find ourselves in a situation in which it is often difficult, even for experts, to assess what the major strengths, weaknesses, and differences are between the available data sets and to decide which DEM might be the most accurate or appropriate for a certain application or region”. In this way, the Digital Elevation Model Intercomparison eXperiment (DEMIX) project should be highlighted, which, among its objectives, evaluates GDEMs [16] in order to propose well-specified criteria and measures and standardized comparison methods and to provide reference data sets throughout the world. Due to the applied importance of DEMs, the evaluation of their quality is a key topic today; recent papers such as [17,18] presented both general and critical reviews of the methods applied. However, this paper offers a vision that is much more focused on a specific reality: the comparison of GDEMs.

Aligned with the goals of the DEMIX project, the objective of this study is to carry out an analysis of the procedures used for comparison exercises involving at least one GDEM that have been carried out from 2005 to the present. The result of this review and analysis will discover the most widely-used criteria and the most popular reference information and comparison methods, as well as their strengths and weaknesses; all this is aimed at offering some kind of recommendation. To the best of our knowledge, no similar review has been carried out before considering this type of data.

This document is organized as follows: After the Section 1, in the Section 2, the set of scientific sources used in the process (called corpus) is presented. Then, the analysis of the results is carried out considering the GDEMs that intervene in the comparisons, the reference data and the sample used, the comparison criteria, and the results of the comparisons. Subsequently, a more general discussion is presented and, finally, the main Section 5 are presented.

2. Materials and Methods

This section covers the methods employed to generate a representative sample of documents for the analysis and a brief presentation of the results (the corpus) from a bibliographic perspective.

A two-line search strategy was deployed. In the first line, various databases integrated into the Web of Science (hereinafter WoS) were accessed (WoS is a trademark of Clarivate, Philadelphia, United States), and in the second, a direct anonymized search through Google was performed. In both cases, the same filtering criteria were applied. The criteria were the following:

• Typology of documents. Only scientific papers were considered;
• Scientific guarantee. The core of the corpus includes scientific papers mostly published by journals that were registered in databases included in the WoS (e.g., SCIELO, etc.). Then, in addition, an expanded search included other journals that were not ranked;
• Time span. From the appearance of the second free GDEM (2005) until the end of August 2022;
• Keywords. Each of the GDEMs available today and in the past were considered. Since the research proposed was centered on comparisons between GDEMs, possible pairs were considered. Additionally, terms related to comparisons (e.g., comparison, evaluation, validation, assessment, accuracy, quality, ranking, etc.) regarding the term DEM were sought;
• Scope of the search. In the case of the WoS, the searches were performed including title, abstract, author keywords, and KeyWords Plus (a set of terms derived from the titles of articles cited by the author of the article being indexed). In the case of searches through Google Scholar, there was no control over these aspects;
• Scope of analysis. We looked for papers that included at least one GDEM and at least one more DEM, and centered on accuracy assessment (a comparison between a product and a reference) and analysis that was not too dissimilar. Cases with only accuracy assessments were ignored.

Finally, the query made in the WoS was TS = (DEM NEAR comparison) OR TS = (DEM NEAR ranking) OR TS = (DEM NEAR accuracy) OR TS = (DEM NEAR evaluation) OR TS = (DEM NEAR assessment) OR TS = (DEM NEAR quality) OR TS = (DEM NEAR validation) AND (TS = (SRTM) AND TS = (ASTER)) OR (TS = (SRTM) AND TS = (ALOS)) OR (TS = (SRTM) AND TS = (AWD3D30)) OR (TS = (SRTM) AND TS = (TANDEM)) OR (TS = (ASTER) AND TS = (ALOS)) OR (TS = (ASTER) AND TS = (AWD3D30)) OR (TS = (ASTER) AND TS = (TANDEM)) and Article or Review Article (Document Types). Timespan: 1 January 2005 to 30 August 2022. In the case of searches through Google Scholar, the same filtering was manually applied by the authors. The final result was a set of 390 references. The abstract of each of these references was read in order to detect cases with topics outside the interests of the research. Finally, a total of 313 references (the corpus) were obtained, which are the basis of the analysis presented in the next section. As Supplementary Materials, an excel file is provided where the documents that make up the corpus are identified.

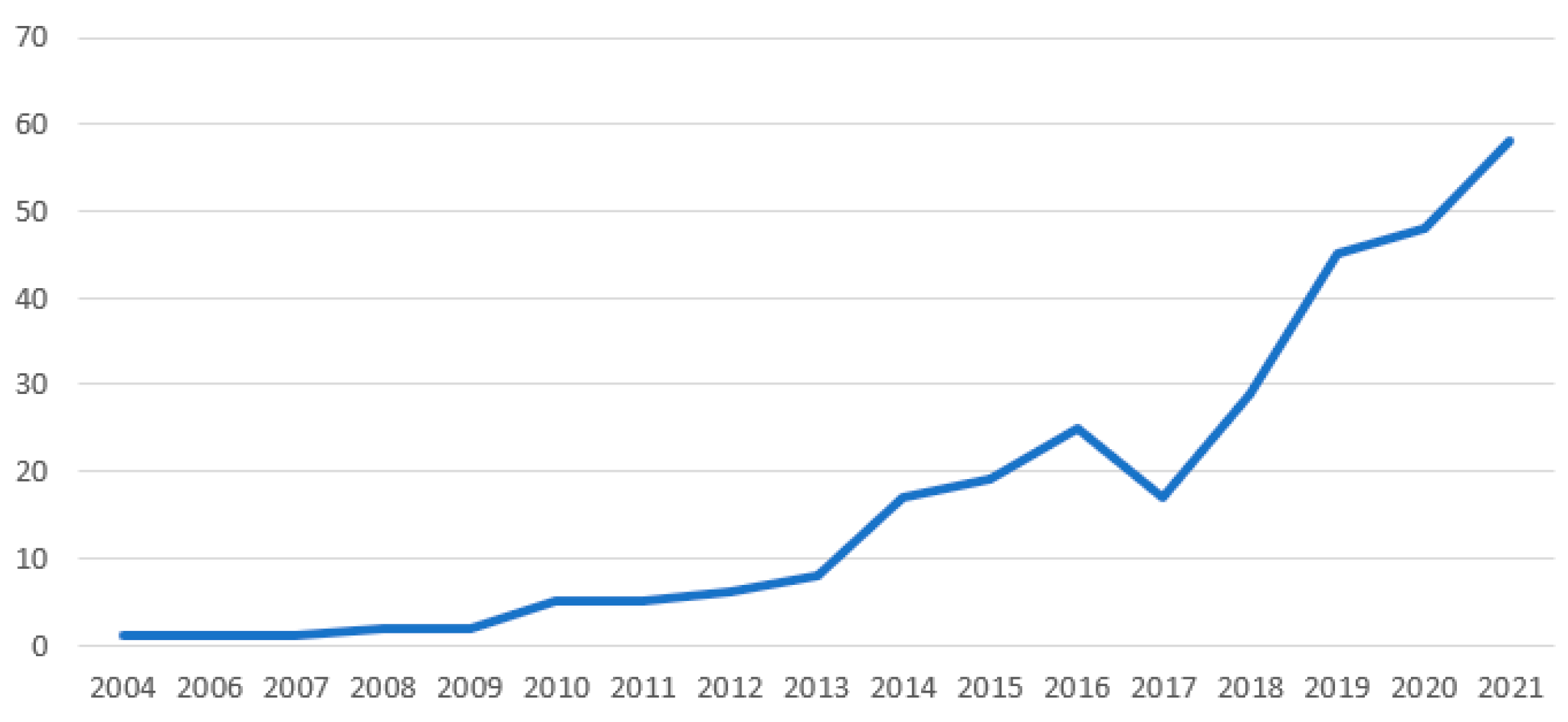

Now, we proceed to a brief analysis of the results from the documentary perspective with the aim of characterizing this material. Figure 1 shows the evolution of the number of references through time until the last complete year of the analysis. In relation to temporal evolution, the growing trend shown in Figure 1 is fair, which indicates a clear interest in the matter.

Table 2. Journals that supply at least five references (N) to this study.

Journal Title	N
Remote Sensing	22
Geocarto International	12
International Journal of Remote Sensing	9
Remote Sensing of Environment	8
Arabian Journal of Geosciences	6
Journal of Hydrology	6
Environmental Earth Sciences	5
IEEE International Geoscience and Remote Sensing Symposium (IGARSS)	5
ISPRS International Journal of Geo-Information	5
Remote Sensing Letters	5
Revista Brasileira de Geografia Física	5

shows the titles of the journals that supply more than five references to this study. As can be seen from their titles, they are all related to geosciences, either with a more instrumental or technological vocation (for example, focused on remote sensing) or with a more applied perspective (environmental, geography or hydrology). In relation to the rest of the sources there are a total of 158 different journals and congresses, but which can also be considered as belonging to the two groups indicated above for the sources that make the greatest number of contributions. As a graphic summary of the titles of the papers and their abstracts, Figure 2 presents a cloud of words once the stop words and numbers have been eliminated and a stemming process has been applied using the WordArt App (WordArt.com, accessed on 1 May 2023). The cloud is dominated by the word “DEM”, which seems obvious. The word “model” occupies a second predominant position. This word does not really add much and usually appears as part of a “digital elevation model” or shorthand for it. The next most important words are “accuracy”, “SRTM” and “use”, which do focus the theme of this document a great deal.

Once the set of documents to be analyzed is available, some mechanism is needed that allows their analysis in a systematic way. Essentially, what is intended is to answer some basic questions: Which GDEMs have been compared? Where have the comparisons been made? How many comparisons have been made? How have the assessments been carried out? Which is the GDEM option with the lowest RMSE? To support this process, a macro-table was designed with an entry for each document in which all the aspects presented in the next Section 3 have been recorded. This table has five sections. The Section 3.1 is dedicated to bibliometric aspects and focuses on the document itself (e.g., title, year, etc.). The Section 3.2 is focused on the sampling carried out in the comparison work (e.g., number of locations, used elements, etc.). The Section 3.3 includes an extensive list of possible accuracy criteria and allows accountability on the use of these in each of the papers analyzed. This list has been generated in the process of analyzing the documents. Therefore it is not a list based on previous ideas, but on what was actually found in genuine comparisons. The Section 3.4 considers the frequency of use of the existing GDEMs. Finally, the Section 3.5 includes a list of possible types of reference data sets used (e.g., LiDAR data, GNSS data, etc.). This table was filled out by hand by the authors, extracting the information from each document. Many of the aspects that are recorded in the macro table are binary (true/false) (e.g., Does it use RMSE for the elevation error? Does it use standard deviation for the elevation error?; and so on). In this way, much of the subsequent analysis will be based on the analysis of proportions and the relationships between them.

3. Results Analysis

The analysis developed is organized following the structure of the macro-table presented above. In this way, five main subsections are established, in which the presentation of the results and their particular analysis will be developed. A more general analysis will be presented in the Section 4.

3.1. GDEMs

At this point, it is important to highlight that we are not going to distinguish between the different versions that a product may have (e.g., three versions for ASTER or four versions for SRTM) because many times in the papers analyzed they do not properly identify the version of the data set with which they work.

As indicated in the Section 1, there are numerous GDEMs and there is an actual need to know which of them is the most appropriate option. In addition, aligned with the DEMIX project, the objective of this paper is to analyze the GDEMs comparison procedures since they are the tool used to obtain objective evidence of the GDEM’s performance. In this paper, the GDEMs considered are those that appear in

Table 3. Count of cases for each GDEM and year in the corpus (sorted by total cases).

Year	2004	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020	2021	2022	Total
ASTER	1		1	1	2	5	4	6	7	16	19	21	14	24	37	36	40	15	249
SRTM-30					1		1	4	2	8	7	9	11	21	33	41	46	17	201
SRTM-90			1	1	1	5	4	1	4	10	13	17	6	11	24	14	9	8	129
AWD3D30													4	12	13	18	24	10	81
ALOS-PRISM						1				1	2	1	2	4	17	18	26	8	80
WorldDEM											1	2	4	5	8	2	3		25
TANDEM-X90												1			7	9	5	2	24
TANDEM-X30											1		1	1	3	10	5	2	23
NASADEM											1				1	2	11	3	18
MERIT											1			1	4	4	4	4	18
GMTED2010										2	2	2	2	1			2	1	12
GTOPO-30											1	2	3	2	1		1		10
COP30											1						4	3	8
EarthEnv-DEM90											1		1	1	1	1			5
GLOBE												1	1	1					3
COP90																1	1		2
ETOPO01										1		1							2
FABDEM																		1	1
Total/year	1		2	2	4	10	9	11	16	38	50	57	49	84	149	156	181	74	891

. In relation to GDEMs, we are interested in knowing the number of times each of the GDEMs is used, which are the most common comparisons between GDEMs, the GDEM analyses performed by country, and the evolution of these analyses over time. Table 3 presents the mere count of cases for each GDEM and year and it clearly shows that ASTER and SRTM (90 m and 30 m versions) are the most popular ones in the corpus analyzed. On the other hand, this table also presents a clear temporal trend of increasing the number of research papers, making evident a growing interest.

Table 4. Crossing of GDEMs used together.

	SRTM-30	SRTM-90	NASADEM	ASTER	ALOS-PRISM	GTOPO-30	GLOBE	ETOPO01	AWD3D30	MERIT	TANDEM-X30	TANDEM-X90	WorldDEM	COP90	COP30	FABDEM	GMTED2010	EarthEnv-DEM90
SRTM-30	201	57	14	168	68	6	3	1	65	12	20	19	14	1	6		7	3
SRTM-90		129	2	112	23	8	2	1	27	8	9	14	10		1		7	3
NASADEM			18	13	6				8	4	1	3	1	1	5			1
ASTER				249	64	9	2	1	66	13	17	13	21	1	7		8	4
ALOS-PRISM					80				9	3	8	7	5	1	4		2	1
GTOPO-30						10	3	1	2								5	2
GLOBE							3	1	2								3	2
ETOPO01								2									1
AWD3D30									81	10	7	9	9		3		2	2
MERIT										18	5	4	2	1	1	1		1
TANDEM-X30											23	2	5		2	1
TANDEM-X90												24	3	1	1
WorldDEM													25	1
COP90														2
COP30															8
FABDEM																1
GMTED2010																	12	3
EarthEnv-DEM90																		5

presents the crossing of all the GDEMs against all the GDEMs used together. The results are presented in the form of an upper diagonal matrix and for greater reading comfort the zeros appear as empty cells. This table shows in the diagonal the values presented in the “Total” labeled column of the previous Table 3. In the upper triangular matrix, the crossovers detected in the comparisons made in the papers of the corpus are presented.

Table 5. Times each GDEM has been compared with other GDEMs (ordered by N).

GDEM	N
ASTER	591
SRTM-30	457
SRTM-90	321
AWD3D30	242
ALOS-PRISM	223
TANDEM-X30	82
TANDEM-X90	82
WorldDEM	73
MERIT	68
NASADEM	64
GMTED2010	43
GTOPO-30	38
COP30	32
EarthEnv-DEM90	22
GLOBE	18
COP90	7
ETOPO01	6
FABDEM	2

is derived from Table 4, and presents the total number of comparisons that have been made for each of the GDEMs. Both tables clearly show that SRTM (30 m + 90 m) is the one more frequently considered, but ASTER is also a very frequent option. As is logical, in the comparisons the smallest number of GDEMs involved is 2 (e.g., [27,28]). This situation was mandatory in the first years when the availability of GDEM was limited to two products. In the corpus analyzed, the largest number of GDEMs involved in a single comparison is nine [29]. The average number of comparisons of GDEMs that is usually carried out in the corpus is 3.28 (mean of the ratio between the number of times that each GDEM appears between the times that it has been compared with other GDEMs), and 34.93% percent of the papers compare four or more GDEMs.

In relation to the location of the test sites used for the comparisons,

Table 6. Distribution of cases (N) per country (ordered by N).

Country	N	Country	N	Country	N
IN	53	ID	4	DE	1
CN	36	NP	4	EC	1
BR	25	PL	4	EE	1
TR	12	SP	4	ET	1
US	12	BD	3	HR	1
IR	10	CA	3	HT	1
IT	9	CH	3	HU	1
SA	9	DZ	3	KR	1
EG	8	JP	3	LB	1
GR	8	KG	3	ML	1
NG	7	MX	3	MM	1
RU	7	NZ	3	MZ	1
IQ	6	TN	3	NE	1
MY	6	UA	3	PK	1
PE	5	CO	2	PU	1
UZ	5	ES	2	RO	1
AQ	4	JO	2	SE	1
AR	4	MA	2	SI	1
AU	4	NO	2	SK	1
BO	4	VN	2	SV	1
BT	4	AM	1	UK	1
CL	4	AT	1	ZA	1
FR	4	CM	1	World	9

presents the number of times that each GDEM is mentioned in each of the countries identified by their alpha-2 codes assigned by the International Standardization Organization. Despite the majority being one-country experiments, there are numerous cases in which comparisons are made in multiple countries. There are a total of 22 papers (7%) in which two or more countries are considered. There are just 9 papers that have a global analysis perspective. For example, ref. [30] performs a complete worldwide screening of the SRTM v4.1 and MERIT DEM. ref. [31] used 32 floodplain locations all over the world. In ref. [32], 1524 points of altimetric prominence distributed throughout the world are analyzed, and in ref. [33], elevations from 96 runways from diverse aerodromes were considered. Test cases using reference data from just one country are the majority and comprise a total of 68 different countries, which means 35% of the total of countries in the world. However, the number of papers per country is evenly distributed. As can be seen in Table 6, there are countries with a large number of cases (e.g., India), but those that only appear once are more than a third of the total. With the exception of the USA, we noticed that the countries with the largest number of cases are those emerging countries with altimetric data needs that might not be adequately covered by products from their national mapping agencies. Three out of four of the BRICS countries (Brazil, Russia, India, and China) lead the list.

3.2. The Reference Data

One of the issues that makes comparison between GDEMs difficult is the widely inconsistent reference data used [15]. A suitable reference data set is one that is independent of the GDEM data being compared and that in addition has substantially greater accuracy (on the order of three times). These conditions are usual in the analysis of the positional accuracy of geospatial data [34], but in most of the papers of the corpus, there is simply no effort spent on justifying the selection of the reference. Even more, it is very usual that the accuracy of the reference data is not explicitly stated. We set aside the use of GNSS, geodetic monuments, and IceSAT data, which by design might be suitable for the task, and focus on other situations. In many cases, maps at a scale of 1:50.000 are used (e.g., [35,36]), and even at smaller scales (e.g., 1:100.000 in ref. [37]). From this information a planimetric accuracy bound of the original source can be inferred, but not the altimetric accuracy because it does not always have a direct relationship with the planimetric accuracy. In some papers, the evaluation of slope and orientation is proposed instead of the elevation (e.g., [38,39,40,41,42]), and the situation regarding the accuracy of the reference data is even more obscure. It is usual to establish conditions or limitations on references. For example, the reference extraction area is limited to those areas with a slight slope and bare soil (e.g., [31,33]) or to areas of smooth topography and bare soil [43]. We consider that these limitations are more typical of the establishment of the population under analysis than of the very definition of the reference.

Another important topic is the geometry of the reference. The use of points is commonplace, although under this category we can include terrain points surveyed with GNSS technologies (e.g., [44,45]), by LiDAR systems (e.g., [29]), vertices of traditional topographic and geodetic networks (e.g., [40]), or even footprints, in the form of points, of some satellite altimeters (e.g., [46]). Also mentioned, but much less widely used, are linear elements like profiles (e.g., [47,48]), geological lineaments (e.g., [49,50]) and surfaces (e.g., [15]). In cases related to functional quality, quality assessment and applied perspective (use-case centered), specific reference data are used for each use case. Ref. [51] counted detected dolines (karst depressions) with reference to manually interpreted data, while [52] relied on in-situ observations. Other terrain features like gullies are also possible [53]. Some authors compared landslide true instances with reference to their estimations (e.g., [54,55,56]). Volcano lahar is modeled and compared to observed trajectories [57]. For hydrological applications, among others, we can mention ref. [58], who compared gauge stations to simulation data. Comparing the shape of the real inundation area to its estimations is also possible [59]. Our analysis will focus exclusively on the typology of the reference, since going into greater detail will generate significant dispersion in the results. For our purposes, the classification of reference sources is as follows:

• GCP-GNSS. Any set of ground control points (GCP) captured by GNSS (Global Navigation Satellite Systems) techniques (e.g., GPS, Galileo, etc.);
• Geodetic Benchmarks. Geodetic or topographic vertices of the official leveling networks;
• ICEsat. Data from the altimetric profilometer of the ICEsat satellite;
• LiDAR Cloud. Any kind of LiDAR data cloud irrespective of its different characteristics (aerial data, UAV data, different densities, and accuracies);
• Other—Elevation Data. For example, while using the DEM to estimate building heights, reference data is the height of the building;
• Other—Raster Data Set. This usually refers to the use of another elevation data set (e.g., global, like WorldDEM/TandemX, or just a local DEM) or a legacy source, like a digitized version of elevations taken from an official small-scale topographic map;
• The 3D Lines–Profiles. These can be illustrated with 3D profiles corresponding to transects or communication routes or aerodrome runways of varying resolution and accuracy;
• Planimetric Features. Any 2D data set used to analyze the fit of the GDEM, such as a hydrographic network, geological lineaments, building footprints, etc. No elevation reference data is involved;
• Functional Reference Data. Basically occurs in functional quality assessments (e.g., erosion, floods, etc.), where reference data appropriate to the use case is used (e.g., tons of eroded material, volume of floods, etc.). No elevation reference data is involved;
• None. No reference data is used in the comparison.

Table 7. Count and percentage of cases for each reference category.

	GCP-GNSS	Official-DEM	Other—Raster	Functional Ref. Data	Geodetic Benchmarks	ICEsat	LiDAR Cloud	3D Lines–Profiles	Other Elevation	Planimetric Features	None
N	107	72	36	31	29	28	24	10	9	6	6
%	30	20	10	9	8	8	7	3	3	2	2

presents the count and percentage of use in the comparisons of each of the above-indicated reference typologies. The clear predominance can be observed in the use of ground control points surveyed using GNSS techniques (30%), as well as the use of existing official DEMs (20%). It should be noted that the use of LiDAR data clouds is still quite low. We suppose that this is due to both the problems of having sufficiently large areas surveyed and the problems of managing large volumes of this type of data. It is also noteworthy that the use of 2D and 3D elements is not very widespread either. It is relevant to indicate that there are cases in which reference data is not used. They correspond to cases where internal or visual consistency is used. It is also of interest to know if various references are used together. In this regard, the count of crossover cases between references is offered in

Table 8. Crossing of references used together.

	GCP-GNSS	Official-DEM	Other—Raster	Functional Ref. Data	Geodetic Benchmarks	ICEsat	LiDAR Cloud	3D Lines–Profiles	Other—Elevation	Planimetric Features	None
GCP-GNSS	107	8	6	2	8	9	4	1
Official-DEM		72	1	1	6		1	2		1
Other—Raster			36	1			1		1	1
Functional Ref. Data				31	1	1
Geodetic Benchmarks					29
ICEsat						28			5	1
LiDAR Cloud							24
3D Lines–Profiles								10
Other—elevation									9
Planimetric features										6
None											6

. Table 8 indicates that “GCP-GNSS”, and to a lesser extent “Official-DEM”, are the most standard reference types since they are those that appear most often crossed with the other reference categories. Just 9% of the comparison exercises have been performed using some sort of functional accuracy.

3.3. The Sample for the Evaluation

As indicated by [34], the evaluation of geospatial data is usually achieved by sampling, since a complete evaluation is unaffordable (resources, time, etc.). Through sampling, the aim is to estimate a parameter of interest in the population (estimation process) or to decide to accept or reject a certain hypothesis about the said parameter (control process). In either case, the problem must be approached using the appropriate sampling theory of statistics. In this regard, the aspects that must be considered are defining the population of interest, defining the parameter(s) of interest, establishing whether to test a hypothesis or make an estimate, the type I and II errors in the hypothesis test or the precision in the estimation, etc. In general, the papers that have been analyzed do not present a rigorous statistical framework in the definition of the samples that are subsequently proposed. The following paragraphs describe what was observed in the corpus.

Going into technical details related to sampling aspects, we consider that the population of interest is not completely defined. Of course, the GDEM(s) to be analyzed are known, but the spatial extent that the analysis is intended to cover is not usually explicitly indicated, or it is not carried out adequately. For example, it is declared what GDEM is used, but it is not usually explicitly stated that the area of interest is a certain zone (e.g., continent, region, country or state), e.g.: “the ASTER in country XXX” or “the ASTER in region YYY”. The indication of the area is given more from the metadata perspective on where the analysis is carried out (location context) than as an element of the definition of the population of interest.

The above is related to the sites where the analysis is carried out in each paper. A site is an area (world, continent, country, region, province, etc.) of interest and each paper must have at least one. The area of interest should be defined by one or more geographical windows or boundaries, but this form of definition is not usual. In relation to the number of sites per document in the corpus, the mean value is close to three. Up to 73% of cases involve only one site, but there are four cases that exceed forty sites. In general, if the objectives expressed for the papers are compared with what subsequently materializes in the method and results, we consider that in most cases the population is not adequately sampled with a single site and, thus, no statistically sound conclusions can be extracted. In any case, the authors seem satisfied with their results and representativeness.

In addition to establishing the site(s) of interest, the size (area) of these sites is a key aspect of sampling. By this, we refer to the spatial extension covered by the sample to be analyzed (for example, a municipality, etc.). This aspect, which is very important from a statistical point of view, is not well addressed in most of the cases. In fact, 42% of them do not explicitly provide the size of the area. Statistics regarding the size [km²] of these areas appear in

Table 9. Basic statistical figures for the area of analysis per paper [km²].

Mean	Mode	Min	Max	Standard Deviation
215 × 103	100.00	0.20	8.00 × 106	1.08 × 106
5% percentile	25% percentile	50% percentile	75% percentile	95% percentile
3.40	114.50	997.00	8.62 × 103	622.22 × 103

and show great variability (see range [Max–Min] and standard deviation). Here, the most interesting information is related to the values of the percentiles; thus, considering the spatial resolution of the GDEMs, and keeping in mind their most appropriate range of applicability scales, we consider that there are numerous cases where the indicated test-area sizes are small.

Stratification is an appropriate strategy for sampling when it is considered that within the population there are subgroups with more homogeneous behavior. The perspective (estimation or hypothesis testing) and the parameter to be evaluated also affect the sampling design. For example, a quantitative variable is not the same as a qualitative variable, and within these, the number of categories or levels must also be considered. The majority of the papers analyzed have an estimation perspective and not so much quality control (contrast or hypothesis test) on that parameter (parameters of interest will be discussed in the next section). In any case, the stratification criteria can vary according to the needs of the researchers and the specific conditions of the area where an analysis is performed. Stratification can be considered as a refinement to be applied either to the design of the sample or to the presentation and analysis of the results. In the case of this corpus, we can conclude that stratification is only used for the presentation of the results in order to demonstrate a previous hypothesis. That is to say, there is no paper in the corpus with a statistical application of stratification in the sampling design. In general, there is simply no sampling design. In line with what was indicated above, the following examples use stratification to present the results: ref. [45] establishes four types of areas; ref. [29] establishes classes based on slope and cover; and ref. [46] considers classes based on height intervals. In total, there are 116 papers (37%) in which the application of stratification for the purpose of reporting results is used.

3.4. The Criteria Used in the Evaluation

In many cases, the evaluation carried out is datacentric (as defined by [60]) and, in general, it only focuses on vertical positional accuracy. Only in very few papers are derived variables included in the comparison. For example, refs. [61,62] and others considered slope accuracy, while ref. [38] considered aspect. Ref. [40] considered both. However, studies that present a user-centric orientation (as defined by [60]) for the comparison exercise are becoming more frequent. For example, ref. [63] in relation to the case of floods, ref. [64] in relation to the prediction of land cover, and ref. [65] in relation to the determination of peaks. It should be remembered here that our corpus was devoted to comparison exercises; there might certainly be other papers, not involving a comparison, which performs user-centric accuracy estimates but were not considered here. Ref. [66] proposes evaluating the quality in a complete way, but they do not establish a quality model only independent measures.

The parameters used in the comparison of the GDEM are a very relevant element because, on the one hand, they must be considered as a surrogate of the purpose and perspective adopted in the comparison, and, on the other, because they establish conditions for the comparison method itself. In any case, we must distinguish the metric (e.g., RMSE, STD, and LE90) from the theme to which it is applied (e.g., elevation, slope, aspect, etc.). The combination of a metric and a theme is called an evaluation criterion.

Table 10. Criteria (theme + metric) used in the comparisons involving raw data.

Criteria		Criteria		Criteria		Criteria
Theme	Metric	Theme	Metric	Theme	Metric	Theme	Metric
Elevation	EL_CorCoefR EL_IQR EL_LE90 EL_LE95 EL_MAD EL_MAE EL_NMAD EL_Range EL_RMSE EL_STD	Slope	SL_CorCoefR SL_IQR SL_LE90 SL_LE95 SL_Lenght SL_MAD SL_MAE SL_Other SL_Range SL_RMSE SL_STD	Aspect	AS_MAE AS_Other AS_Range AS_STD	Horizontal	HZ_CE90 HZ_Range HZ_RMSE HZ_STD

CorCoefR = linear correlation coefficient; IQR = interquartile range; LE90 = linear error at 90% confidence; LE95 = linear error at 95% confidence; length = length; MAD = mean absolute deviation; MAE = mean absolute error; NMAD = normalized median absolute deviation; range = range of values; RMSE = root mean squared error; STD = standard deviation; other = some other option.

and

Table 11. Criteria applied and explanation of metrics.

Theme	Explanation of the Used Metrics
Contourlines	Metrics derived from the use of contour lines as a mean of analysis of the compared topography of two DEM data sets (e.g., horizontal displacements).
GeologicalLineaments	Metrics derived from geological lineament analysis (e.g., density, length, etc.) as well as horizontal displacements.
InundationAreas	Metrics derived from the analysis of inundation areas (e.g., inundated area and horizontal displacement of inundation area border).
Landslide	Metrics derived from analysis based on the occurrence of landslides (e.g., count, density, length, etc.).
LinearFeatures	Metrics derived from analysis based on the presence of linear features (e.g., count, length, horizontal displacement, etc.).
Geomorphometry	Metrics derived from any kind of geomorphometric analysis, mainly on a basin base (e.g., basin area, basin perimeter, etc.).
Orthorectification	Criteria related to the quality of derived orthorectified data
Profiles	Metrics derived from any type of profiles (e.g., straight profiles, profiles along watercourses, etc.).
Registration	Metrics derived after a minimization process of the discrepancies with respect to another DEM used as reference, by means of a horizontal shift.
SpuriousPits	Metrics derived from the presence/absence of spurious pits in DEM databases (e.g., density, commissions, omissions, etc.).
TerrainRoughnessIndex	Metrics derived from the use of indexes related to the terrain roughness (e.g., surface slope, curvature, topographic roughness index, etc.).
TWI	Metrics derived from the use of the topographic wetness index (TWI), or similar.
Visual	Metrics or subjective qualifications derived from any type of visual analysis, for example, a visual inspection flight over the DEM, shading, etc.
FunQuality	Metrics derived from the performance of the DEM data for certain applications based on models, simulations, and so on, and not considered in the three cases below.
Hydrology	A case of FunQuality centered on hydrology. Metrics derived from hydrological models and applications (e.g., water flow, water height, maximum discharge, etc.).
NSENashSutcliffe	A particular case of FunQuality centered on hydrology. Metrics based on the application of the Nash–Sutcliffe model efficiency coefficient (NSE) to assess the predictive skill of hydrological models.
USLE/RUSLE	A case of FunQuality centered on soil erosion processes. Metrics derived from the study of soil erosion by means of the universal soil loss equation or any of its variants (e.g., soil loss).
Other	Any other option different from the above.

present the cases identified in the corpus with the combinations of the metrics with the themes of interest (the criteria). The criteria have been grouped by themes of interest. In total, 10 different basic metrics were identified (Correlation Coefficient R, IQR, LE90, LE95, MAD, MAE, NMAD, RMSE, STD, and Range). Not all of these metrics were applied to all themes. Despite being well established, the formulas as reported by the authors are sometimes wrong. To avoid these problems a reference to a reputable source could be used, e.g., ISO 19157 annex D [67]. On the other hand, Table 11 shows metrics that are directly linked to the user needs (e.g., flood areas, topographic wetness index (TWI)-related, etc.).

Focusing our attention on Table 11 and leaving aside the most popular criteria for a moment, it is noteworthy that a small number of metrics are applied also to horizontal accuracy and orientation accuracy. In the case of elevation and slope, the number of metrics is much higher. We believe that this higher number is due to the greater interest in these topics (elevation and slope) and, therefore, the need to explore which metrics may be more appropriate. In any case, these metrics are quite conventional, and, as mentioned above, many of them are defined in a general form by the international standard ISO 19157 [67] devoted to the quality of geospatial data. In relation to the most popular criteria (Table 11), the variety of options is large. The terms included in the “explanation” column for this case are not metrics per se, but explanations related to the processes that are considered. For example, within morphometry, there are many themes that are used in the papers (e.g., bifurcation ratio, form factor, stream frequency, etc.), and in the case of spurious pits, there are also several possible metrics (e.g., presence/absence, density, count, area covered, etc.). This situation makes it impossible to present here all the metrics detected in the corpus analyzed, and that is why a term related to the purpose is used as a label for each issue.

To carry out the comparisons between GDEMs, one or more criteria can be applied in each paper. For example, ref. [44] uses six criteria and [68] twelve. The use of several criteria offers a multivariate perspective from the statistical point of view, although statistical studies of this type were not found in the corpus. Concerning the number of criteria used in the corpus, the modal value is one, 29% of the cases consider four or more criteria, and there is a case in which twelve criteria are used jointly [68].

Table 12. Criteria with at least 10 instances in the corpus.

General Criteria	N	Applied Criteria	N
EL_RMSE	197	Morphometry	53
EL_STD	121	FunQuality	47
EL_Range	94	Other	26
EL_CorCoeffR	52	Hydrology	18
EL_MAE	50	Profiles	18
EL_NMAD	22	Registration	15
EL_LE90	19	Visual	13
EL_IQR	11	Landslide	10
EL_MAD	10

indicates the criteria used at least 10 times. In this table, it can be seen that in 9 out of 20 cases, the criteria is related to elevation (EL_xxx). The rest of the popular criteria are of an applied nature, which clearly indicates their interest. In addition, the most common measurements are those with a classical statistical basis (RMSE, standard deviation, and range). The most popular case is RMSE applied to the elevation, but popularity is just that. Criteria of a more applied nature (morphometric, functional quality, and hydrology) also appear, but with fewer cases counted and, generally, in papers of more recent dates. They usually lead to a quality statement, not to a quantitative value, thus precluding producing a ranking.

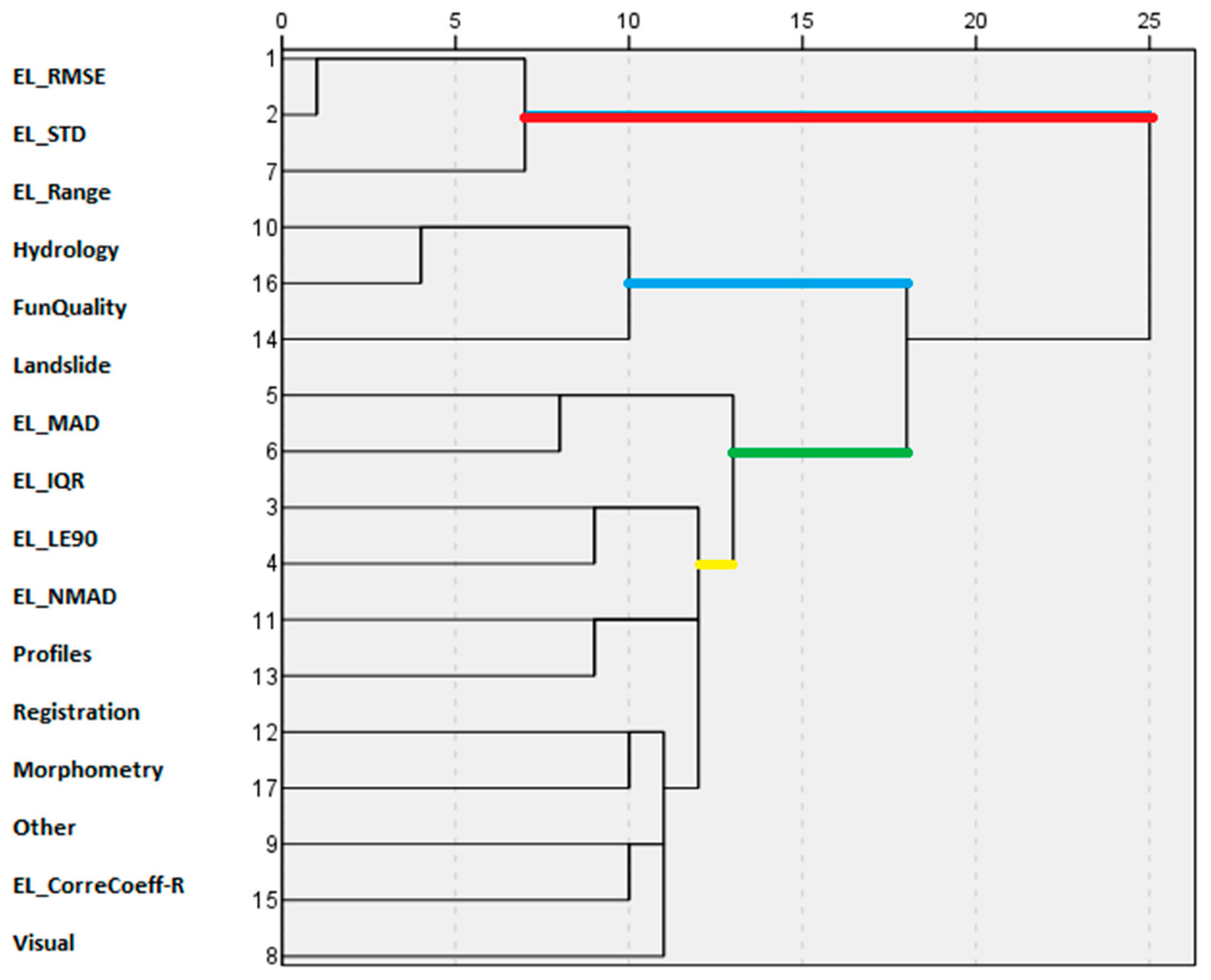

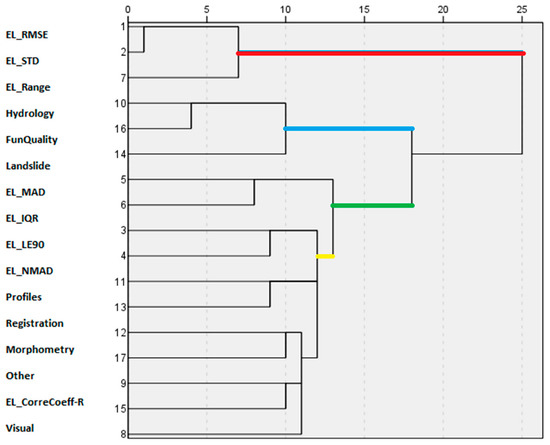

Another analysis of interest here is how the different criteria are associated.

Table 13. Crossing of criteria used jointly.

	EL_RMSE	EL_STD	EL_Range	Morphometry	EL_CorreCoeff-R	EL_MAE	FunQuality	Other	EL_NMAD	EL_LE90	Hydrology	Profiles	Registration	Visual	EL_IQR	EL_MAD	Landslide
EL_RMSE	197	97	79	23	43	47	12	20	18	16	6	13	10	9	6	9	1
EL_STD		121	12	4	2	1		1	3	2		1	3	1	3		2
EL_Range			94		1	1		1							1	1
Morphometry				53	1		1	1			2
EL_CorreCoeff-R					52		1					1		1
EL_MAE						50
FunQuality							47				5						2
Other								26
EL_NMAD									22	1
EL_LE90										19
Hydrology											18
Profiles												18	1
Registration													15
Visual														13
EL_IQR															11	1
EL_MAD																10
Landslide																	10

presents the crossing of all the criteria against all the criteria for those that account for more than 10 cases in the diagonal (as shown in Table 12). The results are presented in the form of a diagonal matrix and for greater reading comfort the zeros appear as empty cells. Several aspects can be highlighted: First, we note that only the first row counts values for all the criteria, which indicates that the EL_RMSE is the standard criterion, which means that any other criteria are always accompanied by this one. The highest values occur for the cross between EL_RMSE and EL_STD and EL_Range. In the second row, the values are much lower than in the first row and there are cases of crossings with a null value (zero). In the other rows, numerous cases with no value are present. In the lower corner of the matrix, there are few crosses between the most applied criteria; so, although half of the criteria are of an applied nature, the joint use of them is unusual. In other words, there are no cases in which two applied criteria are used jointly. For example, using morphometric criteria and landslide criteria jointly. What is more usual is to apply general criteria (e.g., El_RMSE) together with applied criteria, which is logical: offer information with two perspectives, the applied perspective and a more general or standard one.

A better way to understand the structure of the matrix presented in Table 13 is graphically. For this purpose, with the data from Table 13 a matrix of relative appearances has been determined, and from it, a matrix of distances has been calculated. After that, a hierarchical cluster analysis has been applied based on the Ward method for the intra-group distance. The graphic result is presented in Figure 3, where it is clearly observed that the three indices with the highest frequency form a compact group (red branch) with respect to the rest, they are data-oriented criteria applied to elevation. It is also evident that, in the rest, the grouping of the most applied indexes (hydrology, functional quality, and landslides) is detected (blue branch); these are use-oriented criteria. The rest of the groups (under the yellow branch) make up a totum revolutum.

3.5. Quantitative Results

It has already been argued that the corpus shows a plethora of inconsistencies in the methodology applied by different authors. Despite the fact that they have used different reference data sets, considered test sites with wildly different areas and (in a few cases) even computed the metrics with the wrong formula, they have produced for each site a numerical value which, as a set, might be worth considering at the global scale. If we take them collectively, for any given criteria the wisdom of the crowd might produce a sound value for one GDEM, which in turn can be compared with the equivalent ones produced for a second GDEM. Thus, for a particular criterion, we will be in the position to establish a ranking among GDEMs. Only criteria such as EL_RMSE, EL_STD, and EL_Range present a high number of cases to ensure reasonable representativeness. For the above reasons, we are going to focus just on the EL_RMSE case, which is the most widely used. In any case, the following section will include a discussion of the criteria applied.

In line with the above argument,

Table 14. Basic statistical figures for the EL_RMSE criterion [m].

GDEM	N	Mean	Median	5% Percentile	95% Percentile	Min	Max	σ
MERIT	49	4.64	2.62	1.49	13.12	1.21	17.3	4.26
WorldDEM	54	4.08	3.30	0.79	8.26	0.47	35.90	4.95
NASADEM	35	6.36	5.25	2.04	12.36	1.77	13.26	3.48
TANDEMX90	69	8.28	5.37	1.06	24.55	0.50	49.00	9.59
TANDEMX30	17	8.56	5.51	0.93	22.70	0.64	37.36	9.13
AWD3D30	101	7.71	5.78	1.48	16.84	1.10	61.60	9.32
SRTM30	214	8.66	5.79	2.07	19.10	0.37	186.65	14.26
ALOSPRISM	66	8.80	6.55	1.18	27.25	0.40	40.30	8.35
SRTM90	188	12.01	8.81	2.11	32.53	0.83	88.80	11.71
ASTER	270	13.06	9.68	4.01	27.84	0.93	137.65	12.15

presents some basic statistics for the case of the EL_RMSE for those GDEMs with more than 15 site assessments. One important issue that affects numerical results is that the maximum values are conditioned by a few papers. We believe that they make the comparisons somewhat crude. For this same reason, the mean and deviation values of the metric are also affected. In this way, if we wish to make a general consistency comparison between the values of the EL_RMSE for different GDEMs, it is better to focus on the median and other percentiles which are less affected by extreme values.

Computing a ranking among GDEMs presumes that those GDEMs involved are indeed comparable. The implicit assumption is that the end-user has defined a subset of GDEMs wherein any of them is suitable for their task. The rationale thus separates GDEMs like WorlDEMs (a high resolution, non-free GDEM) from others (of lower resolution but free access). We can identify a subset containing those of 1″ resolution (one arcsecond) (NASADEM, TANDEMX30, AWD30, SRTM30, ALOSPRISM, and ASTER), and other subsets of 3″ resolution (MERIT, TANDEMX90, and SRTM90). Both sets were biased by our early decisions regarding the criteria to build the corpus: other global DEMs certainly exist that have not raised enough interest in the literature to be included in these comparison exercises.

Among those of 1″ resolution, the ranking using the median of the EL_RMSE shows that the best GDEM is NASADEM, followed by TANDEMX30, AWD3D30, SRTM30, ALOSPRISM, and ASTER. If we use instead the more informative LE95 (metric proposed in various accuracy standards), the best one is again NASADEM, followed by AWD3D30, SRTM30, TANDEMX30, ALOSPRISM, and the list closes again with ASTER. The most noticeable change is the fall of TANDEMX30 from second to fourth position. These results are to be taken as merely informative: we have just used published information, and they do not arise from a systematic process like the one outlined by the DEMIX project [16]. Among the 3″ resolution GDEMs, the ranking either for the median or the LE95 metric is (MERIT, TANDEMX90, and SRTM90).

4. Discussion

An important aspect that undermines the results arising from the corpus analyzed is the absence of a common methodology for evaluating and reporting the accuracy of the DEMs and, therefore, of the GDEMs. Of course, for years there have been guides (e.g., [69,70]) and even standards (e.g., [71]) that could have been used to estimate accuracy and perform comparisons between geospatial data products, as well as to better report the results, but for some reason their use has been very limited in the corpus analyzed. Let us observe two examples. First, the use of a widely-used standard such as the NSSDA [71] is mentioned only a few times in the corpus (5 papers out of 313) (e.g., [72]). Second, aspects as simple as adequately indicating the area of analysis using coordinates are not usual. We do not know if this is due to the authors’ ignorance of the existence of standards, or because they consider that these standards are not adequate for GDEM comparisons. All of this limits the possibilities of performing meta-analyses of a statistical nature, which would be logical for a situation like this.

From a scientific point of view, we consider that the information provided in the papers would not always allow the experiment to be replicated, not just because of the lack of easy access to reference data, but also because of a lack of clarity in the methods and processes. Abounding in the lack of standardization, numerous papers differ in basic definitions, and there are even errors in the analytical formulation (e.g., in some cases to calculate the RMSE the numerator is divided by n-1). We have detected some papers (e.g., [73]) with problems in the definition of the statistical formulation of metrics (e.g., RMSE and STD). Others show wrong figures (e.g., STD values larger than RMSE values) or even negative STD values [27]. The inappropriate application of the uncertainty expansion parameters (e.g., LE 90% and LE 95%) as multiples of the RMSE has also been found (e.g., [74,75,76]). This is not correct, since these relationships can only be applied to the case of the STD under the assumption of a normal distribution of errors. All of the above means that we cannot take for granted the comparability and interoperability between the values calculated for the RMSE, STD, etc., neither between them nor when the same parameter is used in several studies, given that other relevant aspects (size of samples, data processing criteria, etc.) can vary considerably.

In relation to the data set used as a reference, in some cases, it is not well defined or identified ([15,77,78]). Despite the fact that common sense states that the reference should be substantially more accurate than the GDEM, in some cases one of the GDEMs is used as a reference ([79]). There are also cases of using legacy mapping at smaller scales (1:50.000 and 1:100.000) ([37,80]) which may mean that the data set is not suitable as a reference because it does not satisfy the criterion of having greater accuracy than the product to be evaluated. In some cases, the reference data is very scarce and insufficient. For example, ref. [81] use less than 10 control points. Furthermore, as indicated previously, attention is not always paid to compliance with the minimum requirements that must be met (representativeness, independence, and accuracy).

The control or evaluation by points is the most frequent, but as some authors indicate, its use has a limited value (e.g., [33]). When using points as control elements, most of the time the issue of the spatial support of the measurement is not considered; ground control points have punctual support and DEM data represent elevation values referred to a larger area. This situation and its consequences are too often ignored. On the other hand, the analysis of positional accuracy is oriented towards altimetry, as is natural due to the elevation component of GDEMs, but whether or not there is a horizontal displacement that affects it is not usually analyzed (e.g., [29] evaluate horizontal displacement). Most evaluations focus on the absolute perspective (absolute vertical accuracy), when for many applications and analyses the relative vertical accuracy is more important than the absolute one [29]. On the other hand, it is well known that elevation error and the artifacts present in the GDEMs greatly influence the elevation derivatives (slope, orientation, curvature, etc.) (e.g., [40,66]) in such a way that it is possible to have high elevation accuracy and low shape quality and vice versa [82]. Despite all this, only [40] analyzed pixel-wise error of elevation, slope, and aspect. For their part, [83] indicates that fine-scale local morphometry is often much more important than elevation difference metrics. In general, unfortunately, it is not very common that the authors to report the limitations of the GDEM comparison and evaluation methods that they apply (e.g., [25]).

From our analysis of the corpus, we concluded that sufficient scientific rigor is not always applied. For instance, when needed, the normality of the errors is assumed but the actual distribution is seldom analyzed. Although there is some controversy about the normality of elevation errors, this aspect is only analyzed in very few cases (e.g., [74,84,85] among others). In these cases, analysis based on Q-Q plot graphs is often applied (e.g., [86,87]) dismissing more formal statistical tests. Other possible distributions are almost ignored. Only refs. [88,89] mention the use of the Laplace distribution as an alternative. There are few cases characterizing the error through other alternatives, for example through the application of the semivariogram (e.g., [31,63,90]) or using Fourier analysis (e.g., [43,63,91]). The possible autocorrelation of the error is practically forgotten. Another aspect that is well known to affect the numerical results of normal-based statistics is the presence of outliers. As in the previous case, there are few papers where robust expressions against them are considered (e.g., MAD, LE90, IQR, etc.) (e.g., [30,85]) with little or no justification. We consider that this means that the most elementary aspects of the variable of interest, such as knowing its basic behavior, are not adequately and widely addressed in the corpus.

The common situation is the evaluation of the accuracy of DEMs from a single perspective, internal or external accuracy, but not jointly ([66]). Assessment of external accuracy is the most usual option, although, as El Hage indicates, this perspective is not always the most appropriate. Vertical accuracy is linked to horizontal or planimetric accuracy, but there are very few studies (e.g., [29,68,92,93]) that analyze the influence of the possible horizontal displacement between data sets. That is to say that in practically all the cases it is assumed that this displacement does not exist as an underlying basic hypothesis. However, this hypothesis is not usually made explicit. The above, together with the aforementioned problem of the difference in spatial support between the control element (for example, a GNSS point or a geodetic vertex) and a DEM value (for example, a grid cell), are critical aspects in these types of evaluations.

Stratification is an appropriate strategy for sampling design and the presentation of results when there are conditions that generate more homogeneous groups in each of the strata. The GDEMs cover wide geographical areas with changing topographic, geomorphologic, and hydrographic conditions, and therefore it seems logical to consider stratification. However, sampling stratification is never used in the corpus analyzed here. Stratification is only considered in the presentation of results. Common criteria for stratification are elevation itself ([94,95]), topography ([36]), slope ([36,79,94]), area ([79]), aspect ([94,96]), land cover ([36,96]), stack number ([36]), etc. In some cases, several criteria are considered at once ([36]).

Elevation is trivially the preferred theme for evaluating the accuracy of DEMs. However, slope and aspect also receive attention in numerous papers. Their joint analysis (e.g., [38,40,94,97,98,99,100]) is usual, but there are also cases in which only one of them is analyzed (e.g., [39,62,101,102]). The analysis of the slope is more frequent than that of the aspect. Second-order parameters (like roughness and curvature) appear in a testimonial way (e.g., [61,103,104]). Typically, slope analyses adopt a descriptive perspective (mean values, deviations, histograms, and visual analysis of some profiles) and not a direct pixel-by-pixel slope values comparison. In this regard, the application of the goodness-of-fit test between distributions is missing. In any case, we believe that the foregoing clearly indicates the need to pay attention to these variables (slope and aspect) derived from the DEMs, which coincides with what was indicated by ref. [105] when analyzing the uses of the DEMs through a user survey.

Quantitative, objective metrics lead naturally to a ranking, but there are subjective alternatives as well. One of these is visual analysis. It also offers numerous options, but there are no standardized methods. Some form of visual analysis is indicated in thirteen references. The most complete example is the one presented by ref. [106], which includes profiles, DEM visualization, and relief shading.

We consider that in general the analyses carried out are weak. There are numerous alternatives (e.g., elevation profiles, visualization, shaded reliefs, distribution goodness-of-fit tests, parameters tests, analysis of variance, Q-Q plots, boxplots, hexbin scatter plots, ROC curves, etc.) that are not typically used.

In relation to the assessment, a clear formulation of the comparison method to be followed is lacking, but the majority of the papers offer a ranking of the GDEM analyzed (e.g., [65,107,108,109,110]), although very few propose some kind of procedure to combine various analysis perspectives in a metric that allows ordering of the analyzed GDEMs ([68,111]). There are numerous cases in which several criteria are used, but without resulting in an ordering of the available GDEM. Even when various criteria are used the perspective of these analyses is not multivariate, from the statistical point of view, nor multicriteria, from the point of view of decisions. Moreover, there is a paradigmatic case which is that of morphometric evaluations. There are numerous papers with a morphometric perspective ([66,109,112,113], etc.) where a number of indices are computed (e.g., Horton’s parameters) and compared with those values computed using the reference DEM. However, in most of the papers, no joint result is reached for all of them. Morphometric parameters are only calculated, presented, and commented on in an attempt to uncover a relationship. Thus, despite the popularity of these analyses and the applied interest they have, there is no reference to a standard method for comparing and ranking (G)DEMs from this perspective. In summary, numerous results are generated, but most of the time the authors are not able to elucidate which GDEM behaves better than another. Regarding multicriteria analysis, only one paper is noteworthy [65].

One of the most interesting and notable issues is that despite there are numerous papers that present a certain orientation to fitness for use, the use of the most traditional perspective, centered on vertical positional accuracy, is dominant. There are also cases in which vertical positional accuracy indices (e.g., RMSE) derived from control points are interpreted from an applied perspective, as is the case of ref. [114], who analyzed this situation in connection with landslide applications.

We can consider the existence of traditional criteria (e.g., EL_RMSE, EL_STD, etc.) that are focused on vertical elevation error and are based on common statistical metrics (e.g., RMSE, STD, etc.). They show a generalist and data-centric perspective, typical of data producers and in which the intended use is not considered. We can also consider the existence of other criteria, very similar to the previous ones and also based on statistical metrics, but which already include a broader perspective of what a DEM is. For example, there are a few papers that rank the global DEM using planimetric accuracy. Ref. [115] compared global DEM using the double buffer method described in ref. [116]. Instead of using contour lines as homologous objects, they selected ridges and talweg lines, thus connecting the analysis to hydrography. Another clear example is the metric applied to slope and orientation. In some papers, these criteria have been used with a certain fitness for use perspective, but we believe that they should really be part of a routine evaluation of DEMs together with the criteria related to elevation (absolute and relative accuracies). Finally, we can consider the existence of other criteria that are of a much more applied nature, and the corpus presents numerous examples. We denote them as functional accuracy, as part of a so-called functional quality concept. It should also be noted that most of the papers that present an applied orientation usually combine several criteria. For example, ref. [117] is focused on the suitability of GDEMs for micro-scale watershed planning, and three watershed-defining parameters (elevation, slope, and reservoir capacity) were tested in order to determine which performs better. Below are some examples of fitness for use. Some of these options are directly linked to one or several of the thematic areas that ref. [118] considers within current digital (geo)morphometry:

• Geomorphology. Ref. [65] is interested in peak detection as remnants of degraded geomorphic surfaces and uses indices related to the presence of those peaks. Ref. [119] is interested in the abilities of GDEMs for deriving the topographic wetness index (TWI) and landform classifications. They use the overall accuracy and the kappa indexes for the assessment of classification results.
• Geomorphometry. Ref. [120] pays attention to several basin properties: basin area, average overland flow length, basin slope, basin length along the main channel, basin slope along the main channel, basin perimeter, and shape factor. They aim to provide guidelines for users to select the most suitable GDEM that will obtain an accurate analysis in less time. Ref. [109] uses “register difference” which represents the area mismatching degree (%) (sliver polygons area) between the derived data set and the reference. Ref. [112] applies twenty-one morphometric parameters and uses relative error in evaluating the similarity between the derived drainage network of the GDEMs and a stream network derived from a topographic map.
• Determination of water volumes. Ref. [121] estimates water volume variations, establishing a regression between the volume derived from the analysis of the GDEMs and the reference values using the correlation coefficient (R2), the normalized root-mean-square error (NRMSE), and the mean absolute percentage error (MAPE) for the analysis. Ref. [122] compares three GDEMs and analyzes the behavior of the contour lines, the longitudinal profiles of dams, and the curves for water reservoir elevation and stored volume. Ref. [117] uses a flood level and determines the volume stored in the reservoir vessel.
• Detection of depressions and peaks. Ref. [51] investigates the use of GDEMs to detect and quantify natural karst depressions. For the evaluation, ref. uses the overall accuracy and also a morphometric analysis based on the circularity index. Ref. [32] focuses on the presence of peaks using the topographic prominence which is defined as the vertical distance between a peak and the lowest contour line encircling it but not another higher peak.
• Detection of lineaments. Ref. [50] examines various GDEMs at different resolutions in order to recommend the best one based on lineaments elicitation. Variables of interest are the density, length, and orientation of the extracted lineaments.
• Drainage network delineation. Ref. [123] analyzes several aspects, among them the positional accuracy of the resulting drainage network, for which they apply a buffer method [124]. This is an example of a case where something computable from the DEM can be discerned as well in the terrain as 2D objects. The same can be anticipated for roads, but there was no example in the corpus.
• Determination of the height of buildings. Ref. [125] analyzes the feasibility of using GDEMs for extracting digital building height models and urban elevation profiles and uses a completion metric that is equivalent to recall (true positive/(true positive + false negative)).

The methods outlined above only require access to the DEM jointly with the DEM reference data in order to perform the computation. Among those cases where extra reference data is involved in the computation (other than elevation), we can mention:

• Quantification of soil loss and erosion. Ref. [126] applied the universal soil loss equation and compared the results obtained with their reference using the Kappa index and the producer and user accuracies for a certain number of erosion level categories. Ref. [102] compared the GDEMs in terms of soil loss and various flavors of slope (slope, slope length, etc.) as criteria.
• Landslide simulation. Ref. [127] compared the results of landslide risk estimates to three real landslide events caused by rain. For their evaluation, they used receiver operating characteristics (ROC) curves, confusion matrices, and a factor called LRClass, which is the ratio of the percentage of landslide locations within a particular class of factor of safety in relation to the total number of landslide locations considered.
• Hydraulics. In [110], part of the analysis is based on the use of a numerical model. Several results of the simulations are considered: the discharge and water surface elevation results from the hydraulic model, the delineation of the flooded area, and the relative sensitivity of the hydraulic model to changes in Manning’s n roughness coefficient.
• Snow avalanches. Ref. [128] analyzed the case of snow avalanche dynamics. As comparison criteria, they used: (a) flow path, (b) run-out distance and deposit, and (c) flow velocities and impact pressure.
• Land cover classification. Ref. [64] analyzed the impact of various DEMs in the automatic classification of land covers and the result is evaluated using the Kappa index.

We consider that the high number of examples of evaluation applied to use cases clearly shows its interest. Another remarkable aspect is that in many cases metrics already applied in the geospatial field are used (e.g., completeness, overall accuracy, kappa index, recall, density, etc.). Unfortunately, unlike the case of data-centric procedures already incorporated into established standards, there are no standardized procedures for performing these user-centric evaluations. It is evident that, here, there is a clear gap that offers opportunities for research, standardization, and outreach.

An important issue to highlight here is that the papers are mostly based on open GDEM data (despite some commercial ones having been considered), but almost all of them use reference data that are not offered openly. In this sense, the proposal of [129] to create a collaborative DEM (DTM + DSM) data control infrastructure worldwide is interesting. This is also in line with the ongoing DEMIX initiative [16]. Finally, ending as we have begun this section, the lack of standardization should be highlighted both in the use of existing standards and in the development of new standards. We believe that many of the problems indicated above could be avoided if adequate standards were available that would prescribe certain elementary aspects in order to achieve rigorous comparisons and guide other aspects of the comparisons.

5. Conclusions

Based on a multiple search strategy, an analysis of a corpus of 313 papers related to comparisons of one GDEM and one or more DEM/GDEMs with a reference has been performed. The number of findings in the search confirms that the use of GDEMs is widespread and that the comparison between different GDEM options continues to be a topic of interest for the scientific community and users. The most popular GDEMs in comparison studies are SRTM and ASTER. The distribution by country of the papers indicates that there is much greater activity in emerging countries (e.g., India, Brazil) than in developed ones. In general, the definition of the data population to be compared is not carried out rigorously and most of the comparisons focus on the use of classical metrics on elevation (RMSE and STD). The RMSE applied to elevation is the standard in comparisons. It is also common to use more than one metric in comparisons, a fact that easily leads to conflictive rankings. A multivariate perspective to handle this is not applied in the analyses. Comparisons have also been found in which criteria more widely applied and closer to functional quality are used, but this perspective is still not very common. Comparisons are made using very diverse sources as a reference (e.g., GNSS points, legacy cartography, topographic network vertices, etc.). We noticed that the data sets used as references do not always have adequate quality. Regarding the numerical values that result from the comparisons, the lack of standardized methods, measures, criteria, and reporting procedures makes it nearly impossible to perform any type of rigorous meta-analysis. Our analysis has shown the importance of a more applied evaluation of the quality of the GDEMs, closer to the uses (suitability for use), but also that there are no standardized methods for it, neither proposed by the user communities nor by the producers. This opens up a wide field for applied research.

In line with the criteria indicated above, and looking to the future, the main conclusion of this study is the urgent need to standardize the GDEM comparison methods so that the results will be interoperable and usable on a global scale. This standardization should cover the definition of the use cases, the data population, the sampling, the criteria and measures for comparison, the criteria for selecting the reference, the statistical analysis, and reporting procedures. Along these lines, and with an open science perspective, a global GDEM reference infrastructure would be an element of great value to assure transparency.
