IJGI 2012, 1(2), 146-165; doi:10.3390/ijgi1020146

Article
Analyzing the Contributor Activity of a Volunteered Geographic Information Project — The Case of OpenStreetMap
Pascal Neis * and Alexander Zipf
Geoinformatics Research Group, Department of Geography, University of Heidelberg, Berliner Street 48, D-69120 Heidelberg, Germany; Email: zipf@uni-heidelberg.de
*
Author towhom correspondence should be addressed; Email: neis@uni-heidelberg.de; Tel.: +49-6221-545-504; Fax: +49-6221-544-529.
Received: 13 June 2012; in revised form: 17 July 2012 / Accepted: 17 July 2012 /
Published: 27 July 2012

Abstract

: The OpenStreetMap (OSM) project, founded in 2004, has gathered an exceptional amount of interest in recent years and counts as one of the most impressive sources of Volunteered Geographic Information (VGI) on the Internet. In total, more than half a million members had registered for the project by the end of 2011. However, while this number of contributors seems impressive, questions remain about the individual contributions that have been made by the project members. This research article contains several studies regarding the contributions by the community of the project. The results show that only 38% (192,000) of the registered members carried out at least one edit in the OSM database and that only 5% (24,000) of all members actively contributed to the project in a more productive way. The majority of the members are located in Europe (72%) and each member has an activity area whose size may range from one soccer field up to more than 50 km2. In addition to several more analyses conducted for this article, predictions will be made about how this newly acquired knowledge can be used for future research.
Keywords:
volunteered geographic information (VGI); OpenStreetMap; contributions; community; activity

1. Introduction

The World Wide Web (WWW) has evolved significantly from its early stages in the 1990s, sometimes referred to as Web 1.0, to a sophisticated source of information. At the beginning of the 21st century, the term “Web 2.0” was first introduced [1]. However, the term experienced its real attention after a publication by O’Reilly in 2005, entitled “What Is Web 2.0?” [2].

The change in terminology is based on a shift in the usage of the Web, which is no longer characterized by the consumption of predefined content. In fact the term Web 2.0 relates to a “new” platform where users can customize their own applications on the WWW to meet their own design, ideas, and functionality and, most importantly, can create their own data or edit existing data.

The online encyclopedia “Wikipedia,” established in 2001, is based precisely on this phenomenon. The newly created information is referred to as “user-generated content” or “user-created content” [3]. The voluntary users, who are spread all over the world, share their knowledge on various topics on one particular online platform. Other websites that are based on a similar approach allow users to share their videos (YouTube) and photos (Flickr, Panoramio) with others.

Similar efforts are the foundation of geodata platforms such as OpenStreetMap (OSM), Tagzania, Wayfaring.com, the People’s Map, and Platial or The People’s Atlas, where volunteers, amateurs, or professionals gather information and upload it to a central database available on the Internet [4]. However, unlike other platforms that rely on user contributions such as Wikipedia and Flickr the collected information is not about a particular topic or image; instead, it contains more specific details about elements such as streets, points of interest, or buildings, which always include a geographic reference. The literature describes this particular type of data as Volunteered Geographic Information (VGI) [5], while others describe the process as “crowdsourcing geospatial data” [6].

The OSM project has developed into one of the largest sources of VGI in recent years. Hundreds of thousands of members are contributing to the project worldwide. Different applications based on spatial data provided by the OSM project have been developed. Besides the creation of different maps for hikers [7], skiers [8] and public transportation networks [9] the information also shows potential for more advanced applications such as location-based services (LBS) [10] or a Web 3D Service [11]. Also, the implementation of OSM data for indoor areas has been discussed [12].

With the change of the licensing model by Google Maps in early 2012 [13] and the potential costs that can arise, more and more businesses are moving to the free option offered by the OSM project. The location-based social network FourSquare [14] and the Nestoria Property Search [15] are two major examples that have changed their services to the OSM platform. Also professional spatial data providers and companies have seen the potential in user-generated information and have created their own platforms in the past few years such as Google Map Maker [16], TomTom Map Share [17] and Nokia Map Creator [18], which allow customers and users to edit their own data to the provided maps. However, the collected information on these platforms, including the changes provided by volunteers, is the property of the platform operator and will not be freely available to other users.

These developments show that over the past few years the success of the VGI approach to data collaboration and sharing is undeniable. However, questions remain about the motivation of the members to participate in projects such as OSM. According to different research results, there are a variety of factors that can play a major role [19,20]. Possible factors might be the unique ethos or that geospatial information should be freely available to everyone. For others, learning new technologies, self-expression, relaxation and recreation or just pure fun can play a major role. However, these particular motivational factors are certainly not unique to VGI-related projects, but also to other online communities and platforms such as Wikipedia.

One major caveat of VGI platforms that has been identified is the very small percentage of members, e.g., in Wikipedia that actively contribute to the project [21]. During the writing process of this article, Wikipedia had a worldwide community of more than 16 million registered members, of which a total of 1.5 million members had at least made one change to an article [22]. Less than 85,000 members had made more than five changes, which represents less than 1% of the registered members. These results correspond closely to what has been termed Participation Inequality and a general 90-9-1 rule that can be applied to community-based projects [23]. The numbers represent the 90% of an online community who consume the provided information but do not contribute to the project, the 9% who contribute occasionally, and the only 1% who create or edit most of the content and can be considered active members. Similar results were found in a previous study about Wikipedia, indicating that only a small percentage of the members actively contributed to the project [24].

The research conducted provides information pertaining to whether the above-mentioned participation inequality theory holds true for the members of the OSM project. A first analysis focusing on participants’ characteristics and motivations in OSM in April 2009 had shown that of 120,000 registered users only 33,440 contributors made at least one edit to the database [19]. Similar to previous work, the members are split into several groups based on their contributions to the project to provide a better overview [21]. Owing to the different methods that were applied during the research process, it is possible to provide statements about the origin of a member and her/his main area of activity.

The remainder of the paper is structured as follows: The next section gives an introduction to the VGI OpenStreetMap project. The third section of the paper compares registered vs. active contributors of the OSM project, while sections four through six focus on the determination of the location, the activity area, and the active time frame of a member. The last section summarizes the results of this paper and presents some future research suggestions.

It needs to be noted that almost all analyses in this article are based on the full history dump file of the OSM project dated 8 December 2011. In the compressed format the file has a size of 30 GB while the uncompressed file size increases to 500 GB. All programs that were applied to perform the conducted analyses were developed in Java with the implementation of a variety of open source libraries.

2. The OpenStreetMap Project

The OSM project, founded in 2004 at the University College London, has the goal to create a free database with geographic information of the entire world, and detailed introductions to the project have been published [25,26,27]. A plethora of spatial data such as roads, buildings, land use areas, or points of interest is entered into the project’s database. Similar to other community-based projects on the Internet, any user can start contributing to the project and editing data after a short online registration. This simple approach allowed the project to gather more than 640,000 registered members by June 2012 [28].

The contribution of new data to the project can be accomplished in different ways. The most classical, yet still most common, approach is to record data using a GPS receiver and edit the collected information using one of the various freely available editors. The user provides additional information about the collected data by adding attributes and stores the final results in the OSM database. Several companies such as Yahoo (up to 2011) and Microsoft Bing support the project [29,30] by providing various aerial images to the community, which allows the OSM members to digitize data such as streets from the images. However, this process has its advantages and disadvantages. While this method is a very simple way to add new data, the disadvantage is that aerial imagery is oftentimes outdated or not properly geo-referenced. More importantly, it is not possible to get any metadata information such as the road or street names from an aerial image. Another common practice in recent years has been the import of other freely available data into OSM. For instance, the complete TIGER/Line dataset of the United States and donated data from Automotive Navigation Data (AND) for the Netherlands were imported into the OSM database.

For this article, it is important to note what type of data provided by the OSM project has been used and how to retrieve it. The major OSM components that were utilized for the analyses are shown in Figure 1. The database server plays a major role and contains the membership administration, the GPX tracks, and, of course, all spatial data of the project.

Ijgi 01 00146 g001 200

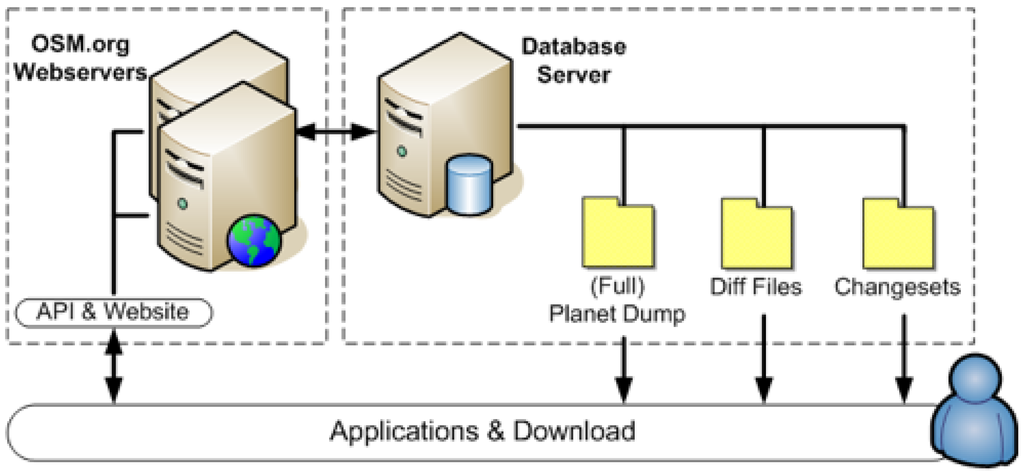

Figure 1. How to retrieve OpenStreetMap (OSM) data.

Click here to enlarge figure

Figure 1. How to retrieve OpenStreetMap (OSM) data.
Ijgi 01 00146 g001 1024

There are different methods for retrieving raw data from the project. One way is to download “dump files” which are updated on a weekly basis and include the latest versions of the objects of the database. Additionally, once every quarter, a complete database dump file with all available versions of the objects is released. If a user is only interested in changes that were made to the database, OSM provides “diff files” that contain the latest changes to the database by minute, hour, and day. Any modification made by a member to an object in OSM is stored in a “changeset” file. This particular information can also be downloaded as a weekly dump file. Most of the information provided is stored in XML format and sometimes in binary format, which allows for significantly faster processing of the data. Additionally, there are various third-party applications and web pages that provide maps for GPS devices or shapefiles based on OSM data.

The geographic information in the OSM database, such as roads, land use information, or buildings, is stored by using three object types: Nodes, Ways and Relations. A “Node” in the database contains location information of a point in the form of latitude and longitude coordinates. Lines such as roads and polygons are stored as “Ways,” and “Relations” define logical or geographic relationships between the objects. Each object contains additional information such as a version number, an ID, the name of the editor, the date when it was created or last modified, and, of course, further attributes, so-called Tag/Value pairs.

Anonymous changes to the database are no longer supported; however, any Internet user who registers for the project can add information to the map and change existing data. This open approach to collaborative data collection creates questions about the quality of the spatial data. Studies regarding this topic have been conducted and published in recent years [31,32]. The OSM data collection shows an overall very heterogeneous quality, i.e., the quality and completeness of the database varies highly from country to country. For urban areas in Europe, especially in the United Kingdom, Germany, Austria, and Switzerland, the OSM data proves to have a similar completeness to commercial or governmental data providers. However, rural areas show a lower data concentration in the OSM database with the exception of the USA, where an opposite pattern, i.e., better coverage in rural areas and less completeness in urban areas, could be determined [33,34,35,36].

3. Registered Members vs. Active Contributors

It is often stated that the OSM project has hundreds of thousands of members who help to collect or improve the data of the project. As outlined in the introduction to this article, this pattern seems to contradict that of most other online portals that are based on user contributions. The direct extraction of information about the members of the OSM project, such as a list of all members, or registration information, is not possible. Thus, a different approach needs to be considered to be able to analyze OSM contributors’ actions.

Based on the full history dump file [37] of 8 December 2011, and the changeset dump file [37] of 7 December 2011, it was possible to create a list of all members who made changes to the database. The registration date of each member can be retrieved from the corresponding user’s website. The collected information for the OSM dataset is shown in Figure 2. The increase of registered members since the beginning of the project is represented by the black line, while the red line represents the number of the members who have at least created a changeset, and the orange line represents the number of members who have edited at least one object (Node, Way or Relation). Finally, the green line represents the number of members who have created at least one object in the database.

The results in Figure 2 show that in December 2011 the OSM project had approximately 505,000 registered members. However, comparing the number of registered members with any of the other retrieved information reveals a strong difference in growth over the past few years. At the end of 2011 almost 43% (213,000) of the members created a changeset but only 38% (193,000) of all members edited (created, modified or deleted) at least one object type (Node​​, Way or Relation) and only 33% (169,000) of all members created an object in the database. It must be noted that, in the past, if a member logged into the OSM online editor, a changeset was created independent from the fact of actual changes to the database being made or not. This particular error causes the small difference between the number of members who created a changeset or edited at least one object. Lastly, 62% (312,000) of the members of the project did not actively contribute any information.

Ijgi 01 00146 g002 200

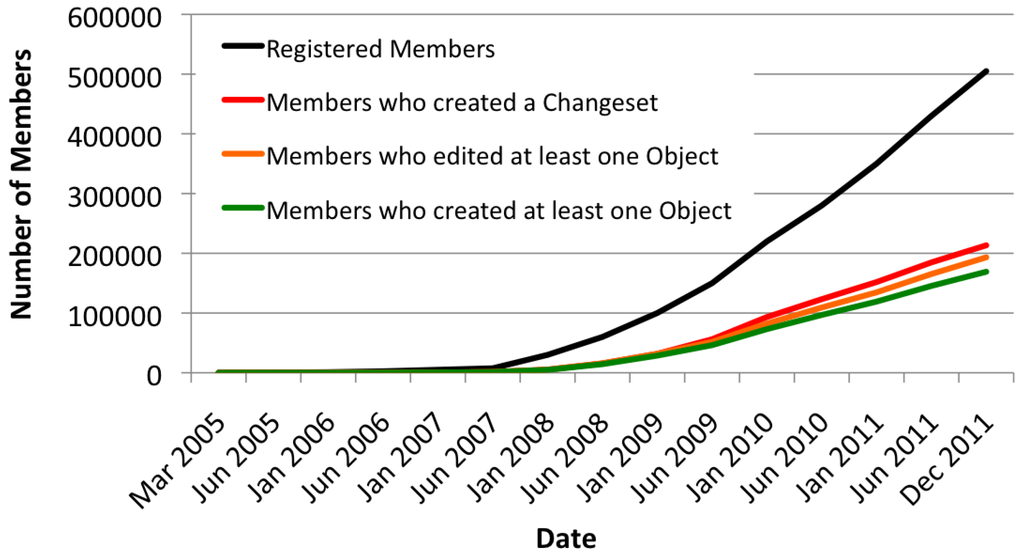

Figure 2. Registered OSM members vs. OSM members with at least one edit (2005–2011).

Click here to enlarge figure

Figure 2. Registered OSM members vs. OSM members with at least one edit (2005–2011).
Ijgi 01 00146 g002 1024

Considering these first results, the question remains whether some of the new members will become more active in the near future. Based on the information retrieved from the database, it was possible to determine the time that elapsed between the date of registration and the first edit to the database or creation of an OSM object by a user. The results shown in Figure 3 indicate, similar to Figure 2, that slightly less than two-thirds of all members have never created an OSM object. This large number can partially be explained by the widespread misconception that users need to be registered to retrieve OSM data. Thus, users register for the project but do not actively contribute any information. It can also be determined that in most cases the OSM member made his or her first edit to an OSM object on the same day as the registration (about 30% of all members). Based on this information there is no evidence for an increased activity in the near future for a large number of OSM members.

Ijgi 01 00146 g003 200

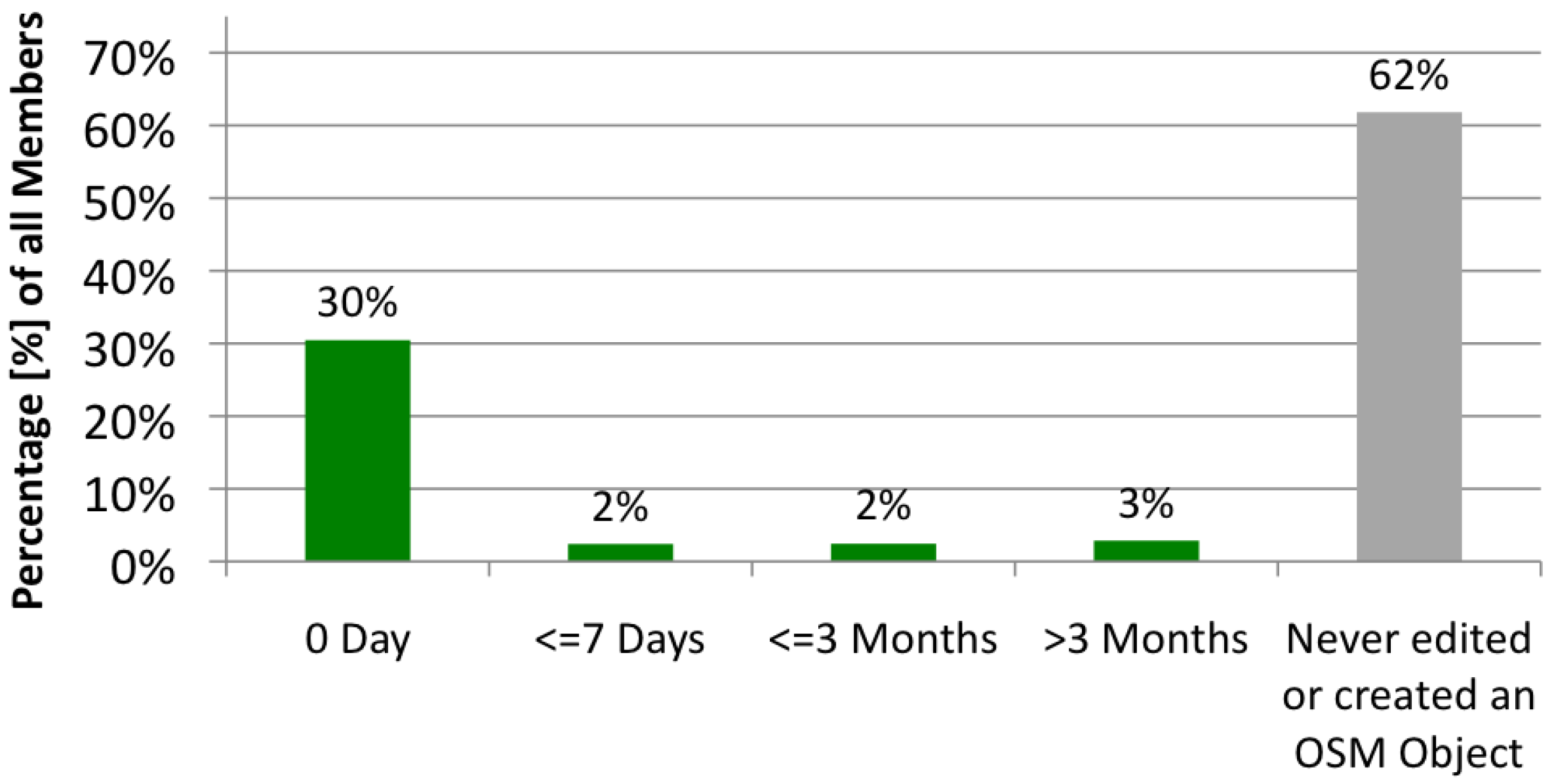

Figure 3. Days between registration and the first created OSM object (2005–2011).

Click here to enlarge figure

Figure 3. Days between registration and the first created OSM object (2005–2011).
Ijgi 01 00146 g003 1024

In mid-2011, around 150 new members began to actively contribute to the project [31]. Based on the newly conducted analysis presented in this article, an average of about 600 new members registered each day in January 2012, of which 200 began to contribute actively to the project. These numbers correspond to the 30% threshold shown in Figure 3.

Table 1 shows the total number of objects that were retrieved from the OSM dump file of December 2011. As mentioned before, all Nodes, Ways, and Relations were collected by at least 193,000 different members. Approximately 98% of the Nodes in the database were collected by almost 14,500 members, 98% of the Ways by 17,400, and 98% of the Relations by only 5,400 members.

Table 1. Statistics of the OSM database (December 2011).

Click here to display table

Table 1. Statistics of the OSM database (December 2011).
ObjectOverallVisibleVersionsTotal Number of ContributorsContributors of 98% Data
Node1.47 billion1.29 billion2.01 billion182,00014,600
Way129 million117 million228 million156,00017,400
Relation1.7 million1.2 million5.5 million33,5005,400

To give a better overview of the number of members, their work and their activity with the project, a diagram was created based on their created objects (Figure 4). Four particular member groups could be determined after investigating and visualizing the skewed distribution of the values (due to the large number of users who did not contribute any data) and applying different bin sizes. Crucial to the group assignment of a member was the number of Nodes that were created by the member. The results gathered showed that approximately 24,000 members created more than 1,000 Nodes, representing 5% of the 505,000 registered members. This group of members is referred to as “Senior Mappers”. About 73,000 members, who correspond to 14% of the total number of members, created at least 10 and fewer than 1,000 Nodes, and these members may be referred to as “Junior Mappers”. Nearly 96,000 members created fewer than 10 Nodes, which makes them the least active, but also the largest member group, with 19%. Members falling into this class are referred to as “Nonrecurring Mappers”. The largest group without any action in the OSM project is represented by the remaining 312,000 members (62%). Thus, the remainder of the analyses will focus on Groups 1–3 with a total of 193,000 members.

Ijgi 01 00146 g004 200

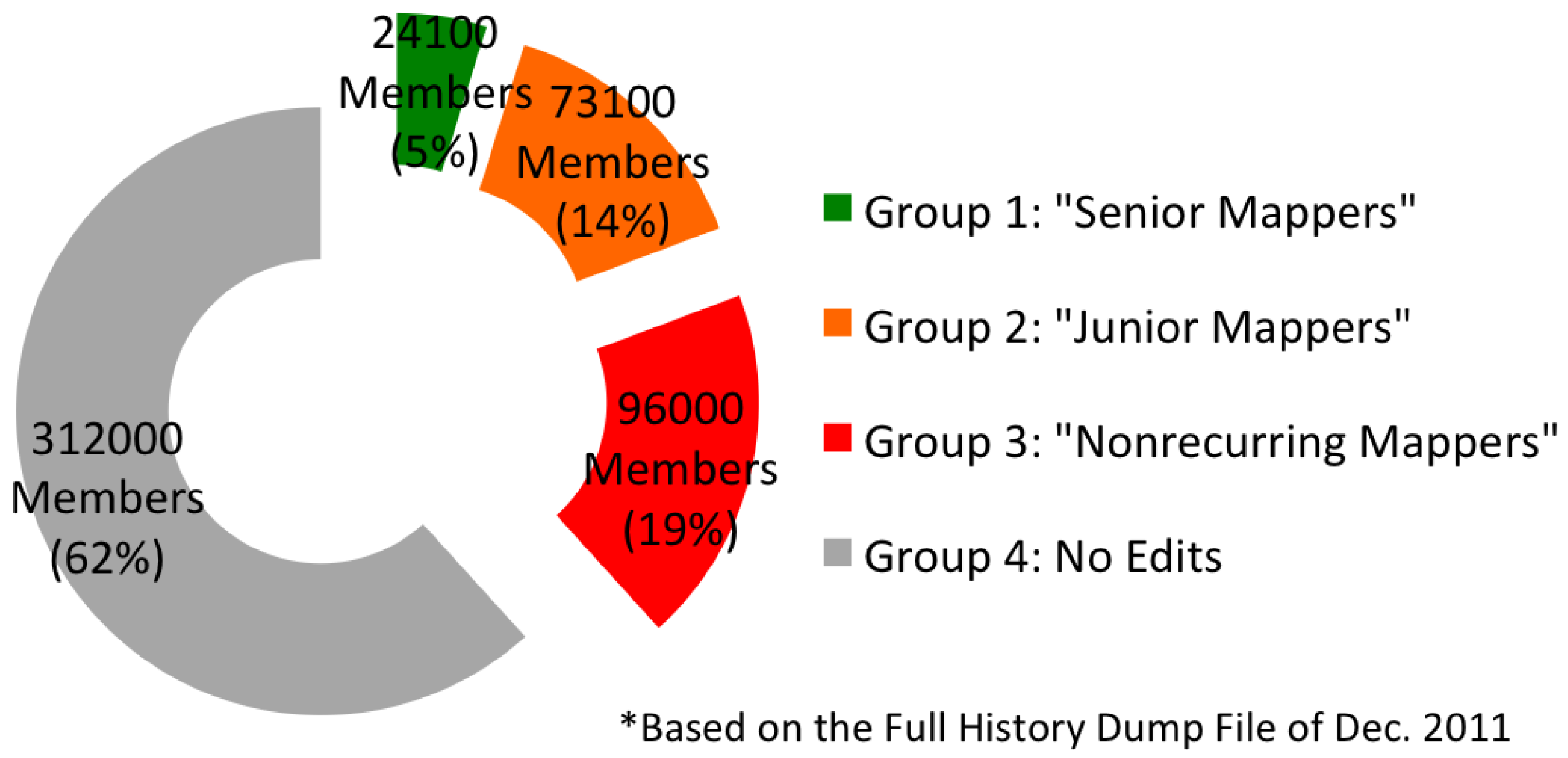

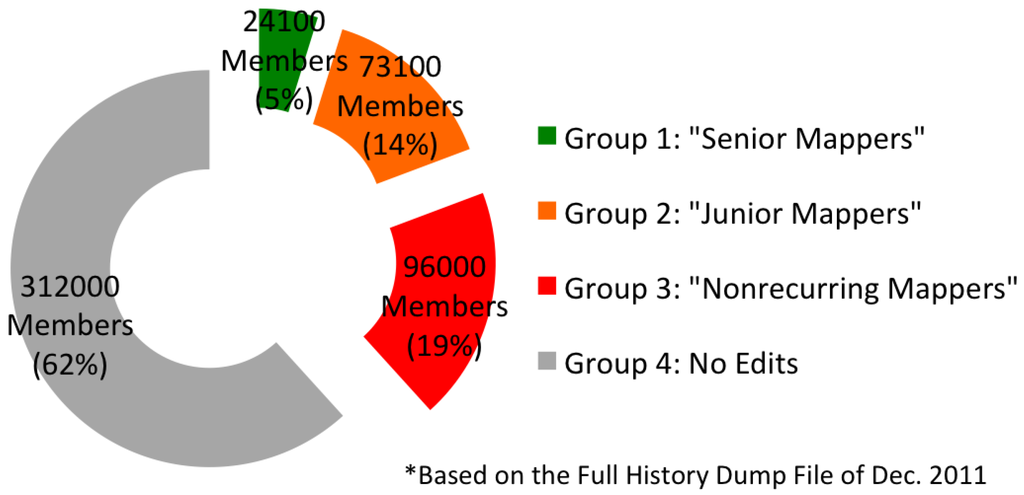

Figure 4. Distribution of registered members based on their node contributions*.

Click here to enlarge figure

Figure 4. Distribution of registered members based on their node contributions*.
Ijgi 01 00146 g004 1024

In order to show the exact activity of each group per weekday and time of day, all changesets of the OSM project were investigated based on a changeset file retrieved on 7 December 2011. As previously described, a changeset contains information about who has made an edit at what time. Also it describes with its coordinates a rectangular area in which the changes by the member have been made.

Of the approximately 10 million changesets provided by the database, 89% were created by Group 1 (“Senior Mappers”), which represents only 5% of all members. The “Junior Mappers” group generated 9%, while the “Nonrecurring Mappers” generated only 2% of the changesets. Figure 5 provides more detailed information about the weekday on which most changesets were created. Almost all weekdays show similar changeset values with the exception of Sunday, which has a slightly larger value.

Ijgi 01 00146 g005 200

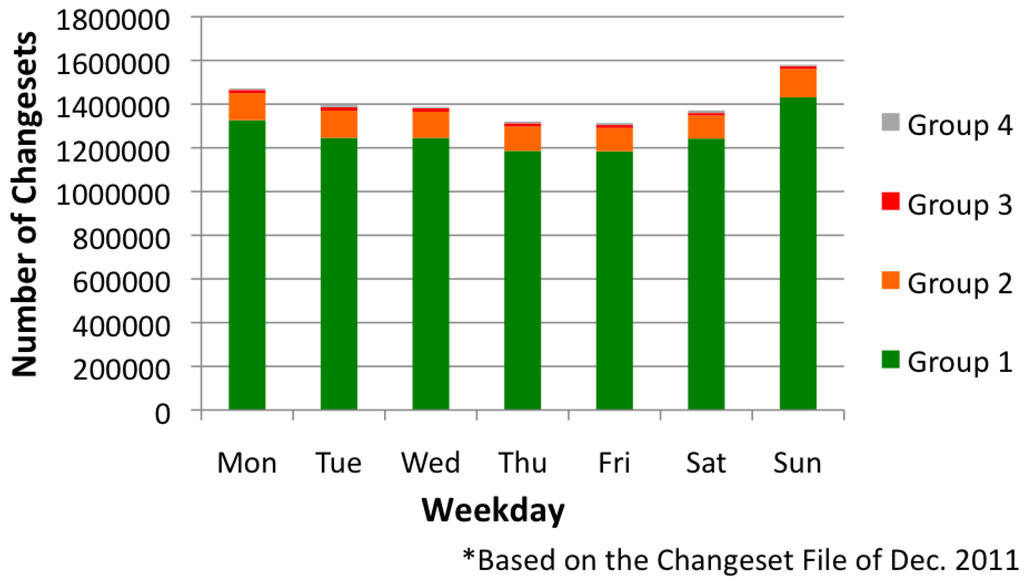

Figure 5. Changesets per weekday*.

Click here to enlarge figure

Figure 5. Changesets per weekday*.
Ijgi 01 00146 g005 1024

In addition to the distribution of changesets per weekday, more detailed information could be gathered by analyzing the changesets by the time of day. Therefore, the timestamps, provided by OSM in Coordinated Universal Time (UTC), of all changesets were evaluated. The results, shown in Figure 6, highlight that the majority of changesets were created during the afternoon and evening hours. Ideally, the changeset information would be evenly distributed throughout the daylight hours based on the worldwide community character of the project. However, currently this is not the case, and the results support the aforementioned focus of the project in the European time zones.

Ijgi 01 00146 g006 200

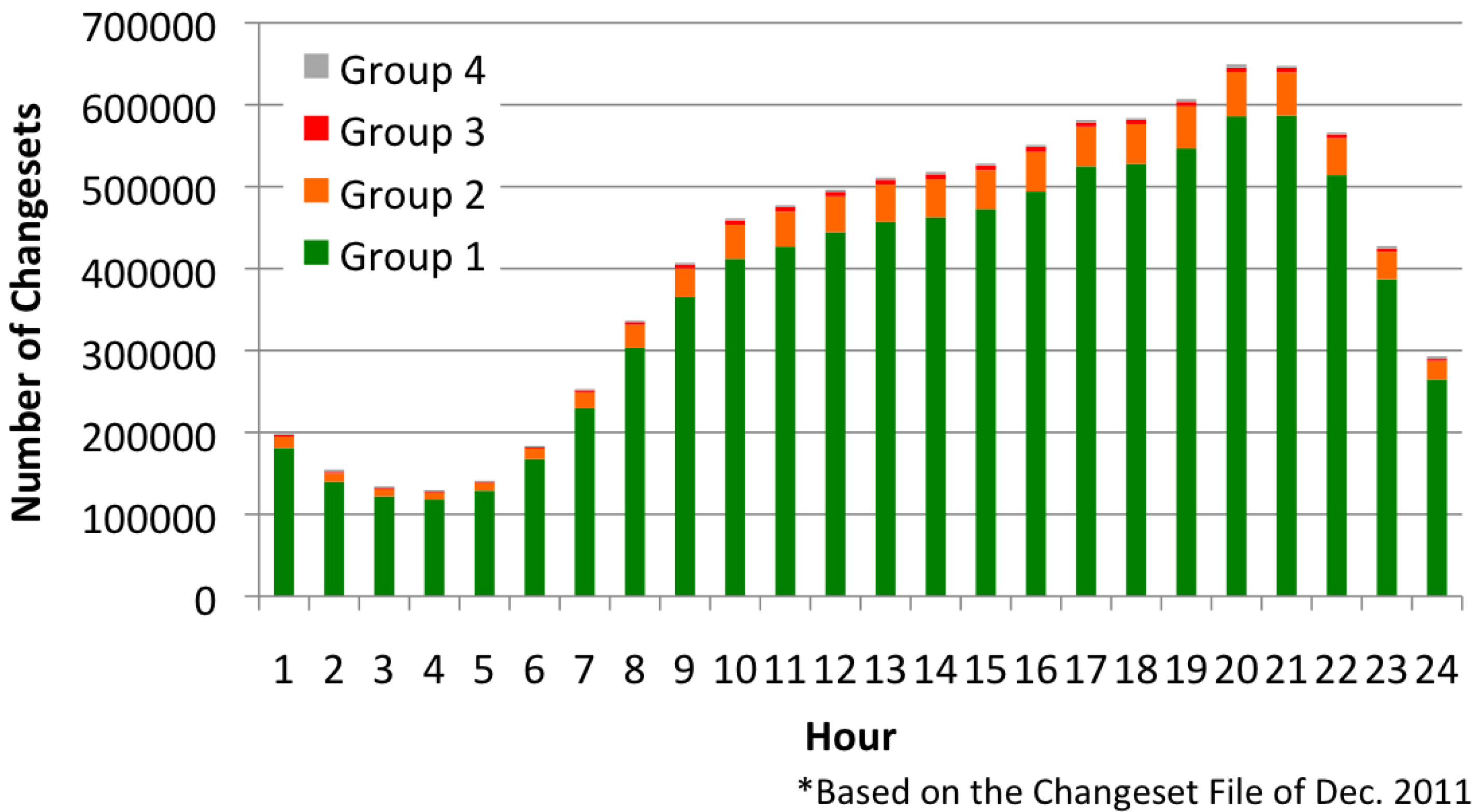

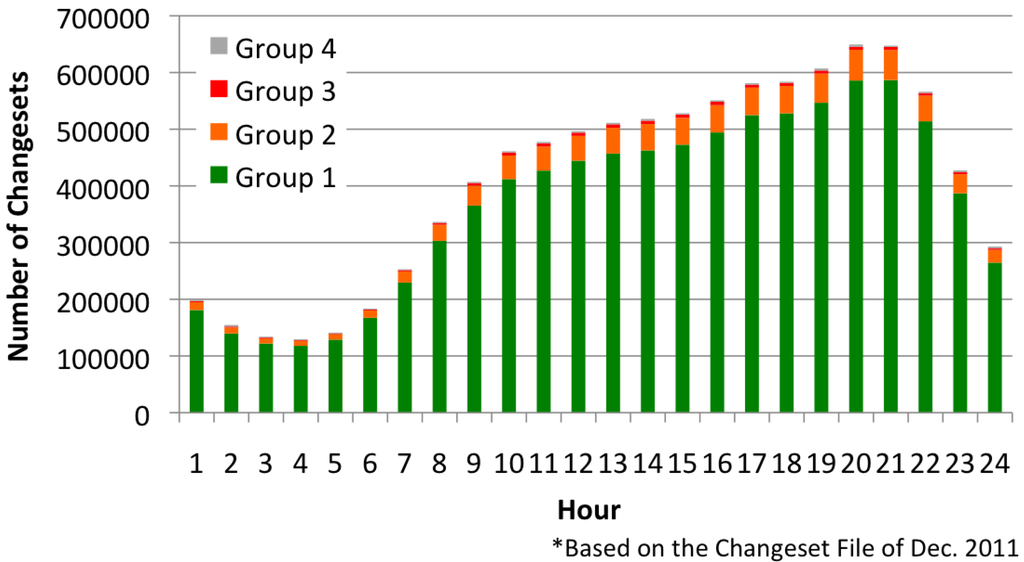

Figure 6. Changesets per hour*.

Click here to enlarge figure

Figure 6. Changesets per hour*.
Ijgi 01 00146 g006 1024

Further information can be gathered by analyzing the number of members per year, month, week, and day who make changes to the database. At the beginning of 2008, about 10% of the 30,000 registered members of the OSM project added new data every month [38]. A year later, this value decreased to almost 8%, although the total number of project members increased to 200,000 members. In 2010, only about 4% of the members collected new data per month [39]. This negative trend continued in 2011, when the number dropped to about 3%.

Figure 7(a–d) shows the corresponding figures for the years 2005 to late 2011. In 2011, almost 87,000 different users made at least one change to the database, corresponding to approximately 17% of the total number of members. The monthly analysis showed that at the end of 2011, between 16,000 and 18,000 active members (representing approximately 3% of all members) contributed to the project. The weekly number of members with at least one contribution fluctuated between 6,000 and 7,000, representing only 1% of the total community. The daily member numbers were between 1,800 and 2,200, representing a percentage of active members far below 1%.

Ijgi 01 00146 g007 200

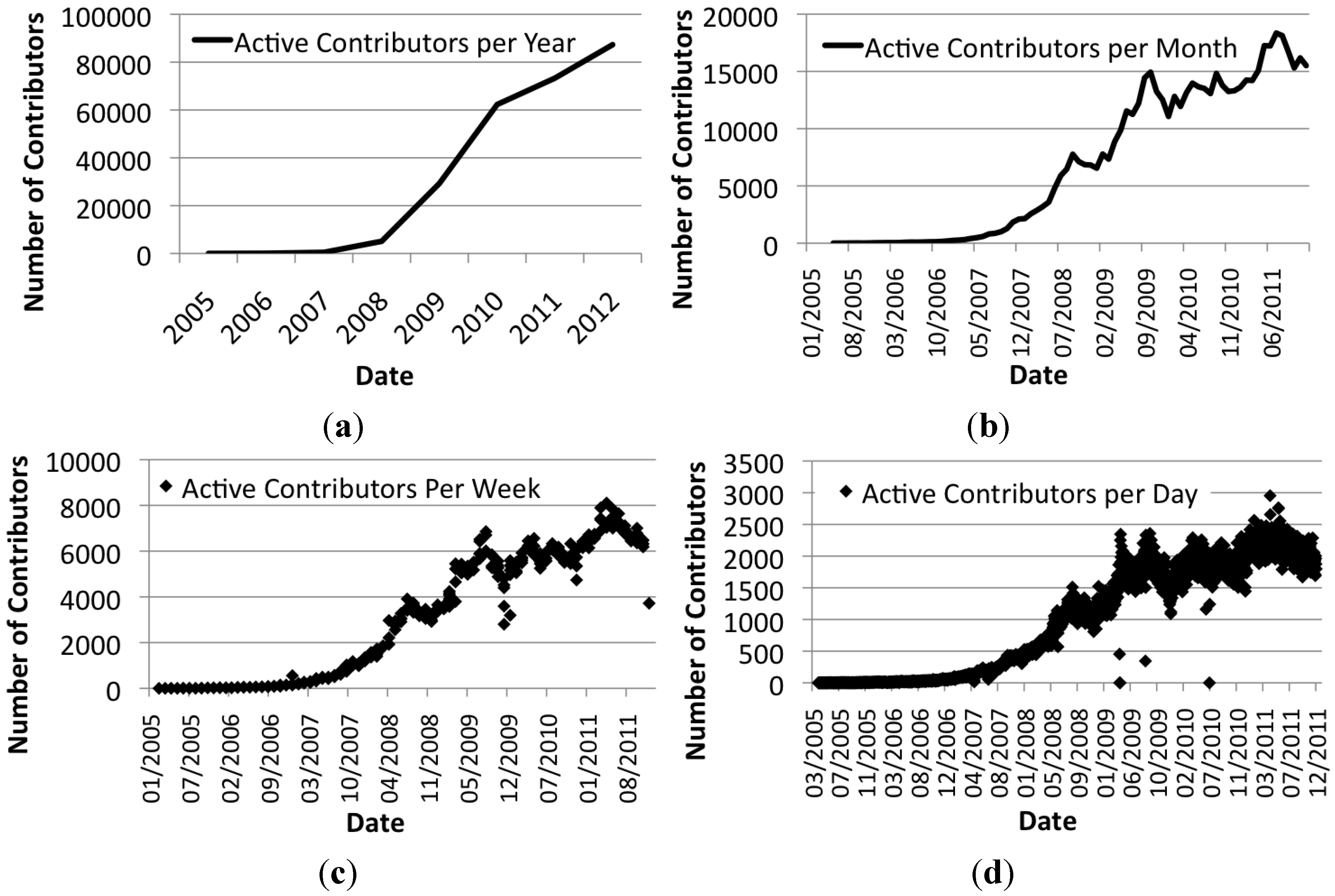

Figure 7. Number of active contributors per (a) year, (b) month, (c) week and (d) day.

Click here to enlarge figure

Figure 7. Number of active contributors per (a) year, (b) month, (c) week and (d) day.
Ijgi 01 00146 g007 1024

An analysis that we conducted in January 2012 based on OSM “Diff” files showed that, in total, all members generated about 1.2 million Nodes, 130,000 Ways, and 1,500 Relations per day, with about 2,100 active members for each day of the month. This means that each member created on average about 570 Nodes, 60 Ways, and 0.7 Relations.

4. Member Location

In addition to the information gathered that was based on the contributions of OSM members, further tests were conducted with a focus on member locations and activity areas. The OSM database does not provide specific information about the member’s country of residency. However, if this information could be retrieved in a different manner, it could give data about how many active and inactive members each country hosts. The quality of the dataset relates closely to the number of members in an area or country that add or improve the data [40]. Four different approaches to retrieve member location information from the OSM database were applied:

  • 1. The first Node that was created by the member determines the country/location of the member.

  • 2. The mass center of all bounding boxes provided by the changesets of each member is determined to retrieve the country/location of a member.

  • 3. All Nodes that were created by a member are taken into consideration and the country that shows the majority of the Nodes indicates the country/location of a member.

  • 4. The center of the activity area polygon of a member provides the country/location information of the member.

The first approach is based on the assumption that the first Node that a member creates is located in close proximity to his or her residence or mapping base. Usually, new members create their first new objects in areas that they are very familiar with and where local knowledge is very detailed.

The second method relies on the previously introduced changeset information. For each OSM member analyzed there were a certain number of changeset files available. Overlaying and blending these files allows the visualization of a particular area, which is covered in most of the overlaying files. Subsequently, the center point of this area can be calculated for the identification of the location or country of the OSM member.

The third approach identifies the location of an OSM member by analyzing the created Nodes. The country in which the member created most of its Nodes was used as the origin of the member.

The fourth and last method is the most comprehensive and most accurate approach to determining an activity area polygon of the member. The polygon represents an area in which the member focuses his or her activities when collecting information for the OSM project. To create the polygon for each member, all created Nodes of a member were meshed using a Delaunay triangulation [41] and a flipping algorithm [42]. This creates a triangle mesh from all Nodes. Subsequently, all triangle edges and their points were removed from the network where the edge lengths were longer than 1km. Figure 8 shows the processing steps for determining the polygons.

Ijgi 01 00146 g008 200

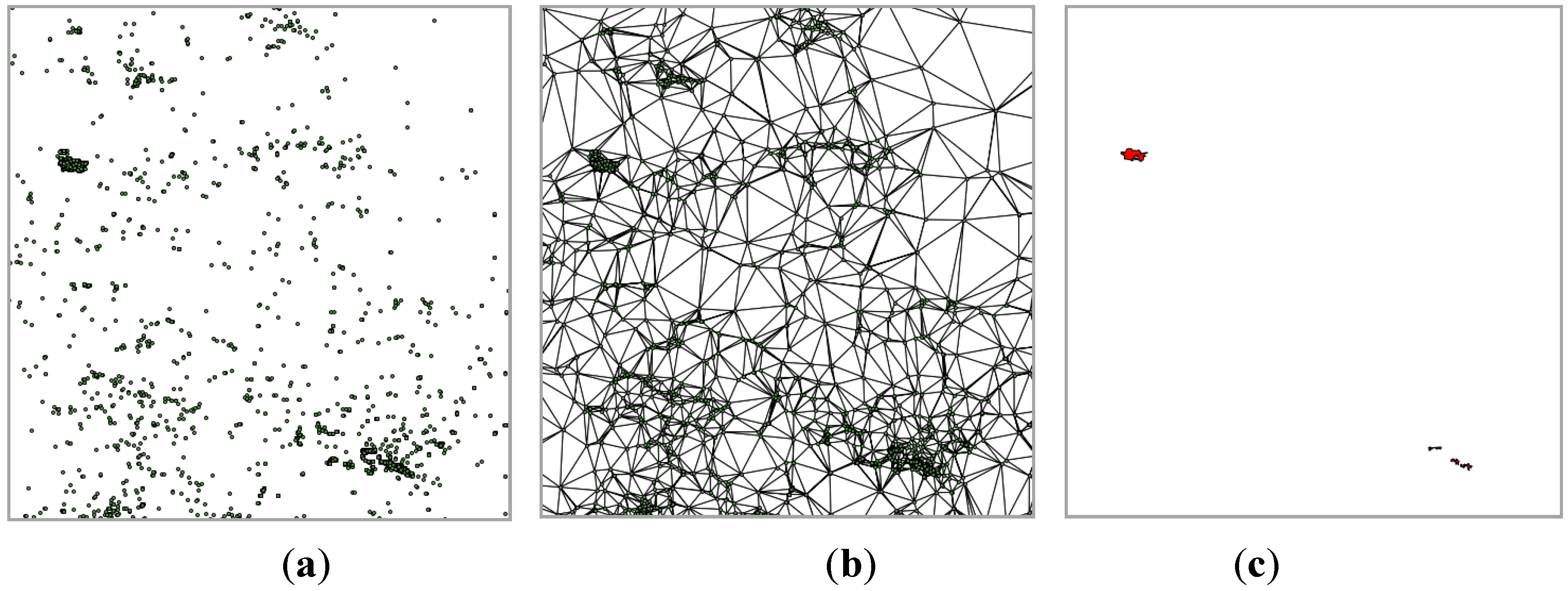

Figure 8. Member activity area creation: (a) nodes of contributor, (b) triangulation, (c) edge-distance-filtering (final activity areas result).

Click here to enlarge figure

Figure 8. Member activity area creation: (a) nodes of contributor, (b) triangulation, (c) edge-distance-filtering (final activity areas result).
Ijgi 01 00146 g008 1024

It is important to note that for this particular method to determine the activity area polygon of a member, only Nodes that a member created were included, no edited Nodes or deleted Nodes were considered. Initial calculations that included all Nodes showed some irregularities, which were based on a software error in the OSM editors in the past (before 2011). This error increased the version number of a Node although the object was not changed in any way by any user directly, but because the Node would fall into the range of a certain changeset. Thus, the database would count a change to a Node, although the member did not actually edit the data. It is important to consider these errors when conducting similar studies to [32,40,43,44], in which the versions of an OSM object should be based on real changes and not primarily on the number of editors and the absolute version number.

The results of the different methods that were applied showed that, based on the first approach by analyzing the first created Node of each member, a total of 167,000 members could be assigned to a particular country. Determining the center of all overlapping changeset areas allowed about 192,000 members to be assigned to a country. The analysis of all created Nodes by a member and the countries in which they were located helped to determine a country for almost 167,000 members. The difference between the number of members for which a country of origin could be determined when applying the two methods is either caused by Nodes that cannot be assigned to a particular country (e.g., Nodes in international waters), or the fact that the member did not create any Nodes at all. The most computationally intense, but also most accurate method was able to generate an activity polygon in several countries for 123,000 members. In this case, the difference between the member numbers can be caused by insufficient amounts of Nodes to create a polygon.

Figure 9 shows the distribution of OSM members by country based on the results gathered from the different methods (country borders taken from the OSM project [45]). If an activity area polygon could be determined, the location of the member was chosen based on the center of the polygon. If this method did not provide the information needed, the country in which the member created the most Nodes was chosen. If this approach did not provide enough information, either the midpoint of the overlapping changesets or the member’s first created Node determined the country of origin. In total 192,000 members could be associated with a country in which they showed their major OSM contributions.

Ijgi 01 00146 g009 200

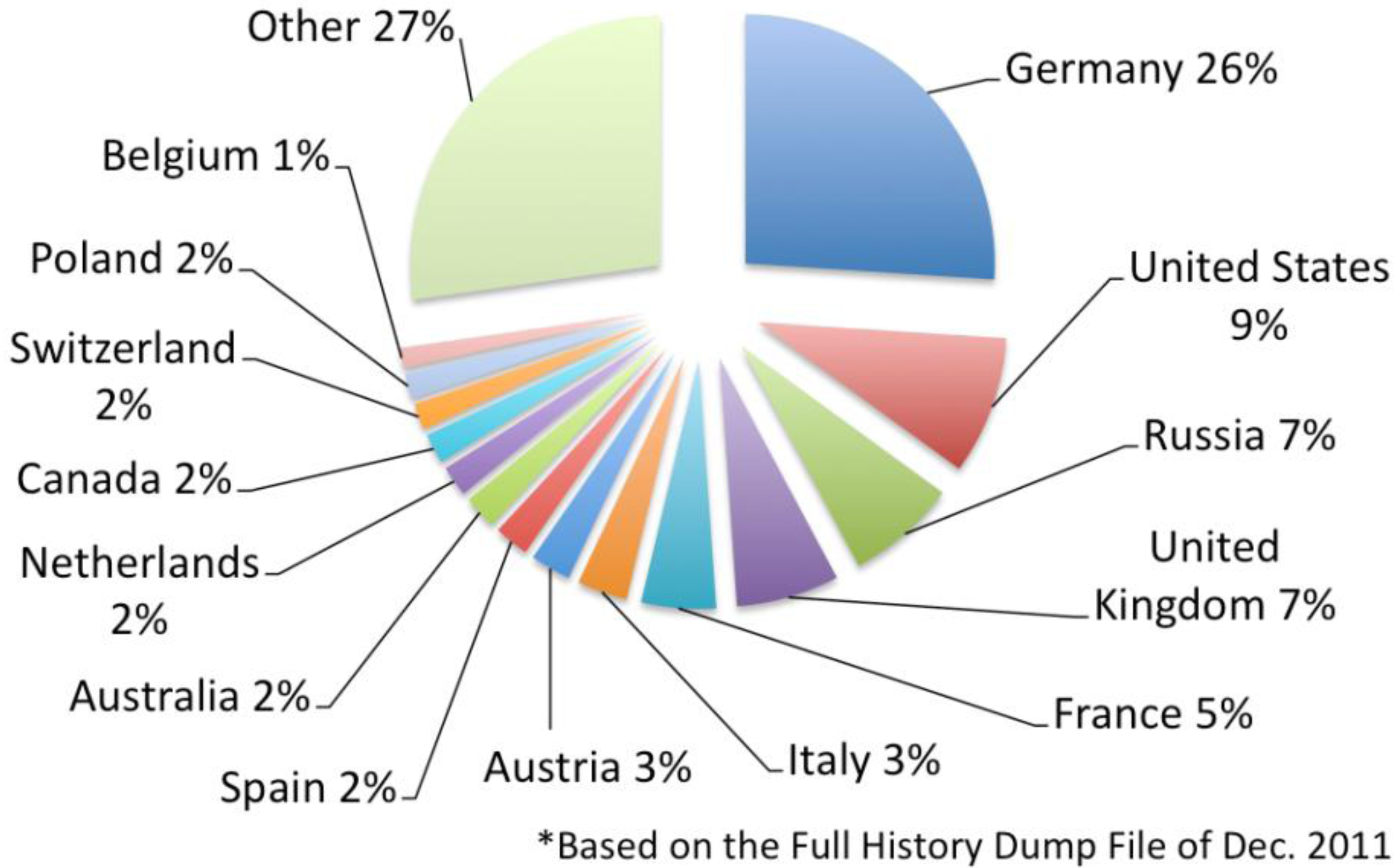

Figure 9. Contributors per country*.

Click here to enlarge figure

Figure 9. Contributors per country*.
Ijgi 01 00146 g009 1024

The result of the distribution analysis of OSM members highlights the concentration of the project in European countries at the end 2011. About 26% of the total members who have contributed to the project are working on the German dataset. In 2009, almost 50% of all changes in the database were made within Germany [46]. Nearly 30% of all active OSM members collected information in Germany in mid-2011 [31]. This value decreased to 26% in January 2012 [47].

Taking the aforementioned groups of contributors into consideration (Figure 4) the results showed that, with variations between 1 and 3%, all groups were represented in similar ways in each country, as shown in Figure 9. The comparison of the daily active member values for each country from the middle of November 2011 to the middle of December 2011 showed not significantly large differences of up to 3%.

Figure 10(a) shows the distribution of the 192,000 members by continents. Almost three-quarters of the total members of the project are from Europe. Prior research using a different approach to determine user origin has shown similar results [19].

Ijgi 01 00146 g010 200

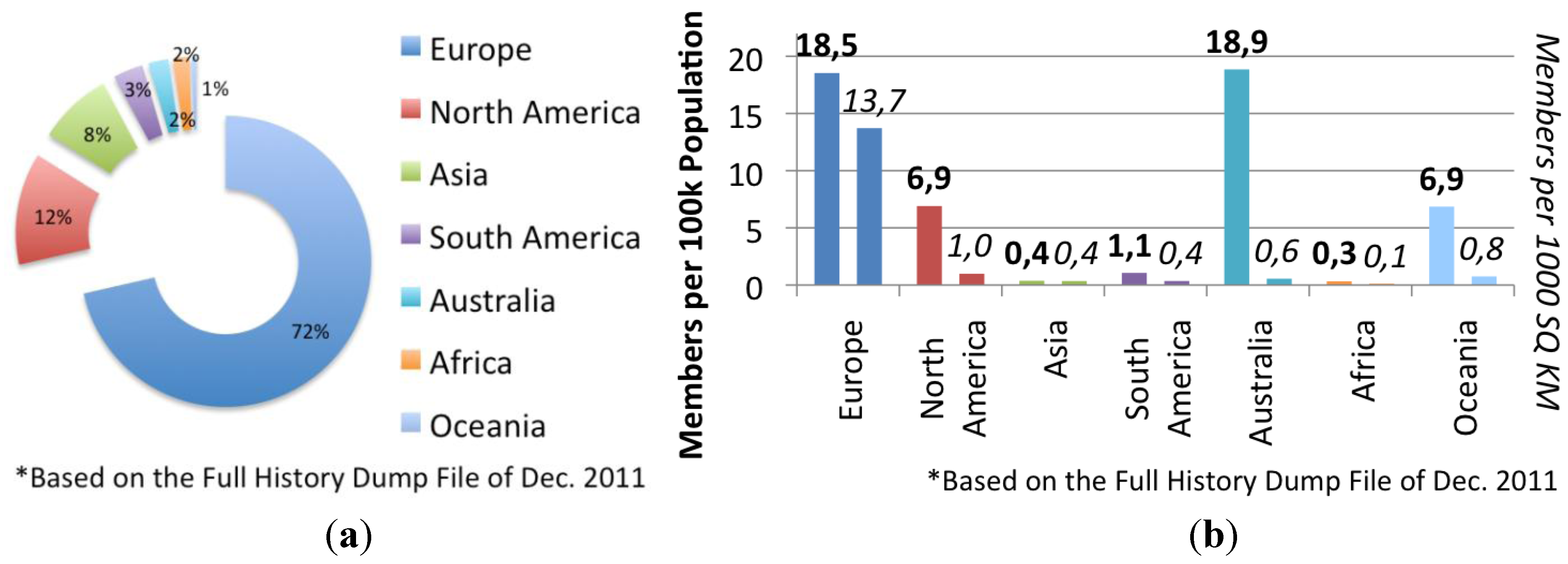

Figure 10. (a) Contributors per continent* and (b) ratio of members to population per continent*.

Click here to enlarge figure

Figure 10. (a) Contributors per continent* and (b) ratio of members to population per continent*.
Ijgi 01 00146 g010 1024

Figure 10(b) illustrates the ratio of OSM members to the population of the continent based on values provided by [48]. For these particular results, Australia surprisingly shows a similar magnitude as Europe. Considering the relationship between the number of members and the total area of the continent, Australia shows a very low value. However, these values could be based on varying population density factors. Overall, Europe shows the closest relation between number of members per 100,000 inhabitants and number of members per 1,000 km2.

Ijgi 01 00146 g011 200

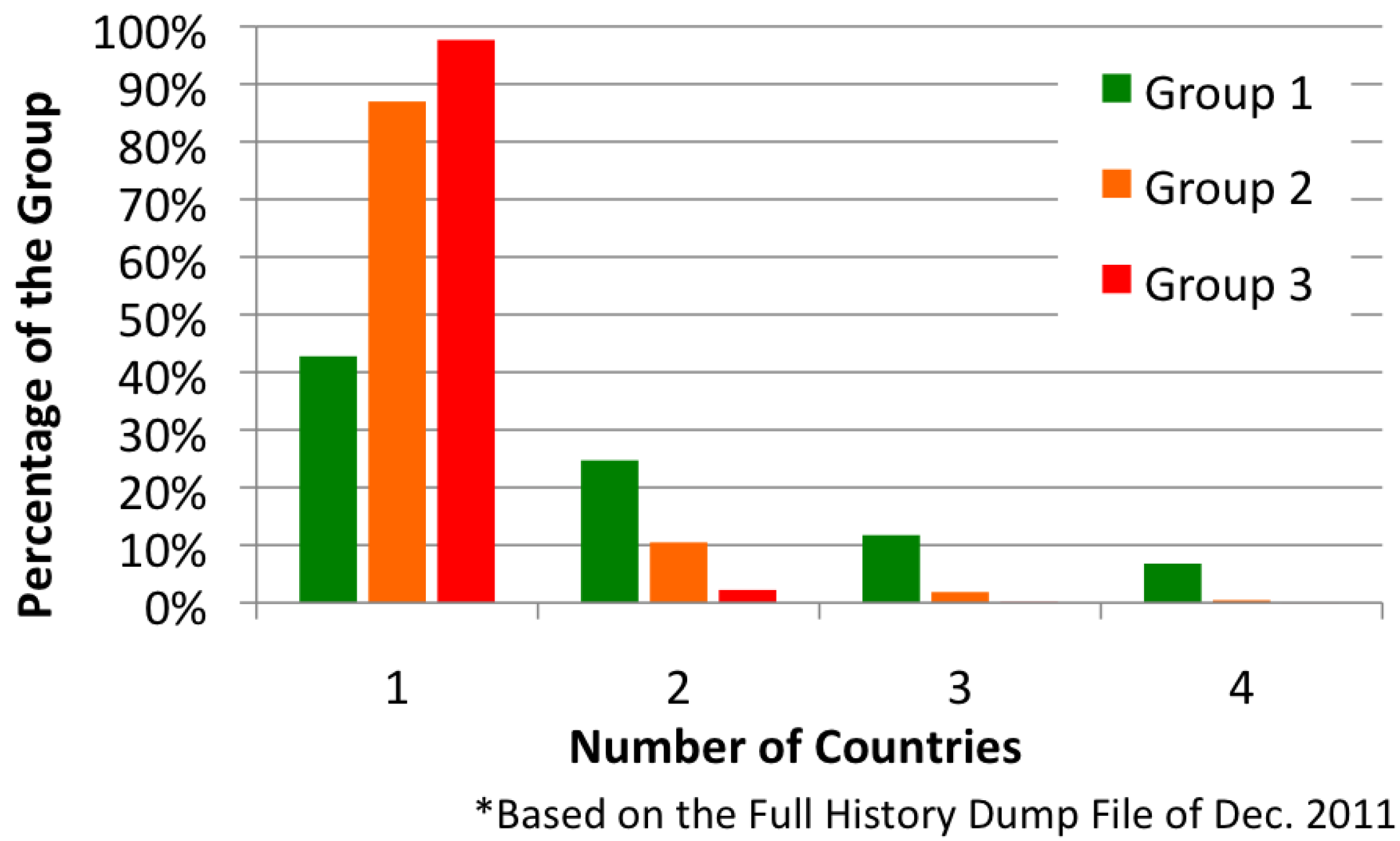

Figure 11. Number of countries per OSM contributor group*.

Click here to enlarge figure

Figure 11. Number of countries per OSM contributor group*.
Ijgi 01 00146 g011 1024

In addition to the studies that focus on the different countries of origin of the OSM members, a further analysis was conducted to evaluate the number of countries in which the different members created at least one Node. Figure 11 shows the distribution of the different contributor groups by the number of countries in which they have been collecting information. The results show that more than half of the members of the “Senior Mapper” group (Group 1) have contributed information about more than one country to the OSM project. These additional contributions may be based on several reasons, such as moving to another country, vacation, a business trip, or digitizing data from aerial photographs of foreign countries. Overall, approximately 86% of the members of Group 1 were active in up to four different countries, roughly 11% in five to ten countries and slightly less than 3% in more than ten different countries. In Group 2 (“Junior Mappers”), almost 86% contributed in one and 11% in two countries. Nearly 98% of the members of Group 3 (“Nonrecurring Mappers”) were only active in one country.

5. Activity Area of a Member

To determine the country of origin of a member, a method was applied that determines a polygon representing the activity area of a member. It is based on the aforementioned triangulation of the Nodes. In this particular case a maximum value of one million Nodes of all created Nodes of a member were included in the analysis. Nodes that represented a boundary in the database, such as state or city limits, were excluded in a prior step. During the triangulation process, a minimum edge length between 10 and 500 m was adapted based on the number of Nodes created by the member. Thus the number of generated triangles was reduced to limit the consumption of resources during the calculation process. Also, the activity polygon of active OSM members is large and therefore does not require a triangle edge length of less than 500 m.

Nearly 760 million Nodes were included in the calculation process of the polygons for all OSM members. The smaller value compared to the total number of 1.47 billion existing Nodes from the full history file is caused by the filter that was applied to exclude boundaries and thereby limiting the number of Nodes per member to one million. The applied database of December 2011 provided 180 members who created or imported more than one million Nodes each.

During the triangulation process, approximately 370 million triangles were generated based on the 760 million Nodes. With the newly created triangles it was possible to determine the activity polygons for about 123,000 members. An example activity area of a member is shown in Figure 12.

Ijgi 01 00146 g012 200

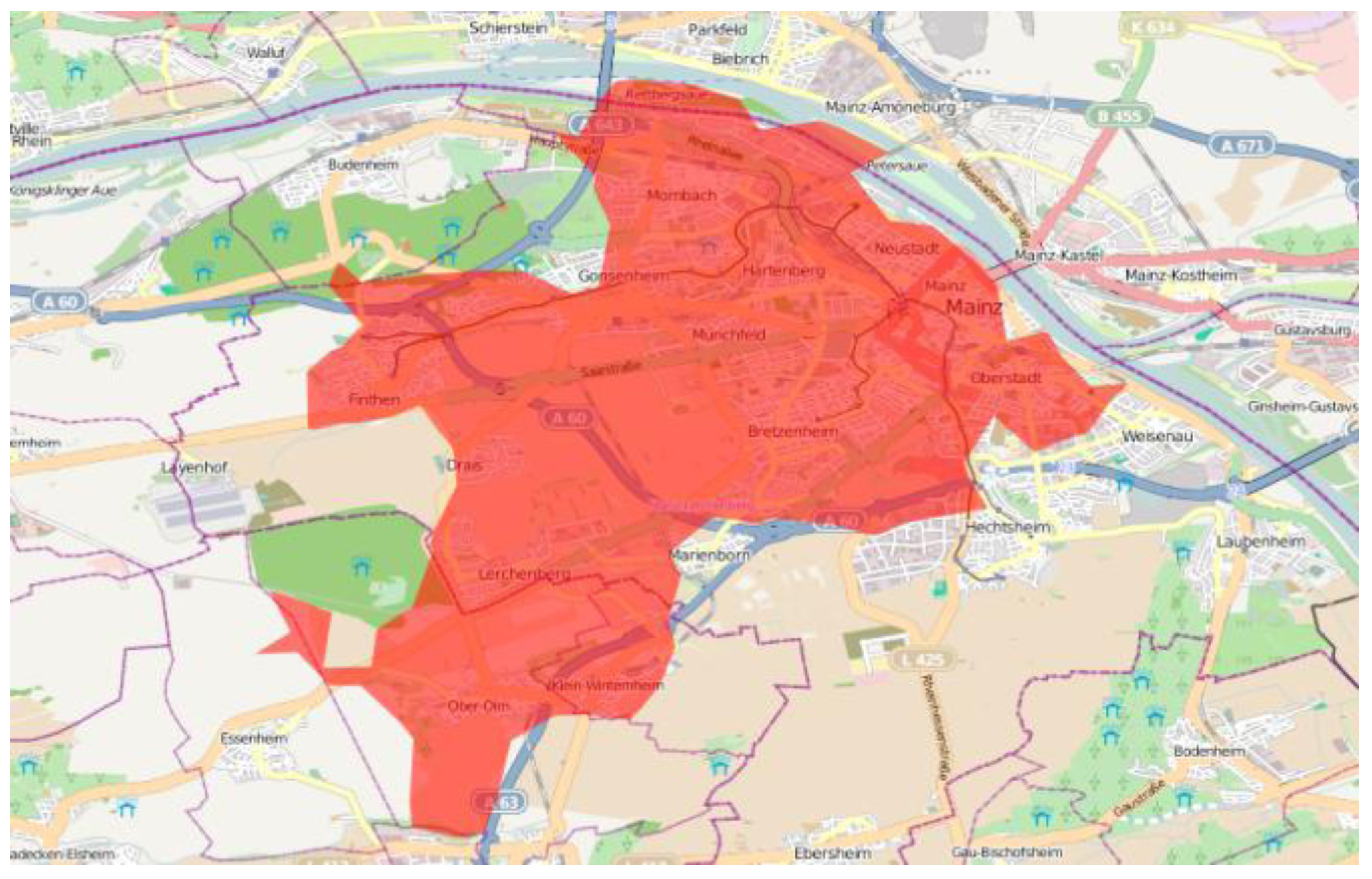

Figure 12. Example activity area of a member of the OSM project.

Click here to enlarge figure

Figure 12. Example activity area of a member of the OSM project.
Ijgi 01 00146 g012 1024

The distribution of activity area sizes for each of the three contributor groups (Figure 4) is displayed in Figure 13. For a better overview, the area sizes have been divided into three individual size classes for each group.

Ijgi 01 00146 g013 200

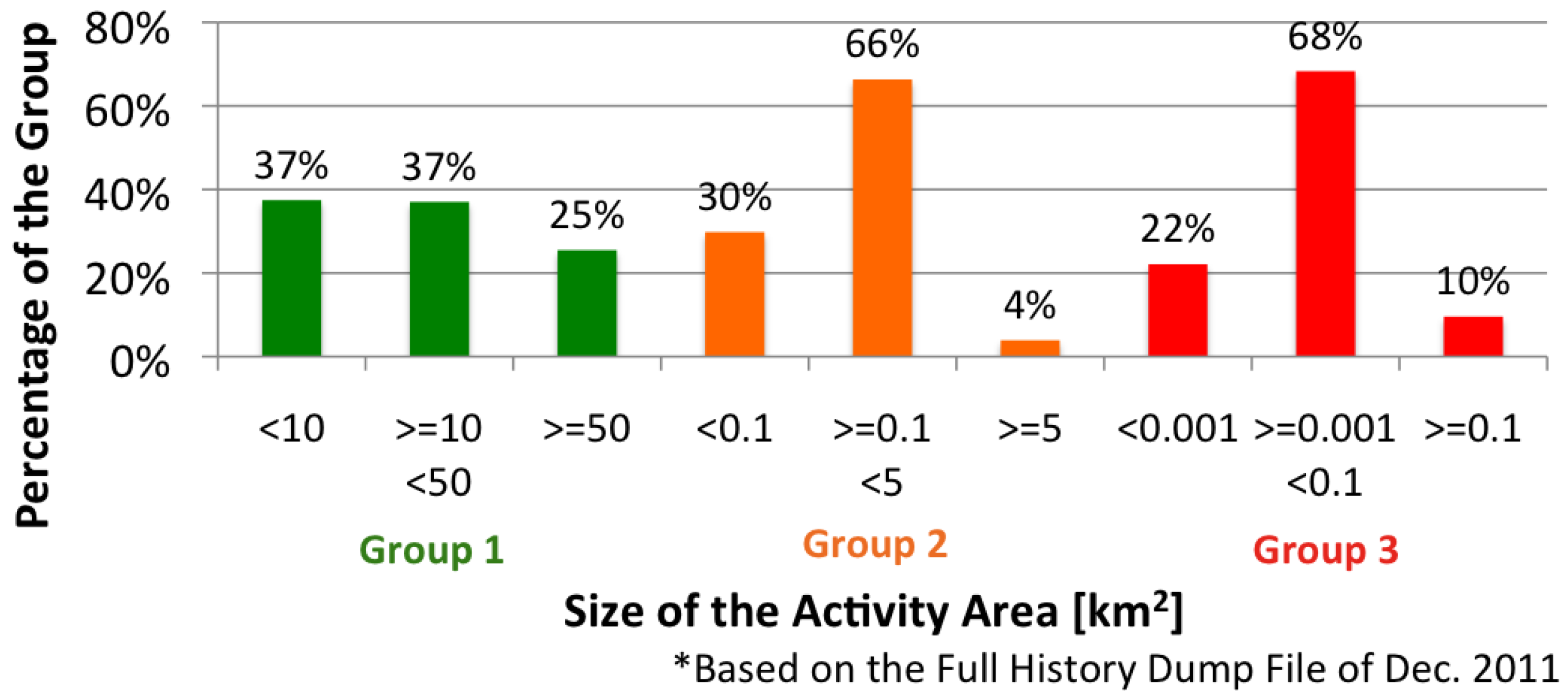

Figure 13. Activity area sizes per OSM contributor group*.

Click here to enlarge figure

Figure 13. Activity area sizes per OSM contributor group*.
Ijgi 01 00146 g013 1024

For Group 1, which represents the most active OSM members, it could be determined that 37% of the 24,000 members have either an activity area of less than 10 km2 or between 10 and 50 km2; 25% of the group works in an area larger than 50 km2. The second group shows a different pattern. In general, the activity areas tend to be much smaller compared to the first group. Almost exactly two-thirds of the 73,000 members of this group are active in an area between 0.1 and 5 km2. The lower threshold of this activity area would be comparable to approximately 15 soccer fields (one soccer field is approximately 0.007 km2) or more than one and a half times the size of the central business district (CBD) of London, England (2.9 km2). For Group 3, with almost 96,000 members, it was not possible to generate an activity area polygon for all members because of the insufficient number of edits. However, more than two-thirds of the 26,000 members who provided enough information have an activity area between one and 15 soccer fields.

In order to give additional information about the reliability of the generated activity areas, the number of created Nodes within the calculated areas was computed. The results provided in Figure 14 show that for Group 1, about 41% of the members have more than 66% of their created Nodes within the newly generated area, while for the remaining 59% of the members, this threshold could not be reached.

Ijgi 01 00146 g014 200

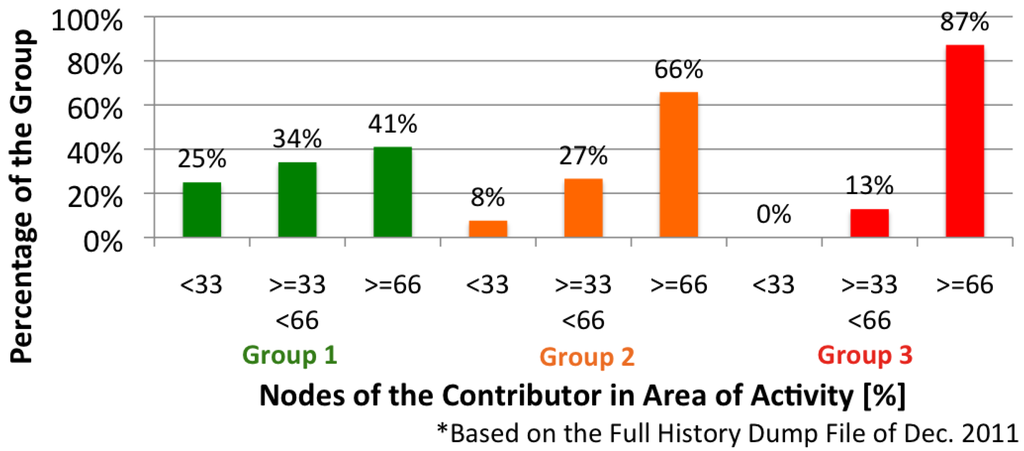

Figure 14. Nodes of a contributor in area of activity*.

Click here to enlarge figure

Figure 14. Nodes of a contributor in area of activity*.
Ijgi 01 00146 g014 1024

This supports the previously discussed results (Figure 11), which showed that more than half of the members in this group added new data in a variety of areas and did not focus only on one area, e.g., the home town. The second group of OSM members that was analyzed with respect to their activity areas showed that more than 66% of the created Nodes were within the generated activity area for almost two-thirds of the members. Group 3 showed a very high value for the group, with approximately 87% of the Nodes being within the activity area; however this value is less meaningful due to the small activity area.

6. Activity Time Frame of a Member

Apart from the size of the area in which a member contributes data to the OSM project, it is obviously important in what time frame a member generates new data, i.e., how active a member is after registration for the project. Do members only collect data in the first few months, or can they be identified as long-term contributors? Figure 15(a) shows the percentage of each contributor group in relation to the years they have been registered for the project. The majority, 40%, of the most active contributor group (Group 1) has been registered for more than three years. However, it can also be determined that the increase of Group 1 members has not been consistent over the years. On the other hand, an increase can be determined for Groups 2 and 3 in recent years. Figure 15(b) illustrates the actual time frame in which the members have been active since their registration. As expected, nearly all members in Group 3, who contributed the least amount of data to the project, were only active for less than three months. A similar pattern can be found in Group 2. Here about three-quarters of the members contributed for about three months, while the remaining members actively collected information for up to three to 12 months. In the most active Group 1, almost half of the members, 48%, contributed to the project actively between three to 12 months, while another 38% were involved for more than 12 months.

Ijgi 01 00146 g015 200

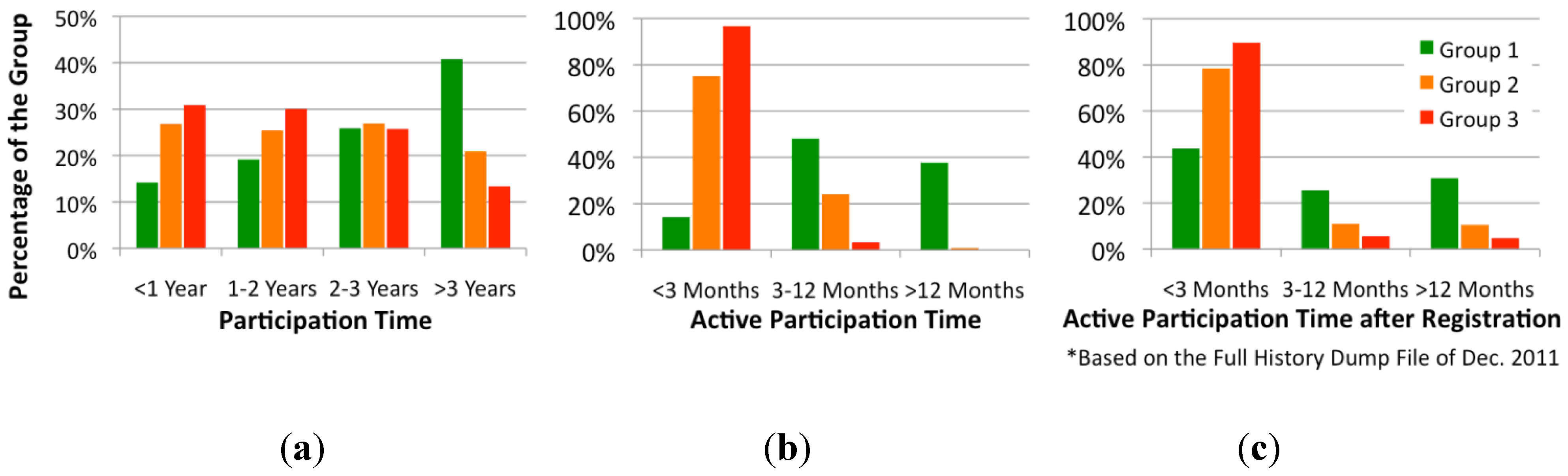

Figure 15. (a) Participation, (b) active participation and (c) active participation after project registration.

Click here to enlarge figure

Figure 15. (a) Participation, (b) active participation and (c) active participation after project registration.
Ijgi 01 00146 g015 1024

The created changesets revealed the results shown in Figure 15(c) for our analysis of the most active times of the members. The bars in the diagram represent the average timeframe in which the members of the different groups performed their changesets. For Group 3, this means that almost 90% of the changes were created within the first three months after registering to the project, while only 6% were made after the first three to 12 months, and 5% within 12 months. The results of the second group show that 79% of all changes were made during the first three months, while changes between the third and twelfth months or later are fewer than 11%. Group 1 shows a slightly different pattern. Although an average of nearly 44% of all changes of a member are made within the first few months, the contributions of these members to the project can still last up to 12 months and more.

Additionally, an analysis was conducted that provides information about the percentage of members in each group who have made at least one change within the past six months, between six and twelve months, or within the past twelve months. Table 2 provides the results of the analysis in absolute and relative values.

Table 2. Number of active members of the last six and 12 months (absolute and relative values).

Click here to display table

Table 2. Number of active members of the last six and 12 months (absolute and relative values).
GroupFor the Last 6 MonthsBetween 6 and 12 MonthsFor the Last 12 Months
114,340 (59%)14,350 (60%)17,800 (74%)
220,800 (28%)19,200 (26%)34,650 (47%)
315,100 (22%)13,840 (20%)28,000 (40%)

A slight decrease in activity can be determined for Groups 2 and 3. However, 60% of the members of the Senior Mappers Group were active within the past six months or the past six to twelve months. In total, nearly three-quarters of all members of the most active group contributed information within the past 12 months.

7. Conclusions and Future Work

Various results of different analyses regarding the number of registered and truly active members of an online VGI community were presented in this article. To be able to retrieve the desired information, different datasets of the OSM project were investigated, all of which originate from the middle of December 2011. Several sources on the Internet have reported on the large number of contributors to the OSM project, which exceeded 500,000 registered members in December 2011. However, the results have shown that only 38% of the total number of members, around 192,000, carried out at least one change during their membership.

For a more detailed analysis, the members were divided into three groups according to their number of contributions to the project; Senior Mappers who created more than 1,000 Nodes, Junior Mappers who created 10 to 1,000 Nodes, and Nonrecurring Mappers who only created less than 10 Nodes. The Senior Mapper group represents the smallest group in the database with about 24,000 members. This means that only 5% of all members actively contribute to the project in a productive way. The other two contributor groups provide larger user numbers, with 73,100 for the Junior Mappers and 96,000 for the Nonrecurring Mappers group; their contributions, however, are very limited compared to the first group. Overall, 312,000 members never contributed to the project at all.

The evaluation of the changeset files of the project revealed that nearly the same number of members worked on the project every weekday with the exception of Sunday, which showed a slightly larger number. Further, almost 87,000 different members made at least one change to the OSM database in 2011. Breaking down the numbers per month, week, and day showed that 17,000, 6,500, and approximately 2,000 members contributed to the project, respectively. These numbers indicate that roughly about 3% of all members made at least one change a month.

By applying four different methods, the countries of origin were determined for the 192,000 members who had completed at least one change in the database. The majority of the members are located in Europe (72%), while the remaining members (28%) are divided as follows: North America (12%), Asia (8%), South America (3%), Australia (2%), Africa (2%), and Oceania (1%). Further analysis showed that more than half of the Senior Mappers members collected information for the OSM project in at least two different countries.

The triangulation of all created Nodes in the database resulted in the determination of an activity area polygon for each of the OSM members. The results showed slightly different patterns for each contributor group. Two-thirds of the “Nonrecurring Mappers” (Group 3) has an activity area between one and 15 soccer fields in size. For the “Junior Mappers” (Group 2), the activity area increases for about two-thirds of the members to a size between 15 soccer fields and an area one and a half times the size of the CBD of London (2.9 km2). The most active “Senior Mappers” (Group 1) can be divided into one-third of members that cover up to 10 km2, one-third that cover between 10 and 50 km2, and one-thirds that cover an area of about 50 km2. Further research needs to be conducted to analyze whether and to what extent these numbers might change in the future.

An analysis of the timeframe in which the members contributed data to the project showed that the majority of the members contributed most of their information within the first three months of their membership. When comparing the conducted results with prior findings [19], there are a few similarities that can be addressed. Both analyses showed that only about a third of all members ever contributed to the project and that only a small number of contributors collected information over a longer period of time. Further research will provide more information about possible reasons for the reduced workload by the members. It may be based on adequately covered areas that do not need additional information or a general loss of interest for the project. However, these conclusions are only speculative and need to be researched in more detail. For the future of the project, these factors will play a major role, since VGI data does not solely rely on data collection, but also on maintaining the data to keep it as accurate and up-to-date as possible [49]. Additionally, the development of the number of members per country in the coming years needs to be observed. An analysis that goes beyond the general activity of the members and focuses on changes within the activity areas of the members or whether members edit or improve the objects of other members could be conducted as well. Some first investigations regarding these factors have already been published [43].

Additionally to these suggested analyses with focus on user activities, the results gathered in this paper could provide a valuable foundation to answering questions regarding VGI data quality such as: Which type of contributors (e.g., Senior Mappers) created a particular dataset of interest? How many activity areas of members intersect with each other or within a predefined area? Similar to the approach used in the analysis of Wikipedia and “The Roles of Local and Global Inequality Contribution” [50], it could be tested if the quality of OSM data varies, depending on whether the member who edited the information is very familiar with the area or not.

References and Notes

  1. Knorr, E. 2004: The Year of Web Services, 2003. Available online: http://www.cio.com/article/32050/2004_The_Year_of_Web_Services (accessed on 7 March 2012).
  2. O’Reilly, T. What Is Web 2.0: Design Patterns and Business Models for the Next Generation of Software; O’Reilly Media: Cambridge, MA, USA, 2005. Available online: http://oreilly.com/web2/archive/what-is-web-20.html (accessed on 30 January 2012).
  3. Wunsch-Vincent, S.; Vickery, G. Participative Web: User-Created Content: Web 2.0, Wikis and Social Networking; Organisation for Economic Co-operation and Development: Paris, France, 2007.
  4. Coleman, D.J.; Georgiadou, Y.; Labonte, J. Volunteered geographic information: The nature and motivation of producers. Int. J. Spat. Data Infrastruc. Res. 2009, 4, 332–358.
  5. Goodchild, M.F. Citizens as sensors: The world of volunteered geography. GeoJournal 2007, 69, 211–221, doi:10.1007/s10708-007-9111-y.
  6. Heipke, C. Crowdsourcing geospatial data. ISPRS J. Photogramm. 2010, 65, 550–557, doi:10.1016/j.isprsjprs.2010.06.005.
  7. Hiking and Bridlemap. Available online: http://www.wanderreitkarte.de (accessed on 27 March 2012).
  8. OpenPisteMap. Available online: http://openpistemap.org (accessed on 27 March 2012).
  9. ÖPNV-Karte. Available online: http://www.öpnvkarte.de (accessed on 27 March 2012).
  10. Neis, P.; Zipf, A. OpenRouteService.org is Three Times “Open”: Combining OpenSource, OpenLS and OpenStreetMap; GIS Research UK: Manchester, UK, 2008.
  11. Over, M.; Schilling, A.; Neubauer, S.; Zipf, A. Generating web-based 3D city models from OpenStreetMap: The current situation in Germany. Comput. Environ. Urban Syst. 2010, 34, 496–507, doi:10.1016/j.compenvurbsys.2010.05.001.
  12. Goetz, M.; Zipf, A. Extending OpenStreetMap to Indoor Environments: Bringing Volunteered Geographic Information to the Next Level. In Proceedings of the 28th Urban Data Management Symposium, Delft, The Netherlands, 28-30 September 2011.
  13. Introduction of Usage Limits to the Maps API. Available online: http://googlegeodevelopers.blogspot.de/2011/10/introduction-of-usage-limits-to-maps.html (accessed on 27 June 2012).
  14. Foursquare is Joining the OpenStreetMap Movement! Available online: http://blog.foursquare.com/2012/02/29/foursquare-is-joining-the-openstreetmap-movement-say-hi-to-pretty-new-maps/ (accessed on 19 March 2012).
  15. Nestoria. Why (and How) We’ve Switched Away from Google Maps. Available online: http://blog.nestoria.co.uk/why-and-how-weve-switched-away-from-google-ma (accessed on 19 March 2012).
  16. Google Map Maker. Available online: http://groups.google.com/group/google-map-maker/browse_thread/thread /7ba81462f965c1dd (accessed on 7 March 2012).
  17. TomTom: Map Share. Available online: http://www.tomtom.com/en_gb/maps/map-share/ (accessed on 7 March 2012).
  18. Nokia Map Creator. Available online: http://blog.maps.nokia.com/travelling-out-and-about/introducing-nokia-map-creator (accessed on 7 March 2012).
  19. Budhathoki, N. Participants’ Motivations to Contribute to Geographic Information in an Online Community. Ph.D. Dissertation, University of Illinois, Urbana-Champaign, IL, USA, 2010.
  20. Lin, Y. A qualitative enquiry into OpenStreetMap making. New Rev. Hypermedia Multimedia 2011, 17, 53–71, doi:10.1080/13614568.2011.552647.
  21. Javanmardi, S.; Ganjisaffar, Y.; Lopes, C.; Baldi, P. User Contribution and Trust in Wikipedia. In Proceedings of the 5th International Conference on Collaborative Computing: Networking, Applications and Worksharing, Washington, DC, USA, 11-14 November 2009.
  22. Statistics about Wikipedia. Available online: http://en.wikipedia.org/wiki/Special:Statistics (accessed on 20 February 2012).
  23. Nielsen, J. Participation Inequality: Encouraging More Users to Contribute. Available online: http://www.useit.com/alertbox/participation_inequality.html (accessed on 30 January 2012).
  24. Anthony, D.; Sean, W.S.; Williamson, T. The Quality of Open Source Production: Zealots and Good Samaritans in the Case of Wikipedia; Dartmouth Computer Science Technical Report; TR2007-606; Dartmouth College Computer Science: Hanover, NH, USA, 2007.
  25. Haklay, M.; Weber, P. OpenStreetMap: User-generated street maps. IEEE Pervas. Comput. 2008, 7, 12–18, doi:10.1109/MPRV.2008.80.
  26. Bennett, J. OpenStreetMap: Be Your Own Cartographer, 1st ed.; Packt Publishing: Birmingham, UK, 2010.
  27. Ramm, F.; Topf, J.; Chilton, S. OpenStreetMap: Using and Enhancing the Free Map of the World, 1st ed.; UIT: Cambridge, UK, 2010.
  28. OSM Statistics. Available online: http://www.openstreetmap.org/stats/data_stats.html (accessed on 28 June 2012).
  29. Yahoo! Aerial Imagery; OSM Wiki. Available online: http://wiki.openstreetmap.org/wiki/Yahoo!_Aerial_Imagery (accessed on 28 June 2012).
  30. Bing; OSM Wiki. Available online: http://wiki.openstreetmap.org/wiki/Bing (accessed on 28 June 2012).
  31. Neis, P.; Zielstra, D.; Zipf, A. The street network evolution of crowdsourced maps: OpenStreetMap in Germany 2007-2011. Future Internet 2012, 4, 1–21.
  32. Mooney, P.; Corcoran, P. Characteristics of heavily edited objects in OpenStreetMap. Future Internet 2012, 4, 285–305, doi:10.3390/fi4010285.
  33. Haklay, M. How good is volunteered geographical information? A comparative study of OpenStreetMap and ordnance survey datasets. Environ. Plan. B 2010, 37, 682–703.
  34. Zielstra, D.; Zipf, A. A Comparative Study of Proprietary Geodata and Volunteered Geographic Information for Germany. In Proceedings of 13th AGILE International Conference on Geographic Information Science, Guimarães, Portugal, 10-14 May 2010.
  35. Girres, J.F.; Touya, G. Quality assessment of the French OpenStreetMap dataset. Trans. GIS 2010, 14, 435–459.
  36. Zielstra, D.; Hochmair, H.H. Digital street data: Free versus proprietary. GIM Int. 2011, 25, 29–33.
  37. Planet OSM. Available online: http://planet.openstreetmap.org (accessed on 15 December 2011).
  38. Ramm, F.; Stark, H.-J. Crowdsourcing geodata. Geomatik Schweiz, Géomatique Suisse 2008, 6, 315–318.
  39. Stats: OpenStreetMap Wiki. Available online: http://wiki.openstreetmap.org/wiki/Stats (accessed on 12 March 2012).
  40. Haklay, M.; Basiouka, S.; Antoniou, V.; Ather, A. How many volunteers does it take to map an area well? The validity of Linus’ law to volunteered geographic information. Cartogr. J. 2010, 47, 315–322, doi:10.1179/000870410X12911304958827.
  41. Lee, D. T.; Schachter, B.J. Two algorithms for constructing Delaunay triangulation. Int. J. Parallel Prog. 1980, 9, 219–242.
  42. Berg, M.D.; Cheong, O.; Kreveld, M.V.; Overmars, M. Computational Geometry: Algorithms and Applications, 3rd ed.; TELOS: Santa Clara, CA, USA, 2008.
  43. Mooney, P.; Corcoran, P. The annotation process in OpenStreetMap. Trans. GIS 2012, doi:10.1111/j.1467-9671.2012.01306.x.
  44. Mooney, P.; Corcoran, P. Accessing the History of Objects in OpenStreetMap. In Proceedings of AGILE 2011: The 14th AGILE International Conference on Geographic Information Science, Springer Verlag, Utrecht, The Netherlands, 18-21 April 2011.
  45. OSM World Boundaries. Available online: http://wiki.openstreetmap.org/wiki/Mapnik#World_boundaries (accessed on 1 December 2011).
  46. Ramm, F. Krautsourcing 2.0 Beta: The State of Germany. State of the Map 2009. Available online: http://www.geofabrik.de/media/2009-07-11-sotm-state-of-germany.pdf (accessed on 28 December 2011).
  47. Statistics of the Free Wiki World Map. Available online: http://osmstats.altogetherlost.com (accessed on 1 February 2012).
  48. World Population Data Sheet. Available online: http://www.prb.org/Publications/Datasheets/2011/world-population-data-sheet/data-sheet.aspx (accessed on 12 December 2011).
  49. Qian, X.; Di, L.; Li, D.; Li, P.; Shi, L.; Cai, L. Data Cleaning Approaches in Web 2.0 VGI Application. In Proceedings of the 17th International Conference on Geoinformatics, Fairfax, VA, USA, 12-14 August 2009; pp. 1–4.
  50. Arazy, O.; Nov, O. Determinants of Wikipedia Quality: The Roles of Global and Local Contribution Inequality. In Proceedings of the 2010 ACM Conference on Computer Supported Cooperative Work (CSCW), Savannah, GA, USA, 6-10 February 2010.
ISPRS Int. J. Geo-Inf. EISSN 2220-9964 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
