Modeling Urban Land Cover Growth Dynamics Using Multi‑Temporal Satellite Images: A Case Study of Dhaka, Bangladesh
Bayes Ahmed 1,* and Raquib Ahmed 2
1
Clear Air and Sustainable Environment (CASE) Project, Dhaka South City Corporation (DSCC), Nagar Bhaban, Fulbaria, Dhaka-1000, Bangladesh
2
Institute of Environmental Science, University of Rajshahi, Rajshahi-6205, Bangladesh; Email: raquib_geog@ru.ac.bd
*
Author to whom correspondence should be addressed; Email: bayesahmed@gmail.com.
Received: 29 January 2012; in revised form: 7 February 2012 / Accepted: 8 February 2012 /
Published: 23 February 2012

Abstract

: The primary objective of this research is to predict and analyze the future urban growth of Dhaka City using the Landsat satellite images of 1989, 1999 and 2009. Dhaka City Corporation (DCC) and its surrounding impact areas have been selected as the study area. At the beginning, a fisher supervised classification method has been applied to prepare the base maps with five land cover classes. In the next stage, three different models have been implemented to simulate the land cover map of Dhaka city of 2009. These have been named as “Stochastic Markov (St_Markov)” Model, “Cellular Automata Markov (CA_Markov)” Model and “Multi Layer Perceptron Markov (MLP_Markov)” Model. Then the best-fitted model has been selected by implementing a method to compare land cover categories in three maps: a reference map of time 1, a reference map of time 2 and a simulation map of time 2. This is how the “Multi Layer Perceptron Markov (MLP_Markov)” Model has been qualified as the most appropriate model for this research. Later, using the MLP_Markov model, the land cover map of 2019 has been predicted. The MLP_Markov model extrapolates that built-up area increases from 46% to 58% of the total study area during 2009–2019.
Keywords:
remote sensing; land cover; Markov chain; cellular automata; multi layer perceptron neural network; change detection; supervised classification; GIS

1. Introduction

1.1. Background of the Research

Like many other cities in the world, Dhaka, the Capital of Bangladesh is also the outcome of spontaneous rapid growth. As the growth of population in Dhaka is taking place at an exceptionally rapid rate, it has become one of the most populous Mega Cities in the world.

Dhaka City has undergone radical changes in its physical form, not only in its vast territorial expansion, but also through internal physical transformations over the last decades. These have created entirely new kinds of urban fabric. In the process of urbanization, the physical characteristics of Dhaka City are gradually changing as plots and open spaces have been transformed into building areas, open squares into car parks, low land and water bodies into reclaimed built-up lands, etc.

Dhaka is now attracting a huge amount of rural-urban migrants from all over the country due to well-paid job opportunities, better educational, health and other daily life facilities. This kind of increasing and over population pressure is putting adverse impacts on Dhaka City like unplanned urbanization, extensive urban poverty, water logging, growth of urban slums and squatters, traffic jams, environmental pollution and other socio-economic problems [1].

If this situation continues then Dhaka would soon become an urban slum with the least livable situation for the city dwellers. Therefore, the primary objective of this paper is to forecast the future urban land cover changes of the selected study area within the greater Dhaka City.

1.2. Existing Works

With the advancement of technology, reduction in data cost, availability of historic spatio-temporal data and high resolution satellite images, Remote Sensing (RS) and Geographic Information System (GIS) techniques are now very useful for conducting researches like land cover change detection analysis and predicting the future scenario [2].

Many researchers have conducted number of researches to detect the land use/land cover change pattern over time and predict the future growth of urban areas. They have introduced and applied different techniques to achieve the research objectives. Among them, Griffiths et al. have approached to map the urban growth of Dhaka megacity region (1990 to 2006) using multi-sensoral data. They have used a Support Vector Machine (SVM) classifier and post-classification comparison to reveal Spatio-temporal patterns of urban land-use and land-cover changes [3].

Dewan and Yamaguchi have tried to evaluate land cover changes and urban expansion in greater Dhaka, between 1975 and 2003 using satellite images and socio-economic data. A supervised classification algorithm and the post-classification change detection technique in GIS have been implemented by them. They have found the accuracy of the Landsat-derived land cover maps ranged from 85% to 90% [4].

Emch and Peterson have quantified mangrove forest cover change in the Sundarbans of south-west Bangladesh from 1989 to 2000 using Landsat Thematic Mapper (TM) satellite imagery. They have used three image processing techniques: Normalized Differential Vegetation Index (NDVI), maximum likelihood classification and sub-pixel classification [5].

Kashem has implemented SLEUTH urban growth model to simulate the historical growth pattern of Dhaka Metropolitan Area. SLEUTH model incorporates Slope, Landuse, Exclusion layer (where growth cannot occur), Urban, Transportation and Hill-shade data layers. SLEUTH uses a modified Cellular Automata (CA) to model the spread of urbanization [6]. Lahti has predicted the urban growth of Sydney, Australia till 2106. The modeling has been performed using the CA model Metronamica, developed by the Research Institute for Knowledge Systems (RIKS) in the Netherlands [7]. Cabral and Zamyatin have implemented three land change models to forecast the urban dynamics in Sintra-Cascais municipalities of Portugal, for the year 2025. The models are CA Markov chain model (CA_Markov), CA_Advanced and Geomod. They have used image segmentation and texturing procedures to classify the Landsat images of 1989, 1994 and 2001 [8].

Wang and Mountrakis have developed a GIS-based modeling framework titled Multi-Network Urbanization (MuNU) model, which integrates multiple neural networks, to predict the urban growth of Denver Metropolitan Area, CO, USA [9]. Cheng and Masser have used a spatial data analysis method that comprises exploratory data analysis and spatial logistic regression technique, to seek and model major determinants of urban growth in the period1993–2000 of Wuhan City in PR China [10].

2. Materials

2.1. Study Area

Dhaka is located in central Bangladesh at 23°43′0″N, 90°24′0″E, on the eastern banks of the Buriganga River (Figure 1(a)). Dhaka City is located in Dhaka District that is surrounded by rivers. The proposed study area for this research is Dhaka City Corporation (DCC) and its surrounding impact areas (Figure 1(b)). This area has increased potential to face massive urban growth in near future based on the current trend of rapid urbanization. The study area covers the oldest organic core part of Dhaka city (old Dhaka), the planned areas and even the unplanned new generation organic areas that are called “Informal Settlements”. This selected study area almost covers the biggest urban agglomeration and is the central part of Bangladesh in terms of social and economic aspects [11].

2.2. Remote Sensing Data

To prepare the base maps for analysis purpose and applying the different methods to achieve the research objectives, the Landsat satellite images (1989, 1999 and 2009) have been collected from the official website of US Geological Survey (USGS). Landsat Path 137 Row 44 covers the whole study area. Map Projection of the collected satellite images is Universal Transverse Mercator (UTM) within Zone 46 N–Datum World Geodetic System (WGS) 84 and the pixel size is 30 m. Five land cover types have been identified for this research (Table 1).

Ijgi 01 00003 g001 200

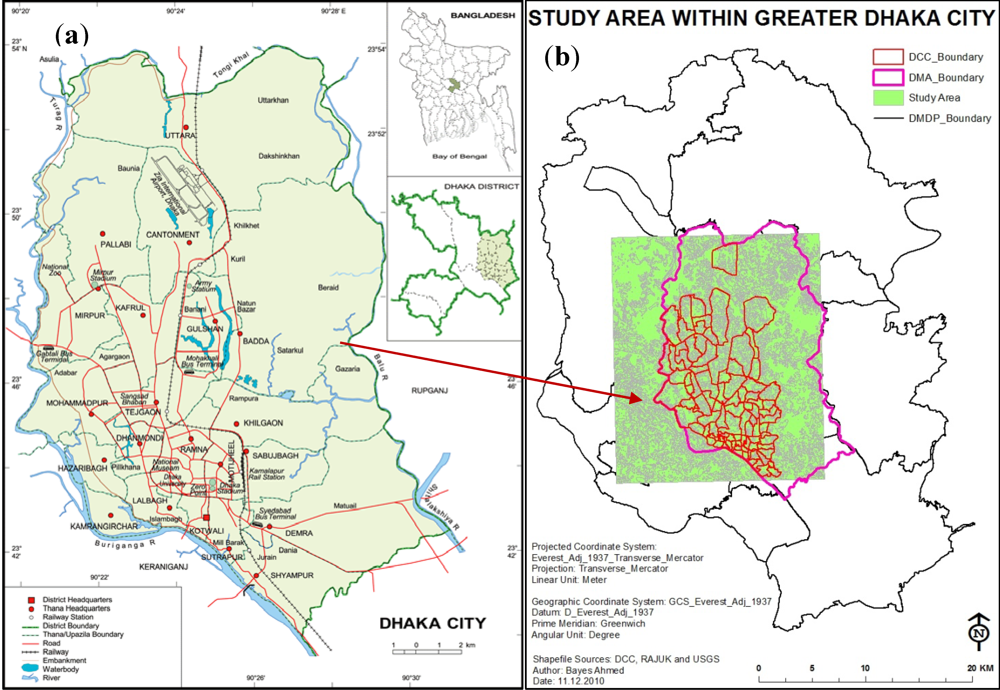

Figure 1. (a) Location of Dhaka City in Bangladesh, (b) location of the study area within greater Dhaka City; Map 1 (a) Source: Banglapedia, National Encyclopedia of Bangladesh, 2011.

Click here to enlarge figure

Figure 1. (a) Location of Dhaka City in Bangladesh, (b) location of the study area within greater Dhaka City; Map 1 (a) Source: Banglapedia, National Encyclopedia of Bangladesh, 2011.
Ijgi 01 00003 g001 1024
Table Table 1. Details of the land cover types.

Click here to display table

Table 1. Details of the land cover types.
Land Cover TypeDescription
Built-up AreaAll residential, commercial and industrial areas, villages, settlements and transportation infrastructure.
Water BodyRiver, permanent open water, lakes, ponds, canals and reservoirs.
VegetationTrees, shrub lands and semi natural vegetation: deciduous, coniferous, and mixed forest, palms, orchard, herbs, climbers, gardens, inner-city recreational areas, parks and playgrounds, grassland and vegetable lands.
Low LandPermanent and seasonal wetlands, low-lying areas, marshy land, rills and gully, swamps, mudflats, all cultivated areas including urban agriculture; crop fields and rice-paddies.
Fallow LandFallow land, earth and sand land in-fillings, construction sites, developed land, excavation sites, solid waste landfills, open space, bare and exposed soils.

The Landsat satellite images used for analysis are of different qualities and dates (Table 2). For the purpose of ground information, several base maps of Dhaka City (for the year of 1987, 1995 and 2001) have been collected from the Survey of Bangladesh (SoB). Google Earth was another option to get some ideas about the recent land cover pattern of Dhaka city. The detail land use map (2009) of Dhaka city has been collected from the Dhaka City Corporation (DCC). These reference data have been used for training site selection and accuracy assessment of the final land cover maps.

Table Table 2. Details of the Landsat satellite images. (Source: US Geological Survey, 2011).

Click here to display table

Table 2. Details of the Landsat satellite images. (Source: US Geological Survey, 2011).
Respective YearDate Acquired (Day/Month/Year)Sensor
198913/02/1989Landsat 4–5 Thematic Mapper (TM)
199924/11/1999Landsat 7 Enhanced Thematic Mapper Plus (ETM+)
200926/10/2009Landsat 4–5 Thematic Mapper (TM)

2.3. Base Map Preparation

Supervised classification relies on the a priori knowledge of the study area [12]. Therefore, for this research, a supervised classification method has been used.

2.3.1. Training Site Development

Training sites are the areas defined for each land cover type within the image. The chosen color composite is used for digitizing polygons around each training site for similar land cover. Then a unique identifier is assigned to each known land cover type [12]. At the beginning, the training sites have been developed based on the collected reference data and ancillary information.

2.3.2. Signature Development

This is the stage of creating the spectral signature for each type of land cover. This is done by analyzing the pixels of the training sites. When the digitization of training sites is finished, the statistical characterizations of each land cover class are needed. These are called signatures [12].

2.3.3. Classification

After developing signature files for all the land cover types the images have been classified using a hard classifier called “Fisher Classifier”. Fisher classifier uses the concept of the linear discrimination analysis [12]. Fisher Classifier performs well when there are very few areas of unknown classes and when the training sites are representative of their informational classes [12]. This is why fisher classifier is appropriate for this particular research, because most areas for the classes are known.

2.3.4. Generalization

After image classification, sometimes many isolated pixels may be found [12]. These isolated pixels may belong to one or more classes that differ from surrounding pixels. Therefore it is necessary to generalize the image and remove the isolated pixels. Filtering is the solution for this type of problem. Therefore a 3 × 3 mode filter has been applied to generalize the fisher classified land cover images. This post-processing operation replaces the isolated pixels to the most common neighboring class. Finally the generalized images are reclassified to produce the final version of land cover maps for different years (Figure 2). It is important to remember that the supervised classification in every year is independent of the classification of the other years, because this method can lead to substantial overestimates of land change in the post-classification change analysis.

Ijgi 01 00003 g002 200

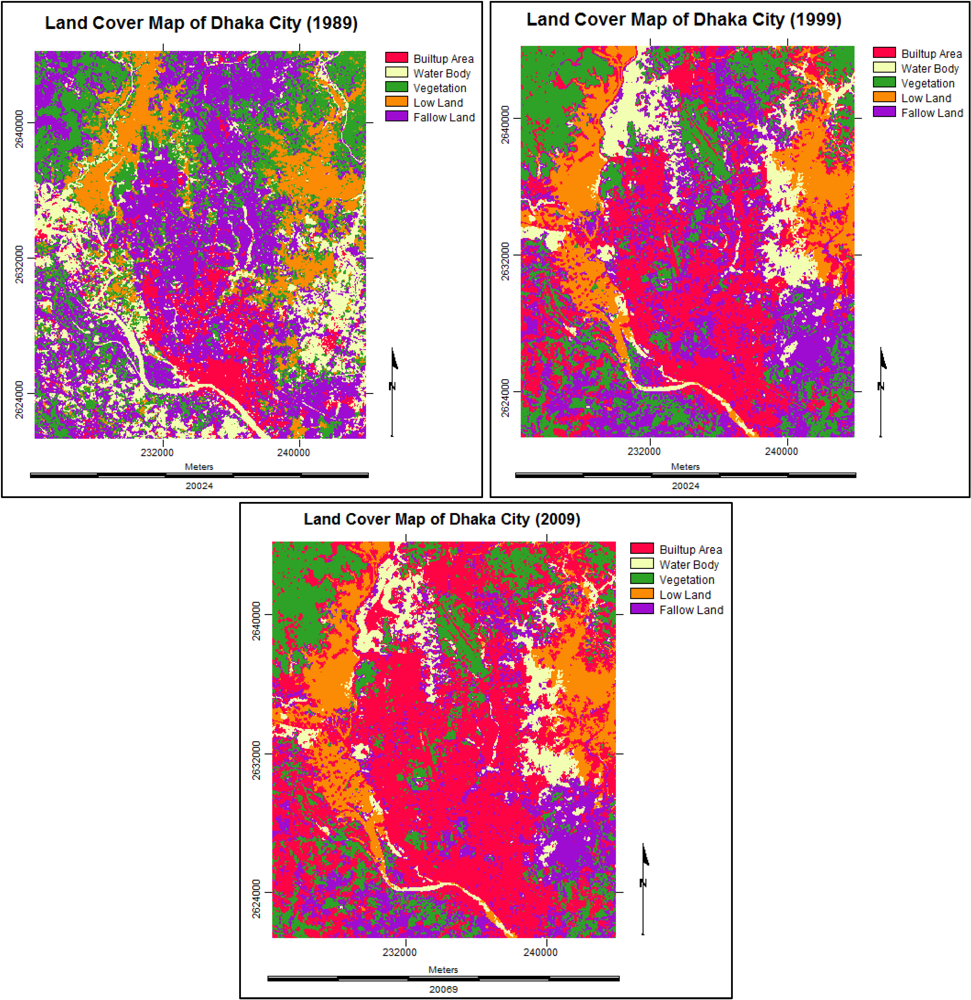

Figure 2. Land cover maps of the study area.

Click here to enlarge figure

Figure 2. Land cover maps of the study area.
Ijgi 01 00003 g002 1024

2.4. Accuracy Assessment

The next stage of image classification process is accuracy assessment. It is not typical to ground truth each and every pixel of the classified image. Therefore some reference pixels are generated [13]. The randomly selected points within the classified image list two sets of class. The first set of class values represents the land cover type in the map. The second set of class values are known as reference values. These reference values are input by the researcher that is based on ground truth data. Therefore 250 reference pixels have been generated for each classification image for this research to perform accuracy assessment. Then the collected base maps have been used to find the land cover types of the reference points.

2.4.1. User’s, Producer’s and Overall Accuracy

User’s accuracy for category K is the percent of category K in the reference information, given that the map shows category K. Producer’s accuracy for category K is the percent of category K in the map, given that the reference information shows category K [14]. The producer’s and user’s accuracy for all the years are found ranging approximately from 71% to 100% (Table 3,Table 4andTable 5).

Table Table 3. Accuracy totals (1989).

Click here to display table

Table 3. Accuracy totals (1989).
Class NameReference TotalsClassified TotalsNumber CorrectProducer’s AccuracyUser’s Accuracy
Built-up Area182118100.00%85.71%
Water Body46383576.09%92.11%
Vegetation66615481.82%88.52%
Low Land43353172.09%88.57%
Fallow Land77957597.40%78.95%
Totals250250213
Table Table 4. Accuracy totals (1999).

Click here to display table

Table 4. Accuracy totals (1999).
Class NameReference TotalsClassified TotalsNumber CorrectProducer’s AccuracyUser’s Accuracy
Built-up Area62726096.77%83.33%
Water Body28242071.43%83.33%
Vegetation56534783.93%88.68%
Low Land33302987.88%96.67%
Fallow Land25025021785.92%85.92%
Totals250250217
Table Table 5. Accuracy totals (2009).

Click here to display table

Table 5. Accuracy totals (2009).
Class NameReference TotalsClassified TotalsNumber CorrectProducer’s AccuracyUser’s Accuracy
Built-up Area11211510896.43%93.91%
Water Body22191777.27%89.47%
Vegetation43454195.35%91.11%
Low Land28282485.71%85.71%
Fallow Land45433986.67%90.70%
Totals250250229

The overall accuracy represents the percentage of correctly classified pixels [14]. It is achieved by dividing the number of correct observations by the number of actual observations. The overall accuracies for 1989, 1999 and 2009 are found 85.20%, 86.80% and 91.60% respectively.

2.4.2. Map Error vs. the Amount of Differences among the Maps

There is 14.8%, 13.2% and 8.4% reported map error in the maps of 1989, 1999 and 2009 respectively. These errors in the maps are clearly not negligible. It is a very common problem in land change science that the amount of error in the maps is nearly as large as the amount of change on the ground. Thus it is necessary to compare the error in the maps with how much difference there is during 1989–1999 and 1999–2009.

The amount of land change ranges from approximately 2% to 20% for 1989–1999, while the figure is approximately 1% to 17% for 1999–2009 (Table 6 and Table 7). Therefore, on an average, it can be stated that the errors in the maps are not much larger than the amount of land change between the two points in time (1989–1999 and 1999–2009).

Table Table 6. Amount of differences (1989–1999).

Click here to display table

Table 6. Amount of differences (1989–1999).
Land Cover Type19891999Change in Area (%)(1989–1999)
Area (km2)%Area (km2)%
Built-up Area37.65698.447129.229228.991+20.544
Water Body67.321815.10242.50349.535−5.567
Vegetation109.571424.58194.392921.175−3.406
Low Land62.064013.92353.726412.052−1.871
Fallow Land169.155937.947125.918128.247−9.70
Total445.770100445.7701000
Table Table 7. Amount of differences (1999–2009).

Click here to display table

Table 7. Amount of differences (1999–2009).
Land Cover Type19992009Change in Area (%)(1999–2009)
Area (km2)%Area (km2)%
Built-up Area129.229228.991204.400845.853+16.862
Water Body42.50349.53533.66457.552−1.983
Vegetation94.392921.17579.957817.937−3.238
Low Land53.726412.05249.991411.215−0.837
Fallow Land125.918128.24777.755517.443−10.804
Total445.770100445.7701000

2.4.3. Limitations in Base Map Preparation and Accuracy Assessment

Finally it can be stated that few misclassifications have been observed in the classified land cover maps of Dhaka city. The reasons may be as follows:

  • The same spectral characteristics of some land cover types. For example, in case of 1989 base map, certain built-up areas were misclassified as fallow land. Again, in most cases it was really difficult to separate water bodies and low/cultivable lands categories. The reasons may be the seasonal variations of the satellite images for different years and the similar spectral properties of land covers in some cases. The images collected for 1999 (November) and 2009 (October) are from the same winter season. But the image of 1989 (February) is from another season, summer. This kind of variation creates problems while preparing base maps for analysis.

  • Moreover, less image spectral resolution has directed to spectral mixing of different land cover types. This has caused spectral confusions among the cover types. It is also important to mention that the images of 1999 and 2009 represent winter season while the image of 1989 represents spring season. Therefore other seasonal images can be important evaluating the land cover change pattern of this kind of highly dynamic urban environment like Dhaka.

  • Again the spatial resolution of the images is important. For this research purpose, Landsat satellite images have been chosen that are only commercially available but can be found in free public-domain. The main problem of working with Landsat images is low resolution. The spatial resolution of Landsat Image is 30 m. IKONOS, QuickBird or other satellite images with higher resolution can be better option.

  • The next limitation regarding this research is the collection of reference data or maps. The reference data are necessary for ground truthing purpose of the base maps (1989, 1999 and 2009) that have been prepared from the Landsat satellite images. But reference maps of the respective years (1989, 1999 and 2009) are not available. Therefore the base maps of Dhaka city of the years 1987, 1995 and 2001, collected from Survey of Bangladesh (SoB), have been used for referencing purpose. Google Earth images (2010) are used as reference data for ground truthing the base map of 2009.

  • This kind of research needs extensive field visit for image classification and assessing the accuracies of the satellite images. Another point is the verification of the older images. For older images it is not possible to visit the field to find out the actual land cover types. These things can be improved by recent field visit to collect Global Positioning System (GPS) data for land cover verification/ground truthing purpose. To solve the problems with older satellite images, the historical base maps of similar years should be collected.

The overall accuracies of the base maps can be achieved better if the above mentioned limitations can be reduced.

3. Methods, Results and Discussion

3.1. Land Cover Change Detection Analysis

In remote sensing, “Change Detection” is defined as the process of determining and monitoring the changes in the land cover types in different time periods. It provides the quantitative analysis of the spatial distribution in the area of interest [15]. To perform change detection analysis, class-level metrics have been used. Class-level metrics are integrated over all the patches of a given type (class) [16]. For this research purpose, 8-cell patch neighborhood rule has been applied. The 8-cell rule considers all 8 adjacent cells, including the 4 orthogonal and 4 diagonal neighbors.

3.1.1. Number of Patches (NP)

NP equals the number of patches of the corresponding patch type (class). Number of patches of a particular class or land cover type is a simple measure of the extent of subdivision or fragmentation of the class [16]. The numbers of patches (urban blocks in this case) of built-up area and fallow land types have increased over time. Again the decrease of water body and vegetation is prominent (Figure 3). This reveals the gradual development of urban infrastructures converting water bodies, vegetation and low lands.

Ijgi 01 00003 g003 200

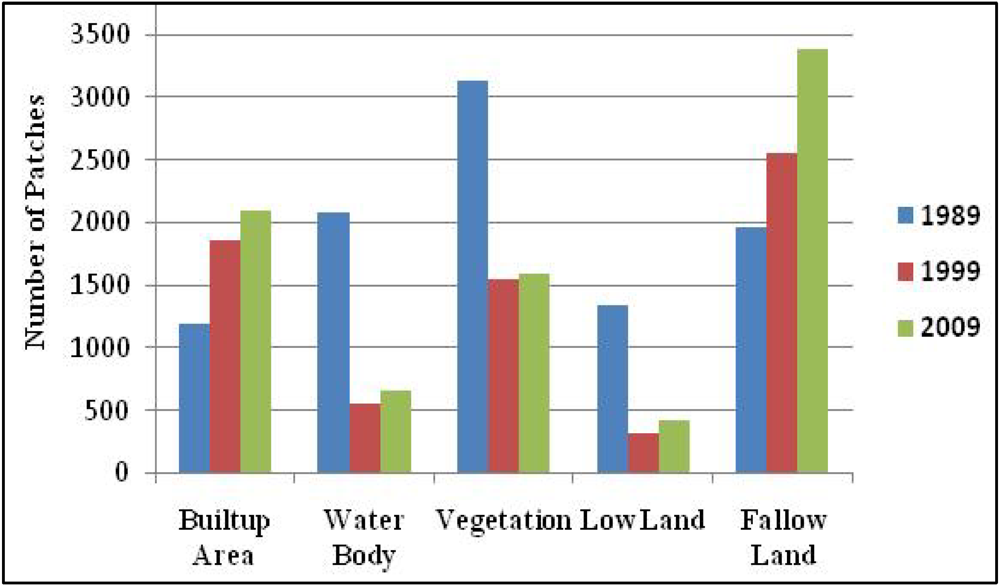

Figure 3. Number of patches over the years.

Click here to enlarge figure

Figure 3. Number of patches over the years.
Ijgi 01 00003 g003 1024

3.1.2. Gains and Losses in Land Cover Types

In case of built-up area, the core southern part of Dhaka city has remained the same. While the north-east and south-west parts have converted to built-up areas. The northern part of Dhaka city has gained water body followed by a massive decrease in the south-east and south-west parts (Figure 4).

Ijgi 01 00003 g004 200

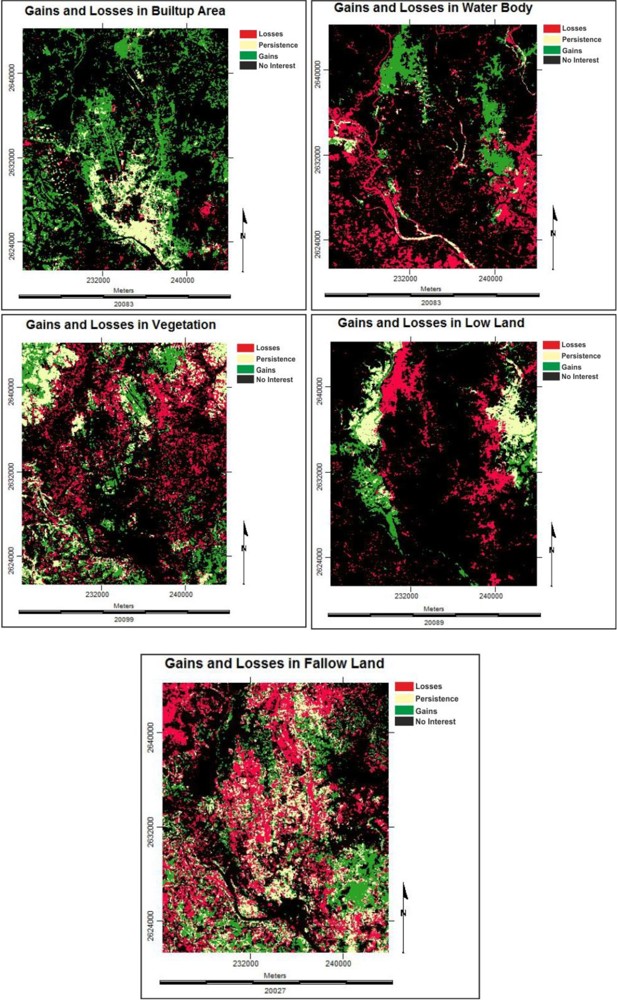

Figure 4. Gains and losses in land cover types (1989–2009).

Click here to enlarge figure

Figure 4. Gains and losses in land cover types (1989–2009).
Ijgi 01 00003 g004 1024

No particular pattern on gains or losses is found for vegetation. In cases of low land the changes are evident in eastern and western parts. Fallow land has decreased markedly and the losses are clear in north-western and mid parts (Figure 4).

3.2. Stochastic Markov Model

The first model that has been implemented is given the name as “Stochastic Markov Model (St_Markov)”, because this model combines both the stochastic processes as well Markov chain analysis techniques [17]. This kind of predictive land cover change modeling is appropriate when the past trend of land cover changing pattern is known [12].

A Markov chain is a stochastic process (based on probabilities) with discrete state space and discrete or continuous parameter space [18]. In this random process, the state of a system s at time (t+1) depends only on the state of the system at time t, not on the previous states.

3.2.1. Markov Property

In a Markov chain the probability of the next state is only dependent upon the current state. This is called Markov property and stated as [19]:

Ijgi 01 00003 i005 (1)

The probability of a Markov chain ξ1, ξ2,........can be calculated as [19]:

Ijgi 01 00003 i006 (2)

The conditional probabilities:

Ijgi 01 00003 i007 (3)

These are called the “Transition Probabilities” of the Markov chain [19].

3.2.2. Transition Matrix for a Markov Chain

Let’s consider a Markov chain with n states s1, s2,.......,sn. Let pij denote the transition probability from state si to state sj, i.e.,

Ijgi 01 00003 i008 (4)

The transition matrix (n × n) of this Markov process is then defined as [19]:

Ijgi 01 00003 i009 (5)

Predictions of the future state probabilities can be calculated by solving the matrix equation [19]:

p(t) = p(t − 1)∙P (6)

With increasing time steps, a Markov chain may approach to a constant state probability vector, which is called limiting distribution [19]:

p(∞) = Ijgi 01 00003 i010= Ijgi 01 00003 i011∙Pt (7)

3.2.3. Analysis with Stochastic Markov Model

At the beginning, Markov chain produces a transition matrix (Table 8), a transition areas matrix (Table 9) and a set of conditional probability images by analyzing two qualitative land cover images (Figure 5) from two different dates 1989 and 1999 [12].

Table Table 8. Markov probability of changing among land cover types (1989–1999).

Click here to display table

Table 8. Markov probability of changing among land cover types (1989–1999).
Built-up AreaWater BodyVegetationLow LandFallow Land
Built-up Area0.66490.02680.05330.02980.2252
Water Body0.21250.10740.10300.19690.3802
Vegetation0.16750.08530.33040.11730.2995
Low Land0.07660.40060.05140.34460.1267
Fallow Land0.41260.01440.26030.01990.2928
Table Table 9. Cells expected to transition to different classes (1989–1999).

Click here to display table

Table 9. Cells expected to transition to different classes (1989–1999).
Built-up AreaWater BodyVegetationLow LandFallow Land
Built-up Area95,4763,8457,6584,27832,332
Water Body10,0345,0744,8659,30017,953
Vegetation17,5698,94534,65512,30231,409
Low Land4,57423,9143,07020,5727,566
Fallow Land57,7322,00936,4152,78940,964

The matrix of transition probabilities (Table 8) shows the probability that each land cover category will change to other categories in 2009. Table 9 represents the number of cells/pixels (30 m × 30 m) that will be transformed over time from one land cover type to other types. Markov Chain Analysis also produces related conditional probability images (Figure 5) with the help of transition probability matrices. Each conditional probability image shows the possibility of transitioning to another land cover class.

After analyzing Figure 5, it is clear that most areas will convert into built-up areas. The Markovian conditional probability of being built-up area ranges up to 0.66 which is the highest among all other land cover types. This probabilistic prediction is dependent upon the past trend of the last ten years (1989–1999).

Ijgi 01 00003 g005 200

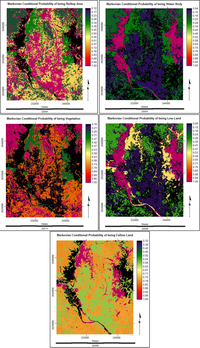

Figure 5. Markovian conditional probability images.

Click here to enlarge figure

Figure 5. Markovian conditional probability images.
Ijgi 01 00003 g005 1024

3.2.4. Future Prediction Using Stochastic Markov Model

The next step is to make one single land cover map for future prediction aggregating all the Markovian conditional probability images. This prediction is performed by a stochastic choice decision model. Stochastic choice creates a stochastic land cover map by evaluating and aggregating the conditional probabilities in which each land cover can exist at each pixel location against a rectilinear random distribution of probabilities [12].

Stochastic Choice creates a stochastic land cover map by evaluating and aggregating the conditional probabilities in which each land cover can exist at each pixel location against a rectilinear random distribution of probabilities [12]. The Stochastic Markov (St_Markov) predicted land cover map of 2009 is shown in Figure 6.

3.3. Cellular Automata Markov Model

The second model that has been implemented is named as “Cellular Automata Markov Model (CA_Markov). CA_Markov combines the concepts of Markov Chain, Cellular Automata (CA) [20], Multi-Criteria Evaluation [21] and Multi-Objective Land Allocation [12].

Stephen Wolfram defined CA as follows: “Cellular automata are simple mathematical idealizations of physical systems in which space and time is discrete, and physical quantities take on finite set of discrete values” [22].

Ijgi 01 00003 g006 200

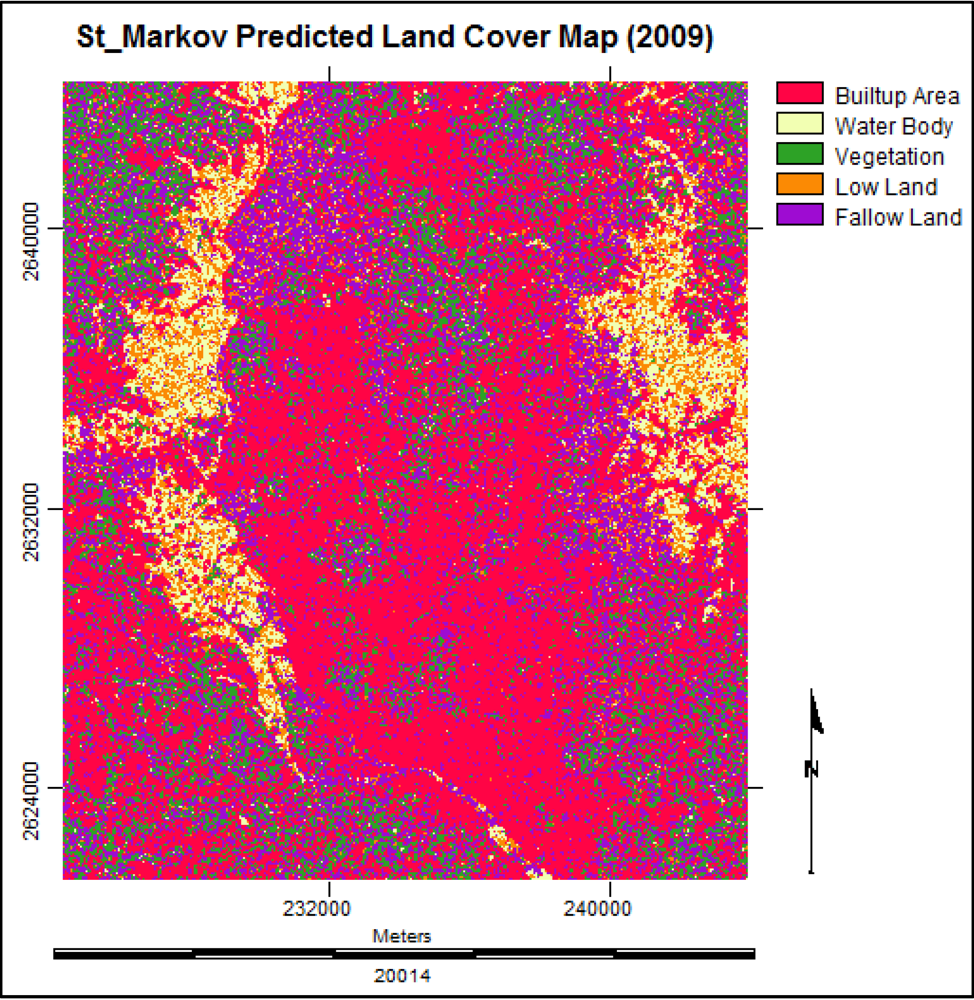

Figure 6. Final St_Markov predicted land cover map (2009).

Click here to enlarge figure

Figure 6. Final St_Markov predicted land cover map (2009).
Ijgi 01 00003 g006 1024

3.3.1. The Elements of Cellular Automata

The components that comprise an elementary cellular automaton are as follows [23]:

  • (a) The physical environment or the space represented by an array of cells, on which the automaton exists (its lattice).

  • (b) The cell in which the automaton resides that contains its state(s).

  • (c) The neighborhood around the automaton.

  • (d) Transition rules that describe the behavior of the automaton.

  • (e) The temporal space in which the automaton exists.

3.3.2. Mathematical Notation of Cellular Automata

A CA model represents discrete dynamic system consisting of four elements [20]:

Ijgi 01 00003 i014 (8)

where, L = the discrete lattice or the physical environment; = the set of possible states, where each ith cell of the lattice at time step t has a state σi(t) Ijgi 01 00003 i015; Ijgi 01 00003 i016= the neighborhood of a cell automaton, which is defined as all cells that fall within a radius r Ijgi 01 00003 i015 Ijgi 01 00003 i016around the actual cell. It denotes the idea of neighborhood template [24]:

Ijgi 01 00003 i017 where Ijgi 01 00003 i018; Ijgi 01 00003 i019 = the relative index of all neighbors of a particular cell; δ = the local transition rule, which is denoted as follows [20]:

Ijgi 01 00003 i020 (9)

It shows that the state of the ith cell at the next time step t+1 is computed by δ based on the states of all the cells in its neighborhood at the current time step t.

Here, Ijgi 01 00003 i016i(t) = the associated neighborhood with ith cell at time t; | Ijgi 01 00003 i016| = the number of cells in the neighborhood.

The local transition rule is given by a rule table where given the sizes of ∑ and Ijgi 01 00003 i016, the total number of possible rules equals [20]:

Ijgi 01 00003 i021 (10)

where each of the |∑N| possible configurations of a cell’s neighborhood is mapped to the number of possible states a cell can be in. Now considering the ordered set of all the states of all cells collectively at time step t, a CA’s global configuration can be denoted as follows [20]:

Ijgi 01 00003 i022 (11)

Now applying the local transition rule to all the cells in the CA’s lattice, the next configuration of the CA can be computed by its induced global map [20]:

Ijgi 01 00003 i023 (12)

In brief, the standard CA can be generalized as follows [24]:

Ijgi 01 00003 i024 (13)

where, S = the set of all possible states of the cellular automata; N = a neighborhood of all cells providing input values for the function f and f = a transition function that defines the change of the state from t to t+1.

3.3.3. Simulation with Cellular Automata Markov Model

CA_Markov is useful for modeling the state of several categories of a cell based on a matrix of Markov transition areas; transitional suitability images and a user defined contiguity filter. A Markov model applies contiguity rule like a pixel near to an urban area is most likely to be changed into urban area [12]. In this research, a 3 × 3 mean contiguity filter has been used (Figure 7) for modeling purpose. This kind of filtering is applied on suitability images for each land cover class. This is a defined neighborhood. The suitability of a pixel is determined by the pixel values within this defined filtering kernel. The more pixels of the same category of land cover exist in the neighborhood, the more the suitability value for that particular land cover type increases. Otherwise the pixel value remains the same [12].

Ijgi 01 00003 g007 200
Figure 7. The 3 × 3 mean contiguity filter for CA_Markov modelling.

Click here to enlarge figure

Figure 7. The 3 × 3 mean contiguity filter for CA_Markov modelling.
Ijgi 01 00003 g007 1024

3.3.4. Suitability Maps for Land Cover Classes

The suitability maps determine which pixels will change as per the highest suitability of each land cover type. The higher the suitability of a pixel, the possibility of the neighboring pixels to change into that particular class is higher.

Preparing a suitability map for each land cover type is difficult in terms of data and information availability. It is not possible to incorporate all types of factors or constraints that exist within the study area. Therefore a simple assumption has been assumed for fuzzy factor standardization.

The basic assumption for preparing suitability images is the pixel closer to an existing land cover type has the higher suitability. It means a pixel that is completely within vegetation has the highest suitability value (255) and pixels far from existing vegetation pixels will have less suitability values. The farthest pixels from vegetation will show the lowest suitability values. Here the suitability decreases with distance. Though this idea is not perfect always, like in case of water body and vegetation the scenario can be different. In reality, a pixel near to forest is more likely to convert into built-up area rather in forest. But this can be considered to be the research limitation.

Therefore a simple linear distance decay function is appropriate for this basic assumption. It serves the basic idea of contiguity. The land cover maps have been standardized (Figure 8) to the same continuous suitability scale (0–255) using fuzzy set membership analysis process [12].

Ijgi 01 00003 g008 200

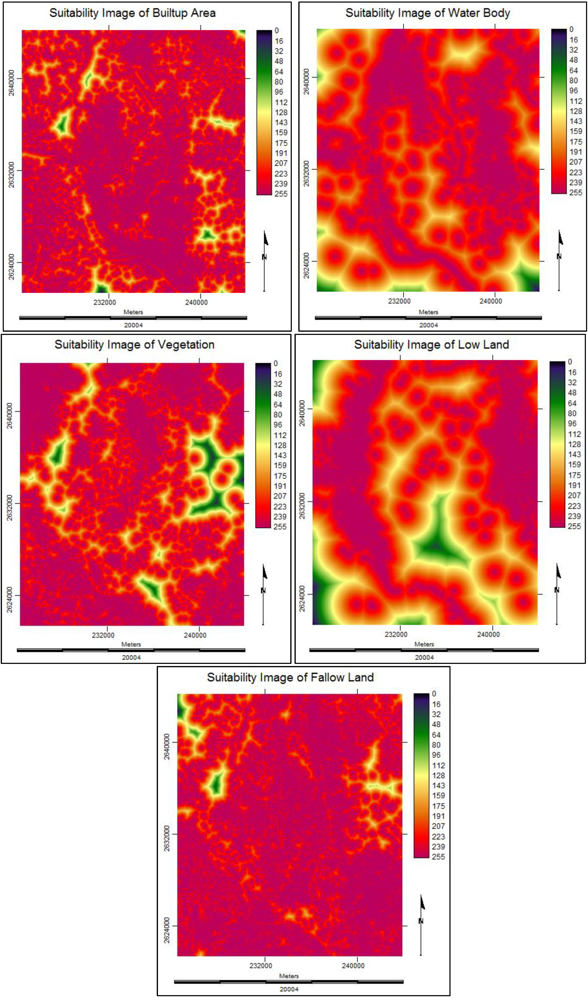

Figure 8. Suitability images of each land cover type (1999).

Click here to enlarge figure

Figure 8. Suitability images of each land cover type (1999).
Ijgi 01 00003 g008 1024

3.3.5. Future Prediction Using Cellular Automata Markov Model

At the end, the Markov transition area matrix (Table 9), all the suitability images (Figure 8), the 3 × 3 CA contiguity filter (Figure 7) and the base map of Dhaka city (1999) have been used to predict the land cover map of 2009. The CA_Markov predicted final land cover image (2009) of Dhaka city is illustrated in Figure 9.

Ijgi 01 00003 g009 200

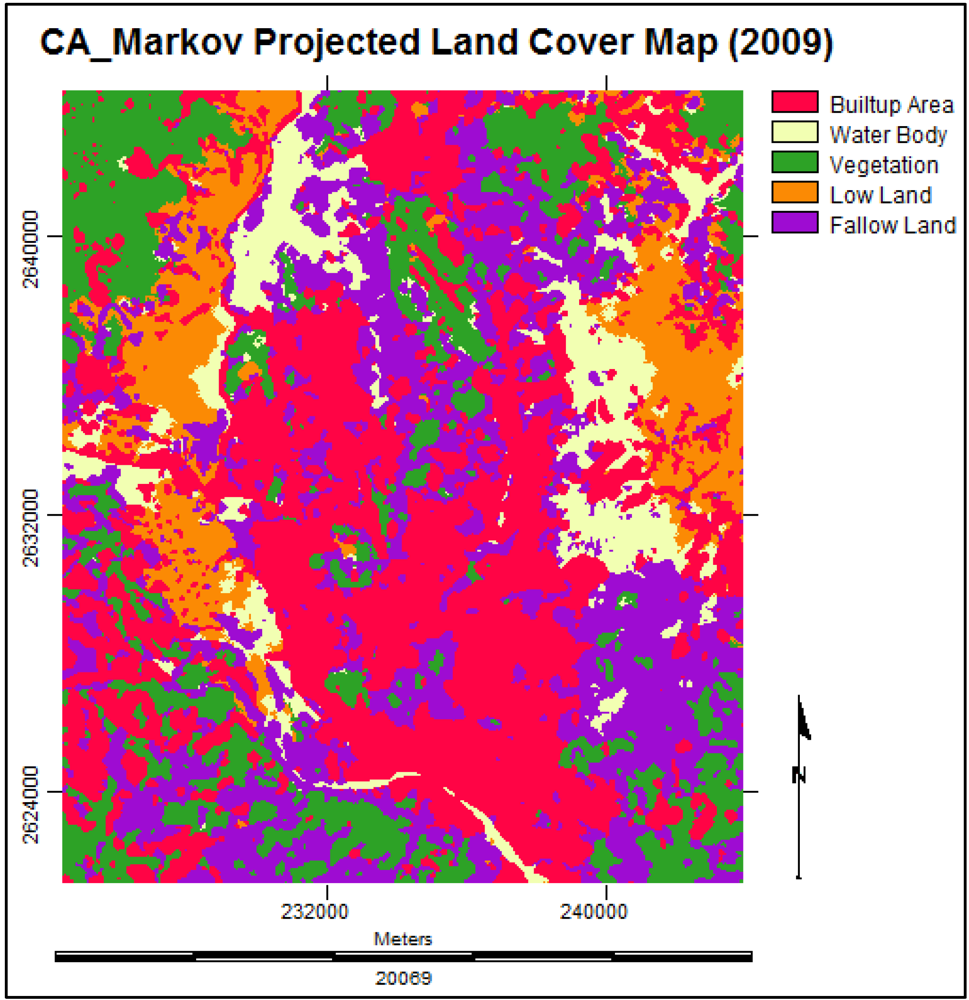

Figure 9. CA_Markov projected land cover map of Dhaka city (2009).

Click here to enlarge figure

Figure 9. CA_Markov projected land cover map of Dhaka city (2009).
Ijgi 01 00003 g009 1024

3.4. Multi Layer Perceptron Markov Model

The term “Artificial Neural Network (ANN)” has been inspired by human biological nervous system [25]. In a typical ANN model, simple nodes are connected together to form a network of nodes. Some of these nodes are called input nodes; some are output nodes and in between there are hidden nodes [26]. Multi Layer Perceptron (MLP) is a feed-forward Neural Network with one or more layers between input and output layers. The great advantage of using MLP perceptron neural network is that it gives the opportunity to model several or even all the transitions at once [12].

3.4.1. The Feed-Forward Concept of Multi Layer Perceptron Neural Network

MLP neural network uses the back propagation (BP) algorithm. The calculation is based on information from training sites [12]. Back propagation involves two major steps, forward and backward propagation. The input that a single node receives is weighted as:

Ijgi 01 00003 i028 (14)

where, wij = the weights between node i and node j; Oi = the output from the node i

The output from a given node j is computed as [26]:

Ijgi 01 00003 i029 (15)

f = a non-linear sigmoid function that is applied to the weighted sum of inputs before the signal passes to the next layer

This is known as “Forward Propagation”. Once it is finished, the activities of the output nodes are compared with their expected activities. In normal circumstances, the network output differs from the desired output (a set of training data, e.g., known classes). The difference is termed as the error in the network [26]. The error is then back-propagated through the network. Now the weights of the connections are corrected as follows [12]:

Ijgi 01 00003 i030 (16)

η = the learning rate parameter; δj = an index of the rate of change of the error; α = the momentum parameter.

The process of the forward and backward propagation is repeated iteratively, until the errors of the network minimized or reaches an acceptable magnitude [26]. The purpose of training the network is to get proper weights both for the connection between the input and hidden layer, and between the hidden and the output layer for the classification of unknown pixels [12]. Several factors affect the capabilities of the neural network to generalize [26]. These include:

3.4.2. Number of Nodes

In general, the larger the number of nodes in the hidden layer, the better the neural network represents the training data [26]. The number of hidden layer nodes is estimated by the following equation [12]:

Ijgi 01 00003 i031 (17)

where, Nh = the number of hidden nodes; Ni = the number of input nodes; No = the number of output nodes

3.4.3. Number of Training Samples and Iterations

The number of training sample also affects the training accuracy. Too few samples may not represent the pattern of each category while too many samples may cause overlap. Again too many iterations can cause over training that may cause poor generalization of the network [12]. Over training can be prevented by early stopping of training [25]. The acceptable error rate is evaluated based on the Root Mean Square (RMS) Error [25]:

Ijgi 01 00003 i032 (18)

where, N = the number of elements; i = the index for elements; ei = the error of the ith element; ti = the target value (measured) for ith element; ai = the calculated value for the ith element.

3.4.4. Multi Layer Perceptron Markov Modeling

The basic concept of modeling with MLP neural network adopted in this research is to consider the change in built-up area over the years. In general, it means other land cover types are primarily contributing to increase the built-up area. At this stage, the issue of which variables affect the change to built-up area (1989–1999) has been considered. Therefore, only the transitions from “water body to built-up area”, “vegetation to built-up area”, “low land to built-up area” and “fallow land to built-up area” have been considered for model simulation. These four transitions have been termed as “All” here. Figure 10 exhibits the transition from all to built-up area.

Ijgi 01 00003 g010 200

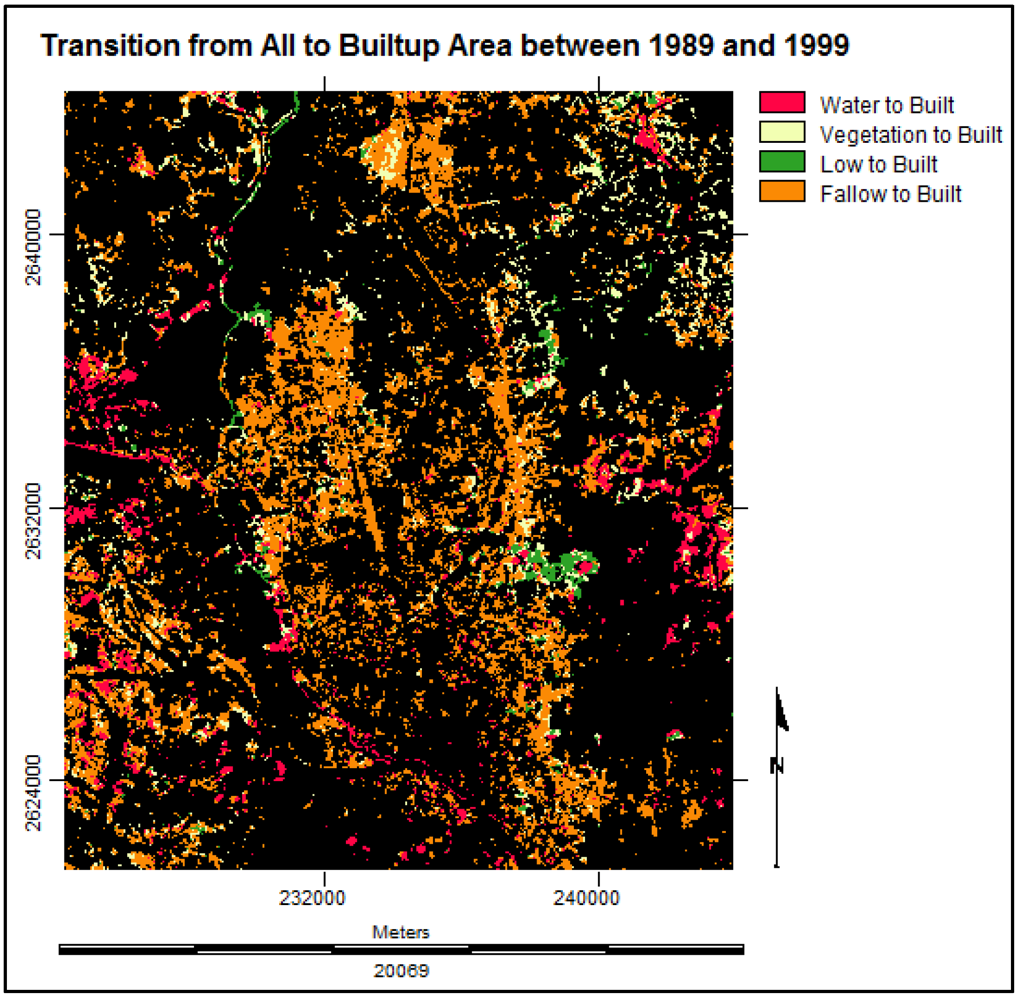

Figure 10. Transition from all to built-up area (1989–1999).

Click here to enlarge figure

Figure 10. Transition from all to built-up area (1989–1999).
Ijgi 01 00003 g010 1024

It is logical that new areas will be converted to built-up area where there are existing built-up areas. Therefore six driver variables have been selected for MLP_Markov modeling. These are (1989–1999): Distance from all to built-up area, distance from water body, distance from vegetation, distance from low land, distance from fallow land and empirical likelihood image).

The empirical likelihood transformation is an effective means of incorporating categorical variables into the analysis (Figure 11). It has been produced by determining the relative frequency of different land cover types occurred within areas of transition (1989 to 1999). The numbers (legend) indicate the likelihood of changing into built-up area. The higher the value the likeliness of the pixel to change into the built-up cover type is more.

Now it is important to test the potential explanatory power of each variable. The quantitative measures of the variables have been tested through Cramer’s V [27]. It is suggested that the variables that have a Cramer’s V of about 0.15 or higher are useful while those with values of 0.4 or higher are good [12].

After getting satisfactory Cramer’s V values for all the driving variables, now the turn is to run MLP neural network model. For this purpose, 10,000 iterations have been chosen. The minimum number of cells that transitioned from 1989 to 1999 is 4,794. Therefore, the maximum sample size has been chosen as 4,794. For each principal transition particular weights have to be obtained. The RMS error curve has been found smooth and descent after running MLP neural network. After all these combinations, the MLP running statistics gives a very high accuracy rate of 91.36% (this accuracy is a measure of calibration, not validation). Based on these running statistics the transition potential maps have been produced (Figure 12). These maps depict, for each location, the potential it has for each of the modeled transitions [12]. These are not the probability maps where the sum of values for a particular pixel location will not be 1. The reason behind this is because the MLP neural network outputs are obtained by applying fuzzy set to the signals into values from 0 to 1 with activation function (sigmoid). Here the higher values represent a higher degree of membership for that corresponding land cover type [12].

Ijgi 01 00003 g011 200

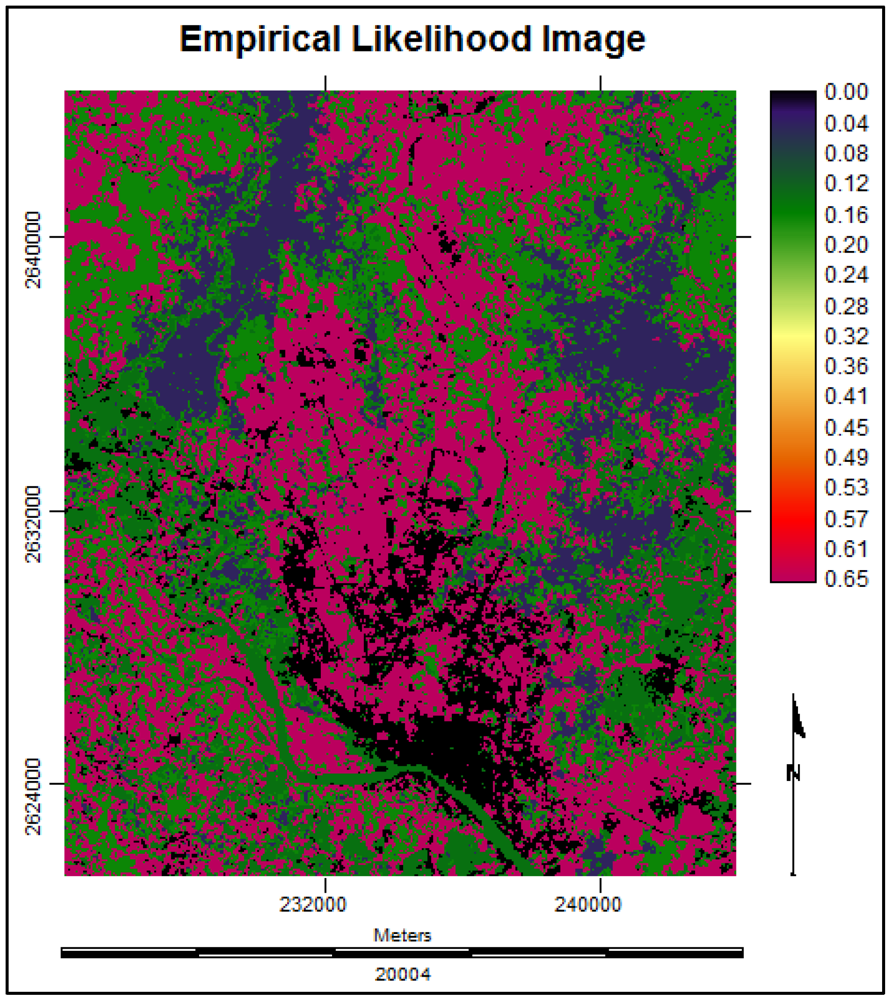

Figure 11. Empirical likelihood image of changing into built-up areas (1989–1999).

Click here to enlarge figure

Figure 11. Empirical likelihood image of changing into built-up areas (1989–1999).
Ijgi 01 00003 g011 1024
Ijgi 01 00003 g012 200
Figure 12. Transition potential maps from all to built-up area (1989 to 1999).

Click here to enlarge figure

Figure 12. Transition potential maps from all to built-up area (1989 to 1999).
Ijgi 01 00003 g012 1024

3.4.5. Future Prediction Using Multi Layer Perceptron Markov Model

Using this kind of MLP neural network analysis it is possible to determine the weights of the transitions that will be included in the matrix of probabilities of Markov Chain for future prediction. The transition probabilities are shown in Table 10. Based on all these information from MLP neural network, the final land cover map of 2009 (Figure 13) has been simulated through Markov chain analysis. The whole procedure, for predicting the land cover map by this way, has been termed as “MLP_Markov” model.

Ijgi 01 00003 g013 200

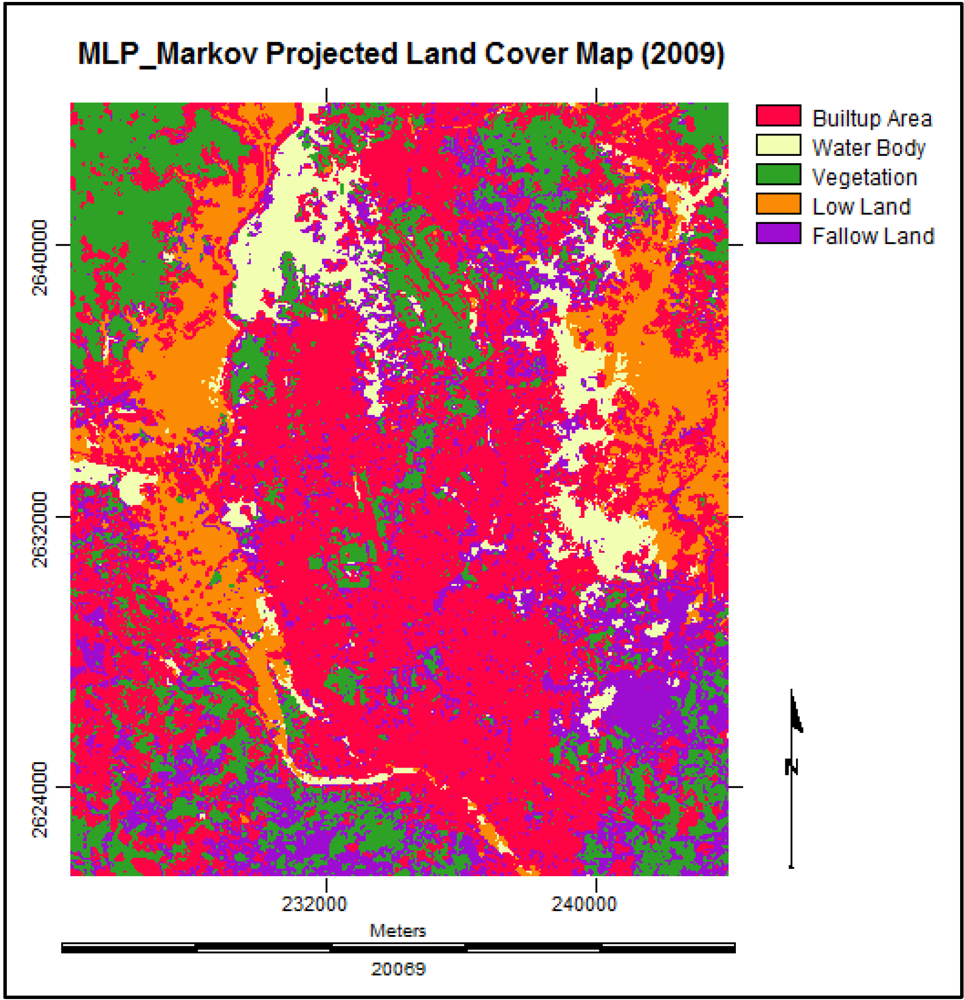

Figure 13. MLP_Markov projected land cover map of Dhaka City (2009).

Click here to enlarge figure

Figure 13. MLP_Markov projected land cover map of Dhaka City (2009).
Ijgi 01 00003 g013 1024
Table Table 10. Transition probabilities grid for Markov chain (1989 to 1999) in MLP modeling.

Click here to display table

Table 10. Transition probabilities grid for Markov chain (1989 to 1999) in MLP modeling.
Built-up AreaWater BodyVegetationLow LandFallow Land
Built-up Area0.78230.01740.03470.01940.1463
Water Body0.20790.12640.10080.19270.3721
Vegetation0.15290.07790.38870.10710.2734
Low Land0.06950.36340.04670.40540.1150
Fallow Land0.38250.01330.24130.01850.3445

3.5. Model Validation and Selection

Now the task is to select the most appropriate model. In general sense, model validation refers to comparing the simulated and reference maps. But the traditional way of validating a model or comparing two maps, using Kappa statistics, is now out-of-date [28,29].

Therefore, a method of comparing three maps (a reference map of time 1, a reference map of time 2 and a simulation map of time 2) has been implemented for model validation [30]. In this case; the base map of 1999, the base map of 2009 and the simulated maps of time 2009 (St_Markov, CA_Markov and MLP_Markov) have been used.

3.5.1. Components of Agreement and Disagreement

The three maps comparison method consists of two components of agreement and three components of disagreement. The components of agreement are persistence simulated correctly and change simulated correctly [30]. The components of disagreement are change simulated as persistence (the entries where reference t1 matches simulation t2 but does not match reference t2), persistence simulated as change (the entries where reference t1 matches reference t2 but does not match simulation t2) and change simulated as change to wrong category (the entries where all three maps disagree) [30].

3.5.2. Validation Results

Among the three models, the percentages of disagreement components are lowest (28.066%) while the percentages of agreement components (71.934%) are found highest for MLP_Markov (Table 11).

Table Table 11. Components of agreement and disagreement for model validation.

Click here to display table

Table 11. Components of agreement and disagreement for model validation.
Name of ComponentSt_Markov (%)CA_Markov(%)MLP_Markov (%)
Persistence Simulated Correctly44.42448.45950.578
Change Simulated Correctly18.00319.19621.356
Total Agreement62.42767.65571.934
Change Simulated As Persistence11.36910.399.788
Persistence Simulated As Change16.73613.5410.751
Change Simulated As Change to Wrong Category9.4688.4157.527
Total Disagreement37.57332.34528.066

This is how, implementing the three maps comparison method, it is found that the simulated map of “MLP_Markov 2009” is showing the best results in terms of the percentages of disagreement and agreement components. This is why; MLP_Markov is giving the best outputs among the three modeling techniques.

Figure 14 shows the results from an overlay of the three maps (the base map of 1999, the base map of 2009 and the St_Markov/CA_Markov/MLP_Markov simulated maps of time 2009). From this figure it is possible to get a clear idea about the components of agreement and disagreement.

Moreover, if we look at Table 12, then it is clear that MLP_Markov model comprises with all the basic elements of modeling. But St_Markov model lacks most of the elements, while CA_Markov is in a moderately better position.

Therefore, at the end, the MLP_Markov model has been selected for predicting the land cover map of Dhaka City for the year of 2019.

Table Table 12. Comparison of the three models based on basic modeling elements.

Click here to display table

Table 12. Comparison of the three models based on basic modeling elements.
Name of ComponentSt_MarkovCA_MarkovMLP_Markov
Temporal Dependency
Spatial Dependency×
Spatial Distribution×
Spatial Proximity×
Suitability Analysis×
Transfer Function××
Weights of the Connections××
Training/ Testing Accuracy Assessment××
Transition Potential Maps××
Ijgi 01 00003 g014 200

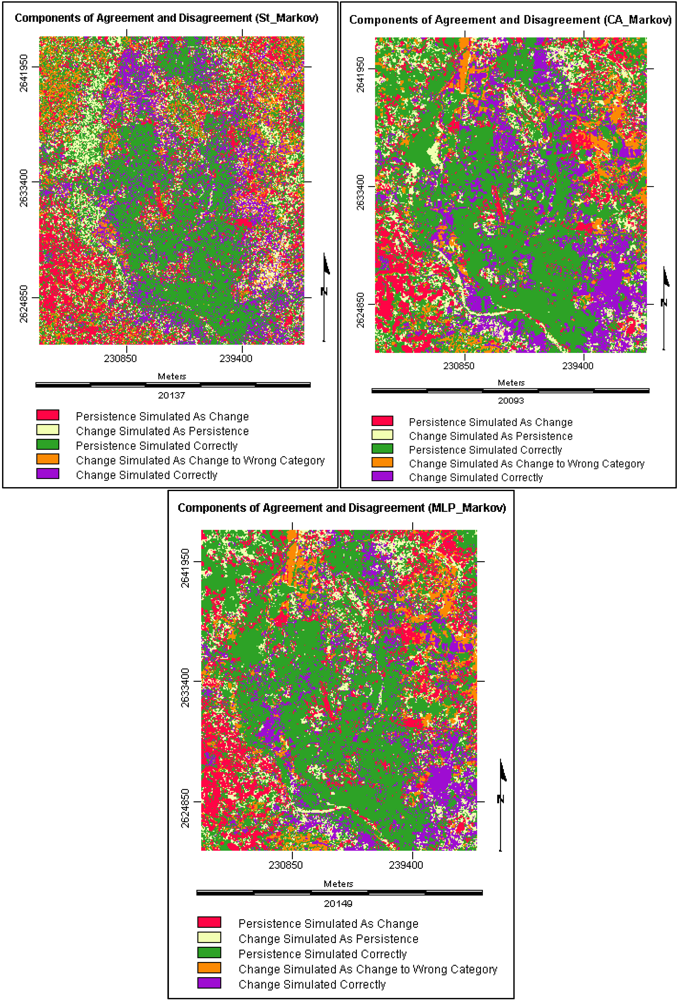

Figure 14. Maps of the components of agreement and disagreement.

Click here to enlarge figure

Figure 14. Maps of the components of agreement and disagreement.
Ijgi 01 00003 g014 1024

3.6. Simulating the Land Cover Map of 2019

The base maps of 1999 and 2009 have been used to predict the land cover map of 2019 (Figure 15). The procedure followed here is the same as stated in the MLP_Markov modeling section.

Ijgi 01 00003 g015 200
Figure 15. MLP_Markov projected land cover map of Dhaka City (2019).

Click here to enlarge figure

Figure 15. MLP_Markov projected land cover map of Dhaka City (2019).
Ijgi 01 00003 g015 1024

3.7. Analysis of the Final Predicted Map (2019)

The predicted map of 2019 reveals that 58% of the total area will be occupied by the “built-up area” cover type (Figure 16). On the other hand, water body (6%) and fallow land (11%) types are going to decrease in a notable way.

Ijgi 01 00003 g016 200

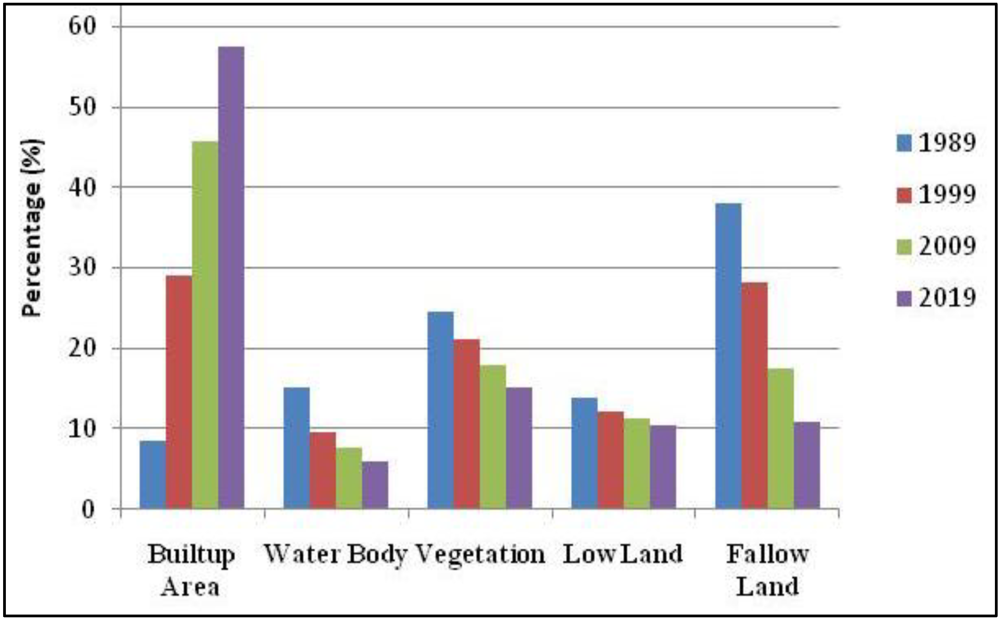

Figure 16. Percentages of presence of land cover types over the years (1989–2019).

Click here to enlarge figure

Figure 16. Percentages of presence of land cover types over the years (1989–2019).
Ijgi 01 00003 g016 1024

4. Conclusions

This research has revealed that the increase in built-up area is prominent in Dhaka City over the years (1989–2009). Later this paper has presented three different methods to simulate the land cover map of 2009 being persistent with the inherent changing characteristics. The methods have been named as “Stochastic Markov (St_Markov)”, “Cellular Automata Markov (CA_Markov)” and “Multi Layer Perceptron Markov (MLP_Markov)” model. Then the MLP_Markov model has been found most appropriate, based on the three map comparison method, for future prediction (the land cover map of 2019).

Our hope might be realized if the error in the base maps is reduced to the point where the error becomes smaller than apparent change in land. We hope the interpretation of depicting the future scenario in quantitative accounts, as demonstrated in this research, will be of great value to the urban planners and decision makers, for the future planning of a modern and habitable Dhaka City. Moreover, it is our belief that this kind of research has a high potential to contribute towards the sustainable urban growth both at any local and regional level in the world.

Acknowledgments

This research work is a part of the M.Sc. thesis conducted by the corresponding author which has been supported by the European Commission, Erasmus Mundus Programme, M.Sc. in Geospatial Technologies, Framework Partnership Agreement 2007-0064/001 FRAME MUNB123. The author would like to thank Pedro Latorre Carmona, Mário Caetano, Edzer Pebesma, Nilanchal Patel and Filiberto Pla Bañón for their thoughtful suggestions and enduring guidance at different stages of this research.

The author would also like to express gratitude to the European Commission and Erasmus Mundus Consortium (Universitat Jaume I, Castellón, Spain; Westfälische Wilhelms-Universität, Münster, Germany and Universidade Nova de Lisboa, Portugal) for providing the fund and other research opportunities.

Finally we thank the anonymous reviewers and the editors for their constructive comments that improved the quality of this paper.

References

  1. Khan, N.S. Temporal mapping and spatial analysis of land transformation due to urbanization and its impact on surface water system: A case from Dhaka metropolitan area, Bangladesh. Int. Arch. Photogramm. Remote Sens. 2000, 33, 598–605.
  2. Lambin, E.F. Remote sensing and GIS analysis. In International Encyclopedia of the Social and Behavioral Sciences; Smelser, N.J., Baltes, P.B., Eds.; Pergamon: Oxford, UK, 2001; pp. 13150–13155.
  3. Griffiths, P.; Hostert, P.; Gruebner, O.; Linden, S.V.D. Mapping mega city growth with multi-sensor data. Remote Sens. Environ. 2010, 114, 426–439, doi:10.1016/j.rse.2009.09.012.
  4. Dewan, A.M.; Yamaguchi, Y. Land use and land cover change in greater Dhaka, Bangladesh: using remote sensing to promote sustainable urbanization. Appl. Geogr. 2009, 29, 390–401, doi:10.1016/j.apgeog.2008.12.005.
  5. Emch, M.; Peterson, M. Mangrove forest cover change in the Bangladesh Sundarbans from 1989 to 2000: A remote sensing approach. Geocarto Int. 2006, 21, 5–12.
  6. Kashem, M.S.B. Simulating Urban Growth Dynamics of Dhaka Metropolitan Area: Cellular Automata Based Approach. Master Thesis, Department of Urban and Regional Planning, Bangladesh University of Engineering and Technology (BUET), Dhaka, Bangladesh, 2008.
  7. Lahti, J. Modelling Urban Growth Using Cellular Automata: A Case Study of Sydney, Australia. Master Thesis, Geo-information Science and Earth Observation for Environmental Modelling and Management, International Institute for Geo-information Science and Earth Observation, Enschede, The Netherlands, 2008.
  8. Cabral1, P.; Zamyatin, A. Three Land Change Models for Urban Dynamics Analysis in Sintra-Cascais Area. In Proceedings of 1st EARSeL Workshop of the SIG Urban Remote Sensing, Humboldt-Universität zu Berlin, Germany, 2–3 March 2006.
  9. Wang, J.; Mountrakis, G. Developing a multi-network urbanization (MuNU) model: A case study of urban growth in Denver, Colorado. Int. J. GIS 2011, 25, 229–253.
  10. Cheng, J.; Masser, I. Urban growth pattern modeling: A case study of Wuhan City, PR China. Landscape Urban Plan. 2003, 62, 199–217, doi:10.1016/S0169-2046(02)00150-0.
  11. Ahmed, B.; Hasan, R.; Ahmad, S. A Case Study of the Morphological Change of Four Wards of Dhaka City over the Last 60 years (1947–2007). Bachelor Thesis, Department of Urban and Regional Planning, Bangladesh University of Engineering and Technology (BUET), Dhaka, Bangladesh, 2008.
  12. Eastman, J.R. IDRISI Taiga Guide to GIS and Image Processing; Manual Version 16.02; Clark Labs: Worcester, MA, USA, 2009.
  13. Congalton, R. A Review of assessing the accuracy of classifications of remotely sensed data. Remote Sens. Environ. 1991, 37, 35–46, doi:10.1016/0034-4257(91)90048-B.
  14. The ERDAS IMAGINE 9.1. On-Line Help System, Leica Geosystems Geospatial Imaging, LLC, Norcross, GA, USA, 2006.
  15. Tewolde, M.G.; Cabral, P. Urban sprawl analysis and modeling in Asmara, Eritrea. Remote Sens. 2011, 3, 2148–2165, doi:10.3390/rs3102148.
  16. McGarigal, K.; Cushman, S.A.; Neel, M.C.; Ene, E. FRAGSTATS: Spatial Pattern Analysis Program for Categorical Maps; University of Massachusetts: Amherst, MA, USA, 2002. Available online: http://www.umass.edu/landeco/research/fragstats/fragstats.html (accessed on 1 August 2011).
  17. Basharin, G.P.; Langville, A.N.; Naumov, V.A. The life and work of A. A. Markov. Linear Algebra Appl. 2004, 386, 3–26, doi:10.1016/j.laa.2003.12.041.
  18. Balzter, H. Markov chain models for vegetation dynamics. Ecol. Model. 2000, 126, 139–154, doi:10.1016/S0304-3800(00)00262-3.
  19. Weng, Q. Land use change analysis in the Zhujiang Delta of China using satellite remote sensing, GIS and stochastic modelling. J. Environ. Manage. 2002, 64, 273–284, doi:10.1006/jema.2001.0509.
  20. Maerivoet, S.; Moor, B.D. Cellular automata models of road traffic. Phys. Rep. 2005, 419, 1–64, doi:10.1016/j.physrep.2005.08.005.
  21. Malczewski, J. GIS-based land-use suitability analysis: A critical overview. Progr. Plan. 2004, 62, 3–65, doi:10.1016/j.progress.2003.09.002.
  22. Wolfram, S. Statistical mechanics of cellular automata. Rev. Mod. Phys. 1983, 55, 601–644, doi:10.1103/RevModPhys.55.601.
  23. Barredo, J.I.; Kasanko, M.; McCormick, N.; Lavalle, C. Modelling dynamic spatial processes: Simulation of urban future scenarios through cellular automata. Landscape Urban Plan. 2003, 64, 145–160, doi:10.1016/S0169-2046(02)00218-9.
  24. Li, X.; Yeh, A.G.O. Modelling sustainable urban development by the integration of constrained cellular automata and GIS. Int. J. GIS 2000, 14, 131–152.
  25. Karul, C.; Soyupak, S. A comparison between neural network based and multiple regression models for chlorophyll-a estimation. In Ecological Informatics; Recknagel, F., Ed.; Springer: Berlin, Germany, 2006; pp. 309–323.
  26. Atkinson, P.M.; Tatnall, A.R.L. Introduction neural networks in remote sensing. Int. J. Remote Sens. 1997, 18, 699–709, doi:10.1080/014311697218700.
  27. Cramér, H. Methods of estimation. In Mathematical Methods of Statistics, 19th ed.; Princeton University Press: Princeton, NJ, USA, 1999; Chapter 33, pp. 497–506.
  28. Pontius, R.G., Jr; Millones, M. Death to Kappa: Birth of quantity disagreement and allocation disagreement for accuracy assessment. Int. J. Remote Sens. 2011, 32, 4407–4429, doi:10.1080/01431161.2011.552923.
  29. Chen, H.; Pontius, R.J., Jr. Diagnostic tools to evaluate a spatial land change projection along a gradient of an explanatory variable. Landscape Ecol. 2010, 25, 1319–1331, doi:10.1007/s10980-010-9519-5.
  30. Pontius, R.G., Jr.; Peethambaram, S.; Castella, J.C. Comparison of three maps at multiple resolutions: a case study of land change simulation in Cho Don District, Vietna. Ann. Assoc. Am. Geogr. 2011, 101, 45–62, doi:10.1080/00045608.2010.517742.
ISPRS Int. J. Geo-Inf. EISSN 2220-9964 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
