Cytotoxic Compounds of Two Demosponges (Aplysina aerophoba and Spongia sp.) from the Aegean Sea

Abstract

The class of demosponges is the biggest and most diverse of all described sponge species and it is reported to produce a plethora of chemically different metabolites with interesting biological activities. The focus of the present study was to investigate the chemical composition of two Mediterranean demosponges, targeting their brominated compounds and prenylated hydroquinones, compounds with interesting cytotoxic and anti-microbial properties. In order to gain a deeper insight into the chemical diversity of their metabolites and their activities, 20 pure secondary metabolites including new natural products were isolated from two different species (Aplysina aerophoba and Spongia sp.) using various chromatographic techniques. Their structures were confirmed by NMR and HRMS, revealing molecules with various chemical scaffolds, mainly prenylated hydroquinones from Spongia sp. and halogenated compounds from Aplysina aerophoba, including 5 novel natural products. The isolated compounds were investigated for their cytotoxic properties using 9 different cell lines, and especially one compound, 2,6-dibromo-4-hydroxy-4-methoxycarbonylmethylcyclohexa-2,5-dien-1-one showed good activities in all tested models.

1. Introduction

Sponges are a prolific source of bioactive natural compounds with unique structural features unprecedented in the terrestrial environment [1]. Demospongiae is their biggest and most diverse class [2], and they are known to produce a variety of chemically different metabolites, including terpenes, alkaloids, macrolides, peptides, betaines, ceramides, lipids, and halogenated compounds with potential interest regarding industrial and medical applications including antiviral, antitumor, antimicrobial, or generally cytotoxic properties. Therefore, they are of considerable biotechnological interest [3,4]. These compounds often possess multiple ecological functions, primarily the protection against predators, competitors for space, biofoulers, or opportunistic pathogenic microorganisms [5].

The sponge Aplysina aerophoba Schmidt, 1862 (Demospongiae, Verongida, Aplysinidae) is a common Mediterranean, photophilic species growing on stable substrates like rocks or rocky walls [6]. Its bright-yellow color is due to the highly labile pigment uranidine which undergoes polymerization when exposed to air [7]. It is known to harbor large amounts of bacteria and contains high concentrations of brominated alkaloids [8,9], mainly isoxazoline alkaloids, which after wound-induced bioconversion, are enzymatically cleaved to the lower molecular weight antibacterial compounds, showing 3,5 dibromotyrosin structure. These compounds protect the sponge from penetration of pathogenic bacteria [10,11]. The isolated brominated metabolites from A. aerophoba have been tested mainly for their cytostatic and antimicrobial activities, often showing moderate to strong effects [12,13]. Potential interest regarding industrial and medical applications has led to attempts for sponge cultivation and increased production of sponge biomass [14].

The genus Spongia, Linnaeus 1759, comprising of approximately 90 species, belongs to the family Spongidae of the order Dictyoceratida [15]. They have commercial value since they are harvested as natural bath sponges in the Mediterranean and the West Indies [16]. Sponges of the genus Spongia are unarmored, soft to firm, and compressible. They have a skeletal network of primary fibers, and they are a rich source of collagen proteins [16,17]. They mainly produce terpenes (sesquiterpene quinones, diterpenes, furanoterpenes, sesterterpenes), sterols, macrolides, and alkaloids [15]. Additionally, long chain lipid compounds may be considered as part of the chemical fingerprint of Spongia genus [15]. Regarding bioactivity, some of these metabolites, especially those with terpene structure, are anti-viral and antioxidant compounds, they act as immunomodulators, and they are active against different cancer cell lines [15,18].

The aim of the present study was the investigation of the chemical composition of two Mediterranean demosponges, Aplysina aerophoba and Spongia sp., targeting their brominated compounds and prenylated hydroquinones, compounds with interesting cytotoxic properties.

Fifteen metabolites with diverse structures were isolated from the ethanolic extract of A. aerophoba, including two new chemical constituents for this species, five new natural products, and eight known ones. Additionally, five known compounds could be isolated from the ethanolic extract of Spongia sp. (Figure 1). The cytotoxic effects of the pure metabolites were evaluated in nine different cell lines, including a human urinary bladder carcinoma cell line (T24), a human stomach carcinoma cell line (AGS), a human neuroblastoma cell line (SH-SY5Y), three human colon adenocarcinoma cell lines (DLD-1, SW-480, LOVO), and three myeloma cell lines (NCI-H929, OPM-2, U266).

2. Materials and Methods

2.1. Biological Material

Spongia sp. was collected at Heraklion, Crete, Greece in April 2018, and Aplysina aerophoba at the same place in June 2018. Both were morphologically identified by Dimitris Poursanidis (Postdoc fellow, IACM-FORTH, Foundation for Research and Technology—Heraklion, Crete, Greece—CEO of terraSolutions marine environment research). The sponges were cut into small pieces and immediately stored in EtOH 96% until further processing. Voucher samples are deposited at the Institute of Pharmacy, Pharmacognosy, University of Innsbruck, Austria.

2.2. Instrumentation

Optical rotations were measured with a polarimeter P-2000 (JASCO, Tokyo, Japan) using a 10.0 cm tube and CHCl₃ as the solvent. IR spectra were obtained on a Platinum ATR FTIR spectrometer (Bruker, MA, USA), and ECD experiments conducted on a J-1500 spectrophotometer (JASCO, Tokyo, Japan). NMR experiments were performed on two spectrometers from Bruker, Bruker Avance II 600 (600 MHz for ¹H, 150 MHz for ¹³C) and Avance III HD (400 MHz for ¹H, 100 MHz for ¹³C). The isolated compounds were dissolved in MeOD or chloroform using tetramethylsilane (TMS) as internal standard. High-resolution mass spectra were measured with aQ-Exactive HF-X Orbitrap mass spectrometer (Thermo, MA, USA) and a micrOTOF-Q II mass spectrometer (Bruker-Daltonics, Bremen, Germany) whereas low-resolution mass spectra were recorded on an Agilent InfinityLab LC/MSD System. It comprised of an Agilent 1260 HPLC, equipped with binary pump, autosampler, column oven, and photodiode array detector (Santa Clara, CA, USA). For the purification of compounds, a Reveleris^® X2 iES flash chromatography system (Büchi, Flawil, Switzerland) and a semi-preparative UltiMate 3000 HPLC from Dionex (Thermo, Waltham, MA, USA), comprising a P580 pump, an ASI 100 automated sample injector, an UVD 170 U detector, and a fraction collector, were used. Sephadex LH-20 material was purchased from Sigma-Aldrich (St. Louis, MI, USA). Analytical HPLC experiments were performed on a LC-20AD XR System (Shimadzu, Tokyo, Japan).

2.3. Chemicals and Reagents

All solvents required for extraction and isolation were purchased from VWR International (Vienna, Austria) and petroleum ether (PE), dichloromethane, acetone, and ethyl acetate (EtOAc) were distilled before use. Solvents for analytical experiments had pro analysis (p.a.) quality at least and were obtained from Merck (Darmstadt, Germany). Deuterated solvents were supplied by Euriso-Top (Saint-Aubin, France). Ultrapure water was produced by a Sartorius arium^® 611 UV (Göttingen, Germany) purification system. Silica gel 40–63 μm and pre-packed cartridges for flash chromatography were purchased from Merck (Darmstadt, Germany) and Büchi (Flawil, Switzerland), respectively.

2.4. Extraction and Isolation

Aplysina aerophoba (approximately 1 kg) was extracted five times in an ultrasonic bath (Bandelin Sonorex 35 KHz, Berlin, Germany) for 15 min each using EtOH 96%. Afterwards, the ethanolic extract (89 g) was partitioned successively between PE, EtOAc, BuOH, and H₂O (3 times each × 500 mL). HPLC analysis of the fractions indicated that the PE (6.2 g), EtOAc (14.0 g), and BuOH (8.7 g) fractions contained brominated compounds, therefore, they were combined and used for further fractionation, while the water fraction (58.0 g) was dismissed.

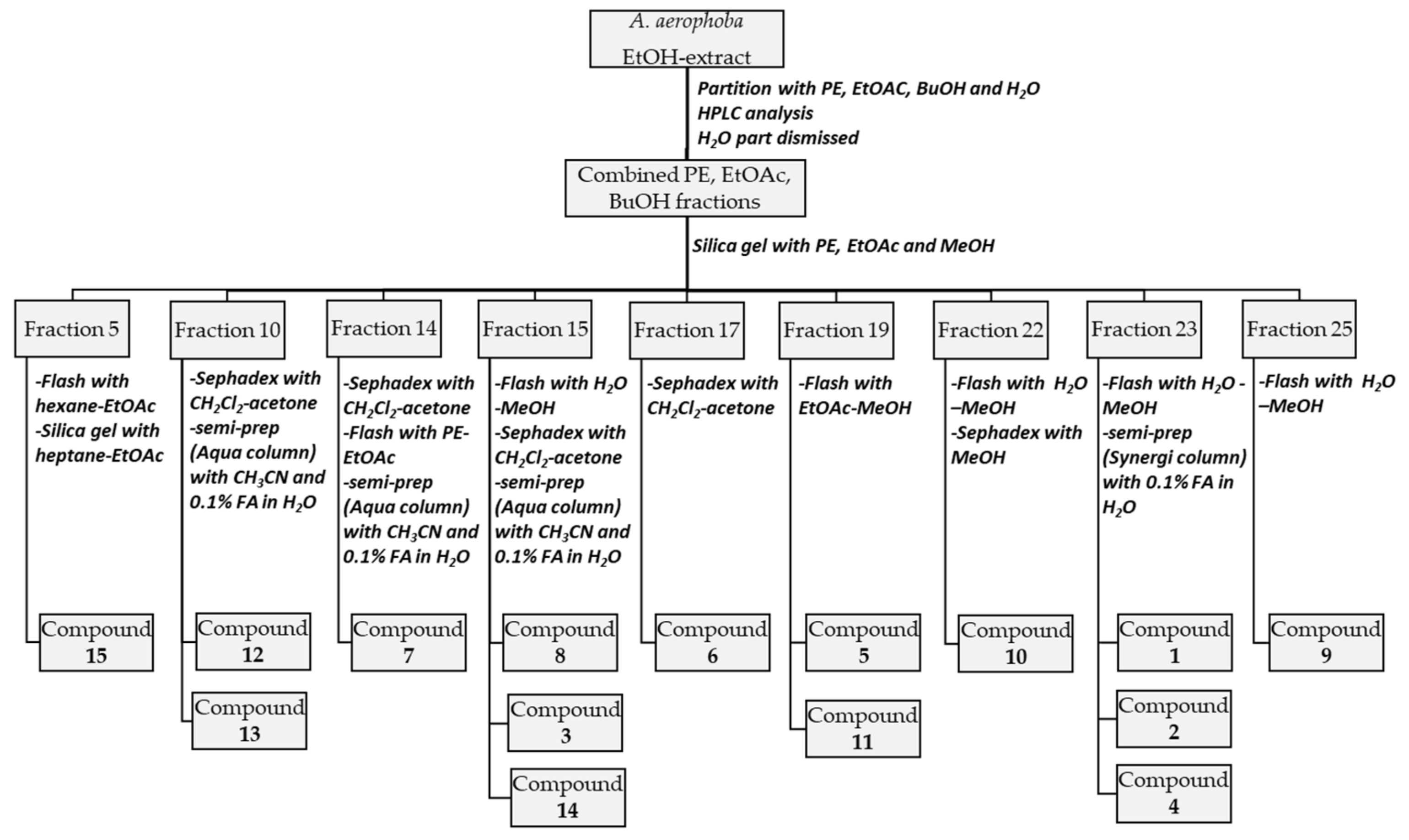

The combined PE, EtOAc, and BuOH fractions were fractionated on a silica gel column using PE, EtOAc, and methanol (from 10:0:0 to 0:10:0 to 0:0:10) as solvent, resulting in 27 subfractions (Figure 2). Fraction 5 (380 mg) was separated with flash chromatography using hexane-EtOAc (10:0–8:2) to give seven subfractions. Further purification of subfraction 6 (138 mg) on silica gel CC elution with heptane-EtOAc (10:0–8:2) yielded compound 15 (4 mg). Separation of fraction 10 (294 mg) by Sephadex LH-20 with CH₂Cl₂-acetone (85:15) resulted in 7 subfractions from which subfraction 7 was a pure compound (compound 12, 130 mg). Subfraction 4 (61 mg) was subjected to semi-preparative HPLC using an Aqua C18 125 Å column (250 × 10 mm, 5 μm; Phenomenex, Torrance, CA, USA). The mobile phase comprised of CH₃CN and 0.1% formic acid (FA) in water to give compound 13 (7 mg). Fraction 14 (3 g) was separated with Sephadex LH-20 using CH₂Cl₂-acetone (85:15) and flash chromatography with PE-EtOAc (10:0–0:10) and then purified by semi-preparative HPLC using the above-mentioned Aqua C18 column (CH₃CN-0.1% FA in water) to yield compound 7 (58 mg). Fraction 15 (433 mg) was separated into 7 subfractions by flash chromatography with H₂O-MeOH (10:0–0:10). Subfraction 7 (127 mg) was purified on Sephadex LH-20 material with CH₂Cl₂-acetone (85:15) and semi-preparative HPLC (Aqua C18 column, CH₃CN-0.1% FA in water) to yield compound 8 (32 mg), whereas subfraction 6 (23 mg) was purified with semi-preparative HPLC (Aqua C18 column CH₃CN-0.1% FA in water) to give compounds 3 (2 mg) and 14 (6 mg). Compound 6 (32 mg) was obtained from fraction 17 (224 mg) by Sephadex LH-20 with CH₂Cl₂-acetone (85:15), while compounds 5 (32 mg) and 11 (32 mg) were obtained from fraction 19 (389 mg) using flash chromatography with EtOAc-MeOH (10:0–0:10). Fraction 22 was purified by flash chromatography with H₂O-MeOH (10:0–0:10) and on Sephadex LH-20 material with MeOH to give compound 10 (28 mg). From fraction 25 (1.6 g), compound 9 (260 mg) was obtained by flash chromatography (H₂O-MeOH, 10:0–0:10). Finally, fraction 23 (1.4 g) was subjected to flash chromatography with H₂O-MeOH (10:0–0:10) as eluent to obtain seven subfractions. Semi-preparative HPLC of subfraction 7 using a Synergi Polar-RP 80Å column (250 × 4.6 mm, 4 μm; Phenomenex, USA) and MeOH and 0.1% FA in water as mobile phase resulted in compounds 1 (5 mg) and 2 (7 mg), while by semi-preparative HPLC of the combined subfractions 5 and 6 using the same Synergi Polar-RP column, compound 4 (2 mg) could be obtained.

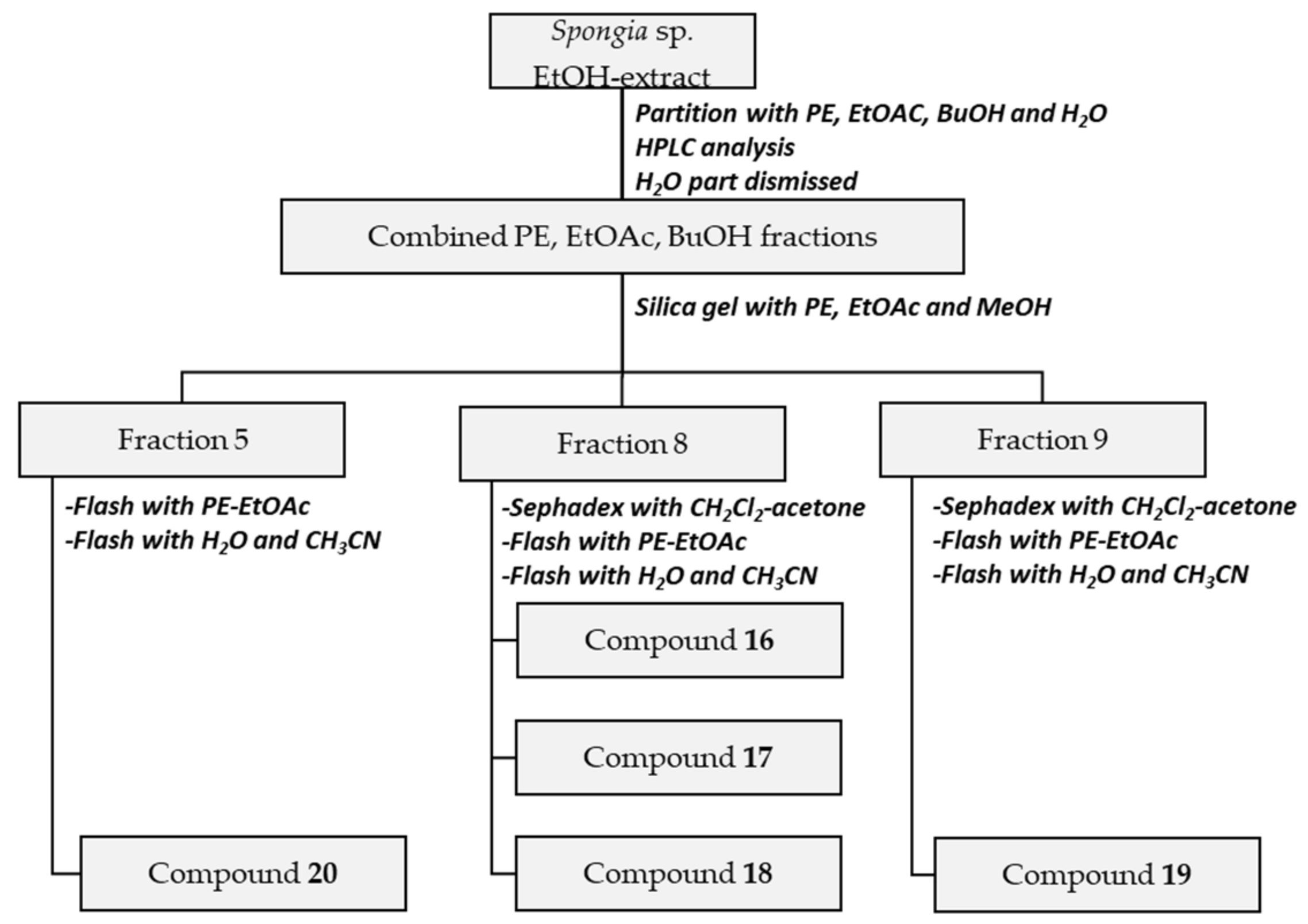

The ethanolic extract of Spongia sp. was fractionated using similar approaches as described above, resulting in the isolation of 5 compounds (Figure 3).

Initially, the material was extracted with EtOH 96% by sonication, the ethanolic extract (58 g) partitioned successively with PE, EtOAc, BuOH, and H₂O (3 times each × 500 mL) and after HPLC analysis, the PE (5.7 g), EtOAc (2.5 g) and BuOH (4.7 g) soluble fractions combined, as results suggested the presence of prenylated hydroquinones.

The combined PE, EtOAc, and BuOH fractions were fractionated on a silica gel column using PE, EtOAc, and methanol (from 10:0:0 to 0:10:0 to 0:0:10), resulting in 23 subfractions. Fraction 9 (860 mg) was separated with Sephadex LH-20 with CH₂Cl₂-acetone (85:15) followed by flash chromatography using PE-EtOAc (10:0–0:10) to give 5 subfractions. Further purification of subfraction 4 (158 mg) via flash chromatography with H₂O-CH₃CN (10:0–0:10) yielded compound 19 (46 mg). Separation of fraction 8 (1.3 g) on Sephadex LH-20 material (CH₂Cl₂-acetone = 85:15 as eluent) resulted in 9 subfractions. Subfraction 7 was purified by normal phase flash chromatography with PE-EtOAc (10:0–0:10) and reversed phase flash chromatography with H₂O-CH₃CN (10:0–0:10) to give compounds 16 (71 mg) and 17 (520 mg), while subfraction 7 (410 mg) was subjected to reversed phase flash chromatography with H₂O-CH₃CN (10:0–0:10) resulting in compound 18 (14 mg). Finally, fraction 5 (300 mg) could be purified using flash chromatography with PE-EtOAc (10:0–0:10) and reversed phase flash chromatography with H₂O-CH₃CN (10:0–0:10) to yield compound 20 (8 mg).

2.4.1. Compound 1: Yellowish Amorphous Powder

R_f 0.70 (EtOAc:MeOH = 8:2); UV (MeOH) λ_max (log ε) 235 (3.7) nm; IR (KBr) ν_max 3286, 2933, 1687, 1540, 1456, 1252, 1171, 1033, and 775 cm⁻¹; ¹H and ¹³C NMR see

Table 1. ¹H NMR Data (δ in ppm, J in Hz) of compounds 1 (400 MHz) and 4 (600 MHz).

No.	Compound 1 (400 MHz)		Compound 4 (600 MHz)
	δH (J in Hz)	δC	δH (J in Hz)	δC
1		159.3		153.9
2	3.38 t (7.2)	39.2	6.76 d (8.4)	117.1
3	2.02 m	31.4	7.07 dd (1.8/8.4)	130.5
4	4.02 t (6.4)	72.2		130.8
5		152.9	7.37 d (1.8)	134.7
6		119.0		110.6
7	7.49 s	134.5	3.78 s	28.8
8		140.8		153.1
9	7.49 s	134.5		165.8
10		119.0	3.48 t (6.6)	36.7
11	2.80 t (7.6)	35.9	2.48 t (6.6)	35.6
12	3.19 t (7.6)	46.2		176.9 *
13	4.07 q (7.2)	61.8
14	1.23 t (7.2)	15.2

Measured in MeOD, * δ_C established from the HMBC spectrum.

; HR-ESI-MS m/z 500.9340 [M-H]⁻ (calcd. for C₁₄H₁₉Br₂N₂O₆S, 500.93250).

2.4.2. Compound 2: Colourless Amorphous Powder

R_f 0.33 (EtOAc:MeOH = 8:2); UV (MeOH) λ_max (log ε) 236 (4.4) nm; IR (KBr) ν_max 3236, 3061, 2930, 1657, 1628, 1541, 1471, 1455, 1420, 1396, 1256, 1199, 1021.9, 1001, 866, and 737 cm⁻¹; ¹H and ¹³C NMR see

Table 2. ¹H NMR Data (δ in ppm, J in Hz) of compounds 2 (400 MHz) and 3 (600 MHz).

No.	Compound 2 a		Compound 3 b
	δH (J in Hz)	δC	δH (J in Hz)	δC
1		154.0		153.0
2, 6		118.8–119.2 **		118.1
3, 5	7.49 s	134.7	7.48 brs	133.7
4		137.5		136.4 *
7	3.85 s	28.9	3.89 s	39.0
8		152.2		152.6 *
9		165.5		163.5
10	3.55 t (6.8)	38.0	3.54 m 3.76 m	42.3
11	2.06 m	30.6	4.21 m	69.9
12	4.01 t (6.0)	72.4	4.00 dd (4.8,9.0) 4.09 dd (4.8,9.0)	74.6
13		153.0		152.9
14, 18		118.8, 119.2 *		118.9
15, 17	7.48 s	134.5	7.53 brs	130.2
16		140.0		137.8 *
19	2.84 t (7.6)	35.0	5.54 t (8.0)	75.8
20	3.25 t (7.6)	46.4	3.50 t (8.0) 4.00 t (8.0)	48.1
21	3.81 s	61.2		158.5
22			3.83 s	61.0
NH			7.22 m

^a Measured in MeOD, ^b Measured in chloroform-d * δ_C established from the HMBC spectrum, ** Overlapping signals, Measured in MeOD.

; HR-ESI-MS m/z 775.7943 [M-H]⁻ (calcd. for C₂₁H₂₂Br₄N₃O₇S, 775.7906).

2.4.3. Compound 3: Yellowish Amorphous Powder

R_f 0.82 (EtOAc:MeOH = 8:2); ${\left[\alpha \right]}_D^{21}$ −13.2 (c 0.9, CHCl₃); UV (acetonitrile) λ_max (log ε) 236 (4.0) nm; IR (KBr) ν_max 3313, 2926, 2854, 1744, 1662, 1542, 1471, 1422, 1397, 1338, 1258, 1080, 1000, 939, and 739 cm⁻¹; ¹H and ¹³C NMR see Table 2; HR-ESI-MS m/z 753.8063 [M-H]⁻ (calcd. for C₂₂H₂₀Br₄N₃O₇, 753.8059).

2.4.4. Compound 4: Yellowish Amorphous Powder

R_f 0.67 (EtOAc:MeOH = 8:2); UV (MeOH) λ_max (log ε) 236 (3.8) nm, 284 (3.5) nm; IR (KBr) ν_max 3280, 2942, 2834, 1713, 1659, 1532, 1508, 1494, 1366, 1283, 1207, 1016, 930, 801, and 671 cm⁻¹; ¹H and ¹³C NMR see Table 1; HR-ESI-MS m/z 366.9912 [M+Na]+ (calcd. for C₁₂H₁₃BrN₂NaO_5, 366.9906).

2.4.5. Compound 5: Yellowish Amorphous Powder

R_f 0.78 (EtOAc:MeOH = 8:2); ${\left[\alpha \right]}_D^{21}$ −21.8 (c 0.1, CHCl₃); UV (MeOH) λ_max (log ε) 235 (3.8) nm; IR (KBr) ν_max 3338, 2979, 2933, 2252, 1691, 1445, 1404, 1373, 1342, 1237, 1185, 1093, 1066, 764, and 706 cm⁻¹; ¹H and ¹³C NMR see

Table 3. ¹H NMR Data (δ in ppm, J in Hz) of compound 5 (600 MHz).

No.	δH (J in Hz)	δC	NOESY	COSY	HMBC
2		174.3
3′	2.70 d (17.4)	43.1		H-3′′	C-2,C-3a,C-4,C-6a
3′′	2.48 d (17.4)	43.1	H-4	H-3′	C-2,C-4,C-6a
3a		81.2
4	4.20 m	84.4	H-3′′, H-5, H-9, H-10	H-5	C-3,5,6,10
5	6.83 d (1.8)	140.1		H-4	C-3a,C-4,C-6a,C-7
6		139.5
6a	4.48 brs	68.6	OH		C-2,C-3a,C-5
7		163.7
8		61.6	H-9	H-9	C-7,C-9
9	1.31 t (7.2)	14.4	H-8, H-4	H-8	C-8
10	3.73 m	67.5	H-5, H-11	H-10	C-4,C-11
11	1.28 t (7.2)	15.6	H-10a	H-11	C-10
OH	6.06 brs		H-6a		C-3,3a,6a

Measured in chloroform-d.

; HR-ESI-MS m/z 256.1166 [M+H]⁺ calcd for C₁₂H₁₈NO₅, 256.1185, 533.2119 [2M+H]⁺ calcd. for C₂₄H₃₄N₂O₁₀Na, 533.2111.

2.5. Computational Methods

The 3D structures of the molecules were drawn and subjected to conformational analysis in MacroModel v. 9 (Schrödinger LLC, New York, NY, USA) using OPLS-3 forcefield in chloroform. The conformers obtained in an energy window of 10 Kcal/mol were further submitted to geometrical optimization at B3LYP/6-31G(d,p) level for compounds 3 and 14, and B3LYP/6-31++(d,p) for compound 5. Further NMR chemical shift calculation was performed by using mPW1PW91/6-31G+(d,p)/CPCM/methanol for compounds 3 and 14 (data are not shown), and specific rotation calculation of compound 5 was conducted at B3LYP/6-311G++(d,p)/CPCM level in chloroform by considering the sodium D line frequency in the calculation. The obtained specific rotation values were Boltzmann-averaged and utilized for comparison with the experimentally obtained value in chloroform.

2.6. Cell Cultures

T24 cell line (ATCC HTB-4), derived from human urinary bladder carcinoma were obtained from Prof. Dr. Straube, University of Jena, GermanyT24 cells were cultured in Dulbecco’s modified Eagle medium (Merck Millipore, Darmstadt, Germany), supplemented with 10% (v/v) FCS (Merck) and 0.5% penicillin/streptomycin (Merck) at 5% CO₂/37 °C. Passaging took place at 80 to 90% confluence of T24 cells.

The AGS cell line (300408, human stomach adenocarcinoma) were obtained from CLS Cell Lines Service GmbH and cells were cultured in RMPI-1640 (Merck), supplemented with 10% (v/v) FCS (Merck) and 1% penicillin/streptomycin (Merck) at 5% CO₂/37 °C. Passaging took place at 80 to 90% confluence of AGS cells.

SH-SY5Y human neuroblastoma cell line was kindly provided by Dr. Obexer (Tyrolean Cancer Research Institute); human colon adenocarcinoma cell lines DLD-1, SW-480, and LOVO were purchased from DSMZ (Braunschweig, Germany). Human myeloma cell lines NCI-H929, OPM-2, and U266 were also purchased from DSMZ (Braunschweig, Germany). Cell lines were routinely fingerprinted and tested for mycoplasma negativity. Primary human foreskin fibroblasts were purchased from Promocell, Heidelberg, Germany.

PBMCs (peripheral blood mononuclear cells) from healthy donors were utilized after obtaining written consent at the University Hospital Salzburg (Ethics Committee approval 415-E/1287/6-2011). Cells were subjected to Ficoll separation (Ficoll Paque^TM, VWR, Darmstadt, Germany). All cell lines and primary cells were grown in RPMI-1640 (Life Technologies, Paisley, UK), supplemented with 10% fetal calf serum (PAA, Linz, Austria), L-glutamine 100 µg/mL (Biochrom, Berlin, Germany), and penicillin-streptomycin 100 U/mL (Applichem, Darmstadt, Germany).

2.7. Determination of Cell Viability of T24 and AGS Cell Lines (MTT Assay)

To determine the influence of the isolated substances on cell viability towards T24 bladder and AGS stomach cells, MTT assay was performed (Mosmann, 1983). T24 cells were seeded into 96-well plates with 2.0 × 10⁴ cells per well (100 μL), incubated for 24 h at 37 °C with 5% CO₂, and washed with 200 μL/well of PBS. Incubation of the cells with 100 μL of extract or pure substances at different concentrations (100 to 0.1 µM for pure compounds and 500–100 µg/mL for extracts in DMEM without additives) was performed for 24 h at 37 °C/5% CO₂. Subsequently, the supernatant was removed and cells were washed twice with PBS (200 μL/well). In addition, 50 μL of MTT reagent were added to each well and after an incubation period of 24 h at 37 °C/5% CO₂, the MTT reagent was removed and replaced by 50 µL DMSO per well to dissolve the formed insoluble formazan crystals. After 10 min, the amount of formazan was quantified spectrophotometrically in a plate reader at λ = 595 nm, with λ = 690 nm as a reference wavelength. Medium + 10% FCS served as a positive control, while the respective medium used for the sample preparation served as an untreated control. As a negative control, 10% DMSO was used. For AGS, a cell density of 5 × 10⁴ was used and substances were diluted in RPMI medium. At least three analyses in triplicates were performed for each cell line and each concentration of the compounds tested and a solvent control was always included. Data are shown as mean percentage of viable cells and standard error of the mean (SEM) (error bars).

2.8. Cytotoxicity Assays Using FACS Analysis

The induction of apoptosis was measured in cancer cell lines and in fibroblasts/peripheral blood mononuclear cells of healthy donors using established protocols [19]. Adherent cell lines (neuroblastoma cell line SH-SY5Y, colon carcinoma cell lines DLD-1, SW-480, and LOVO, as well as primary foreskin fibroblasts) were seeded at a concentration of 1 × 10⁵ cells/mL in 96-well plates the day before treatment in order to allow attachment. This medium was then replaced by media containing the respective compounds at different concentrations and cells were incubated for 24 h. Solvent controls were always included. Supernatants were collected and pooled with the trypsinized cells of the respective wells. These samples were then stained with AnnexinV-FITC (MabTag GmbH, Friesoythe, Germany) and propidium iodide (Merck, Darmstadt, Germany) and processed by flow cytometry using FACS Canto II and Diva software (Becton Dickinson, San Jose, CA, USA) Biosciences). Data were further analyzed using GraphPad Prism 5.0 software.

Myeloma cell lines NCI-H929, OPM-2, and U266 as well as peripheral blood mononuclear cells (PBMCs) of healthy donors (5 × 10⁵ cells/mL) were incubated with the same compounds for 24 h and subjected to FACS analysis as described above. Etoposide (Merck, Darmstadt, Germany) was used as positive control for adherent cancer cell lines and Bortezomib (Eubio, Vienna, Austria) was used as positive control for myeloma cell lines. The extent of non-apoptotic cells (AnnexinV/propidium iodide negativity) was calculated as percentage of control (untreated) and mean percentage of viable cells and standard deviation (error bars) are shown.

3. Results

3.1. Structure Elucidation

Five out of fifteen compounds isolated from A. aerophoba were novel natural products and their structure elucidation is described below.

3.1.1. Compound 1

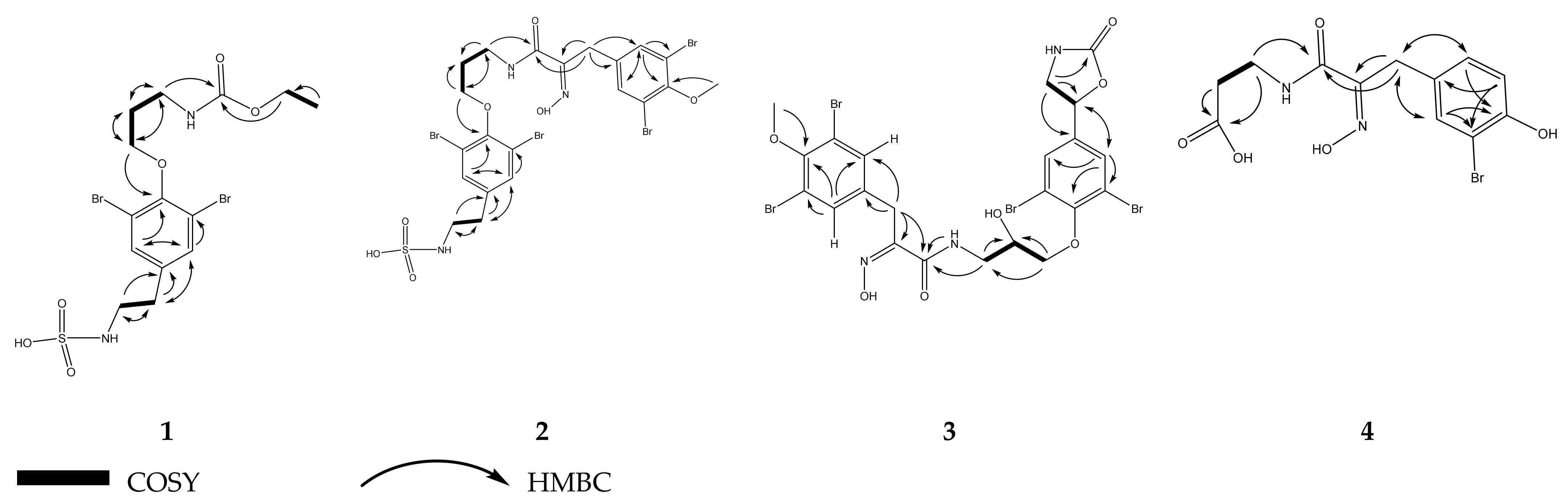

This substance was assigned to the molecular formula C₁₄H₂₀Br₂N₂O₆S as established by a negative ion [M-H]⁻ at m/z 500.9340 (calcd. for C₁₄H₁₉Br₂N₂O₆S 500.9325) in HR-ESI mass spectrum. Characteristic NMR chemical shifts (δ_H 7.49 for H-7, 9 and δ_C 152.9, 119.0, 134.5, 140.9 for C-5, 6, 7, 8, respectively) and MS patterns indicated the presence of a di-bromo substituted phenolic ring. The COSY spectrum revealed three coupling networks (Figure 4), including the protons of the methylenes H-2/H-3/H-4 and H-11/H-12 and the protons of the ethoxy group H-13/H-14. The substructures were connected through a carbamic acid bond by specific chemical shifts of position 1 (δ_C 159.3), 2 (δ_H 3.38, δ_C 39.2), and 13 (δ_H 4.07, δ_C 61.8) and key HMBC correlations of H-2, 13/C-1 (δ_C 159.2). Additionally, the HMBC correlations of H-4 (δ_H 4.02) to C-5 (δ_C 152.9) and H-11 and 12 (δ_H 2.81 and 3.19) to C-8 (δ_C 140.8) revealed the substitution of the phenolic ring (Figure 4). Specific chemical shifts of position 12 (δ_H 3.19, δ_C 46.2) as well as the suggested by HR-MS molecular formula revealed the existence of the sulfamic acid group. The sulfamic group is relatively rare in nature, however it has been found in sponges, already, for example, in araplysillin N-sulfamate isolated from A. fulva [20]. Compound 1, named aeroplysinin-3, was finally identified as (3,5-dibromo-4-(3-((ethoxycarbonyl)amino)propoxy)phenethyl)sulfamic acid, a new natural product.

3.1.2. Compound 3

Compound 3 was assigned to the molecular formula C₂₂H₂₁Br₄N₃O₇, determined by HR-ESI-MS (753.8063 calcd. for [M-H]^-, found 753.8059). The NMR data revealed a new compound bearing the substructure of the right half of fistularin 1 [21], including a 2-oxazolidone ring joined directly to 2,6-dibromophenol, and a N-(2-hydroxypropyl)formamide moiety. Characteristic NMR chemical shifts indicated the presence of an additional 2,6-dibromo-4-methylene-phenol group, which was methylated at position 1, as indicated by the HMBC correlation of the methoxy group (δ_H 3.83) to C-1 (δ_C 153.0) (Figure 4). Furthermore, the protons of the methylene group H-7 (δ_H 3.89) showed an HMBC correlation to the carbon of an oxime group, C-8 (δ_C 152.6), and a further correlation with the carbon of the amide group of the first substructure, C-9 (δ_C 163.5). The IR spectrum also showed characteristic vibrational frequencies of N-O and C=N bonds of oxime group at 939 and 1662 cm⁻¹. Compound 3 was finally identified as (Z)-N-(3-(2,6-dibromo-4-(2-oxooxazolidin-5-yl)phenoxy)-2-hydroxypropyl)-3-(3,5-dibromo-4-methoxyphenyl)-2-(hydroxyimino)propanamide, a new natural product with the trivial name aeroplysinin-5. In order to establish the absolute configuration of compounds 3 (and also its known derivative, 14), one needs to decipher the relative stereochemistry prior to the absolute one. Compound 3 has chiral centers at C-11 and C-19. Due to the lack of NOEs between the protons of the respective carbon atoms, arising from being in two distant tails of the molecule, it was not possible to deduce any conclusion regarding their relative configuration. In an attempt to solve this issue, NMR chemical shift calculation along with computing of the DP4+ probability were applied on all the generated conformers of the possible stereoisomers of compound 3. However, the obtained results failed to establish the relative configurations of the chiral centers, which is possibly arising from (i) the lack of interaction or effect between the two chiral centers, (ii) the high flexibility of the molecule which makes it difficult for proper conformational sampling. The process was similarly applied for the other known derivate (compound 14), but no results could be concluded regarding its relative or absolute configuration, too.

3.1.3. Compound 2

Compound 2 was assigned to the molecular formula C₂₁H₂₃Br₄N₃O₇S as established by a negative [M-H]⁻ signal at m/z 775.7943 (calcd. for C₂₁H₂₂Br₄N₃O₇S 775.7906) in HR-ESI-MS. Characteristic NMR shifts indicated high similarity with compound 3. However, three differences could be observed; the absence of oxygen at the second carbon of the propanol group, which was indicated by lower chemical shifts of the methylene of position 11 (δ_H 2.06, δ_C 30.6), COSY correlations of the methylenes H-10/H-11/H-12 (Figure 4), and the presence of an ethylsulfamic acid group instead of the oxazolidin-2-one ring attached to carbon of position 16. The latter was suggested by COSY correlations of the protons of methylenes H-19/H-20 and key HMBC correlations of H-20/C-16 (δ_C 140.0) and H-9/C-15, 17 (δ_C 134.5). Compound 2 named aeroplysinin-4, was finally identified as (Z)-(3,5-dibromo-4-(3-(3-(3,5-dibromo-4-methoxyphenyl)-2-(hydroxyimino)propanamido)propoxy)phenethyl)sulfamic acid, a new natural product.

3.1.4. Compound 4

Compound 4 was assigned the molecular formula C₁₂H₁₃BrN₂O₅ as established by a positive ion [M+Na]⁺ at m/z 366.9912 (calcd. for C₁₂H₁₃BrN₂NaO₅ 366.9906). NMR shifts indicated the presence of a 2-bromo-4-methylenyl phenol moiety. The methylene group of the phenol ring was connected to a 2-(hydroxyimino) acetamide group as evidenced by specific chemical shifts of position 7 (δ_H 3.78, δ_C 28.8) and HMBC correlations of H-7/C-8, 9 (δ_C 153.1, 165.8). The presence of an oxime group was further supported by characteristic IR absorption bands at 930 and 1659 cm⁻¹, which were assigned for N-O and C=N bonds. Furthermore, the COSY correlation of two methylenes, H-10 and H-11, as well as the HMBC correlations of H-11 (δ_H 2.48) to a carboxylic group at δ_C 176.9 and of H-10 (δ_H 3.48) to C-9, 12 (δ_C 165.8 and 176.9), revealed the chain attached to the NH group (Figure 4). Compound 4 was not present in the sponge’s extract (Figure 5), thus it is an artifact produced during the isolation procedure. Collectively, compound 4 named nor-psammaplin M was finally identified as (Z)-3-(3-(3-bromo-4-hydroxyphenyl)-2-(hydroxyimino)propanamido)propanoic acid, a new natural product.

3.1.5. Compound 5

Compound 5 was assigned the molecular formula C₁₂H₁₇NO₅ as established by two typical signals: [M+H]⁺ at m/z 256.1166 (calcd for C₁₂H₁₈NO₅, 256.1185) and [2M+Na]⁺ at m/z 533.2119 (calcd. for C₂₄H₃₄N₂O₁₀Na 533.2111). Characteristic NMR shifts indicated high similarity with the known compound subereatensin [22], however, compound 5 showed a different optical rotation value ${\left[\alpha \right]}_D^{21}$ −21.8 (c 0.1, CHCl₃) compared to the reported compound${\left[\alpha \right]}_D^{21}$ +25.51 (c 0.002, MeOH) [22]. Additionally, the absence of the NOESY correlation of the methine H-4 to the -OH group of position 3a indicated a different stereochemistry at these positions. Collectively, the relative configuration of compound 5 was deduced as 6aR,3aS,4R. This compound revealed a very week ECD spectrum, which could not be used for the establishment of its absolute stereochemistry. Therefore, optical rotation calculation was implemented to establish its absolute configuration. Briefly, after conformational analysis of compound 5 in chloroform by using MMFF forcefield, 13 conformers were obtained, which were subjected to geometry optimization at B3LYP/6-c31++G(d,p)/CPCM/chloroform and optical rotation at B3LYP/aug-pVTZ/CPCM/chloroform level and by considering the frequency of sodium D line for the calculation. The results demonstrated a Boltzmann-averaged specific rotation value of −59.68 (589.3 nm, sodium D line) for isomer 6aR,3aS,4R. Considering the sign of the calculated specific value, the absolute configuration of compound 5 could be deciphered accordingly. The deviation of the calculated numerical value and the experimental one could be possibly emanated from the conformational analysis and overestimation of the calculation methods. Therefore, compound 5 is a new natural stereoisomer of subereatensin [21]. It was identified as (6aR,3aS,4R)-ethyl 4-ethoxy-3a-hydroxy-2-oxo-1,2,3,3a,4,6a-hexahydrocyclopenta[b]pyrrole-6-carboxylate and given the trivial name iso-subereatensin.

Based on literature and published spectroscopic data, the other 10 isolated compounds were identified as known compounds, and specifically, they are 5-chlorocavernicolin (6) [21], 2-[(1r,4r)-3,5-dibromo-4-ethoxy-1-hydroxy-4-methoxycyclohexa-2,5-dien-1-yl]acetamide (7) [11], 2-[(1s,4s)-3,5-dibromo-4-ethoxy-1-hydroxy-4-methoxycyclohexa-2,5-dien-1-yl]acetamide (8) [11], N,N,N-trimethyl-3,5-dibromotyramine (9) [23], 2-((1s,4s)-3,5-dibromo-4-ethoxy-1-hydroxy-4-methoxycyclohexa-2,5-dien-1-yl)acetic acid (10) [11], 5-[3,5-dibromo-4-(2-oxo-oxazolidin-5-ylmethoxy)-phenyl]-oxazolidin-2-one (11) [24], aeroplysinin-2 (12) [11], 2,6-dibromo-4-hydroxy-4-methoxycarbonylmethylcyclohexa-2,5-dien-1-one (13) [11], fistularin-1 (14) [21], and aplysterol (15) [25]. Compounds 6 and 9 are reported in Aplysina aerophoba for the first time.

A comparison to published data also allowed the identification of the compounds isolated from Spongia sp. They were identified as 2-hexaprenyl-1-4-hydroquinone (16) [26], 2-heptaprenyl-1-4-hydroquinone (17) [27], 2-octaprenyl-1-4-hydroquinone (18) [28], 2-[24 hydroxy] octaprenyl-1-4-hydroquinone (19) [28], and 2-hexaprenylmethyl-2-methylchromen-6-ol (20) [26]. These compounds are already known constituents of Spongia sp.

3.2. Cytotoxic Properties

Cytotoxic properties of almost all compounds isolated from Spongia sp. and Aplysina aerophoba to T24 bladder and AGS stomach tumor cells was determined using the common MTT assay by Mossman et al.

Table 4. Summary of all compounds and their IC₅₀ values of cell viability/% viability at 100 µM. (95% confidence intervals in parentheses).

Compound	AGS	T24
	IC50 µM (CI 95 ±)	IC50 µM (CI 95 ±)
5	Not active	Not active
6	Not active	Not active
7	Not active	54.57% at 100 µM (21.88–107.50)
8	Not active	Not active
9	Not active	Not active
10	Not active	Not active
11*	-	-
12	54.57% at 100 µM (17.87–86.17)	Not active
13	10.14 (8.03 to 12.82)	12.42 (10.65 to 14.48)
14	Not active	56.20% at 100 µM (16.81–70.79)
15*	-	-
16	5.33 (4.03 to 7.06)	Not active
17	0.994 (0.61 to 1.61)	66.63% at 100 µM (45.10–88.16)
18	33.41% at 100 µM (13.02–53.82)	34.38% at 100 µM (7.454–76.22)
19	8.09 (5.68 to 11.52)	Not active
20	Not active	Not active
Spongia sp. extract 500 µg /mL	Not active	Not active
A. aerophoba extract 500 µg/mL	25.26%	Not active

* not tested because of poor solubility.

displays the respective, expressed as IC₅₀ values, as the concentration (µM) of each test compound causing 50% effect in the respective assays. For less active compounds, the % viability at 100 µM concentration is given. Additionally, the two crude extracts were investigated (500 µg/mL). Spongia sp. did not show any toxicity effects whereas the Aplysina aerophoba extract showed a cell viability of only 25.3% after a 24 h treatment. Compounds 13, 16, 17, and 19 showed strong cytotoxic effects towards AGS cells with compound 17 being the most active compound with an IC₅₀ value of 0.99 µM. Compounds 12 and 18 indicated moderate cytotoxic activity towards AGS cells. However only one compound showed significant toxicity towards T24 cells, i.e., for compound 13, an IC₅₀ of 12.42 µM was determined. Compounds 7, 14, 17, and 18 exerted moderate effects. In addition, the same substances (compounds 5–20) were investigated for a potential apoptotic activity towards the neuroblastoma cell line SH-SY5Y in three concentrations (25 to 100 µM) using a fluorescence activated cell sorting readout (FACS). Significant cytotoxicity was observed for compound 13 in this assay (cell viability was measured below 20% for all concentrations) (Figure 6). Subsequently, the five most promising compounds according to the initial screening in the above-mentioned cell lines (compounds 13, 16, 17, 18, and 19) were chosen for further investigations. They were additionally investigated in three colon cancer cell lines (DLD-1, SW-480 and Lovo) for potential cytotoxic effects. Again, compound 13 revealed activity in all cell lines (Figure 7), and decreased cell viability. Compound 18 and 19 showed moderate activity in the highest concentration (100 µM), with a remaining cell viability of around 60% for SW-480 and Lovo cell lines. Compound 13 was found to be cytotoxic against these colon carcinoma cell lines even at lower concentrations ranging from 1–25 µM (Figure 8A). For SH-SY5Y cells, compound 13 was titrated from 25 to 0.63 µM and the IC₅₀ value was determined with 1.78 [CI 95 1.34–2.38] (Figure 8B). In comparison, etoposide, a standard cytotoxic compound used in clinical practice for neuroblastoma treatment, killed 50% of SH-SY5Y cells at a concentration of 340 nM (data not shown). We also utilized human primary fibroblasts for testing in order to delineate a general cytotoxicity of this compound. These non-cancerous cells were significantly less sensitive to 13 supporting a potential anti-cancer effect of this compound with a certain degree of selectivity (Figure 8C). (FACS Plot figures for 13 are shown in the Supplementary Materials).

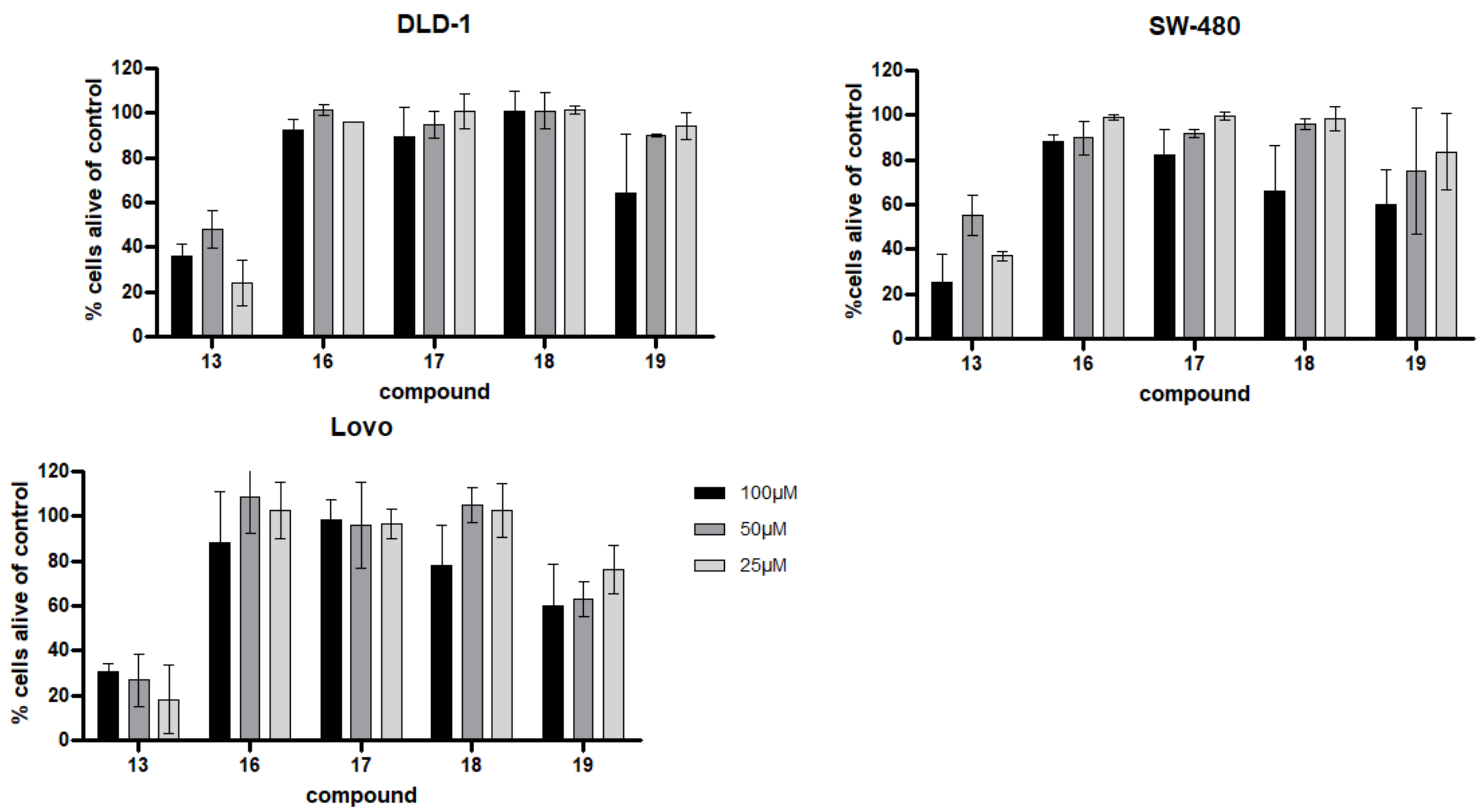

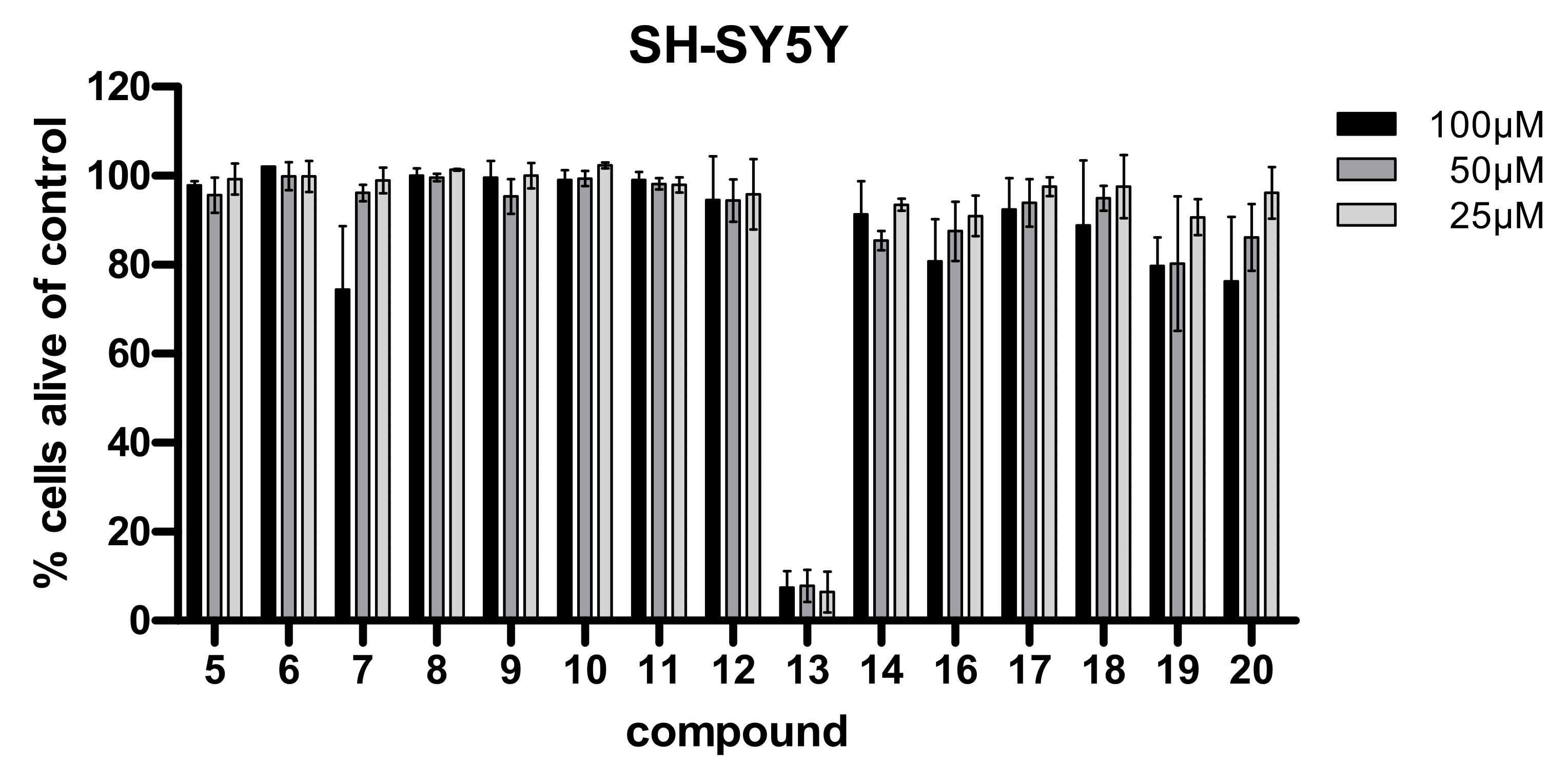

Encouraged by the positive results, compound 13 was further investigated in a hematological cancer model, i.e., multiple myeloma. Again, cytotoxicity was found at low concentrations (concentration range 1 to 25 µM), showing a decreased viability of NCI-H929, OPM-2, and U266 cell lines of 4%, 54%, and 34%, respectively, after 24 h incubation time at a concentration of 5 µM. In non-cancerous blood cells, i.e., peripheral blood mononuclear cells (PBMCs) of healthy donors, compound 13 induced significantly lower levels of cell death, again suggesting that cancer cells might be more susceptible (PBMC 1-3, Figure 9).

4. Discussion and Conclusions

Marine sponges are gaining the attention of the scientific community because of their unique secondary metabolites with a diversity of biological activities. Some of them are being tested in clinical trials against various diseases, mainly with the focus on anti-cancer drugs [29,30].

A. aerophoba and Spongia sp. were selected for this study because initial screening experiments already indicated that they contain interesting and possibly new metabolites.

Apart from the commonly studied bromotyrosines from A. aerophoba which are compounds with interesting antibacterial and antitumor activities [13,31], attention has been focused on chitin which has further applications, e.g., as scaffold in tissue engineering, pharmacological applications, and regenerative medicine [13,32]. Furthermore, the farming of Spongia sp. for commercial purposes as bath sponges has been going on for more than a century [33]. These sponges have a high commercial value and they are successfully employed in experimental aquaculture experiences [34]. The enormous filtering capacity of sponges has led to the suggestion that they be farmed for bioremediation purposes, e.g., to reduce the high bacterial loads resulting from sewage discharges and areas subjected to aquaculture activities [33,34]. Additionally, Spongia sp. have recently been studied as an alternative source of collagen which is found in their extracellular skeletal matrix [17].

In our study, twenty metabolites, mainly halogenated compounds and prenylated hydroquinones, were isolated using a purification protocol including liquid–liquid extraction, fractionation on silica gel column and Sephadex LH-20 columns, and a final clean-up step with semipreparative HPLC or flash chromatography. Four brominated metabolites and an isomer of subereatensin isolated from A. aerophoba have been identified as novel natural products and two additional brominated compounds were reported from A. aerophoba for the first time.

It is already known that some of the isolated compounds exert cytotoxic and antimicrobial properties, e.g., aeroplysinin-2 is known to possess moderate antibacterial activity against the Gram-positive bacteria Staphylococcus lentus, Propionibacterium acnes, and Bacillus subtilis [31], the mouse fibroblasts NIH-3T3, the human hepatocellular carcinoma cell line HepG2, and the human colon adenocarcinoma cell line HT-29 [31]. Additionally, aeroplysinin-1 shows cytotoxic effects against human neuroblastoma (SH-SY5Y) [13]. Further, 2-Octaprenyl-1-4-hydroquinone has been reported to inhibit marine bacterial strains (both Gram-positive and -negative bacteria) [35], while 2-[24 hydroxy] octaprenyl-1-4-hydroquinone revealed moderate cytotoxic activity against C98 cells and good antibacterial activity against S. aureus and E. cloacae [36]. In addition, 2,6-Dbromo-4-hydroxy-4-methoxycarbonylmethylcyclohexa-2,5-dien-1-one, the most cytotoxic compound in our study, had only been investigated for its anti-microbial properties showing weak effects [37].

When evaluating the possible cytotoxic effects of the isolated metabolites, only a few of them showed activities in the investigated cell lines. For AGS stomach tumor cells, compound 17 was found to be the most toxic, while compound 13 showed the highest cytotoxic activity in all other cell lines tested. Therefore, this compound seems to be interesting for further studies, especially because our data indicated selectivity towards cancer cells.

Sponges often contain diverse and abundant microbial communities in their tissues and in many cases, the associated bacterial communities account for over 40% of the biomass of their hosts [30,34]. In the past few years, more and more evidence has accumulated in which a part of the isolated metabolites are not produced by the sponges themselves, but instead, they are products of the metabolic activities of bacteria living in the sponge tissue [34]. This also could be the case for the compounds isolated within this study. Our results suggest that A. aerophoba and Spongia sp., among other demosponges which currently attract increased interest in the scientific community, are a rich source of interesting compounds. This refers to unique chemical structures as well as promising bioactivities.
