A Compact In-Line Waveguide-to-Microstrip Transition in the Q-Band for Radio Astronomy Applications

1
Department of Electrical and Electronic Engineering, University of Cagliari, Piazza D’Armi, 09123 Cagliari, Italy
2
Italian Space Agency, 00133 Rome, Italy
*
Author to whom correspondence should be addressed.
Received: 5 January 2018 / Revised: 13 February 2018 / Accepted: 16 February 2018 / Published: 24 February 2018
View Full-Text   |   Download PDF [1731 KB, uploaded 24 February 2018]   |

Abstract

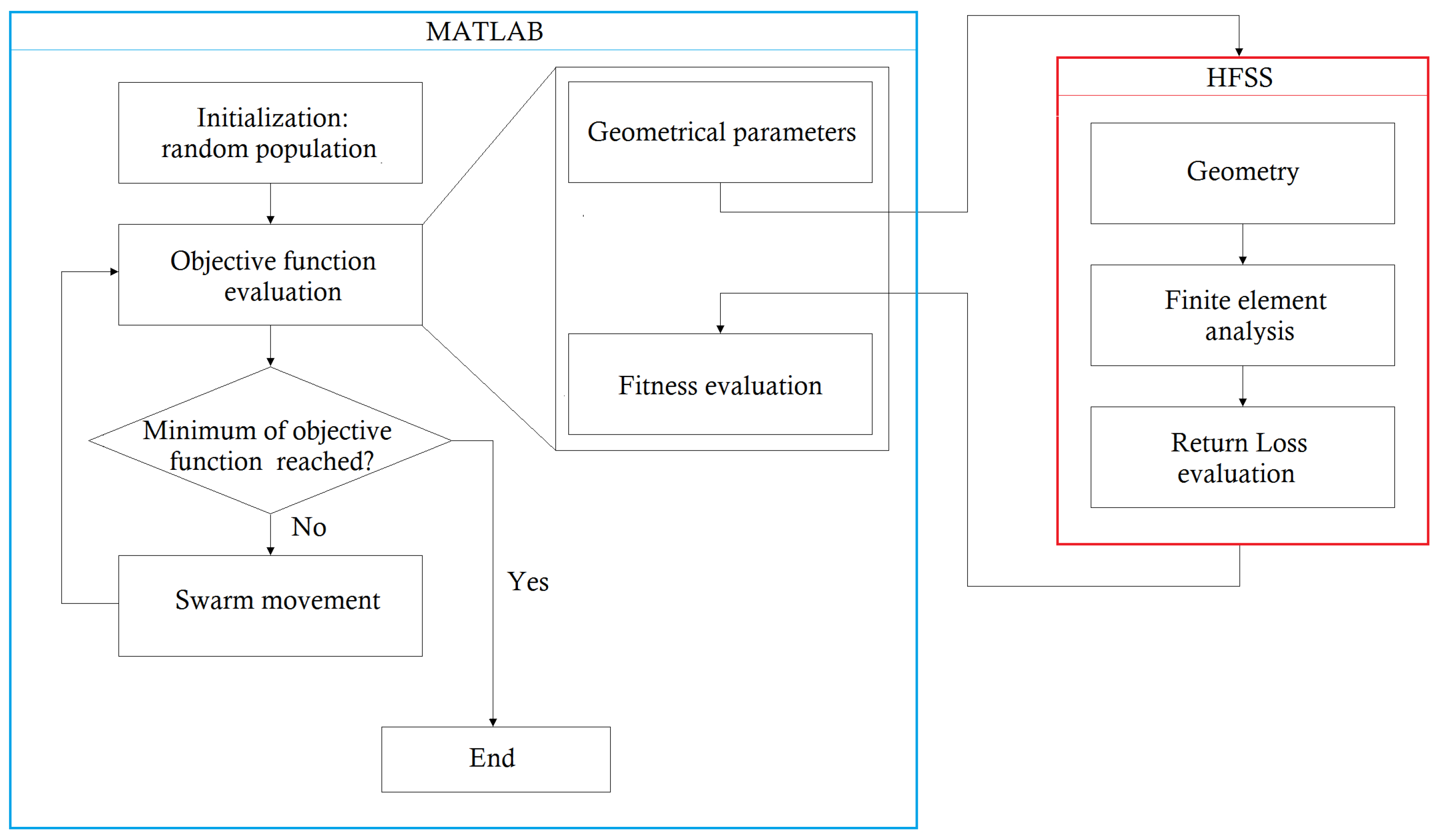

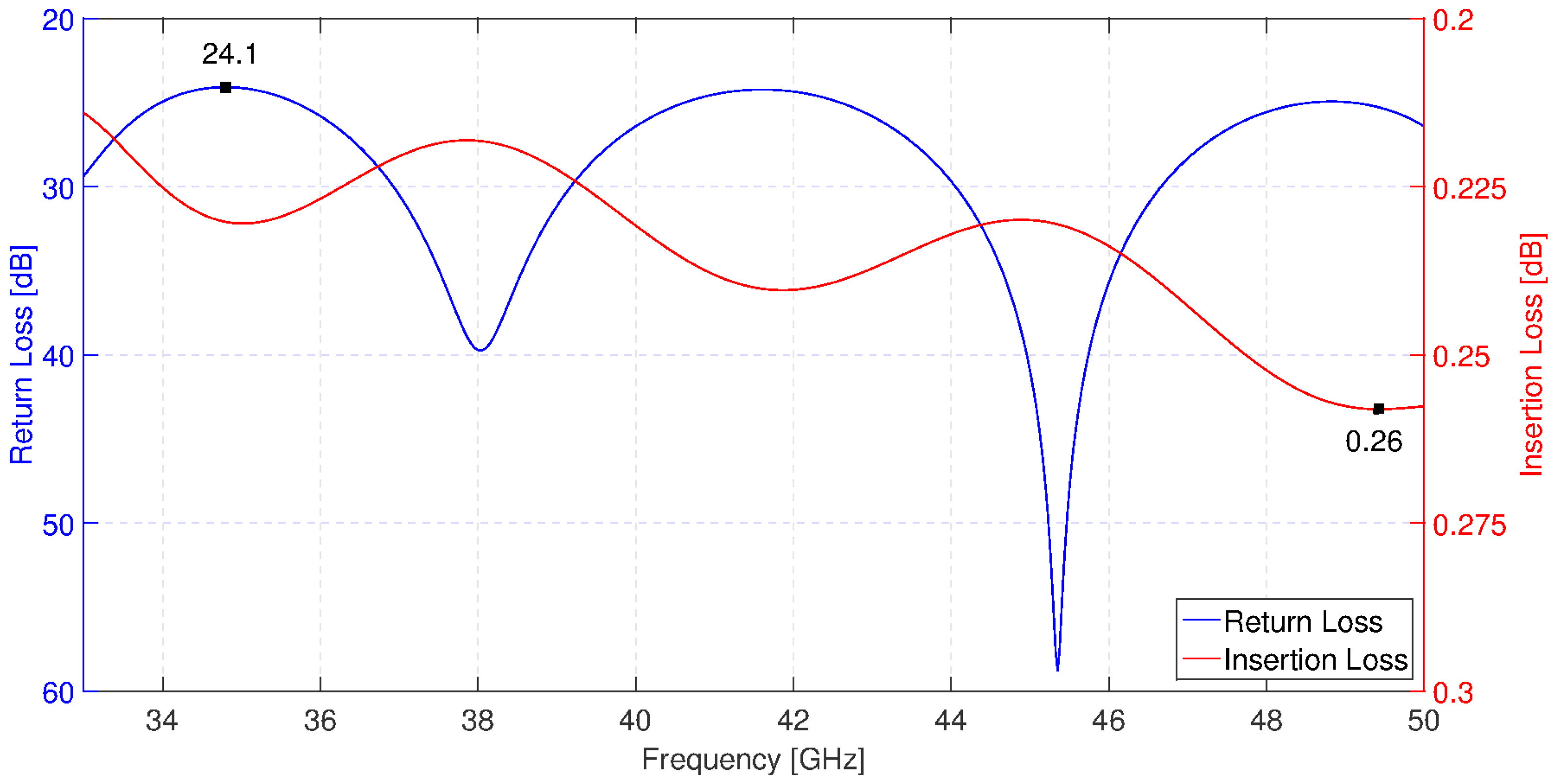

A microstrip-to-waveguide transition has been realized for radio astronomy applications, designed to operate in the Q-band (33–50 GHz). As part of an array radio frequency (RF) receiver, the main requirement of such a transition is the reduction of transverse space occupation for the integration in the entire receiver chain, so an in-line configuration has been developed. Moreover, the high frequency band implies that an easy fabrication is a critical requirement if a good match between the two guiding structures is to be obtained in the desired band (with a relative bandwidth of 40%). The combination of CAD software and an optimization tool allows the device to achieve a good return loss over the entire band. View Full-Text
Keywords: transition; end-launcher; waveguide; microstrip; optimization; PSO transition; end-launcher; waveguide; microstrip; optimization; PSO
