Analysis of Grid-Connected Stability of VSG-Controlled PV Plant Integrated with Energy Storage System and Optimization of Control Parameters

Abstract

In the static stability analysis of the grid-connected photovoltaic (PV) generation and energy storage (ES) system, the grid-side is often simplified using an infinite busbar equivalent, which streamlines the analysis but neglects the dynamic characteristics of the grid, leading to certain inaccuracies in the results. Furthermore, the control parameter design does not consider the coupling relationships among parameters, resulting in arbitrary values and the inability to achieve overall optimality. To address these issues, this paper presents a comprehensive parameter optimization method for the oscillation characteristics of grid-connected PV generation and ES systems in various frequency ranges. Firstly, a detailed modeling of the grid-connected PV generation and ES system is conducted, resulting in the derivation of the system’s small-signal model. This study investigates the impact of parameters related to PV arrays, ES units, and the virtual synchronous generator (VSG) on the system’s characteristic roots using participation factors, sensitivity analysis, and eigenvalue root trajectories. Subsequently, based on the analysis of system root trajectories and the Particle Swarm Optimization (PSO) algorithm, a holistic parameter optimization design method for the system’s oscillation modes is proposed, and the parameter optimization results are obtained. Finally, the accuracy of the theoretical analysis is validated through perturbation testing using both Matlab/Simulink models and the small-signal model.

1. Introduction

Renewable energy and distributed generation have garnered widespread attention and rapid development as effective solutions to mitigate greenhouse gas emissions and address energy crises [1]. To ensure the power quality and flexible control of distributed energy sources, power electronic converters play a crucial role as interfaces between distributed generators and the utility grid, and their optimized control is essential for stable system operation [2]. Based on the constructiveness of grid frequency, power electronic converters can be categorized into Grid-Following (GFL) and Grid-Forming (GFM) synchronous control. Presently, most grid-connected distributed energy sources adopt GFL control based on phase-locked loops, which enable maximum power tracking [3] and exhibit high efficiency and stability in conventional strong power grids with high short circuit ratios. However, in weak power grids with a high penetration of renewable energy sources, GFL control is no longer appropriate [4,5]. Virtual synchronous generator (VSG) control, as a representative GFM synchronous control method, emulates the rotor motion and excitation characteristics of traditional synchronous generators (SGs) by introducing inertia, damping, and droop control in the frequency and voltage amplitude domains of grid-connected devices. VSG control holds the potential to address the issues of voltage, inertia, and damping support in systems where renewable and distributed generation cannot provide these essential grid attributes. Due to its adaptability to weak power grids, VSG research has been widely applied in energy storage (ES) integration [6,7] and photovoltaic (PV) generation [8]. However, VSG grid-connected systems encounter power stability issues similar to SGs [9] and inherent harmonic oscillations stemming from interactions in the Direct Current (DC)-side, voltage source converter, and grid-end system, leading to harmonic oscillations in the hundreds to thousands of hertz range. Therefore, effective modeling and analysis methods are needed to address the stability of VSG grid-connected systems with high renewable energy penetration.

To analyze the influence of key parameters on VSG stability, Yan et al. [10] conducted a small-signal modeling of a VSG-connected resistance–reactance load system under islanding conditions, investigating the effects of line and load parameter variations on system stability. Chen [11] established a small-signal model for a microgrid containing a VSG, analyzing the impact of control and circuit parameters on system stability. However, their models had high order, making further analysis and practical application challenging. Ref. [12] suggested that when a single VSG is connected to the grid, if the line resistance and reactance are of similar magnitudes, active and reactive power become coupled, leading to oscillations. Jiang et al. [13] used a state-space model to analyze the influence of inner loop proportional gain, integral coefficient, and virtual inductance parameters on harmonic oscillation characteristics. Xu et al. [14,15] improved dynamic characteristics by adding a differential loop in the VSG power loop but introduced high-frequency interference, affecting calculation accuracy. Liu et al. [16,17] established a state-space model for a multi-inverter and interconnected system based on VSG algorithms, analyzing the contribution of various parameters to eigenvalue modes through sensitivity analysis. Zeng D et al. [18] analyzed the interaction between multiple VSGs and the grid, revealing that parallel oscillations originate from power oscillations but did not further analyze the power sources. The aforementioned references did not consider the dynamic characteristics of the grid-end while conducting small-signal stability analysis, simplifying the analysis process but sacrificing accuracy. Additionally, they did not account for the coupling relationships among control parameters when analyzing them, relying solely on the impact of eigenvalue trajectories to design parameters, resulting in suboptimal parameter selection.

To address these issues, this paper proposes a global optimization method for control parameters related to system oscillation modes. First, based on the aforementioned literature, a detailed modeling of various components in a photovoltaic–storage power generation system controlled by a VSG is conducted, resulting in the derivation of the system’s small-signal model. By combining system participation factors, sensitivity analysis, and eigenvalue root trajectory analysis, the properties of different oscillation modes of the system are determined, and the parameters to be optimized, along with their corresponding solution spaces, are identified. Subsequently, a global optimization method for controller parameters that enhance system stability is presented, and the accuracy of the theoretical analysis is validated through simulations.

2. Modeling of PV Generation and ES System

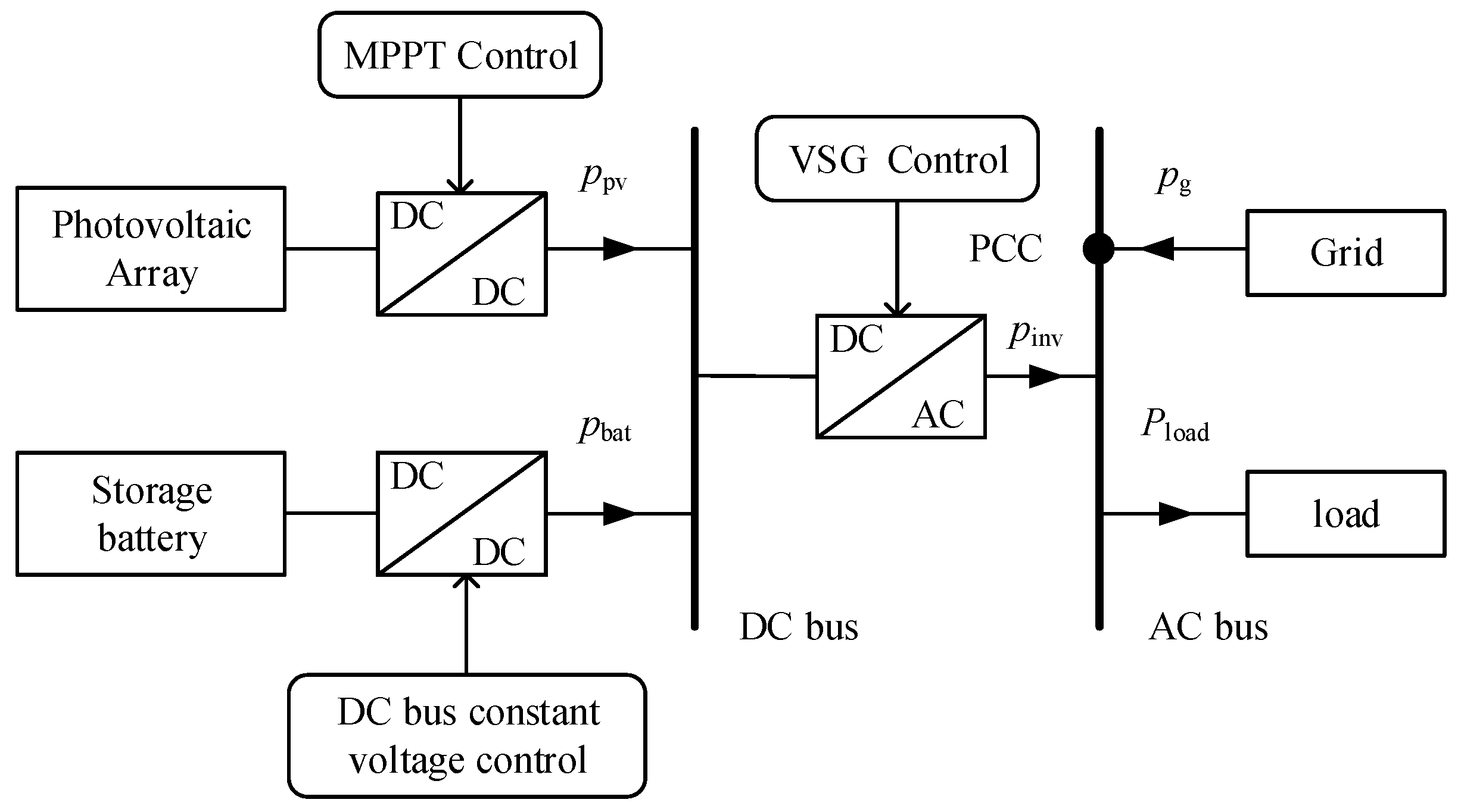

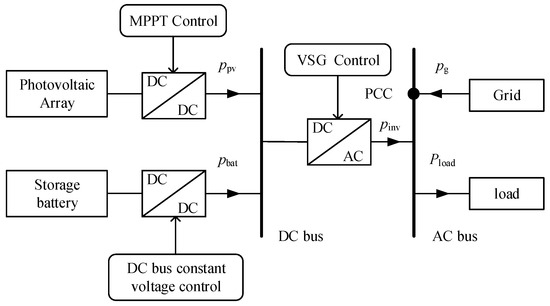

The structure of the PV and ES system is depicted in Figure 1. The PV array and the battery are connected to the DC bus through a Boost converter and a bidirectional DC-DC converter, respectively. The inverter power source is connected to the Point of Common Coupling (PCC) with a pure power load and an SG. The PV array employs maximum power point tracking (MPPT) control to ensure it operates near its maximum power point (MPP), even in varying external conditions. The ES unit, through constant voltage bus control, serves to smooth out the energy fluctuations of the photovoltaic generation system, stabilize the DC bus voltage, and facilitate bidirectional energy flow. The inverter utilizes VSG control, endowing the grid-connected device with characteristics such as rotational inertia and damping components, significantly enhancing the power output and frequency disturbance resistance of PV and ES units. Compared to traditional photovoltaic and storage grid-connected systems, a photovoltaic–storage power generation system based on VSG control possesses rotational inertia and damping sharing features, greatly improving the output power and frequency disturbance resistance of PV and ES units.

In Figure 1, when neglecting line losses, the power balance relationship in the system can be expressed as Equation (1):

$$\left\{\begin{array}{c}{p}_{\mathrm{p}\mathrm{v}}+p_{\mathrm{b}\mathrm{a}\mathrm{t}}=p_{\mathrm{i}\mathrm{n}\mathrm{v}}\\ p_{\mathrm{i}\mathrm{n}\mathrm{v}}+p_{\mathrm{g}}=P_{\mathrm{l}\mathrm{o}\mathrm{a}\mathrm{d}}\end{array}\right.$$

(1)

where p_pv is the power output from the PV array, (positive); p_bat is the power absorbed or released by the ES unit (positive when discharging, negative when charging); p_inv is the power output from the inverter, which varies with the grid power, exporting or absorbing power; p_g is the grid-connected power; P_load is the load and line loss power. All powers except for P_load are considered positive in the direction of output.

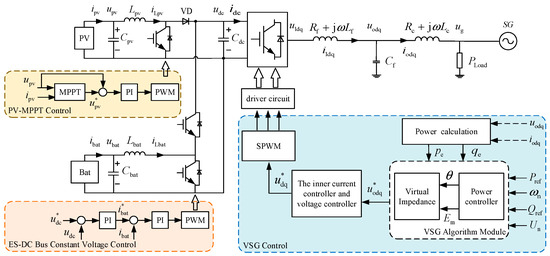

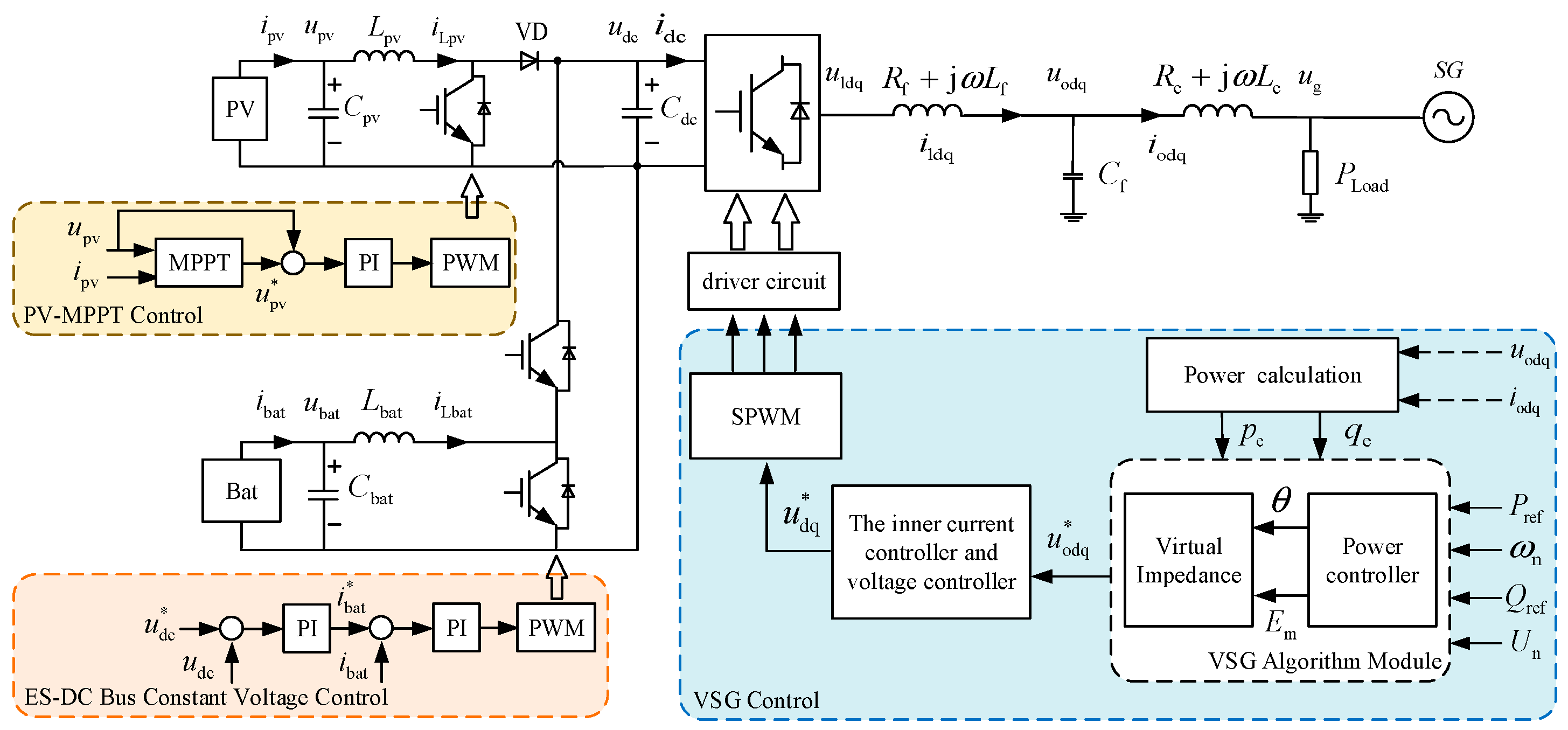

The PV and ES system based on VSG control, as shown in Figure 2, consists of the DC-side, including PV and ES converter hardware and control components, and the Alternating Current (AC)-side, which comprises VSG control and grid-equivalent components. The DC-side is modeled in the time domain, while the AC-side is modeled using dq coordinates. Finally, by coordinate transformation, a unified reference frame is achieved, allowing for the linearization of both DC and AC models and the construction of the small-signal model for the entire system. The following sections will analyze these components separately.

2.1. Modeling of DC-Side Power Generation System and Its Controller

The mathematical model for the main circuit of the PV generation system encompasses components such as the PV array output voltage, stabilizing capacitor, L-filter, and Boost step-up circuit. To describe the behavior of the PV side, this study employs an average-value model. This modeling approach yields the equation set presented in Equation (2), where d_p is the duty cycle controlling the PV converter switch.

$$\begin{gathered} C_{\mathrm{p}\mathrm{v}}\frac{\mathrm{d}{u}_{\mathrm{p}\mathrm{v}}}{\mathrm{d}t}=i_{\mathrm{p}\mathrm{v}}-i_{\mathrm{L}\mathrm{p}\mathrm{v}} \\ {L}_{\mathrm{p}\mathrm{v}}\frac{\mathrm{d}{i}_{\mathrm{L}\mathrm{p}\mathrm{v}}}{\mathrm{d}t}=u_{\mathrm{p}\mathrm{v}}-u_{\mathrm{d}\mathrm{c}}(1-d_{\mathrm{p}}) \end{gathered}$$

(2)

To improve the efficiency of solar energy utilization, the tracking of MPPT is achieved by controlling the on/off states of the Boost circuit’s switching transistors. The control diagram is depicted in Figure 2, where the PV output voltage u_pv is compared to the MPP voltage $u_{\mathrm{p}\mathrm{v}}^{*}$ determined by the MPPT algorithm. Through the utilization of a Proportional–Integral (PI) controller, the duty cycle d_p is calculated and subsequently compared to a carrier signal to generate Pulse Width Modulation (PWM) triggering pulses. As environmental factors such as sunlight intensity and temperature fluctuate, the error value also changes accordingly, resulting in adjustments to the duty cycle of the triggering pulses. This dynamic process enables the system to effectively track MPP, as demonstrated in Equation (3), where K_p1 and K_i1 represent the proportional and integral coefficients of MPPT control, and x₁ denotes the state variable within the PI controller.

$$\begin{gathered} \frac{\mathrm{d}{x}_1}{\mathrm{d}t}=u_{\mathrm{p}\mathrm{v}}-u_{\mathrm{p}\mathrm{v}}^{*} \\ {d}_{\mathrm{p}}=K_{\mathrm{p}1}\left(u_{\mathrm{p}\mathrm{v}}-u_{\mathrm{p}\mathrm{v}}^{*}\right)+K_{\mathrm{i}1}{x}_1 \end{gathered}$$

(3)

ES and generation systems exhibit two topological configurations: In the Buck operating mode, energy flows from the DC bus to the ES, treating the ES as a load integrated into the system. Conversely, in the Boost operating mode, energy travels from the ES towards the DC bus, with the ES acting as a power source. To describe the behavior of the ES rectification side, this study utilizes an average-value model, resulting in the equation set outlined in Equation (4), where d_b signifies the duty cycle governing the ES rectifier.

$$\begin{gathered} C_{\mathrm{b}\mathrm{a}\mathrm{t}}\frac{\mathrm{d}{u}_{\mathrm{b}\mathrm{a}\mathrm{t}}}{\mathrm{d}t}=i_{\mathrm{b}\mathrm{a}\mathrm{t}}-i_{\mathrm{L}\mathrm{b}\mathrm{a}\mathrm{t}} \\ {L}_{\mathrm{b}\mathrm{a}\mathrm{t}}\frac{\mathrm{d}{i}_{\mathrm{L}\mathrm{b}\mathrm{a}\mathrm{t}}}{\mathrm{d}t}=u_{\mathrm{b}\mathrm{a}\mathrm{t}}-u_{\mathrm{d}\mathrm{c}}(1-d_{\mathrm{b}}) \end{gathered}$$

(4)

To enable the functionality of peak shaving and valley filling in the ES, a dual closed-loop control strategy for voltage regulation is employed. The control diagram, as depicted in Figure 2, operates as follows: The deviation between the reference voltage $u_{\mathrm{dc}}^{*}$ and the actual voltage u_dc on the DC bus is processed through a voltage loop PI controller, resulting in a reference current $i_{\mathrm{bat}}^{*}$, which is subsequently compared to the ES output current. After passing through a current loop PI controller, it generates the desired duty cycle d_b. Consequently, two sets of PWM pulse trains are generated by comparing with the carrier signal, controlling the switching transistors. This control process is represented by Equation (5), where K_p2,3 and K_i2,3 represent the proportional and integral coefficients governing constant voltage control on the bus, while x_2,3 denotes the state variable within the dual PI control loop.

$$\begin{gathered} \frac{\mathrm{d}{x}_2}{\mathrm{d}t}=u_{\mathrm{d}\mathrm{c}}-u_{\mathrm{d}\mathrm{c}}^{*} \\ \frac{\mathrm{d}{x}_3}{\mathrm{d}t}=K_{\mathrm{p}2}\frac{\mathrm{d}{x}_2}{\mathrm{d}t}+K_{\mathrm{i}2}{x}_2-i_{\mathrm{b}\mathrm{a}\mathrm{t}} \\ {d}_{\mathrm{b}}=K_{\mathrm{p}3}\frac{\mathrm{d}{x}_3}{\mathrm{d}t}+K_{\mathrm{i}3}{x}_3 \end{gathered}$$

(5)

The DC port interfaces the PV generation and ES system with the converter’s DC-side, ensuring a constant voltage supply to achieve energy exchange. According to the topological structure depicted in Figure 2, the equation set can be outlined in Equation (6) as follows:

$$\begin{gathered} C_{\mathrm{d}\mathrm{c}}\frac{\mathrm{d}{u}_{\mathrm{d}\mathrm{c}}}{\mathrm{d}t}=(1-d_{\mathrm{p}})i_{\mathrm{L}\mathrm{p}\mathrm{v}}+(1-d_{\mathrm{b}})i_{\mathrm{L}\mathrm{b}\mathrm{a}\mathrm{t}}-i_{\mathrm{d}\mathrm{c}} \\ {p}_{\mathrm{d}\mathrm{c}}=u_{\mathrm{d}\mathrm{c}}{i}_{\mathrm{d}\mathrm{c}}=p_{\mathrm{o}}=\frac{3}{2}(u_{\mathrm{o}\mathrm{d}}{i}_{\mathrm{o}\mathrm{d}}+u_{\mathrm{o}\mathrm{q}}{i}_{\mathrm{o}\mathrm{q}}) \end{gathered}$$

(6)

where p_dc is the instantaneous power output on the DC-side; p_o is the instantaneous output power from the inverter; and u_odq and i_odq represent the voltage and current outputs from the inverter, respectively, in the dq coordinate system.

2.2. Modeling of AC-Side Virtual Synchronous Machine and Its Controller

The voltage-controlled ES VSG grid-connected system, as depicted in Figure 2, is subjected to small-signal modeling following procedures detailed in Yan et al. [10], Chen [11], and Xu et al. [14]. For this modeling, the dq rotating coordinate system was selected as the reference coordinate system. This small-signal modeling encompasses five key components: power calculation, power control, virtual impedance control, dual-loop voltage-current control, and the grid interface circuit. The power calculation component employs a low-pass filter to compute the average output power of the inverter. In the power control module, electrical characteristics resembling those of an SG are emulated, enabling functions such as inertia support, primary frequency regulation, and reactive power–voltage regulation. Virtual impedance control introduces stator electrical characteristics of a synchronous machine into the control loop by simulating properties like synchronous reactance and armature resistance. The dual-loop voltage-current control module generates voltage reference signals and produces PWM drive signals to control various switching devices. Differential equations governing these five components are presented in Equations (7)–(11).

$$\left\{\begin{array}{l}{p}_{\mathrm{e}}=\frac{{\omega }_{\mathrm{c}}}{s+{\omega }_{\mathrm{c}}}\left[\frac{3}{2}(u_{\mathrm{o}\mathrm{d}}{i}_{\mathrm{o}\mathrm{d}}+u_{\mathrm{o}\mathrm{q}}{i}_{\mathrm{o}\mathrm{q}})\right]\\ q_{\mathrm{e}}=\frac{{\omega }_{\mathrm{c}}}{s+{\omega }_{\mathrm{c}}}\left[\frac{3}{2}(-u_{\mathrm{o}\mathrm{d}}{i}_{\mathrm{o}\mathrm{d}}+u_{\mathrm{o}\mathrm{q}}{i}_{\mathrm{o}\mathrm{q}})\right]\end{array}\right.$$

(7)

$$\left\{\begin{array}{l}\frac{\mathrm{d}\omega }{\mathrm{d}t}=\frac{1}{J{\omega }_0}\left[P_{\mathrm{r}\mathrm{e}\mathrm{f}}-p_{\mathrm{e}}-K_{\mathrm{D}\mathrm{p}}(\omega -{\omega }_0)\right]-\frac{D_{\mathrm{p}}}{J}(\omega -{\omega }_0)\\ \frac{\mathrm{d}{e}_{\mathrm{d}}}{\mathrm{d}t}=K_{\mathrm{q}}{Q}_{\mathrm{r}\mathrm{e}\mathrm{f}}+K_{\mathrm{q}}\left[D_{\mathrm{q}}(U_n-\sqrt{u_{\mathrm{o}\mathrm{d}}^2+u_{\mathrm{o}\mathrm{q}}^2})-q_{\mathrm{e}}\right]\end{array}\right.$$

(8)

$$\left\{\begin{array}{l}{u}_{\mathrm{o}\mathrm{d}}^{*}=e_{\mathrm{d}}-r_{\mathrm{v}}{i}_{\mathrm{o}\mathrm{d}}+\omega L_{\mathrm{v}}{i}_{\mathrm{o}\mathrm{q}}\\ u_{\mathrm{o}\mathrm{q}}^{*}=e_{\mathrm{q}}-\omega L_{\mathrm{v}}{\mathrm{i}}_{\mathrm{o}\mathrm{d}}-r_{\mathrm{v}}{i}_{\mathrm{o}\mathrm{q}}\end{array}\right.$$

(9)

$$\left\{\begin{array}{l}\frac{\mathrm{d}{\varphi }_{\mathrm{d}}}{\mathrm{d}t}=u_{\mathrm{o}\mathrm{d}}^{*}-u_{\mathrm{o}\mathrm{d}};\frac{\mathrm{d}{\varphi }_{\mathrm{q}}}{\mathrm{d}t}=u_{oq}^{*}-u_{oq}\\ \frac{\mathrm{d}{\gamma }_{\mathrm{d}}}{\mathrm{d}t}=i_{\mathrm{l}\mathrm{d}}^{*}-i_{\mathrm{l}\mathrm{d}};\frac{\mathrm{d}{\gamma }_{\mathrm{q}}}{\mathrm{d}t}=i_{\mathrm{l}\mathrm{q}}^{*}-i_{\mathrm{l}\mathrm{q}}\\ i_{\mathrm{l}\mathrm{d}}^{*}=i_{\mathrm{o}\mathrm{d}}-\omega C_{\mathrm{f}}{u}_{\mathrm{o}\mathrm{q}}+K_{\mathrm{p}\mathrm{v}}\frac{\mathrm{d}{\varphi }_{\mathrm{d}}}{\mathrm{d}t}+K_{\mathrm{i}\mathrm{v}}{\varphi }_{\mathrm{d}}\\ i_{\mathrm{l}\mathrm{q}}^{*}=i_{\mathrm{o}\mathrm{q}}+\omega C_f{u}_{od}+K_{\mathrm{p}\mathrm{v}}\frac{\mathrm{d}{\varphi }_{\mathrm{q}}}{\mathrm{d}t}+K_{\mathrm{i}\mathrm{v}}{\varphi }_{\mathrm{q}}\\ u_{\mathrm{d}}^{*}=u_{od}-\omega L_{\mathrm{f}}{i}_{\mathrm{l}\mathrm{q}}+K_{\mathrm{p}\mathrm{c}}\frac{\mathrm{d}{\gamma }_{\mathrm{d}}}{\mathrm{d}t}+K_{\mathrm{i}\mathrm{c}}{\gamma }_{\mathrm{d}}\\ u_{\mathrm{q}}^{*}=u_{\mathrm{o}\mathrm{q}}+\omega L_{\mathrm{f}}{i}_{\mathrm{l}\mathrm{d}}+K_{\mathrm{p}\mathrm{c}}\frac{\mathrm{d}{\gamma }_{\mathrm{q}}}{\mathrm{d}t}+K_{\mathrm{i}\mathrm{c}}{\gamma }_{\mathrm{q}}\end{array}\right.$$

(10)

$$\left\{\begin{array}{l}\begin{array}{l}\frac{\mathrm{d}{i}_{\mathrm{l}\mathrm{d}}}{\mathrm{d}t}=\frac{1}{L_{\mathrm{f}}}\left(-R_{\mathrm{f}}{i}_{\mathrm{l}\mathrm{d}}+\omega L_{\mathrm{f}}{i}_{\mathrm{l}\mathrm{q}}+u_{\mathrm{l}\mathrm{d}}-u_{\mathrm{o}\mathrm{d}}\right)\\ \frac{\mathrm{d}{i}_{\mathrm{l}\mathrm{q}}}{\mathrm{d}t}=\frac{1}{L_{\mathrm{f}}}\left(-R_{\mathrm{f}}{i}_{\mathrm{l}\mathrm{q}}+\omega L_{\mathrm{f}}{i}_{\mathrm{l}\mathrm{d}}+u_{\mathrm{l}\mathrm{q}}-u_{\mathrm{o}\mathrm{q}}\right)\\ \frac{\mathrm{d}{u}_{\mathrm{o}\mathrm{d}}}{\mathrm{d}t}=\frac{1}{C_{\mathrm{f}}}\left(\omega C_{\mathrm{f}}{u}_{\mathrm{o}\mathrm{q}}+i_{\mathrm{l}\mathrm{d}}-i_{\mathrm{o}\mathrm{d}}\right)\\ \frac{\mathrm{d}{u}_{\mathrm{o}\mathrm{q}}}{\mathrm{d}t}=\frac{1}{C_{\mathrm{f}}}\left(-\omega C_{\mathrm{f}}{u}_{\mathrm{o}\mathrm{d}}+i_{\mathrm{l}\mathrm{q}}-i_{\mathrm{o}\mathrm{q}}\right)\end{array}\\ \frac{\mathrm{d}{i}_{\mathrm{o}\mathrm{d}}}{\mathrm{d}t}=\frac{1}{L_{\mathrm{c}}}\left(\omega L_{\mathrm{c}}{i}_{\mathrm{o}\mathrm{q}}+u_{\mathrm{o}\mathrm{d}}+u_{\mathrm{g}\mathrm{d}}-R_{\mathrm{c}}{i}_{\mathrm{o}\mathrm{d}}\right)\\ \frac{\mathrm{d}{i}_{\mathrm{o}\mathrm{q}}}{\mathrm{d}t}=\frac{1}{L_{\mathrm{c}}}(-\omega L_{\mathrm{c}}{i}_{\mathrm{o}\mathrm{d}}+u_{\mathrm{o}\mathrm{q}}+u_{\mathrm{g}\mathrm{q}}-R_{\mathrm{c}}{i}_{\mathrm{o}\mathrm{q}})\end{array}\right.$$

(11)

where p_e and q_e are the active and reactive power output of the VSG; ω_c is the cutoff frequency of the low-pass filter; P_ref is the active power command; J is the virtual rotational inertia; D_p is the virtual damping factor of frequency; ω and ω₀ are the virtual angular frequency and rated angular frequency; K_DP is the active frequency modulation coefficient; Q_ref is the reactive power command value; U_n is the rated voltage amplitude; K_q is the reactive integral coefficient; D_q is the coefficient governing reactive voltage regulation; e_d and e_q are the d- and q-axis components of the internal potential e, respectively; u_od, u_oq, i_od, and i_oq are the dq-axis components of the VSG output voltage and current, respectively; $u_{\mathrm{o}\mathrm{d}}^{*}$ and $u_{\mathrm{o}\mathrm{q}}^{*}$ are the voltage reference values provided by the virtual impedance module for voltage and current closed-loop control; r_v and L_v are the virtual resistance and virtual inductance, respectively; $i_{\mathrm{l}\mathrm{d}}^{*}$ and $i_{\mathrm{l}\mathrm{q}}^{*}$ are the reference values from the voltage loop for the current loop; $u_{\mathrm{d}}^{*}$ and $u_{\mathrm{q}}^{*}$ are the modulation signals controlled by SPWM; K_iv, K_ic, K_pv, and K_pc are the integral and proportional coefficients employed in the dual closed-loop voltage and current control; Φ_d and Φ_q are the intermediate state variables in the PI control of the voltage loop; γ_d and γ_q are the intermediate state variables in the PI control of current loops; u_gd and u_gq are the components of the SG port voltage on the dq axis, respectively.

2.3. Network Terminal Equivalence

Both VSGs and SGs exhibit similar characteristics, resulting in stability challenges when small disturbances occur in grid-connected systems. Furthermore, as a consequence of the substantial integration of new energy sources into the grid, significant alterations are observed in the frequency characteristics at the grid interface. Unlike the scenario where the VSG is connected to an infinite system, as illustrated in Figure 2, the grid-connected system comprises a VSG, a constant power load, and an SG. The power load is integrated into the rotor motion equations, and the generator model’s excitation system incorporates a first-order inertia excitation element. In the dq coordinate system, the expression is as depicted in Equation (12).

$$\left\{\begin{array}{l}\frac{\mathrm{d}{\delta }_{\mathrm{s}\mathrm{g}}}{\mathrm{d}t}=({\omega }_{\mathrm{s}\mathrm{g}}-1){\omega }_{\mathrm{B}}\\ T_{\mathrm{J}}^{\mathrm{s}\mathrm{g}}\frac{\mathrm{d}{\omega }_{\mathrm{s}\mathrm{g}}}{\mathrm{d}t}=P_{\mathrm{m}\mathrm{s}\mathrm{g}}-P_{\mathrm{e}\mathrm{s}\mathrm{g}}-(\frac{1}{D_{\mathrm{p}}^{\mathrm{s}\mathrm{g}}}+1)({\omega }_{\mathrm{s}\mathrm{g}}-1)\\ T_{\mathrm{d}0}^{\prime }\frac{\mathrm{d}{E}_{\mathrm{q}}^{\prime }}{\mathrm{d}t}=E_{\mathrm{f}}-E_{\mathrm{q}}^{\prime }-(X_{\mathrm{d}}-X_{\mathrm{d}}^{\prime })I_{\mathrm{d}}\\ T_{\mathrm{a}}\frac{\mathrm{d}{E}_{\mathrm{f}}}{\mathrm{d}t}=\left(U_{\mathrm{N}\mathrm{s}\mathrm{g}}-\sqrt{u_{\mathrm{g}\mathrm{d}}^2+u_{\mathrm{g}\mathrm{q}}^2}\right)K_{\mathrm{a}}-E_{\mathrm{f}}\\ u_{\mathrm{g}\mathrm{d}}=X_{\mathrm{q}}{I}_{\mathrm{q}};u_{\mathrm{g}\mathrm{q}}=E_{\mathrm{q}}^{\prime }-X_{\mathrm{d}}^{\prime }{I}_{\mathrm{d}}\end{array}\right.$$

(12)

where ω_sg and δ_sg are the angular velocity of the SG and the angle between the q-axis of the SG’s rotor and the x-axis of the xy coordinate system, respectively; u_gd and u_gq are the d- and q-axis voltage components of the SG, respectively; ${E’}_{\mathrm{q}}$ and E_f are the transient electromotive force and the excitation voltage output by the excitation system, respectively; X_d and ${X’}_{\mathrm{d}}$ are the steady-state and transient values of the direct-axis reactance; X_q is the steady-state value of the quadrature-axis reactance; $T_{\mathrm{J}}^{\mathrm{s}\mathrm{g}}$ and $D_{\mathrm{p}}^{\mathrm{s}\mathrm{g}}$ are the generator’s inertia time constant and deviation, respectively; T_a and K_a are the time constant and proportional coefficient of the excitation system; P_msg and P_esg are the mechanical and electromagnetic power of SG, respectively; U_Nsg is the set values of the excitation controller output voltage of the SG.

3. Small-Signal Modeling of PV Generation and ES VSG Grid-Connected Systems

The analysis of interaction mechanisms in nonlinear systems is commonly approached through small-signal modeling methods [19]. Among these methods, the state-space approach allows for a detailed examination of the changes in various state variables within the system. Through the incorporation of participation factors, sensitivity analysis, and root locus analysis, it becomes possible to determine the characteristics of different oscillatory modes within the system. Moreover, it facilitates the identification of parameters responsible for these modes, offering a holistic assessment of system stability. This study integrates the rectification systems of PV generation and ES, the VSG control system, and the grid interface equivalent portion to construct a full-order state-space model for GFM PV generation and ES systems. Equations (2)–(11) collectively encompass 21 state variables and 21 differential-algebraic equations, effectively capturing the dynamic characteristics of the system. By linearizing this model around its steady-state operating point and organizing the equations, a comprehensive model is derived for transient stability analysis.

In Section 2, a model for the photovoltaic (PV) and energy storage grid-connected system was developed. This section will develop and validate the small-signal model of the PV generation and ES VSG grid-connected system. The analysis of interaction mechanisms in nonlinear systems is commonly approached through small-signal modeling methods [19]. Among these methods, the state-space approach allows for a detailed examination of the changes in various state variables within the system. Through the incorporation of participation factors, sensitivity analysis, and root locus analysis, it becomes possible to determine the characteristics of different oscillatory modes within the system. Moreover, it facilitates the identification of parameters responsible for these modes, offering a holistic assessment of system stability. This study integrates the systems of PV generation and ES, the VSG control system, and the network terminal equivalence to construct a full-order state-space model for GFM PV generation and ES systems. Equations (2)–(11) collectively encompass 21 state variables and 21 differential-algebraic equations, effectively capturing the dynamic characteristics of the system. By linearizing this model around its steady-state operating point and organizing the equations, a comprehensive model is derived for transient stability analysis:

$$\frac{\mathrm{d}\mathsf{\Delta }x}{\mathrm{d}t}=A\mathsf{\Delta }x+B\mathsf{\Delta }u$$

(13)

where Δx = [Δx_DC Δx_AC]^T is the system’s state vector, as illustrated in Equation (14), which encompasses state vectors from both DC- and AC-sides; Δu = [Δi_pv Δi_bat Δu_gdq]^T is the system’s input vector. The calculation of the eigenvalues of the state matrix A enables the analysis of the grid-connected system’s static stability and frequency oscillation characteristics.

$$\begin{gathered} \mathsf{\Delta }{x}_{\mathrm{D}\mathrm{C}}=\left[\mathsf{\Delta }{x}_1\mathsf{\Delta }{x}_2\mathsf{\Delta }{x}_3\mathsf{\Delta }{u}_{\mathrm{p}\mathrm{v}}\mathsf{\Delta }{u}_{\mathrm{b}\mathrm{a}\mathrm{t}}\mathsf{\Delta }{u}_{\mathrm{d}\mathrm{c}}\mathsf{\Delta }{i}_{\mathrm{L}\mathrm{pv}}\mathsf{\Delta }{i}_{\mathrm{L}\mathrm{b}\mathrm{a}\mathrm{t}}\right] \\ \mathsf{\Delta }{x}_{\mathrm{A}\mathrm{C}}=\left[\mathsf{\Delta }\omega \mathsf{\Delta }{P}_{\mathrm{e}}\mathsf{\Delta }{Q}_e\mathsf{\Delta }{\varphi }_{\mathrm{d}\mathrm{q}}\mathsf{\Delta }{\gamma }_{\mathrm{d}\mathrm{q}}\mathsf{\Delta }{i}_{\mathrm{l}\mathrm{d}\mathrm{q}}\mathsf{\Delta }{u}_{\mathrm{o}\mathrm{d}\mathrm{q}}\mathsf{\Delta }{i}_{\mathrm{o}\mathrm{d}\mathrm{q}}\right] \end{gathered}$$

(14)

Small-Signal Model Validation

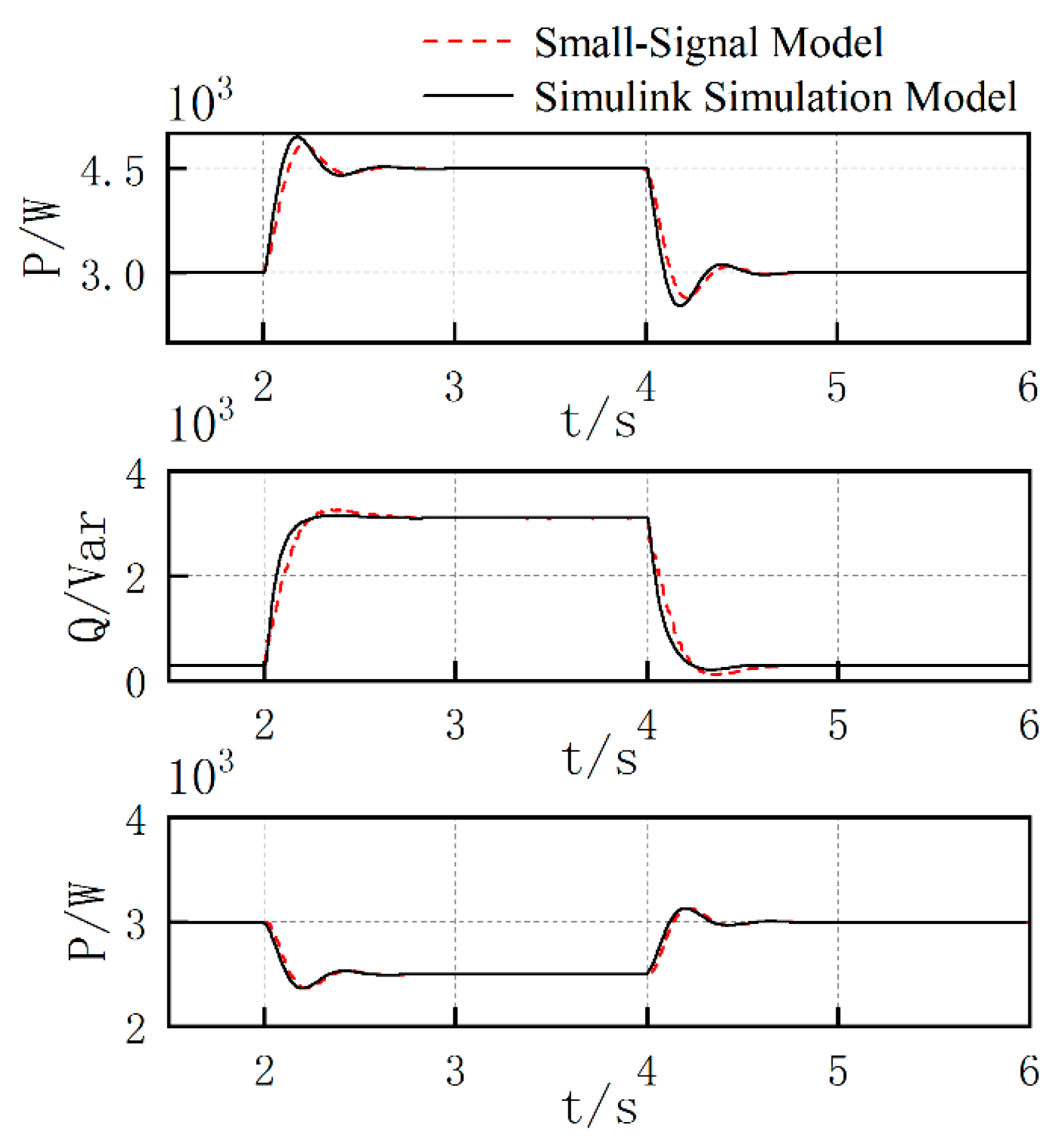

In the state-space model and the Simulink time domain dynamic model, step disturbances were applied to the grid frequency, grid voltage, and power commands within the 2–4 s timeframe. Δω_g = 0.6 π·rad/s, Δu_g = 0.3 V, and ΔP_ref = 500 W illustrate the comparison of the active power P_o and reactive power Q_o output curves of the VSG between both models. In Figure 3, the waveforms of the small-signal model closely match those of the practical simulation model, thereby validating the accuracy of the small-signal model developed in this research.

4. State Matrix Eigenvalue Calculation and Stability Analysis

4.1. Small-Signal Stability Analysis

The small-signal model established in Section 3 has been validated. This section, as a case study, performs a static stability analysis of the PV generation and ES system, as illustrated in Figure 2. The parameters for the numerical model are detailed in

Table 1. Key parameters of PV generation and ES system.

Parameter	Value	Parameter	Value
$C_{\mathrm{pv}}[\mathsf{\mu }\mathrm{F}]$	100	$L_{\mathrm{pv}}[\mathsf{\mu }\mathrm{H}]$	1000
$C_{\mathrm{bat}}[\mathsf{\mu }\mathrm{F}]$	1000	$L_{\mathrm{bat}}[\mathsf{\mu }\mathrm{H}]$	1000
$C_{\mathrm{dc}}[\mathsf{\mu }\mathrm{F}]$	6000	$C_{\mathrm{f}}[\mathsf{\mu }\mathrm{F}]$	30,000
$L_{\mathrm{f}}[\mathsf{\mu }\mathrm{H}]$	2000	$J[{\mathrm{kg}/\mathrm{m}}^2]$	0.1
$D_{\mathrm{p}}$	0.01	$P_{\mathrm{load}}\left[\mathrm{KW}\right]$	15
$P_{\mathrm{n}}\left[\mathrm{KVA}\right]$	12	$H[s]$	3.2
$X_{\mathrm{d}}(\mathrm{p}.\mathrm{u})$	1.305	$X_{\mathrm{d}}^{\prime }[\mathrm{p}.\mathrm{u}]$	0.296
$X_{\mathrm{q}}(\mathrm{p}.\mathrm{u})$	0.474	$T_{\mathrm{d}0}^{\prime }\left[\mathrm{s}\right]$	5.89
$T_{\mathrm{a}}$	0.01	$K_{\mathrm{a}}$	150

. Subsequently, these parameters and initial values are input into the system’s state matrix A for the computation of all eigenvalues, as displayed in

Table 2. Eigenvalues of PV generation and ES system.

Modal	Real Part	Virtual Part	Oscillation Frequency	Damping Ratio
1, 2	−2.347	±1.30 × 103	207.6	0.0018
3, 4	−1000	±1.05 × 103	167.96	0.1488
5	−67.86	0	0	1
6	−4.118	0	0	1
7	−1.003	0	0	1
8	−0.3869	0	0	1
9, 10	−1.13 × 103	±7.86 × 105	1.25 × 105	0.0014
11, 12	−1.14 × 103	±1.57 × 104	2.51 × 103	0.0723
13, 14	−3.95	±321.79	51.215	0.0123
15	−30.56	0	0	1
16	−32.66	0	0	1
17	−24.41	0	0	1
18	−199.96	0	0	1
19	−199.98	0	0	1
20	−83.36	0	0	1
21	−83.33	0	0	1

. Eigenvalues λ_1–4 and λ_9–14 are complex, corresponding to 10 oscillatory modes. The real components reflect the system’s damping concerning oscillations, while the imaginary components indicate the oscillation frequencies. All the system’s eigenvalues are in the complex plane’s left half, signifying that the system exhibits small disturbance stability.

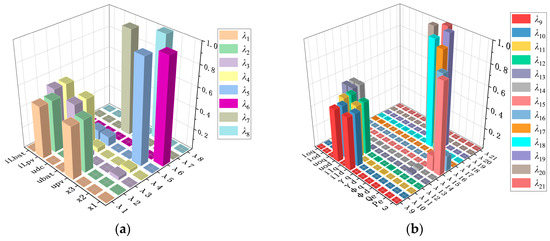

To explore the relationship between system state variables and the associated oscillatory modes of eigenvalues, participation factors for each mode were calculated, and the results are depicted in Figure 4.

4.2. Eigenvalue Sensitivity Analysis

Several factors can introduce errors in computed eigenvalues, including practical data inaccuracies and limitations in calculation precision. Additionally, due to the interdependencies among various parameters within the system, it becomes challenging to isolate the influence of individual parameter variations on oscillatory modes. Therefore, conducting eigenvalue sensitivity analysis becomes highly valuable. On the DC-side, six parameters were selected, denoted as K_p1–3 and K_i1–3. Meanwhile, on the AC-side, eight parameters were chosen, including ω_c, J, D_p, K_pv, K_iv, K_pc, K_ic, and L_v, to investigate the sensitivity of eigenvalues concerning system parameters. The outcomes of this sensitivity analysis are illustrated in Figure 5.

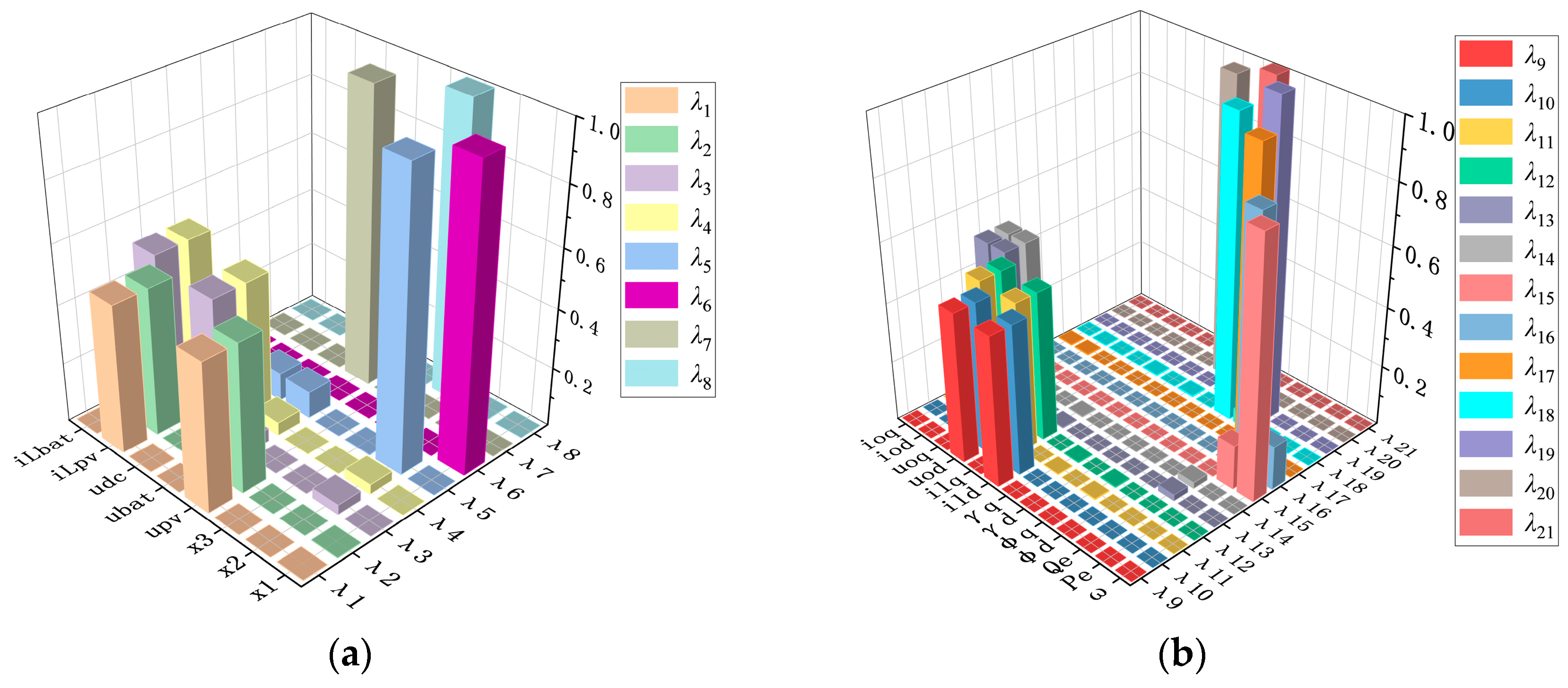

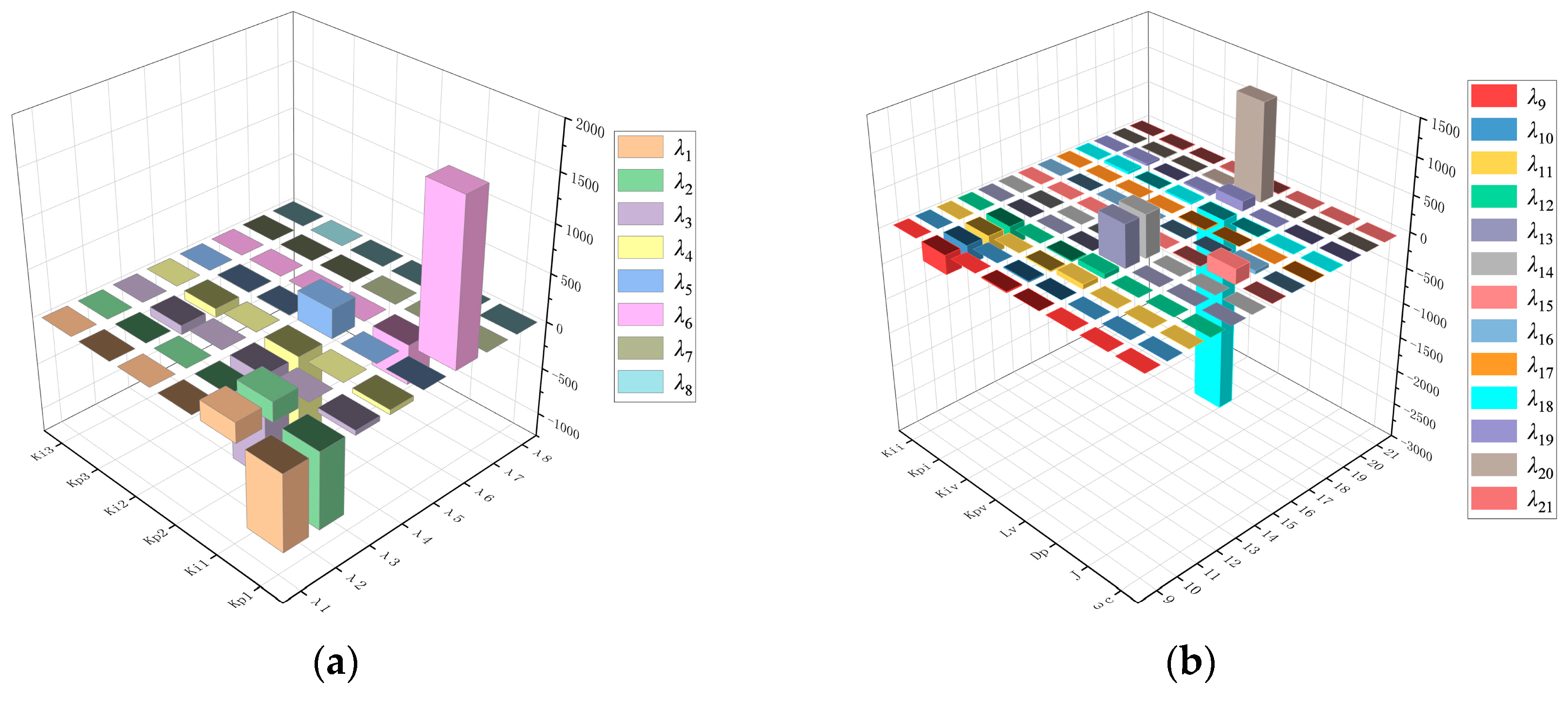

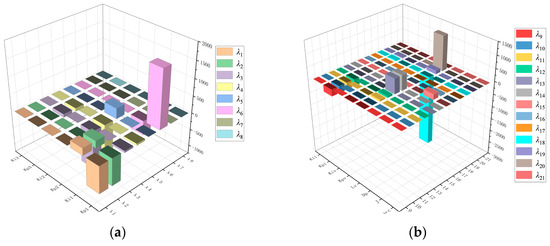

The analysis of the 21 characteristic eigenvalues, as depicted in Figure 4 and Figure 5, offers significant insights into the stability and sensitivity of the PV generation and ES system. Specifically, the eigenvalues are divided into two categories, with λ_1–8 representing characteristics on the DC-side and λ_9–21 pertaining to the AC-side.

On the DC-side, λ_1,2 are closely associated with i_Lpv and u_pv, with substantial impacts from parameters K_p1 and K_i1. λ_3,4 predominantly relate to u_dc and i_Lbat, primarily influenced by parameters K_p2 and K_i2. Furthermore, λ₅ demonstrates a strong correlation with Δx₂, indicating its sensitivity to the outer loop PI control parameters governing the ES system. Lastly, λ_7,8 are associated with state variables Δx₃ and Δx₁, emphasizing the significance of designing three appropriate sets of PI parameters for influencing the oscillatory behavior on the DC-side.

Conversely, on the AC-side, λ_9–12 are primarily linked to the inductance current dq-axis components Δi_ldq and capacitance voltage dq-axis components Δu_odq, revealing their dependence on the selection of LC filter parameters. λ_13,14 correspond to grid-connected current dq-axis components Δi_odq and are predominantly influenced by LC filter parameters, virtual impedance, and line impedance. Additionally, λ_15,16 are related to active power ΔP and reactive power ΔQ, exhibiting sensitivity to the ω_c parameter in the low-pass filter. Notably, λ₁₇ is mainly associated with Δω, ΔP, and ΔQ, with its value influenced by rotor inertia and damping coefficients (K_f/Jω_n+D_p/J). Furthermore, λ_18,19 are linked to the state variables of PI regulators’ Δγ_dq in the current control loop, with values approximating K_iv/K_pv. Finally, λ_20,21 are primarily associated with the state variables of PI regulators’ Δx_dq in the voltage control loop, with values approximating K_ic/K_pc.

4.3. Eigenvalue Trajectory Analysis

In the context of GFM PV generation and ES systems, it is essential to analyze and optimize control parameters since circuit parameters are typically pre-designed based on practical requirements and are not frequently modified due to component constraints.

In this regard, the key control parameters with a significant influence on system stability are categorized into two main aspects: the DC-side, encompassing control coefficients K_p1 and K_i1 for the PV array and the dual-loop control coefficients K_p2,3 and K_i2,3 for the ES constant voltage bus; and the AC-side, including the cutoff angular frequency ω_c, rotor inertia J, active power frequency control coefficient K_Dp, damping coefficient D_p, reactive power voltage control coefficient D_q, virtual impedance r_v, virtual inductance L_v, and dual-loop PI control loop coefficients K_pv, K_iv, K_pc, and K_ic. It is noteworthy that the values of K_Dp and D_q should satisfy the requirements of virtual synchronous machine frequency regulation and voltage droop characteristics, typically requiring no modifications [20]. This study primarily focuses on the analysis and optimization of the following parameters: K_p1–3, K_i1–3, ω_c, J, D_p, r_v, L_v, K_pv, K_iv, K_pc, and K_ic.

To investigate the range of parameter values that ensure system stability and to understand the patterns of eigenvalue variations as parameters change, trajectory plots of relevant eigenvalues for both DC and AC systems are generated, as shown in Figure 6 and Figure 7. It is important to note that due to the large span of root trajectories, eigenvalues with small variations are not displayed in the figures for clarity.

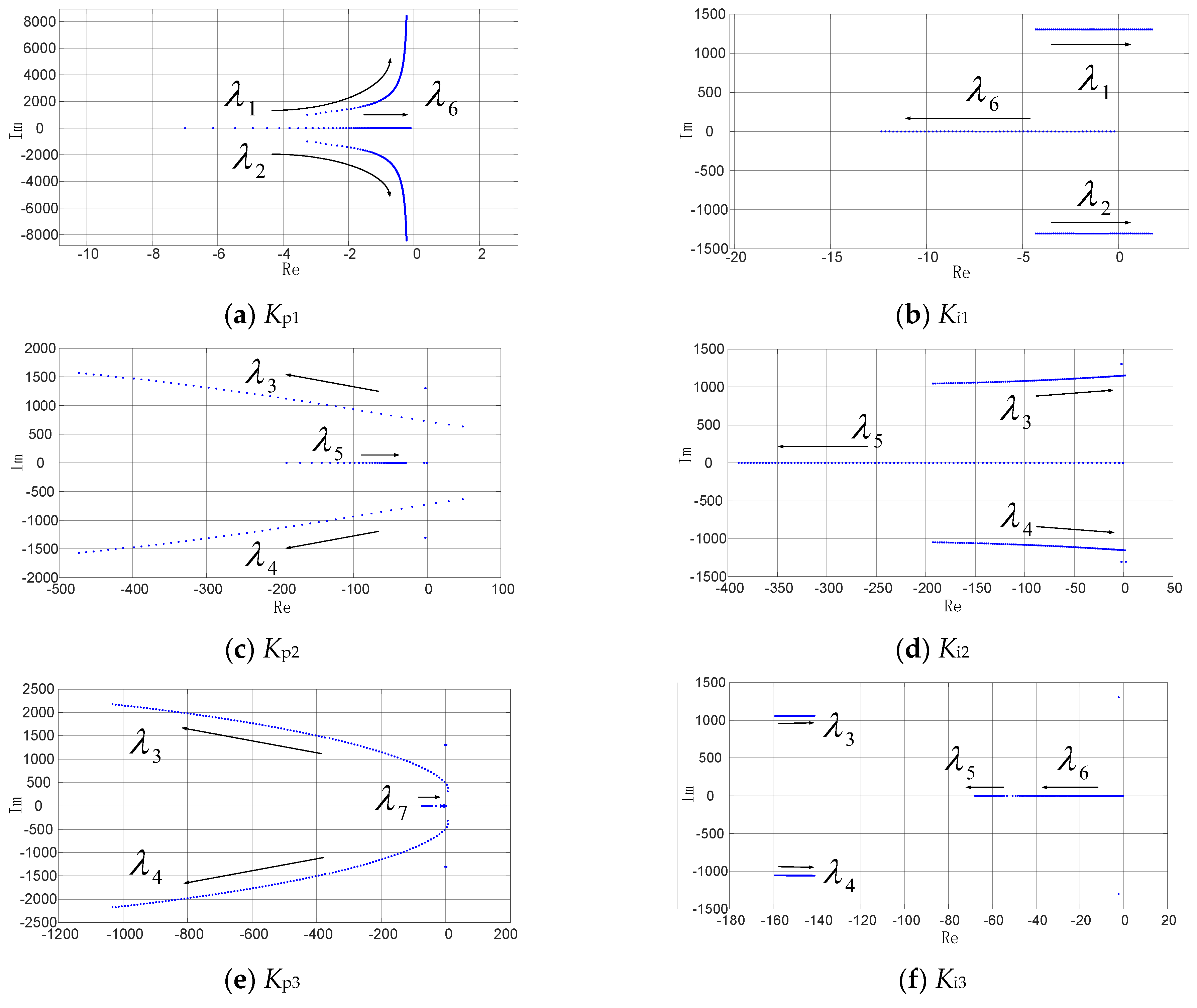

Figure 6a,b depict the eigenvalue trajectories with varying parameters K_p1 and K_i1. As K_p1 ranges from 0 to 100, eigenvalues λ_1,2 and λ₆ move towards the unstable region. When K_i1 varies from 0 to 0.03, eigenvalues λ_1,2 shift to the right, entering the positive half-plane, indicating increased system instability. This suggests that setting PI control coefficients for the PV part too high is unfavorable for system stability.

In Figure 6c,d, the eigenvalue trajectories are shown for parameters K_p2 and K_i2. As K_p2 changes from 0.05 to 20, eigenvalues λ_3,4 transition from the positive half-plane to the negative half-plane, and λ₅ moves to the right. When K_i2 varies from 0 to 100, eigenvalues λ_3,4 shift to the right, entering the positive half-plane, indicating reduced system stability.

Figure 6d,e illustrate the eigenvalue trajectories with changes in parameters K_p3 and K_i3. When K_p3 varies from 0 to 11, eigenvalues λ_3,4 move leftward after entering the positive half-plane, and λ₇ shifts towards the unstable region. Changes in K_i3 from 0 to 80 do not significantly affect the system.

Figure 7a reveals that when the parameter ω_c varies from 1 to 22 $\mathsf{\pi }$·rad/s, it results in simultaneous changes in four eigenvalues. Specifically, eigenvalues λ_13,14 exhibit an increasing real part and decreasing damping ratio, which leads them into the unstable region. Meanwhile, λ_16,17 display a decreasing real part as they gradually move towards the stable region.

In Figure 7b, parameter J undergoes variations from 0.01 kg·m² to 1.5 kg·m², causing eigenvalue λ₁₇ to increase in the real part and gradually move towards the unstable region. While increasing virtual inertia can enhance the system’s frequency support capability in an inertial environment [21], excessively high virtual inertia can hinder system stability [22].

Figure 7c illustrates the impact of parameter D_p changing from 0.001 N·m·s/rad to 1 N·m·s/rad. It results in simultaneous changes in eigenvalues λ_15,16. Both eigenvalues move towards the stable region, with an increasing damping effect. The oscillation frequency decreases as damping increases, contributing to a more stable system. Typically, increasing inertia J strengthens the system’s frequency support ability but leads to larger overshoot and a longer settling time. Increasing damping reduces overshoot but may increase system error. Therefore, selecting appropriate values for virtual inertia and damping should consider practical factors [23,24,25].

Figure 7d shows that parameter L_v varying from 0.2 mH to 20 mH leads to simultaneous changes in two eigenvalues. Both eigenvalue λ_13,14 exhibit a decreasing real part and an increasing damping ratio, moving towards the negative half-plane, which enhances system stability.

In Figure 7e, when parameter K_pv varies from 1 to 100, multiple eigenvalues undergo simultaneous changes. Eigenvalues λ_9–12 move towards the negative half-plane, indicating improved system stability. Eigenvalues λ_20,21 exhibit an increasing real part, moving towards the positive half-plane, reducing damping ratios, corresponding to increased oscillation frequencies and decreased system stability.

Figure 7f shows the effect of parameter K_iv varying from 20 to 2500, resulting in simultaneous changes in multiple eigenvalues. Real parts of eigenvalues λ_9–12 decrease, gradually moving towards the unstable region, while eigenvalues λ_20,21 increase in the real part, moving towards the stable region.

Figure 7g illustrates that parameter K_pc ranging from 14 to 100 causes simultaneous changes in four eigenvalues. Real parts of eigenvalues λ_9–12 decrease, gradually moving towards the negative half-plane. Specifically, λ_8,9 exhibit an increase in the absolute value of their imaginary parts, leading to increased oscillation frequencies, while λ_10,11 show less pronounced changes. When initial parameter values are too small, eigenvalues λ_8,9 fall into the positive half-plane, resulting in system instability.

In Figure 7h, parameter K_ic varies from 20 to 2500, causing simultaneous changes in multiple eigenvalues. Eigenvalues λ_15,16 both move towards the stable region. However, real parts of eigenvalues λ_9–12 and λ_18,19 increase, all moving towards the unstable region, accompanied by reduced damping ratios, which are unfavorable for improving system stability.

5. Parameter Optimization Design for GFM PV ES System Parameters

To improve the stability and stability margin of the PV generation and ES system, Milano et al. [9] and Jiang et al. [13] employed the root locus method to analyze the impact of control parameter variations on system stability. However, root locus-based parameter optimization methods often exhibit subjectivity and lack well-defined, scientifically quantifiable design criteria. They struggled to address the intricate interactions among parameters and their combined effects on multiple eigenvalue characteristics within complex systems. Therefore, in the process of parameter tuning and selection, achieving an optimal position for system eigenvalues and identifying better parameter combinations require the application of alternative optimization methods.

The Particle Swarm Optimization (PSO) algorithm has several distinct advantages over other optimization methods such as genetic algorithms and neural networks. Firstly, PSO does not require complex operations like crossover and mutation, making it easier to code and implement. Secondly, it requires fewer computational steps, and the computational cost of updating particle positions is comparatively low, which improves the efficiency of PSO in solving certain optimization problems. Furthermore, compared to genetic algorithms, PSO requires fewer adjustable parameters, simplifying the application of the algorithm and the process of parameter tuning. Based on these advantages, building upon the general principles of parameter design, this paper utilizes a parameter optimization design approach that combines the root locus method with the PSO algorithm. Taking the root locus analysis in Section 4 as the value range for the parameters to be optimized, through iterations of PSO, the overall characteristic values move towards the negative half-axis and the damping ratio of each oscillation mode approaches the optimal damping ratio of 0.707, in order to increase the damping of system modes and enhance the transient stability of the system. The detailed steps of this approach are illustrated in Figure 8.

5.1. Parameter Optimization

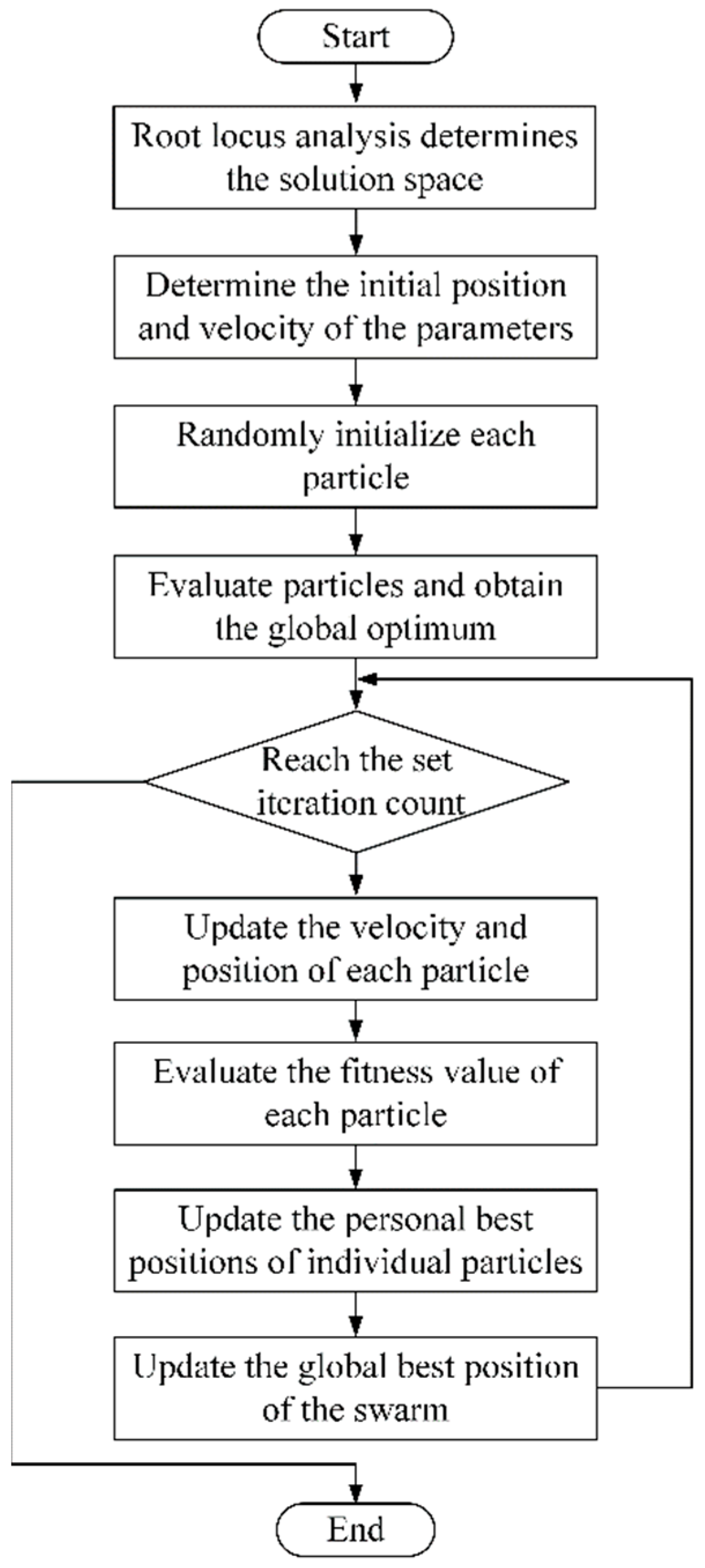

The parameter ranges determined through root locus analysis in Section 4.3 serve as the solution space for the optimization algorithm. Initial velocities and positions for each particle are randomly generated, as shown in Equation (15), where $x_n^k$ and $v_n^k$ represent the positions and velocities of particles after the k-th iteration, and n represents the number of parameters to be optimized.

$$\left\{\begin{array}{c}{X}^k=[x_1^k,x_2^k,x_3^k\cdots ,x_n^k]\\ V^k=[v_1^k,v_2^k,v_3^k\cdots ,v_n^k]\end{array}\right.$$

(15)

The fitness function p_i for the i-th particle is defined as the basis for determining the target direction of iterations, evaluating individual performance, and assessing the global optimum, as shown in Equation (16). Understanding the impact of eigenvalues on the transient characteristics of the system, the overall objective of parameter optimization is to move the system’s eigenvalues towards the negative half-plane to increase damping and shorten transient responses. Simultaneously, the aim is to achieve optimal damping ratios for all modes. With this goal in mind, two fitness functions p_i1 and p_i2 are designed separately.

$$p_i=\alpha p_{i1}+\mathsf{\beta }{p}_{i2}$$

(16)

where α and β are the weights assigned to the two functions, with values of 0.3 and 0.7, respectively. The expressions for p_i1 and p_i2 are detailed in Equation (17), where N denotes the number of eigenvalues to be optimized, and the real parts are arranged in descending order as δ₁~δ_N. The coefficient (N + 1 − j) represents the weight of the j-th real part. M stands for the number of modes, and ξ_k represents the damping ratio of the k-th mode.

$$\left\{\begin{array}{l}{p}_{i1}={\displaystyle \sum _{j=1}^{\mathrm{N}}}\left(\mathrm{N}+1-j\right)\left|{\delta }_j\right|\\ p_{i2}={\displaystyle \sum _{k=1}^{\mathrm{M}}}\frac{1}{\left|{\xi }_k-0.707\right|}\end{array}\right.$$

(17)

The objective of the optimization algorithm is to maximize the fitness function p_i. The update formulas for velocity and position are shown in Equation (18), where ω represents the inertia weight, c₁ = c₂ = 2 are the cognitive factors, and r is a random number ranging between 0 and 1. During each iteration, each particle updates its position and velocity based on its individual optimal P_b and the optimal population G_b.

$$\left\{\begin{array}{l}{V}_i^{k+1}=\omega V_i^k+c_{1}r(P_{\mathrm{b}i}-X_i^k)+c_{2}r(G_{\mathrm{b}i}-X_i^k)\\ X_i^{k+1}=X_i^k+V_i^{k+1}\end{array}\right.$$

(18)

The parameters of the case study model are listed in Table 1. The overall optimization was performed on PI control parameters K_p1–3 and K_i1–3, cutoff frequency ω_c, virtual inertia J, damping coefficient D_p, virtual inductance L_v, and double-loop PI control parameters K_pv, K_iv, K_pc, and K_ic. The initial values and ranges for the parameters to be optimized are provided in Appendix A. A total of 500 iterations were set for the optimization process, and the iteration progress is illustrated in Figure 9.

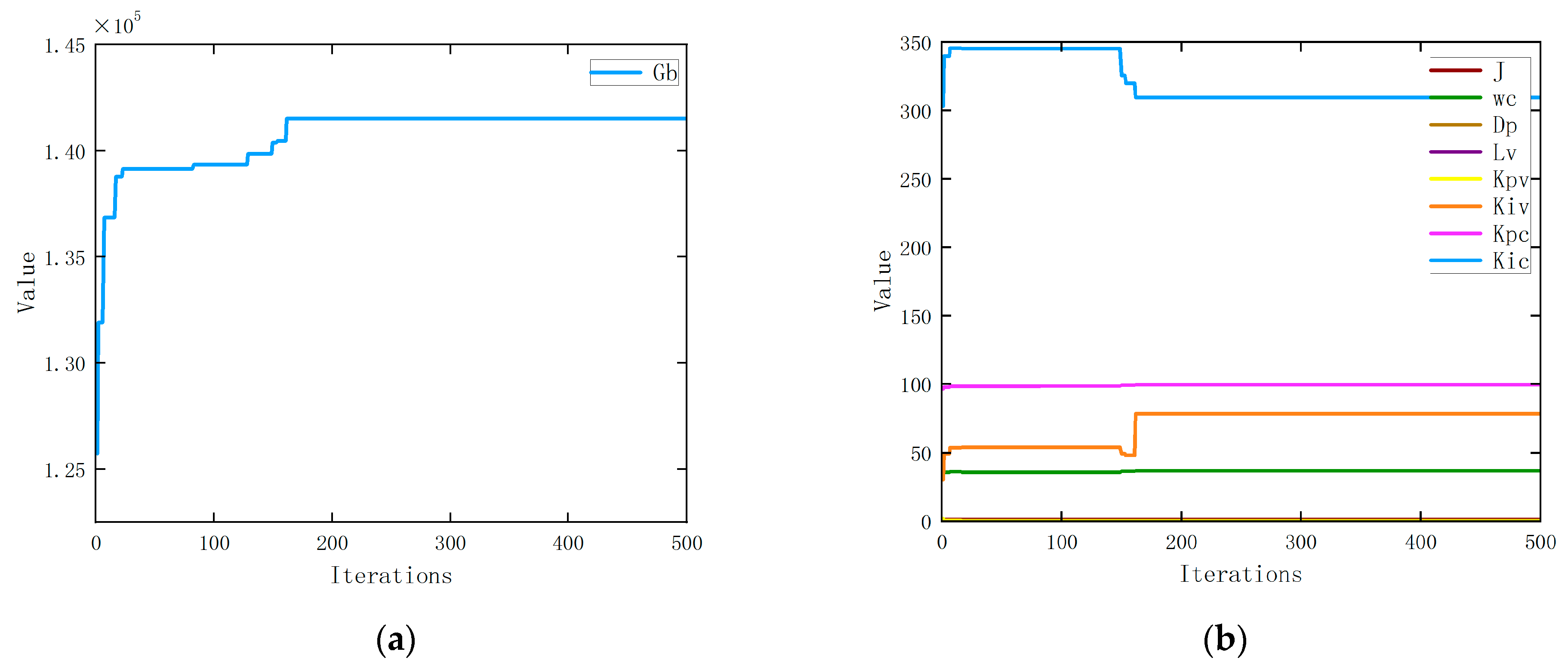

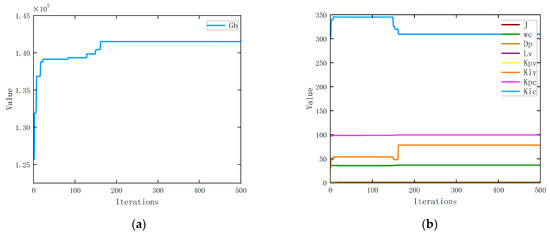

After 500 iterations, the optimal population G_b reached its maximum value, and the parameters to be optimized converged to their best positions. The results of the parameter optimization are presented in

Table 3. Control parameters after global optimization.

Parameter	Value	Parameter	Value
Kp1	0.01	Ki1	0.113
Kp2	0.3	Ki2	14.98
Kp3	10	Ki3	5
ωc	36.711	J	0.17724
Dp	0.33586	Lv [mH]	9.76
Kpv	0.10523	Kiv	78.418
Kpc	99.854	Kic	309.415

.

The data from Table 3 were used to calculate the optimized eigenvalues ${\lambda }_i^{*}$, which were then compared to the original eigenvalues λ_i from Table 2, as shown in Figure 10. The eigenvalues before optimization and after optimization are represented by solid orange and black circles, respectively.

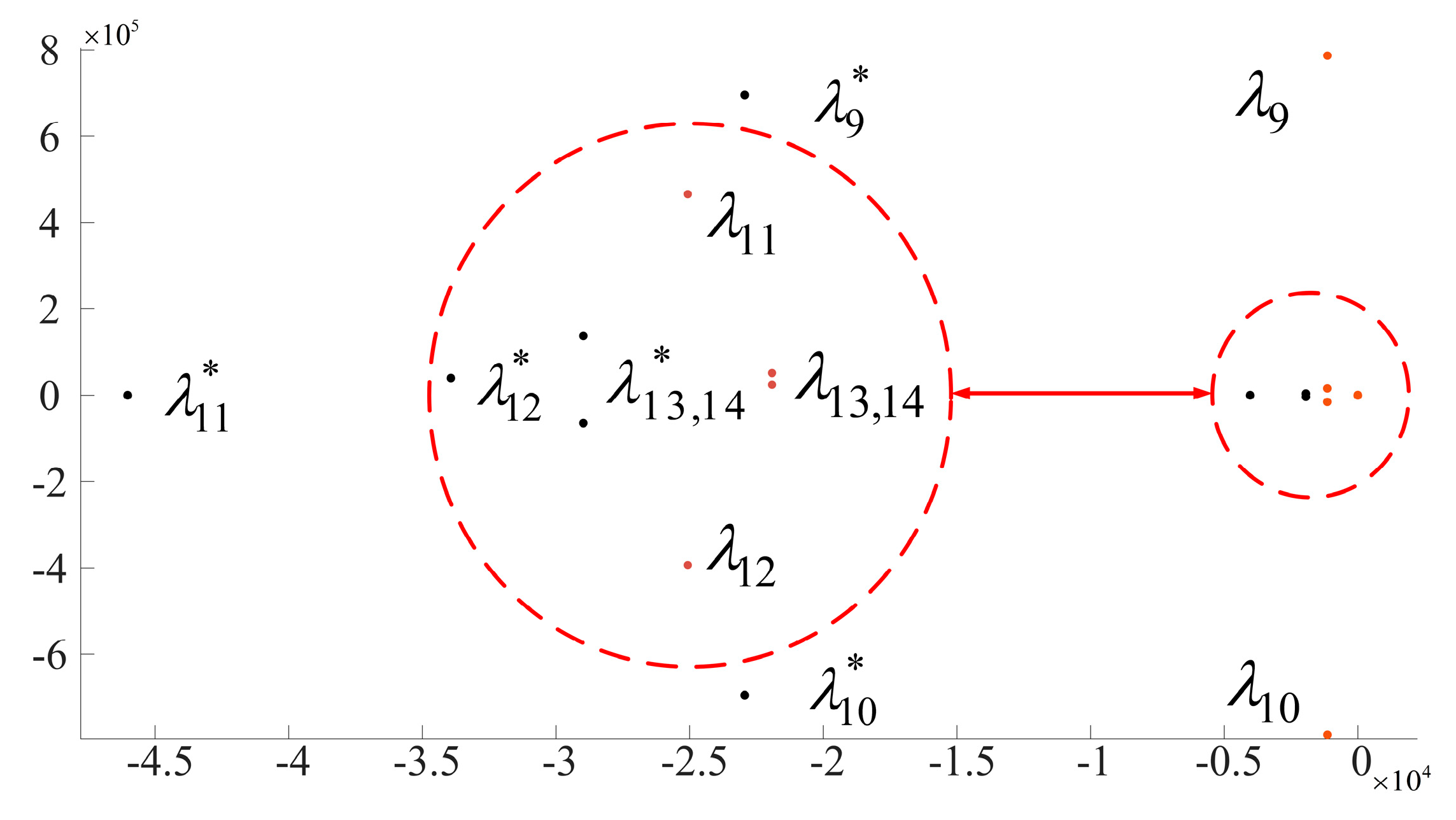

In Figure 10, after optimization, the system eigenvalues have moved to varying degrees toward the negative half-plane. The damping ratios of the system modes have all improved. This enhancement in damping ratios signifies an improvement in the transient stability of the system. It also demonstrates the feasibility and effectiveness of the comprehensive parameter optimization approach.

5.2. Simulation Validation

To validate the effectiveness of the optimization algorithm, this study employed Matlab/Simulink to establish the simulation model depicted in Figure 1. Three operational scenarios were selected to analyze the output power of the PV array, ES, and VSG before and after parameter optimization. The power waveforms after optimization for these three scenarios are compared uniformly, as shown in Figure 11. Specifically, P_pv, $P_{\mathrm{pv}}^{*}$; P_bat, $P_{\mathrm{bat}}^{*}$; P_vsg, and $P_{\mathrm{vsg}}^{*}$ represent the pre- and post-optimization output powers of the PV array, ES, and VSG.

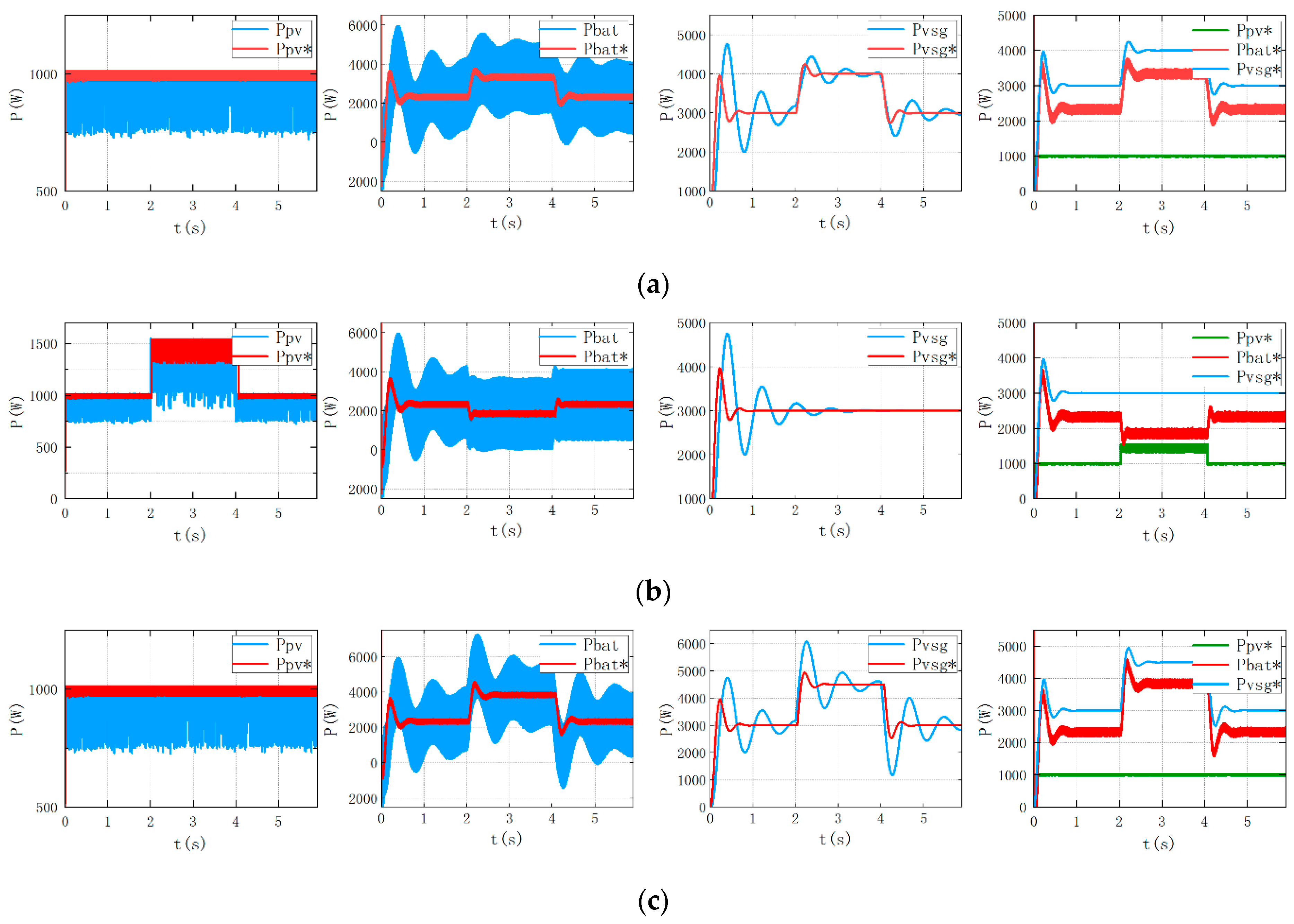

In Figure 11a, a disturbance is introduced by raising the active power command from 3 kW to 4 kW for 2–4 s. This increase in the command requires additional output power from the virtual machine and ES. After 4 s, the command value is restored, resulting in a reduced ES output, returning to the initial steady state.

In Figure 11b, the disturbance involves an increase in solar irradiance from 200 W/m² to 300 W/m² for 2–4 s. This leads to an increase in the PV array output power from 1000 W to 1500 W. To maintain power balance, the ES reduces its output from 2000 W to 1500 W. After 4 s, solar irradiance returns to its original level, causing the ES output to increase back to the initial steady state.

In Figure 11c, a minor disturbance is applied by decreasing the grid frequency from 50 Hz to 49.7 Hz for 2–4 s. This reduction in grid frequency requires an increase in the virtual machine output and additional power from the ES. After 4 s, the grid-side frequency is restored, leading to a decrease in the ES output back to the initial steady state.

The simulation results demonstrate that the controller parameters obtained through the optimization method result in smaller overshoot, a shorter settling time, and smaller steady-state error in the output powers of the PV array, ES, and VSG. This indicates that the GMF PV generation and ES system exhibits improved transient performance, an enhanced stability margin, and remains stable under minor disturbances, consistent with the dynamic analysis conducted earlier in this study.

6. Conclusions

This paper has developed a comprehensive small-signal model for the transient stability analysis of the PV generation and ES system for VSG control. Combining participation factors, system sensitivity, and root locus analysis, a global optimization method for controller parameters has been proposed. The following conclusions have been drawn:

(1) In the DC generation system, the PI control of the PV converter and the dual-loop control of the ES converter have a significant and comprehensive impact on the system’s eigenvalues. Specifically, K_i1, K_i2, and K_i3 can affect the system’s damping if their values are too large; in the AC inverter system, when D_p and L_v remain constant or decrease, an increase in J will lead to a decrease in system stability. The selection of inner loop control parameters has a more complex impact on system eigenvalues.

(2) This study revealed the impact of various parameters on the system’s stability from a small-signal stability perspective. The overall optimization method effectively overcomes the coupling characteristics between control parameters and oscillatory modes. It provides parameter optimization results and serves as a reference for parameter tuning in the integrated application of PV generation and ES with VSG control. These findings hold practical value in real-world applications.
