Novel DQ-Based Multicarrier PWM Strategy for a Single-Phase F-Type Inverter

Abstract

This paper presents a novel DQ-based multicarrier pulse width modulation PWM for a single-phase, three-level PV-powered grid-connected F-type inverter. The main control objective in the proposed inverter is to regulate the grid current with low total harmonic distortion and load power components compensation. Despite the F-type inverter’s advanced advantages, there are only a few works addressing the control issue in the literature yet. The proposed control and switching methods aim to achieve both DC-side voltage balance and the lowest switching losses. The proposed scheme has been designed based on a modified multicarrier PWM switching algorithm. Consequently, the proposed control method is able to satisfy the requirements of DC-side voltage balance and achieve lower switching losses. A further advantage of the proposed control and switching methods is that they retain the main advantage of the F-Type inverter, which is that only 25% of the power switches are exposed to full DC voltage. This is an important advantage since it reduces the overall cost of the inverter and improves its reliability. Overall, the proposed modified multicarrier PWM switching algorithm appears to be a promising approach for controlling the F-Type inverter, offering improved performance and efficiency compared to other control methods. The theoretical model was verified through simulation using MATLAB/Simulink. According to the simulation results, the grid current and dc capacitor voltages are successfully managed in all operational situations.

1. Introduction

The proliferation of electric vehicle charging stations and the increase in non-linear loads can have negative impacts on the power system in cases where there is no efficient power management. Non-linear loads can introduce harmonic distortions, which can affect the voltage and frequency of the power system [1]. Power quality is a critical aspect of power systems, and improving it is essential, particularly in grids that contain nonlinear loads [2]. Nonlinear loads, such as electronic equipment, cause harmonic distortion in the power system, which can lead to problems such as reduced efficiency, increased losses, and even equipment failure [3]. Photovoltaic (PV) array systems can help improve power quality thanks to the voltage source converter (VSC) that is at the heart of the PV system [4]. The VSC is a power electronics device that can control the voltage and the frequency of the PV system [5], allowing it to respond to changes in load demand. By adjusting the real power output of the PV system, the VSC can compensate for the distortion caused by nonlinear loads, helping to maintain a stable voltage and high-quality power systems.

While using PV inverters to compensate for the power components in the electrical grid, it is very important to the system efficiency as high as possible. The literature reports that the proliferation of multilevel inverters and their associated controls have led to significant improvements in several industrial applications [6]. For example, in motor drives, multilevel inverters have been shown there is a significant reduction in torque ripple and improvement in motor efficiency, which can lead to significant energy savings. In renewable energy systems, multilevel inverters can improve the quality of the output voltage, which can enhance the performance of photovoltaic systems and wind turbines [7]. In power grid applications, multilevel inverters can improve the power quality and stability of the grid, which can reduce power outages and improve overall reliability [8]. Among the wide range of inverters, there is the F-type inverter which was introduced for the first time by Charles I. Odeh et al. [9]. It is the best due to its low cost and low switching losses. The three-phase F-type inverter’s switching method and operating concept have been detailed in [9]. This inverter incurs additional costs and losses due to the lower voltage stress placed on each leg’s three power switches.

Low total harmonic distortion (THD) in the grid current, quick dynamic response, and resilience to perturbations in input and output variables are typical control goals for a grid-connected inverter [10]. Many control techniques were used by the researchers to control the grid-connected inverters, like fuzzy logic control [11], synthetic inertia control [12], predictive control [13], etc. The main drawback of those control systems is the absence of dealing with nonlinear loads as well as PV power inversion at the same time as done in the current paper.

To handle the AC systems commonly employed in the market, the utilization of DC-AC converters or a combination of AC-DC converters and DC-AC converters is necessary to convert renewable energy into AC power. Consequently, DC-AC converters play a crucial role in today’s industry. Multilevel DC-AC converters utilize switching paths to generate an output voltage that exhibits a hierarchical pattern. By incorporating additional levels or filters, the output voltage can resemble a sine wave. The output voltage produced by the multi-stage DC-AC converter is stratified, ensuring that the voltage stress on the switch is controlled. As a result, it becomes possible to achieve high-voltage AC output using a switch with low-voltage stress [14].

Multilevel inverters (MLI) have gained significant attention from academia and the research community in recent times, primarily due to their suitability for high- and medium-power applications. Multilevel inverters offer several advantages over traditional two-level inverters, such as improved voltage waveform quality, reduced harmonic distortion, lower electromagnetic interference (EMI), and increased power capability [15].

One of the key advantages of multilevel inverters is their ability to operate at higher voltage levels while using lower voltage-rated components. This reduces the stress on the power switches and capacitors, improving the overall system reliability and efficiency.

MLI systems are designed to improve efficiency and reduce the harmonic distortion of power conversion, compared to traditional two-level inverters [16,17]. Cascaded H-Bridge (CHB) MLI structures are commonly used in interfacing with photovoltaic (PV) systems due to their ability to provide higher reliability and easy modularity. The CHB MLI requires multiple isolated DC sources in each H-bridge. This makes it highly suitable for PV (photovoltaic) applications, as individual PV panels can be used in each H-bridge along with distributed maximum power point tracking (DMPPT) control [18,19,20].

Switching losses in inverters reduces the system efficiency and increases the switches’ cost due to the high rating. Many researchers proposed soft switching techniques to reduce the losses and succeeded in loss reduction, but the overall system cost increased, and the control complex [21]. In this work, soft switching is included in the main control algorithm without any additive components or control complexity.

DC capacitors’ voltage balancing is essential in controlling the modern multilevel inverters NPC, T-type, and F-type inverters [22]. When compared to other multilevel topologies, the NPC (Neutral-Point-Clamped) family stands out due to its requirement of only one shared DC voltage source for all converter legs. This design offers the advantage of employing a complete semiconductor layout, with the capacitors needed to be placed outside the converter legs. Unlike passive components, which are typically larger in size compared to semiconductors, this configuration avoids the inclusion of bulky elements within the converter legs. As a result, it becomes feasible to create a more compact converter implementation, reducing its volume and increasing the power density [23]. The balance of capacitor voltages in the NPC converter relies on various factors, including the amplitude modulation index, frequency modulation index, and the power factor of the load [24].

In this work, as explained in Section 2, the capacitors’ voltage level balancing is included with the main control algorithm.

The increasing penetration of nonlinear loads in power systems has led to various issues, such as (i) harmonic distortion: nonlinear loads introduce harmonic currents into the grid, which can lead to voltage distortion and interfere with the operation of other connected devices. Harmonic distortion can cause overheating in transformers, capacitors, and other equipment, leading to premature failure and increased energy losses [25]. (ii) Reactive power demand: nonlinear loads often exhibit reactive power consumption, which can result in an increased demand for reactive power from the grid. This can lead to voltage drops, reduced system efficiency, and additional stress on power generation and transmission equipment [26]. (iii) Poor power factor: nonlinear loads tend to have a lagging power factor, which means that they consume more reactive power compared to their real power consumption. This can result in a decreased overall power factor for the grid, leading to increased losses, reduced system capacity, and additional costs for utilities [27]. (iv) Voltage Fluctuations: nonlinear loads, especially those with high switching frequencies, can cause rapid voltage fluctuations and transient disturbances in the grid. These fluctuations can affect the operation of sensitive equipment and lead to performance issues or even equipment damage [28]. Additionally, (v) electromagnetic interference (EMI): nonlinear loads can generate high-frequency noise and electromagnetic interference, which can interfere with the proper functioning of nearby electronic devices and communication systems [29]. These problems can adversely affect the quality and efficiency of electrical power distribution. To address these challenges, this research proposes a novel approach that focuses on utilizing grid-connected PV array for compensating the power components associated with nonlinear loads.

This paper is organized as follows: F-type inverter modeling is performed in Section 2. The proposed control method is presented in Section 3. The simulation results discussion is given in Section 4. Finally, the conclusions are set out in Section 5.

2. F-Type Inverter Modeling

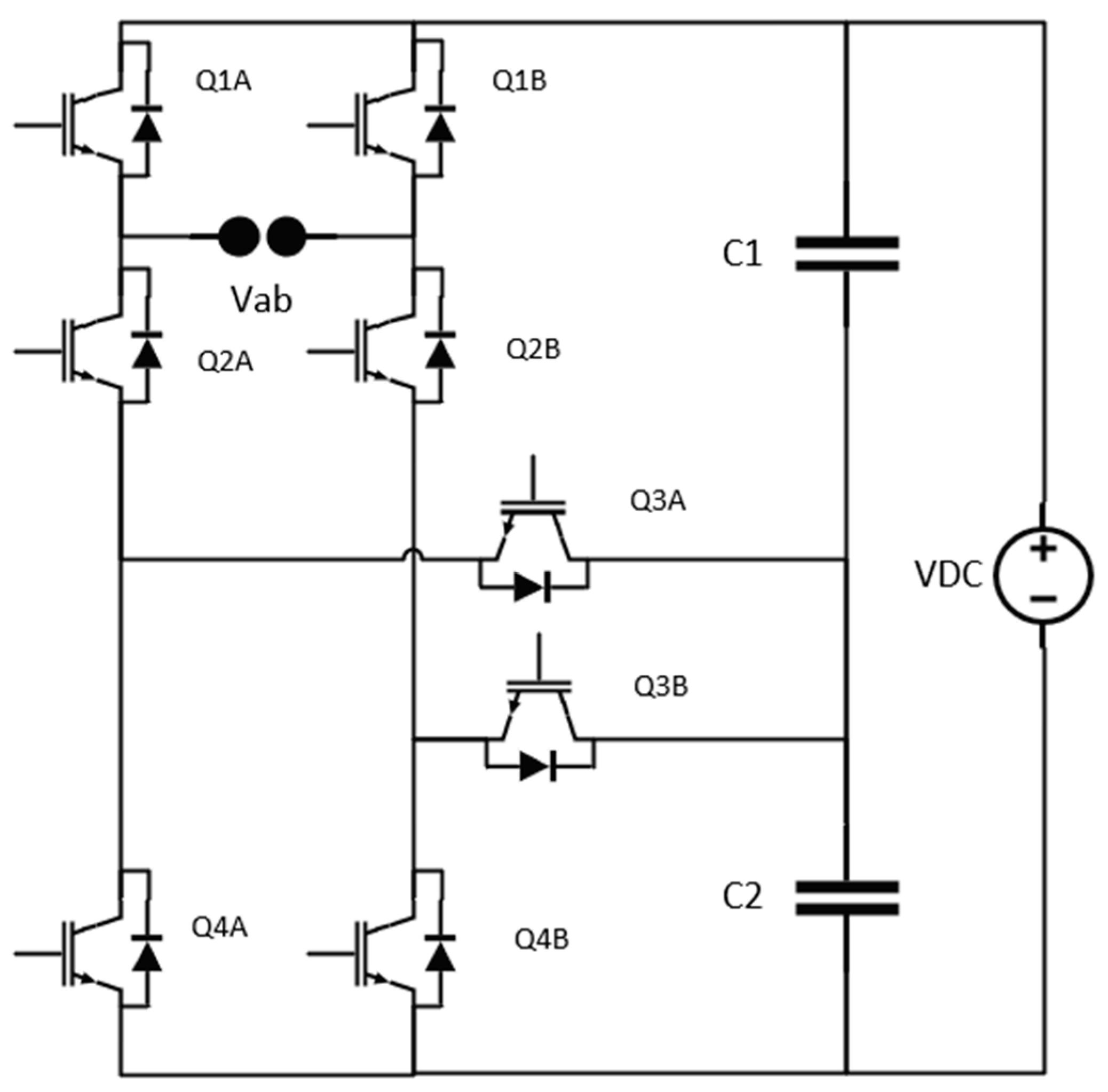

An F-type inverter was proposed first in [9] as a three-level inverter with minimum switching states (9 states only). Figure 1 shows the single-phase F-type inverter model.

F-type inverter output voltage expression is given in Equation (1):

$$V_{ab}=\left(Q_{1A}-Q_{1B}\right)V_{C1}+(Q_{3A}-Q_{3B})V_{C2}$$

(1)

where:

$V_{ab}$: inverter output voltage.

$Q_{mn}$: mn IGBT gate state (0 or 1), m: IGBT number, n: Leg (A or B)

The switching cases and related output voltages are listed in

Table 1. The switching cases and related output voltages. (*: letters represent switching cases in Figure 2).

Switching State *	S1a	S2a	S3a	S4a	S1b	S2b	S3b	S4b	Vab
1 (g)	ON	OFF	ON	OFF	ON	OFF	ON	OFF	0
2 (a)	ON	OFF	ON	OFF	OFF	ON	ON	OFF	$V_{C1}$$=(\frac{V_{dc}}{2}$)
3 (b)	OFF	ON	ON	OFF	OFF	ON	OFF	ON	$V_{C2}$$=(\frac{V_{dc}}{2}$)
4 (c)	ON	OFF	ON	OFF	OFF	ON	OFF	ON	Vdc
5 (i)	OFF	ON	ON	OFF	OFF	ON	ON	OFF	0
6 (d)	OFF	ON	ON	OFF	ON	OFF	ON	OFF	$-V_{C2}$$=(\frac{-V_{dc}}{2}$)
7 (e)	OFF	ON	OFF	ON	OFF	ON	ON	OFF	$-V_{C2}$$=(\frac{-V_{dc}}{2}$)
8 (f)	OFF	ON	OFF	ON	ON	OFF	ON	OFF	−Vdc
9 (h)	OFF	ON	OFF	ON	OFF	ON	OFF	ON	0

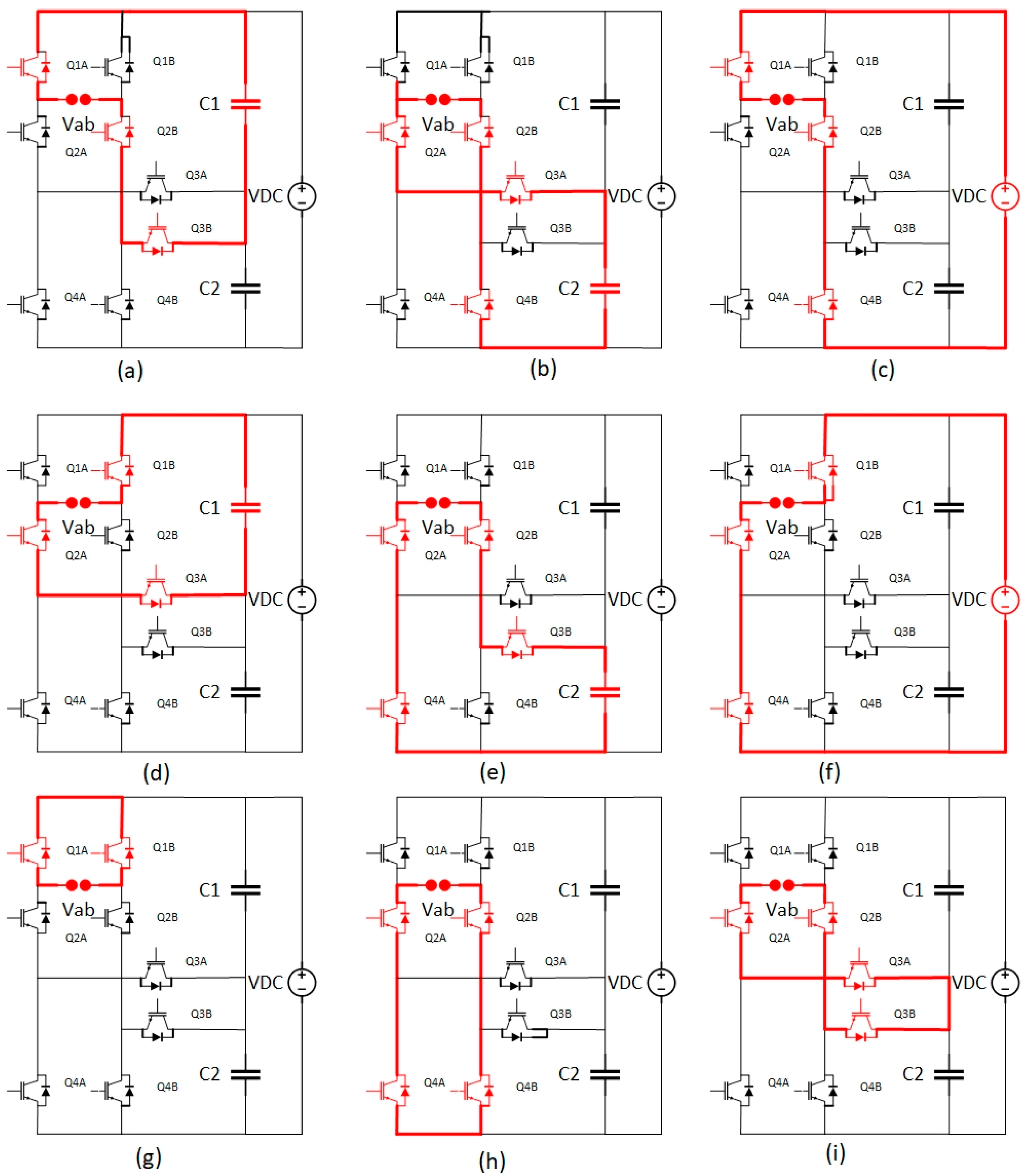

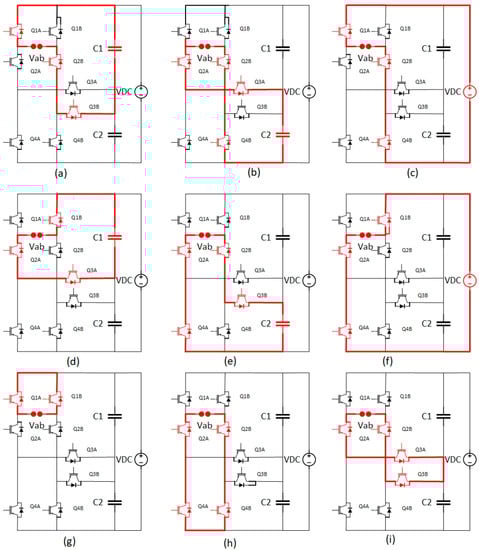

, while the inverter active path for each switching case are shown in Figure 2.

3. Proposed Method

DQ control, also known as the Clarke–Park transformation, is a common control strategy used in inverters for driving three-phase alternating current (AC) motors. It is primarily employed in motor drives that utilize field-oriented control (FOC) or vector control techniques [30]. The purpose of DQ control is to decouple the control of the motor’s torque and flux components. By transforming the three-phase AC currents or voltages into a two-coordinate reference frame, the studied method allows independent control of the torque-producing (D-axis) and flux-producing (Q-axis) components. In the classical orientation of the reference frame, torque is shaped by q-axis current and flux by d-axis current.

In a single-phase inverter, the DQ control strategy can be used to regulate both the active (real) and reactive (imaginary) currents. By applying DQ analysis, the single-phase quantities can be transformed into a two-coordinate reference frame, where the D-axis represents the active current component and the Q-axis represents the reactive current component [31]. Here’s how DQ analysis can be used to control active and reactive currents in a single-phase inverter. Signal Transformation: The single-phase current or voltage signal is transformed from the time domain to the DQ reference frame using the Clarke transformation and the Park transformation [32].

a-

Clarke Transformation: The single-phase current or voltage is converted into two orthogonal components, typically referred to as the alpha and beta components.

b-

Park Transformation: The alpha and beta components obtained from the Clarke transformation are transformed into the DQ reference frame. The Park transformation involves rotating the alpha-beta frame by an angle equal to the desired reference frame angle.

The proposed control method is a combination of DQ control and modified multicarrier PWM techniques to control grid connect F-type inverter and satisfy PV power utilization and grid power component compensation. The load and grid currents were analyzed to obtain the modulated control signal. Grid current alpha-beta conversion expressed in Equation (2):

$$\left[\begin{array}{c}{i}_g\alpha \\ i_g\beta \end{array}\right]=\left[\begin{array}{c}{i}_g(wt+\varnothing )\\ i_g(wt+\varnothing +\frac{\pi }{2})\end{array}\right]$$

(2)

While the D-Q components for the grid current are expressed in Equation (3):

$$\left[\begin{array}{c}{i}_{g}d\\ i_{g}q\end{array}\right]=\left[\begin{array}{cc}\mathrm{s}\mathrm{i}\mathrm{n}\left(wt\right)& -\mathrm{c}\mathrm{o}\mathrm{s}\left(wt\right)\\ \mathrm{c}\mathrm{o}\mathrm{s}\left(wt\right)& \mathrm{s}\mathrm{i}\mathrm{n}\left(wt\right)\end{array}\right]\left[\begin{array}{c}{i}_g\alpha \\ i_g\beta \end{array}\right]$$

(3)

The load current D-Q components are obtained in the same way; see Equations (4) and (5):

$$\left[\begin{array}{c}{i}_L\alpha \\ i_L\beta \end{array}\right]=\left[\begin{array}{c}{i}_L(wt+\varnothing )\\ i_L(wt+\varnothing +\frac{\pi }{2})\end{array}\right]$$

(4)

$$\left[\begin{array}{c}{i}_{L}d\\ i_{L}q\end{array}\right]=\left[\begin{array}{cc}\mathrm{s}\mathrm{i}\mathrm{n}\left(wt\right)& -\mathrm{c}\mathrm{o}\mathrm{s}\left(wt\right)\\ \mathrm{c}\mathrm{o}\mathrm{s}\left(wt\right)& \mathrm{s}\mathrm{i}\mathrm{n}\left(wt\right)\end{array}\right]\left[\begin{array}{c}{i}_L\alpha \\ i_L\beta \end{array}\right]$$

(5)

The grid Q-axis (reactive and distorted) current components are forced to be zero by using Equation (6):

$$i_g^{*}q=0$$

(6)

While the D-axis current component equals the difference between the load D-axis current component and the PV array current as expressed in Equation (7):

$$i_g^{\mathrm{*}}d=i_{L}d-I_{PV}$$

(7)

In the F-type inverter, both grid current and DC-side capacitors voltage should be controlled in such a way as to minimize grid current distortion and keep DC-side capacitors’ voltages balanced. Therefore, the F-type inverter cannot be driven by the traditional multicarrier PWM technique, which leads to the proposed special driving algorithm. The proposed switching algorithm is described in the flowchart shown in Figure 3.

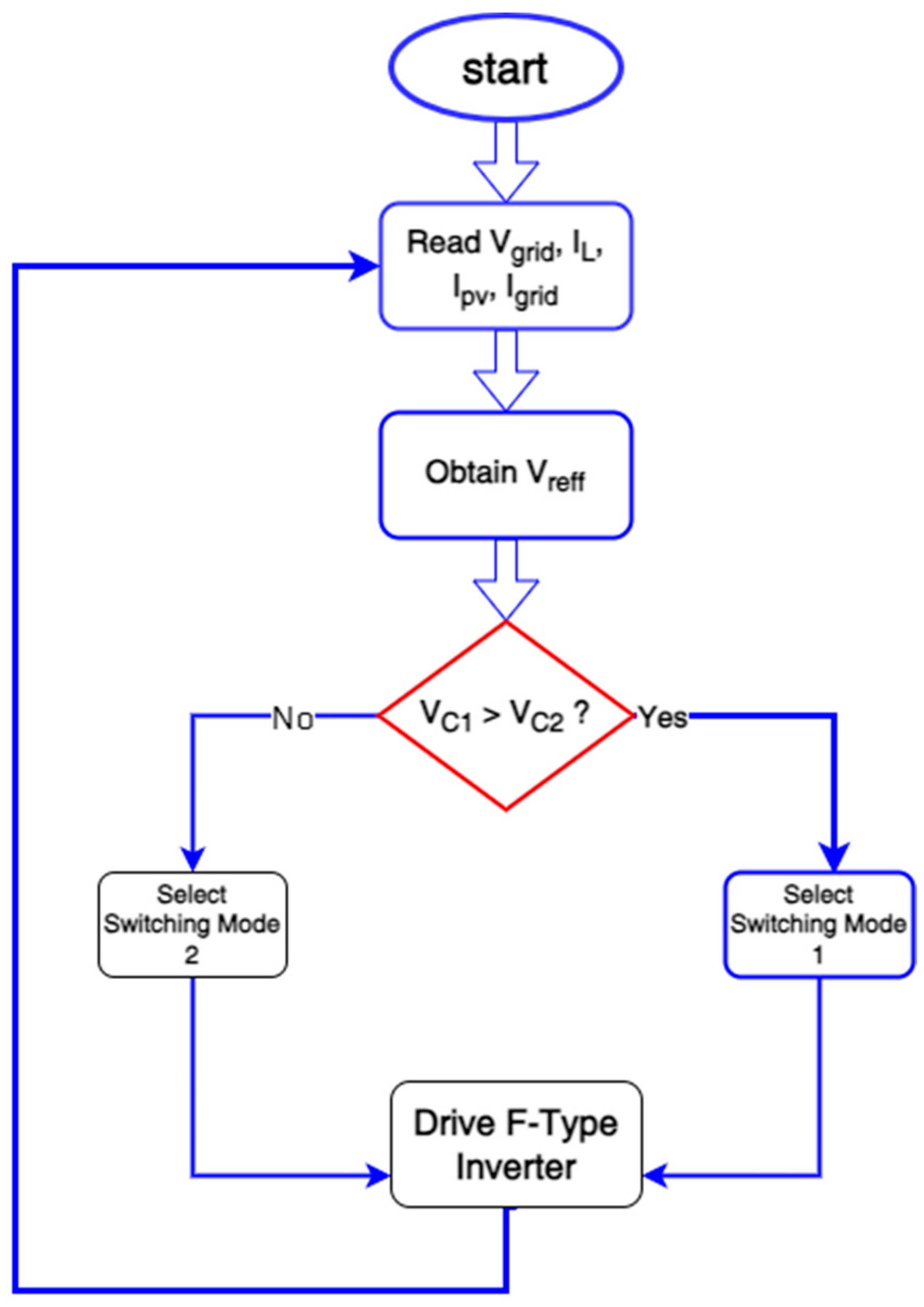

When the modulated voltage signal is obtained (for minimum grid current distortion), the next step is to check which capacitor voltage is the highest. Depending on the voltage level test, the switching mode is selected. This procedure ensures voltage balance for DC-side capacitors without needing extra components. DC-side capacitors voltage balance keeps output AC voltage symmetry.

4. Simulation Results Discussion

The simulation results of the proposed system are presented in this section. Firstly, the switching signals are examined for three different scenarios of PV behavior. The first scenario, which focuses on the idle PV array, is discussed in Section 4.1. The second scenario (P_pv < P_load) is covered in Section 4.2, while the third scenario addressing P_pv > P_load is explained in Section 4.3. Section 4.4 delves into the discussion of the impact of sudden load changes, and Section 4.5 explores the effect of changes in the power output of the PV array. Finally, in Section 4.6, a comparison is made between the performances of F-type and T-type inverters using the proposed control scheme.

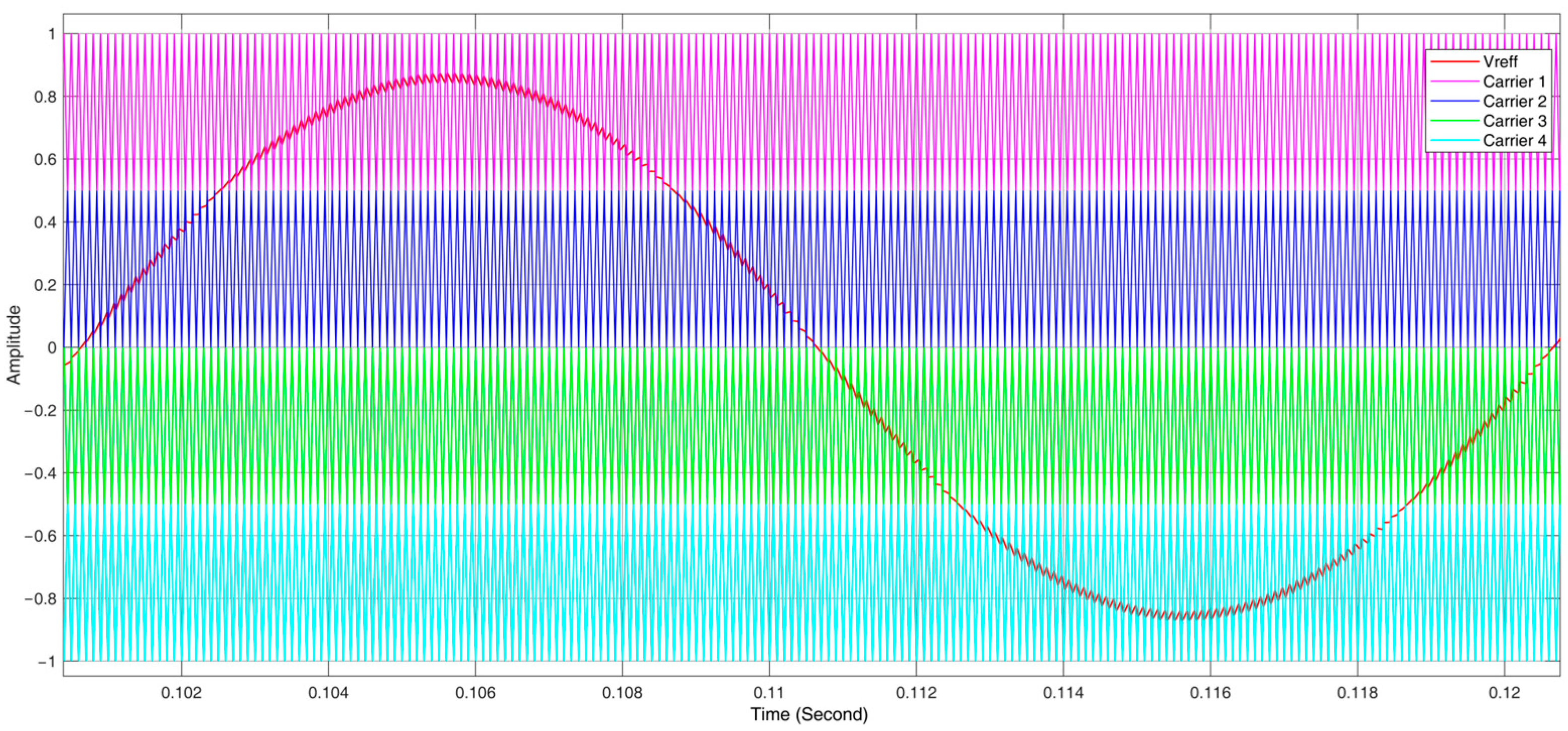

The proposed system is simulated for many operating cases depending on the real power produced by the PV array. Figure 4 shows the reference and carrier waveforms. The first carrier amplitude varies between −1 and −0.5, the second carrier amplitude varies between −0.5 and zero volt, the third carrier amplitude varies between zero and 0.5, and finally, the fourth carrier amplitude varies between 0.1 and 1. Thus, the modulated reference signal amplitude can be varied between −1 and 1. PWM signal generates by comparing each carrier signal with the reference signal used for controlling.

Keeping the main capacitors’ voltage equilibrium is the key to generating three-level voltage by the F-type inverter. Additionally, the proposed method keeps the other main advantage of the F-type inverter, which is that the voltage stress applied on 25% of the inverter switch only is equal to the main DC supply voltage, while the other 75% work with only 50% of the DC supply voltage as shown in Figure 5. Another advantage of the proposed method is the lowest switching losses despite using the PWM switching technique, as shown in Figure 6.

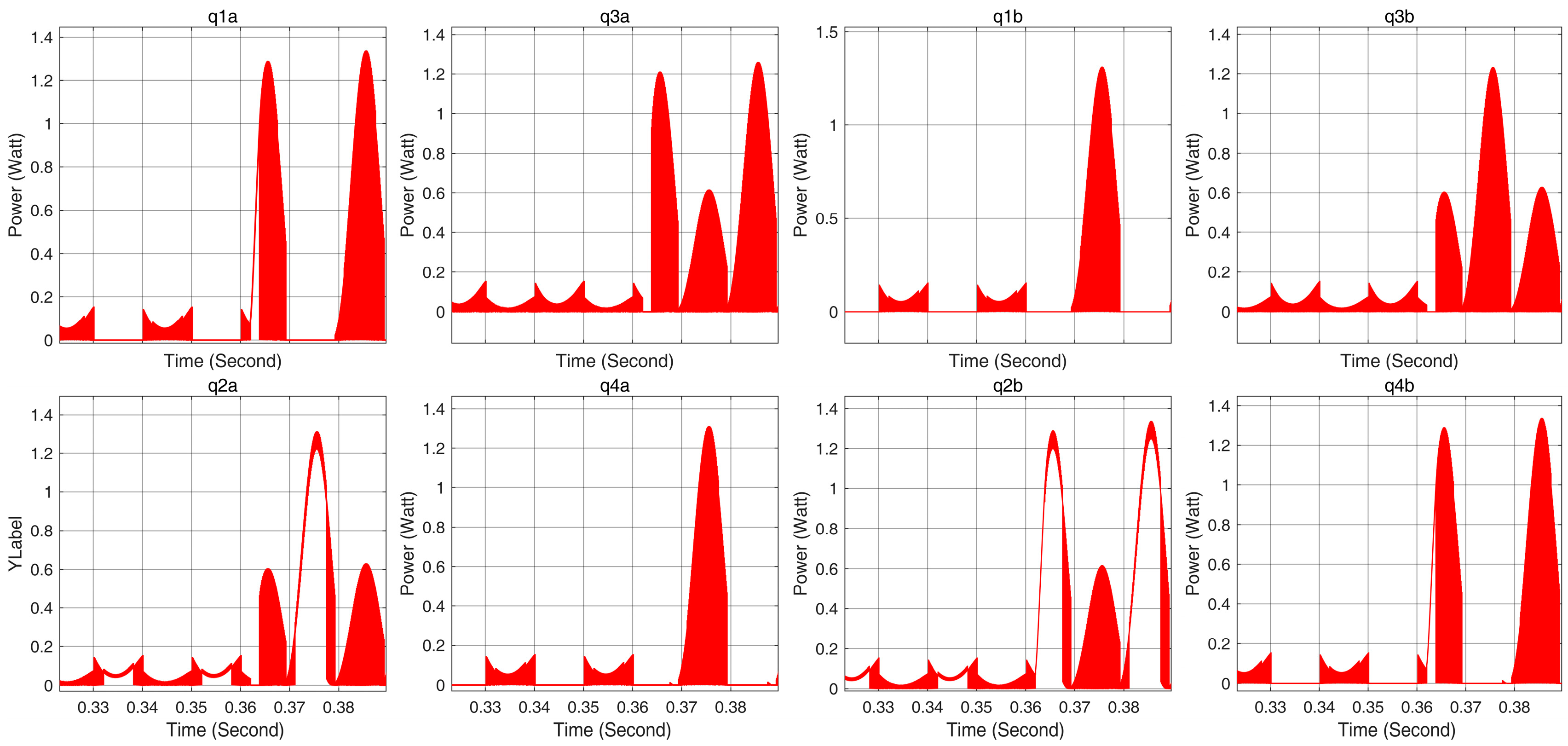

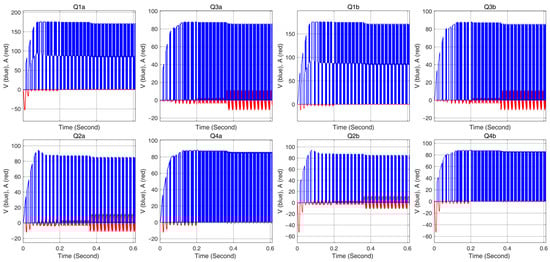

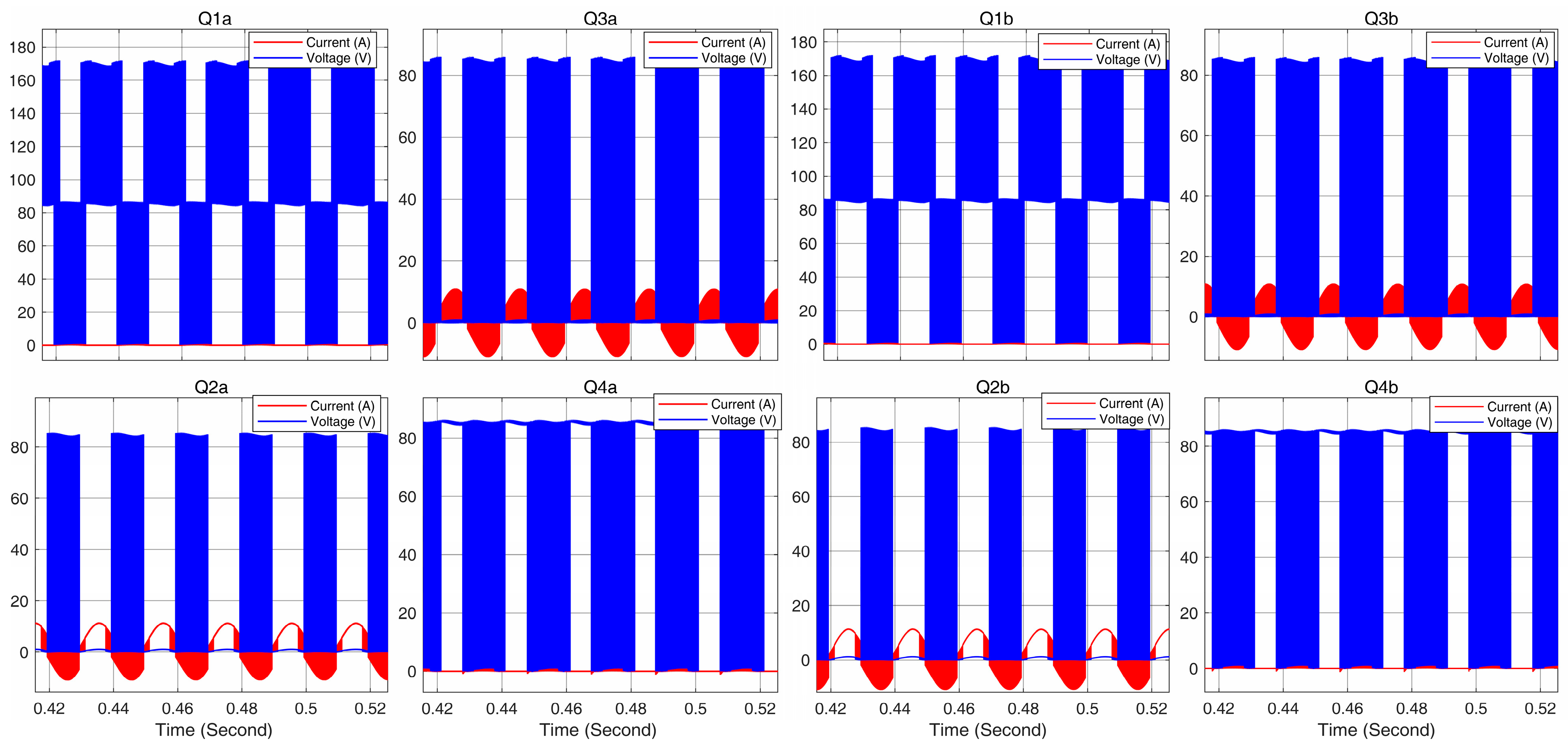

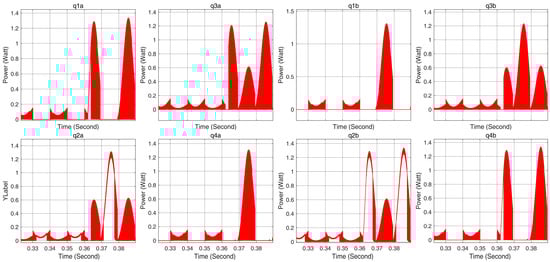

As shown in Figure 5 and Figure 6, it is clear that three of the switches are working in zero current switchings and two switches are working with low switching losses while the other three switches are working in normal operating, and also the switching losses are low compared with traditional PWM based inverters losses.

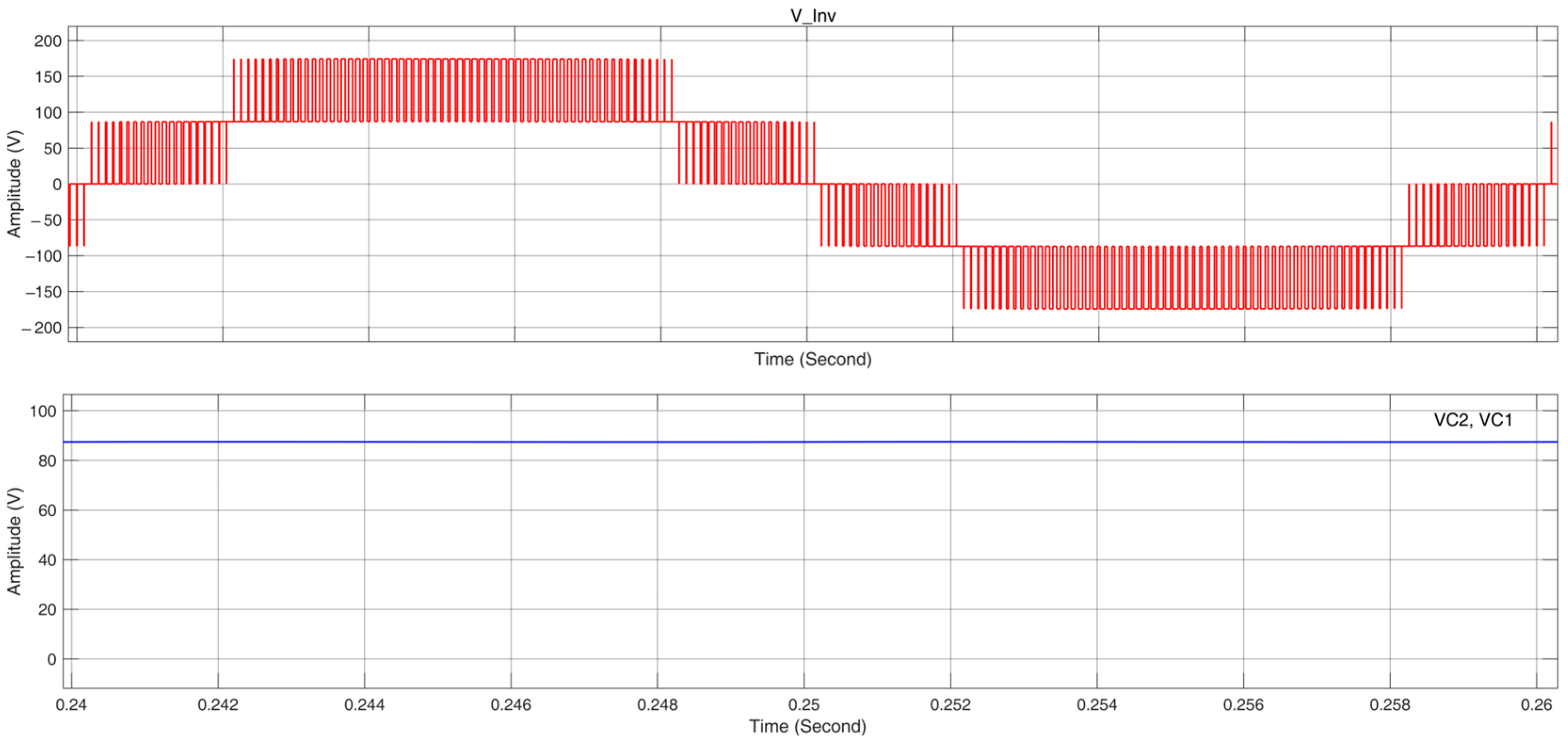

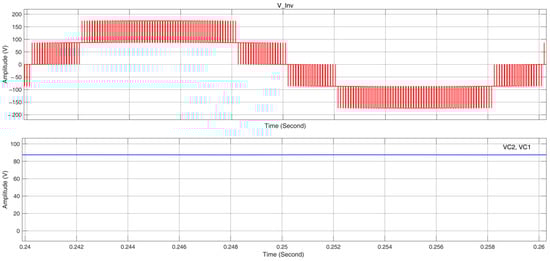

The generated voltage by the F-type inverter, depending on the proposed switching method, is three shown in Figure 7. In the same figure, the main capacitors’ voltages curves are shown.

For all simulated cases, the grid current still has a unity power factor with minimum total harmonic distortion (THD).

4.1. System Simulation When PV Array Is Idle

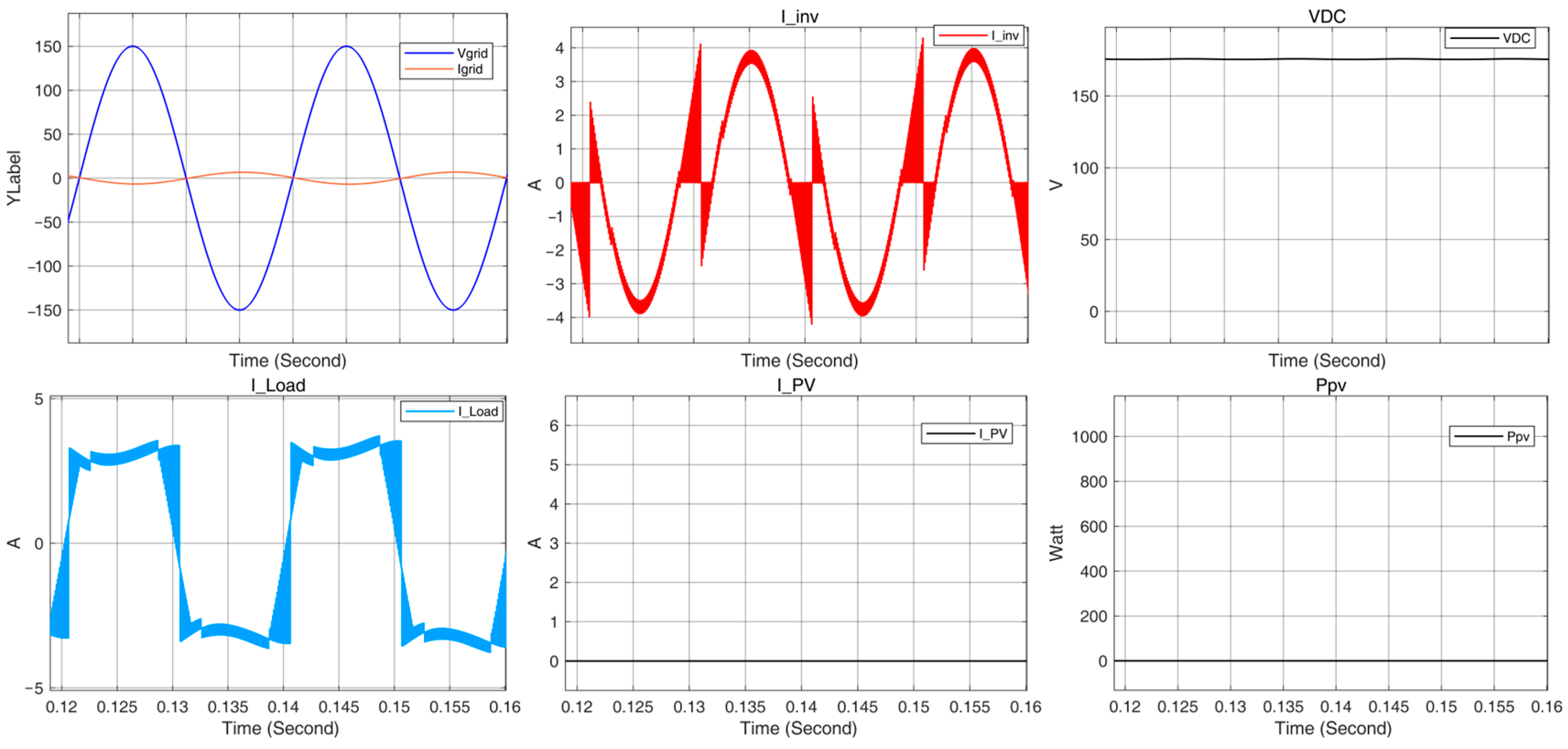

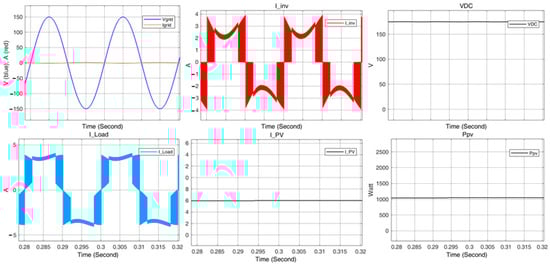

When the system is simulated for nonlinear load while the PV array is idle, the load power components are compensated, and the grid supplies only the load’s real power (see Figure 8).

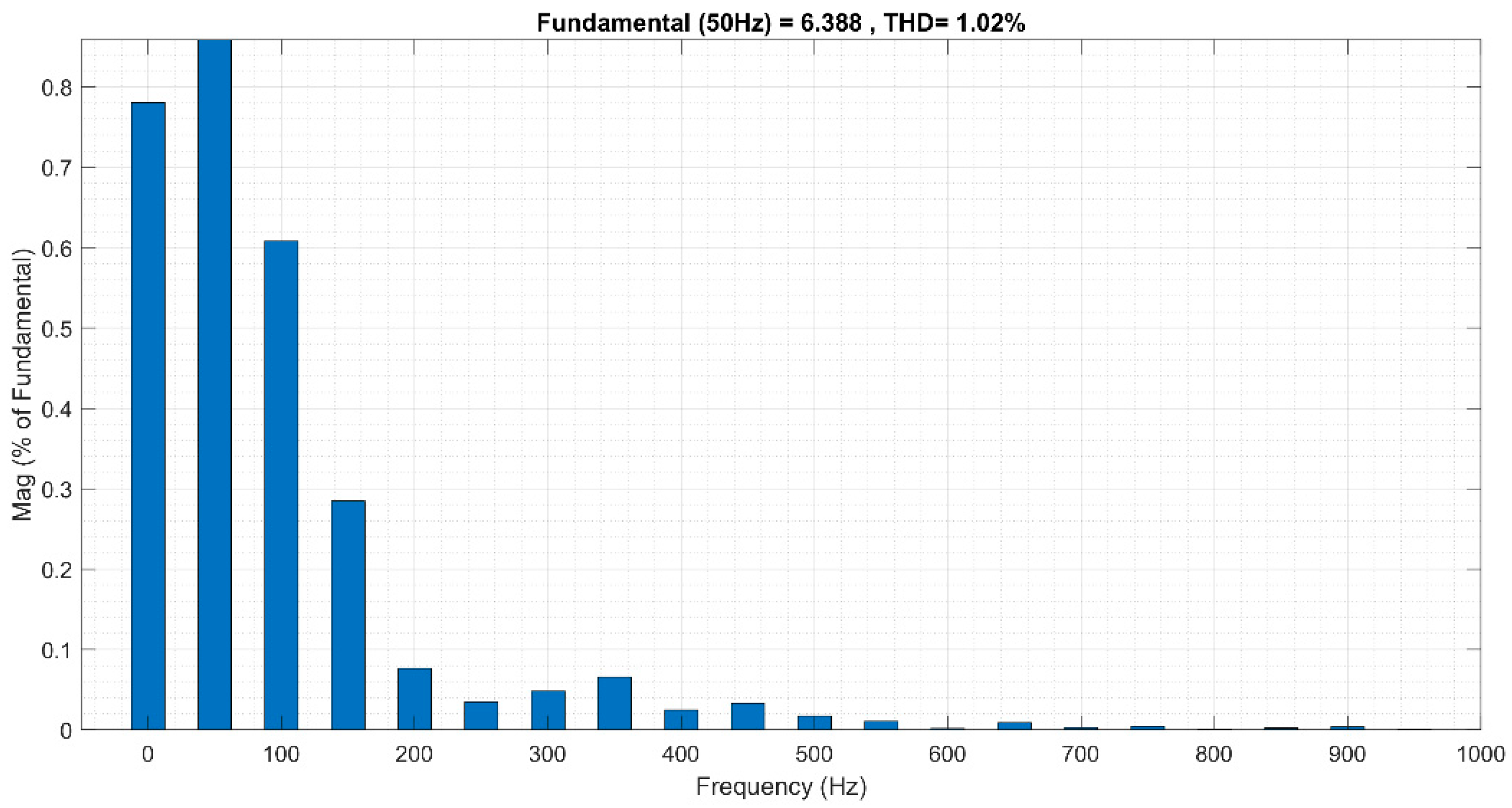

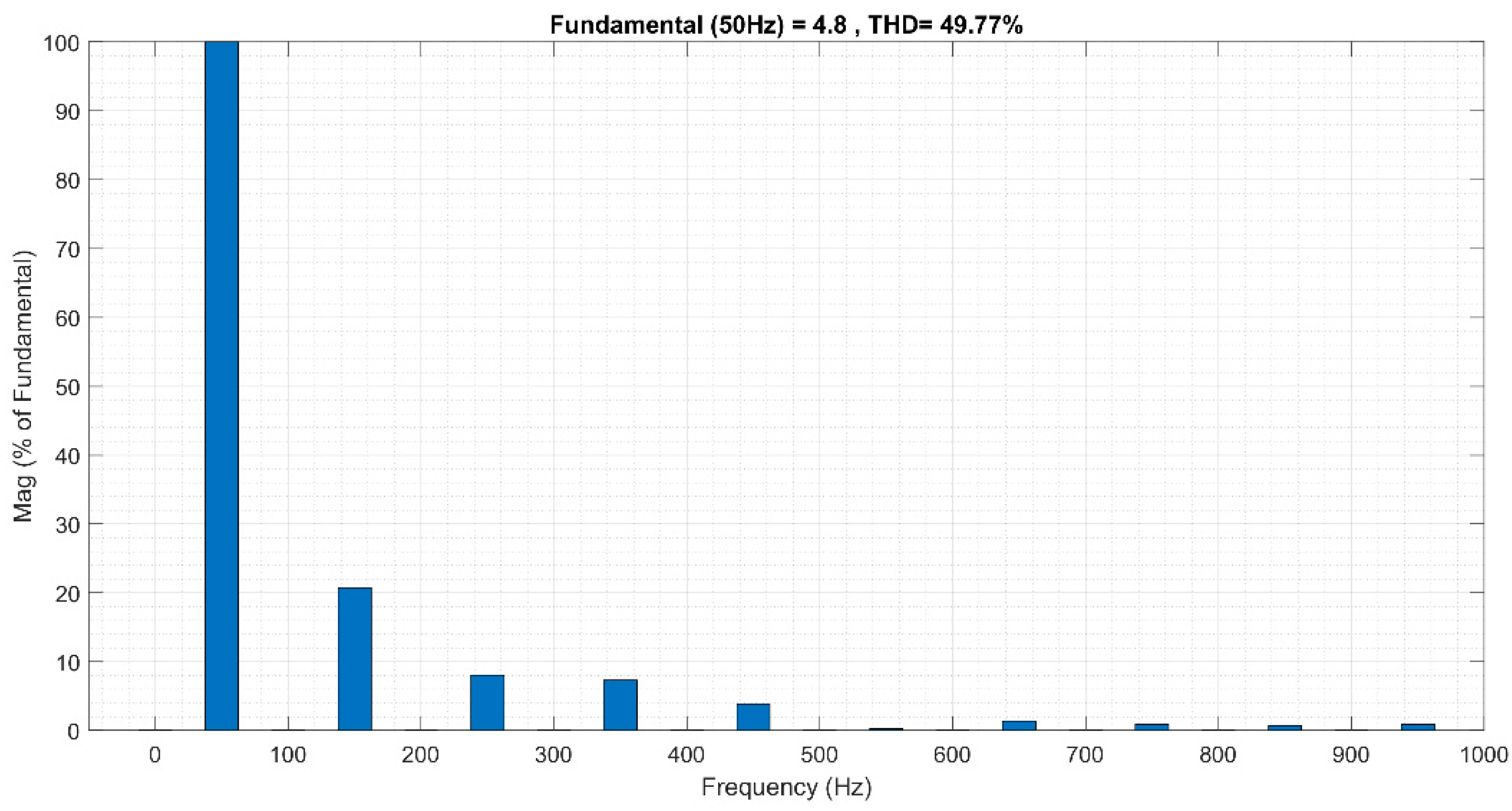

The load and grid current FFT analysis are shown in Figure 9 and Figure 10, respectively. As shown in Figure 9, the load current total harmonics distortion THD is 49.77%.

While the grid current THD is 1.02%, as shown in Figure 10.

4.2. System Simulation When PV Power = Load Power

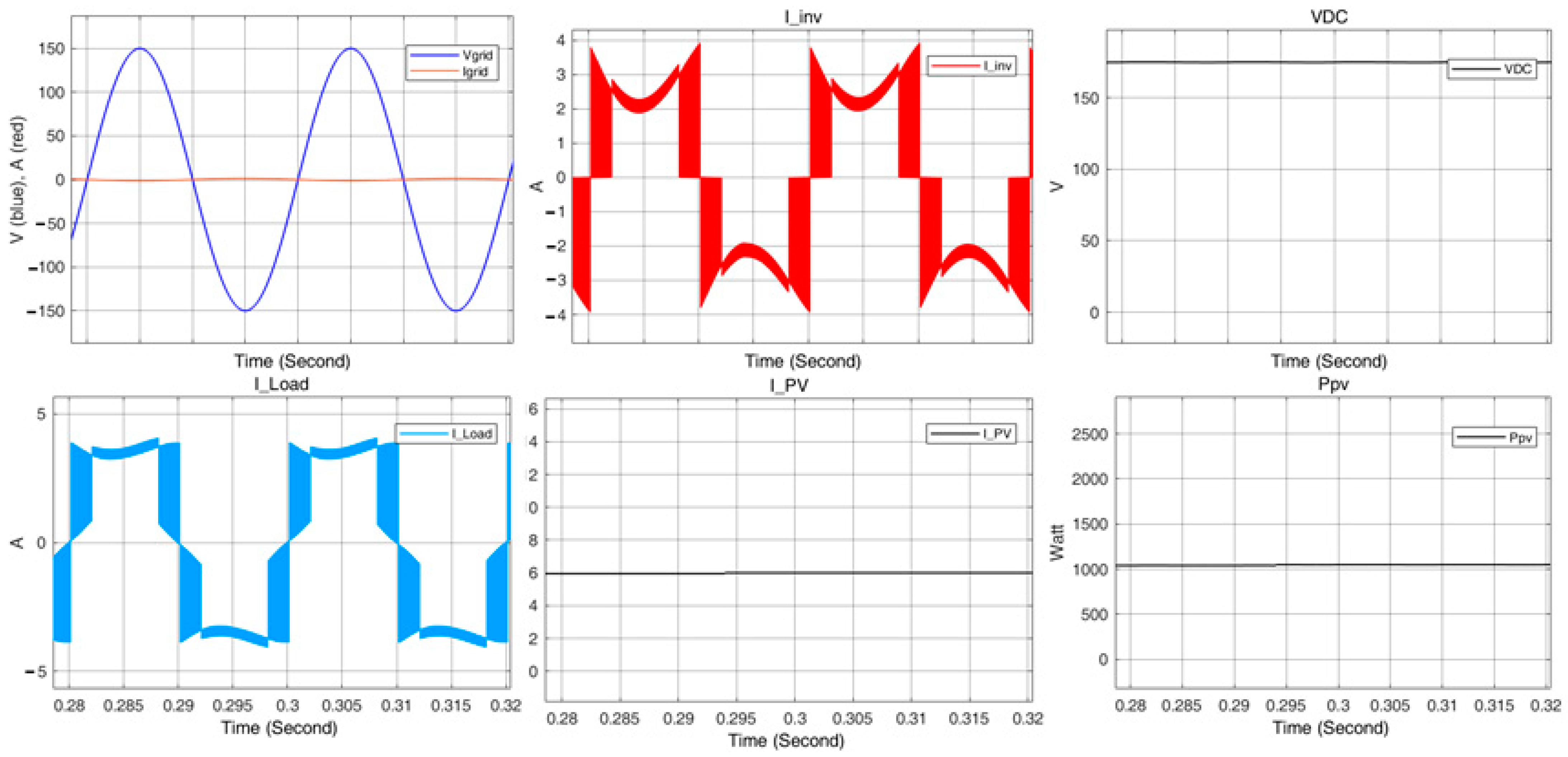

In this case, the total real power produced by the PV array is equal to the load real power. This case is the more complex case because the grid current is near zero, and this makes the compensation process more difficult. System simulation results for this case are shown in Figure 11.

The grid current THD for this case is 3.67%, as shown in Figure 12.

4.3. System Simulation When PV Power Is More Than the Load Real Power

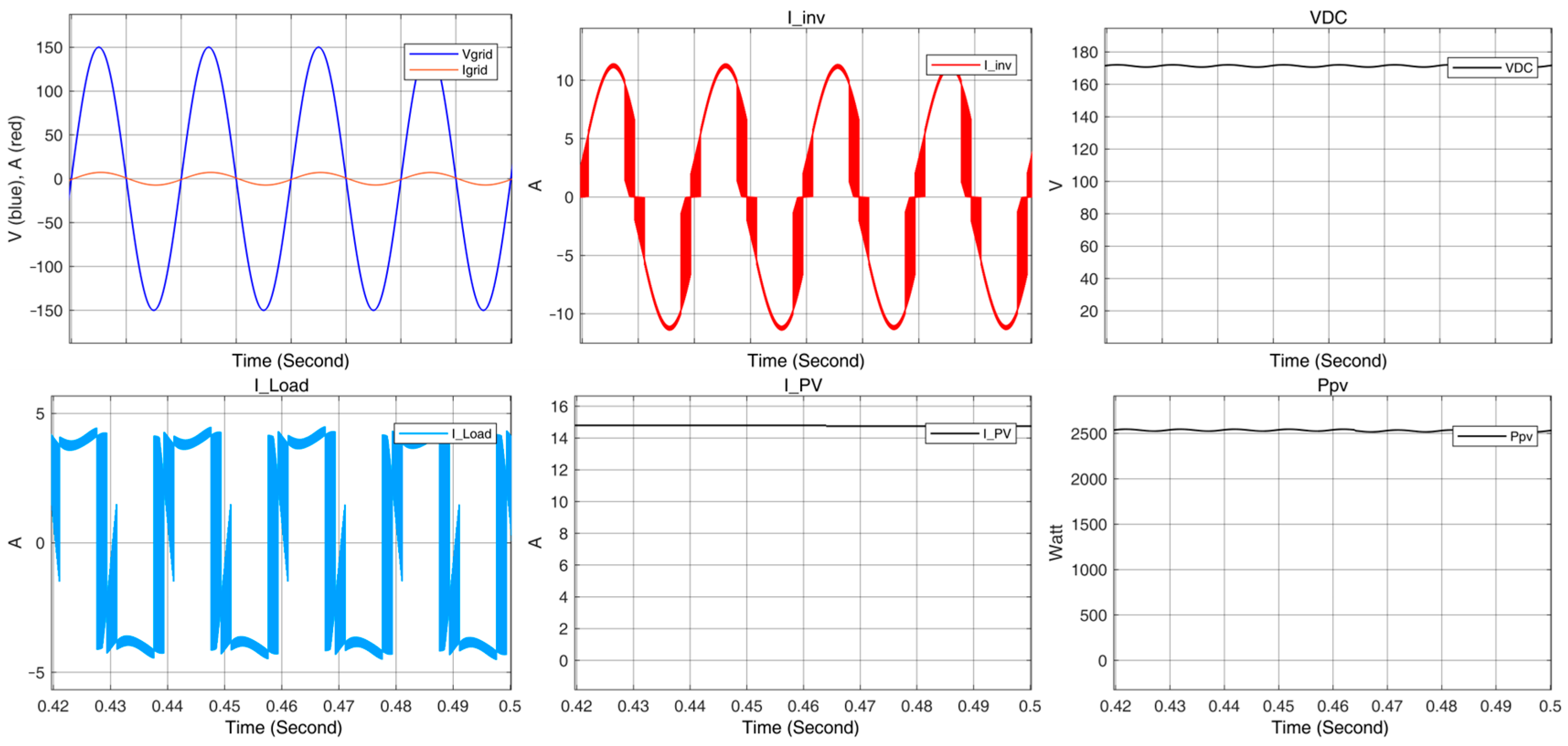

In this case, the real power produced by the PV array is greater than the load of real power. Therefore, the grid current direction is from the converter to the grid (the grid is treated as an energy storage system). The simulation results are shown in Figure 13.

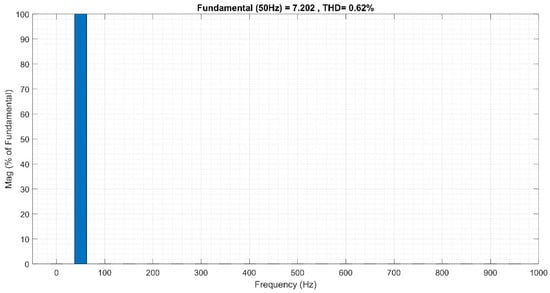

While the grid current FFT analysis is shown in Figure 14, the THD in the grid current in this case is 0.62%.

For all simulated cases, the grid current THD is less than 5% while the system keeps working in minimum switching losses in spite of using the PWM technique, which is known as a high-switching-losses technique. Figure 15 shows the switching losses for each IGBT in the F-type inverter for all simulated cases.

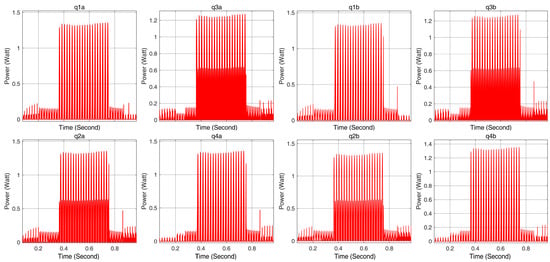

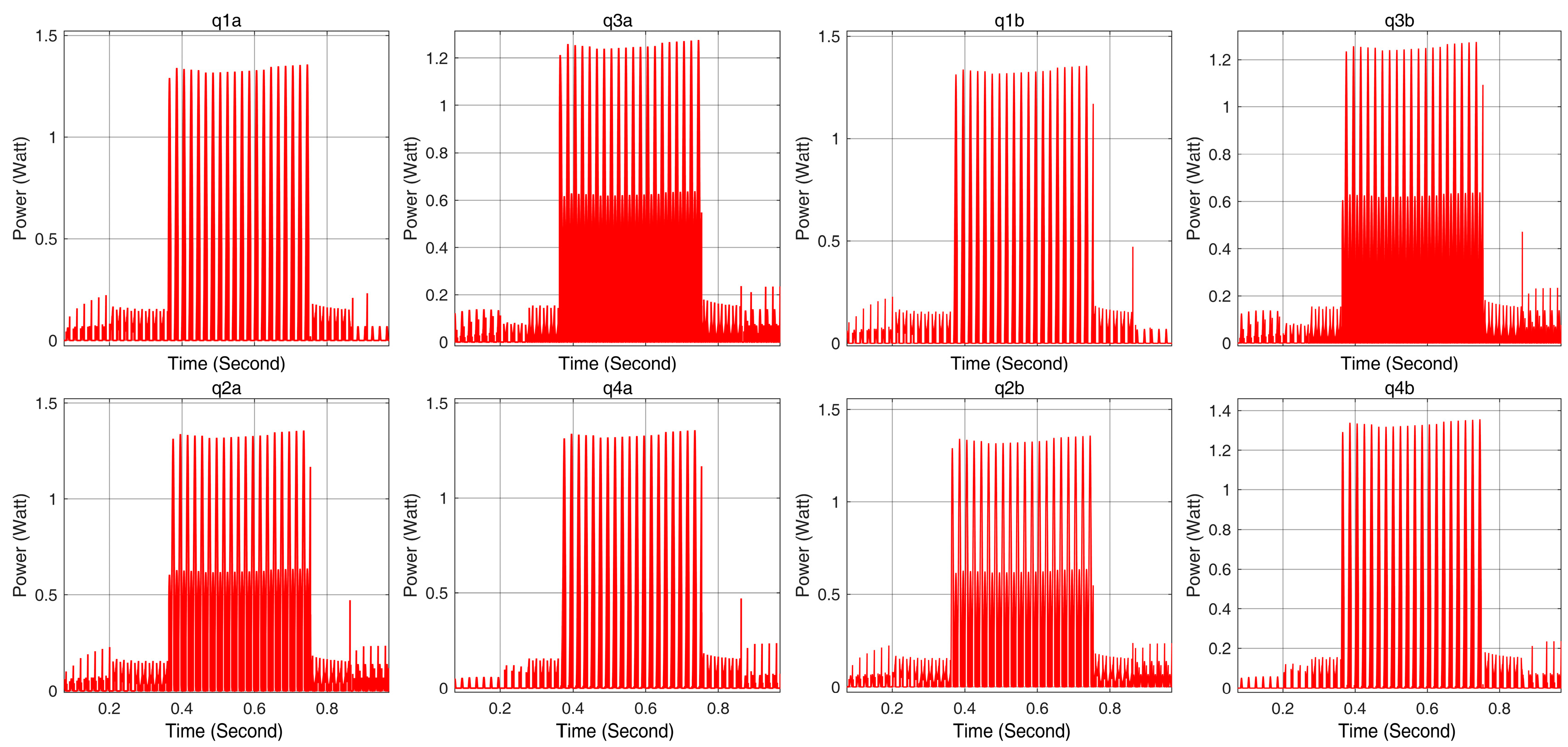

As shown in Figure 15, it is clear that 50% of the IGBTs are working in zero voltage switching ZVS without using any additional components or switching frequency reduction.

Additionally, the main advantage of the F-type inverter is kept which is only 25% of the IGBTs under high DC voltage equal to the PV array DC voltage, while the other 75% are working with Vdc/2. Figure 16 shows the voltage stress and current through each IGBT.

4.4. System Simulation for Sudden Load Change Case

The effect on system response when the load changes suddenly is shown in Figure 17. It is clear the system response for load change requires less than one cycle (<0.02 s). Load change occurs in “0.3 s” and continues for 0.1 s, then ends in “0.4 s”. The grid current curve, as shown in Figure 17, shows the change durations that are zoomed in to focus on the response. Before 0.3 seconds, the load capacity is less than the power produced by the PV array, while in the duration (0.3–0.4) second, the load capacity exceeds the power produced by the PV array; therefore, the grid current magnitude and direction are changed depending on the load change. The system performance stays stable, and the grid current is still as defined in Equations (6) and (7).

4.5. PV Array Power Change Effect

The variation of the generated power by the PV array does not affect the system performance because the system response is faster than the PV power change. Figure 18 shows the response of the system under PV array power change.

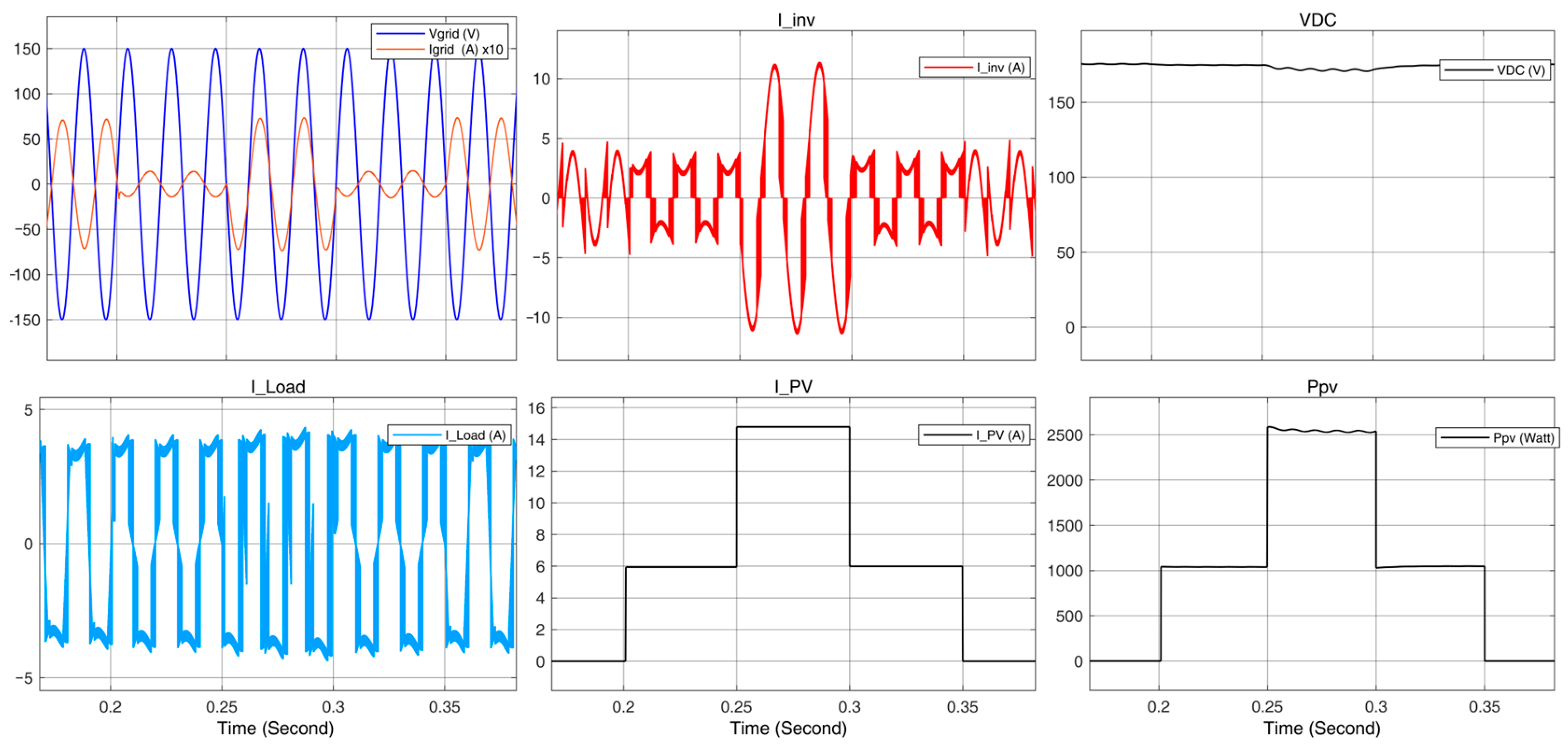

As shown in Figure 18, the grid current amplitude and direction depend on the difference between the load real power and the PV array real power. The grid current curve in Figure 18 is scaled (×10) to make it accurately readable.

4.6. Comparative Study

The proposed control method used in controlling both F-type and T-type inverters in the same operating conditions; the simulation results comparisons are listed in

Table 2. Performance comparison for F-type and T-type inverters under the proposed control scheme.

I PV (A)	0	6	14.75
I grid (F-type) (A)	6.98	1.32	7.145
I grid (T-type) (A)	7.43	1.64	6.87
THD (F-type) (%)	0.73	3.58	0.62
THD (T-type) (%)	0.57	2.45	0.54

. The simulation results show that the PV array utilization of the F-type inverter under the proposed control scheme is better than that of the T-type inverter under the same control scheme. When the PV array is idle, there is no real power produced from the PV array; therefore, the grid current must be equal to the load current real part. In the F-type inverter case, the grid current is less than that in the case of the T-type inverter. When the PV array current reaches the load current real part (6 A) the grid current in the case of F-type is less than that of T-type. Finally, when the PV array current became greater than the load current real part, in this case, the current flows from the inverter side to the grid side, and also, the F-type utilized the PV array current best than the T-type inverter.

The THD for grid current produced by both inverters is in the accepted limit, while the T-type inverter current THD is the little best.

5. Conclusions

In this article, an innovative control method is proposed to control a grid-connected F-type inverter powered by a solar cell system with a non-linear load. The simulation results show the high performance of the proposed system in constant and dynamic operation modes. The total harmonic distortion THD in injected or absorbed grid current is less than 4%, even in the worst operating case when the PV array real power equals the load real power. Additionally, the proposed control system was simulated with a T-type inverter; the simulation results are compared to verify the performance of the proposed system. The proposed grid-connected F-type PV-powered inverter GCFTPVI operates with two switching modes depending on the main capacitors’ voltages to keep the voltage balance. In addition, the switching losses are very low because the proposed control method satisfies zero voltage switching ZVS in 50% of the inverter switches without any components addition, and that leads to reduced cost keeping.

The proposed GCFTPVI can be considered a suitable technique for home PV applications thanks to its ability to compensate the load power components and inject the real power from the PV array instantaneously with minimum THD and switching losses.
