Modeling Acoustic Channel Variability in Underwater Network Simulators from Real Field Experiment Data

Abstract

The underwater acoustic channel is remarkably dependent on the considered scenario and the environmental conditions. In fact, channel impairments differ significantly in shallow water with respect to deep water, and the presence of external factors such as snapping shrimps, bubbles, rain, or ships passing nearby, changes of temperature, and wind strength can change drastically the link quality in different seasons and even during the same day. Legacy mathematical models that consider these factors exist, but are either not very accurate, like the Urick model, or very computationally demanding, like the Bellhop ray tracer. Deterministic models based on lookup tables (LUTs) of sea trial measurements are widely used by the research community to simulate the acoustic channel in order to verify the functionalities of a network in certain water conditions before the actual deployment. These LUTs can characterize the link quality by observing, for instance, the average packet error rate or even a time varying packet error rate computed within a certain time window. While this procedure characterizes well the acoustic channel, the obtained simulation results are limited to a single channel realization, making it hard to fully evaluate the acoustic network in different conditions. In this paper, we discuss the development of a statistical channel model based on the analysis of real field experiment data, and compare its performance with the other channel models available in the DESERT Underwater network simulator.

1. Introduction and Related Works

Wireless communication under the sea is very challenging. Radio frequency and optical signals are severely attenuated and therefore unable to cover a great distance, hence their use is restricted to a few specific applications [1]. Acoustic signals, instead, can propagate for several kilometers, and, while characterized by low bandwidth and high propagation delay, at least enable long range communication links, and are considered the most mature underwater wireless communication technology to date. For this reason, underwater acoustic networks (UANs) are widely used in both military and civilian applications, including, but not limited to, coastal surveillance and monitoring, tsunami prevention, and oil and gas pipeline inspection. While sea trials are proven to be the best way to evaluate UANs, their realization is not trivial. In fact, they are very demanding in terms of costs, time, personnel, and equipment, and very prone to external factors that can cause failures of the trial, not only due to equipment issues caused by software faults and hardware damages, but also because of bad sea conditions. For this reason, network simulators are often employed for a preliminary evaluation in order to debug the protocol stack before the final sea trial, hence minimizing the probability of software faults and having an idea on how the new protocol works if compared to other benchmarks. However, in the underwater research community, simulations are still not considered to be a valuable tool to perform the final evaluation of UANs, as channel models are often unable to accurately describe the time varying behavior of a real acoustic channel [2]. The acoustic channel, in fact, depends on a large number of factors. First, changes of temperature, depth of the node, and salinity cause a variation of the sound speed along the water column, and therefore of propagation of the acoustic signal. Second, the  presence of water currents, wind, and mobile nodes causes a strong Doppler effect that affects the received signal [3]. Lastly, noise caused by wind waves, rain, snapping shrimps, bubbles brought by tidal inflow, and ship propellers [4] causes the degradation of the signal to noise ratio (SNR). The use of realistic channel models, such as the Bellhop ray tracer [5] where a subset of these parameters can be included, is computationally demanding and hence restricted to networks with a small number of nodes.

Given the large number of sea experiments performed by scientists in the last 15 years [6,7,8,9,10], a wide dataset of time-varying links has been collected, and some measurements are publicly available. Data-driven models have gradually been used to predict the trend of channel performance; for example, in [11] the authors, considering features for the model different environmental characteristics, build a logistic regression network whose Packet Success Rate (PSR) estimates are quite accurate if restricted to the short-term variability of only one of the acoustic link features used to build the regression network. In several works [12,13,14], the authors mapped different modems performance figures of PSR versus range in the DESERT network simulator [15]. Although in some cases they have also included the performance degradation due to interference, this model can only be used for a preliminary evaluation of the network, as the channel variability is not considered and the modem performance is assumed constant in time. The ASUNA dataset [6] is a collection of the acoustic link quality time evolution observed during many different sea trials carried out by the Haifa University, Israel, the University of Padova, Italy, and IMDEA Networks, Spain. These experiment have been performed in different locations around Europe and Israel. The authors also show how the time varying links stored in the dataset can be used in a Matlab network simulation in order to reproduce the link quality evolution experienced during those sea trials. Similarly, in [16], the authors included in the DESERT Underwater network simulator the time evolution of the links of the multimodal acoustic mobile ad hoc network deployed in [9] and composed of low- and high-frequency modems. They also included the impairments caused by interference, and LUTs of the noise variability to test the adaptation of different modulation and coding schemes. Although, on the one hand, both the solutions in [6,16] allow to reproduce the time evolution observed during sea trials, on the other hand they do not allow to test different channel realizations.

During the last decade, researchers [17,18] demonstrated that the time evolution of underwater acoustic channels can be statistically well characterized with two- and four-state Markov models and with a two-state Hidden Markov Model (HMM)  [19]. In fact, the nature of the acoustic channel, whose error probability often changes during the day due to, for instance, presence of rain, changes of wind speed, and shipping activity, can be well characterized by HMM. Analyzing real channel measurements [6,7,8,9,10], in fact, it is common to observe time intervals with a low PSR alternated by time intervals with a high PSR, rather than having an almost constant error probability during the whole experiment.

The evaluation study of which Markov and HMM model best fits the experimental data [18] showed that the HMM yields an accurate reproduction of the channel metrics, tracking long term channel behaviors well, and making it a good choice for modeling the channel in UANs simulators.

The aim of this work is to present a statistical model based on the analysis of sea trial data, and to evaluate the effectiveness of this model with respect to already existing models. This statistical model is included in the DESERT Underwater simulator [15], which includes a wide set of protocols for best customizing the underwater network to the needs of a user. The model relies on measurements extracted from the ASUNA dataset [20], which presents a number of time series of link quality indicators (LQIs) measured during the aforementioned experiments. The main contribution of this article is to provide the research community with an open-source framework for underwater network simulations where the acoustic channel is modeled with high reliability and low computation complexity.

The paper is structured as follows. First, in Section 2 we present the dataset used to infer the channel model parameters. Then, in Section 3 we provide the details of the statistical model and its implementation in the simulator. In Section 4 we evaluate the performance of our model when compared to legacy mathematical models, while in Section 5 we present the results of the simulations. Finally, in Section 6 we draw our concluding remarks.

2. Dataset Description

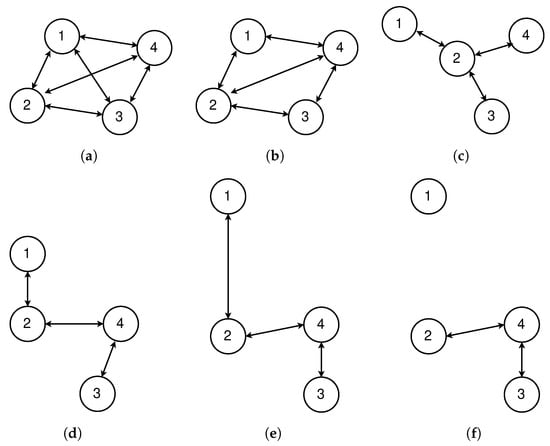

The statistical model used in this paper is trained using the measurement data of one of the sea trials collected in the ASUNA dataset: the Haifa harbor (Israel) test performed in May 2009 [21]. During this experiment, 4 m rubber boats deployed the nodes in six distinct topologies (Figure 1) for different periods of time. A spatial reuse TDMA protocol (each device had a 5 s slot dedicated for transmission) was tested, and the transmission rate of the modems was 600 bps without channel coding, using a B-PSK signal modulated by direct sequence spread spectrum (DSSS), which was created using a gold sequence-based pseudo random sequence of 128 chips, centered at 25 kHz, and bandwidth 5 kHz. The modem prototype was composed of ITC transceivers, a National Instrument data acquisition system, and a laptop for signal processing. The transceivers were deployed at a depth of 4 m.

The LQI observed during the trial is the Bit Error Rate (BER), defined as the ratio between the number of erroneous bits and the total number of transmitted bits. The dataset provides a set of time-varying BER per-link values collected into six Topology Matrix Information (TMI) (one for topology). A TMI consists of an $\mathtt{NxN}$ matrix, with N being the number of nodes in a topology, where the entry $(t,i,j)$ represents the BER value for the link from node i (transmitter) to node j (receiver) at time t: the time interval between two subsequent measurements is 5 s, at each measurement BER and GPS position (in UTM coordinates) of each node are recorded. During the sea trial, Topology 1 was tested for 30 min, Topology 2, 3, 4, and 5 were tested for 60 min, while topology 6 was tested for 90 min.

Table 1. Haifa Harbor sea trial details.

Location, Date	Nodes	Topologies	Collection Time
Haifa Harbor, 05/09	4	6	30–90 min
Rate	LQI	Total Time	Interference
Once every 5 s	BER	6 h	No

provides the experiment details.

During the experiment, the LQI of each link was varied in time. In some of the links the BER was very small for almost all the time, while other links had a higher error rate.

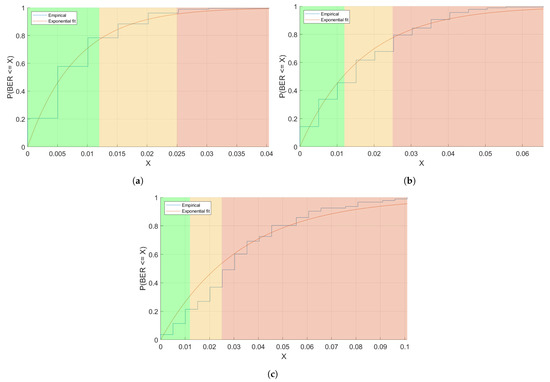

For instance, in Figure 2 we can observe the BER Cumulative distribution function (CDF), fitted with an exponential distribution, of three representative links observed during the trial.

Specifically, Figure 2a presents the CDF of the very stable link from node 4 to node 2 observed in topology 2, whose BER is lower than 0.02 for 90% of the time. Figure 2b, instead, presents the CDF of the link from node 3 to node 2 observed in topology 2: in this case the BER is slightly higher than in the previous case but never exceeds 0.06. Finally, Figure 2c depicts the link from node 1 to node 3 observed in topology 3: this link has a BER that is definitely higher than the other two links.

3. Three-State Hidden-Markov Model

In this section we analyze the data measurements in order to obtain the statistic characterization of the acoustic channel experienced during the sea trial (Section 3.1) and compute the transition probabilities of the three-state HMM used to model the channel variability (Section 3.2). We also present the two-state HMM used as benchmark (Section 3.3). We analyze only the time evolution of the acoustic links of the nodes in communication range of each other, as nodes that are not in range simply did not exchange any message and their analysis is therefore trivial. Although the analysis presented in this paper focuses on topologies 1 and 2, in the new release of DESERT we also included the link evolution statistics of topologies 3, 4, 5, and 6.

3.1. BER Thresholds

  In order to analyze the link quality, we need to define when a link is assumed to be in “good”, “medium”, and “bad” state. For this reason, we set the following thresholds to the observed BER:

• Good state: $BER<0.012$;
• Medium state: $0.012<BER<0.025$;
• Bad state: $BER>0.025$.

With these thresholds, considering a Hamming (7,4) Forward Error Correction (FEC) and a packet size of 16 bytes without FEC (i.e., 28 bytes with FEC), the resulting Packet Error Rate (PER) can be computed analytically as follows. If we define the probability of having no more than one error in 7 bits as

$${\mathbb{P}}_{succ}={(1-BER)}^7+7·BER{(1-BER)}^6,$$

(1)

we can obtain

$$PER=1-{\left({\mathbb{P}}_{succ}\right)}^{224/7}.$$

(2)

To check that these results are correct we verified them via simulation. Given a topology, a link, and its empirical BER observed at a fixed time $t_x$, a sequence of 224 uniform random values in $[0,1]$ are extracted. Each of the values has been compared with the respective BER empirical value to generate a logical array with “0” in the cells where the number generated by the RNG was greater than the BER value, and “1” in the other positions.

This array can be interpreted as our 224 bit packet, where the bits set to “1” are wrong and the bits set to “0” are correct. Therefore, since we have adopted Hamming (7,4), the packet is scanned with a 7-bits step: since Hamming (7,4) cannot correct more than one error every 7 bits, whenever the sum of the bits in a block is greater than 1 we mark the block as compromised and the whole packet is considered corrupted. The process is iterated for $N=1000$ times and the PER value is given by the number of corrupted packets divided by N.

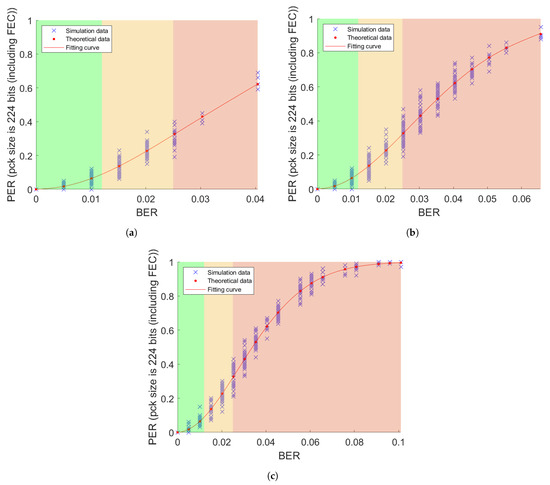

We can observe in Figure 3 the PER-BER relationship obtained analytically (red line) and via simulation (blue crosses) for the three links presented in Figure 2.

With the BER thresholds presented above, the corresponding PER thresholds follow:

• Good state: $PER\le 0.09$;
• Medium state: $0.09<PER\le 0.32$;
• Bad state: $PER>0.32$.

We can finally observe that the stable link from node 4 to node 2 observed in topology 2 is 95% of the time in Good or Medium states, the average-performance link from node 3 to node 2 observed in topology 2 is only 80% of the time in Good or Medium states, and the challenging link from node 1 to node 3 observed in topology 1 is in Bad state 45% of the time.

With these fits, we can compute the generic probability that a link is in one of the three-states. Nevertheless, this is not enough to model the variability of the channels.

3.2. Transition Probabilities

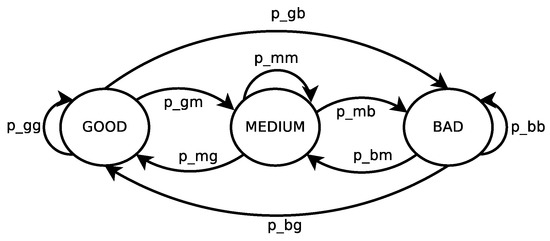

From a visual inspection of the link BER time evolution we noted that, grouping the data on a per-state basis, a link in a state i is more likely to remain in that state in the successive time slot, rather than jump to another state. Once this was verified, we decided to model the PER time evolution of a generic link as a three-state Markov chain (Figure 4), with the three states $S=\{G,M,B\}$ that stand for “Good”, “Medium”, and “Bad”, respectively. Specifically, if we denote as $X_0,\cdots ,X_n,\cdots X_N$, a sequence of random variables where $X_i$ takes values in the set S of the three states, $\mathbb{P}(X_{n+1}=j|X_n=i)$ is the transition probability from state i to state j at step n. Additionally, by the Markov property, we have that:

$$\mathbb{P}(X_{n+1}=i_{n+1}|X_0=i_0,\cdots ,X_n=i_n)=\mathbb{P}(X_{n+1}=i_{n+1}|X_n=i_n),$$

(3)

which can be interpreted as the fact that, if the current state $X_n=i_n$ is known, the probability of $\mathbb{P}(X_{n+1}=i_{n+1})$ does not depend on the previous states. If the transition probabilities do not depend on n but only on i and j, the Markov chain is homogeneous and we may compute every joint probability knowing only the initial distribution of the states $p_i^{\left(0\right)}=\mathbb{P}(X_0=i)$ and the values of $p_{ij}$, where:

$$p_{ij}=\mathbb{P}(X_{n+1}=j|X_n=i),\forall n.$$

(4)

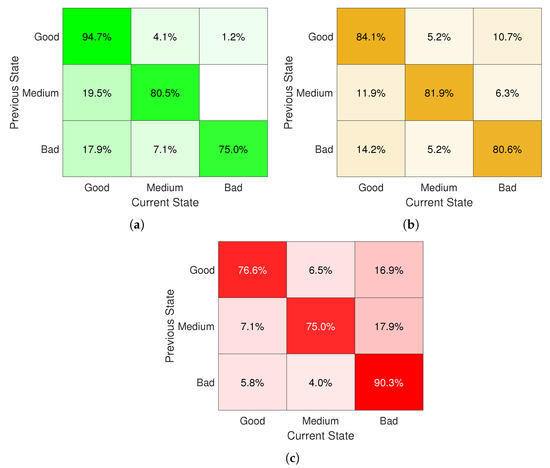

Exploiting matrix calculus, since we knew the frequencies of the BER values of each link, we found the transition matrices $P=\left(p_{ij}\right)$, which have only non-negative elements, are row-normalized to 1 and, in our case, have a size 3 × 3. In Figure 5 we show the matrix charts presenting the transition matrices for the three links discussed so far.

A relevant result is that, given the transition matrix $P^n$ at time n, it is possible to compute the t-step transition probabilities by means of matrix exponentiation:

$$\mathbb{P}(X_{n+t}=j|X_n=i)={\left(P^t\right)}_{ij},\forall n\ge 0.$$

(5)

The averaged values of the BER in the three states for the links we are considering are reported in

Table 2. Average BER values, three-state HMM.

	Avg Good	Avg Medium	Avg Bad
Topology 2, link 4→2	0.0051	0.0174	0.0281
Topology 2, link 3→2	0.0048	0.0165	0.0338
Topology 1, link 1→3	0.0066	0.0184	0.0448

.

3.3. Two-State Hidden-Markov Model

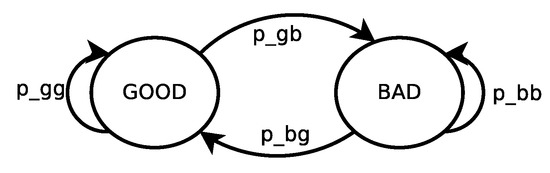

As benchmark of the three-state HMM presented in Section 3, we now present the more used two-state HMM (Figure 6).

In the two-state model, we define a cumulative Bad state $b^{\prime }$, grouping together the Bad and the Medium states used in the three-state model. The probabilities of successful reception given a channel state are computed link-wise by taking the average PERs in each state. The transition probabilities, instead, are computed starting from the three-state model transition probabilities as:

• $p_{g{b}^{\prime }}=1-p_{gg}$,
• $p_{b^{\prime }g}=\frac{p_{mg}·p_m+p_{bg}·p_b}{1-p_g}$,
• $p_{b^{\prime }{b}^{\prime }}=1-p_{b^{\prime }g}$,

where $p_{gg}$ is the probability of not having a transition at time $n+1$ when a link is in the Good state at step n for the three-state HMM and $p_s,s\in \{g,m,b\}$ is the generic probability a link finds itself in the Good, Medium, or Bad state, respectively.

While with the three-state HMM the transition matrix $P^n$ at step n needs to be computed with matrix exponentiation as presented in Equation (5), in the simple two-state model the transition probabilities at step n can be obtained via the closed formula [22]:

$$P^n=\frac{1}{p_{g{b}^{\prime }}+p_{b^{\prime }g}}\left(\begin{array}{cc}{p}_{b^{\prime }g}& p_{g{b}^{\prime }}\\ p_{b^{\prime }g}& p_{g{b}^{\prime }}\end{array}\right)+\frac{{(1-p_{g{b}^{\prime }}-p_{b^{\prime }g})}^n}{p_{g{b}^{\prime }}+p_{b^{\prime }g}}\left(\begin{array}{cc}{p}_{g{b}^{\prime }}& -p_{g{b}^{\prime }}\\ -p_{b^{\prime }g}& p_{b^{\prime }g}\end{array}\right).$$

(6)

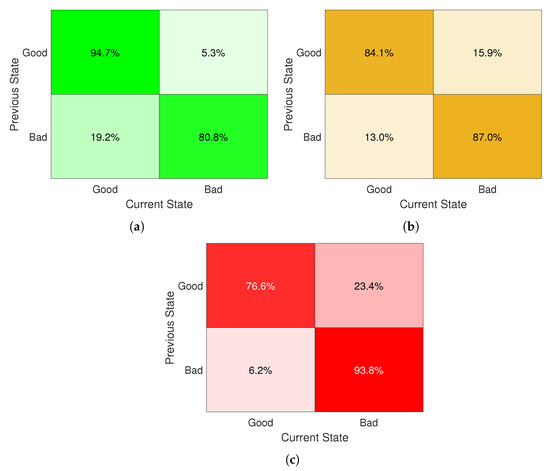

In Figure 7 we report the transition matrices in the two-state HMM for the links under analysis.

Table 3. Average BER values, two-state HMM.

	Avg Good	Avg Bad
Topology 2, link 4→2	0.0051	0.0193
Topology 2, link 3→2	0.0048	0.0267
Topology 1, link 1→3	0.0066	0.0395

shows the relevant averaged BER values for the two-state HMM.

4. Model Implementation and Simulation

In order to evaluate the models presented in the previous sections, we implemented the two- and three-state HMM in the DESERT Underwater framework [15], an open-source underwater network simulation and experimentation tool publicly available in [23]. Notably, the DESERT Underwater legacy physical module, called UWPhysical, models the path-loss with the Urick and Thorp formulas, and computes the signal to noise ratio using the model presented in [2]. Although this model is largely used by researchers, it does not well address the variability of the acoustic channel. Therefore, we implemented two new physical layers from scratch, one called UWHMMPhysical that uses the two-state HMM described in Section 3.3, and one named UWHMMPhysicalExtended that uses the three-state HMM presented in Section 3. In both physical layers we included the statistics of each link using the so-called link-stats objects, and let the physical layer compute the probability that a packet is correctly received at a specific moment, hence providing a per-link channel variability. The link-stats objects are independent of each other: in the case of near nodes that share the same channel, the same link-stats object can be used to model the channel variability in the same way: in the case of the sea experiment considered in these simulations, the links between the nodes are considered independent, hence a different link-stats object is used to model the channel variability between every pair of nodes.

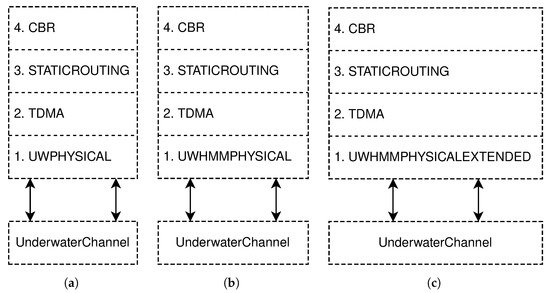

The most relevant difference between the two- and three-state HMM is the way the transition probabilities are computed. As explained in Section 3.3, the two-state HMM can be computed via a closed formula, while for the three-state HMM the transition probability can only be computed by means of matrix exponentiation. This implies that the exponentiation has to be performed efficiently, so that even with a big exponent n, the complexity is limited and not growing without bounds. Given that n monotonically increases during the simulation, it is not necessary to compute $P^n$ starting from the initial transition matrix $P^0$, as this would cause a degradation in performance. Specifically, we save the aforementioned matrix each time we compute it, so that we can operate conveniently on the last available $P^k$ and compute $P^n$ with a number of exponentiations equal to $n-k$, which is strictly less than n. As a result, the computation time of a simulation using the three-state model is not much longer than the same simulation relying on the legacy physical model or on the two-state HMM.

4.1. Simulation Settings

In our simulations, we analyze the system behavior with the nodes placed in the positions presented in topology 1 (Figure 8a) and topology 2 (Figure 8b). The simulation lasted 18,000 s, and we switched from topology 2 to topology 1 in the middle of the simulation (i.e., at time 9000 s) by adding the link from node 1 to node 3 and changing the packet success probability per link and the transition probabilities of every link accordingly. The behavior of the three communication stacks depicted in Figure 8 is analyzed. All stacks use a constant bitrate application layer, static routing with all nodes transmitting to their 1-hop neighbors and a time division multiple access (TDMA) MAC layer. The first stack (Figure 8a) uses the legacy DESERT physical layer, the second stack (Figure 8b) uses the two-state HMM-based physical layer and, finally, the third stack (Figure 8c) employs the three-state HMM-based physical layer.

The network is composed of 4 nodes and each node generates 28 bytes packets every 60 s. Bandwidth and carrier frequency are set to 5 kHz and 25 kHz, respectively, in order to best simulate the behavior of the modems used in the field experiment presented in Section 2. The simulation parameters are summarized in

Table 4. Simulation parameters.

Nodes	Pkt Size	Tx Duration	Tx Power
4	28 B	18,000 s	165 dB
Frequency	Bandwidth	Bitrate	Cbr Period
25 kHz	5 kHz	600 bps	60 s

.

The TDMA MAC is configured with a frame duration of 8 s, equally divided between the four nodes that have a time slot of 2 s each to transmit their packets. A guard time of 0.8 s is used to avoid interference caused by the propagation time and to consider possible synchronization errors between the nodes.

At the end of the simulations we observed the performance of each link of the network by computing PER and throughput averaging over 50 simulation runs and presenting the 95% confidence interval (CI).

5. Simulation Results

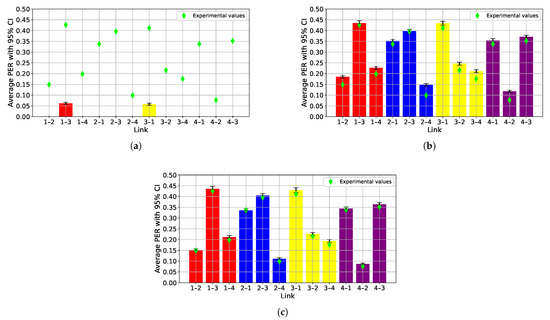

PER and throughput of each link are presented in Figure 9 and Figure 10, respectively. Figure 9 compares the PER per link obtained with the three physical layers described in Section 4.1 with the PER measured during the sea trial (green diamond).

Uwphysical (Figure 9a) is extremely optimistic and provides a very low PER. In particular, with the considered settings the PER of the links is equal to zero up to a transmission range of 1.1 km, and increases to 1 when the distance between nodes is more than 1.6 km. This implies that the link connecting the two farthest nodes (node 1 and node 3, that are 1.2 km from each other) has a non-zero PER, but still the real values are underestimated. Conversely, the PER obtained both with the two-state (Figure 9b) and with the three-state (Figure 9c) models is very similar to the one observed in the sea trial, with the three-state model having a PER that almost perfectly (within the CI) matches the experimental one (depicted with green diamonds), definitely outperforming the other two models.

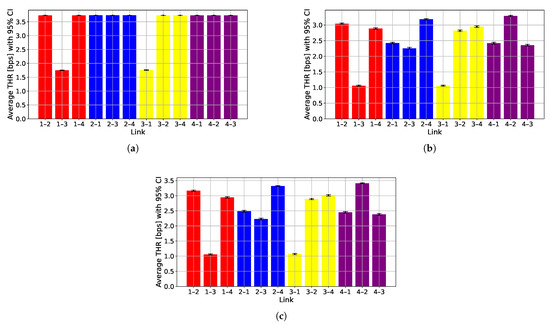

Similarly, the throughput observed with Uwphysical (Figure 10a) is almost the same for all of the links, and is equal to 3.7 bps: only in the link between node 1 and 3 the throughput is approximately 1.85 bps, as that link was removed at the simulation time 9000 s, when the network topology was changed from topology 1 to topology 2. With a higher PER per link, the throughput observed with the two- and three-state HMM is significantly different link by link, presenting results that are definitely closer to those that can be observed during a sea experiment.

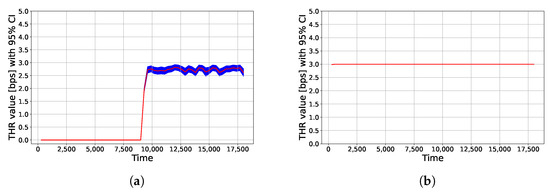

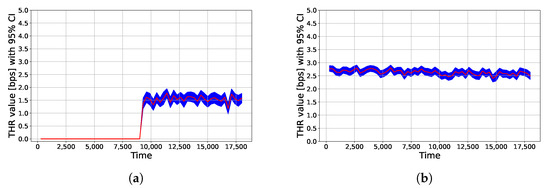

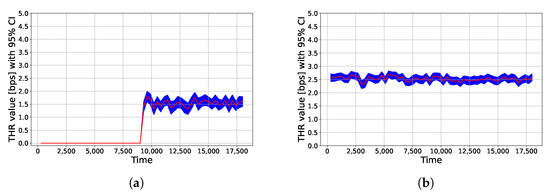

Finally, we report some plots showing the variability of throughput in time (i.e., computed every 300 s) for the links from node 4 to node 2 and from node 1 to node 3, and again we see how optimistic the results obtained using the simplest PHY module are (Figure 11). We can observe the jump at 9000 s for the link $1\to 3$ due to the switch from topology 2 (where the link was not in place) to topology 1. Besides, the values for the throughput are constant for the UWPhysical module, but for the links $1\to 3$ and $3\to 1$, which are the only ones having a PER greater than zero. Conversely, the throughput obtained with the two HMMs models (Figure 12 and Figure 13) is definitely lower, due to the higher PER, and has a higher variance, well characterizing the channel variability. While we could directly compare the PER obtained in simulation with that experienced during the experiment, we could not perform the same operation for the throughput, as the simulation used an application layer generating traffic with a different rate than the one used during the sea trial. This tool can be used to test protocol stack configurations that are different from the one used in the experiment, exploiting the measures obtained during the sea trial to model the packet error rate time evolution and observing other performance indicators as a result, such as the throughput per link.

6. Conclusions

In this paper we presented two statistical models to characterize the underwater acoustic channel in network simulators, which well-matched the results observed during sea trials. Specifically, we were able to develop two precise channel models for underwater communications, starting from the analysis of real field experiment data retrieved from ASUNA. The models are based on two- and three-state Markov chains and have two main advantages: first, they guarantee a realistic channel modelling with respect to the results observed during sea trials; second, they are not particularly computationally demanding. Indeed, while for the two-state HMM the PER can be simply computed with a closed formula, for the three-state HMM the PER can be computed iteratively, starting from the last PER computed during the ongoing simulation. The two models revealed themselves to be adaptable to multiple configurations and flexible. Furthermore, they have both been extensively tested after having been implemented in the DESERT simulator, and they have been compared with the existing legacy channel model already available in the simulator. The performance obtained with the two models were solid and proved their reliability, with the three-state HMM slightly outperforming the two-state HMM, at the cost of a small increase in complexity. Possible future work may consist of investigating models with an increased number of states (i.e., more than 3), and studing the tradeoff given by the increased computational requirements and the fidelity of the results. Another aspect that deserves a specific investigation is how this channel model can be applied to mobile networks, e.g., by extending the number of states or including a penalty factor due to distance, speed and acceleration. This aspect is not trivial, as the increase of a node speed does not cause only a strong Doppler effect, but also a strong acoustic noise caused by propellers and engine [24].
