Next Article in Journal
Fluoropolymer-Wrapped Conductive Threads for Textile Touch Sensors Operating via the Triboelectric Effect
Next Article in Special Issue
Heat and Mass Transfer Properties of Sugar Maple Wood Treated by the Thermo-Hygro-Mechanical Densification Process
Previous Article in Journal
Revolver Hollow Core Optical Fibers
Previous Article in Special Issue
Various Extraction Methods Influence the Adhesive Properties of Dried Distiller’s Grains and Solubles, and Press Cakes of Pennycress (Thlaspi arvense L.) and Lesquerella [Lesquerella fendleri (A. Gary) S. Watson], in the Fabrication of Lignocellulosic Composites
Article Menu
Issue 2 (June) cover image

Export Article

Open AccessArticle
Fibers 2018, 6(2), 40; https://doi.org/10.3390/fib6020040

Mechanical Properties of a Water Hyacinth Nanofiber Cellulose Reinforced Thermoplastic Starch Bionanocomposite: Effect of Ultrasonic Vibration during Processing

1
Department of Mechanical Engineering, Andalas University, 25163 Padang, Sumatera Barat, Indonesia
2
Department of Agriculture Technology, Andalas University, 25163 Padang, Sumatera Barat, Indonesia
*
Author to whom correspondence should be addressed.
Received: 12 March 2018 / Revised: 19 May 2018 / Accepted: 5 June 2018 / Published: 8 June 2018
(This article belongs to the Special Issue Natural Fibre Biocomposites)
Full-Text   |   PDF [5567 KB, uploaded 8 June 2018]   |

Abstract

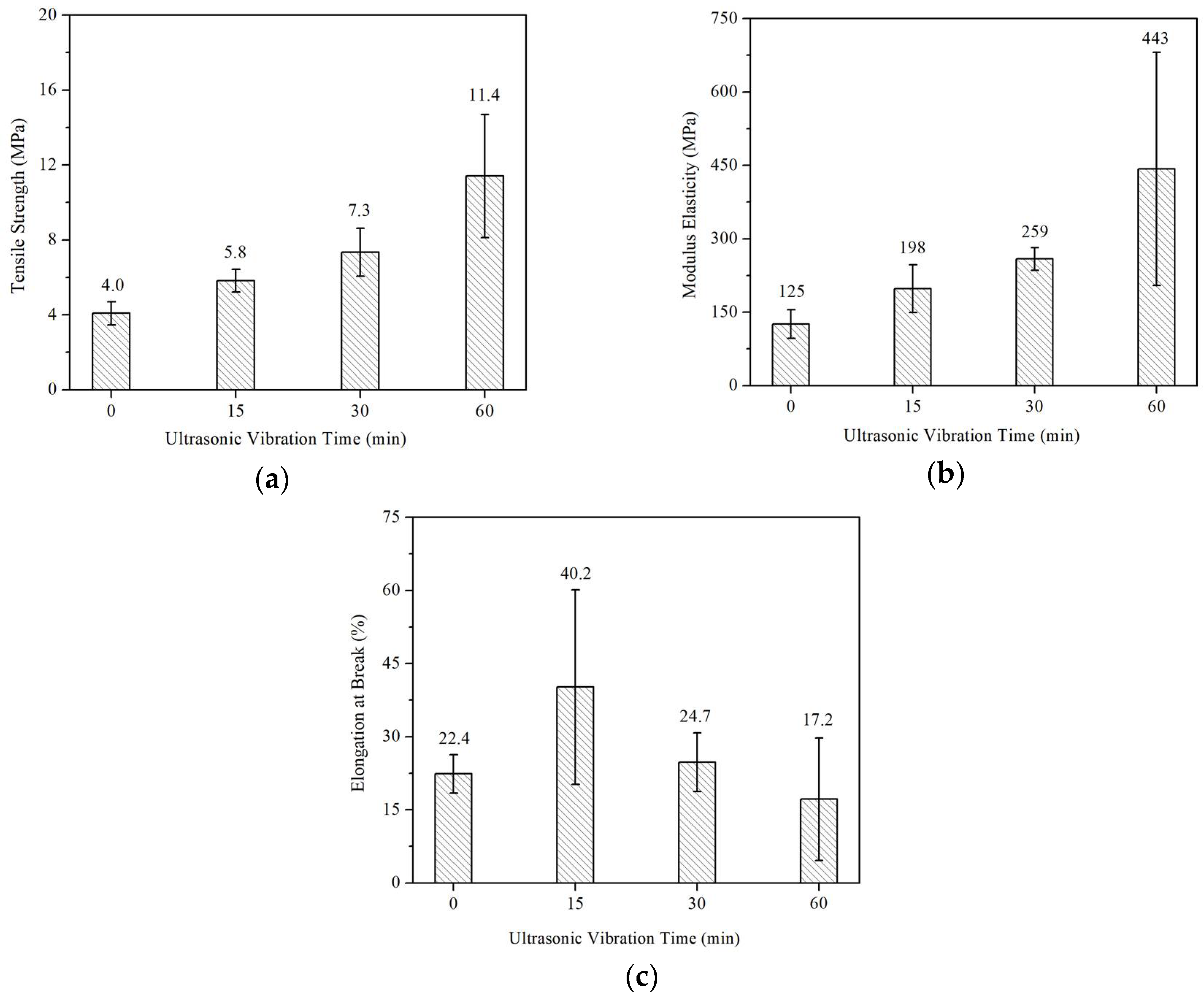

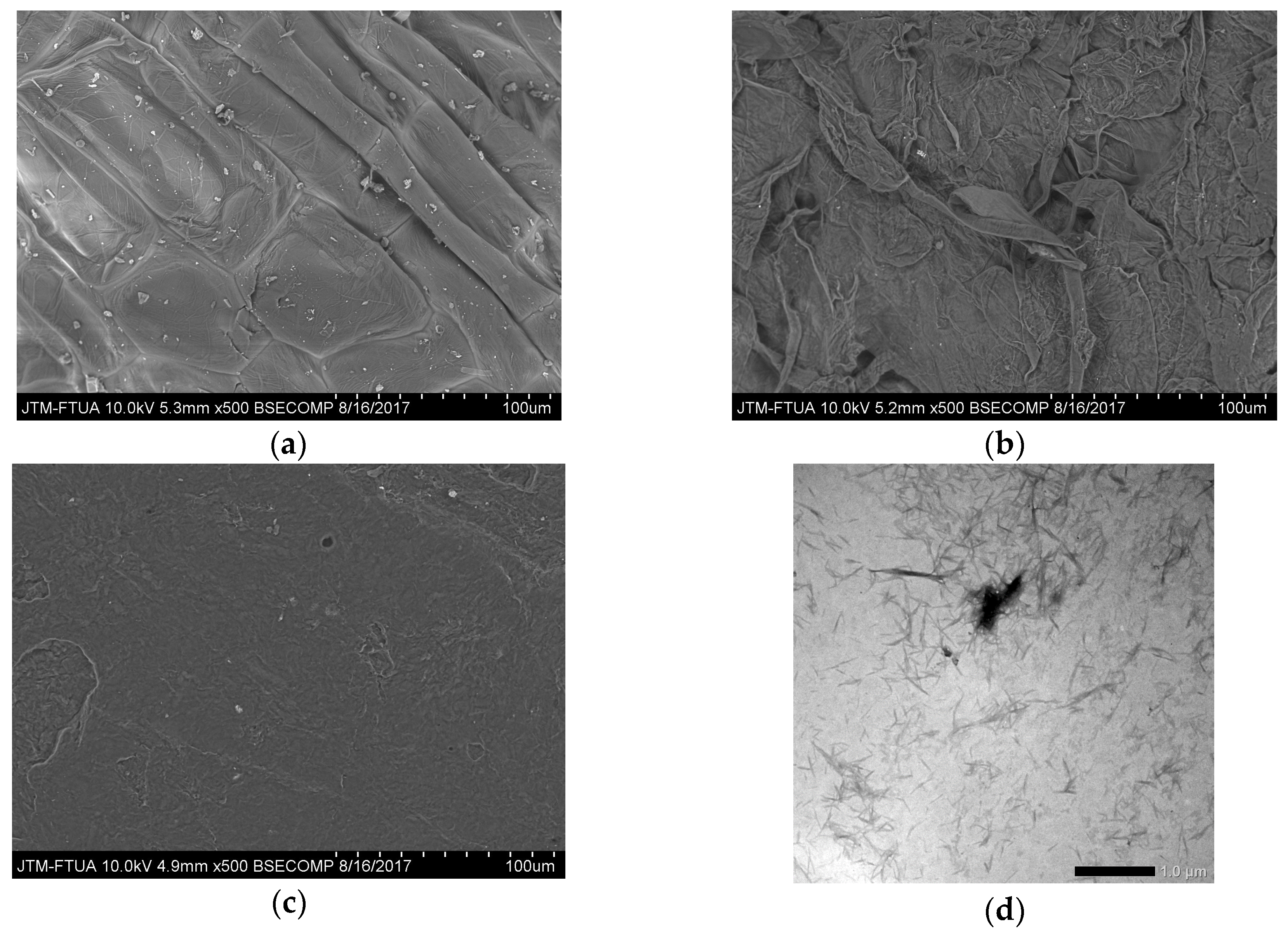

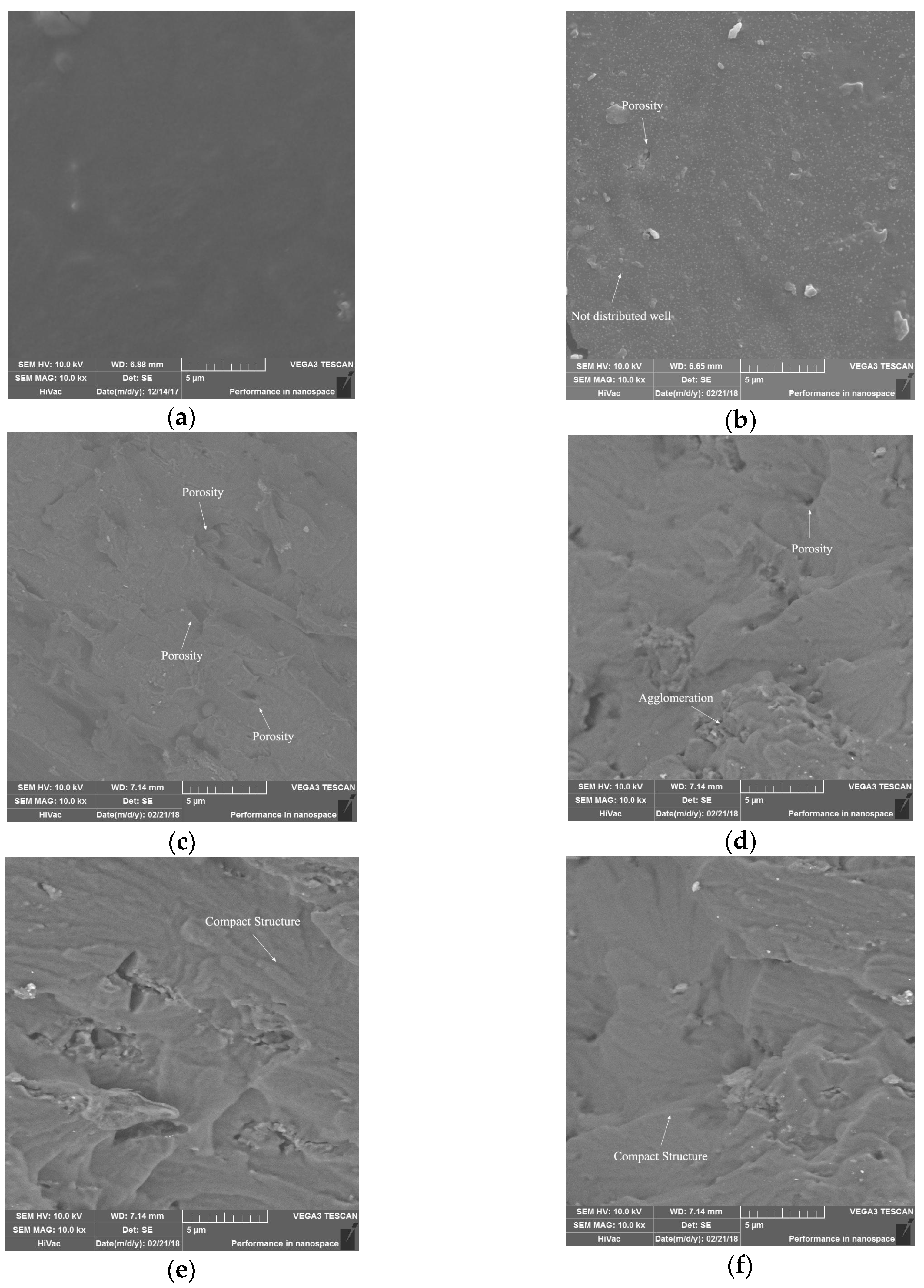

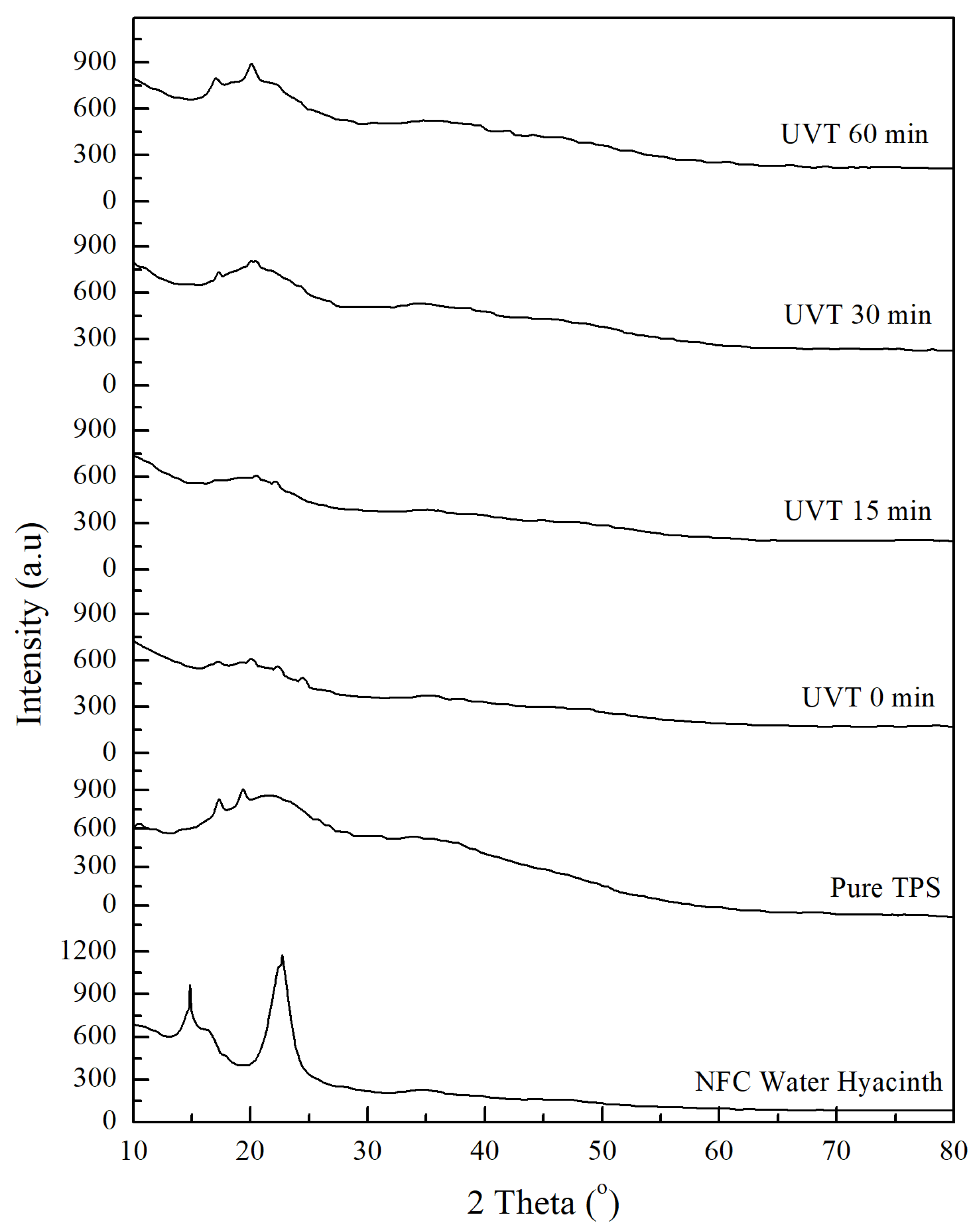

Thermoplastic starch (TPS) reinforced by 1 wt % nanofiber cellulose (NFC) reinforcing from water hyacinth was produced. Ultrasonic vibration time (UVT) was applied to bionanocomposites during gelation for 0, 15, 30 and 60 min. Morphology of the NFC was investigated using Transmission Electron Microscopy (TEM). Scanning Electron Microscopy (SEM) and tensile tests were performed to identify the fracture surface and determine the mechanical properties of the bionanocomposites, respectively. The Crystallinity index (CI) of untreated and treated bionanocomposites was measured using X-ray Diffraction (XRD). The average diameter of NFC water hyacinth was 10–20 nm. The maximum tensile strength (TS) and modulus elasticity (ME) of the bionanocomposite was 11.4 MPa and 443 MPa respectively, after 60 min UVT. This result was supported by SEM which indicated good dispersion and compact structure. View Full-Text
Keywords: nanofiber cellulose; water hyacinth; thermoplastic starch; bionanocomposites; ultrasonic vibration time nanofiber cellulose; water hyacinth; thermoplastic starch; bionanocomposites; ultrasonic vibration time
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Asrofi, M.; Abral, H.; Kasim, A.; Pratoto, A.; Mahardika, M.; Hafizulhaq, F. Mechanical Properties of a Water Hyacinth Nanofiber Cellulose Reinforced Thermoplastic Starch Bionanocomposite: Effect of Ultrasonic Vibration during Processing. Fibers 2018, 6, 40.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Fibers EISSN 2079-6439 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
