Fabrication and SERS Performances of Metal/Si and Metal/ZnO Nanosensors: A Review

by
Grégory Barbillon
EPF-Ecole d’ Ingenieurs, 3 bis rue Lakanal, 92330 Sceaux, France
Coatings 2019, 9(2), 86; https://doi.org/10.3390/coatings9020086
Submission received: 5 January 2019 / Revised: 23 January 2019 / Accepted: 28 January 2019 / Published: 30 January 2019
Browse Figures
Versions Notes

Abstract

:
Surface-enhanced Raman scattering (SERS) sensors are very powerful analytical tools for the highly sensitive detection of chemical and biological molecules. Substantial efforts have been devoted to the design of a great number of hybrid SERS substrates such as silicon or zinc oxide nanosystems coated with gold/silver nanoparticles. By comparison with the SERS sensors based on Au and Ag nanoparticles/nanostructures, higher enhancement factors and excellent reproducibilities are achieved with hybrid SERS nanosensors. This enhancement can be due to the appearance of hotspots located at the interface between the metal (Au/Ag) and the semiconducting substrates. Thus, in this last decade, great advances in the domain of hybrid SERS nanosensors have occurred. In this short review, the recent advances of these hybrid metal-coated semiconducting nanostructures as SERS sensors of chemical and biological molecules are presented.

1. Introduction

Since the 2000s, surface enhanced Raman scattering (SERS) spectroscopy based on a nanostructured substrate has become a powerful and promising technique for highly sensitive detection of chemical/biological molecules [1,2,3,4]. SERS performance depends on the substrates, which are mainly realized with metallic nanoparticles [5,6,7,8,9] or nanostructures [10,11,12] with different geometries obtained by various techniques such as X-ray interference lithography [13], interference lithography [14,15], deep UV lithography [16,17] and electron beam lithography [18,19,20]. Large SERS enhancement ability and reproducibility are achieved by these techniques. However, they require costly equipment and heavy manufacturing processes for mass production. Several low-cost strategies such as nanosphere lithography [21,22,23], nanoimprint lithography [24,25,26] and metallic nanoparticle assemblies by self-assembling processes [27,28,29] are employed as an alternative method for industrial production. Nonetheless, a limiting factor of these two low-cost techniques is the definition of nanostructures on large surfaces. More recently, alternative and promising SERS substrates have emerged and are composed of silicon nanowires associated with metallic nanoparticles [30,31,32,33,34,35,36,37,38,39,40] showing ultrahigh sensitivity and excellent reproducibility. For example, Galopin et al. investigated silicon nanowires coated with silver nanoparticles on large surfaces [38]. In addition, another alternative solution is to choose zinc oxide (ZnO) nanostructures. Indeed, this semiconducting material can be applied to SERS sensing [41,42,43,44] because ZnO has an excellent propensity for nanostructuration combined with a relatively high refractive index, which better confines the light and thus induces a potential enhancement of the SERS effect as for the silicon having also a high refractive index. For instance, Sinha et al. investigated ZnO nanorods coated with a gold layer [42]. Compared with SERS substrates only based on pure Au or Ag nanoparticles which have relatively low values of enhancement factors (EF), both hybrid nanostructures enable achieving higher EFs due to the hotspots located at the interface between the metal (Au/Ag) and the semiconducting substrates (Si/ZnO), which potentially improve the detection limit. Moreover, a great reproducibility of SERS signal is obtained with these hybrid nanosystems. Thus, a great number of hybrid nanostructures was carried out and employed as SERS substrates for obtaining high-performance sensors of different chemical/biological molecules with an excellent reliability and reproducibility.
During these two last decades, great progress has occurred in this research topic and a very small number of reviews concerning this progress can be found. Thus, an overview of these promising advances in the development of hybrid SERS nanosensors is presented. Firstly, we report on a review of the design and fabrication of hybrid SERS substrates based on silicon. Next, the representative results on the high sensitivity and the reproducibility of detection of chemical or biological molecules concerning tthese metal-coated Si SERS nanosensors are summarized. Lastly, a review on hybrid SERS substrates based on zinc oxide is reported concerning their fabrication and their SERS performances.

2. Hybrid SERS Nanosensors Based on Silicon Nanostructures

2.1. Fabrication Methods of Metal-Coated Si Nanosensors

Silicon nanostructures such as nanowires (SiNW) or nanopillars (SiNP) can mainly be obtained with the following fabrication methods, which are the solution phase synthesis (SPS) [45,46], the vapor–liquid–solid (VLS) growth [38,47,48,49,50], the oxide-assisted growth (OAG) [36,51,52], lithographic methods coupled to an etching process [53,54,55], and the metal-assisted chemical etching (MACE) [40,56,57] (see Figure 1a,b). More recently, a couple of techniques emerged such as maskless processes by reactive ion etching (RIE) [35] or RIE processes through the oxide native layer of silicon [58,59,60] (see Figure 1c). Moreover, a few groups employed a technique combining two existing techniques: the nanosphere lithography (NSL) and the MACE technique [61,62,63,64] (see Figure 1d for the principle scheme of this coupled technique of fabrication).
Thus, the SiNWs or SiNPs obtained with these various fabrication techniques are then modified with a metallic layer [35,58,59,60] or nanoparticles (e.g., Au and Ag nanoparticles) [31,36,37,38,39] in order to realize SERS substrates with significant performances in terms of the enhancement factor and the detection limit of biological and chemical molecules. The coating of Si nanostructures for SERS sensing is generally obtained with several Au nanostructures such as spherical nanoparticles, cylindrical nanorods, or triangular prisms [34]. Another technique employed for realizing metallic nanoparticles on silicon nanowires is the use of oxidation–reduction reactions, which consist of the reduction of metal ions by the electrons coming from the reaction on the SiNW surfaces etched by hydrofluoric acid [65]. These different metal-coated Si nanosensors have been fabricated in a major part at the wafer-scale [31,35,38,40,58,59,60,63].

2.2. SERS Performances of Metal-Coated Si Nanosystems for Chemical and Biological Sensing

In order to evaluate the SERS performances of metal-coated Si nanotructures for sensing of biological and chemical molecules, the enhancement factor (EF) is usually calculated. For that, two expressions are mainly employed. These two formulas giving EF and AEF (AEF = Analytical Enhancement Factor) are as follows:
E F = I S E R S I R a m a n × N R a m a n N S E R S ,
A E F = I S E R S I R a m a n × C R a m a n C S E R S ,
where I S E R S and I R a m a n are SERS and Raman intensities for a given Raman peak, respectively. The N S E R S and N R a m a n quantities are the numbers of excited molecules of analytes in SERS and Raman measurements, respectively. Finally, C S E R S and C R a m a n correspond to concentrations of studied analytes used for SERS and Raman experiments, respectively. Firstly, the silicon nanowires coated with metallic nanoparticles demonstrated excellent SERS performances (see Table 1). For instance, Galopin et al. showed an EF factor in the range of 10 7 –10 8 and a limit of detection (LOD) of 10 fM measured experimentally for the detection of Rhodamine 6G (R6G) molecules with Si nanowires coated with Ag nanoparticles [38] (see Figure 2a,b). With the same type of metal/Si systems (AgNPs/SiNWs), Zhang et al. obtained an EF factor in the range of 10 8 –10 10 for the detection of Sudan dyes [37]. Furthermore, an EF factor in the range of 6 × 10 9 –8 × 10 9 is achieved and an LOD of 1 fM is experimentally measured for the DNA detection in the work of He et al. [36]. Besides, Wei et al. also demonstrated an LOD of 10 fM measured experimentally for the DNA sensing with Si nanowires coated with gold nanoparticles [33].
Secondly, the metal-coated Si nanosystems obtained with low-cost techniques also achieved great SERS performances for chemical and biological detection (see Table 1). Recently, Lin et al. fabricated Si nanorods with the coupling of the NSL and MACE techniques, and then coated these Si nanorods with gold nanoparticles (see Figure 1d and Figure 2c,d). A value of 3 × 10 7 is achieved for the enhancement factor for the detection of Rhodamine 6G molecules [63] (see Figure 2d for SERS spectra). By using this technique of NSL associated with MACE, Cara et al. also showed a great EF of 1.6 × 10 6 for the detection of 7-mercapto-4-methylcoumarin (MMC) molecules with gold-coated Si nanowires [62]. With this same fabrication technique, Huang et al. achieved an EF of 1.1 × 10 6 for the detection of 4-aminothiophenol (4-AT) molecules with silver-coated Si nanowires [66]. By another way, Schmidt et al. demonstrated an EF value of 7 × 10 6 for the detection of trans-1,2-bis(4-pyridyl)ethylene (BPE) with leaning Ag-coated Si nanopillars. These nanosystems have been produced with a maskless process by using reactive ion etching. By leaning the Ag/Si nanopillars, hotspots are created and thus improving the Raman signal enhancement [35].
In addition, Prof. Barbillon’s group demonstrated excellent enhancement factors (EF or AEF) for the detection of thiophenol molecules with Au/Si and Al/Si nanopillars. For these two cases, Si nanopillars have been produced by a RIE process through the oxide native layer of silicon followed by the evaporation of a metallic layer. The values achieved for EF (for Au/Si) and AEF (for Al/Si) are in the range 10 7 –10 8 [58] and 1.5 × 10 7 –2.5 × 10 7 [60], respectively. Furthermore, this group also showed that the thickness of the metallic layer (for gold) has an effect on the SERS enhancement [59]. Lastly, other groups also demonstrated SERS enhancements with other shapes of Si nanosystems such as a tip-shaped silicon metasurface coated with gold nanoparticles [67,68], a hybrid Si nanospheroid network ornamented with gold nanospheres [69], silver-coated Si nanopores [70], or Si nanowire arrays coated silver nanoparticles [71,72]. To conclude Section 2, the interests of the metal-coated Si nanosystems are the use of fabrication techniques known as large-surface techniques, and also the plasmonic coupling between the metallic layer/nanoparticles and the semiconducting silicon substrate [38,58,73] in order to potentially improve the Raman enhancement. Moreover, a great reproducibility of the SERS signal is achieved with both metal-coated Si nanosystems produced with the techniques previously cited (average RSD = 15%, see Table 1). The Relative Standard Deviations for the SERS intensity of the studied Raman peaks are calculated on the basis of several SERS spectra recorded on different locations of each SERS substrate studied here. Nonetheless, some of these fabrication techniques are expensive and time consuming for a mass production. Finally, EF values obtained with the metal-coated Si nanosensors are higher or equal to more conventional SERS substrates such as core–shell nanosphere dimers (EF = 10 5 –5 × 10 7 for Au–SiO 2 or Au–Pt nanosphere dimer) [74,75], a bare Au nanosphere dimer on a Si surface and on Pt surface (EF = 10 5 –9 × 10 7 ) [74,76], or Au nanoparticles with a silver coating (EF = 10 4 –10 5 ) [77].

3. Hybrid SERS Nanosensors Based on Zinc Oxide Nanostructures

3.1. Fabrication Methods of Metal-Coated ZnO Nanosensors

To produce metal-coated ZnO nanosystems, several techniques can be employed. At first, this begins by the fabrication of ZnO nanostructures by using various growth techniques such as the pulsed-laser deposition (PLD) [44,78,79,80], the hydrothermal growth [42,43,81] (see Figure 3a,b and Figure 4a,c), the vapor–liquid–solid (VLS) or vapor–solid (VS) growth [41,82,83,84] (see Figure 5b). Then, after this step, metallic nanoparticles or a metallic layer are added with different techniques such as a sputtering process [41,42,43], an electron beam evaporation [44], a hydrothermal method [85], a controlled wet chemistry method associated with a spin-coater [86], a photochemical deposition method [81,87], and a dip-coating process [82]. In addition, a low-cost and wafer-scale technique based on NSL and solution processes has been developed by He et al. (see Figure 3d for the principle scheme of this fabrication method) for producing, for instance, urchin-like Ag nanoparticle/ZnO hollow nanosphere arrays (see Figure 3c) [88]. These different metal-coated ZnO nanosensors have been realized in a major part at the wafer-scale [41,42,43,85,86].

3.2. SERS Performances of Metal-Coated ZnO Nanosystems for Chemical Sensing

As previously, to evaluate the SERS performances of metal/ZnO nanotructures for sensing of chemical molecules, the enhancement factor (EF) is usually calculated by using one of the two equations Equations (1) and (2), and sometimes a formula of the SERS gain ( G S E R S ) is also used:
G S E R S = I S E R S I R a m a n ,
where I S E R S and I R a m a n are SERS and Raman intensities for a given Raman peak, respectively. Firstly, the zinc oxide nanostructures coated with gold nanoparticles or a gold layer demonstrated excellent SERS performances (see Table 2). For instance, Chen et al. demonstrated an excellent EF of 1.2 × 10 7 obtained with Rhodamine 6G (R6G) molecules by using Au/ZnO nanoneedles (see Figure 4a,b). They also showed that the EF value depended on the density of gold nanoparticles and the morphology of Au/ZnO nanoneedles [85]. Another interesting example is those of Sinha et al. where zinc oxide nanorods have been coated with a gold layer, and a limit of detection (LOD) in terms of concentration was experimentally found and equals 1 pM for methylene blue (MB) molecules. They also demonstrated a good reproducibility of the SERS signal before each cleaning cycle assisted by UV [42]. Other groups observed different effects on the SERS signal such as the metal thickness [41], the density of gold/ZnO nanostructures [44] and the renewability of the gold/ZnO substrates [87,89]. Secondly, the zinc oxide nanostructures coated with Ag nanoparticles or a silver layer also showed great SERS performances (see Table 2). For example, Cui et al. showed a great EF evaluated at 2.5 × 10 10 and an LOD of 1 pM measured experimentally for Malachite green (MG) molecules by using ZnO nanowire arrays coated with Ag nanoparticles (see Figure 4c,d). A low concentration of amoxicillin (1 nM) has been also experimentally detected with these Ag/ZnO nanostructures [43]. Furthermore, He et al. obtained great SERS performances for the detection of Rhodamine 6G molecules with urchin-like Ag nanoparticle/ZnO hollow nanosphere arrays. An EF of 10 8 is found and an LOD of 10 − 10 M is experimentally measured. They demonstrated that the SERS enhancement came from the great density of hotspots created by the multi-AgNP decoration, the charge transfer between Ag and ZnO, and the plasmonic coupling between AgNPs [88]. In another way, Song et al. observed a great EF of 1.2 × 10 8 and experimentally measured an LOD of 1 pM for p-aminothiophenol (PATP) molecules with ZnO nanofibers deposited on a silver foil surface. They demonstrated that SERS enhancement came from the exciton–plasmon interactions between ZnO nanofibers and the Ag foil surface, and also the fact that this type of Ag/ZnO nanosystem has a great photocatalytic activity towards pollutant (in this example, methylene blue (MB) molecules) degradation under UV illumination [90].
Several groups also demonstrated interesting properties for the Ag/ZnO nanosystems such as the superhydrophobicity [91], the hydrogenation of ZnO for improving the SERS enhancement [86], and their integration in microfluidic systems [92]. Finally, a couple of groups observed excellent EF with AgNPs/Si/ZnO and AuNPs/Ag/ZnO nanosystems. Indeed, Cheng et al. achieved an EF of 10 6 with Rhodamine 6G molecules by using AgNPs/Si/ZnO nanotrees [81], and Lee et al. an EF of 10 10 –10 11 and an LOD of 10 − 19 M which was experimentally measured with thiophenol molecules by using AuNPs/Ag/ZnO nanocones (see Figure 5). With this original design, Lee et al. obtained significant improvements of the SERS signal by using both following properties: the light trapping thanks to the nanocone arrays with a graded refractive index, the effect of plasmonic waveguide obtained with Ag-coated nanocones, and gap plasmons between AuNPs and Ag film (see Figure 5a) [82].
To conclude Section 3, the interests of the metal-coated ZnO nanosystems are mainly the use of low-cost fabrication techniques, the plasmonic coupling between the metallic layer/nanoparticles and the semiconducting substrate, and also the plasmonic coupling of metallic nanoparticles in order to potentially improve the Raman enhancement. Moreover, a good reproducibility of the SERS signal is also achieved with both metal-coated ZnO nanosystems fabricated by the techniques previously cited (average RSD = 20%, see Table 2). As for metal-coated Si nanosystems, the RSD values concerning the SERS intensity of the studied Raman peaks are calculated on the basis of several SERS spectra recorded at different locations of each SERS substrate studied here. Finally, EF values obtained with the metal-coated ZnO nanosensors are higher or equal to more conventional SERS substrates such as core–shell nanosphere dimers (EF = 10 5 –5 × 10 7 for Au–SiO 2 or Au–Pt nanosphere dimer) [74,75], a bare Au nanosphere dimer on a Si surface and on Pt surface (EF = 10 5 –9 × 10 7 ) [74,76], or Au nanoparticles with a silver coating (EF = 10 4 –10 5 ) [77].

4. Conclusions

In this short review, recent advances are presented concerning the development and the performances of SERS nanosensors based Si or ZnO nanostructures coated with a metallic layer or metallic nanoparticles for a very sensitive and reproducible detection of chemical and biological molecules. These metal-coated semiconducting SERS nanosensors highlighted excellent EF values and a great reproducibility with an average RSD of 15% and 20%, respectively, as described in the second and third sections. These two types of nanosensors can be produced with low-cost and wafer-scale techniques that have recently been developed. Thus, all these advances can enable an application of these SERS nanosensors to industrial and practical domains by using them as reliable, powerful and robust analytical platforms in the near future. However, a great number of works need to be conducted in order to better understand all the mechanisms involved in such metal-coated semiconducting nanostructures for enhancing the Raman signal. Furthermore, the hybrid metal-coated zinc oxide nanosystems can be used for applications to plasmonic photocatalysis thanks to the great photocatalytic efficiency of zinc oxide [93,94].

Funding

This research received no external funding.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Yan, J.; Han, X.; He, J.; Kang, L.; Zhang, B.; Du, Y.; Zhao, H.; Dong, C.; Wang, H.-L.; Xu, P. Highly sensitive surface-enhanced Raman spectroscopy (SERS) platforms based on silver nanostructures fabricated on polyaniline membrane surfaces. ACS Appl. Mater. Interfaces 2012, 4, 2752–2756. [Google Scholar] [CrossRef] [PubMed]
  2. Li, S.; Xu, P.; Ren, Z.; Zhang, B.; Du, Y.; Han, X.; Mack, N.H.; Wang, H.-L. Fabrication of thorny Au nanostructures on polyaniline surfaces for sensitive surface-enhanced Raman spectroscopy. ACS Appl. Mater. Interfaces 2013, 5, 49–54. [Google Scholar] [CrossRef] [PubMed]
  3. Bodelon, G.; Montes-Garcia, V.; Lopez-Puente, V.; Hill, E.H.; Hamon, C.; Sanz-Ortiz, M.N.; Rodal-Cedeira, S.; Costas, C.; Celiksoy, S.; Perez-Juste, I.; et al. Detection and imaging of quorum sensing in Pseudomonas aeruginosa biofilm communities by surface-enhanced resonance Raman scattering. Nat. Mater. 2016, 15, 1203–1211. [Google Scholar] [CrossRef] [PubMed]
  4. Sharma, B.; Cardial, M.F.; Kleinman, S.L.; Greeneltch, N.G.; Frontiera, R.R.; Blaber, M.G.; Schatz, G.C.; Van Duyne, R.P. High-performance SERS substrates: Advances and challenges. MRS Bull. 2013, 38, 615–624. [Google Scholar] [CrossRef]
  5. Jimenez de Aberasturi, D.; Serano-Montes, A.B.; Langer, J.; Henriksen-Lacey, M.; Parak, W.J.; Liz-Marzan, L.M. Surface enhanced Raman scattering encoded gold nanostars for multiplexed cell discrimination. Chem. Mater. 2016, 28, 6779–6790. [Google Scholar] [CrossRef]
  6. Rodriguez-Fernandez, D.; Langer, J.; Henriksen-Lacey, M.; Liz-Marzan, L.M. Hybrid Au-SiO2 core-satellite colloids as switchable SERS tags. Chem. Mater. 2015, 27, 2540–2545. [Google Scholar] [CrossRef]
  7. La Porta, A.; Sanchez-Iglesias, A.; Altantzis, T.; Bals, S.; Grzelczak, M.; Liz-Marzan, L.M. Multifunctional self-assembled composite colloids and their application to SERS detection. Nanoscale 2015, 7, 10377–10381. [Google Scholar] [CrossRef] [Green Version]
  8. Wang, Q.; Lu, G.; Hou, L.; Zhang, T.; Luo, C.; Yang, H.; Barbillon, G.; Lei, F.H.; Marquette, C.A.; Perriat, P.; et al. Fluorescence correlation spectroscopy near individual gold nanoparticle. Chem. Phys. Lett. 2011, 503, 256–261. [Google Scholar] [CrossRef]
  9. Dalstein, L.; Ben Haddada, M.; Barbillon, G.; Humbert, C.; Tadjeddine, A.; Boujday, S.; Busson, B. Revealing the interplay between adsorbed molecular layers and gold nanoparticles by linear and nonlinear optical properties. J. Phys. Chem. C 2015, 119, 17146–17155. [Google Scholar] [CrossRef]
  10. Yu, Q.; Guan, P.; Qin, D.; Golden, G.; Wallace, P.M. Inverted size-dependence of surface-enhanced Raman scattering on gold nanohole and nanodisk arrays. Nano Lett. 2008, 8, 1923–1928. [Google Scholar] [CrossRef]
  11. Faure, A.-C.; Barbillon, G.; Ou, M.; Ledoux, G.; Tillement, O.; Roux, S.; Fabregue, D.; Descamps, A.; Bijeon, J.-L.; Marquette, C.A.; et al. Core/shell nanoparticles for multiple biological detection with enhanced sensitivity and kinetics. Nanotechnology 2008, 19, 485103. [Google Scholar] [CrossRef] [PubMed]
  12. Barbillon, G.; Faure, A.-C.; El Kork, N.; Moretti, P.; Roux, S.; Tillement, O.; Ou, M.G.; Descamps, A.; Perriat, P.; Vial, A.; et al. How nanoparticles encapsulating fluorophores allow a double detection of biomolecules by localized surface plasmon resonance and luminescence. Nanotechnology 2008, 19, 035705. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, P.; Yang, S.; Wang, L.; Zhao, J.; Zhu, Z.; Liu, B.; Zhong, J.; Sun, X. Large-scale uniform Au nanodisk arrays fabricated via X-ray interference lithography for reproducible and sensitive SERS substrate. Nanotechnology 2014, 25, 245301. [Google Scholar] [CrossRef] [PubMed]
  14. Barbillon, G.; Bijeon, J.-L.; Lérondel, G.; Plain, J.; Royer, P. Detection of chemical molecules with integrated plasmonic glass nanotips. Surf. Sci. 2008, 602, L119–L122. [Google Scholar] [CrossRef]
  15. Ahn, H.-J.; Thiyagarajan, P.; Jia, L.; Kim, S.-I.; Yoon, J.-C.; Thomas, E.L.; Jang, J.-H. An optimal substrate design for SERS: Dual-scale diamond-shaped gold nano-structures fabricated via interference lithography. Nanoscale 2013, 5, 1836–1842. [Google Scholar] [CrossRef]
  16. Vo-Dinh, T.; Dhawan, A.; Norton, S.J.; Khoury, C.G.; Wang, H.N.; Misra, V.; Gerhold, M.D. Plasmonic nanoparticles and nanowires: Design, fabrication and application in sensing. J. Phys. Chem. C 2010, 114, 7480–7488. [Google Scholar] [CrossRef] [PubMed]
  17. Dhawan, A.; Duval, A.; Nakkach, M.; Barbillon, G.; Moreau, J.; Canva, M.; Vo-Dinh, T. Deep UV nano-microstructuring of substrates for surface plasmon resonance imaging. Nanotechnology 2011, 22, 165301. [Google Scholar] [CrossRef]
  18. Gillibert, R.; Sarkar, M.; Bryche, J.-F.; Yasukuni, R.; Moreau, J.; Besbes, M.; Barbillon, G.; Bartenlian, B.; Canva, M.; Lamy de la Chapelle, M. Directional surface enhanced Raman scattering on gold nano-gratings. Nanotechnology 2016, 27, 115202. [Google Scholar] [CrossRef] [Green Version]
  19. Bryche, J.-F.; Gillibert, R.; Barbillon, G.; Sarkar, M.; Coutrot, A.-L.; Hamouda, F.; Aassime, A.; Moreau, J.; Lamy de la Chapelle, M.; Bartenlian, B.; et al. Density effect of gold nanodisks on the SERS intensity for a highly sensitive detection of chemical molecules. J. Mater. Sci. 2015, 50, 6601–6607. [Google Scholar] [CrossRef] [Green Version]
  20. Bryche, J.-F.; Gillibert, R.; Barbillon, G.; Gogol, P.; Moreau, J.; Lamy de la Chapelle, M.; Bartenlian, B.; Canva, M. Plasmonic enhancement by a continuous gold underlayer: Application to SERS sensing. Plasmonics 2016, 11, 601–608. [Google Scholar] [CrossRef]
  21. Bryche, J.-F.; Tsigara, A.; Bélier, B.; Lamy de la Chapelle, M.; Canva, M.; Bartenlian, B.; Barbillon, G. Surface enhanced Raman scattering improvement of gold triangular nanoprisms by a gold reflective underlayer for chemical sensing. Sens. Actuator B 2016, 228, 31–35. [Google Scholar] [CrossRef]
  22. Masson, J.-F.; Gibson, K.F.; Provencher-Girard, A. Surface-enhanced Raman spectroscopy amplification with film over etched nanospheres. J. Phys. Chem. C 2010, 114, 22406–22412. [Google Scholar] [CrossRef]
  23. Camden, J.P.; Dieringer, J.A.; Zhao, J.; Van Duyne, R.P. Controlled plasmonic nanostructures for surface-enhanced spectroscopy and sensing. Acc. Chem. Res. 2008, 41, 1653–1661. [Google Scholar] [CrossRef] [PubMed]
  24. Hamouda, F.; Sahaf, H.; Held, S.; Barbillon, G.; Gogol, P.; Moyen, E.; Aassime, A.; Moreau, J.; Canva, M.; Lourtioz, J.-M.; et al. Large area nanopatterning by combined anodic aluminum oxide and soft UV-NIL technologies for applications in biology. Microelectron. Eng. 2011, 88, 2444–2446. [Google Scholar] [CrossRef]
  25. Cottat, M.; Lidgi-Guigui, N.; Tijunelyte, I.; Barbillon, G.; Hamouda, F.; Gogol, P.; Aassime, A.; Lourtioz, J.-M.; Bartenlian, B.; Lamy de la Chapelle, M. Soft UV nanoimprint lithography-designed highly sensitive substrates for SERS detection. Nanoscale Res. Lett. 2014, 9, 623. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Jahn, M.; Patze, S.; Hidi, I.J.; Knipper, R.; Radu, A.I.; Mühling, A.; Yüksel, S.; Peksa, V.; Weber, K.; Mayerhöfer, T.; et al. Plasmonic nanostructures for surface enhanced spectroscopic methods. Analyst 2016, 141, 756–793. [Google Scholar] [CrossRef] [PubMed]
  27. Que, R.; Shao, M.; Zhuo, S.; Wen, C.; Wang, S.; Lee, S.-T. Highly reproducible surface-enhanced Raman scattering on a capillarity-assisted gold nanoparticle assembly. Adv. Funct. Mater. 2011, 21, 3337–3343. [Google Scholar] [CrossRef]
  28. Tanoue, Y.; Sugawa, K.; Yamamuro, T.; Akiyama, T. Densely arranged two-dimensional silver nanoparticle assemblies with optical uniformity over vast areas as excellent surface-enhanced Raman scattering substrates. Phys. Chem. Chem. Phys. 2013, 15, 15802–15805. [Google Scholar] [CrossRef]
  29. Sugawa, K.; Akiyama, T.; Tanoue, Y.; Harumoto, T.; Yanagida, S.; Yasumori, A.; Tomita, S.; Otsuki, J. Particle size dependence of the surface-enhanced Raman scattering properties of densely arranged two-dimensional assemblies of Au(core)–Ag(shell) nanospheres. Phys. Chem. Chem. Phys. 2015, 17, 21182–21189. [Google Scholar]
  30. Convertino, A.; Mussi, V.; Maiolo, L. Disordered array of Au covered silicon nanowires for SERS biosensing combined with electrochemical detection. Sci. Rep. 2016, 6, 25099. [Google Scholar] [CrossRef]
  31. Akin, M.S.; Yilmaz, M.; Babur, E.; Ozdemur, B.; Erdogan, H.; Tamer, U.; Demirel, G. Large area uniform deposition of silver nanoparticles through bio-inspired polydopamine coating on silicon nanowire arrays for pratical SERS applications. J. Mater. Chem. B 2014, 2, 4894–4900. [Google Scholar] [CrossRef]
  32. Wang, H.; Jiang, X.; Lee, S.T.; He, Y. Silicon nanohybrid-based surface-enhanced Raman scattering sensors. Small 2014, 10, 4455–4468. [Google Scholar] [CrossRef] [PubMed]
  33. Wei, X.P.; Su, S.; Guo, Y.Y.; Jiang, X.X.; Zhong, Y.L.; Su, Y.Y.; Fan, C.H.; Lee, S.T.; He, Y. A molecular beacon-based signal-off surface-enhanced Raman scattering strategy for highly sensitive, reproducible, and multiplexed DNA detection. Small 2013, 9, 2493–2499. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, R.; Li, D.; Hu, H.; Zhao, Y.; Wang, Y.; Wong, N.; Wang, S.; Zhang, Y.; Hu, J.; Shen, Z.; et al. Tailoring optical properties of silicon nanowires by Au nanostructure decorations: Enhanced Raman scattering and photodetection. J. Phys. Chem. C 2012, 116, 4416–4422. [Google Scholar] [CrossRef]
  35. Schmidt, M.S.; Hübner, J.; Boisen, A. Large area fabrication of leaning silicon nanopillars for surface enhanced Raman spectroscopy. Adv. Mater. 2012, 24, OP11–OP18. [Google Scholar] [CrossRef] [PubMed]
  36. He, Y.; Su, S.; Xu, T.T.; Zhong, Y.L.; Zapien, J.A.; Li, J.; Fan, C.H.; Lee, S.T. Silicon nanowires-based highly-efficient SERS-active platform for ultrasensitive DNA detection. Nano Today 2011, 6, 122–130. [Google Scholar] [CrossRef]
  37. Zhang, M.L.; Fan, X.; Zhou, H.W.; Shao, M.W.; Antonio Zapien, J.; Wong, N.B.; Lee, S.T. A high-efficiency surface-enhanced Raman scattering substrate based on silicon nanowires array decorated with silver nanoparticles. J. Phys. Chem. C 2010, 114, 1969–1975. [Google Scholar] [CrossRef]
  38. Galopin, E.; Barbillat, J.; Coffinier, Y.; Szunerits, S.; Patriarche, G.; Boukherroub, R. Silicon nanowires coated with silver nanostructures as ultrasensitive interfaces for surface-enhanced Raman spectroscopy. ACS Appl. Mater. Interfaces 2009, 1, 1396–1403. [Google Scholar] [CrossRef]
  39. Chen, J.; Martensson, T.; Dick, K.A.; Deppert, K.; Xu, H.Q.; Samuelson, L.; Xu, H. Surface-enhanced Raman scattering of rhodamine 6G on nanowire arrays decorated with gold nanoparticles. Nanotechnology 2008, 19, 275712. [Google Scholar] [CrossRef]
  40. Zhang, B.H.; Wang, H.S.; Lu, L.H.; Ai, K.L.; Zhang, G.; Cheng, X.L. Large-area silver-coated silicon nanowire arrays for molecular sensing using surface-enhanced Raman spectroscopy. Adv. Funct. Mater. 2008, 18, 2348–2355. [Google Scholar] [CrossRef]
  41. Khan, M.A.; Hogan, T.P.; Shanker, B. Gold-coated zinc oxide nanowire-based substrate for surface-enhanced Raman spectroscopy. J. Raman Spectrosc. 2009, 40, 1539–1545. [Google Scholar] [CrossRef]
  42. Sinha, G.; Depero, L.E.; Alessandri, I. Recyclabe SERS substrates based on Au-coated ZnO nanorods. ACS Appl. Mater. Interfaces 2011, 3, 2557–2563. [Google Scholar] [CrossRef] [PubMed]
  43. Cui, S.; Dai, Z.; Tian, Q.; Liu, J.; Xiao, X.; Jiang, C.; Wu, W.; Roy, V.A.L. Wetting properties and SERS applications of ZnO/Ag nanowire arrays patterned by a screen printing method. J. Mater. Chem. C 2016, 4, 6371–6379. [Google Scholar] [CrossRef]
  44. Barbillon, G.; Sandana, V.E.; Humbert, C.; Bélier, B.; Rogers, D.J.; Teherani, F.H.; Bove, P.; McClintock, R.; Razeghi, M. Study of Au coated ZnO nanoarrays for surface enhanced Raman scattering chemical sensing. J. Mater. Chem. C 2017, 5, 3528–3535. [Google Scholar] [CrossRef]
  45. Holmes, J.D.; Johnston, K.P.; Doty, R.C.; Korgel, B.A. Control of thickness and orientation of solution-grown silicon nanowires. Science 2000, 287, 1471–1473. [Google Scholar] [CrossRef]
  46. Tuan, H.Y.; Lee, D.C.; Hanrath, T.; Korgel, B.A. Catalytic solid-phase seeding of silicon nanowires by nickel nanocrystals in organic solvents. Science 2005, 5, 681–684. [Google Scholar] [CrossRef] [PubMed]
  47. Hochbaum, A.I.; Fan, R.; He, R.; Yang, P. Controlled growth of Si nanowire arrays for device integration. Nano Lett. 2005, 5, 457–460. [Google Scholar] [CrossRef]
  48. Kayes, B.M.; Filler, M.A.; Putnam, M.C.; Kelzenberg, M.D.; Lewis, N.S.; Atwater, H.A. Growth of vertically aligned Si wire arrays over large areas (>1 cm2) with Au and Cu catalysts. Appl. Phys. Lett. 2007, 91, 103110. [Google Scholar] [CrossRef]
  49. Putnam, M.C.; Filler, M.A.; Kayes, B.M.; Kelzenberg, M.D.; Guan, Y.; Lewis, N.S.; Eiler, J.M.; Atwater, H.A. Secondary ion mass spectrometry of vapor–liquid–solid grown, Au-catalyzed, Si wires. Nano Lett. 2008, 8, 3109–3113. [Google Scholar] [CrossRef]
  50. Schmidt, V.; Wittemann, J.; Gosele, U. Growth, thermodynamics, and electrical properties of silicon nanowires. Chem. Rev. 2010, 110, 361–388. [Google Scholar] [CrossRef]
  51. Lee, S.T.; Wang, N.; Zhang, Y.F.; Tang, Y.H. Oxide-assisted semiconductor nanowire growth. MRS Bull. 1999, 24, 36–42. [Google Scholar] [CrossRef]
  52. Ma, D.D.D.; Lee, C.S.; Au, F.C.K.; Tong, S.Y.; Lee, S.T. Small-diameter silicon nanowire surfaces. Science 2003, 299, 1874–1877. [Google Scholar] [CrossRef] [PubMed]
  53. Caldwell, J.D.; Glembocki, O.; Bezares, F.J.; Bassim, N.D.; Rendell, R.W.; Feygelson, M.; Ukaegbu, M.; Kasica, R.; Shirey, L.; Hosten, C. Plasmonic nanopillar arrays for large-area, high-enhancement surface-enhanced Raman scattering sensors. ACS Nano 2011, 5, 4046–4055. [Google Scholar] [CrossRef] [PubMed]
  54. Juhasz, R.; Elfstrom, N.; Linnros, J. Controlled fabrication of silicon nanowires by electron beam lithography and electrochemical size reduction. Nano Lett. 2005, 5, 275–280. [Google Scholar] [CrossRef] [PubMed]
  55. Khorasaninejad, M.; Walia, J.; Saini, S.S. Enhanced first-order Raman scattering from arrays of vertical silicon nanowires. Nanotechnology 2012, 23, 275706. [Google Scholar] [CrossRef] [PubMed]
  56. Peng, K.Q.; Hu, J.J.; Yan, Y.J.; Wu, Y.; Fang, H.; Xu, Y.; Lee, S.T.; Zhu, J. Fabrication of single-crystalline silicon nanowires by scratching a silicon surface with catalytic metal particles. Adv. Funct. Mater. 2006, 16, 387–394. [Google Scholar] [CrossRef]
  57. Huang, Z.; Geyer, N.; Werner, P.; de Boor, J.; Gösele, U. Metal-assisted chemical etching of silicon: A review. Adv. Mater. 2011, 23, 285–308. [Google Scholar] [CrossRef] [PubMed]
  58. Bryche, J.-F.; Bélier, B.; Bartenlian, B.; Barbillon, G. Low-cost SERS substrates composed of hybrid nanoskittles for a highly sensitive sensing of chemical molecules. Sens. Actuator B 2017, 239, 795–799. [Google Scholar] [CrossRef]
  59. Magno, G.; Bélier, B.; Barbillon, G. Gold thickness impact on the enhancement of SERS detection in low-cost Au/Si nanosensors. J. Mater. Sci. 2017, 52, 13650–13656. [Google Scholar] [CrossRef]
  60. Magno, G.; Bélier, B.; Barbillon, G. Al/Si nanopillars as very sensitive SERS substrates. Materials 2018, 11, 1534. [Google Scholar] [CrossRef]
  61. Kara, S.A.; Keffous, A.; Giovannozzi, A.M.; Rossi, A.M.; Cara, E.; D’Ortenzi, L.; Sparnacci, K.; Boarino, L.; Gabouze, N.; Soukane, S. Fabrication of flexible silicon nanowires by sefl-assembled metal assisted chemical etching for surface enhanced Raman spectroscopy. RSC Adv. 2016, 6, 93649–93659. [Google Scholar] [CrossRef]
  62. Cara, E.; Mandrile, L.; Lupi, F.F.; Giovannozzi, A.M.; Dialameh, M.; Portesi, C.; Sparnacci, K.; De Leo, N.; Rossi, A.M.; Boarino, L. Influence of the long-range ordering of gold-coated Si nanowires on SERS. Sci. Rep. 2018, 8, 11305. [Google Scholar] [CrossRef] [PubMed]
  63. Lin, D.; Wu, Z.; Li, S.; Zhao, W.; Ma, C.; Wang, J.; Jiang, Z.; Zhong, Z.; Zheng, Y.; Yang, X. Large-area Au-nanoparticle-functionalized Si nanorod arrays for spatially uniform surface-enhanced Raman spectroscopy. ACS Nano 2017, 11, 1478–1487. [Google Scholar] [CrossRef] [PubMed]
  64. Liang, Z.; Fan, D. Visible light-gated reconfigurable rotary actuation of electric nanomotors. Sci. Adv. 2018, 4, eaau0981. [Google Scholar] [CrossRef] [PubMed]
  65. Peng, K.Q.; Lu, A.J.; Wong, N.B.; Zhang, R.Q.; Lee, S.T. Motility of metal nanoparticles in silicon and induced anisotropic silicon etching. Adv. Funct. Mater. 2008, 18, 3026–3035. [Google Scholar] [CrossRef]
  66. Huang, J.-A.; Zhao, Y.-Q.; Zhang, X.-J.; He, L.-F.; Wong, T.-L.; Chui, Y.-S.; Zhang, W.-J.; Lee, S.-T. Ordered Ag/Si nanowires array: Wide-range surface-enhanced Raman spectroscopy for reproducible biomolecule detection. Nano Lett. 2013, 13, 5039–5045. [Google Scholar] [CrossRef] [PubMed]
  67. Lagarkov, A.; Boginkaya, I.; Bykov, I.; Budashov, I.; Ivanov, A.; Kurochkin, I.; Ryzhikov, I.; Rodionov, I.; Sedova, M.; Zverev, A.; et al. Light localization and SERS in tip-shaped silicon metasurface. Opt. Express 2017, 25, 17021–17038. [Google Scholar] [CrossRef]
  68. Sarychev, A.K.; Ivanov, A.; Lagarkov, A.; Barbillon, G. Light concentration by metal-dielectric micro-resonators for SERS sensing. Materials 2019, 12, 103. [Google Scholar] [CrossRef] [PubMed]
  69. Powell, J.A.; Venkatakrishnan, K.; Tan, B. Hybridized enhancement of the SERS detection of chemical and bio-marker molecules through Au nanosphere ornamentation of hybrid amorphous/crystalline Si nanoweb nanostructure biochip devices. J. Mater. Chem. B 2016, 4, 5713–5728. [Google Scholar] [CrossRef]
  70. Chan, S.; Kwon, S.; Koo, T.W.; Lee, L.P.; Berlin, A.A. Surface-enhanced Raman scattering of small molecules from silver-coated silicon nanopores. Adv. Mater. 2003, 15, 1595–1598. [Google Scholar] [CrossRef]
  71. Wu, Y.K.; Liu, K.; Li, X.F.; Pan, S. Integrate silver colloids with silicon nanowire arrays for surface-enhanced Raman scattering. Nanotechnology 2011, 22, 215701. [Google Scholar] [CrossRef] [PubMed]
  72. Lu, R.; Sha, J.; Xia, W.W.; Fang, Y.J.; Gu, L.; Wang, Y.W. A 3D-SERS substrate with high stability: Silicon nanowire arrays decorated by silver nanoparticles. CrystEngComm 2013, 15, 6207–6212. [Google Scholar] [CrossRef]
  73. Wang, S.-Y.; Jiang, X.-X.; Xu, T.-T.; Wei, X.-P.; Lee, S.-T.; He, Y. Reactive ion etching-assisted surface-enhanced Raman scattering measurements on the single nanoparticle level. Appl. Phys. Lett. 2014, 104, 243104. [Google Scholar] [CrossRef]
  74. Ding, S.-Y.; You, E.-M.; Tian, Z.-Q.; Moskovits, M. Electromagnetic theories of surface-enhanced Raman spectroscopy. Chem. Soc. Rev. 2017, 46, 4042–4076. [Google Scholar] [CrossRef] [PubMed]
  75. Li, J.-F.; Zhang, Y.-J.; Ding, S.-Y.; Panneerselvam, R.; Tian, Z.-Q. Core–shell nanoparticle-enhanced Raman spectroscopy. Chem. Rev. 2017, 117, 5002–5069. [Google Scholar] [CrossRef]
  76. Ding, S.-Y.; Yi, J.; Li, J.-F.; Ren, B.; Wu, D.-Y.; Panneerselvam, R.; Tian, Z.-Q. Nanostructure-based plasmon-enhanced Raman spectroscopy for surface analysis of materials. Nat. Rev. Mater. 2016, 1, 16021. [Google Scholar] [CrossRef]
  77. Cao, Y.C.; Jin, R.; Mirkin, C.A. Nanoparticles with Raman spectroscopic fingerprints for DNA and RNA detection. Science 2002, 297, 1536–1540. [Google Scholar] [CrossRef]
  78. Erdéleyi, R.; Nagata, T.; Rogers, D.J.; Teherani, F.H.; Horváth, Z.E.; Lábadi, Z.; Baji, Z.; Wakayama, Y.; Volk, J. Investigations into the impact of the template layer on ZnO nanowire arrays made using low temperature wet chemical growth. Cryst. Growth Des. 2011, 11, 2515–2519. [Google Scholar] [CrossRef]
  79. Özgür, Ü.; Alivov, Y.I.; Liu, C.; Teke, A.; Reshchikov, M.A.; Doğan, S.; Avrutin, V.; Cho, S.-J.; Morkoç, H. A comprehensive review of ZnO materials and devices. J. Appl. Phys. 2005, 98, 041301. [Google Scholar] [CrossRef]
  80. Janotti, A.; Van de Walle, C.G. Fundamentals of zinc oxide as a semiconductor. Rep. Prog. Phys. 2009, 72, 126501. [Google Scholar] [CrossRef]
  81. Cheng, C.; Yan, B.; Wong, S.M.; Li, X.; Zhou, W.; Yu, T.; Shen, Z.; Yu, H.; Fan, H.J. Fabrication and SERS Performance of Silver-Nanoparticle-Decorated Si/ZnO Nanotrees in Ordered Arrays. ACS Appl. Mater. Interfaces 2010, 7, 1824–1828. [Google Scholar] [CrossRef] [PubMed]
  82. Lee, Y.; Lee, J.; Lee, T.K.; Park, J.; Ha, M.; Kwak, S.K.; Ko, H. Particle-on-film gap plasmons on antireflective ZnO nanocone arrays for molecular-level surface-enhanced Raman scattering sensors. ACS Appl. Mater. Interfaces 2015, 7, 26421–26429. [Google Scholar] [CrossRef] [PubMed]
  83. Fang, Y.; Wang, Y.; Wan, Y.; Wang, Z.; Sha, J. Detailed study on photoluminescence property and growth mechanism of ZnO nanowire arrays grown by thermal evaporation. J. Phys. Chem. C 2010, 114, 12469–12476. [Google Scholar] [CrossRef]
  84. Zhu, G.; Zhou, Y.; Wang, S.; Yang, R.; Ding, Y.; Wang, X.; Bando, Y.; Wang, Z.L. Synthesis of vertically aligned ultra-long ZnO nanowires on heterogeneous substrates with catalyst at the root. Nanotechnology 2012, 23, 055604. [Google Scholar] [CrossRef]
  85. Chen, L.; Luo, L.; Chen, Z.; Zhang, M.; Antonio Zapien, J.; Lee, C.S.; Lee, S.T. ZnO/Au composite nanoarrays as substrates for surface-enhanced Raman scattering detection. J. Phys. Chem. C 2010, 114, 93–100. [Google Scholar] [CrossRef]
  86. Shan, Y.; Yang, Y.; Cao, Y.; Fu, C.; Huang, Z. Synthesis of wheatear-like ZnO nanoarrays decorated with Ag nanoparticles and its improved SERS performance through hydrogenation. Nanotechnology 2016, 27, 145502. [Google Scholar] [CrossRef]
  87. Xu, J.-Q.; Duo, H.-H.; Zhang, Y.-G.; Zhang, X.-W.; Fang, W.; Liu, Y.-L.; Shen, A.-G.; Hu, J.-M.; Huang, W.-H. Photochemical synthesis of shape-controlled nanostructured gold on zinc oxide nanorods as photocatalytically renewable sensors. Anal. Chem. 2016, 88, 3789–3795. [Google Scholar] [CrossRef]
  88. He, X.; Yue, C.; Zang, Y.; Yin, J.; Sun, S.; Li, J.; Kang, J. Multi-hotspot configuration on urchin-like Ag nanoparticle/ZnO hollow nanosphere arrays for highly sensitive SERS. J. Mater. Chem. A 2013, 1, 15010–15015. [Google Scholar]
  89. Park, S.G.; Jeon, T.Y.; Jeon, H.C.; Kwon, J.D.; Mun, C.; Lee, M.; Cho, B.; Kim, C.S.; Song, M.; Kim, D.H. Fabrication of Au-decorated 3D ZnO nanostructures as recyclable SERS substrates. IEEE Sens. J. 2016, 16, 3382–3386. [Google Scholar] [CrossRef]
  90. Song, W.; Ji, W.; Vantasin, S.; Tanabe, I.; Zhao, B.; Ozaki, Y. Fabrication of a highly sensitive surface-enhanced Raman scattering substrate for monitoring the catalytic degradation of organic pollutants. J. Mater. Chem. A 2015, 3, 13556–13562. [Google Scholar] [CrossRef]
  91. Jayram, N.D.; Sonia, S.; Poongodi, S.; Suresh Kumar, P.; Masuda, Y.; Mangalaraj, D.; Ponpandian, N.; Viswanathan, C. Superhydrophobic Ag decorated ZnO nanostructured thin film as effective surface enhanced Raman scattering substrates. Appl. Surf. Sci. 2015, 355, 969–977. [Google Scholar] [CrossRef]
  92. Xie, Y.; Yang, S.; Mao, Z.; Li, P.; Zhao, C.; Cohick, Z.; Huang, P.-H.; Huang, T.J. In situ Fabrication of 3D Ag@ZnO nanostructures for microfluidic surface-enhanced Raman scattering systems. ACS Nano 2014, 8, 12175–12184. [Google Scholar] [CrossRef] [PubMed]
  93. Marcí, G.; Augugliaro, V.; López-Muñoz, M.J.; Martín, C.; Palmisano, L.; Rives, V.; Schiavello, M.; Tilley, R.J.D.; Venezia, A.M. Preparation characterization and photocatalytic activity of polycrystalline ZnO/TiO2 systems. 2. Surface, bulk characterization, and 4-Nitrophenol photodegradation in Liquid–Solid regime. J. Phys. Chem. B 2001, 105, 1033–1040. [Google Scholar] [CrossRef]
  94. Zhou, Q.; Wen, J.Z.; Zhao, P.; Anderson, W.A. Synthesis of vertically-aligned zinc oxide nanowires and their application as a photocatalyst. Nanomaterials 2017, 7, 9. [Google Scholar] [CrossRef]
Coatings 09 00086 g001 550

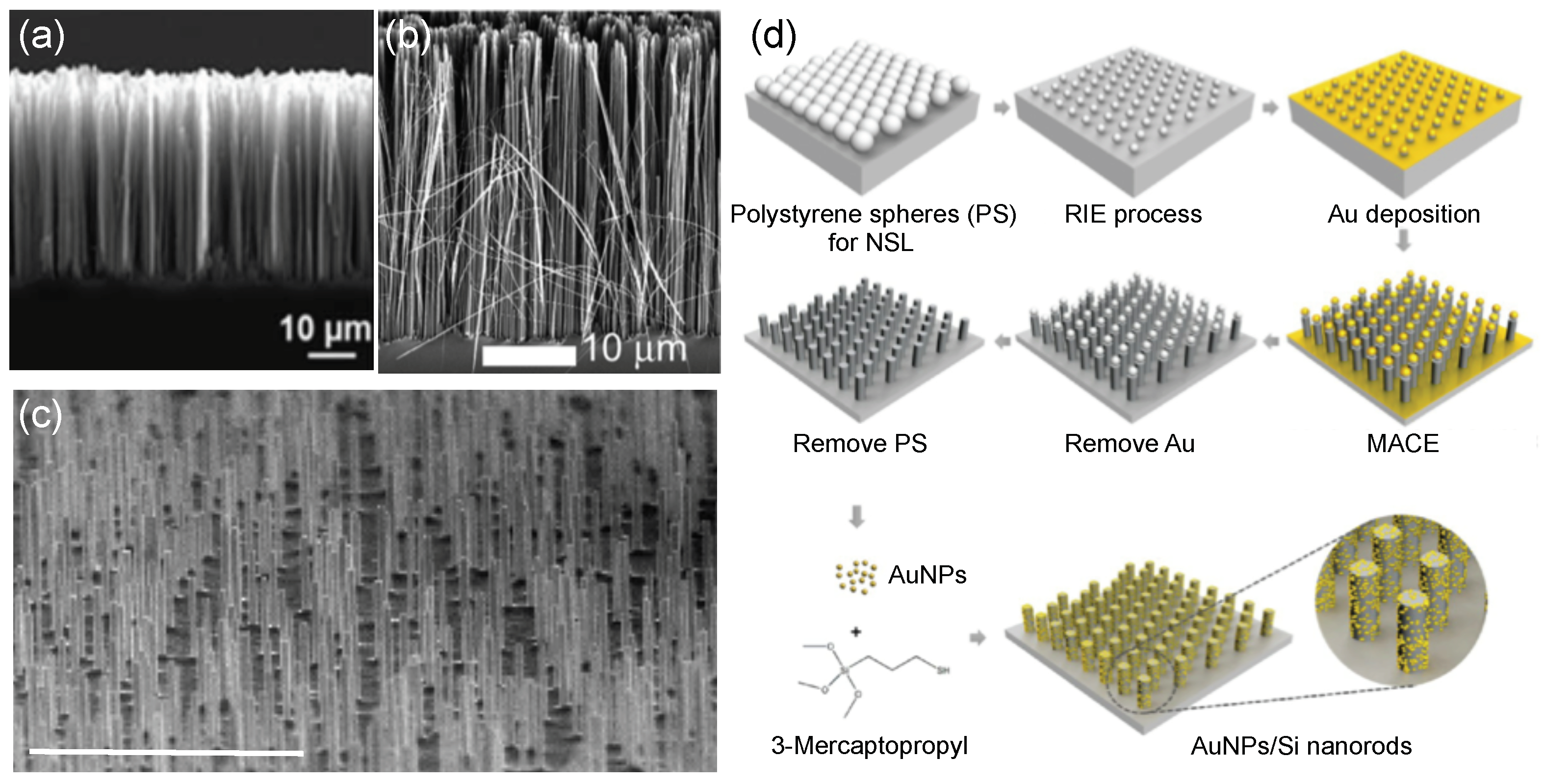

Figure 1. Three examples of metal-coated Si nanostructures (SEM images): (a) Si nanowires produced via a MACE technique (height h = 24.3 ± 1.9 μ m and nanowire diameter: 50 nm < D < 300 nm) coated with Ag nanoparticles (average AgNP diameter: d = 30 nm), reproduced from [31] with permission from the Royal Society of Chemistry; (b) Si nanowires produced through an Ag-assisted chemical etching of n-Si(100) wafer (height h∼32 μ m and diameter: 80 nm < D < 200 nm), reprinted with permission from [37], Copyright 2010 American Chemical Society; (c) Au/Si nanopillars (NP) obtained with the fabrication technique based on an RIE process through the oxide native layer followed by a deposition of a gold layer of 30 nm (scale bar = 5 μ m, radius R∼125 nm and height h∼1000 nm); (d) principle scheme of the low-cost fabrication process combining NSL and MACE for producing AuNP-conjugated Si nanorod arrays (reprinted with permission from [63], copyright 2017 American Chemical Society).
Figure 1. Three examples of metal-coated Si nanostructures (SEM images): (a) Si nanowires produced via a MACE technique (height h = 24.3 ± 1.9 μ m and nanowire diameter: 50 nm < D < 300 nm) coated with Ag nanoparticles (average AgNP diameter: d = 30 nm), reproduced from [31] with permission from the Royal Society of Chemistry; (b) Si nanowires produced through an Ag-assisted chemical etching of n-Si(100) wafer (height h∼32 μ m and diameter: 80 nm < D < 200 nm), reprinted with permission from [37], Copyright 2010 American Chemical Society; (c) Au/Si nanopillars (NP) obtained with the fabrication technique based on an RIE process through the oxide native layer followed by a deposition of a gold layer of 30 nm (scale bar = 5 μ m, radius R∼125 nm and height h∼1000 nm); (d) principle scheme of the low-cost fabrication process combining NSL and MACE for producing AuNP-conjugated Si nanorod arrays (reprinted with permission from [63], copyright 2017 American Chemical Society).
Coatings 09 00086 g001
Coatings 09 00086 g002 550

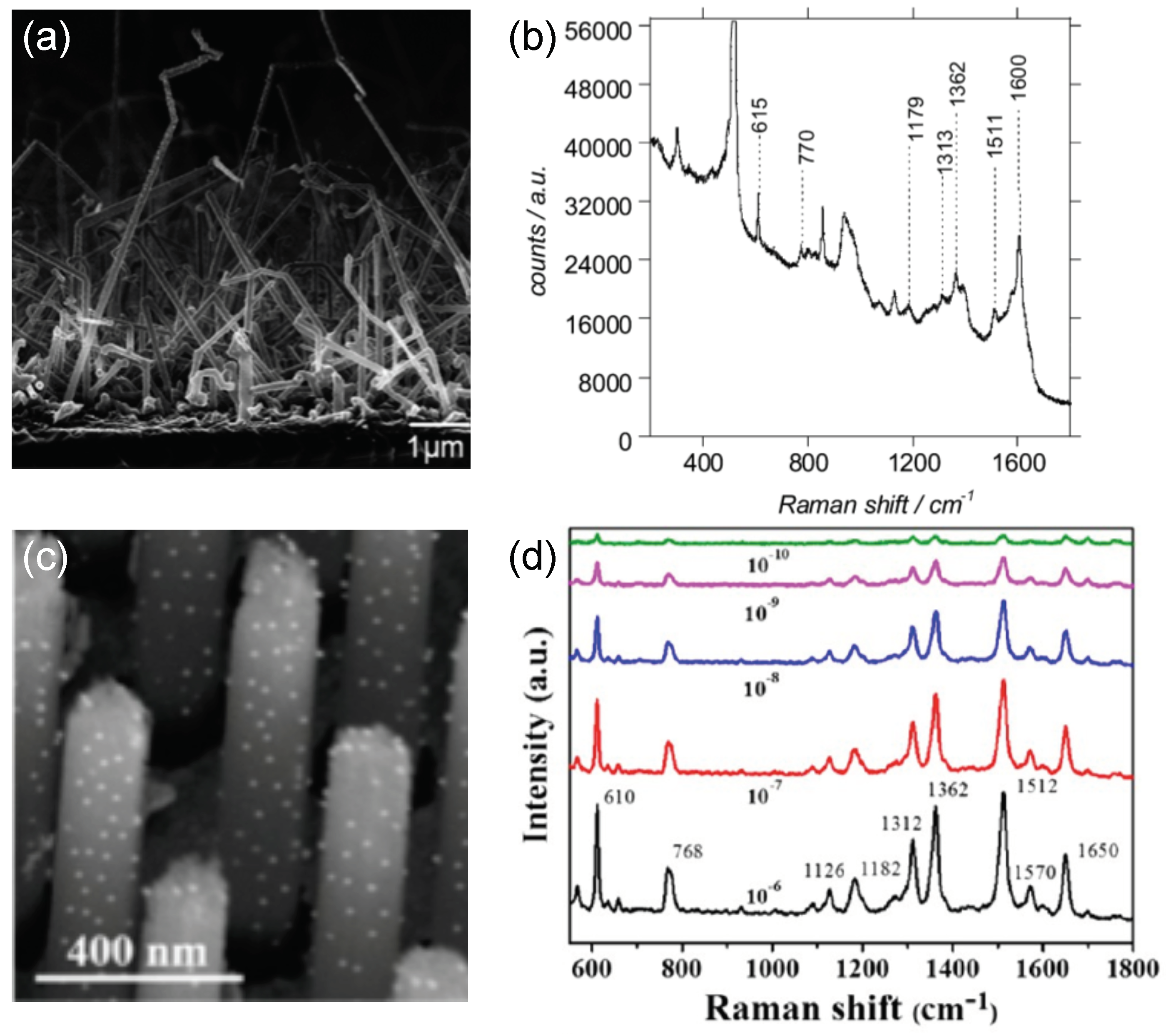

Figure 2. (a) Si nanowires produced by the vapor–liquid–solid growth (height: 5 μ m < h < 6 μ m and nanowire diameter: 50 nm < D < 150 nm) coated with Ag nanoparticles (diameter: 4 nm < d < 40 nm); (b) SERS spectrum of Rhodamine 6G (R6G) molecules (C R 6 G = 10 − 9 M) adsorbed on AgNPs/SiNWs. (a,b) are reprinted with permission from [38], copyright 2009 American Chemical Society; (c) Si nanorod array obtained with the combination of the NSL and MACE techniques followed by the grafting of gold nanoparticles having a diameter of 20 nm on Si nanorods (period P∼500 nm between two Si nanorods, diameter D∼200 nm and height h∼1300 nm); (d) SERS spectra of R6G molecules adsorbed on AuNPs/SiNRs for concentrations varying from 10 − 10 to 10 − 6 M; (c,d) are reprinted with permission from [63], copyright 2017 American Chemical Society.
Figure 2. (a) Si nanowires produced by the vapor–liquid–solid growth (height: 5 μ m < h < 6 μ m and nanowire diameter: 50 nm < D < 150 nm) coated with Ag nanoparticles (diameter: 4 nm < d < 40 nm); (b) SERS spectrum of Rhodamine 6G (R6G) molecules (C R 6 G = 10 − 9 M) adsorbed on AgNPs/SiNWs. (a,b) are reprinted with permission from [38], copyright 2009 American Chemical Society; (c) Si nanorod array obtained with the combination of the NSL and MACE techniques followed by the grafting of gold nanoparticles having a diameter of 20 nm on Si nanorods (period P∼500 nm between two Si nanorods, diameter D∼200 nm and height h∼1300 nm); (d) SERS spectra of R6G molecules adsorbed on AuNPs/SiNRs for concentrations varying from 10 − 10 to 10 − 6 M; (c,d) are reprinted with permission from [63], copyright 2017 American Chemical Society.
Coatings 09 00086 g002
Coatings 09 00086 g003 550

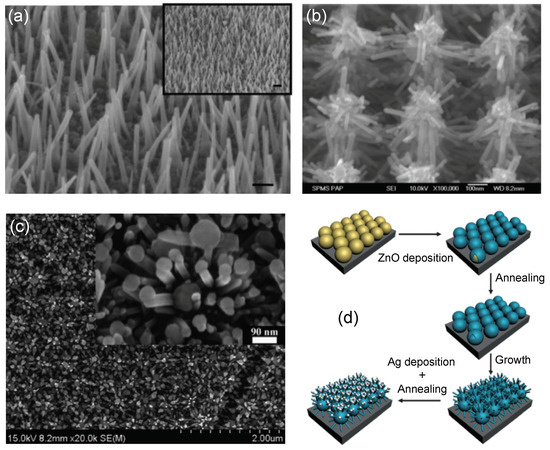

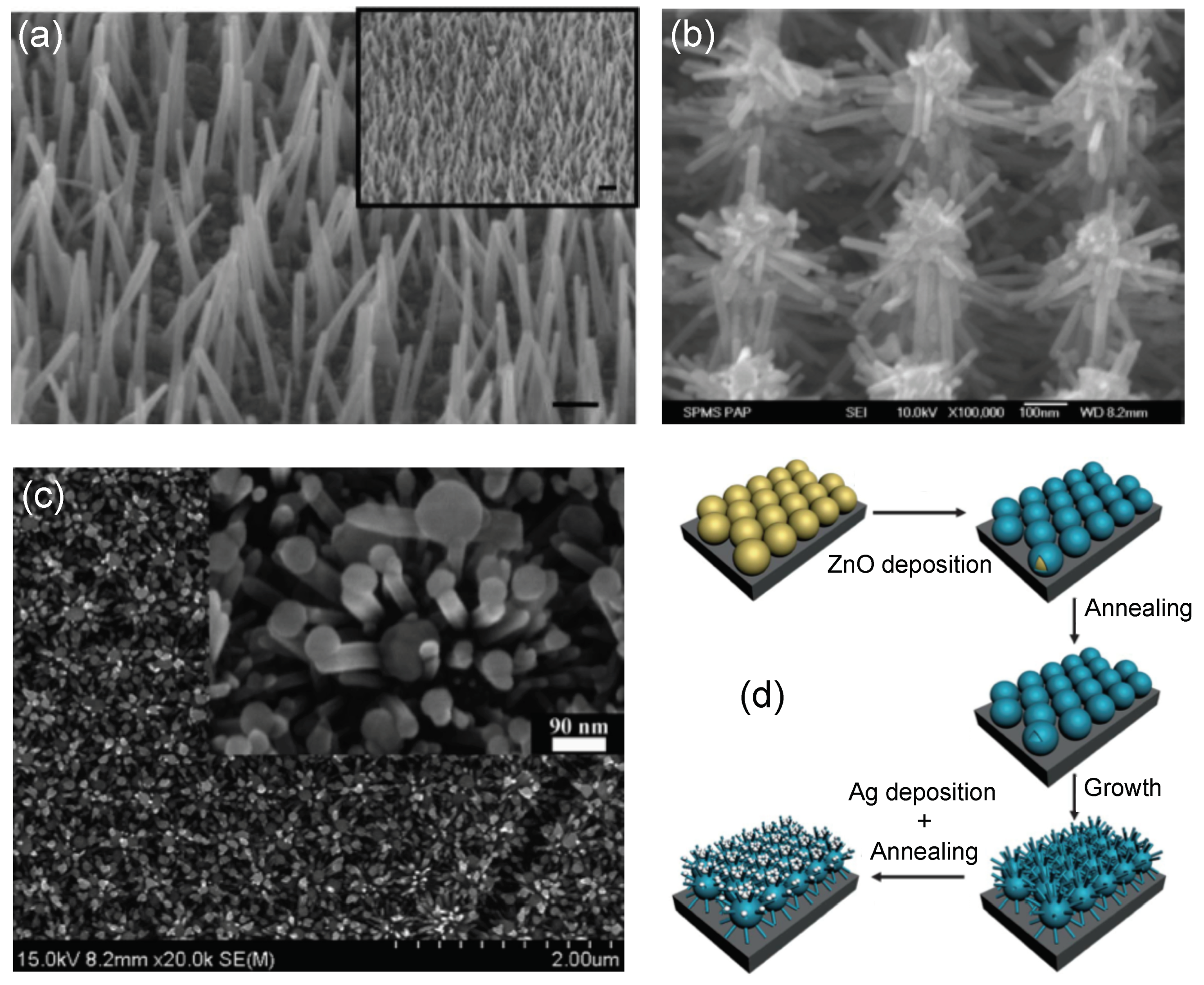

Figure 3. Three examples of metal-coated ZnO nanostructures: (a) SEM images of Au/ZnO nanorods and the insert is a picture at a weaker magnification (scale bars = 100 nm; reprinted with permission from [42], copyright 2011 American Chemical Society); (b) SEM image of AgNP-decorated Si/ZnO nanotrees (scale bar = 100 nm; reprinted with permission from [81], copyright 2010 American Chemical Society); (c) SEM images of an urchin-like AgNPs/ZnO hollow nanosphere (HNS) array and the insert corresponds to a picture recorded with a higher magnification; (d) principle scheme of the low-cost fabrication process of urchin-like AgNPs/ZnO HNS array; (c,d) are reproduced from [88] with permission from the Royal Society of Chemistry.
Figure 3. Three examples of metal-coated ZnO nanostructures: (a) SEM images of Au/ZnO nanorods and the insert is a picture at a weaker magnification (scale bars = 100 nm; reprinted with permission from [42], copyright 2011 American Chemical Society); (b) SEM image of AgNP-decorated Si/ZnO nanotrees (scale bar = 100 nm; reprinted with permission from [81], copyright 2010 American Chemical Society); (c) SEM images of an urchin-like AgNPs/ZnO hollow nanosphere (HNS) array and the insert corresponds to a picture recorded with a higher magnification; (d) principle scheme of the low-cost fabrication process of urchin-like AgNPs/ZnO HNS array; (c,d) are reproduced from [88] with permission from the Royal Society of Chemistry.
Coatings 09 00086 g003
Coatings 09 00086 g004 550

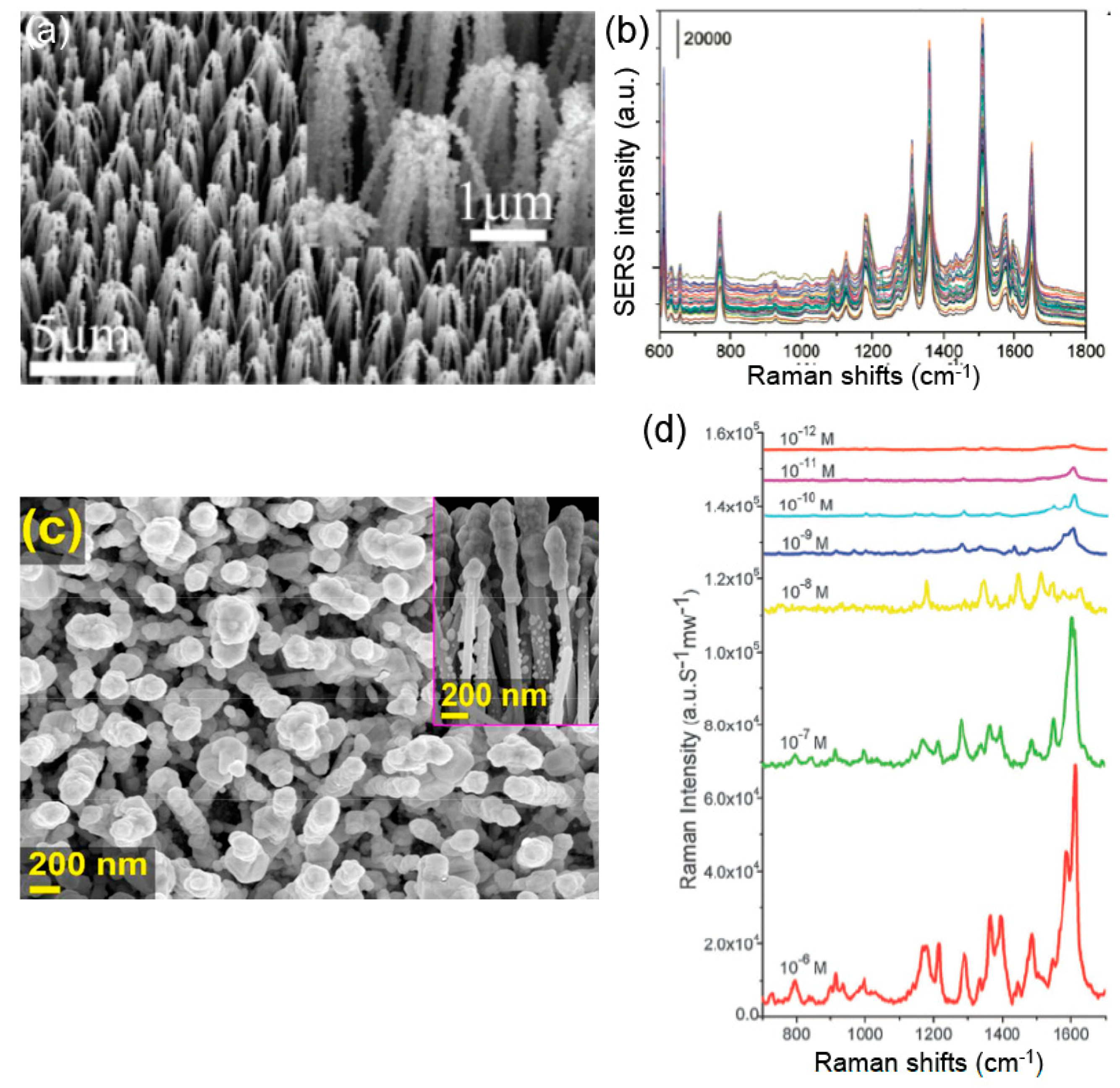

Figure 4. (a) SEM images of Au/ZnO nanoneedles and the insert is a zoom on a couple of nanoneedles; (b) SERS spectra of R6G molecules (C R 6 G = 10 − 7 M) adsorbed on Au/ZnO nanoneedles. (a,b) are reprinted with permission from [85], copyright 2010 American Chemical Society; (c) SEM images of Ag/ZnO nanowire array (NWA) and the insert corresponds to the cross-section of this array; (d) SERS spectra of MG molecules adsorbed on Ag/ZnO NWA for different MG concentrations; (c,d) are reproduced from [43] with permission from the Royal Society of Chemistry.
Figure 4. (a) SEM images of Au/ZnO nanoneedles and the insert is a zoom on a couple of nanoneedles; (b) SERS spectra of R6G molecules (C R 6 G = 10 − 7 M) adsorbed on Au/ZnO nanoneedles. (a,b) are reprinted with permission from [85], copyright 2010 American Chemical Society; (c) SEM images of Ag/ZnO nanowire array (NWA) and the insert corresponds to the cross-section of this array; (d) SERS spectra of MG molecules adsorbed on Ag/ZnO NWA for different MG concentrations; (c,d) are reproduced from [43] with permission from the Royal Society of Chemistry.
Coatings 09 00086 g004
Coatings 09 00086 g005 550

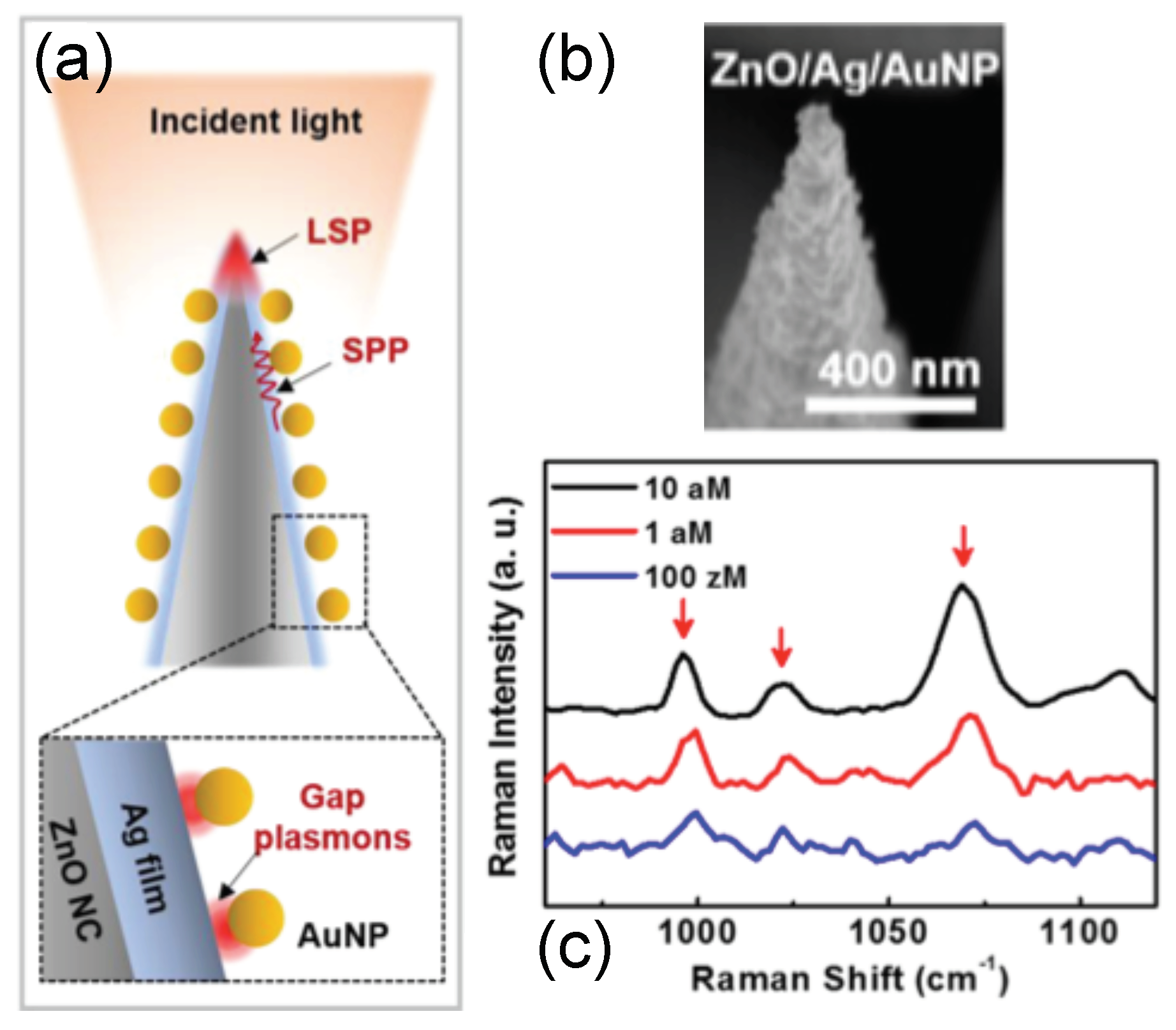

Figure 5. (a) scheme of the detection principle of SERS nanosensor (Electric field located at the tip and at the particle–film gap; SPP = Surface Plasmon Polariton and LSP = Localized Surface Plasmon); (b) SEM image of an AuNPs/Ag/ZnO nanocone; (c) SERS spectra of thiophenol molecules adsorbed on AuNPs/Ag/ZnO nanocones at the trace level (for three very low concentrations). All are reprinted with permission from [82], copyright 2015 American Chemical Society.
Figure 5. (a) scheme of the detection principle of SERS nanosensor (Electric field located at the tip and at the particle–film gap; SPP = Surface Plasmon Polariton and LSP = Localized Surface Plasmon); (b) SEM image of an AuNPs/Ag/ZnO nanocone; (c) SERS spectra of thiophenol molecules adsorbed on AuNPs/Ag/ZnO nanocones at the trace level (for three very low concentrations). All are reprinted with permission from [82], copyright 2015 American Chemical Society.
Coatings 09 00086 g005
Table
Table 1. SERS performances of metal-coated Si nanosystems for chemical and biological sensing.
Table 1. SERS performances of metal-coated Si nanosystems for chemical and biological sensing.
SERS SubstratesDetected MoleculesEF or AEFLOD (M)RSDRefs.
AgNPs/SiNWsR6G10 7 –10 8 10 − 14 –[38]
AgNPs/SiNWsSudan Dyes10 8 –10 10 –<30%[37]
AgNPs/SiNWsMB10 6 –4 × 10 6 –<10%[31]
AgNPs/SiNWsDNA6 × 10 9 –8 × 10 9 10 − 15 –[36]
Ag/SiNWsCalcium Dipicolinate–4 × 10 − 6 <20%[40]
Ag/SiNWs4-AT1.1 × 10 6 –<15%[66]
AuNPs/SiNWsDNA–10 − 14 <10%[33]
Au/SiNWsMMC1.6 × 10 6 –<20%[62]
AuNPs/SiNRsR6G3 × 10 7 10 − 10 <8%[63]
Leaning Ag/SiNPsBPE7 × 10 6 –∼10%[35]
Au/SiNPsThiophenol10 7 –10 8 –<7%[58]
Al/SiNPsThiophenol1.5 × 10 7 –2.5 × 10 7 –<7%[60]
AgNPs = Ag nanoparticles; AuNPs = Au nanoparticles; Au or Ag or Al = metallic layer; SiNWs = Si nanowires; SiNRs = Si nanorods; SiNPs = Si nanopillars, and RSD = Relative Standard Deviation for SERS intensity.
Table
Table 2. SERS performances of metal-coated ZnO nanosystems for chemical sensing.
Table 2. SERS performances of metal-coated ZnO nanosystems for chemical sensing.
SERS SubstratesDetected MoleculesEF/AEF/G SERS LOD (M)RSDRefs.
Au/ZnO-NWs4-MBT2.2 × 10 6 –<10%[41]
Au/ZnO nanoneedlesR6G1.2 × 10 7 –<15%[85]
Au/ZnO-NRsMB–10 − 12 –[42]
Au/ZnO Inverse NanostructuresThiophenol1.4 × 10 5 –<20%[89]
AuNPs/ZnO-NRs (Dendritic)R6G–10 − 9 –[87]
Au/ZnO-NPsThiophenol24–7%–45%[44]
AuNPs/Ag/ZnO-NanoconesThiophenol10 10 –10 11 10 − 19 –[82]
AgNPs/ZnO-NWsMG2.5 × 10 10 10 − 12 –[43]
AgNPs/Si/ZnO nanotreesR6G10 6 –<20%[81]
AgNPs/wheatear-like H-ZnOR6G4.9 × 10 7 10 − 9 <15%[86]
AgFoil/ZnO nanofibersPATP1.2 × 10 8 10 − 12 –[90]
AgNPs/urchin-like ZnO-HNSR6G10 8 10 − 10 <20%[88]
AgNPs/ZnO-NanowormsR6G3.1 × 10 7 10 − 10 –[91]
AgNPs/ZnO-NRs4-ATP2 × 10 6 ––[92]
AgNPs = Ag Nanoparticles; Au = metallic layer; ZnO-NWs = ZnO Nanowires; ZnO-NRs = ZnO Nanorods, H-ZnO = Hydrogenated ZnO, ZnO-NPs = ZnO Nanopillars, ZnO-HNS = ZnO Hollow Nanospheres, and RSD = Relative Standard Deviation for SERS intensity.

Share and Cite

MDPI and ACS Style

Barbillon, G. Fabrication and SERS Performances of Metal/Si and Metal/ZnO Nanosensors: A Review. Coatings 2019, 9, 86. https://doi.org/10.3390/coatings9020086

AMA Style

Barbillon G. Fabrication and SERS Performances of Metal/Si and Metal/ZnO Nanosensors: A Review. Coatings. 2019; 9(2):86. https://doi.org/10.3390/coatings9020086

Chicago/Turabian Style

Barbillon, Grégory. 2019. "Fabrication and SERS Performances of Metal/Si and Metal/ZnO Nanosensors: A Review" Coatings 9, no. 2: 86. https://doi.org/10.3390/coatings9020086

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
