Coatings 2018, 8(3), 90; https://doi.org/10.3390/coatings8030090

Detection of AFB1 via TiO2 Nanotubes/Au Nanoparticles/Enzyme Photoelectrochemical Biosensor

1
,
1
,
1
,
1
,
1,2,3
,
1,2,3
,
4,5,6
and
1,2,3,4,5,*
1
College of Food Science and Technology, Guangdong Ocean University, Zhanjiang 524088, China
2
Shenzhen Institute of Guangdong Ocean University, Shenzhen 518108, China
3
Guangdong Modern Agricultural Science and Technology Innovation Center, Guangdong Ocean University, Zhanjiang 524088, China
4
School of Chemistry and Environment, Guangdong Ocean University, Zhanjiang 524088, China
5
Coastal Ecology Engineering Technology Research Center of Zhanjiang City, Guangdong Ocean University, Zhanjiang 524088, China
6
Center of Analysis and Test, Guangdong Ocean University, Zhanjiang 524088, China
*
Author to whom correspondence should be addressed.
Received: 5 January 2018 / Revised: 17 February 2018 / Accepted: 27 February 2018 / Published: 2 March 2018
View Full-Text   |   Download PDF [5312 KB, uploaded 2 March 2018]   |

Abstract

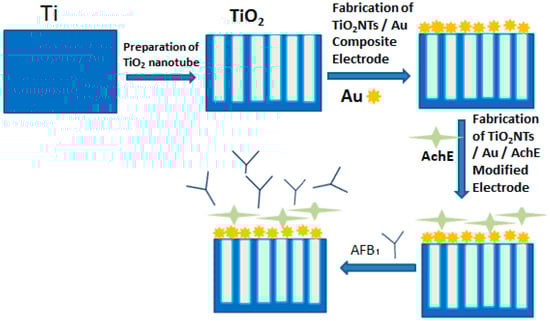

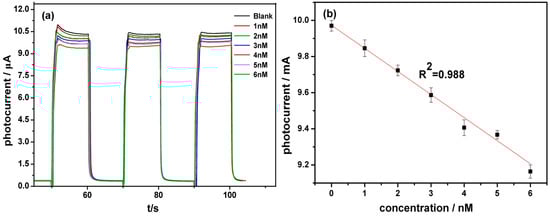

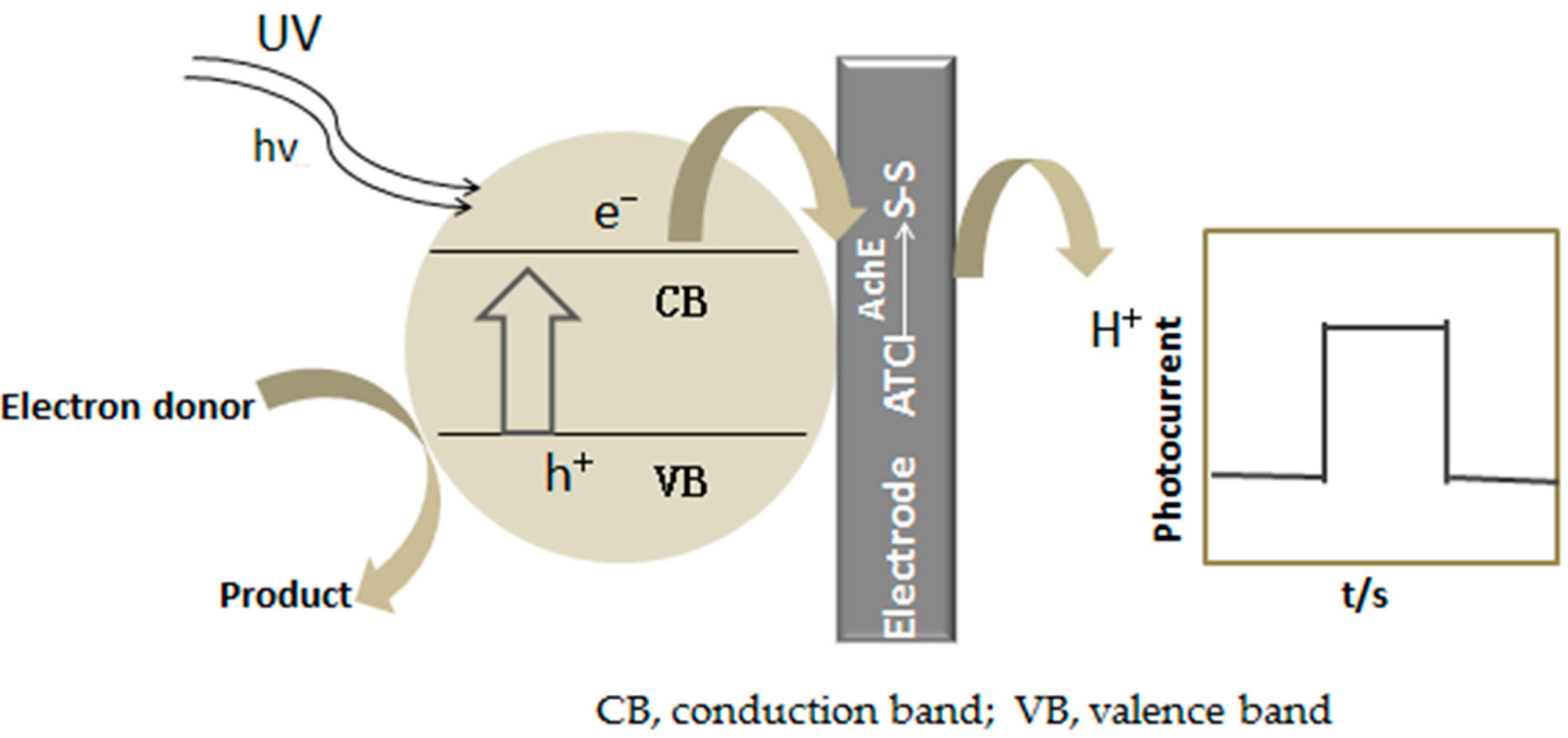

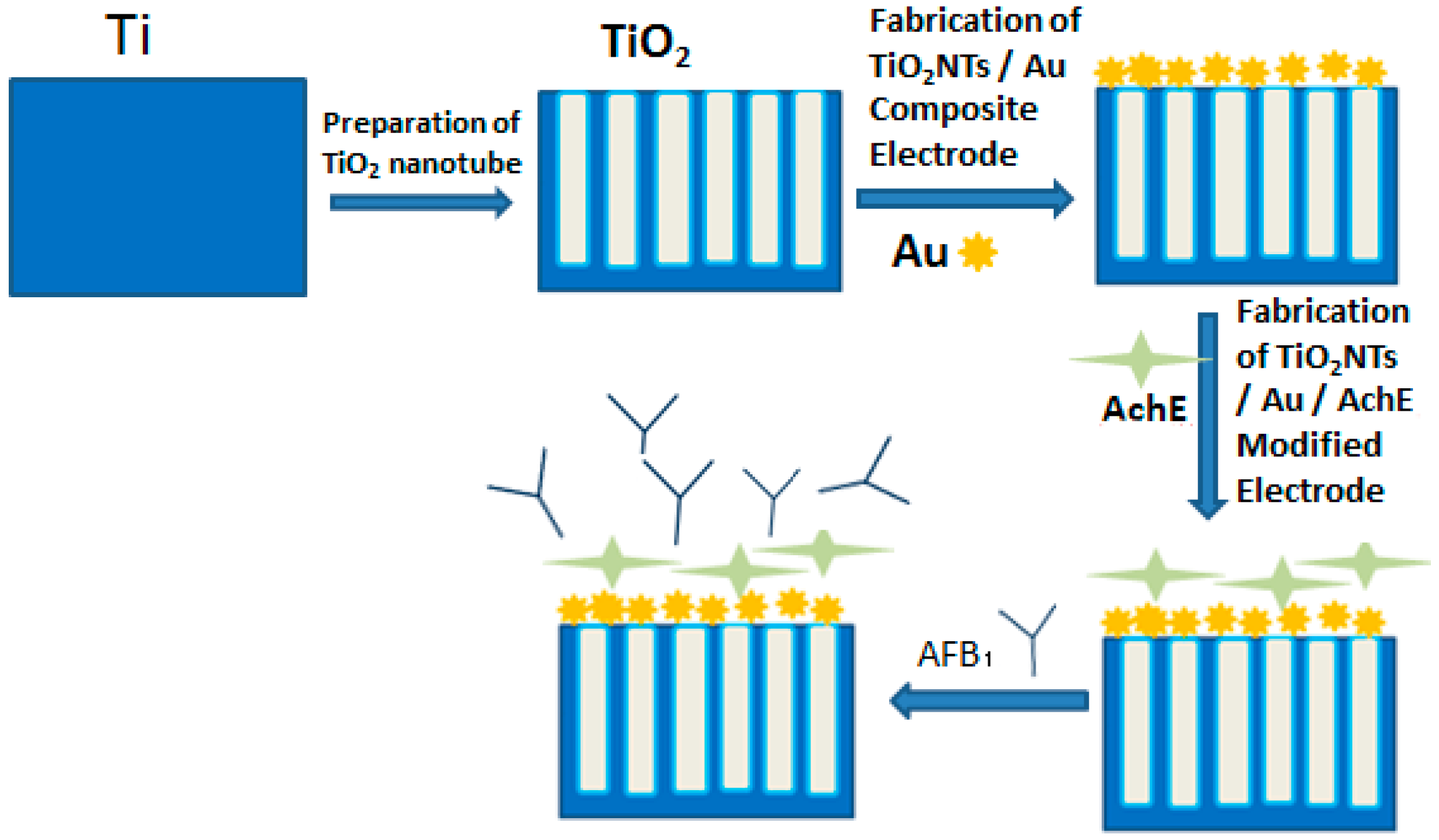

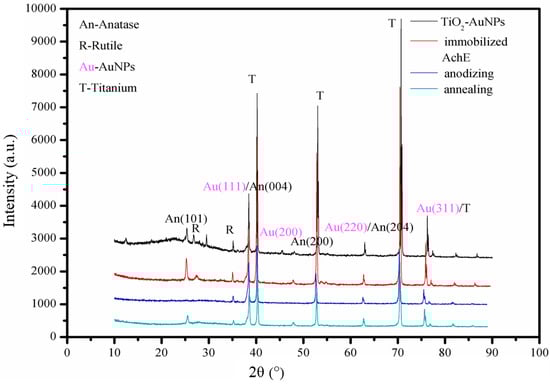

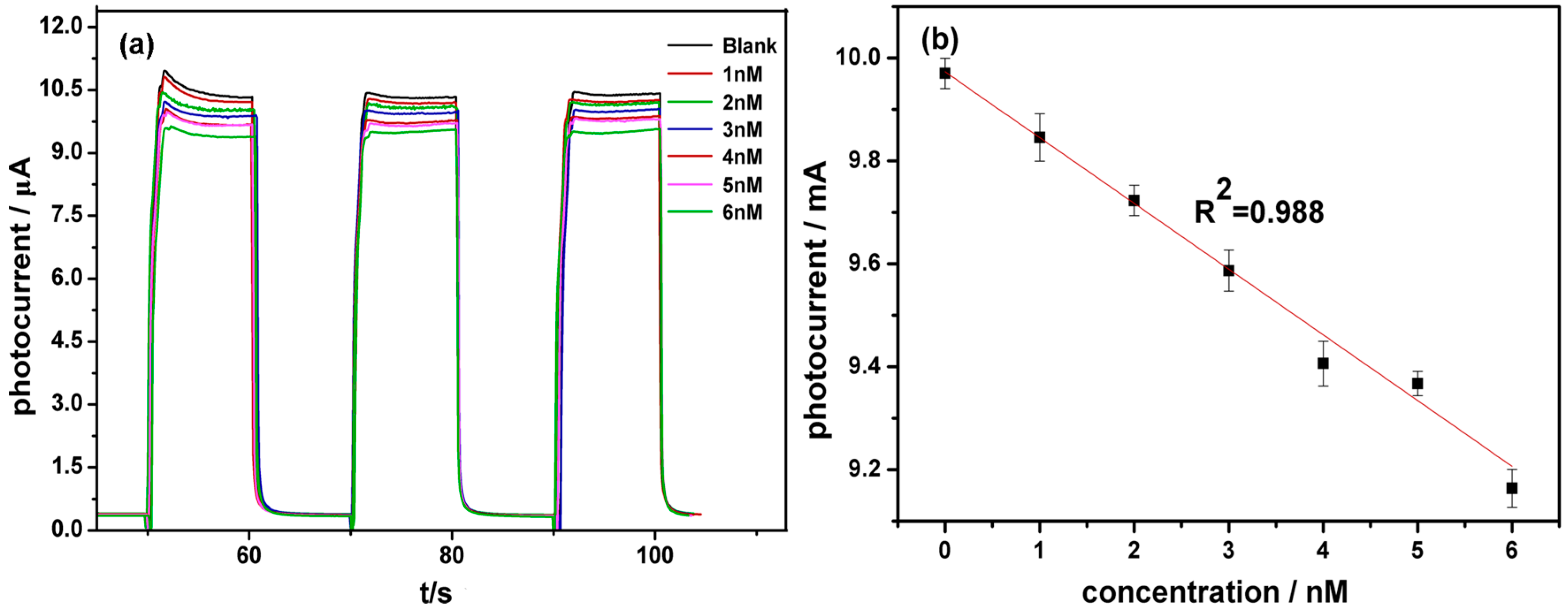

TiO2 nanotubes/Au nanoparticles/enzyme photoelectrochemical biosensor is developed by the chemical bonding of acetylcholinesterase with Au nanoparticles-modified TiO2 photoactive electrode, based on the inhibitory effect of aflatoxin B1 on acetylcholinesterase activity. In this method, AuNPs were deposited on the surface of the electrode by potentiostatic deposition and the acetylcholinesterase was chemically crosslinked to the surface for determination of aflatoxin B1. Enzymatic hydrolysate is generated to capture the photogenerated holes of UV-sensitized TiO2 nanotube arrays, causing magnification of the photoelectrochemical signal. The photoelectrochemical biosensor morphological and structural details were evaluated, applying different techniques, such as X-ray Diffraction (XRD) and Scanning Electron Microscopy (SEM). Aflatoxin B1 competitively inhibits acetylcholinesterase, leading to a decrease in photocurrent that should have been increased. The detection performance of biosensors for different concentrations of AFB1 is discussed. The linear response range of the biosensor is from 1–6 nM with detection limitation of 0.33 nM, the linear equation is I (μA) = −0.13C (nM) + 9.98 (μA), with a correlation coefficient of 0.988. This new biosensor could be used to detect Aflatoxin B1 in foods. View Full-Text
Keywords: photoelectrochemical; aflatoxin B1; acetylcholinesterase; TiO2 nanotubes photoelectrochemical; aflatoxin B1; acetylcholinesterase; TiO2 nanotubes
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yuan, Q.; He, C.; Mo, R.; He, L.; Zhou, C.; Hong, P.; Sun, S.; Li, C. Detection of AFB1 via TiO2 Nanotubes/Au Nanoparticles/Enzyme Photoelectrochemical Biosensor. Coatings 2018, 8, 90.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
