Next Article in Journal
Inactivation of Listeria in Foods Packed in Films Activated with Enterocin AS-48 plus Thymol Singly or in Combination with High-Hydrostatic Pressure Treatment
Previous Article in Journal
Improvement of Power Factor of CoSb3 Thermoelectric Thin Films via Microstructure Optimization
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Coatings 2017, 7(11), 203; doi:10.3390/coatings7110203

Corrosion and Thermal Fatigue Behaviors of TiC/Ni Composite Coating by Self-Propagating High-Temperature Synthesis in Molten Aluminum Alloy

1
The State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology, Wuhan 430081, China
2
Wuhan Second Ship Design and Research Institute, Wuhan 430205, China
*
Author to whom correspondence should be addressed.
Academic Editor: Antonella Rossi
Received: 18 September 2017 / Revised: 20 October 2017 / Accepted: 13 November 2017 / Published: 18 November 2017
View Full-Text   |   Download PDF [7738 KB, uploaded 18 November 2017]   |

Abstract

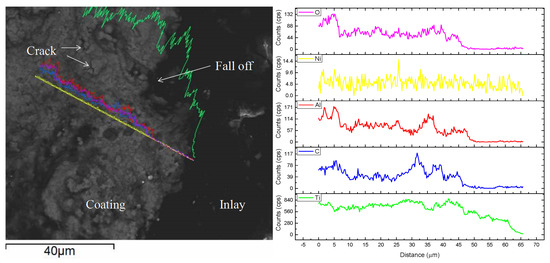

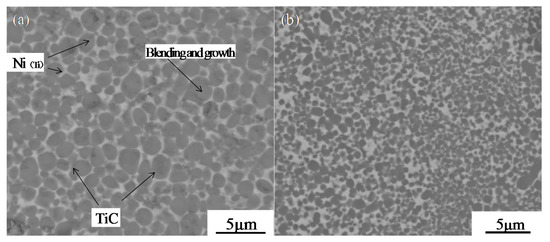

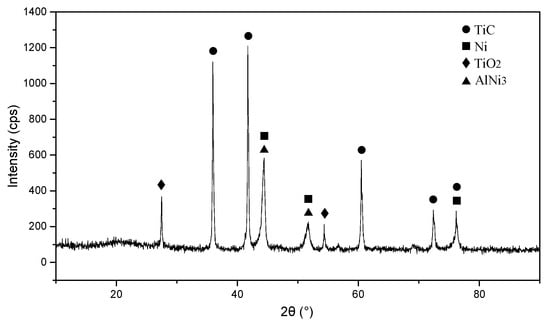

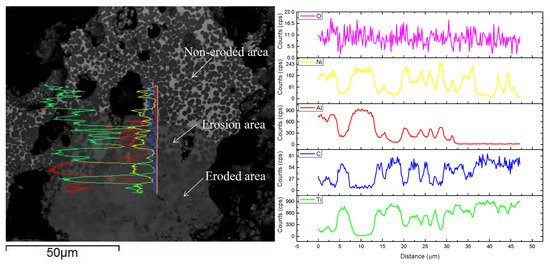

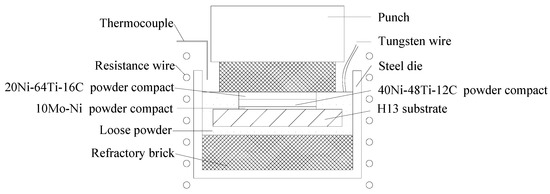

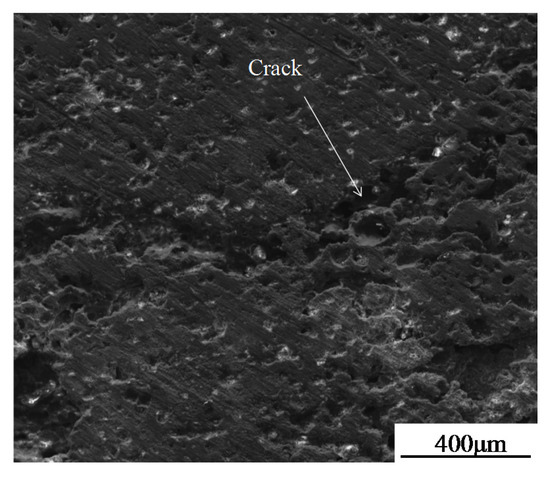

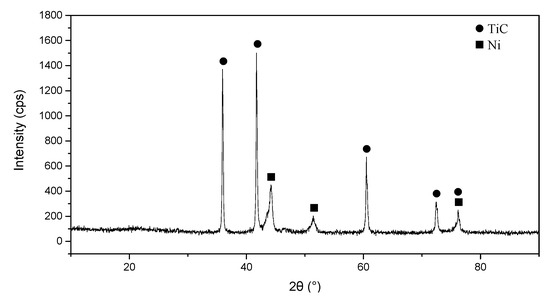

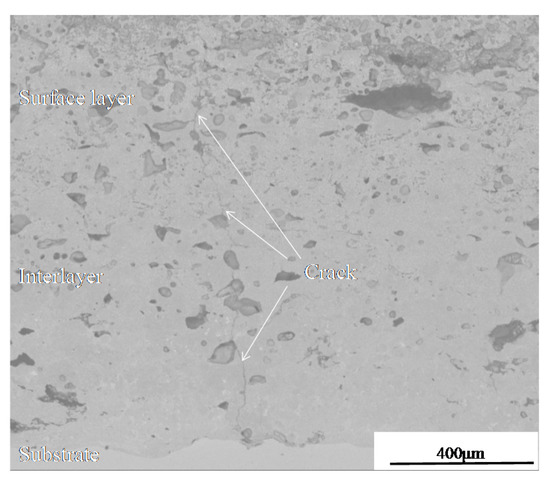

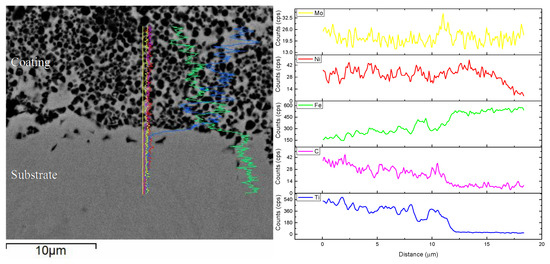

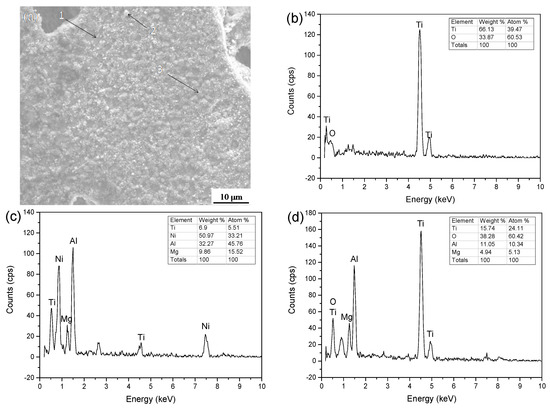

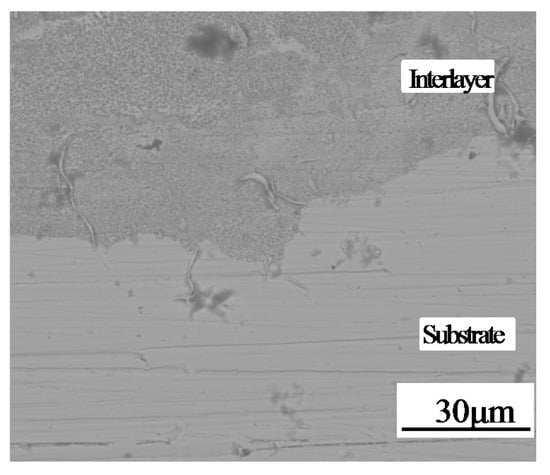

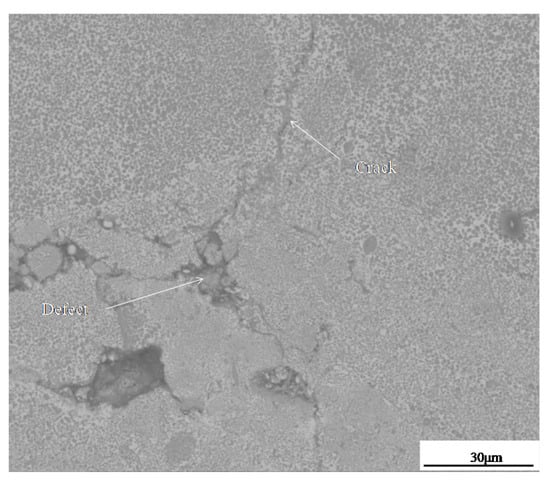

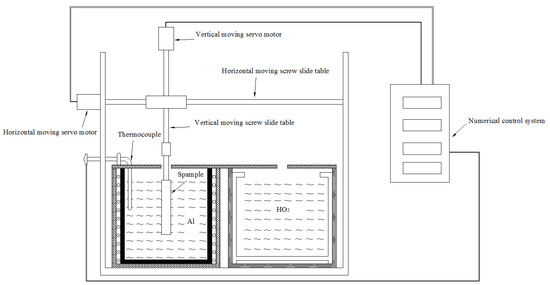

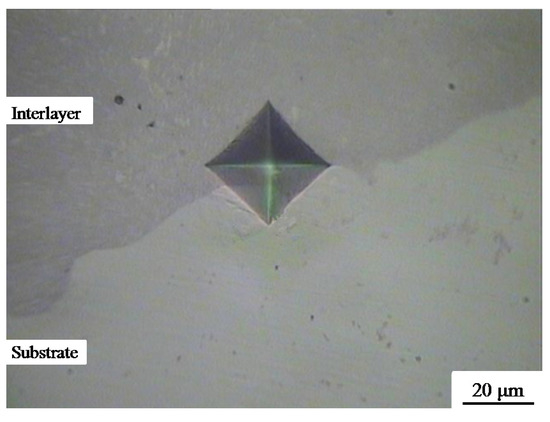

TiC/Ni composite coatings on H13 steel plates were fabricated in situ by self-propagating high-temperature synthesis and combined with a pseudo-heat isostatic press. The microstructure of the coating was characterized by X-ray diffraction and scanning electron microscopy. The microhardness, corrosion, and thermal fatigue behaviors of the coating were investigated by a microhardness test, immersion test, and thermal fatigue test, respectively. The results showed that the in situ coating consisted of TiC and Ni binder phases. Spheroidal TiC particles were enveloped by a nearly continuous Ni binder phase. Coating showed good metallurgical bonding in the interface. The corrosive mechanism of the coating surface in molten aluminum alloy involves the Ni binder phase being etched by aluminum to form AlNi3 and the oxidization of the TiC-reinforced phase. The corrosive mechanism that occurred at the front of the corrosion involves the Ni binder phase of the coating being etched by aluminum to form AlNi3, while the TiC skeleton still maintains the original organizational structure. Hot fatigue cracks began at the defective tips of the coating and propagated in the TiC-reinforced phase. The crack is a trans-granular fracture, which is the result of brittle rupture. View Full-Text
Keywords: TiC/Ni; coating; self-propagating high-temperature synthesis; corrosion; thermal fatigue; molten aluminum alloy TiC/Ni; coating; self-propagating high-temperature synthesis; corrosion; thermal fatigue; molten aluminum alloy
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Pan, C.; Liu, D.; Zhao, C.; Chang, Q.; He, P. Corrosion and Thermal Fatigue Behaviors of TiC/Ni Composite Coating by Self-Propagating High-Temperature Synthesis in Molten Aluminum Alloy. Coatings 2017, 7, 203.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
