Next Article in Journal
Preparation and Grafting Functionalization of Self-Assembled Chitin Nanofiber Film
Next Article in Special Issue
A Surface Photovoltage Study of Surface Defects on Co-Doped TiO2 Thin Films Deposited by Spray Pyrolysis
Previous Article in Journal / Special Issue
Mechanical Color Reading of Wood-Staining Fungal Pigment Textile Dyes: An Alternative Method for Determining Colorfastness
Article Menu
Issue 3 (September) cover image

Export Article

Erratum published on 14 December 2016, see Coatings 2016, 6(4), 69.

Open AccessArticle
Coatings 2016, 6(3), 26; doi:10.3390/coatings6030026

Wear Behaviour of Nanostructured Polymer-Based Safety Films on Soda-Lime Glass

1
Laboratory of Physical Metallurgy, National Technical University of Athens, Zografos, 15780 Athens, Greece
2
Department of Materials Engineering (MTM), Katholieke Universiteit Leuven (K.U. Leuven), Kasteelpark Arenberg 44, B-3001 Leuven, Belgium
3
Falex Tribology NV, Wingepark 23B, 3110 Rotselaar, Belgium
*
Author to whom correspondence should be addressed.
Academic Editor: Philippe Dubois
Received: 27 May 2016 / Revised: 16 June 2016 / Accepted: 23 June 2016 / Published: 8 July 2016
View Full-Text   |   Download PDF [3818 KB, uploaded 14 December 2016]   |

Abstract

The wear behaviour of bare and polymer-coated soda-lime glass specimens sliding against 440C stainless steel counterfaces was investigated with the aid of a pin-on-disk apparatus. The selected polymeric coatings were commercially supplied safety films, which are nowadays extensively applied on glass in the automotive and construction industry. One of their main failures is the degradation of their properties due to wear. In this work, the frictional behaviour of these coatings on glass were evaluated and compared to those of bare soda-lime glass. Correlations have been also made between the worn surfaces and weight loss in order to investigate the effect of wear conditions (speed, load) on the wear behaviour of these tribosystems. In addition, during the dry wear of soda-lime glass sliding against stainless steel counterfaces, the dominant wear mechanisms were found to be localized adhesion and abrasion, whereas, in the case of the multilayered polymeric coatings localized adhesion, deformation and tearing were observed. View Full-Text
Keywords: glass; multilayered polymeric coatings; safety films; wear; adhesion glass; multilayered polymeric coatings; safety films; wear; adhesion
Figures

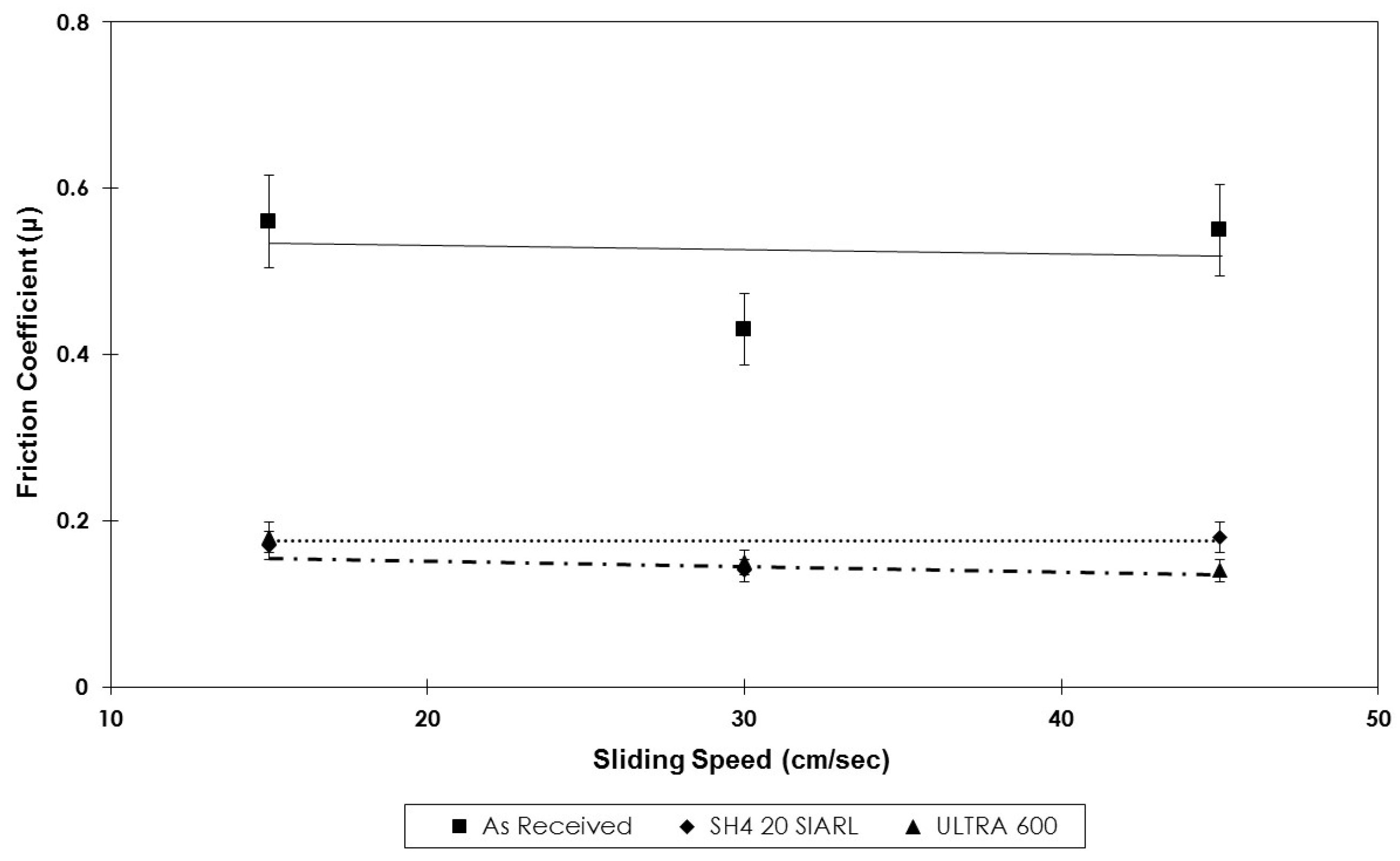

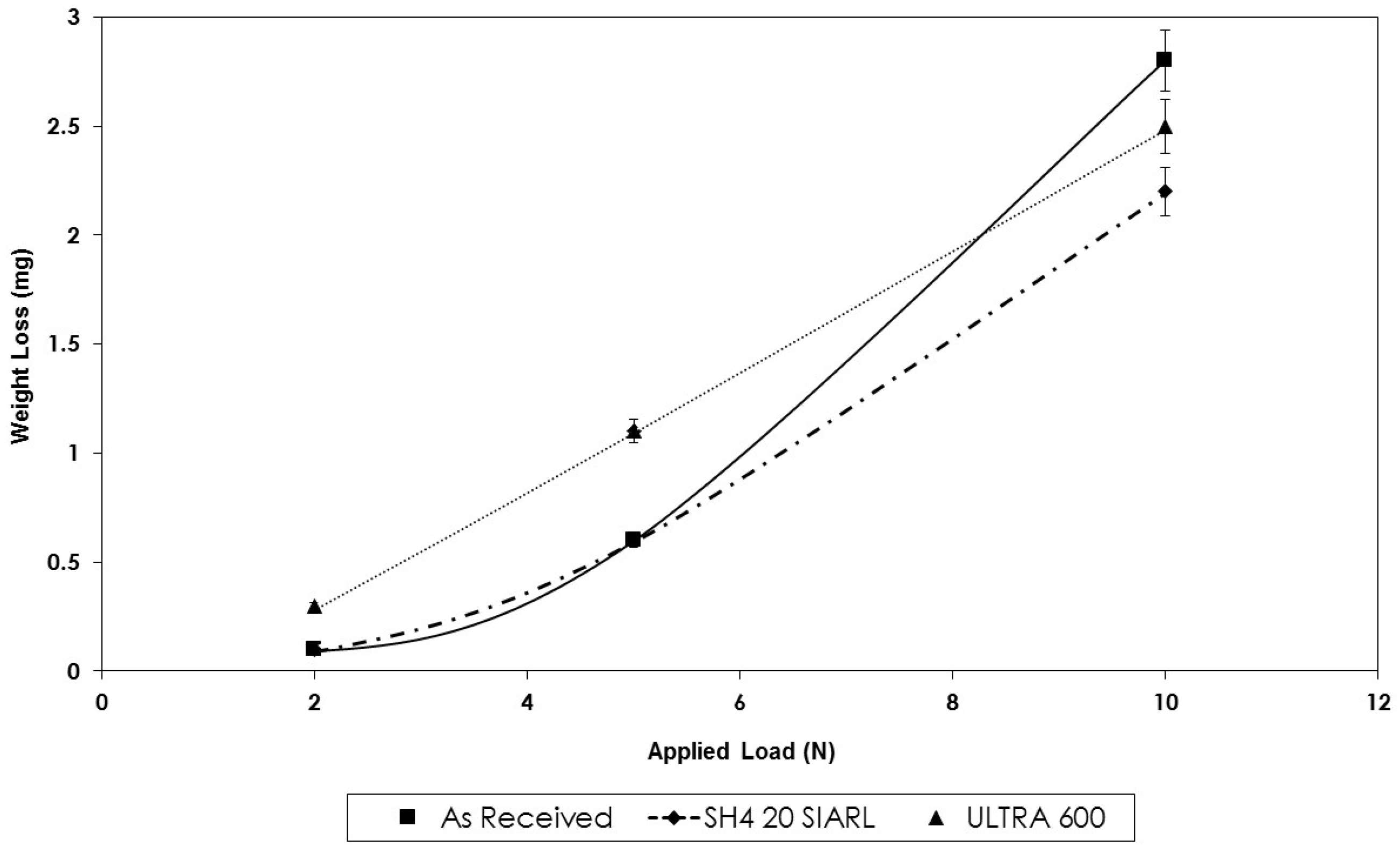

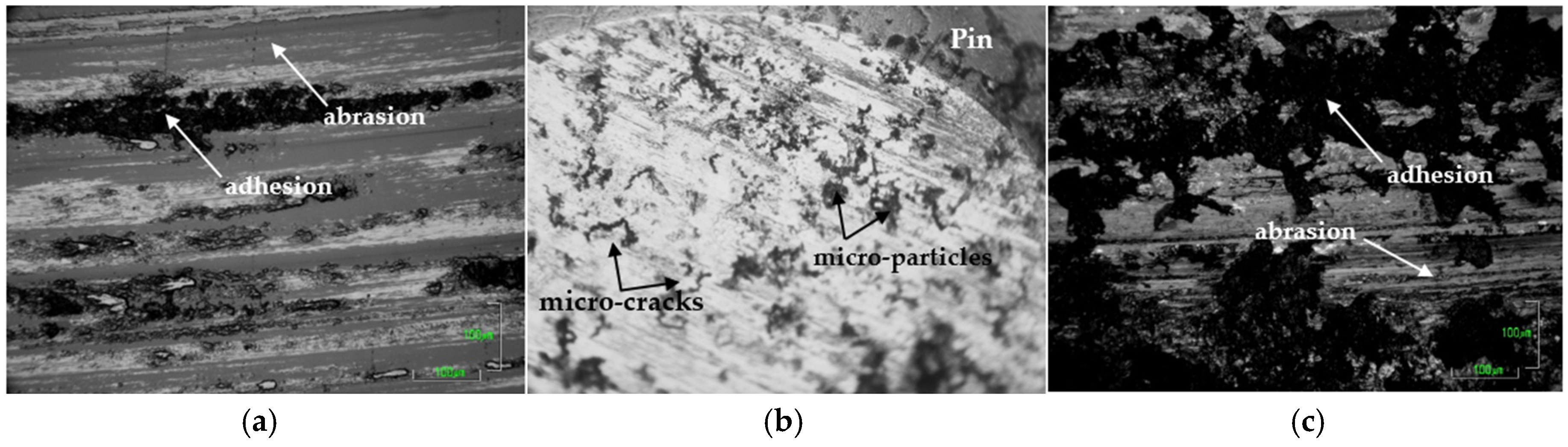

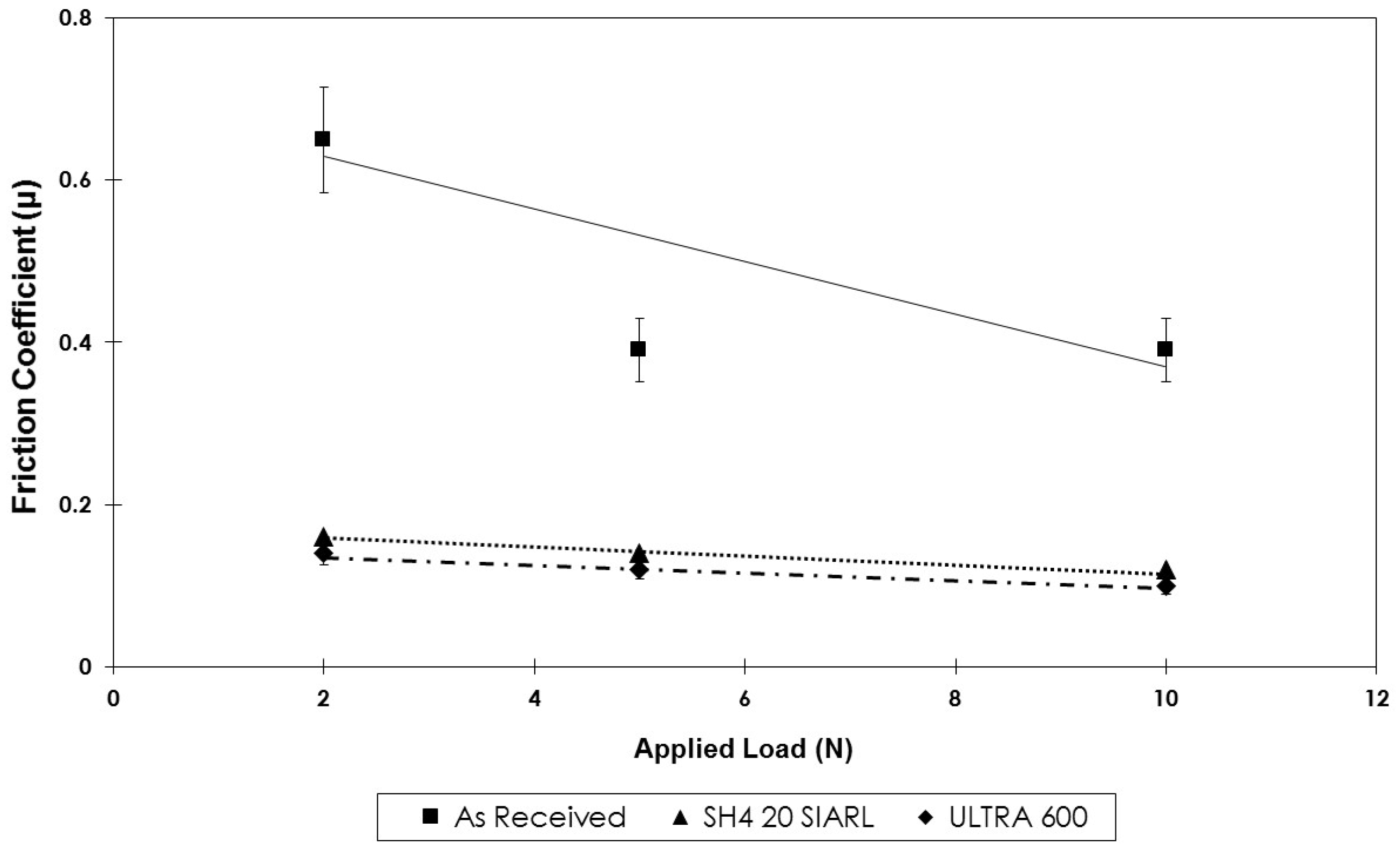

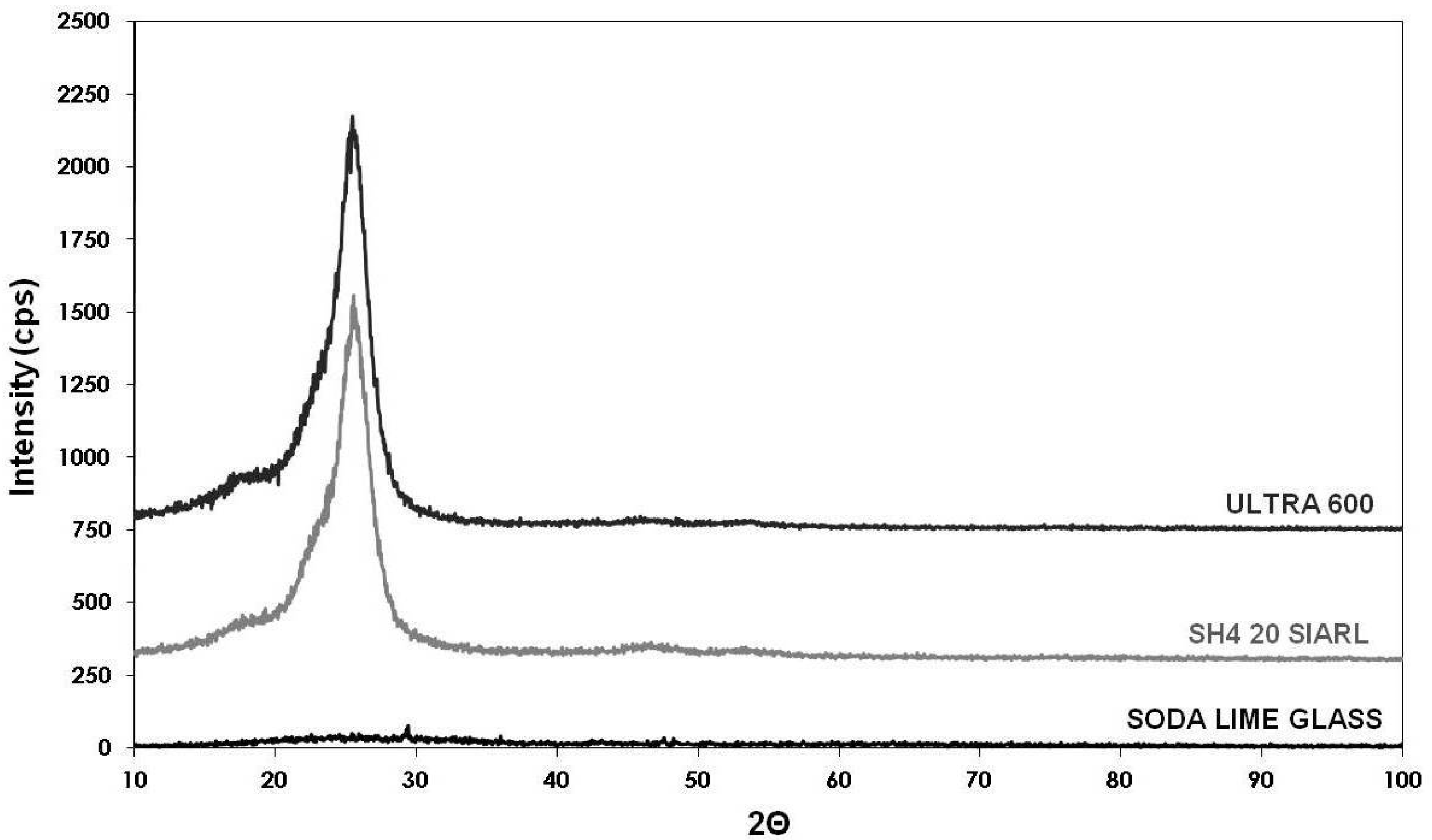

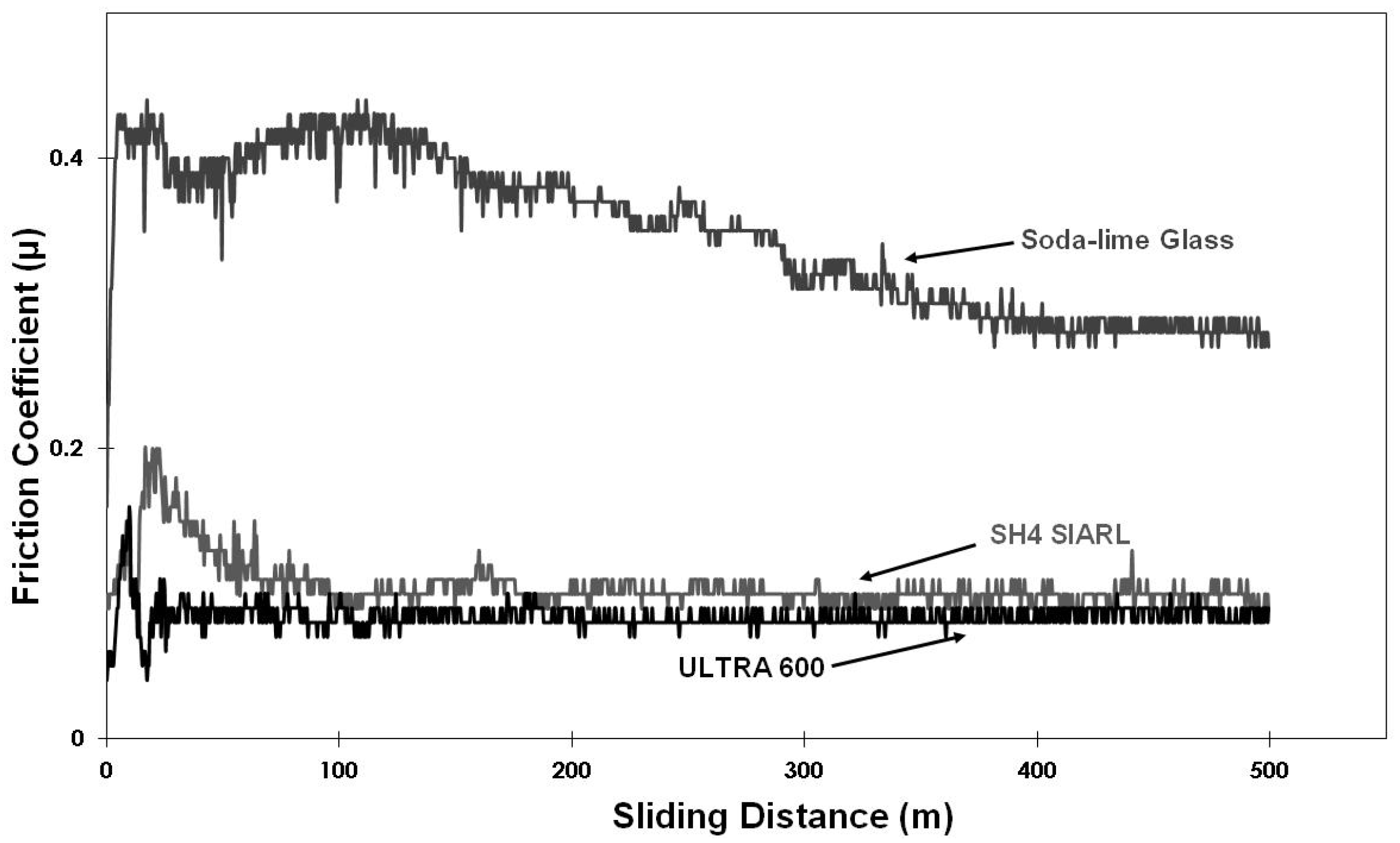

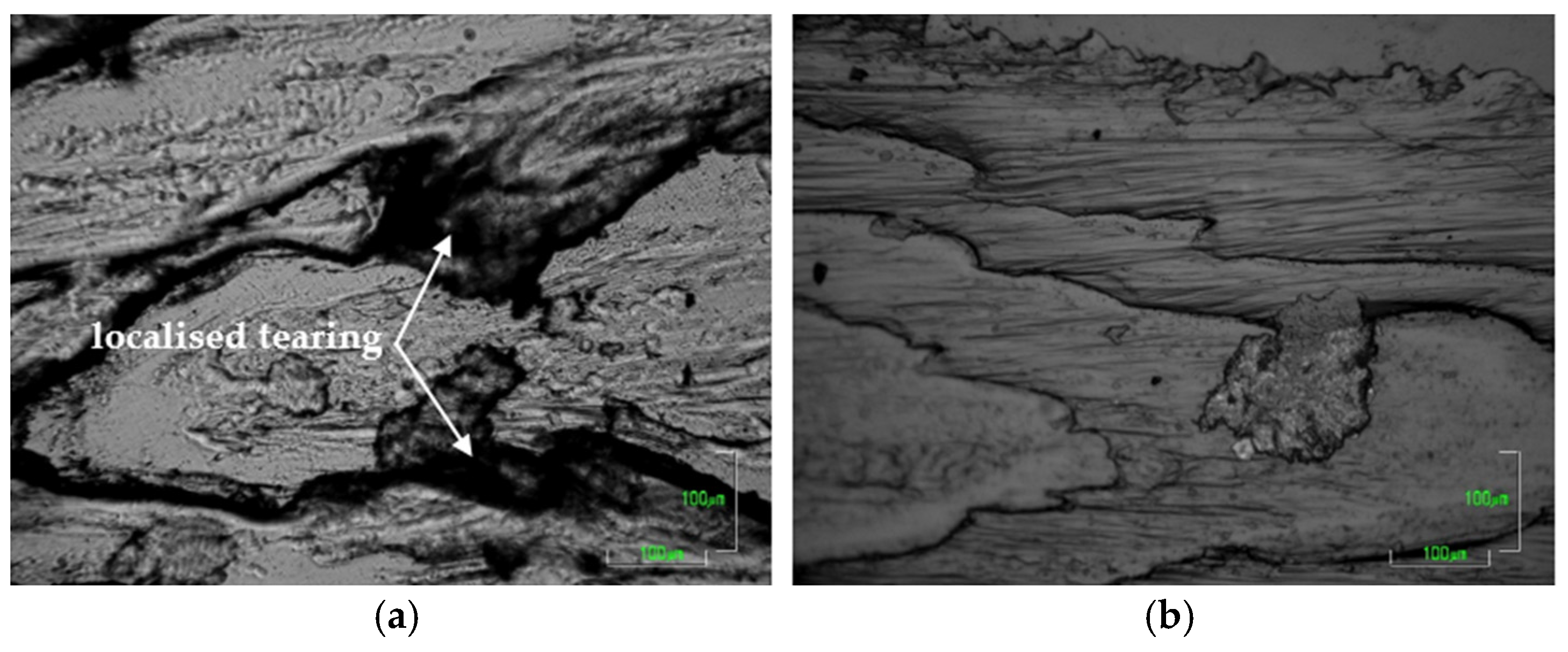

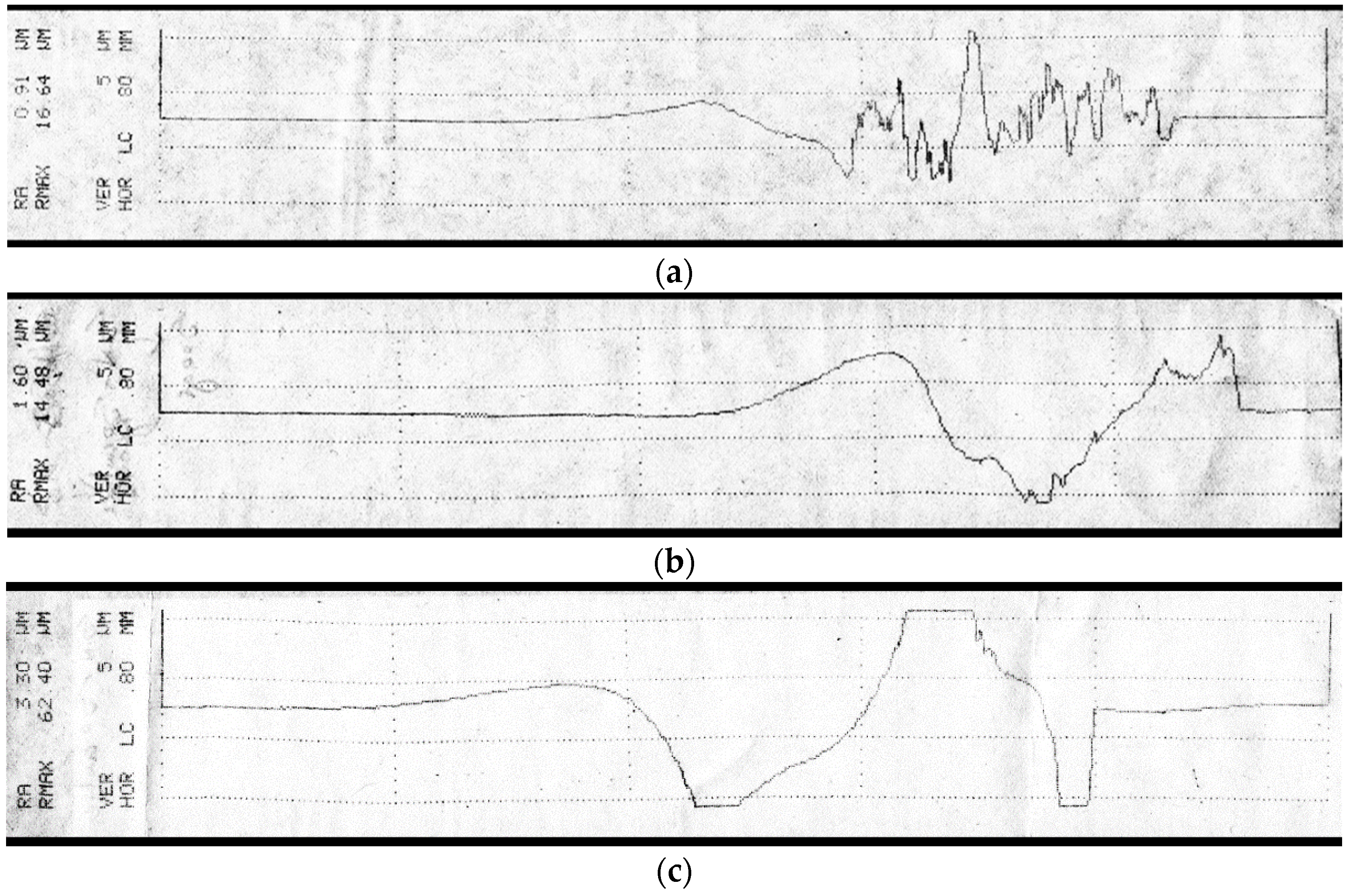

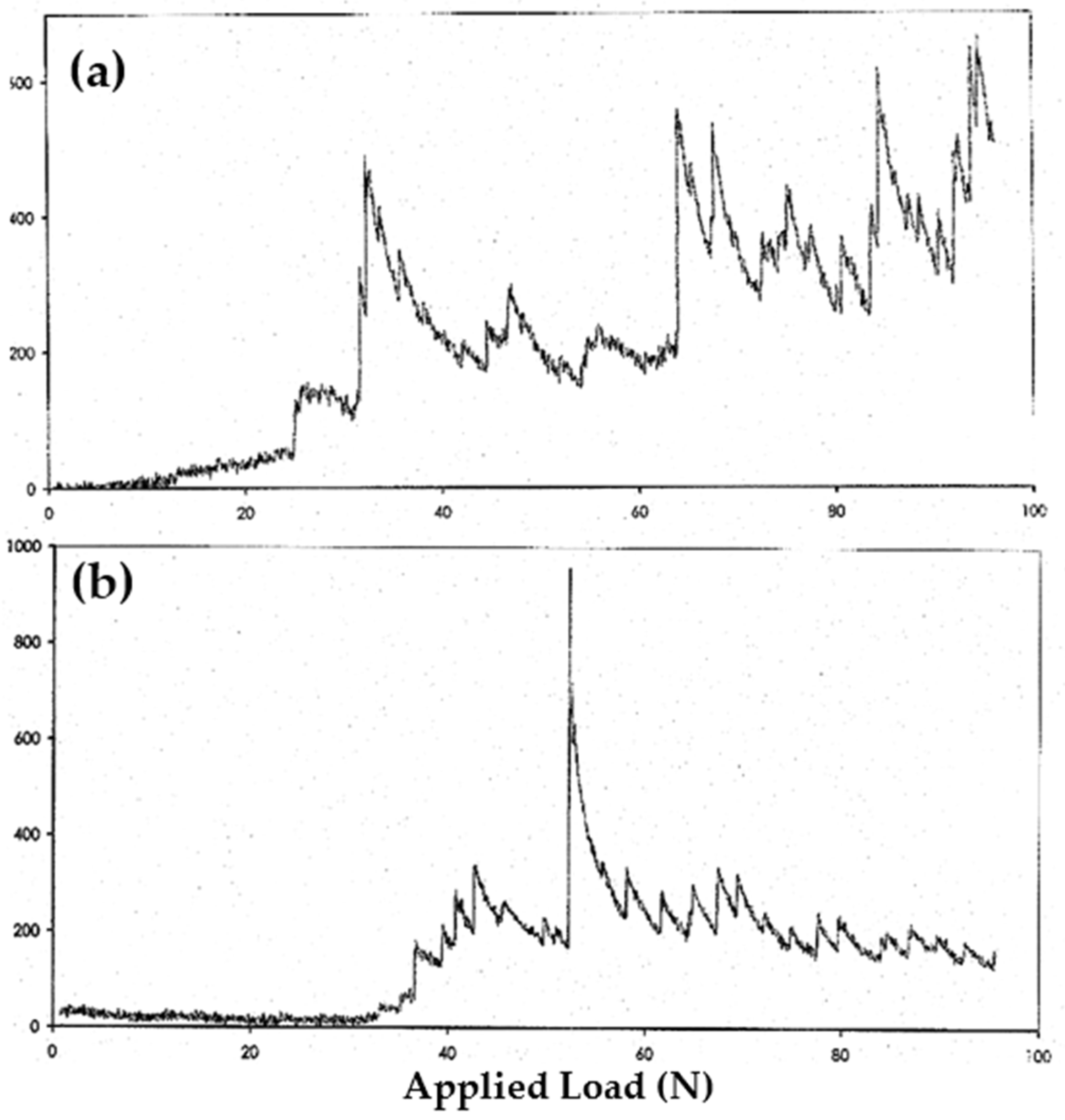

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Panagopoulos, C.N.; Georgiou, E.P.; Tradas, G.S.; Giannakopoulos, K.I. Wear Behaviour of Nanostructured Polymer-Based Safety Films on Soda-Lime Glass. Coatings 2016, 6, 26.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
