Article

Antibacterial Activity and Cytotoxicity Screening of Acyldepsipeptide-1 Analogues Conjugated to Silver/Indium/Sulphide Quantum Dots

by
Sinazo Z. Z. Cobongela
1,2,3,*,
Maya M. Makatini
2,
Bambesiwe May
3,4,
Zikhona Njengele-Tetyana
1,5,
Mokae F. Bambo
3 and
Nicole R. S. Sibuyi
1,3,6,*
1
Health Platform, Advanced Materials Division, Mintek, Randburg 2194, South Africa
2
Molecular Sciences Institute, School of Chemistry, University of the Witwatersrand, Johannesburg 2050, South Africa
3
Department of Science and Innovation (DSI)/Mintek Nanotechnology Innovation Centre (NIC), Advanced Materials Division, Mintek, Randburg 2194, South Africa
4
Institute for Nanotechnology and Water Sustainability (iNanoWS), College of Science, Engineering and Technology, University of South Africa, Florida Campus, Roodepoort 1705, South Africa
5
Wits RHI, University of the Witwatersrand, Johannesburg 2050, South Africa
6
Department of Science and Innovation (DSI)/Mintek Nanotechnology Innovation Centre (NIC), Biolabels Research Node, Department of Biotechnology, University of the Western Cape, Bellville 7535, South Africa
*
Authors to whom correspondence should be addressed.
Antibiotics 2024, 13(2), 183; https://doi.org/10.3390/antibiotics13020183
Submission received: 10 January 2024 / Revised: 30 January 2024 / Accepted: 9 February 2024 / Published: 13 February 2024
(This article belongs to the Special Issue Nanocarriers-Based Antimicrobial Drug Delivery)

Abstract

:
The continuous rise in bacterial infections and antibiotic resistance is the driving force behind the search for new antibacterial agents with novel modes of action. Antimicrobial peptides (AMPs) have recently gained attention as promising antibiotic agents with the potential to treat drug-resistant infections. Several AMPs have shown a lower propensity towards developing resistance compared to conventional antibiotics. However, these peptides, especially acyldepsipeptides (ADEPs) present with unfavorable pharmacokinetic properties, such as high toxicity and low bioavailability. Different ways to improve these peptides to be drug-like molecules have been explored, and these include using biocompatible nano-carriers. ADEP1 analogues (SC005-8) conjugated to gelatin-capped Silver/Indium/Sulfide (AgInS2) quantum dots (QDs) improved the antibacterial activity against Gram-negative (Escherichia coli and Pseudomonas aeruginosa), and Gram-positive (Bacillus subtilis, Staphylococcus aureus and Methicillin-resistant Staphylococcus aureus) bacteria. The ADEP1 analogues exhibited minimum inhibition concentrations (MIC) between 63 and 500 µM, and minimum bactericidal concentrations (MBC) values between 125 and 750 µM. The AgInS2-ADEP1 analogue conjugates showed enhanced antibacterial activity as evident from the MIC and MBC values, i.e., 1.6–25 µM and 6.3–100 µM, respectively. The AgInS2-ADEP1 analogue conjugates were non-toxic against HEK-293 cells at concentrations that showed antibacterial activity. The findings reported herein could be helpful in the development of antibacterial treatment strategies.

1. Introduction

In recent years, nanotechnology has attracted significant interest, especially in the pharmaceutical industry. Nanomaterials have been explored as promising tools for biomedical applications such as biosensors, drug delivery, and imaging, amongst others [1]. Nanomaterials are very small, usually ranging from 1 to 100 nm, and have a larger surface area. Importantly, nanomaterials can be easily functionalized by conjugating compounds of interest [2]. Properties of nanomaterials such as size, chemical composition, shape, and surface structure can significantly influence how they interact with other molecules. For instance, the surface functionalization of core nanomaterials with various ligands can lead to their use in different biological applications. Due to their small size, nanomaterials can passively diffuse through cell membrane pores and ion channels via endocytosis. In addition, active targeting can be achieved by attaching ligands to the nanomaterials to facilitate internalization by specific cells [3]. Nanomaterials are therefore good drug delivery systems that can improve existing drugs to achieve desirable therapeutic efficacy. The conjugation of pharmaceutically active compounds with poor pharmacokinetic properties to nanomaterials has been shown to increase drug solubility, bioavailability, and decrease enzyme susceptibility [4,5,6]. Nanomaterials can reduce toxicity and adverse side effects of conventional drug molecules by increasing drug selectivity and improving permeability across membranes, including the blood–brain barrier [7].
Nanomaterial have also been shown to play a pivotal role in enhancing the antimicrobial activity of antimicrobial peptides (AMPs) [8]. AMPs are promising antibiotic agents with the potential to treat drug-resistant infections. Several AMPs have shown a lower propensity towards developing resistance compared to conventional antibiotics [9]. However, these peptides, especially acyldepsipeptides (ADEPs) present with unfavourable pharmacokinetic properties such as high toxicity and low bioavailability [10]. ADEPs are a class of AMPs that target the bacterial ClpP protease and have great potential as antibiotics. The ADEPs bind and dysregulate the bacterial caseinolytic protease (ClpP), which is responsible for the overall bacterial cell protein homeostasis. Different ways to improve ADEPs to be drug-like molecules have been explored; however, the interventions compromise the antimicrobial potency of the peptides. In a recent study, ADEP1 analogues showed poor antibacterial activity with a minimum inhibitory concentrations (MIC) of ≥63 μM against Gram-positive bacteria and ≥125 μM against Gram-negative bacterial strains [11]. These analogues are derivatives of highly potent ADEP1 (ADEP A54556A). The conjugation of such potential drug molecules to biocompatible nano-carriers, such as quantum dots (QDs), would increase the desired biological activity.
QDs have gained traction in medicine as bio-imaging tools, drug delivery systems, and in-sensor applications [12]. QDs used as nano-carriers of drugs have been reported to improve bioavailability, biocompatibility, and the efficacy of drugs [13,14]. Conjugation of doxorubicin to ZnO QDs for the treatment of lung cancer is one example that highlights the effectiveness of using nanomaterials as drug delivery systems [15]. In this study, gelatin-capped Silver/Indium/Sulfide (AgInS2) QDs were utilized as nano-carriers for antimicrobial ADEP1 analogues, previously reported by Cobongela et al., [11]. AgInS2 QDs are known I-III-VI semiconductors that also exhibit a long-term photoluminescence decay lifetime [16]. Due to their remarkable photoluminescence properties and low cytotoxicity, they have found use in bio-imaging and cell targeting [17,18,19]. AgInS2 QDs were conjugated to ADEP1 analogues (Scheme 1) to improve their antibacterial efficacy.

2. Results and Discussion

2.1. Characterization of AgInS2 QDs

The HR-TEM in Figure 1 confirmed a successful synthesis of gelatin-capped AgInS2 QDs. The micrograph shows that the AgInS2 QDs are evenly dispersed and spherical in shape with a core size of 5.27 ± 1.68 nm. The elemental analysis of gelatin-capped AgInS2 QDs was performed using ED-XRF and confirmed the presence of Ag, In, and S; with their percentage and ratio shown in Table 1. The gelatin on the surface of the QDs accounted for the majority of the components of AgInS2 QDs.

2.2. Functionalization of AgInS2 QDs with ADEP1 Analogues

Gelatin-capped AgInS2 QDs were functionalized with ADEP1 analogues via EDC/sulfo-NHS coupling chemistry, as demonstrated in Scheme 2. The carboxylic groups of the ADEP1 analogues were activated in the absence of the gelatin-capped AgInS2 QDs. The gelatin contains an amine (NH3+) which is readily available to form an amide bond with the activated COO end of the ADEP1 analogues. Treatment of the ADEP1 analogues with EDC/sulfo-NHS in the presence of gelatin-capped AgInS2 QDs could potentially result in intramolecular coupling between these carboxylic groups and the amine groups on the gelatin. The conjugation utilized the gelatin lysine amino group on the surface of the AgInS2 QDs and the carboxylic group on the C-terminal of the ADEP1 analogues to form an amide bond [20].
The conjugation of SC005-8 ADEP1 analogues increased the size of the AgInS2 QDs (Figure 2A–D). The size distribution of palmitic acid-containing (SC005 and SC008) conjugates changed to 11.6 and 12.3 nm, respectively, whereas the adamantane-containing (SC006 and SC007) conjugates had average size of 6.9 and 7.7 nm, respectively. The increase in the size distribution of the conjugates is an indication of changes on the surface of the QDs. Other studies have also noted an increase in nanomaterial and QD size upon conjugation with biomolecules, such as peptides [21,22,23]. Optical properties were measured using photoluminescence spectroscopy with emission wavelengths between 400 and 700 nm. Luminescent QDs, such as AgInS2 QDs, have long-lived excited states; therefore, the excitation wavelength was marginalized [24]. The gelatin-capped AgInS2 QDs had an emission peak at 603 nm while the AgInS2 QD-ADEP1 analogue conjugates shifted the emission to lower wavelengths. AgInS2 QDs conjugated to the pal-containing ADEP1 analogues (i.e., SC005 and SC008) absorbed at 595 nm while ada-containing ADEP1 analogues (i.e., SC006 and SC007) absorbed at 599 nm (Figure 3). Conjugation added a coating on the surface of the AgInS2 QDs, this in turn shielded the surface of the QDs. In addition, the shift in emission wavelength might be a result of increased size and the change in surface properties of the AgInS2 QDs post conjugation.
The AgInS2 QDs-ADEP1 analogue conjugates were further characterized using zetasizer and DLS to determine their surface charge and hydrodynamic size. Table 2 shows the zeta potential values of the ADEP1 analogues before and after conjugation. The AgInS2 QDs had a zeta potential value of −3.69 ± 0.9 mV. The ADEP1 analogues also had negative net charges ranging between −7.2 and −3.8 mV prior to conjugation. This confirmed the anionic state of the ADEP1 analogues, which is a result of the carboxylic anion (COO) at physiological pH. Anionic peptides have a disadvantage in penetrating bacterial cells, as they are made up of negatively charged polysaccharides, while cationic peptides have been commended for their cell permeability capability [25]. ADEP1 analogues lack the cationic advantage, which may lead to poor cell permeability and bioavailability. Therefore, to mitigate the challenges of poor pharmacokinetic properties associated with ADEPs, the analogues were conjugated to AgInS2 QDs. The DLS results showed an increased diameter of AgInS2 QDs (36.7 ± 2.8) nm compared to the particle diameter measured by TEM. The conjugation also led to an increased hydrodynamic diameter of the AgInS2 QDs (Table 2), with palmitic acid-containing ADEP1 analogues being slightly bigger than the adamantane-containing ADEP1 analogues. These results showed that the conjugation of the ADEP1 analogues to AgInS2 QDs resulted in a positive net charge, which could enhance the cell permeability properties of the peptides.
The FTIR spectra revealed the functional groups present on gelatin, the surface of the AgInS2 QDs, ADEP1 analogues, and AgInS2 QDs-ADEP1 analogue conjugates (Figure 4). There were similarities and shifts in the peaks of these molecules that suggested that gelatin was part of the AgInS2 QDs, and that the ADEP1 analogues were successfully incorporated in the AgInS2 QDs.
As shown in Table 3, gelatin showed broad associated N-Hstr absorption signals for secondary (2°) amine between 3700 and 3000, peaking at 3300 cm−1, small sharp peaks at 2860 and 2920 cm−1 for symmetry and asymmetry saturated hydrocarbon (C-Hstr), small multiplet signals between 1700 and 1000 cm−1 for C=Ostr (amide band I and II, 1625, 1525, respectively), 1450 and 1275 cm−1 for C-Nstr, 1050 cm−1 for C-Ostr and the absence of peaks between 1000 and 500 cm−1. After the interaction of ADEP1 analogues with AgInS2, a new peak appeared at 575 cm−1 with a shoulder at 675 cm−1, corresponding to N-Hbend out-of-plane, implying complexation with the metal ions on the surface of the QDs. The increase in the intensities of the amino (N-H) and carbonyl (C=O) groups and a shift to a higher frequency (wavenumber) in AgInS2 QDs-ADEP1 analogue conjugates further confirmed the complexation of the QDs with the ADEP1 analogues. Generally, after conjugation of the ADEP1 analogues to the QDs, peak intensities of all functional groups associated with AgInS2 QDs were reduced. The initial C-Hstr, C-Ostr, and N-Hbend peaks of the ADEP analogues were also replaced with those of the AgInS2 QDs. All of this information confirmed the coupling of the AgInS2 QDs with the ADEP1 analogues to form the hybrid material.

2.3. Antibacterial Activity of AgInS2 QDs-ADEP1 Analogue Conjugates

Following the successful synthesis of the gelatin-capped AgInS2 QDs and their subsequent conjugation to the ADEP1 analogues, the antibacterial activity of the conjugates was tested against three Gram-positive (B. subtilis, S. aureus and Methicillin-resistant S. aureus) and two Gram-negative (E. coli and P. aeruginosa) bacterial strains. The MICs and MBCs of the AgInS2 QDs-ADEP1 analogue conjugates were evaluated. On their own, the AgInS2 QDs did not show any antibacterial activity against the selected bacterial strains at the tested concentrations. The ADEP1 analogues, as reported in [11], had MIC and MBC values that were between 63 and 500 µM and 125 and 750 µM, respectively. However, upon conjugation to the ADEP1 analogues, the antibacterial activity was significantly improved. The MIC and MBC values of the AgInS2 QDs-ADEP1 analogue conjugates on the tested strains ranged from 1.6 to 25 µM and 6.3 to 100 µM, respectively (Table 4).
The most susceptible bacterium to the AgInS2 QD-ADEP1 analogue conjugates was E. coli with an MIC of 1.6 µM, followed by B. subtilis and S. aureus with MIC values of 6.3 µM, MRSA at 12.5 µM and lastly, P. aeruginosa at 25 µM. These results showed that the AgInS2 QD-ADEP1 analogue conjugates were effective against both Gram-positive and Gram-negative bacteria. A study conducted by Cobongela et al. [11] reported that the Gram-negative bacterial strains (E. coli and P. aeruginosa) showed resistance against the ADEP1 analogues with MIC and MBC values of 500 and 750 µM, respectively. These observations were in line with previous studies, which reported a higher ADEP1 activity against Gram-positive bacteria compared to Gram-negative bacteria [26]. These new findings showed that conjugating the ADEP1 analogues to the AgInS2 QDs helped overcome the resistance that was exhibited by E. coli against these peptides. Previous studies have discovered that peptides conjugated to nanomaterials show increased activity due to a re-binding mechanism to the target, which then increases the retention time of the peptide within the target [27]. The re-binding or reassociation mechanisms of nano-conjugates is enhanced by the slow dissociation rate of conjugates compared to free drug molecules. In addition, the increased density of the conjugate compared to either the nanomaterial or peptide alone exhibits increased binding affinity due to steric hindrance introduced upon binding to the target [28,29].

2.4. Cytotoxicity Screening of AgInS2 QDs-ADEP1 Analogue Conjugates

The cytotoxicity of the AgInS2 QDs-ADEP1 analogue conjugates was evaluated on HEK-293 cells using the MTS assay. The HEK-293 cells originate from the kidney, which is one of the organs in the excretory or renal system and is responsible for the removal of unwanted or toxic materials from the body [30]. Evaluating cytotoxicity is of utmost importance, especially if the materials are to be used in biological applications. For this assay, the HEK-293 cells were exposed to the AgInS2 QDs-ADEP1 analogue conjugates (loaded with ~1.2–150 µM of ADEP1 analogues) for 72 h. The results presented in Figure 5A show cell viability greater than 80% for all of the tested concentrations of the AgInS2 QDs and AgInS2 QDs-ADEP1 analogue conjugates. In a study by Oluwafemu et al., a similar trend in cell viability was observed when the similar QDs variant, AgInS2/ZnS core/shell, were tested against baby hamster kidney cells [18]. The AgInS2 QDs used in the current study are regarded environmentally friendly as they are capped with gelatin, an animal product that is also used in food.

3. Materials and Methods

3.1. Materials

ADEP1 analogues (SC005-8) were synthesized in-house, as described by Cobongela et al., [11]. 1-Ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDC), N-hydroxysuccinimide (sulfo-NHS), dimethyl sulfoxide (DMSO), thioglycolic acid (TGA), silver nitrate (AgNO3), sodium sulfide (Na2xH2O), gelatin, Dulbecco’s Modified Eagle Medium (DMEM), phosphate, trypsin, penicillin-streptomycin, fetal bovine serum (FBS), 3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium (MTS dye), and trypan blue stain dye were all purchased from Sigma (St Louis, MO, USA). Bacillus subtilis American Type Culture Collection (ATCC) 11774, Staphylococcus aureus ATCC 25,923 and Methicillin-resistant Staphylococcus aureus (MRSA) ATCC 43300, and two Gram-negative (Escherichia coli ATCC 33,876 and Pseudomonas aeruginosa ATCC 15,442 were purchased from ATCC (Manassas, VA, USA). Human embryonic kidney 293 (HEK-293) cells were purchased from Cellonex (Randburg, Gauteng Province, South Africa).

3.2. Synthesis of AgInS2 QDs

The AgInS2 QDs were synthesized using a procedure reported by May et al., 2019 [31], with some modifications. In a typical synthesis, 0.25 mmol (0.0753 g) of In (NO3)3, 0.438 mmol TGA, 0.0625 mmol of silver nitrate, 0.2941 g of gelatin, and 0.406 mmol of Na2S.9H20 were added to 100 mL of deionized water with stirring (Ag:In:S:gelatin:TGA mole ratio of 1:4:6.5:16:7, respectively). The pH was adjusted to 6. The mixture was refluxed at 95 °C for 1 h to produce the gelatin-capped AgInS2 QDs. The QDs were precipitated with ethanol and air dried.

3.3. Conjugation of AgInS2 QDs to ADEP1 Analogues

The ADEP1 analogues were synthesized using the Fmoc solid peptide synthesis strategy, as previously described [11]. ADEP1 analogues (600 µM) dissolved in 5 mL of dimethyl formamide were treated with EDC (0.75 µM) and sulfo-NHS (0.3 µM), and the reaction was left shaking for 3 h at room temperature. Concurrently, 8 mg/mL of AgInS2 QDs were dissolved in 10 mL of boiling water. Upon cooling down, the AgInS2 QDs were added to the ADEP1 analogues solution, and the reaction was left shaking for 3 h at room temperature. The AgInS2-ADEP1 analogue conjugates were precipitated with ethanol and lyophilized (LyoQuest, Telstar, Terrassa, Barcelona). The powder was re-suspended in phosphate buffered saline (PBS; pH 7.4) to a final concentration of 4 mg/mL AgInS2-ADEP1 analogue conjugates with 200 µM ADEP1 analogues.

3.4. Characterization of QDs, AgInS2-ADEP1 Analogue Conjugates, and ADEP1 Analogues

A Spectro Xepos-05 energy-dispersive X-ray fluorescence (ED-XRF, Rigaku, TX, USA) instrument was used to determine the Ag, In, and S concentrations in the gelatin-capped AgInS2 QD powder. The core sizes of AgInS2 QDs and AgInS2-ADEP1 analogue conjugates were analyzed by the high-resolution transmission electron microscope (HR-TEM, JEOL, Tokyo, Japan). Fourier transform infrared spectroscopy (FTIR) spectra were recorded using a Perkin Elmer Spectrum Two UATR-FTIR spectrometer (PerkinElmer, Buckinghamshire, UK). The Hitachi F-2700FL spectrofluorophotometer (Hitachi, Tokyo, Japan) was used for the fluorescence measurements. Malvern system 4700 zetasizer (Malvern, Great Malvern, UK) together with a dynamic light scattering (DLS) technique were used to determine the zeta potential and particle hydrodynamic size of the AgInS2 QDs and AgInS2-ADEP1 analogue conjugates using.

3.5. Antibacterial Activity of AgInS2-ADEP1 Analogue Conjugates

The MIC and MBC of the AgInS2-ADEP1 analogue conjugates against B. subtilis, S. aureus, MRSA, P. aeruginosa and E. coli was determined using the broth microdilution susceptibility assay, following a previously described protocol [11]. Briefly, overnight-grown bacterial cultures were adjusted to approximately 1.5 × 108 CFU/mL in a sterile Luria–Bertani broth. The concentration of ADEP1 on AgInS2-ADEP1 analogue conjugates was calculated based on the ADEP1 analogues calibration curve. AgInS2-ADEP1 analogue conjugates and ADEP1 analogues were diluted via 2-fold serial dilution with broth containing a final concentration range of 0.8–100 µM and 15.6–2000 µM, respectively. Gentamicin (concentration range between 0.007 and 6.7 mM) was used as a positive control for B. subtilis, S. aureus, MRSA, and P. aeruginosa, while ampicillin (concentration range between 0.18 and 6.7 mM) was used as a positive control for E. coli, and 5% DMSO was used as a negative control. The 96-well plates were then incubated overnight at 37 °C. The lowest concentration of the AgInS2-ADEP1 analogue conjugates and controls that resulted in clear wells with no turbidity (i.e., no visible bacterial growth) was recorded as the MIC. The bacterial culture from the MIC wells at concentrations of AgInS2-ADEP1 conjugates above the MIC were inoculated into Luria–Bertani agar plates and incubated overnight at 37 °C. The MBC was determined as the lowest concentration resulting in complete bacterial-growth inhibition.

3.6. Cytotoxicity Activity of AgInS2-ADEP1 Analogue Conjugates

The cytotoxicity of the AgInS2-ADEP1 analogue conjugates was assessed on HEK-293 cells (purchased from Cellonex (Randburg, Gauteng Province, South Africa)) using the MTS cell proliferation assay, as previously reported [11]. The cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM) consisting of 10% fetal bovine serum (FBS), 2% DMSO, and 1% penicillin–streptomycin. The cells were seeded at 1 × 105 cells/mL into a 96-well plate and incubated at 37 °C overnight in a humidified incubator at 5% CO2. The cells were then treated with AgInS2-ADEP1 analogue conjugates to attain a final concentration range of 1.2–150 µM. Auranofin was used as a positive control at a concentration range of 0.78–100 µM and DMSO (2%) was used as a negative control. After 72 h of treatment, the metabolic activity of cells was determined by adding 10% of MTS dye. The percentage cell viability was calculated using the equation below:
%   c e l l   v i a b i l i t y = O D   o f   t e s t   s a m p l e O D   o f   c o n t r o l × 100

4. Conclusions

In this study, gelatin-capped AgInS2 QDs were synthesized and conjugated to novel ADEP1 analogues, with the aim of improving the antibacterial efficacy of these peptides. The conjugation of the QDs to the peptides was confirmed using multiple techniques, namely, zeta potential, PL, ED-XRF, and HR-TEM. Compared to the AgInS2 QDs, which did not show any appreciable antibacterial activity, and the ADEP1 analogues, which presented moderate activity, the AgInS2 QDs-ADEP1 analogue conjugates exhibited excellent antibacterial activity. The MIC values obtained for the AgInS2 QDs-ADEP1 analogue conjugates were between 3- and 200-folds lower than those obtained for the ADEP1 analogues, while the MBC values were between 5- and 13-folds lower. The MIC and MBC values showed that the AgInS2 QDs-ADEP1 analogue conjugates were mostly potent against E. coli, followed by B. subtilis and S. aureus. The AgInS2 QDs-ADEP1 analogue conjugates were non-toxic to HEk-293 cells at concentrations higher than the MIC and MBC and can be considered to be biocompatible. These findings suggest that the AgInS2 QDs-ADEP1 analogue conjugates could potentially be used as antibacterial agents without eliciting any significant toxic effects against mammalian cells. The photoluminescence and fluorescent properties of AgInS2 QDs will be exploited in future investigations to monitor ADEP1 analogues targeting, delivery and response in real time, and further determine the antibacterial mode of action of these ADEP1 analogues.

Author Contributions

S.Z.Z.C.: Conceptualization, Methodology, Validation, Formal analysis, Data curation, Investigation, Writing—Original draft, Visualization, Project administration, Funding acquisition. M.M.M.: Conceptualization, Resources, Supervision, Project administration, Funding acquisition. B.M.: Methodology, Formal analysis, Data curation. Z.N.-T.: Methodology, Resources, Supervision. M.F.B.: Methodology. N.R.S.S.: Data curation, Writing—Review and Editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Mintek Science Vote (Grant number—ADR42304) and DSI/NIC (Grant number—ADE42305).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data in this study are presented as tables and figures.

Acknowledgments

The work published here is part of SZZ Cobongela’s PhD theses submitted to University of the Witwatersrand, School of Chemistry, Braamfontein, South Africa.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper. S.Z.Z.C., B.M., M.F.B. and N.R.S.S. are employed by Mintek (Randburg, SA); M.M.M. is employed by University of the Witwatersrand (Johannesburg, SA), ZN-T by Wits RHI (Johannesburg, SA).

References

  1. De Jong, W.H.; Borm, P.J. Drug Delivery and Nanoparticles: Applications and Hazards. Int. J. Nanomed. 2008, 3, 133–149. [Google Scholar] [CrossRef]
  2. Guisbiers, G.; Mejía-Rosales, S.; Leonard Deepak, F. Nanomaterial Properties: Size and Shape Dependencies. Available online: https://www.hindawi.com/journals/jnm/2012/180976/ (accessed on 31 August 2018).
  3. Mandal, A. Copper Nanomaterials as Drug Delivery System against Infectious Agents and Cancerous Cells. J. Appl. Life Sci. Int. 2017, 15, 1–8. [Google Scholar] [CrossRef]
  4. Kawabata, Y.; Wada, K.; Nakatani, M.; Yamada, S.; Onoue, S. Formulation Design for Poorly Water-Soluble Drugs Based on Biopharmaceutics Classification System: Basic Approaches and Practical Applications. Int. J. Pharm. 2011, 420, 1–10. [Google Scholar] [CrossRef] [PubMed]
  5. Martínez-Carmona, M.; Lozano, D.; Colilla, M.; Vallet-Regí, M. Selective Topotecan Delivery to Cancer Cells by Targeted pH-Sensitive Mesoporous Silica Nanoparticles. RSC Adv. 2016, 6, 50923–50932. [Google Scholar] [CrossRef]
  6. Müller, R.H.; Jacobs, C.; Kayser, O. Nanosuspensions as Particulate Drug Formulations in Therapy. Rationale for Development and What We Can Expect for the Future. Adv. Drug Deliv. Rev. 2001, 47, 3–19. [Google Scholar] [CrossRef] [PubMed]
  7. Kou, L.; Bhutia, Y.D.; Yao, Q.; He, Z.; Sun, J.; Ganapathy, V. Transporter-Guided Delivery of Nanoparticles to Improve Drug Permeation across Cellular Barriers and Drug Exposure to Selective Cell Types. Front. Pharmacol. 2018, 9. [Google Scholar] [CrossRef] [PubMed]
  8. Fadaka, A.O.; Sibuyi, N.R.S.; Madiehe, A.M.; Meyer, M. Nanotechnology-Based Delivery Systems for Antimicrobial Peptides. Pharmaceutics 2021, 13, 1795. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, S.; Zeng, X.; Yang, Q.; Qiao, S. Antimicrobial Peptides as Potential Alternatives to Antibiotics in Food Animal Industry. Int. J. Mol. Sci. 2016, 17, 603. [Google Scholar] [CrossRef] [PubMed]
  10. Goodreid, J.D.; Janetzko, J.; Santa Maria, J.P.; Wong, K.S.; Leung, E.; Eger, B.T.; Bryson, S.; Pai, E.F.; Gray-Owen, S.D.; Walker, S.; et al. Development and Characterization of Potent Cyclic Acyldepsipeptide Analogues with Increased Antimicrobial Activity. J. Med. Chem. 2016, 59, 624–646. [Google Scholar] [CrossRef] [PubMed]
  11. Cobongela, S.Z.Z.; Makatini, M.M.; Njengele-Tetyana, Z.; Sikhwivhilu, L.M.; Sibuyi, N.R.S. Design and Synthesis of Acyldepsipeptide-1 Analogues: Antibacterial Activity and Cytotoxicity Screening. Arab. J. Chem. 2023, 16, 105000. [Google Scholar] [CrossRef]
  12. Matea, C.T.; Mocan, T.; Tabaran, F.; Pop, T.; Mosteanu, O.; Puia, C.; Iancu, C.; Mocan, L. Quantum Dots in Imaging, Drug Delivery and Sensor Applications. Int. J. Nanomed. 2017, 12, 5421–5431. [Google Scholar] [CrossRef]
  13. Probst, C.E.; Zrazhevskiy, P.; Bagalkot, V.; Gao, X. Quantum Dots as a Platform for Nanoparticle Drug Delivery Vehicle Design. Adv. Drug Deliv. Rev. 2013, 65, 703–718. [Google Scholar] [CrossRef]
  14. Zhao, M.-X.; Zhu, B.-J. The Research and Applications of Quantum Dots as Nano-Carriers for Targeted Drug Delivery and Cancer Therapy. Nanoscale Res. Lett. 2016, 11, 207. [Google Scholar] [CrossRef] [PubMed]
  15. Cai, X.; Luo, Y.; Zhang, W.; Du, D.; Lin, Y. pH-Sensitive ZnO Quantum Dots-Doxorubicin Nanoparticles for Lung Cancer Targeted Drug Delivery. ACS Appl. Mater. Interfaces 2016, 8, 22442–22450. [Google Scholar] [CrossRef] [PubMed]
  16. Jiao, M.; Li, Y.; Jia, Y.; Li, C.; Bian, H.; Gao, L.; Cai, P.; Luo, X. Strongly Emitting and Long-Lived Silver Indium Sulfide Quantum Dots for Bioimaging: Insight into Co-Ligand Effect on Enhanced Photoluminescence. J. Colloid Interface Sci. 2020, 565, 35–42. [Google Scholar] [CrossRef] [PubMed]
  17. Fahmi, M.Z.; Chang, J.-Y. Forming Double Layer-Encapsulated Quantum Dots for Bio-Imaging and Cell Targeting. Nanoscale 2013, 5, 1517–1528. [Google Scholar] [CrossRef] [PubMed]
  18. Oluwafemi, O.S.; May, B.M.M.; Parani, S.; Rajendran, J.V. Cell Viability Assessments of Green Synthesized Water-Soluble AgInS2/ZnS Core/Shell Quantum Dots against Different Cancer Cell Lines. J. Mater. Res. 2019, 34, 4037–4044. [Google Scholar] [CrossRef]
  19. Kang, X.; Yang, Y.; Wang, L.; Wei, S.; Pan, D. Warm White Light Emitting Diodes with Gelatin-Coated AgInS2/ZnS Core/Shell Quantum Dots. ACS Appl. Mater. Interfaces 2015, 7, 27713–27719. [Google Scholar] [CrossRef]
  20. Babel, W. Gelatine—Ein vielseitiges Biopolymer. Chem. Unserer Zeit 1996, 30, 86–95. [Google Scholar] [CrossRef]
  21. Esfandyari-Manesh, M.; Mostafavi, S.H.; Majidi, R.F.; Koopaei, M.N.; Ravari, N.S.; Amini, M.; Darvishi, B.; Ostad, S.N.; Atyabi, F.; Dinarvand, R. Improved Anticancer Delivery of Paclitaxel by Albumin Surface Modification of PLGA Nanoparticles. Daru 2015, 23, 28. [Google Scholar] [CrossRef]
  22. Jablonski, A.E.; Humphries, W.H.; Payne, C.K. Pyrenebutyrate-Mediated Delivery of Quantum Dots across the Plasma Membrane of Living Cells. J. Phys. Chem. B 2009, 113, 405–408. [Google Scholar] [CrossRef]
  23. Katas, H.; Nik Dzulkefli, N.N.S.; Sahudin, S. Synthesis of a New Potential Conjugated TAT-Peptide-Chitosan Nanoparticles Carrier via Disulphide Linkage. J. Nanomater. 2012, 2012, e134607. [Google Scholar] [CrossRef]
  24. Qian, H.S.; Guo, H.C.; Ho, P.C.-L.; Mahendran, R.; Zhang, Y. Mesoporous-Silica-Coated Up-Conversion Fluorescent Nanoparticles for Photodynamic Therapy. Small 2009, 5, 2285–2290. [Google Scholar] [CrossRef] [PubMed]
  25. Almarwani, B.; Phambu, N.; Hamada, Y.Z.; Sunda-Meya, A. Interactions of an Anionic Antimicrobial Peptide with Zinc(II): Application to Bacterial Mimetic Membranes. Langmuir 2020, 36, 14554–14562. [Google Scholar] [CrossRef] [PubMed]
  26. Brötz-Oesterhelt, H.; Beyer, D.; Kroll, H.-P.; Endermann, R.; Ladel, C.; Schroeder, W.; Hinzen, B.; Raddatz, S.; Paulsen, H.; Henninger, K.; et al. Dysregulation of Bacterial Proteolytic Machinery by a New Class of Antibiotics. Nat. Med. 2005, 11, 1082–1087. [Google Scholar] [CrossRef]
  27. Vauquelin, G.; Charlton, S.J. Long-Lasting Target Binding and Rebinding as Mechanisms to Prolong in Vivo Drug Action. Br. J. Pharmacol. 2010, 161, 488–508. [Google Scholar] [CrossRef]
  28. Mammen, M.; Choi, S.-K.; Whitesides, G.M. Polyvalent Interactions in Biological Systems: Implications for Design and Use of Multivalent Ligands and Inhibitors. Angew. Chem. Int. Ed. Engl. 1998, 37, 2754–2794. [Google Scholar] [CrossRef]
  29. Mesquita, B.S.; Fens, M.H.A.M.; Di Maggio, A.; Bosman, E.D.C.; Hennink, W.E.; Heger, M.; Oliveira, S. The Impact of Nanobody Density on the Targeting Efficiency of PEGylated Liposomes. Int. J. Mol. Sci. 2022, 23, 14974. [Google Scholar] [CrossRef]
  30. Boroushaki, M.T.; Arshadi, D.; Jalili-Rasti, H.; Asadpour, E.; Hosseini, A. Protective Effect of Pomegranate Seed Oil Against Acute Toxicity of Diazinon in Rat Kidney. Iran. J. Pharm. Res. 2013, 12, 821–827. [Google Scholar] [PubMed]
  31. May, B.M.M.; Parani, S.; Oluwafemi, O.S. Detection of Ascorbic Acid Using Green Synthesized AgInS2 Quantum Dots. Mater. Lett. 2019, 236, 432–435. [Google Scholar] [CrossRef]

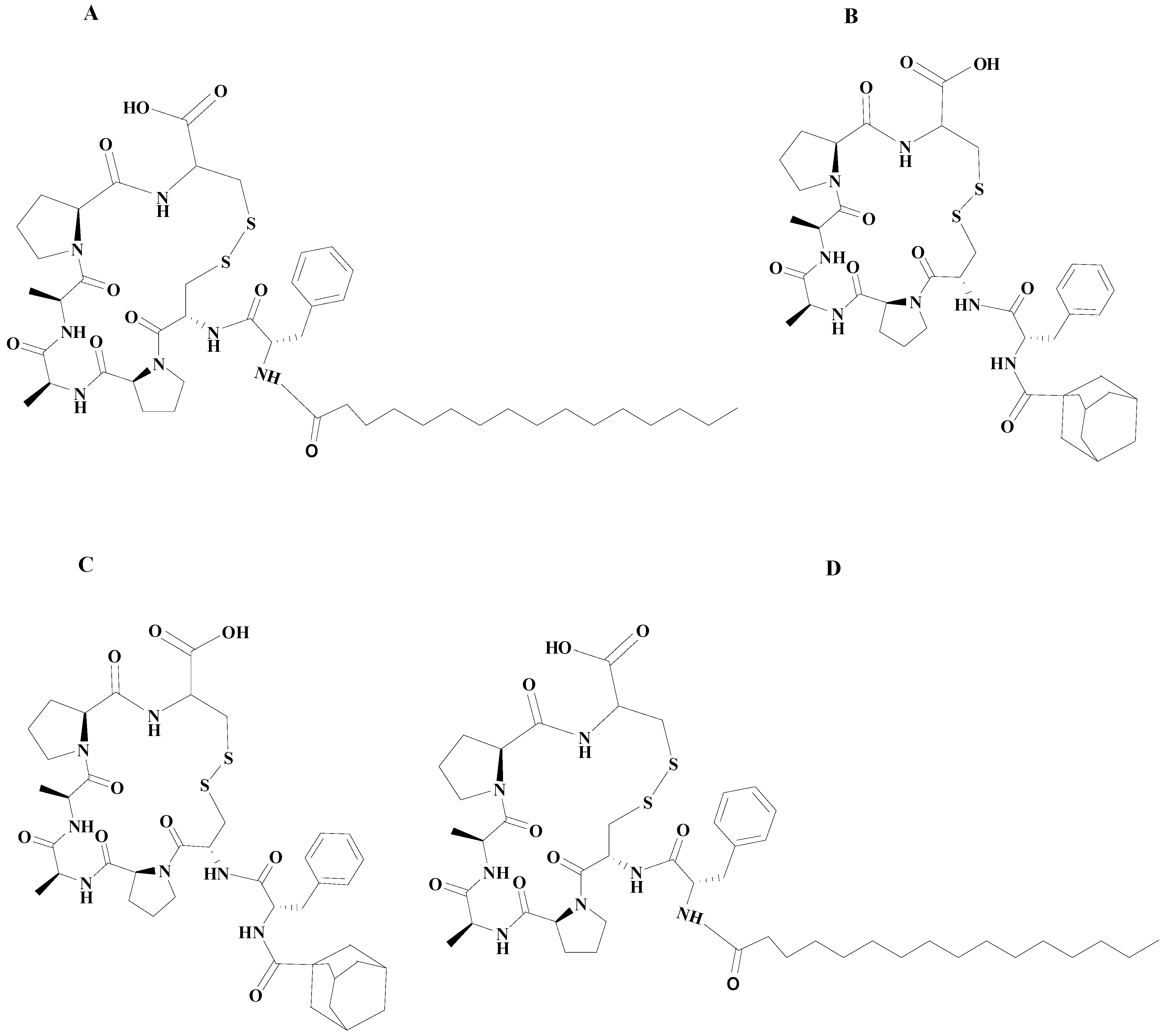

Scheme 1. Disulphide bond cyclized ADEP1 analogues. (A)—SC005 (Palmitic acid-FCPAAPC; D-form amino acids); (B)—SC006 (Adamantane-FCPAAPC; D-form amino acids); (C)—SC007 (Adamantane-FCPAAPC; L-form amino acids); (D)—SC008 (Palmitic acid-FCPAAPC; L-form amino acids) [11].
Scheme 1. Disulphide bond cyclized ADEP1 analogues. (A)—SC005 (Palmitic acid-FCPAAPC; D-form amino acids); (B)—SC006 (Adamantane-FCPAAPC; D-form amino acids); (C)—SC007 (Adamantane-FCPAAPC; L-form amino acids); (D)—SC008 (Palmitic acid-FCPAAPC; L-form amino acids) [11].
Antibiotics 13 00183 sch001

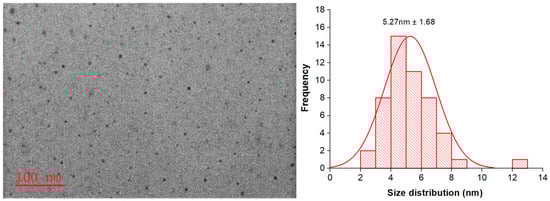

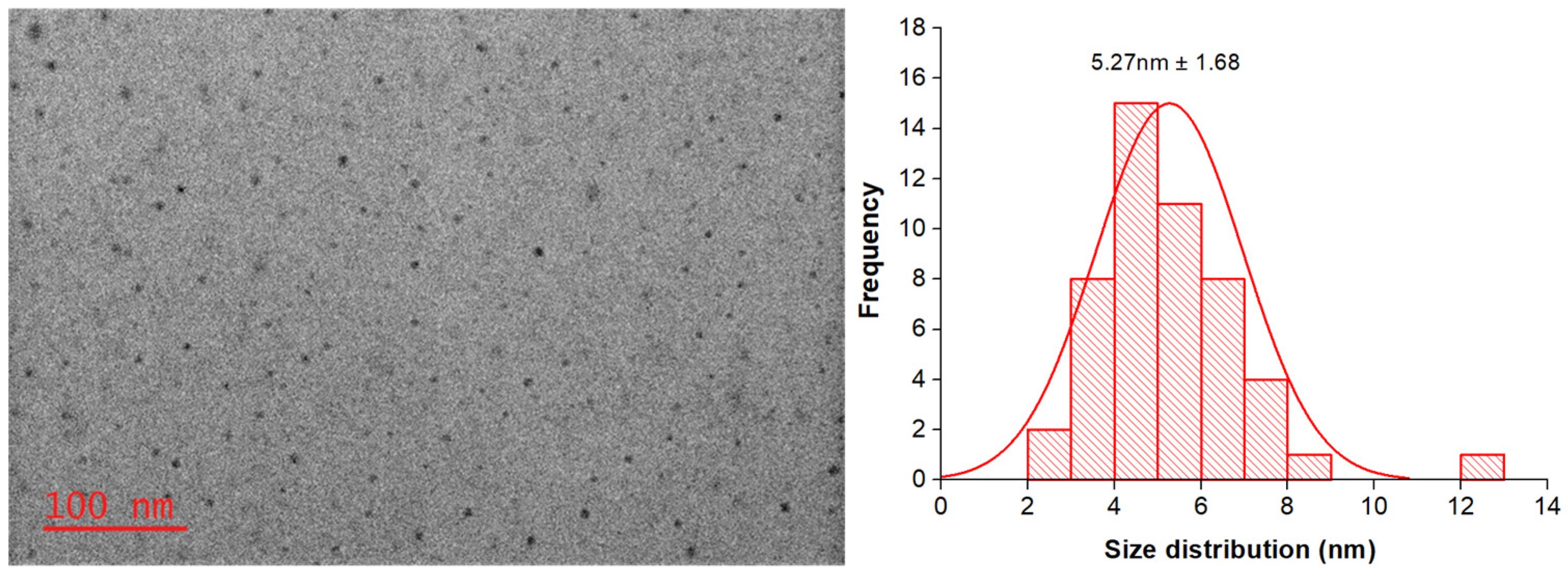

Figure 1. TEM image and size distribution of gelatin-capped AgInS2 QDs.
Figure 1. TEM image and size distribution of gelatin-capped AgInS2 QDs.
Antibiotics 13 00183 g001

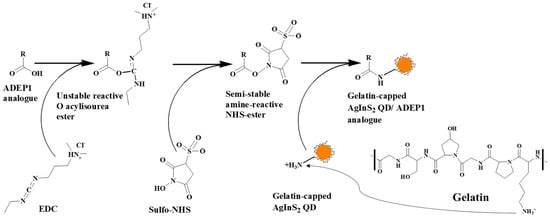

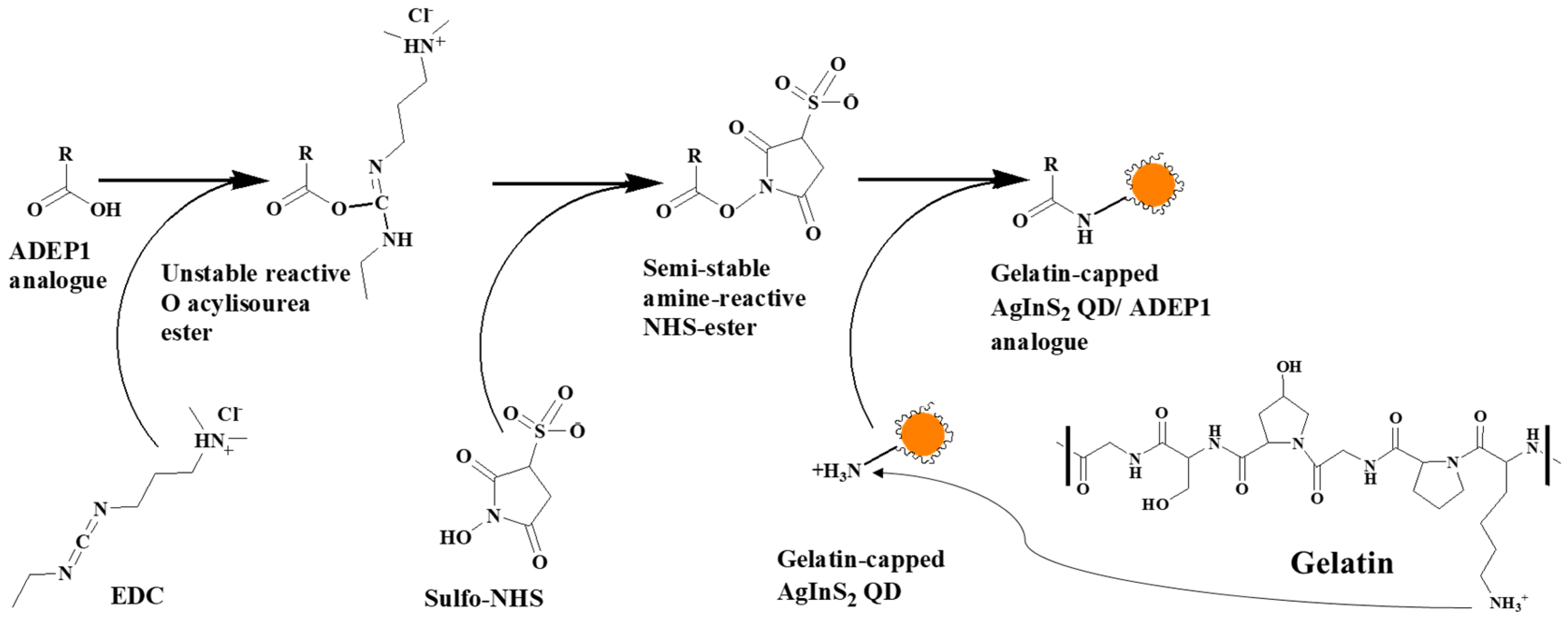

Scheme 2. Conjugation of ADEP1 analogues to gelatin-capped AgInS2 QDs via EDC/sulfo-NHS coupling-chemistry. R = peptide sequence.
Scheme 2. Conjugation of ADEP1 analogues to gelatin-capped AgInS2 QDs via EDC/sulfo-NHS coupling-chemistry. R = peptide sequence.
Antibiotics 13 00183 sch002

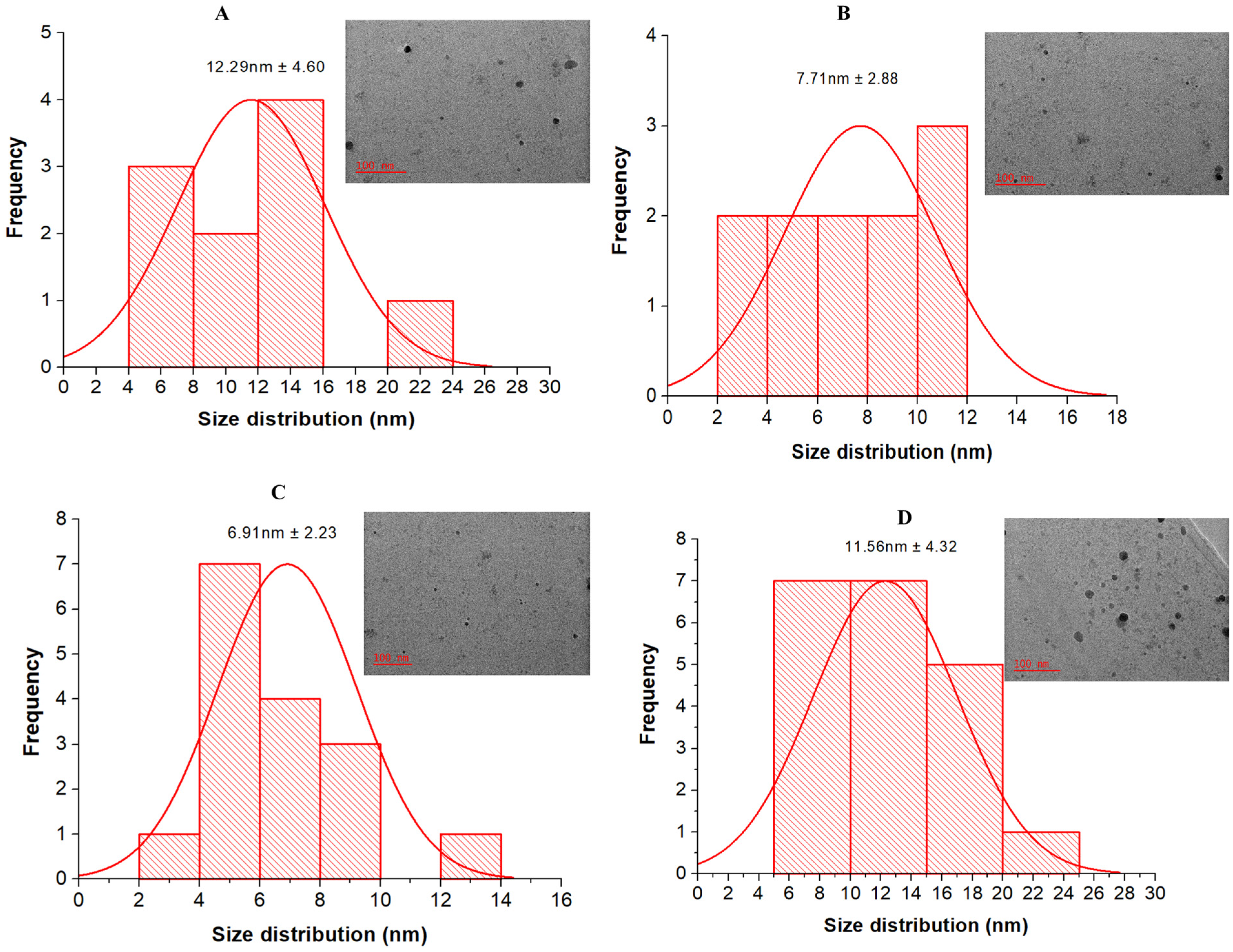

Figure 2. Core size distribution and TEM images of gelatin-capped AgInS2 QDs-ADEP1 analogue conjugates and their (A): AgInS2 QD-SC005; (B): AgInS2 QD-SC006; (C): AgInS2 QD-SC007; (D): AgInS2 QD-SC008.
Figure 2. Core size distribution and TEM images of gelatin-capped AgInS2 QDs-ADEP1 analogue conjugates and their (A): AgInS2 QD-SC005; (B): AgInS2 QD-SC006; (C): AgInS2 QD-SC007; (D): AgInS2 QD-SC008.
Antibiotics 13 00183 g002

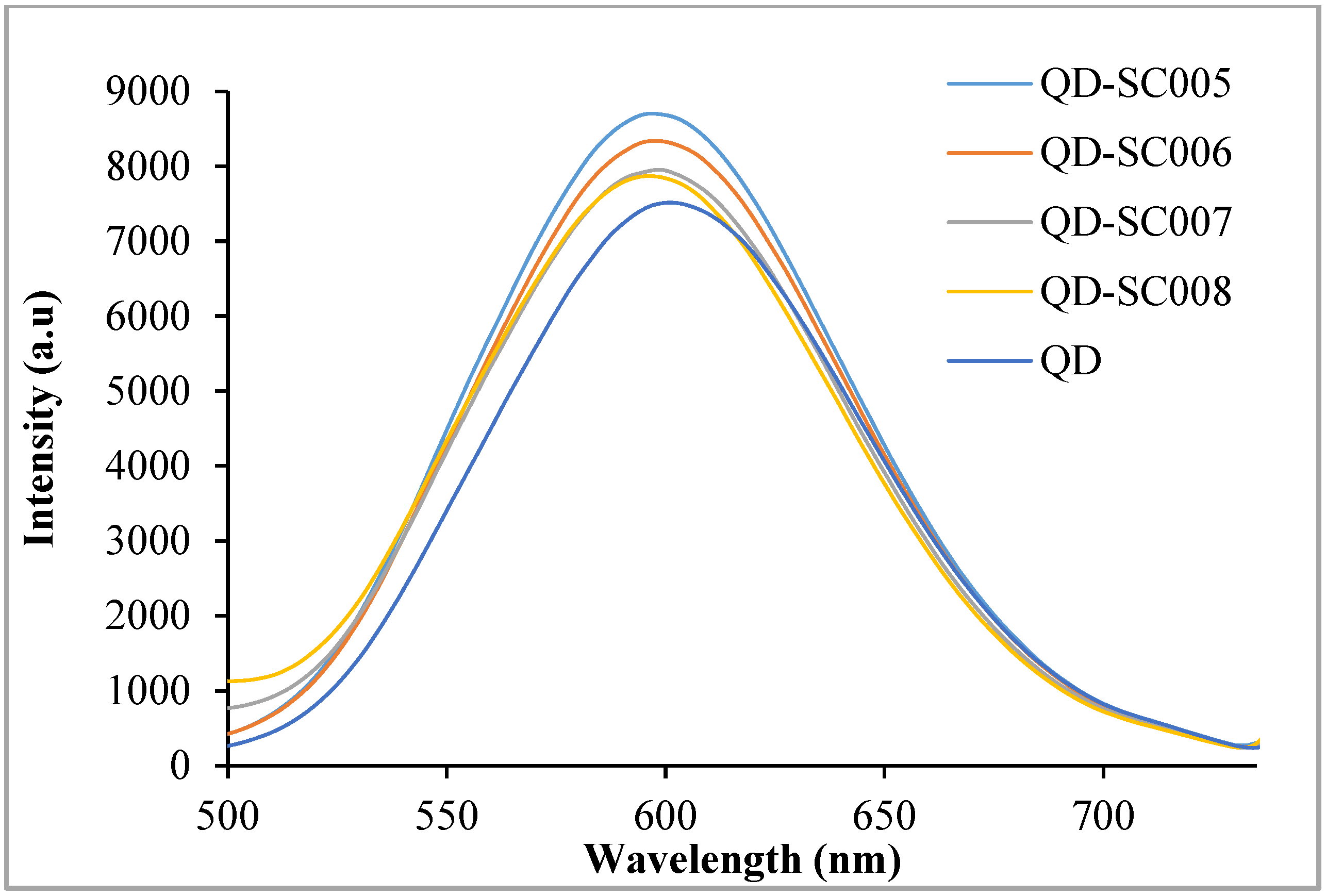

Figure 3. Photoluminescence properties of gelatin-capped AgInS2 QDs and AgInS2 QDs-ADEP1 analogue conjugates.
Figure 3. Photoluminescence properties of gelatin-capped AgInS2 QDs and AgInS2 QDs-ADEP1 analogue conjugates.
Antibiotics 13 00183 g003

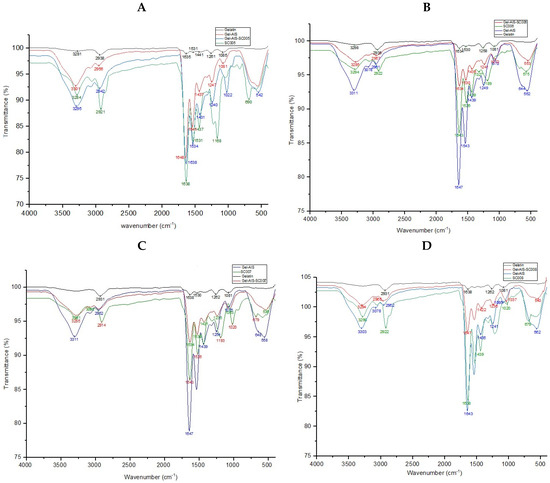

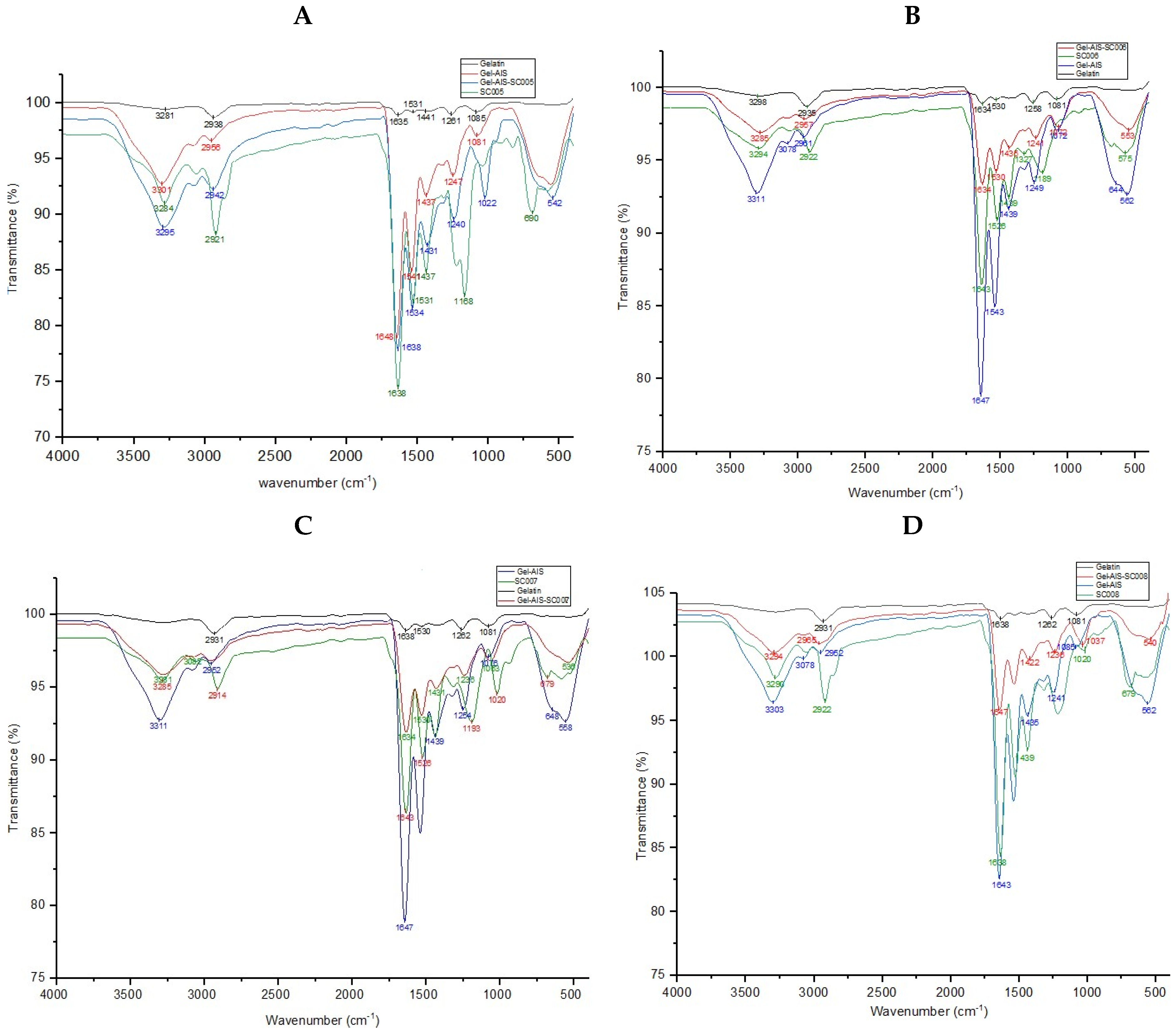

Figure 4. FTIR analysis of functional groups involved in gelatin capping of AgInS2 QDs, and AgInS2 QDs conjuction with ADEP1 analogues. (A) SC005, (B) SC006, (C) SC007 and (D) SC008.
Figure 4. FTIR analysis of functional groups involved in gelatin capping of AgInS2 QDs, and AgInS2 QDs conjuction with ADEP1 analogues. (A) SC005, (B) SC006, (C) SC007 and (D) SC008.
Antibiotics 13 00183 g004

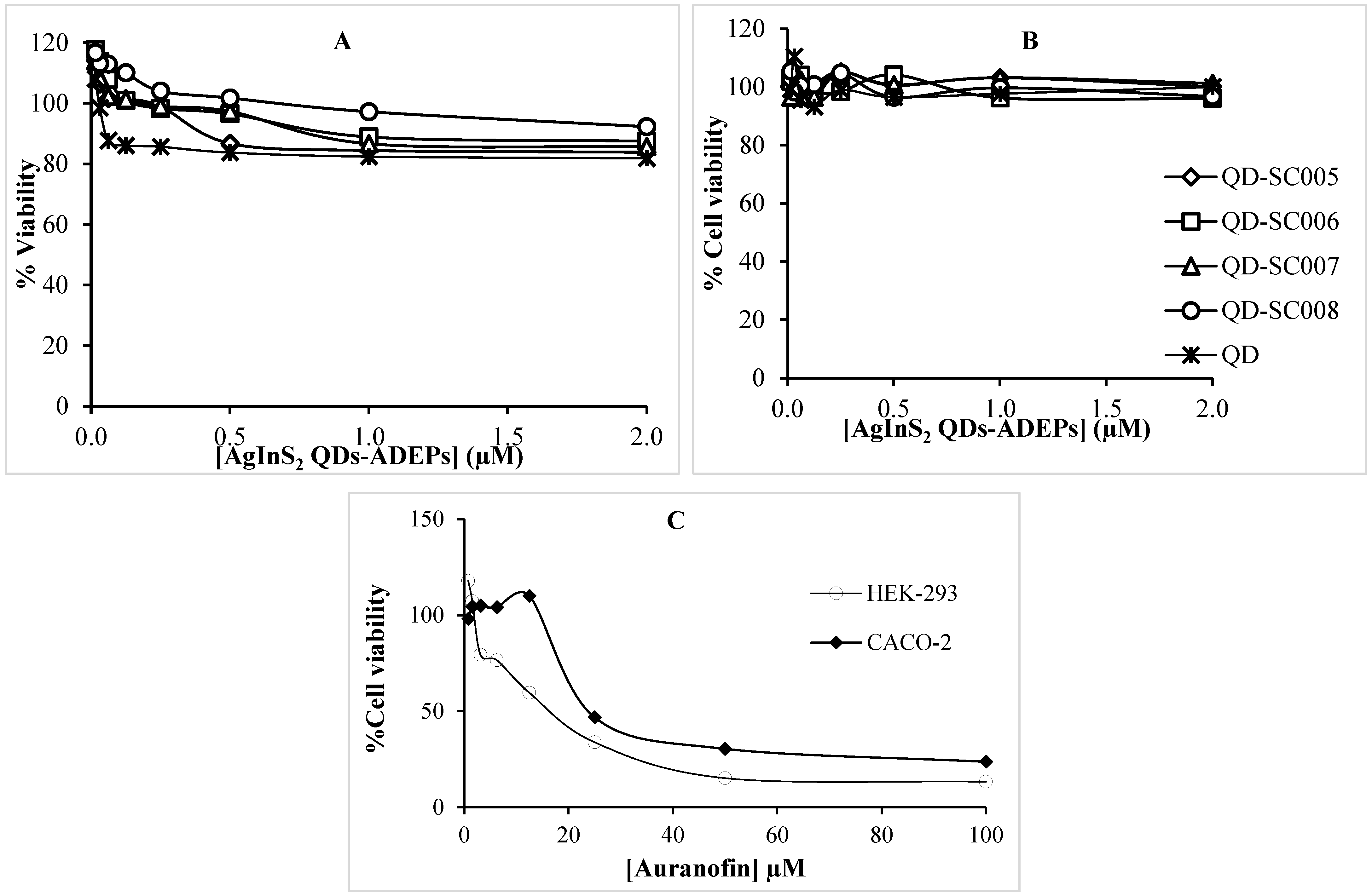

Figure 5. Effect of AgInS2 QD-ADEP1 analogue conjugates (A) on HEK-293 and (B) Caco-2 cell viability. Cells treated with auranofin (C) were used as a positive control.
