Review

The In Vivo and In Vitro Assessment of Pyocins in Treating Pseudomonas aeruginosa Infections

by
Abdulaziz Alqahtani
1,
Jonathan Kopel
2,* and
Abdul Hamood
2
1
Clinical Laboratory Sciences, College of Applied Medical Sciences, King Khalid University, Abha 61321, Saudi Arabia
2
Department of Immunology and Microbiology, Texas Tech University Health Sciences Center, Lubbock, TX 79763, USA
*
Author to whom correspondence should be addressed.
Antibiotics 2022, 11(10), 1366; https://doi.org/10.3390/antibiotics11101366
Submission received: 11 September 2022 / Revised: 3 October 2022 / Accepted: 5 October 2022 / Published: 7 October 2022
(This article belongs to the Special Issue Finding Innovative Targets and Mechanisms While Discovering Novel Antimicrobial Agents)
Browse Figure
Review Reports Versions Notes

Abstract

:
Pseudomonas aeruginosa can cause several life-threatening infections among immunocompromised patients (e.g., cystic fibrosis) due to its ability to adapt and develop resistance to several antibiotics. In recent years, P. aeruginosa infections has become difficult to treat using conventional antibiotics due to the increase multidrug-resistant P. aeruginosa strains. Therefore, there is a growing interest to develop novel treatments against antibiotic-resistance P. aeruginosa strains. One novel method includes the application of antimicrobial peptides secreted by P. aeruginosa strains, known as pyocins. In this review, we will discuss the structure, function, and use of pyocins in the pathogenesis and treatment of P. aeruginosa infection.

1. General Characteristics of Pseudomonas aeruginosa

Pseudomonas aeruginosa is a Gram-negative rod-shaped bacterium that can grow in both aerobic and anaerobic conditions, which allows the bacteria to grow in the soil, water, plants, and humans [1,2,3,4]. Pseudomonas aeruginosa requires only minimal nutritional supply to grow in several physical conditions, such as high concentration of salts, dyes, and media containing a wide range of antibiotics [4]. P. aeruginosa has a large, complex genome (5–7 Mb) encoding several genes and regulatory networks involved in utilizing several carbon sources depending on the environment [4,5]. As a result, P. aeruginosa causes several life-threatening acute and chronic infections among immunocompromised patients, such as cystic fibrosis [4]. The ubiquitous clinical presence of P. aeruginosa is attributed to its ability to adapt and develop resistance to several antibiotics [4]. In recent years, P. aeruginosa infections have become difficult to treat using conventional antibiotics (aminoglycosides, cephalosporins, fluoroquinolones, and carbapenems) due to the increase multidrug-resistant P. aeruginosa strains worldwide [4]. For example, 13% of all P. aeruginosa infections in the United States are caused by multidrug resistant P. aeruginosa strains leading to increased morbidity and mortality [4]. Therefore, there is a growing interest to develop novel treatments for antibiotic-resistance P. aeruginosa strains. In this review, we discuss the structure, function, and use of pyocins in the pathogenesis and treatment of P. aeruginosa infections.

2. P. aeruginosa Virulence Factors

2.1. Cell-Associated Virulence Factors

The pathogenesis of P. aeruginosa is mediated by its wide range of virulence factors, which include cell-associated and extracellular virulence factors [6]. Cell-associated virulence factors include polar flagellum, type IV pili, lipopolysaccharides (LPS), and alginate [7,8]. The single polar flagellum of P. aeruginosa mediates swimming and swarming motility, while the type IV pili facilitates twitching motility [6]. The flagella are essential for P. aeruginosa quorum sensing, which is the ability to detect and respond to cell population density by gene regulation [4]. This quorum sensing allows P. aeruginosa to colonize a host in acute or chronic infections through modifications to quorum sensing genes [4]. Specifically, 10% of all P. aeruginosa genes involved in virulence factor production, motility, motility-sessility switch and biofilm development are regulated by alterations in quorum sensing [4]. Both flagella and pili assist in the adherence of P. aeruginosa to host tissues, and elicit inflammatory responses through interacting with Toll-like receptor 5 (TLR5) and 2 (TLR2), which increases IL-8 expression [7,9,10]. In contrast, lipopolysaccharide (LPS) is a major molecule of the outer membrane of Gram-negative bacteria, consisting of three components: a membrane-anchored lipid A, a polysaccharide core region, and a highly variable O-antigen [11]. When present in the blood, LPS triggers pulmonary inflammation through increasing the levels of proinflammatory cytokines [12].
In addition, the Lipid A forms the hydrophobic portion of LPS and helps anchor molecules to the outer member. Interestingly, the number of acyl chains, degree of phosphorylation, and presence of other post-translational modifications have important functions in the pathogenesis of P. aeruginosa [13]. Specifically, the different lipid A isoforms have different potencies activating the host immune system through binding to TLR4 [13,14]. The O-antigen of P. aeruginosa LPS consists of long polysaccharide that is responsible for conferring serogroup specificity [14]. Lastly, alginate is a mucoid exopolysaccharide (EPS) produced by specific P. aeruginosa strains typically isolated from the lungs of cystic fibrosis patients [7]. Alginate also protects P. aeruginosa from host immune systems through enhancing adhesion a to solid surfaces [15]. Furthermore, the alginate is an essential component for developing P. aeruginosa biofilms and the main constituent of the glycocalyx [15]. The alginate also protects P. aeruginosa from the host immune system through reducing free radicals released by activated macrophages, thereby reducing phagocytosis [16]. Therefore, the flagella, LPS, and alginate are essential components for establishing P. aeruginosa during the initial stages of infection. Furthermore, extracellular virulence factors, known as bacteriocins/pyocins, are an essential for the pathogenesis of P. aeruginosa.

2.2. Extracellular Virulence Factors

Pseudomonas aeruginosa produces various extracellular virulence factors including exotoxin A (ETA), exoenzymes, proteases, pyocyanin, and siderophores [17]. Exotoxin A (ETA), the most virulence factor produced by P. aeruginosa, is an ADP-ribosylating enzyme that modifies host elongation factor-2 thereby inhibiting the protein synthesis process, leading eventually to cell death [7,18]. In addition, ETA induces apoptosis, or the programmed death of host cells. ETA is secreted by type II secretion system (T2SS) [19]. Exoenzymes are effector proteins of the type III secretion system (T3SS). T3SS is a needle-like apparatus that injects toxins directly into host cells [20]. Exoenzymes include ExoS, ExoU, ExoT, and ExoY [21]. ExoS and ExoT are ADP-ribosylating enzymes that disrupt actin filaments of the cytoskeleton. ExoT induces mitochondrial apoptosis in host cells. ExoU is a major cytotoxin that exhibits a phospholipase activity and facilitates phagocyte’s killing [21]. The cytotoxic effect of ExoU is 100 times higher than that of ExoS [22]. ExoY is an adenylate cyclase that disrupts actin filaments of the cytoskeleton, and increases the production of the second messengers cGMP and cUMP in host cells [23].
P. aeruginosa secretes several proteases including LasA, LasB, alkaline protease, and protease IV [7,8]. LasA is staphylolytic zinc metallopeptidase with elastolytic activity. LasB is zinc metalloprotease exhibiting the most elastolytic activity, comparing to LasA. The two elastases play an important role in P. aeruginosa pathogenesis via degrading blood vessel and the elastin within lung alveoli tissues. Similar to ETA, LasA, and LasB are secreted by the type II secretion system (T2SS). This system is also regulated by the complex quorum-sensing (QS) system, which includes the las, rhl, and pqs [24,25]. Quorum-sending is a cell density dependent communication system between microorganisms to coordinate the production of different virulence factors. Each of the well characterized las and rhl systems consist of three major components: an autoinducer synthase (LasI or RhlI), an autoinducer (N-(3-oxodo-decanoyl)-homoserine lactone (C12-HSL) or N-butyryl-L-homoserine lactone (C4-HSL) and a transcriptional regulator (LasR or RhlR). The autoinducer C12-HSL is synthesized by LasI, while C4-HSL is synthesized by RhlI. When the autoinducer, C12-HSL or C4-HSL reaches a threshold, it binds to the transcriptional regulator LasR or RhlR, respectively. Upon binding with its transcriptional regulator, the complex activates the expression of genes coding virulence factors, including type II secretion system proteins, alkaline protease, alginate, pyocyanin and pyoverdine, elastase, and ExoA [25]. The third QS system, pqs, is mediated by an autoinducer 2-heptyl-3-hydroxy-4-quinolone (Pseudomonas quinolone signal or PQS). Unlike a single autoinducer synthase of the two QS systems, las and rhl, PQS is synthesized by multiple proteins encoded by pqsABCD and pqsH [26]. Alkaline protease is zinc metalloprotease that degrades host immune complements and cytokines such as C1q, C2, C3, IFN-γ, and TNF-α [27]. Protease IV is also capable of degrading host immune complements, clotting factors and surfactant proteins [28].
Pseudomonas aeruginosa also produces different molecules include pyocyanin, and siderophores such as pyoverdine and pyochelin. Pyocyanin (PCN), a blue–green pigment, is responsible for the distinct color of P. aeruginosa colonies. Pyocyanin causes multiple effects on host cells include initiating oxidative stress via generating reactive oxygen species (ROS), disrupting mitochondrial electron transport, and inducing neutrophils apoptosis [29]. Specifically, in vivo analysis showed that PCN contributes to the pathogenesis of P. aeruginosa [29]. Using a mouse model, purified PCN induced bronchopneumonia with neutrophil influx, causing small-airway congestion in the mouse lungs [29]. Siderophores are low molecular weight iron-chelating compounds that scavenge iron from the environment. P. aeruginosa secrets two major siderophores; pyoverdine and pyochelin. Pyoverdine is a green fluorescent compound with a higher affinity for iron compared to pyochelin [30]. In vivo analysis, using the murine model of thermal injury and the murine model of lung infection, showed that pyoverdine has a critical role for the survival of P. aeruginosa during infections [31].

2.3. Pseuodomonas aeuroginosa Pyocins

Pyocins are bacteriocins that are narrow spectrum antimicrobial peptides produced by many Gram-negative and positive bacteria. Bacteriocins are antibacterial peptides synthesized that are toxic to closely related bacteria [32]. Pseudomonas aeruginosa produce bacteriocins, known as pyocins, which are narrow-spectrum antimicrobial agents that are lethal to closely related bacteria [32]. Specifically, P. aeruginosa produce three major pyocins, R, F, and S types pyocins, that vary in their mechanism and structure (Table 1).

2.4. The R-Pyocins

In 1964, Kageyama et al. described the first R-pyocins as high-molecular-weight proteins that resemble the nonflexible, contractile tail structures of bacteriophages of the Myoviridae family [33]. Specifically, the R-pyocins is a double hollow cylinder (120 nm long and 15 nm wide) consisting of a rigid core, sheath, baseplate, and tail fibers [3,32,33]. The core is surrounded by a contractible outer sheath and attached to the sheath and baseplate [3,32,33]. The tail fibers are responsible for the attachment of the pyocins to the target cell [32]. Analysis of the tail fiber (Prf15) amino acid sequence, R-pyocins are classified into five major groups: R1-R5. The amino acid sequence of Prf15 of R2, R3, and R4 is nearly identical, while R1 and R5 show differences in the C-terminal region of the pyocin structure [34]. Once the mode of action of different R pyocins are attached to the target membrane, the R-pyocins sheath contracts to insert the pyocin core into the cell envelope, forming a channel that depolarizers the cell membrane, which arrests protein and nucleic acid synthesis [32].

2.5. The F-Pyocins

The second type of phage tail-like bacteriocins are the F-pyocins. In 1967, Takeya et al. described the structure of F-pyocins, which consisted of flexuous rod-like particles that are composed of a core, a baseplate, and tail fibers containing several short and long filaments [35]. The F-pyocin rod particles are shorter than R-pyocins with an estimated length of 106 nm and width of 10 nm; the length of the tail fibers is also estimated at 50 nm [32,36]. Specifically, one end of the F-pyocin rods form a square at one end that tapers off to form fine fibers estimated at 43 nm in length [3]. To date, three F-subtypes (F1, F2, and F3) have been described [32,36]. The shapes and sizes of these F-pyocin subtypes are similar to R-pyocins in their structure and activity [32]. The filaments are responsible for the binding of F-pyocin onto target cells, which can be modified through different short and long filament compositions [3]. Genes that constitute the R2-F2 loci and their location on the chromosome of P. aeruginosa strain PA01 are illustrated in Figure 1.

2.6. The S-Pyocins

Pseudomonas aeruginosa produces a various number of colicin-like bacteriocins, known as S-pyocins [3]. Compared to R- and F-pyocins, S-pyocins are water-soluble, heat, and proteases sensitive proteins [3]. To date, several S-pyocin subtypes have been discovered. S-pyocins are simple bacteriocins consisting of large and small protein complexes [3]. The large protein harbors the killing activity through DNA degradation whereas the small protein, known as the immunity protein, is responsible for the protection against the host antibacterial activity. This protection is attributed to the interaction between the C-terminal of the large protein and the N-terminal of the immunity protein [3,32]. In most S pyocins, four domains constitute the large protein arranged from N-terminus to C-terminus: the receptor-binding domain (I), translocation domain (II), domain with an unknown function (III), and killing domain (IV). In contrast, the S1 and S5 pyocins have only three domains (a receptor-binding, translocation, and killing domains) [3,32]. The C-terminal killing domains of S1 and S2 are highly conserve whereas the S1 and S2 are almost identical [37]. The N-terminal receptor-binding domain is less conserved among S-pyocins, which reflects the diversity of receptor recognition. The molecular weight of S-pyocins, particularly the large domains, differ widely ranging between 32–84 kDa; in contrast, the small proteins have a similar molecular weight of 10 kDa [37].

2.7. R-, F-, and S-Pyocins Differ in Their Structure and Mode of Action

Although pyocin function remains an active area of investigation, current scientific investigations suggest pyocins have two primary functions in P. aeruginosa: protect against different P. aeruginosa strains and attack other bacterial species [3]. The R-pyocins are able to eliminate Gram-negative bacteria by recognizing different receptor sites within LPS molecule [3,38,39]. Specifically, Kohler et al. showed that L-rhamnose residues distributed around the outer core of LPS are the receptor target for R1-pyocin, while D-glucose residues are the receptor sites for R2- and R5-pyocins (Figure 1) [39]. Furthermore, R-pyocin tail fibers mediate the recognition and binding to susceptible bacterial surface [3]. Upon binding, the pyocin sheath contracts thereby allowing the core to penetrate through both outer and cytoplasmic membranes [3]. Subsequently, the pyocin core depolymerizes the membranes through leakage of intracellular ions. This process initiates a cascade of cellular activity leading to bacterial death [3,40]. The antibacterial activity of R-pyocin is very efficient process with only a single R-pyocin particle required to eliminate a bacterial cell [41]. Similar to R-pyocins, F-pyocins eliminate their bacterial cells via a single-hit process [3,32,36,42]. However, the killing mechanism of F-pyocins remains unclear. Unlike R-pyocins, F-pyocins possess a flexible core with no contractile sheath, which may not penetrate bacterial cell envelope. Further scientific investigation is required to understand the mechanism behind F-pyocins antibacterial activity [41].
In contrast, S-type pyocins destroy bacteria through several different mechanisms (Table 2). For S1-, S2-, S3-, and AP41-pyocins, the killing domains exhibit DNase activity while S4- and S6-pyocins destroy bacteria by inhibiting protein biosynthetic machinery via tRNase or rRNase; in contrast, S5 pyocins destroys susceptible bacteria through pore formation, resulting in membrane damage and leakage of intracellular materials including nucleic acids, and ATP [32,43,44]. The pyocin DNase activity has a conserved HNH-endonuclease motif, which serves as the core of the catalytic site of the endonuclease [32]. The HNH endonuclease motif can also chelate a single metal ion required for hydrolysis of double stranded DNA [32]. The S1-, S2-, and S3-pyocins contains a cognate immunity protein that degrades chromosomal DNA and inhibits lipid biosynthesis in target bacterium. The combination of DNase and lipid II inhibition activities explains the high toxicity of S1-, S2-, and S3-pyocins to bacteria [37]. Pyocin AP41 (also called Ar41) is largest S-pyocin with DNase activity. Unlike S1 and S2, AP41 does not inhibit lipid synthesis of susceptible cells. As a result, the S1 and S2-pyocins have a higher killing efficiency than AP41 [37].

2.8. The Antibiofilm Effect of P. aeruginosa Pyocins

Pseudomonas aeruginosa remains a difficult bacteria to treat with standard antibiotic treatment due to its ability to form multicellular biofilms, which are a collection of surface-associated microbial cells enclosed in an extracellular polymeric matrix [45]. These biofilms are composed noncellular materials such as mineral crystals, corrosion particles, clay or silt particles, or blood components [45]. In most instances, biofilms are composed of 50–90% organic carbon compounds, such as uronic acids (such as D-glucuronic, D-galacturonic, and mannuronic acids) or ketal-linked pyruvates [45]. These substances bind to divalent cations, such as calcium and magnesium, which provide greater binding force to develop biofilms [45]. As a result, biofilms contribute to the antimicrobial resistance of P. aeruginosa by reducing the transport of antibiotics through the biofilm [45]. Interestingly, R-pyocins have been shown to influence strain dominance between communities of P. aeruginosa in the presence of biofilms [46]. Although pyocins are effective antimicrobial agents, few studies assessed the efficacy of pyocins in treating P. aeruginosa biofilms in vitro.
A recent study by Smith et al. compared the anti-biofilm efficacy of S2-pyocin and antibiotics against P. aeruginosa biofilms in vitro [47]. The study aimed to determine whether the S2-pyocin exhibited antibacterial activity against clinical isolate of P. aeruginosa growing in the biofilm state [47]. Specifically, the study treated biofilm of P. aeruginosa strain YHP14 for 1 h using pyocin S2, aztreonam, or tobramycin [47]. It was found that the S2-pyocin showed the greatest efficacy against P. aeruginosa biofilms showing approximately a 4 log reduction in P. aeruginosa survival [47]. A recent study by Paškevičius et al. assessed the activity of plant pyocins, such as the S5-pyocin, against P. aeruginosa biofilms in vitro [48]. Similar to the previous study, a biofilm consisting of P. aeruginosa strain A19 were treated with 10 µg/mL of different plant pyocins (S5, PaeM, L1, L2, L3, and PaeM4) [48]. Among the pyocins tested, the S5-pyocin displayed the greatest activity against strain A19 biofilm decreasing the viable bacterial cells for 3 logs [48]. In contrast, the PaeM4 pyocin showed a limited effect on strain A19 biofilm with only 2 logs reduction, while the L2- and L3-pyocins showed no effect on the viability of P. aeruginosa [48]. Oluyombo et al. also examined the anti-biofilm efficacy of R1- and R2-pyocins against P. aeruginosa biofilms in vitro [46]. The biofilms were developed using the P. aeruginosa A026 or A018 strains on polypropylene beads, which were subsequently treated with R2 and R1-pyocins [46]. Compared to the control, the R-type pyocins showed a potent activity on the biofilm development by these two strains, reducing cell viability for approximately 3–6 logs [46]. Although the pyocins reduced the cell viability of P. aeruginosa biofilms, further clinical studies are needed to evaluate the efficacy and safety of pyocins in patients.

2.9. Assessing the Therapuetic Potential of P. aeruoginosa Pycocins Using Different In Vivo Models

As shown in Table 3, using different in vivo models, several studies examined the efficacy of P. aeruginosa pyocins as a prophylactic or therapeutic agent. In 1969, Bird et al. was the first to test pyocins as a therapeutic agent against P. aeruginosa infection [49]. In the study, crude pyocins were shown to be protective effects in chick embryos infected with P. aeruginosa increasing the survival rate from 3% (untreated-chick embryos) to 55% (pyocin-treated chick embryos) [49]. However, the crude pyocins were shown to be slightly toxic, accounting for 11% mortality in pyocin-treated chick embryos compared to only 6% mortality in nutrient broth-treated chick embryos [49]. Since the tested pyocins were not fully purified, it is likely that the increased toxicity could be due to impurities or interactions between different pyocins [49]. A subsequent study by Merrikin and Terry tested the efficacy of purified pyocin (known as Pyocin 78-C2) in protecting mice from a systemic P. aeruginosa infection [50]. In this study, mice were infected intravenously with P. aeruginosa and then treated with either an intraperitoneal or intravenous pyocin 78-C9 up to 24 h post-infection [50]. Pyocin 78-C2 rescued infected mice when only administrated intravenously at either 0 or 6 h post-infection [50]. Pyocin 78-C2 had no toxic effects when administrated either intravenously or intraperitoneally [50]. However, it was unknown whether prophylactic administration of pyocin would improve outcomes in the presence of systemic P. aeruginosa infection.
Haas et al. examined the prophylactic effect of pyocin in mice using a crude pyocin extracted from P. aeruginosa P10 strain was utilized [51]. Mice were injected with a single or multiple intraperitoneal doses of the crude pyocin in the pyocin-sensitive P. aeruginosa P10 strain [51]. The study showed pyocins protected against P. aeruginosa infection when administrated up to 4 days before symptoms presented; the crude pyocins pyocin had no toxic effects in mice [51]. However, the crude pyocins failed to protect mice when administrated after P. aeruginosa infection. The first study to utilize R-, F-, and S-pyocin subtypes for therapeutic applications against P. aeruginosa was conducted by Rosamu et al. [52]. The study examined which pyocin subtype was effective at treating P. aeruginosa infections [52]. Mice were injected intraperitoneally with R-, F-, or S-type pyocins at different time points [52]. The study showed the R- and F-pyocin subtypes were shown to be protective when administrated before or in conjunction with a lethal infective dose of P. aeruginosa [52]. However, the S-pyocin exhibited no protection against P. aeruginosa infection in mice [52].
Similar to previous studies using crude pyocin extracts, R- and F-type pyocins showed no adverse effect in mice [52]. The R- and F-pyocins were also tested in a mouse burn model in which burned mice were infected with P. aeruginosa strain P14 and then treated topically with either the R- or F-pyocin subtypes [52]. Neither pyocin R- nor F-type was effective in treating P. aeruginosa infection in burned mice; specifically, the mortality rate was 60% in pyocin-treated mice, while 70% in untreated mice [52]. Therefore, further research was needed to determine which specific R- or F-pyocin subtypes would improve mortality in the presence of P. aeruginosa infection.
A subsequent study by Scholl and Martin examined the antibacterial efficacy of R2-pyocin in P. aeruginosa infection in mice [34]. The mice were intraperitoneally injected with a lethal dose (LD90 of ~106 colony formation units (CUFs)) of an R2-sensitive P. aeruginosa 13s strain [34]. A single dose of the purified R2-pyocin rescued mice against a lethal P. aeruginosa infection, increasing the survival rate to 90–100% after 48 h [34]. The R2-pyocin also showed protective effects when administrated up to 4 h post-infection [34]. A single intravenous dose of R2-pyocin was found to produce neutralizing antibodies in mice, causing a notable reduction in the efficacy of R2-pyocin treatment in mice previously infected and treated by pyocin [34]. Specifically, 60–90% of re-infected and retreated mice died with four of the five decreased mice in the second pyocin treatment developing neutralizing antibodies against the R2-pyocin [34]. Therefore, it is possible that administering pyocins repeatedly in humans infected with P. aeruginosa may showed reduced efficacy after repeated use. A similar study McCaughey et al. also showed that pyocins produce different immunogenic responses [53]. Repeated exposure of the S5-pyocin administrated either intranasally or intraperitoneally in mice produced a small amount of S5-specific IgG [53]. However, S5-specific IgG did not interfere with the bactericidal activity of S5-pyocin S5 [53].
Another study by Six et al. examined whether pyocin treatment would be an effective treatment in a murine model in a murine model of sepsis with P. aeruginosa [54]. Specifically, the authors used recombinant pyocins S5 and AP41 in both the Galleria mellonella infection model and a murine model of P. aeruginosa sepsis. The study showed that when administered to mice alone, neither pyocin had any negative side effects and, instead, showed a strong in vitro anti-pseudomonal activity. Both pyocins S5 and AP41 greatly increased survival in an invertebrate sepsis model using G. mellonella, increasing survival from 10% in controls to 80–100% survival among groups of pyocin-treated larvae [54]. Both pyocins showed extensive organ dispersion following injection into mice. In the murine sepsis model, Pyocin S5 was administered 5 h after infection, which significantly increased survival from 33% to 83%. Overall, the two types of P. aeruginosa infection models showed pyocins S5 and AP41 exhibit in vivo biological activity that may increase survivability for multi-drug resistant P. aeruginosa infections [54].
Pyocins activity against P. aeruginosa activity was also investigated in a nonvertebrate host, Galleria mellonella caterpillar. Smith et al. assessed the ability of recombinant S2 pyocin in protecting G. mellonella larvae against a lethal P. aeruginosa infection by inoculating larvae with a lethal dose (104 CFU) of P. aeruginosa strain YHP14 [47]. After which, the larvae were injected with a 27 mg/kg of the S2-pyocin. The study found that the S2-pyocin protected the G. mellonella larvae against a lethal P. aeruginosa infection with a survival rate of 100% among pyocin-treated larvae compared to 0% in untreated larvae [47]. In addition, the S2-pyocin was not toxic in the larvae. A similar study by Paškevičius et al. examined the efficacy of pyocins PaeM4, S5, L2, and L3 in the G. mellonella caterpillar [48]. Larvae infected with a lethal dose (500 CFU) of P. aeruginosa strain A19 were injected with a 10 µg of either PaeM4-, S5-, L2-, or L3-pyocins [48]. Although there were variations in protective effects of each pyocin against a lethal P. aeruginosa infection, the S5-pyocin showed the highest efficacy compared to other tested pyocins, protecting all larvae from the infection [48]. In contrast, Pyocins PaeM4 and L2 rescued 90% and 75% of larvae from the infection, respectively. L3 had no protective effect against P. aeruginosa infection in the larvae [48]. In the same study, a combination of pyocins showed a better protective effect against a lethal P. aeruginosa infection in larvae than a single pyocin-treatment [48].

3. Engineered Pyocins with Broad Antimicrobial Activity

Pyocins have a narrow bactericidal activity targeting only strains within the species of the producer bacteria. This is a useful feature with regard to keeping an intact beneficial flora. However, this feature can prevent pyocins from having a broader antimicrobial activity to other pathogens besides P. aeruginosa. A recent study by Ritchie et al. overcame this limitation by engineering the natural spectrum of pyocins [55]. The R2-pyocin was engineered to target E. coli O157: H7, a major cause of food-borne colitis and diarrhea through fusing the tail spike from bacteriophage phiV10 to the R2-pyocin tail fiber (known as AvR2-V10.3) [55]. The therapeutic use of AvR2-V10.3 was examined in the infant rabbit model through administering AvR2-V10.3 orogastrically either before or after the onset of diarrhea in rabbits infected with E. coli O157: H7 [55]. Specifically, the administration of AvR2-V10.3 before the onset of symptoms prevented diarrhea and reduced the number E. coli cells in the intestines and stool (3–5 logs reduction) [55]. AvR2-V10.3 was also effective when administrated after the onset of diarrhea (3 days post-infection), reducing the severity of E. coli infection and bacterial load (1–2 logs reduction) in the intestines [55]. Additionally, histological analysis showed that AvR2-V10.3 reduced intestinal inflammation [55]. Therefore, it is possible the pyocin antimicrobial activity may be used for other bacterial infections.

4. Advantage of Pyocins in Treating P. aeruginosa Infections

Around 1.4 million individuals are hospitalized every year in the U.S. [56,57]. Given the increase in antibiotic-resistant bacteria in hospitals, patients are at high risk to develop nosocomial or health care-associated infections [58,59]. Systemic infections caused by invading bacterial pathogens have a high mortality rate, frequently due to a dysregulated host immune response known as sepsis [60,61]. Pseudomonas aeruginosa is one of the leading causes for nosocomial infections with concomitant bloodstream infection and sepsis in hospitalized patients [62,63,64,65,66,67,68]. In recent years, accumulating insights into P. aeruginosa virulence factors have revealed new therapeutic targets for P. aeruginosa infections. These targets included structural components, such as the pili and flagellum, which are important in bacterial adhesion and translocation, and lipopolysaccharides (LPS), a major surface-associated virulence factor. Additionally, the type III secretion system, which P. aeruginosa uses to translocate damaging toxins into host cells, and the quorum sensing system were identified as targets.
Bacteria frequently manufacture protein antibiotics called bacteriocins for intraspecies competition [69]. Due to their potency and precise targeting, bacteriocins such as pyocins have the potential to be turned into therapeutically relevant antibiotics for Gram-negative bacteria that are notoriously difficult to treat. In P. aeruginosa, bacteriocins known as pyocins exhibit strong efficacy in a murine model of P. aeruginosa lung infection. For example, the concentration of pyocin S5 needed to provide protection from a lethal infection is at least 100 times lower than that of the most widely used inhaled antibiotic, tobramycin. Additionally, even at high concentrations, pyocins are not immunogenic and their effectiveness is sustained in the presence of pyocin-specific antibodies [69]. Since bacteriocin-encoding genes are widely discovered in microbial genomes, this means that a ready supply of antibiotics with high specificity and potency that are active against antibiotic resistant Gram-negative infections, such as P. aeruginosa. Many of these identified targets have been successful enough in enhancing survival and decreasing P. aeruginosa-related pathologies in the animal models to be tested further in clinical trials. Although no clinical studies have examined the effect of pyocins in hospitalized patients, the pre-clinical data suggest pyocins may be an effective alternative for the treatment and prevention of P. aeruginosa infections. Further randomized clinical trials and prospective studies are needed to evaluate the efficacy and safety of pyocins in hospitalized patients. However, the main advantage of pyocins over other conventional therapies (e.g., antibiotics and bacteriophages) as potential therapeutic agents is their difference in their mode action and their receptors. Utilizing two or more pyocins in treating P. aeruginosa infections will significantly reduce the possible emergence of anti-pyocin resistant P. aeruginosa mutants.

Author Contributions

Conception and design: A.A., J.K. Manuscript writing: A.A., J.K. and A.H. Final approval of manuscript: A.H. All authors have read and agreed to the published version of the manuscript.

Funding

Partial funding was provided by the CH Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lister, P.D.; Wolter, D.J.; Hanson, N.D. Antibacterial-Resistant Pseudomonas aeruginosa: Clinical Impact and Complex Regulation of Chromosomally Encoded Resistance Mechanisms. Clin. Microbiol. Rev. 2009, 22, 582–610. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wu, M.; Li, X. Klebsiella pneumoniae and Pseudomonas aeruginosa. In Molecular Medical Microbiology; Elsevier: Amsterdam, The Netherlands, 2015; pp. 1547–1564. [Google Scholar]
  3. Michel-Briand, Y.; Baysse, C. The pyocins of Pseudomonas aeruginosa. Biochimie 2002, 84, 499–510. [Google Scholar] [CrossRef]
  4. Moradali, M.F.; Ghods, S.; Rehm, B.H.A. Pseudomonas aeruginosa Lifestyle: A Paradigm for Adaptation, Survival, and Persistence. Front. Cell. Infect. Microbiol. 2017, 7, 39. [Google Scholar] [CrossRef] [Green Version]
  5. Stover, C.K.; Pham, X.Q.; Erwin, A.L.; Mizoguchi, S.D.; Warrener, P.; Hickey, M.J.; Brinkman, F.S.L.; Hufnagle, W.O.; Kowalik, D.J.; Lagrou, M.; et al. Complete genome sequence of Pseudomonas aeruginosa PAO1, an opportunistic pathogen. Nature 2000, 406, 959–964. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Veesenmeyer, J.L.; Hauser, A.R.; Lisboa, T.; Rello, J. Pseudomonas aeruginosa virulence and therapy: Evolving translational strategies. Crit. Care Med. 2009, 37, 1777–1786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Kipnis, E.; Sawa, T.; Wiener-Kronish, J. Targeting mechanisms of Pseudomonas aeruginosa pathogenesis. Médecine Mal. Infect. 2006, 36, 78–91. [Google Scholar] [CrossRef] [PubMed]
  8. Colmer-Hamood, J.A.; Dzvova, N.; Kruczek, C.; Hamood, A.N. In Vitro Analysis of Pseudomonas aeruginosa Virulence Using Conditions That Mimic the Environment at Specific Infection Sites. In Progress in Molecular Biology and Translational Science; Elsevier: Amsterdam, The Netherlands, 2016; pp. 151–191. [Google Scholar]
  9. Wall, D.; Kaiser, D. Type IV pili and cell motility. Mol. Microbiol. 1999, 32, 1–10. [Google Scholar] [CrossRef]
  10. Adamo, R.; Sokol, S.; Soong, G.; Gomez, M.I.; Prince, A. Pseudomonas aeruginosaFlagella Activate Airway Epithelial Cells through asialoGM1 and Toll-Like Receptor 2 as well as Toll-Like Receptor 5. Am. J. Respir. Cell Mol. Biol. 2004, 30, 627–634. [Google Scholar] [CrossRef] [Green Version]
  11. King, J.D.; Kocíncová, D.; Westman, E.L.; Lam, J.S. Review: Lipopolysaccharide biosynthesis inPseudomonas aeruginosa. Innate Immun. 2009, 15, 261–312. [Google Scholar] [CrossRef]
  12. Wieland, C.W.; Siegmund, B.; Senaldi, G.; Vasil, M.L.; Dinarello, C.A.; Fantuzzi, G. Pulmonary Inflammation Induced by Pseudomonas aeruginosa Lipopolysaccharide, Phospholipase C, and Exotoxin A: Role of Interferon Regulatory Factor 1. Infect. Immun. 2002, 70, 1352–1358. [Google Scholar] [CrossRef]
  13. Huszczynski, S.M.; Lam, J.S.; Khursigara, C.M. The Role of Pseudomonas aeruginosa Lipopolysaccharide in Bacterial Pathogenesis and Physiology. Pathogens 2019, 9, 6. [Google Scholar] [CrossRef] [Green Version]
  14. Pier, G.B. Pseudomonas aeruginosa lipopolysaccharide: A major virulence factor, initiator of inflammation and target for effective immunity. Int. J. Med. Microbiol. 2007, 297, 277–295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Boyd, A.; Chakrabarty, A.M. Pseudomonas aeruginosa biofilms: Role of the alginate exopolysaccharide. J. Ind. Microbiol. 1995, 15, 162–168. [Google Scholar] [CrossRef] [PubMed]
  16. Mathee, K.; Ciofu, O.; Sternberg, C.; Lindum, P.W.; Campbell, J.I.A.; Jensen, P.; Johnsen, A.H.; Givskov, M.; Ohman, D.E.; Søren, M.; et al. Mucoid conversion of Pseudomonas aeruginos by hydrogen peroxide: A mechanism for virulence activation in the cystic fibrosis lung. Microbiology 1999, 145, 1349–1357. [Google Scholar] [CrossRef] [Green Version]
  17. Newman, J.W.; Floyd, R.V.; Fothergill, J.L. The contribution of Pseudomonas aeruginosa virulence factors and host factors in the establishment of urinary tract infections. FEMS Microbiol. Lett. 2017, 364, fnx124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Pavlovskis, O.R.; Iglewski, B.H.; Pollack, M. Mechanism of action of Pseudomonas aeruginosa exotoxin A in experimental mouse infections: Adenosine diphosphate ribosylation of elongation factor 2. Infect. Immun. 1978, 19, 29–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Wolf, P.; Elsässer-Beile, U. Pseudomonas exotoxin A: From virulence factor to anti-cancer agent. Int. J. Med. Microbiol. 2009, 299, 161–176. [Google Scholar] [CrossRef]
  20. Hauser, A.R. The type III secretion system of Pseudomonas aeruginosa: Infection by injection. Nat. Rev. Microbiol. 2009, 7, 654–665. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Cornelis, G.R.; Van Gijsegem, F. Assembly and Function of Type III Secretory Systems. Annu. Rev. Microbiol. 2000, 54, 735–774. [Google Scholar] [CrossRef]
  22. Lee, V.T.; Smith, R.S.; Tümmler, B.; Lory, S. Activities of Pseudomonas aeruginosa effectors secreted by the Type III secretion system in vitro and during infection. Infect. Immun. 2005, 73, 1695–1705. [Google Scholar] [CrossRef]
  23. Yahr, T.L.; Vallis, A.J.; Hancock, M.K.; Barbieri, J.T.; Frank, D.W. ExoY, an adenylate cyclase secreted by the Pseudomonas aeruginosa type III system. Proc. Natl. Acad. Sci. USA 1998, 95, 13899–13904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Toder, D.S.; Ferrell, S.J.; Nezezon, J.L.; Rust, L.; Iglewski, B.H. lasA and lasB genes of Pseudomonas aeruginosa: Analysis of transcription and gene product activity. Infect. Immun. 1994, 62, 1320–1327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. de Kievit, T.R.; Iglewski, B.H. Bacterial Quorum Sensing in Pathogenic Relationships. Infect. Immun. 2000, 68, 4839–4849. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Pesci, E.C.; Milbank, J.B.J.; Pearson, J.P.; McKnight, S.; Kende, A.S.; Greenberg, E.P.; Iglewski, B.H. Quinolone signaling in the cell-to-cell communication system of Pseudomonas aeruginosa. Proc. Natl. Acad. Sci. USA 1999, 96, 11229–11234. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Gellatly, S.L.; Hancock, R.E.W. Pseudomonas aeruginosa: New insights into pathogenesis and host defenses. Pathog. Dis. 2013, 67, 159–173. [Google Scholar] [CrossRef] [Green Version]
  28. Malloy, J.L.; Veldhuizen, R.A.W.; Thibodeaux, B.A.; O’Callaghan, R.J.; Wright, J.R. Pseudomonas aeruginosa protease IV degrades surfactant proteins and inhibits surfactant host defense and biophysical functions. Am. J. Physiol. Lung Cell. Mol. Physiol. 2005, 288, L409–L418. [Google Scholar] [CrossRef] [Green Version]
  29. Lau, G.W.; Ran, H.; Kong, F.; Hassett, D.J.; Mavrodi, D. Pseudomonas aeruginosa Pyocyanin Is Critical for Lung Infection in Mice. Infect. Immun. 2004, 72, 4275–4278. [Google Scholar] [CrossRef] [Green Version]
  30. Cornelis, P.; Dingemans, J. Pseudomonas aeruginosa adapts its iron uptake strategies in function of the type of infections. Front. Cell. Infect. Microbiol. 2013, 3, 75. [Google Scholar] [CrossRef] [Green Version]
  31. Visca, P.; Imperi, F.; Lamont, I.L. Pyoverdine siderophores: From biogenesis to biosignificance. Trends Microbiol. 2007, 15, 22–30. [Google Scholar] [CrossRef]
  32. Ghequire, M.G.K.; De Mot, R. Ribosomally encoded antibacterial proteins and peptides fromPseudomonas. FEMS Microbiol. Rev. 2014, 38, 523–568. [Google Scholar] [CrossRef]
  33. Nakayama, K.; Takashima, K.; Ishihara, H.; Shinomiya, T.; Kageyama, M.; Kanaya, S.; Ohnishi, M.; Murata, T.; Mori, H.; Hayashi, T. The R-type pyocin of Pseudomonas aeruginosa is related to P2 phage, and the F-type is related to lambda phage. Mol. Microbiol. 2000, 38, 213–231. [Google Scholar] [CrossRef] [PubMed]
  34. Williams, S.R.; Gebhart, D.; Martin, D.W.; Scholl, D. Retargeting R-Type Pyocins To Generate Novel Bactericidal Protein Complexes. Appl. Environ. Microbiol. 2008, 74, 3868–3876. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Takeya, K.; Mlnamishima, Y.; Amako, K.; Ohnishi, Y. A small rod-shaped pyocin. Virology 1967, 31, 166–168. [Google Scholar] [CrossRef]
  36. Kuroda, K.; Kageyama, M. Comparative Study on F-Type Pyocins of Pseudomonas aeruginosa. J. Biochem. 1981, 89, 1721–1736. [Google Scholar] [CrossRef] [PubMed]
  37. Sano, Y.; Matsui, H.; Kobayashi, M.; Kageyama, M. Molecular structures and functions of pyocins S1 and S2 in Pseudomonas aeruginosa. J. Bacteriol. 1993, 175, 2907–2916. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Meadow, P.M.; Wells, P.L. Receptor Sites for R-type Pyocins and Bacteriophage E79 in the Core Part of the Lipopolysaccharide of Pseudomonas aeruginosa PAC1. J. Gen. Microbiol. 1978, 108, 339–343. [Google Scholar] [CrossRef] [Green Version]
  39. Köhler, T.; Donner, V.; van Delden, C. Lipopolysaccharide as Shield and Receptor for R-Pyocin-Mediated Killing in Pseudomonas aeruginosa. J. Bacteriol. 2010, 192, 1921–1928. [Google Scholar] [CrossRef] [Green Version]
  40. Uratani, Y.; Hoshino, T. Pyocin R1 inhibits active transport in Pseudomonas aeruginosa and depolarizes membrane potential. J. Bacteriol. 1984, 157, 632–636. [Google Scholar] [CrossRef] [Green Version]
  41. Scholl, D.; Martin, D.W. Antibacterial Efficacy of R-Type Pyocins towards Pseudomonas aeruginosa in a Murine Peritonitis Model. Antimicrob. Agents Chemother. 2008, 52, 1647–1652. [Google Scholar] [CrossRef] [Green Version]
  42. Kuroda, K.; Kageyama, M. Biochemical Properties of a New Flexuous Bacteriocin, Pyocin Fl, Produced by Pseudomonas aeruginosa. J. Biochem. 1979, 85, 7–19. [Google Scholar] [CrossRef]
  43. Elfarash, A.; Wei, Q.; Cornelis, P. The soluble pyocins S2 and S4 from Pseudomonas aeruginosa bind to the same FpvAI receptor. Microbiologyopen 2012, 1, 268–275. [Google Scholar] [CrossRef] [PubMed]
  44. Rasouliha, B.H.; Ling, H.; Ho, C.L.; Chang, M.W. A Predicted Immunity Protein Confers Resistance to Pyocin S5 in a Sensitive Strain of Pseudomonas aeruginosa. ChemBioChem 2013, 14, 2444–2446. [Google Scholar] [CrossRef]
  45. Donlan, R.M. Biofilms: Microbial life on surfaces. Emerg. Infect. Dis. 2002, 8, 881–890. [Google Scholar] [CrossRef]
  46. Oluyombo, O.; Penfold, C.N.; Diggle, S.P. Competition in Biofilms between Cystic Fibrosis Isolates of Pseudomonas aeruginosa Is Shaped by R-Pyocins. mBio 2019, 10, e01828-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Smith, K.; Martin, L.; Rinaldi, A.; Rajendran, R.; Ramage, G.; Walker, D. Activity of Pyocin S2 against Pseudomonas aeruginosa Biofilms. Antimicrob. Agents Chemother. 2012, 56, 1599–1601. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Paškevičius, Š.; Starkevič, U.; Misiūnas, A.; Vitkauskienė, A.; Gleba, Y.; Ražanskienė, A. Plant-expressed pyocins for control of Pseudomonas aeruginosa. PLoS ONE 2017, 12, e0185782. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Bird, T.J.; Grieble, H.G. Pyocin antibiosis in chick embryos. Antimicrob. Agents Chemother. 1969, 9, 495–498. [Google Scholar]
  50. Merrikin, D.J.; Terry, C.S. Use of pyocin 78-C2 in the treatment of Pseudomonas aeruginosa infection in mice. Appl. Microbiol. 1972, 23, 164–165. [Google Scholar] [CrossRef]
  51. Haas, H.; Sacks, T.; Saltz, N. Protective Effect of Pyocin against Lethal Pseudomonas aeruginosa Infections in Mice. J. Infect. Dis. 1974, 129, 470–472. [Google Scholar] [CrossRef]
  52. Williams, R.J. Treatment of Pseudomonas aeruginosa infections with pyocines. J. Med. Microbiol. 1976, 9, 153–161. [Google Scholar] [CrossRef] [Green Version]
  53. McCaughey, L.C.; Josts, I.; Grinter, R.; White, P.; Byron, O.; Tucker, N.P.; Matthews, J.M.; Kleanthous, C.; Whitchurch, C.B.; Walker, D. Discovery, characterization and in vivo activity of pyocin SD2, a protein antibiotic from Pseudomonas aeruginosa. Biochem. J. 2016, 473, 2345–2358. [Google Scholar] [CrossRef] [PubMed]
  54. Six, A.; Mosbahi, K.; Barge, M.; Kleanthous, C.; Evans, T.; Walker, D. Pyocin efficacy in a murine model of Pseudomonas aeruginosa sepsis. J. Antimicrob. Chemother. 2021, 76, 2317–2324. [Google Scholar] [CrossRef] [PubMed]
  55. Ritchie, J.M.; Greenwich, J.L.; Davis, B.M.; Bronson, R.T.; Gebhart, D.; Williams, S.R.; Martin, D.; Scholl, D.; Waldor, M. K An Escherichia coli O157-specific engineered pyocin prevents and ameliorates infection by E. coli O157:H7 in an animal model of diarrheal disease. Antimicrob. Agents Chemother. 2011, 55, 5469–5474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Rui, P.; Kang, K. National Hospital Ambulatory Medical Care Survey: 2017 Emergency Department Summary Tables. Available online: https://www.cdc.gov/nchs/data/nhamcs/web_tables/2017_ed_web_tables-508.pdf (accessed on 11 September 2022).
  57. Ghafoor, A.; Hay, I.D.; Rehm, B.H.A. Role of exopolysaccharides in Pseudomonas aeruginosa biofilm formation and architecture. Appl. Environ. Microbiol. 2011, 77, 5238–5246. [Google Scholar] [CrossRef] [Green Version]
  58. West, M.A.; Cripps, M.W. Chapter 18: Infections. In Trauma, 8e; Moore, E.E., Feliciano, D.V., Mattox, K.L., Eds.; McGraw-Hill Education: New York, NY, USA, 2017. [Google Scholar]
  59. Magill, S.S.; O’Leary, E.; Janelle, S.J.; Thompson, D.L.; Dumyati, G.; Nadle, J.; Wilson, L.E.; Kainer, M.A.; Lynfield, R.; Greissman, S.; et al. Changes in Prevalence of Health Care-Associated Infections in U.S. Hospitals. N. Engl. J. Med. 2018, 379, 1732–1744. [Google Scholar] [CrossRef]
  60. Sanderson, M.; Chikhani, M.; Blyth, E.; Wood, S.; Moppett, I.K.; McKeever, T.; Simmonds, M.J. Predicting 30-day mortality in patients with sepsis: An exploratory analysis of process of care and patient characteristics. J. Intensive Care Soc. 2018, 19, 299–304. [Google Scholar] [CrossRef] [Green Version]
  61. Singer, M.; Deutschman, C.S.; Seymour, C.W.; Shankar-Hari, M.; Annane, D.; Bauer, M.; Bellomo, R.; Bernard, G.R.; Chiche, J.-D.; Coopersmith, C.M.; et al. The third international consensus definitions for sepsis and septic shock (Sepsis-3). JAMA 2016, 315, 801–810. [Google Scholar] [CrossRef]
  62. Djuric, O.; Markovic-Denic, L.; Jovanovic, B.; Bumbasirevic, V. High incidence of multiresistant bacterial isolates from bloodstream infections in trauma emergency department and intensive care unit in Serbia. Acta Microbiol. Immunol. Hung 2019, 66, 307–325. [Google Scholar] [CrossRef] [Green Version]
  63. Driscoll, J.A.; Brody, S.L.; Kollef, M.H. The epidemiology, pathogenesis and treatment of Pseudomonas aeruginosa infections. Drugs 2007, 67, 351–368. [Google Scholar] [CrossRef]
  64. Fily, F.; Ronat, J.-B.; Malou, N.; Kanapathipillai, R.; Seguin, C.; Hussein, N.; Fakhri, R.M.; Langendorf, C. Post-traumatic osteomyelitis in Middle East war-wounded civilians: Resistance to first-line antibiotics in selected bacteria over the decade 2006–2016. BMC Infect. Dis. 2019, 19, 103. [Google Scholar] [CrossRef] [Green Version]
  65. Park, J.J.; Seo, Y.B.; Choi, Y.K.; Kym, D.; Lee, J. Changes in the prevalence of causative pathogens isolated from severe burn patients from 2012 to 2017. Burns 2019, 46, 695–701. [Google Scholar] [CrossRef] [PubMed]
  66. Sousa, D.; Ceniceros, A.; Galeiras, R.; Pértega-Díaz, S.; Gutiérrez-Urbón, J.-M.; Rodríguez-Mayo, M.; López-Suso, E.; Mourelo-Fariña, M.; Llinares, P. Microbiology in burns patients with blood stream infections: Trends over time and during the course of hospitalization. Infect. Dis. 2018, 50, 289–296. [Google Scholar] [CrossRef] [PubMed]
  67. Tuon, F.F.; Cieslinski, J.; Ono, A.F.M.; Goto, F.L.; Machinski, J.M.; Mantovani, L.K.; Kosop, L.R.; Namba, M.S.; Rocha, J.L. Microbiological profile and susceptibility pattern of surgical site infections related to orthopaedic trauma. Int. Orthop. 2019, 43, 1309–1313. [Google Scholar] [CrossRef] [PubMed]
  68. Vincent, J.-L.; Rello, J.; Marshall, J.K.; Silva, E.; Anzueto, A.; Martin, C.D.; Moreno, R.; Lipman, J.; Gomersall, C.; Sakr, Y.; et al. International study of the prevalence and outcomes of infection in intensive care units. JAMA 2009, 302, 2323–2329. [Google Scholar] [CrossRef] [Green Version]
  69. McCaughey, L.C.; Ritchie, N.D.; Douce, G.R.; Evans, T.J.; Walker, D. Efficacy of species-specific protein antibiotics in a murine model of acute Pseudomonas aeruginosa lung infection. Sci. Rep. 2016, 6, 30201. [Google Scholar] [CrossRef]
Antibiotics 11 01366 g001 550

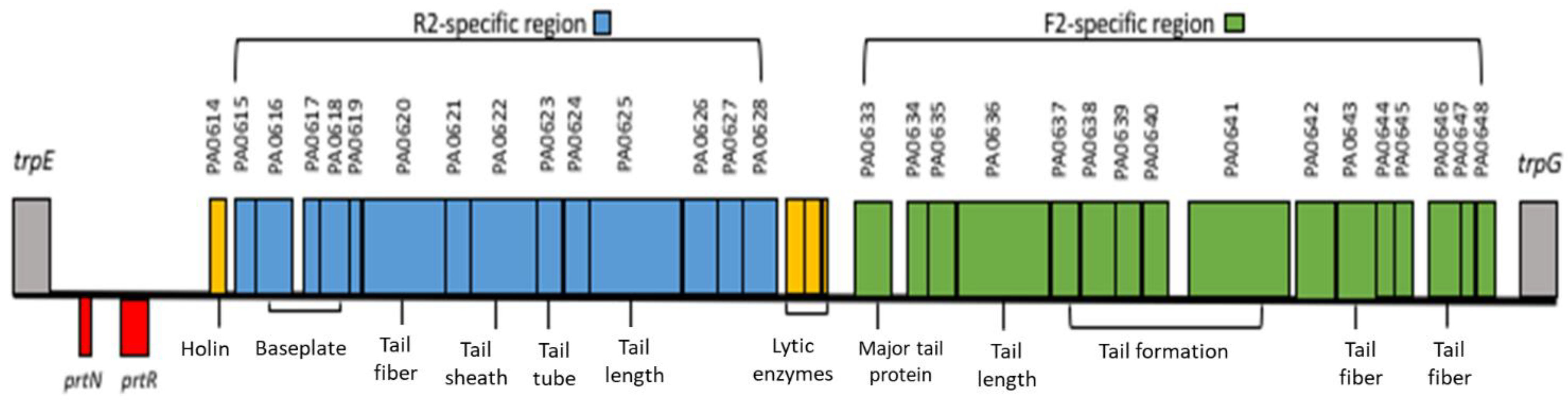

Figure 1. The R2/F2 pyocin gene locus of PAO1 genome. The R2/F2 genes are located between trpE and trpG. Red boxes and yellow boxes represent regulatory genes and lysis gene cassette, respectively. Blue boxes and green boxes represent R2 and F2 genes, respectively (https://www.pseudomonas.com/feature/show?id=103967, accessed on 10 January 2022).
Figure 1. The R2/F2 pyocin gene locus of PAO1 genome. The R2/F2 genes are located between trpE and trpG. Red boxes and yellow boxes represent regulatory genes and lysis gene cassette, respectively. Blue boxes and green boxes represent R2 and F2 genes, respectively (https://www.pseudomonas.com/feature/show?id=103967, accessed on 10 January 2022).
Antibiotics 11 01366 g001
Table
Table 1. Mechanism of action and structures of different P. aeruginosa Pyocins.
Table 1. Mechanism of action and structures of different P. aeruginosa Pyocins.
PyocinMechanism of ActionStructureProtease Sensitive
R1-5Depolarizers cell membrane leading to arrest of protein and nucleic acid synthesisRod-like structure consisting of a double hollow cylinder, sheath, and a coreNo
F1-3Similar to R pyocinsNon-contractile rod with a uniform width (resemble flexible phage tails) No
S1-6DNase, tRNase, Pore-forming, and rRNase activityA single protein consisting of several functional domains including: receptor-binding domain (I), translocation domain (II), domain with an unknown function (III), and killing domain (IV)Yes
Table
Table 2. The mode of action and domains of different S-pyocins.
Table 2. The mode of action and domains of different S-pyocins.
PyocinMode of ActionToxin DomainsImmunity Domain
S1DNasePF12639 (Colicin-DNase)PF01320 (Colicin immunity protein)
S2DNasePF12639 (Colicin-DNase)PF01320 (Colicin immunity protein)
S3DNasePF06958 (Colicin-DNase)-
S4tRNasePF12106 (Colicin E5 ribonuclease) PF11480 (Colicin E1 immunity protein)
S5Pore-formingPF01024 (Colicin pore-forming domain)PF03526 (Colicin E1 immunity protein)
S6rRNasePF09000 (Cytotoxic)-
S7rRNasePF09000 (Cytotoxic)-
S8DNasePF12639 (DNase/tRNase domain of colicin-like bacteriocin)PF01320 (Colicin immunity protein)
S9DNasePF12639 (DNase/tRNase domain of colicin-like bacteriocin)PF01320 (Colicin immunity protein)
S10DNasePF06958 (S-type Pyocin) -
S11tRNasePF11429 (Colicin D)PF09204 (Bacterial self-protective colicin-like immunity)
S12tRNasePF11429 (Colicin D)PF09204 (Bacterial self-protective colicin-like immunity)
Table
Table 3. In vivo models used to assess the effectiveness of different pyocins.
Table 3. In vivo models used to assess the effectiveness of different pyocins.
PyocinModelTreatment RouteProtective EffectToxicityReferences
Crude pyocin (Unknown)Chick embryosi.v.YesYesBird et al. [49]
Purified pyocin 78-C2 (strain 78, pyocin type C2)Murine
(LACA strain)		i.vYesNoMerrikin et al. [50]
Crude pyocinMurine
(model not specified)		i.pYesNoHaas et al. [51]
Purified
R-type		Murine (CFE mice)i.pYesNoRosamu et al. [52]
F-typeMurine (CFE mice)i.pYesNoRosamu et al. [52]
S-typeMurine (CFE mice)i.pNoNARosamu et al. [52]
Purified R2-pyocinMurine Peritonitis Modeli.p/i.vYesNAScholl et al. [41]
Recombinant pyocin S2Galleria Mellonella LarvaeN/AYesNoSmith et al. [47]
Recombinant S2 pyocinsAcute P. aeruginosa Lung InfectionN/AYesNoPaškevičius et al. [48]
Abbreviations: N/A: not applicable; i.p: intraperitoneal; s.c: subcutaneous; i.v: intravenous; i.n: intranasal.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alqahtani, A.; Kopel, J.; Hamood, A. The In Vivo and In Vitro Assessment of Pyocins in Treating Pseudomonas aeruginosa Infections. Antibiotics 2022, 11, 1366. https://doi.org/10.3390/antibiotics11101366

AMA Style

Alqahtani A, Kopel J, Hamood A. The In Vivo and In Vitro Assessment of Pyocins in Treating Pseudomonas aeruginosa Infections. Antibiotics. 2022; 11(10):1366. https://doi.org/10.3390/antibiotics11101366

Chicago/Turabian Style

Alqahtani, Abdulaziz, Jonathan Kopel, and Abdul Hamood. 2022. "The In Vivo and In Vitro Assessment of Pyocins in Treating Pseudomonas aeruginosa Infections" Antibiotics 11, no. 10: 1366. https://doi.org/10.3390/antibiotics11101366

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
