Improvement in Electrode Performance of Novel SWCNT Loaded Three-Dimensional Porous RVC Composite Electrodes by Electrochemical Deposition Method
Abstract
:1. Introduction
2. Materials, Methods and Experimental Section
2.1. Chemicals and Materials
2.2. Functionalization of Carbon Nanotubes
2.3. Dispersion of a-SWCNT
2.4. Pre-Treatment of the RVC Electrode

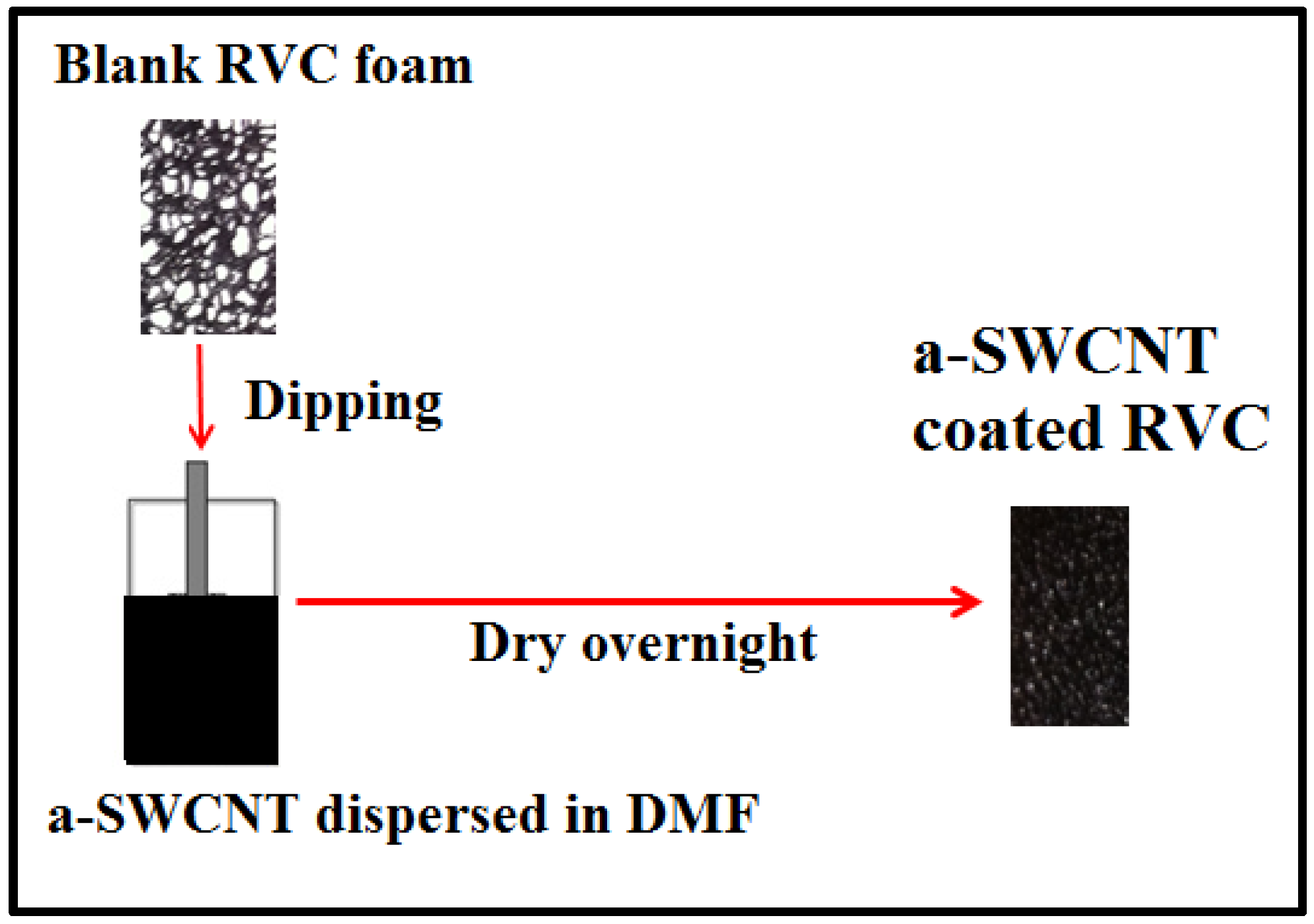

2.5. a-SWCNT Dip Coated RVC Electrode
2.6. Electrochemical Characterization
2.7 Physical Characterization
3. Results and Discussion

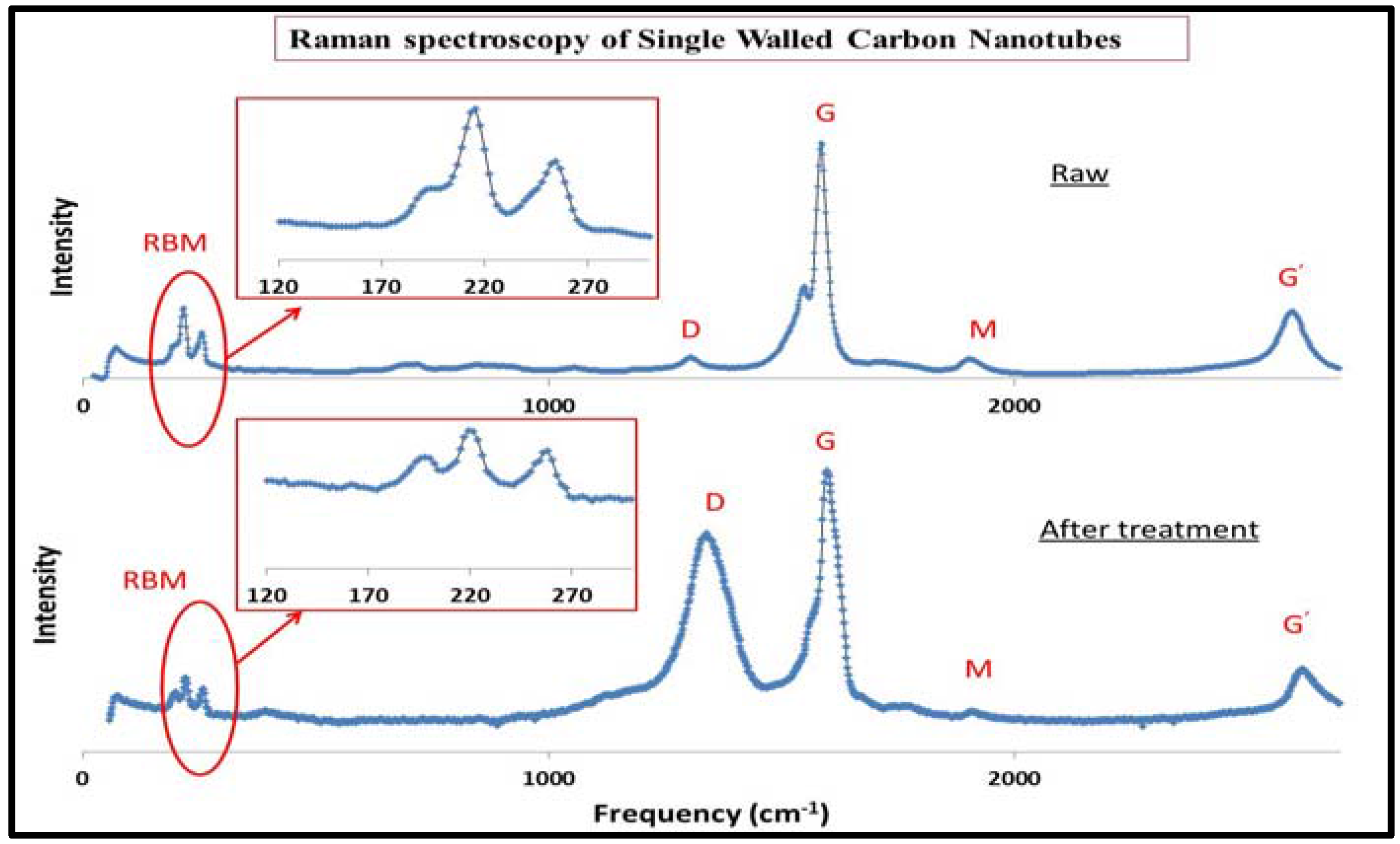

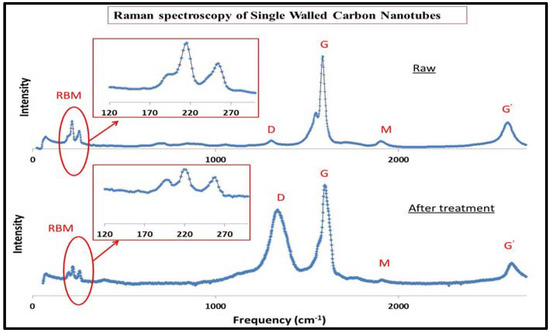

3.1. Characterization of SWCNT after Functionalization by Raman Spectroscopy

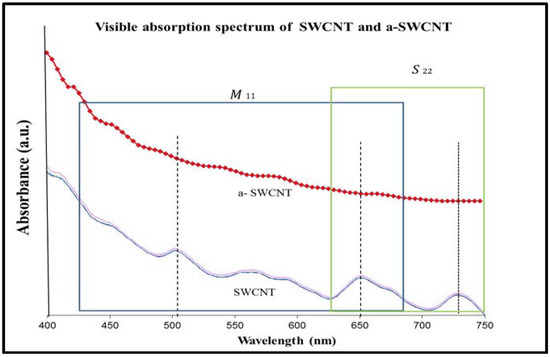

3.2. Characterization of SWCNT after Functionalization by Visible Spectrophotometry

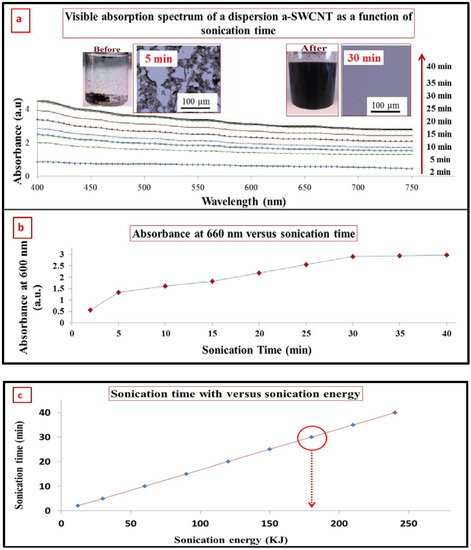

3.3. Dispersion of a-SWCNT in DMF

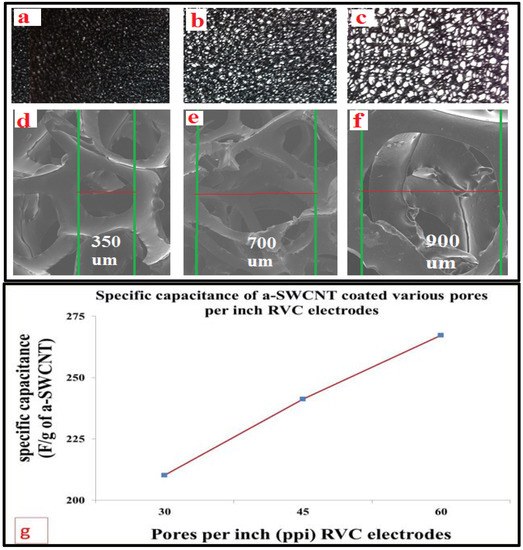

3.4. Optimization of RVC Electrodes Coated with a-SWCNT

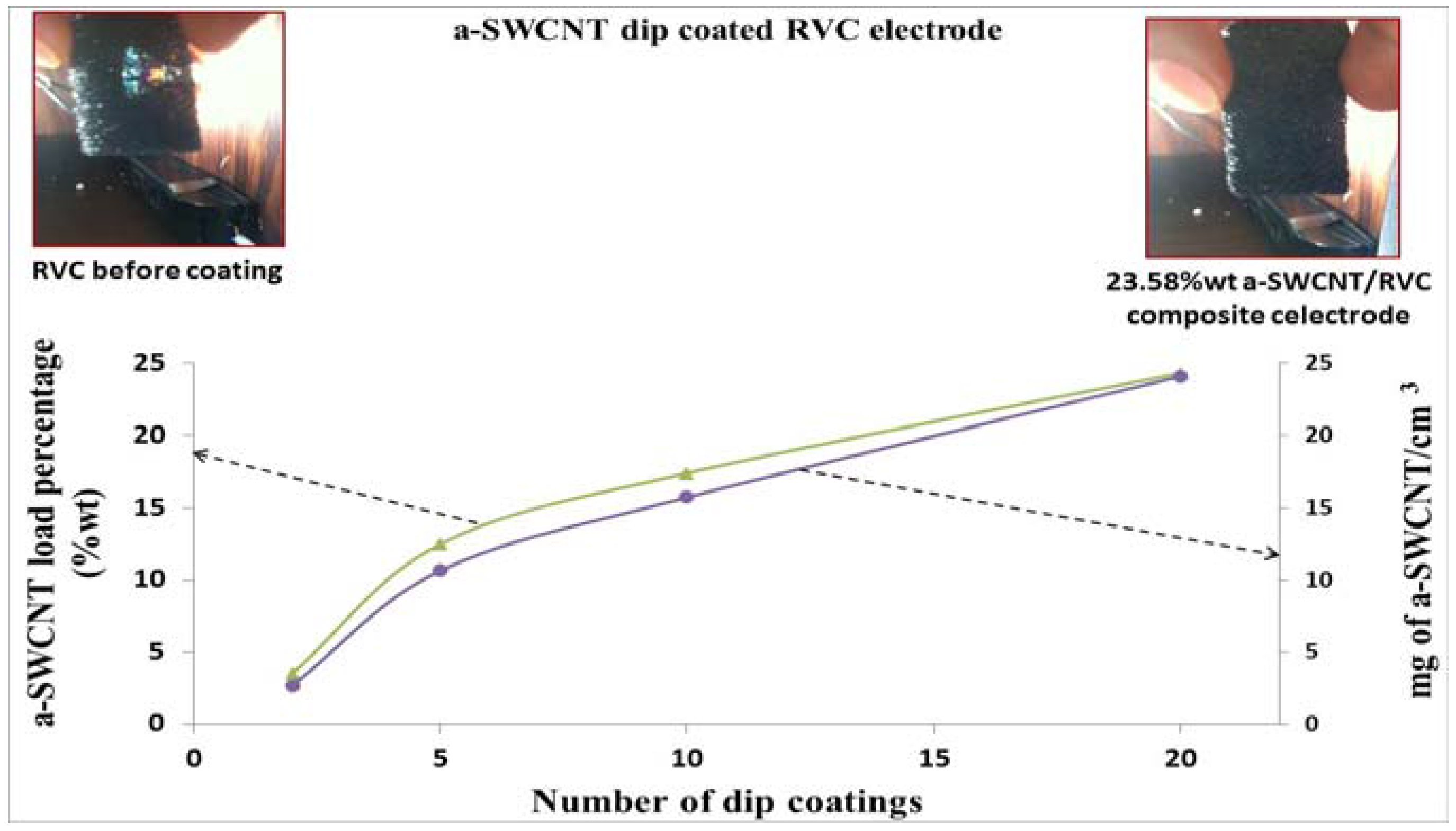

3.5. Optimization of the Loading Level of a-SWCNT on the RVC Electrode

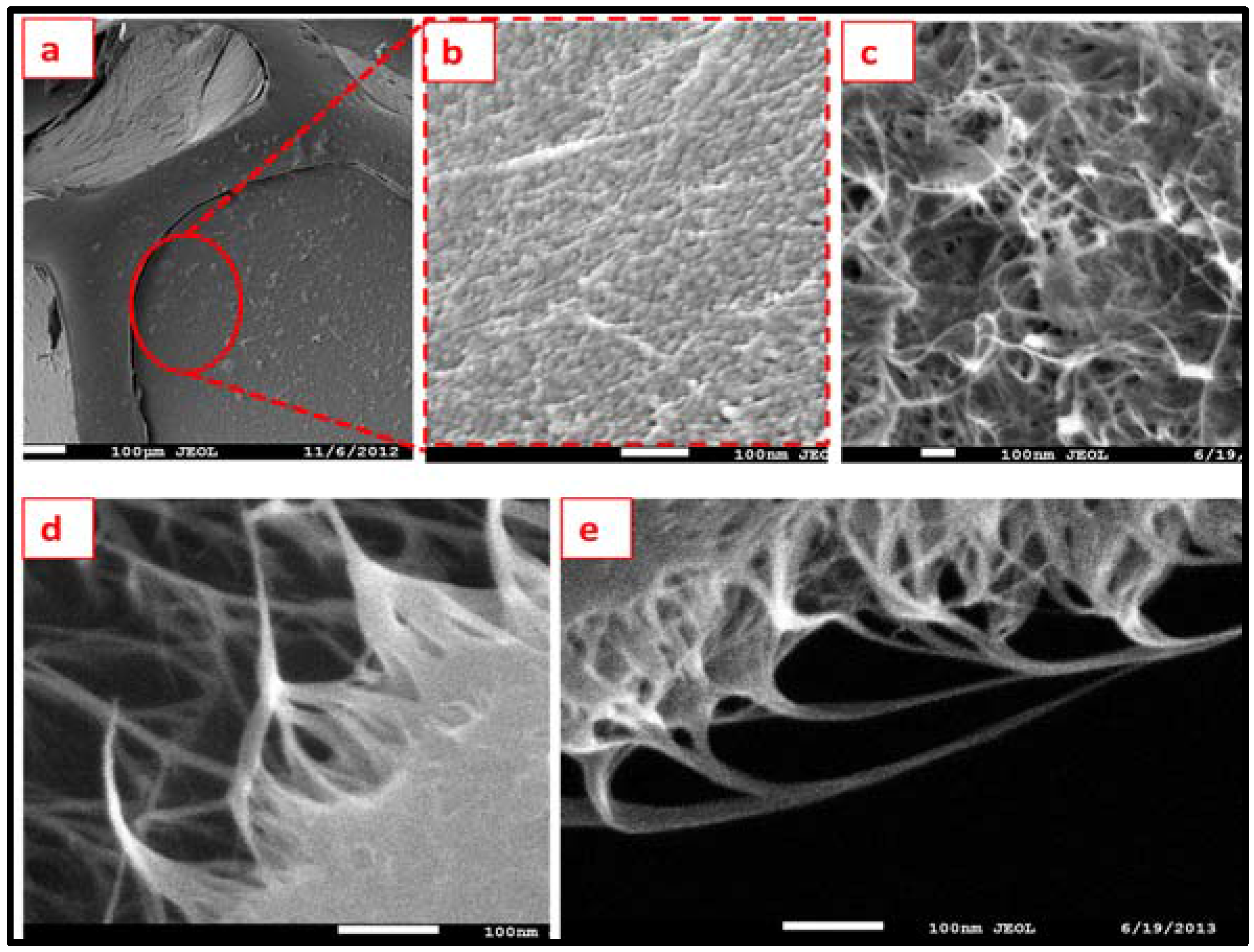

3.6. Scanning Electron Microscopy of a-SWCNT-Coated RVC Electrodes

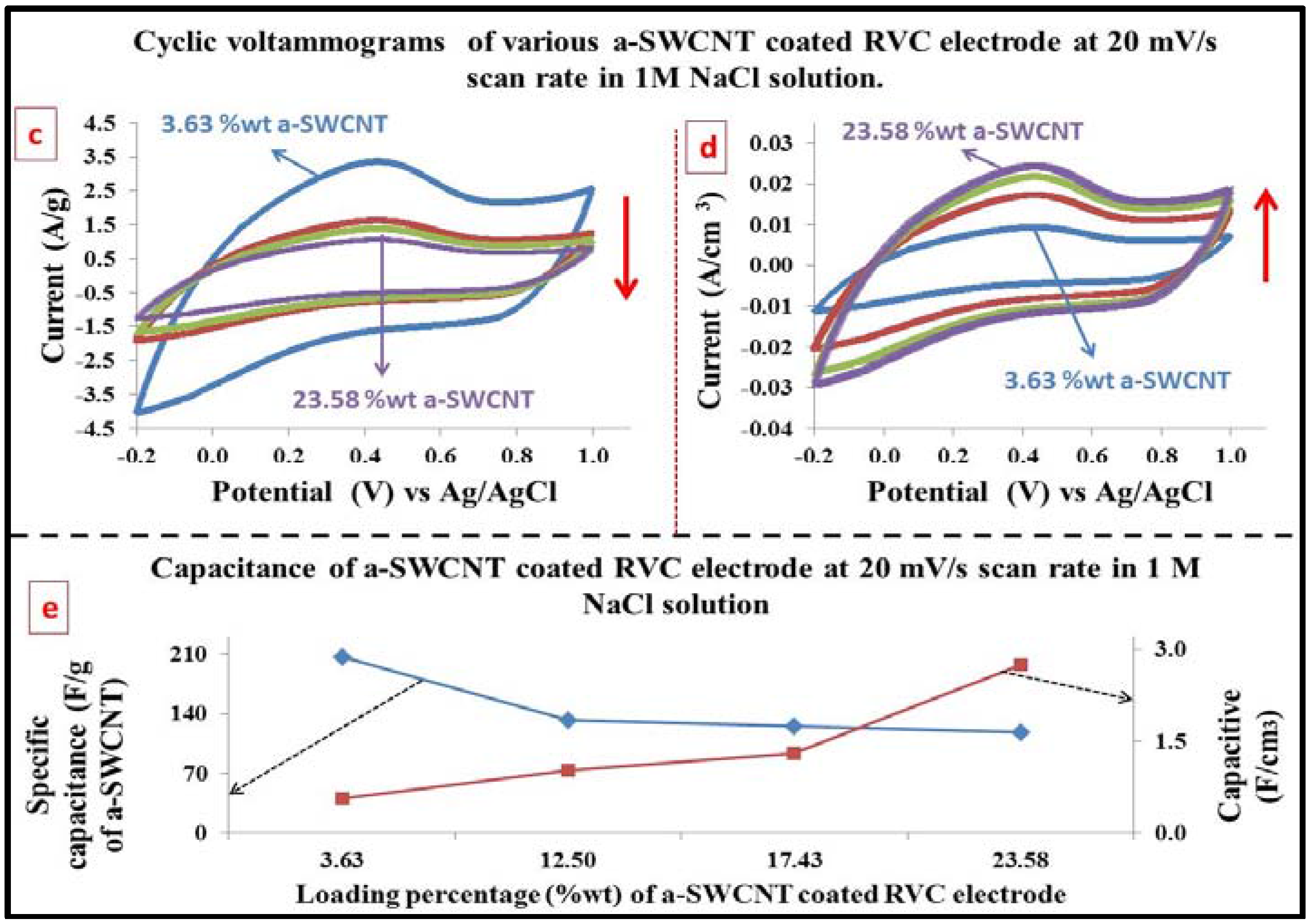

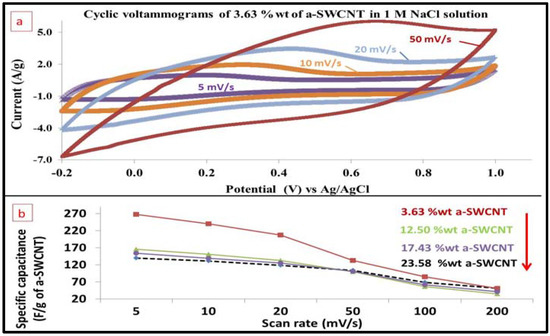

3.7. Electrochemical Behavior Evaluation Using Cyclic Voltammetry

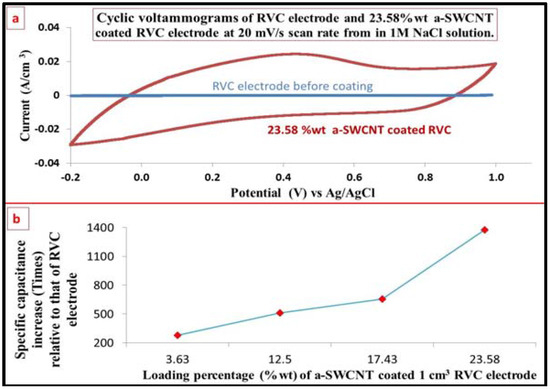

3.8. The Capacitance of RVC Electrode before and after Loading with a-SWCNT

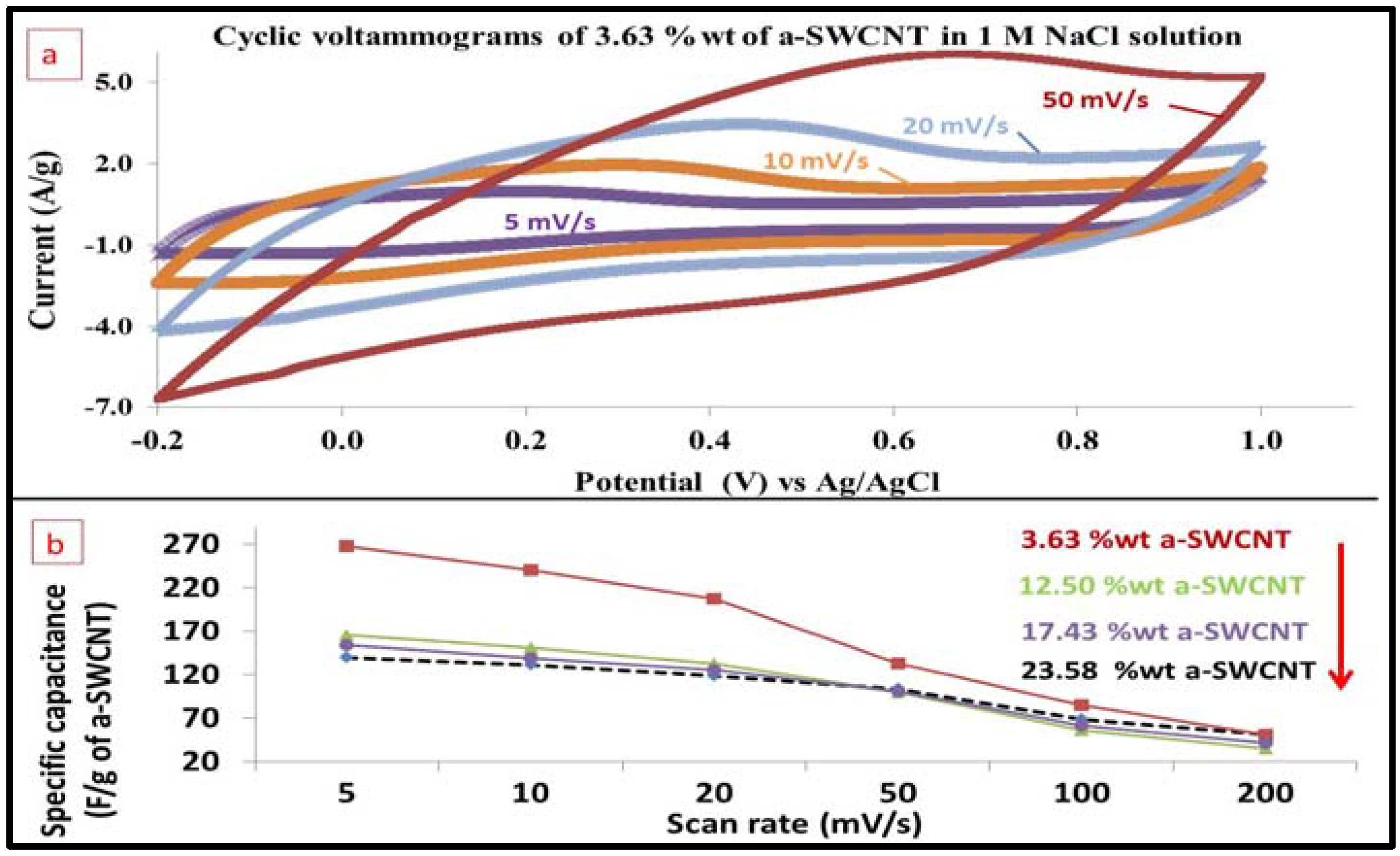

3.9. Effect of Increasing the Scan Rate on the Electrode Capacitance

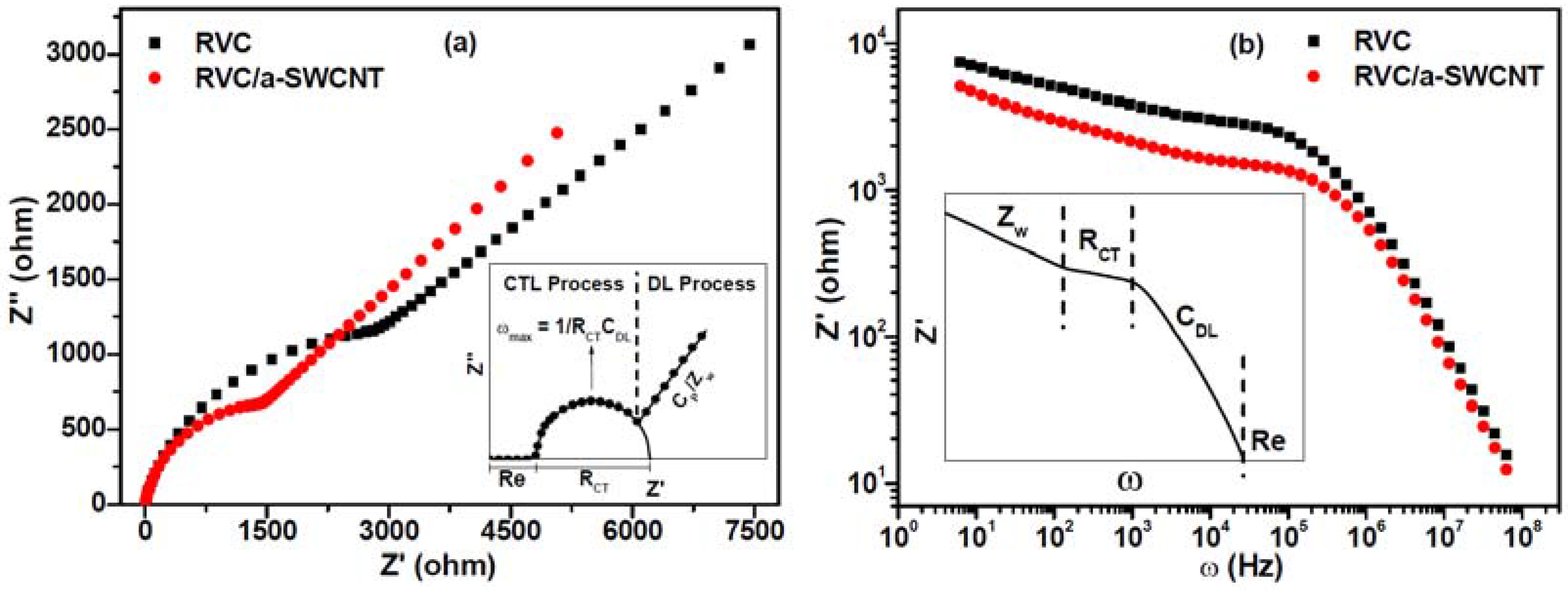

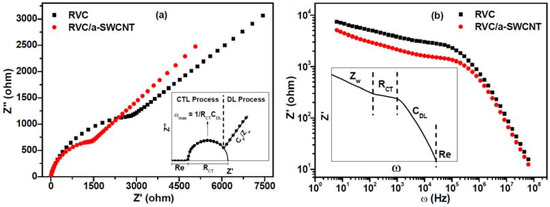

3.10. Electrochemical Impedance Spectroscopy

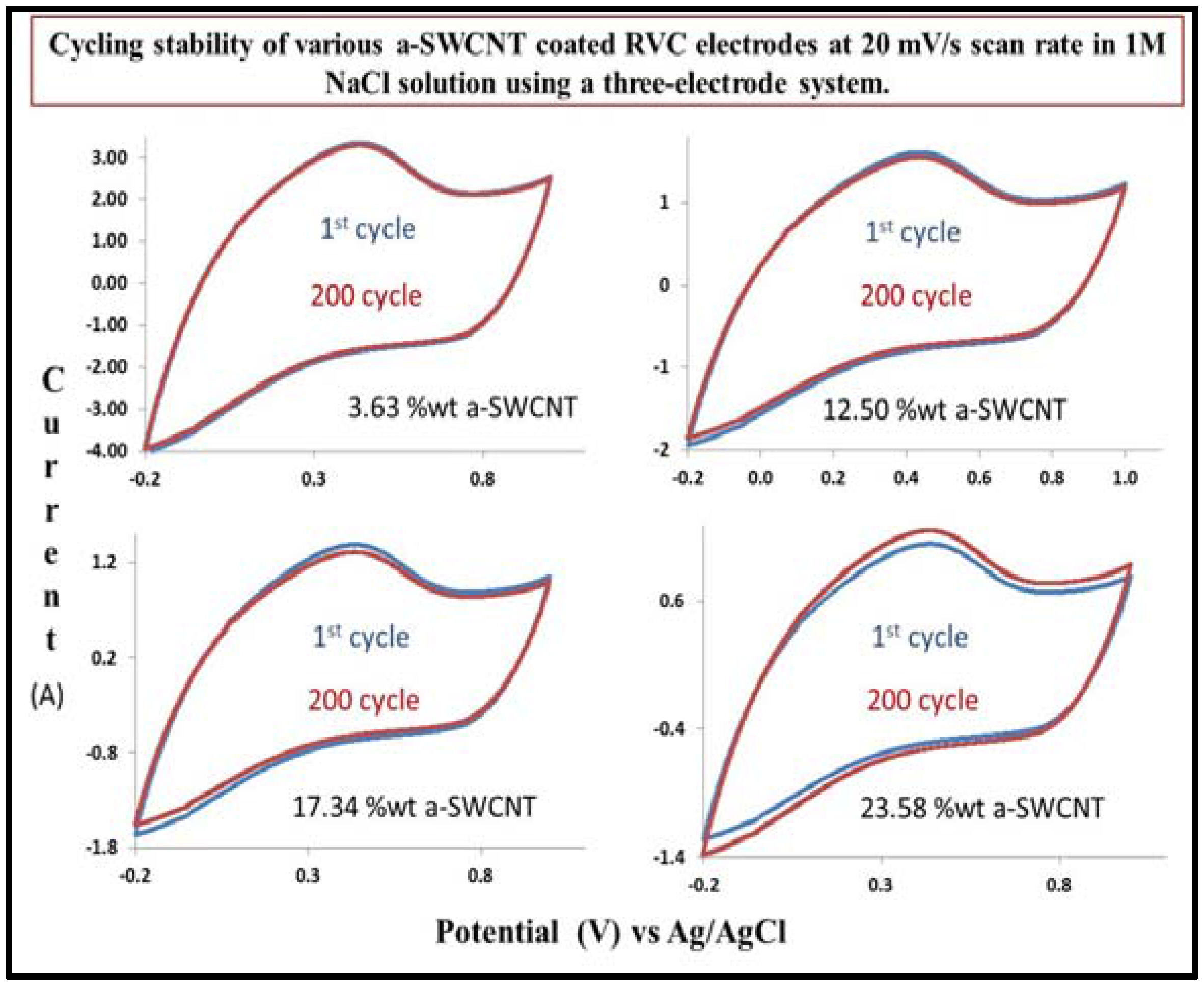

3.11. Cycling Stability of a-SWCNT/RVC Electrodes
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
