Nanomaterials 2017, 7(9), 253; doi:10.3390/nano7090253

Article
Electrochemical Properties of an Na4Mn9O18-Reduced Graphene Oxide Composite Synthesized via Spray Drying for an Aqueous Sodium-Ion Battery
Fuxing Yin 1, Zhengjun Liu 1, Yan Zhao 1,*, Yuting Feng 2 and Yongguang Zhang 1,*
1
School of Materials Science & Engineering, Research Institute for Energy Equipment Materials, Tianjin Key Laboratory of Materials Laminating Fabrication and Interface Control Technology, Hebei University of Technology, Tianjin 300130, China
2
Synergy Innovation Institute of GDUT, Heyuan 517000, China
*
Correspondence: Tel.: +86-22-6020-1447; Fax: +86-22-6020-4064
Received: 17 August 2017 / Accepted: 28 August 2017 / Published: 2 September 2017

Abstract

:
An aqueous sodium ion battery (ASIB) with metal Zn as anode and Na4Mn9O18-reduced graphene oxide (Na4Mn9O18-RGO) as cathode has been developed. In this work, spherical Na4Mn9O18-RGO composite particles were prepared via spray drying. The aqueous battery exhibits stable cyclability and high specific capacities. Typically, a high initial discharge capacity of 61.7 mAh·g−1 is attained at a high current rate of 4 C, and a stabilizing reversible capacity of 58.9 mAh·g−1 was obtained after 150 cycles. The network interlaced by RGO sheets provided fast electron conduction paths and structural stability to accommodate the mechanical stresses induced by sodium insertion and extraction, so the Na4Mn9O18-RGO electrode displayed superior electrochemical performance in the ASIB.
Keywords:
aqueous sodium-ion battery; cathode; Na4Mn9O18; energy storage materials

1. Introduction

Recently, sodium-ion batteries (SIBs) have been regarded as promising candidates to lithium ion batteries (LIBs) due to the low cost, relative abundance of sodium [1,2], and analogous intercalation chemistry between sodium and lithium. However, some intrinsic drawbacks still exist in SIBs such as the slower diffusion efficiency in the Na-host materials due to the larger atomic mass of sodium, huge volume expansion, and serious pulverization of electrodes [3,4,5].
Thence, in order to meet the demand of good electrochemical performance, lots of SIB electrode materials have been developed. Various Na-Mn oxides such as NaMn1/3Ni1/3Co1/3PO4 [6], NaxMn5O10 [7], Na2Mn5O10 [8], and Na4Mn9O18 have been extensively researched as active materials in SIB systems due to the presence of the extensive channels for Na ion intercalation and deintercalation [9]. Among them, Na4Mn9O18 exhibits the MnO6 octahedra and MnO5 square cone, which are able to constitute the wide S-type double tunnels for Na ion diffusion [10]. Whitacre et al. reported the Na4Mn9O18 as a positive electrode material for an aqueous sodium ion battery (ASIB), and this material cathode displayed a capacity of 45 mAh·g−1 at a current density of C/8 rate [11]. However, Na4Mn9O18 displayed poor storage capability and cyclability owing to the large volume expansion during the intercalation/deintercalation of large Na+, resulting in a gradual deterioration of dynamics and structures [12]. Encapsulating Na4Mn9O18 into an elastic carbon matrix offers an ideal strategy to provide an electron pathway for individual particles while limiting surface reactions and reducing the stress associated with the volume change upon Na+-ion insertion/extraction [13]. In 2012, hybrid aqueous lithium ion batteries with excellent cyclability and rate capability based on a Zn metal anode and an LiMn2O4 cathode was reported by P. Chen’s group [14]. Zn metal was chosen as an anode because of its abundance, low cost, and low equilibrium potential [15]. While referring to the literature corresponding to the similar system using a metallic Zn anode, the reversibility of the battery is reported to be a bit of a challenge in the presence of additives [16,17]. The environment of electrolyte has a great effect on the cyclic performance of zinc. Moreover, the acidic electrolyte is obviously different from the alkaline or neutral electrolytes [14].
The spray drying method possesses multitudinous strong points for controlling particle size and morphology, leading to a shortening of the evaporation time of the precursor and homogeneous composition [18]. Spray drying has been applied in the synthesis of numerous LIB cathodes, but it is rarely studied in SIB cathodes [19]. Herein, for the first time, we synthesized a novel Na4Mn9O18-reduced graphene oxide (Na4Mn9O18-RGO) composite with regular morphology and homogeneous composition via spray drying. Furthermore, we have investigated its potential as a positive electrode in an ASIB combining a Zn metal anode and an optimized Na+/Zn2+ mixed-ion electrolytes.

2. Materials and Methods

2.1. The Preparation of Na4Mn9O18-RGO Precursors by the HSCR Method

The Na4Mn9O18-RGO composite precursors were prepared by a hydrothermal soft chemical reaction (HSCR) method with high NaOH concentration [20]. Firstly, 16.65 mL of a 2 mg/mL aqueous colloidal suspension of graphene oxide (GO) prepared by the Hummer’s method [21] was added to 25 mL of a 0.28 M MnSO4 aqueous solution while stirring. An equal volume of aqueous solution containing 3.0 M NaOH and 0.1 M KMnO4 was then added into the above solution, and dark brown precipitates were quickly produced. The precipitate was washed once by deionized water and aged for 24 h to obtain Na-birnessite-GO precursors. Secondly, 4.0 g wet Na-birnessite-GO samples were added to 100 mL of a 15 M NaOH solution during a 30 min magnetic stirring period, and a dark brown suspension was then formed. Finally, the suspension was heated at 180 °C for 18 h using a 150 mL stainless steel autoclave with a Teflon liner. The resulting product was washed repeatedly with de-ionized water and dried at 60 °C in the air.

2.2. The Preparation of Na4Mn9O18-RGO by Spray Drying

The spray drying system consists of atomizer, quartz reactor, and particle collector [22]. The prepared slurry was spray-dried by a spray drier system (HOLVES). The solution was transferred to a pneumatic atomizing nozzle by a peristaltic pump at 6 mL/min to form droplets. The moisture of the droplets was quickly evaporated after atomization in hot air. The entrance and exit temperatures of a spray drying machine were 200 and 110 °C, respectively. The feed solution was prepared with 0.6 g of prepared Na4Mn9O18-RGO precursors in 200 mL of deionized water and mixed under mild ultra-sonication for 20 min to form a brown suspension. Then, the above suspension was spray-dried with an atomizing pressure of 0.8 MPa to produce the spray-dried powder.
Finally, the sample was further calcined under an Ar atmosphere for 2 h at 350 °C to form Na4Mn9O18-RGO composite particles, as shown in the schematic diagram in Figure 1. Reference Na4Mn9O18 particles without RGO was prepared following the same conditions.

2.3. Materials Characterization

The crystalline structure of as-prepared samples was characterized by X-ray diffraction (XRD, D8 Discover, Bruker, Germany) employing Cu Kα radiation. Raman spectra were attained with an Ar-ion laser of 532 nm using the inVia Reflex Raman imaging microscope system. Thermogravimetric analysis (TG, SDT Q-600, TA Instruments-Waters LLC, DE19720, Newcastle, PA, USA) was carried out from 25 to 1000 °C with a heating rate of 10 °C·min−1 under air. Scanning electron microscopy (SEM) analysis conducted on a Hitachi Limited S-4800 scanning electron microscope (Tokyo, Japan). The interior structure and selected area electron diffraction (SAED) of samples were studied using a JEOL JEM-2800 high resolution transmission electron microscope (HRTEM, Tokyo, Japan) at 160 kV.

2.4. Electrochemical Measurements

For preparing cathodes, the Na4Mn9O18-RGO particles were blended with carbon black and polyvinylidene fluoride (PVDF) in a weight ratio of 8:1:1 in N-methyl-2-pyrrolidone (NMP). The above slurry was spread onto a graphite foil current collector and dried at 70 °C for 10 h. Disks with a diameter of 15 mm were cut with the active material of 3–3.5 mg. Zinc disks with a diameter of 15 mm were used as anodes. The electrolyte was a solution of 1 M Na2SO4 and 0.5 M ZnSO4 with a pH level of 4 [23]. An absorbed glass mat (NSG Corporation, Tokyo, Japan) was used as a separator [24]. CR2025 cells were assembled in an air atmosphere before electrochemical tests were conducted. A battery tester (Neware, Shenzhen, China) was applied to investigate the charge/discharge cycling performances at different current densities in the voltage range of 1–1.85 V vs. Zn/Zn2+. The electrochemical workstation (Princeton, VersaSTAT 4, 50/60 Hz, Ametek, PA, USA) was used to test the cyclic voltammogram (CV) in the voltage range of 1–2 V and the electrochemical impedance spectroscopy (EIS) in the frequency range of 0.01–100 kHz with an amplitude of 10 mV.

3. Result and Discussion

Figure 2 shows the XRD patterns of Na4Mn9O18 and Na4Mn9O18-RGO particles. The XRD pattern of the Na4Mn9O18 sample are in good agreement with those of orthorhombic Na4Mn9O18 in accordance with JCPDS #27-0750 [25]. The obtained lattice parameters are a = 9.1 Å, b = 26.34 Å, and c = 2.821 Å, which are consistent with previous reports [25,26]. For the Na4Mn9O18-RGO sample, two broad diffraction peaks at around 25.8° and 43.1° can be seen, which are associated with the planes (200) and (100) of the RGO structure [27]. Apart from Na4Mn9O18 and RGO, no foreign peaks from impurities were observed.
Na4Mn9O18 and Na4Mn9O18-RGO particles were further determined by Raman spectra (Figure 3). The broad bands at around 615 cm−1 may be associated with stretching vibrations of Mn–O [13]. Compared to the spectrum of Na4Mn9O18, Na4Mn9O18-RGO contained two carbon-related bands at about 1352 (D-band) and 1594 cm−1 (G-band). These bands could be due to defective or disorder carbon and graphitic carbon in RGO, respectively [28,29].
The TG and DTG data is collected and shown in Figure 4. The first mass loss about 7% from room temperature to 200 °C is related to the release of physically absorbed water. The second mass loss that appears from 200 to 750 °C is due to the oxidation of C to CO2. As we can see, the TG curves of the Na4Mn9O18-RGO, the weight fractions of Na4Mn9O18 and RGO were recorded to be 81.7% and 18.3%, respectively.
Figure 5 shows the morphology and structure of Na4Mn9O18-RGO, which was confirmed by SEM and TEM. As shown in Figure 5a, the Na4Mn9O18-RGO samples present a spherical or ellipsoidal shape with diameters of about 4–6 μm. The inset image of Figure 5a indicates that the Na4Mn9O18-RGO particle has a diameter of 4.66 μm, with rod-like Na4Mn9O18 intimately wrapped in lamellarly structured RGO forming a spherical morphology. In addition, Figure 5b shows clearly the crosslinking state of Na4Mn9O18 and RGO. The rod-shaped Na4Mn9O18 with a diameter of around 50–80 nm are intertwined together by RGO, which will enhance the electrical conductivity of the micron-sized composite. The HRTEM image in Figure 5c shows the vertical lattice fringe is 0.45 nm, which corresponds to the (200) crystallographic plane of Na4Mn9O18 [12]. The SAED pattern in Figure 5d indicates the single crystal nature of Na4Mn9O18 and the polycrystalline of RGO, which is due to the multi-layer stacking.
Figure 6a shows the CV curves of Na4Mn9O18-RGO at a rate of 0.1 mV·s−1. There are two reduction peaks at around 1.18–1.19 V and 1.35–1.37 V as well as one oxidation peak at about 1.55–1.6 V during the first four cycles. With increasing cycles, the potentials of the redox peak increase and tend to be stable. In addition, the reduction peak at about 1.18–1.19 V gradually disappeared while the peak at 1.35–1.37 V gradually increased due to the initial activation process of the electrode. The charge and discharge curves are displayed in Figure 6b. The Na4Mn9O18-RGO electrode shows two potential plateaus at about 1.18 and 1.36 V in its discharge process and one plateau at around 1.55 V in its charging cycle, corresponding well with the CV data. The initial coulombic efficiency was only 77.6% due to the high initial charge capacity of 79.5 mAh·g−1, which originates from the irreversible side reactions that occurred in the first charge process. The first four discharge curves exhibited an excellent discharge capacity of around 63 mAh·g−1 at a high current density of 4 C.
Figure 7a presents the cycling performance of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes at 4 C. Both type of electrodes experienced a drop in capacity from the first cycle, which corresponding to the electrodes activation process. The initial discharge capacity of the Na4Mn9O18-RGO electrode was 61.7 mAh·g−1, and the maximum capacity was 80.5 mAh·g−1 in the 35th cycle. The Na4Mn9O18-RGO and Na4Mn9O18 electrodes both exhibited good cycle stability, maintaining a specific capacity of 58.9 and 41.2 mAh g−1 after 150 cycles. Compared with the initial cycle, the two electrodes maintained a capacity of 95.5% and 83.2% after 150 cycles, respectively. For the Na4Mn9O18-RGO electrode, the addition of RGO is necessary for mitigating the low electronic conductivity of Na4Mn9O18 [30].
The rate capability of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes are investigated and compared in Figure 7b. As expected, compared with the Na4Mn9O18 electrode, the Na4Mn9O18-RGO electrode represents a better rate performance. The Na4Mn9O18-RGO electrode submits a reversible discharge capacity of around 85 mAh·g−1 at a 1 C low current rate. Furthermore, the Na4Mn9O18-RGO electrode can deliver reversible discharge capacities of 75, 68, and 61 mAh g−1 at the rates of 2, 3, and 4 C, respectively. Surprisingly, when the current rate was returned to 1 C, the specific discharge capacity of the composite recovered to 94 mAh·g−1. This is equivalent to a 110.6% recovery of the initial capacity, corresponding to the electrodes activation process in Figure 7a, suggesting good electrode structure stability of the Na4Mn9O18-RGO electrode. As a comparison, the reversible discharge capacities of the Na4Mn9O18 at each current rate were lower than that of the Na4Mn9O18-RGO. It can be concluded that the network interlaced by RGO sheets provides fast electron conduction pathways and structural stability to accommodate the mechanical stresses induced by sodium insertion and extraction.
Nyquist plots of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes were produced with a frequency range of 105–0.01 Hz and are presented in Figure 8. The inset of Figure 8 is a simple equivalent circuit model applied to fit the EIS.
The RS is the electrolyte resistance of cell components, RCT is associated with the charge transfer procedure at the electrode-electrolyte interface, ZW is the Warburg impedance that is associated with sodium-ion diffusion in the electrode, and CPE is associated with the double layer capacitance. It can be seen that the charge transfer resistance (RCT) of the Na4Mn9O18-RGO electrode is a little smaller than that of Na4Mn9O18. Additionally, the ZW of the Na4Mn9O18-RGO electrode has a bigger slope, which indicates enhanced sodium-ion diffusion. Our EIS measurements demonstrated that the RGO sheets are beneficial to improving electrochemical performance.

4. Conclusions

In summary, the Na4Mn9O18-RGO particles have been successfully synthesized by a hydrothermal soft chemical reaction and via spray drying. An aqueous sodium ion battery using metallic Zn and Na4Mn9O18-RGO as the negative and positive electrodes, respectively, has been developed. Compared to the Na4Mn9O18 electrode, the Na4Mn9O18-RGO electrode offered a larger discharge capacity of 58.9 mAh·g−1 at 4 C, even after 150 full cycles due to the network structure of RGO. The superior electrochemical performance demonstrates that Na4Mn9O18-RGO can be a promising material for a safe and efficient ASIB.

Acknowledgments

This work was supported by grants from the National Natural Science Foundation of China (Grant No. 21406052), the Science Research Foundation for Selected Overseas Chinese Scholars, the Ministry of Human Resources and Social Security of China (Grant No. CG2015003002), and the Program for the Outstanding Young Talents of Hebei Province (Grant No. BJ2014010).

Author Contributions

Fuxing Yin and Yongguang Zhang conceived and designed the experiments; Zhengjun Liu and Yuting Feng carried out the experiments; Zhengjun Liu and Yan Zhao analyzed the data; Fuxing Yin and Yongguang Zhang contributed reagents/materials/analysis tools; Yongguang Zhang and Yan Zhao contributed in the drafting and revision of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, B.; Liu, Y.; Wu, X.; Yang, Y.; Chang, Z.; Wen, Z.; Wu, Y. Cheminform abstract: An aqueous rechargeable battery based on zinc anode and Na0.95MnO2. Chem. Commun. 2014, 45, 1209–1211. [Google Scholar] [CrossRef] [PubMed]
  2. Li, Z.; Young, D.; Xiang, K.; Carter, W.C.; Chiang, Y.M. Towards high power high energy aqueous sodium-ion batteries: The NaTi2(PO4)3/Na0.44MnO2 System. Adv. Energy Mater. 2013, 3, 290–294. [Google Scholar] [CrossRef]
  3. Li, S.; Dong, Y.; Xu, L.; Xu, X.; He, L.; Mai, L. Effect of carbon matrix dimensions on the electrochemical properties of Na3V2(PO4)3 nanograins for high-performance symmetric sodium-ion batteries. Adv. Mater. 2014, 26, 3545–3553. [Google Scholar] [CrossRef] [PubMed]
  4. Hong, S.Y.; Kim, Y.; Park, Y.; Choi, A.; Choi, N.S.; Lee, K.T. ChemInform Abstract: Charge Carriers in Rechargeable Batteries: Na Ions vs. Li Ions. Energy Environ. Sci. 2014, 45, 2067–2081. [Google Scholar] [CrossRef]
  5. Cao, Y.; Xiao, L.; Wang, W.; Choi, D.; Nie, Z.; Yu, J.; Saraf, L.V.; Yang, Z.; Liu, J. Reversible sodium ion insertion in single crystalline manganese oxide nanowires with long cycle life. Adv. Mater. 2011, 23, 3155–3160. [Google Scholar] [CrossRef] [PubMed]
  6. Minakshi, M.; Meyrick, D.; Appadoo, D. Maricite (NaMn1/3Ni1/3Co1/3PO4)/activated carbon: Hybrid capacitor. Energy Fuel 2013, 27, 3516–3522. [Google Scholar] [CrossRef]
  7. Minakshi, M. Looking beyond lithium-ion technology-aqueous NaOH battery. Mater. Sci. Eng. B 2012, 177, 1788–1792. [Google Scholar] [CrossRef]
  8. Liu, S.; Fan, C.Z.; Zhang, Y.; Li, C.H.; You, X.Z. Low-temperature synthesis of Na2Mn5O10 for supercapacitor applications. J. Power Sources 2011, 196, 10502–10506. [Google Scholar] [CrossRef]
  9. Datta, M.K.; Kuruba, R.; Jampani, P.H.; Chung, S.J.; Saha, P.; Epur, R.; Kadakia, K.; Patel, P.; Gattu, B.; Manivannan, A. Electrochemical properties of a new nanocrystalline NaMn2O4 cathode for rechargeable sodium ion batteries. Mater. Sci. Eng. B-Adv. 2014, 188, 1–7. [Google Scholar] [CrossRef]
  10. Saint, J.A.; Doeff, M.M.; Wilcox, J. Electrode materials with the Na0.44MnO2 structure: Effect of titanium substitution on physical and electrochemical properties. Chem. Mater. 2008, 20, 3404–3411. [Google Scholar] [CrossRef]
  11. Whitacre, J.F.; Tevar, A.; Sharma, S. Na4Mn9O18 as a positive electrode material for an aqueous electrolyte sodium-ion energy storage device. Electrochem. Commun. 2010, 12, 463–466. [Google Scholar] [CrossRef]
  12. Fu, B.; Zhou, X.; Wang, Y. High-rate performance electrospun Na0.44MnO2 nanofibers as cathode material for sodium-ion batteries. J. Power Sources 2016, 310, 102–108. [Google Scholar] [CrossRef]
  13. Zhao, L.; Ni, J.; Wang, H.; Gao, L. Na0.44MnO2-CNT electrodes for non-aqueous sodium batteries. RSC. Adv. 2013, 3, 6650–6655. [Google Scholar] [CrossRef]
  14. Yan, J.; Wang, J.; Liu, H.; Bakenov, Z.; Gosselink, D.; Chen, P. Rechargeable hybrid aqueous batteries. J. Power Sources 2012, 216, 222–226. [Google Scholar] [CrossRef]
  15. Lee, J.S.; Sun, T.K.; Cao, R.; Choi, N.S.; Liu, M.; Lee, K.T.; Cho, J. Metal-air batteries: Metal-air batteries with high energy density: Li-air versus Zn-air. Adv. Energy Mater. 2011, 1, 34–50. [Google Scholar] [CrossRef]
  16. Minakshi, M.; Mitchell, D.R.G.; Prince, K. Incorporation of TiB2 additive into MnO2 cathode and its influence on rechargeability in an aqueous battery system. Solid State Ion. 2008, 179, 355–361. [Google Scholar] [CrossRef]
  17. Minakshi, M.; Pandey, A.; Blackford, M.; Ionescu, M. Effect of TiS2 additive on LiMnPO4 cathode in aqueous solutions. Energy Fuel 2010, 24, 6193–6197. [Google Scholar] [CrossRef]
  18. Zou, H.; Li, S.; Wu, X.; Mcdonald, M.J.; Yang, Y. Spray-drying synthesis of pure Na2CoPO4F as cathode material for sodium ion batteries. ECS Electrochem. Lett. 2015, 4, A53–A55. [Google Scholar] [CrossRef]
  19. Wu, F.; Wang, Z.; Li, X.; Guo, H.; Peng, Y.; Xiong, X.; He, Z.; Zhang, Q. Characterization of spherical-shaped Li4Ti5O12 prepared by spray drying. Electrochim. Acta 2012, 78, 331–339. [Google Scholar] [CrossRef]
  20. Liu, C.; Guo, W.L.; Wang, Q.H.; Li, J.G.; Yang, X.P. Parametric study of hydrothermal soft chemical synthesis and application of Na0.44MnO2 nanorods for Li-ion battery cathode materials: Synthesis conditions and electrochemical performance. J. Alloys Compd. 2016, 658, 588–594. [Google Scholar] [CrossRef]
  21. Guerrero-Contreras, J.; Caballero-Briones, F. Graphene oxide powders with different oxidation degree, prepared by synthesis variations of the Hummers method. Mater. Chem. Phys. 2015, 153, 209–220. [Google Scholar] [CrossRef]
  22. Ju, S.H.; Yun, C.K. Effects of drying control chemical additive on properties of Li4Ti5O12 negative powders prepared by spray pyrolysis. J. Power Sources 2010, 195, 4327–4331. [Google Scholar] [CrossRef]
  23. Bai, S.; Song, J.; Wen, Y.; Cheng, J.; Cao, G.; Yang, Y.; Li, D. Effects of zinc and manganese ions in aqueous electrolytes on structure and electrochemical performance of Na0.44MnO2 cathode material. RSC Adv. 2016, 6, 40793–40798. [Google Scholar] [CrossRef]
  24. Yesibolati, N.; Umirov, N.; Koishybay, A.; Omarova, M.; Kurmanbayeva, I.; Zhang, Y.; Zhao, Y.; Bakenov, Z. High performance Zn/LiFePO4 aqueous rechargeable battery for large scale applications. Electrochim. Acta 2015, 152, 505–511. [Google Scholar] [CrossRef]
  25. Dong, J.K.; Ponraj, R.; Kannan, A.G.; Lee, H.W.; Fathi, R.; Ruffo, R.; Mari, C.M.; Kim, D.K. Diffusion behavior of sodium ions in Na0.44MnO2 in aqueous and non-aqueous electrolytes. J. Power Sources 2013, 244, 758–763. [Google Scholar]
  26. Liu, C.; Li, J.; Zhao, P.; Guo, W.; Yang, X. Fast preparation of Na0.44MnO2 nanorods via a high NaOH concentration hydrothermal soft chemical reaction and their lithium storage properties. J. Nanopart. Res. 2015, 17, 142. [Google Scholar] [CrossRef]
  27. Veerappan, G.; SunyoungYoo; Zhang, K.; Ma, M.; Kang, B.; Park, J.H. High-reversible capacity of perovskite BaSnO3/rGO composite for lithium-ion battery anodes. Electrochim. Acta 2016, 214, 31–37. [Google Scholar] [CrossRef]
  28. Bharathidasan, P.; Kim, D.W.; Devaraj, S.; Sivakkumar, S.R. Supercapacitive characteristics of carbon-based graphene composites. Electrochim. Acta 2016, 204, 146–153. [Google Scholar] [CrossRef]
  29. Dresselhaus, M.S.; Jorio, A.; Hofmann, M.; Dresselhaus, G.; Saito, R. Perspectives on carbon nanotubes and graphene raman spectroscopy. Nano Lett. 2010, 10, 751–758. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, Y.; He, D.; Wu, H.; Duan, J.; Zhang, Y. Hydrothermal self-assembly of manganese dioxide/manganese carbonate/reduced graphene oxide aerogel for asymmetric supercapacitors. Electrochim. Acta 2015, 164, 154–162. [Google Scholar] [CrossRef]

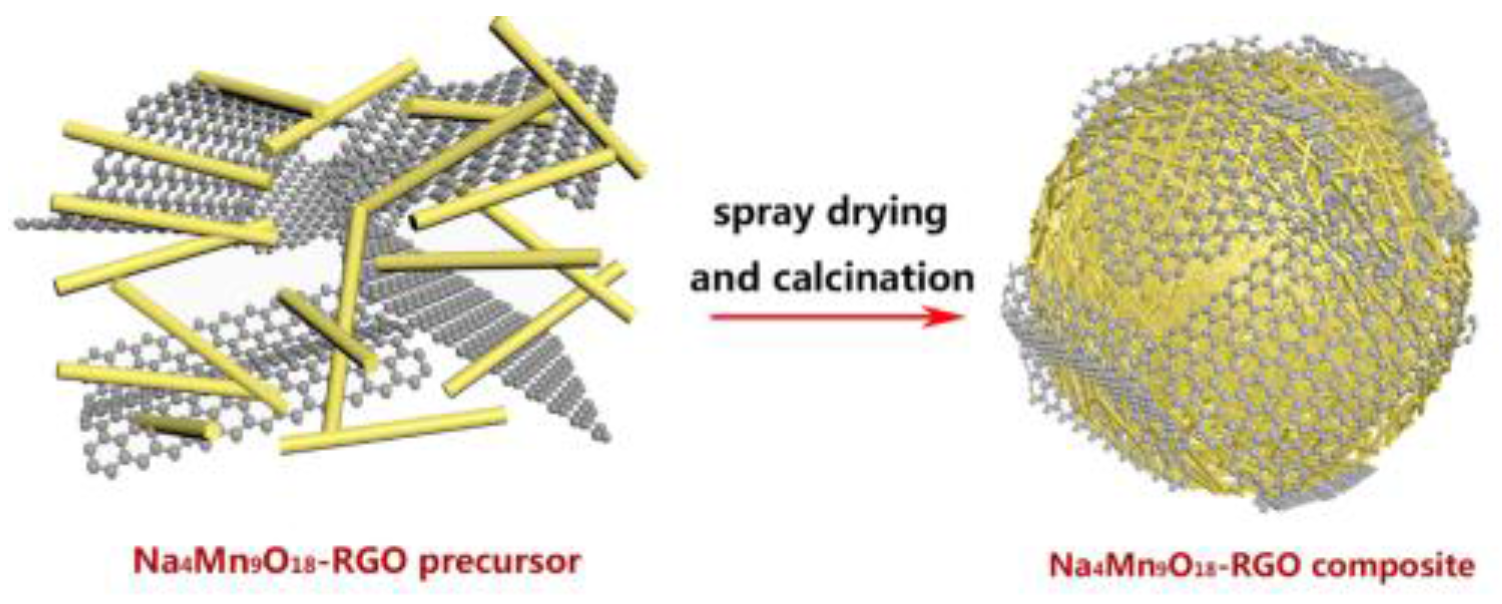

Figure 1. The schematic diagram of Na4Mn9O18-RGO composite by spray drying.
Figure 1. The schematic diagram of Na4Mn9O18-RGO composite by spray drying.
Nanomaterials 07 00253 g001

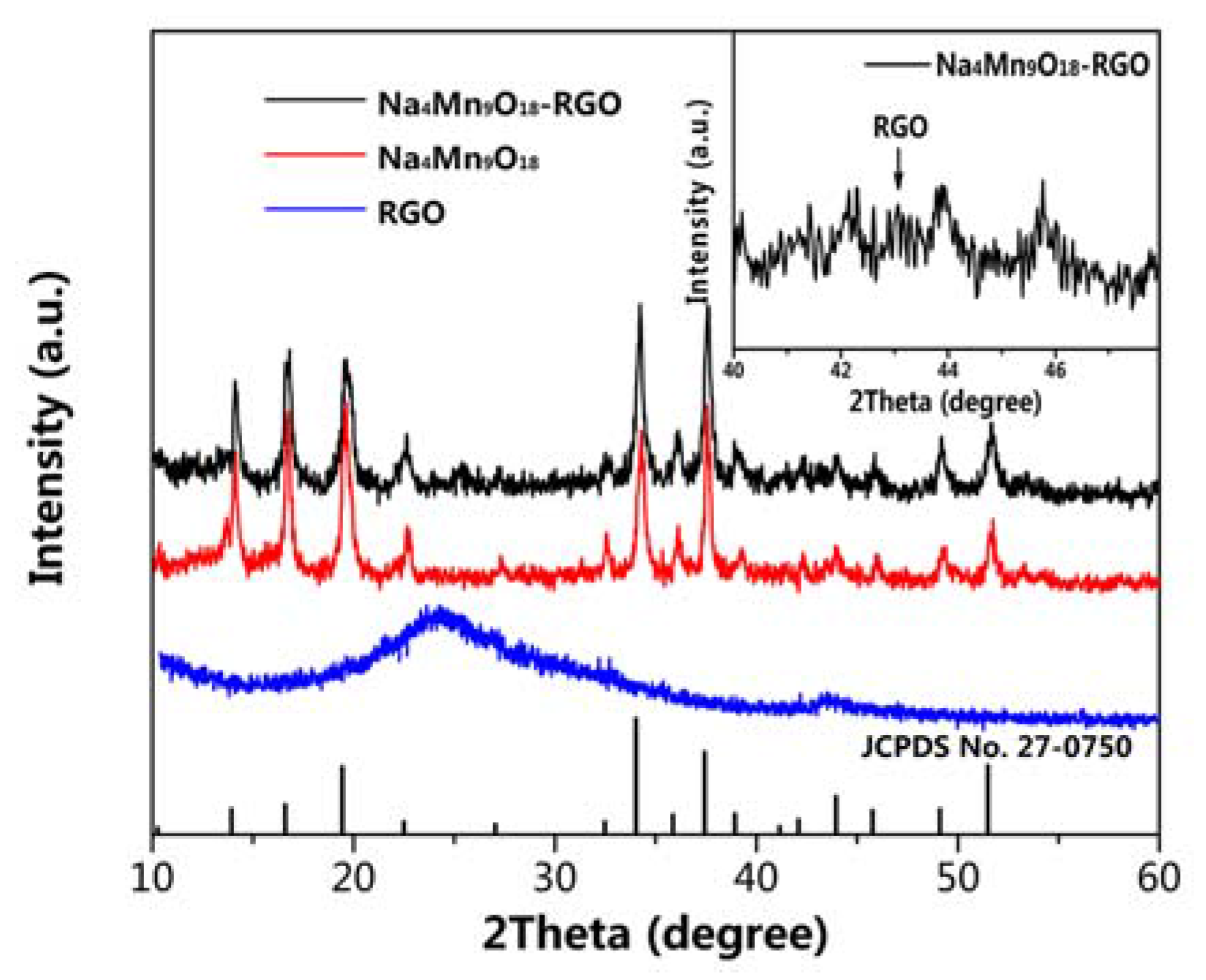

Figure 2. XRD patterns of Na4Mn9O18, Na4Mn9O18-RGO, and RGO.
Figure 2. XRD patterns of Na4Mn9O18, Na4Mn9O18-RGO, and RGO.
Nanomaterials 07 00253 g002
Figure 3. Raman spectrum of Na4Mn9O18, Na4Mn9O18-RGO, and RGO.
Figure 3. Raman spectrum of Na4Mn9O18, Na4Mn9O18-RGO, and RGO.
Nanomaterials 07 00253 g003

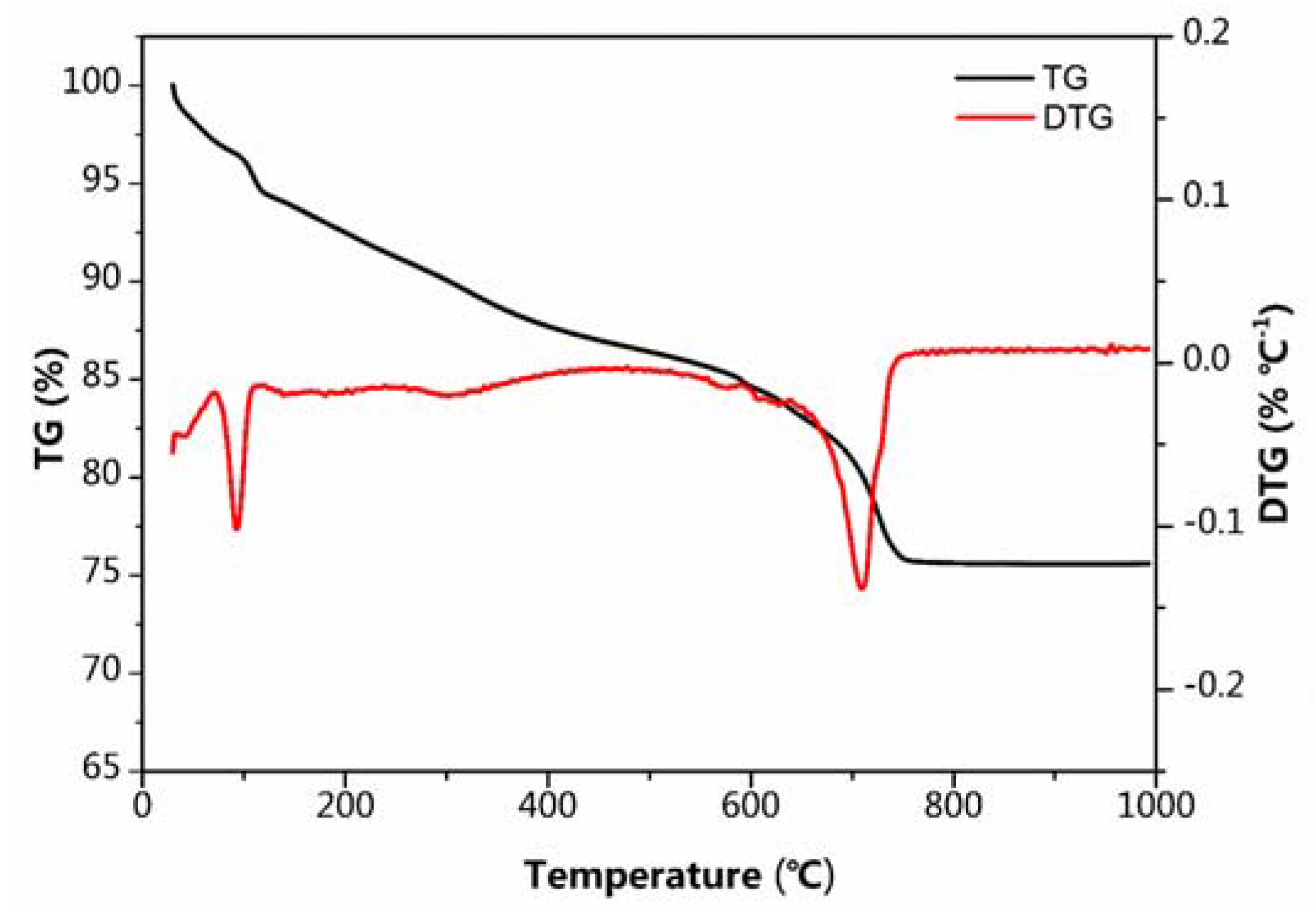

Figure 4. TG-DTG curves of Na4Mn9O18-RGO under an air atmosphere.
Figure 4. TG-DTG curves of Na4Mn9O18-RGO under an air atmosphere.
Nanomaterials 07 00253 g004
Figure 5. The morphology and structure of the Na4Mn9O18-RGO. (a) SEM image; (b) TEM image; (c) HRTEM image; (d) SAED pattern.
Figure 5. The morphology and structure of the Na4Mn9O18-RGO. (a) SEM image; (b) TEM image; (c) HRTEM image; (d) SAED pattern.
Nanomaterials 07 00253 g005

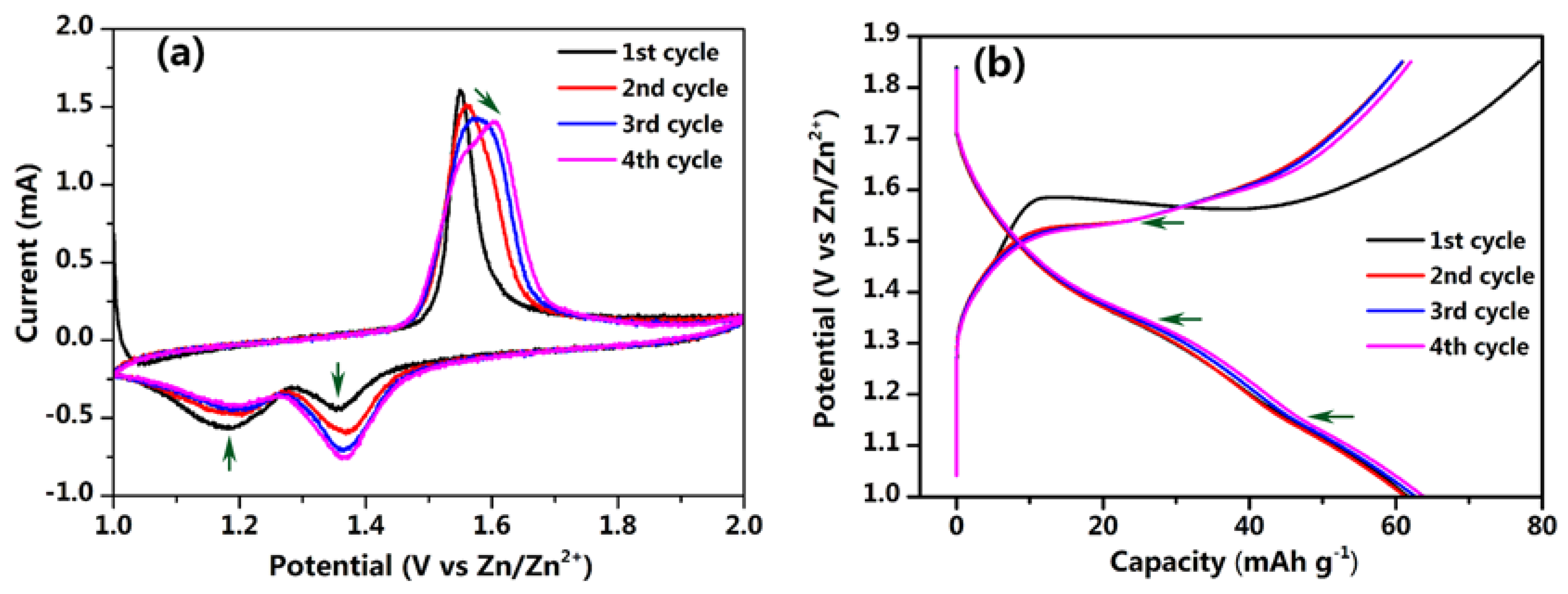

Figure 6. Electrochemical performance of the Na4Mn9O18-RGO electrode (vs. Zn/Zn2+). (a) CV curves at a rate of 0.1 mV·s−1. (b) Charge and discharge curves at 4 C.
Figure 6. Electrochemical performance of the Na4Mn9O18-RGO electrode (vs. Zn/Zn2+). (a) CV curves at a rate of 0.1 mV·s−1. (b) Charge and discharge curves at 4 C.
Nanomaterials 07 00253 g006

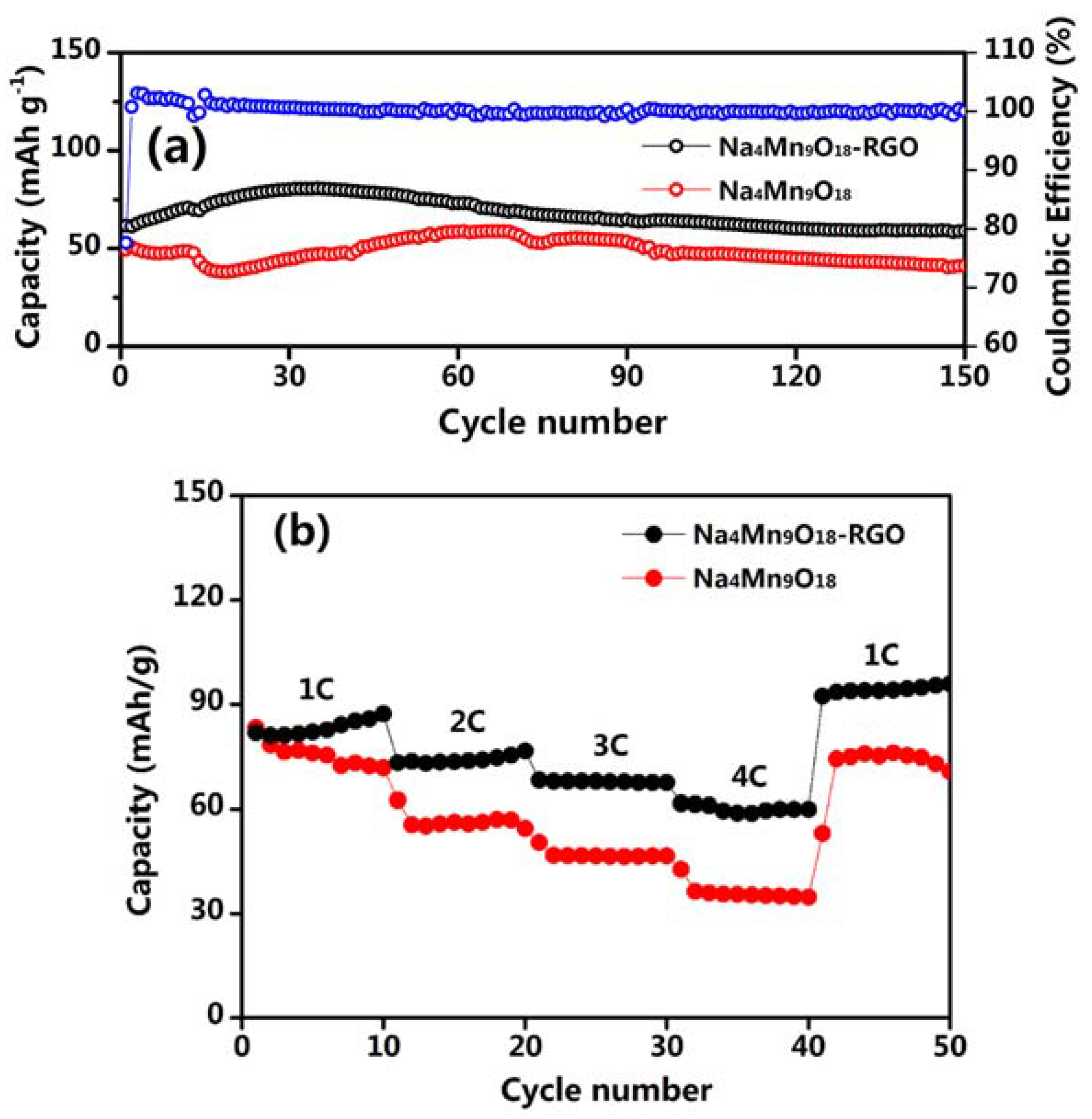

Figure 7. (a) Cycling performance of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes at 4 C and coulombic efficiency of the Na4Mn9O18-RGO electrode. (b) Rate capability of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes.
Figure 7. (a) Cycling performance of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes at 4 C and coulombic efficiency of the Na4Mn9O18-RGO electrode. (b) Rate capability of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes.
Nanomaterials 07 00253 g007

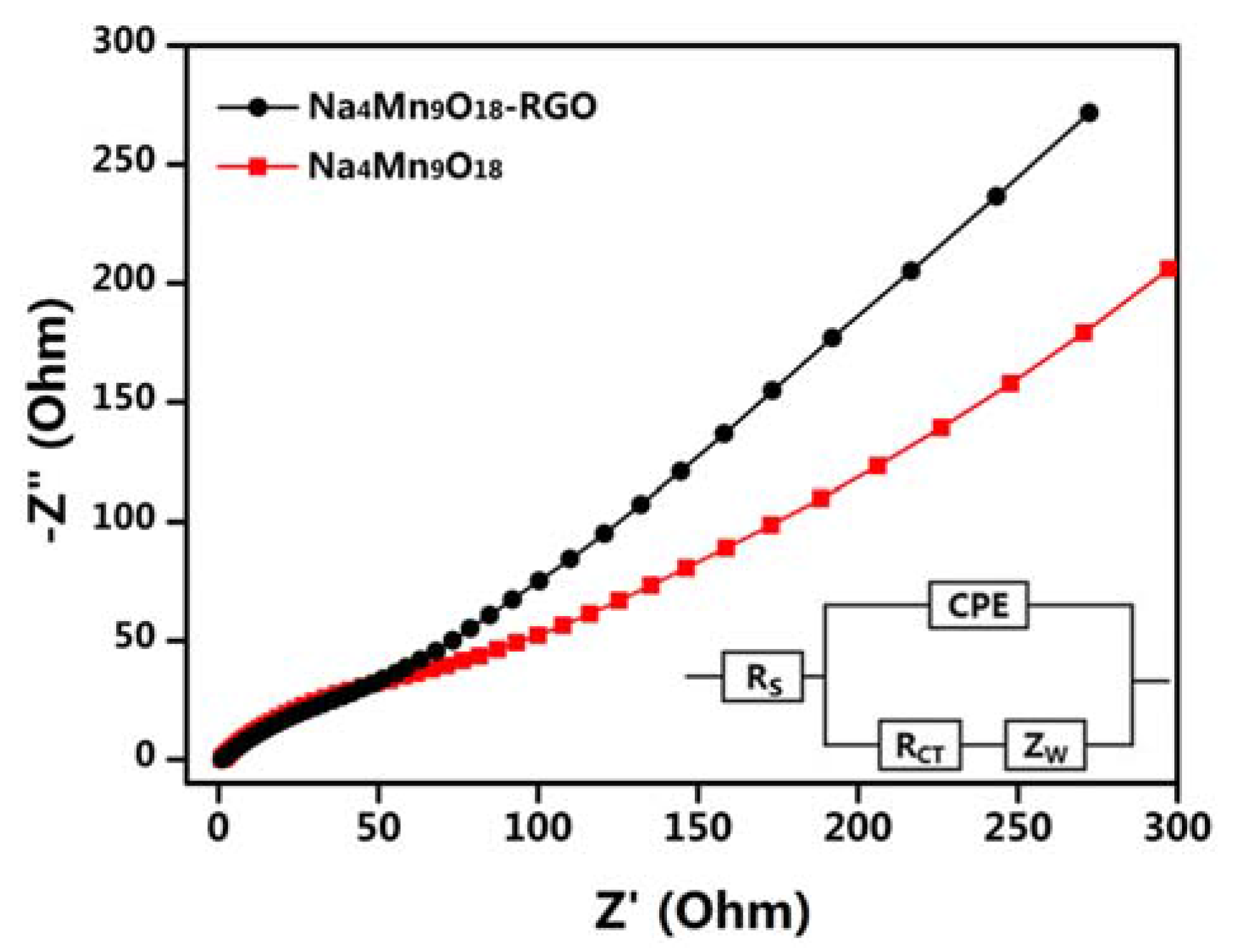

Figure 8. EIS of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes and the equivalent circuit model of plot fitting (inset).
Figure 8. EIS of the Na4Mn9O18-RGO and Na4Mn9O18 electrodes and the equivalent circuit model of plot fitting (inset).
Nanomaterials 07 00253 g008
