Nanomaterials 2017, 7(9), 246; doi:10.3390/nano7090246

Review
Mini Review: Nanosheet Technology towards Biomedical Application
Sheng Zhang 1,,*Orcid, Yuta Sunami 1,2, and Hiromu Hashimoto 2,*
1
Micro/Nano Technology Center, Tokai University, 4-1-1 Kitakaname, Hiratsuka-city, Kanagawa 259-1292, Japan
2
Department of Mechanical Engineering, Tokai University, 4-1-1 Kitakaname, Hiratsuka-city, Kanagawa 259-1292, Japan
*
Correspondence:
These authors contributed equally to this work.
Received: 7 August 2017 / Accepted: 28 August 2017 / Published: 31 August 2017

Abstract

:
The fabrication technique of ultrathin film (commonly known as nanosheets) has been significantly developed over the years. Due to the mechanical properties of nanosheets, such as high levels of adhesion and flexibility, this made nanosheets the ideal candidate in biomedical applications. In this review, innovative biomedical applications of nanosheets are discussed, which include, drug delivery, wound treatment, and functional nanosheets towards flexible biodevices, etc. Finally, the future outlook of nanosheet technology towards a biomedical application is discussed.
Keywords:
nanosheet; fragmented nanosheets; drug delivery; wound treatment

1. Introduction

The fabrication technique of ultrathin film (commonly known as nanosheets) is one important subject in nanotechnology, and it has been significantly developed over the years [1]. The unique electronic structure with atomic thickness made two-dimensional (2D) nanosheets to have a tremendously large surface-area-to-thickness ratio, attracted great attentions in a range of areas [2,3,4]. To date, a great amount of two-dimensional nanosheet materials have been developed, especially inorganic nanomaterials as single layer and multilayer nanosheets [5,6]. These unique ultrathin thicknesses and 2D shapes exhibit peculiar physical, chemical, or electronic properties when compared with their bulk state, therefore, demonstrating the potential for various applications, e.g., catalysis, sensing, and energy storage, etc. [7,8,9].
In this mini review, the advances in nanosheet technology towards novel biomedical applications such as drug delivery, wound treatment, and nano-biodevice are discussed. In addition, the future outlook of nanosheet technology is brainstormed.

2. Biomedical Application

2.1. Drug Delivery

One particular biomedical application for nanosheet is drug delivery, and unsolved critical issues involving how to reach specific targets without harming the normal cells, e.g., anti-cancer drugs. As of today, cancer is one of the biggest challenges facing mankind, and it remains one of the main causes of death worldwide. Nanotechnology is one of the promising routes to attack cancer cells efficiently without undesired severe side effects [10]. In the modern research, nanosheet has been found to provide a potential solution associated with drug delivery, and mainly graphene-based nanosheets (GNS), including graphenes, graphene oxides, and reduced graphene oxides [11,12,13]. One advantage of GNS is the high loading capacities as compared with other nanocarriers for the delivery of chemotherapeutics and biological drugs.
According to the preliminary investigation of Wu et al., graphene oxide (GO) sheet has demonstrated as a carrier for adriamycin (ADR) to reverse drug resistance in breast cancer cells [14]. ADR was loaded onto the GO sheet surface (ADR-GO) with a high drug loading content up to 93.6%. The GO sheet consists of intact graphitic regions interspersed with sp3-hybridized carbons on the sheet surface, and sp2-hybridized carbons on the aromatic network, as the result, the drug molecules can be loaded effectively (refer to Figure 1). As shown in Figure 1a, ATP hydrolysis releases the energy to P-gp, which then pumps a variety of anticancer drugs, e.g., ADR, out of the cells. Supported by the low endosomal pH trigger, adenosine triphosphate (ADR) can be successfully released into the cytoplasm (refer to Figure 1b). Based on the cell experiments, GO sheet shows significant enhancement of ADR accumulation in MCF-7/ADR cells with much higher cytotoxicity than free ADR. The MCF-7 is one of the most studied cancer cell lines which is named after the Michigan Cancer Foundation (MCF).
Moreover, a recent study shows that the graphene nanosheet has the dual role as a nanocarrier for the anti-cancer drug, and also acts as an anti-cancer agent [15]. In the research conducted by Tyagi et al. [15], the graphene nanosheets were exfoliated by using poly(vinylpyrrolidone) nanoparticles (PVP-NP), which have higher concentrations of loaded drug caused significant cytotoxicity against both mouse embryonic fibroblasts (NIH-3T3) and human colorectal cancer cells (HCT-116). As shown in Figure 2, the toxic effect of graphene-poly(vinylpyrrolidone) nanoparticle composite (GRP-PVP-NP) against cancer cells is visualized. The GRP-PVP-NP nanosheets served as a nano-carrier for anti-cancer drugs due to the advantage of a high surface area with drugs adhere on both sides of the single sheet. Based on the experimental data, higher concentrations of graphene nanosheets can hamper the growth of cancer cells colony formation ability, and induce cell death through the mechanism of oxidative stress.

2.2. Wound Treatment

A series of nanosheet materials possess high levels of adhesiveness and flexibility, and these traits made nanosheets the ideal choice in biomedical applications [16]. For instance, nanosheets composed with versatile clinically used biomaterials can be applied for sealing operations in surgery. Wound healing of skin is a highly coordinated, spatiotemporally regulated process with overlapping phases of hemostasis, inflammation, proliferation, and remodeling [17]. Severe tissue damage or inflammation made suture and ligation technically difficult to conduct in the surgical operations [18]. However, the composition of polyester materials, like poly(l-lactic acid) (PLLA), poly(glycolide), and copolymers enhance nanosheets to have the sufficient adhesive strength to cover the wound area in an relatively easier procedure [19]. The excellent adhesiveness to biological tissue can accelerate the fibrin formation (refer to Figure 3). Moreover, the wound site can be stabilized without eliciting an inflammatory response. According to the research conducted by Okamura et al., a free-standing biocompatible polysaccharide nanosheet composed of chitosan and sodium alginate is fabricated through a spin-coating-assisted layer-by-layer method [20]. A practical working test of the 75 nm polysaccharide nanosheet is demonstrated in vivo on visceral pleural defect model of beagle dogs. This fabricated nanosheet acts as a wound dressing and a method of repairing a gastric incision by sealing instead of surgical suturing. One year later, the research conducted by Fujie et al., demonstrated the nanosheet-type biomaterial can be the potential clinical treatment for repairing a cecal colostomy without chemical bonding agents [21]. The polysaccharide nanosheet was applied to an experimental murine model of cecal puncture, and adhered densely without any adhesive agents. The usage of the polysaccharide nanosheet decreased bacterial extravasation and increased the survival rates of mice.
Moreover, the fragmentation of poly(lactic acid) nanosheets and patchwork treatment for burn wounds is investigated by Okamura et al. [22]. First, 25 freestanding PLLA nanosheets with the thickness of 60 ± 6 nm were homogenized at 30,000 rpm into fragments with the volume of 1.44 × 10−14 m3, and calculated the specific surface area of fragmented PLLA nanosheets to be 26 m2 g−1 (refer to Figure 4). Based on the experimental results, the fragmented PLLA nanosheets firmly attached to various interfaces as patchwork with no assistance of any adhesive reagents. The patchwork demonstrates an excellent barrier ability to prevent infection during the treatment of burns for a period of 3 days.
Furthermore, research about graphene oxide nanosheet for an efficient antibacterial, antifungal, and wound treatment is conducted by Khan et al. [23]. The experimental results show the synergistic effect of antibacterial property of GO and neodymium-doped yttrium aluminium garnet (Nd-YAG) laser (1064 nm) for antibacterial and antifungal treatments as a non-invasive method, with a higher efficiency as compared to antibiotics. The new therapy reveals remarkable healing for infection wounds on the dorsal surface of albino mice (adult and male) (refer to Figure 5). A similar investigation is conducted by Ito et al., using silver sulfadiazine-loaded nanosheets to heal a partial-thickness burn injury in a mouse model [24].

2.3. Nanosheet towards Biodevices

Nanosheet technology is an innovative and promising approach for health-care practices in surgery, as well as for linking the human body to electronic interfaces and biodevices for future medical applications [25]. Nowadays, electrochemical biosensors can be fabricated with the benefit of nanotechnology offering high sensitivity, real-time detection, low power requirements, and an incredibly small size [26,27].
Researchers have designed a robust multilayered graphene petal nanosheets (MGPN) with platinum nanoparticles for electrochemical biosensing [28]. Pt nanoparticles are electrodeposited onto the MGPNs for the effort of increasing electro-reactivity towards the reduction of oxygen to H2O2 (refer to Figure 6). The enzyme GOx is mixed with the conductive polymer poly(3,4-ethylenedioxythiophene (PEDOT) in order to convert the platinum nanoparticles (PtNP)-MGPN electrode into enzymatic biosensors. Outstanding results show that the glucose sensing range is expanded into the physiological concentration levels found in urine, tears, and saliva in addition to blood. Moreover, the electrodeposition of GOx with PEDOT onto the PtNP modified MGPNs minimizes the robust glucose sensing interference from endogenous electroactive species.
In the current state, researchers have combined the electrochemical biosensors with nanosheets into a revolutionary two-dimensional (2D) bioelectronics [29]. The MoS2 nanosheets was structured of gold nanoparticles (Au NPs) with an assembly of the enzyme for glucose detection (refer to Figure 7). The fabrication of a two-dimensional biosystem is simple, inexpensive, and high level at the same time. The experimental results have shown that the innovative 2D biosystem has the ability to control bioelectrocatalytic reactions by nanointerface modification.

3. Conclusions

Nanosheet technology is an emerging field with a promising future of research. In this mini review, the recent development of nanosheet technology towards biomedical applications is discussed. Sufficient amounts of investigations have proven that nanosheet technology is able to solve the problems and challenges in a series of biomedical areas, e.g., drug delivery, wound treatment, and biodevices. In the future, with a deeper understanding of the cell-material interface, nanosheet involved tissue engineering is expected with even - living organism.

Acknowledgments

This work was supported by MEXT (Japanese Ministry of Education, Culture, Sports, Science and Technology)-Supported Program for the strategic Research Foundation at Private Universities, Grant #S1411010.

Author Contributions

Sheng Zhang did most writing for the manuscript and literature studying. Yuta Sunami contributed partial literature study and discussion. Hiromu Hashimoto supervised development of manuscript and evaluation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mallwitz, F.; Laschewsky, A. Direct access to stable, freestanding polymer membranes by layer-by-layer assembly of polyelectrolytes. Adv. Mater. 2005, 17, 1296–1299. [Google Scholar] [CrossRef]
  2. Geim, A.K. Graphene: Status and prospects. Science 2009, 324, 1530–1534. [Google Scholar] [CrossRef] [PubMed]
  3. Guo, S.; Dong, S. Graphene nanosheet: Synthesis, molecular engineering, thin film, hybrids, and energy and analytical applications. Chem. Soc. Rev. 2011, 40, 2644–2672. [Google Scholar] [CrossRef] [PubMed]
  4. Umar, A.; Alshahrani, A.A.; Algarni, H.; Kumar, R. CuO nanosheets as potential scaffolds for gas sensing applications. Sens. Actuators B-Chem. 2017, 250, 24–31. [Google Scholar] [CrossRef]
  5. Yin, X.; Liu, X.; Pan, Y.; Walsh, A.K.; Yang, H. Hanoi tower-like multilayered ultrathin palladium nanosheets. Nano Lett. 2014, 14, 7188–7194. [Google Scholar] [CrossRef] [PubMed]
  6. Zeng, S.; Liang, Y.; Liu, H.; Wang, L.; Dinh, X.; Yu, X.; Ho, H.; Hu, X.; Yong, K. Synthesis of symmetrical hexagonal-shape PbO nanosheets using gold nanoparticles. Mater. Lett. 2012, 67, 74–77. [Google Scholar] [CrossRef]
  7. Anandan, S.; Wu, J.J.; Bahnemann, D.; Emeline, A.; Ashokkumar, M. Crumpled Cu2O-g-C3N4 nanosheets for hydrogen evolution catalysis. Colloids Surf. A Physicochem. Eng. Asp. 2017, 527, 34–41. [Google Scholar] [CrossRef]
  8. Liu, S.; Yan, Z.; Fu, L.; Yang, H. Hierarchical nano-activated silica nanosheets for thermal energy storage. Sol. Energy Mater. Sol. Cells 2017, 167, 140–149. [Google Scholar] [CrossRef]
  9. Song, W.J. Intracellular DNA and microRNA sensing based on metal-organic framework nanosheets with enzyme-free signal amplification. Talanta 2017, 170, 74–80. [Google Scholar] [CrossRef] [PubMed]
  10. Orecchioni, M.; Cabizza, R.; Bianco, A.; Delogu, L.G. Graphene as cancer theranostic tool: Progress and future challenges. Theranostics 2015, 5, 710–723. [Google Scholar] [CrossRef] [PubMed]
  11. Abdolahad, M.; Janmaleki, M.; Mohajerzadeh, S.; Akhavan, O.; Abbasi, S. Polyphenols attached graphene nanosheets for high efficiency NIR mediated photodestruction of cancer cells. Mater. Sci. Eng. C 2013, 33, 1498–1505. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, Z.; Robinson, T.J.; Sun, X.; Dai, H. PEGylated nanographene oxide for delivery of water-insoluble cancer drugs. J. Am. Chem. Soc. 2008, 130, 10876–10877. [Google Scholar] [CrossRef] [PubMed]
  13. Shim, G.; Kim, M.; Park, J.Y.; Oh, Y. Graphene-based nanosheets for delivery of chemotherapeutics and biological drugs. Adv. Drug Deliv. Rev. 2016, 105, 205–227. [Google Scholar] [CrossRef] [PubMed]
  14. Wu, J.; Wang, Y.; Yang, X.; Liu, Y.; Yang, J.; Yang, R.; Zhang, N. Graphene oxide used as a carrier for Adriamycin can reverse drug resistance in breast cancer cells. Nanotechnology 2012, 23, 355101. [Google Scholar] [CrossRef] [PubMed]
  15. Tyagi, N.; Attia, F.N.; Gecheler, E.K. Exfoliated graphene nanosheets: pH-Sensitive drug carrier and anit-cancer activity. J. Colloid Interface Sci. 2017, 298, 364–377. [Google Scholar] [CrossRef] [PubMed]
  16. Takeoka, S.; Okamura, Y.; Fujie, T.; Fukui, Y. Development of biodegradable nanosheets as nanoadhesive plaster. Pure Appl. Chem. 2008, 80, 2259–2271. [Google Scholar] [CrossRef]
  17. Hamdan, S.; Pastar, I.; Drakulich, S.; Dikici, E.; Tomic-Canic, M.; Deo, S.; Daunert, S. Nanotechnology-driven therapeutic interventions in wound healing: Potential uses and applications. ACS Cent. Sci. 2017, 3, 163–175. [Google Scholar] [CrossRef] [PubMed]
  18. Saito, A.; Miyazaki, H.; Fujie, T.; Ohtsubo, S.; Kinoshita, M.; Saitoh, D.; Tkeoka, S. Therapeutic efficacy of an antibiotic-loaded nanosheet in a murine burn-wound infection model. Acta Biomater. 2012, 8, 2932–2940. [Google Scholar] [CrossRef] [PubMed]
  19. Fujie, T.; Matutani, N.; Kinoshita, M.; Okamura, Y.; Saito, A.; Takeoka, S. Adhesive, flexible, and robust polysaccharide nanosheets integrated for tissue-defect repair. Adv. Funct. Mater. 2009, 19, 2560–2568. [Google Scholar] [CrossRef]
  20. Okamura, Y.; Kabata, K.; Kinoshita, M.; Saitoh, D.; Takeoka, S. Free-Standing biodegradable poly(lactic acid) nanosheet for sealing operations in surgery. Adv. Mater. 2009, 21, 4388–4392. [Google Scholar] [CrossRef] [PubMed]
  21. Fujie, T.; Kinoshita, M.; Shono, S.; Saito, A.; Okamura, Y.; Saitoh, D.; Takeoka, S. Sealing effect of a polysaccharide nanosheet for murine cecal puncture. Surgery 2010, 148, 48–58. [Google Scholar] [CrossRef] [PubMed]
  22. Okamura, Y.; Kabata, K.; Kinoshita, M.; Miyazaki, H.; Saito, A.; Fujie, T.; Ohtsubo, S.; Saitoh, D.; Takeoka, S. Fragmentation of poly(lactic acid) nanosheets and patchwork treatment for burn wounds. Adv. Mater. 2013, 25, 545–551. [Google Scholar] [CrossRef] [PubMed]
  23. Khan, S.M.; Abdelhamid, N.H.; Wu, H.F. Near infrared (NIR) laser mediated surface activation of graphene oxide nanoflakes for efficient antibacterial, antifungal and wound healing treatment. Colloids Surf. B Biointerfaces 2015, 127, 281–291. [Google Scholar] [CrossRef] [PubMed]
  24. Ito, K.; Saito, A.; Fujie, T.; Nishiwake, K.; Miyazaki, H.; Kinoshita, M.; Saitoh, D.; Ohtsubo, S.; Takeoka, S. Sustainable antimicrobial effect of silver sulfadiazine-loaded nanosheets on infection in a mouse model of partial-thickness burn injury. Acta Biomater. 2015, 24, 87–95. [Google Scholar] [CrossRef] [PubMed]
  25. Fujie, T. Development of free-standing polymer nanosheets for advanced medical and health-care applications. Polym. J. 2016, 48, 773–780. [Google Scholar] [CrossRef]
  26. Claussen, C.J.; Franklin, D.A.; Haque, A.; Porterfield, D.M.; Fisher, S.T. Electrochemical biosensor of nanocube-augmented carbon nanotube networks. ACS Nano 2009, 3, 37–44. [Google Scholar] [CrossRef] [PubMed]
  27. Wilson, M.S. Electrochemical Immunosensors for the simultaneous detection of two tumor markers. Anal. Chem. 2005, 77, 1496–1502. [Google Scholar] [CrossRef] [PubMed]
  28. Claussen, C.J.; Kumar, A.; Jaroch, B.D.; Khawaja, M.H.; Hibbard, B.A.; Porterfield, D.M.; Fisher, S.T. Nanostructuring platinum nanoparticles on multilayered graphene petal nanosheets for electrochemical biosensing. Adv. Funct. Mater. 2012, 22, 3399–3405. [Google Scholar] [CrossRef]
  29. Parlak, O.; Incel, A.; Uzun, L.; Turner, P.F.A.; Tiwari, A. Structuring Au nanoparticles on two-dimenional MoS2 nanosheets for electrochemical glucose biosensors. Biosens. Bioelectron. 2017, 89, 545–550. [Google Scholar] [CrossRef] [PubMed]

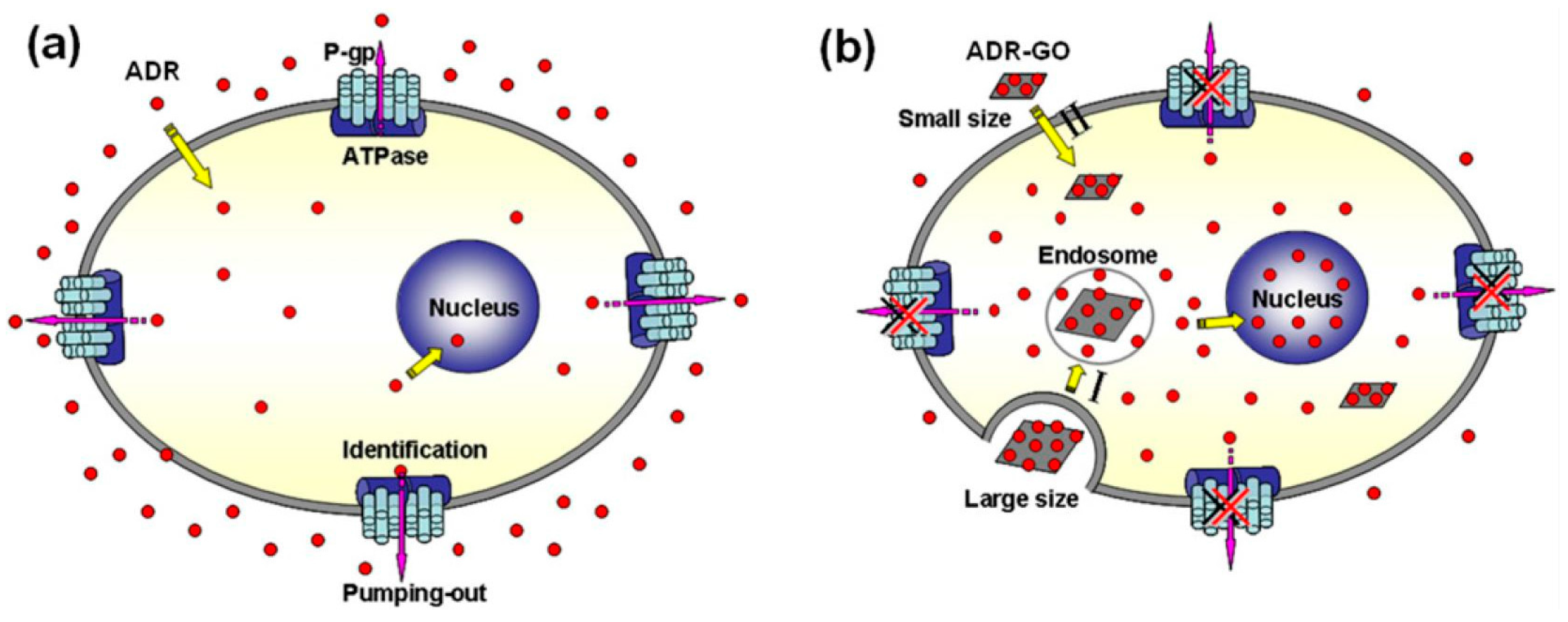

Figure 1. Schematic diagram of (a) the adriamycin (ADR) resistance mechanism of surface P-gp in MCF-7/ADR cells and (b) the mechanism of Adriamycin graphene oxide (ADR-GO) reversing the ADR resistance [14].
Figure 1. Schematic diagram of (a) the adriamycin (ADR) resistance mechanism of surface P-gp in MCF-7/ADR cells and (b) the mechanism of Adriamycin graphene oxide (ADR-GO) reversing the ADR resistance [14].
Nanomaterials 07 00246 g001
Figure 2. Schematic diagram of potential mechanism with graphene-poly(vinylpyrrolidone) nanoparticle composite (GRP-PVP-NP) induced cytotoxicity in cancer cells [15].
Figure 2. Schematic diagram of potential mechanism with graphene-poly(vinylpyrrolidone) nanoparticle composite (GRP-PVP-NP) induced cytotoxicity in cancer cells [15].
Nanomaterials 07 00246 g002
Figure 3. Upper panels correspond to the polysaccharide nanosheet, and lower panels correspond to the fibrin sheet, at 3 h (a,d), 3 days (b,e), and 7 days (c,f) after repair [19].
Figure 3. Upper panels correspond to the polysaccharide nanosheet, and lower panels correspond to the fibrin sheet, at 3 h (a,d), 3 days (b,e), and 7 days (c,f) after repair [19].
Nanomaterials 07 00246 g003

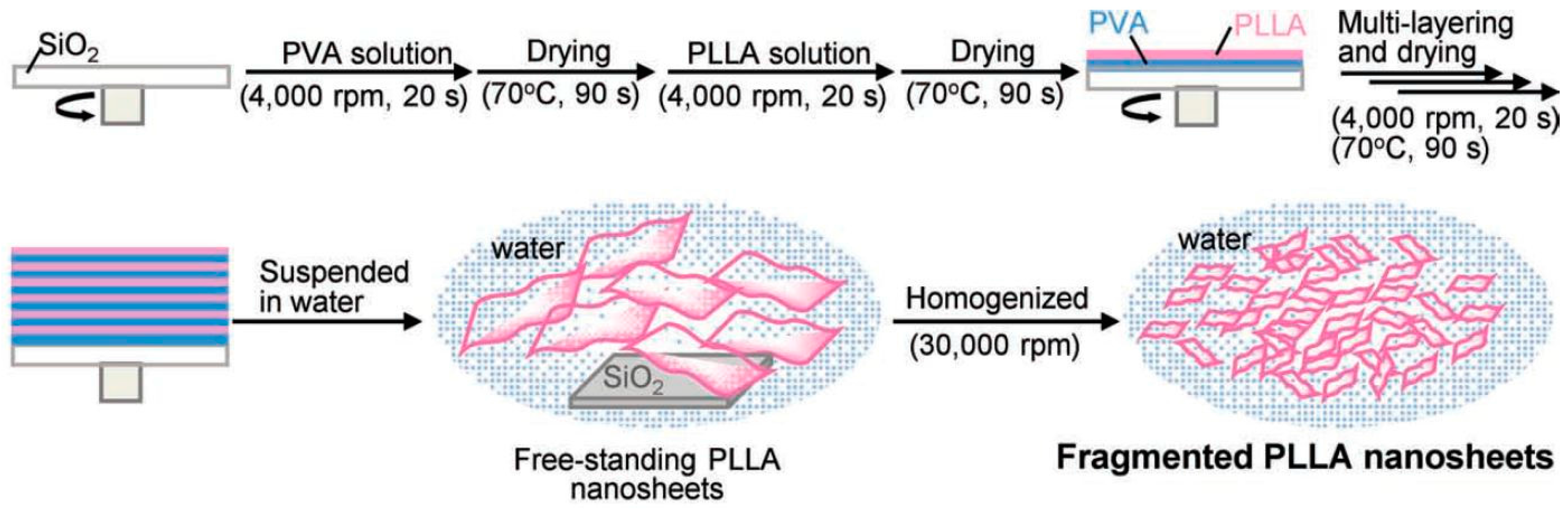

Figure 4. Preparation of fragmented PLLA nanosheets [22].
Figure 4. Preparation of fragmented PLLA nanosheets [22].
Nanomaterials 07 00246 g004
Figure 5. (a) Location of wounds, (b) fresh wounds on dorsal surface of mice, (c) Infection started after 3 days with injection of S. aureus on wounds, (d,e) condition of wounds after 6 days of treatment, (f) wound treatment on the dorsal surface of mice by using GO and Nd-YAG laser [23].
Figure 5. (a) Location of wounds, (b) fresh wounds on dorsal surface of mice, (c) Infection started after 3 days with injection of S. aureus on wounds, (d,e) condition of wounds after 6 days of treatment, (f) wound treatment on the dorsal surface of mice by using GO and Nd-YAG laser [23].
Nanomaterials 07 00246 g005

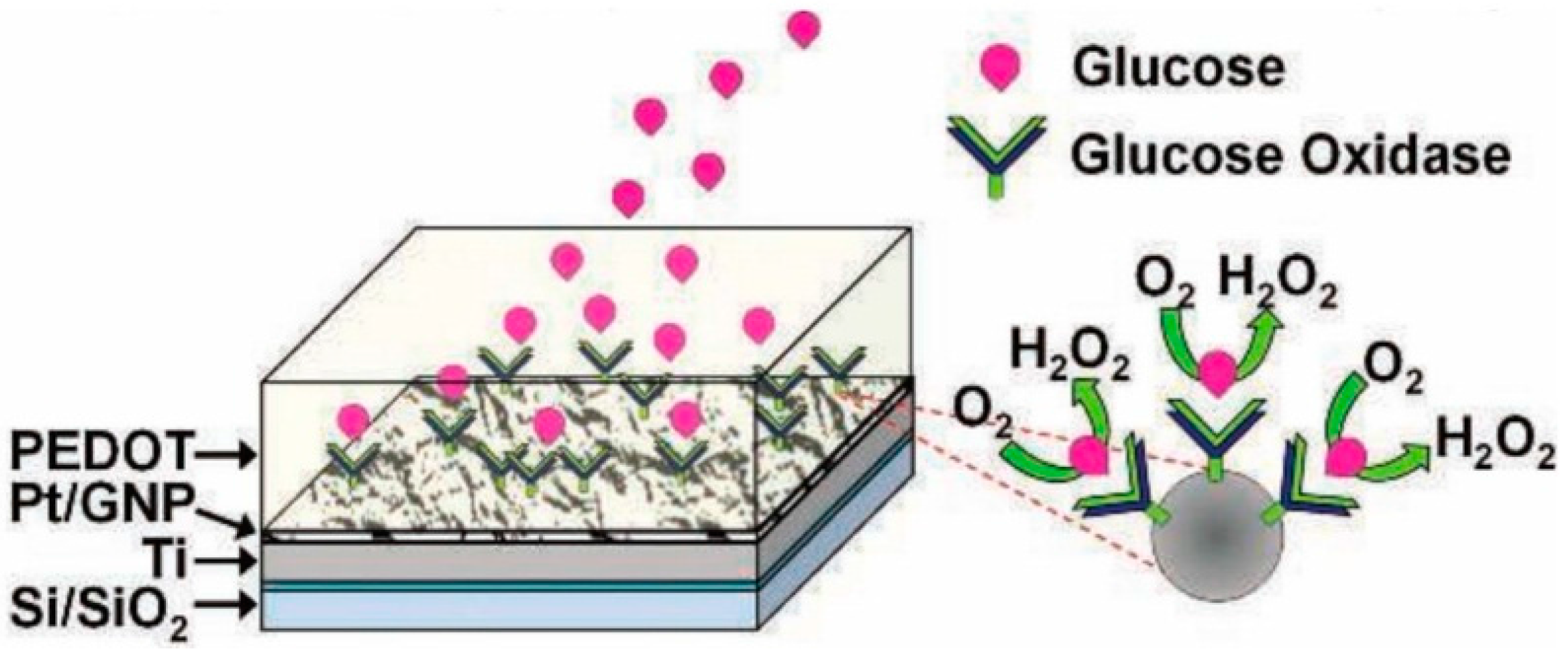

Figure 6. Schematic diagram of GO/PEDOT biofunctionalized PtNP-MGPN glucose biosensor [28].
Figure 6. Schematic diagram of GO/PEDOT biofunctionalized PtNP-MGPN glucose biosensor [28].
Nanomaterials 07 00246 g006
Figure 7. Schematic diagram of Au nanoparticle-structuring on a MoS2 nanosheet [29].
Figure 7. Schematic diagram of Au nanoparticle-structuring on a MoS2 nanosheet [29].
Nanomaterials 07 00246 g007
