Controlling the Nanoscale Patterning of AuNPs on Silicon Surfaces

Cardiff School of Pharmacy and Pharmaceutical Sciences, Cardiff University, Cardiff, CF10 3NB, UK
School of Chemistry, Cardiff Catalysis Institute, Cardiff University, Cardiff, CF10 3AT, UK
Author to whom correspondence should be addressed.
Received: 11 January 2013 / Revised: 22 February 2013 / Accepted: 14 March 2013 / Published: 21 March 2013
View Full-Text   |   Download PDF [1424 KB, uploaded 21 March 2013]   |

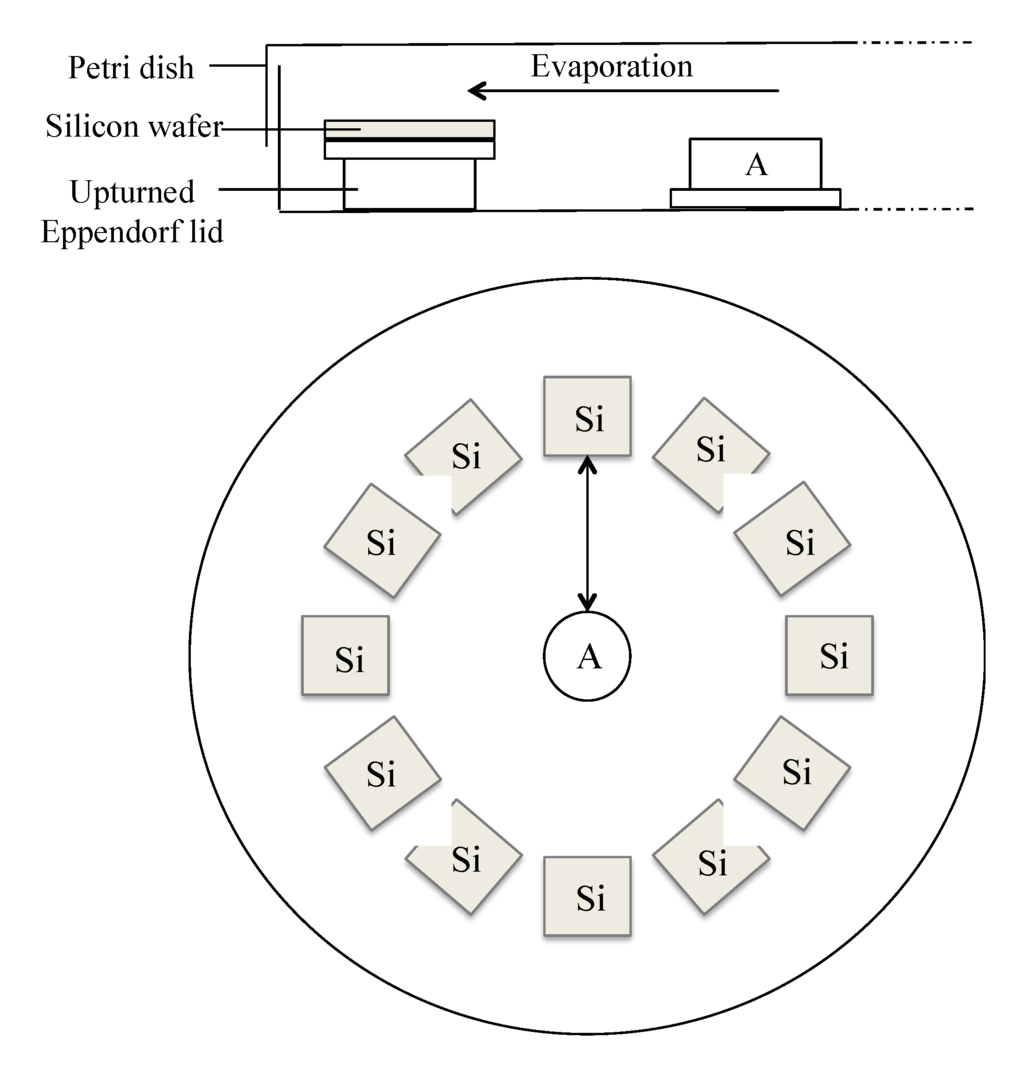

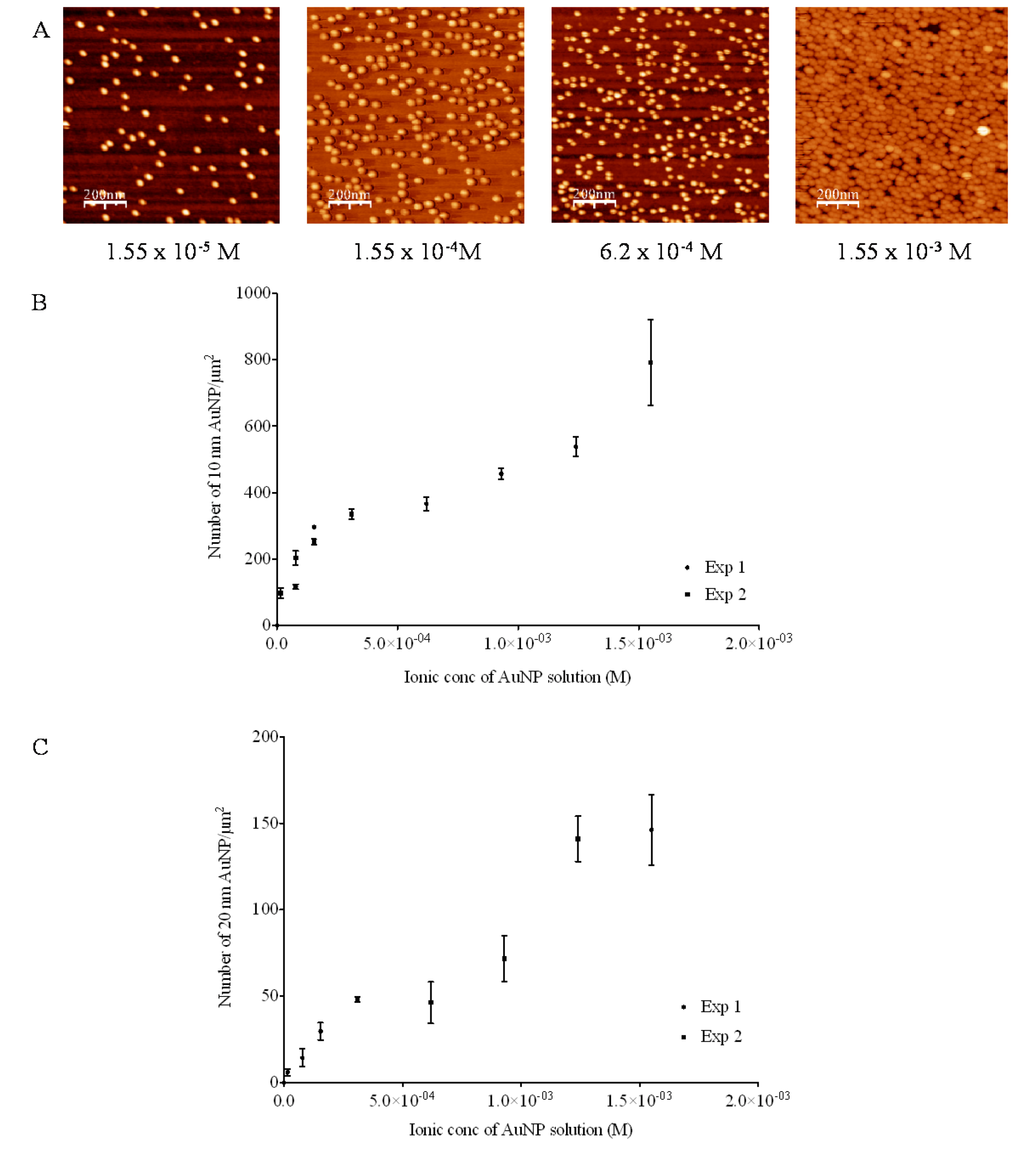

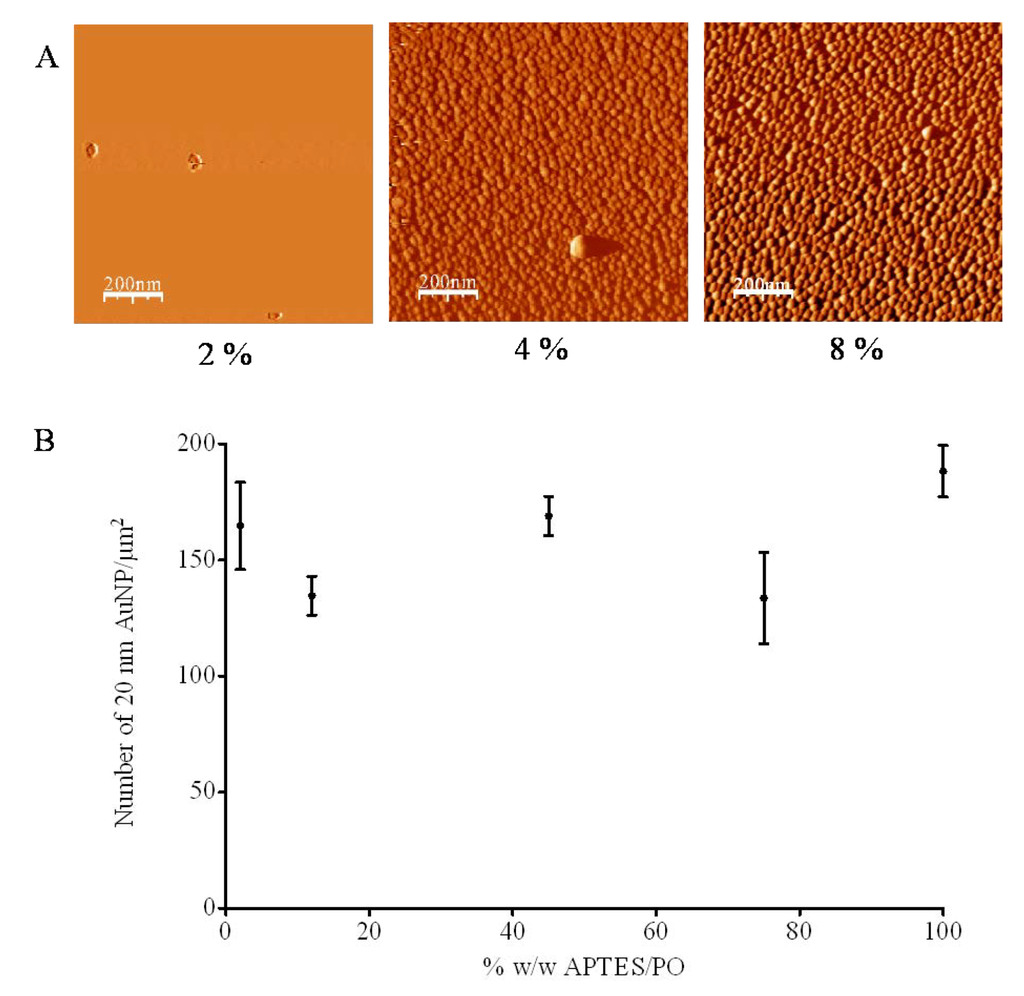

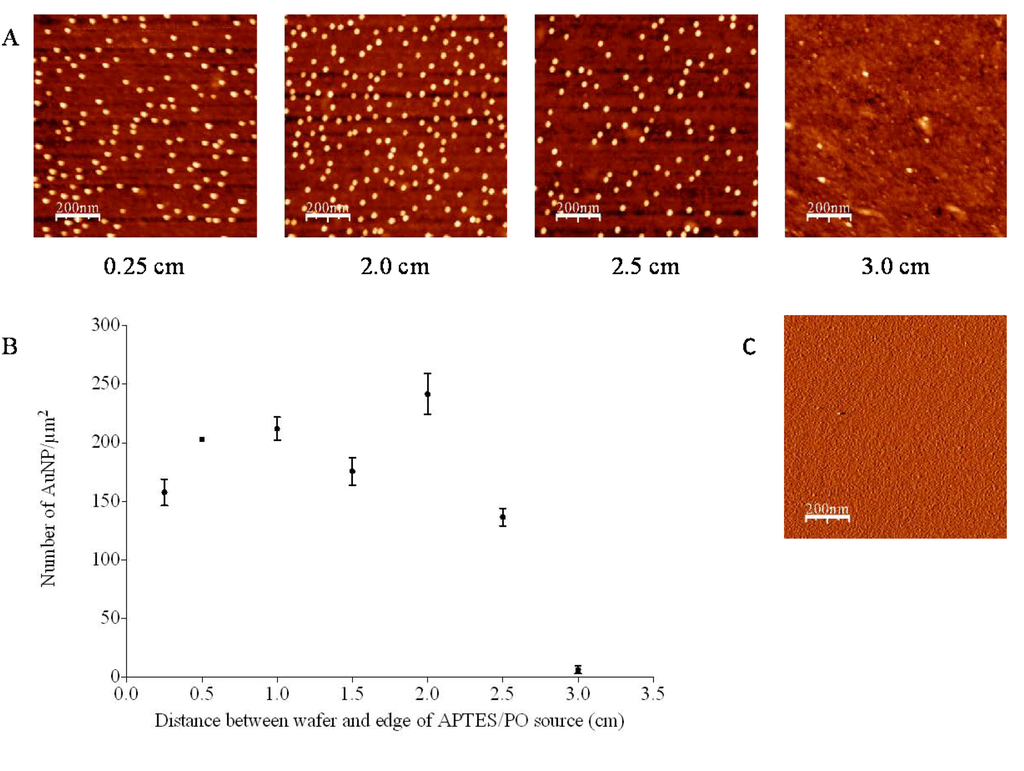

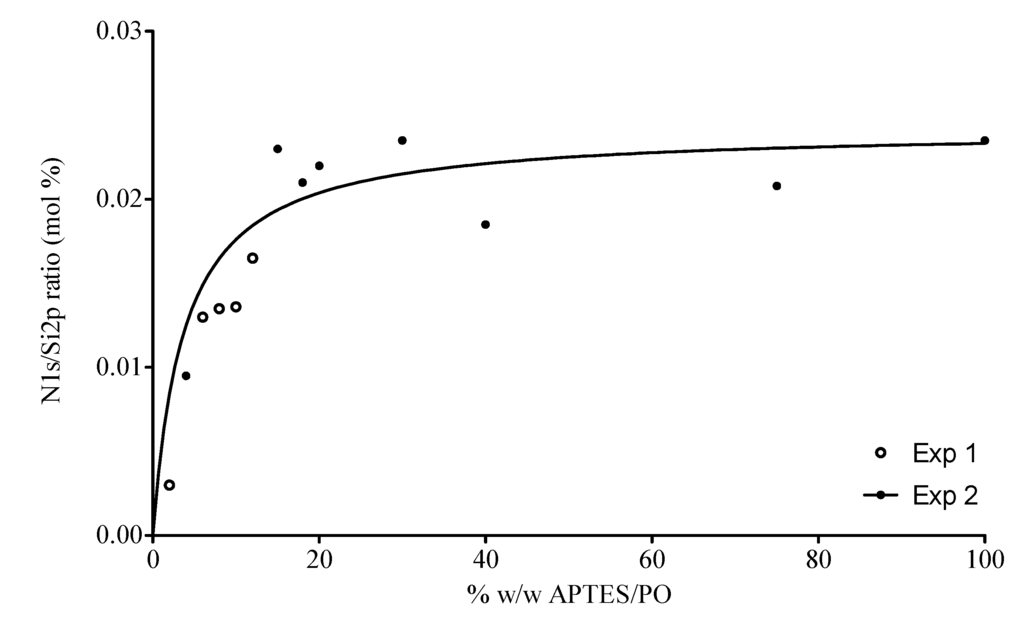

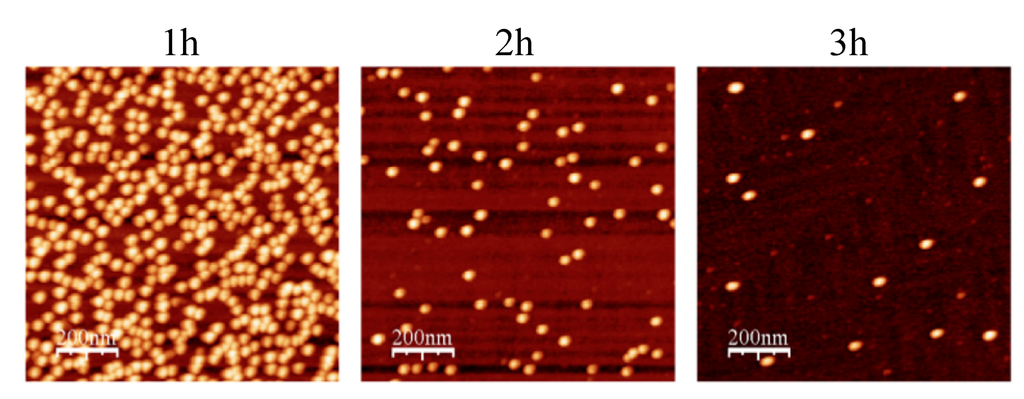

This study evaluates the effectiveness of vapour-phase deposition for creating sub-monolayer coverage of aminopropyl triethoxysilane (APTES) on silicon in order to exert control over subsequent gold nanoparticle deposition. Surface coverage was evaluated indirectly by observing the extent to which gold nanoparticles (AuNPs) deposited onto the modified silicon surface. By varying the distance of the silicon wafer from the APTES source and concentration of APTES in the evaporating media, control over subsequent gold nanoparticle deposition was achievable to an extent. Fine control over AuNP deposition (AuNPs/μm2) however, was best achieved by adjusting the ionic concentration of the AuNP-depositing solution. Furthermore it was demonstrated that although APTES was fully removed from the silicon surface following four hours incubation in water, the gold nanoparticle-amino surface complex was stable under the same conditions. Atomic force microscopy (AFM) and X-ray photoelectron spectroscopy (XPS) were used to study these affects. View Full-Text
Keywords: vapour-phase deposition; APTES; gold; nanoparticle; chemical nanopatterning vapour-phase deposition; APTES; gold; nanoparticle; chemical nanopatterning

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Williams, S.E.; Davies, P.R.; Bowen, J.L.; Allender, C.J. Controlling the Nanoscale Patterning of AuNPs on Silicon Surfaces. Nanomaterials 2013, 3, 192-203.
