Visible Photocatalytic Hydrogen Evolution by g-C3N4/SrZrO3 Heterostructure Material

by
Shizhao Si
†,
Yanfei Fan
†,
Dan Liang
,
Ping Chen
,
Guanwei Cui
* and
Bo Tang
College of Chemistry, Chemical Engineering and Materials Science, Collaborative Innovation Center of Functionalized Probes for Chemical Imaging in Universities of Shandong, Key Laboratory of Molecular and Nano Probes, Ministry of Education, Shandong Normal University, Jinan 250014, China
*
Author to whom correspondence should be addressed.
†
These authors have contributed equally to this work and share first authorship.
Nanomaterials 2023, 13(6), 977; https://doi.org/10.3390/nano13060977
Submission received: 4 February 2023 / Revised: 26 February 2023 / Accepted: 2 March 2023 / Published: 8 March 2023
(This article belongs to the Special Issue Advanced Nanomaterials for Photocatalysis and Photo(electro)catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
A heterostructure material g-C3N4/SrZrO3 was simply prepared by grinding and heating the mixture of SrZrO3 and g-C3N4. The morphology and structure of the synthesized photocatalysts were determined by scanning electron microscopy (SEM), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), energy-dispersive X-ray spectroscopy (EDS), high-resolution transmission electron microscopy (HRTEM) and infrared spectra. It showed visible light absorption ability and much higher photocatalytic activity than that of pristine g-C3N4 or SrZrO3. Under the optimal reaction conditions, the hydrogen production efficiency is 1222 μmol·g−1·h−1 and 34 μmol·g−1·h−1 under ultraviolet light irradiation and visible light irradiation, respectively. It is attributed to the higher separation efficiency of photogenerated electrons and holes between the cooperation of g-C3N4 and SrZrO3, which is demonstrated by photocurrent measurements.

1. Introduction

Hydrogen evolution by photocatalytic water splitting is proposed to be the most promising approach to address energy shortages and environmental pollution caused by the overuse of fossil fuels. Inorganic semiconductors are widely used as photocatalysts, such as TiO2, ZnO, titanate, tantalate, etc [1,2,3]. Perovskite-type SrMO3 (M = Ti, V, Zr and Nb) has attracted a lot of attention from researchers due to its remarkable magnetic and electronic transport properties [4,5,6,7,8,9]. SrZrO3 is a typical perovskite structure material, which has been widely used as fluorescent materials, hydrogen sensors, proton conductors, refractory materials, et al. [10,11,12,13]. It has an energy band structure suitable for the photocatalytic decomposition of water with a band gap of 5.25 eV. However, due to the wide energy gap, it can only respond to ultraviolet light, resulting in a low efficiency of water splitting by photocatalysis. Ion doping or coupling with other materials are the main methods to expand the spectral response range and improve photocatalytic efficiency. Torres-Martínez et al. found that when 1% CuO was loaded onto the surface of SrZrO3, the efficiency of hydrogen evolution was significantly increased under UV light [14]. Zhou et al. synthesized a new MoS2/SrZrO3 photocatalyst heterojunction, which was applied to photocatalytic hydrogen evolution under UV light irradiation, and found that the heterostructure with a content of 0.05 wt% MoS2 exhibited a high H2 release rate of 5.31 mmol h−1 [15].
Graphitic carbon nitride (g-C3N4) is a new non-metallic polymer material that has attracted much attention due to its high thermal and chemical stability, as well as excellent electrical properties. Especially in the field of photocatalysis, g-C3N4 has visible light absorption ability and photostability. It has been widely applied in photocatalytic hydrogen evolution, water oxidation, degradation of organic pollutants, and photosynthesis. [16,17,18] Significantly, carbon nitride itself is a photocatalyst with a narrow energy gap. It can be used as a visible light-absorbing composition in heterogeneous structures by coupling with other semiconductor materials [19,20].
Herein, to expand the spectral response range and improve the photocatalytic efficiency of SrZrO3, a simple heterostructure material g-C3N4/SrZrO3 was prepared by grinding and heating the mixture of SrZrO3 with g-C3N4. To the best of our knowledge, this is the first report on the photocatalytic activity of a hybrid heterostructure using a non-metallic polymer material coupled to SrZrO3. Our focus is to explore the g-C3N4/SrZrO3 photocatalytic properties and related influencing factors such as the structural, electronic and optical properties by optimizing the ratio of mixture. A complete characterization of the semiconductors and the heterostructure is presented and photocatalytic mechanisms based on UV-Vis diffuse reflectance spectra and photoelectrochemical measurements are discussed. It showed visible light absorption ability and much higher photocatalytic activity than that of pristine g-C3N4 or SrZrO3.

2. Materials and Methods

2.1. Materials

Sr(NO3)3, KOH and urea were purchased from China National Pharmaceutical Group Chemical Testing Co., Ltd. (Beijing, China). ZrOCl2·8H2O, methanol and ethanol were purchased from Shanghai Macklin Biochemical Co., Ltd (Shanghai, China). All the chemicals are AR grade. The water used in the experiment is secondary deionized water.

2.2. Preparation of g-C3N4/SrZrO3

SrZrO3 was synthesized by a hydrothermal synthesis method [15]. Typically, Sr(NO3)3 (1.16 g) and ZrOCl·8H2O (1.61 g) were dissolved in KOH solution (60 mL, 1.0 mol·L−1) and stirred for 1 h at room temperature. The obtained mixture was transferred to a polytetrafluoroethylene reaction kettle and heated at 200 °C for 24 h, then naturally cooled to room temperature. The resulting solid product was filtered and sequentially washed several times with distilled water, dilute acetic acid, and ethanol, and then dried at 60 °C for 12 h. 10.00 g of urea was heated in a high-temperature tube furnace in an air atmosphere at a heating rate of 8 °C/min and kept at 550 °C for 4 h. Then it was naturally cooled down to room temperature and ground into powder.
The SrZrO3 and g-C3N4 samples prepared above were uniformly ground in a mortar in different proportions (20:1, 15:1, 10:1, 5:1, 3:1, 1:1, 1:2) and calcined in a muffle furnace at a heating rate of 5 °C/min for 2 h at 500 °C. Then, it was naturally cooled to room temperature. Finally, a yellowish substance was obtained. Herein, the optimal ratio of SrZrO3 and g-C3N4 for photocatalysis is 10:1.

2.3. Photocurrent Measurements

Photocurrent measurement was carried out on an electrochemical analyzer (CHI660D Instruments, Shanghai Chenhua Instrument Co., Ltd., Shanghai, China.) by a standard three-electrode system with 0.1 M NaClO4 aqueous solution as electrolyte. The working electrode was prepared as follows: 0.05 g of the sample was ground into a slurry with 0.10 g terpinol. Then, it was coated onto a 4 cm × 1 cm Indium Tin Oxide-coated glass (ITO glass) electrode by doctor blade technique, dried in an oven, then calcined at 290 °C for 30 min under Ar conditions. The as-prepared samples, Pt sheet and saturated calomel electrode were used as working electrodes, the counter electrode and the reference electrode, respectively. Prior to photocurrent measurements, the electrolyte (0.1 M NaClO4, pH = 6.56) was purged with Ar for 30 min. A 300 W Xe lamp was used as the light source to measure the photocurrent density by periodic irradiation.

2.4. Photocatalytic Hydrogen Production

The photocatalytic hydrogen production test was carried out in an XPA-7 photocatalytic reactor. In a typical process, 10.0 mg of the as-prepared photocatalysts and 10.0 mL aqueous solution containing 20% methanol were mixed in a 20 mL Quartz bottle sealed with a silicone rubber septum. Prior to the photocatalysis experiment, the sample solution was thoroughly deaerated by evacuation and purged with nitrogen for 10 min. Then a 1000 W Xe lamp with an optical filter (cutoff of 420 nm) simulating visible light or a 500 W Hg lamp simulating ultraviolet light was irradiated for 8 h at room temperature under constant stirring. The generated gas was analyzed by gas chromatography (FULI 9750, TCD, Nitrogen as the carrier gas, and 5 Å molecular sieve column).

2.5. Characterization of Samples

The morphology and structure of the synthesized photocatalysts were determined by scanning electron microscopy (SEM, SU8010, Hitachi, Ltd. Tokyo, Japan), X-ray diffraction (XRD, D8 Bruker, Bruker, Karlsruhe, Germany), X-ray photoelectron spectroscopy (XPS, ESCALAB 250, Thermo Fisher Scientific Co., Ltd. Waltham, MA, USA), energy-dispersive X-ray spectroscopy (EDS, Oxford EDS, Oxford Instrument Technology Co., Ltd. Oxford, UK), high-resolution transmission electron microscopy (HRTEM, JEM-2020, JEOL (Beijing) Co., Ltd. Bejing, China) and other characterization techniques.

3. Results and Discussion

The as-prepared SrZrO3 particles exhibit uniform flower-shaped morphology with sizes of about 14 μm composed of some polyhedral microcrystals radiating from a common point (Figure 1a,b). The as-prepared g-C3N4 exhibits irregular particle morphology with sizes of 200–500 nm (Figure 1c). After they were ground and calcined together, the latter was uniformly dispersed on the surface of the former, resulting in the formation of g-C3N4/SrZrO3 heterostructure material. The morphology of SrZrO3 did not change significantly after being modified with g-C3N4 (Figure 1d). The XRD peaks centered at 2θ = 30.8°, 44.07°, 54.78°, 64.12°, 72.86°, 81.21°, 89.3° of g-C3N4/SrZrO3 is ascribed to (121), (202), (042), (242), (161), (044), (244) crystal planes of perovskite SrZrO3 with a orthorhombic phase structure (JCPDS:44-0161). Although pure g-C3N4 has two peaks at 13.08° and 27.4°, no significant g-C3N4 peak was observed on the XRD pattern of g-C3N4/SrZrO3 due to the low loading (Figure 1e). The HRTEM image of g-C3N4/SrZrO3 (Figure S1) shows the presence of two different crystal lattices in the composite. The lattice width of 0.290 nm is ascribed to (121) plane of SrZrO3, and 0.275 nm to the (200) plane of g-C3N4, indicating the presence of g-C3N4 on the surface of SrZrO3 [21,22], which is further confirmed in the IR spectra (Figure 1d). Infrared spectroscopy can be used to detect the information of chemical bonds or functional groups contained in the molecule. From the infrared spectrum of g-C3N4/SrZrO3, we can see that 1640 cm−1 corresponds to the stretching vibration of CN, 1240 cm−1, 1321 cm−1, 1412 cm−1 correspond to the stretching vibration of aromatic CN, 809 cm−1 is the out-of-plane bending vibration of the CN heterocycle, and the peak near 3140 cm−1 corresponds to the aromatic ring stretching vibration of the terminal NH2 or NH group at the defect site, which is consistent with the results reported in the literature [23]. 500 cm−1 corresponds to the stretching vibration of Zr-O, indicating that g-C3N4 has been successfully combined with SrZrO3 to form a g-C3N4/SrZrO3 composite material. We can synthesize the composite catalyst by this method.
The EDS-mapping images show that the g-C3N4 nanoparticles were evenly distributed on the SrZrO3 micron-scale particles as well as nanometer scale (Figure 2 and Figure S2). The chemical states of Sr, Zr, O, C, and N elements in the as-prepared g-C3N4/SrZrO3 materials were determined by XPS spectra (Figure 3a). Two peaks centered at 132.9 eV and 134.6 eV were ascribed to Sr2+ 3d5/2 and Sr2+ 3d3/2 of SrZrO3, respectively (Figure 3b) [24,25]. Two peaks centered at 181.2 eV and 183.7 eV were ascribed to Zr2+ 3d5/2 and Zr2+ 3d3/2 of SrZrO3, respectively (Figure 3c). Three C 1s peaks centered at 284.7 eV, 286.1 eV and 288.9 eV were ascribed to C-C, C=O and C=N, respectively (Figure 3d) [26]. Three N 1s peaks centered at 398.8 eV, 400.2 eV and 401.3 eV were attributed to pyridine nitrogen, pyrrolic nitrogen and graphitic nitrogen, respectively (Figure 3e) [27]. Two O 1s peaks centered at 529.4 eV and 531.5 eV were ascribed to adsorbed oxygen and lattice oxygen, respectively (Figure 3f) [28,29].
The photocatalytic activity of the as-prepared catalyst was investigated in a photocatalytic water-splitting process using methanol as a sacrificial agent, which was performed under a 1000 W xenon lamp light source with a cutoff of 420 nm or 500 W Hg lamp irradiation for 8 h. Compared with SrZrO3 and g-C3N4, the g-C3N4/SrZrO3 composite exhibited higher hydrogen production performance whether under ultraviolet light or visible light irradiation (Figure 4a,b). It was found the SrZrO3/g-C3N4 sample with ratio of 10:1 showed the highest photocatalytic activity (Figure S3). Under the optimal reaction conditions, the hydrogen production efficiency is 1222 μmol·g−1·h−1 and 34 μmol·g−1·h−1 under ultraviolet light irradiation and visible light irradiation, which it has achieved higher activity compared with previous work (Table S1), respectively. The g-C3N4/SrZrO3 samples retained photocatalytic activity after four photocatalysis cycles. This indicates that it has excellent chemical stability (Figure 4d).
The as-prepared g-C3N4/SrZrO3 exhibits much higher and broader spectral absorption, including visible light, compared to pristine SrZrO3 and g-C3N4 (Figure 5a). The energy gap of the sample was obtained by plotting (Ahv)2 against hv based on the UV-Vis diffuse reflectance data of the catalyst and extrapolating the straight line to the intersection of the scale lines (Figure S4). The energy gap was calculated to be 5.25 eV for SrZrO3 and 2.9 eV for g-C3N4. Combined with the XPS valence band spectrum test (Figure S5), the top of the valence band of SrZrO3 is located 2.31 eV below the Fermi level, so the bottom of the conduction band is located at −2.94 eV; the top of the valence band of g-C3N4 is located at an energy level of 2.33 eV below the Fermi level, so the bottom of the conduction band is at −0.57 eV.
As represented in Figure 5b, in the heterostructure g-C3N4/SrZrO3, both semiconductors are excited under UV–vis light irradiation. After electrons and holes are generated in the semiconductors, since the conduction band position of SrZrO3 is more negative than that of g-C3N4, the photogenerated electrons on the conduction band of SrZrO3 can be easily transferred to the conduction band of g-C3N4, while the more positive holes in the valence band of g-C3N4 can transfer to the valence band of SrZrO3. In the water splitting reaction, electrons on the conduction band of g-C3N4 and holes in the valence band of SrZrO3 achieve the reduction and oxidation of water. Benefiting from the characteristics of spatially separated electrons and holes in heterostructures, the g-C3N4/SrZrO3 materials improving the separation efficiency of photogenerated electrons and holes. Meanwhile, the g-C3N4 part can also photogenerate independently electrons and holes under visible light irradition, which also contributes to the number of photogenerated carriers. The photocurrent density of g-C3N4/SrZrO3 is much higher than that of pristine SrZrO3 and g-C3N4 under Xe lamp light irradiation (Figure 5c), which indicates that the charge separation in g-C3N4/SrZrO3 is significantly enhanced, resulting in higher photocatalytic activity.
In conclusion, the g-C3N4/SrZrO3 heterostructure reduces the electron-hole recombination, increasing the photo-excited electron density and the separation efficiency of electrons and holes for the photocatalytic water-splitting, thus enhancing the photocatalytic activity.

4. Conclusions

In summary, a heterostructure material g-C3N4/SrZrO3 is prepared by grinding the mixture of SrZrO3 and g-C3N4. The as-prepared photocatalyst showed a hydrogen evolution rate of 1222 μmol·g−1 h−1 under ultraviolet light, which is higher than that of either g-C3N4 or SrZrO3. It is attributed to the higher separation efficiency of photogenerated electrons and holes between the cooperation of g-C3N4 and SrZrO3.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13060977/s1, Figure S1: HRTEM image of g-C3N4/SrZrO3. Figure S2: Infrared spectra of SrZrO3 and g-C3N4/SrZrO3. Figure S3: Hydrogen evolution under visible light (a) and UV light (b) for different ratios of g-C3N4/SrZrO3 catalysts. Figure S4: Energy gap of SrZrO3 (a) and g-C3N4 (b). Figure S5: XPS valence spectrum of SrZrO3(a), g-C3N4(b). Table S1. The selected results for photocatalytic H2 evolution in recent literature. References [14,30,31,32] are cited in the supplementary materials.

Author Contributions

Conceptualization, G.C. and B.T.; methodology, G.C. and S.S.; validation, S.S. and Y.F.; investigation, Y.F., D.L. and P.C.; writing (original draft preparation), S.S. and Y.F.; writing (review and editing), G.C.; supervision, B.T.; project administration, B.T.; funding acquisition, B.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21927811, 21575082, 22076105, 91753111, and 21976110) and the Key Research and Development Program of Shandong Province (2018YFJH0502), Development plan of science and technology for Shandong Province of China (2013GGX10706), and A Project of Shandong Province Higher Educational Science and Technology Program (J13LD06).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Zhao, Y.; Hoivik, N.; Wang, K. Recent advance on engineering titanium dioxide nanotubes for photochemical and photoelectrochemical water splitting. Nano Energy 2016, 30, 728–744. [Google Scholar] [CrossRef]
  2. Chang, Y.; Yu, K.; Zhang, C.; Yang, Z.; Feng, Y.; Hao, H.; Jiang, Y.; Lou, L.-L.; Zhou, W.; Liu, S. Ternary CdS/Au/3DOM-SrTiO3 composites with synergistic enhancement for hydrogen production from visible-light photocatalytic water splitting. Appl. Catal. B 2017, 215, 74–84. [Google Scholar] [CrossRef] [Green Version]
  3. Yang, S.J.; Im, J.H.; Kim, T.; Lee, K.; Park, C.R. MOF-derived ZnO and ZnO@C composites with high photocatalytic activity and adsorption capacity. J. Hazard. Mater. 2011, 186, 376–382. [Google Scholar] [CrossRef] [PubMed]
  4. Patrakeev, M.V.; Mitberg, E.B.; Lakhtin, A.A.; Leonidov, I.A. Thermodynamics of the Movable Oxygen and Conducting Properties of the Solid Solution YBa2Cu3−xCOxO6+δ at High Temperatures. J. Solid State Chem. 1998, 4, 191–198. [Google Scholar] [CrossRef]
  5. Hong, K.; Kim, S.H.; Heo, Y.J.; Kwon, Y.U. Metal-insulator transitions of SrTi1−xVxO3 solid solution system. Solid State Commun. 2002, 123, 305–310. [Google Scholar] [CrossRef]
  6. Goodenough, J.B. Electronic and ionic transport properties and other physical aspects of perovskites. Rep. Prog. Phys. 2004, 67, 1915–1993. [Google Scholar] [CrossRef]
  7. Shaula, A.L.; Kharton, V.V.; Vyshatko, N.P.; Tsipis, E.V.; Patrakeev, M.V.; Marques, F.M.B.; Frade, J.R. Oxygen ionic transport in SrFe1−yAlyO3−δ and Sr1−xCaxFe0.5Al0.5O3−δ ceramics. J. Eur. Ceram. Soc. 2005, 25, 489–499. [Google Scholar] [CrossRef]
  8. Takeno, S.; Ohara, R.; Sano, K.; Kawakubo, T. Novel compositional accommodation mechanism in SrNbO3 epitaxial thin films revealed by analytical electron microscopy. Surf. Interface Anal. 2003, 35, 29–35. [Google Scholar] [CrossRef]
  9. Yaremchenko, A.A.; Patrakeev, M.V.; Kharton, V.V.; Marques, F.M.B.; Leonidov, I.A.; Kozhevnikov, V.L. Oxygen ionic and electronic conductivity of La0.3Sr0.7Fe(Al)O3−δ perovskites. Solid State Sci. 2004, 6, 357–366. [Google Scholar] [CrossRef]
  10. Longo, V.M.; Cavalcante, L.S.; Figueiredo, A.T.D.; Santos, L.P.S. Highly intense violet-blue light emission at room temperature in structurally disordered SrZrO3 powders. Appl. Phys. Lett. 2007, 90, 1648–1650. [Google Scholar] [CrossRef] [Green Version]
  11. Longo, V.; Ricciardiello, F.; Minichelli, D. X-ray characterization of SrCeO3 and BaCeO3. J. Mater. Sci. 1981, 16, 3503–3505. [Google Scholar] [CrossRef]
  12. Higuchi, T.; Matsumoto, H.; Shimura, T.; Yashiro, K.; Kawada, T.; Mizusaki, J.; Shin, S.; Tsukamoto, T. Electronic Structure of Protonic Conductor BaCe0.90Y0.10O3−δProbed by Soft-X-Ray Spectroscopy. Jpn. J. Appl. Phys. 2004, 43, L731–L734. [Google Scholar] [CrossRef] [Green Version]
  13. Shein, I.R.; Kozhevnikov, V.L.; Ivanovskii, A.L. First-principles calculations of the elastic and electronic properties of the cubic perovskites SrMO3 (M=Ti, V, Zr and Nb) in comparison with SrSnO3. Solid State Sci. 2008, 10, 217–225. [Google Scholar] [CrossRef]
  14. Huerta-Flores, A.M.; Torres-Martínez, L.M.; Moctezuma, E.; Ceballos-Sanchez, O. Enhanced photocatalytic activity for hydrogen evolution of SrZrO3 modified with earth abundant metal oxides (MO, M = Cu, Ni, Fe, Co). Fuel 2016, 181, 670–679. [Google Scholar] [CrossRef]
  15. Tian, Q.; Zhang, L.; Liu, J.; Li, N.; Ma, Q.; Zhou, J.; Sun, Y. Synthesis of MoS2/SrZrO3 heterostructures and their photocatalytic H2 evolution under UV irradiation. RSC Adv. 2015, 5, 734–739. [Google Scholar] [CrossRef]
  16. Liang, X.; Wang, G.; Dong, X.; Wang, G.; Ma, H.; Zhang, X. Graphitic Carbon Nitride with Carbon Vacancies for Photocatalytic Degradation of Bisphenol A. ACS Appl. Nano Mater. 2018, 2, 517–524. [Google Scholar] [CrossRef]
  17. Si, Y.; Zhang, Y.; Lu, L.; Zhang, S.; Chen, Y.; Liu, J.; Jin, H.; Hou, S.; Dai, K.; Song, W. Boosting visible light photocatalytic hydrogen evolution of graphitic carbon nitride via enhancing it interfacial redox activity with cobalt/nitrogen doped tubular graphitic carbon. Appl. Catal. B 2018, 225, 512–518. [Google Scholar] [CrossRef]
  18. Zhang, G.; Huang, C.; Wang, X. Dispersing molecular cobalt in graphitic carbon nitride frameworks for photocatalytic water oxidation. Small 2015, 11, 1215–1221. [Google Scholar] [CrossRef]
  19. Li, B.; Fang, Q.; Si, Y.; Huang, T.; Huang, W.-Q.; Hu, W.; Pan, A.; Fan, X.; Huang, G.-F. Ultra-thin tubular graphitic carbon Nitride-Carbon Dot lateral heterostructures: One-Step synthesis and highly efficient catalytic hydrogen generation. Chem. Eng. J. 2020, 397, 125470. [Google Scholar] [CrossRef]
  20. Zhao, D.; Wang, Y.; Dong, C.-L.; Huang, Y.-C.; Chen, J.; Xue, F.; Shen, S.; Guo, L. Boron-doped nitrogen-deficient carbon nitride-based Z-scheme heterostructures for photocatalytic overall water splitting. Nat. Energy 2021, 6, 388–397. [Google Scholar] [CrossRef]
  21. Cao, X.; Yue, L.; Lian, F.; Wang, C.; Cheng, B.; Lv, J.; Wang, Z.; Xing, B. CuO nanoparticles doping recovered the photocatalytic antialgal activity of graphitic carbon nitride. J. Hazard. Mater. 2021, 403, 123621. [Google Scholar] [CrossRef] [PubMed]
  22. Cavalcante, L.S.; Simões, A.Z.; Sczancoski, J.C.; Longo, V.M.; Erlo, R.; Escote, M.T.; Longo, E.; Varela, J.A. SrZrO3 powders obtained by chemical method: Synthesis, characterization and optical absorption behaviour. Solid State Sci. 2007, 9, 1020–1027. [Google Scholar] [CrossRef]
  23. Yan, Y.H.; Yang, H.X. TiO2–g-C3N4 composite materials for photocatalytic H2 evolution under visible light irradiation. J. Alloys Compd. 2011, 509, L26–L29. [Google Scholar] [CrossRef]
  24. Vasquez, R.P. X-ray photoelectron spectroscopy study of Sr and Ba compounds. J. Electron. Spectros. Relat. Phenom. 1991, 56, 217–240. [Google Scholar] [CrossRef]
  25. Teterin, Y.A.; Sosulnikov, M.I. X-ray photoelectron study of Ca, Sr and Ba ion chemical states in high-Tc superconductors. Phys. C 1993, 212, 306–316. [Google Scholar] [CrossRef]
  26. Liu, S.; Han, G.; Shu, M.; Han, L.; Che, S. Monodispersed inorganic/organic hybrid spherical colloids: Versatile synthesis and their gas-triggered reversibly switchable wettability. J. Mater. Chem. 2010, 20, 10001–10009. [Google Scholar] [CrossRef]
  27. Xia, X.; Deng, N.; Cui, G.; Xie, J.; Shi, X.; Zhao, Y.; Wang, Q.; Wang, W.; Tang, B. NIR light induced H2 evolution by a metal-free photocatalyst. Chem. Commun. 2015, 51, 10899–10902. [Google Scholar] [CrossRef]
  28. Yuan, M.; Nix, R.M. Growth of TiOx Overlayers by Chemical Vapour Deposition on a Single-crystal Copper Substrate. J. Mater. Chem. 1994, 4, 1403–1407. [Google Scholar]
  29. Schreckenbach, J.P.; Butte, D.; Marx, G. Synthesis and Microstructure of Anodic Spark Deposited SrZrO3. Mikrochim. Acta 2000, 133, 295–298. [Google Scholar] [CrossRef]
  30. Alfonso-Herrera, L.A.; Huerta-Flores, A.M.; Torres-Martínez, L.M. Hybrid SrZrO3-MOF heterostructure: Surface assembly and photocatalytic performance for hydrogen evolution and degradation of indigo carmine dye. J. Mater. Sci. Mater. Electron. 2018, 29, 10395–10410. [Google Scholar] [CrossRef]
  31. Huerta-Flores, A.M.; Torres-Martínez, L.M.; Moctezuma, E. Novel SrZrO3-Sb2O3 heterostructure with enhanced photocatalytic activity: Band engineering and charge transference mechanism. J. Photochem. Photobiol. A. 2018, 356, 166–176. [Google Scholar] [CrossRef]
  32. Güy, N. Directional transfer of photocarriers on CdS/g-C3N4 heterojunction modified with Pd as a cocatalyst for synergistically enhanced photocatalytic hydrogen production. Appl. Surf. Sci. 2020, 522, 146442. [Google Scholar] [CrossRef]
Nanomaterials 13 00977 g001 550

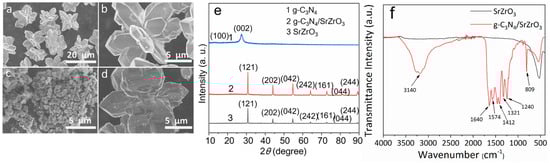

Figure 1. SEM patterns of SrZrO3 (a,b), g−C3N4 (c), and g−C3N4/SrZrO3 (d). XRD patterns of SrZrO3, g−C3N4 and g−C3N4/SrZrO3 (e). Infrared spectra of SrZrO3 and g−C3N4/SrZrO3 (f).
Figure 1. SEM patterns of SrZrO3 (a,b), g−C3N4 (c), and g−C3N4/SrZrO3 (d). XRD patterns of SrZrO3, g−C3N4 and g−C3N4/SrZrO3 (e). Infrared spectra of SrZrO3 and g−C3N4/SrZrO3 (f).
Nanomaterials 13 00977 g001
Nanomaterials 13 00977 g002 550

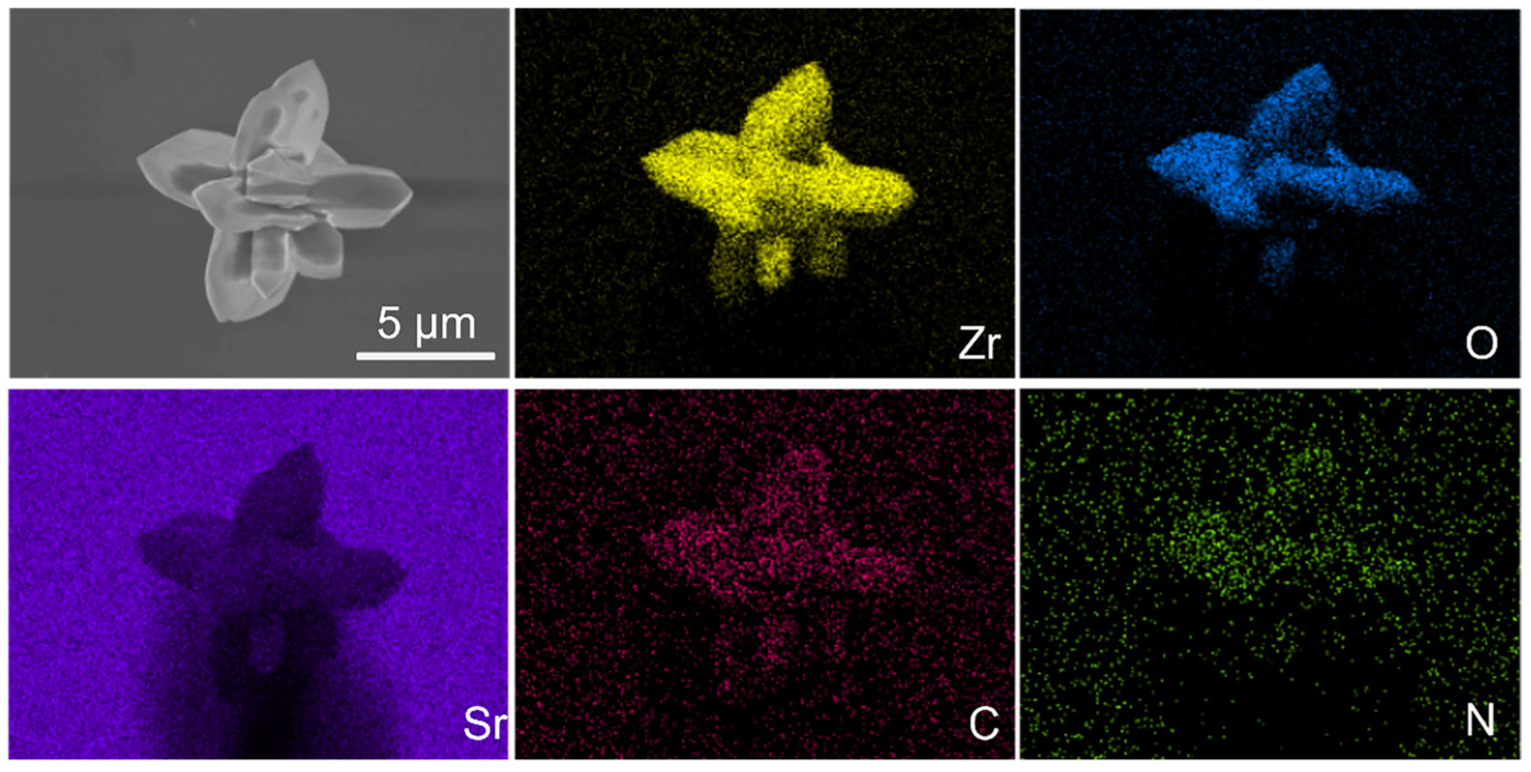

Figure 2. EDS-mapping of g-C3N4/SrZrO3.
Figure 2. EDS-mapping of g-C3N4/SrZrO3.
Nanomaterials 13 00977 g002
Nanomaterials 13 00977 g003 550

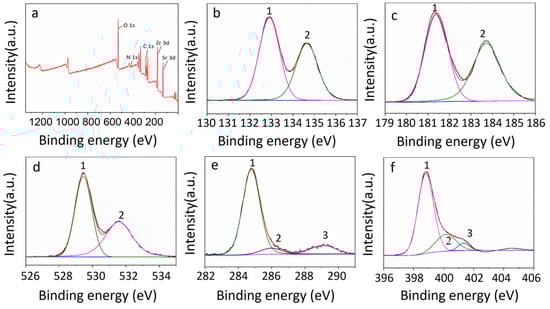

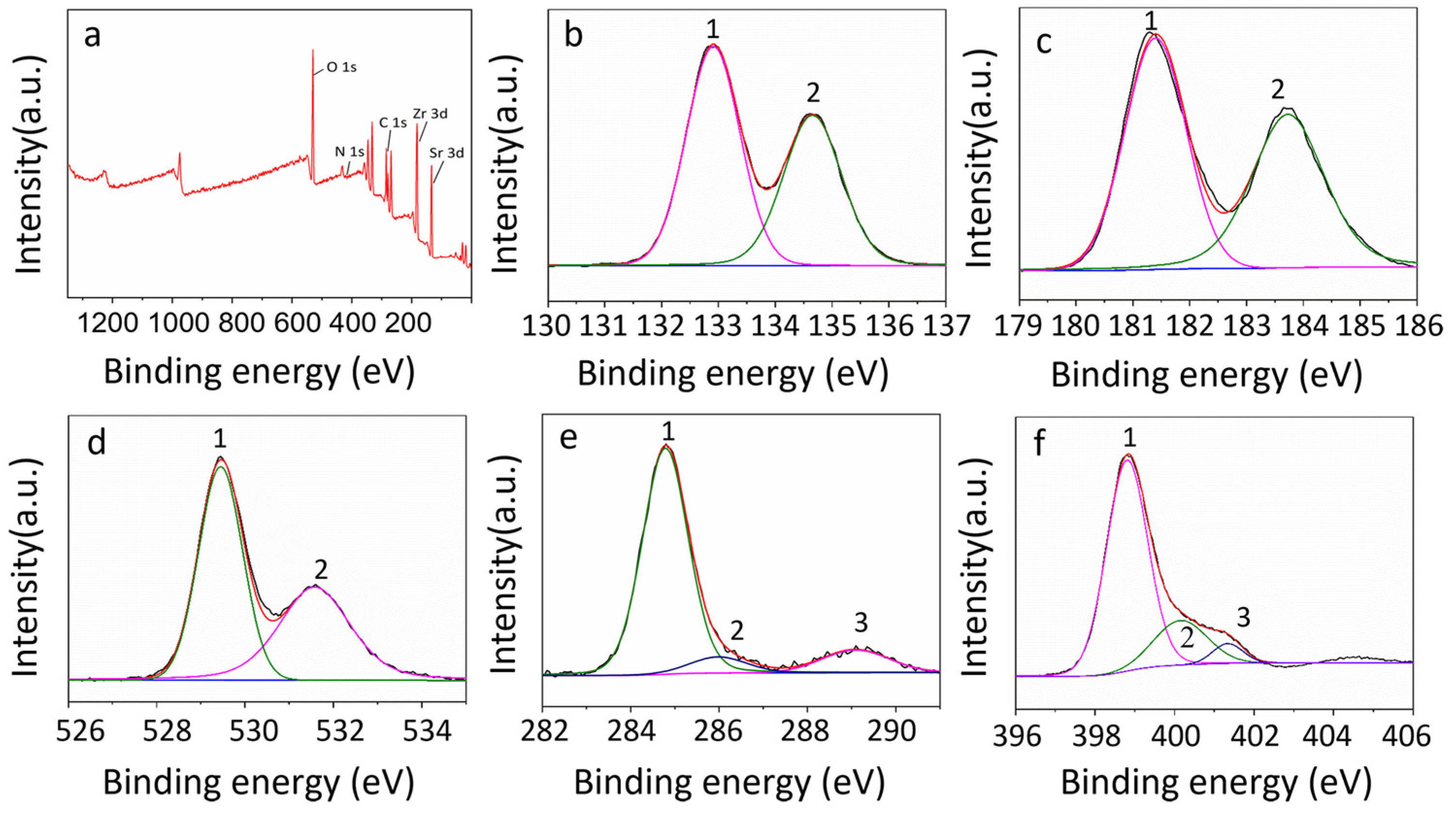

Figure 3. XPS of g−C3N4/SrZrO3, survey XPS spectra (a), Sr 3d (b), Zr 3d (c), O 1s (d), C 1s (e), N 1s (f).
Figure 3. XPS of g−C3N4/SrZrO3, survey XPS spectra (a), Sr 3d (b), Zr 3d (c), O 1s (d), C 1s (e), N 1s (f).
Nanomaterials 13 00977 g003
Nanomaterials 13 00977 g004 550

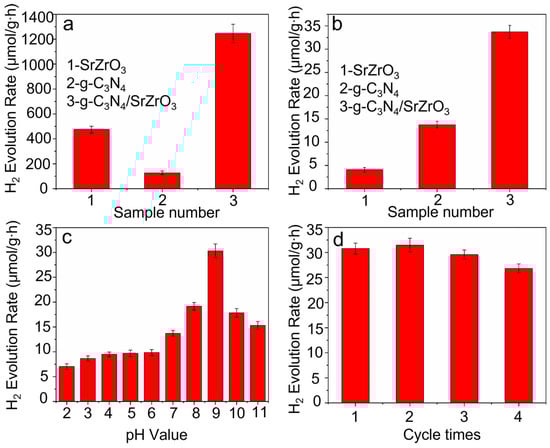

Figure 4. Hydrogen evolution of SrZrO3, g-C3N4, and g-C3N4/SrZrO3 under ultraviolet light irradiation (a), visible light irradiation (b), different pH values (c), and stability test of H2 evolution (evacuation every 8 h) for g-C3N4/SrZrO3 under visible light irradiation (d).
Figure 4. Hydrogen evolution of SrZrO3, g-C3N4, and g-C3N4/SrZrO3 under ultraviolet light irradiation (a), visible light irradiation (b), different pH values (c), and stability test of H2 evolution (evacuation every 8 h) for g-C3N4/SrZrO3 under visible light irradiation (d).
Nanomaterials 13 00977 g004
Nanomaterials 13 00977 g005 550

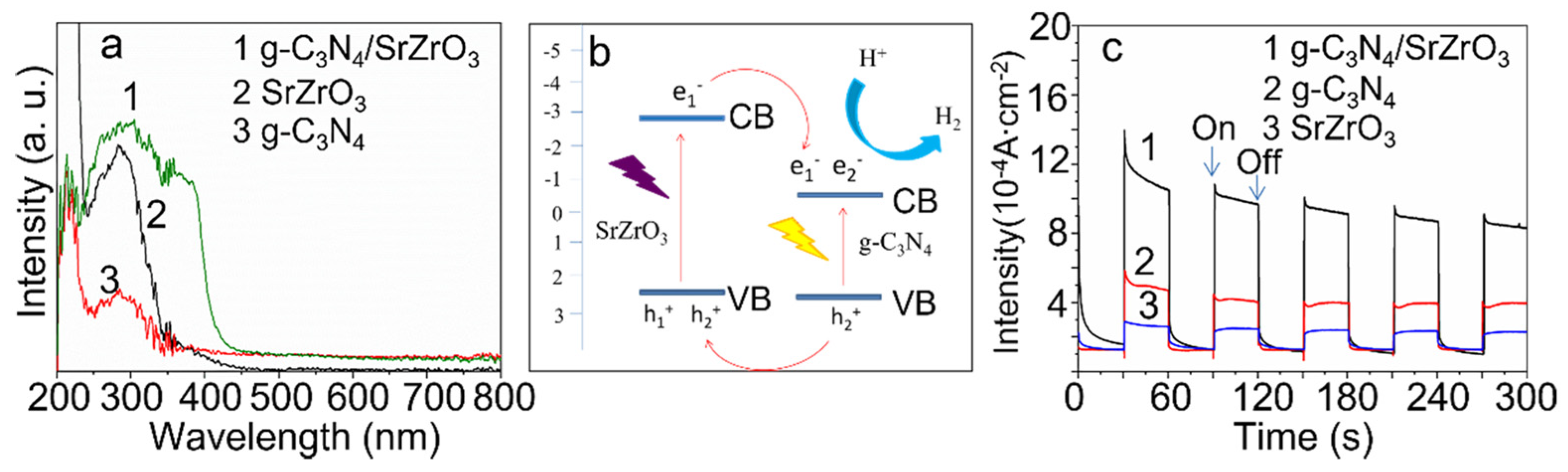

Figure 5. UV-Vis diffuse reflectance spectra of SrZrO3, g−C3N4 and g−C3N4/SrZrO3 (a). Photocatalytic mechanism diagram (b). Photocurrent of SrZrO3, g−C3N4 and g−C3N4/SrZrO3 (c).
Figure 5. UV-Vis diffuse reflectance spectra of SrZrO3, g−C3N4 and g−C3N4/SrZrO3 (a). Photocatalytic mechanism diagram (b). Photocurrent of SrZrO3, g−C3N4 and g−C3N4/SrZrO3 (c).
Nanomaterials 13 00977 g005
