Tailoring the Magnetic and Electrical Properties of Epoxy Composites Containing Olive-Derived Biochar through Iron Modification

by
Erik Piatti
1,†,
Daniele Torsello
1,2,†,
Gaia Gavello
1,
Gianluca Ghigo
1,2,
Roberto Gerbaldo
1,2,
Mattia Bartoli
3,4,* and
Donatella Duraccio
5,*
1
Department of Applied Science and Technology, Politecnico di Torino, C.so Duca degli Abruzzi 24, 10129 Torino, Italy
2
Istituto Nazionale di Fisica Nucleare, Sez. Torino, Via P. Giuria 1, 10125 Torino, Italy
3
Center for Sustainable Future Technologies, Italian Institute of Technology, Via Livorno 60, 10144 Torino, Italy
4
Consorzio Interuniversitario Nazionale per la Scienza e Tecnologia dei Materiali (INSTM), Via G. Giusti 9, 50121 Firenze, Italy
5
Institute of Sciences and Technologies for Sustainable Energy and Mobility, National Research Council, Strada delle Cacce 73, 10135 Torino, Italy
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2023, 13(16), 2326; https://doi.org/10.3390/nano13162326
Submission received: 5 July 2023 / Revised: 6 August 2023 / Accepted: 10 August 2023 / Published: 13 August 2023
(This article belongs to the Special Issue Mechanical, Thermal and Electrical Properties of Polymer Nanocomposites)
Browse Figures
Versions Notes

Abstract

:
The combination of conductive carbon together with magnetic particles is a consolidated strategy to produce cutting-edge fillers for the production of polymer composites able to shield against microwave radiation. In this work, we developed and characterized an iron-tailored biochar obtained from the pyrolysis of olive pruning which was added as filler for the preparation of epoxy composites. The biochar-based composites were obtained by keeping the filler concentration at 10 and 40 wt.%. An extensive characterization was carried out in order to assess the electrical and magnetic properties of the composites containing biochar and iron-tailored biochar. The highest DC electrical conductivity of 59 mS/m was observed in the 40 wt.% iron-tailored biochar-loaded composite, while the reduction of the filler loading led to a drastic reduction in conductivity: 60 μS/m in the 10 wt.%-loaded composite. Ferromagnetic behavior of composites containing iron-tailored biochar is visible in the emerging hysteretic behavior, with a magnetic signal increasing with the filler concentration. Finally, both the complex permittivity (ε’) and the AC conductivity (σ) are enhanced by increasing the BC filler amount in the matrix, regardless of the presence of iron.

1. Introduction

The increase in society’s accountability for the preservation and sustainability of natural resource utilization has become one of the major issues of both scientific and regulatory argument [1,2,3,4,5]. Industrial workers and scientific researchers are now more aware of the finite nature of these resources and the detrimental effects of their overexploitation. The research in material science has also focused on advanced solutions based on sustainable materials for cutting-edge applications such as carbon capture [6,7] and conversion [8], energy storage [9,10,11], and electronic applications [12,13]. Furthermore, the production of composites has been oriented to the incorporation of waste- or biomass-derived fillers into polymer matrices. Recycling these materials into composites reduces the burden on landfill sites and the overall environmental impact associated with waste disposal, helping the promotion of a circular economy. Moreover, waste materials are often readily available at lower costs or even for free, as they might be considered as waste byproducts of various industrial processes. Incorporating them into composites can lead to cost savings compared to using expensive virgin fillers. It worth underlining that processing waste- or biomass-derived fillers often requires less energy compared to the extraction and processing of virgin fillers. This can lead to a reduced carbon footprint and contribute to overall energy conservation. Finally, the use of these materials in composites supports the transition towards more sustainable and renewable resources in various industries and also answers to the increasing market demand for sustainable and eco-friendly products. Many industries and consumers are becoming more conscious of the environmental impact of products they use. By incorporating waste- or biomass-derived fillers, companies can meet these demands and comply with environmental regulations.
The resulting composites can exhibit a combination of properties from both the fillers and matrix materials, making them suitable for different applications, including construction, automotive, packaging, and more [14,15,16]. Above all, the production of composites containing tunable carbon-based fillers with high electrical conductivity and magnetic properties represents a field of great interest for sensor development [17,18], EMI shielding, and microwave absorption [19,20]. In fact, it is well-known that that with the rapid expansion of electronic devices and wireless technologies in our daily lives (i.e., mobile, radio, wireless LAN), the concern over electromagnetic interference has become more significant. EMI can disrupt the functioning of electronic devices, communication systems, and even critical infrastructure. The human nervous system may get damaged if exposed to these radiations over an extended period of time [21].
For these reasons, the research interest in creating electromagnetic-interference-shielding materials with superior absorption capability has grown. The most studied solutions are actually based on expensive fillers such as carbon nanotubes [22,23,24,25] or graphene-related materials [26,27,28,29,30]. Nevertheless, alternative conductive carbon fillers have gained great attention, with biochar (BC), i.e., the solid product of biomass pyrolysis being the most promising one considering the high tunability of its combination of properties [31] and the sustainability of its production [32]. The BC electrical properties are strictly related to the production temperature used during the pyrolytic process and to the shape and size of the BC powder. Giorcelli et al. [33] reported a consistent increment of conductivity ranging from the pyrolytic temperature of 400 °C up to 1000 °C, reaching a value of 36 S/m using epoxy resin/BC composites with BC produced from coffee residues. Gabhi et al. [34] evaluated the bulk electrical conductivity of BC monoliths, reporting a maximum value of up to 340 S/m. Furthermore, the authors found an increase in conductivity with the increase in BC carbon content and processing temperature [35]. Interestingly, Giorcelli et al. [36] proved the ability of BC-filled epoxy matrixes to shield electromagnetic radiation with a performance comparable to that of carbon-nanotube materials. Accordingly, the production of BC-containing composites with good high-frequency electromagnetic absorption has gained a great interest for both polymeric [37] and construction [38,39,40] materials applications. Additionally, BC could be easily tailored with magnetic particles for the realization of magnetic powders used for environmental remediation [41,42] or for the production of multifunctional composites [17,43,44]. In general, the addition of magnetic metals [27] has a good impact on the composite’s final properties and can increase the effectiveness of MW shielding. The metallic species employed for the shielding against MW are often difficult to prepare and incredibly expensive complex metal oxides [45,46] or iron-based nanoparticles [47,48]. In the present research work, we produced an iron-tailored olive BC (Fe@BC) by a simple carbothermal route. This means that reducing agents such as carbon sources are used to reduce substances (such as metal oxides). Temperatures of several hundred degrees Celsius are typically used for these chemical processes that are often used to produce the elemental forms of several elements. Carbothermal reduction techniques provide certain unmatched benefits, including ease, a cheap cost, and remarkable reproducibility for industrial uses.
It worth underlining that olive residues have been chosen as the waste stream because they are particularly available in the south of Europe and are currently disposed of by simply being burnt. These residues are generated in significant quantities from olive oil production and olive processing industries and include olive pits, olive pomace, and olive tree prunings. The abundance and availability of olive residues make them a reliable and sustainable source for the production of high-added-value materials and can represent a solid choice to promote more friendly waste management. The innovative aspect of this work is that Fe@BC is used for the first time in the preparation of magnetic conductive epoxy composites that were extensively characterized both under DC and AC regimes and through magnetic hysteresis cycle measurements. Fe@BCs were characterized by field-emission scanning electron microscopy (FESEM) Raman and XPS spectroscopy.

2. Materials and Methods

2.1. Materials

Olive residues were collected in Imperia (Liguria, Italy) and dried at 105 °C for 72 h before their use. Two-component BFA diglycidyl resin was purchased from CORES (Cores epoxy resin, LPL). Iron nitrate heptahydrate (>99%) was provided by Sigma-Aldrich and used without further purification.

2.2. Methods

2.2.1. Fe@BC Production

Olive residues were cut into cylindrical pieces with an average size of 3 × 15 cm2 and pyrolyzed in a tubular furnace (Carbolite TZF 12/65/550, Neuhausen, Germany) by using nitrogen atmosphere and a heating rate of 10 °C/min for reaching and keeping the systems at 800 °C for 30 min. The produced BC was pulverized using a TURBULA® mixer T 2 F (Muttenz 1Switzerland) for 2 h and then mixed with iron nitrate heptahydrate (weight ratio of 2:1) by suspending the species in water and drying them at 130 °C for 24 h. The resulting powder was ground and pyrolyzed again in a tubular furnace (Carbolite TZF 12/65/550) in nitrogen atmosphere using a heating rate of 10 °C/min reaching and keeping the systems at 550 °C for 30 min. Fe@BC was recovered and used without any further purification.

2.2.2. Fe@BC-Containing Epoxy Composites Preparation

Fe@BCs were dispersed into resin monomer by using a tip ultrasonicator apparatus (Sonics Vibra-cell) for 15 min, pulsing the ultrasounds with on/off cycles of 20/10 s to avoid an excessive temperature increase. After adding the curing agent, the resulting solution was additionally treated for 2 min, poured into a silicon mould, and left there for 16 h at 24 °C. The thermal curing was completed in a ventilated oven (I.S.C.O. Srl “The scientific manufacturer”, Venezia, Italy) at 80 °C for 4 h. The amount of Fe@BC into the composites was 10 and 40 wt.%, thus including the common bottom and high ranges adopted in the literature for the production of conductive biochar-based epoxy materials. Composites comprising BC without Fe tailoring were also synthesised as a reference for electrical and magnetic characterizations.

2.2.3. Characterization of Fe@BC and Composites

The Raman spectrum of Fe@BC powder was collected using a Renishaw inVia (H43662 model, Gloucestershire, UK) equipped with a laser line with a wavelength of 514 nm and a 50× objective. Raman spectra were recorded in the range from 150 cm−1 to 3500 cm−1 and the region between 1000 and 2000 cm−1 was analyzed with a homemade software compiled in Matlab® (version R2020a) following a procedure reported by Tagliaferro et al. [49].
Fe@BC morphology was observed in a field-emission scanning electron microscope (FE-SEM, Zeiss SupraTM40, Oberkochen, Germany). The instrument was equipped with an energy-dispersive X-ray detector (EDX, Oxford Inca Energy 450, Oberkochen, Germany) employed for a compositional evaluation of Fe@BC.
Fe@BC chemical functions were investigated by using an XPS spectrometer (PHI 5000 Versaprobe Physical Electronics, Chanhassen, MN, USA) equipped with a monochromatic Al K-alpha X-ray source with 1486.6 eV energy using 5 kV voltage, and 1 mA anode current.
The DC electrical conductivity of the composites was measured at room temperature (295 K) [50] by electrically contacting the composite samples in the four-point van der Pauw configuration by using thin gold wires and conducting silver paste (RS Components, Sesto San Giovanni, Italy). A current of 1 μA was sourced between two adjacent contacts with a B2912 source measure unit (Keysight Technologies, Santa Rosa, CA, USA), for each van der Pauw configuration. The voltage drop occurring across the opposite two contacts was measured with a 34,420 nanovoltmeter (Keysight Technologies, Santa Rosa, CA, USA). The conductivity was then calculated as σ = R s − 1 t − 1 , where R s is the sheet resistance obtained by solving the van der Pauw equation, and t is the thickness of the material. By loading the samples in the high-vacuum chamber of an ST-403 pulse-tube cryocooler (Cryomech, Syracuse, NY, USA), cooling the system to the base temperature of 2.7 K, and then quasi-statically warming the samples to 295 K, the temperature dependence of σ was measured in accordance with the method reported in literature [51]. By inverting the sourced current flow within each resistance measurement, thermoelectric voltages were eliminated. Due to an imperfect thermal coupling between the sample and the thermometer, data points below 20 K were excluded.
The real parts of the complex permittivity (ε’) and the conductivity (σ) of the samples were measured in the GHz range by means of a cylindrical coaxial cell (EpsiMu toolkit [51]), which contains the composite as a dielectric spacer between the inner and outer conductors, whose diameters are 3 mm and 7 mm, respectively. The cell was linked to standard connectors, keeping the characteristic impedance at 50 Ω, thus avoiding mismatch and energy loss. The cell was connected to a Rohde Schwarz ZVK Vector Network Analyzer that was suitably calibrated, and measurements were analyzed with a two-port transmission line technique. By de-embedding and using the Nicolson–Ross–Weir transmission/reflection algorithm, the sample’s electromagnetic characteristics were measured.
An electromagnet-equipped DC magnetometer/AC susceptometer (Lakeshore 7225) was used to study the magnetic characteristics in quasi-static conditions at an ambient temperature. To specifically determine the magnetic behavior, magnetic hysteresis cycle measurements on the composites up to 30 kA/m were performed. Considering that the signal from the epoxy matrix was hardly detectable and that the composition’s weight and filler content were known from the preparation, it was possible to characterize the magnetic properties of the filler alone.

3. Results

3.1. Characterization of Fe@BC

The morphology and chemical composition of the Fe@BC powder was carried out through FESEM-EDX analysis, and the results are summarized in Figure 1 and Table 1.
As shown in Figure 1a, the tailoring process of the olive BC is quite effective compared with that of the classical porous surface of neat olive BC. In fact, the channeled surface of BC (Figure 1d) is not more observable due to the effective covering of iron-based particles. The addition of iron nitrate promotes a uniform covering of the BC surface with the production of rod-like particles with an average length of 200 nm and 50 nm in diameter (Figure 1b). This rod-like morphology, that depends on the carbothermal reaction conditions, is reported for the first time as a metallic tailoring biochar surface. It could be ascribed to the non-total conversion of iron nitrate to metallic nanoparticles that are already described in literature as spherical for this procedure. The morphology is similar to that of the rhombic ferrite species as observed by Cheng et al. [52]. The EDX elemental map reported in Figure 1c shows a good covering of the carbon surface by the iron species, with few exceptions corresponding to small BC flakes. Moreover, the oxygen and iron distributions do not appear to coincide in Figure 1c (red and blue colors), and this is probably due to the presence of a small excess of iron (III) oxide. As summarized in Table 1, oxygen species are associated with both carbon and iron and represented up to 21 wt.%, while the carbon and iron species represented 27 and 52 wt.%, respectively.
The Raman study reported in Figure 2 offers more information on the composition of Fe@BC.
As shown in Figure 2a, BC shows a very high ID/IG ratio of up to 3.2, suggesting the presence of a disorganized carbonaceous structure [53], while Fe@BC powder shows an ID/IG ratio of up to 1.7, implying the reduction of less-crystalline carbon. This is in agreement with the carbothermal reduction process that consumes the less-crystalline carbon due to its higher reactivity. Furthermore, the presence of peaks at 215, 272, 378 and 585 cm−1 supports the presence of Fe3O4 iron species on BC as reported by Yew et al. [54]. The formation of ferrite is promoted by a partial reduction of Fe(III) induced by the oxidation of the carbon matrix [55,56,57]. The investigation of the surface chemical states of carbon, oxygen, and iron was carried out by using XPS analysis, reported in Figure 3 and summarized in Table 2. This investigation also allows us to check the massive formation of mixtures of metal oxides and metallic species that can occur during the carbothermal process as a consequence of the selected operative temperature [58].
The survey spectrum (Figure 3a) shows that no significant inorganic contaminants were present in the samples such as inorganic residues from the original biomass. The C 1s spectrum shows the massive presence of C sp2 (284.8 eV) at up to 65%, together with hydroxyl (285.9 eV) and carboxylic (291.3 eV) functions at up to 10 and 25%, respectively. Interestingly, carbonyl functions were not detected, suggesting the removal of highly reactive carbon–oxygen sites (particularly on the material edges) during the pyrolysis process. This result is in agreement with the Lerf model for the oxygen function distribution on oxidized carbon [59]. Accordingly, the O 1s spectrum shows only the signal due to hydroxyl (530.2 eV) and carboxylic (531.4 eV) species with abundances of up to 19 and 52%, respectively. Furthermore, the signal of Fe-O indicates the simultaneous presence of Fe(II)-O (536.8 eV) and Fe(III)-O (538 eV) with concentrations of up to 14 and 15%, respectively [60]. Similarly, the Fe 2p signal suggests the presence of both Fe(II) (Fe 2p1/2 at 710.7 eV, Fe 2p3/2 at 724.7 eV) and Fe (III) (Fe 2p1/2 at 711.9 eV, Fe 2p3/2 at 726.9 eV) with abundances of 47 and 53%, respectively. Fe(0) was not detected, supporting the effectiveness of carbothermal reduction control, with the small excess of Fe(III) reasonably due the small excess of Fe2O3 formed during the process.

3.2. Characterization of Fe@BC Composites

3.2.1. DC and Low-Temperature Electrical Characterization

The DC electrical conductivity of the composites containing different filler amounts was first measured at ambient conditions. The composite containing 40 wt.% BC without Fe particles exhibited a conductivity of 16 mS/m. This conductivity value is indeed much lower than the maximum ones reported in the cited works by Giorcelli et al. [33] and Gabhi et al. [34]. This is because the conductivity of biochar (and its composites) is critically dependent on the pyrolysis conditions, which in turn determine the degree of carbonization and of oxygen–carbon and hydrogen–carbon atomic ratios, on which the final conductivity depends in non-trivial ways. In general, higher pyrolysis temperatures and longer pyrolysis times result in more conductive biochar (and related composites). However, the conductivity found in this work is comparable with our previous reports on hemp-derived BC [17] and coffee-derived BC [33] at comparable pyrolysis conditions. Among the composites containing Fe@BC, a conductivity of 59 mS/m was observed in the 40 wt.%-loaded composite, while the reduction in the filler loading caused a drastic reduction in conductivity: 60 μS/m in the 10 wt.%-loaded composites. This result suggests that these latter filler loadings are below the percolation threshold for the composite.
The relatively large conductivity of the 40 wt.%-loaded composite allows for a reliable investigation of its electric transport mechanism by measuring the temperature dependence of the conductivity down to low temperatures. The black dashed line in Figure 4a emphasized how σ strongly decreases when the temperature is decreased from 295 to 20 K, and that is scaled well, as σ ( T ) = σ 0 exp ( T 0 / T ) 1 / 4 when T 0 ≈ 37 , 000 K. This behavior is typical of insulating materials, where electric transport occurs via three-dimensional (3D) Mott-type variable-range hopping (VRH), according to the theory of the insulator-to-metal transition [61], and is frequently seen in electrically conducting composite materials [62], such as ceramic–metal composites (cemets) [63], carbon-based composites and metal clusters [64], and, more recently, 2D material networks [65]. In other words, this means that the electric conduction in the epoxy composites does not occur by diffusive transport over extended states (as in a typical metal), but by thermally activated hopping between localized states. Indeed, most composite materials which are electrically conductive at room temperature [62] do exhibit a hopping transport mechanism and therefore become unable to support the flow of electrical currents when cooled down close to the absolute zero, unlike a metal which retains a finite conductivity in such conditions instead.
Figure 4b, which reports the Zabrodskii analysis [66] of the reduced activation energy W = d ( ln σ ) / d ( ln T ) , confirms this picture since in the entire considered temperature range, ln W linearly drops off with the increase of ln T and with a negative slope p ≈ 0.28 . This value is consistent with the one expected for 3D Mott VRH ( p = 1 / 4 ) and rules out 2D Mott VRH ( p = 1 / 3 ), Efros–Shklovskii VRH ( p = 1 / 2 ), and nearest-neighbor hopping ( p = 1 ) as possible alternative conduction mechanisms.

3.2.2. Magnetic Characterization

The cycles of hysteresis, with applied fields of up to 30 kA/m, are shown in Figure 5. The pure epoxy matrix (black curve) and the sample containing BC without Fe particles (blue curve) do not show any magnetic behavior. Conversely, the ferromagnetic behavior of composites containing Fe@BC is perfectly visible in the emerging hysteretic behavior. Moreover, the magnetic signal increases with the increase of the filler concentration. This expected behavior is interesting for a broad range of applications where magnetic composites are desirable.

3.2.3. Electrical Characterization at High Frequency

In Figure 6, the real part of the complex permittivity (ε’) and the conductivity (σ) are presented vs. the frequencies (f) for the pure epoxy matrix (black curve), the sample containing BC without Fe particles (blue curve), and all the composites containing Fe@BC (yellow and red curves).
Clearly, both the complex permittivity (ε’) and the conductivity (σ) are enhanced by introducing BC in the matrix regardless of the presence of Fe, which mostly affects the magnetic properties. Moreover, in the high-frequency regime, the conductivity is not affected by the network of the filler (no percolation threshold needs to be overcome to obtain high conductivity values since the local conductivity is probed), and this results in a direct increase of σ to the same order of magnitude in all the samples. It is worth noting that the filler weight percentage is the same for all the samples, but the amount of BC in each filler is different. Moreover, the electronic properties of the BC in each filler are also different due to the higher graphitization of C promoted by the carbothermal reduction process [67]. For this reason, a non-trivial behavior of ε’ and σ with increasing BC emerges: their values do not simply increase with increasing amounts of either BC or Fe in the epoxy matrix. Interestingly, it is not strictly necessary to maximize the conductivity of BC materials [40,68,69] to improve the MW properties, as shown by several works in the literature [36,70]. As discussed by Natalio et al. [71], BC produced at 800 °C can be as effective a filler for MW shielding as the one produced at a higher temperature due to the complex model that described the EMI shielding [72,73]. Accordingly, a reasonable temperature treatment trade-off together with a magnetic tailoring represents a solid choice to produce an effective filler for EMI shielding applications.

4. Conclusions

The production of new iron-tailored BC materials (Fe@BC) has been reported by using low-temperature carbothermal synthesis. BC was obtained by the pyrolysis of olive residues generated in significant quantities from olive oil production and olive processing industries. The biochar-based composites were obtained by keeping the filler concentration at 10 and 40 wt.%. The Fe@BC powder showed a peculiar morphology with ferrite rod-like submicrometric particles covering the carbon surface in a very homogenous way. The powder characterization clearly showed the absence of any trace of metallic iron and a small excess of Fe(III), probably due to the overoxidation on the particle edges and to the no-total conversion of iron nitrate to metallic nanoparticles. The morphology is similar to that of the rhombic ferrite species. The combination of electrical and magnetic measurements showed remarkable conductivity and a pure ferromagnetic behavior, with the magnetic signal increasing with the filler concentration. The iron tailoring procedure significantly affected the conductivity of BC, improving the graphitization and achieving the same results using the neat BC, proving the degradation of a more reactive and disorganized carbon domain. All the results clearly suggest that Fe@BC powder represents an interesting material for the development of advanced multi-property epoxy composites for use in several technological fields.

Author Contributions

Conceptualization, M.B. and D.D.; methodology, G.G. (Gianluca Ghigo), D.T., E.P., and M.B.; software, D.T., G.G. (Gianluca Ghigo), E.P., and M.B.; formal analysis, G.G. (Gaia Gavello), D.T., E.P., R.G., and M.B.; investigation, D.T., G.G. (Gianluca Ghigo), E.P., R.G., D.D., and M.B.; resources, D.T., G.G. (Gaia Gavello), E.P., and M.B.; data curation, D.T., G.G. (Gianluca Ghigo), E.P., and M.B.; writing—original draft preparation, G.G., D.T., E.P.,G.G., R.G., M.B., and D.D.; writing—review and editing, D.T., G.G. (Gaia Gavello), E.P., G.G. (Gianluca Ghigo), R.G., M.B., and D.D., supervision, M.B. and D.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Henderson, K.; Loreau, M. A model of Sustainable Development Goals: Challenges and opportunities in promoting human well-being and environmental sustainability. Ecol. Model. 2023, 475, 110164. [Google Scholar] [CrossRef]
  2. Zarbakhshnia, N.; Govindan, K.; Kannan, D.; Goh, M. Outsourcing logistics operations in circular economy towards to sustainable development goals. Bus. Strategy Environ. 2023, 32, 134–162. [Google Scholar] [CrossRef]
  3. Mohanty, A.K.; Vivekanandhan, S.; Pin, J.-M.; Misra, M. Composites from renewable and sustainable resources: Challenges and innovations. Science 2018, 362, 536–542. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Woolf, D.; Amonette, J.E.; Street-Perrott, F.A.; Lehmann, J.; Joseph, S. Sustainable biochar to mitigate global climate change. Nat. Commun. 2010, 1, 56. [Google Scholar] [CrossRef] [Green Version]
  5. Brandt, P.; Ernst, A.; Gralla, F.; Luederitz, C.; Lang, D.J.; Newig, J.; Reinert, F.; Abson, D.J.; Von Wehrden, H. A review of transdisciplinary research in sustainability science. Ecol. Econ. 2013, 92, 1–15. [Google Scholar] [CrossRef]
  6. Dissanayake, P.D.; You, S.; Igalavithana, A.D.; Xia, Y.; Bhatnagar, A.; Gupta, S.; Kua, H.W.; Kim, S.; Kwon, J.-H.; Tsang, D.C. Biochar-based adsorbents for carbon dioxide capture: A critical review. Renew. Sustain. Energy Rev. 2020, 119, 109582. [Google Scholar] [CrossRef]
  7. Haleem, N.; Khattak, A.; Jamal, Y.; Sajid, M.; Shahzad, Z.; Raza, H. Development of poly vinyl alcohol (PVA) based biochar nanofibers for carbon dioxide (CO2) adsorption. Renew. Sustain. Energy Rev. 2022, 157, 112019. [Google Scholar] [CrossRef]
  8. Yuan, H.; Qian, X.; Luo, B.; Wang, L.; Deng, L.; Chen, Y. Carbon dioxide reduction to multicarbon hydrocarbons and oxygenates on plant moss-derived, metal-free, in situ nitrogen-doped biochar. Sci. Total Environ. 2020, 739, 140340. [Google Scholar] [CrossRef]
  9. Liu, W.-J.; Jiang, H.; Yu, H.-Q. Emerging applications of biochar-based materials for energy storage and conversion. Energy Environ. Sci. 2019, 12, 1751–1779. [Google Scholar] [CrossRef]
  10. Cheng, B.-H.; Zeng, R.J.; Jiang, H. Recent developments of post-modification of biochar for electrochemical energy storage. Bioresour. Technol. 2017, 246, 224–233. [Google Scholar] [CrossRef]
  11. Mian, M.M.; Alam, N.; Ahommed, M.S.; He, Z.; Ni, Y. Emerging applications of sludge biochar-based catalysts for environmental remediation and energy storage: A review. J. Clean. Prod. 2022, 360, 132131. [Google Scholar] [CrossRef]
  12. Tan, M.J.; Owh, C.; Chee, P.L.; Kyaw, A.K.K.; Kai, D.; Loh, X.J. Biodegradable electronics: Cornerstone for sustainable electronics and transient applications. J. Mater. Chem. C 2016, 4, 5531–5558. [Google Scholar] [CrossRef]
  13. Monisha, M.; Agarwala, S. Biodegradable materials: Foundation of transient and sustainable electronics. Mater. Sci. Addit. Manuf. 2022, 1, 15. [Google Scholar] [CrossRef]
  14. Bartoli, M.; Arrigo, R.; Malucelli, G.; Tagliaferro, A.; Duraccio, D. Recent Advances in Biochar Polymer Composites. Polymers 2022, 14, 2506. [Google Scholar] [CrossRef]
  15. Huber, T.; Müssig, J.; Curnow, O.; Pang, S.; Bickerton, S.; Staiger, M.P. A critical review of all-cellulose composites. J. Mater. Sci. 2012, 47, 1171–1186. [Google Scholar] [CrossRef]
  16. Jouyandeh, M.; Vahabi, H.; Rabiee, N.; Rabiee, M.; Bagherzadeh, M.; Saeb, M.R. Green composites in bone tissue engineering. Emergent Mater. 2022, 5, 603–620. [Google Scholar] [CrossRef]
  17. Zecchi, S.; Ruscillo, F.; Cristoforo, G.; Bartoli, M.; Loebsack, G.; Kang, K.; Piatti, E.; Torsello, D.; Ghigo, G.; Gerbaldo, R.; et al. Effect of Red Mud Addition on Electrical and Magnetic Properties of Hemp-Derived-Biochar-Containing Epoxy Composites. Micromachines 2023, 14, 429. [Google Scholar] [CrossRef]
  18. Noori, A.; Bartoli, M.; Frache, A.; Piatti, E.; Giorcelli, M.; Tagliaferro, A. Development of Pressure-Responsive PolyPropylene and Biochar-Based Materials. Micromachines 2020, 11, 339. [Google Scholar] [CrossRef] [Green Version]
  19. Zhang, H.; Dou, C.; Pal, L.; Hubbe, M.A. Review of electrically conductive composites and films containing cellulosic fibers or nanocellulose. BioResources 2019, 14, 7494–7542. [Google Scholar] [CrossRef]
  20. Lopez-Lopez, M.; Durán, J.D.; Iskakova, L.Y.; Zubarev, A.Y. Mechanics of magnetopolymer composites: A review. J. Nanofluids 2016, 5, 479–495. [Google Scholar] [CrossRef]
  21. Hanada, E.; Antoku, Y.; Tani, S.; Kimura, M.; Hasegawa, A.; Urano, S.; Ohe, K.; Yamaki, M.; Nose, Y. Electromagnetic interference on medical equipment by low-power mobile telecommunication systems. IEEE Trans. Electromagn. Compat. 2000, 42, 470–476. [Google Scholar] [CrossRef]
  22. Choudhary, M.; Sharma, A.; Aravind Raj, S.; Sultan, M.T.H.; Hui, D.; Shah, A.U.M. Contemporary review on carbon nanotube (CNT) composites and their impact on multifarious applications. Nanotechnol. Rev. 2022, 11, 2632–2660. [Google Scholar] [CrossRef]
  23. Agasti, N.; Gautam, V.; Pandey, N.; Genwa, M.; Meena, P.; Tandon, S.; Samantaray, R. Carbon nanotube based magnetic composites for decontamination of organic chemical pollutants in water: A review. Appl. Surf. Sci. Adv. 2022, 10, 100270. [Google Scholar] [CrossRef]
  24. Rojas, J.A.; Ribeiro, B.; Rezende, M.C. Influence of serrated edge and rectangular strips of MWCNT buckypaper on the electromagnetic properties of glass fiber/epoxy resin composites. Carbon 2020, 160, 317–327. [Google Scholar] [CrossRef]
  25. Jelmy, E.J.; Lakshmanan, M.; Kothurkar, N.K. Microwave absorbing behavior of glass fiber reinforced MWCNT-PANi/epoxy composite laminates. Mater. Today Proc. 2020, 26, 36–43. [Google Scholar] [CrossRef]
  26. Razaq, A.; Bibi, F.; Zheng, X.; Papadakis, R.; Jafri, S.H.M.; Li, H. Review on graphene-, graphene oxide-, reduced graphene oxide-based flexible composites: From fabrication to applications. Materials 2022, 15, 1012. [Google Scholar] [CrossRef] [PubMed]
  27. Ayub, S.; Guan, B.H.; Ahmad, F.; Oluwatobi, Y.A.; Nisa, Z.U.; Javed, M.F.; Mosavi, A. Graphene and iron reinforced polymer composite electromagnetic shielding applications: A review. Polymers 2021, 13, 2580. [Google Scholar] [CrossRef]
  28. Hong, S.K.; Kim, K.Y.; Kim, T.Y.; Kim, J.H.; Park, S.W.; Kim, J.H.; Cho, B.J. Electromagnetic interference shielding effectiveness of monolayer graphene. Nanotechnology 2012, 23, 455704. [Google Scholar] [CrossRef]
  29. Al-Saleh, M.H.; Saadeh, W.H.; Sundararaj, U. EMI shielding effectiveness of carbon based nanostructured polymeric materials: A comparative study. Carbon 2013, 60, 146–156. [Google Scholar] [CrossRef]
  30. Tolvanen, J.; Hannu, J.; Hietala, M.; Kordas, K.; Jantunen, H. Biodegradable multiphase poly (lactic acid)/biochar/graphite composites for electromagnetic interference shielding. Compos. Sci. Technol. 2019, 181, 107704. [Google Scholar] [CrossRef]
  31. Weber, K.; Quicker, P. Properties of biochar. Fuel 2018, 217, 240–261. [Google Scholar] [CrossRef]
  32. Wang, L.; Ok, Y.S.; Tsang, D.C.; Alessi, D.S.; Rinklebe, J.; Mašek, O.; Bolan, N.S.; Hou, D. Biochar composites: Emerging trends, field successes and sustainability implications. Soil Use Manag. 2022, 38, 14–38. [Google Scholar] [CrossRef]
  33. Giorcelli, M.; Bartoli, M. Development of Coffee Biochar Filler for the Production of Electrical Conductive Reinforced Plastic. Polymers 2019, 11, 17. [Google Scholar] [CrossRef] [Green Version]
  34. Gabhi, R.S.; Kirk, D.W.; Jia, C.Q. Preliminary investigation of electrical conductivity of monolithic biochar. Carbon 2017, 116, 435–442. [Google Scholar] [CrossRef]
  35. Gabhi, R.; Basile, L.; Kirk, D.W.; Giorcelli, M.; Tagliaferro, A.; Jia, C.Q. Electrical conductivity of wood biochar monoliths and its dependence on pyrolysis temperature. Biochar 2020, 2, 369–378. [Google Scholar] [CrossRef]
  36. Giorcelli, M.; Khan, A.; Tagliaferro, A.; Savi, P.; Berruti, F. Microwave characterization of polymer composite based on Biochar: A comparison of composite behaviour for Biochar and MWCNTs. In Proceedings of the 2016 IEEE International Nanoelectronics Conference (INEC), Chengdu, China, 9–11 May 2016; pp. 1–2. [Google Scholar]
  37. Bartoli, M.; Duraccio, D.; Faga, M.G.; Piatti, E.; Torsello, D.; Ghigo, G.; Malucelli, G. Mechanical, electrical, thermal and tribological behavior of epoxy resin composites reinforced with waste hemp-derived carbon fibers. J. Mater. Sci. 2022, 57, 14861–14876. [Google Scholar] [CrossRef]
  38. Yasir, M.; di Summa, D.; Ruscica, G.; Natali Sora, I.; Savi, P. Shielding properties of cement composites filled with commercial biochar. Electronics 2020, 9, 819. [Google Scholar] [CrossRef]
  39. Savi, P.; Cirielli, D.; di Summa, D.; Ruscica, G.; Sora, I.N. Analysis of shielding effectiveness of cement composites filled with pyrolyzed biochar. In Proceedings of the 2019 IEEE 5th International forum on Research and Technology for Society and Industry (RTSI), Florence, Italy, 9–12 September 2019; pp. 376–379. [Google Scholar]
  40. Torsello, D.; Bartoli, M.; Giorcelli, M.; Rovere, M.; Arrigo, R.; Malucelli, G.; Tagliaferro, A.; Ghigo, G. High Frequency Electromagnetic Shielding by Biochar-Based Composites. Nanomaterials 2021, 11, 2383. [Google Scholar] [CrossRef]
  41. Qu, J.; Shi, J.; Wang, Y.; Tong, H.; Zhu, Y.; Xu, L.; Wang, Y.; Zhang, B.; Tao, Y.; Dai, X. Applications of functionalized magnetic biochar in environmental remediation: A review. J. Hazard. Mater. 2022, 434, 128841. [Google Scholar] [CrossRef]
  42. Yi, Y.; Huang, Z.; Lu, B.; Xian, J.; Tsang, E.P.; Cheng, W.; Fang, J.; Fang, Z. Magnetic biochar for environmental remediation: A review. Bioresour. Technol. 2020, 298, 122468. [Google Scholar] [CrossRef]
  43. Thines, K.; Abdullah, E.; Mubarak, N.; Ruthiraan, M. Synthesis of magnetic biochar from agricultural waste biomass to enhancing route for waste water and polymer application: A review. Renew. Sustain. Energy Rev. 2017, 67, 257–276. [Google Scholar] [CrossRef]
  44. Shen, R.; Weng, M.; Zhang, L.; Huang, J.; Sheng, X. Biomass-based carbon aerogel/Fe3O4@PEG phase change composites with satisfactory electromagnetic interference shielding and multi-source driven thermal management in thermal energy storage. Compos. Part A Appl. Sci. Manuf. 2022, 163, 107248. [Google Scholar] [CrossRef]
  45. Peymanfar, R.; Ghorbanian-Gezaforodi, S.; Selseleh-Zakerin, E.; Ahmadi, A.; Ghaffari, A. Tailoring La0. 8Sr0. 2MnO3/La/Sr nanocomposite using a novel complementary method as well as dissecting its microwave, shielding, optical, and magnetic characteristics. Ceram. Int. 2020, 46, 20896–20904. [Google Scholar] [CrossRef]
  46. Velhal, N.; Patil, N.; Kulkarni, G.; Shinde, S.; Valekar, N.; Barshilia, H.; Puri, V. Electromagnetic shielding, magnetic and microwave absorbing properties of Polypyrrole/Ba0. 6Sr0. 4Fe12O19 composite synthesized via in-situ polymerization technique. J. Alloys Compd. 2019, 777, 627–637. [Google Scholar] [CrossRef]
  47. Li, Y.; Yan, S.; Zhang, Z.; Liao, Y.; Rong, H.; Zhao, R.; Qin, G. Wood-derived porous Carbon/Iron Oxide nanoparticle composites for enhanced electromagnetic interference shielding. ACS Appl. Nano Mater. 2022, 5, 8537–8545. [Google Scholar] [CrossRef]
  48. Kumar, R.; Choudhary, H.K.; Pawar, S.P.; Bose, S.; Sahoo, B. Carbon encapsulated nanoscale iron/iron-carbide/graphite particles for EMI shielding and microwave absorption. Phys. Chem. Chem. Phys. 2017, 19, 23268–23279. [Google Scholar] [CrossRef] [PubMed]
  49. Tagliaferro, A.; Rovere, M.; Padovano, E.; Bartoli, M.; Giorcelli, M. Introducing the Novel Mixed Gaussian-Lorentzian Lineshape in the Analysis of the Raman Signal of Biochar. Nanomaterials 2020, 10, 1748. [Google Scholar] [CrossRef]
  50. Jagdale, P.; Nair, J.R.; Khan, A.; Armandi, M.; Meligrana, G.; Hernandez, F.R.; Rusakova, I.; Piatti, E.; Rovere, M.; Tagliaferro, A.; et al. Waste to life: Low-cost, self-standing, 2D carbon fiber green Li-ion battery anode made from end-of-life cotton textile. Electrochim. Acta 2021, 368, 137644. [Google Scholar] [CrossRef]
  51. Ba, D.; Sabouroux, P. Epsimu, a toolkit for permittivity and permeability measurement in microwave domain at real time of all materials: Applications to solid and semisolid materials. Microw. Opt. Technol. Lett. 2010, 52, 2643–2648. [Google Scholar] [CrossRef]
  52. Cheng, X.-L.; Jiang, J.-S.; Jiang, D.-M.; Zhao, Z.-J. Synthesis of rhombic dodecahedral Fe3O4 nanocrystals with exposed high-energy {110} facets and their peroxidase-like activity and lithium storage properties. J. Phys. Chem. C 2014, 118, 12588–12598. [Google Scholar] [CrossRef]
  53. Ferrari, A.C.; Robertson, J.; Ferrari, A.C.; Robertson, J. Raman spectroscopy of amorphous, nanostructured, diamond like carbon, and nanodiamond. Philos. Trans. R. Soc. London. Ser. A Math. Phys. Eng. Sci. 2004, 362, 2477–2512. [Google Scholar] [CrossRef]
  54. Yew, Y.P.; Shameli, K.; Miyake, M.; Khairudin, N.B.B.A.; Mohamad, S.E.B.; Hara, H.; Nordin, M.F.B.M.; Lee, K.X. An eco-friendly means of biosynthesis of superparamagnetic magnetite nanoparticles via marine polymer. IEEE Trans. Nanotechnol. 2017, 16, 1047–1052. [Google Scholar] [CrossRef]
  55. Wang, H.; Hu, P.; Pan, D.a.; Tian, J.; Zhang, S.; Volinsky, A.A. Carbothermal reduction method for Fe3O4 powder synthesis. J. Alloys Compd. 2010, 502, 338–340. [Google Scholar] [CrossRef]
  56. Das, B.; Reddy, M.; Chowdari, B. Li-storage of Fe3O4/C composite prepared by one-step carbothermal reduction method. J. Alloys Compd. 2013, 565, 90–96. [Google Scholar] [CrossRef]
  57. Liu, Y.; Li, Y.; Jiang, K.; Tong, G.; Lv, T.; Wu, W. Controllable synthesis of elliptical Fe3O4@ C and Fe3O4/Fe@ C nanorings for plasmon resonance-enhanced microwave absorption. J. Mater. Chem. C 2016, 4, 7316–7323. [Google Scholar] [CrossRef]
  58. Tamborrino, V.; Costamagna, G.; Bartoli, M.; Rovere, M.; Jagdale, P.; Lavagna, L.; Ginepro, M.; Tagliaferro, A. Catalytic oxidative desulphurization of pyrolytic oils to fuels over different waste derived carbon-based catalysts. Fuel 2021, 296, 120693. [Google Scholar] [CrossRef]
  59. Lerf, A.; He, H.; Forster, M.; Klinowski, J. Structure of graphite oxide revisited. J. Phys. Chem. B 1998, 102, 4477–4482. [Google Scholar] [CrossRef]
  60. Xuan, S.; Hao, L.; Jiang, W.; Gong, X.; Hu, Y.; Chen, Z. A facile method to fabricate carbon-encapsulated Fe3O4 core/shell composites. Nanotechnology 2007, 18, 035602. [Google Scholar] [CrossRef] [Green Version]
  61. Piatti, E.; Galanti, F.; Pippione, G.; Pasquarelli, A.; Gonnelli, R.S. Towards the insulator-to-metal transition at the surface of ion-gated nanocrystalline diamond films. Eur. Phys. J. Spec. Top. 2019, 228, 689–696. [Google Scholar] [CrossRef] [Green Version]
  62. Gonnelli, R.; Paolucci, F.; Sharda, K.; Nair, J.R.; Borini, S. Temperature dependence of electric transport in few-layer graphene under large charge doping induced by electrochemical gating. Sci. Rep. 2015, 5, 9554. [Google Scholar] [CrossRef] [Green Version]
  63. Entin-Wohlman, O.; Gefen, Y.; Shapira, Y. Variable-range hopping conductivity in granular materials. J. Phys. C Solid State Phys. 1983, 16, 1161. [Google Scholar] [CrossRef]
  64. Kovtun, A.; Candini, A.; Vianelli, A.; Boschi, A.; Dell’Elce, S.; Gobbi, M.; Kim, K.H.; Lara Avila, S.; Samorì, P.; Affronte, M. Multiscale charge transport in van der Waals thin films: Reduced graphene oxide as a case study. ACS Nano 2021, 15, 2654–2667. [Google Scholar] [CrossRef] [PubMed]
  65. AC, H.J.H.K.L. Anasori B. Pinto D. Pivak Y. van Omme JT May SJ Gogotsi Y. Taheri ML Control of MXenes’ electronic properties through termination and intercalation. Nat. Commun. 2019, 10, 522. [Google Scholar]
  66. Zabrodskii, A.; Zinov’eva, K. Low-temperature conductivity and metal-insulator transition in compensate n-Ge. Zh. Eksp. Teor. Fiz 1984, 86, 727–742. [Google Scholar]
  67. Wang, S.; Li, H.; Wu, M. Advances in metal/biochar catalysts for biomass hydro-upgrading: A review. J. Clean. Prod. 2021, 303, 126825. [Google Scholar] [CrossRef]
  68. Torsello, D.; Ghigo, G.; Giorcelli, M.; Bartoli, M.; Rovere, M.; Tagliaferro, A. Tuning the microwave electromagnetic properties of biochar-based composites by annealing. Carbon Trends 2021, 4, 100062. [Google Scholar] [CrossRef]
  69. Bartoli, M.; Torsello, D.; Piatti, E.; Giorcelli, M.; Sparavigna, A.C.; Rovere, M.; Ghigo, G.; Tagliaferro, A. Pressure-Responsive Conductive Poly(vinyl alcohol) Composites Containing Waste Cotton Fibers Biochar. Micromachines 2022, 13, 125. [Google Scholar] [CrossRef]
  70. Khan, A.; Savi, P.; Quaranta, S.; Rovere, M.; Giorcelli, M.; Tagliaferro, A.; Rosso, C.; Jia, C.Q. Low-cost carbon fillers to improve mechanical properties and conductivity of epoxy composites. Polymers 2017, 9, 642. [Google Scholar] [CrossRef] [Green Version]
  71. Natalio, F.; Corrales, T.P.; Feldman, Y.; Lew, B.; Graber, E.R. Sustainable lightweight biochar-based composites with electromagnetic shielding properties. ACS Omega 2020, 5, 32490–32497. [Google Scholar] [CrossRef]
  72. Koledintseva, M.; Drewniak, J.; DuBroff, R.; Rozanov, K.; Archambeault, B. Modeling of shielding composite materials and structures for microwave frequencies. Prog. Electromagn. Res. B 2009, 15, 197–215. [Google Scholar] [CrossRef] [Green Version]
  73. Préault, V.; Corcolle, R.; Daniel, L.; Pichon, L. Effective permittivity of shielding composite materials for microwave frequencies. IEEE Trans. Electromagn. Compat. 2013, 55, 1178–1186. [Google Scholar] [CrossRef]
Nanomaterials 13 02326 g001
Figure 1. FESEM images of (a) Fe@BC with a focus on (b) sub-micrometric iron particles, (c) an EDX map for elemental analysis in false colors (green for carbon, red for oxygen, and blue for iron), and (d) pristine BC.
Figure 1. FESEM images of (a) Fe@BC with a focus on (b) sub-micrometric iron particles, (c) an EDX map for elemental analysis in false colors (green for carbon, red for oxygen, and blue for iron), and (d) pristine BC.
Nanomaterials 13 02326 g001
Nanomaterials 13 02326 g002

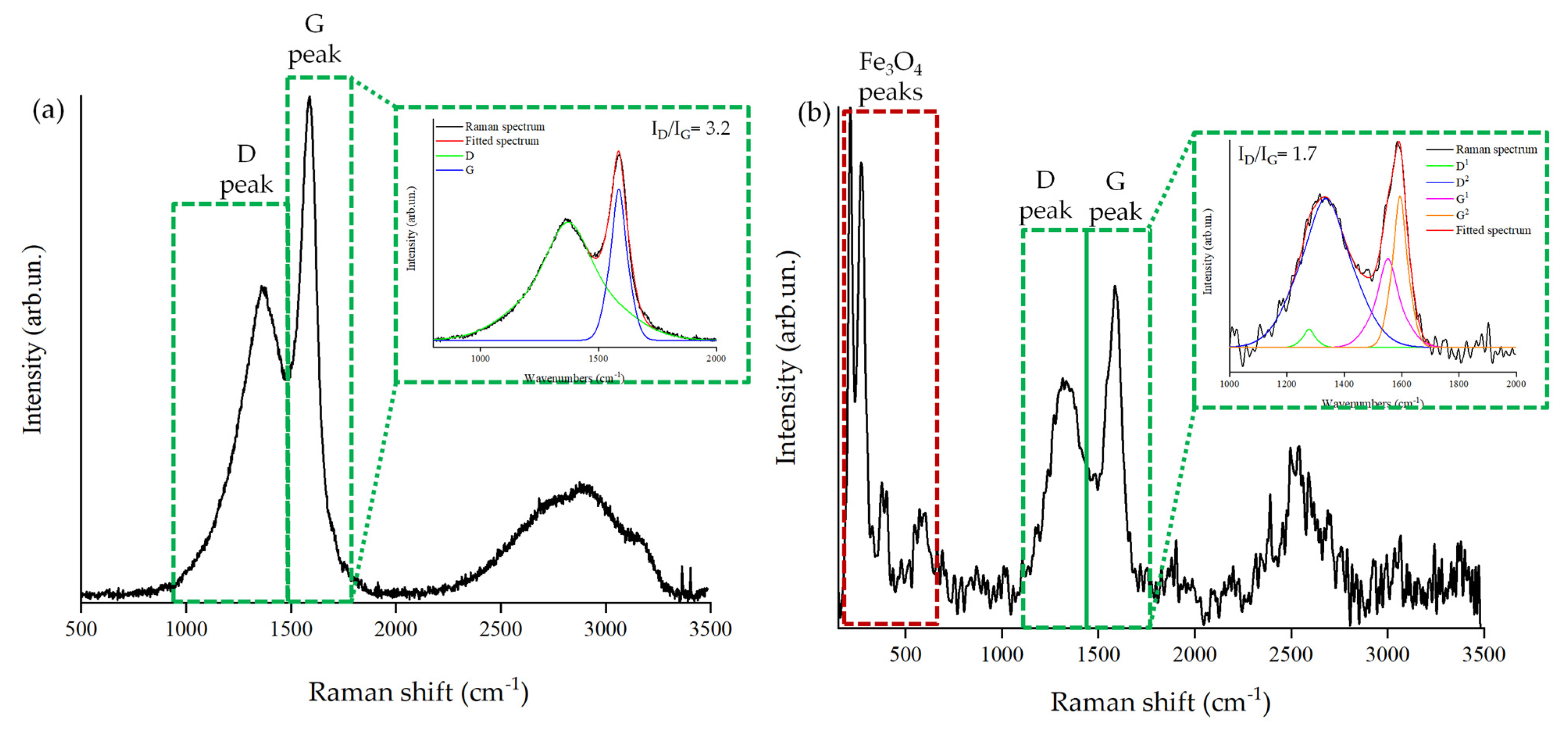

Figure 2. Raman analysis of (a) BC and (b) Fe@BC between 150 and 3500 cm−1. The fitting of both G and D peaks in the region between 1000 to 2000 cm−1 [40] is reported in the green dotted square [49].
Figure 2. Raman analysis of (a) BC and (b) Fe@BC between 150 and 3500 cm−1. The fitting of both G and D peaks in the region between 1000 to 2000 cm−1 [40] is reported in the green dotted square [49].
Nanomaterials 13 02326 g002
Nanomaterials 13 02326 g003

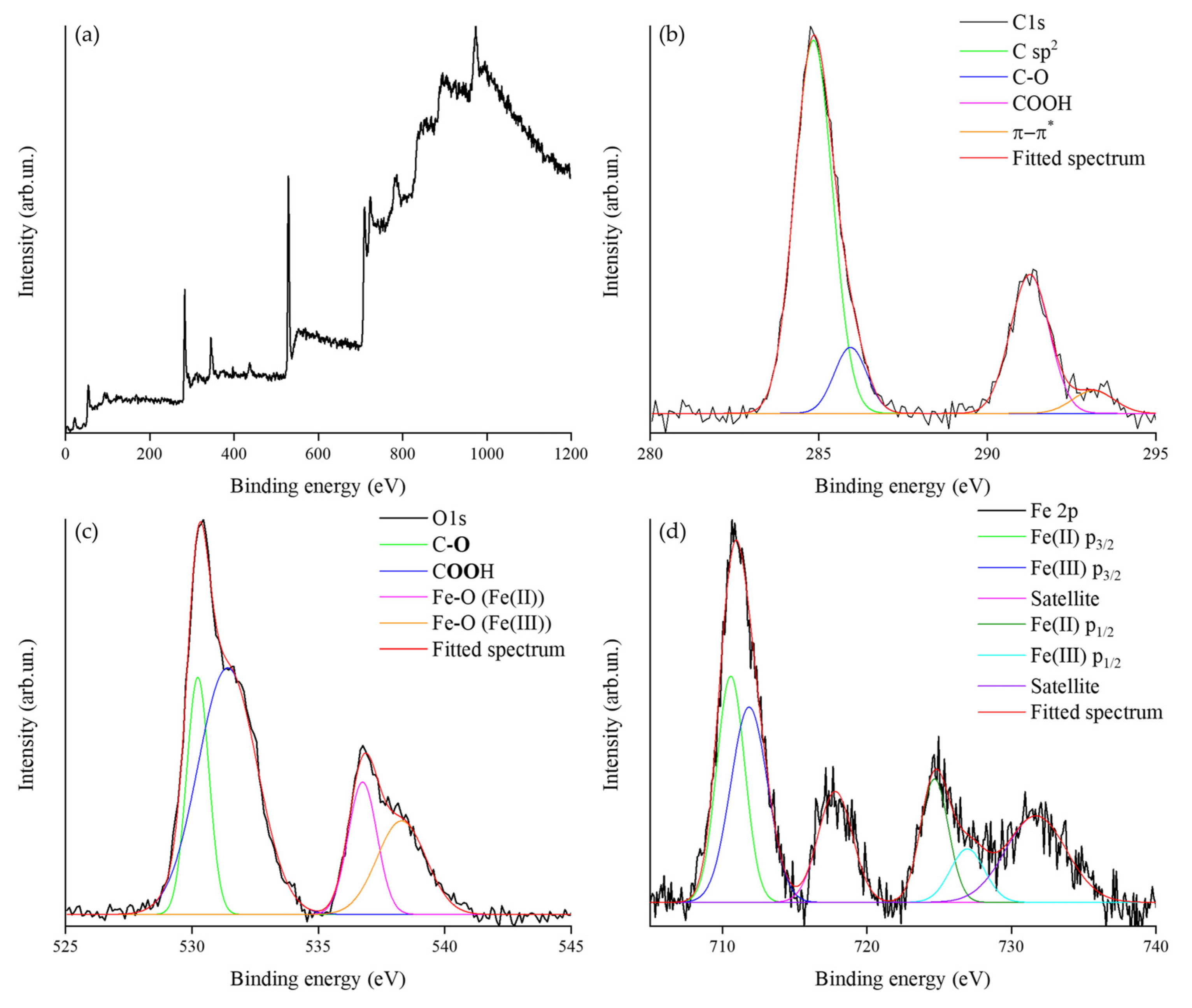

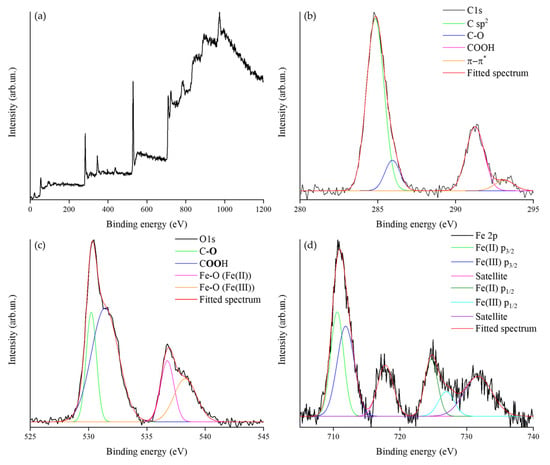

Figure 3. XPS analysis of Fe@BC showing (a) the survey and fitted (b) C 1s, (c) O 1s, and (d) Fe 2p spectra.
Figure 3. XPS analysis of Fe@BC showing (a) the survey and fitted (b) C 1s, (c) O 1s, and (d) Fe 2p spectra.
Nanomaterials 13 02326 g003
Nanomaterials 13 02326 g004

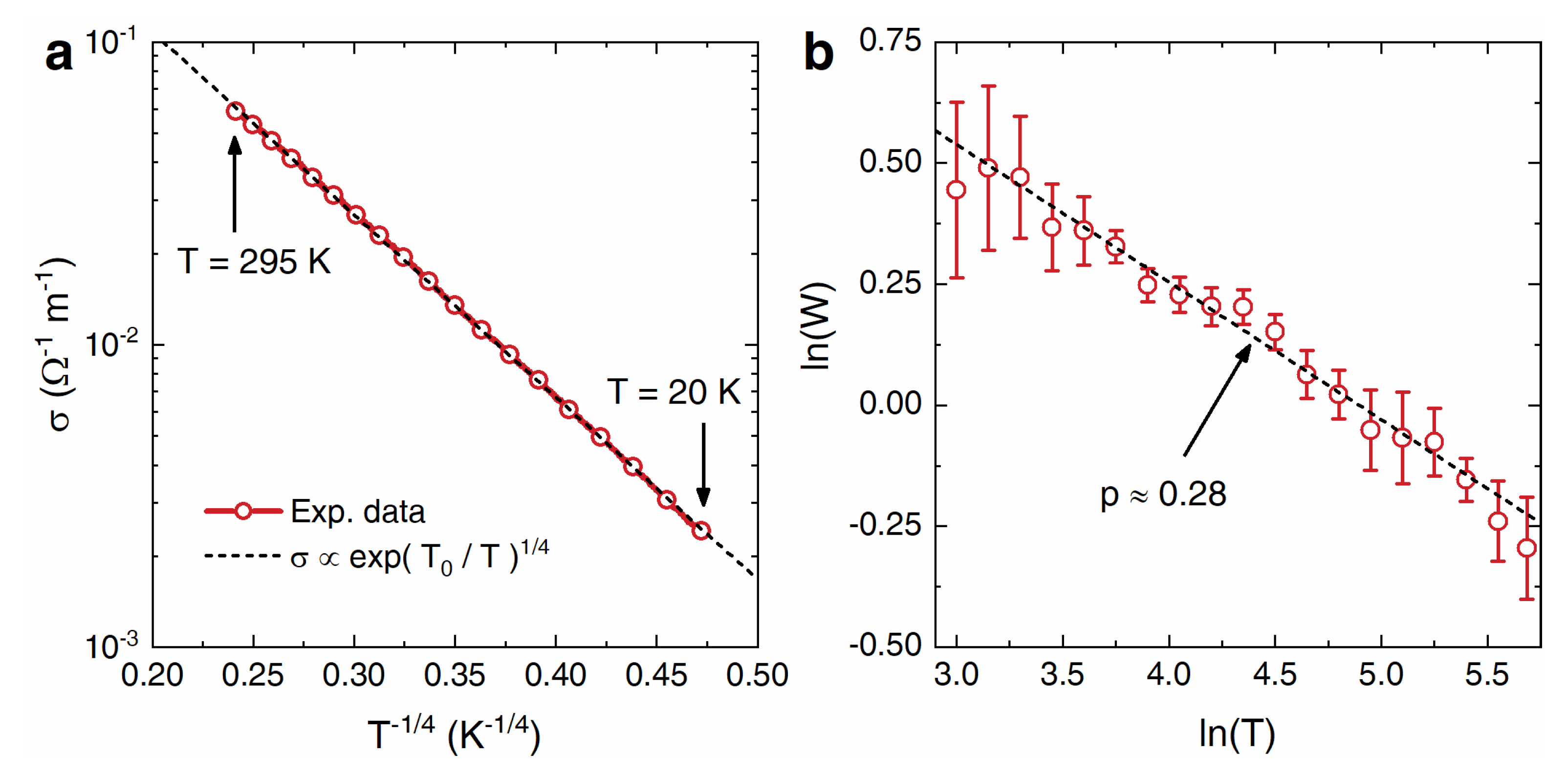

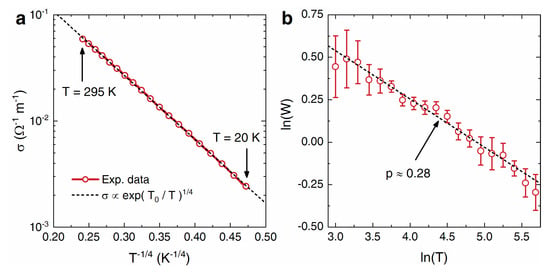

Figure 4. (a) DC electrical conductivity σ of the 40 wt.%-loaded composite vs. T − 1 / 4 between 295 K and 20 K (in semilogarithmic scale). The ideal scaling expected for 3D Mott variable-range-hopping conduction is represented by the black line. (b) W = d ( ln σ ) / d ( ln T ) , that is the reduced activation energy vs. the temperature in double logarithmic scale. The black line is a linear fit to the data in the entire temperature range and has a negative slope p ≈ 0.28 that is consistent with the 3D Mott variable-range-hopping value of p = 1 / 4 .
Figure 4. (a) DC electrical conductivity σ of the 40 wt.%-loaded composite vs. T − 1 / 4 between 295 K and 20 K (in semilogarithmic scale). The ideal scaling expected for 3D Mott variable-range-hopping conduction is represented by the black line. (b) W = d ( ln σ ) / d ( ln T ) , that is the reduced activation energy vs. the temperature in double logarithmic scale. The black line is a linear fit to the data in the entire temperature range and has a negative slope p ≈ 0.28 that is consistent with the 3D Mott variable-range-hopping value of p = 1 / 4 .
Nanomaterials 13 02326 g004
Nanomaterials 13 02326 g005

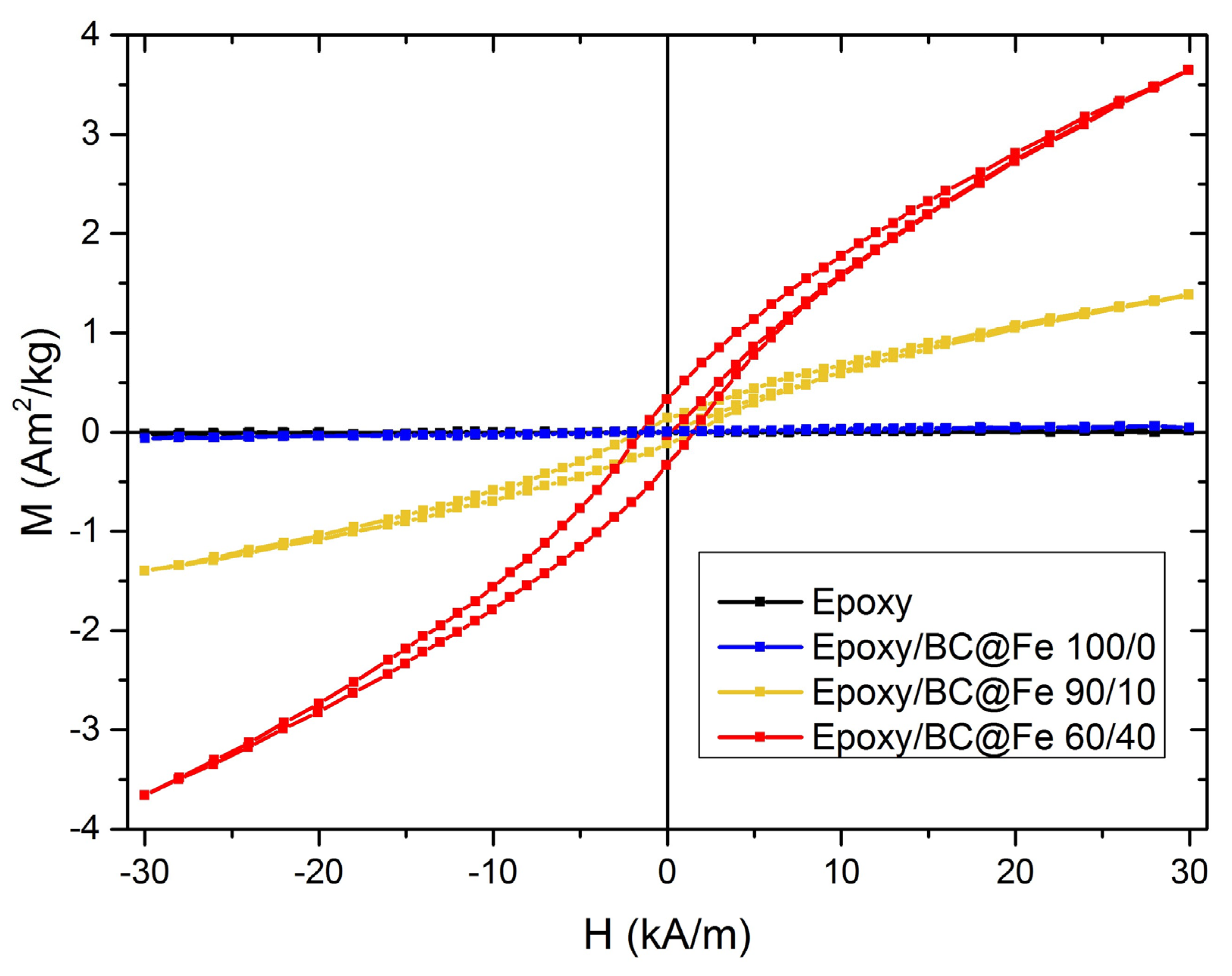

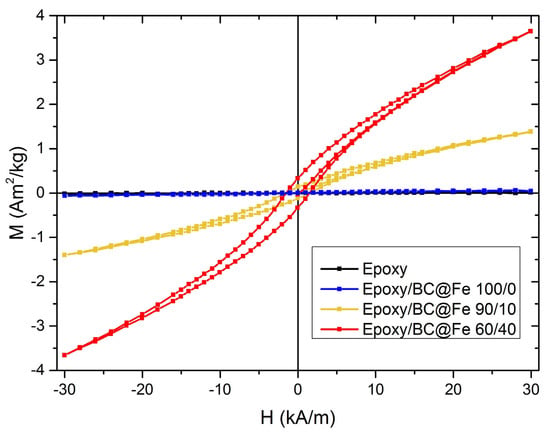

Figure 5. Cycles of hysteresis for the unfilled epoxy and composites up to 30 kA/m.
Figure 5. Cycles of hysteresis for the unfilled epoxy and composites up to 30 kA/m.
Nanomaterials 13 02326 g005
Nanomaterials 13 02326 g006

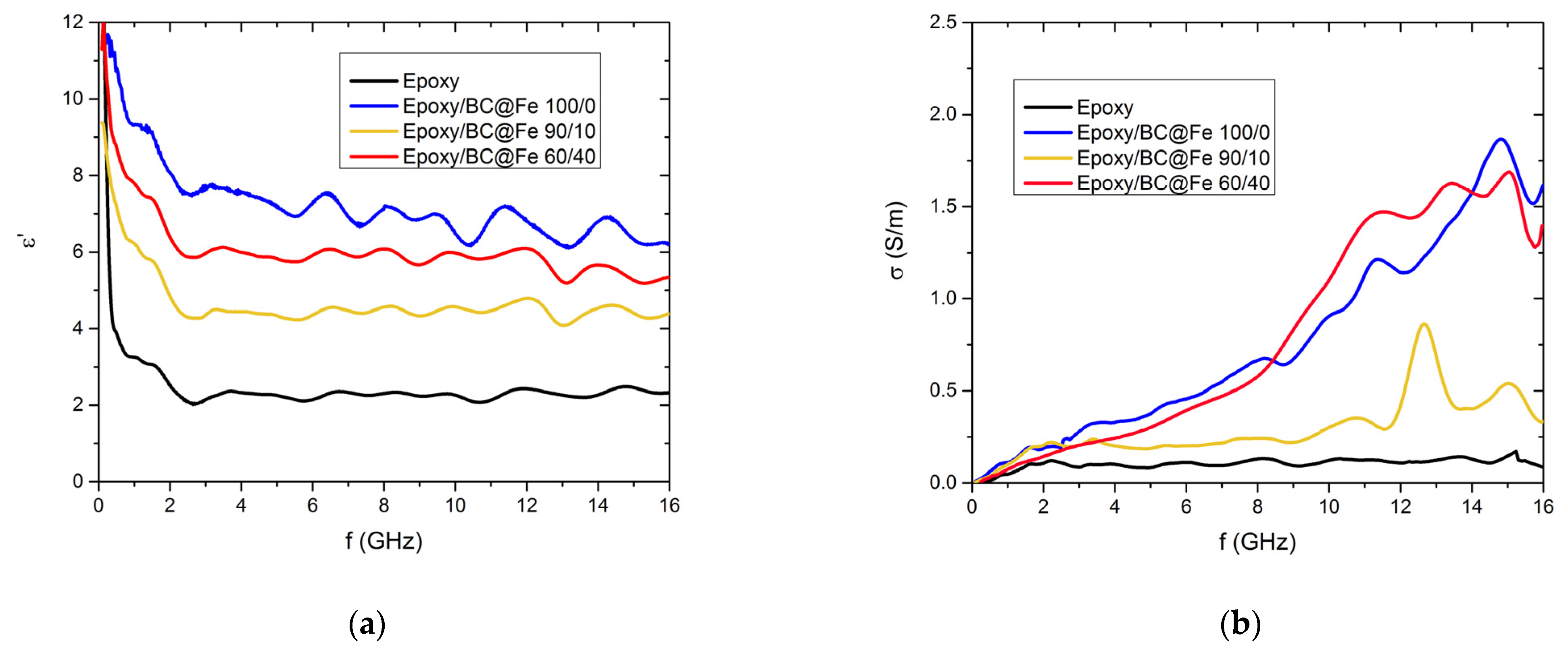

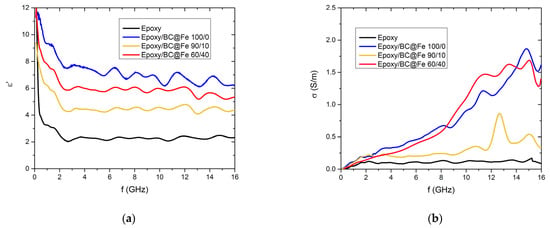

Figure 6. (a): the real part of the complex permittivity (ε’). (b): the conductivity (σ) vs. frequency.
Figure 6. (a): the real part of the complex permittivity (ε’). (b): the conductivity (σ) vs. frequency.
Nanomaterials 13 02326 g006
Table 1. Elemental composition of Fe@BC calculated through EDX analysis.
Table 1. Elemental composition of Fe@BC calculated through EDX analysis.
Elementwt.(%)
Carbon27
Oxygen21
Iron52
Table 2. Chemical species distribution calculated from the fitted XPS spectra.
Table 2. Chemical species distribution calculated from the fitted XPS spectra.
Chemical Species (atomic %)
CarbonOxygenIron
C sp2C-OCOOHC-OCOOHFe-O (Fe(II))Fe-O (Fe(III))Fe(II)Fe(III)
651025195214164753
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Piatti, E.; Torsello, D.; Gavello, G.; Ghigo, G.; Gerbaldo, R.; Bartoli, M.; Duraccio, D. Tailoring the Magnetic and Electrical Properties of Epoxy Composites Containing Olive-Derived Biochar through Iron Modification. Nanomaterials 2023, 13, 2326. https://doi.org/10.3390/nano13162326

AMA Style

Piatti E, Torsello D, Gavello G, Ghigo G, Gerbaldo R, Bartoli M, Duraccio D. Tailoring the Magnetic and Electrical Properties of Epoxy Composites Containing Olive-Derived Biochar through Iron Modification. Nanomaterials. 2023; 13(16):2326. https://doi.org/10.3390/nano13162326

Chicago/Turabian Style

Piatti, Erik, Daniele Torsello, Gaia Gavello, Gianluca Ghigo, Roberto Gerbaldo, Mattia Bartoli, and Donatella Duraccio. 2023. "Tailoring the Magnetic and Electrical Properties of Epoxy Composites Containing Olive-Derived Biochar through Iron Modification" Nanomaterials 13, no. 16: 2326. https://doi.org/10.3390/nano13162326

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
