Evaluation of Different Bottom-up Routes for the Fabrication of Carbon Dots

by
Diana M. A. Crista
1,
Joaquim C. G. Esteves da Silva
1,2 and
Luís Pinto da Silva
1,2,*
1
Chemistry Research Unit (CIQUP), Faculty of Sciences of University of Porto, R. Campo Alegre 697, 4169-007 Porto, Portugal
2
LACOMEPHI, GreenUPorto, Department of Geosciences, Environment and Territorial Planning, Faculty of Sciences of University of Porto, R. Campo Alegre 697, 4169-007 Porto, Portugal
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(7), 1316; https://doi.org/10.3390/nano10071316
Submission received: 21 May 2020 / Revised: 26 June 2020 / Accepted: 2 July 2020 / Published: 4 July 2020
(This article belongs to the Special Issue Carbon Dot Sensors)
Browse Figures
Versions Notes

Abstract

:
Carbon dots (CDs) are carbon-based nanoparticles with very attractive luminescence features. Furthermore, their synthesis by bottom-up strategies is quite flexible, as tuning the reaction precursors and synthesis procedures can lead to an endless number of CDs with distinct properties and applications. However, this complex variability has made the characterization of the structural and optical properties of the nanomaterials difficult. Herein, we performed a systematic evaluation of the effect of three representative bottom-up strategies (hydrothermal, microwave-assisted, and calcination) on the properties of CDs prepared from the same precursors (citric acid and urea). Our results revealed that these synthesis routes led to nanoparticles with similar sizes, identical excitation-dependent blue-to-green emission, and similar surface-functionalization. However, we have also found that microwave and calcination strategies are more efficient towards nitrogen-doping than hydrothermal synthesis, and thus, the former routes are able to generate CDs with significantly higher fluorescence quantum yields than the latter. Furthermore, the different synthesis strategies appear to have a role in the origin of the photoluminescence of the CDs, as hydrothermal-based nanoparticles present an emission more dependent on surface states, while microwave- and calcination-based CDs present an emission with more contributions from core states. Furthermore, calcination and microwave routes are more suitable for high-yield synthesis (~27–29%), while hydrothermal synthesis present almost negligible synthesis yields (~2%). Finally, life cycle assessment (LCA) was performed to investigate the sustainability of these processes and indicated microwave synthesis as the best choice for future studies.

1. Introduction

Carbon dots (CDs) are quasi-spherical carbon-based nanoparticles, with a core that can be either amorphous or nanocrystalline [1,2,3,4]. The core of these nanomaterials is expected to be composed mainly of graphitic sp2 carbon connected by amorphous sp3 carbon atoms in between. The surface can present different functionalization degrees, depending on the chosen precursors and synthesis routes, and thus, different functional groups can be found (such as carboxylic acids, alcohols, and amines) [1,5].
Carbon dots belong to the broad family of carbon allotropes and related nanostructures and molecules. Carbon allotropes include diamond with sp3 hybridization, graphite, graphene, and carbon nanotubes with sp2 hybridization, fullerenes with hybridization between sp2 and sp3, as well as graphyne and carbynes with sp hybridization [6,7,8].
CDs have attracted significant attention from the research community due to their quite remarkable features, such as high photoluminescence [2,9,10], low toxicity [11], good water solubility [2,12], biocompatibility [13,14], and good physical–chemical and photochemical stability [12,15,16].
Therefore, it is not surprising that CDs have gained relevance in various fields, such as sensing [17,18,19,20], bioimaging [21], photocatalysis [10], drug delivery [22], solar cells [23], and photodynamic therapy [24].
CDs can be obtained by two main synthesis routes: top-down and bottom-up [3,25,26]. The former procedure is based on the breakdown of large graphitic materials into smaller carbon-based materials [27]. However, top-down approaches generally require harsh reaction conditions, expensive materials/equipment, and long processing times. By their turn, bottom-up routes are arguably the most widely used synthesis methods [3,25,26]. They generally consist on the pyrolysis of smaller organic molecules either in powder form (calcination) [28] or in solution via hydrothermal [25,29] or microwave-based approaches [16,30,31]. Bottom-up strategies have the advantage of being suitable for mass production, being eco-friendly, and of low cost [26].
While top-down strategies are restricted to using carbon “bulk” samples as precursors (such as graphite powders, graphene, and black carbon) [5], bottom-up procedures can use a myriad of molecular organic precursors, which range from smaller chemicals (as carbohydrates and acids) [1,3] to more heterogenous sources (as rice, coffee beans, and waste) [32,33,34,35]. Due to the structure, surface-functionalization and photoluminescence of the CDs are heavily dependent on the choice of precursors and synthesis procedures. This flexibility of bottom-up strategies allows for endless possibilities for tuning the properties of CDs and develop novel applications for them.
Among the several existent possibilities for organic precursors, citric acid (CA) is arguably the most popular one [1,3,5]. CA is readily available (being present even in several citrus fruits), cheap, nontoxic, and has a low carbonization temperature, thereby being the choice for several researchers. However, synthesis using just CA generally leads to CDs with low photoluminescence [36]. Therefore, researchers typically add also precursors containing appropriate heteroatoms (such as N, S, and P) to achieve heteroatom-doping of CDs [37], which generally enhances the fluorescence quantum yield (QYFL) [38,39,40] of the CDs. Among these, N-doping is the most widely used for enhancing the QYFL of CDs. N-doping is achieved by adding a nitrogen-containing small organic molecule as a nitrogen source to the carbon precursor in which urea [16,41] and ethylenediamine (EDA) [42,43] are common options.
The high flexibility of bottom-up strategies (both in terms of precursors and synthesis routes) has led to an explosion in the number of studies focusing on CDs, which resulted in countless CDs with different properties and/or applications. However, the large number of possible variables has made it difficult to understand the role of either the chosen precursors or the employed synthesis routes on the properties of the obtained CDs. Thus, at this moment it is not really possible to develop new CDs in a rational and target-oriented manner.
Moreover, significant efforts to determine the role of precursors in the structure, surface-functionalization, and photoluminescence of CDs have recently been made [1,5]. The effect exerted by the employed bottom-up route is still poorly understood due to the lack of systematic studies. Herein, in this study we have focused on evaluating the effect exerted by three representative bottom-up routes (hydrothermal, microwave-assisted, and calcination synthesis) on the properties of CDs obtained using the same precursors (CA and urea as carbon and nitrogen sources, respectively). To this end, the CDs were characterized by fluorescence, UV–Vis, and X-ray photoelectron (XPS) spectroscopy, as well as dynamic light scattering (DLS) and atomic force microscopy (AFM). A life cycle assessment (LCA) approach was also used to evaluate the sustainability and environmental impacts of each synthesis route [44,45,46].

2. Materials and Methods

2.1. Fabrication

The three types of studied CDs were prepared from the same set of precursors (urea and citric acid, CA), which were purchased from Sigma-Aldrich (St. Louis, MO, USA), via different bottom-up routes: hydrothermal-, microwave-, and calcination-assisted synthesis. The same amount of CA (0.75 g) and urea (0.25 g) was used in all syntheses. For the hydrothermal-assisted synthesis, CA and urea were mixed in 5 mL of deionized water. The reaction mixture was then placed in a Teflon-lined reactor, which was encased in a stainless-steel shell, and was heated at 200 °C for 2 h in an oven. In microwave-assisted synthesis, CA and urea were also mixed in 5 mL of deionized water. The reaction mixture solution was placed in a glass beaker and was subsequently subjected to microwave irradiation (700 W in a domestic microwave) for 5 min. Finally, calcination-assisted synthesis consisted on the one-pot thermal heating of a CA and urea powder mixture during 2 h in an oven at 200 °C placed in a glace petri box.
The synthesized CDs were subsequently suspended in water (5 mL) and purified by centrifugation (10 min at 12,000 rpm) to eliminate suspended impurities. The samples were purified by dialysis (Float-A-Lyzer®G2 Dialysis Device SPECTRUM® (New Brunswick, NJ, USA) (molecular weight cut-off of 500 Da)) for 24 h.

2.2. Characterization

Fluorescence analysis was measured in a 10 mm fluorescence quartz cell by using a Horiba Jobin Yvon Fluoromax spectrofluorimeter (Madrid, Spain) using 5 nm slit widths. AFM analysis was carried out using a Veeco (Plainview, NY, USA) Metrology Multimode/Nanoscope IVA by tapping mode, using a Bruker (Billerica, MD, USA) silicon probe (model TESP-SS, resonant frequency 320 kHz, nominal force constant 42 N/m, estimated tip radius 2 nm). The Zeta Potential was measured by using a particle analyzer Anton Paar LitesizerTM 500 (Graz, Austria) and a polycarbonate Omega Cuvette (Ref. 155765). X-ray photoelectron spectroscopy (XPS) analysis was recorded with a Fi Kratos Axis Ultra HAS-VISION (Manchester, UK), using a monochromatic Al-Kα radiation (15 kV, 90 W). The samples were deposited in a silica plate. Spectra were analyzed by using the CasaXPS software (Teignmouth, UK).

2.3. Fluorescence Quantum Yield Calculation

Fluorescence quantum yield (QYFL) was calculated with a standard procedure, based on the comparison of the integrated luminescence intensities and absorbance values of the synthesized CDs with a reference (which depends on the emission wavelength of the sample) quinine sulfate with the following equation:
QYFLSample = QYFLQuinine Sulphate x (GradSample/GradQuinine Sulphate) x (×2Sample/×2Quinine Sulphate)
where Grad is the gradient from the plot of integrated fluorescence intensity versus absorbance and η is the refractive index [47]. Quinine sulfate was chosen as a reference fluorophore of known quantum yield (QYFL = 0.54) [48]. Absorbance measurements were made with a UNICAM Helios Gamma, using standard quartz cells.

2.4. Scope and System Boundaries

This cradle-to-gate study aims to quantify and compare the potential environmental impacts as well as characterize and evaluate the differences found in the three different methods for the synthesis of CDs: hydrothermal, calcination, and microwave-assisted synthesis. In this research we will study the laboratory-scale manufacturing stage of the target nanoparticles and consider the direct emissions from CDs production and the indirect impacts associated with upstream resource extraction and energy generation. Three different synthetic strategies were used. CA and urea were used as carbon and nitrogen source, respectively. The environmental impacts were compared first by using a weight-based functional unit of 1 Kg of CDs. These impacts were also normalized by the QYFL of the different CDs. This is needed because weight-based functional units do not consider functional benefits for which they were engineered for. The QYFL was chosen as the normalization factor because, while CDs have many different applications, a high QYFL is generally a very important property in most of these applications.

2.5. Life Cycle Inventory Data

The environmental impacts related to these three different synthesis routes were evaluated based on inventory data from laboratory-scale synthesis procedures found in the Ecoinvent® 3.5 database. The foreground system of the synthesis procedure consists of chemicals used as raw material and electricity used in the fabrication process and purification steps (oven, microwave, heating plate, centrifuge, stirring plate). The different processes and chemicals included in this study were modeled with the following data presented in the Ecoinvent® 3.5 database (GLO standing for global, RER for regional market for Europe, and PT for Portugal):
-
Citric acid {GLO}|Market;
-
Urea, as N {GLO}|Market;
-
Water, deionized, from tap water, at user {Europe without Switzerland}|Market;
-
Electricity, medium voltage|Market;
-
Chemical Waste, unspecified.
The chemical amount used is described in Table S1 and was rescaled to the amount needed to produce 1 Kg of CDs. The dataset used for electricity describes the available electricity data on the medium voltage level in Portugal in 2014, as described in the Ecoinvent® 3.5 database. The electricity consumption considered here combines the electricity required for using either a domestic microwave (microwave-assisted synthesis) or oven (hydrothermal or calcination-based synthesis) with electricity used during the purification steps (centrifugation and dialysis). Microwave-assisted synthesis was made in an Electronia domestic microwave (model P70B17L-DE) with a power consumption of 700 W. The hydrothermal-assisted and calcination-based syntheses were made in a Furnace 47900 from Thermolyne with a power consumption of 1000 W. Centrifugation was made with a power consumption of 180 W. Stirring was done using a Jenway (Staffordshire, UK) model 1000 stirrer, with 500 W maximum power consumption.

2.6. Environmental Impact Assessment

This study is based on the cradle-to-gate approach, from the production of precursor materials to the fabrication of CDs. Environmental impacts were modeled using the ReCiPe 2016 V1.03 endpoint method, Hierarchist version, which evaluates three categories of potential impacts: Human Health, Ecosystems, and Resources. In the Human Health subsection the following is evaluated: global warming–human health (GW-HH), stratospheric ozone depletion (SO), ionization radiation (IR), ozone formation–human health (OF-HH), fine particulate matter formation (FPM), human carcinogenic toxicity (HC), human non-carcinogenic toxicity (HNC), and water consumption–human health (WC-HH). Ecosystems potential impacts evaluate the following: global warming–terrestrial ecosystems (GW-TE), global warming–freshwater ecosystems (GW-FE), ozone formation–terrestrial ecosystems (OF-TE), terrestrial acidification (TA), freshwater eutrophication (FE), marine eutrophication (ME), terrestrial ecotoxicity (TET), freshwater ecotoxicity (FET), marine ecotoxicity (MET), land use (LU), water consumption–terrestrial ecosystem (WC-TE), and water consumption–aquatic ecosystems (WC-AE). In the Resources subsection the following is evaluated: mineral resource scarcity (MR), fossil resource scarcity (FR). LCA study was performed using the SimaPro 9.0.0.48 software (Amersfoort, The Netherlands).

3. Results and Discussion

3.1. Synthesis

AFM measurements (Figure 1) were performed to determine the size of the three types of obtained CDs, and to ensure that they were indeed nanosized. AFM results provided the following average nanoparticles sizes; 6.9 ± 2.0 nm for hydrothermal-CDs, 7.3 ± 1.7 nm for microwave-CDs, and 6.1 ± 1.7 nm for calcination-CDs.
The synthesis yield (weight-by-weight, in %) (Table 1) was calculated considering the amount of final powder (after purification step) and initial precursors. The reaction yields obtained were satisfactory in the case of microwave- and calcination-assisted syntheses with 31.6% and 26.1%, respectively. In fact, the obtained synthesis yields for those two CDs are in line with values obtained in studies aiming to high-yield synthesis of CDs [49]. Unfortunately, the synthesis yield for hydrothermal-CDs was quite low (1.5%), which indicates that this type of bottom-up route is not appropriated for high-yield synthesis.

3.2. Surface Characterization

The surface of the three types of CDs was characterized by XPS spectroscopy (Figures S1–S3), with the XPS atomic composition (at %) of each sample being presented in Table 2. The data showed that all CDs are composed by C (~60–62%), N (~9–13%), and O (~24–28%). Interestingly, we can see that the studied bottom-up routes can lead to different degrees of N- and O-incorporation in the surface of CDs. Namely, hydrothermal synthesis led to both the highest amount of O (28.8%), which was achieved with the lowest amount of N (9.1%). By its turn, microwave-assisted synthesis appears to be the most well-balanced route in this respect, with relatively high incorporation of both N (13.1%) and O (26.9%). These findings are in line with literature, as a recent study performed by our group also revealed that microwave-assisted synthesis led to higher N-incorporation than a hydrothermal route for the same set of precursors, at the expense of O-incorporation [25]. On the contrary, calcination achieved the highest incorporation of N (13.5%) at the expense of O (24.7%), as this type of synthesis was responsible for the lowest amount of the latter heteroatom.
Functional groups present at the surface of the CDs were identified by performing a detailed scan for internal levels of C 1s, O 1s, and N 1s (Figures S1–S3). C 1s spectra could be split into three peaks (Figure S1) in the case of microwave and calcination synthesis: at binding energies of ~285 eV (attributed to C-C/C-H groups) [50], ~286 eV (C-O/C-N groups) [51], and ~288 eV (O-C = O) [52]. In the case of hydrothermal synthesis, four peaks were found instead: at binding energies of ~285 eV (attributed to C-C/C-H groups), ~286 eV (C-O/C-N groups), ~287 eV (C = O groups), and ~288 eV (O-C = O). Thus, all produced CDs presented a higher contribution from C-C/C-H groups (~56–60%), followed by O-C = O groups (~20–36%) and C-O/C-N groups (~9–12%). For hydrothermal-CDs, we also observed a contribution from C = O groups (~9%). O 1s could be split into two peaks at a binding energy of ~531 eV (C = O groups) and ~532 eV (C-O groups) [52]. The three synthesized CDs present a similar composition of almost 50% from both groups: C-O groups (~50.01%) and C = O groups (~49.99%). Finally, N 1 s could also be split into two peaks at binding energies of ~400 eV (amine/amide groups) and ~401 eV (protonated amides). All three samples show the same contribution from protonated amines (~49.98%) and amine/amide groups (~49.98%). Thus, the three different routes appear to generate the same type of functional groups in the surface of the CDs. The main difference is then the apparently higher presence of C = O groups in the surface of hydrothermal-CDs, which is in line with their higher content of both C (62.0%) and O (28.8%).
The zeta-potential of all CDs (Table 1) was measured by DLS in aqueous solutions: −0.5 mV for hydrothermal-CDs, 0.0 mV for microwave-CDs, and −0.1 mV for calcination-CDs. These results indicate that all three CDs present very a similar charge and can be considered virtually as neutral particles. This similarity is not surprising as XPS analysis revealed similar types of surface functional groups. The slightly higher negative charge for hydrothermal-CDs is also not unexpected, given the lower amount of N (9.1%) in comparison to the other two CDs (13.1–13.5%), which can lead to a lower amount of cationic functional groups (such as protonated amides). Nevertheless, the almost neutral values for all CDs indicate that these nanoparticles are prone to aggregation in solution.

3.3. Fluorescent Characterization

The absorption (Figure S4), excitation (Figure 2), and emission (Figure 2) spectra of the three CDs were obtained in aqueous solution. The absorption spectra for the CDs are very similar and present a main band at ~350 nm and a shoulder at ~245 nm, which can be attributed to n → π* and π → π* transitions [16]. In terms of fluorescence, the three bottom-up routes do not appear to induce significant differences, as all CDs present similar blue emission (433–438 nm) and UV excitation (320–340 nm). Nevertheless, it can be seen that hydrothermal-CDs present a blue-shifted excitation when comparing with other CDs. This can be attributed to the lower N-doping of the former CDs (Table 1), as N-doping is known to red-shift the excitation of CDs [53].
As shown in Figure 2II, all samples present an excitation-dependent emission which is a typical characteristic of CDs [54,55]. As we said before, all samples exhibit a blue fluorescence and when we increase the excitation wavelength from 300 to 440 nm, we observe a red-shift of ~80 nm towards green emission.
While the position of the fluorescence peak is identical for the three CDs, their intensity is not. Namely, both microwave-CDs (25.1%) and calcination-CDs (29.3%) present significantly higher QYFL than hydrothermal-CDs (3.7%). Thus, hydrothermal synthesis is at a disadvantage when we compare it with microwave and calcination synthesis. As for the reason of the lower QYFL for hydrothermal-CDs, it should be noted that N-doping strategies have been demonstrated to generate high QYFL [56,57]. In fact, XPS analysis (Table 2) has demonstrated that hydrothermal synthesis leads to a lower degree of N-incorporation into the surface of CDs than the other two bottom-up routes, which may explain their lower QYFL. Furthermore, previous research by Maser et al. showed that the abundance of amide groups in the surface of CDs can lead to higher photoluminescence by favoring a more rigid structure, due to photoinduced charge transfer between amide and carboxylic groups [58]. Therefore, it is possible that hydrothermal-CDs possess lower amide groups compared to the other CDs due to a lower N-content (Table 2), leading to lower QYFL. In summary, our data revealed that while the three studied bottom-up routes lead to identical fluorescence wavelengths (probably due to generating similar surface functional groups), they can lead to significantly different QYFL values, which can be attributed to their different efficiencies regarding heteroatom (O and N) doping.
Despite extensive research, the origin of photoluminescence of CDs is still a matter of debate. A particular focus of research in recent years is to determine the role and relevance of core and surface states to the emission of these nanomaterials [59,60,61]. Therefore, we have also analyzed the effect exerted by the external environment to the fluorescence of the three studied CDs. More specifically, we have measured their fluorescence spectra in different protic and aprotic solvents: water, ethanol (EtOH), methanol (MeOH), acetonitrile (ACN), and dimethylformamide (DMF). The obtained results can be observed in Figure 3.
Interestingly, the solvent affected the three CDs in different ways. Hydrothermal-CDs were the most affected nanoparticles as their fluorescent intensity varied widely with the solvent. Furthermore, the emission band of hydrothermal-CDs appears to be particularly influenced by hydrogen-bonding, as they presented the same emission maxima (~440) in the three protic solvents (water, ethanol, and methanol). However, their emission maxima underwent a ~35 nm red-shift (to ~475 nm) in the two studied aprotic solvents (DMF and acetonitrile). These results indicate that the fluorescent moieties of hydrothermal-CDs should be exposed to the external environment, and thus, their emission should have a relevant contribution from surface states. On the contrary, the solvent has limited influence on the emission of both microwave-based and calcination-CDs. More specifically, the solvent does not significantly affect their emission bands, with the maximum red-shift being just ~10 nm in DMF. The changes in fluorescence intensity are also similar between microwave-based and calcination-CDs, and less relevant for hydrothermal-CDs. Thus, we can conclude that the fluorescence moieties of the former CDs are shielded from the external environment, and thus, their emission should originate more from core states with more limited influence from surface states.
We have also analyzed the effect of the methyl viologen (a known electron acceptor) on the emission of the CDs (Figure S5). Methyl viologen did not induce any appreciable effect on the emission of the three CDs, which indicates that they are not electron-donors.

3.4. Comparative LCA Study

In this section, the three different synthesis routes were first evaluated individually to analyze their impact contributions in each category using a weight-based functional unit to produce 1 Kg of CDs. As in line with previous studies from our group [25,31], the use of CA accounts for most environmental impacts to all categories (Figures S5–S7). Urea is clearly the second highest contributor to the different categories for hydrothermal synthesis, especially for the Resources category (Figure S6). On the contrary, the environmental impacts of electricity consumption are relatively negligible for hydrothermal synthesis (Figure S6). The profile of environmental impacts for calcination and microwave synthesis is somewhat different (Figures S7 and S8). Namely, for these two synthesis routes, both urea and electricity consumption present more relevant contributions to the different categories, despite CA still being the highest one. Moreover, electricity is now the second highest contributor for the global categories of Human Health and Ecosystems (Figures S7 and S8), for both calcination and microwave synthesis. Water consumption presents negligible contributions for both hydrothermal and microwave synthesis, while being non-existent for the calcination route.
When we compare the relative impacts of the three synthesis routes, we can clearly see that the hydrothermal synthesis has the highest contribution for the environmental impact when compared to the other two syntheses (Figure S9 and Figure 4I. While microwave and calcination approaches provide similar impacts, we can identify the latter as the synthesis route with less environmental impacts, when we consider a weight-based functional unit. These results are easily explained by the synthesis yields (Table 1) of these synthetic strategies in which the yield for hydrothermal synthesis is almost negligible while the other two approaches provide more relevant yields (with microwave-assisted synthesis being the one with higher yield). Thus, microwave synthesis appears to be a better option due to its higher reaction yield, and consequently, lower need of chemicals per 1 Kg of CD production.
The sustainability of the three synthesis routes was also analyzed by rescaling the previous results with respect to the QYFL of the three CDs (Table 3). This re-scaling was performed by considering the highest QYFL (that of calcination-CDs) as the reference QYFL (QYFLREF). The QYFL-normalized functional unit for each CDs was calculated as QYFLREF/QYFL (Table 3).
This re-scaling did not affect the relative position of hydrothermal-CDs (Figure S9II and Figure 4II), as these CDs present both the lowest synthesis yield and QYFL (Table 1). Interestingly, if we just compare just the environmental profiles of microwave-based and calcination-CDs (Figure S10), the latter nanoparticles are the ones that present the lowest environmental impacts, despite the former being the ones to present the highest QYFL. This indicates that the better performance of calcination-CDs in terms of QYFL is not enough to offset their higher requirement for initial precursors. In conclusion, our LCA analysis revealed that microwave-assisted synthesis should be the preferred bottom-up route when considering both a weight- and a function-based function, while hydrothermal synthesis is clearly the worst option.

4. Conclusions

We have performed a systematic study of the structural and optical properties of carbon dots (CDs) prepared by three representative bottom-up strategies (hydrothermal, microwave-assisted, and calcination synthesis), from the same precursors (citric acid and urea), with the objective of understanding the effect exerted by synthesis methods on the properties of novel CDs. Our results revealed that microwave and calcination are more suitable for high-yield synthesis, with the hydrothermal strategy providing quite low synthesis yields.
Further analysis revealed that the three synthesis strategies led to nanoparticles with similar sizes, identical excitation-dependent blue-to-green emission, and similar types of surface functional groups. Interestingly, despite these similarities, both microwave and calcination strategies are more efficient for nitrogen-doping than hydrothermal synthesis, which leads to significantly more efficient emission for the former than for the latter. Moreover, the different syntheses affect the origin of their photoluminescence, as hydrothermal-CDs present emission more susceptible to the external environment, which indicates that their emission has a higher contribution from surface states. On the contrary, both microwave and calcination strategies appear to generate CDs with emission more dependent on core states than on surface states.
Finally, a life cycle assessment (LCA) analysis was performed, considering both the synthesis and fluorescence quantum yields as functional units. These results demonstrated that microwave-assisted synthesis was the strategy with the least environmental impacts in both scenarios, and thus, should be the preferred synthesis route, followed closely by calcination.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/7/1316/s1, Table S1: Inputs required for the production of 1 Kg of CDs, Figure S1: XPS C 1s spectra for calcinated-, microwave-, and hydrothermal-based CDs, Figure S2: XPS O 1s spectra for calcinated-, microwave-, and hydrothermal-based CDs, XPS N 1s spectra for calcinated-, microwave-, and hydrothermal-based CDs, Figure S4: UV–Vis spectra of the three synthesized CDs, Figure S5: Normalized intensity of different CDs in the presence of different concentrations of methyl viologen, Figure S6: Relative environmental impacts and comparative damage assessment for hydrothermal synthesis, Figure S7: Relative environmental impacts and comparative damage assessment for microwave synthesis, Figure S8: Relative environmental impacts and comparative damage assessment for calcination synthesis, Figure S9: Relative environmental impacts for all synthesis using (I) weight unit and (II) QY unit, Figure S10: (I) Relative environmental impacts and (II) comparative damage assessment for microwave and calcination synthesis using QY unit.

Author Contributions

Conceptualization, L.P.d.S.; investigation, D.M.A.C.; writing—original draft preparation, D.M.A.C. and L.P.d.S.; writing—review and editing, L.P.d.S. and J.C.G.E.d.S.; visualization, L.P.d.S. and D.M.A.C.; supervision, L.P.d.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by project UIDB/00081/2020 (CIQUP). Luís Pinto da Silva acknowledges funding from “Fundação para a Ciência e Tecnologia” (FCT, Portugal), under the Scientific Employment Stimulus (CEECIND/01425/2017). Diana Crista also acknowledges FCT for funding relative to her PhD grant (SFRH/BD/144423/2019).

Acknowledgments

The Laboratory of Computational Modelling of Environmental Pollutants–Human Interactions (LACOMEPHI) is acknowledged. We thank Centro de Materiais da Universidade do Porto (CEMUP) for performing the AFM and XPS measurements (www.cemup.up.pt).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qu, D.; Sun, Z. The formation mechanism and fluorophores of carbon dots synthesized via a bottom-up route. Mater. Chem. Front. 2020, 4, 400–420. [Google Scholar] [CrossRef]
  2. Esteves da Silva, J.C.G. Analytical and bioanalytical applications of carbon dots. Trends Anal. Chem. 2011, 30, 1327–1336. [Google Scholar] [CrossRef]
  3. De Medeiros, T.V.; Manioudakis, J.; Noun, F.; Macairan, J.-R.; Victoria, F.; Naccache, R. Microwave-assisted synthesis of carbon dots and their applications. J. Mater. Chem. C 2019, 7, 7175–7195. [Google Scholar] [CrossRef]
  4. Dhenadhayalan, N.; Lin, K.-C.; Suresh, R.; Ramamurthy, P. Unravelling the Multiple Emissive States in Citric-Acid-Derived Carbon Dots. J. Phys. Chem. C 2016, 120, 1252–1261. [Google Scholar] [CrossRef]
  5. Carbonaro, C.M.; Corpino, R.; Salis, M.; Mocci, F.; Thakkar, S.V.; Olla, C.; Ricci, P.C. On the Emission Properties of Carbon Dots: Reviewing Data and Discussing Models. C—J. Carbon Res. 2019, 5, 60. [Google Scholar] [CrossRef] [Green Version]
  6. Jeong, S.; Pinals, R.L.; Dharmadhikari, B.; Song, H.; Kalluri, A.; Debnath, D.; Wu, Q.; Ham, M.H.; Patra, P.; Landry, M.P. Graphene Quantum Dot Oxidation Governs Noncovalent Biopolymer Adsorption. Sci. Rep. 2020, 10, 1–14. [Google Scholar] [CrossRef]
  7. Wang, Y.Z.; Yang, P.J.; Zheng, L.X.; Shi, X.W.; Zheng, H.J. Carbon nanomaterials with sp2 or/and sp hybridization in energy conversion and storage applications: A review. Energy Storage Mater. 2020, 26, 349–370. [Google Scholar] [CrossRef]
  8. Liang, W.X.; Bunker, C.E.; Sun, Y.P. Carbon Dots: Zero-Dimensional Carbon Allotrope with Unique Photoinduced Redox Characteristics. ACS Omega 2020, 5, 965–971. [Google Scholar] [CrossRef]
  9. Xiong, Y.; Schneider, J.; Ushakova, E.V.; Rogach, A.L. Influence of molecular fluorophores on the research field of chemically synthesized carbon dots. Nano Today 2018, 23, 124–139. [Google Scholar] [CrossRef]
  10. Wang, R.; Lu, K.-Q.; Tang, Z.-R.; Xu, Y.-J. Recent progress in carbon quantum dots: synthesis, properties and applications in photocatalysis. J. Mater. Chem. A 2017, 5, 3717–3734. [Google Scholar] [CrossRef]
  11. Wang, K.; Gao, Z.; Gao, G.; Wo, Y.; Wang, Y.; Shen, G.; Cui, D. Systematic safety evaluation on photoluminescent carbon dots. Nanoscale Res. Lett. 2013, 8, 122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Lim, S.Y.; Shen, W.; Gao, Z. Carbon quantum dots and their applications. Chem. Soc. Rev. 2015, 44, 362–381. [Google Scholar] [CrossRef] [PubMed]
  13. Baker, S.N.; Baker, G.A. Luminescent carbon nanodots: Emergent nanolights. Angew. Chem. Int. Ed. Engl. 2010, 49, 6726–6744. [Google Scholar] [CrossRef]
  14. Sun, Y.P.; Zhou, B.; Lin, Y.; Wang, W.; Fernando, K.A.; Pathak, P.; Meziani, M.J.; Harruff, B.A.; Wang, X.; Wang, H.; et al. Quantum-sized carbon dots for bright and colorful photoluminescence. J. Am. Chem. Soc. 2006, 128, 7756–7757. [Google Scholar] [CrossRef] [PubMed]
  15. Kozák, O.; Datta, K.K.R.; Greplová, M.; Ranc, V.; Kašlík, J.; Zbořil, R. Surfactant-Derived Amphiphilic Carbon Dots with Tunable Photoluminescence. J. Phys. Chem. C 2013, 117, 24991–24996. [Google Scholar] [CrossRef]
  16. Sendão, R.M.S.; Crista, D.M.A.; Afonso, A.C.P.; Martínez de Yuso, M.d.V.; Algarra, M.; Esteves da Silva, J.C.G.; Pinto da Silva, L. Insight into the hybrid luminescence showed by carbon dots and molecular fluorophores in solution. Phys. Chem. Chem. Phys. 2019, 21, 20919–20926. [Google Scholar] [CrossRef]
  17. Crista, D.M.A.; Mello, G.P.C.; Shevchuk, O.; Sendao, R.M.S.; Simoes, E.F.C.; Leitao, J.M.M.; da Silva, L.P.; Esteves da Silva, J.C.G. 3-Hydroxyphenylboronic Acid-Based Carbon Dot Sensors for Fructose Sensing. J. Fluoresc. 2019, 29, 265–270. [Google Scholar] [CrossRef] [PubMed]
  18. Shen, C.L.; Su, L.X.; Zang, J.H.; Li, X.J.; Lou, Q.; Shan, C.X. Carbon Nanodots as Dual-Mode Nanosensors for Selective Detection of Hydrogen Peroxide. Nanoscale Res. Lett. 2017, 12, 447. [Google Scholar] [CrossRef]
  19. Simões, E.F.C.; Leitão, J.M.M.; Esteves da Silva, J.C.G. Carbon dots prepared from citric acid and urea as fluorescent probes for hypochlorite and peroxynitrite. Microchim. Acta (Online) 2016, 183, 1769–1777. [Google Scholar] [CrossRef]
  20. Simões, E.F.C.; da Silva, L.P.; da Silva, J.C.G.E.; Leitão, J.M.M. Hypochlorite fluorescence sensing by phenylboronic acid-alizarin adduct based carbon dots. Talanta 2020, 208, 120447. [Google Scholar] [CrossRef]
  21. Kang, Y.F.; Li, Y.H.; Fang, Y.W.; Xu, Y.; Wei, X.M.; Yin, X.B. Carbon Quantum Dots for Zebrafish Fluorescence Imaging. Sci. Rep. 2015, 5, 11835. [Google Scholar] [CrossRef] [PubMed]
  22. Hettiarachchi, S.D.; Graham, R.M.; Mintz, K.J.; Zhou, Y.; Vanni, S.; Peng, Z.; Leblanc, R.M. Triple conjugated carbon dots as a nano-drug delivery model for glioblastoma brain tumors. Nanoscale 2019, 11, 6192–6205. [Google Scholar] [CrossRef] [PubMed]
  23. Yan, L.; Yang, Y.; Ma, C.-Q.; Liu, X.; Wang, H.; Xu, B. Synthesis of carbon quantum dots by chemical vapor deposition approach for use in polymer solar cell as the electrode buffer layer. Carbon 2016, 109, 598–607. [Google Scholar] [CrossRef]
  24. He, H.; Zheng, X.; Liu, S.; Zheng, M.; Xie, Z.; Wang, Y.; Yu, M.; Shuai, X. Diketopyrrolopyrrole-based carbon dots for photodynamic therapy. Nanoscale 2018, 10, 10991–10998. [Google Scholar] [CrossRef] [PubMed]
  25. Sendão, R.; Yuso, M.d.V.M.d.; Algarra, M.; Esteves da Silva, J.C.G.; Pinto da Silva, L. Comparative life cycle assessment of bottom-up synthesis routes for carbon dots derived from citric acid and urea. J. Clean. Prod. 2020, 254, 120080. [Google Scholar] [CrossRef]
  26. Choi, Y.; Choi, Y.; Kwon, O.-H.; Kim, B.-S. Carbon Dots: Bottom-Up Syntheses, Properties, and Light-Harvesting Applications. Chem. -Asian J. 2018, 13, 586–598. [Google Scholar] [CrossRef]
  27. Li, H.; Liu, R.; Kong, W.; Liu, J.; Liu, Y.; Zhou, L.; Zhang, X.; Lee, S.-T.; Kang, Z. Carbon quantum dots with photo-generated proton property as efficient visible light controlled acid catalyst. Nanoscale 2014, 6, 867–873. [Google Scholar] [CrossRef]
  28. Chen, Y.; Wang, C.; Xu, Y.; Ran, G.; Song, Q. Red emissive carbon dots obtained from direct calcination of 1,2,4-triaminobenzene for dual-mode pH sensing in living cells. New J. Chem. 2020, 44, 7210–7217. [Google Scholar] [CrossRef]
  29. Cailotto, S.; Mazzaro, R.; Enrichi, F.; Vomiero, A.; Selva, M.; Cattaruzza, E.; Cristofori, D.; Amadio, E.; Perosa, A. Design of Carbon Dots for Metal-free Photoredox Catalysis. Acs Appl. Mater. Interfaces 2018, 10, 40560–40567. [Google Scholar] [CrossRef]
  30. Sri, S.; Kumar, R.; Panda, A.K.; Solanki, P.R. Highly Biocompatible, Fluorescence, and Zwitterionic Carbon Dots as a Novel Approach for Bioimaging Applications in Cancerous Cells. ACS Appl. Mater. Interfaces 2018, 10, 37835–37845. [Google Scholar] [CrossRef]
  31. Christe, S.; Esteves da Silva, J.C.G.; Pinto da Silva, L. Evaluation of the Environmental Impact and Efficiency of N-Doping Strategies in the Synthesis of Carbon Dots. Materials 2020, 13, 504. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Sharma, V.; Tiwari, P.; Mobin, S.M. Sustainable carbon-dots: Recent advances in green carbon dots for sensing and bioimaging. J. Mater. Chem. B 2017, 5, 8904–8924. [Google Scholar] [CrossRef] [PubMed]
  33. Hsu, P.-C.; Shih, Z.-Y.; Lee, C.-H.; Chang, H.-T. Synthesis and analytical applications of photoluminescent carbon nanodots. Green Chem. 2012, 14, 917–920. [Google Scholar] [CrossRef]
  34. Kalita, H.; Mohapatra, J.; Pradhan, L.; Mitra, A.; Bahadur, D.; Aslam, M. Efficient synthesis of rice based graphene quantum dots and their fluorescent properties. RSC Adv. 2016, 6, 23518–23524. [Google Scholar] [CrossRef]
  35. Crista, D.M.A.; El Mragui, A.; Algarra, M.; Esteves da Silva, J.C.G.; Luque, R.; Pinto da Silva, L. Turning Spent Coffee Grounds into Sustainable Precursors for the Fabrication of Carbon Dots. Nanomaterials 2020, 10, 1209. [Google Scholar] [CrossRef] [PubMed]
  36. Carbonaro, C.M.; Chiriu, D.; Stagi, L.; Casula, M.F.; Thakkar, S.V.; Malfatti, L.; Suzuki, K.; Ricci, P.C.; Corpino, R. Carbon Dots in Water and Mesoporous Matrix: Chasing the Origin of their Photoluminescence. J. Phys. Chem. C 2018, 122, 25638–25650. [Google Scholar] [CrossRef]
  37. Zhou, J.; Zhou, H.; Tang, J.; Deng, S.; Yan, F.; Li, W.; Qu, M. Carbon dots doped with heteroatoms for fluorescent bioimaging: A review. Microchim. Acta 2017, 184, 343–368. [Google Scholar] [CrossRef]
  38. Liao, J.; Cheng, Z.; Zhou, L. Nitrogen-Doping Enhanced Fluorescent Carbon Dots: Green Synthesis and Their Applications for Bioimaging and Label-Free Detection of Au3+ Ions. ACS Sustain. Chem. Eng. 2016, 4, 3053–3061. [Google Scholar] [CrossRef]
  39. Martindale, B.C.M.; Hutton, G.A.M.; Caputo, C.A.; Reisner, E. Solar Hydrogen Production Using Carbon Quantum Dots and a Molecular Nickel Catalyst. J. Am. Chem. Soc. 2015, 137, 6018–6025. [Google Scholar] [CrossRef]
  40. Xu, M.; He, G.; Li, Z.; He, F.; Gao, F.; Su, Y.; Zhang, L.; Yang, Z.; Zhang, Y. A green heterogeneous synthesis of N-doped carbon dots and their photoluminescence applications in solid and aqueous states. Nanoscale 2014, 6, 10307–10315. [Google Scholar] [CrossRef]
  41. Kasprzyk, W.; Świergosz, T.; Bednarz, S.; Walas, K.; Bashmakova, N.V.; Bogdał, D. Luminescence phenomena of carbon dots derived from citric acid and urea—A molecular insight. Nanoscale 2018, 10, 13889–13894. [Google Scholar] [CrossRef]
  42. Rao, L.; Tang, Y.; Lu, H.; Yu, S.; Ding, X.; Xu, K.; Li, Z.; Zhang, J.Z. Highly Photoluminescent and Stable N-Doped Carbon Dots as Nanoprobes for Hg2+ Detection. Nanomaterials 2018, 8, 900. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Simões, E.F.C.; Esteves da Silva, J.C.G.; Leitão, J.M.M. Peroxynitrite and nitric oxide fluorescence sensing by ethylenediamine doped carbon dots. Sens. Actuators B 2015, 220, 1043–1049. [Google Scholar] [CrossRef]
  44. Ramos, A.; Afonso Teixeira, C.; Rouboa, A. Environmental Analysis of Waste-to-Energy-A Portuguese Case Study. Energies 2018, 11, 548. [Google Scholar] [CrossRef] [Green Version]
  45. Ramos, A.; Teixeira, C.A.; Rouboa, A. Assessment study of an advanced gasification strategy at low temperature for syngas generation. Int. J. Hydrog. Energy 2018, 43, 10155–10166. [Google Scholar] [CrossRef]
  46. Fernandes, S.; Esteves da Silva, J.C.G.; Pinto da Silva, L. Life Cycle Assessment of the Sustainability of Enhancing the Photodegradation Activity of TiO2 with Metal-Doping. Materials 2020, 13, 1487. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Eastman, J.W. Quantitative Spectrofluorimetry-The Fluorescence Quantum Yield of Quinine Sulfate. Photochem. Photobiol. 1967, 6, 55–72. [Google Scholar] [CrossRef]
  48. Melhuish, W.H. Quantum Efficiencies of Fluorescence of Organic Substances: Effect of Solvent and Concentration of The Fluorescent Solute1. J. Phys. Chem. 1961, 65, 229–235. [Google Scholar] [CrossRef]
  49. Jing, S.; Zhao, Y.; Sun, R.-C.; Zhong, L.; Peng, X. Facile and High-Yield Synthesis of Carbon Quantum Dots from Biomass-Derived Carbons at Mild Condition. ACS Sustain. Chem. Eng. 2019, 7, 7833–7843. [Google Scholar] [CrossRef]
  50. Greczynski, G.; Hultman, L. C 1s Peak of Adventitious Carbon Aligns to the Vacuum Level: Dire Consequences for Material’s Bonding Assignment by Photoelectron Spectroscopy. Chemphyschem 2017, 18, 1507–1512. [Google Scholar] [CrossRef]
  51. Marsden, A.; Brommer, P.; Mudd, J.; Dyson, A.; Cook, R.; Asensio, M.; Ávila, J.; Levy, A.; Sloan, J.; Quigley, D.; et al. Effect of oxygen and nitrogen functionalization on the physical and electronic structure of graphene. Nano Res. 2015, 8, 2620–2635. [Google Scholar] [CrossRef] [Green Version]
  52. Moulder, J.F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of X-ray Photoelectron Spectroscopy; Chastain, J., Ed.; Perkin-Elmer Corp.: Eden Prairie, MN, USA, 1992. [Google Scholar]
  53. Sarkar, S.; Sudolská, M.; Dubecký, M.; Reckmeier, C.J.; Rogach, A.L.; Zbořil, R.; Otyepka, M. Graphitic Nitrogen Doping in Carbon Dots Causes Red-Shifted Absorption. J. Phys. Chem. C 2016, 120, 1303–1308. [Google Scholar] [CrossRef]
  54. Sharma, A.; Gadly, T.; Gupta, A.; Ballal, A.; Ghosh, S.K.; Kumbhakar, M. Origin of Excitation Dependent Fluorescence in Carbon Nanodots. J. Phys. Chem. Lett. 2016, 7, 3695–3702. [Google Scholar] [CrossRef] [PubMed]
  55. Van Dam, B.; Nie, H.; Ju, B.; Marino, E.; Paulusse, J.M.J.; Schall, P.; Li, M.; Dohnalová, K. Excitation-Dependent Photoluminescence from Single-Carbon Dots. Small 2017, 13, 1702098. [Google Scholar] [CrossRef]
  56. Huang, Q.; Li, Q.; Chen, Y.; Tong, L.; Lin, X.; Zhu, J. High quantum yield nitrogen-doped carbon dots: Green synthesis and application as “off-on” fluorescent sensors for the determination of Fe3+ and adenosine triphosphate in biological samples. Sens. Actuators B 2018, 276, 82–88. [Google Scholar] [CrossRef]
  57. Zhou, X.; Zhao, G.; Tan, X.; Qian, X.; Zhang, T.; Gui, J.; Yang, L.; Xie, X. Nitrogen-doped carbon dots with high quantum yield for colorimetric and fluorometric detection of ferric ions and in a fluorescent ink. Mikrochim Acta 2019, 186, 67. [Google Scholar] [CrossRef]
  58. Vallan, L.; Urriolabeitia, E.P.; Ruipérez, F.; Matxain, J.M.; Canton-Vitoria, R.; Tagmatarchis, N.; Benito, A.M.; Maser, W.K. Supramolecular-Enhanced Charge Transfer within Entangled Polyamide Chains as the Origin of the Universal Blue Fluorescence of Polymer Carbon Dots. J. Am. Chem. Soc. 2018, 140, 12862–12869. [Google Scholar] [CrossRef] [Green Version]
  59. Sarswat, P.K.; Free, M.L. Light emitting diodes based on carbon dots derived from food, beverage, and combustion wastes. Phys. Chem. Chem. Phys. 2015, 17, 27642–27652. [Google Scholar] [CrossRef]
  60. Ren, J.; Weber, F.; Weigert, F.; Wang, Y.; Choudhury, S.; Xiao, J.; Lauermann, I.; Resch-Genger, U.; Bande, A.; Petit, T. Influence of surface chemistry on optical, chemical and electronic properties of blue luminescent carbon dots. Nanoscale 2019, 11, 2056–2064. [Google Scholar] [CrossRef] [Green Version]
  61. Das, A.; Roy, D.; De, C.K.; Mandal, P.K. “Where does the fluorescing moiety reside in a carbon dot?”—Investigations based on fluorescence anisotropy decay and resonance energy transfer dynamics. Phys. Chem. Chem. Phys. 2018, 20, 2251–2259. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 10 01316 g001 550

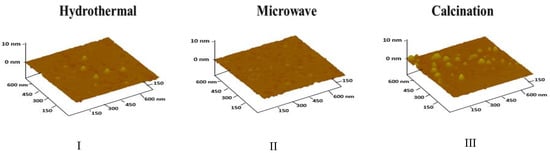

Figure 1. Atomic force microscopy (AFM) images for (I) hydrothermal-carbon dots (CDs), (II) microwave-CDs, and (III) calcination-CDs.
Figure 1. Atomic force microscopy (AFM) images for (I) hydrothermal-carbon dots (CDs), (II) microwave-CDs, and (III) calcination-CDs.
Nanomaterials 10 01316 g001
Nanomaterials 10 01316 g002 550

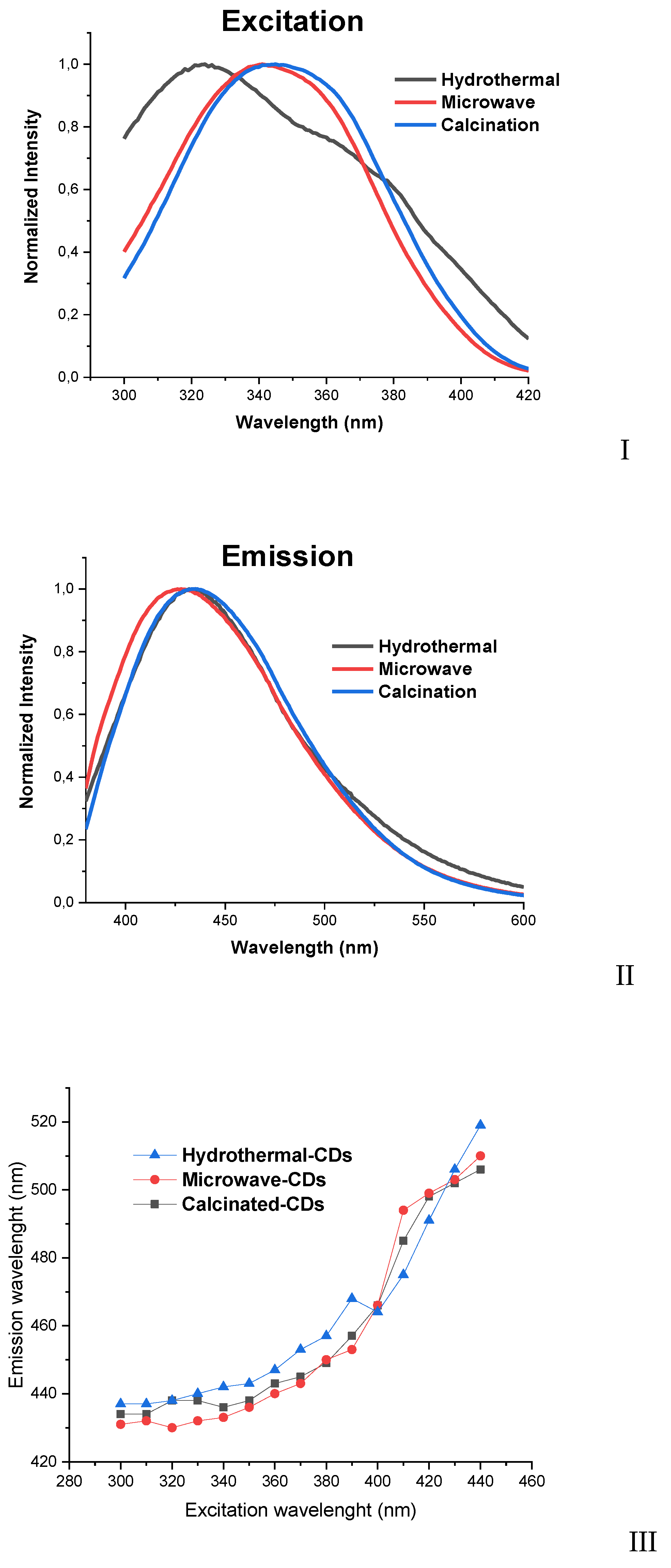

Figure 2. (I) Excitation- and (II) emission-spectra in aqueous solution from hydrothermal-, microwave-, and calcinated-CDs at 320, 340, and 330 nm excitation wavelength, respectively, and (III) emission wavelength (nm) as a function of the excitation wavelength (nm).
Figure 2. (I) Excitation- and (II) emission-spectra in aqueous solution from hydrothermal-, microwave-, and calcinated-CDs at 320, 340, and 330 nm excitation wavelength, respectively, and (III) emission wavelength (nm) as a function of the excitation wavelength (nm).
Nanomaterials 10 01316 g002
Nanomaterials 10 01316 g003 550

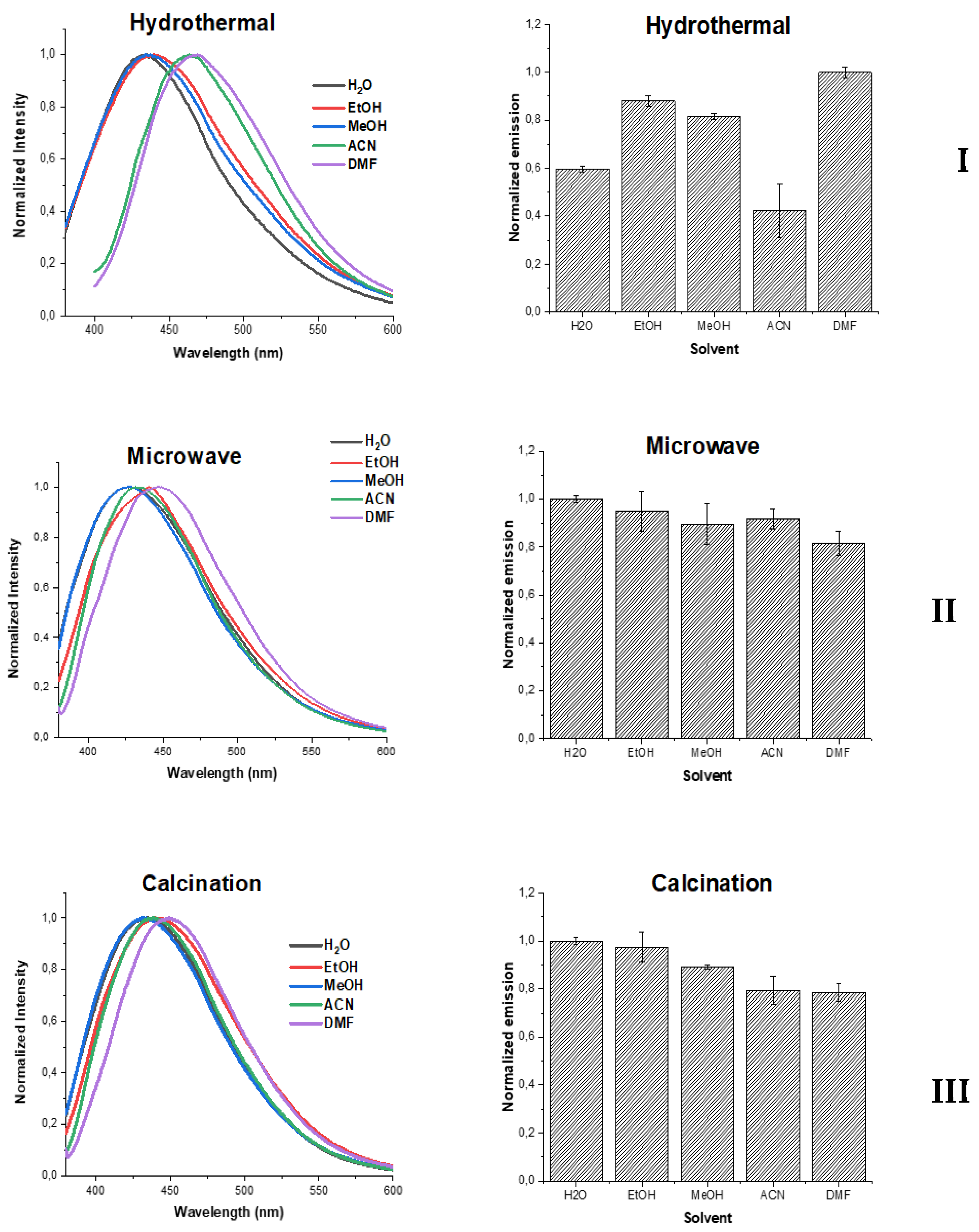

Figure 3. Normalized emission spectra for the three CDs: (I) hydrothermal-CDs, (II) microwave-CDs, and (III) calcination-CDs.
Figure 3. Normalized emission spectra for the three CDs: (I) hydrothermal-CDs, (II) microwave-CDs, and (III) calcination-CDs.
Nanomaterials 10 01316 g003
Nanomaterials 10 01316 g004 550

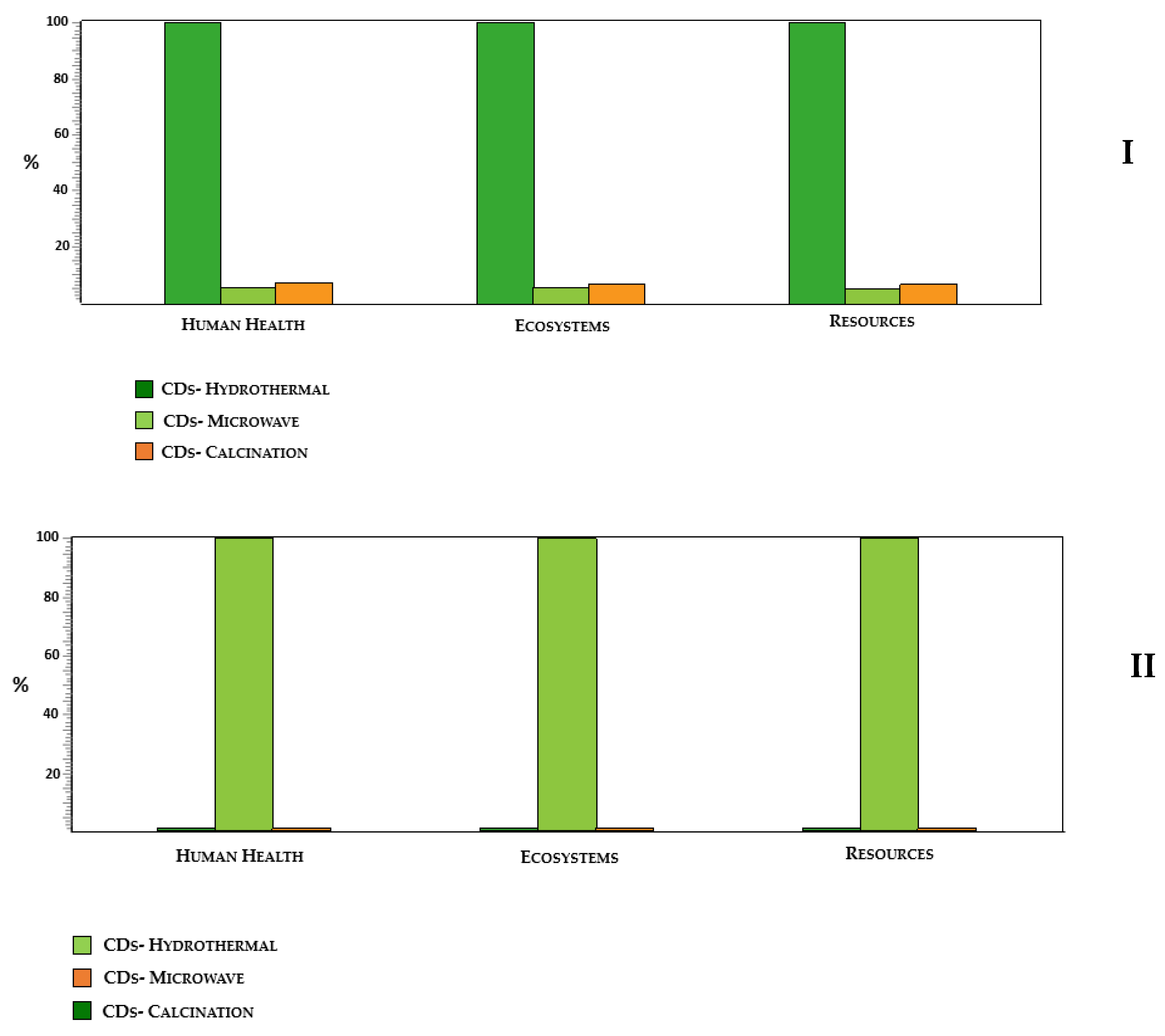

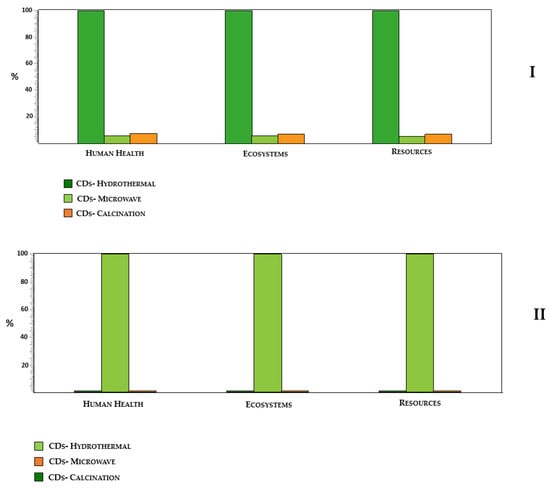

Figure 4. Comparative damage assessment for all three syntheses using (I) reaction yield and (II) quantum yield (QY) unit.
Figure 4. Comparative damage assessment for all three syntheses using (I) reaction yield and (II) quantum yield (QY) unit.
Nanomaterials 10 01316 g004
Table
Table 1. Synthesis and fluorescence quantum yields (in %) and zeta potential (in mV) data for the three CDs.
Table 1. Synthesis and fluorescence quantum yields (in %) and zeta potential (in mV) data for the three CDs.
HydrothermalMicrowaveCalcination
Synthesis yield/%1.8 ± 0.428.5 ± 4.526.9 ± 1.1
Quantum yield/%3.725.129.3
Zeta Potential/mV−0.50.0−0.1
Table
Table 2. Atomic composition (%) obtained by XPS for the three different synthesis.
Table 2. Atomic composition (%) obtained by XPS for the three different synthesis.
Hydrothermal-CDsMicrowave-CDsCalcination-CDs
C (%)62.060.061.9
N (%)9.113.113.5
O (%)28.826.924.7
Table
Table 3. Fluorescence quantum yields (QYFL) and QYFL-based functional units.
Table 3. Fluorescence quantum yields (QYFL) and QYFL-based functional units.
Carbon DotsQYFL(%)QYFL-Based Functional Unit (Using Microwave Synthesis as Reference)
Hydrothermal3.77.9
Microwave25.11.2
Calcination29.31.0

Share and Cite

MDPI and ACS Style

Crista, D.M.A.; Esteves da Silva, J.C.G.; Pinto da Silva, L. Evaluation of Different Bottom-up Routes for the Fabrication of Carbon Dots. Nanomaterials 2020, 10, 1316. https://doi.org/10.3390/nano10071316

AMA Style

Crista DMA, Esteves da Silva JCG, Pinto da Silva L. Evaluation of Different Bottom-up Routes for the Fabrication of Carbon Dots. Nanomaterials. 2020; 10(7):1316. https://doi.org/10.3390/nano10071316

Chicago/Turabian Style

Crista, Diana M. A., Joaquim C. G. Esteves da Silva, and Luís Pinto da Silva. 2020. "Evaluation of Different Bottom-up Routes for the Fabrication of Carbon Dots" Nanomaterials 10, no. 7: 1316. https://doi.org/10.3390/nano10071316

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
