Article

Dopant-Free Triazatruxene-Based Hole Transporting Materials with Three Different End-Capped Acceptor Units for Perovskite Solar Cells

by
Da Rim Kil
1,2,†,
Chunyuan Lu
1,2,†,
Jung-Min Ji
1,2,†,
Chul Hoon Kim
2 and
Hwan Kyu Kim
1,2,*
1
Global GET-Future Lab. Korea University, 2511 Sejong-ro, Sejong 339-700, Korea
2
Department of Advanced Materials Chemistry, Korea University, 2511 Sejong-ro, Sejong 339-700, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2020, 10(5), 936; https://doi.org/10.3390/nano10050936
Submission received: 17 April 2020 / Revised: 4 May 2020 / Accepted: 9 May 2020 / Published: 13 May 2020
(This article belongs to the Special Issue Novel Nanomaterials for Applications in Energy and Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
A series of dopant-free D-π-A structural hole-transporting materials (HTMs), named as SGT-460, SGT-461, and SGT-462, incorporating a planar-type triazatruxene (TAT) core, thieno[3,2-b]indole (TI) π-bridge and three different acceptors, 3-ethylthiazolidine-2,4-dione (ED), 3-(dicyano methylidene)indan-1-one (DI), and malononitrile (MN), were designed and synthesized for application in perovskite solar cells (PrSCs). The effect of three acceptor units in star-shaped D-π-A structured dopant-free HTMs on the photophysical and electrochemical properties and the photovoltaic performance were investigated compared to the reference HTM of 2,2′,7,7′-tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9′-spirobifluorene (spiro-OMeTAD). Their highest occupied molecular orbital (HOMO) energy levels were positioned for efficient hole extraction from a MAPbCl3−xIx layer (5.43 eV). The hole mobility values of the HTMs without dopants were determined to be 7.59 × 10−5 cm2 V−1 s−1, 5.13 × 10−4 cm2 V−1 s−1, and 7.61 × 10−4 cm2 V−1 s−1 for SGT-460-, SGT-461-, and SGT-462-based films. The glass transition temperature of all HTMs showed higher than that of the spiro-OMeTAD. As a result, the molecular engineering of a planar donor core, π-bridge, and end-capped acceptor led to good hole mobility, yielding 11.76% efficiency from SGT-462-based PrSCs, and it provides a useful insight into the synthesis of the next-generation of HTMs for PrSC application.

Graphical Abstract

1. Introduction

The organic–inorganic hybrid halide perovskite solar cells (PrSCs) with methyl ammonium lead iodide have attracted great attention as an efficient conversion technology and as a most promising approach due to their low-cost production process, simple device architecture, and excellent photovoltaic performance [1,2,3,4,5,6]. Recently, PrSCs have achieved 25.2% of the power conversion efficiency (PCE) [7], showing that PrSCs are the most viable alternatives to silicon-based solar cells. In particular, the unique properties of halide organic-inorganic perovskite (HOIP), such as broad light absorption range, high extinction coefficient, low exciton binding energy, long carrier diffusion, and charge carrier mobility, make them the most promising thin-film solar cells [8,9]. To support and optimize the excellent properties of HOIP, many researchers have devoted their efforts to studying the other components of PrSCs, which are electron transporting materials, hole transporting materials (HTMs), and counter electrodes [4]. Among them, much attention has been paid to HTMs because they play a crucial role in PrSCs by extracting the photo-generated holes of the HOIP layer, preventing backflow of electrons from the HIOP layer to the counter electrode, and protecting the moisture-sensitive HOIP layer [10,11]. Moreover, they also determine the open circuit photovoltage (VOC) of PrSCs [12]. Due to their excellent performance, 2,2′,7,7′-tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9′-spirobifluorene as an organic small molecule HTM has become the most successful and popular HTMs in PrSCs [11]. However, their drawbacks, such as synthetic complexity, expensive cost, moderate glass transition temperature, and low hole mobility, make the commercialization of PrSCs difficult [13,14]. Furthermore, the use of dopants to achieve competitive efficiencies damages the long-term stability of a PrSCs [8,15]. Therefore, developing cheap and efficient dopant-free HTMs is one of the major priorities [16,17,18].
Most of efficient dopant-free HTMs have the donor−π−acceptor (D-π-A) architecture because they allow the low band gap, ionic character enhancement by avoiding the use of dopants, and strong dipolar intermolecular interaction [14]. Based on the D-π-A architecture, many researchers have approached various strategies to solve the above disadvantages [15,19]. One of the strategies is the modification of molecular geometry, which can affect its dipole moment, solubility, and film quality [15]. The linear [20,21,22,23], star-shaped [24], and butterfly-shaped geometry are representative [25,26]. The other is the modification of chemical moieties such as core unit, electron donor, π-bridge, and acceptor. The dopant-free HTMs based on various moieties, such as diphenylamine [27], triphenylamine [18,28], carbazole as electron donors [29], thiophene [30], 3,4-ethylenedioxythiophene [31], naphtho-dithiophene [32], spiro[fluorene-9,9′-xanthene] [33], and triazatruxene (TAT) as core units, electron donors, and π-bridges [24], diketopyrrolopyrrole [34], isoindigo [35], and benzothiadiazole as electron acceptors [36,37], have been applied in PrSCs.
In this work, as shown in Figure 1, three new dopant-free HTMs, coded as SGT-460, SGT-461, and SGT-462, were designed and synthesized. TAT as the central core donor, three thieno[3,2-b]indole (TI) moieties as π-bridges, and three different acceptors, 3-ethylthiazolidine-2,4-dione (ED), 3-(dicyano methylidene)indan-1-one (DI), and malononitrile (MN), as the acceptors and the end-capped groups, were used to construct the star-shaped SGT-460, SGT-461, and SGT-462, respectively.
The TAT moiety is the most commonly used moiety for HTMs due to its easy modification of its photophysical and electrochemical properties, strong π-π stacking ability, and excellent charge transporting ability as well as the stabilization ability of the oxidized radical cation form during operation by the nitrogen atom of indole moiety [38]. On the other hand, TI-based moieties were employed as π-bridges in an organic sensitizer for dye-sensitized solar cells (DSSCs), which exhibited a strong electron-donating ability and co-planarity [39]. To increase the π-conjugation length and adjust the energy level, TI moieties were introduced. In addition, we assumed that the presence of alkyl groups in the TI moiety could increase the solubility for organic solvents [39]. Three different acceptors were introduced to investigate the effects of the TAT core-based HTMs on molecular and photovoltaic properties.

2. Results and Discussion

2.1. Synthesis

The three dopant-free HTMs were successfully synthesized as follows (Scheme S1 and Figures S1–S12). The compound 3 and 6-bromo-4-hexyl-4H-thieno[3,2-b]indole were obtained according to previous reports with small modifications [38,39]. The detailed synthetic procedures and characterizations are given in the supporting information. The 6-bromo-4-hexyl-4H-thieno[3,2-b]indole was functionalized by Pd-catalyzed borylation and followed by Vilsmeier formylation reaction to afford compound 4. Then, π-bridges (compound 4) were introduced to the TAT core by Suzuki cross-coupling reaction. The final products of SGT-460, SGT-461, and SGT-462 were synthesized by condensing the aldehydes and the acceptors under Knoevenagel reaction conditions.

2.2. Photophysical and Electrochemical Properties

The normalized UV-VIS absorption and photoluminescence (PL) spectra of the new compounds in tetrahydrofuran (THF) solution are shown in Figure 2a, and the corresponding parameters are listed in Table 1. Typically, for the dipole D-π-A structure molecules, charge-transfer absorption bands are found in the visible region, with the peak maximums centered at 478, 601, and 407 nm for SGT-460, SGT-461, and SGT-462, respectively. Photoluminescence spectra showed that all molecules have a large Stokes’ shift of around 100 nm, suggesting significant changes in the geometrical configuration of the molecules upon excitation. The optical bandgap (Egopt) values were estimated to be 2.45, 1.89, and 2.52 eV, for SGT-460, SGT-461, and SGT-462, respectively. The Egopt variation can be ascribed to the combination of the changes in the accepting ability of the acceptor units (NM > ED > DI) with the conjugation length of the HTMs. The highest occupied molecular orbital (HOMO) energy levels of SGT-460, SGT-461, and SGT-462 were measured by cyclic voltammetry (CV) at −5.12, −5.32, and −5.41 eV, respectively (Figure 2b and Table 1). Also, the oxidation potential (Eox) variation can be attributed to the combination of the changes in the acceptor ability with the conjugation length of the HTMs. The HOMO energy levels are higher than a valence band of the photoactive perovskite layer MAPbCl3−xIx (−5.43 eV), guaranteeing efficient photogenerated charge transfer at the interface (Figure 2c) [21]. The HOMO level of SGT-462 was close to the valence band of the HOIP layer, which can result in the inefficient hole extraction from the HOIP to HTM layer [40]. The lowest occupied molecular orbital (LOMO) energy level values were determined to be −2.60, −3.43, and −3.03 eV for SGT-460, SGT-461, and SGT-462, respectively. These values were sufficiently lower than the conduction band of the MAPbCl3−xIx layer (−3.93 eV), ensuring the prevention of electron backflow from HOIP to the counter electrodes.

2.3. Thermal Analysis

Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) measurements were performed (Figures S13 and S14 and Table S13) to evaluate the thermal properties of HTMs. The glass transition temperatures (Tg) of SGT-460, SGT-461, SGT-462, and spiro-OMeTAD were 155, 158, 160, and 125 ℃, respectively. The glass transport temperature (Tg) of all HTMs was higher than that of the spiro-OMeTAD. HTMs retaining a higher Tg can induce the lower tendency to oriented aggregation (crystallization) upon heating [16,41,42]. Also, the Tg of HTMs is an important factor for the thermal stability of amorphous films upon long-time device storage or heating. The degradation temperatures (Td) were found to be values of 345, 339, 357, and 406 ℃ for SGT-460, SGT-461, SGT-462, and spiro-OMeTAD, respectively. These results indicated that the HTMs were thermally stable up to ~330 ℃.

2.4. Hole Mobility Analysis

To determine the hole mobility of all HTMs, the space-charge limited current (SCLC) measurement was conducted with the fluorine doped tin oxide (FTO)/poly(3,4-ethylenedioxythiophene):polystyrene sulfonate (PEDOT:PSS)/HTM/Au device architecture (Figure S15 and Table 1). The hole mobility values of SGT-460, SGT-461, and SGT-462 were determined to be 7.59 × 10−5 cm2 V−1 s−1, 5.13 × 10−4 cm2 V−1 s−1, and 7.61 × 10−4 cm2 V−1 s−1, respectively. Interestingly, the trend of hole mobility was comparable to the trend of the HOMO energy levels (SGT-460 < SGT-461 < SGT-462). In addition, these values were higher than the hole mobility value of spiro-OMeTAD without dopants (~10−5 cm2 V−1 s−1), indicating improved hole transporting properties through the more efficient π-π stacks [38]. The HOMO energy level and high hole mobility of these molecules make them good candidates for dopant-free HTMs in PrSCs.

2.5. Photovoltaic Properties

The three dopant-free HTMs were incorporated into conventional-type PrSCs with a stack of TiO2/MAPbCl3-xIx /HTM/Au to evaluate their photovoltaic properties (Figure 3a). The MAPbCl3-xIx perovskite layer was deposited according to a previous report (see supplementary information, SI) [13]. The current density-voltage (J-V) characteristics of the PrSCs under air mass (AM) 1.5 G irradiation at 100 mW cm−2, and the incident photon-to-current conversion efficiency (IPCE) spectra are presented in Figure 3. The corresponding photovoltaic parameters are listed in Table 2. All dopant-free HTM-based PrSCs exhibited PCEs of 10.8%, 10.1%, and 11.7% for SGT-460, SGT-461, and SGT-462, respectively, while the PCEs of the spiro-OMeTAD-based devices were 6.8% without dopants (JSC = 18.69 mA cm−2, VOC = 0.929 V, FF = 39.1) and 17.8% with dopants (Figure S16 and Table S2, JSC = 20.62 mA cm−2, VOC = 1.094 V, FF = 75.5). This indicates that the end-capped acceptors worked as the dopant. In other words, the end-capped acceptors allowed self-doping HTMs by introduction of ionic character to them. The VOC, JSC, and FF values of the three dopant-free HTM-based PrSCs showed a similar tendency in the order of SGT-461 < SGT-460 < SGT-462 (VOC of 0.898, 0.887, and 0.914 V; JSC of 19.57, 19.15, and 20.01 mA cm−2; and FF of 61.5, 59.2, and 63.2, for SGT-460, SGT-461, and SGT-462, respectively). The histogram of three dopant-free HTM-based PrSCs is shown in Figure S17. It should be noted that he SGT-462-based PrSCs showed a higher VOC, JSC, and FF values compared to those of SGT-460 and SGT-461, despite the insufficient driving force of 0.02 eV for regeneration from the HOMO energy level of SGT-462 to the HOIP. This phenomenon implies that the interfacial properties of three dopant-free HTMs mainly affected their photovoltaic performance, more than the intrinsic properties such as hole mobility and HOMO energy levels. Moreover, the lower VOC, JSC, and FF values of the three dopant-free HTM-based devices, as compared to those of spiro-OMeTAD with dopants, could be due to a poor surface morphology of the HTM-coated film [24,43]. However, apparently the dopant-free HTM-based PrSCs showed significant enhancement in photovoltaic performance compared to the spiro-OMeTAD-based device without dopants. When adding the dopant, three SGT-HTM-based PrSCs showed low PCEs (Figure S16 and Table S2).

2.6. Surface Morphology Observation of HTM Films

The uniformity of the spin-coated HTM layers onto the perovskite film was affected by how well the HTMs dissolved in organic solvents and assembled on the HOIP layer, depending on molecular structure. It is well known that the film-forming ability of the HTMs is crucial to making good interfacial contact of MAPbCl3-xIx/HTM/Au, for which the nature of the interfacial contact between layers can significantly affect hole extraction and the charge recombination in devices. Therefore, the surface morphologies of the HTM films were observed by using field emission scanning electron microscopy (FE-SEM) and atomic force microscopy (AFM) to scrutinize the photovoltaic behavior of the SGT-460-, SGT-461-, and SGT-462-based PrSCs. Figure 4 displays the SEM images of the HOIP layer and spin-coated HTM films. Spiro-OMeTAD- and SGT-462-based films exhibited a good smooth and uniform layer on the MAPbCl3-xIx layer, while those of SGT-460 and SGT-461 showed a poor surface morphology (Figure 4). In particular, there were many pinholes on the SGT-461-based film. These results indicated the poor interfacial contact in the device, explaining the low VOC and FF values of SGT-461-based devices.
The AFM results presented the same tendency as in the SEM observation (Figure 5). The largest surface roughness (RMS) of the bare HOIP layer was 14.8 nm. After the formation of HTM films on top of the HOIP layer, the RMS values of the HTM-coated films were significantly decreased with the order of spiro-OMeTAD (2.3 nm) < SGT-462 (2.8 nm) < SGT-460 (5.4 nm) < SGT-461 (6.7 nm). To elucidate the variation in surface morphologies, the solubility test of three dopant-free HTMs was conducted with three different solvents (Table S3). Three dopant-free HTMs were almost insoluble in toluene and 1,2-dichlorobenzene and less soluble in 1,1,2,2-tetrachloroethane. The solubility of SGT-460, SGT-461, and SGT-462 in 1,1,2,2-tetrachloroethane were 16.2, 9.8, and 20.7 mg mL−1, respectively, exhibiting the same trend in RMS values. As a result, it was concluded that the planar structure of the ED and DI moieties affected the solubility of molecules and their surface morphology, thereby resulting in the poor interfacial contact in the PrSC device with low VOC and FF values [44].

2.7. Time-Resolved Photoluminescence Measurements

The time-resolved photoluminescence (TR-PL) measurements were carried out to study the interfacial electron transfer process between the three dopant-free HTMs and HOIP layer [21]. The TR-PL spectra are displayed in Figure 6 and the fitted and calculated parameters are listed in Table S4. The PL lifetimes of the pristine HOIP films, HOIP/spiro-OMeTAD, HOIP/SGT-460, HOIP/SGT-461, and HOIP/SGT-462 were about 49.2, 11.27, 16.39, 19.94, and 15.17 ns, respectively. The shorter decay time of the SGT-462-based device compared to those of the SGT-460- and SGT-461-based devices, demonstrating that SGT-462 had a more effective hole extraction ability and less charge recombination [45]. The charge-transfer efficiencies (CTE) were calculated to be 77.1, 66.7, 59.5, and 69.2% for spiro-OMeTAD-, SGT-460-, SGT-461-, and SGT-462-based devices, respectively, which correspond to the trend in PCE (spiro-OMeTAD > SGT-462 > SGT-460 > SGT-461). Moreover, these trends in CTE values of three dopant-free SGT HTMs can explain their trends in JSC values. The SGT-461-based film exhibited good hole mobility, but their PrSCs showed lower JSC values than those of other SGT HTMs. This indicates that the interfacial properties were the main factor that affected the JSC values with a minor influence from the hole mobility. Interestingly, the SGT-462-based device showed a lower decay time than that of the spiro-OMeTAD, despite its good morphology, unlike those of SGT-460 and SGT-461. This phenomenon may be explained by the low driving force between the HOMO energy level of SGT-462 and the valence band of the MAPbCl3-xIx.

3. Conclusions

In summary, new dopant-free D-π-A structural hole-transporting materials (HTMs), named as SGT-460, SGT-461, and SGT-462, incorporating a planar type triazatruxene (TAT) core, thieno[3,2-b]indole (TI) π-bridge and three different acceptors, 3-ethylthiazolidine-2,4-dione (ED), 3-(dicyano methylidene)indan-1-one (DI), and malononitrile (MN), were designed and synthesized for application in PrSCs. Their photophysical, electrochemical, and photovoltaic behaviors were studied and compared with the reference HTM of spiro-OMeTAD. The HOMO energy levels of the three HTMs decreased in the order of SGT-460 (5.12 eV) < SGT-461 (5.32 eV) < SGT-462 (5.41 eV) along with the variation of the acceptor ability of HTM molecules. Their HOMO energy levels were positioned for efficient hole extraction from a MAPbCl3−xIx layer (5.43 eV). The hole mobility values of the HTMs without dopants were determined to be 7.59 × 10−5 cm2 V−1 s−1, 5.13 × 10−4 cm2 V−1 s−1, and 7.61 × 10−4 cm2 V−1 s−1 for SGT-460-, SGT-461-, and SGT-462-based films. In addition, the glass transition temperature (Tg) of all HTMs showed higher than that of the spiro-OMeTAD. To clarify the variation in VOC and FF values, the surface morphology of the HTMs film on the top of MAPbCl3-xIx layer were observed by SEM and AFM. Spiro-OMeTAD- and SGT-462-based films exhibited a smooth surface and low RMS values, respectively, while the SGT-460- and SGT-461-based films exhibited a rough surface and high RMS values. The PrSCs based on SGT-462 exhibited almost 2 times higher efficiency than that of dopant-free spiro-OMeTAD-based device, due to the high intrinsic hole mobility and excellent film-forming ability of SGT-462. These results could explain the reason for the low VOC and FF values of SGT-460 and SGT-461. Moreover, low solubility of SGT-460 and SGT-461 in 1,1,2,2-tetrachloroethane explained their poor surface morphology. Finally, the PL decay time of HTMs were measured by TR-PL measurements. The trend charge-transfer efficiencies (CTE) of HTMs were in good agreement with the trends in VOC and FF, indicating that the interfacial properties of dopant-free HTMs mainly affected the JSC. This study of structural engineering of TAT-based, dopant-free HTMs with different acceptor moieties provides insights for developing efficient dopant-free, small molecule HTMs in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/5/936/s1. Figure S1: The 1H-NMR spectrum of 4-hexyl-6-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-4H-thieno[3,2-b]indole (compound 1). Figure S2: The 1H-NMR spectrum of 4-hexyl-6-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-4H-thieno[3,2-b]indole-2-carbaldehyde (compound 2). Figure S3: The 1H-NMR spectrum of 6,6′,6″-(5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-2-carbaldehyde) (compound 4). Figure S4: The 1H-NMR spectrum of (5Z,5′Z,5″Z)-5,5′,5″-(((5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-6,2-diyl))tris (methanylylidene))tris(3-ethylthiazolidine-2,4-dione) (SGT-460). Figure S5: 1H-NMR spectrum of 2,2′,2″-((2Z,2′Z,2″Z)-(((5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-6,2-diyl))tris(methanylylidene))tris(3-oxo-2,3-dihydro-1H-indene-2,1-diylidene))trimalononitrile (SGT-461). Figure S6: The 1H-NMR spectrum of 2,2′,2″-(((5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-6,2-diyl))tris(methanylylidene))trimalononitrile (SGT-462). Figure S7: Matrix-Assisted Laser Desorption Ionization-Time-of-Flight (MALDI-TOF) spectrum of 4-hexyl-6-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-4H-thieno[3,2-b]indole (compound 1). Figure S8: MALDI-TOF spectrum of 4-hexyl-6-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-4H-thieno[3,2-b]indole-2-carbaldehyde (compound 2). Figure S9: MALDI-TOF spectrum of 6,6′,6″-(5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-2-carbaldehyde) (compound 4). Figure S10: MALDI-TOF spectrum of (5Z,5′Z,5″Z)-5,5′,5″-(((5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-6,2-diyl))tris (methanylylidene))tris(3-ethylthiazolidine-2,4-dione) (SGT-460). Figure S11: MALDI-TOF spectrum of 2,2′,2″-((2Z,2′Z,2″Z)-(((5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-6,2-diyl))tris(methanylylidene))tris(3-oxo-2,3-dihydro-1H-indene-2,1-diylidene))trimalononitrile (SGT-461). Figure S12: MALDI-TOF spectrum of 2,2′,2″-(((5,10,15-trihexyl-10,15-dihydro-5H-diindolo[3,2-a:3′,2′-c]carbazole-3,8,13-triyl)tris(4-hexyl-4H-thieno[3,2-b]indole-6,2-diyl))tris(methanylylidene))trimalononitrile (SGT-462), Figure S13: Differential scanning calorimetry (DSC) traces of HTMs. Figure S14: Thermogravimetric analysis (TGA) traces of HTMs. Figure S15: J–V characteristics of SGT-460, SGT-461, SGT-462 and spiro-OMeTAD (w/o dopants) in hole-only devices. Figure S16: J-V curves of the PrSCs based on (a) spiro-OMeTAD with dopants and (b) the corresponding IPCE spectrum. (c) J-V curves of the PrSCs based on SGT-460, SGT-461, and SGT-462 with dopants. Figure S17: Histograms for three dopant-free HTM-based PrSCs. Table S1: Thermal properties of the synthesized HTMs and spiro-OMeTAD. Table S2: Photovoltaic performances of the PrSCs based on spiro-OMeTAD and three SGT-HTMs with dopants. Table S3: The solubility parameters of three dopant-free HTMs in organic solvents. Table S4: The fitting results of time-resolved photoluminescence (TRPL) profiles. Scheme S1: Scheme of D-π-A structure HTMs’ synthesis.

Author Contributions

D.R.K.: Synthesis, PrSC fabrication, PrSC measurements, and manuscript preparation; C.L.: PrSC fabrication and PrSC measurements; J.-M.J.: Synthesis, characterization of materials, manuscript preparation, and supervision; C.H.K.: Contribution to TRPL measurement; H.K.K.: Project leader, concepts, and contribution to manuscript preparation. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a National Research Foundation of Korea (NRF) grant, funded by the Korean government (MSIP) through the Mid-Career Researcher Program (NRF-2017R1A2A1A17069374) as well as Climate Change Program (NRF-2015M1A2A2056543) and “Human Resources Program in Energy Technology” of the Korea Institute of Energy Technology Evaluation and Planning (KETEP), granted financial resource from the Ministry of Trade, Industry & Energy, Republic of Korea. (No. 20184030201910).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef] [PubMed]
  2. Lee, M.M.; Teuscher, J.; Miyasaka, T.; Murakami, T.N.; Snaith, H.J. Efficient hybrid solar cells based on meso-superstructured organometal halide perovskites. Science 2012, 338, 643–647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Park, N.-G. Perovskite solar cells: An emerging photovoltaic technology. Mater. Today 2015, 18, 65–72. [Google Scholar] [CrossRef]
  4. Jung, M.; Ji, S.-G.; Kim, G.; Seok, S.I. Perovskite precursor solution chemistry: From fundamentals to photovoltaic applications. Chem. Soc. Rev. 2019, 48, 2011–2038. [Google Scholar] [CrossRef]
  5. Wang, R.; Mujahid, M.; Duan, Y.; Wang, Z.-K.; Xue, J.; Yang, Y. A review of perovskites solar cell stability. Adv. Funct. Mater. 2019, 29, 1808843. [Google Scholar] [CrossRef]
  6. Seok, S.I.; Grätzel, M.; Park, N.-G. Methodologies toward highly efficient perovskite solar cells. Small 2018, 14, 1704177. [Google Scholar] [CrossRef]
  7. NREL Chart. Available online: https://www.nrel.gov/pv/cell-efficiency.html (accessed on 6 April 2020).
  8. Niu, G.; Guo, X.; Wang, L. Review of recent progress in chemical stability of perovskite solar cells. J. Mater. Chem. A 2015, 3, 8970–8980. [Google Scholar] [CrossRef]
  9. Yin, W.-J.; Yang, J.-H.; Kang, J.; Yan, Y.; Wei, S.-H. Halide perovskite materials for solar cells: A theoretical review. J. Mater. Chem. A 2015, 3, 8926–8942. [Google Scholar] [CrossRef]
  10. Calió, L.; Kazim, S.; Grätzel, M.; Ahmad, S. Hole-transport materials for perovskite solar cells. Angew. Chem. Int. Ed. 2016, 55, 14522–14545. [Google Scholar] [CrossRef]
  11. Hawash, Z.; Ono, L.K.; Qi, Y. Recent advances in spiro-MeOTAD hole transport material and its applications in organic–inorganic halide perovskite solar cells. Adv. Mater. Interfaces 2018, 5, 1700623. [Google Scholar] [CrossRef] [Green Version]
  12. Yu, Z.; Sun, L. Recent progress on hole-transporting materials for emerging organometal halide perovskite solar cells. Adv. Energy Mater. 2015, 5, 1500213. [Google Scholar] [CrossRef]
  13. Kang, S.H.; Lu, C.; Zhou, H.; Choi, S.; Kim, J.; Kim, H.K. Novel π-extended porphyrin-based hole-transporting materials with triarylamine donor units for high performance perovskite solar cells. Dyes Pigment. 2019, 163, 734–739. [Google Scholar] [CrossRef]
  14. Urieta-Mora, J.; García-Benito, I.; Molina-Ontoria, A.; Martín, N. Hole transporting materials for perovskite solar cells: A chemical approach. Chem. Soc. Rev. 2018, 47, 8541–8571. [Google Scholar] [CrossRef]
  15. Rakstys, K.; Igci, C.; Nazeeruddin, M.K. Efficiency vs. stability: Dopant-free hole transporting materials towards stabilized perovskite solar cells. Chem. Sci. 2019, 10, 6748–6769. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Lu, C.; Choi, I.T.; Kim, J.; Kim, H.K. Simple synthesis and molecular engineering of low-cost and star-shaped carbazole-based hole transporting materials for highly efficient perovskite solar cells. J. Mater. Chem. A 2017, 5, 20263–20276. [Google Scholar] [CrossRef]
  17. Kang, M.S.; Sung, S.D.; Choi, I.T.; Kim, H.; Hong, M.; Kim, J.; Lee, W.I.; Kim, H.K. Novel carbazole-based hole-transporting materials with star-shaped chemical structures for perovskite-sensitized solar cells. ACS Appl. Mater. Interfaces 2015, 7, 22213–22217. [Google Scholar] [CrossRef]
  18. Pham, H.D.; Jain, S.M.; Li, M.; Wang, Z.-K.; Manzhos, S.; Feron, K.; Pitchaimuthu, S.; Liu, Z.; Motta, N.; Durrant, J.R.; et al. All-rounder low-cost dopant-free D-A-D hole-transporting materials for efficient indoor and outdoor performance of perovskite solar cells. Adv. Electron. Mater. 2020, 6, 1900884. [Google Scholar] [CrossRef]
  19. Oh, S.; Khan, N.; Jin, S.-M.; Tran, H.; Yoon, N.; Song, C.E.; Lee, H.K.; Shin, W.S.; Lee, J.-C.; Moon, S.-J.; et al. Alkyl side-chain dependent self-organization of small molecule and its application in high-performance organic and perovskite solar cells. Nano Energy 2020, 72, 104708. [Google Scholar] [CrossRef]
  20. Kazim, S.; Ramos, F.J.; Gao, P.; Nazeeruddin, M.K.; Grätzel, M.; Ahmad, S. A dopant free linear acene derivative as a hole transport material for perovskite pigmented solar cells. Energy Environ. Sci. 2015, 8, 1816–1823. [Google Scholar] [CrossRef]
  21. Lu, C.; Paramasivam, M.; Park, K.; Kim, C.H.; Kim, H.K. Phenothiazine functionalized multifunctional A−π–D−π–D−π–A-type hole-transporting materials via sequential C–H arylation approach for efficient and stable perovskite solar cells. ACS Appl. Mater. Interfaces 2019, 11, 14011–14022. [Google Scholar] [CrossRef]
  22. Azmi, R.; Nam, S.Y.; Sinaga, S.; Akbar, Z.A.; Lee, C.-L.; Yoon, S.C.; Jung, I.H.; Jang, S.-Y. High-performance dopant-free conjugated small molecule-based hole-transport materials for perovskite solar cells. Nano Energy 2018, 44, 191–198. [Google Scholar] [CrossRef]
  23. Lin, Y.-D.; Abate, S.Y.; Chung, H.-C.; Liau, K.-L.; Tao, Y.-T.; Chow, T.J.; Sun, S.-S. Donor–acceptor–donor type cyclopenta[2,1-b;3,4-b′]dithiophene derivatives as a new class of hole transporting materials for highly efficient and stable perovskite solar cells. ACS Appl. Energy Mater. 2019, 2, 7070–7082. [Google Scholar] [CrossRef]
  24. Rakstys, K.; Paek, S.; Gao, P.; Gratia, P.; Marszalek, T.; Grancini, G.; Cho, K.T.; Genevicius, K.; Jankauskas, V.; Pisula, W.; et al. Molecular engineering of face-on oriented dopant-free hole transporting material for perovskite solar cells with 19% PCE. J. Mater. Chem. A 2017, 5, 7811–7815. [Google Scholar] [CrossRef]
  25. Yang, X.; Xi, J.; Sun, Y.; Zhang, Y.; Zhou, G.; Wong, W.-Y. A dopant-free twisted organic small-molecule hole transport material for inverted planar perovskite solar cells with enhanced efficiency and operational stability. Nano Energy 2019, 64, 103946. [Google Scholar] [CrossRef]
  26. Zhang, F.; Yi, C.; Wei, P.; Bi, X.; Luo, J.; Jacopin, G.; Wang, S.; Li, X.; Xiao, Y.; Zakeeruddin, S.M.; et al. A novel dopant-free triphenylamine based molecular “Butterfly” hole-transport material for highly efficient and stable perovskite solar cells. Adv. Energy Mater. 2016, 6, 1600401. [Google Scholar] [CrossRef]
  27. Pham, H.D.; Jain, S.M.; Li, M.; Manzhos, S.; Feron, K.; Pitchaimuthu, S.; Liu, Z.; Motta, N.; Wang, H.; Durrant, J.R.; et al. Dopant-free novel hole-transporting materials based on quinacridone dye for high-performance and humidity-stable mesoporous perovskite solar cells. J. Mater. Chem. A 2019, 7, 5315–5323. [Google Scholar] [CrossRef] [Green Version]
  28. Zhang, F.; Zhao, X.; Yi, C.; Bi, D.; Bi, X.; Wei, P.; Liu, X.; Wang, S.; Li, X.; Zakeeruddin, S.M.; et al. Dopant-free star-shaped hole-transport materials for efficient and stable perovskite solar cells. Dyes Pigm. 2017, 136, 273–277. [Google Scholar] [CrossRef] [Green Version]
  29. Zhang, J.; Xu, L.J.; Huang, P.; Zhou, Y.; Zhu, Y.Y.; Yuan, N.Y.; Ding, J.N.; Zhang, Z.G.; Li, Y.F. A simple and dopant-free hole-transporting material based on (2-ethylhexyl)-9H-carbazole for efficient planar perovskite solar cells. J. Mater. Chem. C 2017, 5, 12752–12757. [Google Scholar] [CrossRef]
  30. Wu, J.; Liu, C.; Hu, M.; Deng, X.; Tan, W.; Tian, Y.; Xu, B. Polystyrene with a methoxytriphenylamine-conjugated-thiophene moiety side-chain as a dopant-free hole-transporting material for perovskite solar cells. J. Mater. Chem. A 2018, 6, 13123–13132. [Google Scholar] [CrossRef]
  31. Li, H.; Fu, K.; Hagfeldt, A.; Grätzel, M.; Mhaisalkar, S.G.; Grimsdale, A.C. A Simple 3,4-ethylenedioxythiophene based hole-transporting material for perovskite solar cells. Angew. Chem. Int. Ed. 2014, 53, 4085–4088. [Google Scholar] [CrossRef]
  32. Cui, B.-B.; Yang, N.; Shi, C.; Yang, S.; Shao, J.-Y.; Han, Y.; Zhang, L.; Zhang, Q.; Zhong, Y.-W.; Chen, Q. Naphtho[1,2-b:4,3-b′]dithiophene-based hole transporting materials for high-performance perovskite solar cells: Molecular engineering and opto-electronic properties. J. Mater. Chem. A 2018, 6, 10057–10063. [Google Scholar] [CrossRef]
  33. Xu, B.; Zhang, J.; Hua, Y.; Liu, P.; Wang, L.; Ruan, C.; Li, Y.; Boschloo, G.; Johansson, E.M.J.; Kloo, L.; et al. Tailor-Making Low-Cost Spiro[fluorene-9,9′-xanthene]-Based 3D Oligomers for Perovskite Solar Cells. Chem 2017, 2, 676–687. [Google Scholar] [CrossRef] [Green Version]
  34. Jeon, S.; Thakur, U.K.; Lee, D.; Wenping, Y.; Kim, D.; Lee, S.; Ahn, T.K.; Park, H.J.; Kim, B.G. N-phenylindole-diketopyrrolopyrrole-containing narrow band-gap materials for dopant-free hole transporting layer of perovskite solar cell. Org. Electron. 2016, 37, 134–140. [Google Scholar] [CrossRef]
  35. Wang, R.; Qiao, J.; He, B.; Tang, X.; Wu, F.; Zhu, L. Electron extraction layer based on diketopyrrolopyrrole/isoindigo to improve the efficiency of inverted perovskite solar cells. J. Mater. Chem. C 2018, 6, 8429–8434. [Google Scholar] [CrossRef]
  36. Wu, F.; Ji, Y.; Wang, R.; Shan, Y.; Zhu, L. Molecular engineering to enhance perovskite solar cell performance: Incorporation of benzothiadiazole as core unit for low cost hole transport materials. Dyes Pigment. 2017, 143, 356–360. [Google Scholar] [CrossRef]
  37. Wu, F.; Ji, Y.; Zhong, C.; Liu, Y.; Tan, L.; Zhu, L. Fluorine-substituted benzothiadiazole-based hole transport materials for highly efficient planar perovskite solar cells with a FF exceeding 80%. Chem. Commun. 2017, 53, 8719–8722. [Google Scholar] [CrossRef]
  38. Rakstys, K.; Abate, A.; Dar, M.I.; Gao, P.; Jankauskas, V.; Jacopin, G.; Kamarauskas, E.; Kazim, S.; Ahmad, S.; Grätzel, M.; et al. Triazatruxene-based hole transporting materials for highly efficient perovskite solar cells. J. Am. Chem. Soc. 2015, 137, 16172–16178. [Google Scholar] [CrossRef]
  39. Eom, Y.K.; Kang, S.H.; Choi, I.T.; Yoo, Y.; Kim, J.; Kim, H.K. Significant light absorption enhancement by a single heterocyclic unit change in the π-bridge moiety from thieno[3,2-b]benzothiophene to thieno[3,2-b]indole for high performance dye-sensitized and tandem solar cells. J. Mater. Chem. A 2017, 5, 2297–2308. [Google Scholar] [CrossRef]
  40. Liu, Y.; Hong, Z.; Chen, Q.; Chen, H.; Chang, W.H.; Yang, Y.; Song, T.B.; Yang, Y. Perovskite solar cells employing dopant-free organic hole transport materials with tunable energy levels. Adv. Mater. 2016, 28, 440–446. [Google Scholar] [CrossRef]
  41. Zhao, X.; Wang, S.; You, J.; Zhang, Y.; Li, X. Solution-processed thermally stable amorphous films of small molecular hole injection/transport bi-functional materials and their application in high efficiency OLEDs. J. Mater. Chem. C 2015, 3, 11377–11384. [Google Scholar] [CrossRef]
  42. Malinauskas, T.; Tomkute-Luksiene, D.; Sens, R.; Daskeviciene, M.; Send, R.; Wonneberger, H.; Jankauskas, V.; Bruder, I.; Getautis, V. Enhancing thermal stability and lifetime of solid-state dye-sensitized solar cells via molecular engineering of the hole-transporting material spiro-OMeTAD. ACS Appl. Mater. Interfaces 2015, 7, 11107–11116. [Google Scholar] [CrossRef] [PubMed]
  43. Huang, C.; Fu, W.; Li, C.-Z.; Zhang, Z.; Qiu, W.; Shi, M.; Heremans, P.; Jen, A.K.Y.; Chen, H. Dopant-free hole-transporting material with a C3h symmetrical truxene core for highly efficient perovskite solar cells. J. Am. Chem. Soc. 2016, 138, 2528–2531. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Y.; Ji, L.; Liu, R.; Zhang, C.; Mak, C.H.; Zou, X.; Shen, H.-H.; Leu, S.-Y.; Hsu, H.-Y. A review on morphology engineering for highly efficient and stable hybrid perovskite solar cells. J. Mater. Chem. A 2018, 6, 12842–12875. [Google Scholar] [CrossRef]
  45. Zhu, Z.; Bai, Y.; Lee, H.K.H.; Mu, C.; Zhang, T.; Zhang, L.; Wang, J.; Yan, H.; So, S.K.; Yang, S. Polyfluorene derivatives are high-performance organic hole-transporting materials for inorganic−organic hybrid perovskite solar cells. Adv. Funct. Mater. 2014, 24, 7357–7365. [Google Scholar] [CrossRef]
Nanomaterials 10 00936 g001 550

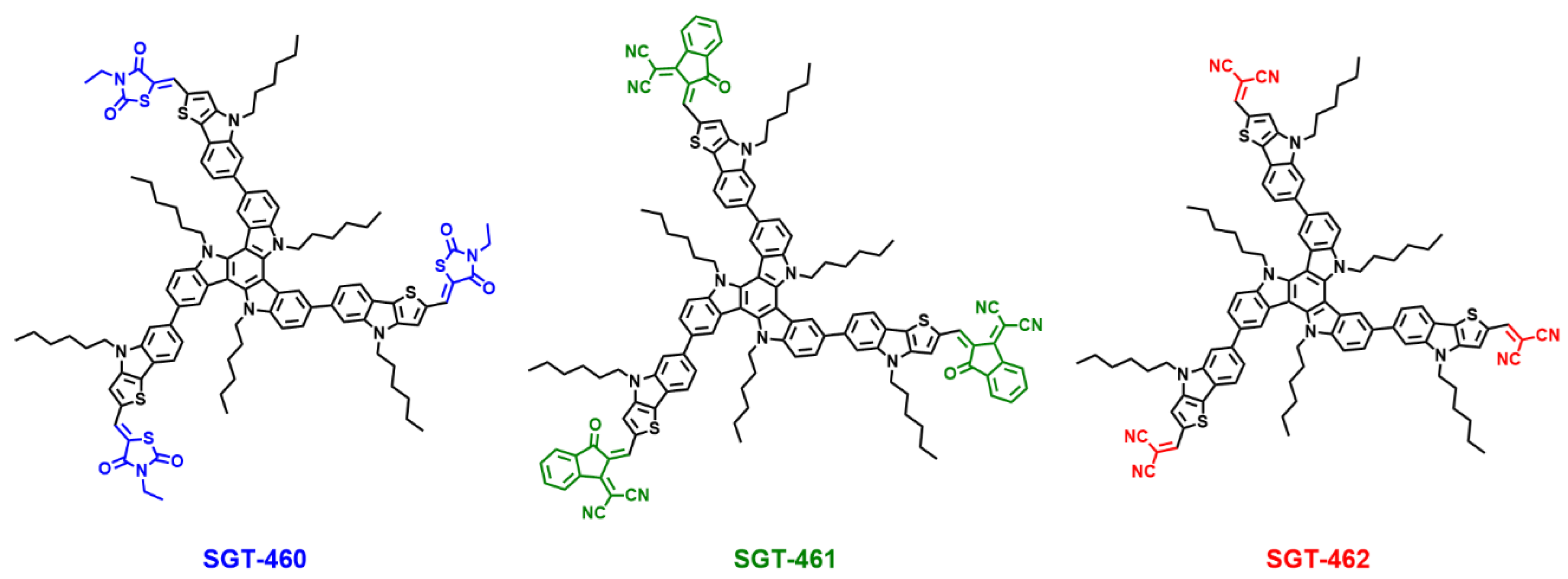

Figure 1. Molecular structures of three dopant-free hole-transporting materials (HTMs).
Figure 1. Molecular structures of three dopant-free hole-transporting materials (HTMs).
Nanomaterials 10 00936 g001
Nanomaterials 10 00936 g002 550

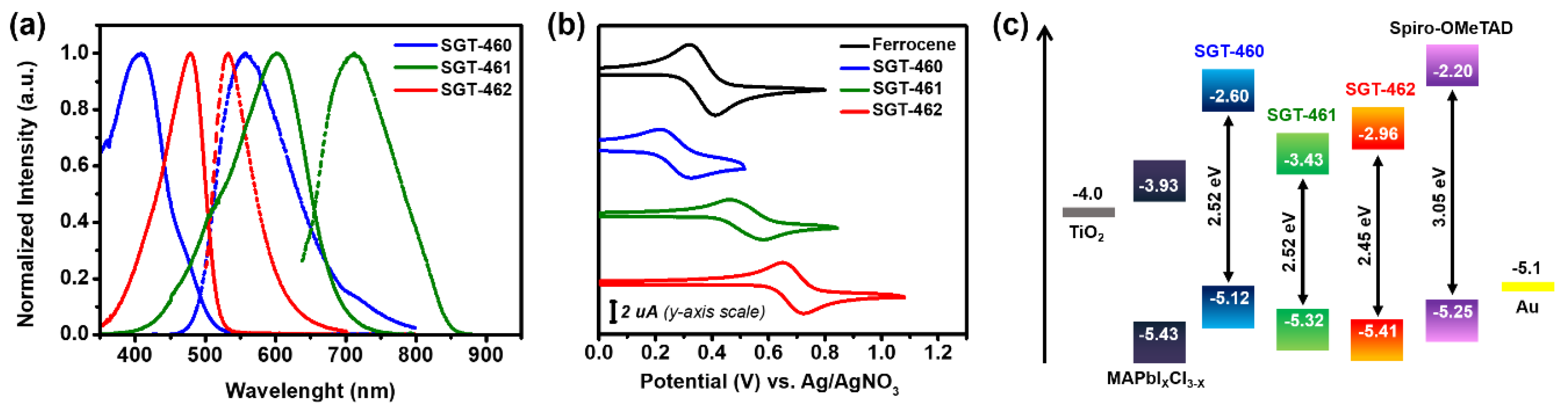

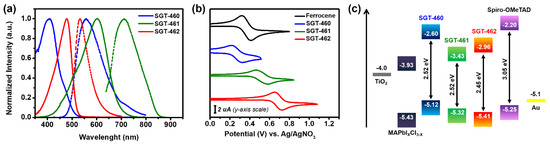

Figure 2. (a) UV-VIS absorption (solid line) and emission (dashed line) spectra of SGT-460, SGT-461, and SGT-462 measured in THF solution. (b) Cyclic voltammograms of ferrocene (Fc, an external reference), SGT-460, SGT-461, and SGT-462. (c) Energy diagram with respect to components used in PrSC devices.
Figure 2. (a) UV-VIS absorption (solid line) and emission (dashed line) spectra of SGT-460, SGT-461, and SGT-462 measured in THF solution. (b) Cyclic voltammograms of ferrocene (Fc, an external reference), SGT-460, SGT-461, and SGT-462. (c) Energy diagram with respect to components used in PrSC devices.
Nanomaterials 10 00936 g002
Nanomaterials 10 00936 g003 550

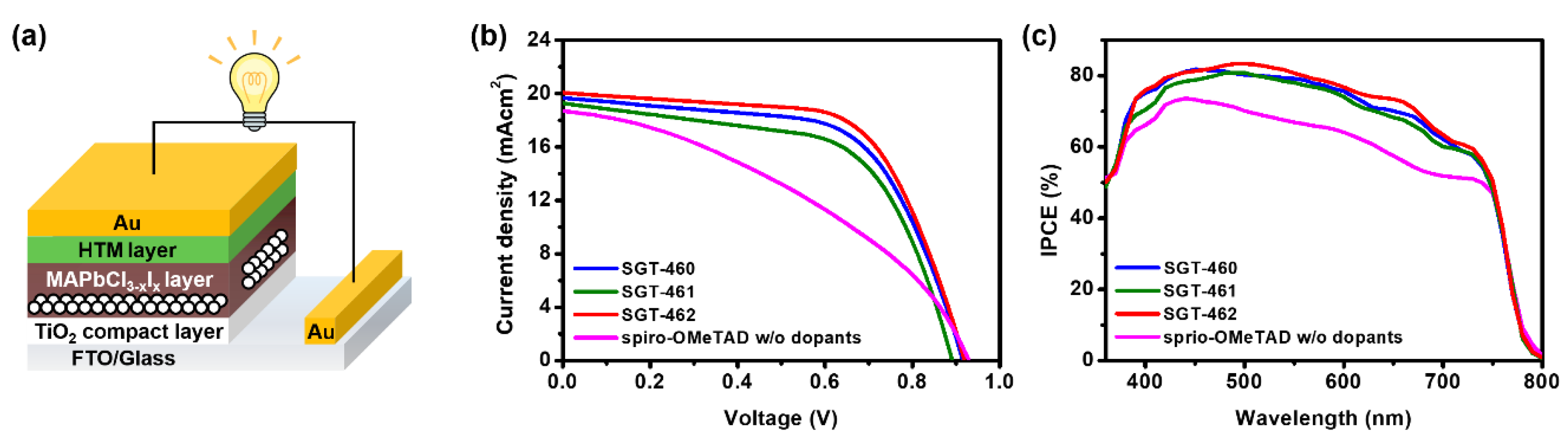

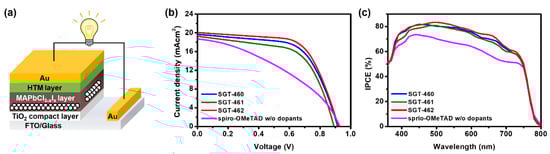

Figure 3. (a) Schematic device architecture for PrSC. (b) J-V curves of the PrSCs using SGT-460, SGT-461, SGT-462, and spiro-OMeTAD (with dopants/without dopants) as HTMs. (c) The corresponding incident-photon-to-electron conversion efficiency (IPCE) spectra.
Figure 3. (a) Schematic device architecture for PrSC. (b) J-V curves of the PrSCs using SGT-460, SGT-461, SGT-462, and spiro-OMeTAD (with dopants/without dopants) as HTMs. (c) The corresponding incident-photon-to-electron conversion efficiency (IPCE) spectra.
Nanomaterials 10 00936 g003
Nanomaterials 10 00936 g004 550

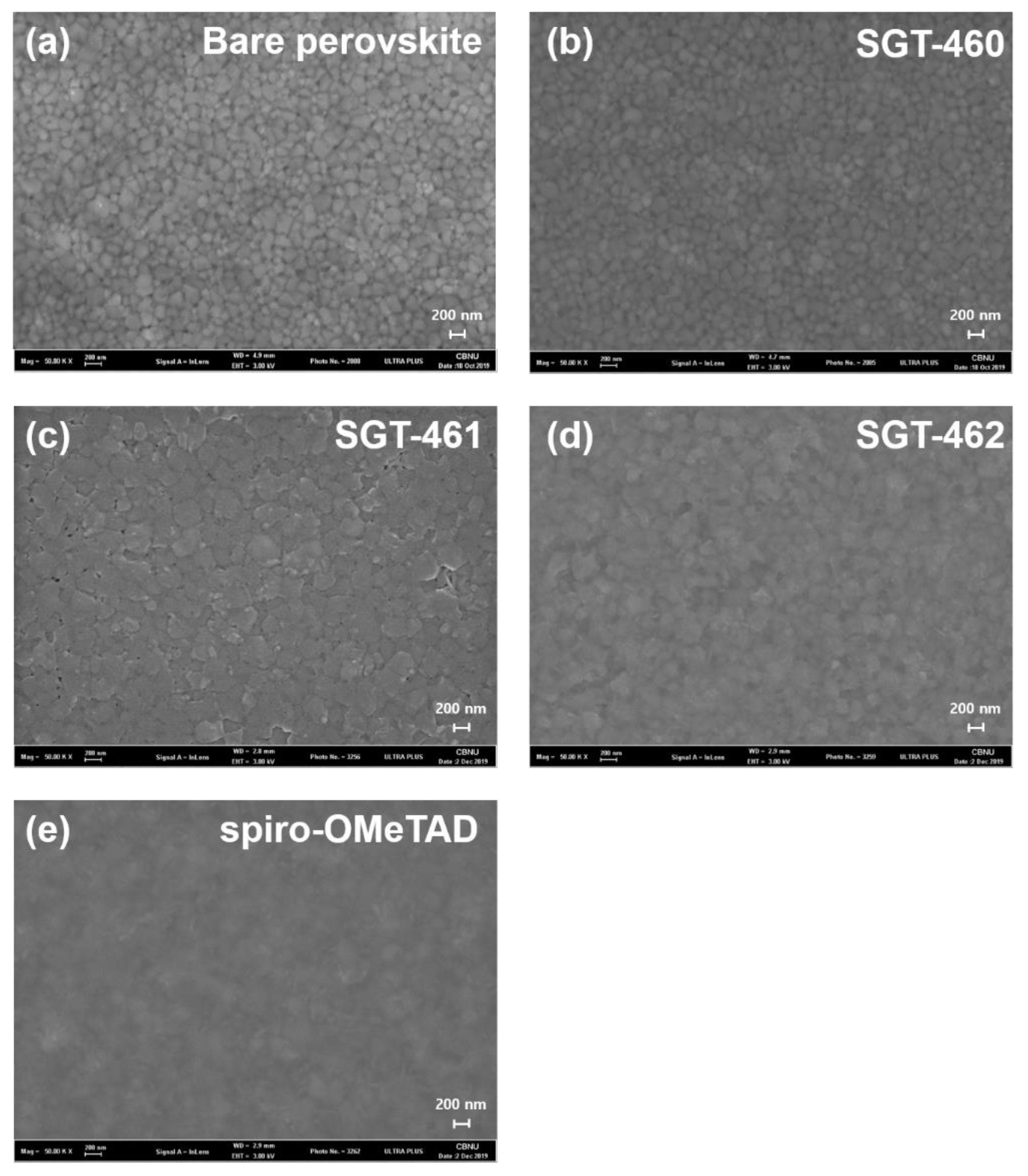

Figure 4. (a) Top surface SEM images of the methylammonium (MA) lead mixed halide perovskite (MAPbCl3−xIx) film. (b–e) The top view of various HTMs’ layers on the perovskite films, (b) SGT-460, (c) SGT-461, (d) SGT-462, and (e) spiro-OMeTAD.
Figure 4. (a) Top surface SEM images of the methylammonium (MA) lead mixed halide perovskite (MAPbCl3−xIx) film. (b–e) The top view of various HTMs’ layers on the perovskite films, (b) SGT-460, (c) SGT-461, (d) SGT-462, and (e) spiro-OMeTAD.
Nanomaterials 10 00936 g004
Nanomaterials 10 00936 g005 550

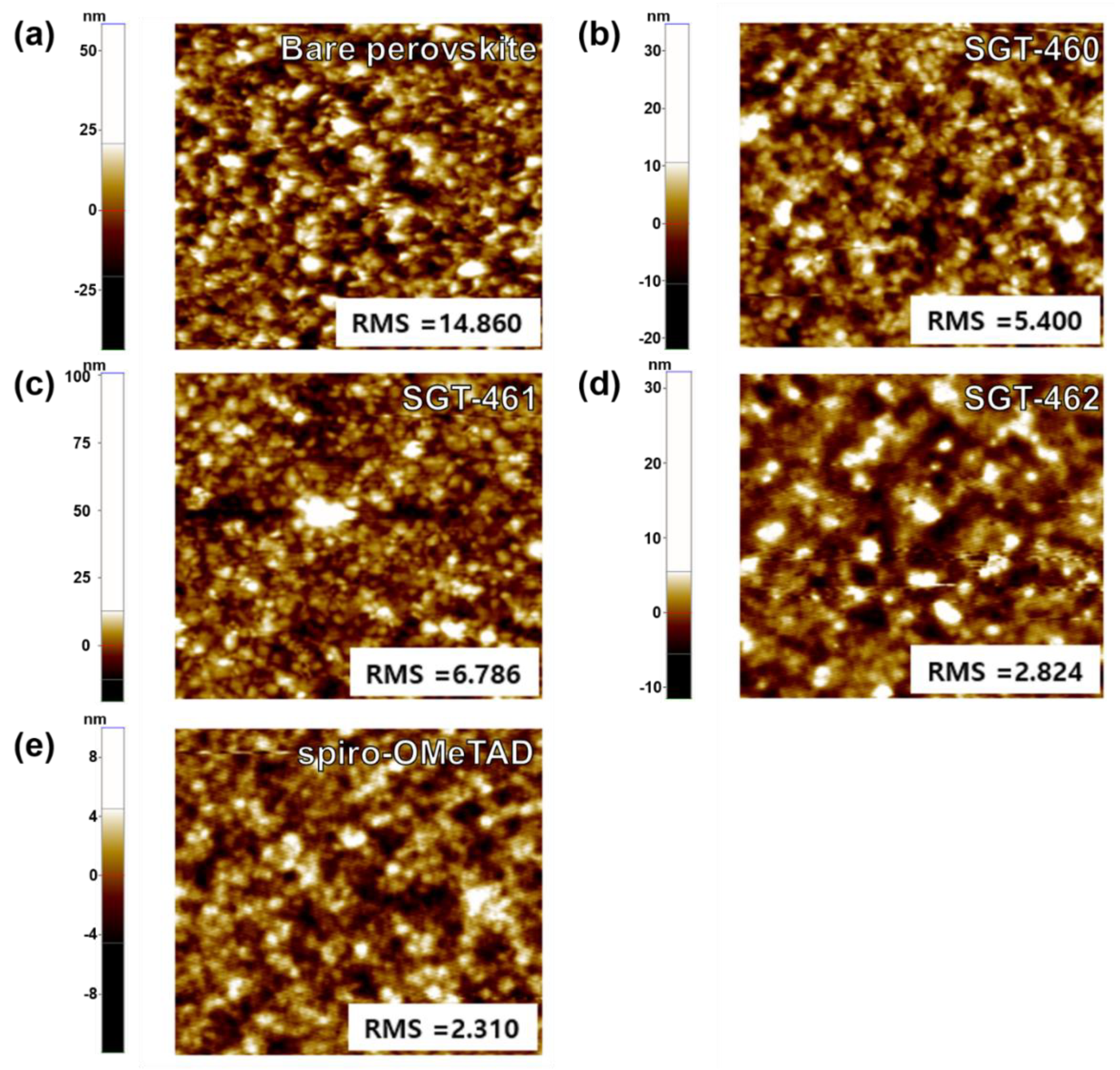

Figure 5. Atomic Force Microscope (AFM) images of the top morphology of various films. (a) MAPbCl3-xIx film. (b–e) The top morphology of various HTM layers on the perovskite films: (b) SGT-460, (c) SGT-461, (d) SGT-462, and (e) spiro-OMeTAD.
Figure 5. Atomic Force Microscope (AFM) images of the top morphology of various films. (a) MAPbCl3-xIx film. (b–e) The top morphology of various HTM layers on the perovskite films: (b) SGT-460, (c) SGT-461, (d) SGT-462, and (e) spiro-OMeTAD.
Nanomaterials 10 00936 g005
Nanomaterials 10 00936 g006 550

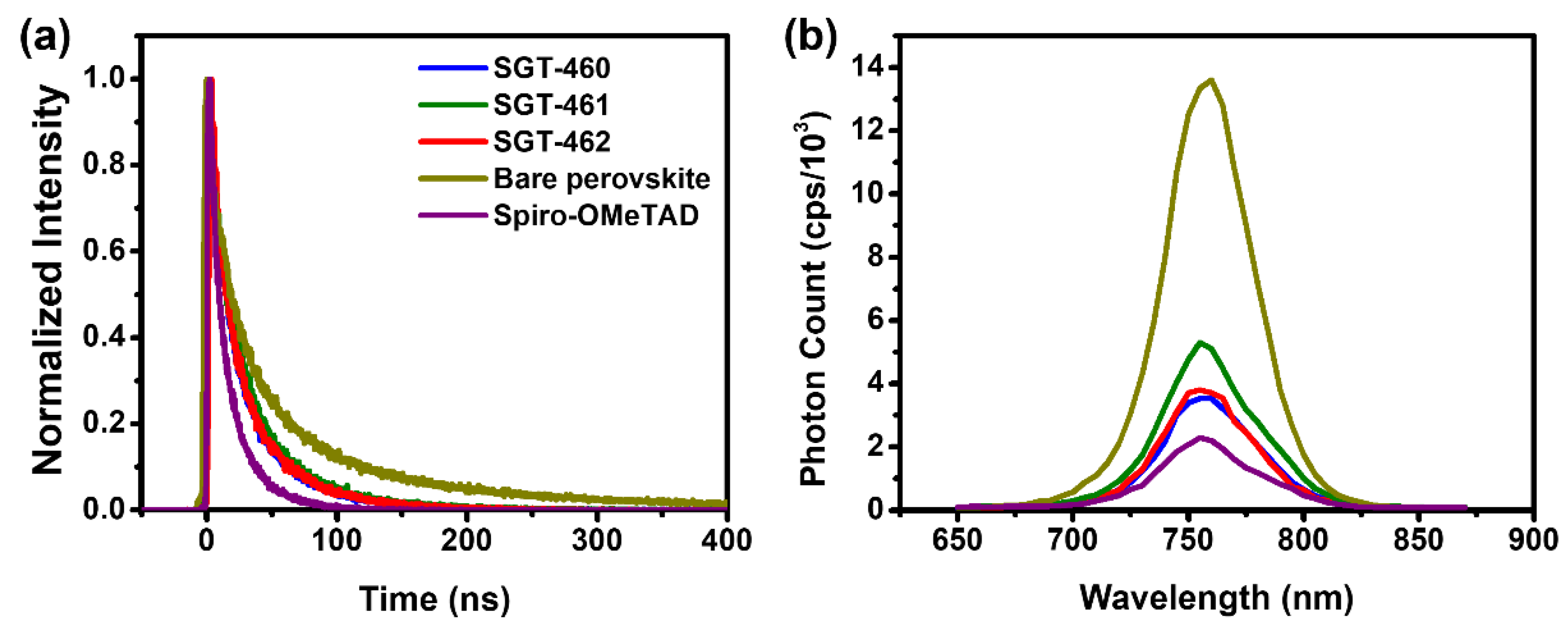

Figure 6. (a) Time-resolved photoluminescence (PL) spectra of pristine HOIP and HOIP/HTM bilayer, with excitation at 493 nm and monitoring at 755 nm. (b) The steady-state PL spectra of corresponding devices, with excitation at 600 nm.
Figure 6. (a) Time-resolved photoluminescence (PL) spectra of pristine HOIP and HOIP/HTM bilayer, with excitation at 493 nm and monitoring at 755 nm. (b) The steady-state PL spectra of corresponding devices, with excitation at 600 nm.
Nanomaterials 10 00936 g006
Table
Table 1. Photophysical and electrochemical data of SGT dopant-free HTMs and 2,2′,7,7′-tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9′-spirobifluorene (spiro-OMeTAD).
Table 1. Photophysical and electrochemical data of SGT dopant-free HTMs and 2,2′,7,7′-tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9′-spirobifluorene (spiro-OMeTAD).
HTMλabs max
(nm)		ε
(M−1 cm−1)		λem max
(nm)		Egopt 1
(eV)		Eox2
(V vs. NHE)		EHOMO3
(eV)		ELUMO4
(eV)		Hole Mobility 5
(cm2 V−1 s−1)
SGT-460407253905572.520.512−5.12−2.607.59 × 10−5
SGT-461607132447131.890.816−5.32−3.435.13 × 10−4
SGT-462478174245322.450.910−5.41−3.037.61 × 10−4
Spiro-OMeTAD 6387605304183.050.751−5.25−2.207.59 × 10−5
1 Estimated from the cross point of the normalized absorption and emission spectra measured in THF, by Egopt = 1240/λ0−0. 2 Potentials were referenced to an external Fc/Fc+ standard (0.63 V vs. NHE). 3 Calculated by EHOMO (eV) = −4.5 − Eox. 4 ELUMO was estimated by EHOMO + Egopt. 5 Measured in the space-change limited current (SCLC) regime and fitted using the Mott–Gurney law. 6 According to [14].
Table
Table 2. Photovoltaic performances of the PrSCs based on dopant free SGT-460, SGT-461, SGT-462, and spiro-OMeTAD.
Table 2. Photovoltaic performances of the PrSCs based on dopant free SGT-460, SGT-461, SGT-462, and spiro-OMeTAD.
HTMJSC (mA cm−2)VOC (V)FF (%)PCE (%) 1
SGT-46019.57 ± 0.110.898 ± 3.0261.5 ± 0.2210.8 ± 0.07
SGT-46119.15 ± 0.120.887 ± 3.7459.2 ± 0.2710.1 ± 0.10
SGT-46220.01 ± 0.110.914 ± 4.8363.2 ± 0.3511.7 ± 0.06
spiro-OMeTAD w/o dopants18.69 ± 0.140.929 ± 1.4339.1 ± 0.16.8 ± 0.08
1 The averaged PCEs were calculated using six different cells and measured under simulated AM 1.5 G irradiation.
