Sustainable Production of Hydrogen by Steam Reforming of Ethanol Using Cobalt Supported on Nanoporous Zeolitic Material

by
Javier Francisco da Costa-Serra
,
Maria Teresa Navarro
,
Fernando Rey
and
Antonio Chica
*
Instituto de Tecnología Química, Universitat Politècnica de València-Consejo Superior de Investigaciones Científicas, Avd. de los Naranjos s/n, 46022 Valencia, Spain
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(10), 1934; https://doi.org/10.3390/nano10101934
Submission received: 18 July 2020 / Revised: 18 September 2020 / Accepted: 23 September 2020 / Published: 28 September 2020
(This article belongs to the Special Issue Nanostructured Catalysts for Sustainable Applications)
Browse Figures
Versions Notes

Abstract

:
Cobalt catalysts supported on Y zeolite and mesoporized Y zeolite (Y-mod) have been studied in steam reforming of ethanol (SRE). Specifically, the effect of the mesoporosity and the acidity of the y zeolite as a support has been explored. Mesoporous were generated on Y zeolite by treatment with NH4F and the acidity was neutralized by Na incorporation. Four cobalt catalysts supported on Y zeolite have been prepared, two using Y zeolite without mesoporous (Co/Y, Co/Y-Na), and two using Y zeolite with mesoporous (Co/Y-mod and Co/Y-mod-Na). All catalysts showed a high activity, with ethanol conversion values close to 100%. The main differences were found in the distribution of the reaction products. Co/Y and Co/Y-mod catalysts showed high selectivity to ethylene and low hydrogen production, which was explained by their high acidity. On the contrary, neutralization of the acid sites could explain the higher hydrogen selectivity and the lower ethylene yields exhibited by the Co/Y-Na and Co/Y-mod-Na. In addition, the physicochemical characterization of these catalysts by XRD, BET surface area, temperature-programmed reduction (TPR), and TEM allowed to connect the presence of mesoporous with the formation of metallic cobalt particles with small size, high dispersion, and with high interaction with the zeolitic support, explaining the high reforming activity exhibited by the co/y-mod-Na sample as well as its higher hydrogen selectivity. It has been also observed that the formation of coke is affected by the presence of mesoporous and acidity. Both properties seem to have an opposite effect on the reforming catalyst, decreasing and increasing the coke deposition, respectively.

1. Introduction

The continuous increase of the energy consumption, the depletion of fossil fuels, and the environment pollution associated with their use are the three main problems of the current energetic system [1]. According to this panorama, it is clear that it is necessary to find renewable energetic alternatives, cleaner and more sustainable. Hydrogen from renewable sources can be considered as the ultimate clean and climate-neutral energy carrier system. Hydrogen exhibits the greatest heating value (39.4 kWh/kg) of all chemical fuels and its combustion with oxygen produces water, as the only by-product, and no pollutants are generated or emitted. However, hydrogen is not a primary energy source; it must be produced from a primary one. At present the most favorable route to produce hydrogen comes from fossil fuels, mainly through steam reforming of natural gas [2,3], which is associated with the emission of large quantities of greenhouse gases (GHG), especially carbon dioxide (CO2). Consequently, a new eco-friendly hydrogen production route is needed for a clean and sustainable production of energy. Reforming of renewable biomass feedstocks, such as bioethanol, a water and ethanol mixture (10–18 wt. % in ethanol), has become an important and active research area in view of hydrogen production [4,5,6,7]. Bioethanol results in a promising feedstock due to its availability, low toxicity, and easy storage and distribution [8]. It is estimated to have had a worldwide production of 100.2 billion liters in 2016 and it is estimated 134.5 billion liters by 2024 [8]. Thus, catalytic steam reforming of ethanol (SRE) has been intensely investigated for the production of renewable hydrogen [9,10,11,12].
Catalysts play a crucial role in the reactivity toward complete conversion of bioethanol. However, each catalyst induces different reaction pathways and, therefore, the selection of the suitable catalyst is a key factor in the SR of bioethanol. The studies show that the best catalytic results are exhibited by Ni and Co among the non-noble metals [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34]. The main problems during the catalytic steam reforming of bioethanol are: (i) sintering of active metal and catalyst poisoning by coke depositing at high temperature, and (ii) formation at moderate temperatures of undesired products such as acetaldehyde, diethyl ether, acetic acid, or ethylene. All these problems were found to be related to the physicochemical properties of the catalyst, which highly depend on: the nature of the metal active site, the preparation methods, the type of metal precursors used, the nature of metal support, the presence of additives, and the operating conditions [32,33,34]. Among them, support plays a crucial role in the preparation of highly active and selective catalysts for the steam reforming of bioethanol, since it favors the dispersion of metal in the catalyst and increases its activity through metal-support interactions [32,33,34]. Specifically, it has been found that the high specific surface of the support may enhance the catalytic activity [16,35], and its topology and the crystal structure may affect the dispersion of the metal particles, improving their stability against sintering [28,36]. Taking this into account, the unique structure of the zeolites would make these materials attractive for use as support of metallic active phases [37,38,39,40]. Considering the above, we believe that the use of Y zeolite, (Faujasite zeolite), as a support of Co, could be an attractive option, since it has a large surface area and can be prepared with neutral characteristics if it is exchanged with alkaline metals. Additionally, mesoporosity can be generated in Y zeolite, which could increase the dispersion and stability of the supported Co metallic particles. Thus, synthesized Y zeolite with neutral characteristics through an ionic exchange with Na could prevent ethanol dehydration reaction. This reaction produces ethylene, a coke precursor, which affects the stability of the catalyst [29,39,40]. The characterization of the cobalt-based catalysts prepared here has been completed and connected to its catalytic performance.

2. Materials and Methods

2.1. Preparation of Catalysts

Y zeolite was subjected to a dealumination/desilication process for the generation of mesoporous following the methodology reported in [41] with some modifications. Specifically, 5 g of NH4-Y zeolite (Si/Al: 2.5, supplied by STREAM) was stirred in 65 mL of aqueous 3M ammonium acetate solution at 298 K for 30 min. Then, 30 g of an aqueous solution of NH4F 2.4M was added drop-wise (addition rate: 12 mL/h) on the previous suspension at 353 K under stirring. After complete addition of solution, the suspension was kept stirred for 30 min, followed by filtering and washing with boiling deionized water. The filtered solid was washed in 0.5 L of boiling deionized water for 1 h and then recovered by filtering. This latter procedure was repeated once again. Finally, the result solid was dried at 37 K for 12 h to obtain the final acid zeolite (Y-mod). The neutralization of the acid sites of the samples were accomplished by Na ion exchange. Y and Y-mod zeolites were stirred in a 2.5 M aqueous solution of NaCl (liquid/solid ratio of 10) at 353 K for 1 h. After, the sample was filtered and washed with distilled water and it was dried at 373 K for 30 min. Na ion exchange treatment was repeated 3 times. Finally, the sample was calcined at 773 K for 3 h. Co was incorporated in the Na exchanged and non-exchanged zeolites by incipient wetness impregnation with an aqueous solution containing the required amount of Co(NO3)2·6H2O to achieve a nominal concentration of 20 wt.% of metal in the final catalysts. In this method, the metal precursor was dissolved in a certain volume of milli-Q water, causing the introduction of the metal in the catalyst support due to the capillary action, which causes absorption of the solution into the pores. Finally, the obtained solid was further dried at room temperature for 16 h and, afterwards, calcined in a muffle oven at 873 K for 3 h. Following this procedure, the cobalt-based catalysts were obtained, and they were labelled as Co/Y, Co/Y-Na, Co/Y-mod, and Co/Y-mod-Na.

2.2. Characterization Techniques

Inductively coupled plasma with an optical emission spectrometer (Varian 700-ES Series) was used to determine the content of Co, Si, and Al in the support and catalytic materials studied here. Textural properties of the supports and catalysts were obtained from the nitrogen adsorption isotherms determined at 77 K in Micromeritics ASAP 2420 equipment. X-ray diffraction was used to identify the crystalline cobalt oxide and metallic cobalt phases. XRD patterns were obtained at room temperature in a Philips X’pert diffractometer using monochromatized CuKα radiation. The reduction behaviors of the supported oxidized cobalt phases were studied by temperature programmed reduction (TPR) in Micromeritics Autochem 2910 equipment. Fifty mg of the calcined catalyst was initially flushed with 30 cm3·min−1 of Ar at room temperature for 30 min and then a mixture of 10 vol. % of H2 in Ar was passed through the catalyst at a total flow rate of 50 cm3·min−1 while the temperature was increased up to 1173 K at a heating rate of 10 K·min−1. The H2 consumption rate was monitored in a thermal conductivity detector (TCD), previously calibrated using the reduction of CuO as reference. Transmission electron microscopy (TEM) micrographs was used to observe the aspect of the fresh and modified Y zeolite supports using a Philips CM-10 microscope operating at 100 kV. Acidity was measured with a Nicolet 710 FTIR spectrometer. Pyridine adsorption–desorption experiments were carried out on self-supported wafers (10 mg·cm−2) of calcined samples, previously activated at 673 K and 10−2 Pa overnight in a Pyrex vacuum cell fitted with CaF2 windows. After activation, the reference spectrum was recorded and pyridine vapor (6.5 × 102 Pa) was admitted in the cell and adsorbed onto the zeolite. The excess of pyridine was removed in vacuum by heating for 1 h at 423, 523, and 623 K, respectively. After each heating period, the temperature was reduced to room temperature and an IR spectrum was recorded. All the spectra were scaled according to the sample weight. The amount of carbon deposited in the catalysts after SRE was determined by elemental analysis using a Carlo Erba 1106 analyzer. 27Al MAS NMR spectra were recorded at 104.2 MHz with a spinning rate of 10 kHz and 9° pulse length of 0.5 µs with a 1 s repetition time in a Bruker AV 400 MAS spectrometer. 27Al chemical shifts were referred to Al3+(H2O)6.

2.3. Catalytic Study

SRE conditions were H2O/EtOH molar ratio of 13, atmospheric pressure, the value of weight hourly space velocity (WHSV) in this study was 0.95 h−1 (WHSV is defined as the weight of feed flowing per unit weight of the catalyst per hour), and a range of temperatures between 673 K and 873 K. The catalysts were reduced with hydrogen (100 mL/min) at 873 K for 2 h before reaction. The reactor was loaded with 0.3 mL of catalyst, weight 0.2 g, (grain-size: 0.25–0.42 mm), diluted with 3 g of carborundum (SiC) (grain-size: 0.60–0.80 mm). The water/ethanol mixture was fed from a pressurized container using a liquid flow controller (Bronkhorst) and vaporized at 473 K into a stream of nitrogen.
The analysis of the products of reaction was carried out online using a gas chromatograph (Varian 3800) equipped with two columns (TRB-5, L = 30 m, DI = 0.25 mm; CarboSieve SII, L = 3 m, DI = 2.1 mm) and two detectors, thermal conductivity (TCD), and flame ionization (FID). Equations (1) and (2) show the ethanol conversion and selectivity to the different reaction products, where (FEtOH)0 is the flow of ethanol fed to the reactor (mol·s−1), (FEtOH)f the flow of ethanol that comes from the reactor, and Fj the flow of product j that comes from the reactor. Selectivity values were calculated excluding water.
X E t O H   ( % ,   m o l ) =   ( F E t O H ) 0 − ( F E t O H ) f ( F E t O H ) 0 × 100
S j   ( % ,   m o l ) =   F j ( ∑ ​ F j ) p r o d u c t s × 100

3. Results and Discussion

3.1. Characterization

The XRD of the calcined Y and Y-mod zeolites without cobalt are shown in Figure 1. As it can be seen, both zeolites show a similar diffraction pattern, indicating that the treatment to generate mesoporosity does not have a significant effect on the zeolite structure. Nevertheless, a slight decrease in the intensity of the diffraction peaks for the Y-mod zeolite is observed, which would be related to a small loss of crystallinity due mainly to the fact that the dealumination and desilication processes could not be occurring with the same intensity. Indeed, when the Si/Al ratio for these zeolites is determined, values of 2.5 for the pattern zeolite and 3.9 for the Y-mod (Table 1) were found, indicating that treatment seems to be slightly more selective for Al removal. This effect has been already described by Quin et al. for MFI-Type zeolite, where aluminum extra-framework was initially removed and after-framework Al and Si were extracted indiscriminately [41].
Table 1 shows the textural properties of the zeolitic materials and their corresponding cobalt catalysts. As it can be seen, the mesopore volume of the Y-mod zeolite is larger than that observed for the pattern Y zeolite. This fact seems to indicate that mesoporosity has been generated after dealumination/desilication treatment.
Mesoporosity can also be detected by the adsorption isotherms of N2. As it can be seen in Figure 2 in both samples, parent Y and Y-mod zeolites, the isotherms show nearly horizontal adsorption and desorption branches coupled with small hysteresis loops in the 0.5−1.0 partial pressure (P/P0) range. For Y-mod zeolite, a higher adsorption of N2 is observed compared with Y zeolite, suggesting the presence of pores with diameters in the range of mesopore for the sample subjected to dealumination/desilication treatment.
The formation of mesoporosity has been definitively confirmed by TEM. Figure 3 shows the TEM images of the Y and Y-mod zeolites. As it can be seen, Y-mod zeolite presents small brightnesses, which would confirm the presence of mesopores in its structure.
Figure 4 shows the X-ray diffractograms of the calcined and reduced catalysts. Specifically, Figure 4a corresponds to the cobalt catalyst supported on the pattern Y zeolite (Co/Y) and Figure 4b corresponds to the cobalt catalyst supported on mesoporized Y zeolite (Co/Y-mod). As it can be seen for the calcined and reduced catalysts, the most part of the diffraction peaks is characteristic of the Y zeolite structure. For the calcined samples (bottom of Figure 4), additional diffraction peaks corresponding to Co3O4 (JCPDS 00-001-1152) [42,43,44,45] can be found. For the reduced catalysts (top of Figure 4), the main diffraction peaks related to the cobalt oxide (Co3O4) disappear, and appears the diffraction peaks corresponding to metallic cobalt (JCPDS 00-015-0806) as a consequence of the reduction process carried out [46,47,48,49,50].
Table 1 also shows the textural properties of the cobalt-based catalysts studied in this work. Therefore, the effect of the Co and Na, incorporated by incipient wetness impregnation and ionic exchange, respectively, on the textural properties of the final catalysts is presented in this Table. The obtained results show the presence of Co and Na decreases the BET surface area and the micropore and mesopore volume of the final catalysts. This result would be related to the partial blockage of the pores and mesopores of the zeolitic supports when Co and Na are incorporated. In addition, the high amount of incorporated cobalt (20 wt. %) could be also responsible of a dilution effect, which could be also contributing to the observed decrease of the pore volume.
The size of the cobalt metallic particles has been determined by the XRD of the reduced catalysts using the Scherrer equation [51]. As it can be seen in Table 2, the size of the Co0 clusters is smaller and the dispersion is significantly higher for the catalysts prepared with the zeolite Y-mod as support. This circumstance does not seem to occur for the cobalt supported on the pattern Y zeolite, without mesoporosity, where the sizes of the metallic particles are clearly larger. This result seems to show a positive effect of mesoporosity on the size and dispersion of metallic particles of cobalt.
The acidity of the samples has been studied by adsorption-desorption of pyridine [52]. As it can be seen in Table 3, the parent Y zeolite and its mesoporized derivative prepared by NH4F contain mainly Brønsted acid sites. This result is consistent with the 27Al MAS NMR spectra presented in Figure 5, where a single peak at 55 ppm, corresponding to tetrahedral aluminum, is observed in both samples, parent and mesoporized Y zeolite.
For the samples containing Co (Co/Y and Co/Y-mod), the Lewis acidity increases significantly, while Brønsted acidity decreases considerably. This decrease in Brønsted acidity and rise in Lewis has already been described in zeolites when transition metals as cobalt are incorporated [53]. Finally, the acidity of the catalysts exchanged with Na was neutralized since Brønsted acidity was not detected. Therefore, the Brønsted acidity decreases as follows in the catalysts: Co/Y-mod > Co/Y >>> Co/Y-Na = Co/Y-mod-Na.
The reducibility of the Co-based catalysts has been studied by TPR. Figure 6 shows that the four catalysts present two reduction peaks around 550 K and 590 K, which correspond to the reduction of the oxidized Co species to metallic cobalt in two stages. The first one corresponds to the transition from Co3O4 to CoO and the second to the transition from CoO to Co0 [42,54,55,56]. The catalysts based on Y-mod show a third peak at higher reduction temperatures (680–1050 K), indicating the existence of cobalt species interacting strongly with the support. These cobalt species could be assigned to the reduction of cobalt silicates probably formed during the calcination stage [42,57,58]. These results seem to indicate that cobalt oxides exhibit higher interaction with modified Y zeolite and could be related to the different size of the Co metallic particles found in each support (Table 2). Smaller particle size would be related to stronger metal-support interactions, explaining the reduction peaks found at higher reduction temperatures. Indeed, the highest amount of hydrogen adsorbed at high temperatures were detected for Co/Y-mod and Co/Y-mod-Na catalysts, which exactly showed the smallest Co metallic particle sizes. Considering that the catalysts before reaction are reduced at 873 K, it is possible that a part of the cobalt species in the catalysts remains in its oxidized form. The degree of reduction of the oxidized Co species present in the catalysts at 873 K has been determined from the TPR profiles (Table 2). In general, the reducibility of the oxidized species of Co in the catalysts at 873 K is remarkably high. The lowest reducibility value is 88%, corresponding to the Co/Y-mod catalyst, and the highest value is 95%, corresponding to the Co/Y catalyst. In the case of the catalysts prepared with Y zeolite subjected to the dealumination/desilication process, it can be seen that they present a slightly lower degree of reduction compared to the catalyst prepared with untreated Y zeolite.

3.2. Catalytic Activity

Table 4 shows the ethanol conversion and selectivity to the different products obtained in the steam reforming for the four catalysts studied in this work. As it can be seen, ethanol conversion is extremely high for all the catalysts, almost complete, at least at the temperature range here studied (773–873 K). However, in terms of selectivity, important differences can be found. As it can be seen, Co/Y and Co/Y-mod catalysts present a high selectivity to ethylene and a low production of hydrogen. This effect is more prominent in the catalyst based on Y-mod. These results could be related to the acidity presented by these samples (Table 3). It is well known that the presence of acid sites favors the reaction of dehydration of ethanol [29,39], explaining the high concentration of ethylene produced by the Co/Y and Co/Y-mod samples. Specifically, the largest production of ethylene observed in the sample based on Y-mod could be due to the higher accessibility of its acid sites, probably favored by the presence of mesopores. On the contrary, the highest production of hydrogen by the neutralized catalysts (Co/Y-Na and Co/Y-mod-Na) suggests that the presence of acid sites is not advantageous to produce hydrogen via steam reforming of ethanol [29,39]. In addition, the larger size of the cobalt metal particles present in the Y zeolite with Na (Co/Y-Na), would explain its higher production of acetaldehyde, methane, and CO compared to the Co/Y-mod-Na catalyst, whose sizes are much smaller [31]. Large metallic particles would lead to a decrease of the active metal surface and thus, to a decrease in the number of the active sites where the reforming reaction can occur. This fact could explain the high selectivity to H2 presented by the Co/Y-mod-Na sample, which contains smaller metallic cobalt particles. These results seem to indicate that the presence of mesopores could help to promote a higher interaction of cobalt with the support, resulting in the formation of smaller and more dispersed metallic Co particles. Therefore, if small metal particles were presented, a larger number of active sites of Co would be available for the steam reforming of ethanol and for all those secondary reactions related to the selective production of H2.
Finally, carbon deposition on the exhausted catalysts were determined to know their stability. It is well known that the formation of ethylene is directly related to the coke formation and the presence of coke directly related to the stability of one catalyst [14,59,60]. At first glance, the catalysts after reaction showed a characteristic black color, which suggests the presence of coke. Elemental analysis technique was used to determine quantitatively the amount of deposited coke. Table 5 shows that the samples containing Na (Co/Y-Na and Co/Y-mod-Na) present a lower amount of coke than the catalysts without Na (≈20 wt. % against ≈30 wt. %). The larger coke deposition observed in the catalysts not subjected to ionic exchange with Na (Co/Y and Co/Y-mod) could be explained by the greater acidity of theses samples and the consequences that this entails: increasing of the dehydration reaction and generation of high amounts of ethylene, an important coke precursor.
Table 5 shows also that the Co/Y-Na catalyst presents a higher carbon content compared to the Co/Y-mod-Na catalyst. In both catalysts, the acidity was neutralized. Therefore, it is foreseeable that the mesoporosity present in the Co/Y-mod-Na catalyst could provide a positive effect to decrease the formation of carbon. This fact could be explained in part considering the better diffusion of reagents and products during the SRE [29]. In addition, mesoporosity seems to promote the formation of cobalt metallic particles of smaller size, which seem to also decrease the formation of coke and coke precursors during the steam reforming of ethanol [27,36]. In summary, the results here showed seem to indicate that it is possible to improve the activity and stability of a cobalt bioethanol steam reforming catalyst supported on Y zeolite through the generation of mesoporosity and the neutralization of its acid sites.

4. Conclusions

The effect of mesoporosity and acidity of a Y zeolite-based catalyst promoted with Co has been studied in the steam reforming of ethanol. The results obtained with the “mesoporized” Y zeolite and neutralized with Na show a high activity, selectivity, and low coke deposition. The results of the physicochemical characterization suggest that the mesoporosity generated and the neutralization of the acid sites by Na exchanged would be primarily responsible of the good performance exhibited by the cobalt catalyst supported on Y zeolite, due to the lower acidity and the smaller size of the metallic Co particles present in this sample.

Author Contributions

Conceptualization, A.C. and J.F.d.C.-S.; methodology, J.F.d.C.-S. and M.T.N.; formal analysis, J.F.d.C.-S. and A.C.; investigation, J.F.d.C.-S. and A.C.; resources, A.C.; writing—original draft preparation, J.F.d.C.-S. and A.C.; writing—review and editing, A.C. and F.R.; visualization, A.C.; supervision, A.C.; project administration, A.C.; funding acquisition, A.C. All authors have read and agreed to the published version of the manuscript.

Funding

“This research was funded by Generalitat Valenciana, grant number PROMETEO/2018/006”, Spanish Government (Project RTI2018-102161-I00) and RED DE EXCELENCIA EN BIORREFINERIAS SOSTENIBLES (RED2018-102623-T).

Acknowledgments

Thank you to the Spanish Government (Project RTI2018-102161-I00) and Generalitat Valenciana (PROMETEO/2018/006 grant) for the financial support. The support of the microscopy service at Universitat Politècnica de València (UPV) for the TEM analysis is also recognized. The doctor Antonio Chica acknowledges to the RED DE EXCELENCIA EN BIORREFINERIAS SOSTENIBLES (RED2018-102623-T) for the support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zambrano-Monserrate, M.A.; Ruano, M.A.; Sanchez-Alcalde, L. Indirect effects of COVID-19 on the environment. Sci. Total Environ. 2020, 728, 138813. [Google Scholar] [CrossRef] [PubMed]
  2. Olmos, F.; Hennessy, B.P.; Manousiouthakis, I.V.; Somiari, I.; Manousiouthakis, V.I. Thermodynamic feasibility analysis of a water-splitting thermochemical cycle based on sodium carbonate decomposition. Int. J. Hydrogen Energy 2019, 44, 4041–4061. [Google Scholar] [CrossRef]
  3. Cloete, S.; Khan, M.N.; Amini, S. Economic assessment of membrane-assisted autothermal reforming for cost effective hydrogen production with CO2 capture. Int. J. Hydrogen Energy 2019, 44, 3492–3510. [Google Scholar] [CrossRef]
  4. Liguras, D.K.; Konarides, D.I.; Verykios, X.E. Production of hydrogen for fuel cells by steam reforming of ethanol over supported noble metal catalysts. Appl. Catal. B Environ. 2003, 43, 345–354. [Google Scholar] [CrossRef]
  5. Maggio, G.; Freni, S.; Cavallaro, S. Light alcohols/methane fuelled molten carbonate fuel cells: A comparative study. J. Power Sources 1998, 74, 17–23. [Google Scholar] [CrossRef]
  6. Brown, L.F. A comparative study of fuels for on-board hydrogen production for fuel-cell-powered automobiles. Int. J. Hydrogen Energy 2001, 26, 381–397. [Google Scholar] [CrossRef]
  7. Ni, M.; Leung, D.Y.; Leung, M.; Sumathy, K. An overview of hydrogen production from biomass. Fuel Process. Technol. 2006, 87, 461–472. [Google Scholar] [CrossRef]
  8. Bušić, A.; Marđetko, N.; Kundas, S.; Morzak, G.; Belskaya, H.; Šantek, M.I.; Komes, D.; Novak, S.; Šantek, B. Bioethanol Production from Renewable Raw Materials and its Separation and Purification: A Review. Food Technol. Biotechnol. 2018, 56, 289–311. [Google Scholar] [CrossRef]
  9. Kaiwen, L.; Bin, Y.; Tao, Z. Economic analysis of hydrogen production from steam reforming process: A literature review. Energy Sources Part B Econ. Plan. Policy 2018, 13, 109–115. [Google Scholar] [CrossRef]
  10. Nanda, S.; Rana, R.; Zheng, Y.; Kozinski, J.; Dalai, A.K. Insights on pathways for hydrogen generation from ethanol. Sustain. Energy Fuels 2017, 1, 1232–1245. [Google Scholar] [CrossRef]
  11. Sharma, Y.C.; Kumar, A.; Prasad, R.; Upadhyay, S.N. Ethanol steam reforming for hydrogen production: Latest and effective catalyst modification strategies to minimize carbonaceous deactivation. Renew. Sustain. Energy Rev. 2017, 74, 89–103. [Google Scholar] [CrossRef]
  12. Sidhu, T.P.K.; Roy, S. Optimal design of washcoated monolith catalyst for compact, heat -integrated ethanol reformers. Int. J. Hydrogen Energy 2019, 44, 11472–11487. [Google Scholar] [CrossRef]
  13. Liberatori, J.; Ribeiro, R.; Zanchet, D.; Noronha, F.; Bueno, J.M. Steam reforming of ethanol on supported nickel catalysts. Appl. Catal. A Gen. 2007, 327, 197–204. [Google Scholar] [CrossRef]
  14. Haryanto, A.; Fernando, S.; Murali, N.; Adhikari, S. Current Status of Hydrogen Production Techniques by Steam Reforming of Ethanol: A Review. Energy Fuels 2005, 19, 2098–2106. [Google Scholar] [CrossRef]
  15. Ni, M.; Leung, D.Y.; Leung, M. A review on reforming bio-ethanol for hydrogen production. Int. J. Hydrogen Energy 2007, 32, 3238–3247. [Google Scholar] [CrossRef]
  16. Llorca, J.; Homs, N.; Sales, J.; De La Piscina, P.R. Efficient Production of Hydrogen over Supported Cobalt Catalysts from Ethanol Steam Reforming. J. Catal. 2002, 209, 306–317. [Google Scholar] [CrossRef]
  17. Muroyama, H.; Nakase, R.; Matsui, T.; Eguchi, K. Ethanol steam reforming over Ni-based spinel oxide. Int. J. Hydrogen Energy 2010, 35, 1575–1581. [Google Scholar] [CrossRef]
  18. Lindo, M.; Vizcaíno, A.; Calles, J.; Carrero, A. Ethanol steam reforming on Ni/Al-SBA-15 catalysts: Effect of the aluminium content. Int. J. Hydrogen Energy 2010, 35, 5895–5901. [Google Scholar] [CrossRef]
  19. Liu, J.-Y.; Lee, C.-C.; Wang, C.-H.; Yeh, C.-T.; Wang, C.-B. Application of nickel–lanthanum composite oxide on the steam reforming of ethanol to produce hydrogen. Int. J. Hydrogen Energy 2010, 35, 4069–4075. [Google Scholar] [CrossRef]
  20. Chen, S.; Liu, Y. LaFeyNi1−yO3 supported nickel catalysts used for steam reforming of ethanol. Int. J. Hydrogen Energy 2009, 34, 4735–4746. [Google Scholar] [CrossRef]
  21. Hernández, I.; Gochi-Ponce, Y.; Larios, J.C.; Fernández, A. Steam reforming of ethanol over nickel-tungsten catalyst. Int. J. Hydrogen Energy 2010, 35, 12098–12104. [Google Scholar] [CrossRef]
  22. Koh, A.C.W.; Chen, L.; Leong, W.K.; Yang, S.; Johnson, B.F.; Khimyak, T.; Lin, J. Ethanol steam reforming over supported ruthenium and ruthenium–platinum catalysts: Comparison of organometallic clusters and inorganic salts as catalyst precursors. Int. J. Hydrogen Energy 2009, 34, 5691–5703. [Google Scholar] [CrossRef]
  23. Sanchez-Sanchez, M.; Navarro, R.; Fierro, J. Ethanol steam reforming over Ni/MxOyNi/MxOy–Al2O3Al2O3 (M=CeM=Ce, La, Zr and Mg) catalysts: Influence of support on the hydrogen production. Int. J. Hydrogen Energy 2007, 32, 1462–1471. [Google Scholar] [CrossRef]
  24. Augusto, B.L.; Ribeiro, M.C.; Aires, F.J.C.S.; Da Silva, V.T.; Noronha, F.B. Hydrogen production by the steam reforming of ethanol over cobalt catalysts supported on different carbon nanostructures. Catal. Today 2020, 344, 66–74. [Google Scholar] [CrossRef]
  25. Bepari, S.; Basu, S.; Pradhan, N.C.; Dalai, A.K. Steam reforming of ethanol over cerium-promoted Ni-Mg-Al hydrotalcite catalysts. Catal. Today 2017, 291, 47–57. [Google Scholar] [CrossRef]
  26. Pinton, N.; Vidal, M.; Signoretto, M.; Martínez-Arias, A.; Corberán, V.C. Ethanol steam reforming on nanostructured catalysts of Ni, Co and CeO2: Influence of synthesis method on activity, deactivation and regenerability. Catal. Today 2017, 296, 135–143. [Google Scholar] [CrossRef]
  27. Da Costa-Serra, J.; Chica, A. Bioethanol steam reforming on Co/ITQ-18 catalyst: Effect of the crystalline structure of the delaminated zeolite ITQ-18. Int. J. Hydrogen Energy 2011, 36, 3862–3869. [Google Scholar] [CrossRef]
  28. Da Costa-Serra, J.; Guil-Lopez, R.; Chica, A. Co/ZnO and Ni/ZnO catalysts for hydrogen production by bioethanol steam reforming. Influence of ZnO support morphology on the catalytic properties of Co and Ni active phases. Int. J. Hydrogen Energy 2010, 35, 6709–6716. [Google Scholar] [CrossRef]
  29. Da Costa-Serra, J.; Navarro, M.; Rey, F.; Chica, A. Bioethanol steam reforming on Ni-based modified mordenite. Effect of mesoporosity, acid sites and alkaline metals. Int. J. Hydrogen Energy 2012, 37, 7101–7108. [Google Scholar] [CrossRef]
  30. Cortés, A.; Feijoo, G.; Chica, A.; Da Costa-Serra, J.; Moreira, M.T. Environmental implications of biohydrogen based energy production from steam reforming of alcoholic waste. Ind. Crop. Prod. 2019, 138, 111465. [Google Scholar] [CrossRef]
  31. Fuertes, A.; Da Costa-Serra, J.; Chica, A. New Catalysts based on Ni-Birnessite and Ni-Todorokite for the Efficient Production of Hydrogen by Bioethanol Steam Reforming. Energy Procedia 2012, 29, 181–191. [Google Scholar] [CrossRef] [Green Version]
  32. Da Costa-Serra, J.; Chica, A. Catalysts based on Co-Birnessite and Co-Todorokite for the efficient production of hydrogen by ethanol steam reforming. Int. J. Hydrogen Energy 2018, 43, 16859–16865. [Google Scholar] [CrossRef]
  33. Cerdá-Moreno, C.; Da Costa-Serra, J.; Chica, A. Co and La supported on Zn-Hydrotalcite-derived material as efficient catalyst for ethanol steam reforming. Int. J. Hydrogen Energy 2019, 44, 12685–12692. [Google Scholar] [CrossRef]
  34. Hernández-Soto, M.; Da Costa-Serra, J.; Carratalá, J.; Beneito, R.; Chica, A. Valorization of alcoholic wastes from the vinery industry to produce H2. Int. J. Hydrogen Energy 2019, 44, 9763–9770. [Google Scholar] [CrossRef]
  35. Llorca, J.; de la Piscina, P.R.; Sales, J.; Homs, N. Direct production of hydrogen from ethanolic aqueous solutions over oxide catalystsDedicated to Professor Rafael Usón on the occasion of his 75th birthday. Chem. Commun. 2001, 641–642. [Google Scholar] [CrossRef]
  36. Chica, A.; Sayas, S. Effective and stable bioethanol steam reforming catalyst based on Ni and Co supported on all-silica delaminated ITQ-2 zeolite. Catal. Today 2009, 146, 37–43. [Google Scholar] [CrossRef]
  37. Campos-Skrobot, F.C.; Rizzo-Domingues, R.C.; Fernandes, N.R.C.; Cantão, M.P. Novel zeolite-supported rhodium catalysts for ethanol steam reforming. J. Power Sources 2008, 183, 713–716. [Google Scholar] [CrossRef]
  38. Inokawa, H.; Nishimoto, S.; Kameshima, Y.; Miyake, M. Difference in the catalytic activity of transition metals and their cations loaded in zeolite Y for ethanol steam reforming. Int. J. Hydrogen Energy 2010, 35, 11719–11724. [Google Scholar] [CrossRef]
  39. Inokawa, H.; Nishimoto, S.; Kameshima, Y.; Miyake, M. Promotion of H2 production from ethanol steam reforming by zeolite basicity. Int. J. Hydrogen Energy 2011, 36, 15195–15202. [Google Scholar] [CrossRef]
  40. Kwak, B.S.; Lee, J.S.; Choi, B.-H.; Ji, M.J.; Kang, M.; Lee, J.S. Hydrogen-rich gas production from ethanol steam reforming over Ni/Ga/Mg/Zeolite Y catalysts at mild temperature. Appl. Energy 2011, 88, 4366–4375. [Google Scholar] [CrossRef]
  41. Qin, Z.; Lakiss, L.; Gilson, J.-P.; Thomas, K.; Goupil, J.-M.; Fernandez, C.; Valtchev, V. Chemical Equilibrium Controlled Etching of MFI-Type Zeolite and Its Influence on Zeolite Structure, Acidity, and Catalytic Activity. Chem. Mater. 2013, 25, 2759–2766. [Google Scholar] [CrossRef]
  42. Ernst, B.; Libs, S.; Chaumette, P.; Kiennemann, A. Preparation and characterization of Fischer–Tropsch active Co/SiO2 catalysts. Appl. Catal. A Gen. 1999, 186, 145–168. [Google Scholar] [CrossRef]
  43. Khodakov, A.Y.; Griboval, A.; Bechara, R.; Villain, F. Pore-Size Control of Cobalt Dispersion and Reducibility in Mesoporous Silicas. J. Phys. Chem. B 2001, 105, 9805–9811. [Google Scholar] [CrossRef]
  44. Khodakov, A.Y.; Griboval, A.; Bechara, R.; Zholobenko, V. Pore Size Effects in Fischer Tropsch Synthesis over Cobalt-Supported Mesoporous Silicas. J. Catal. 2002, 206, 230–241. [Google Scholar] [CrossRef]
  45. Tang, Q.; Zhang, Q.; Wang, P.; Wang, Y.; Wan, H. Characterizations of Cobalt Oxide Nanoparticles within Faujasite Zeolites and the Formation of Metallic Cobalt. Chem. Mater. 2004, 16, 1967–1976. [Google Scholar] [CrossRef]
  46. Enache, D.I.; Rebours, B.; Roy-Auberger, M.; Revel, R. In Situ XRD Study of the Influence of Thermal Treatment on the Characteristics and the Catalytic Properties of Cobalt-Based Fischer–Tropsch Catalysts. J. Catal. 2002, 205, 346–353. [Google Scholar] [CrossRef]
  47. Liu, X.; Yi, R.; Wang, Y.; Qiu, G.; Zhang, N.; Li, X. Highly Ordered Snowflakelike Metallic Cobalt Microcrystals. J. Phys. Chem. C 2007, 111, 163–167. [Google Scholar] [CrossRef]
  48. Kobayashi, Y.; Horie, M.; Konno, M.; Rodríguez-González, B.; Liz-Marzán, L.M. Preparation and Properties of Silica-Coated Cobalt Nanoparticles. J. Phys. Chem. B 2003, 107, 7420–7425. [Google Scholar] [CrossRef]
  49. Zeisberger, M.; Dutz, S.; Muller, R.; Hergt, R.; Matoussevitch, N.; Bönnemann, H. Metallic cobalt nanoparticles for heating applications. J. Magn. Magn. Mater. 2007, 311, 224–227. [Google Scholar] [CrossRef]
  50. Fu, R.; Baumann, T.F.; Cronin, S.; Dresselhaus, G.; Dresselhaus, M.S.; Satcher, J.H. Formation of Graphitic Structures in Cobalt- and Nickel-Doped Carbon Aerogels. Langmuir 2005, 21, 2647–2651. [Google Scholar] [CrossRef]
  51. Cullity, B.D. Elements of X-Ray Diffraction; Addison–Wesley: London, UK, 1878. [Google Scholar]
  52. Emeis, C. Determination of Integrated Molar Extinction Coefficients for Infrared Absorption Bands of Pyridine Adsorbed on Solid Acid Catalysts. J. Catal. 1993, 141, 347–354. [Google Scholar] [CrossRef]
  53. Cruz-Cabeza, A.J.; Esquivel, D.; Jimenez-Sanchidrian, C.; Romero-Salguero, F.J. Metal-Exchanged β Zeolites as Catalysts for the Conversion of Acetone to Hydrocarbons. Materials 2012, 5, 121–134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Castner, D.G.; Watson, P.R.; Chan, I.Y. X-ray absorption spectroscopy, x-ray photoelectron spectroscopy, and analytical electron microscopy studies of cobalt catalysts. 2. Hydrogen reduction properties. J. Phys. Chem. 1990, 94, 819–828. [Google Scholar] [CrossRef]
  55. Khodakov, A.Y.; Lynch, J.; Bazin, D.; Rebours, B.; Zanier, N.; Moisson, B.; Chaumette, P. Reducibility of Cobalt Species in Silica-Supported Fischer–Tropsch Catalysts. J. Catal. 1997, 168, 16–25. [Google Scholar] [CrossRef]
  56. Riva, R.; Miessner, H.; Vitali, R.; Del Piero, G. Metal–support interaction in Co/SiO2 and Co/TiO2. Appl. Catal. A Gen. 2000, 196, 111–123. [Google Scholar] [CrossRef]
  57. Sexton, B. An XPS and TPR study of the reduction of promoted cobalt-kieselguhr Fischer-Tropsch catalysts. J. Catal. 1986, 97, 390–406. [Google Scholar] [CrossRef]
  58. Van Steen, E.; Sewell, G.S.; Makhothe, R.A.; Micklethwaite, C.; Manstein, H.; De Lange, M.; O’Connor, C.T. TPR Study on the Preparation of Impregnated Co/SiO2Catalysts. J. Catal. 1996, 162, 220–229. [Google Scholar] [CrossRef]
  59. Fierro, V.; Akdim, O.; Provendier, H.; Mirodatos, C. Ethanol oxidative steam reforming over Ni-based catalysts. J. Power Sources 2005, 145, 659–666. [Google Scholar] [CrossRef]
  60. Llorca, J.; De La Piscina, P.R.; Dalmon, J.-A.; Sales, J.; Homs, N. CO-free hydrogen from steam-reforming of bioethanol over ZnO-supported cobalt catalysts. Appl. Catal. B Environ. 2003, 43, 355–369. [Google Scholar] [CrossRef]
Nanomaterials 10 01934 g001 550

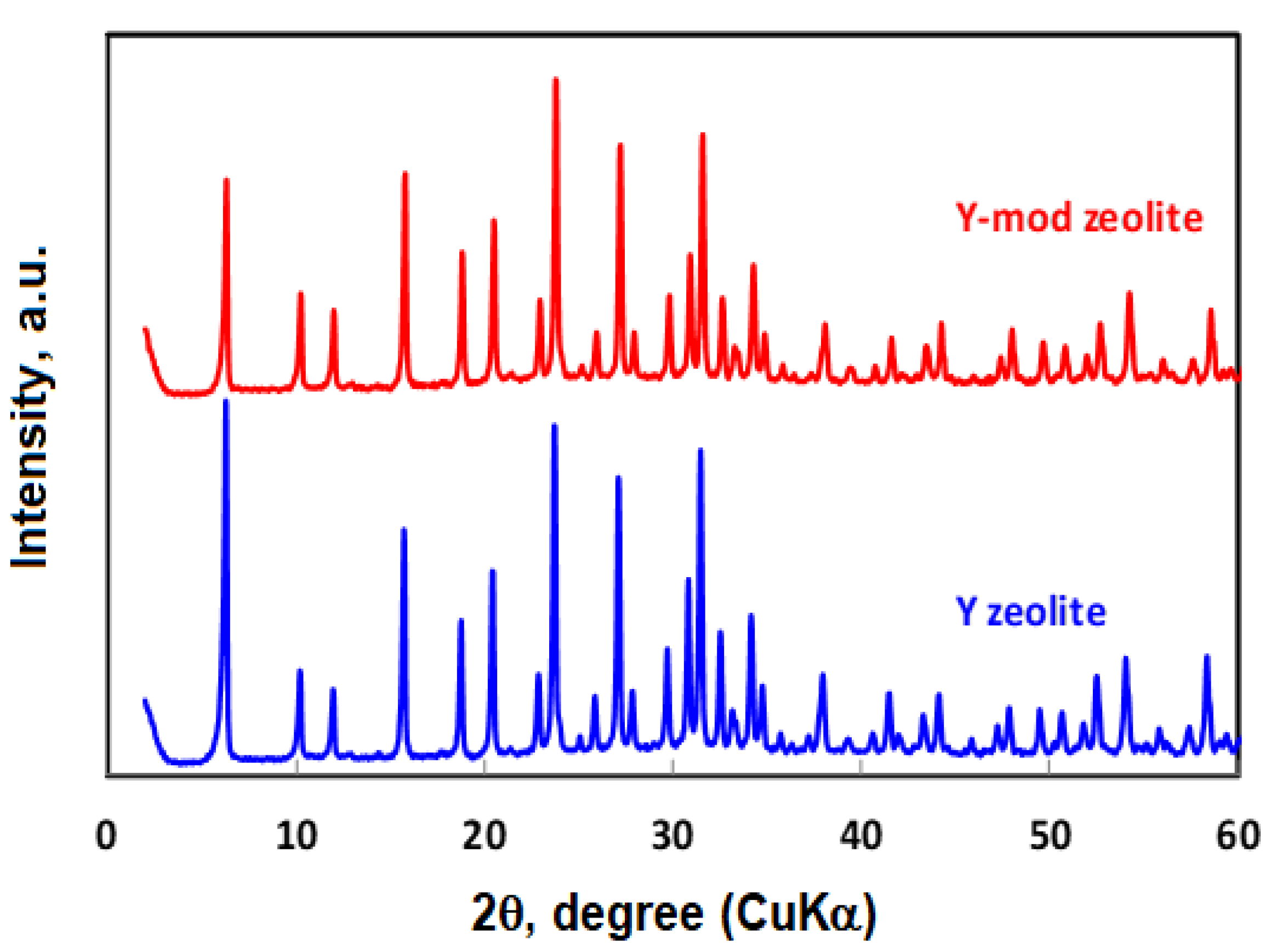

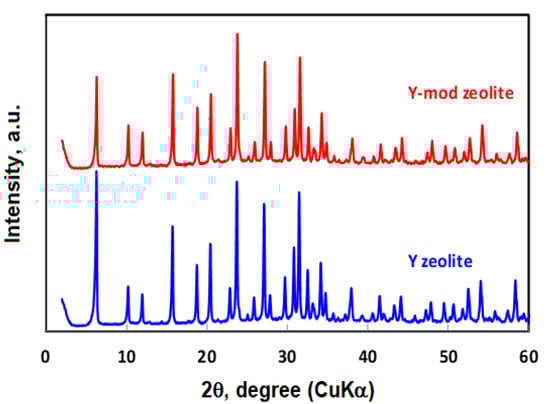

Figure 1. XRD of calcined Y and Y-mod zeolites.
Figure 1. XRD of calcined Y and Y-mod zeolites.
Nanomaterials 10 01934 g001
Nanomaterials 10 01934 g002 550

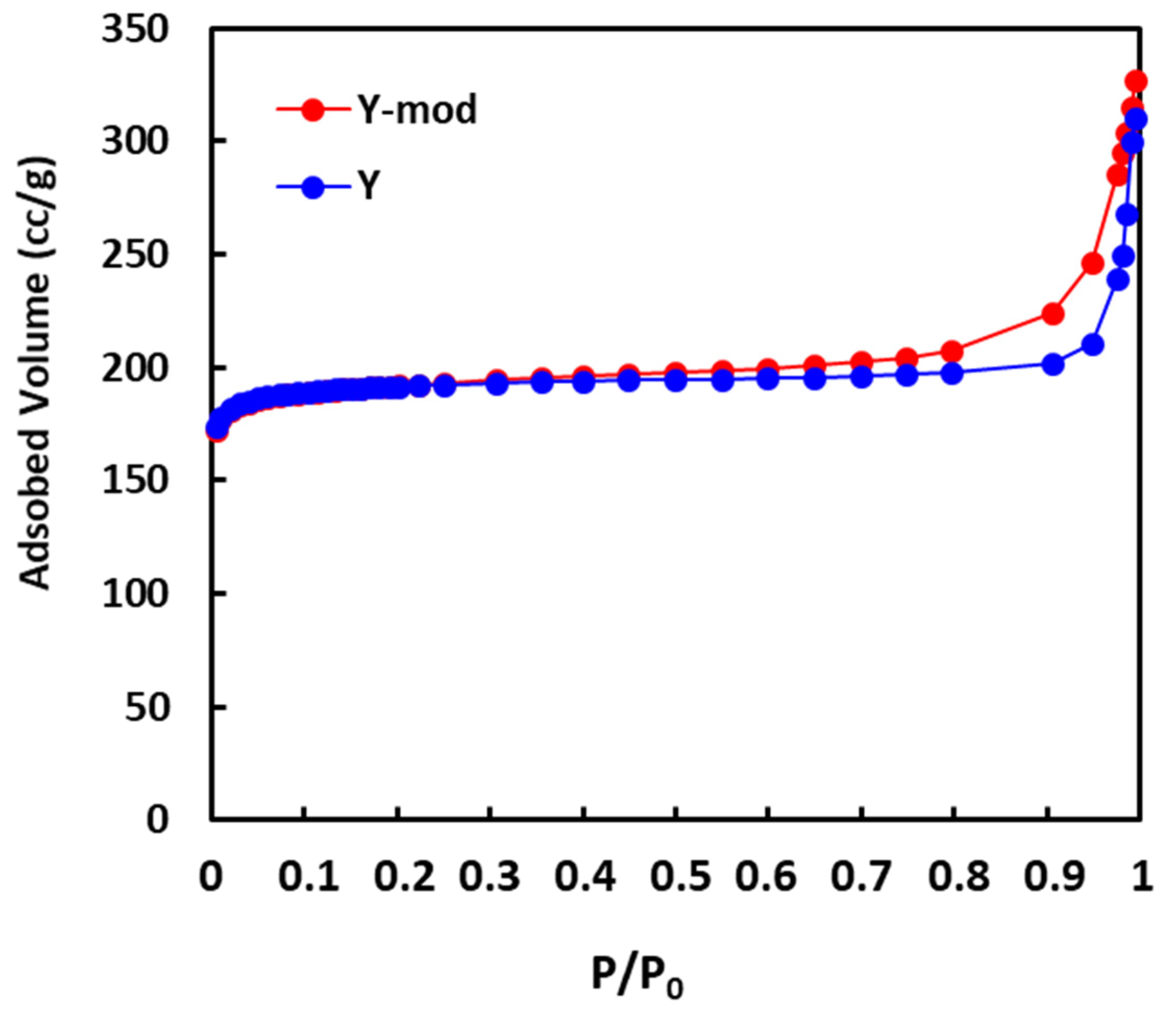

Figure 2. Adsorption isotherms of N2 of Y zeolite and Y-mod zeolite.
Figure 2. Adsorption isotherms of N2 of Y zeolite and Y-mod zeolite.
Nanomaterials 10 01934 g002
Nanomaterials 10 01934 g003 550
Figure 3. TEM microphotographs of Y zeolite (a) and Y-mod zeolite (b).
Figure 3. TEM microphotographs of Y zeolite (a) and Y-mod zeolite (b).
Nanomaterials 10 01934 g003
Nanomaterials 10 01934 g004 550

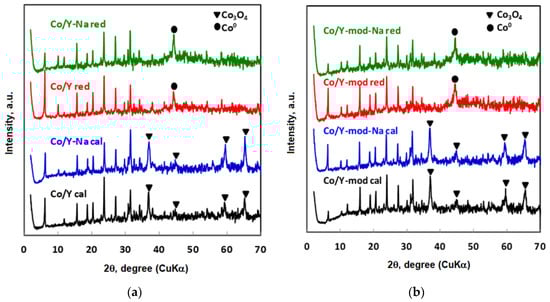

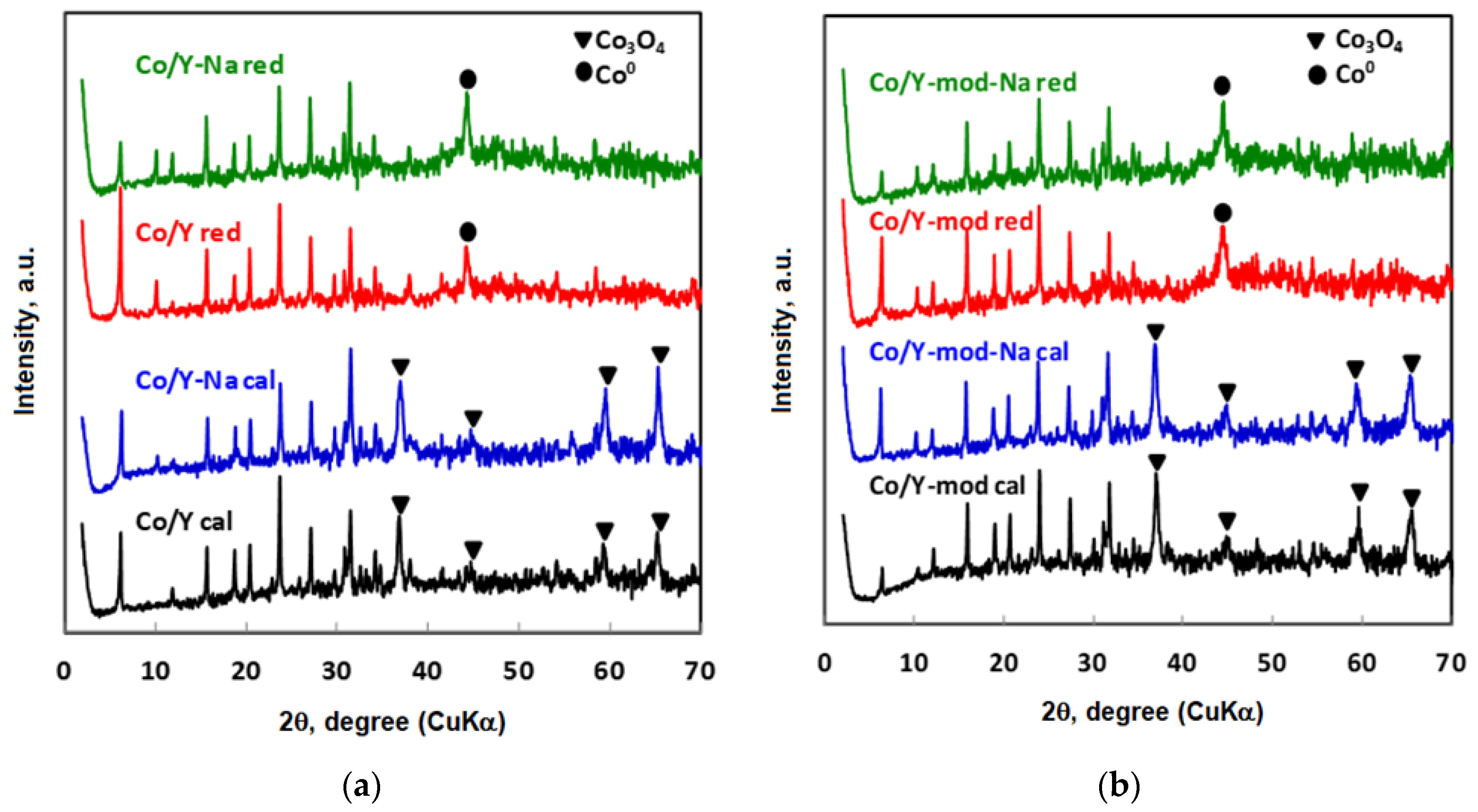

Figure 4. XRD of calcined and reduced Co catalysts (reduction conditions: 100 mL/min H2 at 873 K for 3 h). (a) Catalysts prepared using the pattern Y zeolite as support. (b) Catalysts prepared using mesoporized Y zeolite (Y-mod) as support.
Figure 4. XRD of calcined and reduced Co catalysts (reduction conditions: 100 mL/min H2 at 873 K for 3 h). (a) Catalysts prepared using the pattern Y zeolite as support. (b) Catalysts prepared using mesoporized Y zeolite (Y-mod) as support.
Nanomaterials 10 01934 g004
Nanomaterials 10 01934 g005 550

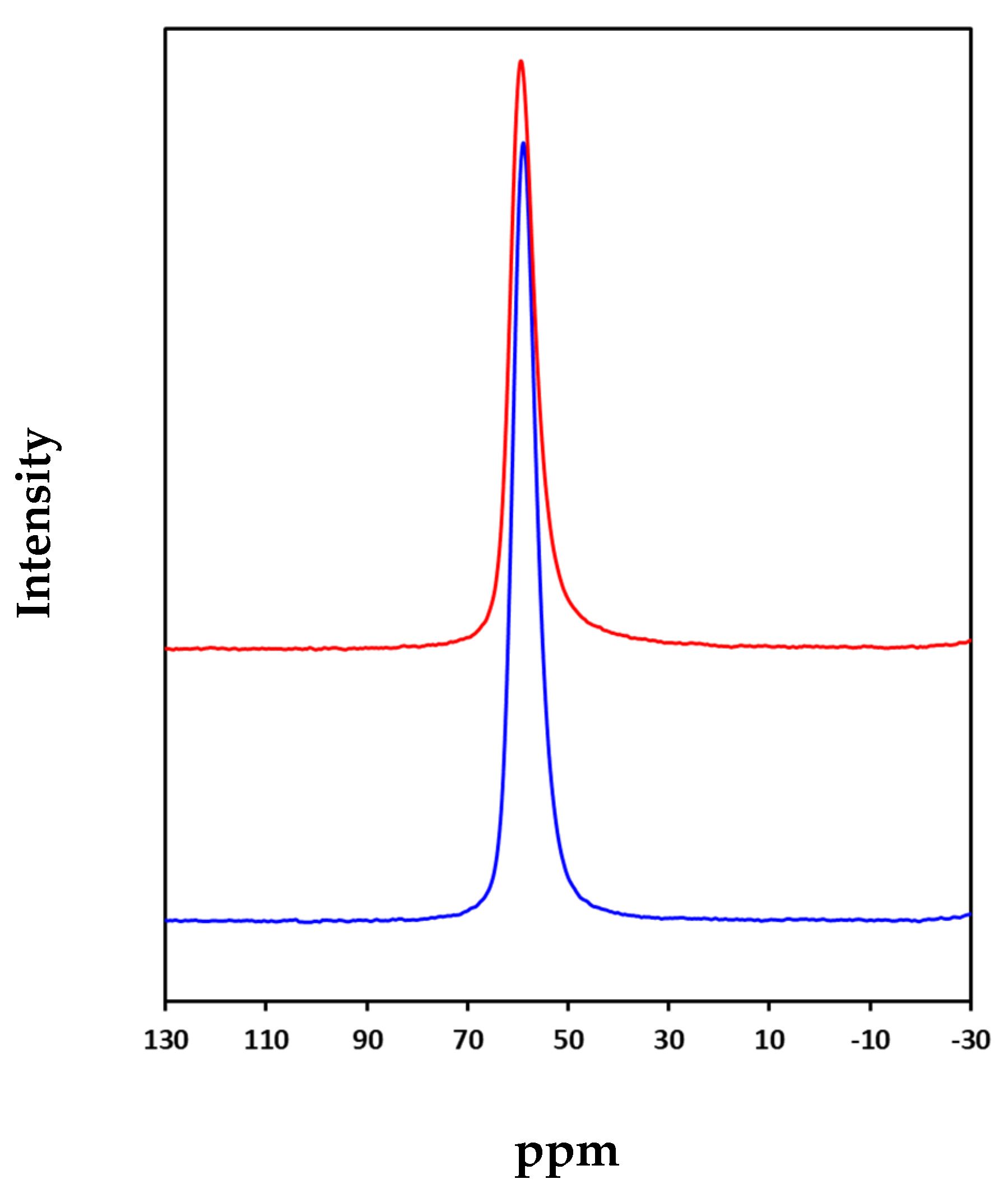

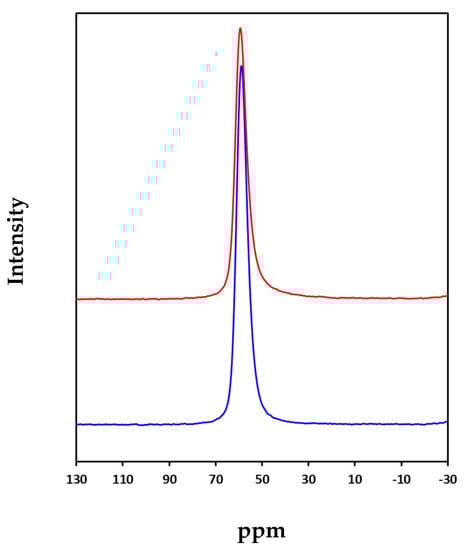

Figure 5. 27Al MAS NMR spectra of Y and Y-mod zeolites.
Figure 5. 27Al MAS NMR spectra of Y and Y-mod zeolites.
Nanomaterials 10 01934 g005
Nanomaterials 10 01934 g006 550

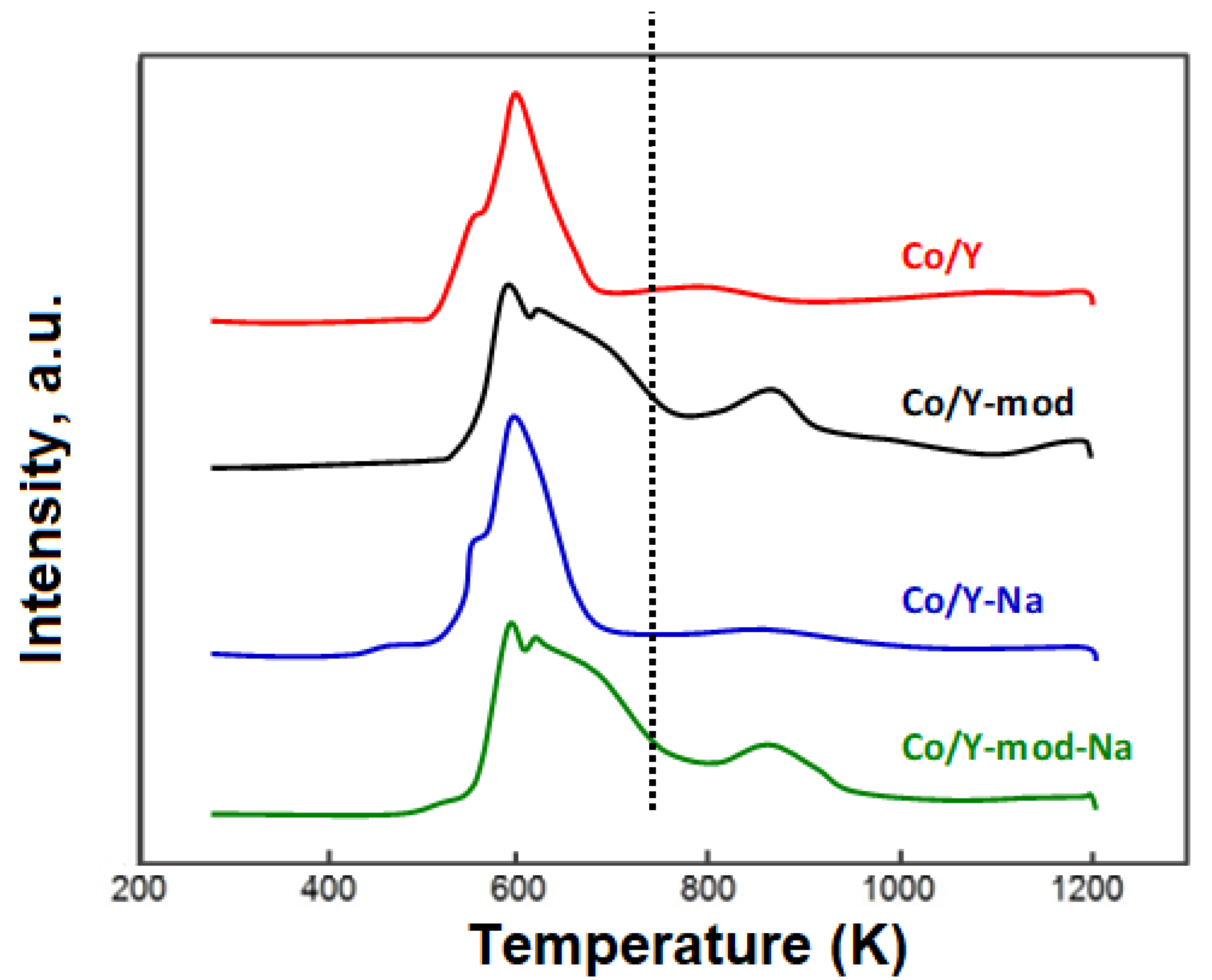

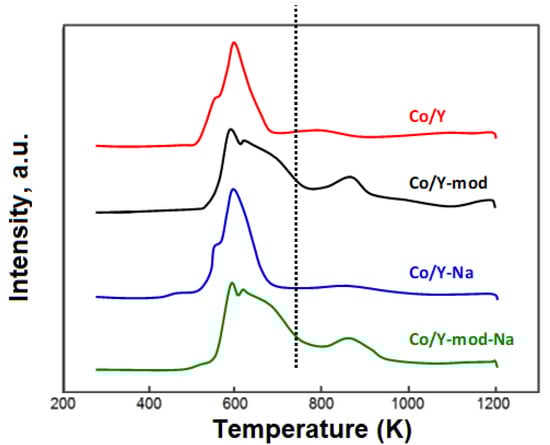

Figure 6. Temperature-programmed reduction (TPR) of calcined catalysts. (---) Reduction temperature of the catalysts before reaction (873 K).
Figure 6. Temperature-programmed reduction (TPR) of calcined catalysts. (---) Reduction temperature of the catalysts before reaction (873 K).
Nanomaterials 10 01934 g006
Table
Table 1. Textural properties of the catalysts and supports studied in this work.
Table 1. Textural properties of the catalysts and supports studied in this work.
CatalystSi/AlNa
(wt. %)		BET Area (m2/g)Mesopore Volume (cm3/g)Micropore Volume (cm3/g)
Y2.40.216290.0340.292
Y-mod3.90.115440.1100.244
Co/Y2.30.154990.0360.241
Co/Y-mod3.80.064090.0800.180
Co/Y-Na2.43.134060.0200.190
Co/Y-mod-Na3.94.213710.0370.146
Table
Table 2. Co content, crystal size of metallic Co (XRD), dispersion of metallic Co, and percentage of Co reduced at 873 K (reducibility).
Table 2. Co content, crystal size of metallic Co (XRD), dispersion of metallic Co, and percentage of Co reduced at 873 K (reducibility).
CatalystCo (wt. %)Co0, XRD (nm)Co0 Dispersion (%) aReducibility % (873 K)
Co/Y19.1293.395.4
Co/Y-mod19.0146.988.3
Co/Y-Na19.3283.494.2
Co/Y-mod-Na18.7137.489.1
a Calculated from dCo(nm) = 96/D(%), D: dispersion and dCo(nm): size of the Co metallic particle determined by XRD.
Table
Table 3. Acidity of the catalysts and supports studied in this work.
Table 3. Acidity of the catalysts and supports studied in this work.
CatalystB (mmol py)L (mmol py)
523 (K)623 (K)673 (K)523 (K)623 (K)673 (K)
Y0.2540.1270.0760.0340.0230.023
Y-mod0.2350.1270.0290.0700.0610.018
Co/Y0.0100.0050.0040.7770.3120.140
Co/Y-mod0.1030.0250.0190.8610.3850.249
Co/Y-Na---0.5320.2760.127
Co/Y-mod-Na---0.6710.3020.177
Table
Table 4. Ethanol conversion and products selectivity in steam reforming of ethanol for the catalysts studied in this work. (Reaction conditions: H2O/EtOH = 13, WHSV 0.95 h−1 and atmospheric pressure).
Table 4. Ethanol conversion and products selectivity in steam reforming of ethanol for the catalysts studied in this work. (Reaction conditions: H2O/EtOH = 13, WHSV 0.95 h−1 and atmospheric pressure).
CatalystT (K)Ethanol Conv. % molSelectivity % mol
CH4COCO2H2C2H4C2H4O
Co-Y67398.51.14.34.717.571.60.7
77399.81.73.421.439.032.71.7
87399.93.411.222.243.518.71.0
Co-Y mod67399.90.00.00.30.295.83.6
7731000.61.00.913.978.74.6
87399.82.25.02.325.759.64.9
Co-Y Na67394.77.07.014.268.90.62.2
77395.93.75.118.170.30.81.0
87399.94.611.612.069.70.81.2
Co-Y mod Na67399.84.96.015.273.30.20.4
77399.93.02.620.374.00.10.0
87399.92.04.319.574.10.00.0
Table
Table 5. Carbon deposition of the catalysts after 34 h of reaction time. (Reaction conditions: H2O/EtOH = 13, WHSV 0.95 h−1 and atmospheric pressure).
Table 5. Carbon deposition of the catalysts after 34 h of reaction time. (Reaction conditions: H2O/EtOH = 13, WHSV 0.95 h−1 and atmospheric pressure).
CatalystCarbon (wt. %)
Co/Y31.3
Co/Y-mod34.7
Co/Y-Na24.8
Co/Y-mod-Na19.1

Share and Cite

MDPI and ACS Style

da Costa-Serra, J.F.; Navarro, M.T.; Rey, F.; Chica, A. Sustainable Production of Hydrogen by Steam Reforming of Ethanol Using Cobalt Supported on Nanoporous Zeolitic Material. Nanomaterials 2020, 10, 1934. https://doi.org/10.3390/nano10101934

AMA Style

da Costa-Serra JF, Navarro MT, Rey F, Chica A. Sustainable Production of Hydrogen by Steam Reforming of Ethanol Using Cobalt Supported on Nanoporous Zeolitic Material. Nanomaterials. 2020; 10(10):1934. https://doi.org/10.3390/nano10101934

Chicago/Turabian Style

da Costa-Serra, Javier Francisco, Maria Teresa Navarro, Fernando Rey, and Antonio Chica. 2020. "Sustainable Production of Hydrogen by Steam Reforming of Ethanol Using Cobalt Supported on Nanoporous Zeolitic Material" Nanomaterials 10, no. 10: 1934. https://doi.org/10.3390/nano10101934

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
