Surface Coatings of Dental Implants: A Review

by
Angelo Michele Inchingolo
1,†,
Giuseppina Malcangi
1,†,
Laura Ferrante
1,
Gaetano Del Vecchio
1,
Fabio Viapiano
1,
Alessio Danilo Inchingolo
1,
Antonio Mancini
1,
Ciro Annicchiarico
1,
Francesco Inchingolo
1,*,
Gianna Dipalma
1,*,
Elio Minetti
2,
Andrea Palermo
3,‡ and
Assunta Patano
1,‡
1
Department of Interdisciplinary Medicine, University of Bari “Aldo Moro”, 70124 Bari, Italy
2
Department of Biomedical, Surgical, and Dental Science, University of Milan, 20122 Milan, Italy
3
College of Medicine and Dentistry Birmingham, University of Birmingham, Birmingham B4 6BN, UK
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work as first authors.
‡
These authors contributed equally to this work as last authors.
J. Funct. Biomater. 2023, 14(5), 287; https://doi.org/10.3390/jfb14050287
Submission received: 18 April 2023 / Revised: 17 May 2023 / Accepted: 19 May 2023 / Published: 22 May 2023
(This article belongs to the Special Issue Advanced Biomaterials and Biotechnology: Applications in Dental Medicine)
Browse Figures
Versions Notes

Abstract

:
Replacement of missing teeth is possible using biocompatible devices such as endosseous implants. This study aims to analyze and recognize the best characteristics of different implant surfaces that ensure good peri-implant tissue healing and thus clinical success over time. The present review was performed on the recent literature concerning endosseous implants made of titanium, a material most frequently used because of its mechanical, physical, and chemical characteristics. Thanks to its low bioactivity, titanium exhibits slow osseointegration. Implant surfaces are treated so that cells do not reject the surface as a foreign material and accept it as fully biocompatible. Analysis of different types of implant surface coatings was performed in order to identify ideal surfaces that improve osseointegration, epithelial attachment to the implant site, and overall peri-implant health. This study shows that the implant surface, with different adhesion, proliferation, and spreading capabilities of osteoblastic and epithelial cells, influences the cells involved in anchorage. Implant surfaces must have antibacterial capabilities to prevent peri-implant disease. Research still needs to improve implant material to minimize clinical failure.

1. Introduction

Natural tooth loss has serious emotional, psychological, and social effects in addition to physical and functional effects on an individual [1]. Implantoloy is one of the most secure and effective surgical procedures [2]. The most common dental implant materials are titanium, zirconium, and polyetheretherketone (PEEK) [3,4].
Zirconium implants have good aesthetic qualities but a moderate rate of fracture, which leads to implant failure [5]. PEEK implants have demonstrated high fallibility rates; hence, long-term multicentric studies are required to confirm the reliability [6].
Titanium is the material that best complies with the requirements of dental implantology, including osseointegration, biocompatibility, mechanical resistance, and anti-bacterial properties [7,8]. The term “osseointegration” was first used by Albrektsson (1981) to refer to the functional and structural connection between a vulnerable structure’s surface and its critical organs [9]. Accordingly, a number of critical factors for proper bone resorption have been identified: biocompatibility, implant design, implant surface characteristics, condition of the recipient bone site, surgical technique, operator’s skill, and implant storage conditions [9].
The characteristics of the implants’ surface and the quality of the recipient site bone determine the interface between the two: the bone–implant interface [10]. For instance, an implant positioned in a lamellar bone has 90% contact, whereas one positioned in a midollar bone has 50% contact [11,12].
Morphologically, dental and implant periodontal tissues have many common features, as both are marked by a well-keratinized oral epithelium and a portion of connective tissue in direct contact with the implant and tooth [13]. More collagen and fewer fibroblasts are found in the implantable connective tissue [13,14].
The physicochemical properties of the implant outermost layer and its interaction with the surrounding essential tissues play a role in determining whether osseointegration succeeds or fails [15].
A fundamental prerequisite for the long-term success of the implant is biological anchorage between the surface of the dental implant and the bone tissue [16,17]. Bone response is closely related to the implant surface [17].

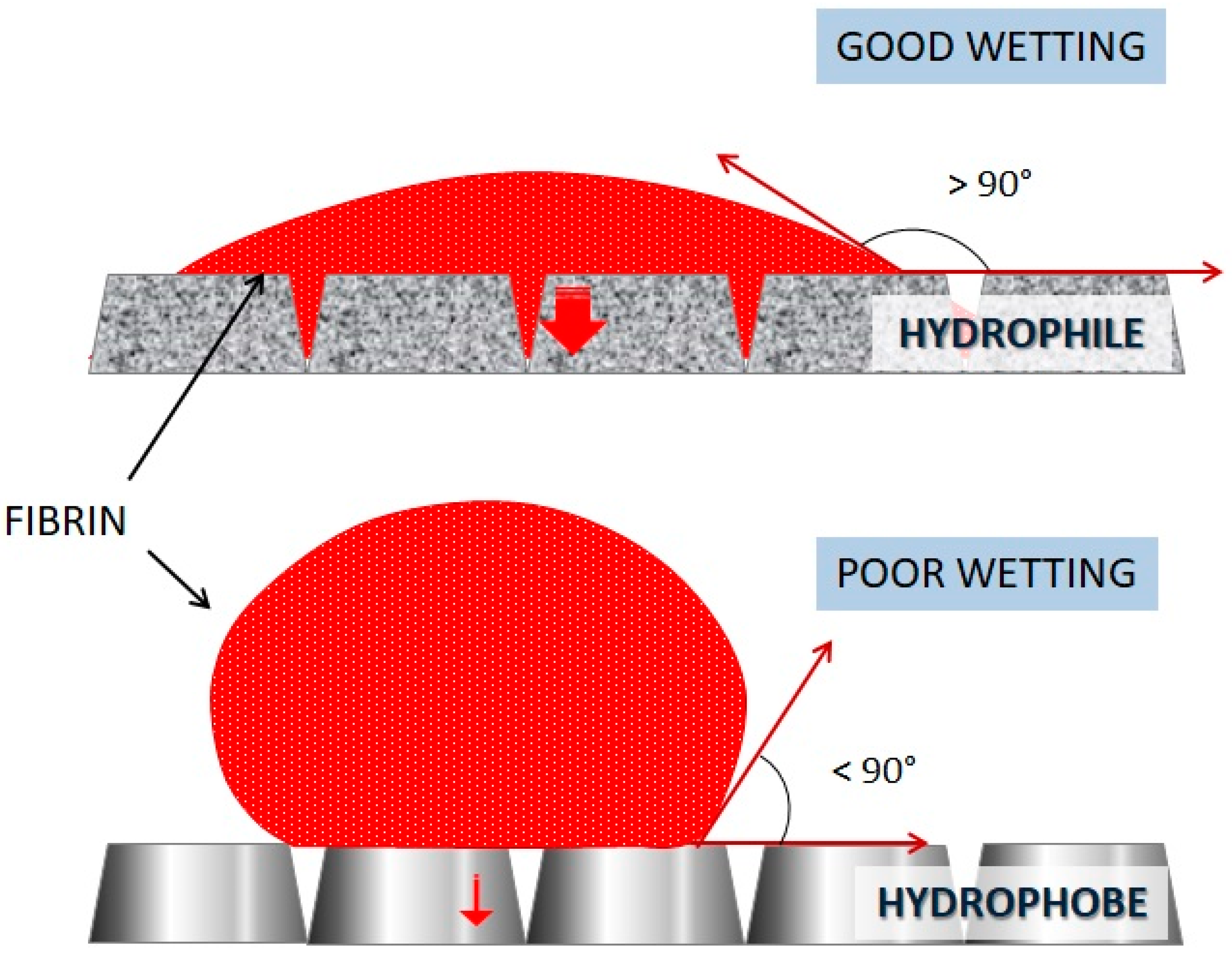

Hydrophilic and hydrophobic implant surfaces can be distinguished [11,18]. Hydrophilic surfaces, compared with hydrophobic structures, favor interactions with biological fluids and cells allowing a good surface wettability [18,19]. Implant surfaces with the same chemical composition actually offer a different contact angle for biological fluids depending on the topography of the surface: rough surfaces, such as sandblasted and etched surfaces, are more likely to be wettable than surfaces considered to be smooth [18,20] (Figure 1).
The hydrophilicity of the implant surface results in abrupt contact of the implant with the clot, favouring the osseointegration process [21,22]. Some surfaces have such hydrophilicity that mere contact of the first coils with blood results in suction along the entire implant surface [21,21] (Figure 2). Roughened surfaces increase blood clot retention [23].

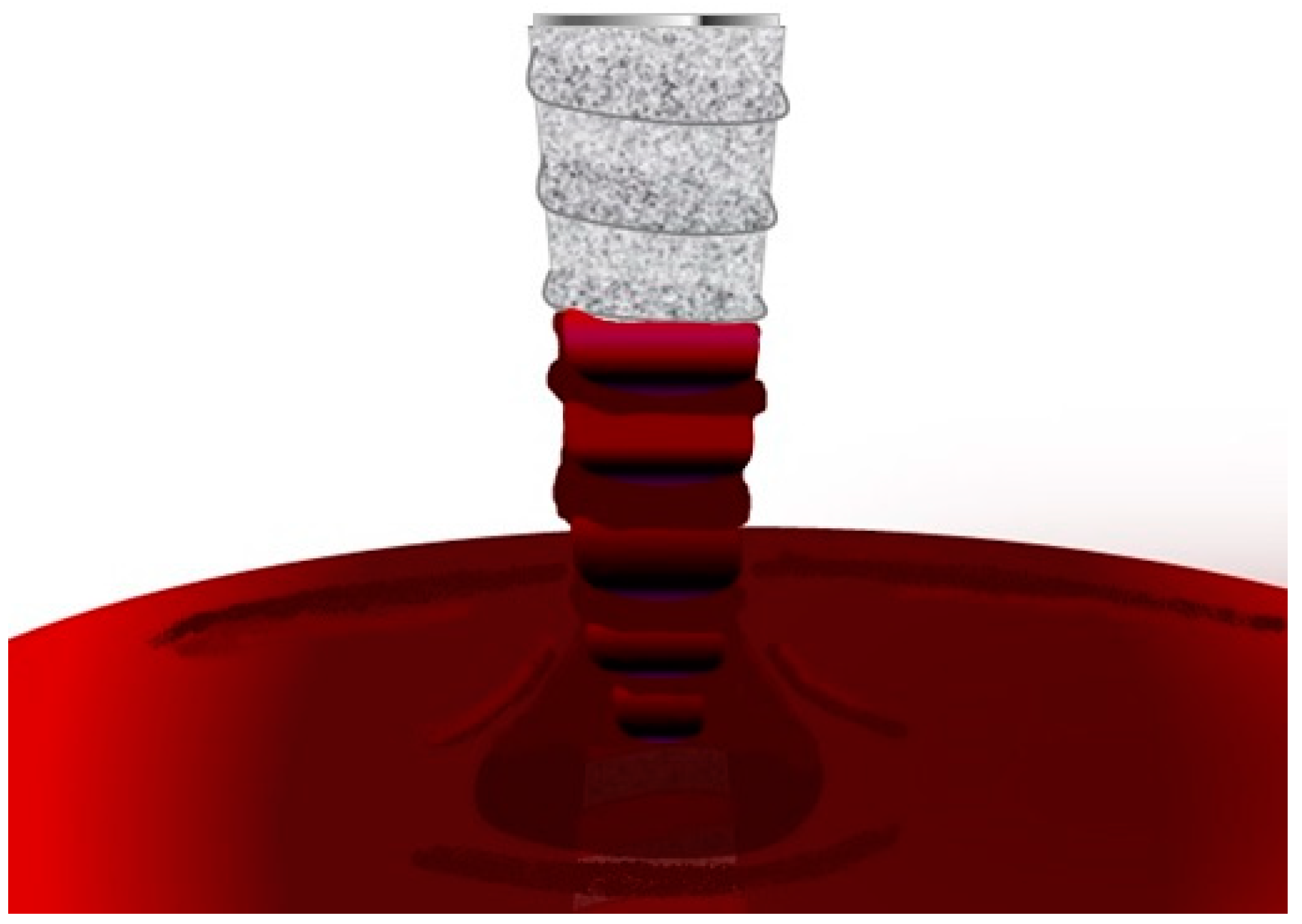

The implant surface treated with rumination exhibits a double retraction of fibrin filaments and a double blood clotting compared with the smooth surface [24] (Figure 3).
During the wound healing phase, the following takes place:
  • Fibrin formation that protects the wound and, together with platelets, plugs the wound and releases the repair factors;
  • Fibrinolysis: reabsorption of the clot;
  • Osteoclastic activity: migration of cells from the blood;
  • Migration of mesenchymal cells, precursors of bone cells [25,26,27].

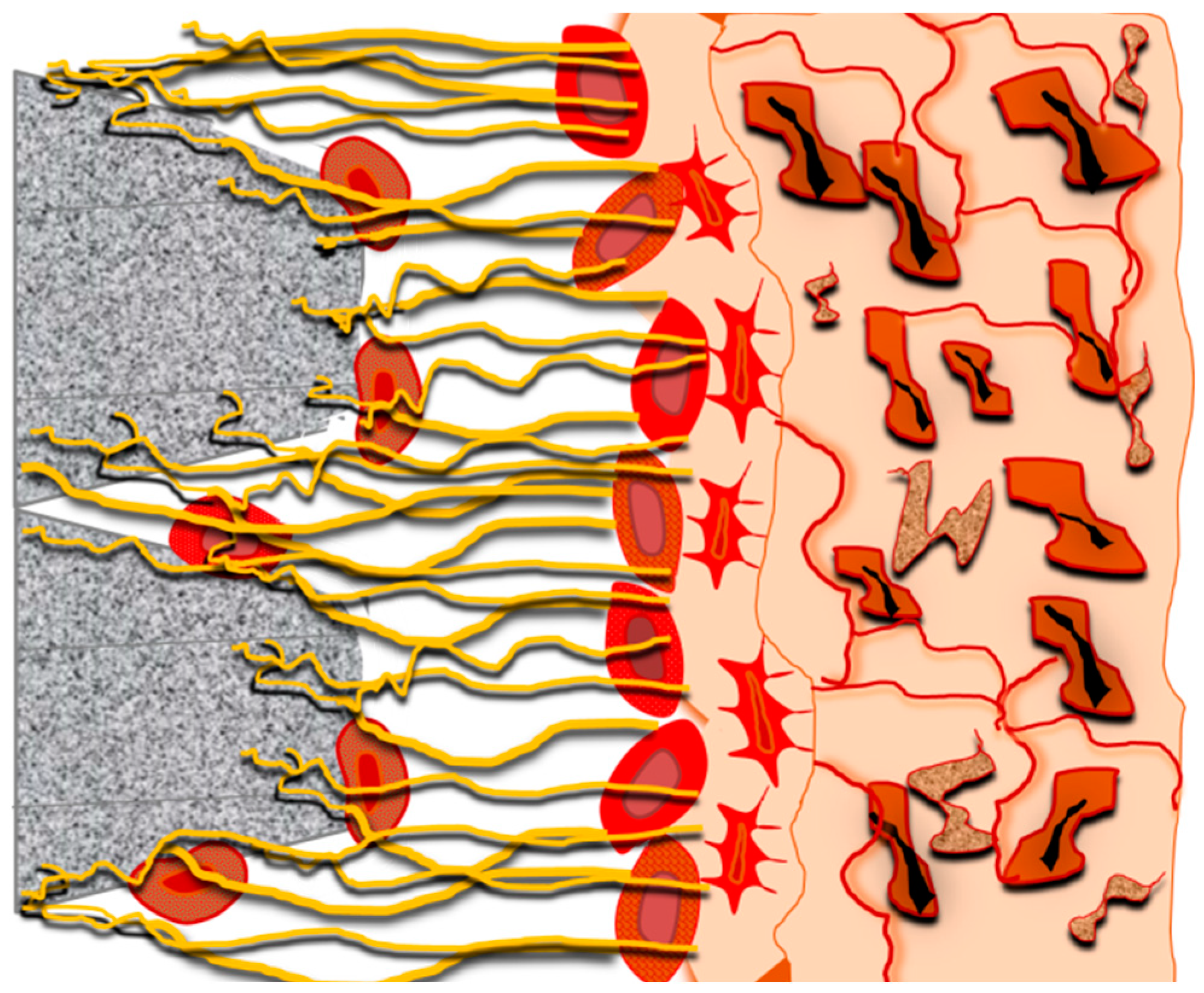

Implant stability is necessary for effective osseointegration and healing [3,13,24,28]. The features of the bone, the implant’s design, and the procedure used to place it all affect primary stability [29]. Bone remodeling and bone production around the implant lead to secondary stability [30]. Growing research demonstrates that implant surface features also affect secondary stability [31,32].
Bone apposition on the implant surface begins first in trabecular bone, then in compact bone [24,33]. Peri-implant bone metabolism is at its peak 1–4 months after surgery [34,35].
The clinical success of the implant, in addition to osseointegration, depends on the health of the bone–implant–soft tissue interface [16] (Figure 4).
Implant failure may result from titanium’s reduced ability to induce osseointegration, which causes poor or delayed osseointegration [36,37]. Furthermore, early titanium implants had a mechanically polished surface that was smooth, and research in recent years revealed that this surface is less stable over time than those with a rough surface [36,38]. In order to achieve a larger contact surface, treatment of the implant surface was performed in order to increase the osseointegration between the bone and the implant [36].
This review aimed to analyze different surfaces and, therefore, identify the ideal implant structure from a clinical and durability point of view, with the least post-surgical complications and the least discomfort to the body [17,39,40]. Research is extensive and challenging because of ongoing scientific discoveries and innovations [41].
In fact, an appropriate modification of titanium surface, which increases the percentage of BIC (bone implant contact), is still being studied to favor osseointegration, which has antibacterial properties to prevent peri-implant diseases and resists the stresses it will undergo with functionalization, such as chewing, thus guaranteeing healthy peri-implant tissue over time [30,39,42].

2. Materials and Methods

2.1. Search Processing

The present review was performed in accordance with the principles of PRISMA. PubMed, Scopus, and Web of Science were searched to find papers that matched our topic dating from 1 January 2019 up to 31 March 2023, with English-language restriction. The search strategy was built using a combination of words that matched the purpose of the investigation, whose primary focus is the difference of implant surface coatings on osseointegration; hence, the following Boolean keywords were used: different dental implant surface AND osseointegration (Table 1).

2.2. Inclusion and Exclusion Criteria

The inclusion criteria were as follows: (1) human in vivo study; (2) English language; (3) open access studies; (4) clinical studies; (5) studies examining the variety of surfaces of titanium dental implants: implant surface treatments and coatings; and (6) in vitro studies concerning the analysis of implant surface coatings of great interest to our research.
The exclusion criteria were as follows: (1) animal; (2) other languages different from English; (3) not open access studies; (4) case report/series, reviews, editorials, book chapters; (5) research about zirconium and peek dental implant; and (6) in vitro studies far from the focus of our research.
The review was conducted using the PICO criteria:
  • Population: Titanium endosseous implants;
  • Intervention: Implant surface treatment;
  • Comparisons: Different implant surfaces;
  • Outcomes: Interaction with biological tissues;

2.3. Data Processing

Author disagreements on the choice of articles were discussed and settled.

3. Results

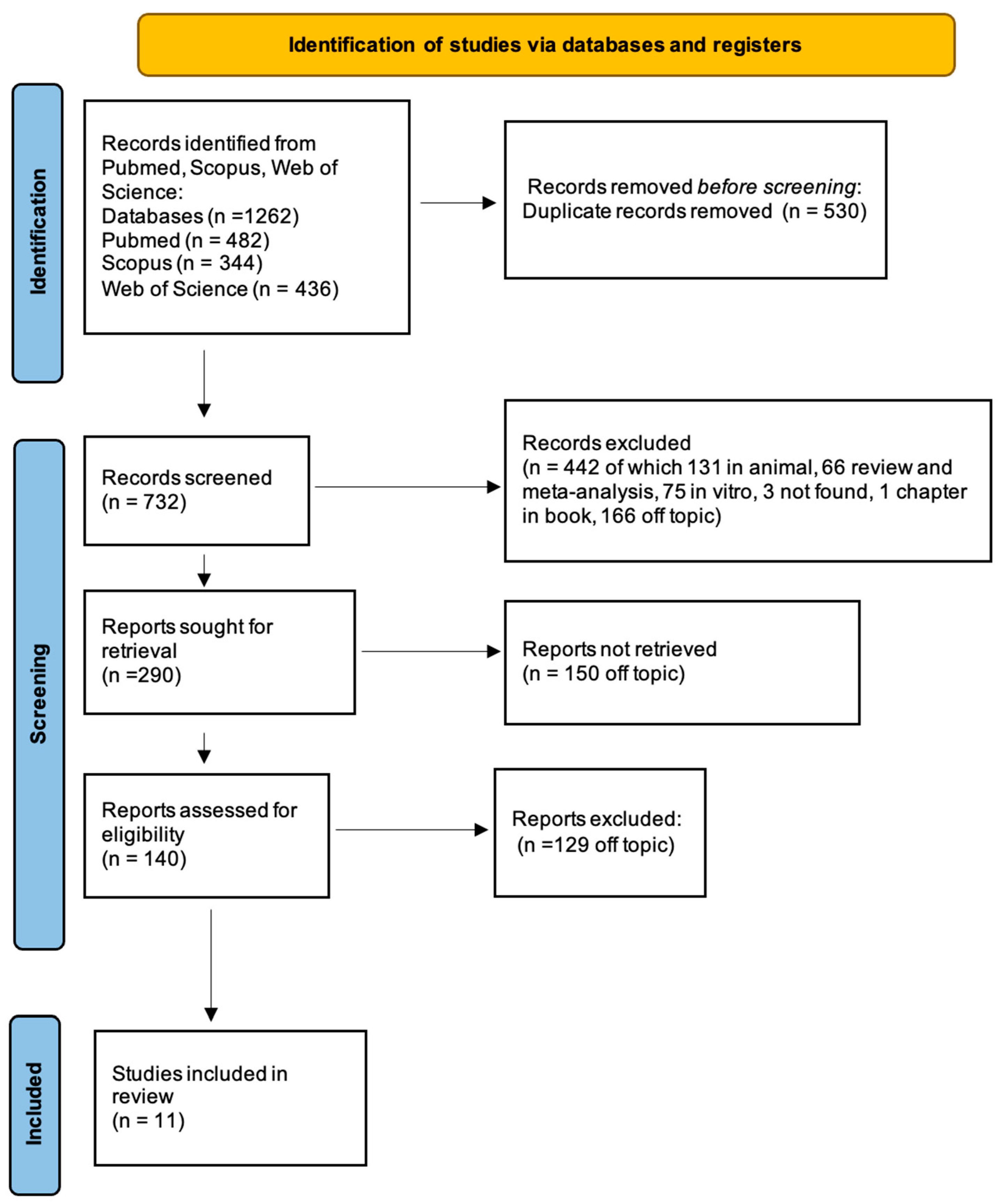

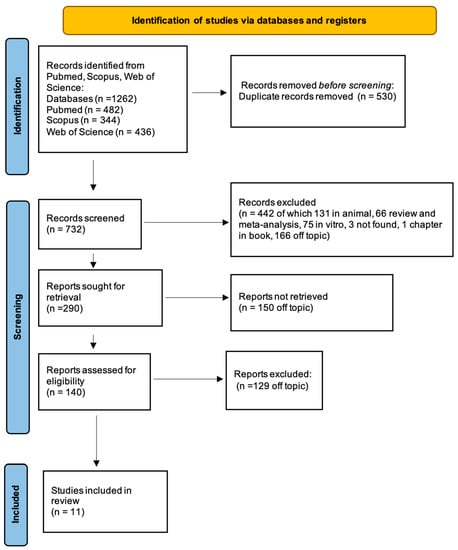

A total of 1262 publications were identified from the following databases, Pubmed (482), Scopus (344), and Web of Science (436), which led to 732 articles after removing duplicates (530). A total of 290 articles accessed the screening phase, while 442 items were removed because 3 were not found, 131 were in animal, 1 was a chapter in a book, 75 were not in vivo and far from the focus of this review, 66 were reviews and meta-analyses, and 166 were off topic. From these papers, 279 were additionally removed because of lack of interest and eligibility was assigned to 11 records that were finally included in the review for qualitative analysis, of which 5 were in vitro (Figure 5). The results of each study are reported in Table 2 and Table 3.

4. Discussion

Thanks to its excellent mechanical properties, including biocompatibility, corrosion resistance, non-magnetism, and non-toxicity, titanium and its alloys are widely used to create body armor and dental implants, with success rates close to 95–97% [51].
It is also very reactive and forms an ossidic layer of about 5 nm in thickness, which, in contact with air and water, protects it from corrosion and improves its affinity for patient cells [8].
However, even if titanium is a biologically inert material, it lacks anti-bacterial properties [52]. As a result, bacteria tend to adhere to the collars of implants, and implant failure can be linked to peri-implant infections [51,53]. Once discovered, perimplantite must be treated with antibiotics, which not only increases the risk of developing antibiotic resistance but also causes discomfort and costs the patient money [54]. As a result, it is crucial that titanium implants have long-term anti-bacterial properties and improve early osseointegration capability [55,56]. To meet these clinical requirements, it is necessary to apply a treatment to change the surface of pure titanium, optimizing the surface’s morphology and chemical composition [8].
Researchers are working to increase the capacity of the surfaces of titanium machinery [57]. The surface, shape, and structure of the implant affect the osseointegration process, which is necessary to provide implant stability [36]. The stability of the implant, both primary and secondary, is a factor that affects how well the implant itself will osseointegrate [58]. While the primary stability is a mechanical phenomenon that depends on both the implant’s macroscopic and microscopic design and the surgical technique used to position it, numerous studies have found that the implant’s surface is the key factor in achieving a high level of secondary stability [58,59].
Among the characteristics of implant surfaces, topography and chemical composition are those that have the most impact on the interaction between biomaterial and osseous tissue and, consequently, on secondary stability [17,29]. In particular, numerous studies have demonstrated that, compared with implant surfaces, textured surfaces exhibit a greater capacity for determining a biological response from some osseous cellular lines [60]. In fact, the roughness provides a larger area of contact and interconnection, leading to a greater number of cellular colonies that create strong adhesions to the implant site and enhancing osteoblast proliferation and adhesion processes while decreasing osteoclastic activity and promoting mineralization [61]. In addition, implant roughness aids in the differentiation of mesenchymal cells into the osteoblastic phenotype [29].

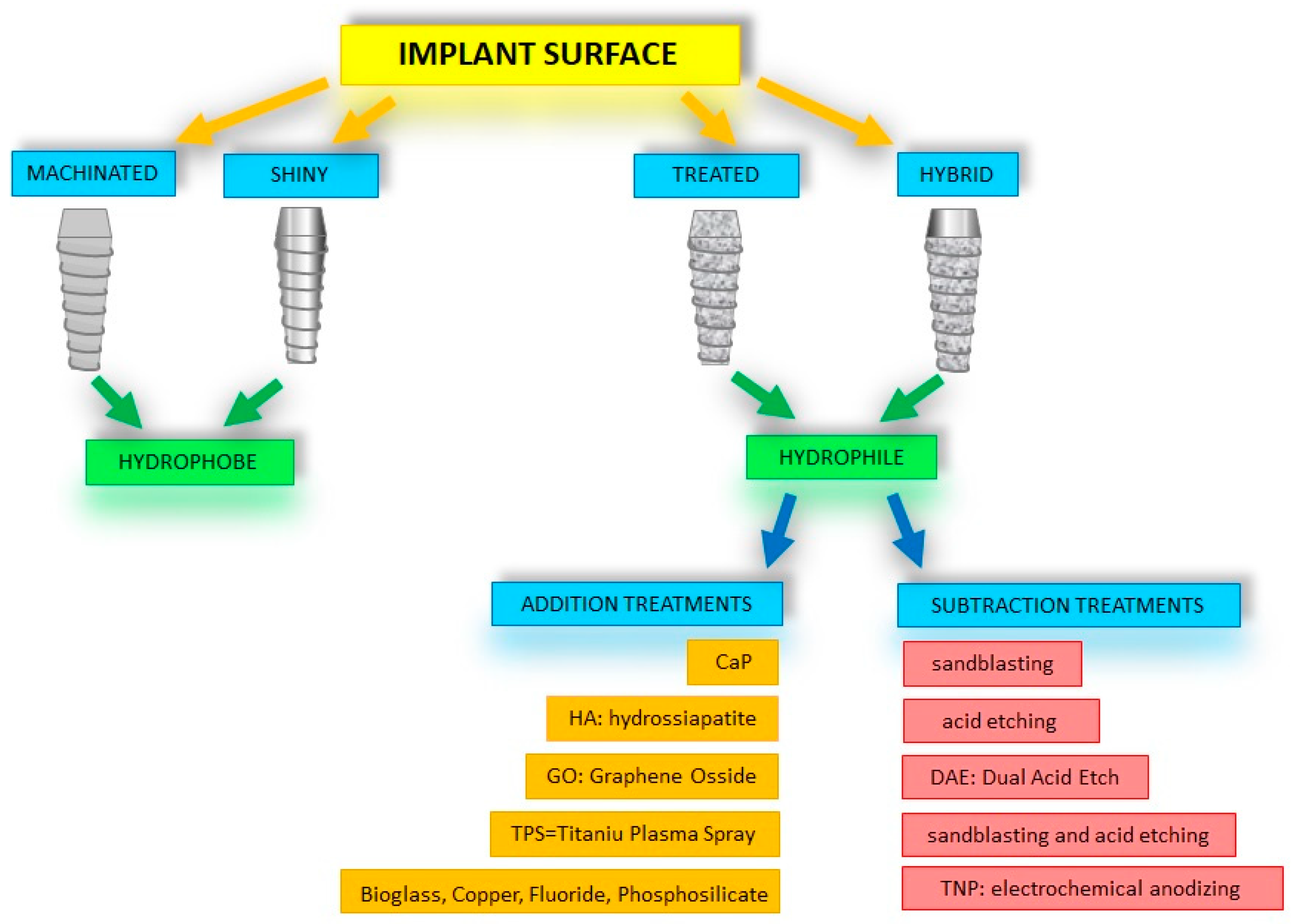

Physicochemical treatments of major implant surfaces give rise to different types of implants:
  • machined;
  • polished;
  • treated;
  • hybrid [17,62].
A significant advantage of treated and hybridized surfaces is the increased degree of hydrophilicity and wettability compared with untreated, machined, smooth surfaces, which are considered hydrophobic [19]. The only way to modify something on the surface is to add or reduce materials on a micro- or nanometric scale [50] (Figure 6).

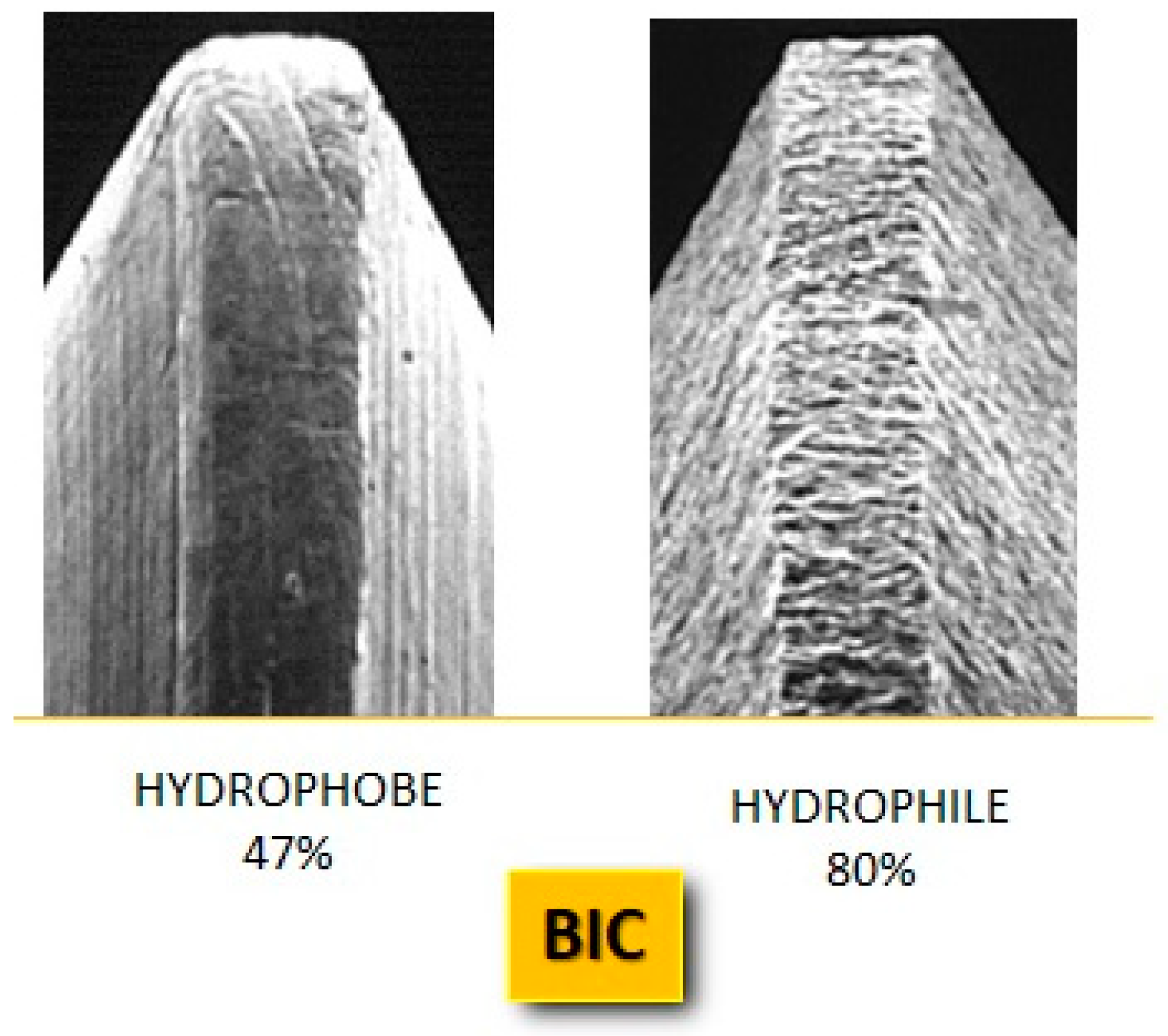

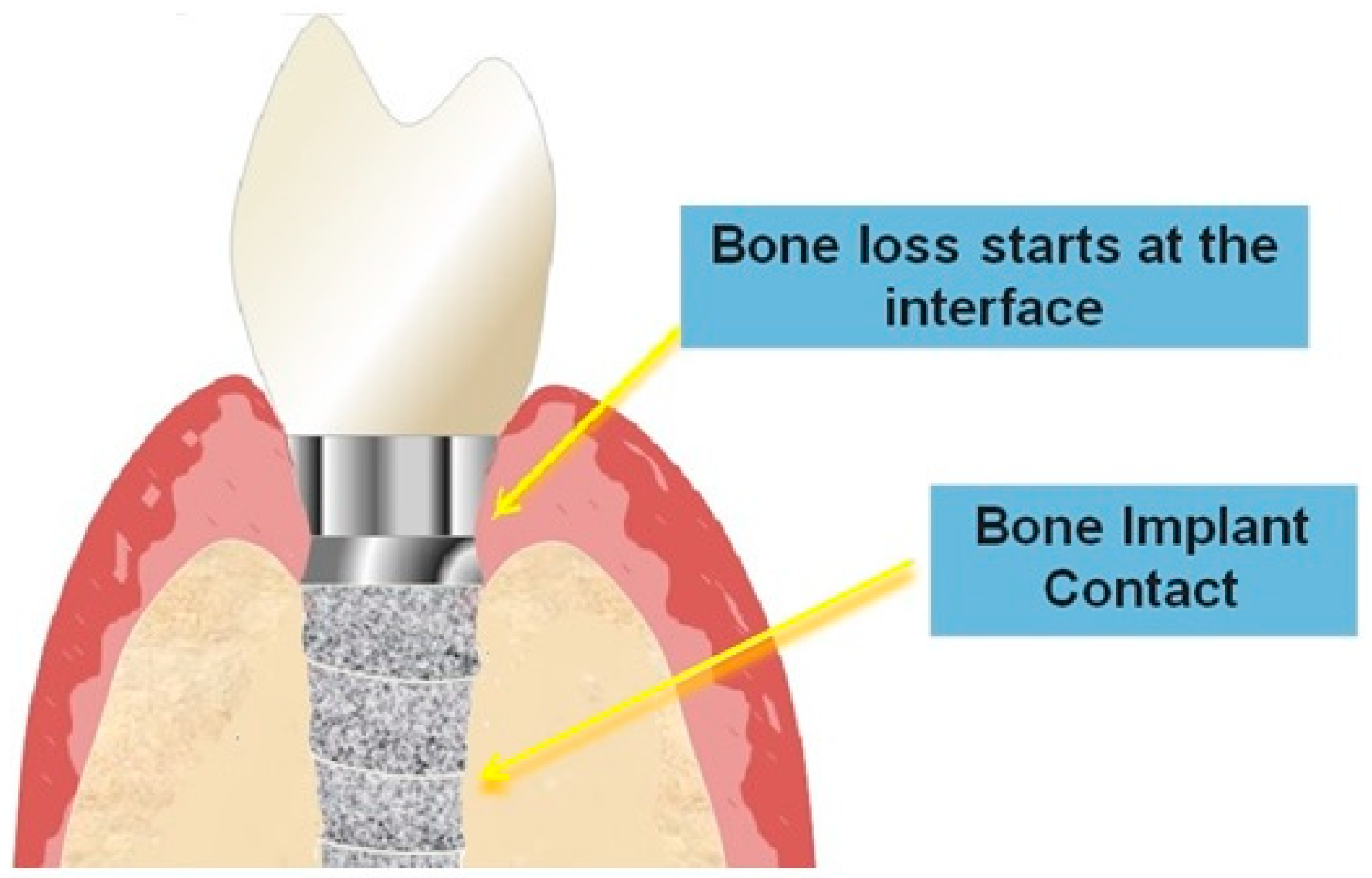

Bone-to-implant contact (BIC), early in the healing phase, is considerably increased by implants with a hydrophilic surface because these implants typically display more cell differentiation and aggregation [11] (Figure 7).
The most significant advancement in implant dentistry has been the observation of direct bone-to-implant contact (BIC), which was verified with electron microscopy [47].
In comparison with freshly worked surfaces, titanium dental implants with moderately rough surfaces exhibit better osseointegration and faster osseous growth [50].

4.1. Implant Surface Treatments

4.1.1. Subtraction Treatments

A technique for creating moderately rough implant surfaces is sandblasting and acid mordantation (SA) [50,60,63]. According to some studies, the surface modification using the SA technique needs to be properly planned and managed in order to produce a final medical device that is clean and reliable [17]. This is because it has been observed that the majority of implant surface areas contain particulates, which are remnants of the sandblasting [64]. This causes a 15% reduction in tensile strength, which could lead to the beginning of a fracture process [9,11,17,65].
On the other hand, for the past ten years, a widely employed method of surface modification has been the combination of sandblasting and etching [66]. Sandblasting theoretically allows to achieve the ideal roughness for mechanical fixation, while additional etching, by raising the peak height of the roughness peaks, allows to enhance the protein adhesion mechanism, which is crucial in the early stages of bone healing [67]. In fact, these two techniques are used in succession [48].
Surface alteration techniques that use subtractive processes include sandblasting and acid etching [62]. Acid etching causes selective corrosion to occur, leaving holes or grooves on the metal surface [38,68].
Because of its hydrophilic qualities, sandblasted, coarse-grained, acid-etched (SLA) surface is a characteristic form of rough surface generated on a dental implant and has been employed on the newest commercial dental implants [68].
Dual Acid Etch, or DAE Technology, uses double acid etching without first sandblasting [69]. Using this method, the danger of ingesting sand particles is reduced, and surfaces are created that improve BIC, platelet retention, and the release of bone growth hormones [70,71,72].
By producing a special titanium surface with distinctive meso, micro, and nanoscale roughness features that ensure better osteoconductive and osseointegrative capacities than the more popular micro-rough titanium surface, a method for enhancing osseointegration has been devised [45]. Sulfuric acid was used to etch commercially pure titanium at four different temperatures (120, 130, 140, and 150 °C) [45]. Particularly when acid etching was carried out at 140 °C, the new surface considerably stimulated osteoblast development and, subsequently, osseointegration [17,45].
One of the nanoengineering methods for titanium implants is called electrochemical anodizing [73]. This method involves immersing the titanium implant, which serves as the anode, in an organic electrolyte containing water and fluoride in an electrochemical cell with appropriate voltage, such that titania nanopores (TNPs) are created on the implant surface in order to enhance soft tissue integration and wound healing [73,74]. Anodizing has emerged as a useful technique for changing the surface morphology of titanium or titanium alloys to enhance bone development because it is inexpensive, simple to apply, and easy to control [75,76]. Anodizing can provide a surface morphology with a pore structure on a micronano scale as well as increase the wear and corrosion resistance of pure titanium implants [8].
Further frontiers of research that deserve further investigation are 3D-printed implants and micro-ark oxidizing, which help improve biocompatibility. These are promising fields that will offer new possibilities in the future of clinical practice [77].

4.1.2. Addition Treatments

Biomaterials in implantology have been promoting bone response and biomechanical ability in recent years [78,79]. Many substances, including polyhydroxyalkanoates, calcium phosphate, carbon, bisphosphonates, hydroxyapatite, bone-stimulating agents, bioactive glass, bioactive ceramics, collagen, chitosan, metal and their alloys, fluoride, and titanium/titanium nitride, are known as promising candidates for dental implant coatings [78,80]. It is crucial that biomaterials degrade naturally; polyhydroxyalkanoates, for instance, degrade naturally and do not harm tissues or cells in the process [81,82].
Owing to the development of biofilms, which are thought to aid bacteria in evading antibiotics and the host defense mechanism, bacterial colonization of titanium results in implant loss. Pathogens cause deterioration of the bone surrounding the implant, necessitating surgery to repair the infected bone or to remove or replace infected implants. [37,78,83,84].
Although both implant types generated comparable clinical outcomes at 12 weeks following surgery, implants with alkali-modified surfaces were consistently more stable after implantation than implants with sandblasted surfaces [44,85].
Improved contact osteogenesis surrounding the dental implant was seen on surfaces coated with calcium phosphate (CaP), and early healing phase osseointegration was also seen to be enhanced [9,36]. Increasing the biocompatibility of titanium and encouraging osteogenesis were among the first goals to be achieved by researchers, and for this, some authors employed chemical modifications, such as the addition of fluoride to the implant surface [48].
The interaction of fluoride with hydroxyapatite in bone tissue creates fluorapatite followed by increased osteoblast proliferation and activation of alkaline phosphatase activity [86,87,88]. Because of its outstanding physical and chemical characteristics, particularly its potential for osteoinduction, graphene oxide (GO) is a promising nanomaterial [57,89,90]. The addition of inorganic bioactive elements confers the important and necessary osteogenic, angiogenic, and antibacterial capabilities [53].
Broad-spectrum antibacterial capabilities, high efficiency, and durability are all properties of copper (Cu) [86,91]. Copper-containing titanium alloy has been confirmed to have a constant precipitation of copper ions and long-lasting antibacterial activity [53,83,92]. It is a necessary trace element for the human body because it can prevent osteoporosis, promote osteogenic differentiation, and induce angiogenesis [93]. Ti-5Cu alloy has remarkable anti-infective efficacy, osteogenic potential, and biological compatibility, which have been amply demonstrated by laboratory investigations [8,91,94].
Implants are frequently vulnerable to infections like peri-implantitis, which affect the surrounding hard and soft tissues and result in implant loss and biocompatibility [95].

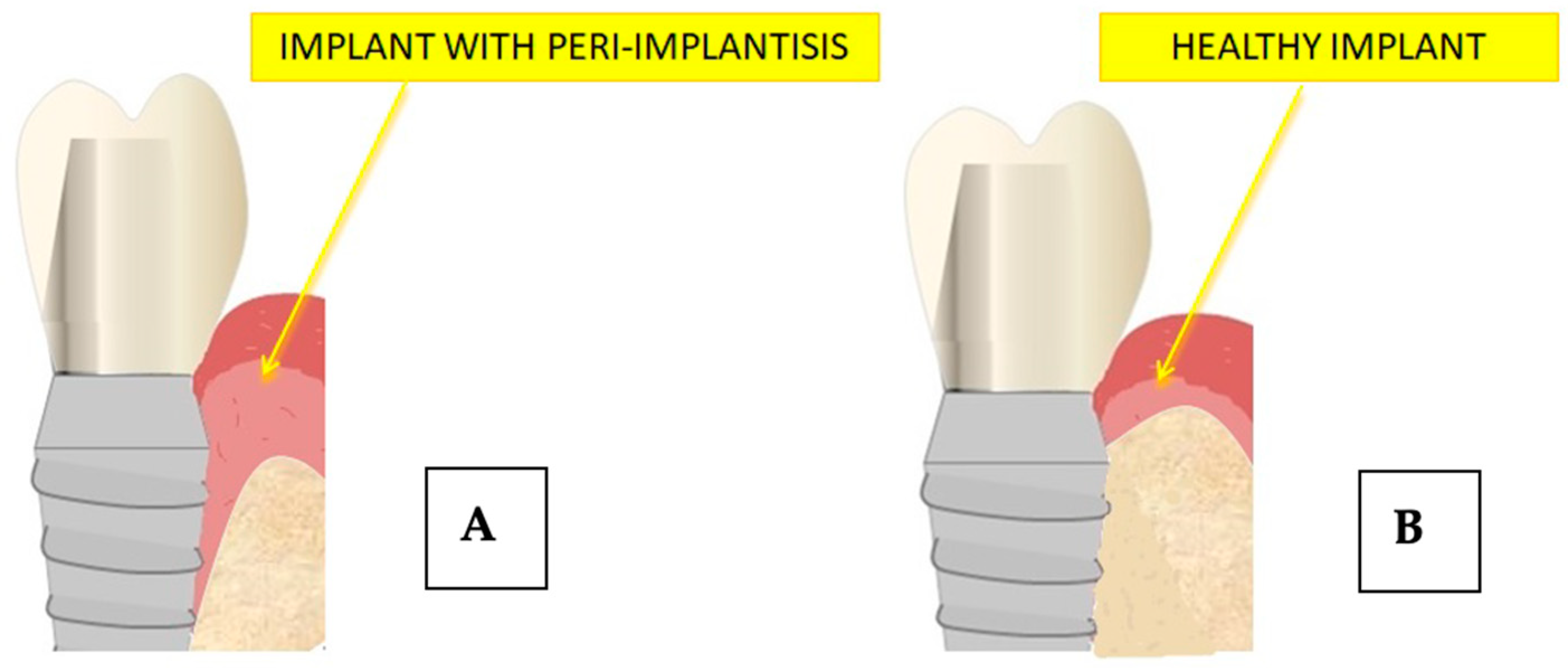

Peri-implantitis is an inflammatory condition that affects all surrounding tissues [96]. A deep pocket with hemorrhage, suppuration, and slight bone loss accompanies mucosal injury [33,97,98] (Figure 8).
Therefore, a recent scientific study has focused on the interface between the implant and the surrounding soft tissues, highlighting the significance of establishing a sufficient epithelial biological seal that is necessary to prevent bacterial contamination [17,97,99,100]. The underlying bone tissues are shielded from germs by the peri-implant tissues, which are made up of connective and epithelial components [101]. It has been claimed that coating the implant with bioactive materials will help to avoid the development of this disease [49].
A bioactive glass known as Bioglass 45S5 or calcium sodium phosphosilicate is made up of silica, calcium oxide, phosphorus pentoxide, and sodium oxide [102]. Biomaterials for bone grafts, periodontal defect repair, cranial and maxillofacial repair, wound care, blood loss management, stimulation of vascular regeneration, and nerve repair are among the typical uses of Bioglass 45S5 [49].

4.1.3. CGF Coated Dental Implants

More recent studies are focusing on the biological properties of growth factor concentrate (CGF), an autologous blood-derived biomaterial, in improving the osseointegration of dental implants [103,104]. The surface of CGF permeated dental implants is biocompatible and biologically active, significantly improving the adhesion of endothelial cells to the implants themselves [31]. All of this guarantees better results in terms of osseointegration and decline in post-surgical complications [31,103].
Some basic parameters are to be monitored during the osseointegration period and after loading to ascertain peri-implant health over time: early healing index, visible plaque index, tartar, peri-implant inflammation, probing depth and bleeding at probing, implant stability quotient, crestal bone loss, bone level variation, and implant success and survival rates [105]. Implant surface modifications can improve implant durability and health and thus ensure proper prosthetic rehabilitation [38,106]. This is also especially true in those patients in whom implant-prosthetic rehabilitation is not only cosmetic, but functional [107]. Sometimes, such patients have systemic diseases or have compromised bone conditions [108]. Implants with surface treatments that can improve bone–implant interactions, protein uptake, adhesion, differentiation, and cell proliferation have been used in these patients. In clinical trials with patients using anticoagulants, diabetics, people who had radiation therapy to the head and neck, and people who needed bone grafting, implants with hydrophilic surfaces displayed encouraging outcomes [109,110]. In comparison with other treated, coated implants, mandibular implant overdentures showed considerably higher 1-year survival rates in clinical trials using SLActive hydrophilic surfaces [43,110,111].

5. Conclusions

From the present study, it emerged that, although all surfaces allowed osseointegration and cell proliferation, the treated surfaces, owing to surface irradiation, had a better propensity for epithelial cell attachment and adhesion, proliferation, and differentiation of osteoblastic cells.
However, research must be directed not only to the osseointegration of the implant into the bone structure, to ensure primary and secondary stability, but also to the seal that the soft tissues provide superficially, which is essential to protect the peri-implant tissues and stability of the prosthesis.
Researchers in designing an implant must give equal importance to both osseointegration and mucointegration, key parameters for generating stability and creating a mucosal seal around the prosthesis. Research in micro and macro implant topography must be focused on designing successful medical devices, reducing clinical failure.
In summary, the primary objectives for the creation of implant surface changes are as follows:
  • Enhance clinical effectiveness in regions with both qualitative and quantitative bone deficiencies;
  • Speed up the osseointegration process so that immediate or early loading protocols can be addressed;
  • Sncourage bone formation in areas where there is insufficient alveolar ridge to enable the implantation of implants;
  • Properly seal the muco-gingival biological junction in order to prevent bacterial contamination.
Owing to continuous scientific discoveries and innovation, research is extensive and expanding. It is difficult to apply research in vivo; therefore, a long period of control is still necessary before being able to have certain results on patients.

Author Contributions

Conceptualization, A.M.I., L.F., G.D.V., F.I. and F.V.; methodology G.M., L.F., A.D.I., A.M., G.D., A.P. (Andrea Palermo) and A.P. (Assunta Patano); software, A.M.I., G.D.V., F.V., F.I., E.M. and A.P. (Andrea Palermo); validation, G.M., L.F., F.V. and A.M.; formal analysis, A.M.I., G.D.V., A.D.I., F.I. and A.P. (Assunta Patano); investigation, G.M., A.M., C.A. and A.P. (Andrea Palermo); resources, A.D.I., A.M., C.A., G.D., E.M. and A.P. (Andrea Palermo); data curation, G.M., A.D.I., C.A., G.D., E.M. and A.P. (Assunta Patano); writing—original draft preparation, A.M.I., G.M., A.D.I., G.D. and A.P. (Assunta Patano); writing—review and editing, L.F., G.D.V., F.I., E.M. and A.P. (Andrea Palermo); visualization, L.F., G.D.V., C.A. and G.D.; supervision, A.M.I., F.V., A.M., C.A. and F.I.; project administration, G.M., F.V., E.M. and A.P. (Assunta Patano); All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

BICBone implant contact
BMMSCMultipotent mesenchymal stem cells from bone marrow
CaPCalcium phosphate
CGFConcentrated growth factors
CuCopper
DAEDual acid etch
GOGraphene oxide
HFHydrogen fluoride
PEEKPolyetheretherketone
RFAResonance frequency analysis
SASandblasting and acid etching
SEMScanning electron microscopy
SLACoarse-grain blasting and acid etching
TiTitanium
Ti-5CuTitanium-copper alloy
TPSTitanium plasma spray
TNPTitanium nano pores

References

  1. Calabriso, N.; Stanca, E.; Rochira, A.; Damiano, F.; Giannotti, L.; Di Chiara Stanca, B.; Massaro, M.; Scoditti, E.; Demitri, C.; Nitti, P.; et al. Angiogenic Properties of Concentrated Growth Factors (CGFs): The Role of Soluble Factors and Cellular Components. Pharmaceutics 2021, 13, 635. [Google Scholar] [CrossRef] [PubMed]
  2. Colombo, M.; Mangano, C.; Mijiritsky, E.; Krebs, M.; Hauschild, U.; Fortin, T. Clinical Applications and Effectiveness of Guided Implant Surgery: A Critical Review Based on Randomized Controlled Trials. BMC Oral Health 2017, 17, 150. [Google Scholar] [CrossRef]
  3. Osman, R.B.; Swain, M.V. A Critical Review of Dental Implant Materials with an Emphasis on Titanium versus Zirconia. Materials 2015, 8, 932–958. [Google Scholar] [CrossRef]
  4. Khurshid, Z.; Hafeji, S.; Tekin, S.; Habib, S.R.; Ullah, R.; Sefat, F.; Zafar, M.S. 2—Titanium, Zirconia, and Polyetheretherketone (PEEK) as a Dental Implant Material. In Dental Implants; Zafar, M.S., Khurshid, Z., Khan, A.S., Najeeb, S., Sefat, F., Eds.; Woodhead Publishing Series in Biomaterials; Woodhead Publishing: Cambridge, UK, 2020; pp. 5–35. ISBN 978-0-12-819586-4. [Google Scholar]
  5. Gahlert, M.; Burtscher, D.; Grunert, I.; Kniha, H.; Steinhauser, E. Failure Analysis of Fractured Dental Zirconia Implants. Clin. Oral Implant. Res. 2012, 23, 287–293. [Google Scholar] [CrossRef] [PubMed]
  6. Gowda, E.M.; Iyer, S.R.; Verma, K.; Murali Mohan, S. Evaluation of PEEK Composite Dental Implants: A Comparison of Two Different Loading Protocols. J. Dent. Res. Rep. 2018, 1. [Google Scholar] [CrossRef]
  7. Safi, I.N.; Hussein, B.M.A.; Aljudy, H.J.; Tukmachi, M.S. Effects of Long Durations of RF–Magnetron Sputtering Deposition of Hydroxyapatite on Titanium Dental Implants. Eur. J. Dent. 2021, 15, 440–447. [Google Scholar] [CrossRef]
  8. Zhang, W.; Zhang, S.; Liu, H.; Ren, L.; Wang, Q.; Zhang, Y. Effects of Surface Roughening on Antibacterial and Osteogenic Properties of Ti-Cu Alloys with Different Cu Contents. J. Mater. Sci. Technol. 2021, 88, 158–167. [Google Scholar] [CrossRef]
  9. Gao, X.; Fraulob, M.; Haïat, G. Biomechanical Behaviours of the Bone–Implant Interface: A Review. J. R. Soc. Interface 2019, 16, 20190259. [Google Scholar] [CrossRef]
  10. Jain, R.; Kapoor, D. The Dynamic Interface: A Review. J. Int. Soc. Prev. Community Dent. 2015, 5, 354. [Google Scholar] [CrossRef]
  11. Velloso, G.; Moraschini, V.; Dos Santos Porto Barboza, E. Hydrophilic Modification of Sandblasted and Acid-Etched Implants Improves Stability during Early Healing: A Human Double-Blind Randomized Controlled Trial. Int. J. Oral Maxillofac. Surg. 2019, 48, 684–690. [Google Scholar] [CrossRef]
  12. Elias, C.N. Factors Affecting the Success of Dental Implants; IntechOpen: London, UK, 2011; ISBN 978-953-307-658-4. [Google Scholar]
  13. Silva, E.; Félix, S.; Rodriguez-Archilla, A.; Oliveira, P.; Martins dos Santos, J. Revisiting Peri-Implant Soft Tissue—Histopathological Study of the Peri-Implant Soft Tissue. Int. J. Clin. Exp. Pathol. 2014, 7, 611–618. [Google Scholar] [PubMed]
  14. Moon, I.-S.; Berglundh, T.; Abrahamsson, I.; Linder, E.; Lindhe, J. The Barrier between the Keratinized Mucosa and the Dental Implant. J. Clin. Periodontol. 1999, 26, 658–663. [Google Scholar] [CrossRef] [PubMed]
  15. Barberi, J.; Spriano, S. Titanium and Protein Adsorption: An Overview of Mechanisms and Effects of Surface Features. Materials 2021, 14, 1590. [Google Scholar] [CrossRef] [PubMed]
  16. Parithimarkalaignan, S.; Padmanabhan, T.V. Osseointegration: An Update. J. Indian Prosthodont. Soc. 2013, 13, 2–6. [Google Scholar] [CrossRef] [PubMed]
  17. Rausch, M.A.; Shokoohi-Tabrizi, H.; Wehner, C.; Pippenger, B.E.; Wagner, R.S.; Ulm, C.; Moritz, A.; Chen, J.; Andrukhov, O. Impact of Implant Surface Material and Microscale Roughness on the Initial Attachment and Proliferation of Primary Human Gingival Fibroblasts. Biology 2021, 10, 356. [Google Scholar] [CrossRef] [PubMed]
  18. Gittens, R.A.; Scheideler, L.; Rupp, F.; Hyzy, S.L.; Geis-Gerstorfer, J.; Schwartz, Z.; Boyan, B.D. A Review on the Wettability of Dental Implant Surfaces II: Biological and Clinical Aspects. Acta Biomater. 2014, 10, 2907–2918. [Google Scholar] [CrossRef]
  19. Webb, K.; Hlady, V.; Tresco, P.A. Relative Importance of Surface Wettability and Charged Functional Groups on NIH 3T3 Fibroblast Attachment, Spreading, and Cytoskeletal Organization. J. Biomed. Mater. Res. 1998, 41, 422–430. [Google Scholar] [CrossRef]
  20. Nychka, J.; Gentleman, M. Implications of Wettability in Biological Materials Science. JOM 2010, 62, 39–48. [Google Scholar] [CrossRef]
  21. Albertini, M.; Fernandez-Yague, M.; Lázaro, P.; Herrero-Climent, M.; Rios-Santos, J.-V.; Bullon, P.; Gil, F.-J. Advances in Surfaces and Osseointegration in Implantology. Biomimetic Surfaces. Med. Oral Patol. Oral Cir. Bucal. 2015, 20, e316–e325. [Google Scholar] [CrossRef]
  22. Hong, J.; Kurt, S.; Thor, A. A Hydrophilic Dental Implant Surface Exhibit Thrombogenic Properties In Vitro. Clin. Implant. Dent. Relat. Res. 2013, 15, 105–112. [Google Scholar] [CrossRef]
  23. Yu, Z.; Liu, L.; Deng, Y.; Zhang, X.; Yu, C. Study on the Blood Flow Characteristics of Venous Needle Retention with Different Super-Hydrophobic Surface Structures. Med. Biol. Eng. Comput. 2023, 61, 867–874. [Google Scholar] [CrossRef]
  24. Traini, T.; Murmura, G.; Sinjari, B.; Perfetti, G.; Scarano, A.; D’Arcangelo, C.; Caputi, S. The Surface Anodization of Titanium Dental Implants Improves Blood Clot Formation Followed by Osseointegration. Coatings 2018, 8, 252. [Google Scholar] [CrossRef]
  25. Lotz, E.M.; Berger, M.B.; Schwartz, Z.; Boyan, B.D. Regulation of Osteoclasts by Osteoblast Lineage Cells Depends on Titanium Implant Surface Properties. Acta Biomater. 2018, 68, 296–307. [Google Scholar] [CrossRef]
  26. Inchingolo, F.; Tatullo, M.; Marrelli, M.; Inchingolo, A.M.; Scacco, S.; Inchingolo, A.; Dipalma, G.; Vermesan, D.; Abbinante, A.; Cagiano, R. Trial with Platelet-Rich Fibrin and Bio-Oss Used as Grafting Materials in the Treatment of the Severe Maxillar Bone Atrophy: Clinical and Radiological Evaluations. Eur. Rev. Med. Pharmacol. Sci. 2010, 14, 1075–1084. [Google Scholar]
  27. Tatullo, M.; Marrelli, M.; Cassetta, M.; Pacifici, A.; Stefanelli, L.V.; Scacco, S.; Dipalma, G.; Pacifici, L.; Inchingolo, F. Platelet Rich Fibrin (P.R.F.) in Reconstructive Surgery of Atrophied Maxillary Bones: Clinical and Histological Evaluations. Int. J. Med. Sci. 2012, 9, 872–880. [Google Scholar] [CrossRef]
  28. Minetti, E.; Gianfreda, F.; Palermo, A.; Bollero, P. Autogenous Dentin Particulate Graft for Alveolar Ridge Augmentation with and without Use of Collagen Membrane: Preliminary Histological Analysis on Humans. Materials 2022, 15, 4319. [Google Scholar] [CrossRef]
  29. Redžepagić-Vražalica, L.; Mešić, E.; Pervan, N.; Hadžiabdić, V.; Delić, M.; Glušac, M. Impact of Implant Design and Bone Properties on the Primary Stability of Orthodontic Mini-Implants. Appl. Sci. 2021, 11, 1183. [Google Scholar] [CrossRef]
  30. Ivanova, V.; Chenchev, I.; Zlatev, S.; Mijiritsky, E. Correlation between Primary, Secondary Stability, Bone Density, Percentage of Vital Bone Formation and Implant Size. Int. J. Environ. Res. Public Health 2021, 18, 6994. [Google Scholar] [CrossRef]
  31. Palermo, A.; Giannotti, L.; Di Chiara Stanca, B.; Ferrante, F.; Gnoni, A.; Nitti, P.; Calabriso, N.; Demitri, C.; Damiano, F.; Batani, T.; et al. Use of CGF in Oral and Implant Surgery: From Laboratory Evidence to Clinical Evaluation. Int. J. Mol. Sci. 2022, 23, 15164. [Google Scholar] [CrossRef]
  32. Simonpieri, A.; Del Corso, M.; Vervelle, A.; Jimbo, R.; Inchingolo, F.; Sammartino, G.; Dohan Ehrenfest, D.M. Current Knowledge and Perspectives for the Use of Platelet-Rich Plasma (PRP) and Platelet-Rich Fibrin (PRF) in Oral and Maxillofacial Surgery Part 2: Bone Graft, Implant and Reconstructive Surgery. Curr. Pharm. Biotechnol. 2012, 13, 1231–1256. [Google Scholar] [CrossRef]
  33. Tchinda, A.P.; Pierson, G.; Kouitat-Njiwa, R.; Bravetti, P. The Surface Conditions and Composition of Titanium Alloys in Implantology: A Comparative Study of Dental Implants of Different Brands. Materials 2022, 15, 1018. [Google Scholar] [CrossRef] [PubMed]
  34. Dimonte, M.; Inchingolo, F.; Dipalma, G.; Stefanelli, M. Maxillary sinus lift in conjunction with endosseous implants. A long-term follow-up scintigraphic study. Minerva Stomatol. 2002, 51, 161–165. [Google Scholar] [PubMed]
  35. Matsuo, Y.; Ogawa, T.; Yamamoto, M.; Shibamoto, A.; Sáenz, J.R.V.; Yokoyama, M.; Kanda, Y.; Toyohara, J.; Sasaki, K. Evaluation of Peri-Implant Bone Metabolism under Immediate Loading Using High-Resolution Na18F-PET. Clin. Oral Investig. 2017, 21, 2029–2037. [Google Scholar] [CrossRef] [PubMed]
  36. Jeon, J.-H.; Kim, M.-J.; Yun, P.-Y.; Jo, D.-W.; Kim, Y.-K. Randomized Clinical Trial to Evaluate the Efficacy and Safety of Two Types of Sandblasted with Large-Grit and Acid-Etched Surface Implants with Different Surface Roughness. J. Korean Assoc. Oral Maxillofac. Surg. 2022, 48, 225–231. [Google Scholar] [CrossRef] [PubMed]
  37. Bavetta, G.; Bavetta, G.; Randazzo, V.; Cavataio, A.; Paderni, C.; Grassia, V.; Dipalma, G.; Isacco, C.G.; Scarano, A.; Vito, D.D.; et al. A Retrospective Study on Insertion Torque and Implant Stability Quotient (ISQ) as Stability Parameters for Immediate Loading of Implants in Fresh Extraction Sockets. BioMed Res. Int. 2019, 2019, 9720419. [Google Scholar] [CrossRef]
  38. Bereznai, M.; Pelsöczi, I.; Tóth, Z.; Turzó, K.; Radnai, M.; Bor, Z.; Fazekas, A. Surface Modifications Induced by Ns and Sub-Ps Excimer Laser Pulses on Titanium Implant Material. Biomaterials 2003, 24, 4197–4203. [Google Scholar] [CrossRef]
  39. Scarano, A.; Khater, A.G.A.; Gehrke, S.A.; Serra, P.; Francesco, I.; Di Carmine, M.; Tari, S.R.; Leo, L.; Lorusso, F. Current Status of Peri-Implant Diseases: A Clinical Review for Evidence-Based Decision Making. J. Funct. Biomater. 2023, 14, 210. [Google Scholar] [CrossRef]
  40. Converti, I.; Palermo, A.; Mancini, A.; Maggiore, M.E.; Tartaglia, G.M.; Ferrara, E.; Vecchiet, F.; Lorusso, F.; Scarano, A.; Bordea, I.R.; et al. Chewing and Cognitive Performance: What We Know. J. Biol. Regul. Homeost. Agents 2022, 36, 193–204. [Google Scholar] [CrossRef]
  41. Coccia, M. Probability of Discoveries between Research Fields to Explain Scientific and Technological Change. Technol. Soc. 2022, 68, 101874. [Google Scholar] [CrossRef]
  42. Converti, I.; Palermo, A.; Mancini, A.; Maggiore, M.E.; Ferrara, E.; Vecchiet, F.; Sforza, C.; Maspero, C.; Farronato, M.; Cagetti, M.G.; et al. The Effects of Physical Exercise on the Brain and Oral Health. J. Biol. Regul. Homeost. Agents 2022, 36, 425–437. [Google Scholar]
  43. Bielemann, A.M.; Schuster, A.J.; da Rosa Possebon, A.P.; Schinestsck, A.R.; Chagas-Junior, O.L.; Faot, F. Clinical Performance of Narrow-Diameter Implants with Hydrophobic and Hydrophilic Surfaces with Mandibular Implant Overdentures: 1-Year Results of a Randomized Clinical Trial. Clin. Oral Implant. Res. 2022, 33, 21–32. [Google Scholar] [CrossRef]
  44. Gursoytrak, B.; Ataoglu, H. Use of Resonance Frequency Analysis to Evaluate the Effects of Surface Properties on the Stability of Different Implants. Clin. Oral Implant. Res. 2020, 31, 239–245. [Google Scholar] [CrossRef]
  45. Hasegawa, M.; Saruta, J.; Hirota, M.; Taniyama, T.; Sugita, Y.; Kubo, K.; Ishijima, M.; Ikeda, T.; Maeda, H.; Ogawa, T. A Newly Created Meso-, Micro-, and Nano-Scale Rough Titanium Surface Promotes Bone-Implant Integration. Int. J. Mol. Sci. 2020, 21, 783. [Google Scholar] [CrossRef]
  46. Ko, K.-A.; Kim, S.; Choi, S.-H.; Lee, J.-S. Randomized Controlled Clinical Trial on Calcium Phosphate Coated and Conventional SLA Surface Implants: 1-Year Study on Survival Rate and Marginal Bone Level. Clin. Implant. Dent. Relat. Res. 2019, 21, 995–1001. [Google Scholar] [CrossRef]
  47. Körmöczi, K.; Komlós, G.; Papócsi, P.; Horváth, F.; Joób-Fancsaly, Á. The Early Loading of Different Surface-Modified Implants: A Randomized Clinical Trial. BMC Oral Health 2021, 21, 207. [Google Scholar] [CrossRef]
  48. Chauhan, P.; Koul, V.; Bhatnagar, N. Critical Role of Etching Parameters in the Evolution of Nano Micro SLA Surface on the Ti6Al4V Alloy Dental Implants. Materials 2021, 14, 6344. [Google Scholar] [CrossRef]
  49. Gavinho, S.R.; Pádua, A.S.; Sá-Nogueira, I.; Silva, J.C.; Borges, J.P.; Costa, L.C.; Graça, M.P.F. Biocompatibility, Bioactivity, and Antibacterial Behaviour of Cerium-Containing Bioglass®. Nanomaterials 2022, 12, 4479. [Google Scholar] [CrossRef]
  50. Schupbach, P.; Glauser, R.; Bauer, S. Al2O3 Particles on Titanium Dental Implant Systems Following Sandblasting and Acid-Etching Process. Int. J. Biomater. 2019, 2019, e6318429. [Google Scholar] [CrossRef]
  51. Lorusso, F.; Conte, R.; Inchingolo, F.; Festa, F.; Scarano, A. Survival Rate of Zygomatic Implants for Fixed Oral Maxillary Rehabilitations: A Systematic Review and Meta-Analysis Comparing Outcomes between Zygomatic and Regular Implants. Dent. J. 2021, 9, 38. [Google Scholar] [CrossRef]
  52. Williams, J.C.; Boyer, R.R. Opportunities and Issues in the Application of Titanium Alloys for Aerospace Components. Metals 2020, 10, 705. [Google Scholar] [CrossRef]
  53. Zhou, J.; Wang, X.; Zhao, L. Antibacterial, Angiogenic, and Osteogenic Activities of Ca, P, Co, F, and Sr Compound Doped Titania Coatings with Different Sr Content. Sci. Rep. 2019, 9, 14203. [Google Scholar] [CrossRef] [PubMed]
  54. Llor, C.; Bjerrum, L. Antimicrobial Resistance: Risk Associated with Antibiotic Overuse and Initiatives to Reduce the Problem. Ther. Adv. Drug. Saf. 2014, 5, 229–241. [Google Scholar] [CrossRef]
  55. López-Valverde, N.; Macedo-de-Sousa, B.; López-Valverde, A.; Ramírez, J.M. Effectiveness of Antibacterial Surfaces in Osseointegration of Titanium Dental Implants: A Systematic Review. Antibiotics 2021, 10, 360. [Google Scholar] [CrossRef] [PubMed]
  56. Sindeeva, O.A.; Prikhozhdenko, E.S.; Schurov, I.; Sedykh, N.; Goriainov, S.; Karamyan, A.; Mordovina, E.A.; Inozemtseva, O.A.; Kudryavtseva, V.; Shchesnyak, L.E.; et al. Patterned Drug-Eluting Coatings for Tracheal Stents Based on PLA, PLGA, and PCL for the Granulation Formation Reduction: In Vivo Studies. Pharmaceutics 2021, 13, 1437. [Google Scholar] [CrossRef] [PubMed]
  57. Inchingolo, A.M.; Malcangi, G.; Inchingolo, A.D.; Mancini, A.; Palmieri, G.; Di Pede, C.; Piras, F.; Inchingolo, F.; Dipalma, G.; Patano, A. Potential of Graphene-Functionalized Titanium Surfaces for Dental Implantology: Systematic Review. Coatings 2023, 13, 725. [Google Scholar] [CrossRef]
  58. Inchingolo, A.D.; Inchingolo, A.M.; Bordea, I.R.; Xhajanka, E.; Romeo, D.M.; Romeo, M.; Zappone, C.M.F.; Malcangi, G.; Scarano, A.; Lorusso, F.; et al. The Effectiveness of Osseodensification Drilling Protocol for Implant Site Osteotomy: A Systematic Review of the Literature and Meta-Analysis. Materials 2021, 14, 1147. [Google Scholar] [CrossRef]
  59. Hazballa, D.; Inchingolo, A.; Inchingolo, A.M.; Malcangi, G.; Santacroce, L.; Minetti, E.; Di Venere, D.; Limongelli, L.; Bordea, I.; Scarano, A.; et al. The Effectiveness of Autologous Demineralized Tooth Graft for the Bone Ridge Preservation: A Systematic Review of the Literature. J. Biol. Regul. Homeost. Agents 2021, 35, 283–294. [Google Scholar] [CrossRef]
  60. Smeets, R.; Stadlinger, B.; Schwarz, F.; Beck-Broichsitter, B.; Jung, O.; Precht, C.; Kloss, F.; Gröbe, A.; Heiland, M.; Ebker, T. Impact of Dental Implant Surface Modifications on Osseointegration. BioMed Res. Int. 2016, 2016, 6285620. [Google Scholar] [CrossRef]
  61. Asensio, G.; Vázquez-Lasa, B.; Rojo, L. Achievements in the Topographic Design of Commercial Titanium Dental Implants: Towards Anti-Peri-Implantitis Surfaces. J. Clin. Med. 2019, 8, 1982. [Google Scholar] [CrossRef]
  62. Jemat, A.; Ghazali, M.J.; Razali, M.; Otsuka, Y. Surface Modifications and Their Effects on Titanium Dental Implants. BioMed Res. Int. 2015, 2015, 791725. [Google Scholar] [CrossRef]
  63. Park, C.-J.; Lim, J.H.; Tallarico, M.; Hwang, K.-G.; Choi, H.; Cho, G.-J.; Kim, C.; Jang, I.-S.; Song, J.-D.; Kwon, A.M.; et al. Coating of a Sand-Blasted and Acid-Etched Implant Surface with a PH-Buffering Agent after Vacuum-UV Photofunctionalization. Coatings 2020, 10, 1040. [Google Scholar] [CrossRef]
  64. Stavropoulos, A.; Bertl, K.; Winning, L.; Polyzois, I. What Is the Influence of Implant Surface Characteristics and/or Implant Material on the Incidence and Progression of Peri-Implantitis? A Systematic Literature Review. Clin. Oral Implant. Res. 2021, 32, 203–229. [Google Scholar] [CrossRef]
  65. Lorusso, F.; Mastrangelo, F.; Inchingolo, F.; Mortellaro, C.; Scarano, A. In Vitro Interface Changes of Two vs Three Narrow-Diameter Dental Implants for Screw-Retained Bar under Fatigue Loading Test. J. Biol. Regul. Homeost. Agents 2019, 33, 115–120. [Google Scholar]
  66. Medvedev, A.E.; Ng, H.P.; Lapovok, R.; Estrin, Y.; Lowe, T.C.; Anumalasetty, V.N. Effect of Bulk Microstructure of Commercially Pure Titanium on Surface Characteristics and Fatigue Properties after Surface Modification by Sand Blasting and Acid-Etching. J. Mech. Behav. Biomed. Mater. 2016, 57, 55–68. [Google Scholar] [CrossRef]
  67. Finger, C.; Stiesch, M.; Eisenburger, M.; Breidenstein, B.; Busemann, S.; Greuling, A. Effect of Sandblasting on the Surface Roughness and Residual Stress of 3Y-TZP (Zirconia). SN Appl. Sci. 2020, 2, 1700. [Google Scholar] [CrossRef]
  68. Velasco-Ortega, E.; Alfonso-Rodríguez, C.A.; Monsalve-Guil, L.; España-López, A.; Jiménez-Guerra, A.; Garzón, I.; Alaminos, M.; Gil, F.J. Relevant Aspects in the Surface Properties in Titanium Dental Implants for the Cellular Viability. Mater. Sci. Eng. C 2016, 64, 1–10. [Google Scholar] [CrossRef]
  69. Giner, L.; Mercadé, M.; Torrent, S.; Punset, M.; Pérez, R.A.; Delgado, L.M.; Gil, F.J. Double Acid Etching Treatment of Dental Implants for Enhanced Biological Properties. J. Appl. Biomater. Funct. Mater. 2018, 16, 83–89. [Google Scholar] [CrossRef]
  70. Rapone, B.; Inchingolo, A.D.; Trasarti, S.; Ferrara, E.; Qorri, E.; Mancini, A.; Montemurro, N.; Scarano, A.; Inchingolo, A.M.; Dipalma, G.; et al. Long-Term Outcomes of Implants Placed in Maxillary Sinus Floor Augmentation with Porous Fluorohydroxyapatite (Algipore® FRIOS®) in Comparison with Anorganic Bovine Bone (Bio-Oss®) and Platelet Rich Plasma (PRP): A Retrospective Study. J. Clin. Med. 2022, 11, 2491. [Google Scholar] [CrossRef]
  71. Steller, D.; Simon, R.; Bialy, R.V.; Pries, R.; Hakim, S.G. Impact of Zoledronic Acid and Denosumab Treatment on Growth Factor Concentration in Platelet Rich Fibrin of Patients With Osteolytic Bone Metastases. Anticancer Res. 2021, 41, 3917–3923. [Google Scholar] [CrossRef]
  72. Lazzara, R.J.; Testori, T.; Trisi, P.; Porter, S.S.; Weinstein, R.L. A Human Histologic Analysis of Osseotite and Machined Surfaces Using Implants with 2 Opposing Surfaces. Int. J. Periodontics Restor. Dent. 1999, 19, 117–129. [Google Scholar]
  73. Gulati, K.; Moon, H.-J.; Li, T.; Sudheesh Kumar, P.T.; Ivanovski, S. Titania Nanopores with Dual Micro-/Nano-Topography for Selective Cellular Bioactivity. Mater. Sci. Eng. C 2018, 91, 624–630. [Google Scholar] [CrossRef] [PubMed]
  74. Jayasree, A.; Raveendran, N.T.; Guo, T.; Ivanovski, S.; Gulati, K. Electrochemically Nano-Engineered Titanium: Influence of Dual Micro-Nanotopography of Anisotropic Nanopores on Bioactivity and Antimicrobial Activity. Mater. Today Adv. 2022, 15, 100256. [Google Scholar] [CrossRef]
  75. Alipal, J.; Lee, T.C.; Koshy, P.; Abdullah, H.Z.; Idris, M.I. Evolution of Anodised Titanium for Implant Applications. Heliyon 2021, 7, e07408. [Google Scholar] [CrossRef] [PubMed]
  76. Yao, C.; Webster, T. Anodization: A Promising Nano-Modification Technique of Titanium Implants for Orthopedic Applications. J. Nanosci. Nanotechnol. 2006, 6, 2682–2692. [Google Scholar] [CrossRef] [PubMed]
  77. Kozelskaya, A.I.; Rutkowski, S.; Frueh, J.; Gogolev, A.S.; Chistyakov, S.G.; Gnedenkov, S.V.; Sinebryukhov, S.L.; Frueh, A.; Egorkin, V.S.; Choynzonov, E.L.; et al. Surface Modification of Additively Fabricated Titanium-Based Implants by Means of Bioactive Micro-Arc Oxidation Coatings for Bone Replacement. J. Funct. Biomater. 2022, 13, 285. [Google Scholar] [CrossRef]
  78. Eftekhar Ashtiani, R.; Alam, M.; Tavakolizadeh, S.; Abbasi, K. The Role of Biomaterials and Biocompatible Materials in Implant-Supported Dental Prosthesis. Evid. Based Complement. Altern. Med. 2021, 2021, e3349433. [Google Scholar] [CrossRef]
  79. Gauthier, O.; Müller, R.; von Stechow, D.; Lamy, B.; Weiss, P.; Bouler, J.-M.; Aguado, E.; Daculsi, G. In Vivo Bone Regeneration with Injectable Calcium Phosphate Biomaterial: A Three-Dimensional Micro-Computed Tomographic, Biomechanical and SEM Study. Biomaterials 2005, 26, 5444–5453. [Google Scholar] [CrossRef]
  80. López-Valverde, N.; Aragoneses, J.; López-Valverde, A.; Rodríguez, C.; Sousa, B.; Aragoneses, J. Role of Chitosan in Titanium Coatings. Trends and New Generations of Coatings. Front. Bioeng. Biotechnol. 2022, 10, 907589. [Google Scholar] [CrossRef]
  81. Thorat Gadgil, B.S.; Killi, N.; Rathna, G.V.N. Polyhydroxyalkanoates as Biomaterials. MedChemComm 2017, 8, 1774–1787. [Google Scholar] [CrossRef]
  82. Dalton, B.; Bhagabati, P.; De Micco, J.; Padamati, R.B.; O’Connor, K. A Review on Biological Synthesis of the Biodegradable Polymers Polyhydroxyalkanoates and the Development of Multiple Applications. Catalysts 2022, 12, 319. [Google Scholar] [CrossRef]
  83. Inchingolo, A.D.; Inchingolo, A.M.; Malcangi, G.; Avantario, P.; Azzollini, D.; Buongiorno, S.; Viapiano, F.; Campanelli, M.; Ciocia, A.M.; De Leonardis, N.; et al. Effects of Resveratrol, Curcumin and Quercetin Supplementation on Bone Metabolism—A Systematic Review. Nutrients 2022, 14, 3519. [Google Scholar] [CrossRef]
  84. Scarano, A.; Assenza, B.; Inchingolo, F.; Mastrangelo, F.; Lorusso, F. New Implant Design with Midcrestal and Apical Wing Thread for Increased Implant Stability in Single Postextraction Maxillary Implant. Case Rep. Dent. 2019, 2019, 9529248. [Google Scholar] [CrossRef]
  85. Comuzzi, L.; Tumedei, M.; Romasco, T.; Petrini, M.; Afrashtehfar, K.I.; Inchingolo, F.; Piattelli, A.; Di Pietro, N. Insertion Torque, Removal Torque, and Resonance Frequency Analysis Values of Ultrashort, Short, and Standard Dental Implants: An In Vitro Study on Polyurethane Foam Sheets. J. Funct. Biomater. 2023, 14, 10. [Google Scholar] [CrossRef]
  86. Ciosek, Ż.; Kot, K.; Kosik-Bogacka, D.; Łanocha-Arendarczyk, N.; Rotter, I. The Effects of Calcium, Magnesium, Phosphorus, Fluoride, and Lead on Bone Tissue. Biomolecules 2021, 11, 506. [Google Scholar] [CrossRef]
  87. Mavriqi, L.; Lorusso, F.; Tartaglia, G.; Inchingolo, F.; Scarano, A. Transinusal Pathway Removal of an Impacted Third Molar with an Unusual Approach: A Case Report and a Systematic Review of the Literature. Antibiotics 2022, 11, 658. [Google Scholar] [CrossRef]
  88. Everett, E.T. Fluoride’s Effects on the Formation of Teeth and Bones, and the Influence of Genetics. J. Dent. Res. 2011, 90, 552–560. [Google Scholar] [CrossRef]
  89. Li, Q.; Wang, Z. Involvement of FAK/P38 Signaling Pathways in Mediating the Enhanced Osteogenesis Induced by Nano-Graphene Oxide Modification on Titanium Implant Surface. Int. J. Nanomed. 2020, 15, 4659–4676. [Google Scholar] [CrossRef]
  90. Lorusso, F.; Inchingolo, F.; Greco Lucchina, A.; Scogna, G.; Scarano, A. Graphene-Doped Poly(Methyl-Methacrylate) as an Enhanced Biopolymer for Medical Device and Dental Implant. J. Biol. Regul. Homeost. Agents 2021, 35, 195–204. [Google Scholar] [CrossRef]
  91. Ma, S.; Luo, X.; Ran, G.; Zhou, Z.; Xie, J.; Li, Y.; Li, X.; Yan, J.; Cai, W.; Wang, L. Copper Stabilized Bimetallic Alloy Cu–Bi by Convenient Strategy Fabrication: A Novel Fenton-like and Photothermal Synergistic Antibacterial Platform. J. Clean. Prod. 2022, 336, 130431. [Google Scholar] [CrossRef]
  92. Liu, J.; Li, F.; Liu, C.; Wang, H.; Ren, B.; Yang, K.; Zhang, E. Effect of Cu Content on the Antibacterial Activity of Titanium–Copper Sintered Alloys. Mater. Sci. Eng. C 2014, 35, 392–400. [Google Scholar] [CrossRef]
  93. Su, Y.; Cappock, M.; Dobres, S.; Kucine, A.J.; Waltzer, W.C.; Zhu, D. Supplemental Mineral Ions for Bone Regeneration and Osteoporosis Treatment. Eng. Regen. 2023, 4, 170–182. [Google Scholar] [CrossRef]
  94. Zhao, X.; Zhou, X.; Sun, H.; Shi, H.; Song, Y.; Wang, Q.; Zhang, G.; Xu, D. 3D Printed Ti-5Cu Alloy Accelerates Osteogenic Differentiation of MC3T3-E1 Cells by Stimulating the M2 Phenotype Polarization of Macrophages. Front. Immunol. 2022, 13, 1001526. [Google Scholar] [CrossRef] [PubMed]
  95. De Avila, E.D.; van Oirschot, B.A.; van den Beucken, J.J.J.P. Biomaterial-based Possibilities for Managing Peri-implantitis. J. Periodontal Res. 2020, 55, 165–173. [Google Scholar] [CrossRef] [PubMed]
  96. Prathapachandran, J.; Suresh, N. Management of Peri-Implantitis. Dent. Res. J. 2012, 9, 516–521. [Google Scholar] [CrossRef]
  97. Lorusso, F.; Tartaglia, G.; Inchingolo, F.; Scarano, A. Peri-Implant Mucositis Treatment with a Chlorexidine Gel with A.D.S. 0.5%, PVP-VA and Sodium DNA vs. a Placebo Gel: A Randomized Controlled Pilot Clinical Trial. Front. Biosci. 2022, 14, 30. [Google Scholar] [CrossRef]
  98. Scarano, A.; Inchingolo, F.; Scogna, S.; Leo, L.; Greco Lucchina, A.; Mavriqi, L. Peri-Implant Disease Caused by Residual Cement around Implant-Supported Restorations: A Clinical Report. J. Biol. Regul. Homeost. Agents 2021, 35, 211–216. [Google Scholar] [CrossRef]
  99. Osman, M.A.; Alamoush, R.A.; Kushnerev, E.; Seymour, K.G.; Watts, D.C.; Yates, J.M. Biological Response of Epithelial and Connective Tissue Cells to Titanium Surfaces with Different Ranges of Roughness: An in-Vitro Study. Dent. Mater. 2022, 38, 1777–1788. [Google Scholar] [CrossRef]
  100. Libonati, A.; Marzo, G.; Klinger, F.G.; Farini, D.; Gallusi, G.; Tecco, S.; Mummolo, S.; De Felici, M.; Campanella, V. Embryotoxicity Assays for Leached Components from Dental Restorative Materials. Reprod. Biol. Endocrinol. 2011, 9, 136. [Google Scholar] [CrossRef]
  101. Kim, J.-J.; Lee, J.-H.; Kim, J.C.; Lee, J.-B.; Yeo, I.-S.L. Biological Responses to the Transitional Area of Dental Implants: Material- and Structure-Dependent Responses of Peri-Implant Tissue to Abutments. Materials 2019, 13, 72. [Google Scholar] [CrossRef]
  102. Schmitz, S.I.; Widholz, B.; Essers, C.; Becker, M.; Tulyaganov, D.U.; Moghaddam, A.; Gonzalo de Juan, I.; Westhauser, F. Superior Biocompatibility and Comparable Osteoinductive Properties: Sodium-Reduced Fluoride-Containing Bioactive Glass Belonging to the CaO–MgO–SiO2 System as a Promising Alternative to 45S5 Bioactive Glass. Bioact. Mater. 2020, 5, 55–65. [Google Scholar] [CrossRef]
  103. Lokwani, B.V.; Gupta, D.; Agrawal, R.S.; Mehta, S.; Nirmal, N.J. The Use of Concentrated Growth Factor in Dental Implantology: A Systematic Review. J. Indian Prosthodont. Soc. 2020, 20, 3–10. [Google Scholar] [CrossRef]
  104. Mummolo, S.; Mancini, L.; Quinzi, V.; D’Aquino, R.; Marzo, G.; Marchetti, E. Rigenera® Autologous Micrografts in Oral Regeneration: Clinical, Histological, and Radiographical Evaluations. Appl. Sci. 2020, 10, 5084. [Google Scholar] [CrossRef]
  105. Bielemann, A.M.; Marcello-Machado, R.M.; Leite, F.R.M.; Martinho, F.C.; Chagas-Júnior, O.L.; Antoninha Del Bel Cury, A.; Faot, F. Comparison between Inflammation-Related Markers in Peri-Implant Crevicular Fluid and Clinical Parameters during Osseointegration in Edentulous Jaws. Clin. Oral Investig. 2018, 22, 531–543. [Google Scholar] [CrossRef]
  106. Tranquillo, E.; Bollino, F. Surface Modifications for Implants Lifetime Extension: An Overview of Sol-Gel Coatings. Coatings 2020, 10, 589. [Google Scholar] [CrossRef]
  107. Palermo, A.; Minetti, E.; Bellinvia, C.G.; Ferronato, D.; Conte, E. Full Arch Immediate Loading in the Upper Jaw. Dent. Cadmos 2010, 78, 89–98. [Google Scholar]
  108. Yazici, H.; Fong, H.; Wilson, B.; Oren, E.E.; Amos, F.A.; Zhang, H.; Evans, J.S.; Snead, M.L.; Sarikaya, M.; Tamerler, C. Biological Response on a Titanium Implant-Grade Surface Functionalized with Modular Peptides. Acta Biomater. 2013, 9, 5341–5352. [Google Scholar] [CrossRef]
  109. Tumedei, M.; Piattelli, A.; Degidi, M.; Mangano, C.; Iezzi, G. A Narrative Review of the Histological and Histomorphometrical Evaluation of the Peri-Implant Bone in Loaded and Unloaded Dental Implants. A 30-Year Experience (1988–2018). Int. J. Environ. Res. Public Health 2020, 17, 2088. [Google Scholar] [CrossRef]
  110. Alla, I.; Lorusso, F.; Gehrke, S.A.; Inchingolo, F.; Di Carmine, M.; Scarano, A. Implant Survival in Patients with Chronic Kidney Disease: A Case Report and Systematic Review of the Literature. Int. J. Environ. Res. Public Health 2023, 20, 2401. [Google Scholar] [CrossRef]
  111. DENTAL SUPPLEMENT; Minetti, E.; Palermo, A.; Savadori, P.; Barlattani, A.; Franco, R.; Michele, M.; Gianfreda, F.; Bollero, P. Autologous Tooth Graft: A Histological Comparison between Dentin Mixed with Xenograft and Dentin Alone Grafts in Socket Preservation. J. Biol. Regul. Homeost. Agents 2019, 33, 189–197. [Google Scholar]
Jfb 14 00287 g001 550
Figure 1. Fibrin implant wettability. The hydrophobe surface shows poor wettability, unlike the hydrophile one with good wettability. The red arrow indicates the magnitude of liquid permeability on the surface of the implant.
Figure 1. Fibrin implant wettability. The hydrophobe surface shows poor wettability, unlike the hydrophile one with good wettability. The red arrow indicates the magnitude of liquid permeability on the surface of the implant.
Jfb 14 00287 g001
Jfb 14 00287 g002 550
Figure 2. Good implant wettability: As soon as the implant is inserted into the bone, there is immediate blood–fixture contact. Blood is attracted to the implant surface.
Figure 2. Good implant wettability: As soon as the implant is inserted into the bone, there is immediate blood–fixture contact. Blood is attracted to the implant surface.
Jfb 14 00287 g002
Jfb 14 00287 g003 550
Figure 3. Fibrin adhesion to the implant surface.
Figure 3. Fibrin adhesion to the implant surface.
Jfb 14 00287 g003
Jfb 14 00287 g004 550
Figure 4. Schematic image of the implant–bone interface.
Figure 4. Schematic image of the implant–bone interface.
Jfb 14 00287 g004
Jfb 14 00287 g005 550
Figure 5. PRISMA flow chart.
Figure 5. PRISMA flow chart.
Jfb 14 00287 g005
Jfb 14 00287 g006 550
Figure 6. Summary diagram of implant surface treatments. The diagram shows how the hydrophilic property of the implant surfaces (treated and hybrid) lends itself better than the hydrophobic surfaces (machined and smooth) to further treatments to improve their general characteristics.
Figure 6. Summary diagram of implant surface treatments. The diagram shows how the hydrophilic property of the implant surfaces (treated and hybrid) lends itself better than the hydrophobic surfaces (machined and smooth) to further treatments to improve their general characteristics.
Jfb 14 00287 g006
Jfb 14 00287 g007 550
Figure 7. Electron microscopy detail of a smooth (hydrophobe) and a rough (hydrophile) implant surface, with re-wetting percentages. The hydrophilic surface has a higher BIC percentage than the hydrophobic surface.
Figure 7. Electron microscopy detail of a smooth (hydrophobe) and a rough (hydrophile) implant surface, with re-wetting percentages. The hydrophilic surface has a higher BIC percentage than the hydrophobic surface.
Jfb 14 00287 g007
Jfb 14 00287 g008 550
Figure 8. Difference in implant bone contact in conditions of implant good health (B) and during peri-implantitis disease (A).
Figure 8. Difference in implant bone contact in conditions of implant good health (B) and during peri-implantitis disease (A).
Jfb 14 00287 g008
Table
Table 1. Database search indicators.
Table 1. Database search indicators.
Articles’ Screening Strategy
KEYWORDS: A: different dental implant surface; B: osseointegration.
Boolean Indicators: A AND B.
Timespan: 2019–2023.
Electronic databases: Pubmed; Scopus; WOS.
Table
Table 2. Characteristics of the in vivo studies included in the qualitative analysis.
Table 2. Characteristics of the in vivo studies included in the qualitative analysis.
Authors (Year)Type of the StudyAim of the StudyMaterialsResults
Bielemann et al. (2022) [43]Randomized controlled trialEvaluate the clinical and radiological peri-implant parameters between hydrophilic and hydrophobic dental implantsFor 2 types of surfaces, hydrophobic and hydrophilic, different peri-implant health indices were evaluated: (i) early healing index (EHI), visible plaque index (VPI), presence of tartar (CP), peri-implant inflammation (PI), probing depth (PD), and bleeding on probing (BOP); implant stability quotient (ISQ), crestal bone loss (CBL), and bone level change (BLC); and implant success and survival rates.There were no differences in peri-implant healing, stability, and bone remodeling after 1 year.
Gursaytrak et al. (2020) [44]Randomized controlled trialEvaluate the stability of implants with different surfaces (alkali-modified or sandblasted) using resonance frequency analysis (RFA).Immediately after implantation as well as at 2, 6, and 12 weeks, RFA was utilized to assess the stability quotient of implants with alkali-modified (bioactive) and sandblasted surfaces.After placement, implants with alkali-modified surfaces were more stable than implants with sandblasted surfaces after, but the two types had similar clinical results at 12 weeks after surgery.
Hasegawa et al. (2020) [45]Randomized controlled trialOptimize the implant surface’s biological potential for improved osseointegration.The titanium surface was etched with sulfuric acid at different temperatures (120, 130, 140, and 150 °C).The maximum capacity for osseous integration was reached when the surface of the implant was acidified at 140 °C, significantly increasing the capacity for osteoconductive and osteointegrative growth.
Ko et al. (2019) [46]Randomized controlled trialComparing the peri-implant marginal bone level around CaP-coated and uncoated sandblasted, large-grit, acid-etched (SLA) surface implants 1 year after implantation.Clinical and radiographic examinations were performed to assess initial stability and changes in marginal bone level after 3 months and after 12 months.All of the implants were successful.
Kormoczi et al. (2021) [47]Randomized controlled trialComparison of early loaded implants with different modified surface stability.Implant success, implant stability, and periodontal parameters were evaluated after the placement of implants with SA (alumina blasting and acid etching), NH (bioabsorbable apatite nanocoating), or SLA (coarse-grain blasting and acid etching) surfaces.No significant differences were found in the two groups and good periodontal parameters were found.
Velloso et al. (2019) [11]Randomized controlled trialEvaluating the effects of implant devices with the same brand, design, length, and diameter but with two different surface treatments: sandblasting and etching with acid (SAE) and SAE modified chemically (hydrophilic).20 distinct patients received 20 implants with the same shape, size, and diameter but with two different surface treatments (10 SAE and 10 modified SAE). After six weeks, implant stability values were assessed.Implants with a modified SAE surface showed superior and faster implant stability.
Table
Table 3. Characteristics of the in vitro studies included in the qualitative analysis.
Table 3. Characteristics of the in vitro studies included in the qualitative analysis.
Authors (Year)Type of the StudyAim of the StudyMaterialsResults
Chauhan et al. (2021) [48]In vitroTo investigate the action of acid etching on the surface characteristics of titanium alloy implants and to optimize the process variables to produce micro- and nanotopography on the surface of dental implants.Without heating the acid solution, the optimum implant surface was carefully examined and compared with the etched surface.Titanium alloy had a very different surface topography than commercially pure titanium, and it had a distinct surface topography depending on whether the attachment was done at ambient temperature or at higher temperature, which has an impact on cells’ behavior
Gavinho et al. (2019) [49]In vitroAnalyze Bioglass 45S5 with CeO, evaluating whether its antioxidant effect reverses oxidative stress after implantation in bone.The materials’ morphological, structural, and biological properties (cytotoxicity, bioactivity, and antibacterial activity) were examined.The addition of cerio did not lead to structural changes in the biocompatible glass, which did not exhibit cytotoxicity, but it prevent the growth of Escherichia coli and Streptococcus mutans, and all of the tests revealed the initial deposition of a CaP-rich layer on the material’s surface after 24 h.
Rausch et al. (2021) [17]In vitroEvaluate the ability of human gingival cells to attach to and grow on differently treated titanium or zirconia implant surfacesZirconia and titanium implant surfaces were treated differently and subsequently had different roughness: some surfaces were machined and smooth, while other surfaces were sandblasted and rough.Gingival cell behavior is mainly influenced by surface roughness, and no relevant difference was found between titanium and zirconia implants.
Schupbach et al. (2019) [50]In vitroComparing several commercially available implant systems with SA-modified surfaces and their surface-level morphological and cleaning characteristics.Six candidates from three different lots were chosen to be the installation team for each system. The average particulate counts for each project were calculated from three different interest regions and compared.Not all manufacturers can create implant surfaces without contaminating them with particulates.
Zhang et al. (2021) [8]In vitroReduce associated infection symptoms and improve early osseointegration of dental implant.Anodic oxidation with hydrogen fluoride was performed on the Ti-Cu alloy implant surface.Etching hydrogen fluoride + Ti-5Cu alloy revealed that it has high corrosion resistance, great biological compatibility, and extremely potent antibacterial characteristics.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Inchingolo, A.M.; Malcangi, G.; Ferrante, L.; Del Vecchio, G.; Viapiano, F.; Inchingolo, A.D.; Mancini, A.; Annicchiarico, C.; Inchingolo, F.; Dipalma, G.; et al. Surface Coatings of Dental Implants: A Review. J. Funct. Biomater. 2023, 14, 287. https://doi.org/10.3390/jfb14050287

AMA Style

Inchingolo AM, Malcangi G, Ferrante L, Del Vecchio G, Viapiano F, Inchingolo AD, Mancini A, Annicchiarico C, Inchingolo F, Dipalma G, et al. Surface Coatings of Dental Implants: A Review. Journal of Functional Biomaterials. 2023; 14(5):287. https://doi.org/10.3390/jfb14050287

Chicago/Turabian Style

Inchingolo, Angelo Michele, Giuseppina Malcangi, Laura Ferrante, Gaetano Del Vecchio, Fabio Viapiano, Alessio Danilo Inchingolo, Antonio Mancini, Ciro Annicchiarico, Francesco Inchingolo, Gianna Dipalma, and et al. 2023. "Surface Coatings of Dental Implants: A Review" Journal of Functional Biomaterials 14, no. 5: 287. https://doi.org/10.3390/jfb14050287

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
