Silk Fibroin-Induced Gadolinium-Functionalized Gold Nanoparticles for MR/CT Dual-Modal Imaging-Guided Photothermal Therapy

by
Chuanxue Yang
1,†,
Tianxiao Mei
1,2,†,
Qingge Fu
3,†,
Yifan Zhang
1,
Yang Liu
1,
Ran Cui
1,2,
Gang Li
4,
Yibin Wang
4,
Jianguo Huang
1,
Junqiang Jia
5,*,
Bo Chen
1,2,* and
Yihui Hu
1,*
1
Institute for Regenerative Medicine, Jian Hospital & Shanghai East Hospital, School of Life Sciences and Technology & School of Medicine, Tongji University, Shanghai 200092, China
2
Department of Hepatopancreatobiliary Surgery, Jian Hospital & Shanghai East Hospital, Jian 343000, China
3
Department of Orthopedic Trauma, Changhai Hospital, Naval Medical University, Shanghai 200433, China
4
Department of Radiology, Shanghai East Hospital, School of Medicine, Tongji University, Shanghai 200092, China
5
School of Grain Science and Technology, Jiangsu University of Science and Technology, Zhenjiang 212100, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Funct. Biomater. 2022, 13(3), 87; https://doi.org/10.3390/jfb13030087
Submission received: 14 May 2022 / Revised: 13 June 2022 / Accepted: 16 June 2022 / Published: 22 June 2022
(This article belongs to the Special Issue Women in Science: Functional Biomaterials)
Browse Figures
Review Reports Versions Notes

Abstract

:
The development of multifunction nanoplatforms integrating accurate diagnosis and efficient therapy is of great significance for the precise treatment of tumors. Gold nanoparticles (AuNPs) possessing hallmark features of computed tomography (CT) imaging and photothermal conversion capability hold great potential in tumor theranostics. In this study, taking the advantages of outstanding biocompatibility, interesting anti-inflammatory and immunomodulatory properties, and abundant amino acid residues of silk fibroin (SF), a multifunctional Gd-hybridized AuNP nanoplatform was constructed using SF as a stabilizer and reductant via a facile one-pot biomimetic method, denoted as Gd:AuNPs@SF. The obtained Gd:AuNPs@SF possessed fascinating biocompatibility and excellent photothermal conversion efficiency. Functionalized with Gd, Gd:AuNPs@SF exhibited super tumor-contrasted imaging performance in magnetic resonance (MR) and CT imaging modalities. Moreover, Gd:AuNPs@SF, with strong NIR absorbance, demonstrated that it could effectively kill tumor cells in vitro, and was also proved to successfully ablate tumor tissues through MR/CT imaging-guided photothermal therapy (PTT) without systemic toxicity in Pan02 xenograft C57BL/6 mouse models. We successfully synthesized Gd:AuNPs@SF for MR/CT dual-mode imaging-guided PTT via a facile one-pot biomimetic method, and this biomimetic strategy can also be used for the construction of other multifunction nanoplatforms, which is promising for precise tumor theranostics.

1. Introduction

Nowadays, multifunctional nanomaterials that combine diagnostic imaging and therapeutic activity are receiving increasing attention as novel theranostic agents for precision medicine, especially for cancer therapy [1,2]. To date, a variety of nanoplatforms have been established to achieve accurate imaging for tumor diagnosis, and thus for guiding therapy [3,4,5,6,7]. MR and CT are currently the most common clinical diagnostic techniques; nevertheless, conventional single-modal contrast agents cannot meet the needs of complex diagnostics. MR imaging can provide clear soft tissue imaging that is non-invasive without radiation, yet the sensitivity is unsatisfactory; while CT imaging has a fast acquisition speed and high time resolution, it is not clear for soft tissue imaging [8,9,10]. Thus, MR/CT dual-modal imaging is able to confer more informative and accurate imaging diagnoses for tracking tumors in vivo with satisfactory spatial and temporal resolution [11]. Therefore, it would be highly worthwhile to develop a theranostic system that combines MR/CT dual-modal imaging diagnosis and efficient therapy for the accurate elimination of cancer.
AuNPs have been applied extensively in tumor theranostics [12,13]. To date, AuNPs have been synthesized using various methods including Turkevich, Brust, biomimetic synthesis, etc. [14,15]. These AuNPs have played different roles, such as imaging contrast agents for precise diagnosis, PPT agents for cancer therapy, and in novel theranostic strategies [16,17,18]. Notably, biomolecule-mediated, especially protein-induced, biomimetic synthesis possesses the unique advantages of green friendliness, versatility, designability, and biocompatibility, and thus it has attracted tremendous interest in the nanofabrication of biomedical applications. For example, recent work by Yang et al. presented the biomimetic synthesis of Gd:CuS@BSA with high biocompatibility for photoacoustic (PA)/MR-guided tumor-targeted PTT [19]. The team of Xing et al. also constructed collagen–gold hybrid hydrogels through the biomineralization of collagen, for tumor PTT and photodynamic therapy (PDT) [20].
Silk fibroin (SF) is a natural protein extracted from the cocoon of the silkworm (Bombyx mori) and has been widely applied in tissue engineering and biomimetic synthesis because of its outstanding biocompatibility, low immunogenicity, marvelous anti-inflammatory properties and immuneregulation effect, and biodegradability [21,22,23,24,25,26]. SF contains abundant amino acid residues, which confer reaction sites and linking groups for biosynthesis and modification [27,28,29,30]. In particular, the molecular structural framework and excellent water stability of SF make it suitable as a green reducing and stabilizing agent for fabricating nanostructures. A previous study reported SF@MnO2 nanoparticles constructed by biomineralization crystallization, and further loaded photodynamic agent (indocyanine green) and chemotherapeutic (doxorubicin) for MR/fluorescence imaging-guided PTT/PDT/chemotherapy [31]. SF can also be used as a template to synthesize AuPt nanozymes that respond to the tumor microenvironment for enhancing tumor catalytic therapy [32]. We summarize the conventional and the emerging protein-mediated biomineralization synthesis methods of AuNPs, as well as the synthesis of SF nanoparticles, in Table S2. Surprisingly, SF-mediated Gd-hybridized AuNPs for MR/CT dual-modal imaging-guided precise therapy has yet to be explored.
Herein, we developed a one-pot reducing strategy for the biomimetic synthesis of Gd-functionalized AuNPs (named, Gd:AuNPs@SF) mediated by SF as a reducer and stabilizer (Scheme 1). The obtained Gd:AuNPs@SF exhibits several advantages: (1) high biocompatibility and stability, (2) reliable MR/CT bimodal imaging diagnosis, and (3) excellent photothermal conversion for PTT. Furthermore, favoring MR/CT dual-modal imaging-guided PTT for precise pancreatic cancer therapy was demonstrated in vitro Pan02 cells and in vivo Pan02-bearing pancreatic cancer mice. Therefore, this work explores a facile one-pot biomimetic method to construct multifunctional AuNPs theranostic agents, allowing for precision nanomedicine.

2. Materials and Methods

2.1. Materials

Silk fibroin was provided by the School of Biotechnology, Jiangsu University of Science and Technology. Chloroauric acid tetrahydrate (HAuCl4·4H2O), gadolinium(III) chloride hexahydrate (GdCl3·6H2O), chlorpromazine hydrochloride, genistein, and NaOH were obtained from Shanghai Mackin Biochemical Co., Ltd. Wortmannin was purchased from Aladdin (Shanghai, China). Dulbecco’s Modified Eagle’s Medium (DMEM), fetal bovine serum (FBS), and Dulbecco’s phosphate buffered saline (PBS) were purchased from Biological Industries. Acridine Orange/Propidium Iodide (AO/PI) stain was obtained from Nexcelom Bioscience. Cell counting kit-8 (CCK-8) was ordered from Yeasen Biotech Co., Ltd., (Shanghai, China). Fluorescein isothiocyanate (FITC) was supplied by Shanghai Mackin Biochemical Co., Ltd., (Shanghai, China). All aqueous solutions used in experiments were prepared with deionized water (18.2 MΩ·cm resistivity at 25 °C).

2.2. Instruments

Transmission electron microscopy (TEM, JEM-2100, JEOL, Tokyo, Japan) and field emission scanning electron microscopy (SEM, JSM-7800F, JEOL, Tokyo, Japan) were performed to observe the morphology and size. The X-ray photoelectron spectroscopy (XPS) measurements were performed using a PHI-5000 CESCA system (PerkinElmer, Waltham, MA, USA) with radiation from an Al Kα (200.0 eV) X-ray source. X-ray energy spectrum analysis (EDS) was used to test the elemental composition. Fourier transform infrared spectroscopy (FTIR) characterization was performed using a Fourier Infrared Spectrophotometer (TENSOR 27, Bruker, Karlsruhe, Baden-Württemberg, German). Hydrodynamic diameter and Zeta potential were measured on a dynamic light scattering particle size analyzer (Zetasizer Nano-ZS90, Malvern, Great Malvern, Worcestershire, UK). The photothermal effect was tested on an 808 nm laser (Beijing Energylaser Tech. Ltd., Beijing, China). Temperature changes and thermal images were monitored and taken using an IR thermal camera (DALI Technology, Hangzhou, China). The absorbance at 450 nm of the CCK-8 test and UV-vis absorption spectra were measured with a multifunction microplate reader (Infinite M200 Pro, TECAN, Männedor, Switzerland). Fluorescence photographs were obtained on a fluorescence microscope (Leica Microsystems, GER, Wezler, Hesse, German). The Gd and Au concentration was measured by ICP-OES (Agilent 725 ICP-OES, Agilent Technologies Co. Ltd., Palo Alto, CA, USA). MR imaging was applied to the clinical MR imaging system (GE Discovery 750W 3.0 T, General electric medical system Co., Ltd., Fairfield, CT, USA), and CT imaging was performed using a micro-CT system (SkySCAN 1276, Bruker, Karlsruhe, Baden- Württemberg, German). The cellular uptake efficiency was analyzed using flow cytometry (CytoFLEX, Beckman coulter, Brea, CA, USA).

2.3. Synthesis of Gd:AuNPs@SF

The synthesis of Gd:AuNPs@SF was adapted from the BSA-mediated biomimetic synthesis of Au NPs with some minor changes [33]. Briefly, HAuCl4·4H2O solution (2 mM, 5 mL) was added into the SF aqueous solution (3.125 mg/mL, 2 mL), and NaOH solution (1 M) was used to adjust the pH to 9–10; then, GdCl3·6H2O solution (29.9 mM, 80 μL) was slowly added to the mixed solution. The mixture solution was kept stirring at room temperature for 6–8 h to obtain a dark red solution. The solution was then centrifuged (12,000 rpm, 10 min) and washed three times with H2O to obtain pure Gd:AuNPs@SF for further use. After lyophilization, a black powder was obtained for characterizations.
The synthesis of Gd:AuNPs@SF/FITC was simply, FITC (2 mg/mL, dissolved in absolute ethanol), added into 1 mg/mL Gd:AuNPs@SF under stirring, reacted overnight in the dark, and then centrifuged (12,000 rpm, 10 min) to remove unreacted FITC to obtained Gd:AuNPs@SF/FITC.

2.4. Stability Assays

To determine the colloidal stability, Gd:AuNPs@SF were dispersed in water, DMEM, 1 × PBS (pH 7.4) and stored for 7 days, the samples were taken at different time points (2 h, 6 h, 12 h, 24 h, 48 h and 7 days) to determine the hydrodynamic diameter, Zeta potential, and UV-vis absorbance to monitor the stability of nanoparticles.

2.5. Photothermal Performance of Gd:AuNPs@SF

First, 200 μL Gd:AuNPs@SF (250 μg/mL) aqueous solution and water was put into a dish, and vertically irradiated for 6 min with different laser power (0.5, 1.0, 2.0, 2.5, 3.0 W/cm2) at 808 nm near-infrared (a spot with a diameter of 6.39 mm). During this period, the temperature was recorded every 30 s with an infrared imager. Temperature changes were recorded, the heating curve was drawn, and photothermal conversion efficiency was calculated. Through 5 cycles of turning the laser on and off, the cyclic heating curve of the material was obtained.

2.6. Hemolysis Test

The hemolysis of the Gd:AuNPs@SF was characterized by co-incubating it with human red blood cells according to the method reported in the literature [19]. Briefly, 1 mL blood samples were diluted by 2 mL of PBS, and then centrifuged at 12,000 rpm for 10 min to obtain red blood cells, washed four times with PBS, and diluted with 10 mL of PBS. The diluted red blood cells were mixed with 1 mL of Gd:AuNPs@SF at different concentrations (0, 10, 25, 50, 100, 150, 200, 250 μg/mL), while 1 mL of water was used as a positive control and 1 mL of PBS as a negative control. After incubating for 2 h at 37 °C, the solutions were centrifuged at 12,000 rpm for 10 min, and the supernatant was added into a 96-well plate to measure the absorbance at 570 nm with a microplate reader for calculating the hemolysis rate. Hemolysis ratio (%) = (A(sample) − A(PBS))/(mean value of A(H2O)−A(PBS))×100%.

2.7. Cell Culture and Toxicity Analysis

Mouse pancreatic cells (Pan02, 3111C0001CCC000446) were purchased from the National Infrastructure of Cell Line Resource (China). Human Umbilical Vein Endothelial Cells (HUVEC) were purchased from Cell Bank, Shanghai Institute of Life Science (China Academy of Science). Pan02 and HUVEC cells were incubated in DMEM containing 10% FBS and 1% antibiotics (penicillin-streptomycin) at 37 °C in a humidified atmosphere containing 5% CO2.
When Pan02 and HUVEC cells had grown to 80–90% of the culture flask, they were seeded into a 96-well plate (5 × 103 cells/well) and incubated for 24 h; then, they were replaced with a fresh culture medium containing gradient concentrations of Gd:AuNPs@SF (0, 10, 25, 50, 100, 150, 200, 250 μg/mL), and after 24 or 48 h incubation, washed twice with PBS. Then, DMEM medium containing 10% CCK-8 was added, followed by incubation for 1–2 h at 37 °C and 5% CO2, and then measurement of the absorbance at 450 nm with a microplate reader.
The photothermal cytotoxicity of Gd:AuNPs@SF was measured by CCK-8 assay and AO/PI staining. Pan02 cells (5 × 103 cells/well) were plated on 96-well plates (two groups), cultured in a constant temperature incubator at 37 °C and 5% CO2 for 24 h. Group 1 was replaced with a fresh culture medium containing gradient concentrations of Gd:AuNPs@SF (0, 10, 25, 50, 100, 150, 200, 250 μg/mL), and directly exposed to the laser (808 nm, 3.0 W/cm2, 6 min, a spot with a diameter of 6.39 mm), then washed twice with PBS and incubated DMEM medium with 10% CCK-8 for 1–2 h at 37 °C and 5% CO2. Finally, the absorbance at 450 nm was measured with a microplate reader. Group 2 was used for AO/PI staining. After treatment with PBS (200 μL), only Gd:AuNPs@SF (250 μg/mL, 200 μL), only laser (808 nm, 3.0 W/cm2, 6 min), and Gd:AuNPs@SF (250 μg/mL, 200 μL) + laser (808 nm, 3.0 W/cm2, 6 min), respectively, were stained by AO/PI staining to observe cell viability.

2.8. Cellular Uptake

Pan02 cells were seeded in a 24-well plate (1 × 105 cells/well) overnight. Cells were pre-incubated with chlorpromazine (10 μg/mL), genistein (200 μg/mL), wortmannin (100 ng/mL), or DMEM medium supplemented with 10% FBS for 1 h. Then, the medium was removed, and washed twice with PBS. Gd:AuNPs@SF/FITC of 250 μg/mL was added for another 3 h incubation. Finally, the cells were collected by centrifugation (1000 rpm, 5 min), and resuspended in 200 μL of PBS for flow cytometry.

2.9. In Vitro Imaging

In vitro MR imaging was performed on the basis of MR imaging signal intensity of Gd:AuNPs@SF with different Gd3+ concentrations (0.04, 0.08, 0.12, 0.16, 0.20 mM).The detailed imaging parameters of MR were set as follows: T1 weighted sequence, spin echo, FOV reading = 9.0 mm, FOV phase = 1.00 mm, slice = 6, slice thickness = 1.0 mm, slice gap = 0.2 mm. The CT signal intensity of Gd:AuNPs@SF with different Au3+ concentrations (0.05, 0.10, 0.20, 0.30, 0.40 mM) to examine CT imaging capabilities. The imaging parameters were as follows: 80 kV, 200 μA, filter: AI 0.5 mm, exposure: 137 ms. The software provided by the instrument manufacturer was used to collect images.

2.10. Animal Model Establishment and In Vivo Imaging

All the animal experimental protocols were approved by the Institutional Animal Care and Use Committee of Tongji University (SYXK(hu)2020-0002). Mouse models of pancreatic cancer were used for animal experiments. The process of establishing an animal model was as follows: Pan02 cells (3 × 106 cells) were suspended in 100 μL of PBS solution and injected subcutaneously into the hind legs of C57 female mice to establish a mice model of pancreatic cancer. When the tumors had grown to 50–100 mm3, they were used for in vivo imaging and photothermal therapy. Tumor-bearing mice were used for in vivo MR/CT imaging. Tumor-bearing mice were injected with 200 μL Gd:AuNPs@SF (1.5 mg/mL) or PBS via tail vein. Clinical imaging system was used to obtain MRI signals before and 2 h, 4 h, 6 h, 12 h, and 24 h after injection. CT imaging was performed on the Micro-CT system before and 2 h and 6 h after injection.

2.11. Biodistribution

First, 200 μL of 1.5 mg/mL Gd:AuNPs@SF was injected into the tail vein of Pan02 tumor-bearing mice (n = 3). The mice were sacrificed at 6 h after injection, and then the major organs (heart, liver, spleen, kidney, lung) and tumor were collected, weighed and digested using aqua regia (6 mL, HCl/HNO3 = 3:1) overnight. The concentration of Au in the tissues was quantitatively detected by ICP-OES.

2.12. In Vivo Photothermal Therapy

The tumor-bearing mice were randomly divided into four groups (n = 3), (1) Gd:AuNPs@SF (1.5 mg/mL, 200 μL) + laser (808 nm, 0.8 W/cm2, 6 min); (2) only Gd:AuNPs@SF (1.5 mg/mL, 200 μL); (3) only laser (808 nm, 0.8 W/cm2, 6 min); (4) PBS (200 μL). During laser irradiation, an infrared imager was used to monitor the temperature at the tumor site. The body weight and tumor volume of the mice were monitored every two days.

2.13. Histological Analysis

Mice were sacrificed after 22 days of treatment, and the main organs (heart, liver, spleen, kidney, lung) and tumors were collected and fixed with 4% paraformaldehyde; then, tissues were paraffin embedded, sectioned, hematoxylin-eosin stained, observed, and photographed by microscope.

2.14. Statistical Analysis

Data was treated by Graphpad Prism 7.0 software. Statistical analysis used mean ± standard deviation (SD) and was conducted by ANOVA. p values were obtained using the 3-sample t-test. A p-value less than 0.05 (* p < 0.05, n = 3) was considered statistically significant.

3. Results and Discussion

3.1. Synthesis and Characterization of Gd:AuNPs@SF

Multifunctional Gd:AuNPs@SF were successfully synthesized as a theranostic nanoplatform via the biomimetic one-pot method (Scheme 1), where SF acted as the reducing agent and the stabilizer. Because of the intense affinity of carboxyl groups to metal ions, Gd3+ and Au3+ species were absorbed on SF. Au3+ was reduced to Au+ by the amino group, which was further reduced to Au by tyrosine’s cresol groups due to their strong electron-donating ability [34,35]. During the synthesis, the mixture solution of SF, HAuCl4·4H2O, and GdCl3·6H2O gradually turned from pale yellow to dark red when the NaOH solution was added to adjust the pH to 9–10, suggesting that the tyrosine of SF exhibited reducing properties under alkaline conditions and thereby reduced Au ions into AuNPs (Figure 1A). The influence of the concentration of SF (0.78125 mg/mL, 3.125 mg/mL, 25 mg/mL) on the AuNPs’ synthesis was investigated. According to TEM imaging and UV-vis spectra (Figures S1 and S2), Gd:AuNP@SF displayed a uniform sphere with suitable size and possessed maximum absorption when the concentration of SF at 3.125 mg/mL, which was set as the optimal concentration.
The morphology of the optimized Gd:AuNPs@SF measured by TEM and SEM was a regular sphere with an average diameter of 53.88 ± 1.81 nm, (Figure 1B,C). Its hydrodynamic diameter detected by dynamic light scattering (DLS) was 162.0 ± 42.69 nm (Figure 1D), which was larger than that detected by TEM because of the hydration layer of SF. The Zeta potential on the surface of Gd:AuNPs@SF was −26.6 ± 1.33 mV owing to the abundant carboxyl groups of SF (Figure 1E). As shown in Figure 1F, Gd:AuNPs@SF had a characteristic absorption of AuNPs at 535 nm and displayed a broad absorption in the near-infrared region (600–900 nm) for PTT. The EDS mapping showed that Au, Gd, and N were distributed in the structures of Gd:AuNPs@SF, which indicated that the elements Au, Gd, and SF were the main constituents (Figure 1G). The composition of Gd:AuNPs@SF was further determined by EDS (Figure 1H) and XPS (Figure 1I and Figure S3), confirming the existence of Au, Gd, C, N, and O elements. Additionally, the XPS spectra of Au (4f), Gd (4d), N (1s), and C (1s) were analyzed using XPS Peak 4.0 software (Figure S3). It can be claimed that peaks at 88.0 eV, 84.5 eV, 87.2 eV and 83.5 eV in the Au (4f) spectrum can be allocated to Au3+, Au+, Au0, respectively, elucidating the formation of AuNPs. The peaks at 148.0 eV and 143.0 eV in the Gd (4d) spectrum were assigned to Gd2O3 [36]. This is slightly different from what has previously been reported, which usually claims the presence of both Gd(OH)3 and Gd2O3 [19,37,38]. This might be due to the introduction of SF, which is able to stabilize the entire reaction system and prevent the production of the insoluble Gd(OH)3. FTIR spectra were used to examine the conformation of SF and Gd:AuNPs@SF. As shown in Figure 1J, the peaks at 3187 cm−1 of Gd:AuNPs@SF and 3382 cm−1 of SF were amide N-H contraction vibration absorption peaks, revealing the presence of SF and the generation of the unsaturated C-H bond. SF showed amide characteristic peaks at 1610 cm−1 (amide I), 1522 cm−1 (amide II), 1243 cm−1 (amide III). However, the amide I, II, III peaks in Gd:AuNPs@SF moved to 1760 cm−1, 1647 cm−1, 1208 cm−1, respectively, and the amide peaks (I, II) shifted to longer wavenumbers, which may suggest an increase of random coil structure according to a previous study [39]. These pieces of evidence suggested that the binding of Gd and Au to SF could change the conformation of SF. The interaction between hydrogen bonds and amide groups of SF and metal ions might contribute to the shift of the peaks. In general, the required materials of Gd:AuNPs@SF were successfully synthesized.
In addition, the colloidal stability of Gd:AuNPs@SF was studied by observing dispersed Gd:AuNPs@SF in water, PBS, and DMEM. Monitored the UV-vis absorption and particle size distribution within 7 days. As presented in Figure S4, the UV absorption spectrum does not change significantly within 7 days, and the hydrodynamic diameter fluctuates around 160 nm, keeping relatively stable. The digital photo illustrates that no significant aggregation of Gd:AuNPs@SF was observed within 7 days. The above results indicate that Gd:AuNPs@SF were stable in these solution systems.

3.2. Photothermal Effect and Stability of Gd:AuNPs@SF

Firstly, the effect of laser power on photothermal actuation was investigated. As shown in Figure 2A, Gd:AuNPs@SF (250 μg/mL) were irradiated with an NIR laser at 808 nm with different power densities (0.5, 1.0, 2.0, 2.5, 3.0 W/cm2). After 6 min of irradiation, the temperature increased by 2.4, 2.9, 8.1, 21.4, and 27.1 °C, respectively, and exhibited a laser power-density-dependent pattern. Under 808 nm laser irradiation (3.0 W/cm2, 6 min), the temperature of water only increased by 12.8 °C, much lower than Gd:AuNPs@SF (27.1 °C), indicating that the Gd:AuNPs@SF had good photothermal conversion capabilities (Figure 2B). Then, different concentrations of Gd:AuNPs@SF (0, 25, 100, 150, 250 μg/mL) were exposed to 3.0 W/cm2 NIR laser, demonstrating that the temperature increase was concentration dependent (Figure 2C,D). In addition, infrared thermal images were used to monitor the photothermal effect of Gd:AuNPs@SF, demonstrating that the temperature of Gd:AuNPs@SF could reach up to 54.7 °C (3.0 W/cm2, 6 min), but the temperature of water only reached 25.4 °C (3.0 W/cm2, 6 min) (Figure 2G). According to Roper’s report and the Lambert–Beer law, the photothermal conversion efficiency of Gd:AuNPs@SF was 21.63% (Figure 2E and Figure S5, Table S1) [40]. As shown in Figure 2F, after five cycles of 808 nm laser irradiation, the maximum temperature of Gd:AuNPs@SF still reached 56 °C, demonstrating excellent photothermal stability. Therefore, the robust hyperthermia and high photothermal stability of Gd:AuNPs@SF allow for effective ablation of cancer cells.

3.3. Cellular Safety and Photothermal Toxicity

The safety and biocompatibility of Gd:AuNPs@SF were assessed on Pan02 cells, HUVEC cells, and red blood cells. The viability of Pan02 cells (Figure 3A) and HUVEC cells (Figure S6) maintained levels of up to 75% even when incubated for 48 h at a high concentration of Gd:AuNPs@SF (250 μg/mL). Similarly, when the concentration of Gd:AuNPs@SF was up to 250 μg/mL, the hemolysis rate did not exceed 2% (Figure 3B). These results indicate that Gd:AuNPs@SF possess high biosafety and excellent biocompatibility, which is favorable for in vivo administration.
Moreover, Gd:AuNPs@SF showed significant photothermal toxicity on Pan02 cells in vitro. As shown in Figure 3C, the viability of Pan02 cells (less than 11% of Pan02 cells survived) decreased significantly after NIR irradiation (3.0 W/cm2, 6 min) at different concentrations of Gd:AuNPs@SF, while there was almost no apoptosis without NIR irradiation. AO/PI staining also verified that nearly all of the Pan02 cells died after being exposed to NIR irradiation, which was consistent with the CCK-8 assay (Figure 3D).
To reveal the cellular uptake mechanism of Gd:AuNPs@SF, we used flow cytometry to detect the intracellular FITC content with Gd:AuNPs@SF/FITC. As shown in Figure S7, FITC labeling has no significant effect on the particle size of Gd:AuNPs@SF. Chlorpromazine inhibits clathrin-mediated endocytosis, genistein inhibits caveolae-mediated endocytosis, and wortmannin inhibits macro-pinocytosis. The inhibitors were incubated with Pan02 cells for 1 h and then Gd:AuNPs@SF/FITC was added for another 3 h incubation. As shown in Figure S8, chlorpromazine displayed an obvious inhibitory effect on cell uptake, illustrating clathrin-mediated endocytosis might be the main pathway of Gd:AuNPs@SF uptake.

3.4. Ex Vivo and In Vivo MR/CT Imaging of Gd:AuNPs@SF

To explore the MR and CT imaging properties of Gd:AuNPs@SF in vitro, MR imaging and CT imaging were carried out for different concentrations of Gd3+ ions (0–0.20 mM) and Au3+ ions (0–20 mM) in Gd:AuNPs@SF, respectively. As shown in Figure 4A and Figure S8, Gd:AuNPs@SF showed a stronger T1 signal than Gd-DTPA at the same concentration of Gd3+ ions, implying that Gd:AuNPs@SF was an excellent MR contrast agent. Analogously, the CT imaging characteristic was the same as MR imaging (Figure 4B).
Furthermore, the tumor enrichment of Gd:AuNPs@SF was investigated by MR and CT imaging in Pan02 tumor-bearing mice. Following injection of Gd:AuNPs@SF, the T1 signal at the tumor sites increased 1.4-fold, 3.96-fold, 4.52-fold, 3.77-fold, 1.67-fold at 2, 4, 6, 12 and 24 h, respectively (Figure 4C,D). These results indicate that the MR imaging signal of the tumor site was the strongest at 6 h after intravenous injection, suggesting the plateau of Gd:AuNPs@SF enrichment in the tumors. Subsequently, CT imaging was also performed by the Micro-CT imaging system. According to the results from MR imaging, we obtained CT imaging before injection and 2 h and 6 h after injection of Gd:AuNPs@SF. Remarkably, the CT signal at the tumor site also was significantly enhanced 6 h after injection (Figure 4E), which was in line with the MR imaging. The MR/CT imaging results verified that Gd:AuNPs@SF have the capability of MR/CT dual-modal imaging, and the content reached the maximum at the tumor site after 6 h injection, which could guide PTT.
To investigate the biodistribution of Gd:AuNPs@SF, after 6 h injection of 200 μL of Gd:AuNPs@SF solution (1.5 mg/mL), the tumors and the main organs (heart, liver, spleen, lung, kidney) of the mice were harvested and analyzed with respect to Au concentration by ICP-OES (Table S3). As shown in Figure 4F of the distribution diagram, although most of Gd:AuNPs@SF were distributed in the spleen and lung, the cumulative efficiency at the tumor site could still be up to 10% ID/g. In this work, Gd:AuNPs@SF mainly relied on enhanced permeability and retention effect (EPR) to achieve accumulation at tumor sites without specific tumor targeting. Therefore, Gd:AuNPs@SF were also distributed in other tissues. As reported, antibody-coupled nanoparticles showed stronger binding force and internalization ability for tumor cells [41,42]. Antibody-coupled nanoparticles also promoted the death of cancer cells with over-expression of antigen [43]. In follow-up research, antibodies or ligands could also be coupled with the gold nanoparticles to increase tumor targeting and further improve the therapeutic effect of tumors.

3.5. In Vivo Photothermal Therapy and Histology of Gd:AuNPs@SF

To evaluate whether Gd:AuNPs@SF could generate effective heat in vivo for PTT, the temperature evolution at tumor sites of Pan02-bearing mice without or with Gd:AuNPs@SF treatment was recorded under 808 nm laser irradiation. As shown in Figure 5A,B, the temperature increased from 30 °C to 47.9 °C in the Gd:AuNPs@SF group with laser irradiation; however, the temperature of the control group (PBS + laser) only increased from 30 °C to 39.4 °C. Compared with the control group, the temperature of Gd:AuNPs@SF increased by 17.9 °C, almost 1.9-fold that of the PBS group (9.4 °C), which indicated that the Gd:AuNPs@SF had good photothermal conversion ability in vivo and was sufficient for the ablation of tumor cells.
Further, photothermal treatment in vivo was performed on tumor-bearing mice transplanted subcutaneously with Pan02 cells. Tumor-bearing mice were randomly divided into four groups (n = 3): Gd:AuNPs@SF + laser, Gd:AuNPs@SF only, laser only, PBS. As shown in Figure 5C–E, the tumor volume of the Gd:AuNPs@SF + laser group quickly faded after PTT, while the tumors in other groups (PBS, single laser, and single Gd:AuNPs@SF group) continued to grow, indicating that the heat generated by the Gd:AuNPs@SF under 808 nm laser irradiation for 6 min was sufficient to ablate the tumor tissue. In addition, there was no significant change in body weight for any of the groups, and it remained relatively stable (Figure S9), showing that the photothermal treatment had no systemic toxicity. Hematoxylin–eosin (H&E) staining of tumor tissue after 22 days of treatment is shown in Figure 5F; PBS, single laser, and single Gd:AuNPs@SF treatment did not result in significant cell necrosis, while the tumor with the Gd:AuNPs@SF + laser treatment completely faded. Meanwhile, the main organs of the mice were collected for H&E staining (Figure S10), illustrating that the major organs were intact after PTT. These results demonstrate that the Gd:AuNPs@SF + laser treatment program can not only successfully ablate tumor tissues, but also, that there is no marked biological toxicity to other tissues and organs.
The blood vessel structures of tumors are incomplete, making their heat dissipation ability poor, resulting in heat accumulation inside. Meanwhile, the heat tolerance of tumor cells is lower than that of normal cells. The lethal temperature of tumor cells is 42.5–43 °C, while normal cells can tolerate a high temperature of 47 °C, which is an important reason why PTT can effectively kill cancer cells [44]. In this study, the temperature of the tumor site in the Gd:AuNPs@SF + laser group was 47.9 °C, which is much higher than the lethal temperature for tumor cells, and thus eliminated the tumor cells. As we look forward, the tumor volume in mice also showed that Gd:AuNPs@SF + laser treatment effectively ablated tumor tissues. In addition, the inherent anti-tumor activity of AuNPs may also play an important role. AuNPs with radiosensitization effects in cells could induce the production of ROS, trigger oxidative stress, lead to mitochondrial dysfunction, and perturb normal activities of cells [45]. Studies have also demonstrated that AuNPs can selectively accumulate in the mitochondria of tumor cells, reducing mitochondrial membrane potential and increasing oxidative stress, and eventually causing tumor cell apoptosis [46].

4. Conclusions

In summary, we proposed a facile one-pot biomimetic method to prepare Gd-functionalized AuNPs, named Gd:AuNPs@SF, which constitute a promising MR/CT contrast agent and photothermal agent for precise tumor theranostics. The obtained Gd:AuNPs@SF possessed high biocompatibility and safety, favorable photothermal effect, and reliable MR/CT dual-modal imaging capabilities. Under the guidance of MR/CT bimodal imaging, accurate and effective PTT could be achieved. Therefore, the SF biomimetic system not only provides a novel multifunctional platform for precise diagnosis and treatment of tumors, but also possesses the potential to be functionalized with other contrast agents or drugs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jfb13030087/s1, Table S1: Data for photothermal conversion efficiency; Table S2: Summarized methods for synthesizing nanoparticles involving gold and SF; Figure S1: TEM imaging of Gd:AuNPs@SF with different SF concentration (0.78125, 3.125, 25 mg/mL); Figure S2: UV-vis spectra of Gd:AuNPs@SF synthesized with different SF concentrations (0.78125, 3.125, 12.5, 50 mg/mL); Figure S3: Core level XPS spectra of Au (4f), Gd (4d), N (1s), C (1s) in Gd:AuNPs@SF; Figure S4: Stability analysis of Gd:AuNPs@SF; Figure S5: Calculation of the heat transfer constant of Gd:AuNPs@SF after irradiation by 808 nm laser; Figure S6: Viability of HUVEC cell after being incubated with Gd:AuNPs@SF at different concentrations for 24 h; Figure S7: Flow cytometry assay of FITC contents inside Pan02 cells treated with Gd:AuNPs@SF/FITC in the absence or presence of chlorpromazine (10 μg/mL), genistein (200 μg/mL), or wortmannin (100 ng/mL), respectively; Figure S8: T1-weighted and false-color-mapped of different Gd3+ concentrations (0–0.20 mM) of Gd-DTPA in water; Figure S9: The bodyweight of tumor-bearing mice after being treated by Gd:AuNPs@SF + laser, Gd:AuNPs@SF, laser, PBS for 22 days; Figure S10: H&E staining images of the main organs (heart, liver, spleen, lung, and kidney) were collected from the mice after 22 days of photothermal treatment (scale bare: 100 μm). References [47,48,49,50,51,52] are citied in the Supplementat Materials.

Author Contributions

Conceptualization, Y.H., J.J. and B.C.; methodology, C.Y., T.M. and Q.F., software, C.Y.; investigation, Y.L. and J.H.; resources, J.J. and B.C.; data curation, Y.H.; writing—original draft preparation, C.Y.; writing—review and editing, C.Y., Y.H., Y.Z. and T.M.; formal analysis, R.C. and G.L.; Y.W.; supervision, Y.H. and J.J.; project administration, Y.H. and B.C.; funding acquisition, Y.H., B.C., J.H. and T.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (82001953 and 82002843), Shanghai Municipal Health Commission (20214Y0022), Shanghai Pudong New Area Science and Technology Commission Project (PKJ2020-Y20), Natural Science Foundation of Jiangxi Province (20202BAB216044), Jiangxi Provincial Health Commission (SKJP220203984).

Institutional Review Board Statement

The animal study protocol was approved by Ethics Committee of Institutional Animal Care and Use Committee of Tongji University (protocol code SYXK(hu)2020-0002).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available in the article and supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, Y.; Mignani, S.; Majoral, J.; Shen, M.; Shi, X. Construction of iron oxide nanoparticle-based hybrid platforms for tumor imaging and therapy. Chem. Soc. Rev. 2018, 47, 1874–1900. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, H.; Gu, Z.; An, H.; Chen, C.; Chen, J.; Cui, R.; Chen, S.; Chen, W.; Chen, X.; Chen, X.; et al. Precise nanomedicine for intelligent therapy of cancer. Sci. China Chem. 2018, 61, 1503–1552. [Google Scholar] [CrossRef]
  3. Huang, X.; Fan, C.; Zhu, H.; Le, W.; Cui, S.; Chen, X.; Li, W.; Zhang, F.; Huang, Y.; Sh, D.; et al. Glypican-1-antibody-conjugated Gd-Au nanoclusters for FI/MRI dual-modal targeted detection of pancreatic cancer. Int. J. Nanomed. 2018, 13, 2585–2599. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Chen, Y.; Wu, Y.; Sun, B.; Liu, S.; Liu, H. Two-Dimensional Nanomaterials for Cancer Nanotheranostics. Small 2017, 13, 1603446. [Google Scholar] [CrossRef]
  5. Bai, H.; Peng, R.; Wang, D.; Sawyer, M.; Fu, T.; Cui, C.; Tan, W. A minireview on multiparameter-activated nanodevices for cancer imaging and therapy. Nanoscale 2020, 12, 21571–21582. [Google Scholar] [CrossRef]
  6. Perry, H.L.; Botnar, R.M.; Wilton-Ely, J. Gold nanomaterials functionalised with gadolinium chelates and their application in multimodal imaging and therapy. Chem. Commun. 2020, 56, 4037–4046. [Google Scholar] [CrossRef]
  7. Schuemann, J.; Bagley, A.F.; Berbeco, R.; Bromma, K.; Butterworth, K.T.; Byrne, H.L.; Chithrani, B.D.; Cho, S.H.; Cook, J.R.; Favaudon, V.; et al. Roadmap for metal nanoparticles in radiation therapy: Current status, translational challenges, and future directions. Phys. Med. Biol. 2020, 65, 21RM02. [Google Scholar] [CrossRef]
  8. Le, W.; Cui, S.; Chen, X.; Zhu, H.; Chen, B.; Cui, Z. Facile Synthesis of Gd-Functionalized Gold Nanoclusters as Potential MRI/CT Contrast Agents. Nanomaterials 2016, 6, 65. [Google Scholar] [CrossRef] [Green Version]
  9. You, Q.; Sun, Q.; Yu, M.; Wang, J.; Wang, S.; Liu, L.; Cheng, Y.; Wang, Y.; Song, Y.; Tan, F.; et al. BSA-Bioinspired Gadolinium Hybrid-Functionalized Hollow Gold Nanoshells for NIRF/PA/CT/MR Quadmodal Diagnostic Imaging-Guided Photothermal/Photodynamic Cancer Therapy. ACS Appl. Mater. Interfaces 2017, 9, 40017–40030. [Google Scholar] [CrossRef]
  10. Lee, N.; Choi, S.H.; Hyeon, T. Nano-sized CT contrast agents. Adv. Mater. 2013, 25, 2641–2660. [Google Scholar] [CrossRef]
  11. Zhou, B.; Xiong, Z.; Wang, P.; Peng, C.; Shen, M.; Mignani, S.; Majoral, J.-P.; Shi, X. Targeted tumor dual mode CT/MR imaging using multifunctional polyethylenimine-entrapped gold nanoparticles loaded with gadolinium. Drug Deliv. 2018, 25, 178–186. [Google Scholar] [CrossRef] [PubMed]
  12. Llevot, A.; Astruc, D. Applications of vectorized gold nanoparticles to the diagnosis and therapy of cancer. Chem. Soc. Rev. 2012, 41, 242–257. [Google Scholar] [CrossRef]
  13. Singh, P.; Pandit, S.; Mokkapati, V.; Garg, A.; Ravikumar, V.; Mijakovic, I. Gold Nanoparticles in Diagnostics and Therapeutics for Human Cancer. Int. J. Mol. Sci. 2018, 19, 1979. [Google Scholar] [CrossRef] [PubMed]
  14. Fan, J.; Cheng, Y.; Sun, M. Functionalized Gold Nanoparticles: Synthesis, Properties and Biomedical Applications. Chem. Rec. 2020, 20, 1474–1504. [Google Scholar] [CrossRef] [PubMed]
  15. Kumari, Y.; Kaur, G.; Kumar, R.; Singh, S.K.; Gulati, M.; Khursheed, R.; Clarisse, A.; Gowthamarajan, K.; Karri, V.N.R.; Mahalingam, R.; et al. Gold nanoparticles: New routes across old boundaries. Adv. Colloid Interface Sci. 2019, 274, 102037. [Google Scholar] [CrossRef]
  16. Choi, C.K.K.; Chiu, Y.T.E.; Zhuo, X.; Liu, Y.; Pak, C.Y.; Liu, X.; Tse, Y.-L.S.; Wang, J.; Choi, C.H.J. Dopamine-Mediated Assembly of Citrate-Capped Plasmonic Nanoparticles into Stable Core-Shell Nanoworms for Intracellular Applications. ACS Nano 2019, 13, 5864–5884. [Google Scholar] [CrossRef]
  17. Liu, J.; Xiong, Z.; Zhang, J.; Peng, C.; Klajnert-Maculewicz, B.; Shen, M.; Shi, X. Zwitterionic Gadolinium(III)-Complexed Dendrimer-Entrapped Gold Nanoparticles for Enhanced Computed Tomography/Magnetic Resonance Imaging of Lung Cancer Metastasis. ACS Appl. Mater. Interfaces 2019, 11, 15212–15221. [Google Scholar] [CrossRef]
  18. He, J.; Wei, Q.; Wang, S.; Hua, S.; Zhou, M. Bioinspired protein corona strategy enhanced biocompatibility of Ag-Hybrid hollow Au nanoshells for surface-enhanced Raman scattering imaging and on-demand activation tumor-phototherapy. Biomaterials 2021, 271, 120734. [Google Scholar] [CrossRef]
  19. Yang, W.; Guo, W.; Le, W.; Lv, G.; Zhang, F.; Shi, L.; Wang, X.; Wang, J.; Wang, S.; Chang, J.; et al. Albumin-Bioinspired Gd:CuS Nanotheranostic Agent for In Vivo Photoacoustic/Magnetic Resonance Imaging-Guided Tumor-Targeted Photothermal Therapy. ACS Nano 2016, 10, 10245–10257. [Google Scholar] [CrossRef]
  20. Xing, R.; Liu, K.; Jiao, T.; Zhang, N.; Ma, K.; Zhang, R.; Zou, Q.; Ma, G.; Yan, X. An Injectable Self-Assembling Collagen-Gold Hybrid Hydrogel for Combinatorial Antitumor Photothermal/Photodynamic Therapy. Adv. Mater. 2016, 28, 3669–3676. [Google Scholar] [CrossRef]
  21. Huang, W.; Ling, S.; Li, C.; Omenetto, F.; Kaplan, D. Silkworm silk-based materials and devices generated using bio-nanotechnology. Chem. Soc. Rev. 2018, 47, 6486–6504. [Google Scholar] [CrossRef] [PubMed]
  22. Qi, Y.; Wang, H.; Wei, K.; Yang, Y.; Zheng, R.-Y.; Kim, I.S.; Zhang, K.-Q. A Review of Structure Construction of Silk Fibroin Biomaterials from Single Structures to Multi-Level Structures. Int. J. Mol. Sci. 2017, 18, 237. [Google Scholar] [CrossRef] [PubMed]
  23. Kim, C.E.; Lee, J.H.; Yeon, Y.K.; Park, C.H.; Yang, J. Effects of silk fibroin in murine dry eye. Sci. Rep. 2017, 7, 44364. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Rodriguez-Nogales, A.; Lozano-Pérez, A.; Aznar-Cervantes, S.; Algieri, F.; Garrido-Mesa, J.; Vezza, T.; Utrilla, M.; Cenis, J.L.; Rodríguez-Cabezas, M.; Gálvez, J. Effect of aqueous and particulate silk fibroin in a rat model of experimental colitis. Int. J. Pharm. 2016, 511, 1–9. [Google Scholar] [CrossRef]
  25. Kim, D.W. Enhancement of Anti-Inflammatory Activity of PEP-1-FK506 Binding Protein by Silk Fibroin Peptide. J. Microbiol. Biotechnol. 2012, 22, 494–500. [Google Scholar] [CrossRef] [Green Version]
  26. Saborano, R.; Wongpinyochit, T.; Totten, J.D.; Johnston, B.F.; Seib, F.P.; Duarte, I.F. Metabolic Reprogramming of Macrophages Exposed to Silk, Poly(lactic-co-glycolic acid), and Silica Nanoparticles. Adv. Healthc. Mater. 2017, 6, 1601240. [Google Scholar] [CrossRef] [Green Version]
  27. Wang, Y.; Guo, J.; Zhou, L.; Ye, C.; Omenetto, F.; Kaplan, D.; Ling, S. Design, Fabrication, and Function of Silk-Based Nanomaterials. Adv. Funct. Mater. 2018, 28, 1805305. [Google Scholar] [CrossRef]
  28. Burke, K.A.; Roberts, D.C.; Kaplan, D.L. Silk Fibroin Aqueous-Based Adhesives Inspired by Mussel Adhesive Proteins. Biomacromolecules 2016, 17, 237–245. [Google Scholar] [CrossRef]
  29. Xu, Z.; Shi, L.; Yang, M.; Zhu, L. Preparation and biomedical applications of silk fibroin-nanoparticles composites with enhanced properties—A review. Mater. Sci. Eng. C 2019, 95, 302–311. [Google Scholar] [CrossRef]
  30. Holland, C.; Numata, K.; Rnjak-Kovacina, J.; Seib, F. The Biomedical Use of Silk: Past, Present, Future. Adv. Healthc. Mater. 2019, 8, e1800465. [Google Scholar] [CrossRef] [Green Version]
  31. Yang, R.; Hou, M.; Gao, Y.; Lu, S.; Zhang, L.; Xu, Z.; Li, C.M.; Kang, Y.; Xue, P. Biomineralization-inspired Crystallization of Manganese Oxide on Silk Fibroin Nanoparticles for in vivo MR/fluorescence Imaging-assisted Tri-modal Therapy of Cancer. Theranostics 2019, 9, 6314–6333. [Google Scholar] [CrossRef]
  32. Yang, R.; Fu, S.; Li, R.; Zhang, L.; Xu, Z.; Cao, Y.; Cui, H.; Kang, Y.; Xue, P. Facile engineering of silk fibroin capped AuPt bimetallic nanozyme responsive to tumor microenvironmental factors for enhanced nanocatalytic therapy. Theranostics 2021, 11, 107–116. [Google Scholar] [CrossRef] [PubMed]
  33. Xie, J.; Zheng, Y.; Ying, J.Y. Protein-directed synthesis of highly fluorescent gold nanoclusters. J. Am. Chem. Soc. 2009, 131, 888–889. [Google Scholar] [CrossRef] [PubMed]
  34. Si, S.; Bhattacharjee, R.R.; Banerjee, A.; Mandal, T.K. A mechanistic and kinetic study of the formation of metal nanoparticles by using synthetic tyrosine-based oligopeptides. Chemistry 2006, 12, 1256–1265. [Google Scholar] [CrossRef] [PubMed]
  35. Laomeephol, C.; Ferreira, H.; Yodmuang, S.; Reis, R.L.; Damrongsakkul, S.; Neves, N.M. Exploring the Gelation Mechanisms and Cytocompatibility of Gold (III)-Mediated Regenerated and Thiolated Silk Fibroin Hydrogels. Biomolecules 2020, 10, 466. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Anishur Rahman, A.T.; Vasilev, K.; Majewski, P. Ultra small Gd(2)O(3) nanoparticles: Absorption and emission properties. J. Colloid Interface Sci. 2011, 354, 592–596. [Google Scholar] [CrossRef]
  37. Zhang, B.; Jin, H.; Li, Y.; Chen, B.; Liu, S.; Shi, D. Bioinspired synthesis of gadolinium-based hybrid nanoparticles as MRI blood pool contrast agents with high relaxivity. J. Mater. Chem. 2012, 22, 14494–144501. [Google Scholar] [CrossRef]
  38. Yang, W.; Shi, X.; Shi, Y.; Yao, D.; Chen, S.; Zhou, X.; Zhang, B. Beyond the Roles in Biomimetic Chemistry: An Insight into the Intrinsic Catalytic Activity of an Enzyme for Tumor-Selective Phototheranostics. ACS Nano 2018, 12, 12169–12180. [Google Scholar] [CrossRef]
  39. Yao, Q.; Lan, Q.-H.; Jiang, X.; Du, C.-C.; Zhai, Y.-Y.; Shen, X.; Xu, H.-L.; Xiao, J.; Kou, L.; Zhao, Y.-Z. Bioinspired biliverdin/silk fibroin hydrogel for antiglioma photothermal therapy and wound healing. Theranostics 2020, 10, 11719–11736. [Google Scholar] [CrossRef]
  40. Liu, T.; Zhang, M.; Liu, W.; Zeng, X.; Song, X.; Yang, X.; Zhang, X.; Feng, J. Metal Ion/Tannic Acid Assembly as a Versatile Photothermal Platform in Engineering Multimodal Nanotheranostics for Advanced Applications. ACS Nano 2018, 12, 3917–3927. [Google Scholar] [CrossRef]
  41. Li, S.; Bouchy, S.; Penninckx, S.; Marega, R.; Fichera, O.; Gallez, B.; Feron, O.; Martinive, P.; Heuskin, A.-C.; Michiels, C.; et al. Antibody-functionalized gold nanoparticles as tumor-targeting radiosensitizers for proton therapy. Nanomedicine 2019, 14, 317–333. [Google Scholar] [CrossRef] [PubMed]
  42. Samani, R.K.; Tavakoli, M.B.; Maghsoudinia, F.; Motaghi, H.; Hejazi, S.H.; Mehrgardi, M.A. Trastuzumab and folic acid functionalized gold nanoclusters as a dual-targeted radiosensitizer for megavoltage radiation therapy of human breast cancer. Eur. J. Pharm. Sci. 2020, 153, 105487. [Google Scholar] [CrossRef]
  43. Daems, N.; Penninckx, S.; Nelissen, I.; Van Hoecke, K.; Cardinaels, T.; Baatout, S.; Michiels, C.; Lucas, S.; Aerts, A. Gold nanoparticles affect the antioxidant status in selected normal human cells. Int. J. Nanomed. 2019, 14, 4991–5015. [Google Scholar] [CrossRef] [Green Version]
  44. Bai, X.; Wang, Y.; Song, Z.; Feng, Y.; Chen, Y.; Zhang, D.; Lin, F. The Basic Properties of Gold Nanoparticles and their Applications in Tumor Diagnosis and Treatment. Int. J. Mol. Sci. 2020, 21, 2480. [Google Scholar] [CrossRef] [Green Version]
  45. Her, S.; Jaffray, D.A.; Allen, C. Gold nanoparticles for applications in cancer radiotherapy: Mechanisms and recent advancements. Adv. Drug Deliv. Rev. 2017, 109, 84–101. [Google Scholar] [CrossRef]
  46. Wang, L.; Liu, Y.; Li, W.; Jiang, X.; Ji, Y.; Wu, X.; Xu, L.; Qiu, Y.; Zhao, K.; Wei, T.; et al. Selective targeting of gold nanorods at the mitochondria of cancer cells: Implications for cancer therapy. Nano Lett. 2011, 11, 772–780. [Google Scholar] [CrossRef] [PubMed]
  47. Schulz, F.; Homolka, T.; Bastús, N.G.; Puntes, V.; Weller, H.; Vossmeyer, T. Little adjustments significantly improve the Turkevich synthesis of gold nanoparticles. Langmuir 2014, 30, 10779–10784. [Google Scholar] [CrossRef]
  48. Brust, M.; Walker, M.; Bethell, D.; Schiffrin, D.J.; Whyman, R. Synthesis of thiol-derivatised gold nanoparticles in a two-phase Liquid–Liquid system. J. Chem. Soc. Chem. Commun. 1994, 7, 801–802. [Google Scholar] [CrossRef]
  49. Kharissova, O.V.; Dias, H.V.; Kharisov, B.I.; Pérez, B.O.; Pérez, V.M. The greener synthesis of nanoparticles. Trends Biotechnol. 2013, 31, 240–248. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, J.; Zhang, Y.; Jin, N.; Mao, C.; Yang, M. Protein-Induced Gold Nanoparticle Assembly for Improving the Photothermal Effect in Cancer Therapy. ACS Appl. Mater. Interfaces 2019, 11, 11136–11143. [Google Scholar] [CrossRef]
  51. Xu, H.L.; Zhuge, D.L.; Chen, P.P.; Tong, M.Q.; Lin, M.T.; Jiang, X.; Zheng, Y.W.; Chen, B.; Li, X.K.; Zhao, Y.Z. Silk fibroin nanoparticles dyeing indocyanine green for imaging-guided photo-thermal therapy of glioblastoma. Drug Deliv. 2018, 25, 364–375. [Google Scholar] [CrossRef] [PubMed]
  52. Tan, M.; Liu, W.; Liu, F.; Zhang, W.; Gao, H.; Cheng, J.; Chen, Y.; Wang, Z.; Cao, Y.; Ran, H. Silk Fibroin-Coated Nanoagents for Acidic Lysosome Targeting by a Functional Preservation Strategy in Cancer Chemotherapy. Theranostics 2019, 9, 961–973. [Google Scholar] [CrossRef] [PubMed]
Jfb 13 00087 sch001 550

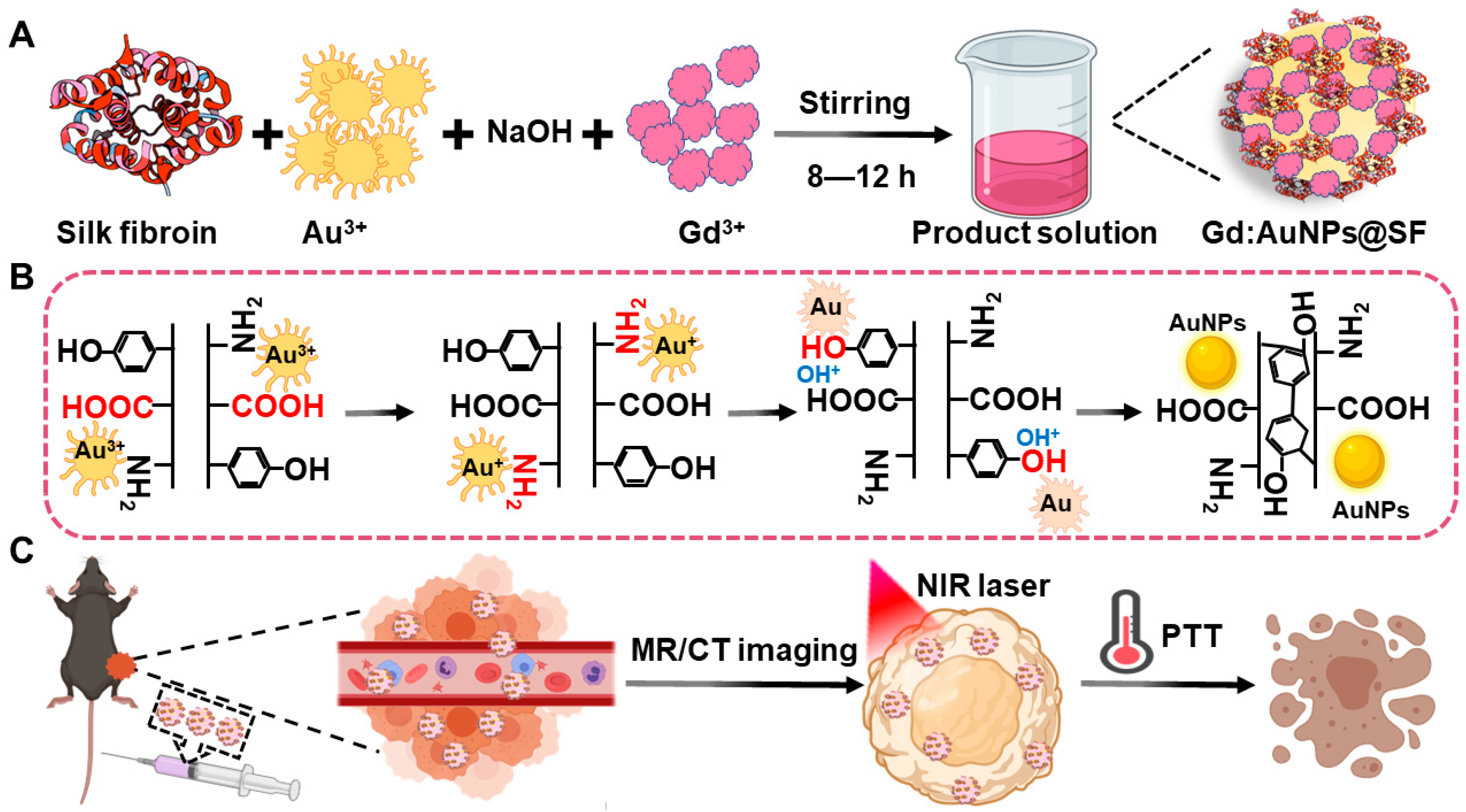

Scheme 1. The biomimetic synthesis of Gd:AuNPs@SF and its application in MR/CT dual-modal imaging-guided PTT for precise therapy of tumor. (A) Fabrication of Gd:AuNPs@SF; (B) mechanism of biomimetic synthesis; (C) Gd:AuNPs@SF for MR/CT imaging-guided PTT.
Scheme 1. The biomimetic synthesis of Gd:AuNPs@SF and its application in MR/CT dual-modal imaging-guided PTT for precise therapy of tumor. (A) Fabrication of Gd:AuNPs@SF; (B) mechanism of biomimetic synthesis; (C) Gd:AuNPs@SF for MR/CT imaging-guided PTT.
Jfb 13 00087 sch001
Jfb 13 00087 g001 550

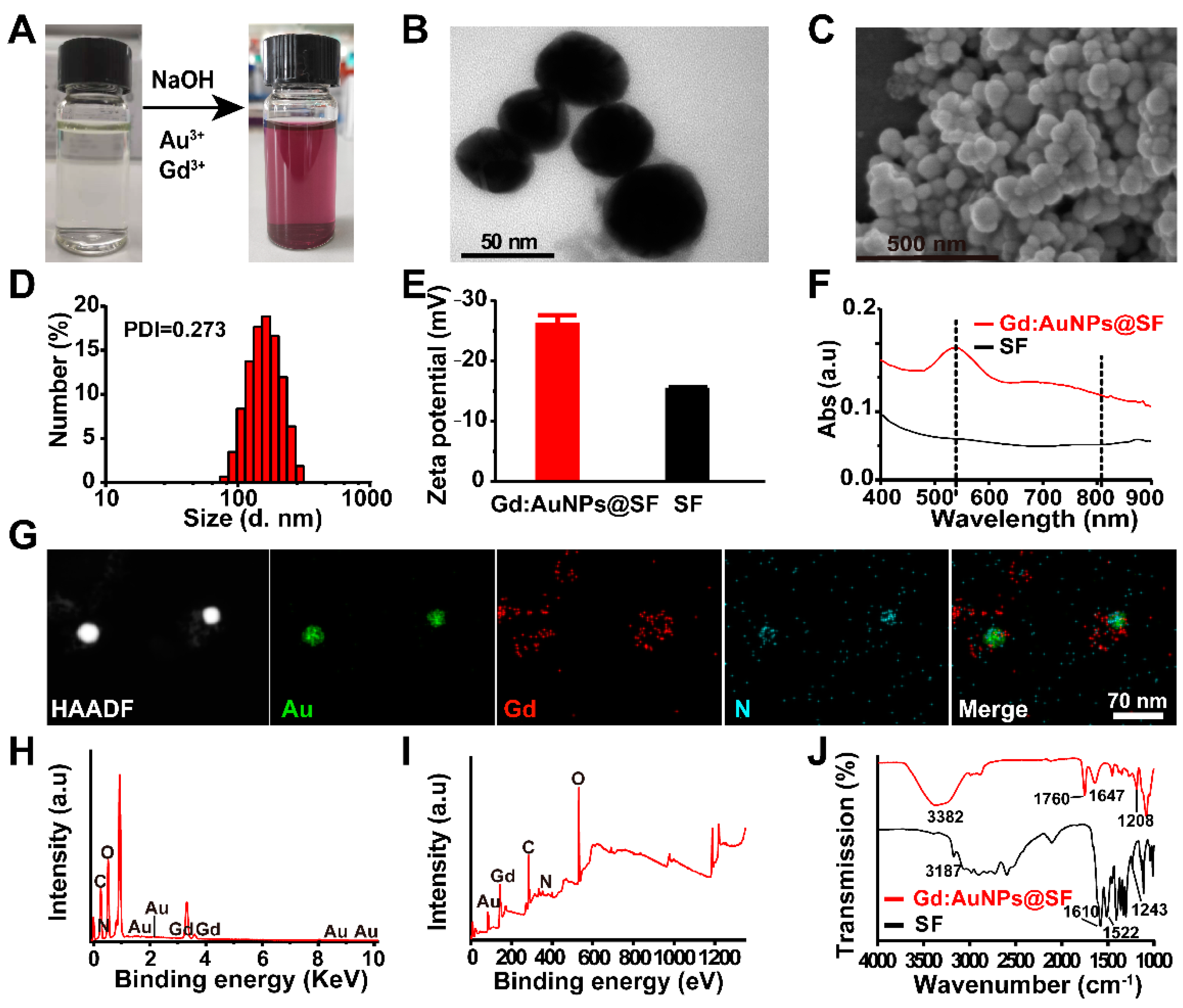

Figure 1. Characterization of the main physical and chemical properties of Gd:AuNPs@SF. (A) Digital images of SF solution and Gd:AuNPs@SF solution; (B) TEM image of Gd:AuNPs@SF; (C) SEM image of Gd:AuNPs@SF; (D) hydrodynamic diameter and (E) Zeta potential of Gd:AuNPs@SF; (F) UV-vis absorption spectra; (G) EDS mapping of Gd:AuNPs@SF (from left to right: dark field, Au, Gd, N, merge); (H) EDS spectrum and (I) XPS full spectrum of Gd:AuNPs@SF; (J) Fourier transform infrared spectroscopy (FTIR) of SF and Gd:AuNPs@SF.
Figure 1. Characterization of the main physical and chemical properties of Gd:AuNPs@SF. (A) Digital images of SF solution and Gd:AuNPs@SF solution; (B) TEM image of Gd:AuNPs@SF; (C) SEM image of Gd:AuNPs@SF; (D) hydrodynamic diameter and (E) Zeta potential of Gd:AuNPs@SF; (F) UV-vis absorption spectra; (G) EDS mapping of Gd:AuNPs@SF (from left to right: dark field, Au, Gd, N, merge); (H) EDS spectrum and (I) XPS full spectrum of Gd:AuNPs@SF; (J) Fourier transform infrared spectroscopy (FTIR) of SF and Gd:AuNPs@SF.
Jfb 13 00087 g001
Jfb 13 00087 g002 550

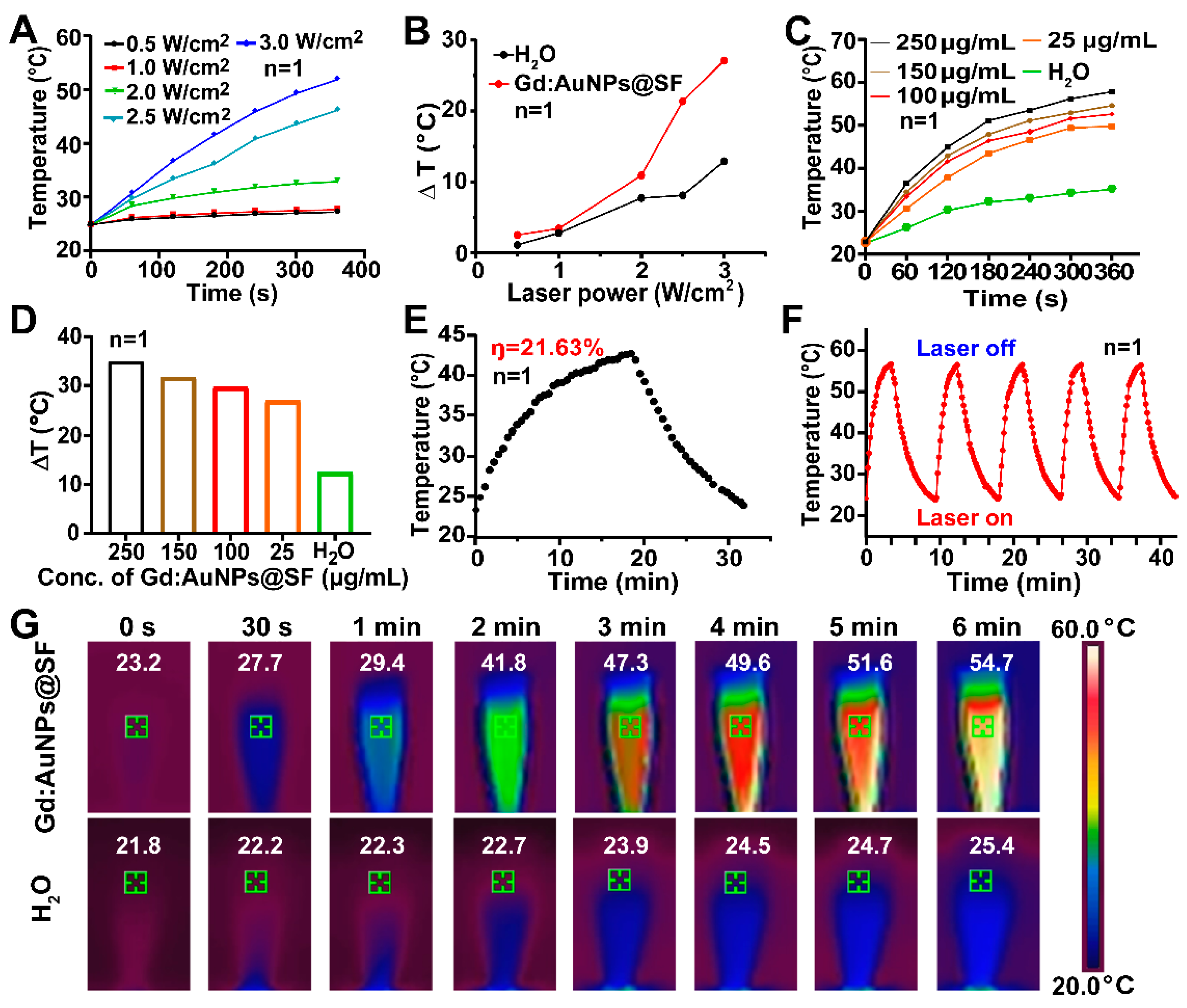

Figure 2. The photothermal properties of Gd:AuNPs@SF. (A) Temperature increase curve of Gd:AuNPs@SF (250 μg/mL) with irradiation at different laser powers (0.5, 1.0, 2.0, 2.5, 3.0 W/cm2) for 6 min; (B) temperature increase curves of Gd:AuNPs@SF and H2O after 808 nm laser irradiation for 6 min at different laser powers (0.5–3.0 W/cm2); (C) temperature increase curve of the concentration of Gd:AuNPs@SF (0, 25, 100, 150, 250 μg/mL) with 6 min laser irradiation (808 nm, 3 W/cm2) and (D) the corresponding temperature increase; (E) photothermal effect of Gd:AuNPs@SF aqueous solution (250 μg/mL) with 808 nm laser (3.0 W/cm2) irradiation, where η is the photothermal conversion efficiency; (F) photothermal stability of Gd:AuNPs@SF (250 μg/mL) under 808 nm laser (3.0 W/cm2) irradiation. After 3 min of irradiation, the laser was turned off, when the temperature was cooled to room temperature, it was turned on again, and this was repeated for 5 cycles; (G) infrared images of Gd:AuNPs@SF (250 μg/mL) and H2O under 808 nm laser irradiation (3.0 W/cm2).
Figure 2. The photothermal properties of Gd:AuNPs@SF. (A) Temperature increase curve of Gd:AuNPs@SF (250 μg/mL) with irradiation at different laser powers (0.5, 1.0, 2.0, 2.5, 3.0 W/cm2) for 6 min; (B) temperature increase curves of Gd:AuNPs@SF and H2O after 808 nm laser irradiation for 6 min at different laser powers (0.5–3.0 W/cm2); (C) temperature increase curve of the concentration of Gd:AuNPs@SF (0, 25, 100, 150, 250 μg/mL) with 6 min laser irradiation (808 nm, 3 W/cm2) and (D) the corresponding temperature increase; (E) photothermal effect of Gd:AuNPs@SF aqueous solution (250 μg/mL) with 808 nm laser (3.0 W/cm2) irradiation, where η is the photothermal conversion efficiency; (F) photothermal stability of Gd:AuNPs@SF (250 μg/mL) under 808 nm laser (3.0 W/cm2) irradiation. After 3 min of irradiation, the laser was turned off, when the temperature was cooled to room temperature, it was turned on again, and this was repeated for 5 cycles; (G) infrared images of Gd:AuNPs@SF (250 μg/mL) and H2O under 808 nm laser irradiation (3.0 W/cm2).
Jfb 13 00087 g002
Jfb 13 00087 g003 550

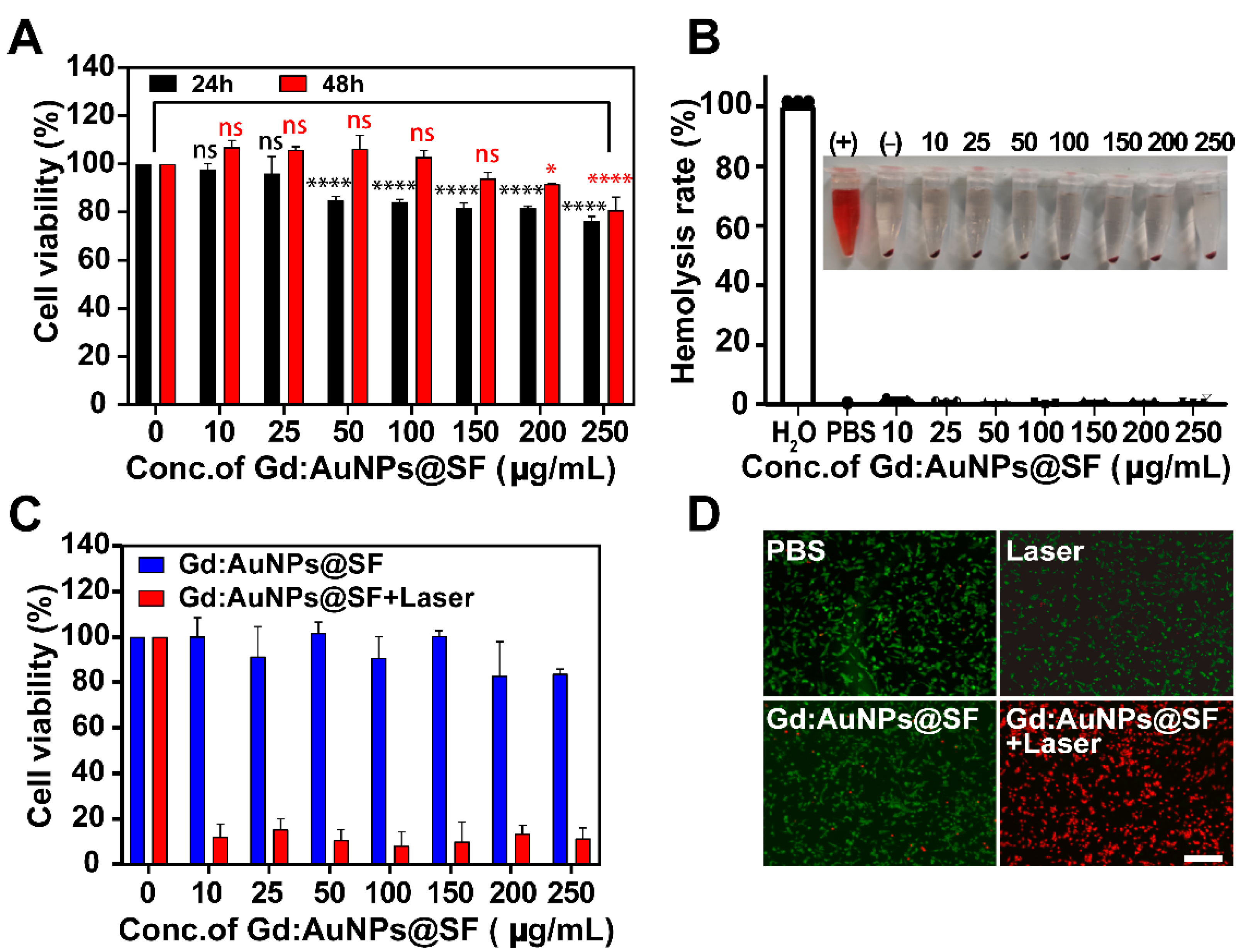

Figure 3. Cellular safety and photothermal toxicity. (A) Cytotoxicity of Pan02 cell after incubation with different concentrations of Gd:AuNPs@SF for 24 or 48 h, (ns p > 0.05; * p < 0.05; **** p < 0.0001); (B) hemolysis assay of Gd:AuNPs@SF at different concentrations, and the inset is a photo of hemolysis after centrifugation; (C) photothermal toxicity of Pan02 cells after incubation with Gd:AuNPs@SF (0–250 μg/mL) without or with 808 nm laser irradiation (3.0 W/cm2, 6 min); (D) fluorescence images of AO/PI staining of Pan02 cells with different treatments: control, laser only, Gd:AuNPs@SF only, and Gd:AuNPs@SF + laser. (red: dead cells, green: live cells, scale bar: 100 μm).
Figure 3. Cellular safety and photothermal toxicity. (A) Cytotoxicity of Pan02 cell after incubation with different concentrations of Gd:AuNPs@SF for 24 or 48 h, (ns p > 0.05; * p < 0.05; **** p < 0.0001); (B) hemolysis assay of Gd:AuNPs@SF at different concentrations, and the inset is a photo of hemolysis after centrifugation; (C) photothermal toxicity of Pan02 cells after incubation with Gd:AuNPs@SF (0–250 μg/mL) without or with 808 nm laser irradiation (3.0 W/cm2, 6 min); (D) fluorescence images of AO/PI staining of Pan02 cells with different treatments: control, laser only, Gd:AuNPs@SF only, and Gd:AuNPs@SF + laser. (red: dead cells, green: live cells, scale bar: 100 μm).
Jfb 13 00087 g003
Jfb 13 00087 g004 550

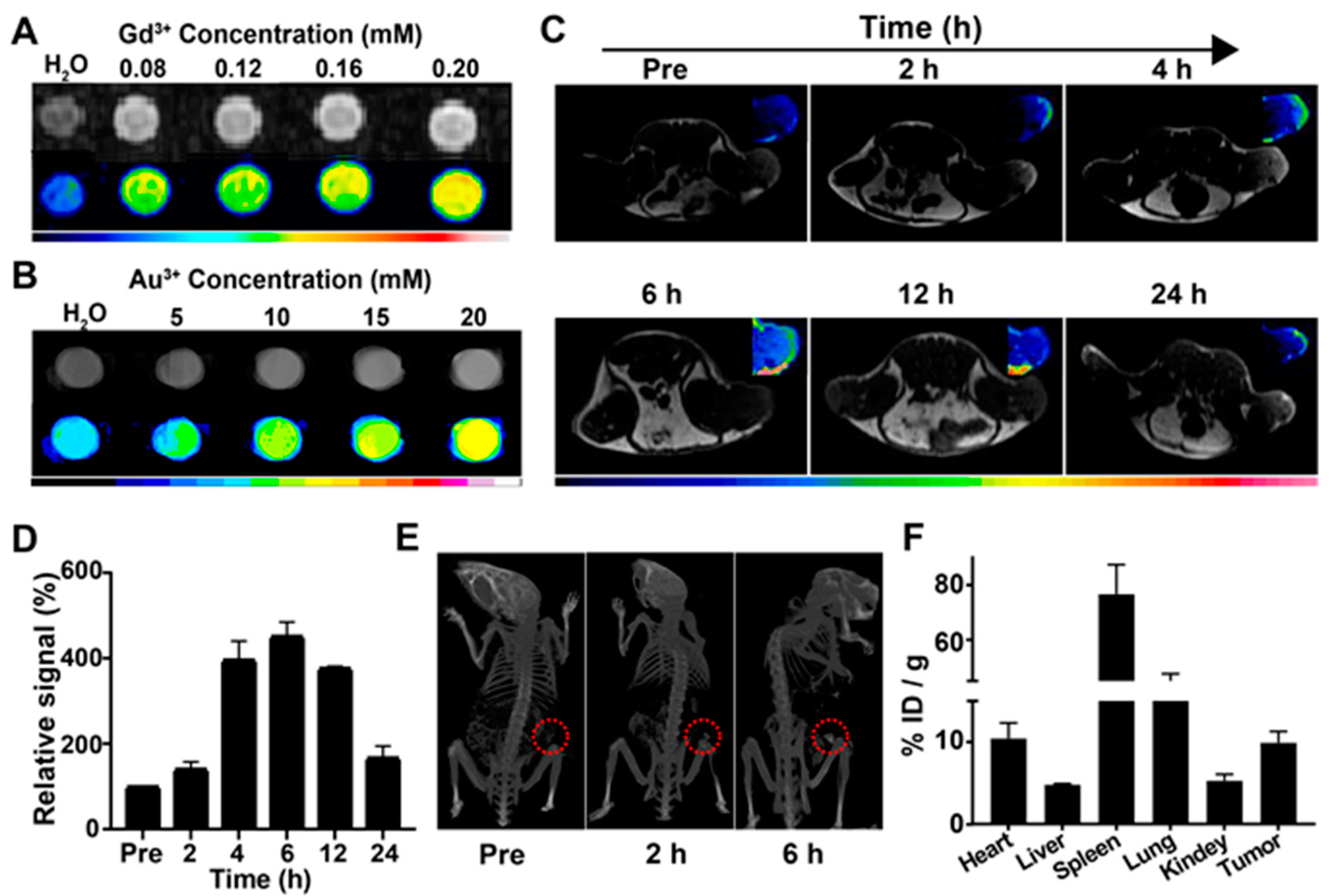

Figure 4. In vitro and in vivo MR/CT imaging and the biodistribution of Gd:AuNPs@SF. (A) T1-weighted and false-color mapping of different Gd3+ concentrations (0–0.20 mM) of Gd:AuNPs@SF in water; (B) CT imaging and false-color mapping with different Au3+ concentrations (0–20 mM); (C) in vivo time-dependent MR imaging of Gd:AuNPs@SF in Pan02 tumor-bearing mice; (D) relative intensity of the MR imaging signal at the tumor site; (E) CT imaging of Pan02 tumor-bearing mice after 2 h and 6 h injection; (F) biodistribution of Gd:AuNPs@SF after 6 h injection.
Figure 4. In vitro and in vivo MR/CT imaging and the biodistribution of Gd:AuNPs@SF. (A) T1-weighted and false-color mapping of different Gd3+ concentrations (0–0.20 mM) of Gd:AuNPs@SF in water; (B) CT imaging and false-color mapping with different Au3+ concentrations (0–20 mM); (C) in vivo time-dependent MR imaging of Gd:AuNPs@SF in Pan02 tumor-bearing mice; (D) relative intensity of the MR imaging signal at the tumor site; (E) CT imaging of Pan02 tumor-bearing mice after 2 h and 6 h injection; (F) biodistribution of Gd:AuNPs@SF after 6 h injection.
Jfb 13 00087 g004
Jfb 13 00087 g005 550

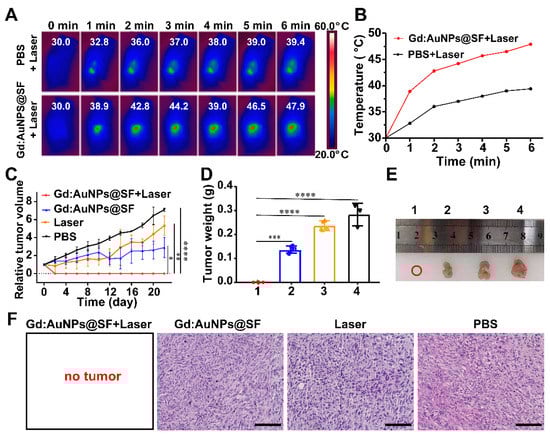

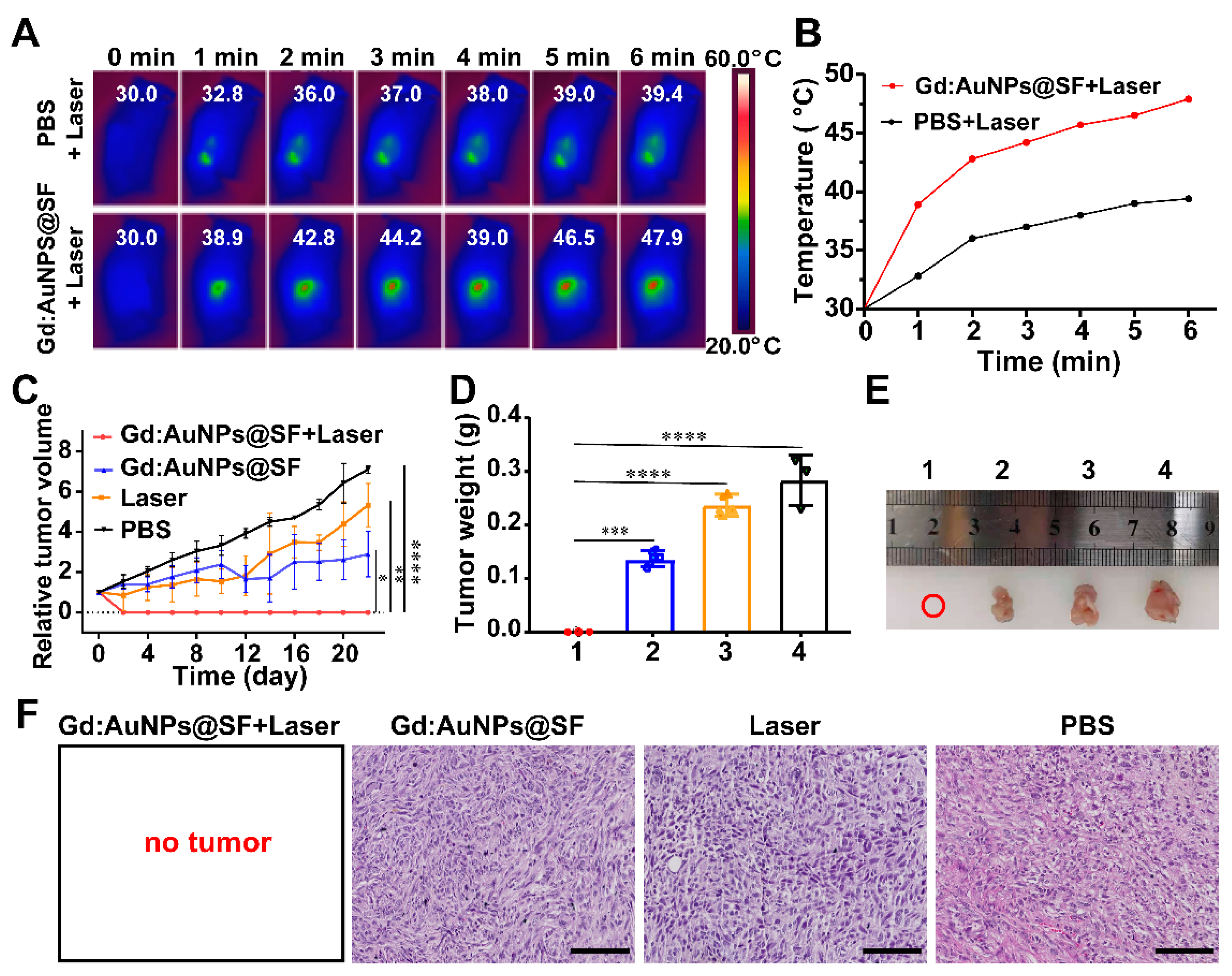

Figure 5. In vivo photothermography and PTT. (A) Photothermal images of Pan02 tumor-bearing mice under 808 nm laser irradiation (0.8 W/cm2, 6 min), 6 h after injection of 200 μL PBS or Gd:AuNPs@SF; (B) temperature change curve of the tumor site; (C) relative tumor volume growth curve for 22-day PTT. Data in C represents the mean ± SD (n = 3), * p < 0.05; ** p < 0.01; and **** p < 0.0001; (D) tumor weight after treatment, *** p < 0.001; and **** p < 0.0001; (E) tumor photos of Pan02 tumor-bearing mice after 22-day treatment (1: Gd:AuNPs@SF + Laser, 2: Gd:AuNPs@SF, 3: Laser, 4: PBS); and (F) representative images of H&E staining of tumor tissue sections for 22 days of treatment in different groups (scale bar: 100 μm).
