Data-Driven Prediction of Experimental Hydrodynamic Data of the Manta Ray Robot Using Deep Learning Method

Abstract

To precisely control the manta ray robot and improve its swimming and turning speed, the hydrodynamic parameters corresponding to different motion control variables must be tested experimentally. In practice, too many input control parameters will bring thousands of groups of underwater experiments, posing challenges to the duration and operability of the engineering project. This study proposes a generative adversarial network model to reduce the experimental period by predicting the hydrodynamic experimental time-series data of forces and torques in the three-coordinate directions in a Cartesian coordinate system through different combinations of motion control parameters. The motion control parameters include the rotation amplitude, frequency, and phase difference of the four steering gears which drive the pectoral fins. We designed the prototype and experimental platform and obtained 150 sets of experimental data.To prevent overfitting, the size of the dataset was expanded to 2250 groups by slicing time series, and the subsequences of varying lengths were extended to the same length by LSTM. Finally, the GAN model is used to predict the hydrodynamic time series corresponding to the different motion parameters. The results show that the GAN model can accurately predict the input both from the validation set and the unlearned interpolated motion parameters. This study will save experimental time and cost and provide detailed hydrodynamic experimental data for the precise control of manta rays.

1. Introduction

As a kind of small intelligent equipment, autonomous underwater vehicles (AUV), which can move underwater for a long time, are widely utilized in environment monitoring, biological research, shipwreck salvage, and so on. However, the traditional propeller-type underwater vehicle has low maneuvering efficiency, poor maneuverability, and high noise, which may reduce the endurance time and damage the ecological environment. In the meantime, long-term natural selection and evolution have endowed fish with extraordinary athletic abilities: low-energy long-distance cruising, powerful athletic explosiveness, maneuverability, etc. Therefore, more and more researchers seek inspiration in bionics to improve the performance of underwater vehicles [1,2,3]. The movement patterns of fish are divided into two modes: median and/or paired fin (MPF) locomotion and body and caudal fin (BCF) locomotion [4]. The manta rays in the MPF mode flap the pectoral fins to generate thrust, which can complete high-mobility actions such as zero-radius turning and instantaneous acceleration [5,6,7]. The bow-gliding motion mode of the manta ray also reduces energy consumption. Cai et al. designed a manta ray robot using pneumatic artificial muscles [8]. Zhou et al. designed a manta ray-like vehicle driven by six flexible fins, with a speed of up to 1 BL/S and a continuous operation of 90 hours [9].

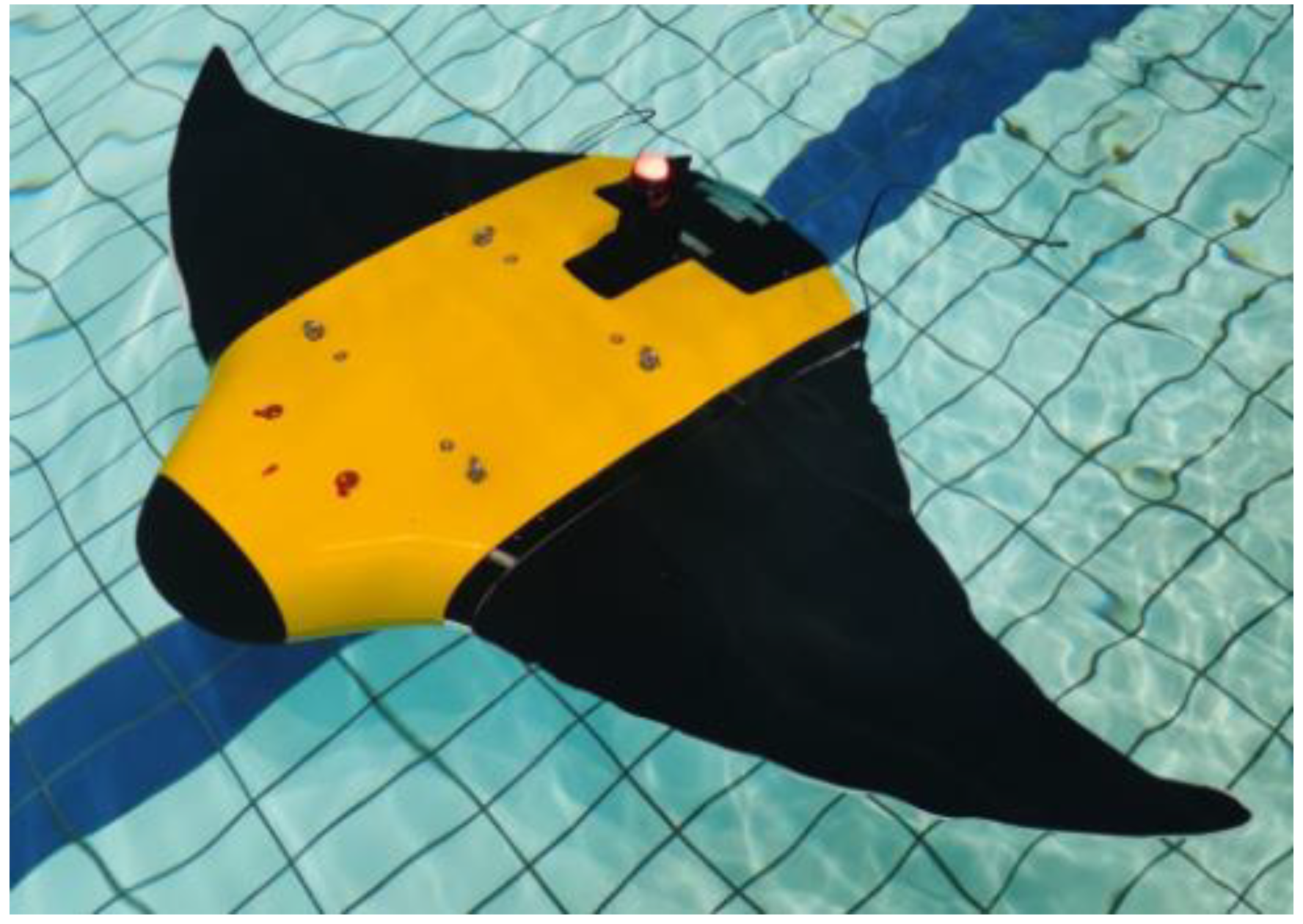

In 2020, a bionic manta ray underwater robot was designed by researchers of our team, as shown in Figure 1. The vehicle has a wingspan of 2 m and a total mass of 100 kg. It is driven by four steering gears to flap its wings, and its motion attitude is controlled by adjusting motion parameters such as the rotation amplitude, frequency, and phase difference between the steering gears. To optimize the motion control parameters of the vehicle, we need to obtain the hydrodynamic parameter values of the vehicle corresponding to different motion attitudes. There are usually two ways to do this, and the first is an accurate numerical simulation by the CFD method. Fish et al. analyzed manta rays’ powerful lift generation mechanism through the immersion boundary method and estimated the maximum operating efficiency to be 89% [10]. Huang et al. established the motion equation of the manta ray vehicle with six degrees of freedom and calculated the influence of different pectoral fin flapping motion parameters on the propulsion force through the computational fluid dynamics method [11]. The second is to test the hydrodynamic parameters corresponding to different motion modes through experiments. Through experiments, Yang et al. tested the effects of different control parameters of the manta ray robot on propulsion speed and steering maneuverability [12]. However, both methods have shortcomings. The model of CFD simulation has errors compared to the actual vehicle because the simulation model cannot imitate the motion deformation, the internal flexibility distribution, and the surface friction of the real one entirely. On the other hand, the experiment cannot exhaustively test all combinations of input control variables due to the cost of time and labor.

Traditional fluid mechanics calculation methods are difficult to calculate for complex characteristic problems such as three-dimensional unsteady flow fields and multi-scale nonlinearity. There may be deviations between theoretical calculations and experimental results for complex engineering problems with high Reynolds numbers. At the same time, deep learning is an algorithm for feature identification, rule exploration, and data regression based on big data [13,14,15,16]. It has performs excellently in high-dimensional nonlinear space and is currently widely used in health monitoring systems [17,18] and cyber-physical systems [19]. Since CFD research will generate a large amount of flow field data, which can effectively support neural network training, researchers began to use neural network methods to solve high-dimensional nonlinear problems in flow fields [20,21,22]. At present, deep learning is widely used in the prediction and optimization of hydrodynamic parameters [23,24,25] and physical fields [26,27,28], and is widely used in both theoretical analyses [29,30] and flow field experiments [31,32]. In past research, J P Panda et al. predicted the complex flow field over an axisymmetric rotation body [33] and the wind loads and damage detection of ships [34]. Yang et al. constructed the resistance value prediction model corresponding to the different draft depths of the ship model through the BFRNN algorithm [35]. Using deep learning for building mechanics research has two significant advantages. First, the parameter terms in the partial differential equation of the flow field can be optimized through neural networks to improve the accuracy of CFD [36,37]. Secondly, it provides an instant and reliable solution to some complex engineering flow problems with high Reynolds that are difficult to solve by CFD methods [38]. Therefore, for the problem of obtaining the hydrodynamic parameters of a flapping manta ray robot, we propose a deep learning framework to predict the force and torque corresponding to different motion parameter combinations.

The purpose of this research is to establish a generative adversarial neural network deep learning framework which can predict the hydrodynamic experiment time series data of force and torque in the three-coordinate direction in the Cartesian coordinate system through the combination of motion parameters such as different flapping amplitudes and frequencies of the bionic manta ray robot. The key contributions of this paper can be summarized as follows:

• NuWe made a scaled-down experimental model of the bionic vehicle and built a platform for collecting experimental data.
• We effectively expanded the data sample size by slicing the time series and supplementing the subsequences to the same sequence length.
• We utilized the GAN model to predict the hydrodynamic parameters corresponding to the input values of the validation set and interpolation variables, respectively, and compared the predicted results with the experimental results to verify the accuracy of the results.

The work of this paper will be introduced from the following aspects: the second part introduces the hydrodynamic experimental test results, data set augmentation, and data normalization methods. The third part lists the different generator and discriminator models for predicting hydrodynamic parameters. The fourth part provides the prediction results of different data augmentation methods, model combinations, and input variables. The last part provides conclusions of the research.

2. Datasets

2.1. Experimental Prototype Model

As shown in Figure 1, the original manta ray robot prototype has a wingspan of 2 m and a weight of 100 kg. It is not easy to directly use the original prototype for experiments because multiple people are required to cooperate in the work, which involves lifting, assembling, and Filling the buoyancy block. Due to the size of the original prototype, the manta ray robot needs to flap at a depth of 2–3 m underwater. In addition, the results corresponding to hundreds of different input motion combinations should be measured to obtain the whole hydrodynamic parameter time series datasets. Using the original prototype will consume a lot of workforce and time. Therefore, in this paper, a scaled-down model of a bionic vehicle driven by four steering gears is fabricated, and a six-dimensional force sensor is equipped at the center of the model’s mass. The size comparison between the model prototype and the original prototype is shown in

Table 1. Size comparison between the experimental prototype and the actual prototype.

	Experimental Prototype	Actual Prototype
Chord (mm)	200	1000
Span (mm)	400	2000
Thickness (mm)	60	300

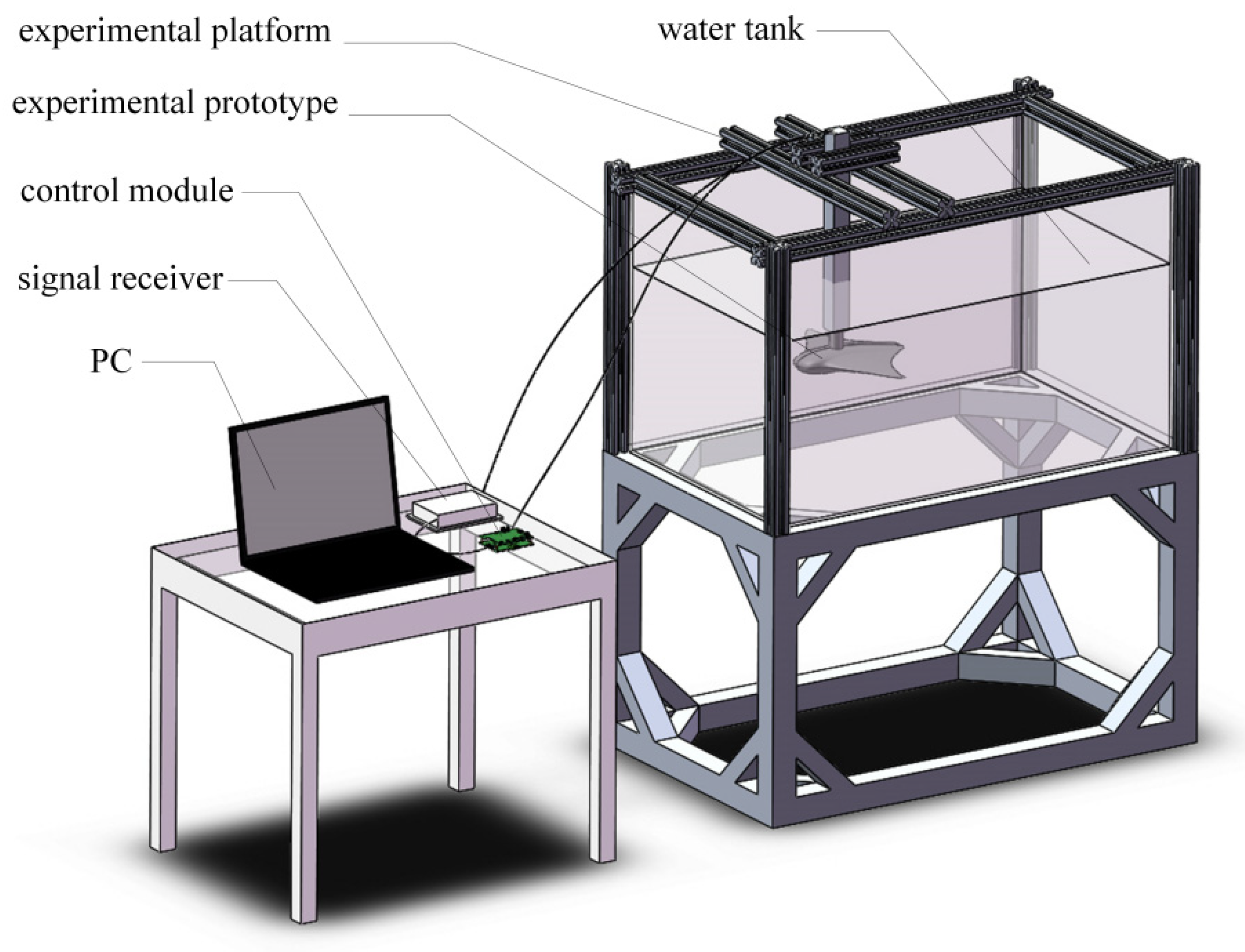

. An experimental platform was constructed to conduct scale model experiments, as shown in Figure 2. The main body of the platform is a water tank with the size of 1000 × 600 × 600 (mm), reinforced with aluminum profiles.

The model prototype is fastened to the profile frame through the threaded connection parts on the force sensor at its center of mass. Some buoyancy blocks are placed in the prototype to make the buoyancy in the water equal to gravity. The control module of the steering gears and the signal receiver of the six-dimensional force sensor are placed outside the water tank and connected to the computer. Furthermore, we use the STM32 microcontroller (STMicroelectronics Inc., Geneva, CH) as the control module of four steering gears and the Nano17 six-dimensional force sensor (ATI Inc., North Carolina, NC, USA) as the force measurement and data acquisition module. During the experiment, the upper computer software system instructed the drive board to control each steering gear to swing with different amplitudes, frequencies, and phase differences. During the flapping process, the six-dimensional force sensor will acquire the force and moment information in three directions in the Cartesian coordinate system in real-time. The information is transmitted to the computer through the force and torque sensor system of Nano17 (ATI Inc, North Carolina, NC, USA), and we can obtain the hydrodynamic data corresponding to a set of motion parameters. We need to measure the hydrodynamic parameter curve for each set of motion control parameters with a time step of 3000. The detailed data acquisition process of the experiment is shown in Figure 3.

2.2. Data Obtained from Hydrodynamic Experiments

In the experiment, we tested the six-dimensional force parameters, namely lift, drag, lateral force, and their respective moments of the experimental prototype under different flapping amplitudes, frequencies, and phase differences. Among them, single-wing and double-wing flapping amplitudes are measured in a set of data every 5°, and the test amplitude ranges from 20° to 40°. The flapping frequency is measured in a set of data every 0.2 Hz, and the test frequency ranges from 0.3 Hz to 0.7 Hz. The phase difference between the front and rear fin rays is measured every 10°, and the test phase difference ranges from 0° to 40°. Based on the above input motion parameters, a total of 150 sets of experimental conditions were tested as the subsequent training set and validation set data. The nomenclature of the motion parameters is defined in

Table 2. The symbols of motion parameters.

Motion Parameters	Amplitude Left	Amplitude Right	Frequency	Phase Difference
symbols	AL	AR	f	Φ

, and some of the tested motion parameters are shown in

Table 3. Part of the test motion parameters.

Parameters	AL (°)	AR (°)	f (Hz)	Φ (°)
Input Data	20	20	0.3	0
	20	25	0.3	0
	20	20	0.5	0
	20	20	0.5	10
	20	25	0.5	10

. Part of the dataset was uploaded to GitHub: https://github.com/lingke12138/prediction-of-experimental-data.git (accessed on 11 May 2022).

In addition, we conducted additional experiments on the interpolation of variable input combinations (A_L, A_R, f, Φ) and used the results as a test set for our deep learning method. We set up four sets of input data: (33, 33, 0.7, 40), (20, 33, 0.7, 40), (40, 40, 0.6, 40) (40, 40, 0.7, 25), which represent four experimental conditions of symmetric and asymmetric flapping with variable amplitude, symmetric flapping with variable frequency, and flapping with variable phase difference.

In the experimental hydrodynamic test, the six-dimensional force sensor is set to sample 100 times per second, and the sampling time of each set of data is 30 s. The total time step of experimental sampling is 3000 steps, and the format of data obtained from the experiment is shown in

Table 4. Experimental data of A_L = A_R = 40, f = 0.5, Φ = 30.

Step	Fx	Fy	Fz	Tx	Ty	Tz
1	0.087	0.007	−0.795	−5.341	−15.710	−2.114
2	0.084	0.012	−0.836	−6.324	−16.279	−2.802
3	0.092	0.005	−0.829	−6.898	−16.952	−2.673
4	0.091	−0.002	−0.850	−7.858	−17.377	−2.471
…	…	…	…	…	…	…
2998	0.081	−0.003	−0.729	−4.959	−13.400	−0.920
2999	0.080	0.001	−0.770	−5.029	−15.104	−1.541
3000	0.085	−0.003	−0.803	−5.881	−16.196	−1.664

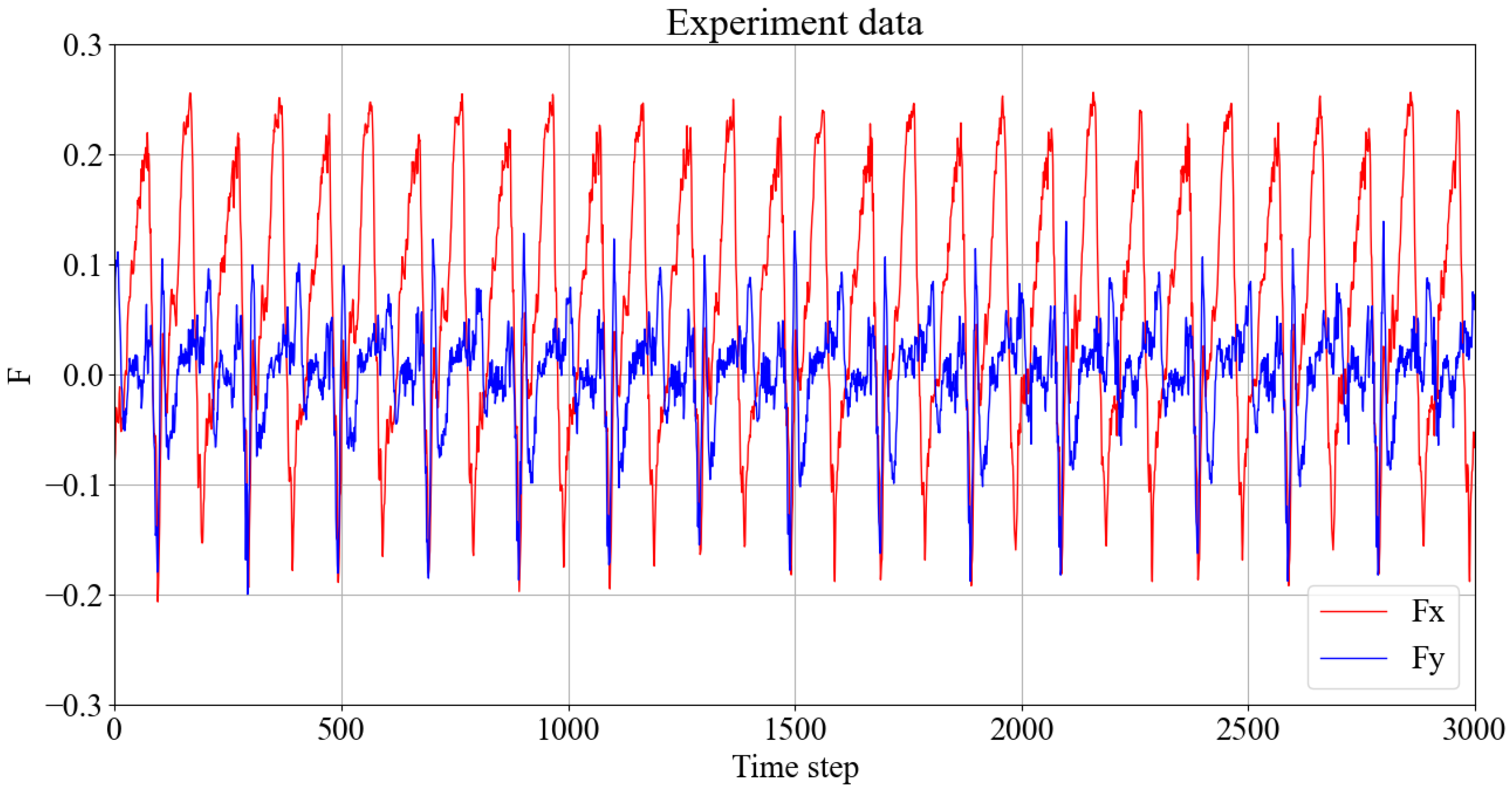

. The variation law of the hydrodynamic parameters corresponding to the motion parameters is shown in Figure 4. Part of the data set has been uploaded to GitHub, including four kinds of motion conditions: symmetric flutter, asymmetric flutter, variable amplitude, and variable phase difference.

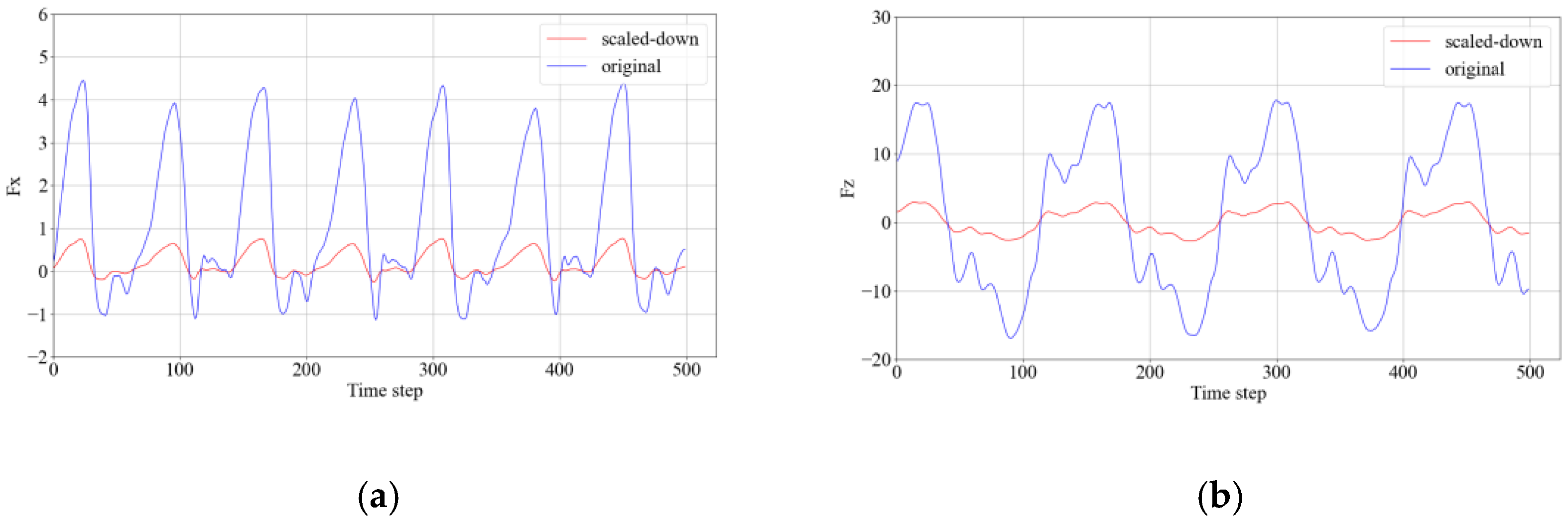

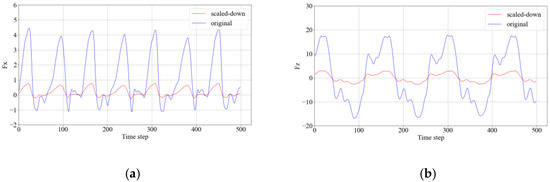

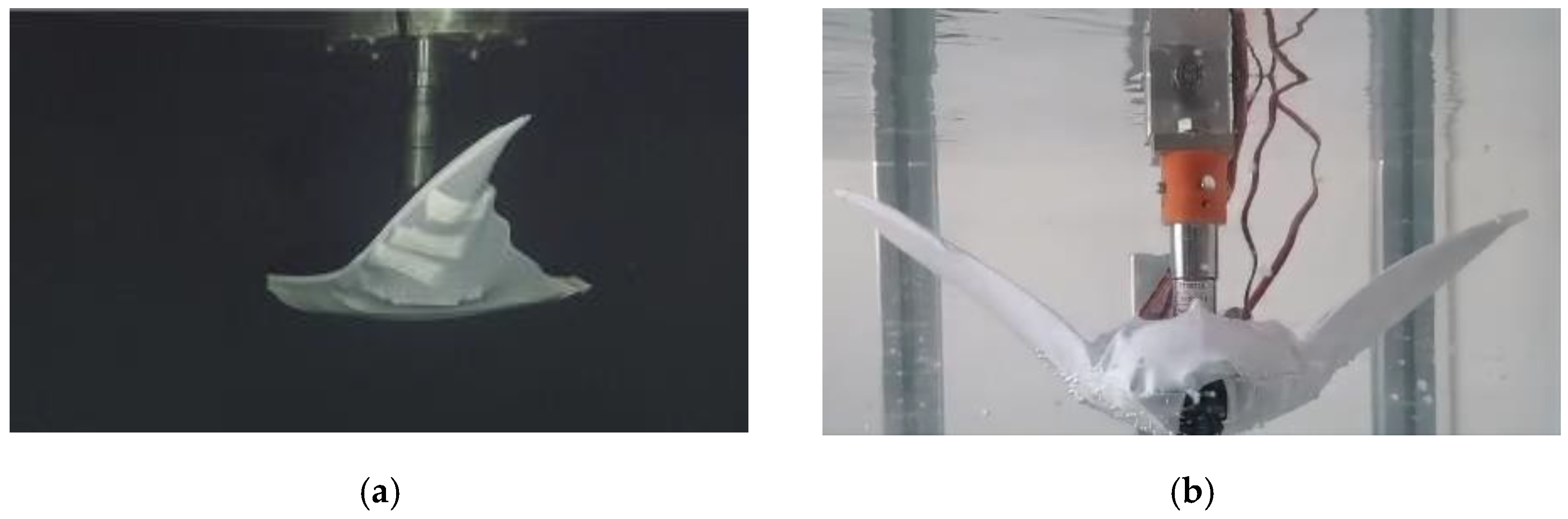

To prove that the data obtained by the scaled-down model test is also valid for the original prototype, we conducted a flapping experiment of the original prototype with input parameters of A_L = A_R = 40, f = 0.5, Φ = 30 and compared the experimental results. The experimental test of the original and scaled-down manta ray robot is shown in Figure 5. The comparison of the forces in the x and z directions of the two robots is shown in Figure 6. The forces in all directions have the same change trend, and the force is proportional to the prototype’s size. Therefore, the results obtained from the scaled model experiment can be used as a reference for the original prototype.

2.3. Datasets of Deep Learning

Through the hydrodynamic experiments, we obtained 150 sets of data. However, for neural network training, the amount of data is insufficient and will cause an overfitting phenomenon, which means the neural network fits the training set data too much and has poor generalization ability to other input data. Data augmentation is a technique of generating grammatical data to solve insufficient data samples for training and to obtain better prediction accuracy without collecting data. This can effectively solve the problem of overfitting. There are three traditional data enhancement methods for solving sequence data: time offset, amplitude-frequency conversion, and noise injection. It aims to close the gap between training samples and test data by expanding the sample size. At the same time, by the hydrodynamic experiments, we obtained multi-period force and moment data with the time step of 3000. Therefore, this study intends to expand the data set by slicing the time series obtained by the force sensor and extracting complete flapping period data each time.

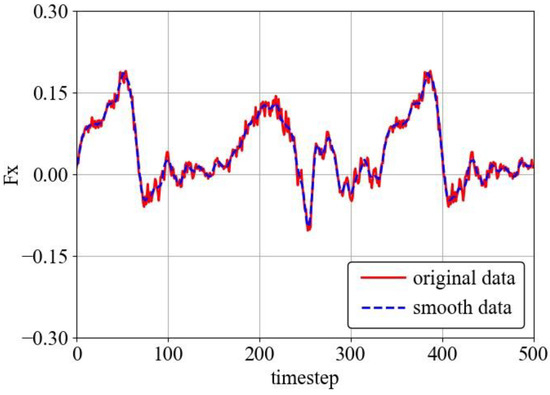

Since there are slight numerical fluctuations during each flutter cycle of the measured data, the method of slicing the data according to the cycle is equivalent to adding noise to each group of data series, and the data can be enhanced by this method. Due to the experimental conditions of flapping by variable frequency, there are differences in the data lengths sliced by each period. For example, when flapping at a frequency of 0.7 Hz, there are 143 sampling time steps per cycle, but when flapping at 0.3 Hz, there are 333 sample time steps. To facilitate the operation of the neural network generator, such as the subsequent convolution, each experimental data sequence is extended to 500-time steps in this study to ensure the consistency of sequence length. The data of 500-time steps are not sliced from the original data directly because this method will generate a large amount of repeated data. Especially when beating at 0.7 Hz, the second cycle in the sequence data is wholly duplicated. Since too many mutations in the data will affect the accuracy of the prediction, the original experimental data of this paper is smoothed by the method of Savitzky-Golay to reduce noise. The original and smoothed data are shown in Figure 7. After that, two methods are verified to expand the sequence after the slice: one is to add 0 to the data directly, and the other is to predict the time-series changes of sliced data utilizing the long short-term memory neural network. The latter method takes the front 30 data points of the sequence as input to predict the following 30 data points and predicts the subsequent data changes of each slice using a loop program. The augmented dataset sequence of the two methods is shown in Figure 8. This method expands the 150 sets of working conditions in this experiment to 2250 datasets.

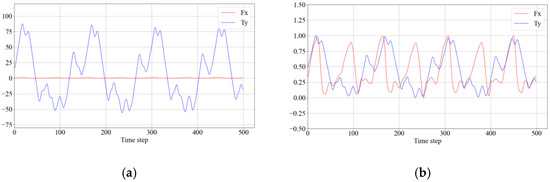

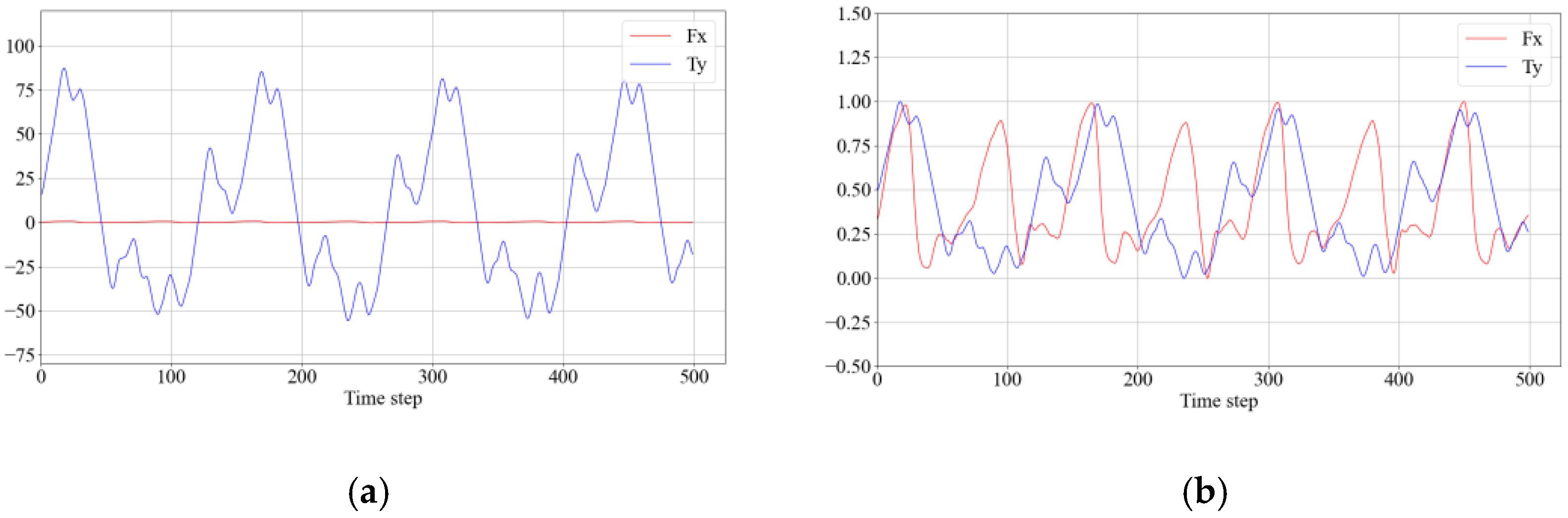

As shown in Table 4, the data range of F and T is quite different, and the values of T_y are several times those of F_x. Feeding the original data directly into the neural network for training will seriously affect the prediction accuracy of F_x. Therefore, the Min-Max scaler normalization method, shown below, is utilized to normalize the data set so that the data is linearly scaled to a range of (0, 1).

$$\begin{array}{l}{x}_{std}=\frac{x-x_{min}}{x_{max}-x_{min}}\\ x_{scaled}=x_{std}*(max-min)+min\end{array}$$

(1)

where, $x_{std}$ is scaling ratio, $(min,max)$ is scaled feature range, $x_{scale}$ is data after normalization. The original time series of F_x and T_y of the same input is shown in Figure 9a, and the normalized data is shown in Figure 9b.

Finally, the 2250 sets of data are randomly scrambled and divided into training and validation sets at the ratio of 8:1.

3. Methods

3.1. Conceptual Figure and Algorithm Selection

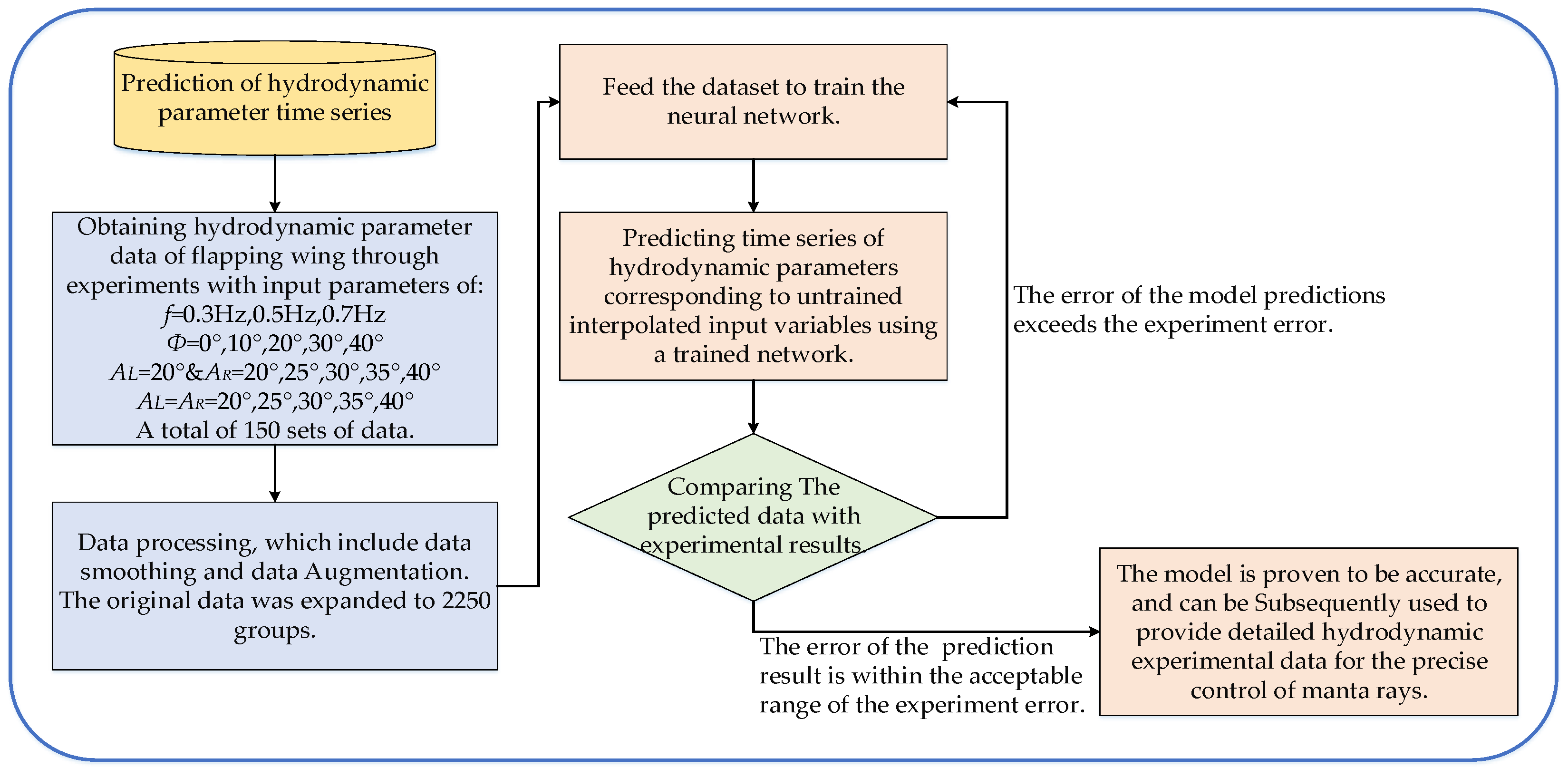

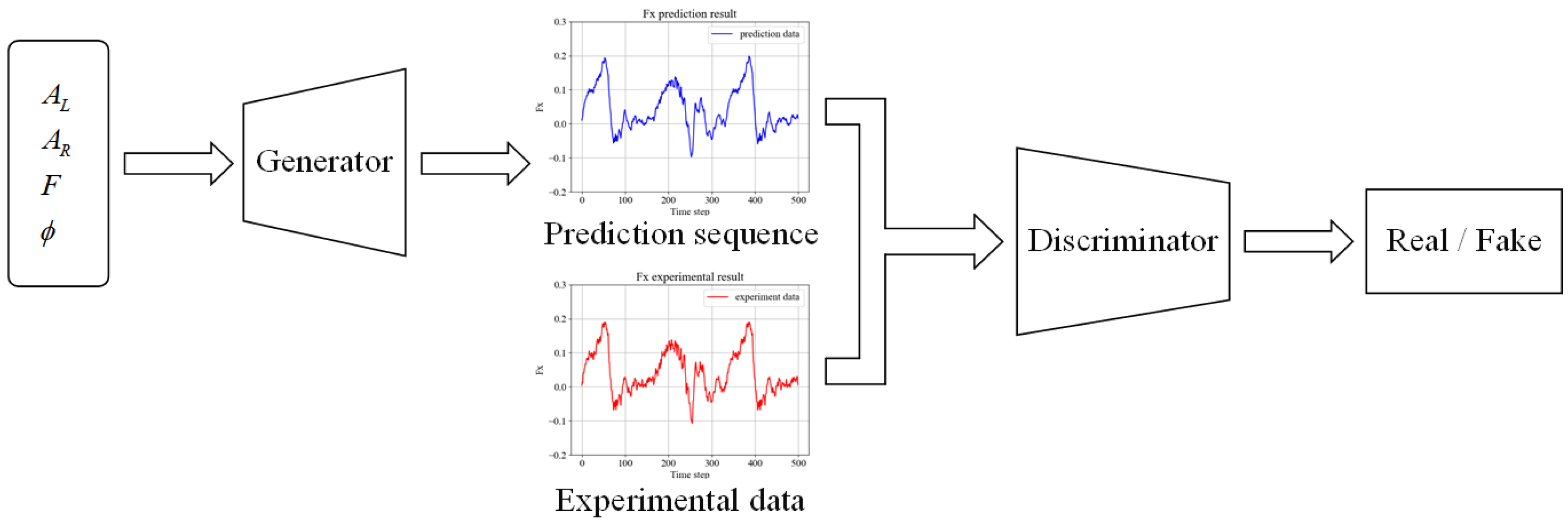

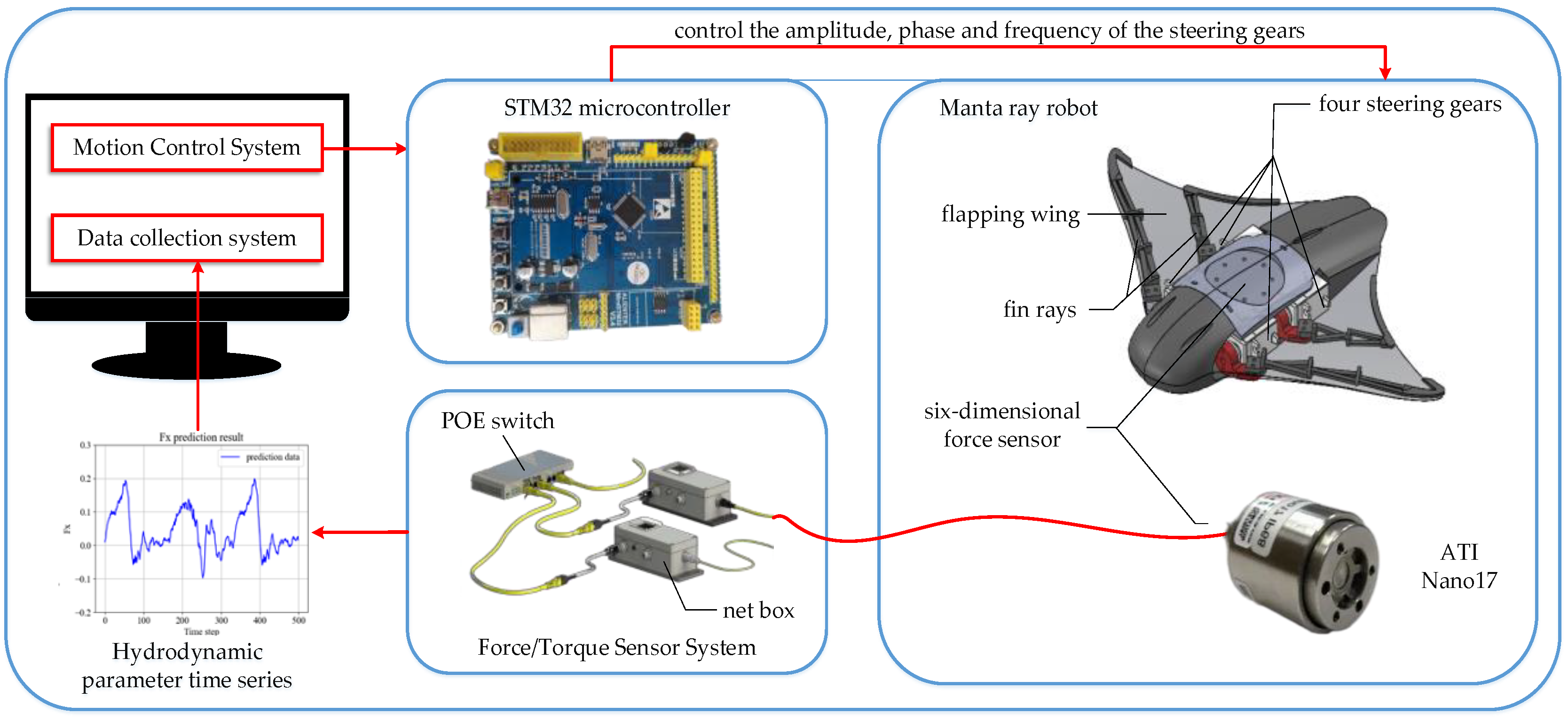

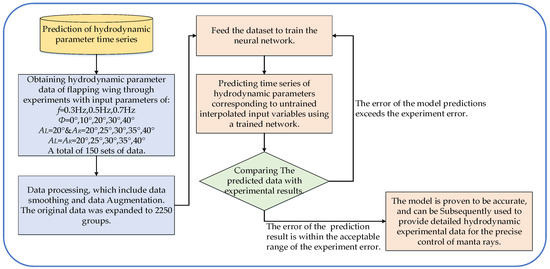

Prediction of the experimental hydrodynamic data of the manta ray robot mainly includes three steps: the acquisition of experimental data, training, and prediction of the GAN model, and error analysis by comparing the experimental data. The detailed conceptual flow chart is shown in Figure 10.

The blue boxes represent data acquisition steps, the orange boxes represent training models and predictions, and the green boxes represent error analysis. We have discussed the data acquisition in detail in Chapter 2 and can find from it that the input variables which will feed to the neural network are {A_L, A_R, f, Φ}, while the output variables are {F_x, F_y, F_z, T_x, T_y, T_z}. Therefore, the neural network is trained to obtain a nonlinear mapping of motion control variables to hydrodynamic parameter time series, which can be summarized in Equation (2):

$$y=g(F_x,F_y,F_z,T_x,T_y,T_z)=f({\lambda }_m^k,A_L,A_R,f,\varphi )\to \widehat{y}$$

(2)

among them, y is the prediction output sequences, $\widehat{y}$ is the data obtained from the experiments, and ${\lambda }_m^k$ is trainable parameters of each hidden layer nodes. Deep learning is continuously learning to optimize the trainable parameters in the neural network so that the prediction results y are constantly close to the actual value $\widehat{y}$.

In this study, the neural network model we built uses three basic neural network frameworks, namely the full connection neural network, the convolutional neural network, and the transposed convolutional neural network.

The algorithm of the full connection neural network is to solve the logistic regression of the mapping between each neuron in each layer, as shown in the Formula (3):

$$y^i={\displaystyle \sum _j{w}^{j,i}{x}^j+b}$$

(3)

where, $w^{j,i}$ is a weight parameters tensor between input(x) and output(y) neurons, and b is a constant of bias. The number of neurons of input and output layers is defined as j and i.

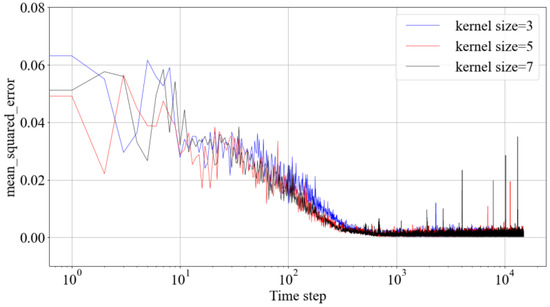

The convolution calculation generally uses an n-dimensional convolution kernel which slides on the input tensor according to the specified step size and traverses each feature point on the tensor. Since the input and output data in this paper are all digital sequences, 1d convolution is chosen. The mapping between the input and output of the 1d convolutional layer can be expressed by the Formula (4):

$$y_j=\left[{\displaystyle \sum _i{\displaystyle \sum _{n=0}^{N-1}{w}_n^i{x}_{j+n}^i}}\right]+b$$

(4)

where, w is the weight parameters tensor of a convolution layer in kernels, and b is a constant, which is also a parameter to be learned. Kernels are one-dimensional tensors, and their size is defined as N.

The transposed convolutional neural network, also known as deconvolution, can restore the sequence or image dimensions before the convolution operation according to the size of the convolution kernel and the size of the output. As the operation of standard convolution, transposed convolution optimizes the trainable variables through the neural network to obtain optimal output results.

It can be seen that the above neural networks are all linear calculations. To improve the neural network’s ability to fit data, researchers generally apply an activation function to the convolutional or fully connected layer to provide a nonlinear factor for the neural network. In this paper, we use three types of activation functions f(x): ReLU, tanh, and sigmoid. They are respectively defined as:

$$\begin{array}{c}ReLU:f(x)=max(0,x)\\ tanh:f(x)=\frac{e^x-e^{-x}}{e^x+e^{-x}}\\ Sigmoid:f(x)=\frac{1}{1+e^{-x}}\end{array}$$

(5)

The deep learning model GAN is a promising unsupervised learning method in recent years and has been widely used in image generation and data enhancement. GAN consists of two networks: a generator model and a discriminator model. The generator model is used to generate a series of sequences, while the discriminator model is used to determine the category of the above-generated sequence or calculate the error between the generated and actual sequence. The structure of the deep learning networks in the present study is shown in Figure 11.

3.2. Generative Adversarial Networks

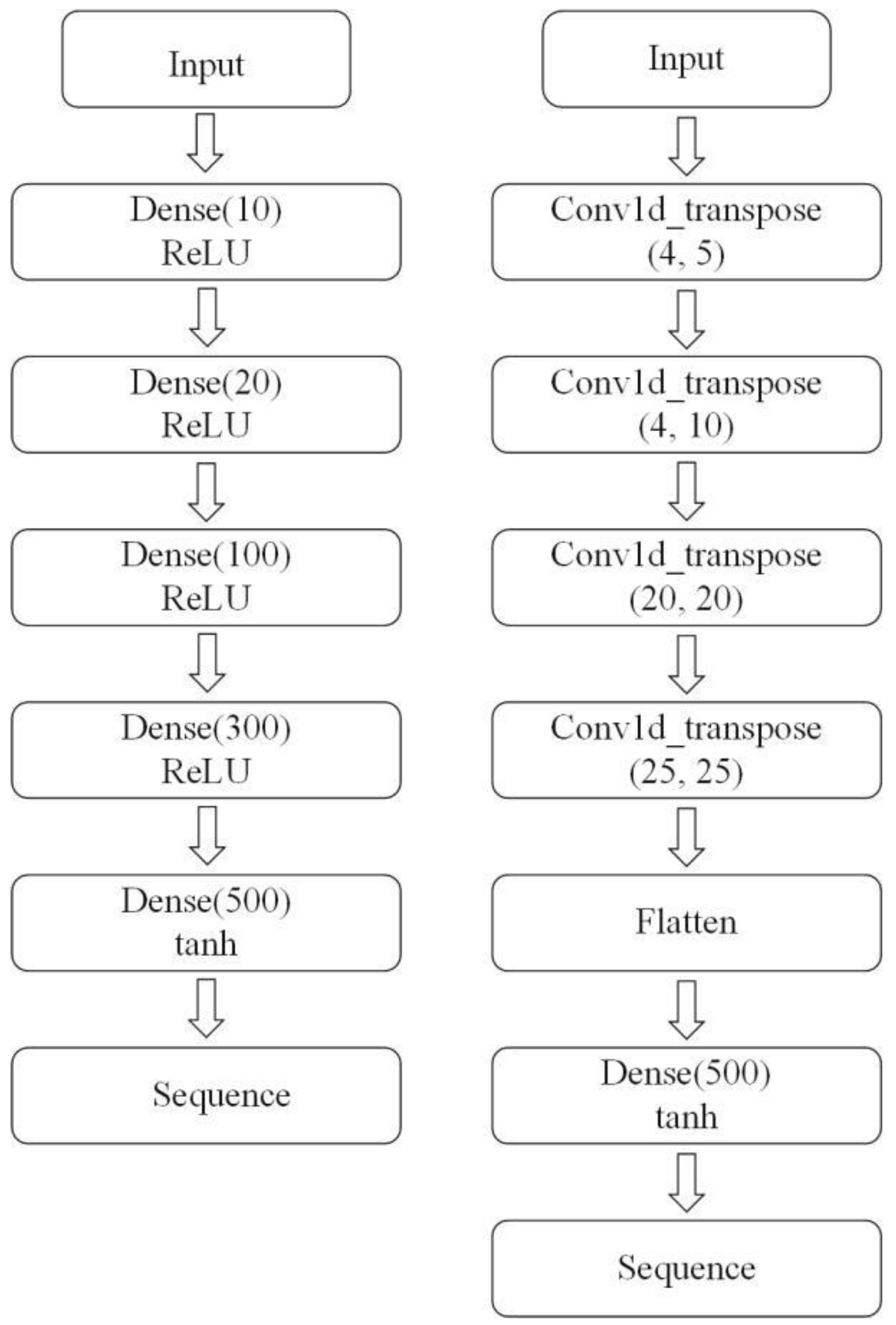

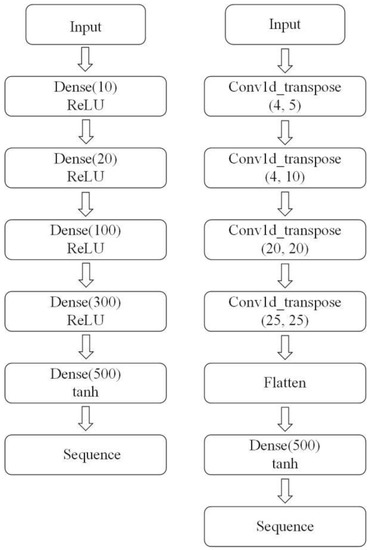

In the generator model selection, this study verifies the prediction effect of the fully connected network and the transposed convolutional neural network and defines them as G1 and G2, respectively. The number of hidden layer nodes of the model G1 is (10, 20, 100, 300, 500). Except that the last layer is tanh, the activation function of each hidden layer selects ReLU. The model G2 consists of four Conv1d_transpose layers, a flatten layer, and a dense layer. The activation functions of the transposed convolutional layers are all ReLU, and the fully connected network is tanh. The generator models G1 and G2 are shown in Figure 12.

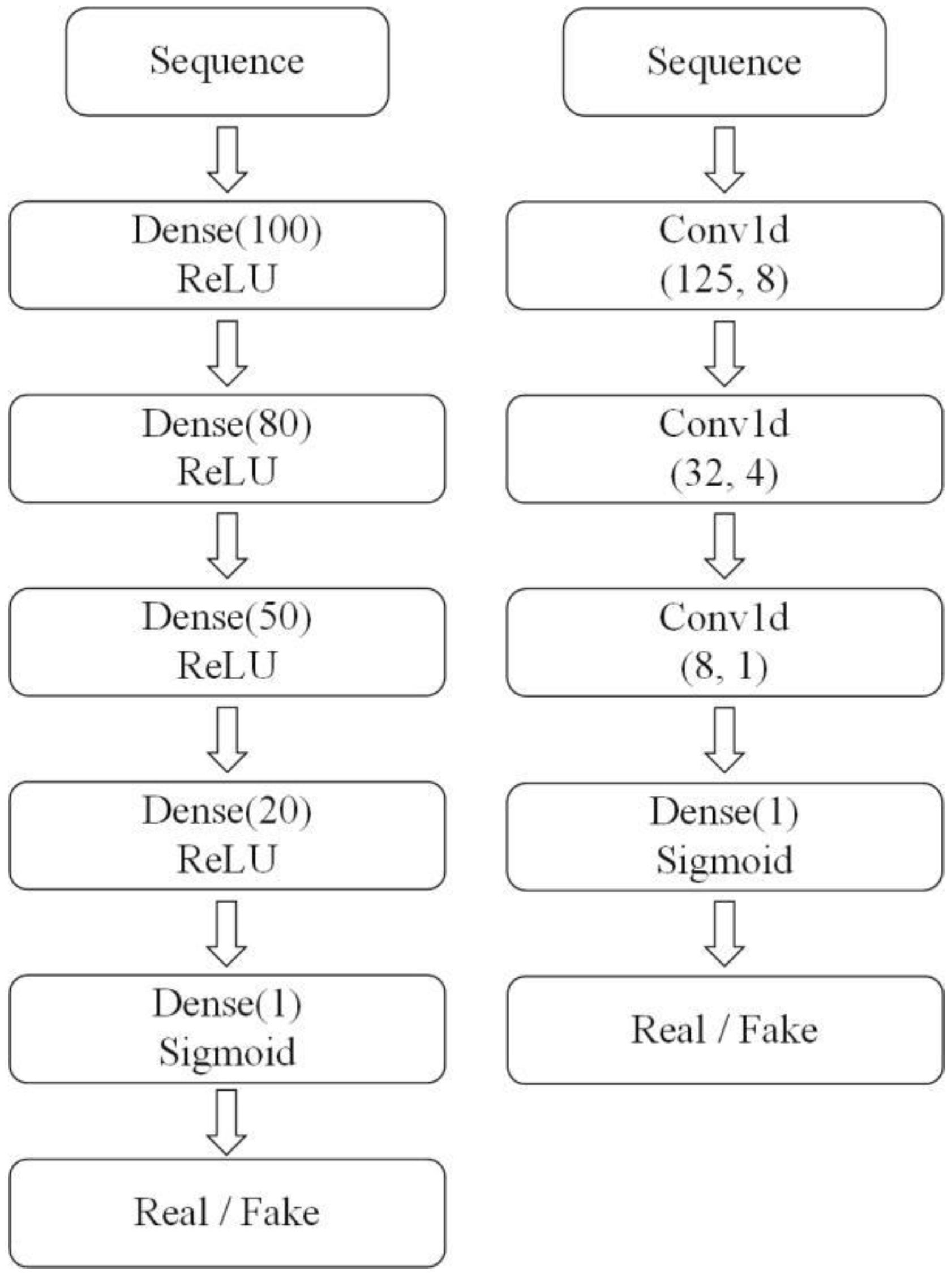

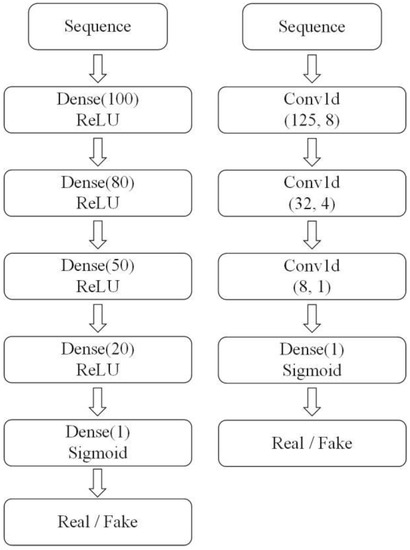

In the discriminator model selection, a fully connected neural network and a convolutional neural network are verified in the present study and are defined as D1 and D2, respectively. The number of hidden layer nodes of model D1 is (100, 80, 50, 20, 1), and the activation function is Sigmoid in the last hidden layer, with the others being ReLU. The model D2 includes three Conv1d_transpose layers whose activation functions are ReLU and a Dense layer whose activation function is Sigmoid. The discriminator models D1 and D2 are shown in Figure 13.

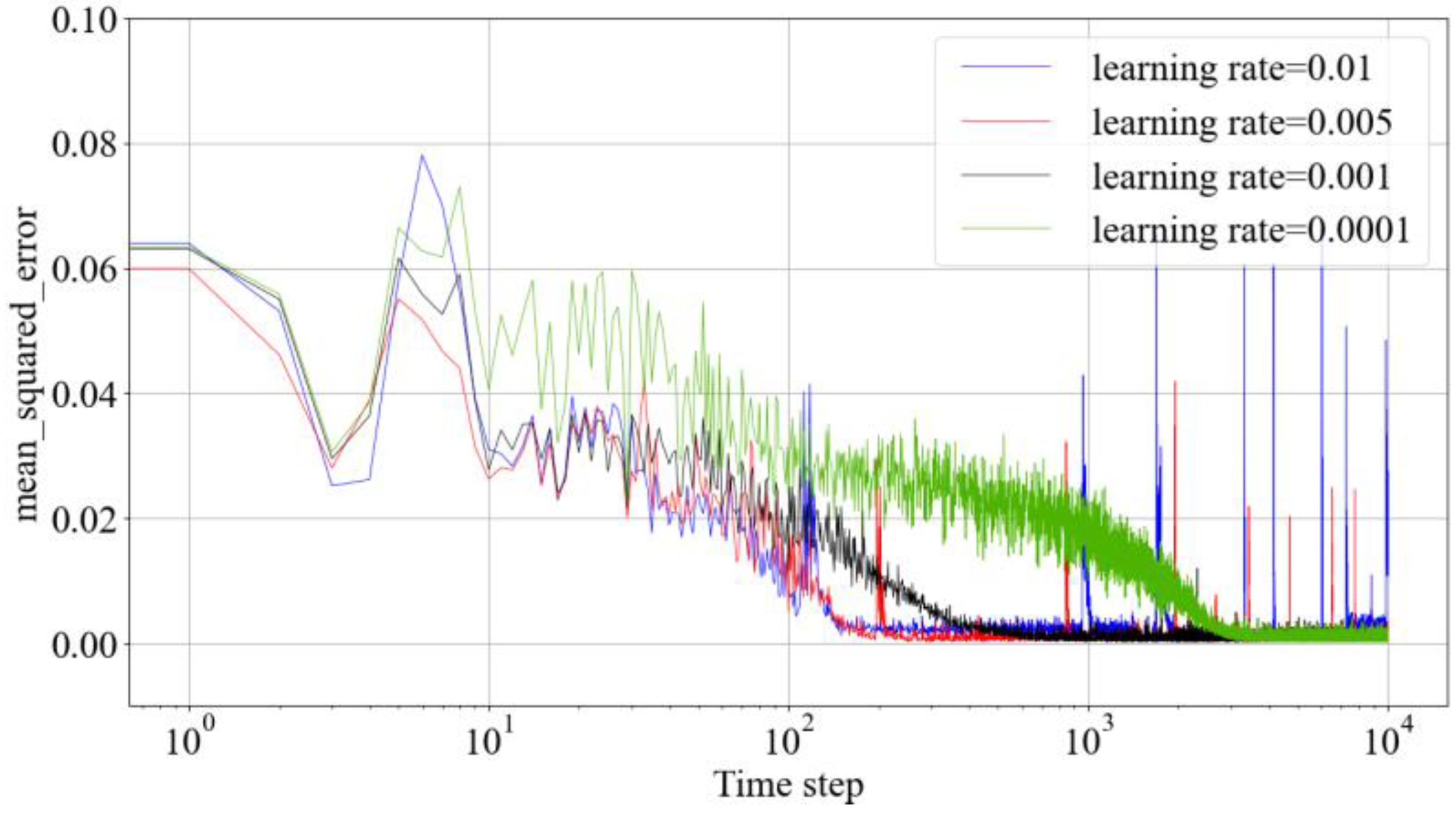

During the training process, the weight parameters set of the generator and discriminator model are optimized by the Adam optimizer, and the initial learning rate is set to 0.001 with the gradient decay rate of 0.9. The selection of hyperparameters for each neural network is detailed in Appendix A, which includes the number of hidden layer nodes of G1 and D1, the kernel size of G2 and D2, and the learning rate of the optimizer. The loss function of the generator is mean squared error, and the loss function of the discriminator is binary cross entropy, defined as Formulas (6) and (7), respectively.

$$Los{s}_m=\frac{1}{n}{\displaystyle {\sum }_{i=1}^n{(y^{(i)}-f(x^{(i)}))}^2}$$

(6)

$$Los{s}_b=\frac{1}{n}{\displaystyle {\sum }_{i=1}^n{y}^{(i)}\cdot lo}g(f(x^{(i)}))+(1-y^{(i)})\cdot log(1-f(x^{(i)}))$$

(7)

where n is the number of samples, $y^{(i)}$ is the actual value, and $f(x^{(i)})$ is the prediction value of the neural network.

In the model validation part, the evaluation methods such as mean squared error (MSE) and mean absolute error (MAE) are used to verify the performance of GAN models. The MAE evaluation method is defined in Formula (8):

$$MAE=\frac{1}{n}{\displaystyle {\sum }_{i=1}^n\left|(y^{(i)}-f(x^{(i)}))\right|}$$

(8)

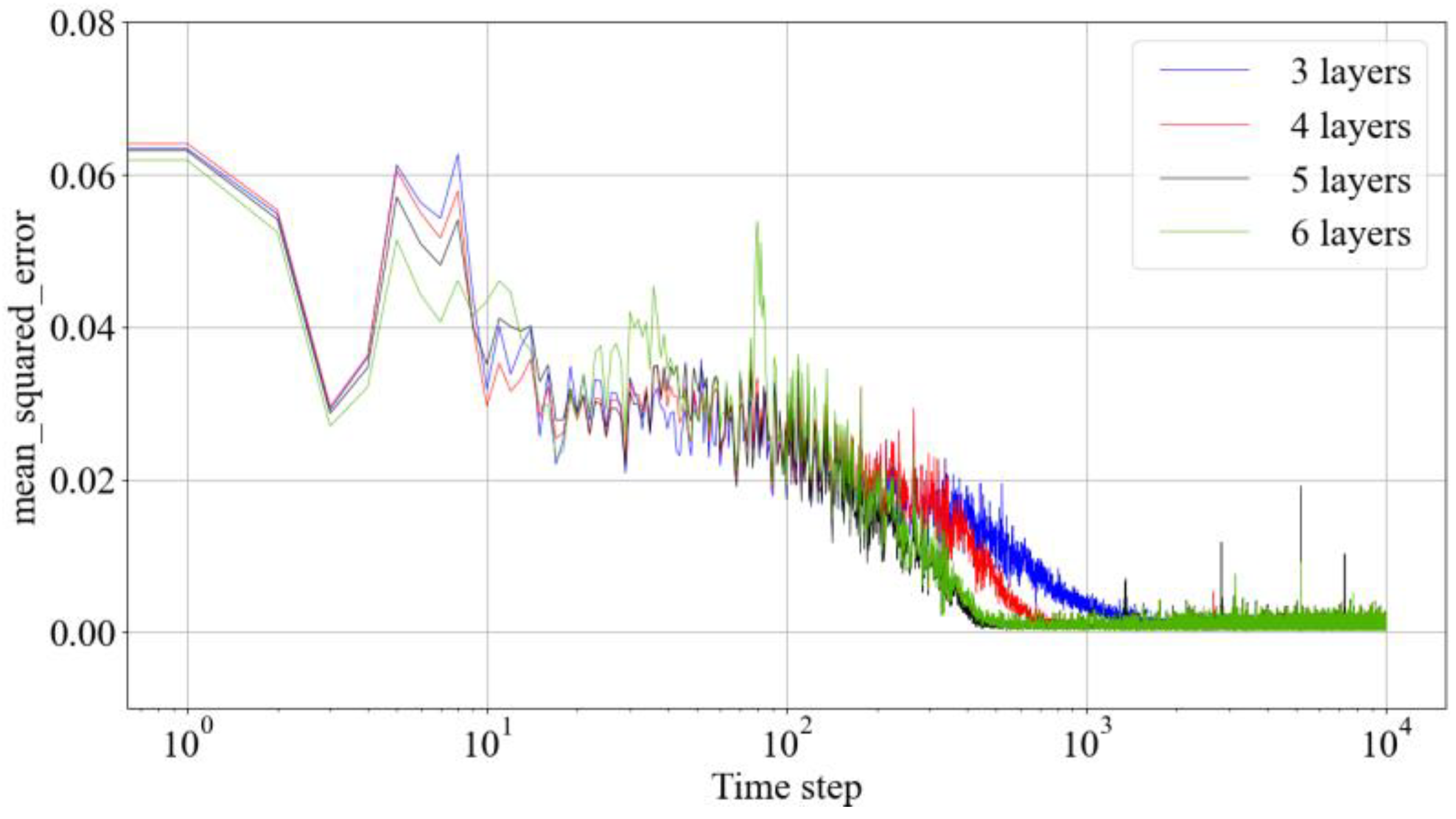

The training datasets are divided into batches of 32, and the number of epochs required for the network training is discussed in the next chapter of the present study. GAN models are trained on the Tensorflow framework, and by an NVIDIA GeForce RTX2080 with a Max-Q design graphics processor.

4. Results

4.1. Results of Different Data Augmentation Methods:

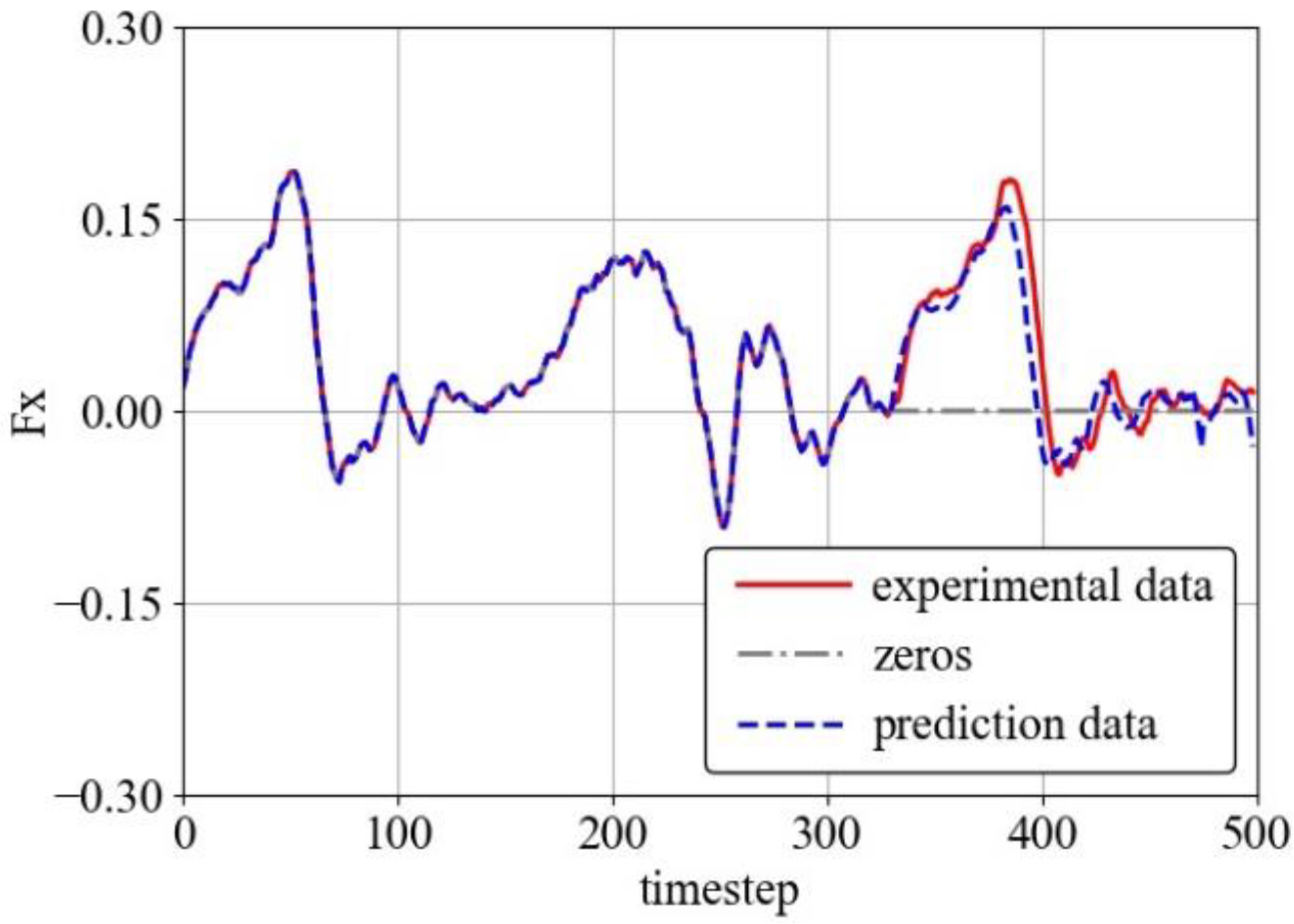

In this section, the GAN model with the G1 + D1 network structure mentioned above is used to verify the prediction effect on the datasets with different extension methods mentioned in the second chapter. The different data sets are data filled with zero and data filled by the LSTM prediction method. The result of the input variable (A_L, A_R, f, Φ) equal to (40, 40, 0.3, 30) in the validation set is selected to show the prediction effect. The validation loss of two data extension methods is shown in Figure 14. The total epoch of this verification is 50,000, and the prediction result of F_x is autosaved every 100 epochs to check whether the neural network model has converged. The prediction results trained by 2000, 10,000, and 25,000 epochs are shown in Figure 15.

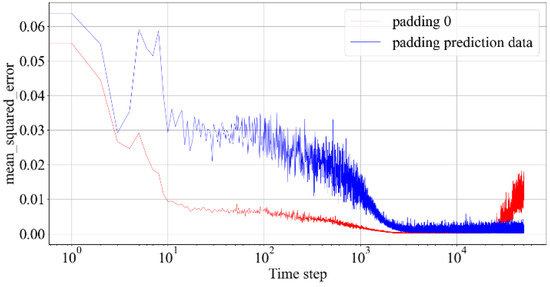

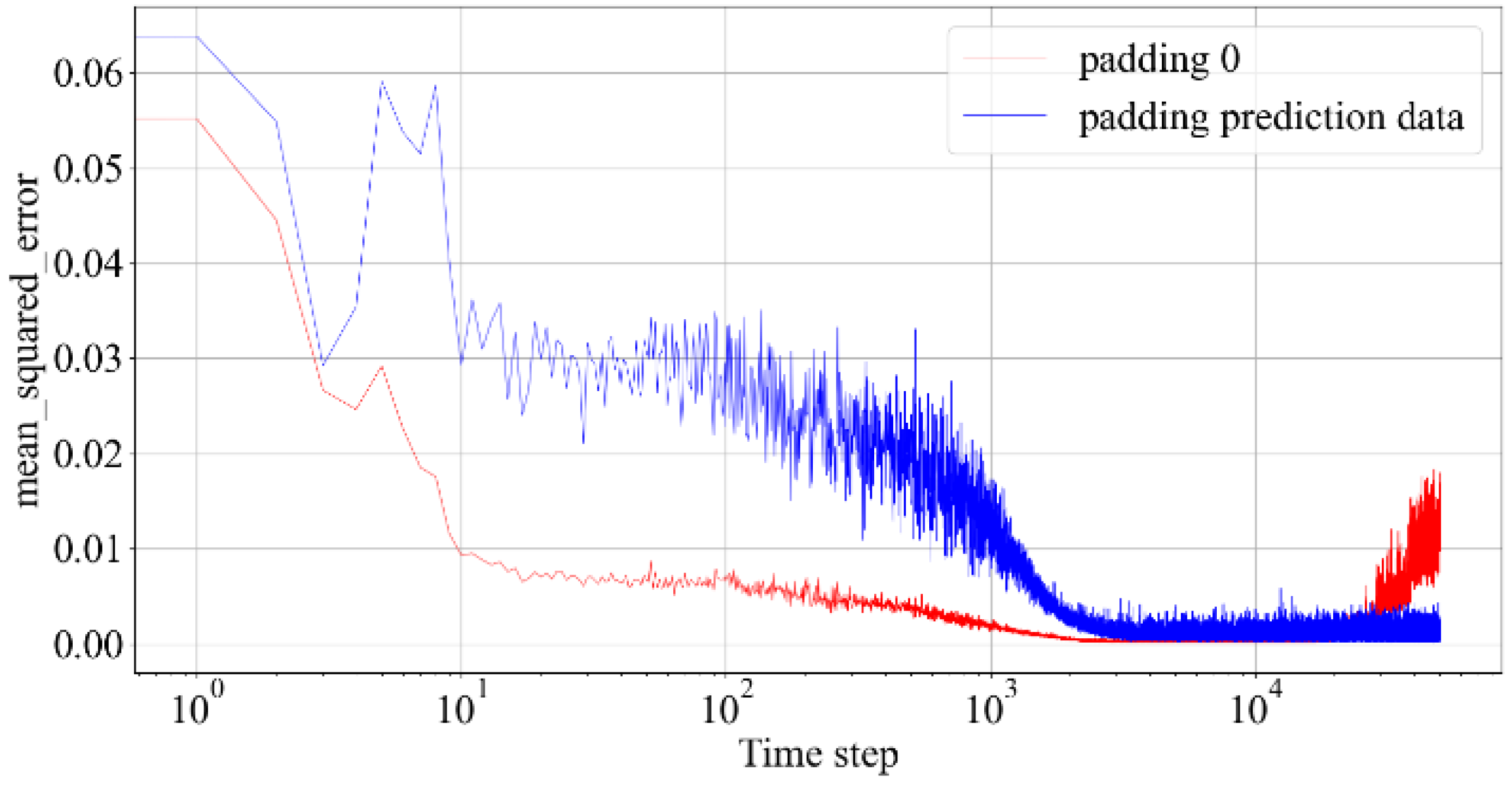

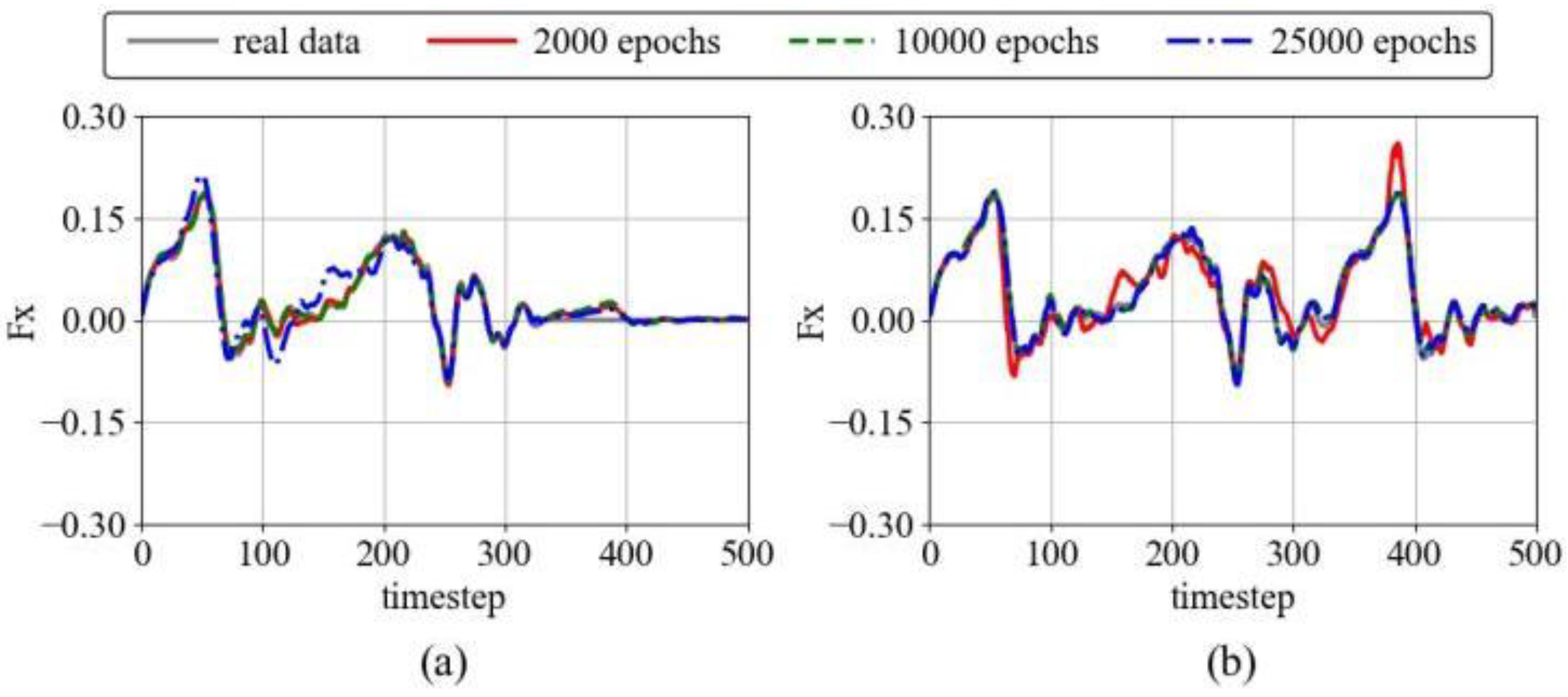

As shown in Figure 14 and Figure 15, data with zero padding have a more minor mean square loss on the validation set. However, more training steps do not mean more accurate results on this dataset. It is obvious that when training for 2000 epochs, the zero-padding sequence can be fitted while the sequence padded with prediction data still has errors, which means the training speed with zeros-padding data is faster. However, as the number of training steps increases, the zero-padding sequence fitting results begin to deteriorate, and the loss on the validation set begins to increase. In addition, no matter how many epochs are trained, the zero-padding sequence always has some errors at the time steps of the initial position of zero-padding, which will affect the optimization of the loss function. Therefore, we select the sequence filled with prediction data for subsequent verification and prediction because of its good model stability and data fitting accuracy.

4.2. Results of Different GAN Models

The prediction effect of different generators and discriminators mentioned in Chapter 3 are verified in this section. We use two evaluation methods of MSE and MAE to verify the excellence of the proposed model. The results are shown in Figure 16.

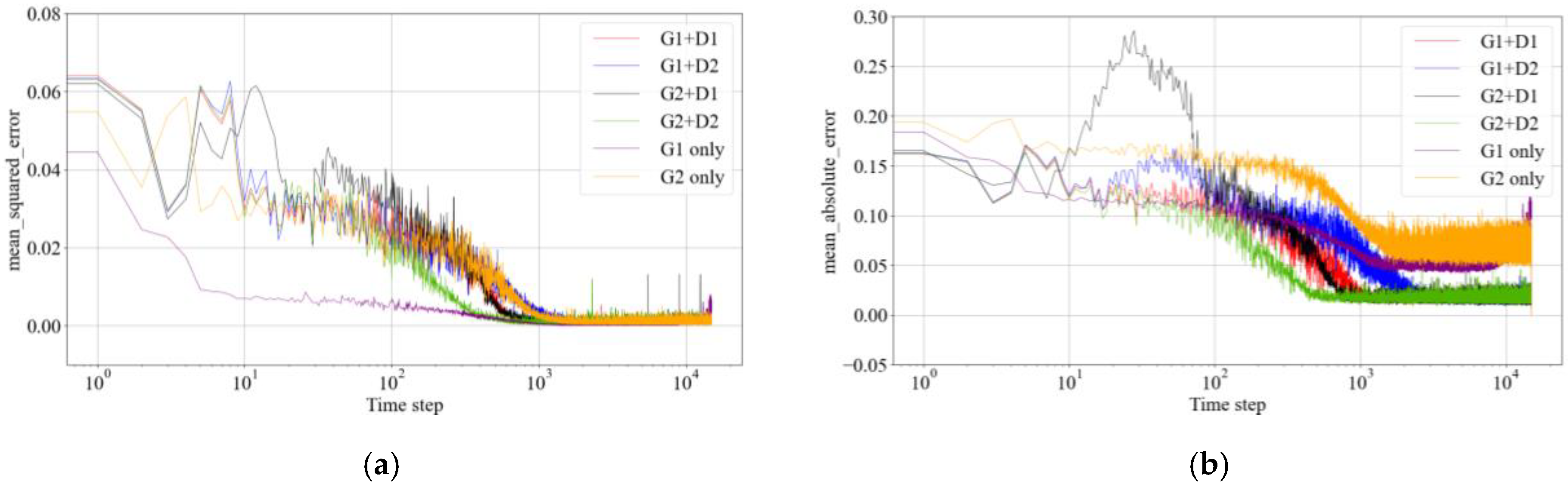

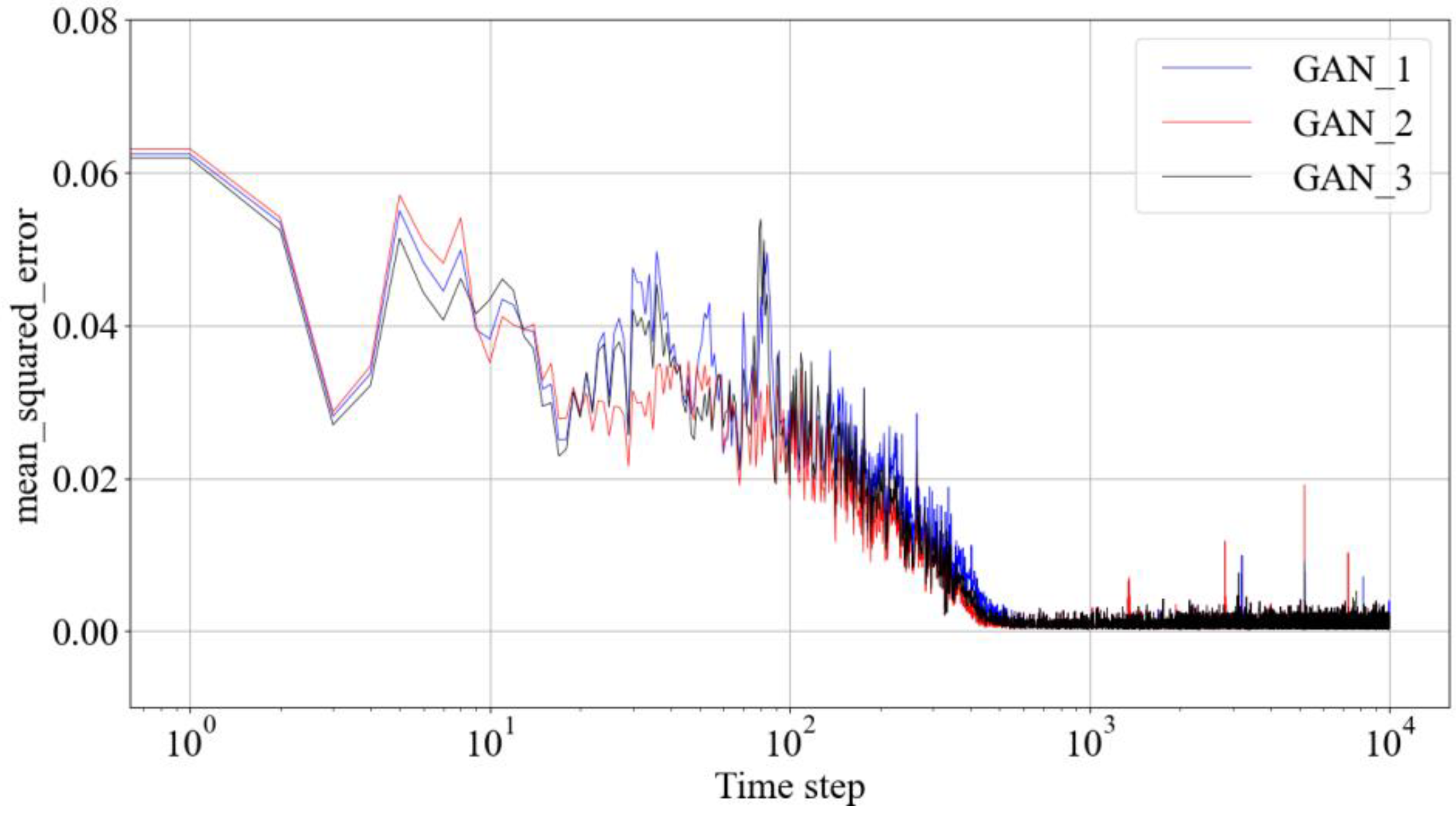

As Figure 16 above shows, the model tends to overfit when using the fully connected neural network G1 or the transposed convolutional neural network G2 alone for prediction. The final converged mean squared error and mean absolute error values corresponding to the four GAN models are close. However, the G2 + D2 model, which combines the transposed convolutional generator and convolutional discriminator model, has the best convergence. Therefore, the follow-up prediction research of this study will also adopt the G2 + D2 network model. For the possible overfitting problem, the early stopping method is used here, that is, the neural network training is terminated early at the end of 2000 epochs when training is stable.

4.3. Results of Different Input Motion Parameters

In this section, we predict the hydrodynamic timing sequence of the four types of motion modes of different input parameters of the manta-ray robot, namely the symmetrical and asymmetrical flapping of pectoral fins with variable amplitude, the symmetrical flapping of pectoral fins with variable frequency, and the symmetrical flapping of pectoral fins with a variable phase difference of front and rear steering gears. The prediction effects on the validation and test sets are shown, respectively. Among them, the displayed validation set data is obtained from the validation set of the neural network. Each of the four motion modes extracts one set of input parameters and visualizes the prediction results to verify the training accuracy of the model. The input of the test set is a combination of motion control variables (AL, AR, f, Φ). As mentioned in Section 2.1, the values of the input are (33, 33, 0.7, 40), (20, 33, 0.7, 40), (40, 40, 0.6, 40), (40, 40, 0.7, 25) representing the four motion modes respectively. The output of the test set is hydrodynamic time series obtained through experiments. In addition, the test data set has never been trained by a neural network.

For the experimental condition of pectoral fins flapping with variable amplitude, we fix (f, Φ) as (0.7, 40), and in the case of asymmetrical flapping, the left amplitude A_L is fixed as 20. The input amplitude of the validation data is set to 25, and the test data is set to 33, respectively. The six-dimensional hydrodynamic time series is predicted through the neural network of G2 + D2 mentioned in Section 4.2. For the variable frequency case, the input variables (A_L, A_R, Φ) are fixed as (40, 40, 40), and the variable f is set to 0.5 and 0.6, representing the validation and test data, respectively. For the case of variable phase difference, we fix (A_L, A_R, f) as (40, 40, 0.7) and set the input parameter of the variable Φ to 10 for the validation set and 25 for the test set. The comparison between the prediction results on the validation set and test set data of the four experimental conditions and the experimental results are visualized to show the error of the prediction results. For the sake of clarity, the first 250 time steps of data are cut from the original data sequences, and the new sequence length of 250 can include the entire period of data for all flapping frequencies. The prediction results of the validation set are shown in Figure 17, and the prediction results of the test set are shown in Figure 18.

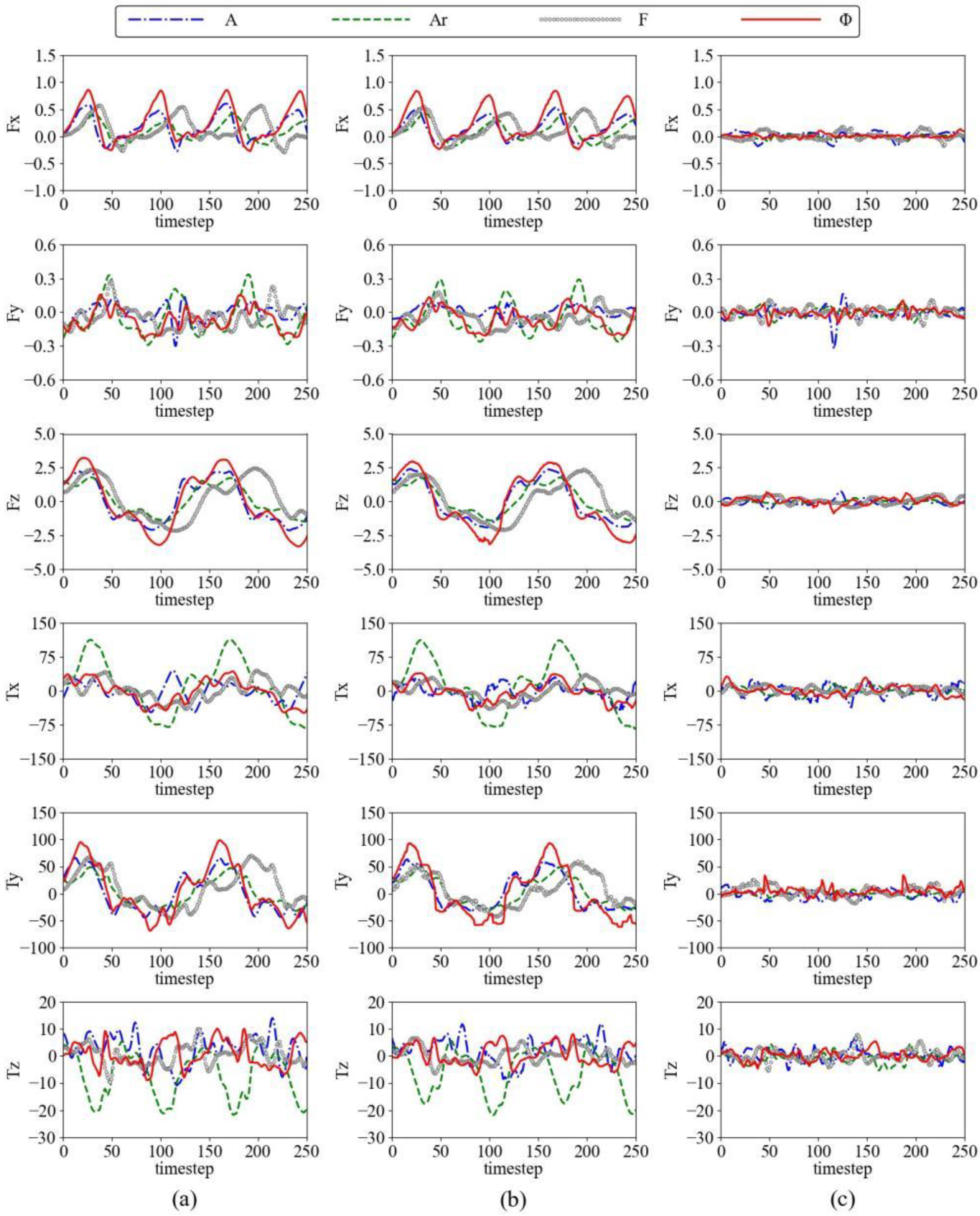

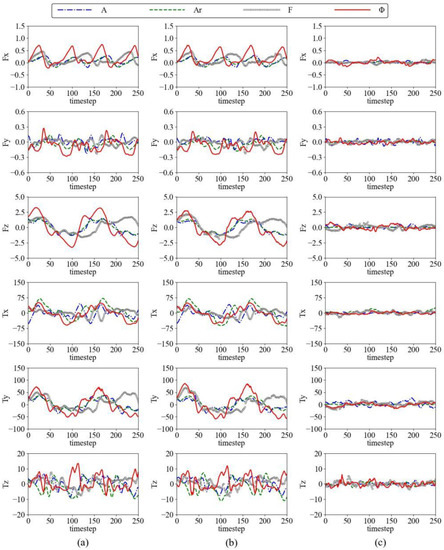

The prediction results in Figure 16 show that the model performs well on the validation set, and the sequence of prediction results can fit the changing trend of the original experimental data set, indicating that the neural network model has certain prediction accuracy and model generalization. It can be seen from Figure 17 that the model also has a relatively accurate performance when migrating the interpolation input data that the neural network has not trained. Particularly for the smooth six-dimensional hydrodynamic data with no sudden change and evident periodicities, such as F_x and F_z, the neural network performs well and can accurately predict both the trend and extreme value of the time-series data at the same time. For data with sharp gradients, such as Fy of the variable amplitude with the symmetric flapping condition and T_z of the phase difference condition, the model can predict the approximate change trend of the data, but has errors at the position of the extreme value in gradient mutation sequences. The F_x and T_z prediction results of variable phase difference conditions are utilized to represent the time series data with smooth and evident periodicity as well as the data with gradient mutation and insignificant periodicity. The error between the GAN model prediction results in the validation and the test set for these two types of data and the experimental data are calculated. Because some data are infinitely close to 0 in the sequence, which will cause excessive and abnormal error values when calculating the relative percentage error and affect the error evaluation, the absolute error is used here to judge the accuracy of the GAN model. The calculation formula is shown as Formula (9). In addition, one single cycle of data is extracted for each sequence to calculate the error. At the same time, we analyzed the data acquisition error during every single cycle of pectoral fin flapping in the experiment, which was calculated by Formula (10). The formulas are shown as follows:

$$E_{pred}=\frac{1}{m}\frac{1}{n}{\displaystyle \sum _{j=1}^m{\displaystyle \sum _{i=1}^n\left|x_{pred}^i-x_{test}^{j,i}\right|}}$$

(9)

$$E_{test}=\frac{1}{m}\frac{1}{n}{\displaystyle \sum _{j=1}^m{\displaystyle \sum _{i=1}^n\left|x_{test}^{j,i}-x_{test}^{ref,i}\right|}}$$

(10)

where, m and n represent the number of flapping periods in one original experimental sequence and the time steps number of each flapping period. $x_{pred}^i$, $x_{test}^{j,i}$, $x_{test}^{ref,i}$ represent the hydrodynamic variables of the prediction sequence, the experimental sequence of the jth period, and the reference experimental sequence, respectively.

The error of experiments and deep learning prediction are shown in

Table 5. The absolute error of prediction and experiment.

	Validation Set	Test Set	Experiment
data smooth	0.0481	0.0434	0.0465
data with Gradient mutation	1.3264	1.4769	1.7249

. It can be seen that the error of the model prediction is within the acceptable range of the experiment errors. Therefore, the GAN model has confidence in predicting both smoothed and mutated hydrodynamic data.

5. Conclusions

In the present study, we first sliced and extended the hydrodynamic experimental data corresponding to the bionic manta ray robot flapping by different amplitudes, frequencies, and phase differences. In addition, the prediction accuracy and model convergence speed of various GAN structures were verified. Finally, we predicted the experimental hydrodynamic data corresponding to different interpolated motion parameter values and verified the prediction accuracy. The main conclusions are summarized as follows:

(1) For the experimental data of multi-period vehicles with few working conditions, the data can be augmented by slicing each period. If the data lengths are inconsistent, the prediction results of data padding by zeros have errors at the end of the sequences, and the model overfits after 12,000 epochs. The prediction results of data supplemented by the LSTM method can fix the original dataset well.

(2) The stability and accuracy of using the GAN models to predict the experimental hydrodynamic data are better than using the transposed convolutional or full connection neural networks alone. As for the selection of hyperparameters of GAN models, the best hidden layer nodes of G1 and D1 are (10, 20, 100, 300, 500) and (100, 80, 50, 20, 1), respectively. The best kernel size of G2 and D2 are three. Among all the GAN models in this study, the combination of transposed convolutional generator G2 and convolutional discriminator D2 has the best training efficiency and convergence.

(3) The GAN model combined with G2 and D2 performs well in predicting both smoothed time series and mutated data. The mean absolute errors for predicting these two types of data are 0.0434 and 1.4769, which are smaller than the respective experimental data errors of 0.0465 and 1.7249. It is verified that the prediction results of the hydrodynamic time-series data for the manta ray robot by the GAN model are credible.

For the research of hydrodynamic prediction of bionic manta ray underwater vehicles, the data augmentation method of slice data with padding by the LSTM algorithm and the GAN model with G2 + D2 are verified to be accurate and effective. This study will save experimental time and cost and provide detailed hydrodynamic experimental data for the precise control of manta rays.
