Article

Electrodialytic Transport Properties of Anion-Exchange Membranes Prepared from Poly(vinyl alcohol) and Poly(vinyl alcohol-co-methacryloyl aminopropyl trimethyl ammonium chloride)

1
Graduate School of Science and Engineering, Yamaguchi University, 2-16-1 Tokiwadai, Ube, Yamaguchi 755-8611, Japan
2
VA-related Polymers Research Laboratory, Kurashiki Research Center, Kuraray, 2045-1 Sakazu, Kurashiki, Okayama 710-0801, Japan
*
Author to whom correspondence should be addressed.
Membranes 2013, 3(1), 1-15; https://doi.org/10.3390/membranes3010001
Submission received: 24 October 2012 / Revised: 18 December 2012 / Accepted: 19 December 2012 / Published: 2 January 2013
(This article belongs to the Section Membrane Chemistry)

Abstract

:
Random-type anion-exchange membranes (AEMs) have been prepared by blending poly(vinyl alcohol) (PVA) and the random copolymer-type polycation, poly(vinyl alcohol-co-methacryloyl aminopropyl trimethyl ammonium chloride) at various molar percentages of anion-exchange groups to vinyl alcohol groups, Cpc, and by cross-linking the PVA chains with glutaraldehyde (GA) solution at various GA concentrations, CGA. The characteristics of the random-type AEMs were compared with blend-type AEMs prepared in our previous study. At equal molar percentages of the anion exchange groups, the water content of the random-type AEMs was lower than that of the blend-type AEMs. The effective charge density of the random-type AEMs increased with increasing Cpc and reached a maximum value. Further, the maximum value of the effective charge density increased with increasing CGA. The maximum value of the effective charge density, 0.42 mol/dm3, was obtained for the random-type AEM with Cpc = 4.2 mol % and CGA = 0.15 vol %. A comparison of the random-type and blend-type AEMs with almost the same Cpc showed that the random-type AEMs had lower membrane resistance than the blend-type ones. The membrane resistance and dynamic transport number of the random-type AEM with Cpc = 6.0 mol % and CGA = 0.15 vol % were 4.8 Ω cm2 and 0.83, respectively.

1. Introduction

Anion exchange membranes (AEMs) have been applied in various industrial fields [1,2]: The separation of environmental polluting metal ions from hard water [3], alkaline direct methanol cells [4], the electrodialytic concentration or desalination of electrolyte solutions [5], etc. At present, almost all of the commercially available AEMs for electrodialysis have a styrene-co-divinylbenzene based matrix. The drawbacks of these membranes are the difficulty of controlling the membrane structure because the copolymerization and cross-linking processes undergo simultaneously and their high manufacturing cost. Recently, many studies on the preparation of novel ion exchange membranes (IEMs) have been reported to overcome these problems [6,7]. IEMs can be prepared by mixing water-soluble base polymers and a polyelectrolyte and then cross-linking the base polymer. The membrane thus obtained has a semi-interpenetrating network (semi-IPN) structure in which polyelectrolyte chains are immobilized in a polymer cross-linked network matrix. The ion exchange capacity of the membranes can be controlled easily by changing the polymer ratio of water-swollen base polymer to polyelectrolyte. Poly(vinyl alcohol) (PVA) is one of the most popular water-soluble polymers. PVA is a polyhydroxy polymer that has been studied intensively as water-soluble base polymer because of its good film forming and physical properties, high hydrophilicity, processability, biocompatibility, and good chemical resistance. Cation-exchange membranes with a semi-IPN structure have been prepared by blending PVA and a polyanion such as poly(styrene sulfonic acid) [8], poly(acrylic acid) [9], poly(styrene sulfonic acid-co-maleic acid) [10], poly(vinyl alcohol-co-2-acrylamido-2-methylpropane sulfonic acid) [11,12], and by using PVA and sulfosuccinic acid [13], etc. Anion-exchange membranes prepared by blending PVA and a polycation have also been investigated [14,15,16]. AEMs with a semi-IPN structure have been prepared by blending PVA and a polycation such as poly(acrylamide-co-diallyldimethylammonium chloride) [17], poly(allyl amine) [18], etc. However those electrodialytic transport properties were not enough to compete with commercially available AEMs. An additional disadvantage of AEMs with semi-IPN structure is the low long-term stability when immersed in solution due to the dissolution of uncross-linked water-soluble polyelectrolytes in the network into the solution.
The aim of this study is to show advantages of using random copolymer-type PVA, poly(vinyl alcohol-co-methacryloyl aminopropyl trimethyl ammonium chloride: MAPTAC), as a base material for AEM instead of using a blend-type one as in our previous study [18]. The chemical structure of PVA-co-MAPTAC is shown in Figure 1. We have investigated the differences of the following ionic transport properties for electrodialysis applications: effective charge density, membrane resistance, and transport number of ions, between PVA-based AEMs prepared by the two different methods.

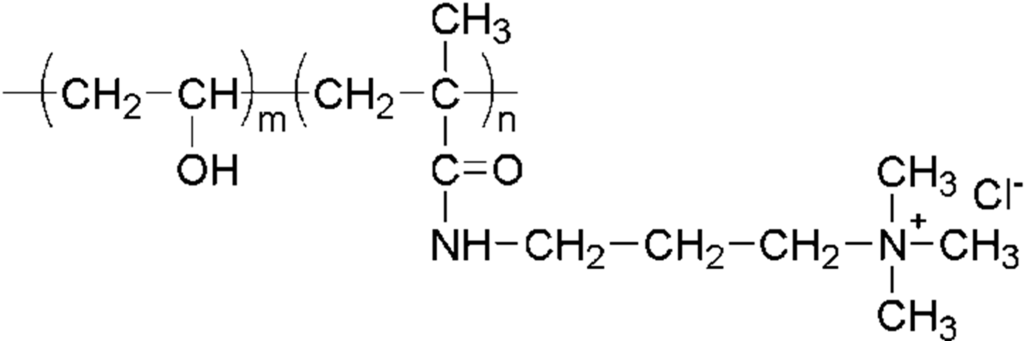

Figure 1. Chemical structure of poly(vinyl alcohol-co-methacryloyl aminopropyl trimethyl ammonium chloride).
Figure 1. Chemical structure of poly(vinyl alcohol-co-methacryloyl aminopropyl trimethyl ammonium chloride).
Membranes 03 00001 g001

2. Results and Discussion

2.1. Water Content as a Function of Cpc

The water content of an IEM is an important property because both the effective charge density and electric resistance of the membrane depend on the water content. Figure 2 shows the water content of the AEMs prepared in this study as a function of Cpc. Here Cpc is identified as a molar percentage of cation-exchange groups in the membrane. Data obtained for the polymer blend-type AEMs quoted from our previous study [18] are also shown in order to compare the characteristics of them. The water content increased with increasing Cpc, because the osmotic pressure in the membranes increased with an increase in the number of charged groups in the membranes. Further, the water content decreased with increasing glutaraldehyde (GA) concentration, CGA, because of the increase in the number of chemical cross-linking points with increasing CGA. A comparison of the water content of the random-type AEMs with that of the polymer blend-type AEMs at the same Cpc shows that the water content of the polymer blend-type AEMs is lower than that of the random-type. For example, in AEMs with Cpc = 5.4 mol %, the polymer blend-type AEMs showed smaller water content than the random-type AEMs although CGA of the former was higher than that of the latter. This difference is attributed to the difference in the morphology among AEMs. The random-type AEM has a uniform morphology because the ion-exchange groups randomly connect to PVA chains. On the other hand, the blend-type AEM has a phase-separated morphology at large sizes because it consists of two different kinds of polymers, PVA and poly(allyl amine). Hence some parts of the poly(allyl amine) chains dissolve into the cross-linking solution during the cross-linking process. Therefore, the water content of the blend-type AEMs is almost independent of the Cpc content as shown in Figure 2.

2.2. IEC of the AEMs

Table 1 shows the molar percentage of the anionic-exchange groups, Cpc, and IEC of the AEMs (RPA-X) along with the values for a commercially available AEM, Neosepta AMX (ASTOM Corp.: Tokyo, Japan). The experimental IEC values are about 30%–40% of the calculations. This might be attributed to the fact that the same part of the charged groups in the random-copolymer were enclosed with the crystal regions in the random-type AEMs, and that the counter-ion of the enclosed charged groups may not be able to exchange ions with that of the external solution. The IEC of the commercial AMX is 1.4 meq/g dry AEM. Hence, the IEC of RPA-4 is about one third of that of AMX.

2.3. The Effective Charge Density of the Membranes as a Function of Cpc

The permselectivity of an IEM is best determined via membrane potential measurements as effective charge density, because the higher the effective charge density of a membrane, the higher the counter ion permselectivity. Figure 3 shows the effective charge density of the membranes as a function of Cpc. The effective charge density increased with Cpc and reached a maximum value. The effective charge density is proportional to the charge density, which is defined as the division of IEC by the water content, H:
Membranes 03 00001 i001
Table 1. The molar percentage of anion-exchange groups, Cpc, and ion-exchange capacity, IEC, of the base membrane: The AEMs in this study were prepared from the base membranes: molar percentage of the anionic-exchange groups, Cpc, and IEC of the AEMs (RPA-X) (X = 1–4), changing GA concentrations.
Table 1. The molar percentage of anion-exchange groups, Cpc, and ion-exchange capacity, IEC, of the base membrane: The AEMs in this study were prepared from the base membranes: molar percentage of the anionic-exchange groups, Cpc, and IEC of the AEMs (RPA-X) (X = 1–4), changing GA concentrations.
SampleCpc (mol %)IEC (meq/g dry-CEM)
RPA-13.00.22 (0.60 a)
RPA-24.20.27 (0.81)
RPA-34.80.30 (0.90)
RPA-46.00.39 (1.09)
AMX a1.4
a A commercial AEM (Neosepta AMX, Astom Corp.: Tokyo, Japan).

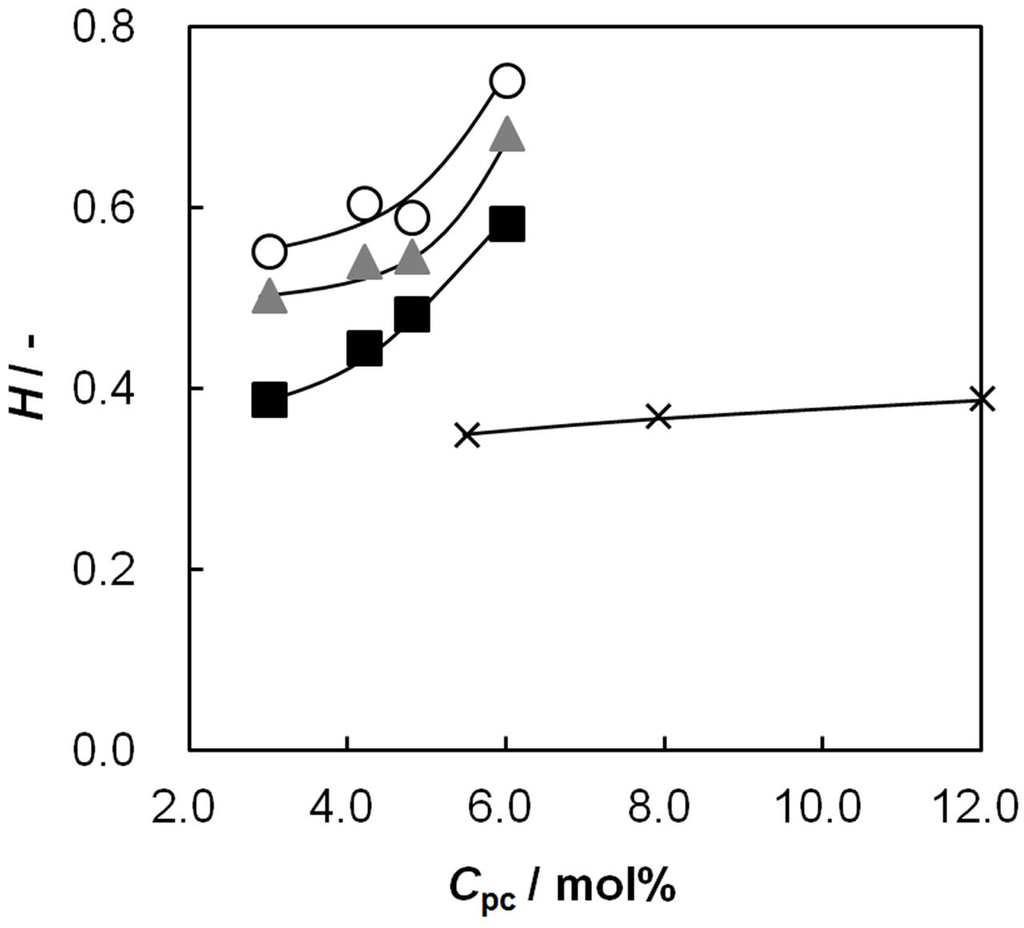

Figure 2. Water content, H, of anion-exchange membranes (AEMs) as a function of molar percentage of anion-exchange groups to vinyl alcohol groups, Cpc. Open and closed symbols are the data of the random copolymer AEMs where the glutaraldehyde concentrations (CGA) are: Circles, 0.01 vol %; triangles, 0.05 vol %; squares, 0.15 vol %. Cross marks are the data of polymer blend AEMs as a control where CGA is 0.075 vol %.
Figure 2. Water content, H, of anion-exchange membranes (AEMs) as a function of molar percentage of anion-exchange groups to vinyl alcohol groups, Cpc. Open and closed symbols are the data of the random copolymer AEMs where the glutaraldehyde concentrations (CGA) are: Circles, 0.01 vol %; triangles, 0.05 vol %; squares, 0.15 vol %. Cross marks are the data of polymer blend AEMs as a control where CGA is 0.075 vol %.
Membranes 03 00001 g002

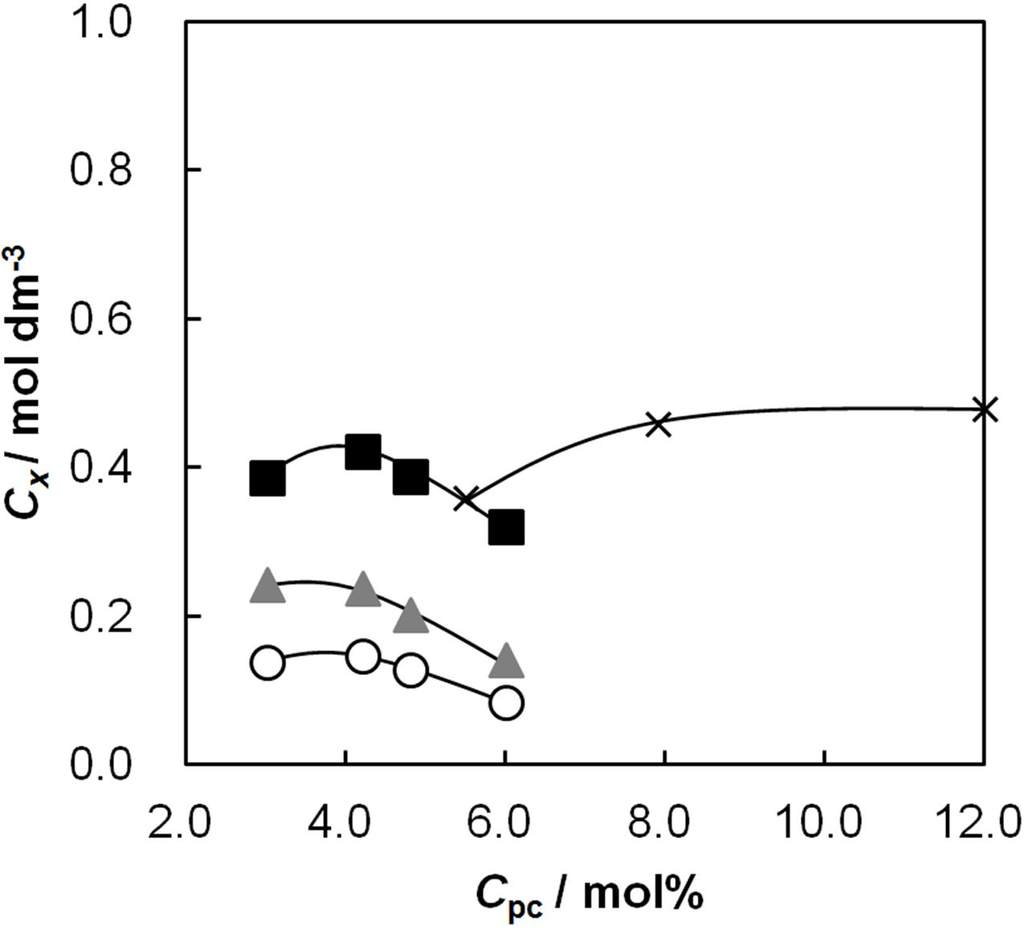

Figure 3. Effective charge density, Cx, of the AEMs as a function of the molar percentage of the anion-exchange groups, Cpc. The definition of symbols in this figure is the same as in Figure 2.
Figure 3. Effective charge density, Cx, of the AEMs as a function of the molar percentage of the anion-exchange groups, Cpc. The definition of symbols in this figure is the same as in Figure 2.
Membranes 03 00001 g003
IEC was almost proportional to Cpc as shown in Table 1. The water content also increased with Cpc as shown in Figure 2. Hence, in the first stage of the effective charge density-Cpc curves, the effective charge density increases with increasing Cpc because of the increase in IEC. At high Cpc, the effect of the increase of water content on the effective charge density is larger than that of the increase in IEC. As a result, the effective charge density decreased after reaching a maximum value. The maximum value of the effective charge density increases with increasing CGA because the water content decreases with increasing CGA. The maximum value of the effective charge density was 0.42 mol/dm3 for the random-type AEM having Cpc = 4.2 mol % and CGA = 0.15 vol %. The effective charge density of AMX measured under the same conditions is 1.6 mol/dm3. Thus, the effective charge density of the random-type AEM was almost one fourth of that of the commercially available AEM.

2.4. Membrane Resistance as a Function of Cpc

The membrane resistance is important for energy-saving electrodialysis. Figure 4 shows the membrane resistance as a function of Cpc. The membrane resistance decreased with increasing Cpc because of the increase in the water content and IEC with increasing Cpc. The resistance increased with increasing CGA because of the decrease in the water content. The lowest membrane resistance of 1.4 Ω cm2 was obtained for the random-type AEMs at Cpc = 6.0 mol % and CGA = 0.01 vol %. A comparison of the membrane resistance of the random-type AEMs with that of the polymer blend-type ones at the same molar percentage of Cpc showed that the membrane resistance of the random-type AEMs was lower than that of the blend-type ones. For example, in AEMs with Cpc = 6.0 mol %, the membrane resistance of the blend-type AEMs was far larger than that of the random-type AEMs although CGA of the random-type AEM was higher than that of the blend-type one. This difference also indicates that the distribution of the ion-exchange parts is different among AEMs. In the case of polymer-blend AEMs some portion of the polycation chains located on the membrane surfaces will be dissolved in solution and leaked out from the membrane. This will cause high electrical resistance near the membrane surfaces.

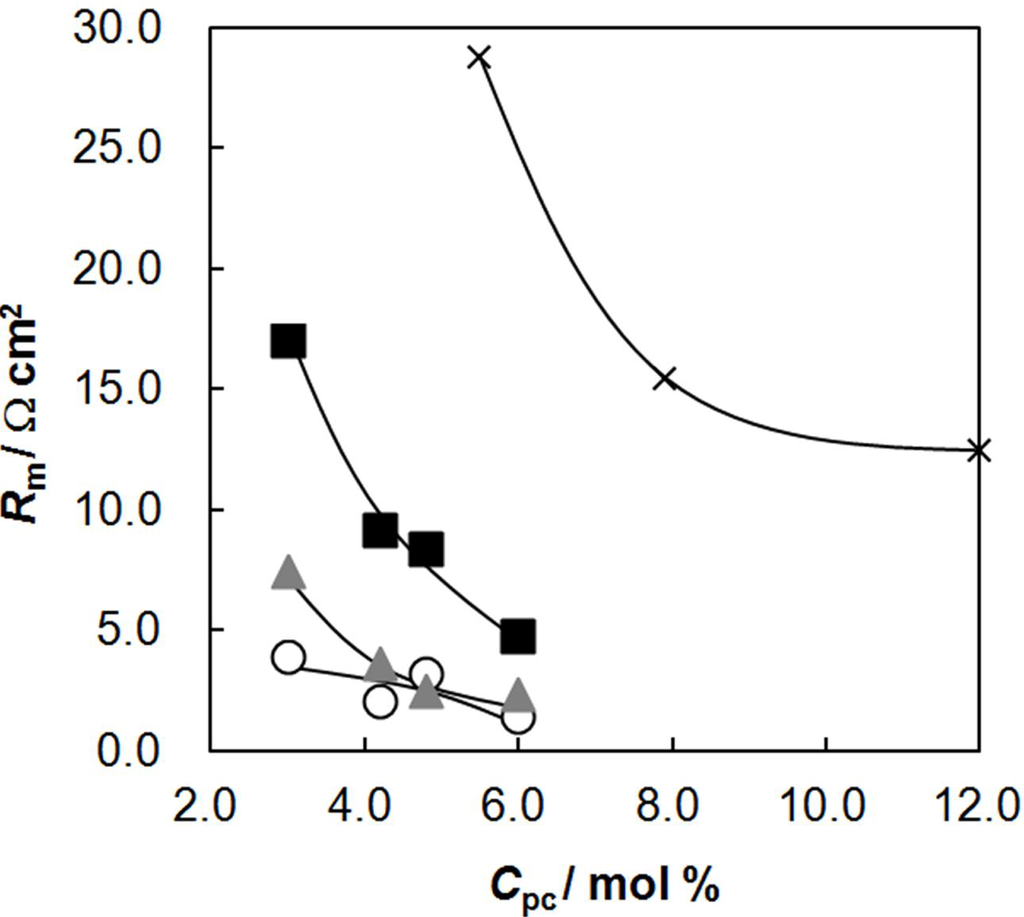

Figure 4. Membrane resistance, Rm, of the AEMs as a function of the molar percentage of the anion-exchange groups, Cpc. The definition of symbols in this figure is the same as in Figure 2.
Figure 4. Membrane resistance, Rm, of the AEMs as a function of the molar percentage of the anion-exchange groups, Cpc. The definition of symbols in this figure is the same as in Figure 2.
Membranes 03 00001 g004

2.5. Membrane Resistance as a Function of Water Content

The membrane resistance depends on the mobility and concentration of ions in an IEM. It is difficult to measure experimentally the ionic mobility in a water-swollen membrane. To estimate the ionic mobility, many authors have replaced the mobility as a function of both the mobility in an aqueous solution, wi and factors such as membrane geometry. Mackie and Meares [19] stochastically dealt with these factors as a function of the water content of a swollen-membrane. Consequently the dependence of membrane resistance on water is given as the following equation:
Membranes 03 00001 i002
Figure 5 shows the membrane resistance as a function of water content, (2 − H)2/H3, where the resistances of all the random-type AEMs are almost linear. This means that the resistance of the random-type AEMs can be estimated from the value of the water content.

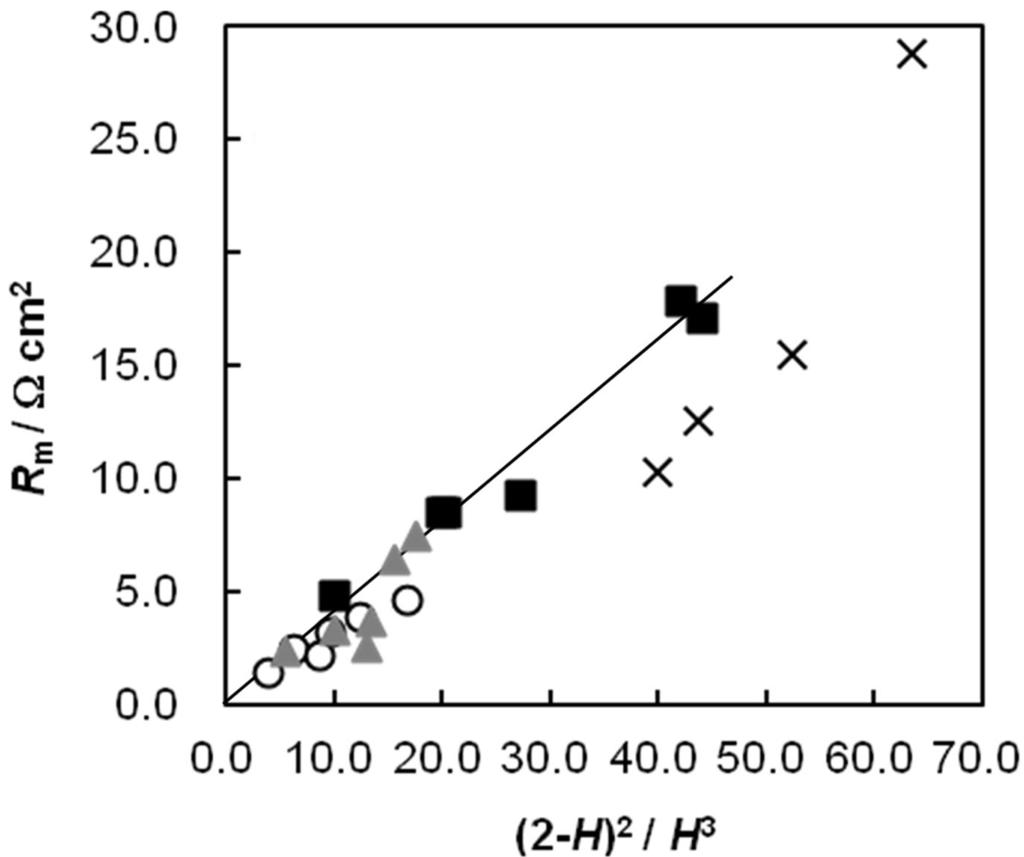

Figure 5. Membrane resistance, Rm, of the AEMs as a function of water content, (2 − H)2/H3. The definition of symbols in this figure is the same as in Figure 2.
Figure 5. Membrane resistance, Rm, of the AEMs as a function of water content, (2 − H)2/H3. The definition of symbols in this figure is the same as in Figure 2.
Membranes 03 00001 g005

2.6. Dynamic State Transport Number of the AEMs as a Function of Cpc

The dynamic state transport number relates to the counter-ion permselectivity of an IEM in electrodialysis. An IEM with a transport number of 1.0 can allow the permeation of only the counter ions in an electrodialysis system. Figure 6 shows the dynamic state transport number of the AEMs as a function of Cpc. The transport number of the random-type AEMs increased with increasing Cpc, and then decreased after reaching a maximum value at Cpc ≈ 4.2 mol %. As mentioned above, this trend is attributed to the fact that the effective charge density has a maximum value at Cpc = 4.2 mol %. The transport number increased with increasing CGA. These results indicate that the transport number of the membranes can be controlled by changing the cross-linking conditions. The dynamic transport number of the random-type AEM with Cpc = 4.2 mol % and CGA = 0.15 vol % is 0.85, while that of AMX is 0.98 under the same conditions (0.5 mol/dm3 NaCl), indicating that the random-type AEM applies to desalination under lower salt concentration than 0.5 mol/dm3 NaCl.

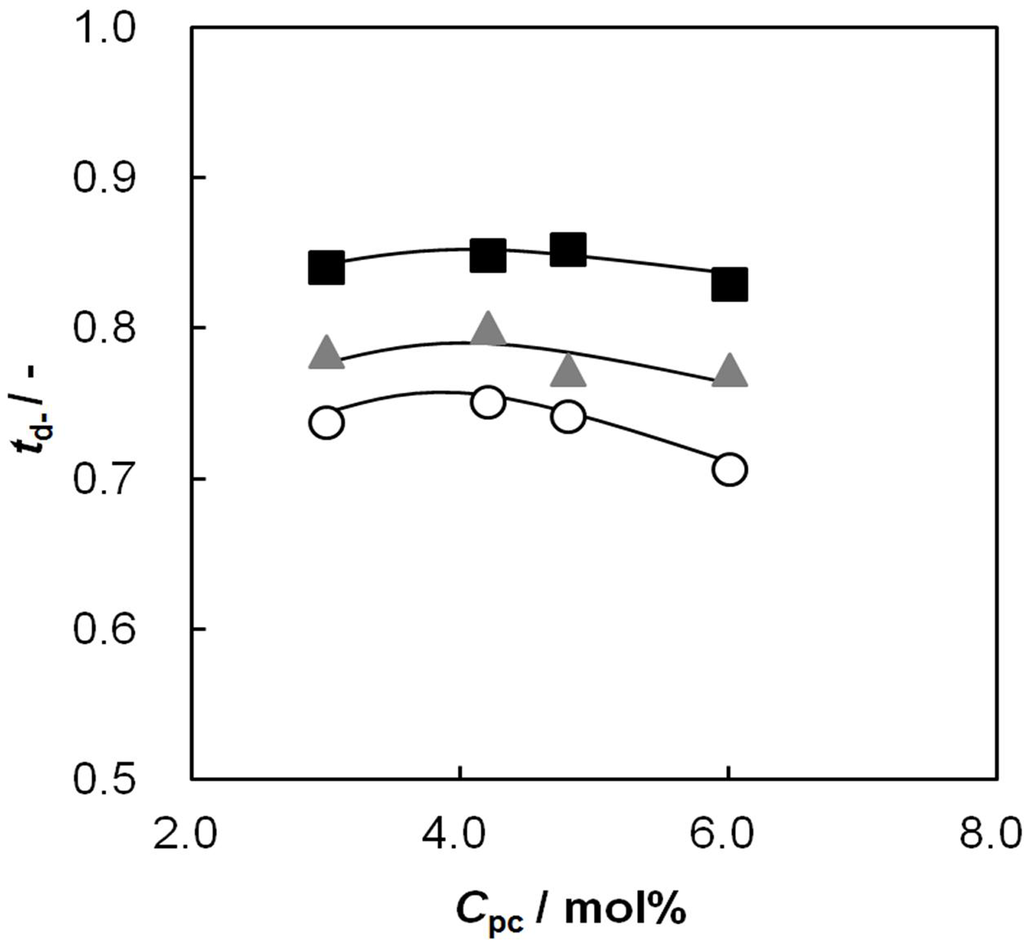

Figure 6. Dynamic state transport number, td−, of the AEMs as a function of the molar percentage of the anion-exchange groups, Cpc. The definition of symbols in this figure is the same as in Figure 2.
Figure 6. Dynamic state transport number, td−, of the AEMs as a function of the molar percentage of the anion-exchange groups, Cpc. The definition of symbols in this figure is the same as in Figure 2.
Membranes 03 00001 g006

2.7. Relationship between Membrane Resistance and Dynamic State Transport Number

An ion exchange membrane having both high ion permselectivity and low membrane resistance is desirable in electrodialysis processes. Figure 7 shows the relationship between the membrane resistance and dynamic state transport number of the membranes. The membrane placed on the upper left-hand side of the figure has a high performance for electrodialysis processes. The membrane resistance decreases and the dynamic state transport number increases with increasing Cpc. The transport number of the membrane increases with increasing CGA. The dynamic transport number and membrane resistance of the random-type AEM at Cpc = 6.0 mol % and CGA = 0.15 vol % were 0.83 and 4.8 Ω cm2, respectively, while those of AMX were 0.98 and 2.5 Ω cm2, respectively. This means that the random-type AEMs have lower ionic selectivity than AMX at high concentration of saline solutions.

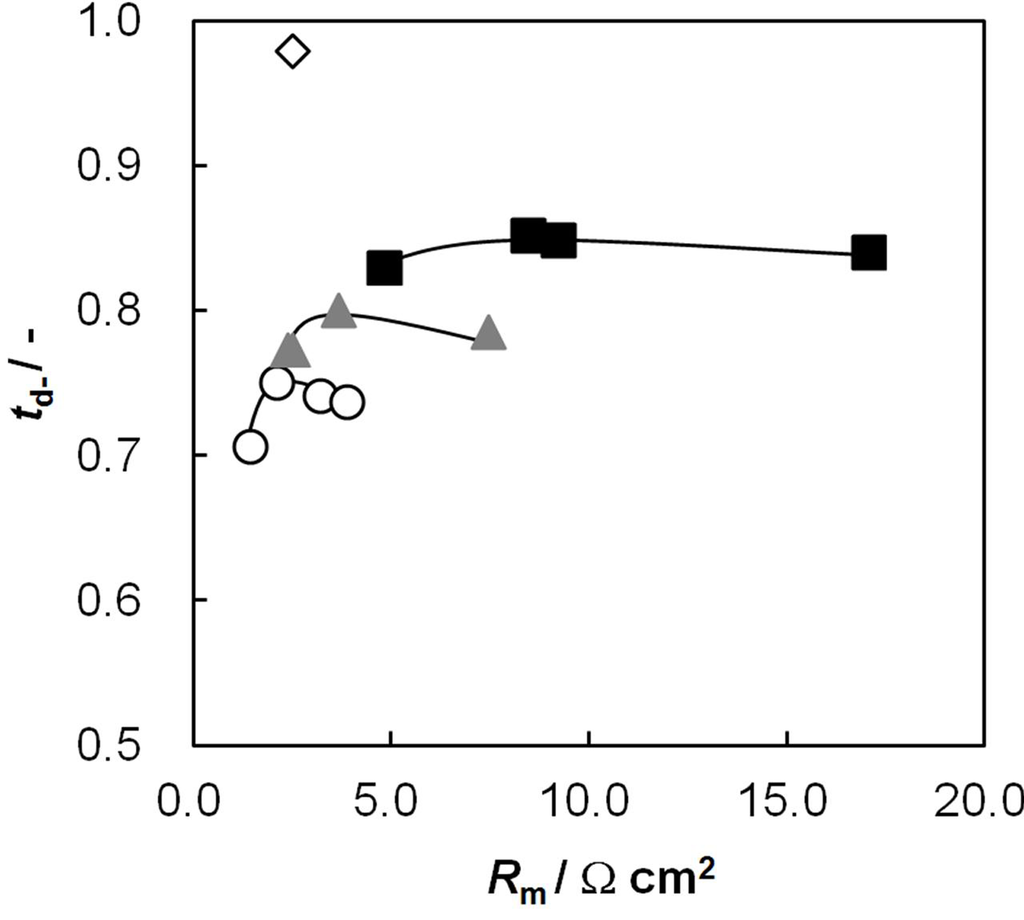

Figure 7. Dynamic state transport number, td−, of AEMs as a function of membrane resistance, Rm. The definition of symbols in this figure is the same as in Figure 2. Open diamond represents the data of the commercially-available AEM, Neosepta AMX (ASTOM Corp.: Tokyo, Japan).
Figure 7. Dynamic state transport number, td−, of AEMs as a function of membrane resistance, Rm. The definition of symbols in this figure is the same as in Figure 2. Open diamond represents the data of the commercially-available AEM, Neosepta AMX (ASTOM Corp.: Tokyo, Japan).
Membranes 03 00001 g007

2.8. Relationship between Dynamic State Transport Number and Effective Charge Density

Figure 8 shows the dynamic state transport number as a function of the effective charge density. The transport number increased with increasing effective charge density and was almost on a curve independent of the other membrane parameters: IEC and CGA.

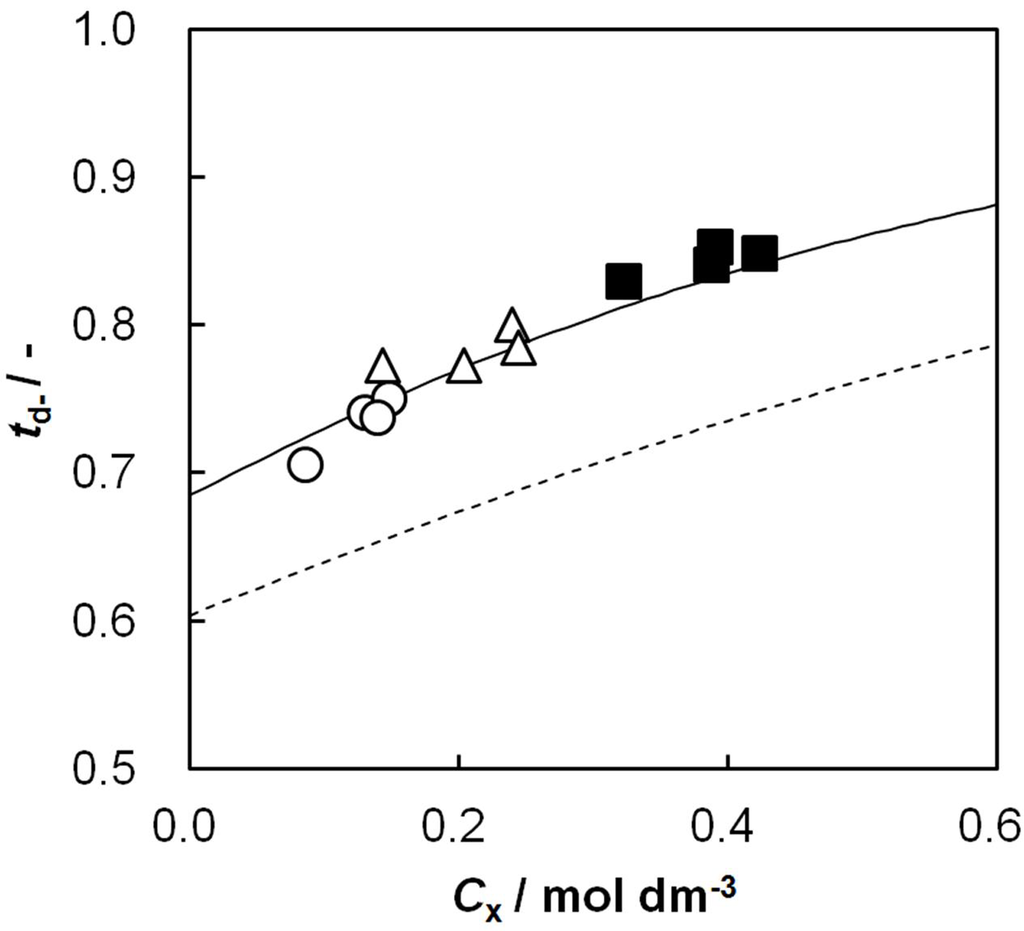

Figure 8. Dynamic state transport number, td−, of AEMs as a function of the effective charge density, Cx. The definition of symbols in this figure is the same as in Figure 2. The calculations: broken curve, β = 0.66; solid curve, β = 0.46.
Figure 8. Dynamic state transport number, td−, of AEMs as a function of the effective charge density, Cx. The definition of symbols in this figure is the same as in Figure 2. The calculations: broken curve, β = 0.66; solid curve, β = 0.46.
Membranes 03 00001 g008
The Donnan theory on an IEM gives the relationship between the transport number and effective charge density as [20]:
Membranes 03 00001 i003
where Cs is the NaCl concentration at the transport number measurement (0.5 mol/dm3).
Membranes 03 00001 i004
where αi is the correction factor of the i-th ion in the Mackie and Meares theory; wNa and wCl are the mobilities of Na+ and Cl ions in the membrane, and Qi is the factor related to the standard chemical potential difference and the activity coefficient as
Membranes 03 00001 i005
Membranes 03 00001 i006
where Δμ0 i is the standard chemical potential difference of the ion, respectively, between the membrane and an aqueous solution; Membranes 03 00001 i012 and γi are the corresponding activity coefficients in the membrane and the solution. The values of the mobility of Na+ and Cl ions in an aqueous solution are 5.4 × 10−13 mol m2 J−1 s−1 and 7.9 × 10−13 mol m2 J−1 s−1, respectively [21]. Hence, the ratio of wNa to wCl is 0.66. In the case of assuming that αNa/αCl = 1 and QNa/QCl = 1, the calculation of β = 0.66 is lower than the experiments as shown in the broken curve in Figure 7. The calculation of β = 0.46 as shown in the solid curve is in good agreement with the experiments. This means that the ratio of the correction factor, αNa/αCl, and/or the ratio, QNa/QCl, is less than 1.0. The correction factor of the highly hydrated ion Ca2+ in PVA-based membranes is smaller than that of the Cl (αCa = 0.60, αCl = 0.94) [21]. The radius of the hydrated Na+ is lower than that of the Cl. Hence, αNa/αCl is lower than 1.0. The result indicates that the transport number can be estimated from the value of the effective charge density.

3. Experimental Section

3.1. Materials

PVA117 (degree of hydrolysis: 98.5 mol %, viscosity-average degree of polymerization: 1700) and poly(vinyl alcohol-co-methacryloyl aminopropyl trimethyl ammonium chloride: MAPTAC) (degree of MAPTAC modification: 4 mol %, degree of hydrolysis: 98.5 mol %, viscosity-average degree of polymerization: 1700) were obtained from Kuraray Co., Ltd.: Tokyo, Japan. Glutaraldehyde (GA) (25 wt % solution in water) was of analytical grade and was obtained from Wako Pure Chemical Industries. Sulfuric acid and sodium sulfate were of analytical grade and were obtained from Nakarai Tesque.

3.2. Preparation of Random-Type AEMs

Self-standing base membranes, BM-X (X = 1–4) for random-type AEMs were prepared by casting an aqueous solution of a mixture of PVA and PVA-co-MAPTAC on a plastic plate and then drying the mixture over a hot stage (NISSIN, NH-45N) overnight at 50 °C. The thickness of the base membranes was ca. 0.1 mm. The weight percentage of PVA-co-MAPTAC to PVA in the mixture solution was varied to control the molar percentage of anion-exchange groups to vinyl alcohol groups (Cpc) in BM-X, as shown in Table 1. The random-type AEMs, RPA-X, were prepared by annealing BM-X at 160 °C for 30 min under vacuum to induce physical cross-linking between the PVA chains because PVA is a semi-crystalline polymer and the crystalline region acts as a physical cross-link point [22]. Chemical cross-linking was induced by immersing the membranes in an aqueous solution of various concentrations of GA, 0.05 mol/dm3 of H2SO4 (pH = 1), and 2.0 mol/dm3 of Na2SO4 at 25 °C for 24 h to control the water content of the membranes in the equilibrium swelling state in deionized water. Figure 9 shows the chemical cross-linking mechanism of PVA and GA.

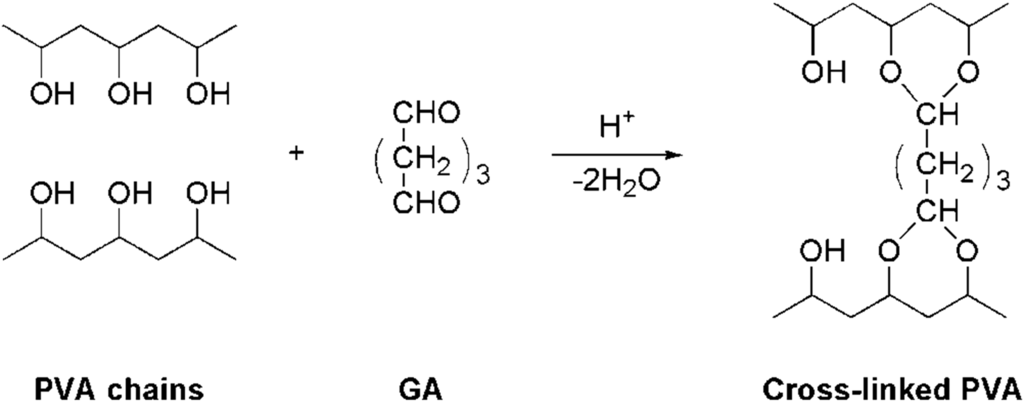

Figure 9. Scheme of chemical cross-linking of poly(vinyl alcohol) (PVA) using glutaraldehyde (GA).
Figure 9. Scheme of chemical cross-linking of poly(vinyl alcohol) (PVA) using glutaraldehyde (GA).
Membranes 03 00001 g009

3.3. Measurement of Membrane Water Content

The water content, H, of the membranes was measured as follows: A base membrane was weighed in the dry state after annealing and chemical cross-linking. The membrane was immersed in deionized water at 25 °C for 7 days. The membranes were removed from water, dabbed with a filter paper to remove excess water on the membrane surfaces, and weighed in the wet state. For the sake of simplicity, we assume the volume between the water phase and the polymer phase of a swollen membrane to be additive. The volumetric water content, H, is calculated from the weights in the wet state, Ww, and in the dry state, Wd, as shown below:
Membranes 03 00001 i007
where 1.0 and 1.3 are the densities of water and PVA [23], respectively.

3.4. Measurement of Ion-Exchange Capacity (IEC)

The ion-exchange capacity (IEC) of an AEM is an important parameter because the ionic transport properties of the AEM depend on the amount and species of the ion exchange groups. IEC is expressed as milliequivalent per gram of membrane (meq/g dry AEM) and was determined as follows: A sample membrane was immersed in 0.10 mol/dm3 KCl solution for 3 h before measuring IEC. The membrane was rinsed with deionized water to remove non-exchange KCl electrolyte adsorbed on the membranes and was then immersed in 0.20 mol/dm3 of NaNO3 with a volume of 50 cm3 under stirring for 12 h to achieve the complete exchange of Cl ions in the membrane with NO3 ions in the solution. The concentration of Cl ions in the solution, CCl was determined by using an ion chromatograph (Dionex ICS-1500). The membrane was dried under vacuum for 24 h and was weighed in the dry state, Wd. IEC of the base membrane was calculated using the following equation:
Membranes 03 00001 i008

3.5. Determination of Membrane Effective Charge Density

Membrane effective charge density is one of the most important factors for estimating the permselectivity between ions with different charge and valence in an ion exchange membrane. In order to estimate the effective charge density, the membrane potentials, Δϕ, were measured as a function of the KCl concentration in the two chambers of the apparatus described elsewhere [18]. One chamber of the cell was filled with KCl solution of various concentrations, Co, while the other chamber was filled with KCl solutions with concentration, Cd, which is five times higher than that in the former (r = Cd/Co= 5). The membrane potential between the solutions in the two chambers was measured at 25.0 ± 0.5 °C using Ag/AgCl electrodes (TOA HS- 205C) with a salt bridge (3.0 mol/dm3 KCl) and a voltmeter HM-20E (TOA Corp.: Tokyo, Japan). The membrane effective charge density, Cx, was calculated from the measured membrane potential using the following equation [24,25]:
Membranes 03 00001 i009
where W ≡ (wk - wCl ) / (wk + wCl ); wk and wCl are the K+ and Cl mobilities in a membrane, respectively; F, R and T are the Faraday constant, gas constant and the absolute temperature, respectively. Parameters W and Cx are adjusted so that the left-hand side of Equation (9) fits the experimental data at various KCl concentrations.

3.6. Measurement of Membrane Resistance

The electrical resistance of a sample membrane was measured by using a handmade acrylic plastic cell composed of two parts separated by the membrane, as described elsewhere [18], with an LCR meter AD-5827 (A&D Corp. Ltd.: Tokyo, Japan) operated at 10 KHz AC. An amount of 0.5 mol/dm3 of NaCl solution was poured into the two cell compartments, after which the electrical resistance, Ro, was measured at 25.0 ± 0.5 °C in a water bath. Subsequently, a sample membrane was set in the cell and the resistance, Rs, was measured again under the same conditions. The difference between Rs and Ro gives the membrane resistance, Rm.

3.7. Measurement of Dynamic State Transport Number

The dynamic state transport number, td−, of a membrane was determined by electrodialysis carried out using the handmade acrylic plastic cell with two parts separated by the membrane as shown in Figure 10.

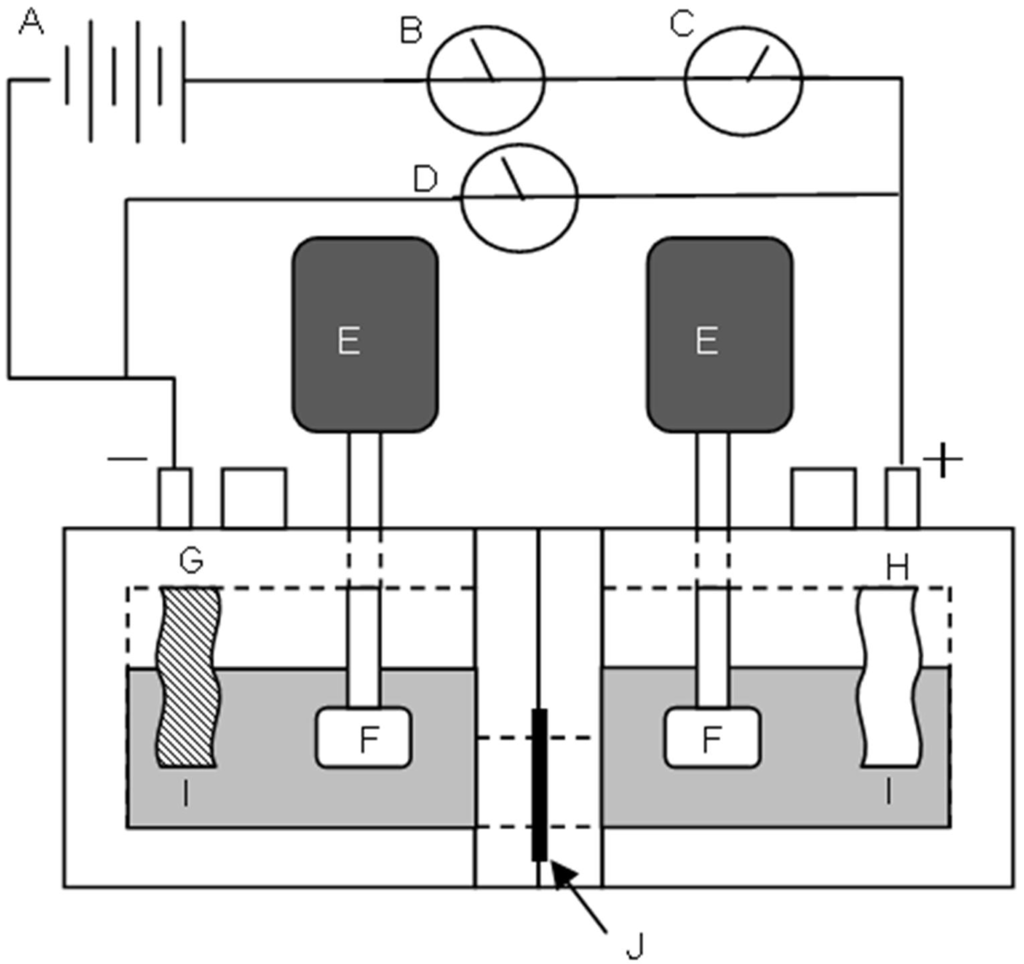

Figure 10. Apparatus for measuring the dynamic state transport number. A: power supply; B: ampere meter; C: coulomb meter; D: voltmeter; E: motor; F: stirrer; G: cathode electrode; H: anode electrode; I: 0.5 mol/dm3 NaCl solution; J: sample membrane. The effective area of the cell is 8.0 cm2.
Figure 10. Apparatus for measuring the dynamic state transport number. A: power supply; B: ampere meter; C: coulomb meter; D: voltmeter; E: motor; F: stirrer; G: cathode electrode; H: anode electrode; I: 0.5 mol/dm3 NaCl solution; J: sample membrane. The effective area of the cell is 8.0 cm2.
Membranes 03 00001 g010
The amount of ions transported through the membrane during electrodialysis was measured using a conductivity meter (HORIBA 3552-10D). The dynamic state transport number was obtained using the following equation:
Membranes 03 00001 i010
where ∆C, V and q are the concentration change of the transported ions, the volume of the measurement solution, and the amount of electricity passing through the membrane during the electrodialysis, respectively.

4. Conclusions

In this study, PVA-based AEMs were prepared by blending PVA with the random copolymer-type PVA-based polycation. The water content of the random-type AEMs was higher than that of the polymer blend-type AEMs when the molar percentage of the cation-exchange groups, Cpc, was almost the same for both the AEMs. The effective charge density of the random-type AEMs increased with an increase in Cpc and reached a maximum value. The maximum value increased with increasing crosslinker concentration, CGA, and the value of 0.42 mol/dm3 was obtained with Cpa = 4.2 mol % and CGA = 0.15 vol %, which was almost one fourth of the value of the commercially available AEM, AMX. A comparison of the random-type and polymer blend-type AEMs having almost the same membrane resistance showed that the random-type AEMs had lower membrane resistance than polymer blend-type ones. The membrane resistance of random-type AEMs can be reduced by optimizing the molar percentage of the anion-exchange groups to vinyl alcohol groups and the cross-linking conditions. The transport number and membrane resistance of the random-type AEM with Cpc = 6.0 mol % and CGA = 0.15 vol % were 0.83 and 4.8 Ω cm2, respectively, while those of AMX were 0.98 and 2.5 Ω cm2, respectively.
The random-type AEMs should have an advantage of production cost compared to the commercially available ones. Hence, the AEMs will be potentially applicable to electrodialytic desalination at low salt concentration like brackish water, food and medical products. The next subject of this study is to examine the desalination performance of the random-type AEMs with a lab-scale electrodialyzer.

Acknowledgments

All PVA- and PVA-based polymers used in this study were supplied by KURARAY Co., Ltd. This work was partly supported by the Salt Science Research Foundation, (No. 1011, No. 1110), and Adaptable and Seamless Technology transfer Program through target-driven R&D in Japan Science and Technology Agency.

Nomenclatures

C
ionic concentration in a solution
Cpc
polycation content in the membrane
CGA
glutaraldehyde concentration
Cx
the charge density in an anion exchange membrane
F
Faraday’s constant
H
water content
IEC
Ion exchange capacity
q
the amount of electricity passing through a membrane during electrodialylsis
r
KCl concentration ratio between the high- and low-concentration chambers
R
gas constant
Ro
measured resistance without a sample membrane
Rs
measured resistance with a sample membrane
Rm
membrane resistance: Rm = Rs− Ro
t
transport number
T
absolute temperature
Wd
weight in dry state
Ww
weight in wet state

Greek Symbols

α
correction factor
Membranes 03 00001 i011
activity coefficients in the membrane
γ
activity coefficients in the solution
Δϕ
membrane potential
Δμ0
standard chemical potential
w
ionic mobility

Subscripts

Cl
chloride ion
D
high-concentration chamber
K
potassium ion
Na
sodium ion
s
electrolyte solution
o
low-concentration chamber

References

  1. Sata, T. Ion Exchange Membranes: Preparation, Characterization, Modification, and Application; Royal Society of Chemistry: London, UK, 2004. [Google Scholar]
  2. Sata, T. Recent trends in ion exchange membrane research. Pure Appl. Chem. 1986, 58, 1613–1626. [Google Scholar] [CrossRef]
  3. Ray, P. Performance studies of heterogeneous ion exchange membranes in the removal of bivalent metal ions in an electrodialysis stack. J. Appl. Polym. Sci. 2009, 113, 1155–1164. [Google Scholar] [CrossRef]
  4. Merle, G.; Wessling, M.; Nijmeijer, K. Anion exchange membranes for alkaline fuel cells: A review. J. Membr. Sci. 2011, 377, 1–35. [Google Scholar] [CrossRef]
  5. Melnik, L.; Vysotskaja, O.; Kornilovich, B. Boron behavior during desalination of sea and underground water by electrodialysis. Desalination 1999, 124, 125–130. [Google Scholar] [CrossRef]
  6. Choi, E.-Y.; Bae, B.; Moon, S.-H. Control of the fixed charge distribution in an ion-exchange membrane via diffusion and the reaction rate of the monomer. J. Phys. Chem. B 2007, 111, 6383–6390. [Google Scholar]
  7. Miyazawa, T.; Asari, Y.; Miyoshi, K.; Umeno, D.; Saito, K.; Nagatani, T.; Yoshikawa, N. Development of novel ion-exchange membranes for electrodialysis of seawater by electron-beam-induced graft polymerization (II) graft polymerization of vinyl benzyltrimethylammonium chloride and sodium styrenesulfonate onto nylon-6 film. Bull. Soc. Sea Water Sci. Jpn. 2009, 63, 175–183. [Google Scholar]
  8. Uragami, T.; Nakamura, R.; Sugihara, M. Active and selective transport of alkali metal ions through crosslinked poly(styrenesulfonic acid) membrane. Makromol. Chem. Rapid Commun. 1982, 3, 467–470. [Google Scholar] [CrossRef]
  9. Kim, D.S.; Park, H.B.; Rhim, J.W.; Lee, Y.M. Proton conductivity and methanol transport behavior of cross-linked PVA/PAA/silica hybrid membranes. Solid State Ionics 2005, 176, 117–126. [Google Scholar] [CrossRef]
  10. Kim, D.S.; Yun, T.I.; Seo, M.Y.; Cho, H.I.; Lee, Y.M.; Nam, S.Y.; Rhim, J.W. Preparation of ion-exchange membranes for fuel cell based on crosslinked PVA/PSSA_MA/silica hybrid. Desalination 2006, 200, 634–635. [Google Scholar] [CrossRef]
  11. Higa, M.; Yamakawa, T. Design and preparation of a novel temperature-responsive ionic gel. 1. A fast and reversible temperature response in the charge density. J. Phys. Chem. B 2004, 108, 16703–16707. [Google Scholar] [CrossRef]
  12. Yamakawa, T.; Ishida, S.; Higa, M. Transport properties of ions through temperature-responsive charged membranes prepared using poly(vinyl alcohol)/poly(N-isopropylacrylamide)/poly(vinyl alcohol-co-2-acrylamido-2-methylpropane sulfonic acid). J. Membr. Sci. 2005, 250, 61–68. [Google Scholar] [CrossRef]
  13. Kim, D.S.; Park, H.B.; Rhim, J.W.; Lee, Y.M. Preparation and characterization of crosslinked PVA/SiO2 hybrid membranes containing sulfonic acid groups for direct methanol fuel cell applications. J. Membr. Sci. 2004, 240, 37–48. [Google Scholar] [CrossRef]
  14. Yang, C.-C.; Chiu, S.-J.; Chien, W.-C. Development of alkaline direct methanol fuel cells based on crosslinked PVA polymer membranes. J. Power Sources 2006, 162, 21–29. [Google Scholar] [CrossRef]
  15. Nikolić, V.M.; Žugić, D.L.; Maksić, A.D.; Šaponjić, D.P.; Kaninski, M.P.M. Performance comparison of modified poly(vinyl alcohol) based membranes in alkaline fuel cells. Int. J. Hydrog. Energy 2011, 36, 11004–11010. [Google Scholar] [CrossRef]
  16. Higa, M.; Sugita, M.; Maesowa, S.; Endo, N. Poly(vinyl alcohol)-based polymer electrolyte membranes for direct methanol fuel cells. Electrochim. Acta 2010, 55, 1445–1449. [Google Scholar] [CrossRef]
  17. Qiao, J.; Fu, J.; Liu, L.; Liu, Y.; Sheng, J. Highly stable hydroxyl anion conducting membranes poly(vinyl alcohol)/poly(acrylamide-co-diallyldimethylammonium chloride) (PVA/PAADDA) for alkaline fuel cells: Effect of cross-linking. Int. J. Hydrog. Energy 2012, 37, 4580–4589. [Google Scholar] [CrossRef]
  18. Nishimura, M.; Higa, M.; Akamine, K.; Masudaya, S. Preparation and characterization of anion-exchange membranes with a semi-interpenetrating network structure of poly(vinyl alcohol) and poly(allyl amine). Desalination 2008, 233, 157–165. [Google Scholar] [CrossRef]
  19. Mackie, J.S.; Meares, P. The diffusion of electrolytes in a cation-exchange resin membrane. I. Theoretical. Proc. R. Soc. Lond. A 1955, 232, 498–509. [Google Scholar] [CrossRef]
  20. Tanaka, N.; Nagase, M.; Higa, M. Preparation of aliphatic-hydrocarbon-based anion-exchange membranes and their anti-organic-fouling properties. J. Membr. Sci. 2011, 384, 27–36. [Google Scholar] [CrossRef]
  21. Higa, M.; Yamakawa, T. Design and preparation of a novel temperature-responsive ionic gel. 2. Concentration modulation of specific ions in response to temperature changes. J. Phys. Chem. B 2005, 109, 11373–11378. [Google Scholar] [CrossRef]
  22. Higa, M.; Nishimura, M.; Kinoshita, K.; Jikihara, A. Characterization of cation-exchange membranes prepared from poly(vinyl alcohol) and poly(vinyl alcohol-b-styrene sulfonic acid). Int. J. Hydrog. Energy 2012, 37, 6161–6168. [Google Scholar] [CrossRef]
  23. Miller, R.L. Crystallographic Data and Melting Points for Various Polymers. In Polymer Handbook, 4th; Brandrup, J., Immergut, E.H., Grulke, E.A., Abe, A., Bloch, D.R., Eds.; Wiley: New York, NY, USA, 1999; p. 14. [Google Scholar]
  24. Teorell, T. Transport processes and electrical phenomena in ionic membranes. Prog. Biophys. Biophys. Chem. 1953, 3, 305–369. [Google Scholar]
  25. Meyer, K.H.; Sievers, J.-F. Permeability of membranes I. Theory of ionic permeability. Helv. Chim. Acta 1936, 19, 649–664. [Google Scholar] [CrossRef]
