Versatile Encapsulation and Synthesis of Potent Liposomes by Thermal Equilibration

Abstract

The wide-scale use of liposomal delivery systems is challenged by difficulties in obtaining potent liposomal suspensions. Passive and active loading strategies have been proposed to formulate drug encapsulated liposomes but are limited by low efficiencies (passive) or high drug specificities (active). Here, we present an efficient and universal loading strategy for synthesizing therapeutic liposomes. Integrating a thermal equilibration technique with our unique liposome synthesis approach, co-loaded targeting nanovesicles can be engineered in a scalable manner with potencies 200-fold higher than typical passive encapsulation techniques. We demonstrate this capability through simultaneous co-loading of hydrophilic and hydrophobic small molecules and targeted delivery of liposomal Doxorubicin to metastatic breast cancer cell line MDA-MB-231. Molecular dynamic simulations are used to explain interactions between Doxorubicin and liposome membrane during thermal equilibration. By addressing the existing challenges, we have developed an unparalleled approach that will facilitate the formulation of novel theranostic and pharmaceutical strategies.

1. Introduction

Decades of research have resulted in a variety of liposomal formulations for use in both therapeutic [1,2,3] and theranostic [4,5,6] applications. Advances in synthesis procedure and membrane functionalization have led to targeting and stealth capabilities, which can increase bioavailability at disease sites several fold with minimal side effects, compared to systemically administered drugs [7,8]. These improvements have in turn led to the FDA approval and commercial use of several liposomal drugs, including Doxil^® for cancer [9], Abelcet^® for fungal infections [10], and DepoDur^® for pain management [11], and more recent Moderna/Pfizer vaccines for Covid-19 [12]. While substantial progress has been made in the development of novel liposomal formulations, considerably fewer strategies to increase the potency and concentration of therapeutics within the vehicles have been developed.

Sequestration of therapeutic compounds has traditionally been accomplished by either passive or active encapsulation approaches. The passive approach can sequester molecules irrespective of their polarity [13], where lipophilic molecules reside within the lipid bilayer membrane and hydrophilic molecules are contained within the core. During vesiculation, liposomes form within the media containing drug molecules, encapsulating the drug in the process. This approach is typically performed with dilute solutions, and therefore the encapsulation efficiencies are relatively low [14]. This leaves much of the drug to be lost during secondary purification steps. Furthermore, organic solvents (e.g., chloroform and ethanol) are typically used, that can inactivate certain molecules [15].

Active loading techniques have been developed that drastically improve encapsulation efficiencies and minimize the amount of non-encapsulated drug. The sequestration is driven by transmembrane pH or ion gradients that cause the influx of hydrophilic molecules to the core of liposomes [16,17,18]. This approach has been successfully utilized to sequester weakly basic drugs with encapsulation efficiencies of nearly 100%. Once inside the liposome, drug molecules precipitate out of the solution, increasing their retention time. While this technique overcomes many of the barriers to passive encapsulation, it is limited to the molecules that can pass through the membrane. Furthermore, decorating the membrane with targeting moieties may require a second step to remove any unbound targeting molecules that may result in the loss of encapsulated drugs.

We have previously demonstrated a simple approach for producing purified drug loaded liposomes. Using this method, we rapidly synthesize concentrated populations of small unilamellar liposomes (SULs) with a very narrow polydispersity index (typically near 0.13). The approach relies on passive encapsulation to sequester small molecules, and as such, the encapsulation efficiency is relatively low. Therefore, a technique that can enhance the encapsulation efficiency utilizing small amount of compound is desired.

Here, we demonstrate a new approach for creating drug-loaded targeting liposomes using thermal equilibration, where drug molecules are sequestered at high concentrations via passive diffusion at the membrane transition temperature (T_m). We demonstrate the universal and translational appeal of this approach by simultaneously co-loading both hydrophilic and lipophilic small molecules. We further demonstrate the therapeutic potential of this technique by encapsulating Doxorubicin (DXR), without utilizing ion gradients typically required for active methods. Bioactivity of these liposomes was observed by actively targeting cancer cells in vitro. Finally, using molecular dynamic simulations, we explain the thermodynamics that underlies the encapsulation and model the effects of temperature on the structural properties of the liposome membrane and DXR diffusion.

The thermal equilibration approach presented here is a powerful universal strategy for rapidly encapsulating different types of small molecule drugs. It offers significantly greater encapsulation capabilities than conventional passive encapsulation techniques and represents a feasible solution to producing therapeutic grade liposomes in a scalable manner. Nanoscale Molecular Dynamics simulations further explained the interplay of various forces and electrostatic interactions during the diffusion of small molecules through the lipid bilayer enabling drug loading optimization.

2. Materials and Methods

2.1. Materials

Cholesterol, 1,2-Distearoyl-sn-glycero-3-phosphocholine (DSPC), 5,5′-Dithiobis(2-nitrobenzoic acid) (Ellan’s reagent), L-Cysteine, and all fluorescent dyes were purchased from Sigma Aldrich (St. Louis, MO, USA). 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[maleimide(polyethylene glycol)-2000] (ammonium salt) (DSPE-PEG-Mal) was purchased from Avanti Polar lipids. Isopropyl Alcohol (IPA, 99% Pure), Ethanol (EtOH, 99% pure), Dimethyl Sulfoxide (DMSO), Zeba Spin desalting columns (7 K MWCO, 0.5 mL), Pierce dye removal columns, and Trypsin-EDTA were purchased from Thermo Fisher Scientific (Hampton, NH, USA). Glass syringes were purchased from Hamilton (Reno, NV, USA) and luer lock dispensing needles were purchased from Jensen Global (Santa Barbara, CA, USA). Amicon Ultra 100 kDa centrifugal filter units were purchased from EMD-Millipore (Billerica, MA, USA). A NanoJet syringe pump from Chemyx Inc. (Stafford, TX, USA) was used for all experiments. Dulbecco’s Modified Eagle Medium (DMEM), Fetal Bovine Serum (FBS), and Penicillin-Streptomycin antibiotic were purchased from VWR (Radnor, PA, USA). Doxorubicin (DXR) and WST-1 proliferation assay were purchased from Cayman Chemical (Ann Arbor, MI, USA). MDA-MB-231 metastatic breast cancer cell line was acquired from ATCC (Manassas, VA, USA).

2.2. Synthesis of Small Unilamellar Liposomes

Liposomes were synthesized as previously described [19]. Briefly, DSPC and Cholesterol were dissolved in isopropyl alcohol at a constant 2:1 molar ratio to a final concentration of 10 mM and 5 mM, respectively. The alcoholic solution was injected using a preheated glass syringe (55 °C) and a syringe pump at 100 µL min⁻¹ into a glass vial containing distilled water preheated at 55 °C to obtain a homogeneous population of liposomes. Typical synthesis volumes would be a total of 10 mL (1 mL alcoholic lipid suspension to 9 mL warm distilled water). The aqueous solution was constantly stirred at 600 rpm during infusion, and the stirring was continued for 3 min following infusion. After the liposomal suspension was cooled down to room temperature with continuous stirring, liposomes were concentrated 20 folds to a volume of 500 µL and a final lipid concentration of 20 mM using filter centrifugation (100 kDa, 6000× g) at 4 °C for 30 min. The particles were stored at 4 °C until use.

2.3. Antibody Coupling

Antibody coupling was accomplished through the addition of functionalized PEGylated lipids (DSPE-PEG-Mal). DSPE-PEG-Mal was dissolved to a concentration of 25 mg/mL in DMSO and added to the liposomal suspension containing small molecules (e.g., DXR, Nile Red, or Fluorescein) to a final molar ratio of 1% (DSPE/DSPC). The suspension was incubated for 1 h at 55 °C to increase the fluidity of the membrane. Simultaneously, antibodies targeting CD44 were thiolated by incubation with Traut’s reagent at a ratio of 3:1 (protein:Traut) for 1 h. Unreacted Traut’s reagent was removed by passing antibody suspensions through a desalting column and the resulting thiolated antibody was added to the liposomal suspension at a molar ratio of 1:1 (DSPE:Protein). The coupling reaction occurred overnight at 4 °C. Finally, non-reacted maleimide groups were neutralized by a 15 min incubation with β-mercaptoethanol at a molar concentration of 3:1 (β-mercaptoethanol:DSPE). The resulting suspension was then filtered as previously described to remove all non-encapsulated and unreacted molecules.

2.4. Quantification of PEG-Maleimide and Coupling Efficiency on the Liposomes

The amount of DSPE-PEG-maleimide on liposomes was evaluated following Ellman’s test [20]. Briefly, 120 µL of the functionalized liposomes were mixed with 30 µL of L-Cysteine (0.36 mM) using a thermomixer at 700 rpm for 2 h at room temperature. The particles were removed by filter centrifugation for 30 min at 6000× g. In a transparent 96-well plate, 100 µL of the supernatant and 50 µL of 5,5′-Dithiobis(2-nitrobenzoic acid) (0.144 mM) were added and mixed for 30 min at room temperature. The absorbance at 409 nm was measured using a microplate reader, and the unreacted L-Cysteine was determined using a standard curve. The amount of conjugated DSPE-PEG-maleimide was calculated by subtracting unreacted L-Cysteine from the total amount of L-Cysteine added to the functionalized liposomes, and the DSPE-PEG-MAL to DSPC ratio was evaluated.

2.5. Thermal Equilibration for Small Molecule Encapsulation

In this work, a hydrophilic (Fluorescein sodium salt) and two hydrophobic compounds (Nile red and Doxorubicin) were selected for encapsulation using thermal equilibration. Fluorescein sodium salt was prepared in water at a concentration of 1.5 M while Nile Red and Doxorubicin HCl were prepared in DMSO at concentrations of 30 mM and 172 mM, respectively. The concentrations of small molecules are detailed in the results section. Fifty microliters of the small molecule solution including DXR, Nile Red, or Fluorescein was added to 450 µL of liposome suspension and incubated at desired temperatures and times. After liposomes were cooled to 4 °C, liposome suspension was added to a 7 KDa MWCO Zeba Spin desalting column and centrifuged at 1500× g for 2 min to remove free DXR from DXR loaded liposome suspension. For the fluorescent dye loaded liposomes, the excess dye was removed using Pierce dye removal columns. For targeted liposomes, DSPE-PEG-Mal was dissolved to a concentration of 25 mg/mL in DMSO and added to a final mol ratio of 1% (DSPE/DSPC).

2.6. Analysis of Small Molecule Encapsulation and Release

Encapsulated compound concentrations were analyzed using a Thermo Scientific Varioskan Flash multimode reader. DXR concentration was quantified using an excitation of 525 nm and an emission of 580 nm. Liposomes were solubilized in 0.1% Triton x-100 before measuring a fluorescence. The fluorescence intensity was compared to the standard curve, which was prepared by measuring the fluorescence of DXR in 0.1% Triton x-100. To quantify the concentration of co-loaded samples, after dissolving liposomes in 0.1% Triton x-100, the fluorescence was measured at an excitation of 488 nm and emission of 512 nm in water for fluorescein. The samples were then desiccated for several hours under vacuum and redissolved in IPA. The fluorescence of Nile Red was measured using an excitation of 550 nm and an emission of 625 nm. The fluorescence intensities of fluorescein and Nile Red from the sample were compared to standard curves prepared with either triton x-100 in water (fluorescein) or IPA (Nile Red) to evaluate encapsulated compound concentrations.

DXR release was investigated by diluting samples 20-fold in PBS with 10% FBS and incubating for up to 48 h at 37 °C. This level of dilution provided an appropriate sink condition which requires 5–10 times lower concentration than the saturated concentration. Here, the DXR concentration was 0.0234 mg/mL which was over 400 times lower than its solubility in water (10 mg/mL). At indicated time points, liposome suspension was purified by multiple filtrations to remove released DXR. First, the liposome suspension was filtered through a 7 kDa desalting column to remove free doxorubicin followed by another filtration using a 100 kDa Amicon ultra centrifugal filter unit to remove any serum bound DXR. Liposomes were dissolved in 0.1% Triton x-100, and the fluorescence of each sample was measured using an excitation of 525 nm and an emission of 580 nm. The remaining DXR in liposomes was calculated by comparing the fluorescence intensities to a standard curve prepared with DXR in 0.1% triton x-100.

2.7. Stability of Liposomes in Serum

The effect of serum on liposome stability was tested by monitoring the particle size change in either H₂O, PBS, or PBS with 10% FBS for up to 24 h at 37 °C. Briefly, 25 µL of liposome solution was dispersed into either H₂O, PBS, or PBS with 10% FBS and mixed by thermomixer at 37 °C. Samples were collected at different time points (0, 1, 4, 16, and 24 h), and 20 µL of each sample was resuspended in 500 µL of fresh H₂O for size and zeta potential measurements using the Malvern Zetasizer ZSP, a widely used Dynamic light scattering (DLS) analytical system which can determine the size distribution of nanoparticles in suspension based on the Brownian motion [21].

2.8. Quantification of Phospholipid Concentration

Phospholipid concentration was empirically determined via Stewart Assay [22]. Briefly, liposomal suspensions were dehydrated at 70 °C in polypropylene microcentrifuge tubes. The lipids were then dissolved in 500 uL chloroform, and an equal volume of Stewart’s reagent (100 mM FeCl₃ and 400 mM NH₄SCN in DI water) was added and vortexed for 20 s. The tubes were centrifuged for 10 min at 1000× g to create a phase separation. The chloroform layer was then analyzed in a quartz cuvette for its absorbance at 472 nm and compared to a standard curve to determine the phospholipid concentration. The standard curve was made using a serial dilution of lipids in cholesterol at a 2:1 ratio.

2.9. Cell Culture and Therapeutic Delivery

MDA-MB-231 cells were grown in DMEM containing 10% FBS and 1% Penicillin-Streptomycin solution. The cells were cultured at 70% confluence and plated in a 96 well plate at a density of 5000 cells/well. The cells were incubated undisturbed for two days prior to any experimentation. Liposomal suspensions to be used for cell culture experiments were either passed through a 0.2-micron filter before filter centrifugation or UV treated for three minutes and maintained sterile. On the second day, the liposomal carriers containing DXR were introduced to the cultures at the IC₅₀ of DXR (0.01 µM [23]). Proliferating cells were quantified and normalized by the control using WST-1 proliferation assay following the manufactural protocol.

2.10. Membrane Simulations

Simulations are performed on a section of the lipid membrane consisting of DSPC and cholesterol held in a 2:1 molar ratio. The membrane section was constructed using Charmm-27 GUI Membrane Builder [24], and designed to consist of 256 total lipid molecules and 128 cholesterol molecules. The membrane was hydrated using 30 water molecules per lipid. Nanoscale Molecular Dynamics (NAMD) was used to thermally equilibrate the bilayer system for 1 ns at designated temperatures. Production runs were also conducted at designated temperatures with a time step of 1 femtosecond and data collection every 20 femtoseconds. Every simulation was run for at least 100 ns, yielding at least 5000 data points per temperature. Trajectories of the simulations were visualized using Visual Molecular Dynamics (VMD). Further information on the simulation setup is available in the supplementary information.

2.11. Statistical Data Analysis

Statistical analysis was conducted using GraphPad Prism 5 (La Jolla, CA, USA). For each condition, at least three samples were independently prepared, and each sample was analyzed three times. Statistical analysis was performed using either a Student’s unpaired t-test or a One-Way Analysis of Variance (ANOVA) with a Tukey post-test. Data were deemed statistically significant if p values were less than 0.05. Graphs show the mean and the standard error of the mean (SEM) of sample groups.

3. Results

3.1. Synthesis Approach and Maximum Equilibration Calculation

Typical liposome synthesis techniques [15,25,26] require extensive secondary processing (e.g., sonication [25], extrusion [26] freeze thawing [27]) to generate monodispersed SULs. An alternative method that has been utilized to generate SUL’s without extensive post-processing is through the injection method (Figure 1a). The injection method is advantageous in its simplicity but typically yields low encapsulation efficiencies [19]. To address this, we have developed a novel approach to sequester small molecules rapidly and efficiently.

3.1.1. Liposome Purification and Concentration

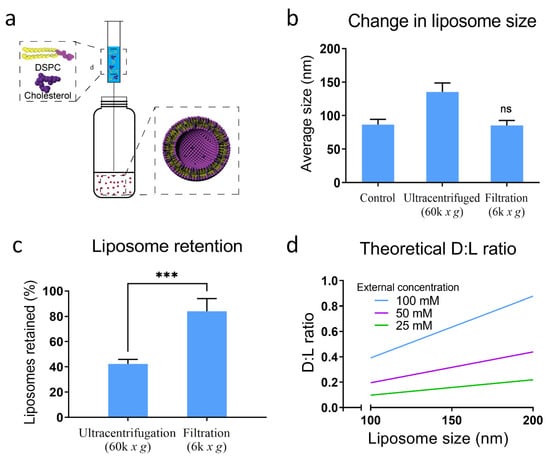

Small unilamellar liposomes are difficult to concentrate without losing part of the population in the process due to their low densities [28,29]. Therefore, we proposed to use filter centrifugation instead of ultracentrifugation. To compare the efficiency of ultracentrifugation and filter centrifugation, raw liposome without loading any compound were tested. Empty liposomes in water were homogeneous with a size of 79.56 (± 4.81) nm and polydispersity of less than 0.2 (Supplementary Figure S1), while their zeta potential was –0.53 ± 2.06 mV (Supplementary Figure S2). By filter centrifuging for thirty minutes at 6000× g, we effectively concentrated liposomes 20-fold while retaining the characteristic size and lipid concentration (Figure 1b,c). The mean population diameter of liposomes increased to 135.3 (±7.7) nm following ultracentrifugation at 60,000× g for 2 h. Furthermore, by analyzing the lipid concentration, we found that only 42 (±2.1)% of the lipids were retained, suggesting that ultracentrifugation can only pellet larger liposomes within the population. As further proof of this, we analyzed the supernatant of the ultracentrifuged sample using DLS and routinely found liposomes with diameters of around 80 nm (data not shown). Notably, there was a non-significant change in liposome diameter following filter centrifugation (85.3 ± 4.3 nm), and 79.2 (±1.3)% of the lipids were retained. While increased centrifugation speeds (>60,000× g) and longer centrifugation durations using a specialized ultracentrifugation system may improve liposome retention, the proposed filter centrifugation approach is significantly more efficient and accessible.

3.1.2. Measurement and Quantification of Drug Encapsulation

We evaluated the maximum equilibration concentration (C_max), where the number of drug molecules within the liposomes (C_E) in solution will be proportional to the number of drug molecules in the surrounding media (C_T). The constant of proportionality (α) here is the ratio of the respective volumes, where V_Excluded is the cumulative core volume of all liposomes and V_Total is the total volume of the solution.

$${\mathrm{C}}_{\max }=\mathsf{\alpha }·{\mathrm{C}}_{\mathrm{E}}$$

$$\mathsf{\alpha }=\frac{{\mathrm{V}}_{\mathrm{Excluded}}}{{\mathrm{V}}_{\mathrm{Total}}}$$

$${\mathrm{C}}_{\mathrm{T}}\ge \mathsf{\alpha }·{\mathrm{C}}_{\mathrm{E}}$$

V_Excluded can be estimated by determining the inner volume of one liposome and extrapolating for the entire liposome population within the sample. Furthermore, if the drug is lipophilic, V_Excluded can be substituted for the volume of the lipid membrane. Using our maximum equilibration model, we can predict the D:L ratio as a linear function of concentration and liposome size (Figure 1d). This function is linear due to the constant lipid molarity, meaning as the liposome size grows, it utilizes lipids that could otherwise be used to form additional liposomes. Additionally, if the density of the lipid membrane does not change as liposome size changes, the maximum equilibration of lipophilic drugs is solely dependent on C_T. Therefore, when equilibrating liposomes with a narrow size distribution, we can use C_max to hypothesize the liposome potency based on extra-liposomal drug concentration (dependent on drug solubility) as well as the number of liposomes present. By concentrating the samples using filter centrifugation, we can increase the C_max and therefore the potency of liposomes.

3.1.3. Stability of Liposomes during Thermal Equilibration

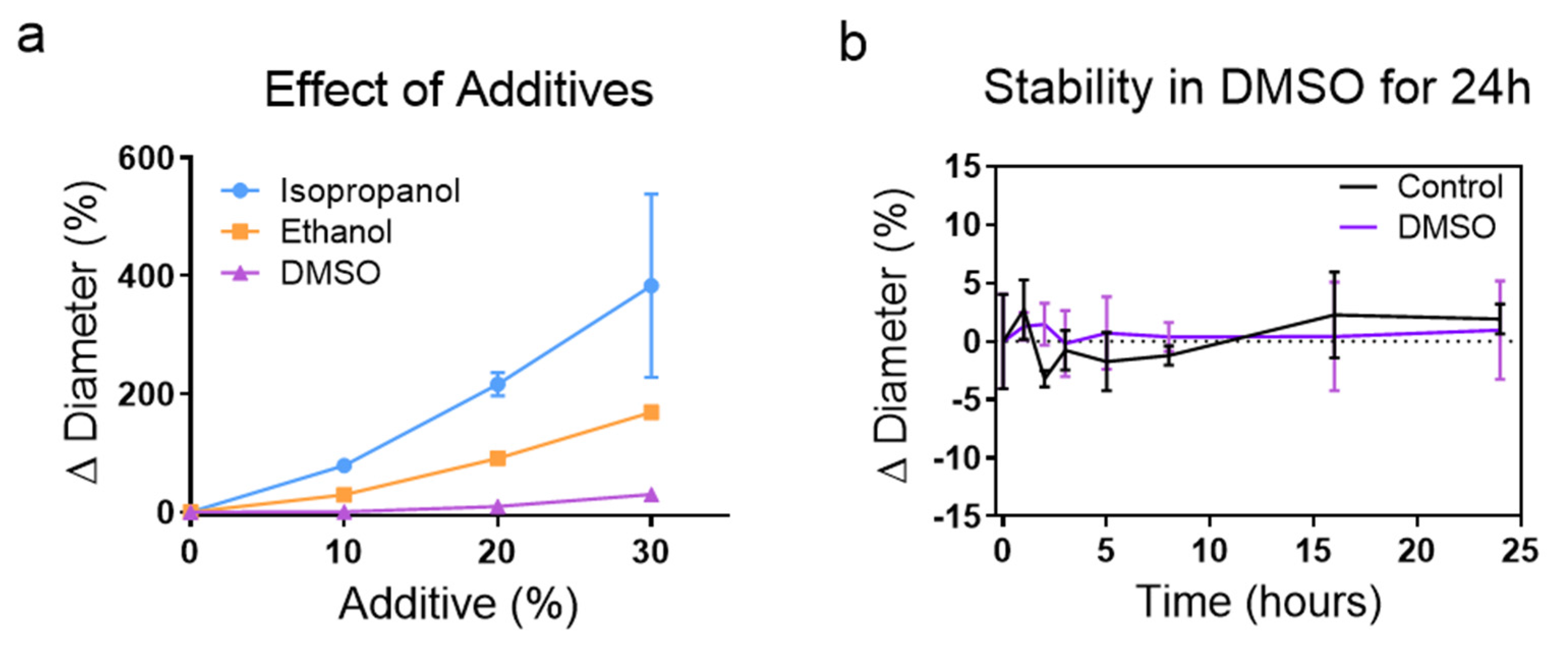

Several factors can affect the diffusion of small molecules across the membrane, including the temperature of the system and solvents used. Alcohols such as isopropanol and ethanol offer convenient methods to increase the solubility of many drugs, however, these solvents can also deactivate or precipitate some drugs. DMSO is an alternative that is widely used to enhance the solubility of nonpolar chemicals for drug delivery. To investigate the effect of organic solvent on liposomal stability, particularly at temperatures near T_m, we individually incubated aqueous solutions of isopropanol, ethanol, and DMSO with concentrated liposomal slurries at 55 °C and analyzed their size change. We found that 10% DMSO had the least effect on liposome size (Figure 2a), with an average shift from 104 (±0.35) nm to 107 (±0.55) nm. Membrane components immediately precipitated out of the solution when introduced to alcohol concentrations of greater than 40%. Samples that include 10% DMSO were stable for at least 24 h at 55 °C (Figure 2b). In all cases, we found that the stability of liposomes diminishes rapidly when exposed to temperatures above T_m.

3.2. Encapsulation and Delivery of Chemotherapeutics from Equilibrated Liposomes

3.2.1. Equilibrating Liposomes with Doxorubicin

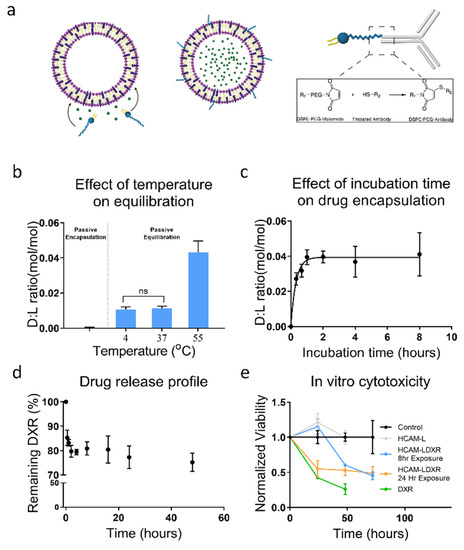

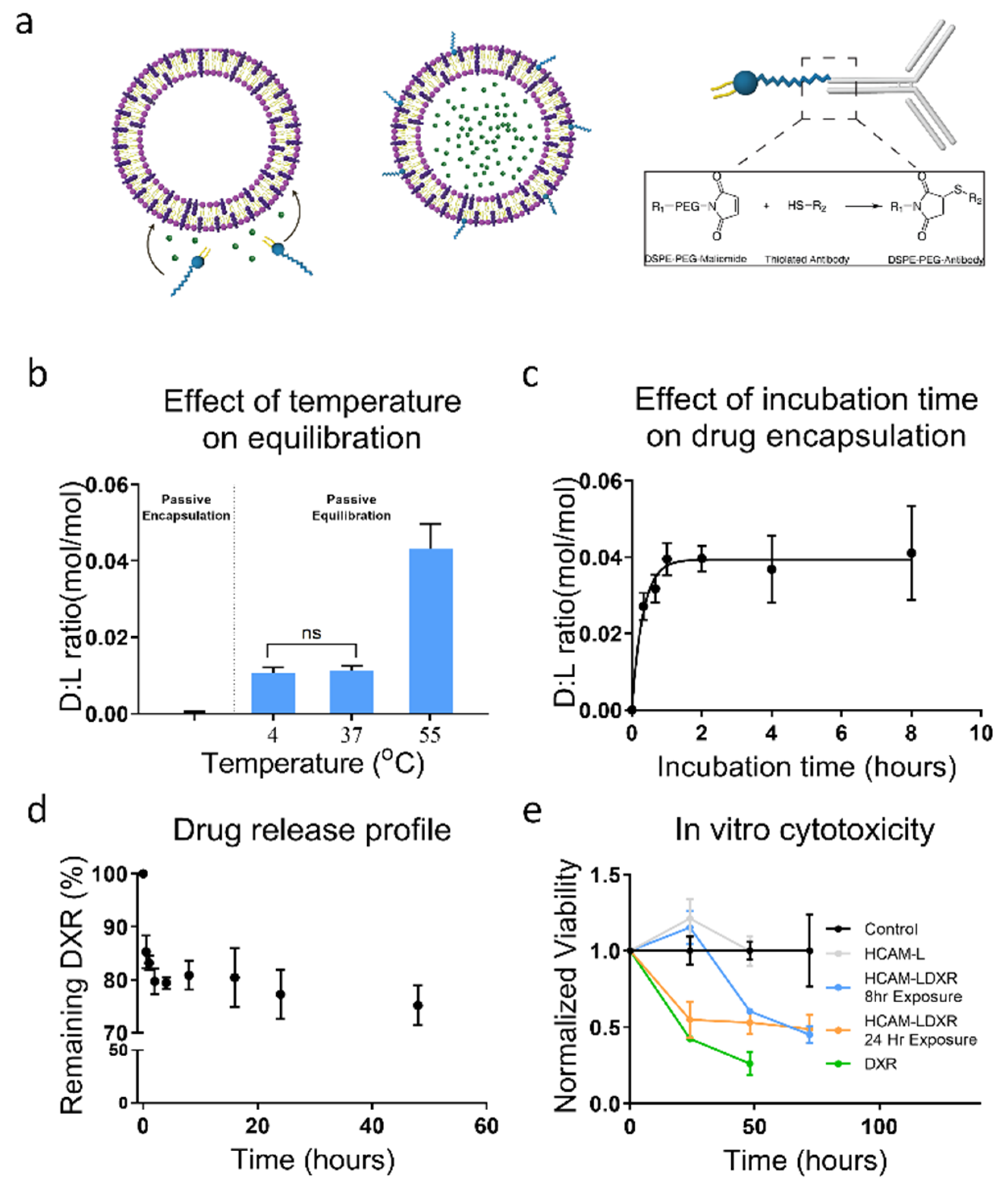

After characterizing the stability of liposomes during thermal equilibration, we evaluated liposomal sequestration of therapeutic compounds. Thermal equilibration (Figure 3a) relies on the incubation of concentrated liposomal solutions, where the ratio of Drug:Lipid (D:L) can be optimized to enhance the potency of nanocarriers without using large amounts of therapeutic compounds. Liposomes were incubated with DXR being 10% of the final concentration (D:L ratios of liposomal suspension were at 1.72:1). To validate our hypothesis of temperature affecting thermal equilibration, liposomal slurries were incubated with DXR at varying temperatures ranging from 4 to 55 °C (Figure 3b). We also compared this approach with another commonly used approach of passive encapsulation [14]. When held at identical initial D:L levels, equilibration at T_m produced nearly 200 times higher D:L ratios compared to passive encapsulation (0.000239 and 0.041, respectively). While this is lower than current active forms of doxorubicin sequestration, which can achieve D:L of nearly 0.3, it is also less prohibitive and can be applicable to a larger library of molecules. Interestingly, we found that a significant amount of DXR had associated with liposomes equilibrated below T_m (D:L ratio of 0.011), which we believe may be due to advantageous binding. We observed a clear exponential trend with time during the initial one-hour incubation (Figure 3c). We found no difference in liposome diameter following thermal equilibration with DXR solubilized in DMSO (Supplementary Figure S3).

A hallmark of drug delivery systems such as liposomes is their stability and slow release of therapeutics under physiological conditions. This is especially important for the delivery of chemotherapeutic compounds such as DXR which can have severe toxic side effects [30]. As extravasation into thick tumors may require 24–48 h [31,32,33], formulations that release compounds too quickly are not capable of reaching the required therapeutic index upon reaching the target site. Furthermore, interaction with serum is known to induce liposome degradation. Therefore, liposome stability is crucial for therapeutic potential. We found that the liposomes remain stable in water and PBS without change in size for at least 24 h at 37 °C, whereas an increase in size of approximately 10% from 105.9 ± 10.2 nm to 117.8 ± 15.3 nm was observed when incubated with 10% FBS. (Supplementary Figure S4A). While the zeta potential of liposomes in H₂O was −0.532 ± 2.06 mV, which did not change during the 24 h of incubation at 37 °C, it reduced from −5.95 ± 0.478 to −11.7 ± 0.30 and −4.70 ± 0.306 to −10.05 ± 0.404 during incubation in PBS alone or PBS containing 10% FBS, respectively (Supplementary Figures S2 and S4B). This increase in the magnitude of zeta potential in the serum containing medium could be attributed to increased emulsion stability that only resulted in a 10% increase in particle size which was likely due to protein adsorption. The stability of thermally equilibrated liposomes in 10% FBS supplemented PBS was confirmed by the slow release of DXR with 75% of the encapsulated compound being retained after 48 h (Figure 3d).

3.2.2. Delivery and Cytotoxicity of Doxorubicin Loaded Liposomes

A distinguishing characteristic of drug delivery systems is the capability to provide therapeutic benefits through cellular uptake. To demonstrate this, we created drug loaded liposomes using the thermal equilibration technique. Liposomes were incubated with DXR (17.2 mM) and DSPE-PEG-MAL (1 mol%) for 1 h [34,35] at 55 °C followed by purification using spin columns. However, it is likely that part of the DSPE-PEG-MAL will remain free, forming micelles that would be difficult to filter and subsequently interfere with antibody coupling. Therefore, retention of DSPE-PEG-MAL was calculated by determining the ratio of DSPE-PEG-MAL to DSPC lipid by Ellman’s test (Supplementary Figure S5). The DSPE-PEG-MAL to DSPC ratio of 0.009 ± 0.001 was observed, as compared to the starting ratio of 0.01 based on 1 mol% concentration suggesting that >90% of DSPE-PEG-MAL was retained within the solution following the insertion protocol. The subsequent CD44 conjugation and cancer cell targeting with fluorescein loaded liposomes displayed a strong signal of the liposomal uptake further validating that neither the DSPE-PEG-MAL molecules nor the CD44 antibodies were lost as micelles or during filtration.

CD44 is highly expressed on MDA-MB-231 cells [36], and was thus used to target DSPE-PEG-MAL incorporated liposomes after functionalization with the thiolated anti-CD44 to the maleimide group. Targeting liposomal DXR (LDXR) was incubated with MDA-MB-231 (at IC₅₀) for 8 or 24 h prior to being washed away with PBS. To ensure DMSO did not play a role in cell death, vehicles were generated by incubating pre-formed liposomes with DMSO in the absence of DXR. These liposomes were also functionalized with anti-CD44 IgG (HCAM-L). Free DXR was used as a positive control. Cell viability was analyzed over 72 h using WST-1 as an indicator of proliferation and normalized to the media-only control (Figure 3e). As expected, cells demonstrated a time-dependent decline in proliferation when incubated with any form of DXR. Both 8 and 24 h of LDXR exposures eventually ended with nearly equivalent (p = 0.173 at 48 h and p = 0.603 at 72 h, n > 3) viabilities.

3.2.3. Atomic Level Simulation of Membrane Dynamics

Based on the predicted maximum equilibration model of D:L ratio, liposomes with an average size of 100 nm should have a D:L ratio of 0.4 (Figure 1d). This prediction assumes that the inner core of liposomes contains the same concentration of compound as the external microenvironment at equilibrium. Since the encapsulation curtails at 1 h (Figure 3c), liposomes are assumed near equilibrated by then with a D:L ratio at 68% of the maximum equilibrium concentration after which it plateaus. We next asked what might be causing the difference between predicted and the observed D:L ratios, and what forces could cause the association of DXR with the liposome membrane at temperatures below T_m. We hypothesized that the observed association between DXR and liposomes at temperatures <T_m may be due to interactions between the phosphate group of DSPC and the NH₂ group of DXR. Using molecular dynamic simulations, we further investigated the molecular interactions at the atomic level.

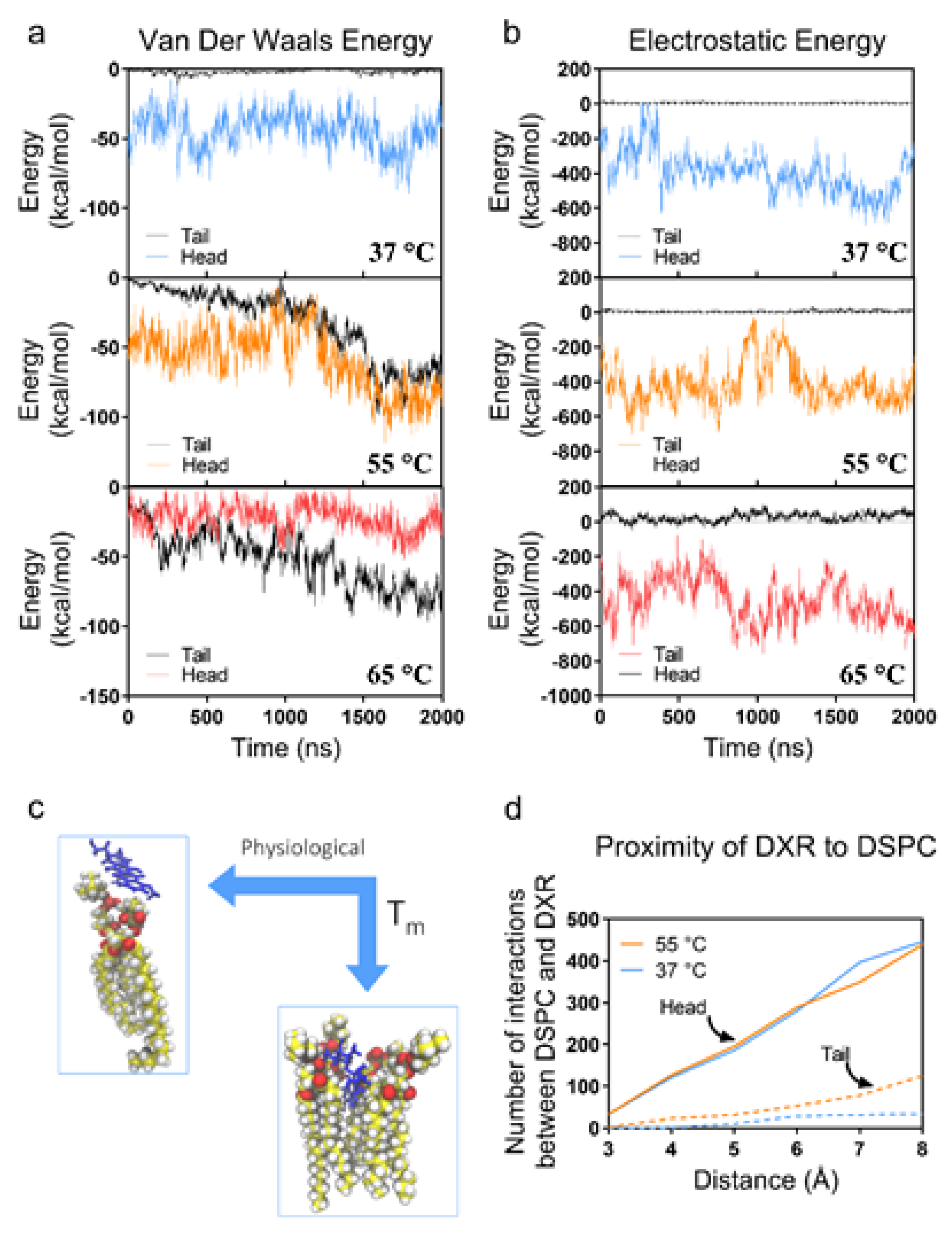

Since the passage of DXR is largely mediated by diffusion, movement through the membrane is dictated by both long-range Van der Waals (VdW) energy and the short-range electrostatic forces existing between DXR and lipid molecules (Figure 4a,b, respectively) [37]. Thus, we explored the interactions between the NH₂ group of DXR with both the head and the tail of the lipid molecule. The analysis of VdW indicated that at 37 °C, the DXR molecule primarily interacts with the lipid head (average energy −43.8 kcal/mol), while interactions between DXR and the lipid tail are negligible (average energy −1.9 kcal/mol). Similarly, the electrostatic interactions around the lipid head (Figure 4b) are highly attractive, promoting the observed adsorption at temperatures lower than T_m (Figure 3b). Conversely, at T_m (55 °C) when the lipid layer is more fluidic, the DXR first interacts with the head (as indicated by the low VdW), but subsequently moves closer to the tail (as evident by the decreasing VdW). At and above the T_m, as the DXR moves into the membrane, and thus further away from the charged phosphate head, the attraction decreases (KdW becomes more positive), before returning to a more negative steady-state. Interactions between the leaflet and the DXR molecule are illustrated in Figure 4c. Below T_m, DXR remains within the Van der Waals radii, interacting with the phosphate head. However, as the membrane acquires a more liquid-state, the lipophilic region of DXR molecules migrates towards the hydrophobic phospholipid tail within the bilayer. Most of the interatomic interactions occur within 5–8 Å of each other (Figure 4d), suggesting weak transient interactions, with the majority occurring between DXR and the lipid head.

While temperature plays a primary role in the thermal equilibration of liposomes with their exterior, experimentally we observed an almost immediate deleterious response in liposome stability at temperatures greater than the T_m. To elucidate this at the atomic level, we explored the effects of temperature on other factors that can influence DXR diffusion and membrane stabilization (Supplementary Figure S6). In addition to the electrostatic and VdW interactions, the DXR molecule can stabilize via the additive effect of hydrogen bonding (Supplementary Figure S6B). While the number of bonds initially starts off equal, irrespective of the temperature, there is a noticeable decrease in hydrogen bonding as the temperature increases and as the DXR enters the membrane. Conversely, at lower temperatures, the hydrogen bonding steadily increases, thereby stabilizing the interactions. Interestingly, while there is a significant decrease in the average number of hydrogen bonds when increasing the temperature from 37 °C to 55 °C (12.75 vs. 6.75, respectively) there is very little difference between the number of hydrogen bonds at 55 °C and 65 °C (averages 6.75 and 4.5, respectively). This decrease in hydrogen bonding at temperatures ≥ T_m likely enhances the DXR’s ability to migrate into the tail section, however, the levels are re-established as the DXR progresses through the membrane, suggesting a rotation of the DXR molecule so that the NH₂ group points towards the polar head. These results are most evident in the RMSD of DXR, where there is an increase in the average DXR movement of over 50% at T_m compared to 37 °C, but only an 8% increase between 55 °C and 65 °C (Supplementary Figure S6C). Therefore, while there is a large difference in equilibration between 37 °C and 55 °C, the change is not proportional above T_m.

The membrane fluidity that permits DXR infiltration, as well as the loss of stability that correlates with the observed liposome disintegration at higher temperatures, is seen most apparently in the conformational energy of the tail ends (Supplementary Figure S6D). While higher conformational energy (and thus membrane fluidity) will enhance DXR infiltration into the membrane [38], our observations noted that liposomes rapidly destabilized at temperatures > T_m. Over the 18 °C difference between the gel phase (37 °C) and the T_m (55 °C), the conformational energy is increased 2.51%. A smaller 10 °C change in temperature from 55 °C to 65 °C resulted in a similar 2.52% increase in conformational energy. Taken together with our experimental results, we believe that this non-proportional increase in conformational energy results in a rapid decrease in liposome stability above T_m. While liposomes can mitigate the initial increase in conformational energy, for at least our observation window (24 h) (Figure 2c and Figure 3b), they are unable to remain stable with the additional increase in energy. Therefore, while increasing the temperatures beyond T_m may increase DXR movement (Figure 4c), it also greatly decreases the membrane stability and thus is not a feasible approach to increasing equilibration.

3.3. The Universal Nature of the Thermal Equilibration Approach

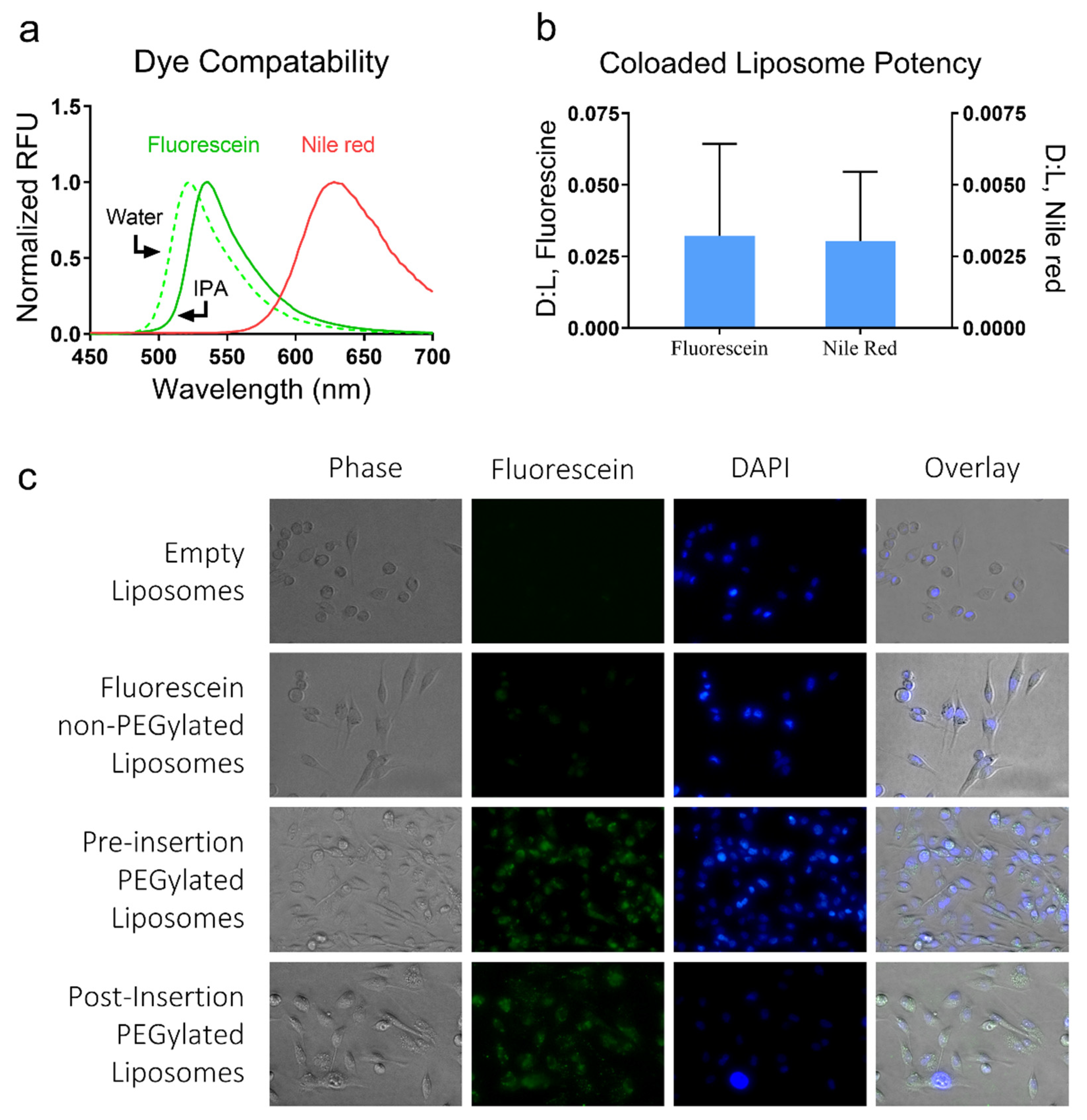

Many popular encapsulation approaches are drug-specific and are thus not versatile. However, we foresee using passive equilibration as a universal encapsulation technique that could be applicable to a variety of molecules. To demonstrate this, we chose two small molecules that vastly vary in their polarity, Fluorescein, and Nile Red. These molecules are similar in size and have compatible excitation and emission spectra, which allows us to view the co-loading capabilities of our approach (Figure 5a). Fluorescein and Nile Red (solubilized in DMSO) were introduced to liposomal suspensions at concentrations of 750 mM and 20 mM, respectively. Samples showed D:L levels of 0.03 (±0.013) and 0.003 (±0.000099), respectively (Figure 5b).

Furthermore, we demonstrate efficient targeting of cancer cells and the in vitro cellular uptake of liposomes using the proposed technique (Figure 5c). Here, PEGylated liposomes were created through “Pre-insertion” (DSPE-PEG-Mal was added into the IPA solution pre-synthesis), or “Post-insertion” (DSPE-PEG-Mal was integrated following the synthesis via thermal equilibration along with fluorescein). Both approaches yielded functionalized targeting liposomes, as demonstrated by the presence of fluorescein when examining cells exposed to PEGylated liposomes, and comparing their fluorescence to cells introduced to non-PEGylated liposomes.

4. Discussion

Some of the key factors that determine liposomal therapeutic potential include size, low polydispersity, zeta potential, D:L ratio, and drug release kinetics. Since the majority of these features are influenced by the type of drug being encapsulated, the development of drug encapsulated liposomes becomes highly complex with no generalized approach to creating therapeutic liposomal formulations for a wide range of drugs. We show here a universal approach to sequester small molecules within liposomes for drug delivery, irrespective of the drug polarity. We hypothesized that by incubating liposomes with small volumes of high concentration drug solution, the internal environment of liposomes would eventually equilibrate with the external environment, with localization largely depending on the partitioning coefficient of the compound (Figure 3a). We further hypothesized that this effect could be enhanced by increasing the fluidity of the membrane (via thermal incubation), which would also allow the introduction of targeting moieties within the membrane.

A lipid vesicle’s T_m is a physical characteristic that dictates the order of the lipid membrane at varying temperatures, and it is a crucial variable to consider in engineering liposomal delivery systems, where synthetic lipids have a higher T_m than natural lipids [39]. DSPC is a synthetic, saturated, 18 carbon lipid with a T_m of 55 °C. The long saturated acyl chain imparts several favorable characteristics on the liposome, including enhanced in vivo stability and reduced clearance rates compared to natural lipids [40,41].

We synthesized liposomes via a modified form of our previously published SPIN method (Figure 1a) [19], and concentrated using filter centrifugation, which we found was significantly superior to ultracentrifugation (Figure 1b,c). Liposomes display high stability when incubated at the T_m in up to 10% DMSO (as a vehicle of lipophilic molecules). We found that above this temperature, and when incubated with isopropyl or ethyl alcohol, liposomes rapidly fell apart resulting in the precipitation of lipids. However, previous reports by Balley et al. have demonstrated that DSPC liposomes were stable for up to 1 ho at 70 °C in up to 30% ethanol [42]. This discrepancy may be due to the increased levels of cholesterol (45%) in their liposomes as compared to 33% cholesterol in our experiments, which is reported to be the most stable [42,43,44]. Cholesterol has a stabilizing effect, creating order in the hydrophobic region at increased temperatures that could stabilize liposomes at these increased temperatures [45,46].

In our simulations, we found no interaction between the DXR and cholesterol (Supplementary Figure S7), but simulations to determine the effect of increased cholesterol on conformational energy may explain this discrepancy. In our simulated leaflet containing 33% cholesterol, we found little difference in the interactions between DXR and DSPC once the temperature was >T_m. Electrostatic, VdW, and hydrogen bonding interactions (Figure 4a,b) were similar at both 55 °C and 65 °C. However, there was a larger than expected increase in conformational energy when comparing 55 °C and 65 °C membrane simulations. This increase in conformational energy also affects other membrane dynamics which can lead to loss of stability, such as the solvent-accessible surface area (Supplementary Figure S8).

We showed equilibration as a robust approach to create potent targeting liposomes. The liposomes are quickly equilibrated within an hour (Figure 3b) and can provide a targeted therapeutic effect (Figure 3e). Interestingly, we found that even at lower temperatures (i.e., <T_m), DXR associated with liposomes. However, an increase in encapsulation was observed at higher temperatures, which is likely a direct result of the increased permeability of the membrane. The addition of cholesterol limits the phase transition of the liposome membrane and maintains a liquid-ordered phase [47]. Using NAMD to simulate the membrane dynamics and interatomic interactions, we investigated the association between liposomes and DXR at various temperatures. We found that the slight positive charge found on the amine group of DXR was highly attracted to the negative phosphate groups on lipids. This interaction elegantly explains the proficiency of active methods, wherein ion gradients (typically made from high intramolecular levels of sulphate and phosphate) attract slightly positive charged compounds such as DXR. The phosphate-NH₂ attraction occurs through both long-range (VdW) and intermediate-range (electrostatic) interactions and allows for adsorption of DXR to the membrane. The adsorbed molecules are retained through all wash cycles but are quickly released once introduced to physiological conditions, as evidenced by the initial burst seen in Figure 3d. Similar initial burst-release of DXR from liposomes of various PC formulations have been previously observed where >85% of the loaded drug was released within the first 48 h [46]. This fast release was attributed to the final low lipid concentration of the vesicles (i.e., ≤0.6 mg/mL or 0.8 mM). In our studies, the concentration of DXR associated with liposomes decreased by 20% within the first 2 h, but only 5% was released over the following 46 h. We believe this slow and sustained release was due to relatively high final lipid concentrations (5–10 mM) in our liposome formulations. This opens the exciting possibility of a tri-modal release, wherein liposomes can be engineered to contain DXR adsorbed to the liposome membrane (through low temperature equilibration) as well as encapsulated within the core (through passive encapsulation) and membrane (through high temperature equilibration). While numerous parameters including liposome formulations, temperature, medium pH, and type of drug have been shown to affect drug release profiles [41,46,47,48], loading strategies have a relatively inferior effect as the release is largely diffusion based [49]. Therefore, further comparison of release kinetics with other strategies was not performed as part of this study.

In addition to drug compartmentalization, thermal equilibration also conveniently allows for the co-loading of compounds. Liposomes are promising avenues of increasing therapeutic index through combinatorial simultaneous delivery [50,51]. Recently, researchers have investigated the use of liposomes co-loaded with doxorubicin and paclitaxel, molecules that differ greatly in polarity [52]. Combined with our liposome synthesis and concentration strategy, we demonstrate here that the thermal equilibration approach effectively sequesters both hydrophilic and lipophilic compounds within targeting liposomes (Figure 5b) without requiring specialized steps. Furthermore, we can encapsulate both types of molecules at the same time, generating co-loaded targeting liposomes in a more efficient manner than passive encapsulation. While the goal of this work was to demonstrate that antibody coupling is possible during equilibration, future work characterizing the antibody insertion and efficiency (including maleimide hydrolysis) warrants further investigation. This will be highly variable depending on the intended application and thus is not within the scope of the current work. Exploration on the compatibility of liposomes equilibrated in solvents other than DMSO, such as surfactants and emulsifiers, will greatly advance the use of equilibration in generating highly potent, co-loaded liposomes.

5. Conclusions

In this work, we describe a novel strategy for rapidly generating potent targeting liposomes using the thermal equilibration approach. We characterize the stability and encapsulation potential of liposomes both experimentally and through molecular dynamic simulations. We then demonstrate the therapeutic capability by introducing targeted LDXR to cancer cells in vitro and evaluating cell viability. Finally, we demonstrate the universal nature of this approach by co-loading both hydrophilic and lipophilic molecules. Future work will consist of drug-specific optimizations using microscopy and further cellular uptake assays to establish potent delivery systems. We believe that thermal equilibration offers unparalleled advantages compared to conventional encapsulation techniques with a variety of potential applications in the therapeutic and theranostic landscape.
