Antioxidants 2013, 2(3), 77-89; doi:10.3390/antiox2030077

Article
Antioxidant Potential of Bark Extracts from Boreal Forest Conifers
Jean Legault *, Karl Girard-Lalancette , Dominic Dufour and André Pichette
Laboratoire d’analyse et de séparation des essences végétales (LASEVE), Département des Sciences fondamentales, Université du Québec à Chicoutimi (UQAC), 555, boulevard de l’Université, Chicoutimi, Québec G7H 2B1, Canada; E-Mails: karl.lalancette@gmail.com (K.G.-L.); dominicdufour@gmail.com (D.D.); andre.pichette@uqac.ca (A.P.)
*
Author to whom correspondence should be addressed; E-Mail: Jean_Legault@uqac.ca; Tel.: +1-418-545-5011 (ext. 2334); Fax: +1-418-545-5012.
Received: 6 May 2013; in revised form: 13 June 2013 / Accepted: 28 June 2013 /
Published: 11 July 2013

Abstract

: The bark of boreal forest conifers has been traditionally used by Native Americans to treat various ailments and diseases. Some of these diseases involve reactive oxygen species (ROS) that can be prevented by the consumption of antioxidants such as phenolic compounds that can be found in medicinal plants. In this study, ultrasonic assisted extraction has been performed under various solvent conditions (water:ethanol mixtures) on the bark of seven boreal forest conifers used by Native Americans including: Pinus strobus, Pinus resinosa, Pinus banksiana, Picea mariana, Picea glauca, Larix laricina, and Abies balsamea. The total phenolic content, as well as ORACFL potency and cellular antioxidant activity (IC50), were evaluated for all bark extracts, and compared with the standardized water extract of Pinus maritima bark (Pycnogenol), which showed clinical efficiency to prevent ROS deleterious effects. The best overall phenolic extraction yield and antioxidant potential was obtained with Picea glauca and Picea mariana. Interestingly, total phenolic content of these bark extracts was similar to Pycnogenol but their antioxidant activity were higher. Moreover, most of the extracts did not inhibit the growth of human skin fibroblasts, WS1. A significant correlation was found between the total phenolic content and the antioxidant activity for water extracts suggesting that these compounds are involved in the activity.
Keywords:
phenolic content; ORAC; antioxidant cell-based assay; Pinus banksiana; Pinus resinosa; Pinus strobus; Picea glauca; Picea mariana; Larix laricina; Abies balsamea

1. Introduction

Native Americans used the plants of the boreal forest to treat various ailments and diseases [1]. The bark of several conifers, such as Pinus strobus (white pine), Picea glauca (white spruce), Larix laricina (Larch tamarack), and Abies balsamea (balsam fir) was used. The bark was prepared as decoctions, infusions or poultices to treat gonorrhea, tuberculosis, diarrhea, pain, cold, kidney troubles, burns, inflammation, and rheumatoid arthritis [1,2,3,4,5,6]. However, bark was mainly used for cough relief [1,2,7]. Moreover, some species were used as an expectorant to treat breathing difficulties (Pinus strobus, Picea glauca), and persistent cough (Larix laricina) [1].

Reactive oxygen species (ROS) have been implicated in several diseases and symptoms for which conifer bark was used, in particular inflammation [8,9] and rheumatoid arthritis [10]. ROS also play a role in chronic obstructive pulmonary diseases (COPD) [11,12]. The COPD are characterized by the secretion of mucus, breathing difficulties and persistent coughing. Interestingly, the consumption of polyphenolic compounds showed to be beneficial to relieve COPD [13,14,15,16]. The water extract of Pinus maritima bark (pycnogenol) is rich in phenolic compounds, mainly procyanidins and phenolic acids, and possesses a strong free radical-scavenging activity against ROS [17]. Pycnogenol has been reported to increase plasma antioxidant capacity and to significantly improve pulmonary functions and asthma symptoms [18,19]. In spite of the strong potential of bark extracts from boreal forest conifers, the total phenolic content and the antioxidant activity for several of them are poorly studied. In 2009, Diouf et al., reported antioxidant and anti-inflammatory activities of hot water extract from Picea mariana bark [20]. In addition, Garcia-Pérez et al., (2010) reported antioxidant and anti-proliferative properties of bark extracts from Picea mariana on normal and psoriatic keratinocytes [21]. More recently, Royer et al., (2013) suggested that Pinus banksiana and Picea mariana barks possess an anti-aging potential due to their antioxidant, anti-enzymatic and antimicrobial activities [22].

In this study, we report the total phenolic content of bark extracts from seven pinaceae of the boreal forest, including Pinus banksiana (Lamb.), Pinus resinosa (Aiton), Pinus strobus (L.), Picea glauca (Moench), Picea mariana (Mill), Larix laricina (Du Roi) and Abies balsamea (L.). The antioxidant activity of conifer bark extracts was also evaluated using ORACFL and a cell-based antioxidant assay. The results are compared with Pycnogenol, a standardized bark extract of Pinus maritima.

2. Experimental Section

2.1. Chemicals

6-Hydroxy-2,5,7,8-tetramethylchroman-2-carboxylic acid (97%) (Trolox), 2,2′-Azobis(2-methylpropionamidine) dihydrochloride (97%) (AAPH), Folin-Ciocalteu phenol reagent (FC), sodium carbonate decahydrate (99.5%), Fluoresceine disodium salt (FL), dichlorofluorescin diacetate (97%) (DCFH-DA), tert-butyl hydroperoxyde (70%) (t-BuOOH), resazurin (92%) (Rz), and Hoescht (95%) (Ho), were all purchased from Sigma-Aldrich (Oakville, Ontario, Canada). Pycnogenol was produced by Swiss Herbal Remedies Ltd. (Richmond Hill, Ontario, Canada), with standardized potency of 85% proanthocyanidins. Pycnogenol tablets contain 25 mg of Pinus maritima extract and also contain dicalcium phosphate, microcrystalline cellulose and magnesium stearate. Tablets were grinded and extracted 1 h with 5 mL of water.

2.2. Plant Material and Preparation of Crude Bark Extract

All conifer bark specimens were harvested in June 2005 near station Simoncouche in the Réserve faunique des Laurentides, Québec, Canada. The specimens were identified by Patrick Nadeau, and deposited to herbarium of Saguenay-Lac-Saint-Jean (Département des Sciences Fondamentales; Université du Québec à Chicoutimi). Barks were dried at room temperature then powdered and stored at −20 °C. All extractions were ultrasonic assisted using a Sonifier Cell disruptor 350 (BRANSON Ultrasonics Corporation), with output control set at 7/10, and performed with 25 g of bark powder in 375 mL of solvent for 30 min. Extraction mixtures were constantly mixed with a magnetic agitator and were maintained at 30 °C. Each bark sample was extracted in parallel with five different solvent conditions: ethanol:water [0:100], [25:75], [50:50], [75:25], [100:0]. Extraction mixtures were then filtered and dried under vacuum at room temperature for 3 days up to constant weight.

2.3. Dosing of Total Phenol Content

The total phenolic content was determined using the Folin-Ciocalteu reagent according to the procedure reported by Singleton and Rossi [23], with some modifications. Briefly, a volume of 50 μL containing growing concentrations of extract ranging from 0.39 to 50 mg/mL were mixed with 25 μL of 1:2 water diluted Folin-Ciocalteu reagent in transparent flat-bottom 96-well plates (NUNC). All manipulations were performed in a light shielded environment. After 5 min of reaction, 125 μL of sodium carbonate decahydrate solution (20 g/100 mL) was added to each well. Absorbance was then measured at 758 nm using an automated Varioskan Ascent plate reader (Thermo Electron). Analysis was performed in triplicate, and the results were expressed in gallic acid equivalents.

2.4. ORACFL Assay

The procedure was modified from the method described by Ou et al. [24]. Briefly, the ORAC assay was carried out in black round-bottom 96-well plate (Costar) on a Fluoroskan Ascent Fl™ plate reader (Labsystems). Trolox was used as a control standard. The experiment was conducted at 37.5 °C and pH 7.4, with a blank sample in parallel. The fluorimeter was programmed to record the fluorescence of fluorescein every 60 s after addition of 2,2′-azobis (2-amidinopropane) dihydrochloride (AAPH). The final results were calculated by comparing the net areas under the fluorescein decay curves between the blank and the samples. ORAC values were expressed in micromoles of Trolox equivalents (TE) per milligram (μmol TE/mg).

2.5. Cell Culture

The murine fibrosarcoma L-929 (ATCC #CCL-1) and human skin fibroblasts WS1 (ATCC # CRL-1502) cell line were obtained from the American Type Culture Collection (ATCC, Manassas, USA). They were grown in Minimum Essential Medium with Earle’s salts supplemented with 10% fetal calf serum (Hyclone, Logan, USA), solution of vitamins (1×), sodium pyruvate (1×), non-essential amino acids (1×), penicillin (100 IU) and streptomycin (100 μg/mL) (Mediatech Cellgro®). Cells were cultured in a humidified atmosphere at 37 °C in 5% CO2.

2.6. Antioxidant Cell-Based Assay

Antioxidant activity was evaluated using the DCFH-DA assay as described previously [25], with some modifications. Briefly, L-929 cells were plated in 96-well plates at 10,000 cells per well and incubated for 24 h at 37 °C and 5% CO2. The cells were washed with 150 μL Hank’s balanced salt solution (HBSS) at pH 7.4 and incubated for 30 min with 100 μL HBSS (pH 7.4) containing 5 μM DCFH-DA. The cells were then washed again with 150 μL HBSS. To assess the antioxidant activity, the cells were incubated with a growing concentration of extract (0.2–200 μg/mL), in the absence or presence of 200 μM tert-butylhydroperoxide (t-BuOOH). The final concentration of extraction solvent in the culture medium was maintained at 0.5% (volume/volume) to avoid solvent toxicity. Fluorescence was measured after 1 h and 4 h on the automated plate reader (Fluoroskan Ascent FL™, Labsystems) using an excitation wavelength of 485 nm and an emission wavelength of 530 nm. Antioxidant activity is expressed as the concentration of extract inhibiting 50% of DCFH oxidation (IC50).

2.7. Cytotoxicity Assay

Exponentially growing WS1 cells were plated in flat-bottom 96-well microplates (Costar, Corning Inc.) at a density of 5 × 103 cells per well in 100 μL of culture medium and were allowed to adhere for 16 h before treatment. Increasing concentrations of extract (1.5–200 μg/mL) in their respective extraction solvent were then added (100 μL per well). The final concentration of ethanol in the culture medium was maintained at 0.5% (volume/volume) to avoid solvent toxicity. The cells were incubated for 24 h in the presence or absence of bark extract. Cytotoxicity was assessed using the resazurin reduction test [26]. Fluorescence was measured on an automated Fluoroskan Ascent FL™ plate reader (Labsystems) using excitation and emission wavelengths of 530 nm and 590 nm, respectively. Cytotoxicity is expressed as the lowest concentration of tested extract inhibiting 20% or more of cell growth in comparison with untreated cells.

2.8. Statistical Analysis

Data were expressed as means ± standard deviation from at least three determinations (n ≥ 3). Comparisons between groups were performed using Kruskal-Wallis one way analysis of variance on ranks, with pairwise comparison by Student-Newman-Keuls method. P values of 0.05 or less were considered as statistically significant. Relationship between ORAC, IC50 and total phenolic content were determined using Pearson correlation, followed by linear regression. All statistical analysis were done with SigmaStat 3.5 and Microsoft Excel.

3. Results and Discussion

In this study, various extracts of bark from boreal forest conifers were evaluated for their total phenolic content and antioxidant potency. The tested conifers were: Pinus banksiana, Pinus resinosa, Pinus strobus, Picea glauca, Picea mariana, Larix laricina and Abies balsamea. The antioxidant activity and total phenolic content were compared with a standardized water extract of Pinus maritima bark (pycnogenol) recognized as having a strong antioxidant activity. The main constituents of pycnogenol are phenolic compounds, including monomers (catechin, epicatechin and taxifolin), and condensed flavanoids (procyandins and proanthocyanidins) [17]. Pycnogenol also contains phenolic acids, such as caffeic, ferulic, and p-hydroxybenzoic acids [17].

3.1. Extraction Yield, Total Phenol Content and Cytotoxicity of Various Conifer Bark Extracts

The bark of each conifer was extracted using sonication with five solvent conditions including water:ethanol [100:0]; [75:25]; [50:50]; [25:75]; [0:100]. The total extraction yields, presented in Table 1, show that the extracted quantity ranged from 5 to 30 g for 100 g of powdered bark. The total phenolic content of bark extracts were evaluated using Folin-Ciocalteu assay. This method allows to measure phenolic and polyphenolic compounds such as phenolic acids, flavonoids, and tannins. The results, expressed as grams of total phenolic compounds (gallic acid equivalent) for 100 g of extract, are presented in Table 1. Pycnogenol was used as a positive control with total gallic acid equivalent phenolic content of 48 ± 5 g per 100 g of extract while Ustun et al., 2012 reported a concentration of about 57 g/100 g [27]. Of all the tested species of conifer barks, Pinus resinosa-[50:50], Picea glauca-[100:0] and Picea mariana-[75:25] were found the richest in phenolic compounds with respectively 61 ± 4 g, 59 ± 5 g and 55 ± 6 g per 100 g of extract. These values are similar to Pycnogenol. For the other tested species, the highest total phenol content measured in the extracts were in the following order: Pinus banksiana-[25:75] (45 ± 1 g/100 g), Larix laricina-[100:0] (34 ± 2 g/100 g), Abies balsamea-[50:50] (32 ± 2 g/100 g) and Pinus strobus-[75:25] (26 ± 1 g/100 g). The cytotoxicity of all bark extracts was evaluated on human skin fibroblast WS1. The cells were incubated in the presence or absence of growing concentrations of extracts for 24 h. In Table 1, the results show that all extracts, with the exception of the Larix laricina-[75:25] extract, do not inhibit cell growth in doses of 50 μg/mL and less, indicating that the extracts are not cytotoxic for WS1 in these dose ranges. For the Picea mariana and Pinus banksiana extracts, no cytotoxicity was found in doses as high as 100 to 200 μg/mL. Royer et al., reported no cytotoxicity of hot water extract of Picea mariana on normal keratinocytes at concentrations lower than 55 μg/mL [21].

The extraction yields and phenolic contents of bark extracts from three species of this study (Abies balsamea, Pinus banksiana, Picea mariana) has been reported previously by another research group which used different extraction methods such as hot water reflux and ethanol maceration [21,22]. In comparison with their results, the overall ultrasonic assisted bark extraction yield obtained with Abies balsamea and Pinus banksiana, considering all water-ethanol extraction conditions, has been lower than yields they obtained using 1 h hot water reflux but similar to ethanol maceration [21,22]. However, ultrasonic assisted Picea mariana bark extraction resulted in higher extraction yield than both other methods. In terms of phenolic content richness, short ultrasonic assisted extraction provides better recovery than hot water reflux and ethanol maceration, except for Abies balsamea which result in lower total phenolic content [21,22].

Table Table 1. Total extraction yield, extract phenolic content and cytotoxicity.

Click here to display table

Table 1. Total extraction yield, extract phenolic content and cytotoxicity.
Conifer speciesExtraction conditions (water:ethanol)Extraction yield a (g/100 g)Extract Phenolic content (g GAE/100 g) bCytotoxicity (μg/mL) c
Pinus banksiana100:0927 ± 2>100
75:251130 ± 2>100
50:501237 ± 4>100
25:751345 ± 1>200
0:1001523 ± 1>100
Pinus resinosa100:0537 ± 4>200
75:25761 ± 6>100
50:50761 ± 4>100
25:751146 ± 3>100
0:1001042 ± 5>50
Pinus strobus100:0721 ± 3>50
75:25926 ± 1>200
50:501522 ± 1>50
25:75915 ± 2>50
0:100910 ± 1>50
Picea glauca100:01759 ± 5>100
75:252151 ± 4>100
50:502455 ± 9>50
25:752936 ± 4>200
0:1002648 ± 5>100
Picea mariana100:01450 ± 5>200
75:251755 ± 6>100
50:502348 ± 4>200
25:752446 ± 5>200
0:1002343 ± 3>100
Larix laricina100:01134 ± 2>50
75:251527 ± 2>12.5
50:502429 ± 3>50
25:753026 ± 3>50
0:1003029 ± 3>50
Abies balsamea100:076 ± 1>100
75:25921 ± 1>100
50:50732 ± 2>100
25:751721 ± 2>50
0:1002020 ± 1>50

a Total extraction yield from 100 g of dry powdered conifer bark. b Grams of total phenolic compounds (gallic acid equivalent) for 100 g of extract. c The concentration of conifer bark extract (μg/mL) is considered cytotoxic when it inhibits cell growth >20% in comparison with untreated cells.

3.2. Evaluation of Antioxidant Activity of Extracts Using ORACFL and Cell-Based Assay

The antioxidant activity of bark extracts was evaluated using ORAC and a cell-based assay. ORACFL values are expressed as Trolox equivalent (μmol) by mg of extracts, and cell-based assays are expressed as the concentration inhibiting fifty percent (IC50) of tert-butylhydroperoxide (t-BuOOH) induced oxidation of 2′,7′-dichlorofluorescin (DCFH). Pycnogenol was used as a positive control with an ORACFL value of 5.4 ± 0.3 μmol TE/mg and an IC50 of 1.5 ± 0.2 μg/mL. This result is slightly lower than ORAC values (6.5 to 7.7 μmol TE/mg) reported by Dudonné et al., 2009 [28]. Results presented in Figure 1 show that ORACFL values of all extracts ranged from 2.4 to 29 μmol TE/mg, while cell-based assay IC50 values ranged from 5.2 to 0.3 μg/mL. The Pinus resinosa-[50:50] possesses the highest ORACFL value with 29 μmol TE/mg. According to the cell-based assay, the results show that the extracts of Pinus banksiana-[50:50] and [25:75], Picea mariana-[75:25] and Picea glauca-[100:0], have a higher antioxidant activity with an IC50 smaller than 0.4 μg/mL. The correlation between ORACFL and cell-based assay for all species is weak but significant (P < 0.05) with a coefficient of determination R2 of 0.24. This weak correlation between both methods can possibly be explained by the cellular context of cell-based assay which is not present in ORAC assay.

Antioxidants 02 00077 g001 1024

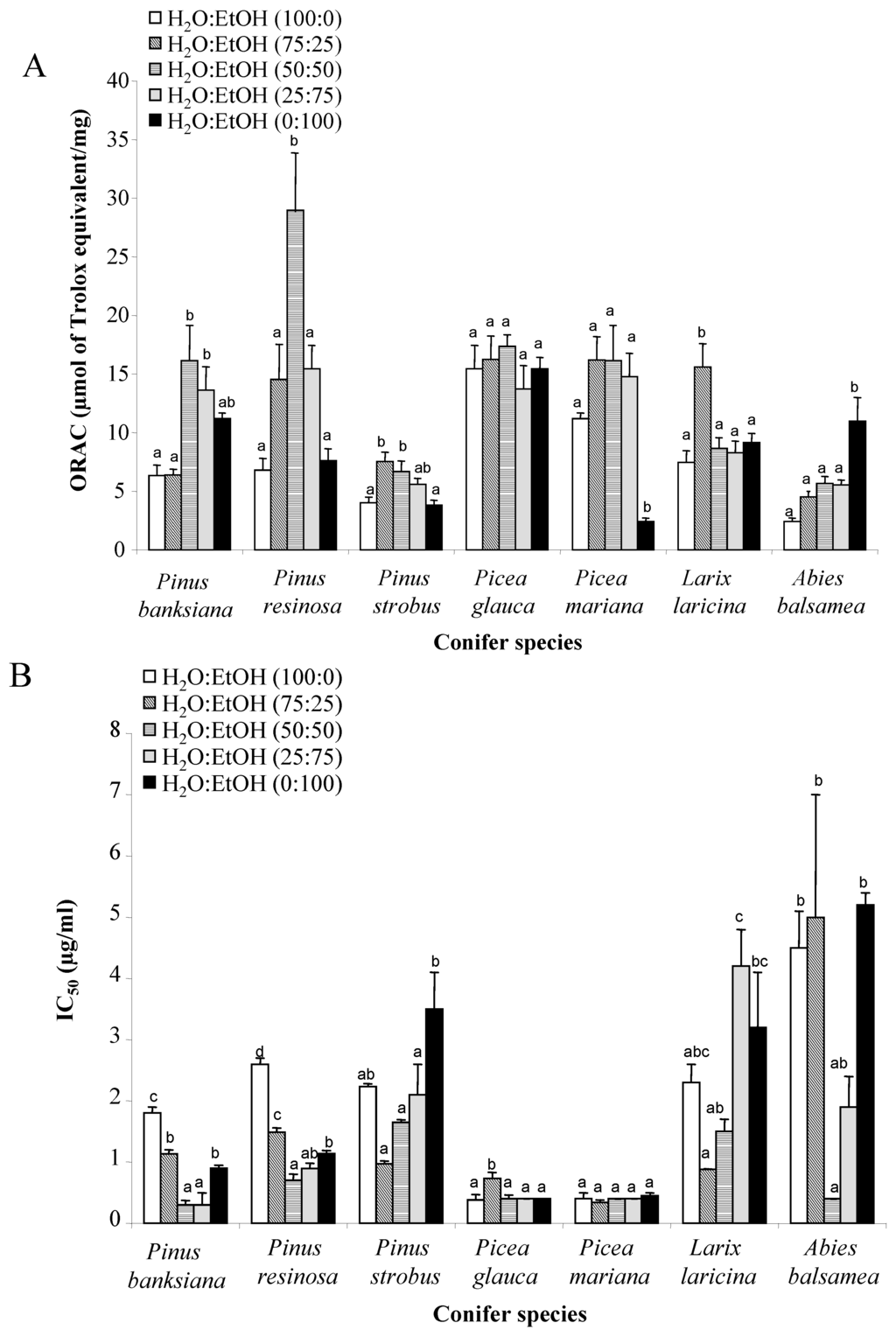

Figure 1. Antioxidant activity of conifer bark extracts using (A) ORAC assay and (B) cell-based assay. ORAC values are expressed as micromoles of Trolox equivalent per milligram of dry extract. IC50 values obtained using cell-based assay were expressed as the concentration inhibiting fifty percent of DCFH oxidation induced by tert-butyl hydroperoxide. The ORAC value and IC50 of the positive control, pycnogenol, are 5.4 ± 0.3 μmol TE/mg and 1.5 ± 0.2 μg/mL respectively. All assays were conducted in triplicate, and the mean values are used. The vertical bars represent the standard deviation of each data point. Means within each group with different letters (a–c) differ significantly (p < 0.05) from each other.

Click here to enlarge figure

Figure 1. Antioxidant activity of conifer bark extracts using (A) ORAC assay and (B) cell-based assay. ORAC values are expressed as micromoles of Trolox equivalent per milligram of dry extract. IC50 values obtained using cell-based assay were expressed as the concentration inhibiting fifty percent of DCFH oxidation induced by tert-butyl hydroperoxide. The ORAC value and IC50 of the positive control, pycnogenol, are 5.4 ± 0.3 μmol TE/mg and 1.5 ± 0.2 μg/mL respectively. All assays were conducted in triplicate, and the mean values are used. The vertical bars represent the standard deviation of each data point. Means within each group with different letters (a–c) differ significantly (p < 0.05) from each other.
Antioxidants 02 00077 g001 1024

The antioxidant activity of bark extracts was analysed for each species in order to evaluate the best conditions of extraction. For Pinus banksiana, the water:ethanol extracts [50:50] and [25:75] possess the highest antioxidant activity in comparison with other conditions of extraction. The ORACFL values for Pinus banksiana-[50:50] and [25:75] are of 16 ± 3 μmol TE/mg and 14 ± 2 μmol TE/mg, respectively, and their IC50 are of 0.30 ± 0.07 and 0.3 ± 0.2 μg/mL. Both extracts contain higher gallic acid equivalent phenolic concentrations with 37 g/100 g for [50:50] extract and 45 g/100 g for [25:75] extract. The most active extract of Pinus resinosa is the water:ethanol [50:50] with an ORAC value of 29 ± 5 μmol TE/mg and an IC50 of 0.7 ± 0.1. This extract is very rich in phenolic compounds, with 61 ± 4 g GAE/100 g, suggesting that phenolic compounds are in part responsible for the antioxidant activity. However, the [75:25] extract is also rich in phenolic compounds (61 ± 5 g/100 g) but significantly less active than the [50:50] extract. For Pinus strobus, no significant difference was found between the three most active conditions which include the water:ethanol [75:25], [50:50], and [25:75], with ORAC values ranging from 5.0 to 8.5 μmol TE/mg and IC50 ranging from 0.91 to 2.7 μg/mL. The total phenolic content is significantly correlated with cell-based assay but not with ORACFL values. The extracts of Picea glauca and Picea mariana possess similar antioxidant activities, using both assays. Indeed, the ORACFL values ranged from 11 to 17 μmol TE/mg and the IC50 ranged from 0.3 to 0.73 μg/mL. The total phenolic contents of these extracts were also relatively high with concentrations ranging from 36 g to 59 g GAE/100 g. The Larix laricina-[75:25] possesses a significantly higher antioxidant activity in comparison with other conditions of extraction. For this extract, the ORACFL value is 16 μmol TE/mg and the IC50 is of 0.878 μg/mL. However, the total phenolic content for all conditions tested are not significantly different with values ranging from 27 ± 2 g GAE to 34 ± 2 g GAE/100 g. For Abies balsamea, the highest antioxidant activity was obtained with water:ethanol [50:50] according to cell-based assay with IC50 of 0.3 μg/mL. This extract is also significantly richer in phenolic compounds (32 g GAE/100 g) in comparison with other conditions of extraction. In contrast, the highest ORACFL value was obtained with a [0:100] extract (11 μmol TE/mg) which contained 20 g GAE of phenolic compounds by 100 g of extract.

Altogether, these results indicate that the total phenolic content do not always correlate with antioxidant activity. Therefore, the relationship between total phenolic content and ORACFL and cell-based assay were analyzed.

3.3. Relationship between Total Phenol Content and Antioxidant Activities

The relationship between the total gallic equivalent phenolic contents and the antioxidant activity (ORACFL and cell-based assay) was determined by a Pearson correlation analysis for all conifer barks and conditions of extraction. Significant but moderate correlations were found between phenolic contents and ORAC as well as phenolic contents and cell based IC50 results, with correlation coefficient of r = 0.745 (P < 0.001) and r = −0.670 (P < 0.001) respectively. Once the correlation was established between phenolic contents and antioxidant activities, their relation was described using linear regression analyses (Figure 2). The results show that even though phenolic content and antioxidant activity are related, their modest correlation and regression coefficients indicate that phenolic content may not explain totally the antioxidant activity when considering all extraction conditions. This suggests a change in the chemical composition of the extracts according to the solvent mixture used. Garcia-Perez et al. reported that the extracts obtained using ethanol maceration in comparison with hot water reflux contain lower total phenol content and higher concentration of hydroxycinnamic acids and proanthocyanidins [21]. In addition, antioxidant activity of ethanol extract was found decreased in comparison with hot water extract.

Antioxidants 02 00077 g002 1024

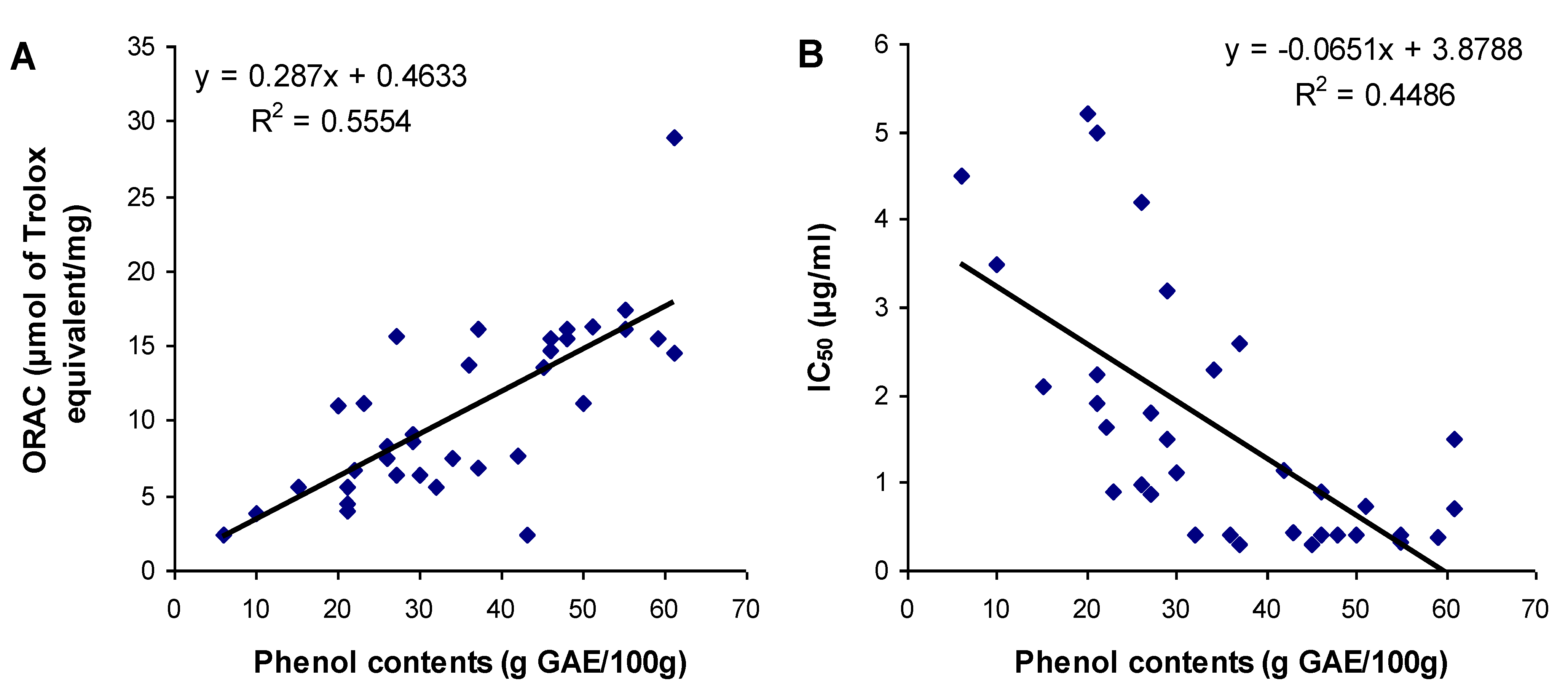

Figure 2. Relationship between (A) ORAC values and (B) IC50 values of extracts of conifer bark, and their content in phenolic compounds. Solid lines represent linear regression curves. The regression coefficient (R2) and the equation of curves are given.

Click here to enlarge figure

Figure 2. Relationship between (A) ORAC values and (B) IC50 values of extracts of conifer bark, and their content in phenolic compounds. Solid lines represent linear regression curves. The regression coefficient (R2) and the equation of curves are given.
Antioxidants 02 00077 g002 1024

Native Americans used water infusion of conifer bark to relieve various ailments and diseases [1]. Therefore, water soluble phenolic compounds could be responsible for the activity of conifer bark. The relationship between total phenolic contents and activity of the bark extracts was determined again with Pearson correlation for all conifer species but this time including only water extracts. Both ORAC activity and cellular IC50 results were strongly correlated with phenolic contents, with a correlation coefficient of r = 0.9640 (P < 0.001) and r = −0.9030 (P = 0.005) respectively. Both relations are shown by linear regression in Figure 3. These good correlations suggest that phenolic compounds could explain the activity of water extracts of all conifer species better than the activity measured including all extraction conditions. Also, the slightly lower correlation coefficient obtained with cellular assay results, in comparison with the correlation coefficients obtained with ORAC, corroborate the presumption that cellular context may measure activities that are not measurable with the strictly chemical ORAC assay.

Antioxidants 02 00077 g003 1024

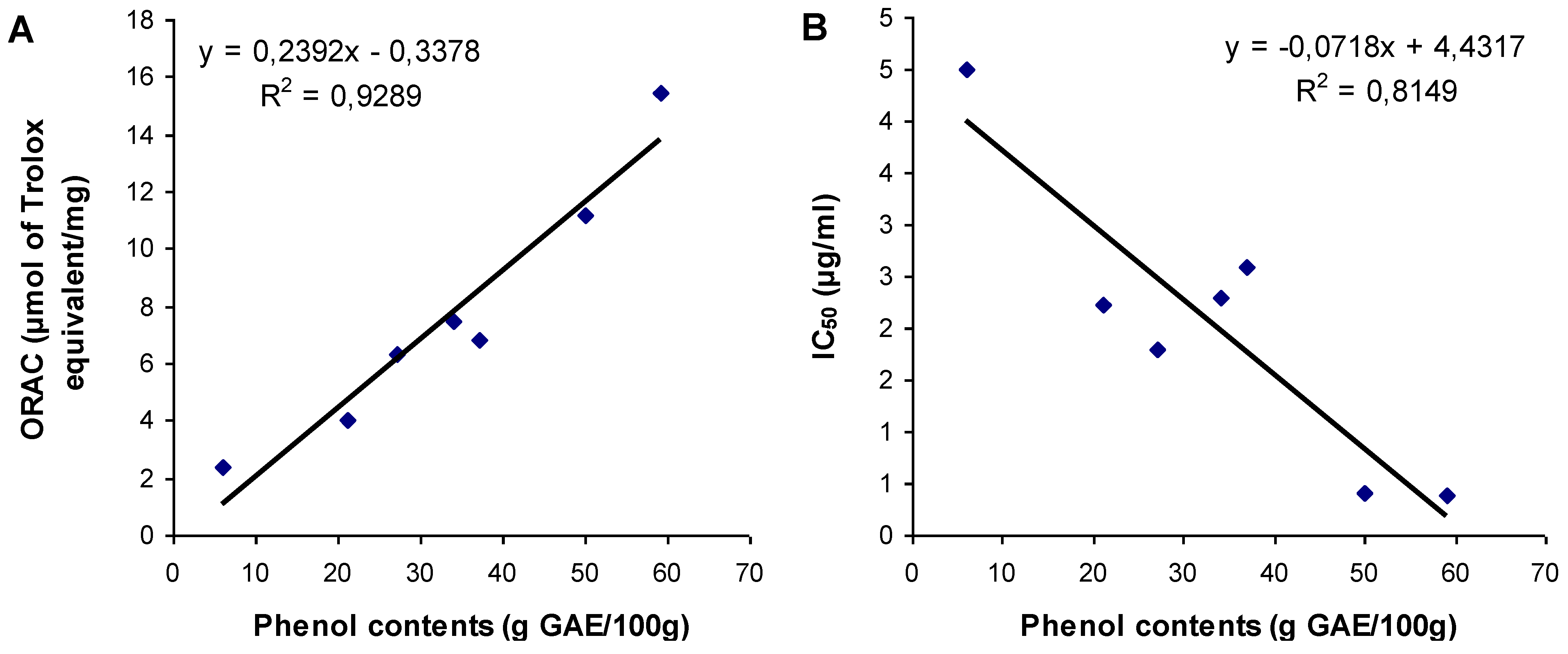

Figure 3. Relationship between (A) ORAC values and (B) IC50 values of all water extracts of conifer bark, and their content in phenolic compounds. Solid lines represent linear regression curves. The regression coefficient (R2) and the equation of curves are given.

Click here to enlarge figure

Figure 3. Relationship between (A) ORAC values and (B) IC50 values of all water extracts of conifer bark, and their content in phenolic compounds. Solid lines represent linear regression curves. The regression coefficient (R2) and the equation of curves are given.
Antioxidants 02 00077 g003 1024

Considering only water extracts, Picea glauca and Picea mariana extracts possess the most significant (P < 0.05) total phenolic content and antioxidant activities in comparison with other species. Garcia-Pérez et al., also reported that hot water extract of Picea mariana bark are richer in phenolic compounds and also more antioxidant than bark extracts of Abies balsamea and Pinus banksiana [21]. In addition, Garcia-Pérez et al., have isolated and characterized most bioactive polyphenols in hot water extract of Picea mariana bark including trans-resveratrol which has a strong antioxidant activity [29]. On the other hand, water extracts of Picea glauca and Picea mariana possess, in comparison with Pycnogenol, similar concentration in phenolic compounds but are about 2 to 3 times more active considering ORAC values and about 3 times more active considering cell-based assay. Pinus banksianna, Pinus resinosa and Larix laricina possess similar antioxidant activity to Pycnogenol. Finally, Abies balsamea reveals lower antioxidant activity and total phenolic content.

4. Conclusions

In conclusion, ultrasonic extraction of barks of boreal forest conifers yielded extracts that are not toxic, rich in phenolic compounds and having a strong antioxidant activity. Ultrasonic assisted extraction yields and phenolic contents of bark extracts from Picea mariana and Pinus banksiana were higher than those reported in literature using reflux and maceration extraction methods. Among the seven species studied, only bark extracts of Pinus resinosa, Picea glauca, and Picea mariana shown phenolic contents similar or higher than Pycnogenol, a standardized commercial extract from Pinus maritima bark. The best overall antioxidant activities with both cellular and ORAC assays were obtained with Picea glauca and Picea mariana, and appear to vary less in regard to extraction solvent conditions used. A good correlation between total phenolic content and antioxidant activity is found for all water extracts of barks, suggesting that phenolic compounds are responsible for the activity.

Acknowlegments

We thank Catherine Dussault for technical help and suggestions. The authors would like to thank Patrick Nadeau for plant identification. This work was supported by Action Concertée FQRNT—Fonds de la recherche forestière du Saguenay—Lac-Saint-Jean.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Moerman, D.E. Native American Ethnobotany, 3rd ed.; Timber Press Inc.: Portland, OR, USA, 2000. [Google Scholar]
  2. Chandler, R.F.; Freeman, L.; Hooper, S.N. Herbal remedies of the maritime indians. J. Ethnopharmacol. 1979, 1, 49–68. [Google Scholar] [CrossRef]
  3. Gottesfeld, L.M.J. The importance of bark products in the aboriginal economies of Northwestern British Columbia. Can. Econ. Bot. 1992, 46, 148–157. [Google Scholar] [CrossRef]
  4. Mechling, W.H. The malecite indians with notes on the micmacs. Anthropologica 1959, 8, 239–263. [Google Scholar]
  5. Palmer, G. Shuswap Indian ethnobotany. Syesis 1975, 8, 29–51. [Google Scholar]
  6. Reagan, A.B. Plants used by the bois fort chippewa (Ojibwa) Indians of Minnesota. Wis. Archeol. 1928, 7, 230–248. [Google Scholar]
  7. Carr, L.G.; Westey, C. Surviving folktales & herbal lore among the shinnecock Indians. J. Am. Folk. 1945, 58, 113–123. [Google Scholar] [CrossRef]
  8. Chapple, I.L. Reactive oxygen species and antioxidants in inflammatory diseases. J. Clin. Periodontol. 1997, 24, 287–296. [Google Scholar] [CrossRef]
  9. Nagata, M. Inflammatory cells and oxygen radicals. Curr. Drug Targets Inflamm. Allergy 2005, 4, 503–504. [Google Scholar] [CrossRef]
  10. Hitchon, C.A.; El-Gabalawy, H.S. Oxidation in rheumatoid arthritis. Arthritis Res. Ther. 2004, 6, 265–278. [Google Scholar] [CrossRef]
  11. MacNee, W. Pulmonary and systemic oxidant/antioxidant imbalance in chronic obstructive pulmonary disease. Proc. Am. Thorac. Soc. 2005, 2, 50–60. [Google Scholar]
  12. Repine, J.E.; Bast, A.; Lankhorst, I. Oxidative stress in chronic obstructive pulmonary disease: The Oxidative Stress Study Group. Am. J. Respir. Crit. Care Med. 1997, 156, 341–357. [Google Scholar] [CrossRef]
  13. Arts, I.C.W.; Hollman, P.C.H. Polyphenols and disease risk in epidemiologic studies. Am. J. Clin. Nutr. 2005, 81, 317S–325S. [Google Scholar]
  14. Rahman, I.; Kilty, I. Antioxidant therapeutic targets in COPD. Curr. Drug Targets 2006, 7, 707–720. [Google Scholar] [CrossRef]
  15. Santus, P.; Sola, A.; Carlucci, P.; Fumagalli, F.; di Gennaro, A.; Mondoni, M.; Carnini, C.; Centanni, S.; Sala, A. Lipid peroxidation and 5-lipoxygenase activity in chronic obstructive pulmonary disease. Am. J. Respir. Crit. Care Med. 2005, 171, 838–843. [Google Scholar] [CrossRef]
  16. Tabak, C.; Arts, I.C.W.; Smit, H.A.; Heederik, D.; Kromhout, D. Chronic obstructive pulmonary disease and intake of catechins, flavonols, and flavones. Am. J. Respir. Crit. Care Med. 2001, 164, 61–64. [Google Scholar] [CrossRef]
  17. Packer, L.; Rimbach, G.; Virgili, F. Antioxidant activity and biologic properties of a procyanidin-rich extract from pine (Pinus maritima) bark, pycnogenol. Free Radic. Biol. Med. 1999, 27, 704–724. [Google Scholar] [CrossRef]
  18. Devaraj, S.; Vega-López, S.; Kaul, N.; Schönlau, F.; Rohdewald, P.; Jialal, I. Supplementation with a pine bark extract rich in polyphenols increases plasma antioxidant capacity and alters the plasma lipoprotein profile. Lipids 2002, 37, 931–934. [Google Scholar] [CrossRef]
  19. Lau, B.H.; Riesen, S.K.; Truong, K.P.; Lau, E.W.; Rohdewald, P.; Barreta, R.A. Pycnogenol as an adjunct in the management of childhood asthma. J. Asthma 2004, 41, 825–832. [Google Scholar] [CrossRef]
  20. Diouf, P.N.; Stevanovic, T.; Cloutier, A. Study on chemical composition, antioxidant and anti-inflammatory activities of hot water extract from Picea mariana bark and its proanthocyanidin-rich fractions. Food Chem. 2009, 113, 897–902. [Google Scholar] [CrossRef]
  21. García-Pérez, M.-E.; Royer, M.; Duque-Fernandez, A.; Diouf, P.N.; Stevanovic, T.; Pouliot, R. Antioxidant, toxicological and antiproliferative properties of Canadian polyphenolic extracts on normal and psoriatic keratinocytes. J. Ethnopharmacol. 2010, 132, 251–258. [Google Scholar] [CrossRef]
  22. Royer, M.; Prado, M.; Garcia-Pérez, M.-E.; Diouf, P.N.; Stevanovic, T. Study of nutraceutical, nutricosmetics and cosmeceutical potentials of polyphenolic bark extracts from Canadian forest species. PharmaNutrition 2013. in press. [Google Scholar]
  23. Singleton, V.L.; Rossi, J.A. Colorimetry of total phenolics with phosphomolybdic-phosphotungstic acid reagents. Am. J. Enol. Vitic. 1965, 16, 144–158. [Google Scholar]
  24. Ou, B.; Hampsch-Woodhill, M.; Prior, R.L. Development and validation of an improved oxygen radical absorbance capacity using fluorescein as the fluorescent probe. J. Agric. Food Chem. 2001, 49, 4619–4626. [Google Scholar] [CrossRef]
  25. Girard-Lalancette, K.; Pichette, A.; Legault, J. Sensitive cell-based assay using DCFH oxidation for the determination or pro- and antioxidant properties of compounds and mixtures: Analysis of fruit and vegetable juices. Food Chem. 2009, 115, 720–726. [Google Scholar] [CrossRef]
  26. O’Brien, J.; Wilson, I.; Orton, T.; Pognan, F. Investigation of the Alamar Blue (resazurin) fluorescent dye for the assessment of mammalian cell cytotoxicity. Eur. J. Biochem. 2000, 267, 5421–5426. [Google Scholar]
  27. Ustun, O.; Senol, F.S.; Kurkcuaglu, M.; Orhan, I.E.; Kartal, M.; Can Baser, K.H. Investigation on chemical composition, anticholinesterase and antioxidant activities of extracts and essential oils of Turkish Pinus species and pycnogenol. Ind. Crop. Prod. 2012, 38, 115–123. [Google Scholar] [CrossRef]
  28. Dudonné, S.; Vitrac, X.; Coutière, P.; Woilles, M.; Mérillon, J.-M. Comparative study of antioxidant properties and total phenolic content of 30 plant extracts of industrial interest using DPPH, ABTS, FRAP, SOD, and ORAC Assays. J. Agric. Food Chem. 2009, 57, 1768–1774. [Google Scholar] [CrossRef]
  29. García-Pérez, M.-E.; Royer, M.; Herbette, G.; Desjardins, Y.; Pouliot, R.; Stevanovic, T. Picea mariana bark: A new source of trans-resveratrol and other bioactive polyphenols. Food Chem. 2012, 135, 1173–1182. [Google Scholar] [CrossRef]
