Article

Polyurethane-Supported Graphene Oxide Foam Functionalized with Carbon Dots and TiO2 Particles for Photocatalytic Degradation of Dyes

by
Tianjiao Liu
1,2,
Shuwei Sun
1,2,
Lin Zhou
3,
Peng Li
1,2,*,
Zhiqiang Su
1,2,* and
Gang Wei
4,*
1
State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing 100029, China
2
Beijing Key Laboratory of Advanced Functional Polymer Composites, Beijing University of Chemical Technology, Beijing 100029, China
3
School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, China. [email protected]
4
Faculty of Production Engineering, University of Bremen, D-28359 Bremen, Germany
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2019, 9(2), 293; https://doi.org/10.3390/app9020293
Submission received: 11 December 2018 / Revised: 8 January 2019 / Accepted: 11 January 2019 / Published: 15 January 2019
(This article belongs to the Section Environmental Sciences)
Browse Figures
Versions Notes

Abstract

:

Featured Application

The CQDs/TiO2/GO foam reported in this paper has the advantages of convenient recovery, remarkable effect, and degradation under visible light. It has great potential to be used in the treatment of wastewater containing organic dyes in actual industrial production.

Abstract

The design and optimal synthesis of functional nanomaterials can meet the requirements of energy and environmental science. As a typical photocatalyst, TiO2 can be used to degrade dyes into non-toxic substances. In this work, we demonstrated the in-situ hydrothermal synthesis of carbon quantum dots (CQDs)-modified TiO2 (CQDs/TiO2) particles, and the subsequent fabrication of three-dimensional (3D) graphene oxide (GO) foam doped with CQDs/TiO2 via a facile strategy. By making full use of the up-conversion characteristics of CQDs, the synthesized CQDs/TiO2 exhibited high catalytic activity under visible light. In order to recover the photocatalyst conveniently, CQDs/TiO2 and GO were mixed by ultrasound and loaded on 3D polyurethane foam (PUF) by the multiple impregnation method. It was found that GO, CQDs/TiO2, and PUF reveal synergistic effects on the dye adsorption and photocatalytic degradation processes. The fabricated 3D CQDs/TiO2/GO foam system with a stable structure can maintain a high photocatalytic degradation efficiency after using at least five times. It is expected that the fabricated 3D materials will have potential applications in the fields of oil water separation, the removal of oils, and the photothermal desalination of seawater.

Graphical Abstract

1. Introduction

Due to increasing environmental problems currently, a lot of studies have been performed to develop new materials to control environmental pollution, especially the high performance purification of polluted water and air [1,2,3,4,5]. It is well known that the removal of pollutants from water and air systems could be achieved by several physical and chemical processes including physical adsorption, chemical oxidation, electrocatalysis, and photocatalysis [6,7,8], among these methods, the photocatalysis strategy shows high potential due to its advantages, such as pollution-free, clean, safe, economic, and high-efficient properties. Therefore, the environmental treatment through photocatalysis degradation of pollutants has attracted more and more interests in recent years.
Titanium dioxide (TiO2) has been widely used as a photocatalyst due to its strong, light-based oxidizing abilities [9,10], while the wide bandgap (>3.2 eV) of TiO2 limits its applications in the visible region and in the fast electron-hole recombination related to the enhanced catalytic activity [11,12,13]. Several previous studies proved that the photocatalytic efficiency of TiO2 can be greatly improved by introducing other light-sensitive nanomaterials (such as quantum dots) with TiO2 [13,14,15,16]. The advantage of dimensional quantization is that the visible light response range can be adjusted by controlling the particle size. Meanwhile, a single photon in a quantum dot (QD) can generate multiple charge carriers. Thus, the energy of the photon is much higher than the band gap, generating multiple excitation electrons and increased photocurrent signal [16].
Carbon quantum dots (CQDs) have exhibited wide applications in the field of photocatalysis due to their high fluorescent quantum effect, low toxicity, and facile preparation [13,15,16,17]. CQDs can be used as a place to store electrons of TiO2 under ultraviolet light and play an important role in electron-hole separation. When irradiated by visible light, CQDs, as a photosensitizer, can produce excited electrons to make TiO2 sensitized. For instance, it has been found that the hydrogen evolution rate of TiO2 doped by CQDs can be significantly increased under visible light (>450 nm) [18]. In another case, Zhang and co-workers conjugated N-doped CQDs with rutile TiO2 to create a novel hybrid rod structure, which exhibited an enhanced photocatalytic ability towards the degradation of rhodamine dye [19].
For the facile fabrication of TiO2-based three-dimensional (3D) materials, other supporting materials like polymer foam or graphene are needed [20,21,22]. It has been found that graphene oxide (GO) reveals enhanced functions by combining with a lot of polymers [23,24,25,26]. In particular, the combination between GO and polyurethane foam (PUF) made it possible to fabricated novel 3D structured materials for various applications [25,27,28]. For example, Ji et al. have immersed melamine foams in the reduced GO solution to prepare super hydrophobic composites for oil adsorption [27]. In another case, Nguyen and co-workers have applied the dipping method to load GO onto the melamine foam framework, and then used polydimethylsiloxane to form the superhydrophobic foam [28]. It has been found that the as-synthesized foam can absorb oil and organic solvent that are over 165 times its weight with good circulability. Inspired by these studies, we propose novel 3D PUF-supported GO foams that doped with CQDs-modified TiO2 particles (the process is shown in Scheme 1), which enable the as-prepared GO or TiO2 foams with improved photocatalytic efficiency.
To achieve our aim, we first synthesized CQDs/TiO2 particles via an in-situ hydrothermal method, which were then mixed with GO and loaded onto 3D PUF for final fabrication of 3D GO foam doped with CQDs/TiO2 particles (CQDs/TiO2/GO). The in-situ synthesis of CQDs/TiO2 particles allows the binding of CQDs on the surface of TiO2 particles, and the chemical bonds make them bind very tightly. In addition, CQDs/TiO2 particles were firmly loaded onto the PUF framework after combining with GO via multiple immersion drying, which can enhance both the mechanical strength and stability of the PUF-based 3D materials in this work. The fabricated 3D CQDs/TiO2/GO exhibited a high performance for the adsorption and photocatalytic degradation of dyes, proving high potentials in photocatalytic water decomposition, photothermal heating desalination and the development of inorganic photoelectric materials.

2. Materials and Methods

2.1. Regents and Materials

Natural graphite flake (99.8% purity) was purchased from Sigma–Aldrich (Shanghai, China). Furfural (C5H4O2, ≥99% purity) was purchased from Tianjin Fuchen Chemical Reagent Factory (Tianjin, China). Titanium tetrabutanol (C16H36O4Ti, CP), titanium dioxide (TiO2, P25, CP), phosphoric acid (H3PO4, CP), sulfuric acid (H2SO4, CP), hydrochloric acid (HCl, CP), potassium permanganate (KMnO4, CP), methylene blue (C16H18ClN3S, MB, CP) and rhodamine B (C28H31ClN2O3, RB, CP) were purchased from J&K (Beijing, China). Ethanol (C2H6O > 99.7% purity), aether (C4H10O) and hydrogen peroxide (H2O2, 30%) were purchased from Beijing Chemicals Co., Ltd. (Beijing, China). Polyurethane foam (PUF, 1m × 1m) purchased from BASF SE (Shanghai, China). All the chemicals used were directly used without additional purification. GO was synthesized with the typical Hummers’ method with suitable modifications [29,30]. The water purified through a Millipore system (Beijing Shengsheng Technology Development Co., Ltd., Beijing, China) (18.2 MΩ·cm) was used throughout. Cu grids for transmission electron microscopy (TEM) characterization were purchased from Plano GmbH (Wetzlar, Germany).

2.2. Preparation of CQDs/TiO2 Particles

CQDs/TiO2 particles were synthesized through a hydrothermal method. First, 18 mL ethanol was added into a 50 mL breaker, followed by a slow drip of 0.9 g aether. Under gentle stirring, the two chemicals were completely soluble. After that, 1 g C16H36O4Ti was added into the above solution under stirring. The dark yellow mixed solution was then transferred to a reactor and reacted for 10, 12, and 14 h at 180 ℃, respectively. Finally, the supernatant was collected, and the brown precipitate was washed with ethanol and centrifuged 3 times. The product of CQDs/TiO2 was collected and dried overnight in an oven under 60 ℃ for next characterizations.

2.3. Fabrication of 3D GO and CQDs/TiO2/GO Foams

The fabrication of 3D CQDs/TiO2/GO foams is based on the binding of CQDs/TiO2 and GO with PUF. In brief, CQDs/TiO2 particles with different amounts (10, 20, and 30 mg) were first added into 20 mL GO solution (2 mg/mL), which were treated with ultrasonic for 30 min to create uniform mixing. Next, PUFs were cut into cubes with a side length of about 1 cm and soaked in GO and CQDs/TiO2/GO solutions. The formed PUF-supported GO and CQDs/TiO2/GO foams were then put in an oven at 60 ℃ for 1 h until the color of foam turned brown. The final 3D GO and CQDs/TiO2/GO foams were fabricated by repeating these steps 3 times.

2.4. Adsorption and Photocatalytic Degradation and Dyes

To determinate the standard adsorption curve of dyes, the UV-vis absorption spectra of both MB and rhodamine solutions with various concentrations of 40, 60, 80, 100, 120 and 120 μM/mL were determined, respectively. According to the relationship between concentration and absorbance, the slope of the molar absorption coefficient was obtained.
To test the photocatalytic degradation of materials (TiO2, CQDs/TiO2, and 3D CQDs/TiO2/GO foams), 30 mg TiO2, 30 mg CQDs/TiO2, and 3D 3D CQDs/TiO2/GO foams with different loading amount of CQDs/TiO2 (10, 20, and 30 mg) were put into MB solution (100 μM/mL), and then the dye solution with various materials were irradiated under 350 W xenon lamp. The dye solution was taken every hour and characterized with a UV-vis spectrometer. The experiment was repeated several times to test the reusability of the materials.

2.5. Characterization Techniques

All scanning electron microscope (SEM) images were obtained by JSM-6700F scanning electron microscope (JEOL, Tokyo, Japan), and the elements analysis of surface micro-area composition was carried out by energy dispersive spectrometer (EDS). Transmission electron microscope (TEM) images were got by JEM-2100 transmission electron microscope with a voltage of 200 kV (JEOL, Tokyo, Japan). Atomic force microscope (AFM) images were obtained by using a Bruker MultiMode 8 atomic force microscope (Bruker, Germany). These methods were used to characterize the surface and internal morphologies of the prepared composites. An Ultima IV X-ray diffractometer (Japan science. Co., Ltd., Japan) has been used to identify phase and lattice structure. For the X-ray photoelectron spectroscopy (XPS) we used an ESCALAB 250 X-ray photoelectron spectroscopy (Thermo Scientific, Massachustees, M.A., USA) to detect the elements and determine the valence states of elements. Fourier transform infrared spectroscopy (FT-IR, Nicolet NEXUS) was used to detect the types and contents of functional groups in substances. UV-vis absorption spectroscopy combined with fluorescence spectroscopy was used to detect the composition and purity of substances

3. Results and Discussion

3.1. Morphological Characterizations of CQDs/TiO2 Particles

The synthesized CQDs/TiO2 particles were first characterized with morphological (SEM and TEM) techniques.
Figure 1 shows the typical SEM images and size analysis of the synthesized CQDs/TiO2 particles with different reaction periods. Nano-titanium and nano-carbon, obtained by titanium sources and furfural, were fused together due to functional groups on the TiO2 surface and grew to form a core-shell structure. It can be seen that the obtained CQDs/TiO2 particles show uniform spheres with an average diameter of 0.91 μm after 10 h reaction (Figure 1a–c). When the reaction time was increased to 12 h, the formed CQDs/TiO2 particles remained in a spherical shape, however, their average size increased to about 1.41 μm, as shown in Figure 1d–f. It is clear that CQDs/TiO2 particles continue to grow with the increasing reaction period. By comparing the SEM images of Figure 1b and 1e, it can be found that the size of the particles with a 12 h reaction are more uniform than that with a 10 h reaction. When the reaction time continued to increase to 14 h, besides spherical particles, some rod-like substances were produced, as shown in Figure 1g and h. The thickness of the rods was measured to be about 0.5 μm. Therefore, we suggest that the synthesized CQDs/TiO2 was not a solid sphere with uniform density and composition, but a multilayer core-shell cladding structure. Furthermore, it can be observed from Figure 1b and e that the surface of the particles became smoother with the increasing reaction time. The higher resolution image of CQDs/TiO2 particles shows that a lot of nanoparticles with a size of 10 nm were created on the surface of particles.
To further prove the formation of CQDs on TiO2 surface, TEM and related EDS elemental analysis were utilized.
The formation process of CQDs/TiO2 particles can be further explained through Figure 2a,b. Titanium sources were first hydrolyzed in ethanol to generate nanoscale TiO2. Due to abundant functional groups on the TiO2 surface, furfural was carbonized and deposited on TiO2. Therefore, a large number of particles grew up and form microspheres. In this process, some particles first come into contact to form a thin shell, and the particles inside the thin shell formed the core. Figure 2c–e present the element analysis of the obtained CQDs/TiO2 particles that are shown in Figure 2a, and it can be clearly found that the elements of Ti, O, and C (Figure 2c–e) are dominant in the tested materials. The EDS analysis (Figure 2f) further proves the existence of Ti, O, and C elements.

3.2. Spectrum Characterizations of CQDs/TiO2 Particles

The synthesized CQDs/TiO2 particles were characterized with spectrum techniques to understand their structural and optical properties.
Figure 3a shows the XRD spectra of the synthesized CQD/TiO2 particles under different reaction periods from 10 to 12, and 14 h. All of the peaks in the XRD spectra could be seen on the standard card of anatase [31], which confirms that the prepared CQDs/TiO2 is an anatase type. Anatase is more favorable for the photocatalytic reaction due to more defects in the crystal lattice to improve the separate of electrons and holes. As the reaction time increases, the intensity of each crystal plane diffraction peak gradually increases and the peak width at half height becomes narrower. Moreover, the high-energy crystal plane of TiO2 can promote the catalytic effect of TiO2 [32]. With more exposure of the high energy crystal plane, better photocatalytic effect can be obtained. The percentages of the high-energy lattice plane with different reaction times were calculated and shown in Table 1, the equation is displayed in Supplementary Information. It can be found that the crystallinity of TiO2 is poor and the exposure fraction of high energy crystal plane is low when the reaction time is too short (for instance 10 h). However, a too long reaction time (for instance 14 h) will lead to the breakage of particles and agglomeration of CQDs deposition, thus losing the characteristics of CQDs.
Figure 3b gives the FTIR spectra of the obtained CQDs/TiO2 particles, which reveal the composition and functional group information of the tested materials. The peak at 565 cm−1 generated by the role of Ti-O in TiO2, which confirms the existence of TiO2 in the CQDs/TiO2 composites [31,33]. The corresponding peak of 1400 cm-1 is assigned to the C-O bond, and the vibration peak at 1625 cm−1 is ascribed to the unsaturated C = C bond. The peak at 2925 cm−1 is related to the absorption peak of C-H in aldehyde group, indicating some oxygen-containing functional groups were carried on CQDs/TiO2. Moreover, the absorption peaks of CQDs/TiO2 with 12 h reaction show highest intensity strongest among the reaction time of these different lengths.
Figure 4a shows the AFM image of the supernatant solution of CQDs/TiO2, in which some of the CQDs are not deposited on the surface of TiO2 and can therefore be measured with AFM. The size of the CQDs was about 4 nm. According to the section analysis in the graph (Figure 4b), the synthesized CQDs are roughly homogeneous in sphere-shape.
To further prove the formation of CQDs/TiO2 composites, UV-vis (Figure 4c) and fluorescence (Figure 4d) spectroscopy were used to characterize the supernatant of CQDs/TiO2. There is a peak at 320 nm for the UV-vis spectrum of CQDs/TiO2, which is absent for the spectrum of CQDs. It is clear that the peaks of 290 and 320 nm are ascribed to the characteristic peaks of TiO2 and CQDs [34], respectively, and therefore the UV-vis result elaborates the formation of CQDs/TiO2.
The fluorescence spectra of CQDs/TiO2 with different excitations are shown in Figure 4d. Under the excitation of 280 nm and 320 nm, CQDs form emission peaks at 370 nm and 430 nm, respectively. As the excitation wavelength increases, the emission peak of CQDs/TiO2 shows a significant red shift with enhanced fluorescence intensity.
Based on the above spectrum characterizations, the optimal synthesis of CQDs/TiO2 with the desired structures and properties are achieved.

3.3. Characterization of 3D CQDs/TiO2/GO Foams

CQDs/TiO2 particles can bind with GO through hydrogen bonding or π-π interaction due to the existence of a large number of oxygen-containing functional groups in the composites. Compared to bare PUF, the surface of the PUF loaded with CQDs/TiO2/GO is very rough, as shown in SEM images (Figure 5a–c). Some smaller holes in bare PUF were filled by GO nanosheets, which are sought to be useful for increasing the load capacity of CQDs/TiO2/GO and the surface area of materials for enhanced catalytic and adsorption performance. In addition, compare to the smooth surface of pure PUF (Figure 5d), a lot of tiny particles were formed on the surface of PUF-based CQDs/TiO2/GO foam with high density (Figure 5b), which is ascribed to the dispersion of CQDs/TiO2 particles by GO nanosheets. It should be noted that the color of PUF foam has changed dramatically (see inset optical images in Figure 5a–c), and the mechanical properties have also been enhanced due to the loading of CDQs/TiO2/GO composites.

3.4. Adsorption and Photocatalytic Degradation of Dyes

The as-prepared 3D CQDs/TiO2/GO foams with different loading amount of CQDs/TiO2 particles (10, 20, and 30 mg) were used to adsorb and photocatalytic degrade dyes, MB and rhodamine by using a 350 W xenon lamp as the source of visible light. Under the irradiation condition, the electrons in the value band (VB) of TiO2 were stimulated to transit to the conduction band (CB) and release photoelectrons. Hydroxyl radicals and oxygen radicals were produced by the interaction of water and oxygen with electrons and photons. These two radicals can degrade dyes into H2O and CO2 (Figure S2) The CQDs with an up-conversion performance can convert visible light into ultraviolet light at 300–400 nm, which stimulates the generation of electrons and holes in TiO2. The result of our experiment (Figure S3) exhibits an up-conversion at 300–400nm, which is consistent with Reference [35]. Then the pairs of electron and hole can migrate to the surface of particles to initiate the generation of oxygen-free radicals, which can degrade the dyes. At the same time, the GO network can conduct the electrons, put off the recombination of electron holes, and provide more active sites for photocatalysis.
Figure 6a,b presents the degradation effect of MB and rhodamine versus time with different catalytic agents. Due to the foams being porous, they have a high adsorption effects on dyes. To make it clearer for the adsorption and degradation effects of 3D CQDs/TiO2/GO foams, the bare PUF foam, GO foam, and CQD/GO foam were used as a control material for the photocatalytic experiments to exclude the effect of adsorption on this experiment. It is clear that the use of larger amounts of CQDs/TiO2 particles for the GO foam could cause a quicker degradation of both dyes. For instance, when the foam was loaded with 30 mg CQDs/TiO2, it is about 2 h faster than GO alone for the degradation of MB, and 1 h faster for the degradation of rhodamine, which indicated the superiority of CQDs/TiO2/GO foam for photocatalysis. In order to exclude the effect of adsorption, dark field experiments were carried out in order to study the photocatalytic mechanism, as shown in Figure S4. It could be summarized that the photocatalytic degradation has an important effect on removement of dyes. Foams cannot get rid of all the dyes for 6h at dark while the dyes could be completely removed with irradiation, which showed that the main mechanism of dye removal in this experiment is the photocatalytic degradation.
To further illustrate the advance of the CQDs/TiO2 nanoparticle for the photocatalysis of dyes, the light-based degradation efficiency between P25-TiO2 and CQDs/TiO2 nanoparticles was compared after one hour of light irradiation (Figure 6c). In this test, 30mg P25-TiO2 and 30mg CQDs/TiO2 were used to degrade MB under xenon lamp with stirring. The time of the photocatalytic degradation greatly reduced due to the fuller contact of nanoparticles with dyes. It is found that the degradation effect of dyes was remarkably improved by using CQDs/TiO2 nanoparticles.
The reusability test of the fabricated CQDs/TiO2/GO foam is shown in Figure 6d. The recycling experiment was tested five times, each experiment was illuminated for three hours and the foam was washed several times by deionized water and ethanol, and then dried for use. The used foam kept a high photocatalytic ability for dyes, indicating that the photocatalyst and the framework are relatively strong, and the catalytic performance would not reduce obviously after dye degradation.

5. Conclusions

In summary, CQDs/TiO2 microspheres were synthesized by the in-situ hydrothermal synthesis, which were further utilized with GO for the fabrication of PUF-supported 3D CQDs/TiO2/GO foams. The as-prepared CQDs/TiO2 composite could expose more than 30% of high-energy crystal planes and exhibited an enhanced photocatalytic property. The addition of GO to this hybrid foam system had positive impacts on the transition of electrons and holes. These effects improved the photocatalytic activity of the fabricated CQDs/TiO2/GO foams. The adsorption and photocatalytic degradation experiments indicated that the fabricated CQDs/TiO2/GO foams exhibited a high efficiency, stability, and reusability for the decomposition of both MB and rhodamine dyes, revealing high potentials for the oil water separation, removal of oils, and the photothermal desalination of seawater.

Supplementary Materials

Experimental details and additional figures are provided that include the calculation of the percentage of the high energy lattice plane, XPS analysis, electronic band diagram of CQDs/TiO2/GO, up-conversion fluorescence test, and the UV−vis absorbance spectrum at dark.

Author Contributions

T.J.L. and S.W.S. designed and performed the experiments; L.Z. and P.L. analyzed the data; Z.Q.S. and G.W. contributed experimental materials and analysis tools; L.Z. and Z.Q.S. optimized the data analysis; T.J.L. and S.W.S. wrote the paper under the supervision of P.L., Z.Q.S., and G.W.

Acknowledgments

Tianjiao Liu, Shuwei Sun and Zhiqiang Su acknowledge the financial support of the National Natural Science Foundation of China (No. 51573013 and 51873016). Gang Wei thanks the financial support of the National Natural Science Foundation of China (No. 51873225) and the Deutsche Forschungsgemeinschaft (No. WE 5837/1-1).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. An, S.; Joshi, B.N.; Lee, J.G.; Lee, M.W.; Kim, Y.I.; Kim, M.W.; Jo, H.S.; Yoon, S.S. A comprehensive review on wettability, desalination, and purification using graphene-based materials at water interfaces. Catal. Today 2017, 295, 14–25. [Google Scholar] [CrossRef]
  2. Dutta, K.; De, S. Smart responsive materials for water purification: An overview. J. Mater. Chem. A 2017, 5, 22095–22112. [Google Scholar] [CrossRef]
  3. Wang, Z.Q.; Wu, A.G.; Ciacchi, L.C.; Wei, G. Recent advances in nanoporous membranes for water purification. Nanomaterials 2018, 8, 65. [Google Scholar] [CrossRef] [PubMed]
  4. Montecchio, F.; Persson, H.; Engvall, K.; Delin, J.; Lanza, R. Development of a stagnation point flow system to screen and test TiO2-based photocatalysts in air purification applications. Chem. Eng. J. 2016, 306, 734–744. [Google Scholar] [CrossRef]
  5. Ren, H.J.; Koshy, P.; Chen, W.F.; Qi, S.H.; Sorrell, C.C. Photocatalytic materials and technologies for air purification. J. Hazard. Mater. 2017, 325, 340–366. [Google Scholar] [CrossRef]
  6. Boyjoo, Y.; Sun, H.Q.; Liu, J.; Pareek, V.K.; Wang, S.B. A review on photocatalysis for air treatment: From catalyst development to reactor design. Chem. Eng. J. 2017, 310, 537–559. [Google Scholar] [CrossRef]
  7. Tan, L.; Yu, C.F.; Wang, M.; Zhang, S.Y.; Sun, J.Y.; Dong, S.Y.; Sun, J.H. Synergistic effect of adsorption and photocatalysis of 3D g-C3C4 -agar hybrid aerogels. Appl. Surf. Sci. 2019, 467, 286–292. [Google Scholar] [CrossRef]
  8. Kuo, M.Y.; Hsiao, C.F.; Chiu, Y.H.; Lai, T.H.; Fang, M.J.; Wu, J.Y.; Chen, J.W.; Wu, C.L.; Wei, K.H.; Lin, H.C.; et al. Au@Cu2O core@shell nanocrystals as dual-functional catalysts for sustainable environmental applications. Appl. Catal. B 2019, 242, 499–506. [Google Scholar] [CrossRef]
  9. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C 2012, 13, 169–189. [Google Scholar] [CrossRef]
  10. Schneider, J.; Matsuoka, M.; Takeuchi, M.; Zhang, J.L.; Horiuchi, Y.; Anpo, M.; Bahnemann, D.W. Understanding TiO2 photoca22talysis: Mechanisms and materials. Chem. Rev. 2014, 114, 9919–9986. [Google Scholar] [CrossRef]
  11. Crake, A.; Christoforidis, K.C.; Godin, R.; Moss, B.; Kafizas, A.; Zafeiratos, S.; Durrant, J.R.; Petit, C. Titanium dioxide/carbon nitride nanosheet nanocomposites for gas phase CO2 photoreduction under uv-visible irradiation. Appl. Catal. B 2019, 242, 369–378. [Google Scholar] [CrossRef]
  12. Negishi, N.; Miyazaki, Y.; Kato, S.; Yang, Y.N. Effect of HCO3− concentration in groundwater on TiO2 photocatalytic water purification. Appl. Catal. B 2019, 242, 449–459. [Google Scholar] [CrossRef]
  13. Zhao, Q.; Yang, C.; Zhao, H.B.; Gao, G.F.; Jiang, T.S. Fabrication of ternary structure photocatalyst CDs/CQD@mpg-C3N4 with enhanced photocatytic performance based on synergistic effect. ChemistrySelect 2018, 3, 11824–11834. [Google Scholar] [CrossRef]
  14. Zhang, L.W.; Mohamed, H.H.; Dillert, R.; Bahnemann, D. Kinetics and mechanisms of charge transfer processes in photocatalytic systems: A review. J. Photochem. Photobiol. C 2012, 13, 263–276. [Google Scholar] [CrossRef]
  15. Ding, Y.; Gao, Y.H.; Li, Z.H. Carbon quantum dots (cqds) and co(dmgh)(2)pycl synergistically promote photocatalytic hydrogen evolution over hexagonal ZnIn2S4. Appl. Surf. Sci. 2018, 462, 255–262. [Google Scholar] [CrossRef]
  16. Li, K.; Liu, W.; Ni, Y.; Li, D.; Lin, D.; Su, Z.; Wei, G. Technical synthesis and biomedical applications of graphene quantum dots. J. Mater. Chem. B 2017, 5, 4811–4826. [Google Scholar] [CrossRef]
  17. Hu, X.T.; Shi, J.Y.; Shi, Y.Q.; Zou, X.B.; Arslan, M.; Zhang, W.; Huang, X.W.; Li, Z.H.; Xu, Y.W. Use of a smartphone for visual detection of melamine in milk based on Au@carbon quantum dots nanocomposites. Food Chem. 2019, 272, 58–65. [Google Scholar] [CrossRef] [PubMed]
  18. Yu, H.J.; Zhao, Y.F.; Zhou, C.; Shang, L.; Peng, Y.; Cao, Y.H.; Wu, L.Z.; Tung, C.H.; Zhang, T.R. Carbon quantum dots/TiO2 composites for efficient photocatalytic hydrogen evolution. J. Mater. Chem. A 2014, 2, 3344–3351. [Google Scholar] [CrossRef]
  19. Zhang, Y.Q.; Ma, D.K.; Zhang, Y.G.; Chen, W.; Huang, S.M. N-doped carbon quantum dots for TiO2-based photocatalysts and dye-sensitized solar cells. Nano Energy 2013, 2, 545–552. [Google Scholar] [CrossRef]
  20. Wei, Q.; Oribayo, O.; Feng, X.S.; Rempel, G.L.; Pan, Q.M. Synthesis of polyurethane foams loaded with TiO2 nanoparticles and their modification for enhanced performance in oil spill cleanup. Ind. Eng. Chem. Res. 2018, 57, 8918–8926. [Google Scholar] [CrossRef]
  21. Qian, X.F.; Ren, M.; Yue, D.T.; Zhu, Y.; Han, Y.; Bian, Z.F.; Zhao, Y.X. Mesoporous TiO2 films coated on carbon foam based on waste polyurethane for enhanced photocatalytic oxidation of vocs. Appl. Catal. B 2017, 212, 1–6. [Google Scholar] [CrossRef]
  22. Yu, X.; Zhang, W.; Zhang, P.; Su, Z. Fabrication technologies and sensing applications of graphene-based composite films: Advances and challenges. Biosens. Bioelectron. 2017, 89, 72–84. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, M.F.; Li, Y.; Su, Z.Q.; Wei, G. Recent advances in the synthesis and applications of graphene-polymer nanocomposites. Polym. Chem. 2015, 6, 6107–6124. [Google Scholar] [CrossRef]
  24. Li, D.P.; Zhang, W.S.; Yu, X.Q.; Wang, Z.P.; Su, Z.Q.; Wei, G. When biomolecules meet graphene: From molecular level interactions to material design and applications. Nanoscale 2016, 8, 19491–19509. [Google Scholar] [CrossRef] [PubMed]
  25. Li, K.H.; Zhang, Z.F.; Li, D.P.; Zhang, W.S.; Yu, X.Q.; Liu, W.; Gong, C.C.; Wei, G.; Su, Z.Q. Biomimetic ultralight, highly porous, shape-adjustable, and biocompatible 3D graphene minerals via incorporation of self-assembled peptide nanosheets. Adv. Funct. Mater. 2018, 28, 1801056. [Google Scholar] [CrossRef]
  26. Liu, W.; Zhang, X.Y.; Wei, G.; Su, Z.Q. Reduced graphene oxide-based double network polymeric hydrogels for pressure and temperature sensing. Sensors 2018, 18, 3162. [Google Scholar] [CrossRef] [PubMed]
  27. Ji, C.H.; Zhang, K.; Li, L.; Chen, X.X.; Hu, J.L.; Yan, D.Y.; Xiao, G.Y.; He, X.H. High performance graphene-based foam fabricated by a facile approach for oil absorption. J. Mater. Chem. A 2017, 5, 11263–11270. [Google Scholar] [CrossRef]
  28. Nguyen, D.D.; Tai, N.H.; Lee, S.B.; Kuo, W.S. Superhydrophobic and superoleophilic properties of graphene-based sponges fabricated using a facile dip coating method. Energy Environ. Sci. 2012, 5, 7908–7912. [Google Scholar] [CrossRef]
  29. Marcano, D.C.; Kosynkin, D.V.; Berlin, J.M.; Sinitskii, A.; Sun, Z.Z.; Slesarev, A.; Alemany, L.B.; Lu, W.; Tour, J.M. Improved synthesis of graphene oxide. ACS Nano 2010, 4, 4806–4814. [Google Scholar] [CrossRef] [PubMed]
  30. Wei, G.; Zhang, Y.; Steckbeck, S.; Su, Z.Q.; Li, Z. Biomimetic graphene-fept nanohybrids with high solubility, ferromagnetism, fluorescence, and enhanced electrocatalytic activity. J. Mater. Chem. 2012, 22, 17190–17195. [Google Scholar] [CrossRef]
  31. Ivanda, M.; Music, S.; Popovic, S.; Gotic, M. Xrd, raman and ft-ir spectroscopic observations of nanosized tio2 synthesized by the sol-gel method based on an esterification reaction. J. Mol. Struct. 1999, 481, 645–649. [Google Scholar] [CrossRef]
  32. Roy, N.; Sohn, Y.; Pradhan, D. Synergy of low-energy {101} and high-energy {001} TiO2 crystal facets for enhanced photocatalysis. ACS Nano 2013, 7, 2532–2540. [Google Scholar] [CrossRef] [PubMed]
  33. Durgalakshmi, D.; Rakkesh, R.A.; Balakumar, S. Stacked bioglass/TiO2 nanocoatings on titanium substrate for enhanced osseointegration and its electrochemical corrosion studies. Appl. Surf. Sci. 2015, 349, 561–569. [Google Scholar] [CrossRef]
  34. Li, H.T.; He, X.D.; Kang, Z.H.; Huang, H.; Liu, Y.; Liu, J.L.; Lian, S.Y.; Tsang, C.H.A.; Yang, X.B.; Lee, S.T. Water-soluble fluorescent carbon quantum dots and photocatalyst design. Angew. Chem. Int. Ed. 2010, 49, 4430–4434. [Google Scholar] [CrossRef]
  35. Pan, J.; Sheng, Y.; Zhang, J.; Wei, J.; Huang, P.; Zhang, X.; Feng, B. Preparation of carbon quantum dots/TiO2nanotubes composites and their visible light catalytic applications. J. Mater. Chem. A 2014, 2, 18082–18086. [Google Scholar] [CrossRef]
Applsci 09 00293 sch001 550

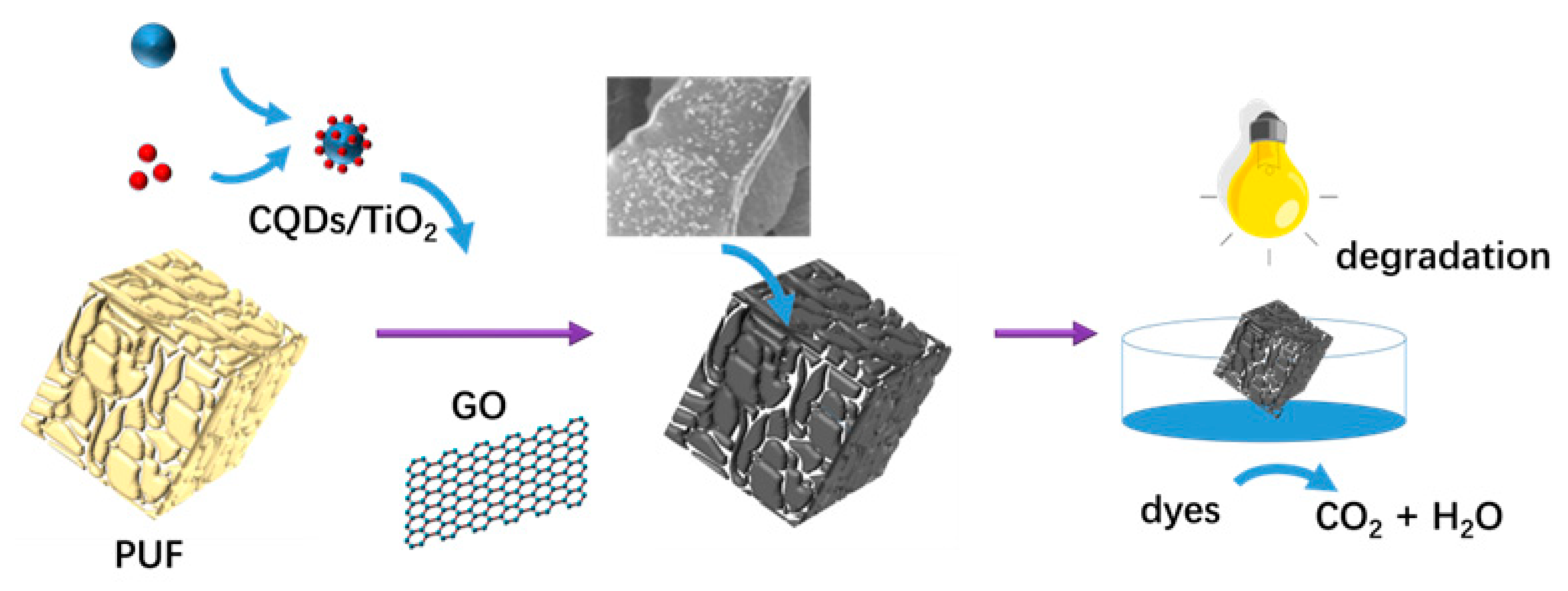

Scheme 1. Schematic presentation on the fabrication of polyurethane foam (PUF)-supported graphene oxide (GO) foam that doped with carbon quantum dots (CQDs)/TiO2 particles for adsorption and photocatalytic degradation of dyes.
Scheme 1. Schematic presentation on the fabrication of polyurethane foam (PUF)-supported graphene oxide (GO) foam that doped with carbon quantum dots (CQDs)/TiO2 particles for adsorption and photocatalytic degradation of dyes.
Applsci 09 00293 sch001
Applsci 09 00293 g001 550

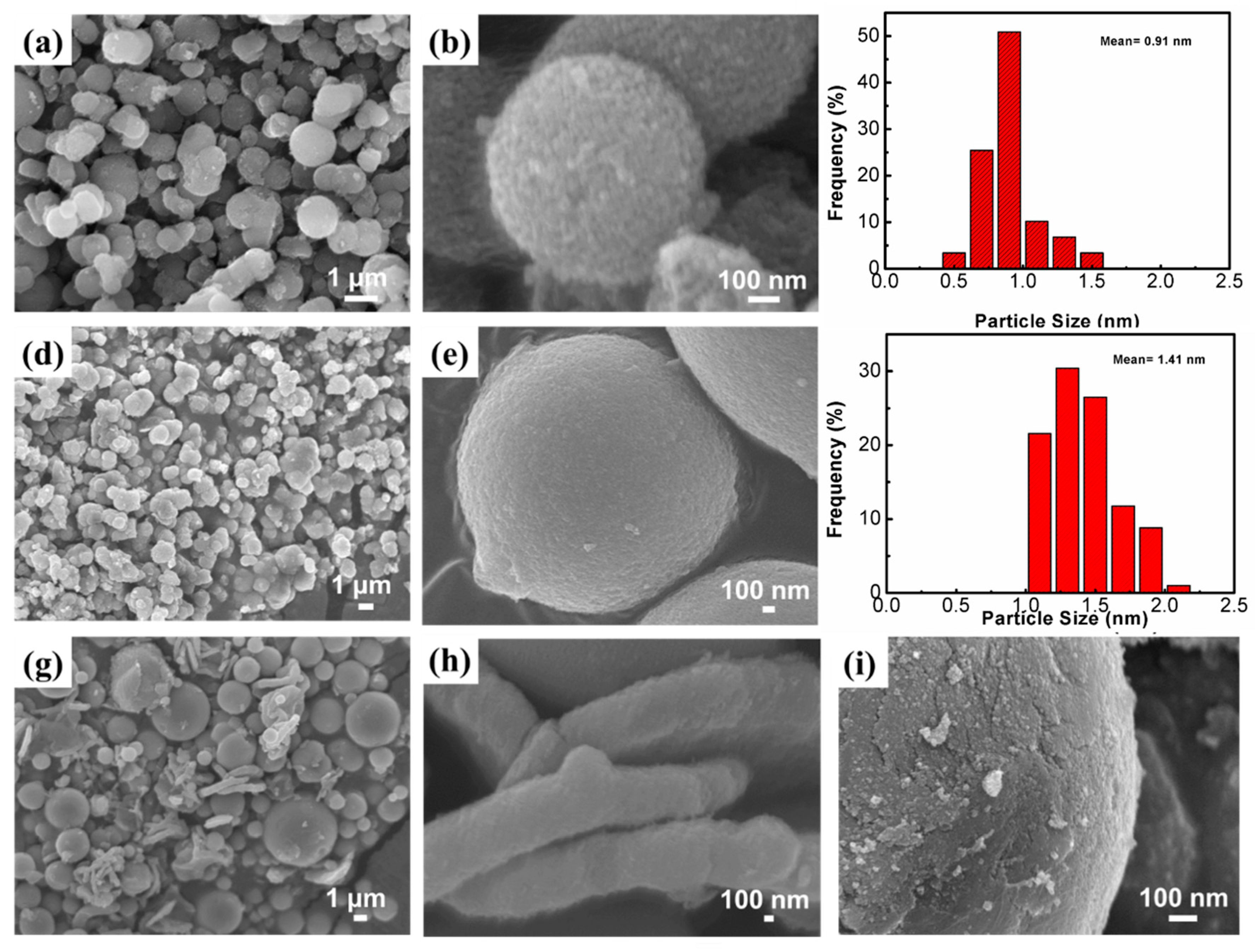

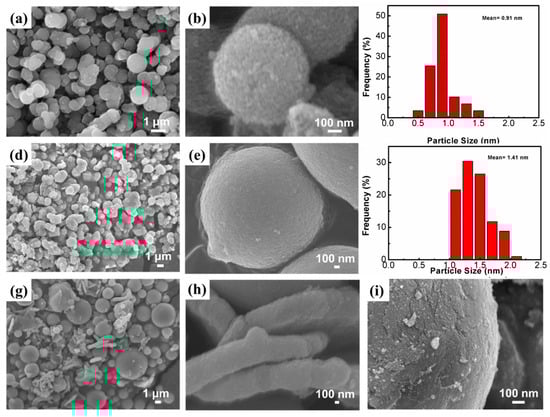

Figure 1. Scanning electron microscope (SEM) images and particle-size distribution diagrams of carbon quantum dots(CQDs)/TiO2 particles obtained at different hydrothermal reaction periods: (a–c) 10 h; (d–f) 12 h; (g–h) 14 h; and (i) SEM image of CQDs/TiO2 particles surface.
Figure 1. Scanning electron microscope (SEM) images and particle-size distribution diagrams of carbon quantum dots(CQDs)/TiO2 particles obtained at different hydrothermal reaction periods: (a–c) 10 h; (d–f) 12 h; (g–h) 14 h; and (i) SEM image of CQDs/TiO2 particles surface.
Applsci 09 00293 g001
Applsci 09 00293 g002 550

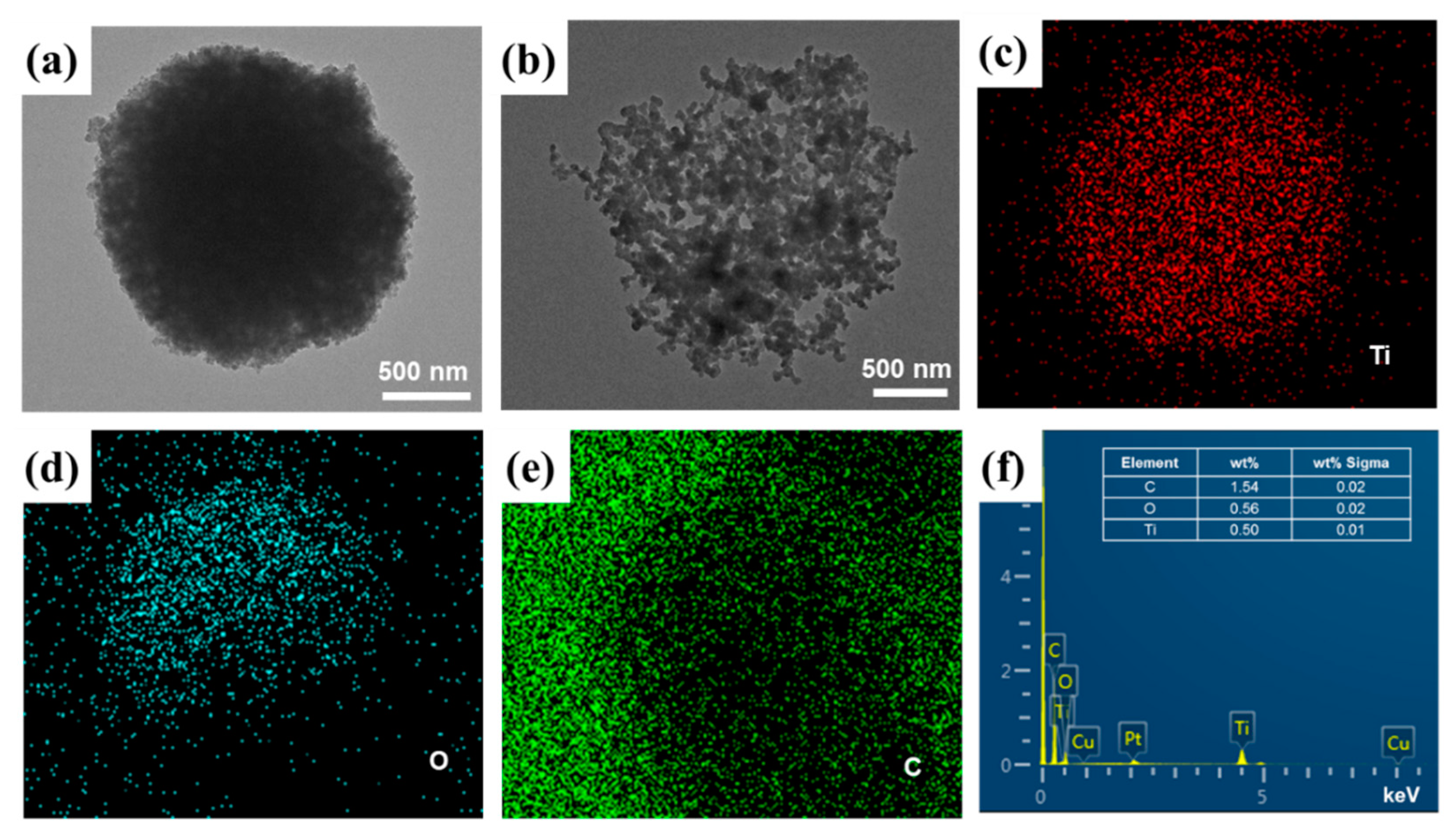

Figure 2. (a–b) TEM images of CQDs/TiO2 particles; (c–e) Distribution images of CQDs/TiO2 particles Ti, O and C; (f) EDS analysis results of CQDs/TiO2 particles.
Figure 2. (a–b) TEM images of CQDs/TiO2 particles; (c–e) Distribution images of CQDs/TiO2 particles Ti, O and C; (f) EDS analysis results of CQDs/TiO2 particles.
Applsci 09 00293 g002
Applsci 09 00293 g003 550

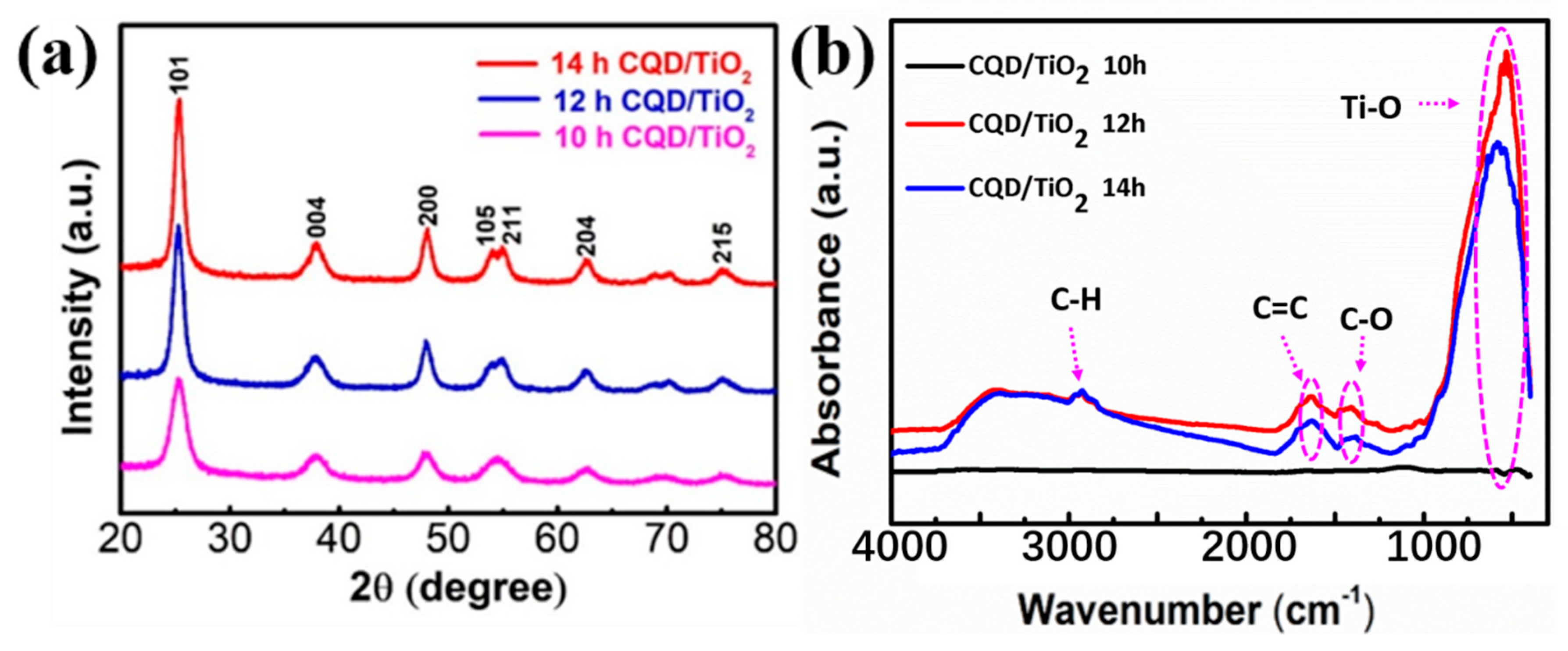

Figure 3. (a) X-ray diffraction (XRD) patterns and (b) Fourier transform infrared spectroscopy (FTIR) spectra of CQDs/TiO2 particles that synthesized with different hydrothermal reaction periods of 10, 12, and 14 h.
Figure 3. (a) X-ray diffraction (XRD) patterns and (b) Fourier transform infrared spectroscopy (FTIR) spectra of CQDs/TiO2 particles that synthesized with different hydrothermal reaction periods of 10, 12, and 14 h.
Applsci 09 00293 g003
Applsci 09 00293 g004 550

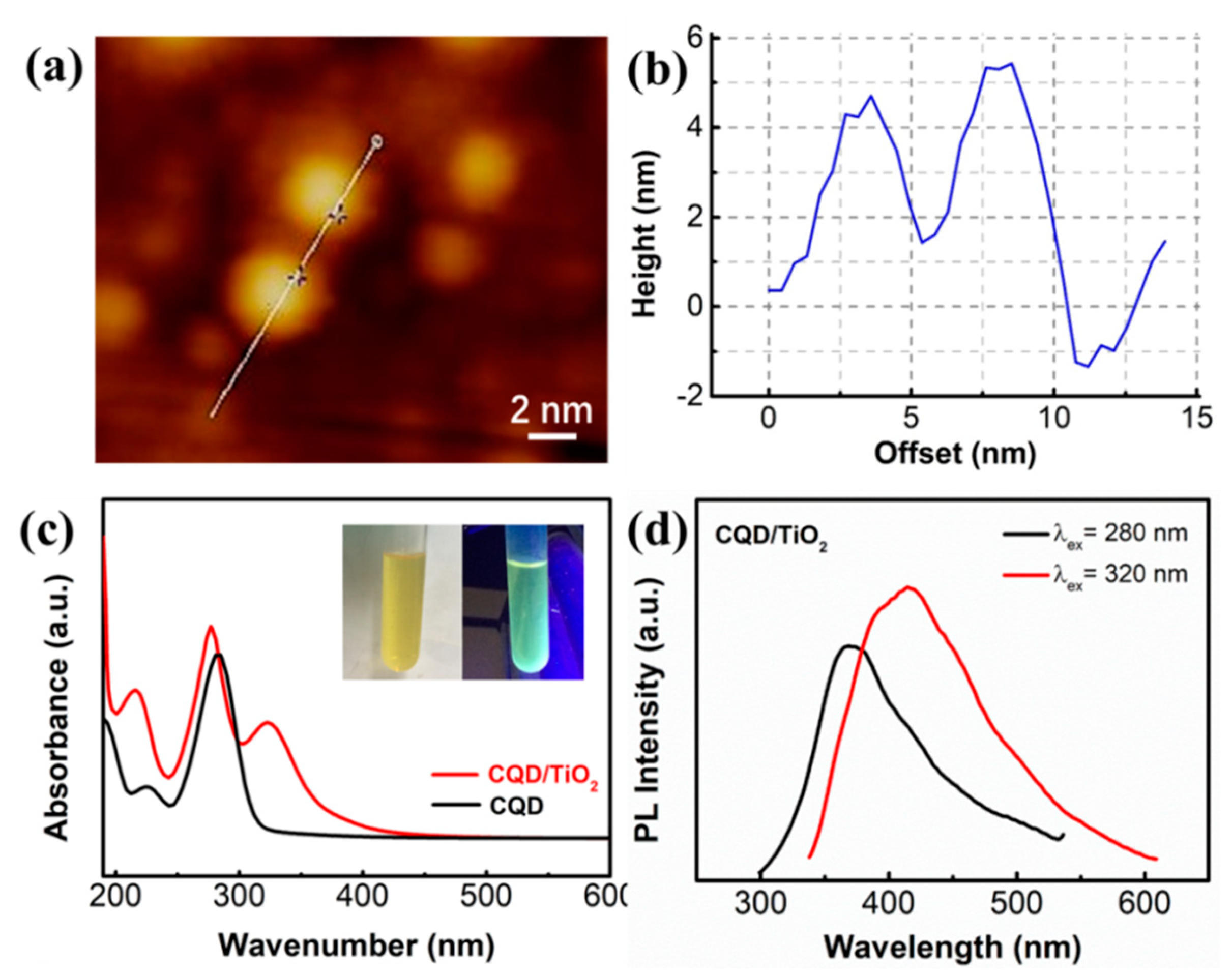

Figure 4. (a) The AFM image of CQDs/TiO2 and (b) height distribution; (c) UV-vis spectra of CQDs and CQDs/TiO2; (d) fluorescence spectra of CQDs/TiO2 with different excitation.
Figure 4. (a) The AFM image of CQDs/TiO2 and (b) height distribution; (c) UV-vis spectra of CQDs and CQDs/TiO2; (d) fluorescence spectra of CQDs/TiO2 with different excitation.
Applsci 09 00293 g004
Applsci 09 00293 g005 550

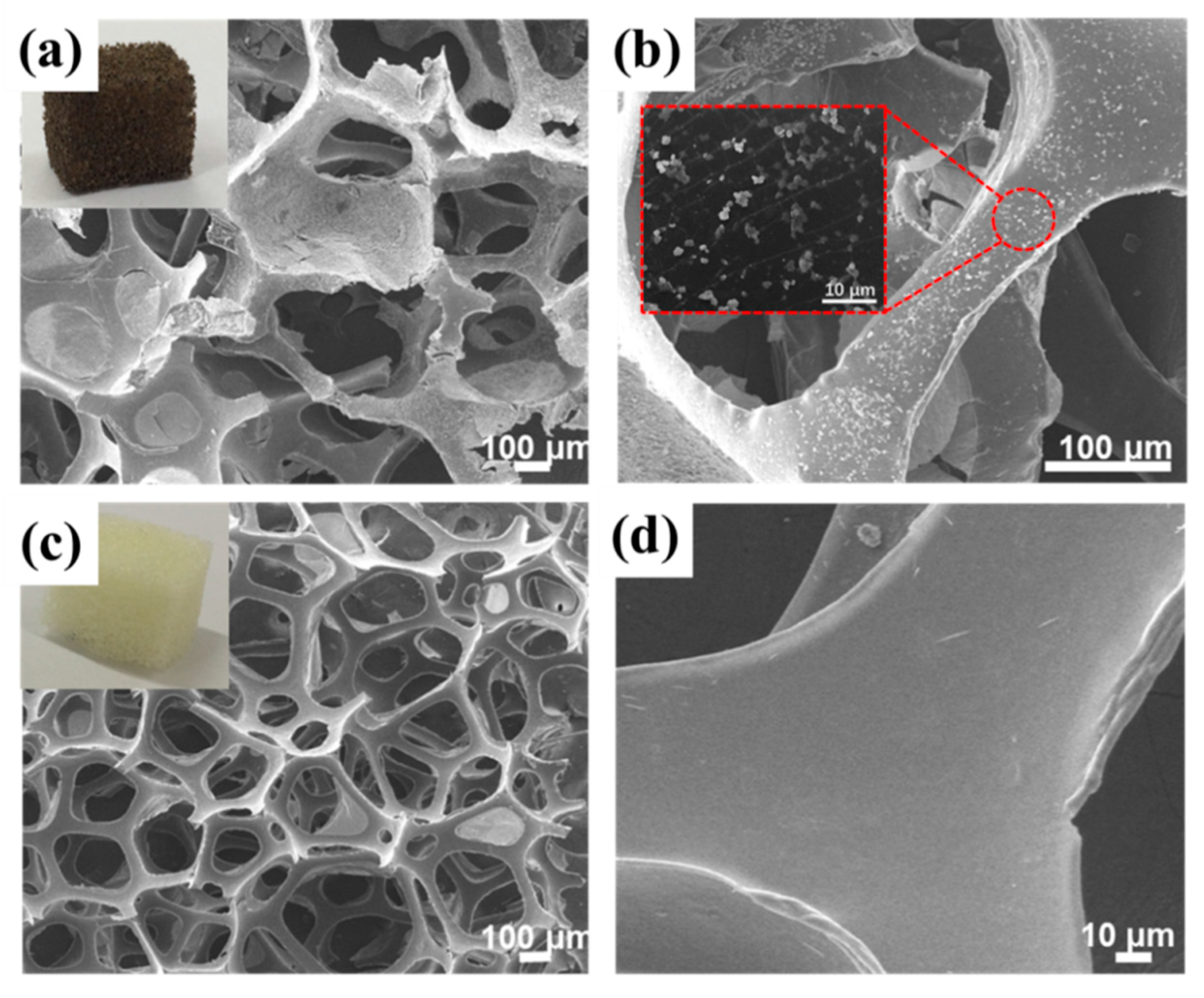

Figure 5. SEM images of (a,b) polyurethane foam (PUF)-supported GO/CQDs/TiO2 foam with 12 h reaction, and (c,d) PUF foam.
Figure 5. SEM images of (a,b) polyurethane foam (PUF)-supported GO/CQDs/TiO2 foam with 12 h reaction, and (c,d) PUF foam.
Applsci 09 00293 g005
Applsci 09 00293 g006 550

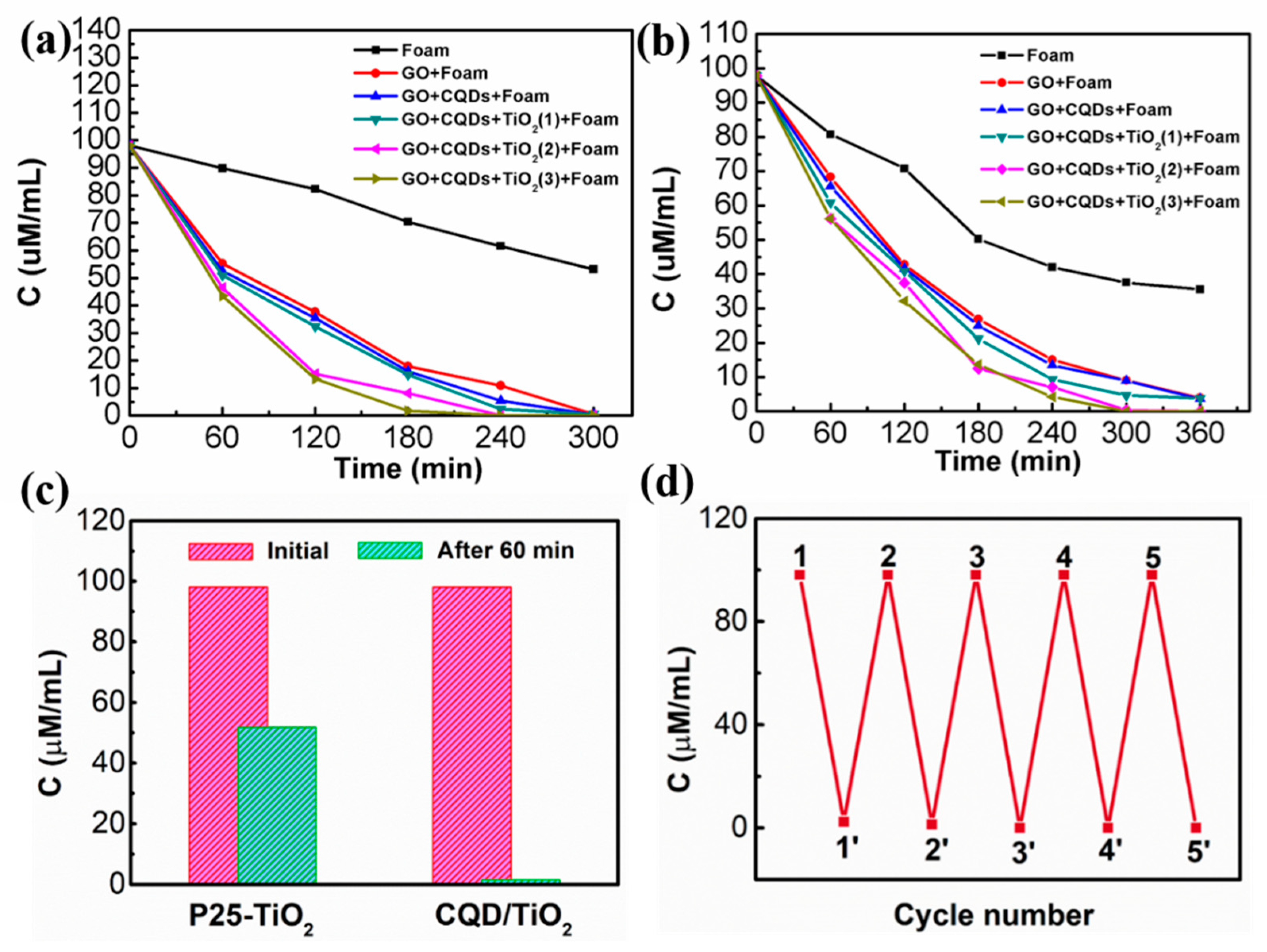

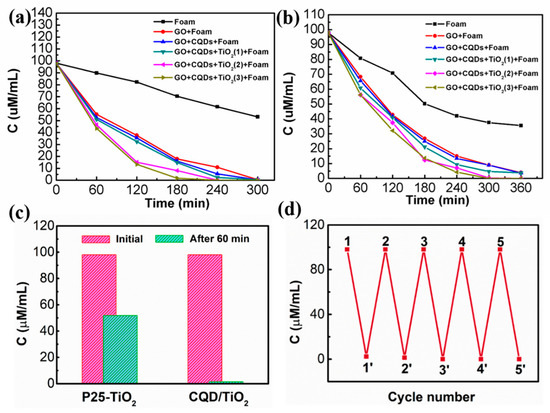

Figure 6. Photocatalytic degradation of (a) methylene blue (MB) (b) rhodamine with the loaded capacity of 10 mg (TiO2(1)), 20 mg (TiO2(2)), and 30 mg (TiO2(3)) CQDs/TiO2 particles, respectively. (c) Comparison of the photocatalytic degradation ability of P25-TiO2 and CQDs/TiO2 nanoparticles in one hour to degrade MB. (d) Recycling capability test of CQDs/TiO2/GO foam of MB.
