Abstract

:
Transport results from measuring ultra-clean two-dimensional systems, containing tunable carrier densities from 7 × 10 8 cm 2 to 1 × 10 10 cm 2 , reveal a strongly correlated liquid up to r s 40 where a Wigner crystallization is anticipated. A critical behavior is identified in the proximity of the metal-to-insulator transition. The nonlinear DC responses for r s > 40 captures hard pinning modes that likely undergo a first order transition into an intermediate phase in the course of melting.

1. Introduction

Anderson insulators [1] describe a quantum localization effect of non-interacting electrons due to random disorders. Such an insulator is expected to prevail in two-dimensional (2D) systems even in the low disorder limit [2], as long as the sample size L and the electron coherence length l ϕ are beyond the localization length ζ . As far as the experimental results are concerned, Anderson localization provides a partial description of the transport behaviors because a 2D system can be a metal or an insulator as demonstrated extensively via the metal-insulator transition (MIT) [3,4] when the carrier density n is reduced below a critical value n c . While the disorder manifests in metals via the weak-localization (WL) [5] (with perturbation corrections from interaction [6,7]), it usually, as most results support, drives an Anderson insulator for n < n c where the low-T conduction is realized through hopping [7,8] among the localized states. Thus, this scenario of MIT is characterized by the prominent disorder effect, with perturbation influences from interaction. However, this picture is radically altered if disorder is sufficiently reduced. This paper is aimed to demonstrate an MIT arising from strong interaction effects.
Strong interaction in the low disorder limit causes correlated electron states to emerge. Examples range from the long sought-after Wigner crystal (WC) [9] to the non-Fermi liquids [10]. The effect of interaction is reflected in a ratio r s = E e e / E F as a function of the carrier density n: r s = m * e 2 / ϵ 2 π n . E e e = e 2 / ϵ a is the Coulomb energy, E F = n π 2 / m * is the Fermi energy, and m * is the effective mass. Continuous increase of r s should eventually cause a liquid-solid phase transition (LSPT). Since a WC is always pinned by disorder [11], this LSPT manifests a distinctive MIT accompanied by a symmetry breaking. The predicted critical point for the LSPT is r s W C 37 [12]. Therefore, it implies a considerable range for a strongly correlated non-Fermi liquid (non-FL) [10] and even possible intermediate phases (i.e. liquid crystals [13]) whose breakdown precedes the onset of a WC. Such an LSPT composes unknown manybody effects that are fundamentally important to a broad spectrum of strongly correlated phenomena. However, rigorous demonstration of a WC state and the LSPT are still lacking.
Realization of a large r s in a zero magnetic field requires the lowering of n which necessarily reduces both E e e and E F . The rising effect from disorder at dilute n tends to drive an Anderson localization (or percolation transition depending on the nature and the amount of the disorders) and breaks long-range orders. Most systems do not have sufficiently low disorders so that they become Anderson insulators (or a glass or mixed phases) before reaching r s W C . This is evidenced by the activated low-T conductivity σ ( T ) = σ 0 exp ( T * / T ) 1 / γ ( γ = 2 , 3 ) occurs whenever r s is raised beyond 20. Consequently, the value of n c (or r s c ) is sensitive to the disorder levels [14,15].
Adoption of ultra-clean 2D systems is crucial to avoid disorder-driven localization at large r s . For this study, the samples are p-type 2D systems in (100) GaAs/AlGaAs heterojunction-insulated-gate field-effect-transistors (HIGFETs). The carrier density p is tunable between 7 × 10 8 cm 2 to 3 × 10 10 cm 2 , corresponding to 70 > r s > 25 . Without any intentional doping, the carriers accumulate at the hetero-interface in response to a voltage bias on the metal gate beyond a threshold ( V t h 1.3 V). The sample contains a 6 mm ×   0.8 mm Hallbar fabricated with a self-align technique [16,17]. Ohmic contacts are realized via annealing AuBe alloys. Measurement is made inside a dilution refrigerator. The carrier density p is determined by the quantum Hall measurement. The carrier mobility μ reaches 1.04 × 10 6 cm 2 /V·s at p = 1.2 × 10 10 cm 2 .

2. Results

An MIT associated with an interaction-driven phase transition should occur around r s W C . The actual r s W C is not yet well determined though a somewhat higher value is anticipated considering the thermal, quantum, and disorder fluctuations. The presentation of the results starts with the metallic phase which indeed confirm a conductor up to r s c 40 r s W C where signatures supporting a critical behavior emerge. The critical r s is found to settle around r s W C , showing little dependence on the samples. At r s > r s c , the transport is nonactivated over a range of T which contrasts the disorder-driven localization. Finally, the nonlinear response for r s > r s c reveals prominent pinning modes characterized by a large translational correlation length ξ . The dependence on the temperature and the external bias display a behavior supporting an LSPT mediated by an intermediate phase.

2.1. Metal Behaviors at Large r s and a Critical Behavior

Though most 2D metallic behaviors are well described by the Fermi liquid (FL) [18], the breakdown of the FL is inevitable in both disorder- and interaction-dominated regimes. Indications of non-FL states are mostly documented for the metallic states in the proximity of n c corresponds to a r s 10–20. Evidence includes T-dependence of the resistivity [19,20,21,22], the magnetoreistance ( ρ x x ) in a parallel B | | field [22,23], and the Coulomb drags [24], etc. The suppression of disorder reduces r s c and opens up a range for the non-FL regime. Verification of a metallic state persisting up to the anticipated r s W C is crucial to establish a LSPT. The results below confirm a metal state up to a r s that is in fact approximately the r s W C .
The metallic state is determined by the T dependence of the resistivity ρ ( T ) measured with a four-probe AC lock-in technique. Figure 1a shows the ρ ( T ) for p = 5.9 × 10 9 cm 2 (or r s = 37 ) which unambiguously confirms a metal behavior: ρ ( T ) is below the quantum of conductance h / e 2 and d ρ / d T 3 k Ω / 100 mK has a positive sign below a characteristic temperature T m a x where ρ ( T ) peaks. T m a x 125 mK is T F = E F / k B 400 mK. Figure 1c confirms the same metal behavior in a different sample with a carrier density of p = 5.2 × 10 9 cm 2 (or r s = 40 ) down to T = 4 mK. Note that the ac current excitation is kept under 0.5 nA so that Joule heating at < 1 × 10 17 W is negligible. ρ ( T ) is studied for multiple carrier densities and the characteristics related to a critical behavior are found through the r s dependence of T m a x .
T m a x is sometimes associated with a renormalized Fermi energy E F * ( p ) [11]. As shown in Figure 1c where the p or ( r s ) dependence of T m a x is shown, T m a x is indeed below T F = E F / k B which is qualitatively correct from the stand point of a strong renormalization [10]. However, the nonlinear fall of T m a x with decreasing p is far too rapid to be accounted for by FL renormalization: a nearly three-fold drop from p = 8.5 to 5.8 × 10 9 cm 2 . In fact, the trend of diminishing T m a x suggests a critical behavior. A nonlinear three-free-parameter fit to a scaling T m a x ( r s ) = T 0 ( r s c r s ) α produces T 0 = 116.4 ± 5.3 mK, r s c = 41.08 ± 0.6 , and α = 0.488 ± 0.25 , with a R 2 0.9987 . r s c 41 corresponds to a critical density p c 5 × 10 9 cm 2 . Carrier density dependent scaling has been reported in Si-MOSFETs where a similar exponent is found [25]. Note that the value of m * = 0.35 m 0 used for extracting r s values is based on the cyclotron resonant studies [26,27] obtained for similar carrier densities.
In addition, the DC-IV reveals a nonlinear response incompatible with a FL. As shown in Figure 1d, the DC-IV for r s = 40 (or p = 5.2 × 10 9 cm 2 ) is nonlinear within a current window of just ± 0.4 nA. The derivative d V / d I shown in the inset figure varies continuously from 6.3 k Ω at I = 0 to 3.5 k Ω at I = ± 0.4 nA. The nonlinearity is easily resolved down to tiny drives below I 0.1 nA where the Joule heating dissipates negligibly at < 5 × 10 17 W. Nonlinear DC response associated with interaction has been extensively reported for both the insulating regime, in connection to the finite pinning effects [28], as well as in the metallic regime, as identified in mesoscopic systems in a B-field [29]. As shown later for larger r s , the nonlinear DC-IV becomes increasingly prominent and eventually manifests as a threshold similar to the pinned charge density waves (CDWs) [30]. The weak nonlinear response indicates the onset of a possible intermediate phase which is further discussed later in this report.

2.2. Critical Density and the Influence of the Disorder

As confirmed by most experiments [3,4,11,14,31,32], the r s c in more disordered systems is well below r s W C and it varies with the changes in the disorder levels. This is, however, contrasted by results obtained from ultra-clean systems where the r s c observed among various samples tends to settle approximately at a large r s c 40 . Figure 2a shows ρ ( T ) , on semi-logrithimic scales, obtained from one of the samples for a number of carrier densities from 1.2 to 12.5 × 10 9 cm 2 . Note that the four curves from 10 K to 300 mK (in black) are obtained in a 3-Helium cryostat and 1 K to 30 mK results are obtained in a dilution refrigerator. For p 4 × 10 9 cm 2 (blue curve), only insulators are found. p c is estimated as ∼ 4.5 × 10 9 cm 2 (or r s c 43 assuming m * = 0.35 m 0 ) which is in good agreement with the T m a x extrapolation [Figure 1b]. Consistent p c has been found in multiple HIGFET samples from four different wafers. Some of the results are reported in Refs. [19,20]. The histogram of p c shown in the inset figure is based on results collected from seven different samples.
Meanwhile, the transport of the insulator draws a distinction from the activated behavior. Figure 2b displays on double-logarithmic scales the qualitative differences in the conductivity σ ( T ) (= 1 / ρ ) between the non-activated T dependence in an ultra-clean case, with p = 1.5 × 10 9 cm 2 , and the activated T dependence in a more disordered case, with p = 1.6 × 10 9 cm 2 . Though similar values of σ ( T ) are found for both cases beyond 200 mK, an activated behavior is only observed for the more disordered system whose σ ( T ) plummets by more than three orders of magnitude compared to the clean case. A power-law fit, σ ( T ) T α , to the low T nonactivated results produces an α 1.35 . These striking differences are also observed in other studies [19,20].
The influences of the disorder is demonstrated in Figure 2c. When extra disorders are introduced, through LED illumination in our case, the nonactivated behavior diminishes and an Arrhenius activated transport is recovered as shown by the σ ( T ) versus 1 / T on semi-logarithmic scales. Consequently, p c rises substantially to nearly p = 9.2 × 10 9 cm 2 . A comparison to the variable range hopping (VRH) is provided in the inset of Figure 2c.

2.3. Nonlinear Responses and the Liquid-Solid Phase Transition

Detection of collective modes of possible WCs has been carried out in both the quantum Hall regime, with respect to pinning [28,33,34,35], resonant absorption (via RF (Radio frequency), microwaves, acoustic waves [36,37,38,39], and tunneling [40]), as well as in a zero magnetic field (B) [14,41,42,43]. Nevertheless, a WC phase is not yet well supported for a number of reasons. First, the correlation length ξ is rather small (≤ 1   μ m) and decays exponentially with increasing T. As the pinning strength scales with ξ [44,45], it explains why the observed differential resistance is not as robust as expected. These findings favor an intermediate or a mixture of liquid and solid phases. Second, the reported melting [37,38,40] is reflected via a smooth crossover [28,37,38,40], lacking a singularity that reflects the changes in the free energies across the phase boundary [46]. Some of the experimental challenges can be understood by the sensitive nature of the WC on the disorder, T, the magnetic field (for WC studies in the fractional quantum Hall regime), and even the experimental conditions. Suppression of disorder is key to not only reducing the chances of glass [47,48,49] or mixed phases, but also to maintaining an accessible critical temperature T c which can be suppressed substantially by disorder fluctuations [50,51,52]. The results presented below are based on the DC response as a probe to both pinning and melting effects.
Figure 3a shows the DC-IV obtained for r s 50 where a contrast is found between two close-by temperatures: 32 and 43 mK. The DC response at 43 mK or higher T (not shown) is approximately linear up to 50 pA and is invariant when switching the leads to different orientations. This finding is consistent with the previous results [28,34] interpreting an isotropic liquid. On the other hand, the DC-IV exhibits a nonlinear response at 32 mK, indicating the presence of pinning. The differential resistance r d measured with a current I below 5 pA is ∼ 18 M Ω . r d approaches a linear behavior with increasing I and reaches the same r d as for the 43 mK case. Assuming collective pinning of N = p ξ 2 carriers by a periodic potential after the CDW model, previous studies [28,34] adopted the following equation to estimate ξ :
I ( E ) sinh ( N e E a / T ) exp [ ( 2 N e E t h a / π T ) ]
E t h = V t h / L (L is the length between the voltage contacts) is the threshold electric field. At the threshold, e E t h a is 0.01 μ eV (or 0.1 mK) k B T , confirming a collective nature. As shown in Figure 3a, fitting the 32 mK curve to Equation (1) produces N 200 or ξ 14 a 1.4 μ m at R 2 = 0.9995 . Nevertheless, this fitting makes an assumption that N is only affected by T and is independent of V. This, however, is incorrect if a melting instead of depinning occurs. Note that these results associated with soft pinning are qualitatively consistent with the previous results [28].
Figure 3b shows the DC-IV obtained for the same r s at 29 mK where a threshold behavior appears. The sub-threshold pinning increases substantially as indicated by r d = d V / d I 100 M Ω . As shown by previous studies [28,34], ξ is estimated by balancing the total potential energy N ϵ and the pinning energy ( 1 / 2 ) κ a . κ = 0.245 e 2 p 3 / 2 / 4 π ϵ 0 ϵ is the sheer modulus and N = p ξ 2 is the particle numbers in the domain. For our case, this yields N 10 5 or ξ 50 μ m. As clearly shown by the results below by the general nonlinear IVs up to 43 mK, ξ decreases with increasing V. Therefore, the estimated ξ reflects a lower limit.
The pinning effect depends on both T and the external bias. Thus, to probe a thermal melting, the external bias signal must be limited to the lowest levels. Figure 3c shows the r d measured with I 0.5 p A at several temperatures. r d ( T ) exhibits a piecewise behavior, supporting a phase transition at T c 30 mK where a sharp jump of nearly 60 M Ω appears. The jump can be viewed as a potential energy loss if ξ is suddenly reduced. Because a pinned WC is characterized by the potential energy, r d scales with ξ . By limiting I below 0.5 pA, the nonlinear effect related to the level of excitation diminishes. Thus, this result implies a piecewise T dependence of ξ which is proportional to the energy within a WC domain. A recent Monte Carlo study indeed predicts a discontinuity in the free energy across the phase boundary between a WC and a quantum hexatic phase [51]. As a finite pinning [53] is retained above T c , this transition indeed ends up in an intermediate phase instead of a liquid. Melting through intermediate phases has been modeled for hexatics [51,54,55,56,57], stripes, bubbles, and microemulsions [58]. For the T dependence of r d above T c (or for 1 / T 0.033 in Figure 3c), r d falls exponentially with increasing T, which is qualitatively consistent with the exponential T dependence of ξ predicted for the hexatic phases [52,55,56].

3. Discussion

In addition to a thermal melting, a phase transition can also be triggered by the external bias. The threshold in the DC-IV behavior for r s > r s W C at T < T c is often associated with the depinning of a WC which is perhaps influenced by the sliding CDW picture. However, there is possibly a more energetically-favorable alternative—the onset of an intermediate phase whose correlation length decreases with increasing bias until reaching a liquid phase. The critical behavior demonstrated in the r s dependence of T m a x suggests a relevant energy scale of which the origin needs to be better understood. r s c being larger than the estimated r s W C is likely due to the finite disorder effect which can not be quantified at this point. The discontinuity [46] in the thermal melting is consistent with a recent theoretical work [51]. T c 30 mK is only 25% of the classical melting point E e e / 137 . This may be an indication to the fact that a quantum melting differs from the classical process such as the Kosterlitz-Thouless transition [59] due to an extra degree of freedom. In this preliminary report, several important questions are left unanswered. Subjects such as the nature of the intermediate phase, the free energy differences between the phases, effects from the spin-orbit coupling, etc. need further exploration.

Author Contributions

Conceptualization, J.H.; methodology, J.H.; software, J.H.; validation, J.H.; formal analysis, J.H.; investigation, J.H.; resources, J.H.; data curation, J.H.; writing—original draft preparation, J.H.; writing—review and editing, J.H.; visualization, J.H.; supervision, J.H.; project administration, J.H.; funding acquisition, J.H.”, Sample and crystal growth: L.P. and K.W.

Funding

The work at Wayne State University is supported by NSF under DMR-1410302, The work at Princeton University was funded by the Gordon and Betty Moore Foundation through the EPiQS initiative Grant GBMF4420, and by the National Science Foundation MRSEC Grant DMR 1420541.

Acknowledgments

The authors are grateful for the helpful discussions with Myriam Sarachik and David Ceperley.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
MDPIMultidisciplinary Digital Publishing Institute
DOAJDirectory of open access journals
TLAThree letter acronym
LDlinear dichroism

References

  1. Anderson, P.W. Absence of Diffusion in Certain Random Lattices. Phys. Rev. 1958, 109, 1492–1505. [Google Scholar] [CrossRef]
  2. Abrahams, E.; Anderson, P.W.; Licciardello, D.C.; Ramakrishnan, T.V. Scaling Theory of Localization: Absence of Quantum Diffusion in Two Dimensions. Phys. Rev. Lett. 1979, 42, 673–676. [Google Scholar] [CrossRef]
  3. Kravchenko, S.V.; Kravchenko, G.V.; Furneaux, J.E.; Pudalov, V.M.; D’Iorio, M. Possible metal-insulator transition at B = 0 in two dimensions. Phys. Rev. B 1994, 50, 8039–8042. [Google Scholar] [CrossRef]
  4. Kravchenko, S.V.; Mason, W.E.; Bowker, G.E.; Furneaux, J.E.; Pudalov, V.M.; D’Iorio, M. Scaling of an anomalous metal-insulator transition in a two-dimensional system in silicon at B = 0. Phys. Rev. B 1995, 51, 7038–7045. [Google Scholar] [CrossRef]
  5. Bergmann, G. Weak localization in thin films: a time-of-flight experiment with conduction electrons. Phys. Rep. 1984, 107, 1–58. [Google Scholar] [CrossRef]
  6. Altshuler, B.L.; Aronov, A.G.; Lee, P.A. Interaction Effects in Disordered Fermi Systems in Two Dimensions. Phys. Rev. Lett. 1980, 44, 1288–1291. [Google Scholar] [CrossRef]
  7. Efros, A.L.; Shklovskii, B.I. Coulomb gap and low temperature conductivity of disordered systems. J. Phys. C Solid State Phys. 1975, 8, L49. [Google Scholar] [CrossRef]
  8. Mott, N.F. Conduction in non-crystalline materials. Philos. Mag. 1969, 19, 835–852. [Google Scholar] [CrossRef] [Green Version]
  9. Wigner, E. On the Interaction of Electrons in Metals. Phys. Rev. 1934, 46, 1002–1011. [Google Scholar] [CrossRef]
  10. Varma, C.; Nussinov, Z.; Van Saarloos, W. Singular or non-Fermi liquids. Phys. Rep. 2002, 361, 267–417. [Google Scholar] [CrossRef] [Green Version]
  11. Abrahams, E.; Kravchenko, S.V.; Sarachik, M.P. Metallic behavior and related phenomena in two dimensions. Rev. Mod. Phys. 2001, 73, 251–266. [Google Scholar] [CrossRef] [Green Version]
  12. Tanatar, B.; Ceperley, D.M. Ground state of the two-dimensional electron gas. Phys. Rev. B 1989, 39, 5005–5016. [Google Scholar] [CrossRef]
  13. Wright, D.C.; Mermin, N.D. Crystalline liquids: The blue phases. Rev. Mod. Phys. 1989, 61, 385. [Google Scholar] [CrossRef]
  14. Yoon, J.; Li, C.C.; Shahar, D.; Tsui, D.C.; Shayegan, M. Wigner Crystallization and Metal-Insulator Transition of Two-Dimensional Holes in GaAs at B = 0. Phys. Rev. Lett. 1999, 82, 1744–1747. [Google Scholar] [CrossRef]
  15. Simmons, M.Y.; Hamilton, A.R.; Pepper, M.; Linfield, E.H.; Rose, P.D.; Ritchie, D.A.; Savchenko, A.K.; Griffiths, T.G. Metal-Insulator Transition at B = 0 in a Dilute Two Dimensional GaAs-AlGaAs Hole Gas. Phys. Rev. Lett. 1998, 80, 1292–1295. [Google Scholar] [CrossRef]
  16. Kane, B.E.; Pfeiffer, L.N.; West, K.W. High mobility GaAs heterostructure field effect transistor for nanofabrication in which dopant-induced disorder is eliminated. Appl. Phys. Lett. 1995, 67, 1262–1264. [Google Scholar] [CrossRef]
  17. Huang, J.; Novikov, D.S.; Tsui, D.C.; Pfeifer, L.N.; West, K.W. Two-Dimensional Holes in GaAs HIGFETs: Fabrication Methods and Transport Measurements. Int. J. Mod. Phys. B 2007, 21, 1219–1227. [Google Scholar] [CrossRef]
  18. Ando, T.; Fowler, A.B.; Stern, F. Electronic properties of two-dimensional systems. Rev. Mod. Phys. 1982, 54, 437–672. [Google Scholar] [CrossRef]
  19. Noh, H.; Lilly, M.P.; Tsui, D.C.; Simmons, J.A.; Pfeiffer, L.N.; West, K.W. Linear temperature dependence of conductivity in the apparent insulating regime of dilute two-dimensional holes in GaAs. Phys. Rev. B 2003, 68, 241308. [Google Scholar] [CrossRef]
  20. Huang, J.; Novikov, D.S.; Tsui, D.C.; Pfeiffer, L.N.; West, K.W. Nonactivated transport of strongly interacting two-dimensional holes in GaAs. Phys. Rev. B 2006, 74, 201302. [Google Scholar] [CrossRef]
  21. Huang, J.; Xia, J.S.; Tsui, D.C.; Pfeiffer, L.N.; West, K.W. Disappearance of Metal-Like Behavior in GaAs Two-Dimensional Holes below 30 mK. Phys. Rev. Lett. 2007, 98, 226801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Spivak, B.; Kravchenko, S.V.; Kivelson, S.A.; Gao, X.P.A. Colloquium: Transport in strongly correlated two dimensional electron fluids. Rev. Mod. Phys. 2010, 82, 1743–1766. [Google Scholar] [CrossRef]
  23. Pudalov, V.; Brunthaler, G.; Prinz, A.; Bauer, G. Breakdown of the anomalous two-dimensional metallic phase in a parallel magnetic field. Physica B 1998, 249, 697–700. [Google Scholar] [CrossRef]
  24. Pillarisetty, R.; Noh, H.; Tutuc, E.; De Poortere, E.; Lai, K.; Tsui, D.; Shayegan, M. Coulomb drag near the metal-insulator transition in two dimensions. Phys. Rev. B 2005, 71, 115307. [Google Scholar] [CrossRef] [Green Version]
  25. Kravchenko, S.; Sarachik, M. Metal–insulator transition in two-dimensional electron systems. Rep. Prog. Phys. 2003, 67, 1. [Google Scholar] [CrossRef]
  26. Lu, T.M.; Li, Z.F.; Tsui, D.C.; Manfra, M.J.; Pfeiffer, L.N.; West, K.W. Cyclotron mass of two-dimensional holes in (100) oriented GaAs/AlGaAs heterostructures. Appl. Phys. Lett. 2008, 92. [Google Scholar] [CrossRef]
  27. Zhu, H.; Lai, K.; Tsui, D.; Bayrakci, S.; Ong, N.; Manfra, M.; Pfeiffer, L.; West, K. Density and well width dependences of the effective mass of two-dimensional holes in (100) GaAs quantum wells measured using cyclotron resonance at microwave frequencies. Solid State Commun. 2007, 141, 510–513. [Google Scholar] [CrossRef] [Green Version]
  28. Goldman, V.J.; Santos, M.; Shayegan, M.; Cunningham, J.E. Evidence for two-dimentional quantum Wigner crystal. Phys. Rev. Lett. 1990, 65, 2189–2192. [Google Scholar] [CrossRef]
  29. Levy, L.; Dolan, G.; Dunsmuir, J.; Bouchiat, H. Magnetization of mesoscopic copper rings: Evidence for persistent currents. Phys. Rev. Lett. 1990, 64, 2074. [Google Scholar] [CrossRef]
  30. Grüner, G. The dynamics of charge-density waves. Rev. Mod. Phys. 1988, 60, 1129–1181. [Google Scholar] [CrossRef]
  31. Noh, H.; Lilly, M.P.; Tsui, D.C.; Simmons, J.A.; Hwang, E.H.; Das Sarma, S.; Pfeiffer, L.N.; West, K.W. Interaction corrections to two-dimensional hole transport in the large-rs limit. Phys. Rev. B 2003, 68, 165308. [Google Scholar] [CrossRef]
  32. Lai, K.; Pan, W.; Tsui, D.C.; Lyon, S.; Mühlberger, M.; Schäffler, F. Linear temperature dependence of the conductivity in Si two-dimensional electrons near the apparent metal-to-insulator transition. Phys. Rev. B 2007, 75, 033314. [Google Scholar] [CrossRef]
  33. Jiang, H.W.; Stormer, H.L.; Tsui, D.C.; Pfeiffer, L.N.; West, K.W. Magnetotransport studies of the insulating phase around ν = 1/5 Landau-level filling. Phys. Rev. B 1991, 44, 8107–8114. [Google Scholar] [CrossRef]
  34. Williams, F.I.B.; Wright, P.A.; Clark, R.G.; Andrei, E.Y.; Deville, G.; Glattli, D.C.; Probst, O.; Etienne, B.; Dorin, C.; Foxon, C.T.; et al. Conduction threshold and pinning frequency of magnetically induced Wigner solid. Phys. Rev. Lett. 1991, 66, 3285–3288. [Google Scholar] [CrossRef] [PubMed]
  35. Qiu, R.L.J.; Gao, X.P.A.; Pfeiffer, L.N.; West, K.W. Connecting the Reentrant Insulating Phase and the Zero-Field Metal-Insulator Transition in a 2D Hole System. Phys. Rev. Lett. 2012, 108, 106404. [Google Scholar] [CrossRef] [PubMed]
  36. Andrei, E.Y.; Deville, G.; Glattli, D.C.; Williams, F.I.B.; Paris, E.; Etienne, B. Observation of a Magnetically Induced Wigner Solid. Phys. Rev. Lett. 1988, 60, 2765–2768. [Google Scholar] [CrossRef] [PubMed]
  37. Chen, Y.P.; Sambandamurthy, G.; Wang, Z.H.; Lewis, R.M.; Engel, L.W.; Tsui, D.C.; Ye, P.D.; Pfeiffer, L.N.; West, K.W. Melting of a 2D quantum electron solid in high magnetic field. Nat. Phys. 2006, 2, 452–455. [Google Scholar] [CrossRef] [Green Version]
  38. Zhu, H.; Chen, Y.P.; Jiang, P.; Engel, L.W.; Tsui, D.C.; Pfeiffer, L.N.; West, K.W. Observation of a Pinning Mode in a Wigner Solid with ν = 1/3 Fractional Quantum Hall Excitations. Phys. Rev. Lett. 2010, 105, 126803. [Google Scholar] [CrossRef] [PubMed]
  39. Paalanen, M.A.; Willett, R.L.; Littlewood, P.B.; Ruel, R.R.; West, K.W.; Pfeiffer, L.N.; Bishop, D.J. rf conductivity of a two-dimensional electron system at small Landau-level filling factors. Phys. Rev. B 1992, 45, 11342–11345. [Google Scholar] [CrossRef]
  40. Jang, J.; Hunt, B.M.; Pfeiffer, L.N.; West, K.W.; Ashoori, R.C. Sharp tunnelling resonance from the vibrations of an electronic Wigner crystal. Nat. Phys. 2017, 13, 340. [Google Scholar] [CrossRef]
  41. Kravchenko, S.V.; Perenboom, J.A.A.J.; Pudalov, V.M. Two-dimensional electron solid formation in Si inversion layers. Phys. Rev. B 1991, 44, 13513–13518. [Google Scholar] [CrossRef] [Green Version]
  42. Pudalov, V.M.; D’Iorio, M.; Kravchenko, S.V.; Campbell, J.W. Zero-magnetic-field collective insulator phase in a dilute 2D electron system. Phys. Rev. Lett. 1993, 70, 1866–1869. [Google Scholar] [CrossRef] [PubMed]
  43. Brussarski, P.; Li, S.; Kravchenko, S.; Shashkin, A.; Sarachik, M. Transport evidence for a sliding two-dimensional quantum electron solid. Nat. Commun. 2018, 9, 3803. [Google Scholar] [CrossRef] [PubMed]
  44. Lee, P.A.; Rice, T.M. Electric field depinning of charge density waves. Phys. Rev. B 1979, 19, 3970–3980. [Google Scholar] [CrossRef]
  45. Yoshioka, D.; Fukuyama, H. Charge Density Wave State of Two-Dimensional Electrons in Strong Magnetic Fields. J. Phys. Soc. Jpn. 1979, 47, 394–402. [Google Scholar] [CrossRef]
  46. Anderson, P. Basic Notions of Condensed Matter Physics; Benjamin/Cummings: Menlo Park, CA, USA, 1984. [Google Scholar]
  47. Aoki, H. Effect of coexistence of random potential and electron-electron interaction in two-dimensional systems: Wigner glass. J. Phys. C 1979, 12, 633. [Google Scholar] [CrossRef]
  48. Chakravarty, S.; Kivelson, S.; Nayak, C.; Voelker, K. Wigner glass, spin liquids and the metal-insulator transition. Philos. Mag. Part B 1999, 79, 859–868. [Google Scholar] [CrossRef] [Green Version]
  49. Chitra, R.; Giamarchi, T. Zero field Wigner glass. J. Phys. IV France 2005, 131, 163–166. [Google Scholar] [CrossRef]
  50. Imada, M.; Takahashi, M. Quantum Monte Carlo Simulation of a Two-Dimensional Electron System–Melting of Wigner Crystal–. J. Phys. Soc. Jpn. 1984, 53, 3770–3781. [Google Scholar] [CrossRef]
  51. Clark, B.K.; Casula, M.; Ceperley, D.M. Hexatic and Mesoscopic Phases in a 2D Quantum Coulomb System. Phys. Rev. Lett. 2009, 103, 055701. [Google Scholar] [CrossRef]
  52. Knighton, T.; Wu, Z.; Huang, J.; Serafin, A.; Xia, J.; Pfeiffer, L.; West, K. Evidence of two-stage melting of Wigner solids. Phys. Rev. B 2018, 97, 085135. [Google Scholar] [CrossRef] [Green Version]
  53. Millis, A.J.; Littlewood, P.B. Radio-frequency absorption as a probe of the transition between the Wigner crystal and the fractionally quantized Hall state. Phys. Rev. B 1994, 50, 17632–17635. [Google Scholar] [CrossRef]
  54. Halperin, B.I.; Nelson, D.R. Theory of Two-Dimensional Melting. Phys. Rev. Lett. 1978, 41, 121–124. [Google Scholar] [CrossRef]
  55. Nelson, D.R.; Halperin, B.I. Dislocation-mediated melting in two dimensions. Phys. Rev. B 1979, 19, 2457–2484. [Google Scholar] [CrossRef]
  56. Nelson, D.R.; Halperin, B.I. Solid and fluid phases in smectic layers with tilted molecules. Phys. Rev. B 1980, 21, 5312–5329. [Google Scholar] [CrossRef]
  57. Young, A.P. Melting and the vector Coulomb gas in two dimensions. Phys. Rev. B 1979, 19, 1855–1866. [Google Scholar] [CrossRef]
  58. Spivak, B.; Kivelson, S.A. Phases intermediate between a two-dimensional electron liquid and Wigner crystal. Phys. Rev. B 2004, 70, 155114. [Google Scholar] [CrossRef]
  59. Kosterlitz, J.; Thouless, D. Long range order and metastability in two dimensional solids and superfluids. (Application of dislocation theory). J. Phys. C 1972, 5, L124. [Google Scholar] [CrossRef]

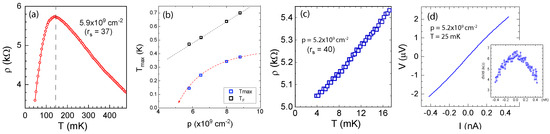

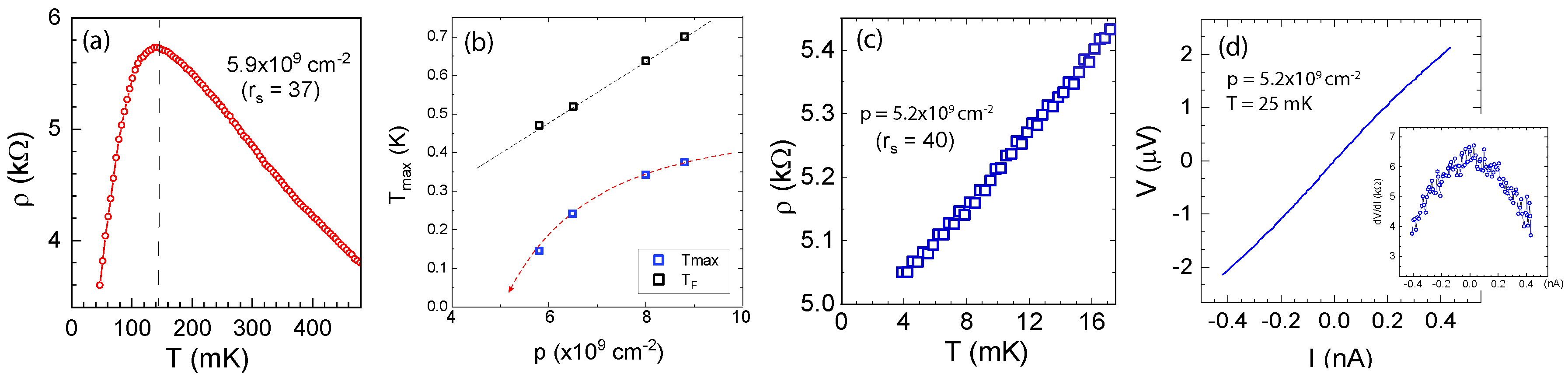

Figure 1. (a) T dependence of the sheet resistance for r s = 37 down to 40 mK and (b) The p dependence of T m a x in comparison to E F . (c) ρ ( T ) for r s = 40 down to 4 mK. (d) DC-IV for p = 5.2 × 10 9 cm 2 measured at 25 mK for a current range between 0 and ± 0.4 nA. Inset: d V / d I based on the IV result.
Figure 1. (a) T dependence of the sheet resistance for r s = 37 down to 40 mK and (b) The p dependence of T m a x in comparison to E F . (c) ρ ( T ) for r s = 40 down to 4 mK. (d) DC-IV for p = 5.2 × 10 9 cm 2 measured at 25 mK for a current range between 0 and ± 0.4 nA. Inset: d V / d I based on the IV result.
Applsci 09 00080 g001

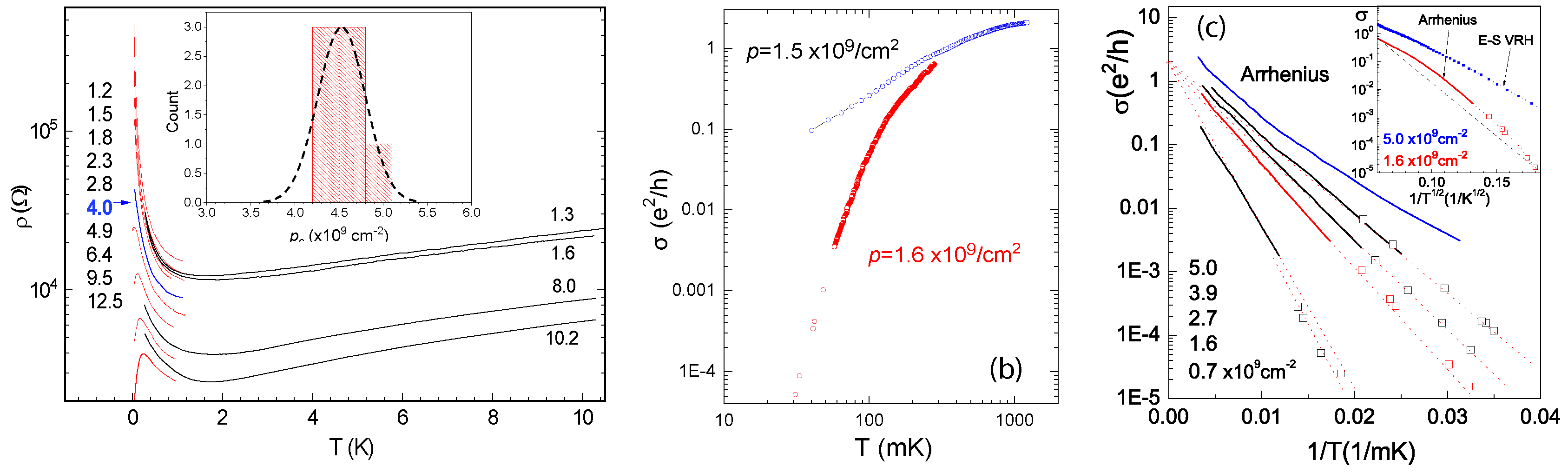

Figure 2. (a) T dependence of the resistivity ρ ( T ) for a carrier density range from 7 × 10 8 cm 2 to 1.25 × 10 10 cm 2 . (b) Comparison of the nonactived conductance (in blue) of a clean system to the activated hopping conductance (in red) of a more disordered system for p 1.5 × 10 9 cm 2 . (c) The nonactivated behavior is turned into an activated behavior as a result of increase of disorders. p is from 7 × 10 10 cm 2 to 5 × 10 9 cm 2 . Solid lines are the AC results and the scattered points are the DC results. Dotted lines are a guide to the eye. Inset: comparison between an Arrhenius hopping and the Efros-Shklovskii variable range hopping.
Figure 2. (a) T dependence of the resistivity ρ ( T ) for a carrier density range from 7 × 10 8 cm 2 to 1.25 × 10 10 cm 2 . (b) Comparison of the nonactived conductance (in blue) of a clean system to the activated hopping conductance (in red) of a more disordered system for p 1.5 × 10 9 cm 2 . (c) The nonactivated behavior is turned into an activated behavior as a result of increase of disorders. p is from 7 × 10 10 cm 2 to 5 × 10 9 cm 2 . Solid lines are the AC results and the scattered points are the DC results. Dotted lines are a guide to the eye. Inset: comparison between an Arrhenius hopping and the Efros-Shklovskii variable range hopping.
Applsci 09 00080 g002

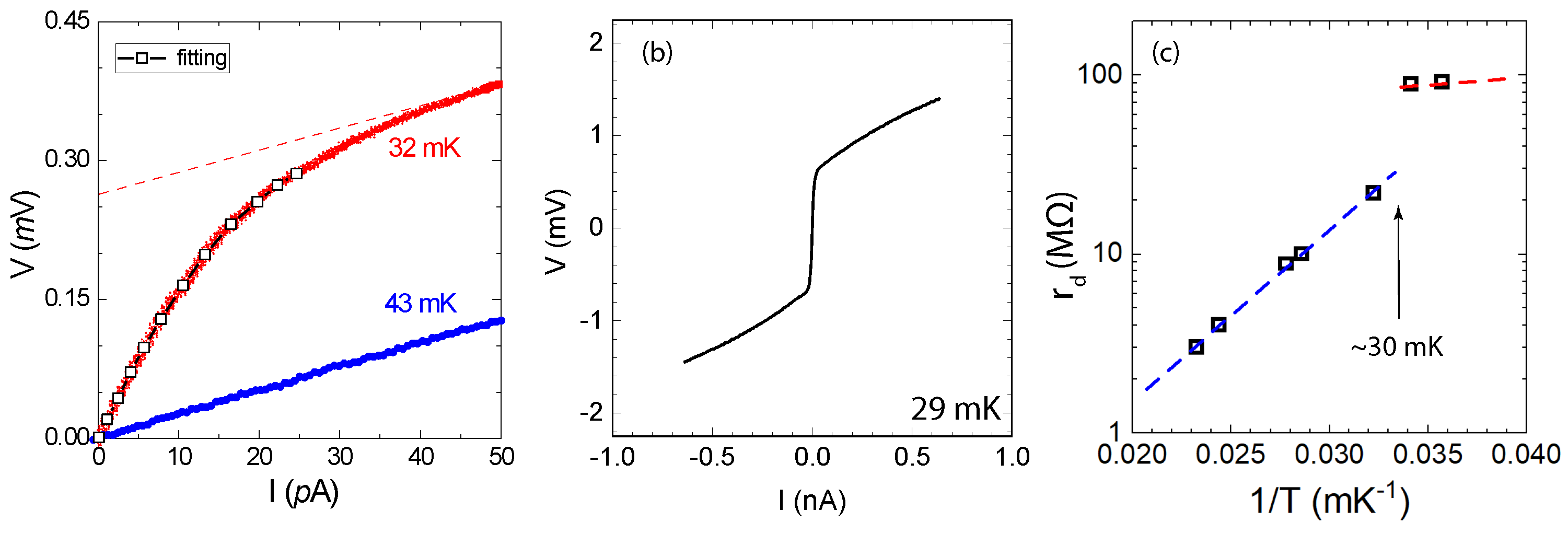

Figure 3. (a) Nonlinear and linear DC-IV for r s = 53 at 32 and 43 mK within a current window up to 50 p A. Dashed line is a guide for the eye. (b) Threshold DC-IV obtained at 29 mK for the same r s (c) Piecewise behavior of r d ( T ) displayed in log ( r d ) vs. 1 / T .
