Appl. Sci. 2018, 8(8), 1388; doi:10.3390/app8081388

Review
Photoelectrochemical Device Designs toward Practical Solar Water Splitting: A Review on the Recent Progress of BiVO4 and BiFeO3 Photoanodes
School of Materials Science and Engineering, Gwangju Institute of Science and Technology, 123 Cheomdangwagi-ro, Buk-gu, Gwangju 61005, Korea
*
Author to whom correspondence should be addressed.
Received: 26 July 2018 / Accepted: 13 August 2018 / Published: 17 August 2018

Abstract

:

Featured Application

Nanomaterials for Solar Water Splitting

Abstract

Solar-driven water splitting technology is considered to be a promising solution for the global energy challenge as it is capable of generating clean chemical fuel from solar energy. Various strategies and catalytic materials have been explored in order to improve the efficiency of the water splitting reaction. Although significant progress has been made, there are many intriguing fundamental phenomena that need to be understood. Herein, we review recent experimental efforts to demonstrate enhancement strategies for efficient solar water splitting, especially for the light absorption, charge carrier separation, and water oxidation kinetics. We also focus on the state of the art of photoelectrochemical (PEC) device designs such as application of facet engineering and the development of a ferroelectric-coupled PEC device. Based on these experimental achievements, future challenges, and directions in solar water splitting technology will be discussed.
Keywords:
oxide semiconductor; bismuth vanadate; bismuth ferrite; hematite; plasmonic effect; heterostructure film; gradient doping; oxygen evolution catalyst; facet engineering; ferroelectric

1. Introduction

Energy harvesting technology with a clean and renewable source of energy has drawn significant attention because of its possibility for solving the global energy challenge. Among the renewable energy sources including solar, wind, geothermal, and hydropower energy, solar seems the most desirable since it can support future societies in a sustainable way with the use of hydrogen gas as an energy carrier [1]. Along with that consideration, the solar-derived hydrogen production from water such as photoelectrochemical (PEC) water splitting has made significant progress [2,3]. In general, the PEC water splitting system consists of photoelectrodes (photoanode or photocathode), electrolyte, and a light source. Mostly, light-absorbing semiconductors have been used as the photoelectrode, and the electrode materials have been being of great interest in the field of PEC water splitting. Among various materials, this review focuses on bismuth vanadate (BiVO4) and bismuth ferrite (BiFeO3) which are small band gap oxide semiconductors. There are some advantages of using BiVO4 and BiFeO3 as the photoanode. Briefly, they are composed of inexpensive elements and they can utilize visible light. The latter becomes more important when they utilize the solar radiation on earth, since about half of the radiation on earth corresponds to the visible light. However, they suffer from excessive charge carrier recombination, poor charge transport, and slow water oxidation kinetics. In order to solve the problems, various efforts have been investigated and the detailed strategies will be discussed further in Section 2. The electrolyte in the PEC water splitting mainly consists of water, and the use of seawater as the unlimited feedstock for the production of hydrogen might be allowed through the investigation, using an aqueous solution of salts as the electrolyte. With a simulated one sun radiation from the light source, the PEC water splitting processes take place with several steps as follows (also see Figure 1):
  • Absorption of solar radiation by the photoelectrode, followed by charge carrier generation as a result of photoexcitation of electrons in the valence band of photoelectrode;
  • Separation and transport of charge carriers to the electrode surface by the internal or external bias applied through the circuit;
  • Oxidation of water at the anode by the photoexcited holes. Simultaneously, transport of H+ ions from the anode to the cathode, and transport of the photoexcited electrons to the cathode through an external circuit, followed by the reduction of H+ ions into hydrogen gas at the cathode by the photoexcited electrons.
As a result of the series of steps in the PEC water splitting, the solar energy can be converted into the hydrogen gas as the chemical fuel. The bottleneck for the realization of efficient and practical water splitting systems lies on the way to (1) effective charge carrier generation and separation, and (2) rapid water redox kinetics. The overall process is represented in Figure 1 with the PEC water splitting system consists of the photoanode and the metal counterpart as the cathode. More detailed issues on each step process and the strategies for efficient PEC devices will be discussed in Section 2 and Section 3.
This review seeks to provide the reader with the PEC device designs to improve the water splitting activity, and thereby aids the design of a highly efficient PEC device for practical solar water splitting. On one hand, the inherent problems including electron-hole recombination in bulk and on a small surface area per unit volume, which limits the activity of thin film photocatalysts in comparison with the porous and nanostructured morphologies (e.g., nanowires). On the other hand, as a model structure, the thin film configuration gives advantages that the understanding of complex relations between the light absorption, the charge separation, and the water redox kinetics becomes simple. In this regard, the review focuses on these investigations using thin film photocatalysts. In the next section, the review starts with describing the step processes including light absorption, the carrier separation and transport, and the water oxidation kinetics, respectively. After then, the discussions will be focused on the PEC device designs for investigating the enhancement of the water splitting reaction, that lead us to achieve more efficient water splitting devices. Another aim of the review is to introduce the state-of-the-art of PEC device designs; for example, the application of facet engineering and the development of ferroelectric-coupled PEC devices.

2. Strategies and Device Designs for Efficient PEC Water Splitting

2.1. Absorption of Solar Radiation

After the first report on photocatalytic water splitting by Fujishima and Honda [4], TiO2 had been focused upon as pioneer photocatalyst at the early-stage of development because of its abundance and its good resistance to various chemicals. In the same manner, considering that PEC water splitting is generally conducted using the aqueous solutions containing organic salts, various oxide semiconductors have been used as photoelectrodes, owing to its excellent chemical resistance. However, the large band gap energy of most oxide semiconductors limits the absorption of light to the near-UV region. Thus, the poor photocatalytic performances have been considered as a significant problem. In order to solve the problem, many researchers have endeavored to discover small band gap oxide semiconductors. As a result of such efforts, a few candidates have been introduced and investigated extensively. The promising candidates are BiVO4 [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24], Fe2O3 [25,26,27,28,29,30,31,32], and BiFeO3 [33,34,35]. Figure 2 shows the band gap energies and band edge positions of various semiconductors with respect to the water redox potential. After introduction of those small band gap oxides, the increased light absorption and photocatalytic efficiency were enabled by the utilization of visible light.
Another solution for overcoming the limitation of the light absorption is the application of localized surface plasmon resonance (LSPR) in metal nanoparticles (NPs) [36,37]. LSPR represents the oscillation of electrons in the metal NPs in response to the incident light, or electromagnetic waves. The physical phenomena for the LSPR-induced enhancement effects include: (1) the formation of the localized electric field and (2) the enhanced light absorption by the oscillation of the surface plasmon in the metal, which made is response to the incident light, and thereby, (3) the enhanced charge carrier generation [16]. Many researchers have reported the application of metal NPs into their PEC devices, since a peak resonant wavelength can be controlled in the visible region through adjusting metal elements, size, and shape [9,16,17,23,36,37,38,39,40]. This strategy is so called “plasmonic photocatalysis”. In the field of plasmonic photocatalysis, Au [9,17,20,23,32,41,42] and Ag [16,43] are the most frequently used metal species. Au and Ag NPs have been introduced to oxide semiconductors such as BiVO4 [9,16,17,20,23], TiO2 [41,42,43], and Fe2O3 [32]. In addition to the monometallic NPs, the multi-metallic NPs of PtAuCu alloys have been recently discovered as an effective hydrogen evolution catalyst [44]. Therefore, it is reasonable to expect that the investigation of multi-metallic NPs on the plasmonic photocatalysis will be performed in the near future.
Recently, Lee et al. reported the BiVO4 photoanode with shape-controlled Au NPs [23]. The shape-dependent LSPR effect was observed in the device, as shown in Figure 3a,b. The hemispherical Au NPs were deposited by an e-beam evaporator directly on the BiVO4 film, whereas the octahedral Au NPs were synthesized using seed-mediated growth method followed by attachment on the BiVO4. The authors performed a finite-different time-domain (FDTD) simulation to represent the spatial distribution of the LSPR-induced electric fields (LSPR-EFs) near the Au NPs (Figure 3c–h). The results showed that the octahedral Au NP shows higher LSPR-EFs, especially at sharp edges of the Au NP, than that of the hemispherical one. The BiVO4 with the octahedral Au NPs showed the best PEC performance (Figure 3i) and the enhancement could be explained as above. Moreover, the Mott-Schottky plot under dark conditions (Figure 3j) showed a lower flat band potential for the BiVO4 with octahedral Au NPs than that of bare BiVO4, which implies a more favorable band position for the PEC water splitting. Therefore, the improvement of PEC performance was attributed to the LSPR-induced enhanced light absorption by the plasmonic Au NPs on the BiVO4 film.
Zhang et al. investigated the size-dependent LSPR effect of Au NPs on the BiVO4 film. They prepared Au NPs with diameters of 10, 20, 30, 40, 60, and 80 nm. All samples with Au NPs showed enhanced PEC performance over the pristine BiVO4 film, and 20 and 30 nm diameters exhibited the highest photocurrent densities. In order to elucidate the reason for the enhancement, they performed FDTD simulation so that the LSPR-EFs in the different sizes of the Au NPs were simulated. The results indicated that the electric field enhancement was increased an increase in the diameter of Au NP. Therefore, photoexcited holes in the BiVO4 could diffuse to the surface of BiVO4 film and participate in the water redox reaction. Meanwhile, the visible light absorption was also improved by the presence of the Au NPs. Light absorption enhancement exhibited the maximum at around 530 nm, regardless of the size of the Au NPs. Thus, it can be inferred that the enhancement of PEC performance is attributed to the improved visible light absorption and effective carrier separation by the LSPR-EFs at the interface.

2.2. Separation and Transport of Charge Carrier

The photoexcited charge carriers in the photoelectrode need to move to active sites for participation in the water redox reaction. In order to efficiently split the water molecules and produce the hydrogen gas, these charge carriers avoid recombination before they reach the active sites. One promising solution is the creation internal built-in potential which forces the charge carriers to move to the surface. The internal potential can be created by forming heterojunctions with different oxides, doping of foreign elements, or introducing a metal onto the semiconductor [45]. The formation of heterojunction has been accepted as one of the most promising ways for the practical photocatalysts because of its effectiveness in separating electron-hole pairs. Therefore, much research has been reported on the enhancement of PEC performance in this manner.
Grigioni and co-workers reported on wavelength-dependent charge carrier separation in the WO3-BiVO4 heterostructure film [11]. Although many research results have suggested the improved carrier separation of the WO3-BiVO4 heterostructure, an understanding of the underlying dynamics is still elusive. Thus, they investigated the lifetime of photoexcited holes in the WO3-BiVO4 heterojunction by femtosecond transient absorption (TA) measurement with tunable pump wavelength. The results showed that the charge carrier transfer between the WO3 and the BiVO4 depends on the wavelength of irradiation. At a wavelength that is longer than the absorption edge of the WO3, the lifetime of photoexcited holes in the WO3-BiVO4 was longer than that of the single BiVO4 since the holes were effectively transferred into the WO3. However, when the wavelength was tuned across the absorption edge of the WO3, which were 460 nm and 387 nm in this report, the lifetime of holes in the WO3-BiVO4 were decreased. The authors attributed the results to the increased electron-hole recombination at the interface between the BiVO4 and the WO3. That is, the electron excitation from valence band of the WO3 at such conditions leads to the recombination of electrons from the WO3, and holes in the BiVO4. This tells us that another route for the recombination in the heterojunction of photocatalysts can negatively affect the whole PEC process, and thus, we need to carefully design the heterostructured PEC devices for efficient solar water splitting.
The doping of the photocatalysts also has been explored as one of the promising solutions. Recently, Abdi et al. investigated the Ca-doped BiVO4 system (Ca:BiVO4) [24]. The authors deposited the Ca-doped BiVO4 thin films by spray pyrolysis. During the deposition process, interestingly, spontaneous out-diffusion of Ca took place, which was resulted in gradual band bending through the film. Then, internal bend banding in the Ca:BiVO4 promoted the carrier separation in the bulk of film, since the out-diffusion of Ca occurred over the entire region. Moreover, the higher catalytic activity of the Ca-rich BiVO4 surface for water splitting contributed the enhanced performance. In the past, they had reported on the gradient W-doped BiVO4 (W:BiVO4) [6]. In that report, they deposited a 10-step gradient-doped W:BiVO4. As a result, the photocurrent was enhanced by about 60%, in comparison with that of the homogeneously W-doped BiVO4. Both results reported by the authors show that the poor carrier separation efficiency of the BiVO4 can be overcome by forming a multi-step doping method, thus creating effective built-in band bending. It is notable that the proposed strategy may be generally applicable to various oxide photoelectrode materials.

2.3. Kinetics of Water Redox Reactions

The basic water splitting reactions may be expressed as following water redox reactions:
2 H 2 O   ( liquid ) + 4 h + 4 H + + O 2   ( gas )
4 H + + 4 e 2 H 2   ( gas )
2 H 2 O   ( liquid ) 2 H 2   ( gas ) + O 2   ( gas )
Reaction (1) represents the water oxidation half reaction at the anode, also called the oxygen evolution reaction (OER). In the same manner, the water reduction half reaction in reaction (2) is called the hydrogen evolution reaction (HER). The overall water redox reaction in reaction (3) shows that the water is split into hydrogen and oxygen gases. In the redox reaction, the bottleneck lies in the OER (reaction (1)) since the delicate bond rearrangements of the two water molecules should take place to transform into the oxygen gas instead of its high-energy intermediates [46]. Thus, it induces the slow water oxidation kinetics, and unused holes are accumulated on the electrode surface. The accumulation of photoexcited holes is known as the reason for the photocorrosion of BiVO4, which reduces long-term stability as the photoanode [47]. In order to solve the problem, some solutions have been introduced, such as increasing the density of surface active sites or combining them with oxygen evolution co-catalysts (OECs). Recently, our group reported on the deposition of a high quality polycrystalline BiVO4 photoanode with a controllable surface area [10]. The BiVO4 film was grown by pulsed laser deposition (PLD), and the surface area of film was optimized by controlling process temperatures during growth of the BiVO4. As shown in Figure 4a–c, the morphology of the BiVO4 film could be controlled, since the growth condition satisfies a 3-dimensional island growth mode (the Volmer-Weber growth). At a low temperature of 230 °C, diffusion of Bi was suppressed and it resulted in the small BiVO4 grains being separated by voids (Figure 4a). When the temperature was increased to 330 °C and 430 °C, the voids disappeared by intergrain diffusion, and eventually, the coalescence of BiVO4 grain took place (Figure 4b,c). Therefore, the surface area of BiVO4 film decreased and it affected the PEC performance. As shown in Figure 4d–f, as the process temperature decreased to 230 °C, the interfacial area between the BiVO4 grains and the electrolyte increased. Moreover in the case, the photoexcited electrons in the BiVO4 grains were more effectively transferred to the bottom FTO electrode without recombination in bulk. Therefore, the PEC performance of the BiVO4 grown at 230 °C exhibited the highest current density of ~3.0 mA/cm2 at 1.23 VRHE, and the incident photon-to-current efficiency (IPCE) approaching 35% at the wavelength of 400 nm (Figure 4g,i). To elucidate the effect of the differences in light absorption, UV-vis-NIR absorption spectra were measured (Figure 4h). Note that the films grown at 230 and 330 °C clearly showed the visible light absorption. Consequently, it was implied that the improved PEC performance of the film grown at 230 °C was dominated by the increased surface area itself. The results of this study were quite interesting, since the excellent PEC performance of ~3.0 mA/cm2 was exhibited from a single layer of the BiVO4.
Along with the surface area control, the deposition of the OECs on the surface of photoelectrode has been one of the promising approaches for boosting the OER and increasing the stability of BiVO4 [21]. So far, the OECs have been deposited mostly by electrodeposition [48]. However, recently, Tang et al. introduced another method for OEC synthesis [49]. They investigated a strategy to deactivate the surface trapping states between BiVO4 and the OEC of CoOOH by synthesizing ultrathin CoOOH layers on the BiVO4 surface. In order to synthesize the ultrathin OECs on the BiVO4 surface, they used a hydrothermal method for firstly synthesizing the Co(OH)2 nanosheet. The obtained Co(OH)2 nanosheets were then dispersed into ethyl alcohol, followed by spin coating onto the prepared BiVO4 sample. Owing to the hydrothermal process for Co(OH)2 synthesis, the ultrathin OEC nanosheets were synthesized and the coverage of the multilayered CoOOH on the 3D coral-like BiVO4 surface were possible to produce. After heating, covalent-bonding between the CoOOH and the BiVO4 took place, which was crucial for deactivating the surface trapping states and promoting the charge separation. Consequently, the 3D coral-like BiVO4 with the ultrathin CoOOH OEC showed a larger photovoltage of 0.28 V, and a significant negative shift of onset potential than that of the pristine BiVO4 sample. The authors claimed that the great reduction in the number of surface trapping states could effectively facilitate the separation efficiency of photocarriers, even at a low-bias potential. Therefore, it could be inferred that more efficient and practical PEC water splitting devices could be realized by designing not only the photoelectrode itself, but also the effective configuration of the OECs on it.

3. Challenging PEC Device Designs toward Practical Solar Water Splitting

The step processes of PEC water splitting and the strategies for improving each step process are discussed so far. In this section, we will introduce the state-of-the-art of the PEC device designs and the fabrication techniques, including the application of facet engineering and the development of a ferroelectric coupled PEC device. These up-to-date research fields are still in their infancy, so we would like to refer to some representative works in years of recent development. The realization of such device designs is challenging, especially since it requires carefully controlled material growth techniques to expose favorably oriented crystal facets on the surface. Moreover, the application of ferroelectric into the PEC water splitting requires rigid and stable ferroelectric performance, with properties that can be made through elaborate fabrication methods, such as vacuum deposition of pulsed laser deposition (PLD) [33,35]. As a physical vapor deposition technique, PLD is well-known, as its advantages for its deposition of pure and highly crystalline thin film [50,51]. Owing to the aforementioned advantages, epitaxial thin films for various applications have been grown by the PLD and there are numerous designs of thin films and heterosturctures [52]. Recently, there have been many attempts to investigate the PEC water splitting performance of epitaxial thin film photocatalysts for better understanding on the material properties. The remaining part of the section will deal with some recent progress on these challenging and fascinating research fields.

3.1. Application of Facet Engineering in PEC Water Splitting

Many theoretical predictions based on computational methods shows that intrinsic anisotropic material properties such as electronic and optical properties in semiconductors should be understood for better explanation on the enhancement mechanism and realization of practical PEC devices. For instance, the intrinsic carrier transport properties and optical properties, depending on the crystallographic orientations of monoclinic-scheelite BiVO4, have been calculated using density functional theory (DFT) [53,54]. The calculation results show that the mobility of charge carriers is different depending on the BiVO4 crystal axis [54]. In detail, the mobility of electrons along [010] is 5 times higher than that of the [110] direction where a = 5.195 Å, b = 11.701 Å, c = 5.094 Å. In the same manner, however, the mobility of holes along [110] is two times higher than that of the [010] direction. Furthermore, it have been also known that the optical properties such as refractive indices and light absorption are different, so that preferentially oriented crystals can have spectral selectivity compared with the corresponding bulk crystal [53]. Therefore, it is implied that the devices with preferentially oriented crystal facets are needed since optimization between the carrier transport properties and light absorption of photoelectrodes can be achieved using such systems. There are some experiments on these considerations. Mostly, investigations have been performed for various semiconductors including BiVO4 [18,20], TiO2 [55], and Fe2O3 [28] in the form of powder. In order to investigate the facet-dependent PEC activity, those investigations showed photoreduction of Au or Ag compound on certain facet of the semiconductors. As a result, distinctive morphological changes, which were owing to the reduction of Au or Ag compound by photoexcited electrons at certain facets, could be observed by SEM images of each sample. However in those experimental circumstances, further understandings on PEC processes such as the carrier separation efficiency and the water redox kinetics, are limited. So far, a few research groups have reported on the fabrication of the preferentially oriented photoelectrode thin films, and have demonstrated the facet engineering that can show the relation between the facets of the semiconductor and the PEC water splitting activity. Han et al. deposited [001] preferentially oriented polycrystalline BiVO4 (p-BVO) thin films (where a = 5.1935 Å, b = 5.0898 Å, c = 11.6972 Å) on F-doped SnO2 (FTO) glass substrates by PLD [15]. For comparison, they also synthesized randomly oriented BiVO4 (r-BVO) by a sol–gel method. The synthesized films showed that about 41% of the BiVO4 grains were [001] oriented in the p-BVO while this was only ~3% for the r-BVO. Thus, a schematic image for the p-BVO and the r-BVO could be represented, as shown in Figure 5a. The PEC performance of both samples clearly showed that the photocurrent density of the p-BVO reached ~3.9 mA/cm2 at 1.23 VRHE which was about 16 times higher than that of the r-BVO (Figure 5b–d). A higher IPCE of the p-BVO (Figure 5d) could be attributed to the efficient charge separation (Figure 5f) and transport (Figure 5g) of the p-BVO in comparison with the r-BVO, since almost the same light absorption spectra were observed (Figure 5e). The results obviously indicated that the increased carrier transfer and the transport efficiency contributed to the improved PEC performance of the p-BVO. The electrochemical impedance spectroscopy (EIS) measurement supported the results by showing the smaller bulk and interface resistances of the p-BVO (Figure 5h).
However, in order to more deeply understand the intrinsic carrier transport properties depending on the crystallographic orientations and facets of the monoclinic-scheelite BiVO4, it is necessary to study the establishment of epitaxial single crystalline thin films. In general, the establishment of epitaxial thin film photoelectrode has been widely recognized to maximize the potential of photoelectrode materials in pursuit of a further breakthrough by exploring its fundamental properties. For that reason, recently, various research on the growth of the epitaxial BiVO4 have been reported, to explore its fundamental properties for PEC water splitting [13,19,56,57,58,59,60,61,62,63]. Based on many theoretical predictions, the research related to the growth of the epitaxial monoclinic BiVO4 (a = 5.1956 Å, b = 5.0935 Å, c = 11.6972 Å, β = 90.387°) films have been focused on growth along the c-axis. The growth of epitaxial BiVO4 (001) thin films was firstly achieved on a yttria-stabilized zirconia (YSZ, a = 5.145 Å) substrate by molecular beam epitaxy [56]. However, the PEC properties for the epitaxial BiVO4 (001) thin films could have not measured due to the absence of conductive electrode materials. On the other hand, Van et al. fabricated the epitaxial BiVO4 (001) thin films by the PLD, and the photocathodic properties for the epitaxial BiVO4 (001) thin films were observed by introducing SrRuO3 as the bottom electrode [58]. In addition to epitaxial monolayer thin films, many studies have been reported on epitaxial heterojunction thin films. Our group recently reported that the self-assembled BiVO4-WO3 heterostructured thin films could be grown epitaxially in the c-axis orientation to investigate the charge interaction between the BiVO4 and the WO3 [59]. The growth of epitaxial BiVO4 (001) thin films also could be achieved on the SrTiO3 (001) (STO, a = 3.905 Å) substrate by the insertion of the WO3 as template layer, which could reduce the lattice mismatch between the BiVO4 and the STO [13]. In addition, Zhang et al. reported on the improved PEC performance of the epitaxial BiVO4 (001) thin film by inserting lutetium oxide (Lu2O3) as a hole blocking layer [60].
Although the above-mentioned studies have well demonstrated on the growth of epitaxial BiVO4 (001), further identification of the theoretical predictions that the electrical conductivity of the BiVO4 is greater along the ab-plane than along the c-axis requires more challenging investigations and techniques [62,63]. The anisotropic transport property of the BiVO4 can be explained in terms of the crystalline structure, which is that charge carrier transport along the c-axis is only generated by nearest-neighbor hopping, while along the ab-plane it can be generated by both nearest-neighbor hopping and next-nearest-neighbor hopping. Therefore, the difference causes the enhanced hopping in the ab-plane. Most recently, based on the anisotropic electrical conductivity of the BiVO4, the anisotropic charge transport efficiency of the BiVO4 has been investigated by fabricating the epitaxial oxide thin films with different crystallographic orientations for the PEC water splitting [19]. In that report, the epitaxial BiVO4 (001) thin films were fabricated on the YSZ (001) substrate as reported in the previous studies, while the epitaxial BiVO4 (010) thin films were firstly grown on the STO (001) substrate by the domain match epitaxy (DME). Interestingly, the photocurrent density of the epitaxial BiVO4 (010) (2.29 mA/cm2) showed significantly enhanced values in comparison with that of the epitaxial BiVO4 (001) (0.74 mA/cm2) due to the improvement of the charge transport efficiency as shown in Figure 6a. The EIS spectra of the epitaxial BiVO4 with different crystallographic orientations revealed that a smaller semicircle in the epitaxial BiVO4 (010) was observed due to the high photoactivity, and the better kinetic charge transfer (Figure 6b). The wavelength-dependent properties observed by the IPCE also showed that it was significantly enhanced in the epitaxial BiVO4 (010) than that of the epitaxial BiVO4 (001) (Figure 6c). Consequently, it could be understood that the in-depth understanding on effect of specific crystallographic orientations in the design of the metal oxide thin film photoelectrodes would be highly beneficial for the further improvement of performances, and a deeper understanding of PEC water splitting.

3.2. Development of Ferroelectric Coupled PEC Device

In order to efficiently convert solar energy into electrical or chemical energy, the charge carrier separation and collection has generally been considered as one of the most decisive factors. Also, it is well known that the internal electric field developed in conventional p–n junctions enables efficient charge separation and collection. Hence, attempts to utilize the unusual photovoltaic effect of the ferroelectric oxides have been widely reported. The studies have shown that the spontaneous polarization of the ferroelectric oxides, which creates an internal electric field, provides significant improvements in the charge carrier separation and collection. Herein, the correlation between the spontaneous polarization and the internal electric field can be explained as follows. The high built-in-potential at the interface is determined by quantifying the polarization effect, which can be indicated as the potential height of ferroelectric band bending ( P δ / ε , Equation (4)). Additionally, the electric field at the interface can be determined by Equation (5) [64].
V bi = V bi ± P ε δ
E = 2 qN eff ( V + V bi ) ε ± P ε
where Vbi′ is the built-in potential at the interface, Vbi is the built-in potential, P is the polarization of ferroelectrics, ε is the dielectirc constant, δ is the distance between the polarization charge and the interface with the electrode, E is the electric field at the interface, q is the electric charge, and Neff is the effective charge density. Note that the spontaneous polarization and the internal electric field are linearly aligned. Recently, many studies have been widely conducted to apply this unique property of the ferroelectric materials to PEC water splitting. However, in spite of the advantageous photovoltaic effect, most ferroelectric materials, including BaTiO3, PbTiO3, and Pb(Zr, Ti)O3 typically have the wide bandgap that absorbs only a short range of the visible spectrum [65]. Fortunately, among the ferroelectric materials, the BiFeO3 have a relatively narrow bandgap in the range 2.2~2.7 eV [66,67]. For that reason, various studies on the ferroelectric BiFeO3 photoelectrodes have been reported for PEC water splitting [35,68,69,70,71,72,73]. Recently, our group reported that the effect of applying ferroelectric BiFeO3 thin films to PEC water splitting, which could be systematically summarized as shown in Figure 7 [35]. As described in Figure 7a–c, the schematic shows the energy band diagram of the BiFeO3 thin film photoanodes in the PEC water splitting system to help with understanding on the effect of ferroelectric switching with different polarization states. In the no-polarization state, each photoexcited carriers are separated inefficiently on both sides of the photoanode without the energy band bending (Figure 7a). However, the downward ferroelectric switching of BiFeO3 induces negative (positive) bound charges toward the electrolyte/photoanode (photoanode/bottom electrode) interface (Figure 7b). As a result, each band bending significantly enhances PEC performances. On the other hand, the high built-in-potential by the ferroelectric polarization causes upward (downward) band bending toward the electrolyte/photoanode (photoanode/bottom electrode) interface. In this case that the upward ferroelectric switching of the BiFeO3 is induced, each band bending operates as the barrier for photoexcited carriers, and this deteriorates PEC performances (Figure 7c). In addition, interestingly, BiFeO3 has been widely reported to have different polarization values with different crystallographic orientations, as shown in Figure 7d [74,75,76,77,78]. The different ferroelectric polarization values of the BiFeO3, which depend on different crystallographic orientations, induce the differences in the energy band bending height. Figure 7e indicates the difference in the energy band bending height induced by the different spontaneous polarization values in the downward polarization state. Especially, (111)pc-oriented BiFeO3 has the highest energy band bending height because of its highest spontaneous polarization value among all crystallographic orientations. In conclusion, the most efficient charge separation and collection of the photogenerated carriers can be obtained in the (111)pc BiFeO3 photoanode.
There are many limitations inherent in the ferroelectric materials in terms of the light absorption and the photoactivity when using ferroelectric materials alone as PEC water splitting photoelectrodes. Thus, in recent years, the ferroelectric materials have not been used as a single material for the PEC water splitting, but as a part of the heterojunction structures to harness the ferroelectric energy band bending. For instance, Yang et al. synthesized the ferroelectric BaTiO3/TiO2 heterojunction structure, which exhibited the improved PEC performances as a result of the enhanced charge separation efficiency induced by the ferroelectric polarization of BaTiO3 [79]. In addition, Xie et al. reported the PEC performance of the ferroelectric BiFeO3/BiVO4 composite photoanode fabricated by the chemical solution deposition [34]. The result showed that the photoanodic property of the ferroelectric BiFeO3/BiVO4 heterostructure film was significantly improved by the effect of the surface passivation and the reduced charge recombination by the BiFeO3. To date, it is known that the built-in band bending induced by the spontaneous polarization of the ferroelectric materials enables the improved charge separation. Because the application of ferroelectric materials into PEC water splitting has plentiful of undiscovered strategies that are yet to be explored, it is expected to be intensively investigated.

4. Conclusions and Future Outlook

Energy harvesting technology from the unlimited source of solar radiation has been considered as a sustainable solution for the global energy challenge. In that respect, the solar-driven water splitting technology has greatly progressed so far, since hydrogen as a product of water splitting reaction is expected to support future societies. Here, we reviewed the enhancement strategies, and recent progress on the device designs toward the efficient and practical PEC solar water splitting. In decades of research, many researchers have endeavored to discover small band gap semiconductors, and this has resulted in the development of BiVO4, Fe2O3 etc. Introduction of those semiconductors into the photoelectrode have brought the utilization of visible light, which results in increased photocatalytic efficiency. However, there are still problems remaining, such as the poor charge separation in the bulk and the slow oxidation kinetics. Recently, various efforts are being investigated, including the strategies of fabricating heterostructures, loading plasmonic NPs, gradient-doping of foreign elements, and synthesizing OECs on the surface. Due to the above-mentioned efforts, more efficient charge separation efficiency and faster kinetics of oxidation have been achieved, and this enables a deep understanding of PEC water splitting. Moreover, the application of plasmonic NPs into PEC water splitting has made it possible to develop visible-light-responsive photoelectrodes consisting of large band gap oxides. Based on these achievements, it is expected that further improvements of the plasmonic photocatalysts will be available by designing plasmonic NPs with various shapes, structures, and compositions.
Most recently, in order to achieve further improvement, very interesting and challenging attempts are being explored. One is so-called facet engineering which requires delicate material growth techniques to expose certain crystal facets on the surface of photoelectrodes. By DFT calculations, it is known that the intrinsic carrier transport properties and the light absorption abilities are different depending on the crystallographic orientations of semiconductors. Therefore, a PEC device with preferentially oriented crystal facets on its surface is crucial for achieving optimization between the carrier transport, the light absorption efficiency, and the water oxidation kinetics. The other one is a ferroelectric coupled PEC device. To date, the positive effect of the built-in potential induced by the spontaneous polarization of the ferroelectrics on charge separation has been reported. However, this state-of-the-art PEC device design is still in its infancy. Although the fabrication of ferroelectrics requires the elaborate deposition process, well known facts on ferroelectrics, such as the different polarization values depending on the different crystallographic orientations, imply that there are numerous of undiscovered fascinating strategies.
The various enhancement strategies and the device designs are summarized in this review. We believe that the practical PEC water splitting can be achieved by combining two or more introduced strategies and designs. Especially, the combination of the OECs and the facet engineering or the ferroelectric coupled PEC devices seem more promising and fascinating. In addition, the cost-effectiveness and the long-term stability should be considered for the commercialization of PEC water splitting technology. In that respect, the use of inexpensive materials, for example, semiconductors including BiVO4, BiFeO3, and Fe2O3, and OECs of NiOOH, FeOOH, CoOOH etc. should be taken into account for future development.

Author Contributions

S.L. supervised the overall project and S.Y.J., J.S. and S.L. co-wrote the manuscript.

Funding

This research was funded by [Ministry of Education-Korea] grant number [NRF- 2016R1D1A1B03931748] and [Ministry of Science and ICT-Korea] grant number [NRF- 2017M3D1A1040828].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Turner, J.A. Sustainable hydrogen production. Science 2004, 305, 972–974. [Google Scholar] [CrossRef] [PubMed]
  2. Jiang, C.; Moniz, S.J.; Wang, A.; Zhang, T.; Tang, J. Photoelectrochemical devices for solar water splitting–materials and challenges. Chem. Soc. Rev. 2017, 46, 4645–4660. [Google Scholar] [CrossRef] [PubMed]
  3. Ong, W.-J.; Tan, L.-L.; Ng, Y.H.; Yong, S.-T.; Chai, S.-P. Graphitic carbon nitride (g-C3N4)-based photocatalysts for artificial photosynthesis and environmental remediation: Are we a step closer to achieving sustainability? Chem. Rev. 2016, 116, 7159–7329. [Google Scholar] [CrossRef] [PubMed]
  4. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  5. Abdi, F.F.; Firet, N.; van de Krol, R. Efficient BiVO4 thin film photoanodes modified with cobalt phosphate catalyst and W-doping. ChemCatChem 2013, 5, 490–496. [Google Scholar] [CrossRef]
  6. Abdi, F.F.; Han, L.; Smets, A.H.; Zeman, M.; Dam, B.; Van De Krol, R. Efficient solar water splitting by enhanced charge separation in a bismuth vanadate-silicon tandem photoelectrode. Nat. Commun. 2013, 4, 2195. [Google Scholar] [CrossRef] [PubMed]
  7. Dong, W.; Guo, Y.; Guo, B.; Li, H.; Liu, H.; Joel, T.W. Enhanced photovoltaic effect in BiVO4 semiconductor by incorporation with an ultrathin BiFeO3 ferroelectric layer. ACS Appl. Mater. Interfaces 2013, 5, 6925–6929. [Google Scholar] [CrossRef] [PubMed]
  8. Kim, T.W.; Choi, K.-S. Nanoporous BiVO4 photoanodes with dual-layer oxygen evolution catalysts for solar water splitting. Science 2014, 343, 1245026. [Google Scholar] [CrossRef] [PubMed]
  9. Zhang, L.; Herrmann, L.O.; Baumberg, J.J. Size dependent plasmonic effect on BiVO4 photoanodes for solar water splitting. Sci. Rep. 2015, 5, 16660. [Google Scholar] [CrossRef] [PubMed]
  10. Jeong, S.Y.; Choi, K.S.; Shin, H.-M.; Kim, T.L.; Song, J.; Yoon, S.; Jang, H.W.; Yoon, M.-H.; Jeon, C.; Lee, J. Enhanced photocatalytic performance depending on morphology of bismuth vanadate thin film synthesized by pulsed laser deposition. ACS Appl. Mater. Interfaces 2016, 9, 505–512. [Google Scholar] [CrossRef] [PubMed]
  11. Grigioni, I.; Stamplecoskie, K.G.; Jara, D.H.; Dozzi, M.V.; Oriana, A.; Cerullo, G.; Kamat, P.V.; Selli, E. Wavelength-dependent ultrafast charge carrier separation in the WO3/BiVO4 coupled system. ACS Energy Lett. 2017, 2, 1362–1367. [Google Scholar] [CrossRef]
  12. Song, H.; Li, C.; Van, C.N.; Dong, W.; Qi, R.; Zhang, Y.; Huang, R.; Chu, Y.-H.; Duan, C.-G. Role of indium tin oxide electrode on the microstructure of self-assembled WO3-BiVO4 hetero nanostructures. J. Appl. Phys. 2017, 122, 175301. [Google Scholar] [CrossRef]
  13. Song, J.; Cha, J.; Lee, M.G.; Jeong, H.W.; Seo, S.; Yoo, J.A.; Kim, T.L.; Lee, J.; No, H.; Jeong, S.Y. Template-engineered epitaxial BiVO4 photoanodes for efficient solar water splitting. J. Mater. Chem. A 2017, 5, 18831–18838. [Google Scholar] [CrossRef]
  14. Wang, S.; Chen, P.; Yun, J.H.; Hu, Y.; Wang, L. An electrochemically treated BiVO4 photoanode for efficient photoelectrochemical water splitting. Angew. Chem. Int. Ed. 2017, 56, 8500–8504. [Google Scholar] [CrossRef] [PubMed]
  15. Han, H.S.; Shin, S.; Kim, D.H.; Park, I.J.; Kim, J.S.; Huang, P.-S.; Lee, J.-K.; Cho, I.S.; Zheng, X. Boosting the solar water oxidation performance of a BiVO4 photoanode by crystallographic orientation control. Energy Environ. Sci. 2018, 11, 1299–1306. [Google Scholar] [CrossRef]
  16. Jeong, S.Y.; Shin, H.-M.; Jo, Y.-R.; Kim, Y.J.; Kim, S.; Lee, W.-J.; Lee, G.J.; Song, J.; Moon, B.J.; Seo, S. Plasmonic silver nanoparticle-impregnated nanocomposite BiVO4 photoanode for plasmon-enhanced photocatalytic water splitting. J. Phys. Chem. C 2018, 122, 7088–7093. [Google Scholar] [CrossRef]
  17. Kim, S.; Yu, Y.; Jeong, S.Y.; Lee, M.G.; Jeong, H.W.; Kwon, Y.M.; Baik, J.M.; Park, H.; Jang, H.W.; Lee, S. Plasmonic gold nanoparticles-decorated BiVO4/ZnO nanowire heterostructure photoanodes for efficient water oxidation. Catal. Sci. Technol. 2018. [Google Scholar] [CrossRef]
  18. Li, J.; Guo, L.; Zhou, J.; Song, Q.; Liang, Z. Enhancing the photoelectrochemical performance of BiVO4 by decorating only its (040) facet with self-assembled Ag@AgCl QDs. J. Solid State Electron. 2018, 1–10. [Google Scholar] [CrossRef]
  19. Song, J.; Seo, M.J.; Lee, T.H.; Jo, Y.-R.; Lee, J.; Kim, T.L.; Kim, S.-Y.; Kim, S.-M.; Jeong, S.Y.; An, H. Tailoring crystallographic orientations to substantially enhance charge separation efficiency in anisotropic BiVO4 photoanodes. ACS Catal. 2018, 8, 5952–5962. [Google Scholar] [CrossRef]
  20. Zhou, C.; Wang, S.; Zhao, Z.; Shi, Z.; Yan, S.; Zou, Z. A facet-dependent schottky-junction electron shuttle in a BiVO4 {010}–Au–Cu2O Z-scheme photocatalyst for efficient charge separation. Adv. Funct. Mater. 2018, 28, 1801214. [Google Scholar] [CrossRef]
  21. Park, Y.; McDonald, K.J.; Choi, K.-S. Progress in bismuth vanadate photoanodes for use in solar water oxidation. Chem. Soc. Rev. 2013, 42, 2321–2337. [Google Scholar] [CrossRef] [PubMed]
  22. Kim, T.L.; Choi, M.-J.; Jang, H.W. Boosting interfacial charge transfer for efficient water-splitting photoelectrodes: Progress in bismuth vanadate photoanodes using various strategies. MRS Commun. 2018, 1–14. [Google Scholar] [CrossRef]
  23. Lee, M.G.; Moon, C.W.; Park, H.; Sohn, W.; Kang, S.B.; Lee, S.; Choi, K.J.; Jang, H.W. Dominance of plasmonic resonant energy transfer over direct electron transfer in substantially enhanced water oxidation activity of BiVO4 by shape-controlled Au nanoparticles. Small 2017, 13, 1701644. [Google Scholar] [CrossRef] [PubMed]
  24. Abdi, F.F.; Starr, D.E.; Ahmet, I.Y.; van de Krol, R. Photocurrent enhancement by spontaneous formation of a p-n junction in Ca-doped bismuth vanadate photoelectrodes. ChemPlusChem 2018. [Google Scholar] [CrossRef]
  25. Pendlebury, S.R.; Barroso, M.; Cowan, A.J.; Sivula, K.; Tang, J.; Grätzel, M.; Klug, D.; Durrant, J.R. Dynamics of photogenerated holes in nanocrystalline α-Fe2O3 electrodes for water oxidation probed by transient absorption spectroscopy. Chem. Commun. 2011, 47, 716–718. [Google Scholar] [CrossRef] [PubMed]
  26. Zhong, D.K.; Cornuz, M.; Sivula, K.; Grätzel, M.; Gamelin, D.R. Photo-assisted electrodeposition of cobalt–phosphate (Co–Pi) catalyst on hematite photoanodes for solar water oxidation. Energy Environ. Sci. 2011, 4, 1759–1764. [Google Scholar] [CrossRef]
  27. Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Bisquert, J.; Hamann, T.W. Photoelectrochemical and impedance spectroscopic investigation of water oxidation with “Co–Pi”-coated hematite electrodes. J. Am. Chem. Soc. 2012, 134, 16693–16700. [Google Scholar] [CrossRef] [PubMed]
  28. Grave, D.A.; Klotz, D.; Kay, A.; Dotan, H.; Gupta, B.; Visoly-Fisher, I.; Rothschild, A. Effect of orientation on bulk and surface properties of Sn-doped hematite (α-Fe2O3) heteroepitaxial thin film photoanodes. J. Phys. Chem. C 2016, 120, 28961–28970. [Google Scholar] [CrossRef]
  29. Hajibabaei, H.; Gao, Y.; Hamann, T.W. Advances in Photoelectrochemical Water Splitting: Theory, Experiment and Systems Analysis (Energy and Environment Series), 1st ed.; Royal Society of Chemistry: Cambridge, UK, 2018; pp. 100–127. ISBN 1782629254. [Google Scholar]
  30. Li, W.; Yang, K.R.; Yao, X.; He, Y.; Dong, Q.; Brudvig, G.W.; Batista, V.S.; Wang, D. Facet-dependent kinetics and energetics of hematite for solar water oxidation reactions. ACS Appl. Mater. Interfaces 2018. [Google Scholar] [CrossRef] [PubMed]
  31. Grave, D.A.; Yatom, N.; Ellis, D.S.; Toroker, M.C.; Rothschild, A. The “rust” challenge: On the correlations between electronic structure, excited state dynamics, and photoelectrochemical performance of hematite photoanodes for solar water splitting. Adv. Mater. 2018, 1706577. [Google Scholar] [CrossRef] [PubMed]
  32. Archana, P.S.; Pachauri, N.; Shan, Z.; Pan, S.; Gupta, A. Plasmonic enhancement of photoactivity by gold nanoparticles embedded in hematite films. J. Phys. Chem. C 2015, 119, 15506–15516. [Google Scholar] [CrossRef]
  33. Quynh, L.T.; Van, C.N.; Bitla, Y.; Chen, J.W.; Do, T.H.; Tzeng, W.Y.; Liao, S.C.; Tsai, K.A.; Chen, Y.C.; Wu, C.L. Self-assembled BiFeO3-ε-Fe2O3 vertical heteroepitaxy for visible light photoelectrochemistry. Adv. Energy Mater. 2016, 6, 1600686. [Google Scholar] [CrossRef]
  34. Xie, J.; Guo, C.; Yang, P.; Wang, X.; Liu, D.; Li, C.M. Bi-functional ferroelectric BiFeO3 passivated BiVO4 photoanode for efficient and stable solar water oxidation. Nano Energy 2017, 31, 28–36. [Google Scholar] [CrossRef]
  35. Song, J.; Kim, T.L.; Lee, J.; Cho, S.Y.; Cha, J.; Jeong, S.Y.; An, H.; Kim, W.S.; Jung, Y.-S.; Park, J. Domain-engineered BiFeO3 thin-film photoanodes for highly enhanced ferroelectric solar water splitting. Nano Res. 2018, 11, 642–655. [Google Scholar] [CrossRef]
  36. Linic, S.; Christopher, P.; Ingram, D.B. Plasmonic-metal nanostructures for efficient conversion of solar to chemical energy. Nat. Mater. 2011, 10, 911–921. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, X.; Chen, Y.L.; Liu, R.-S.; Tsai, D.P. Plasmonic photocatalysis. Rep. Prog. Phys. 2013, 76, 046401. [Google Scholar] [CrossRef] [PubMed]
  38. Kleemann, W. Absorption of colloidal silver in KCl. Z. Phys. 1968, 215, 113–120. [Google Scholar] [CrossRef]
  39. Russell, B.K.; Mantovani, J.; Anderson, V.; Warmack, R.; Ferrell, T. Experimental test of the mie theory for microlithographically produced silver spheres. Phys. Rev. B 1987, 35, 2151. [Google Scholar] [CrossRef]
  40. Mock, J.J.; Smith, D.R.; Schultz, S. Local refractive index dependence of plasmon resonance spectra from individual nanoparticles. Nano Lett. 2003, 3, 485–491. [Google Scholar] [CrossRef]
  41. Park, J.; Kim, H.J.; Nam, S.; Kim, H.; Choi, H.-J.; Jang, Y.J.; Lee, J.S.; Shin, J.; Lee, H.; Baik, J.M. Two-dimensional metal-dielectric hybrid-structured film with titanium oxide for enhanced visible light absorption and photo-catalytic application. Nano Energy 2016, 21, 115–122. [Google Scholar] [CrossRef]
  42. Li, H.; Li, Z.; Yu, Y.; Ma, Y.; Yang, W.; Wang, F.; Yin, X.; Wang, X. Surface-plasmon-resonance-enhanced photoelectrochemical water splitting from au-nanoparticle-decorated 3D TiO2 nanorod architectures. J. Phys. Chem. C 2017, 121, 12071–12079. [Google Scholar] [CrossRef]
  43. Awazu, K.; Fujimaki, M.; Rockstuhl, C.; Tominaga, J.; Murakami, H.; Ohki, Y.; Yoshida, N.; Watanabe, T. A plasmonic photocatalyst consisting of silver nanoparticles embedded in titanium dioxide. J. Am. Chem. Soc. 2008, 130, 1676–1680. [Google Scholar] [CrossRef] [PubMed]
  44. Huang, L.; Chen, P.-C.; Liu, M.; Fu, X.; Gordiichuk, P.; Yu, Y.; Wolverton, C.; Kang, Y.; Mirkin, C.A. Catalyst design by scanning probe block copolymer lithography. Proc. Natl. Acad. Sci. USA 2018, 115, 3764–3769. [Google Scholar] [CrossRef] [PubMed]
  45. Low, J.; Yu, J.; Jaroniec, M.; Wageh, S.; Al-Ghamdi, A.A. Heterojunction photocatalysts. Adv. Mater. 2017, 29, 1601694. [Google Scholar] [CrossRef] [PubMed]
  46. Hurst, J.K. In pursuit of water oxidation catalysts for solar fuel production. Science 2010, 328, 315–316. [Google Scholar] [CrossRef] [PubMed]
  47. Chen, S.; Wang, L.-W. Thermodynamic oxidation and reduction potentials of photocatalytic semiconductors in aqueous solution. Chem. Mater. 2012, 24, 3659–3666. [Google Scholar] [CrossRef]
  48. Abdi, F.F.; van de Krol, R. Nature and light dependence of bulk recombination in Co-Pi-catalyzed BiVO4 photoanodes. J. Phys. Chem. C 2012, 116, 9398–9404. [Google Scholar] [CrossRef]
  49. Tang, F.; Cheng, W.; Su, H.; Zhao, X.; Liu, Q. Smoothing surface trapping states in 3D coral-like coooh-wrapped-BiVO4 for efficient photoelectrochemical water oxidation. ACS Appl. Mater. Interfaces 2018, 10, 6228–6234. [Google Scholar] [CrossRef] [PubMed]
  50. Chrisey, D.B.; Hubler, G.K. Pulsed Laser Deposition of Thin Films, 1st ed.; Wiley: New York, NY, USA, 1994; ISBN 0471592188. [Google Scholar]
  51. Ashfold, M.N.; Claeyssens, F.; Fuge, G.M.; Henley, S.J. Pulsed laser ablation and deposition of thin films. Chem. Soc. Rev. 2004, 33, 23–31. [Google Scholar] [CrossRef] [PubMed]
  52. MacManus-Driscoll, J.L. Self-assembled heteroepitaxial oxide nanocomposite thin film structures: Designing interface-induced functionality in electronic materials. Adv. Funct. Mater. 2010, 20, 2035–2045. [Google Scholar] [CrossRef]
  53. Zhao, Z.; Li, Z.; Zou, Z. Electronic structure and optical properties of monoclinic clinobisvanite BiVO4. Phys. Chem. Chem. Phys. 2011, 13, 4746–4753. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, T.; Zhou, X.; Dupuis, M.; Li, C. The nature of photogenerated charge separation among different crystal facets of BiVO4 studied by density functional theory. Phys. Chem. Chem. Phys. 2015, 17, 23503–23510. [Google Scholar] [CrossRef] [PubMed]
  55. Shirai, K.; Fazio, G.; Sugimoto, T.; Selli, D.; Ferraro, L.; Watanabe, K.; Haruta, M.; Ohtani, B.; Kurata, H.; Di Valentin, C. Water-assisted hole trapping at the highly curved surface of nano-TiO2 photocatalyst. J. Am. Chem. Soc. 2018, 140, 1415–1422. [Google Scholar] [CrossRef] [PubMed]
  56. Stoughton, S.; Showak, M.; Mao, Q.; Koirala, P.; Hillsberry, D.; Sallis, S.; Kourkoutis, L.; Nguyen, K.; Piper, L.; Tenne, D. Adsorption-controlled growth of BiVO4 by molecular-beam epitaxy. APL Mater. 2013, 1, 042112. [Google Scholar] [CrossRef]
  57. Rettie, A.J.; Mozaffari, S.; McDaniel, M.D.; Pearson, K.N.; Ekerdt, J.G.; Markert, J.T.; Mullins, C.B. Pulsed laser deposition of epitaxial and polycrystalline bismuth vanadate thin films. J. Phys. Chem. C 2014, 118, 26543–26550. [Google Scholar] [CrossRef]
  58. Chien, N.V.; Chang, W.S.; Chen, J.-W.; Tsai, K.-A.; Tzeng, W.-Y.; Lin, Y.-C.; Kuo, H.-H.; Liu, H.-J.; Chang, K.-D.; Chou, W.-C. Heteroepitaxial approach to explore charge dynamics across Au/BiVO4 interface for photoactivity enhancement. Nano Energy 2015, 15, 625–633. [Google Scholar] [CrossRef]
  59. Chien, N.V.; Do, T.H.; Chen, J.-W.; Tzeng, W.-Y.; Tsai, K.-A.; Song, H.; Liu, H.-J.; Lin, Y.-C.; Chen, Y.-C.; Wu, C.-L. WO3 mesocrystal-assisted photoelectrochemical activity of BiVO4. NPG Asia Mater. 2017, 9, e357. [Google Scholar] [CrossRef]
  60. Zhang, W.; Yan, D.; Tong, X.; Liu, M. Ultrathin lutetium oxide film as an epitaxial hole-blocking layer for crystalline bismuth vanadate water splitting photoanodes. Adv. Funct. Mater. 2018, 28, 1705512. [Google Scholar] [CrossRef]
  61. Zhang, W.; Yan, D.; Li, J.; Wu, Q.; Cen, J.; Zhang, L.; Orlov, A.; Xin, H.; Tao, J.; Liu, M. Anomalous conductivity tailored by domain-boundary transport in crystalline bismuth vanadate photoanodes. Chem. Mater. 2018, 30, 1677–1685. [Google Scholar] [CrossRef]
  62. Rettie, A.J.; Lee, H.C.; Marshall, L.G.; Lin, J.-F.; Capan, C.; Lindemuth, J.; McCloy, J.S.; Zhou, J.; Bard, A.J.; Mullins, C.B. Combined charge carrier transport and photoelectrochemical characterization of BiVO4 single crystals: Intrinsic behavior of a complex metal oxide. J. Am. Chem. Soc. 2013, 135, 11389–11396. [Google Scholar] [CrossRef] [PubMed]
  63. Rettie, A.J.; Chemelewski, W.D.; Lindemuth, J.; McCloy, J.S.; Marshall, L.G.; Zhou, J.; Emin, D.; Mullins, C.B. Anisotropic small-polaron hopping in W:BiVO4 single crystals. Appl. Phys. Lett. 2015, 106, 022106. [Google Scholar] [CrossRef]
  64. Pintilie, L.; Alexe, M. Metal-ferroelectric-metal heterostructures with schottky contacts. I. Influence of the ferroelectric properties. J. Appl. Phys. 2005, 98, 124103. [Google Scholar] [CrossRef]
  65. Pantel, D.; Chu, Y.-H.; Martin, L.W.; Ramesh, R.; Hesse, D.; Alexe, M. Switching kinetics in epitaxial BiFeO3 thin films. J. Appl. Phys. 2010, 107, 084111. [Google Scholar] [CrossRef]
  66. Hauser, A.; Zhang, J.; Mier, L.; Ricciardo, R.; Woodward, P.; Gustafson, T.; Brillson, L.; Yang, F. Characterization of electronic structure and defect states of thin epitaxial BiFeO3 films by UV-visible absorption and cathodoluminescence spectroscopies. Appl. Phys. Lett. 2008, 92, 222901. [Google Scholar] [CrossRef]
  67. Yi, H.; Choi, T.; Choi, S.; Oh, Y.S.; Cheong, S.W. Mechanism of the switchable photovoltaic effect in ferroelectric BiFeO3. Adv. Mater. 2011, 23, 3403–3407. [Google Scholar] [CrossRef] [PubMed]
  68. Liu, Q.; Zhou, Y.; You, L.; Wang, J.; Shen, M.; Fang, L. Enhanced ferroelectric photoelectrochemical properties of polycrystalline BiFeO3 film by decorating with ag nanoparticles. Appl. Phys. Lett. 2016, 108, 022902. [Google Scholar] [CrossRef]
  69. Ji, W.; Yao, K.; Lim, Y.-F.; Liang, Y.C.; Suwardi, A. Epitaxial ferroelectric BiFeO3 thin films for unassisted photocatalytic water splitting. Appl. Phys. Lett. 2013, 103, 062901. [Google Scholar] [CrossRef]
  70. Rong, N.; Chu, M.; Tang, Y.; Zhang, C.; Cui, X.; He, H.; Zhang, Y.; Xiao, P. Improved photoelectrocatalytic properties of Ti-doped BiFeO3 films for water oxidation. J. Mater. Sci. 2016, 51, 5712–5723. [Google Scholar] [CrossRef]
  71. Moniz, S.J.; Quesada-Cabrera, R.; Blackman, C.S.; Tang, J.; Southern, P.; Weaver, P.M.; Carmalt, C.J. A simple, low-cost CVD route to thin films of BiFeO3 for efficient water photo-oxidation. J. Mater. Chem. A 2014, 2, 2922–2927. [Google Scholar] [CrossRef]
  72. Cao, D.; Wang, Z.; Wen, L.; Mi, Y.; Lei, Y. Switchable charge-transfer in the photoelectrochemical energy-conversion process of ferroelectric BiFeO3 photoelectrodes. Angew. Chem. Int. Ed. 2014, 53, 11027–11031. [Google Scholar] [CrossRef] [PubMed]
  73. Huang, Y.-L.; Chang, W.S.; Chien, N.V.; Liu, H.-J.; Tsai, K.-A.; Chen, J.-W.; Kuo, H.-H.; Tzeng, W.-Y.; Chen, Y.-C.; Wu, C.-L. Tunable photoelectrochemical performance of Au/BiFeO3 heterostructure. Nanoscale 2016, 8, 15795–15801. [Google Scholar] [CrossRef] [PubMed]
  74. Wu, J.; Wang, J. Orientation dependence of ferroelectric behavior of BiFeO3 thin films. J. Appl. Phys. 2009, 106, 104111. [Google Scholar] [CrossRef]
  75. Li, J.; Wang, J.; Wuttig, M.; Ramesh, R.; Wang, N.; Ruette, B.; Pyatakov, A.P.; Zvezdin, A.; Viehland, D. Dramatically enhanced polarization in (001), (101), and (111) BiFeO3 thin films due to epitiaxial-induced transitions. Appl. Phys. Lett. 2004, 84, 5261–5263. [Google Scholar] [CrossRef]
  76. Sone, K.; Naganuma, H.; Miyazaki, T.; Nakajima, T.; Okamura, S. Crystal structures and electrical properties of epitaxial BiFeO3 thin films with (001), (110), and (111) orientations. Jpn. J. Appl. Phys. 2010, 49, 09MB03. [Google Scholar] [CrossRef]
  77. Baek, S.H.; Folkman, C.M.; Park, J.W.; Lee, S.; Bark, C.W.; Tybell, T.; Eom, C.B. The nature of polarization fatigue in BiFeO3. Adv. Mater. 2011, 23, 1621–1625. [Google Scholar] [CrossRef] [PubMed]
  78. Das, R.; Kim, D.; Baek, S.; Eom, C.; Zavaliche, F.; Yang, S.; Ramesh, R.; Chen, Y.; Pan, X.; Ke, X. Synthesis and ferroelectric properties of epitaxial BiFeO3 thin films grown by sputtering. Appl. Phys. Lett. 2006, 88, 242904. [Google Scholar] [CrossRef]
  79. Yang, W.; Yu, Y.; Starr, M.B.; Yin, X.; Li, Z.; Kvit, A.; Wang, S.; Zhao, P.; Wang, X. Ferroelectric polarization-enhanced photoelectrochemical water splitting in TiO2–BaTiO3 core–shell nanowire photoanodes. Nano Lett. 2015, 15, 7574–7580. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic representation of the photoelectrochemical (PEC) water splitting process in a common PEC water splitting system consisting of a photoanode and a metal counterpart.
Figure 1. Schematic representation of the photoelectrochemical (PEC) water splitting process in a common PEC water splitting system consisting of a photoanode and a metal counterpart.
Applsci 08 01388 g001

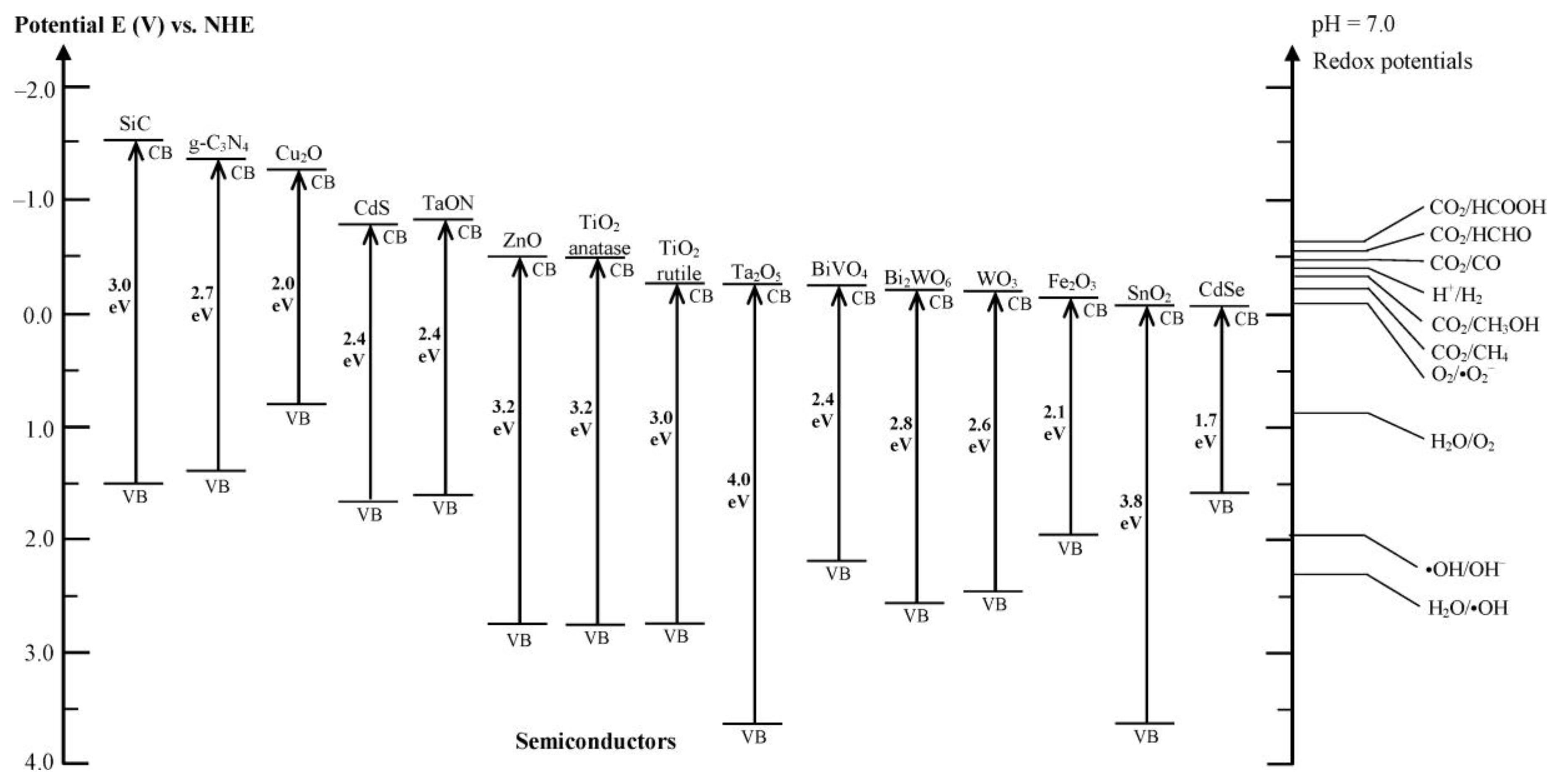

Figure 2. Band edge positions of various semiconductors with respect to the water redox potentials. Reprinted with permission from [3]. Copyright 2016, American Chemical Society.
Figure 2. Band edge positions of various semiconductors with respect to the water redox potentials. Reprinted with permission from [3]. Copyright 2016, American Chemical Society.
Applsci 08 01388 g002

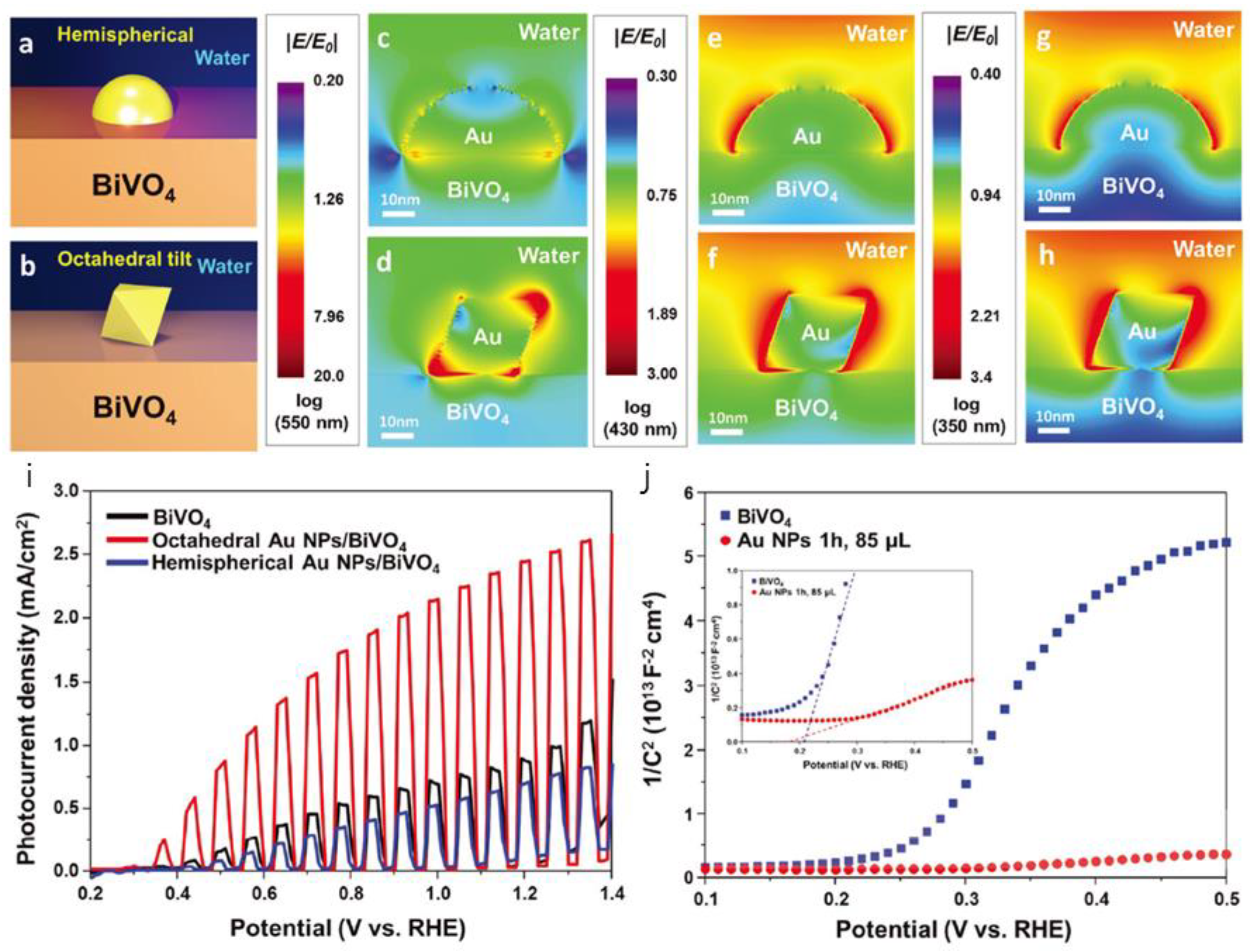

Figure 3. Finite-difference time-domain simulation results of BiVO4 with (a) hemispherical Au NP and (b) octahedral Au NP. The simulations are performed under wavelengths of (c,d) 550 nm, (e,f) 430 nm, (g,h) 350 nm. (i) PEC performances of the samples. (j) Mott-Schottky plot of bare BiVO4 and BiVO4 with octahedral Au NPs under dark conditions (Frequency: 1 kHz, amplitude: 10 mV). Reprinted with permission from [23]. Copyright 2017, John Wiley and Sons.
Figure 3. Finite-difference time-domain simulation results of BiVO4 with (a) hemispherical Au NP and (b) octahedral Au NP. The simulations are performed under wavelengths of (c,d) 550 nm, (e,f) 430 nm, (g,h) 350 nm. (i) PEC performances of the samples. (j) Mott-Schottky plot of bare BiVO4 and BiVO4 with octahedral Au NPs under dark conditions (Frequency: 1 kHz, amplitude: 10 mV). Reprinted with permission from [23]. Copyright 2017, John Wiley and Sons.
Applsci 08 01388 g003

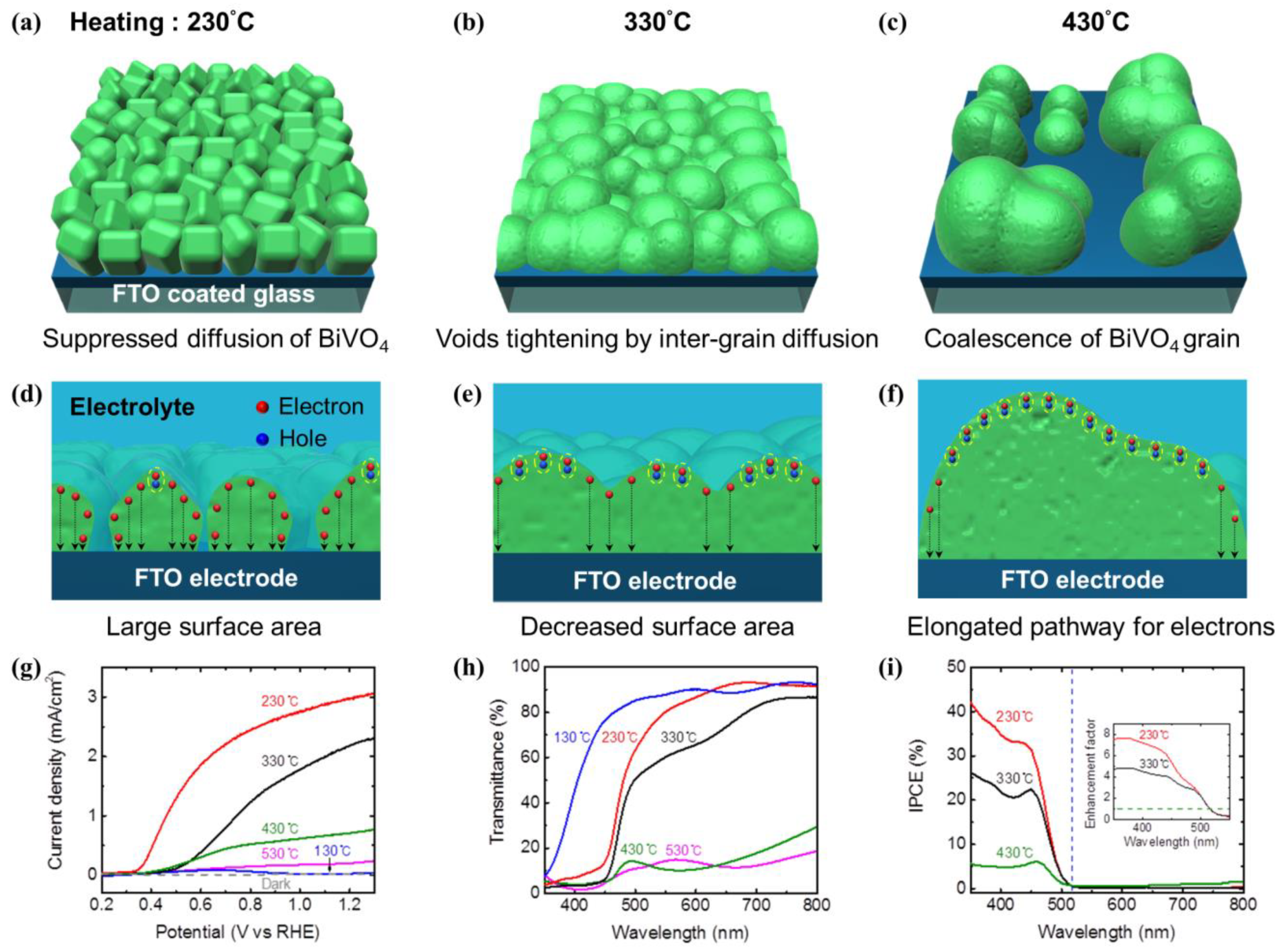

Figure 4. Schematic representation of surface area-controlled BiVO4 film deposited by pulsed laser deposition. Microstructural changes and charge collection abilities of BiVO4 film deposited at (a,d) 230 °C, (b,e) 330 °C, (c,f) 430 °C. (g) PEC performances, (h) UV-vis transmission spectra, and (i) incident photon-to-current efficiency (IPCE) of the samples. Reprinted with permission from [10]. Copyright 2017, American Chemical Society.
Figure 4. Schematic representation of surface area-controlled BiVO4 film deposited by pulsed laser deposition. Microstructural changes and charge collection abilities of BiVO4 film deposited at (a,d) 230 °C, (b,e) 330 °C, (c,f) 430 °C. (g) PEC performances, (h) UV-vis transmission spectra, and (i) incident photon-to-current efficiency (IPCE) of the samples. Reprinted with permission from [10]. Copyright 2017, American Chemical Society.
Applsci 08 01388 g004

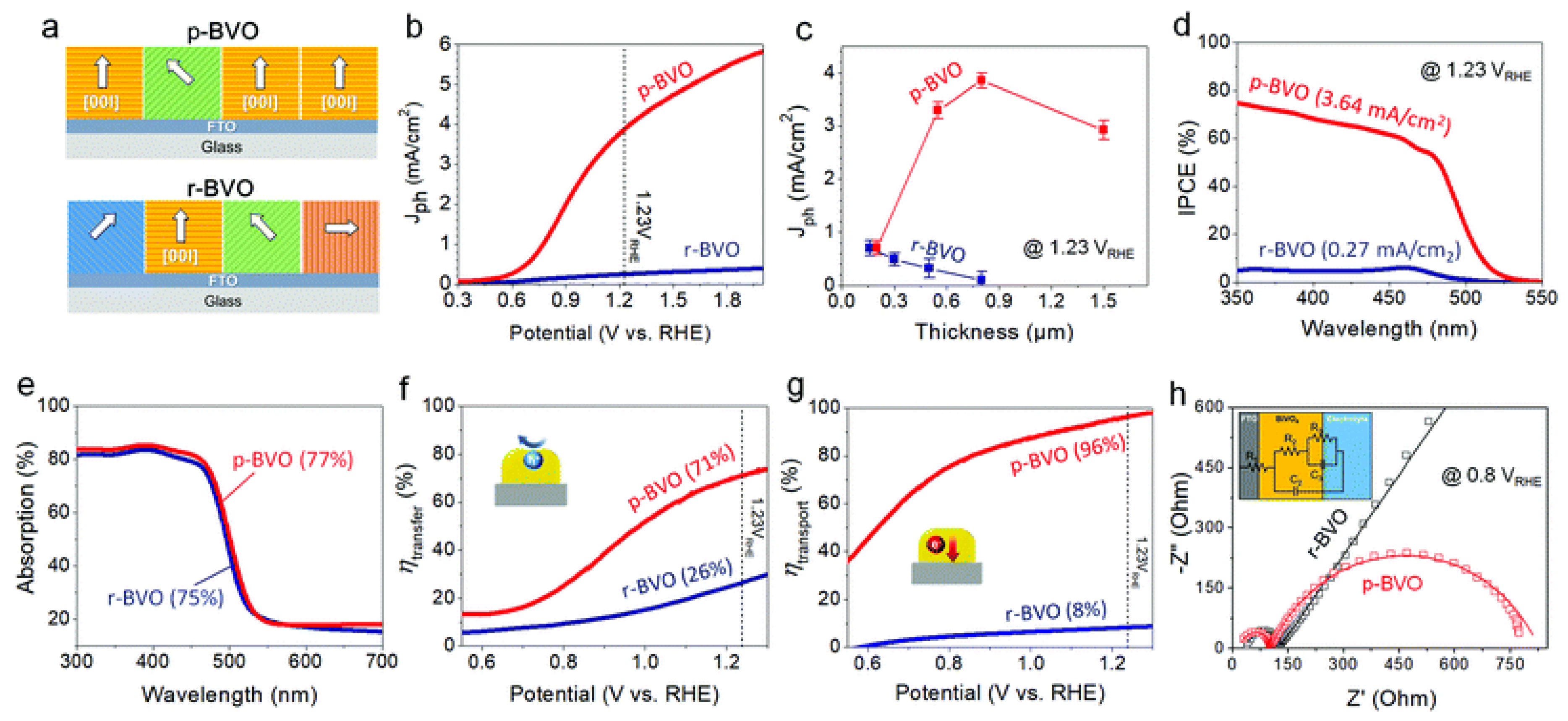

Figure 5. (a) Schematic representation of crystallographic orientations of preferentially oriented polycrystalline BiVO4 (p-BVO) and randomly oriented BiVO4 (r-BVO). (b) PEC performances. (c) Thickness dependence of photocurrent density. (d) IPCE. (e) Light absorption. (f) Charge transfer efficiency. (g) Charge transport efficiency. (h) Electrochemical impedance spectroscopy (EIS) spectra measured at 0.8 VRHE under simulated light irradiation (100 mW/cm2). Reprinted with permission from [15]. Copyright 2018, Royal Society of Chemistry.
Figure 5. (a) Schematic representation of crystallographic orientations of preferentially oriented polycrystalline BiVO4 (p-BVO) and randomly oriented BiVO4 (r-BVO). (b) PEC performances. (c) Thickness dependence of photocurrent density. (d) IPCE. (e) Light absorption. (f) Charge transfer efficiency. (g) Charge transport efficiency. (h) Electrochemical impedance spectroscopy (EIS) spectra measured at 0.8 VRHE under simulated light irradiation (100 mW/cm2). Reprinted with permission from [15]. Copyright 2018, Royal Society of Chemistry.
Applsci 08 01388 g005

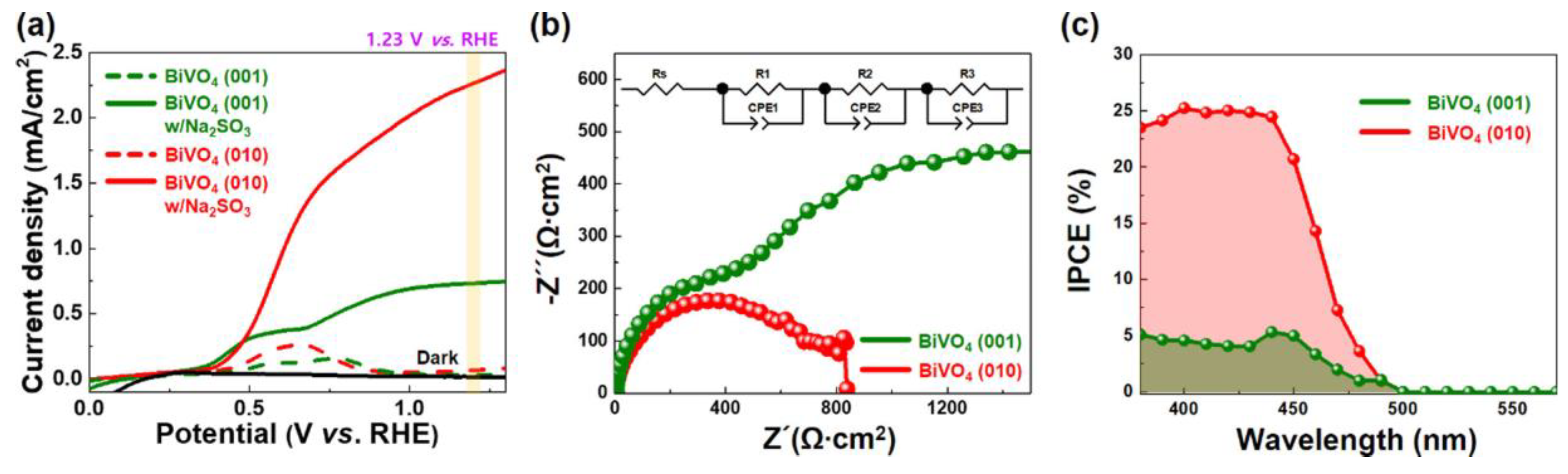

Figure 6. (a) PEC performances of 100 nm-thick epitaxial BiVO4 films with different crystallographic orientations. The electrolyte of 0.5 M Na2SO4 aqueous solutions in the presence or absence of 0.5 M Na2SO3 was used for the measurement. (b) EIS spectra and (c) IPCE of the BiVO4 with different crystallographic orientations. Inset of (b) shows the equivalent circuit for the data. Reprinted with permission from [19]. Copyright 2018, American Chemical Society.
