Gas Sensor Design Based on a Line Locked Tunable Fiber Laser and the Dual Path Correlation Spectroscopy Method
Departamento de Estudios Multidisciplinarios, División de Ingenierías, Universidad de Guanajuato, Av. Universidad s/n, Col. Yacatitas, 38940 Yuriria, Gto., Mexico
Physics Department, Faculty of Science, Universiti Teknologi Malaysia, Johor Bahru 81310, Malaysia
Author to whom correspondence should be addressed.
Received: 9 August 2017 / Revised: 9 September 2017 / Accepted: 18 September 2017 / Published: 19 September 2017

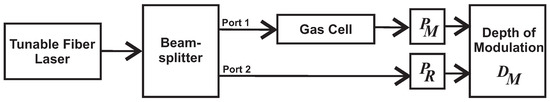

In this work a hybrid gas sensor based on a tunable fiber laser and a correlation spectroscopy technique is presented. The laser is tuned by varying the temperature of a bulk silicon wafer of 85

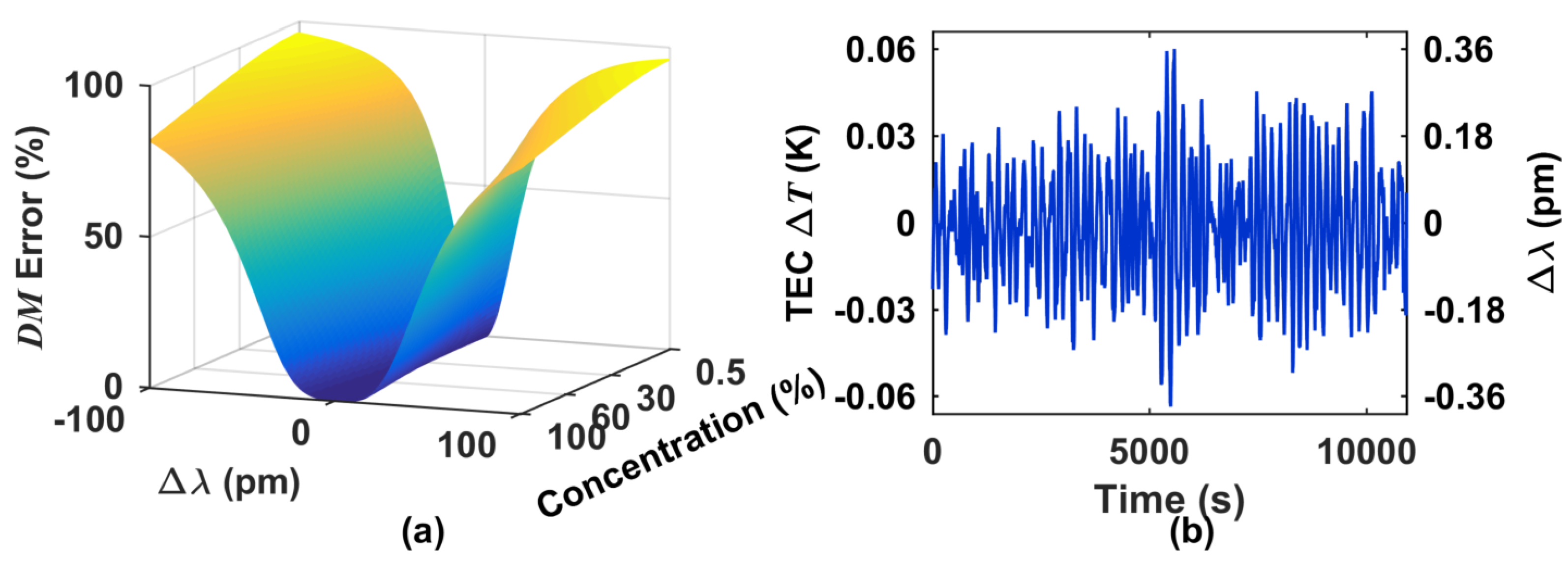

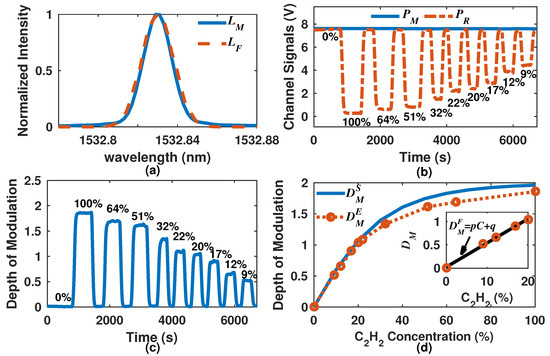

m thickness and, once the desired wavelength is reached the line, is locked by keeping fixed its temperature. According to experimental results the wafer temperature variation was in the order of 0.02 K, which induced an estimated wavelength deviation of 0.12 pm, which satisfies the high wavelength position accuracy required for gas sensing applications. Additionally, it is shown that errors due to laser intensity fluctuations can be minimized by implementing a simple dual path correlation spectroscopy stage. As a proof of the suitability of our tunable fiber laser for gas sensing applications, a C2
sensor was implemented. By using a 10 cm gas cell at atmospheric pressure, it was possible to detect concentrations from 0 to 20% with a sensitivity of 521 ppm and sub-minute time response. Moreover, the experimental measurements and simulated results have a high level of agreement. Finally, it is important to point out that, by using doped fiber with different characteristics, other wavelength emissions can be generated.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
