Open AccessArticle
Appl. Sci. 2017, 7(9), 943;

Coordinated Control of the Energy Router-Based Smart Home Energy Management System

School of Electrical and Information Engineering, Tianjin University, Tianjin 300072, China
State Grid Chongqing Electric Power CO., Electric Power Research Institute, Chongqing 401120, China
Author to whom correspondence should be addressed.
Received: 2 August 2017 / Revised: 3 September 2017 / Accepted: 12 September 2017 / Published: 13 September 2017
(This article belongs to the Special Issue Smart Home and Energy Management Systems)
View Full-Text   |   Download PDF [5032 KB, uploaded 13 September 2017]   |

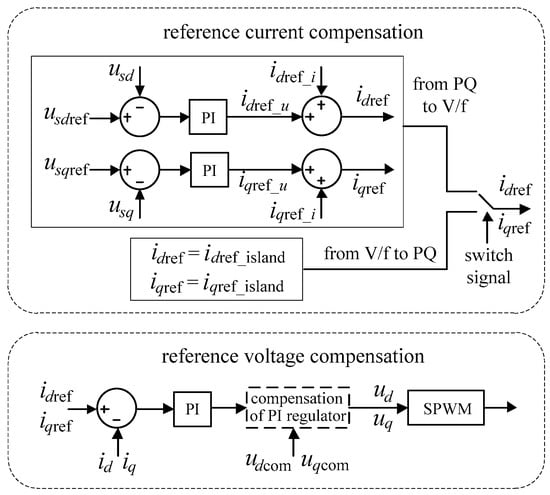

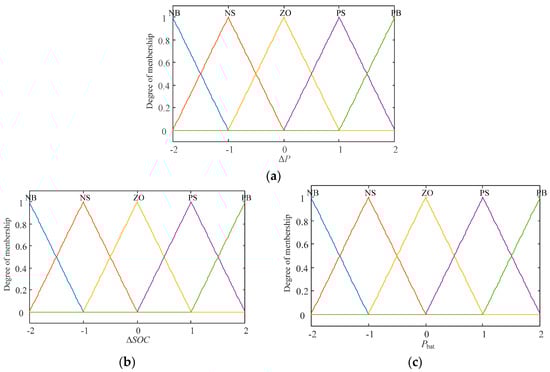

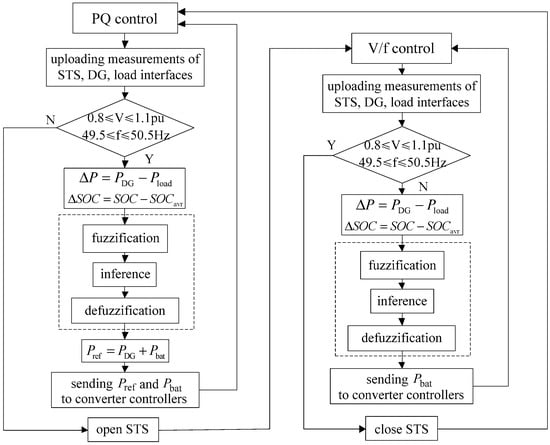

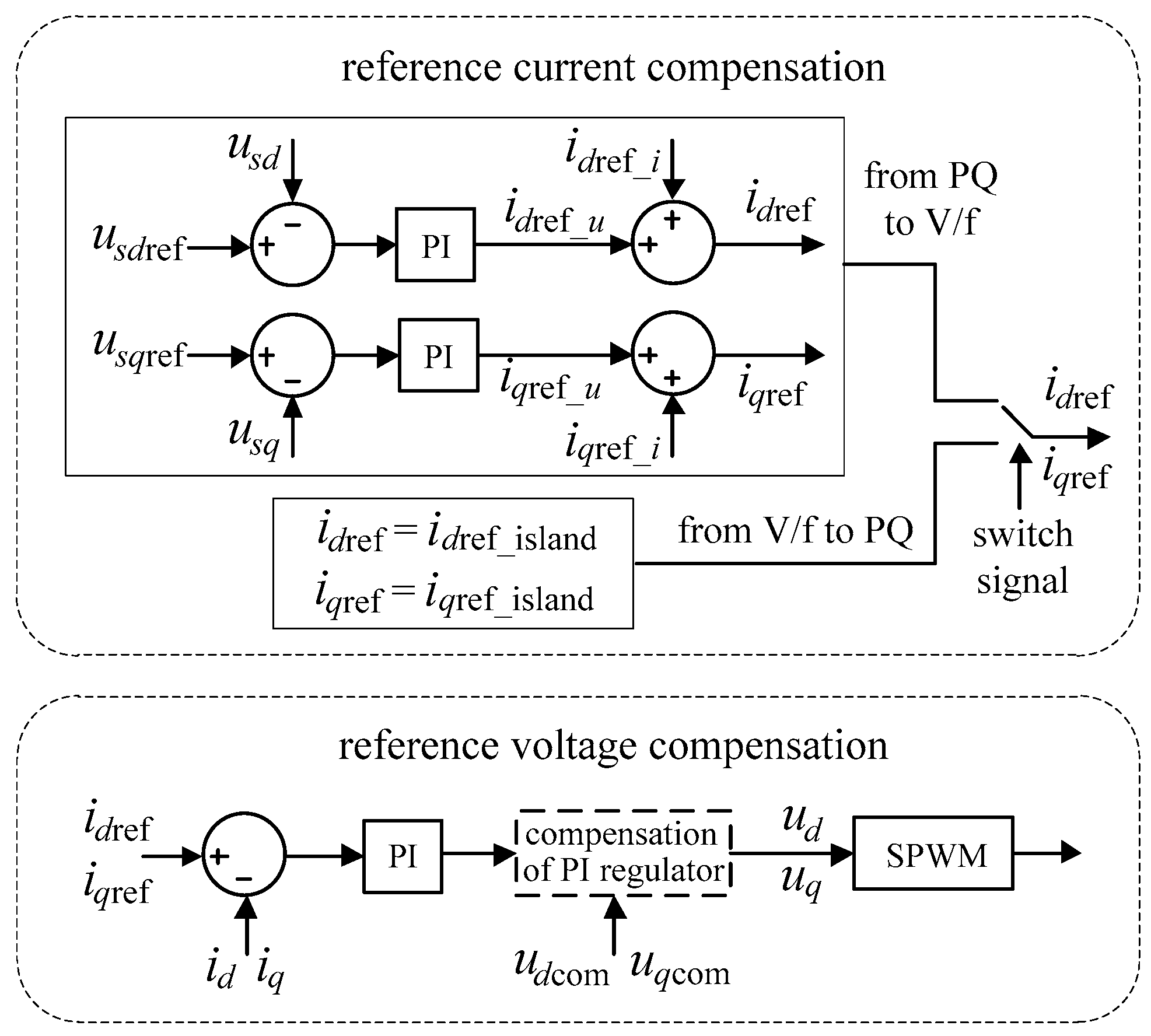

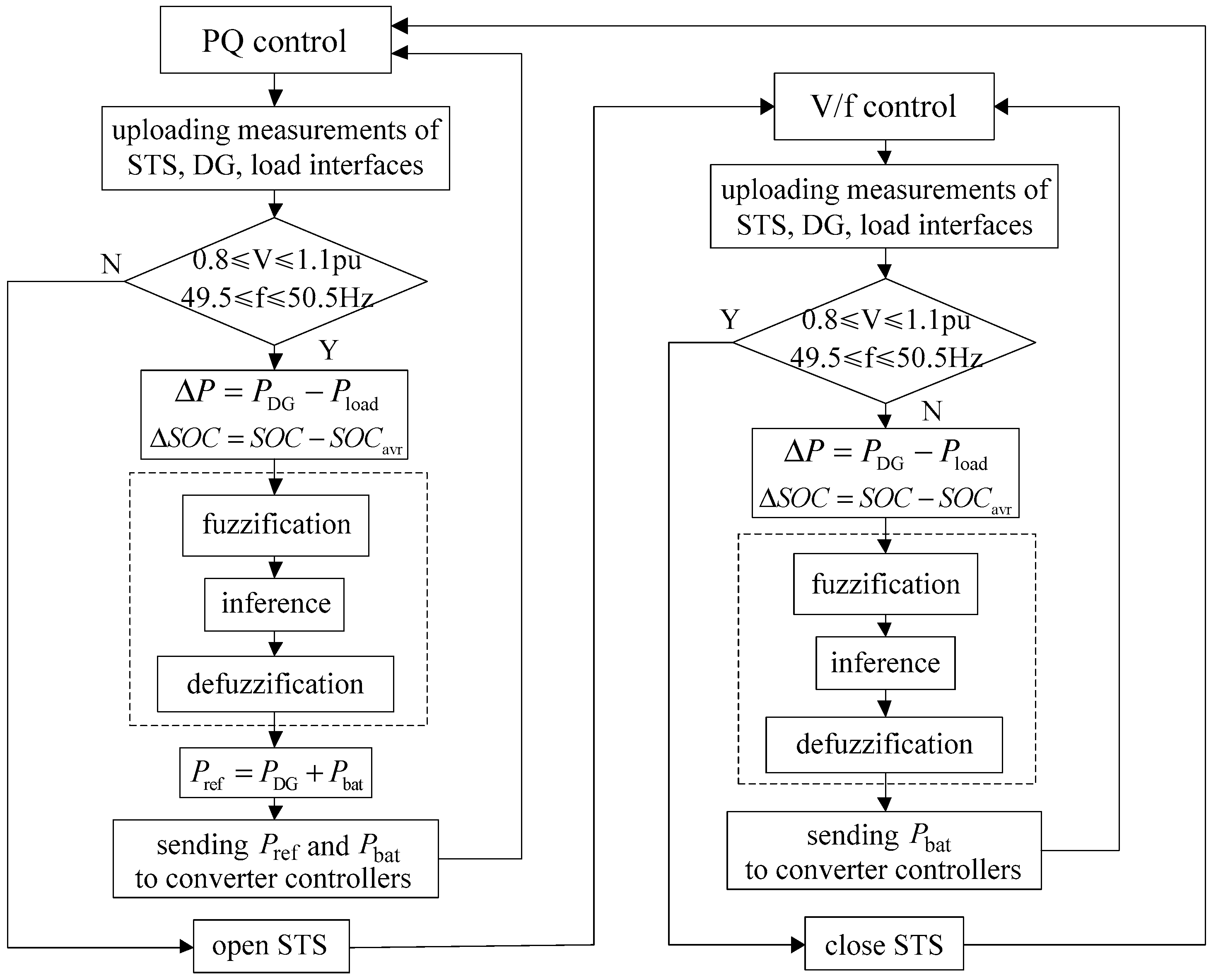

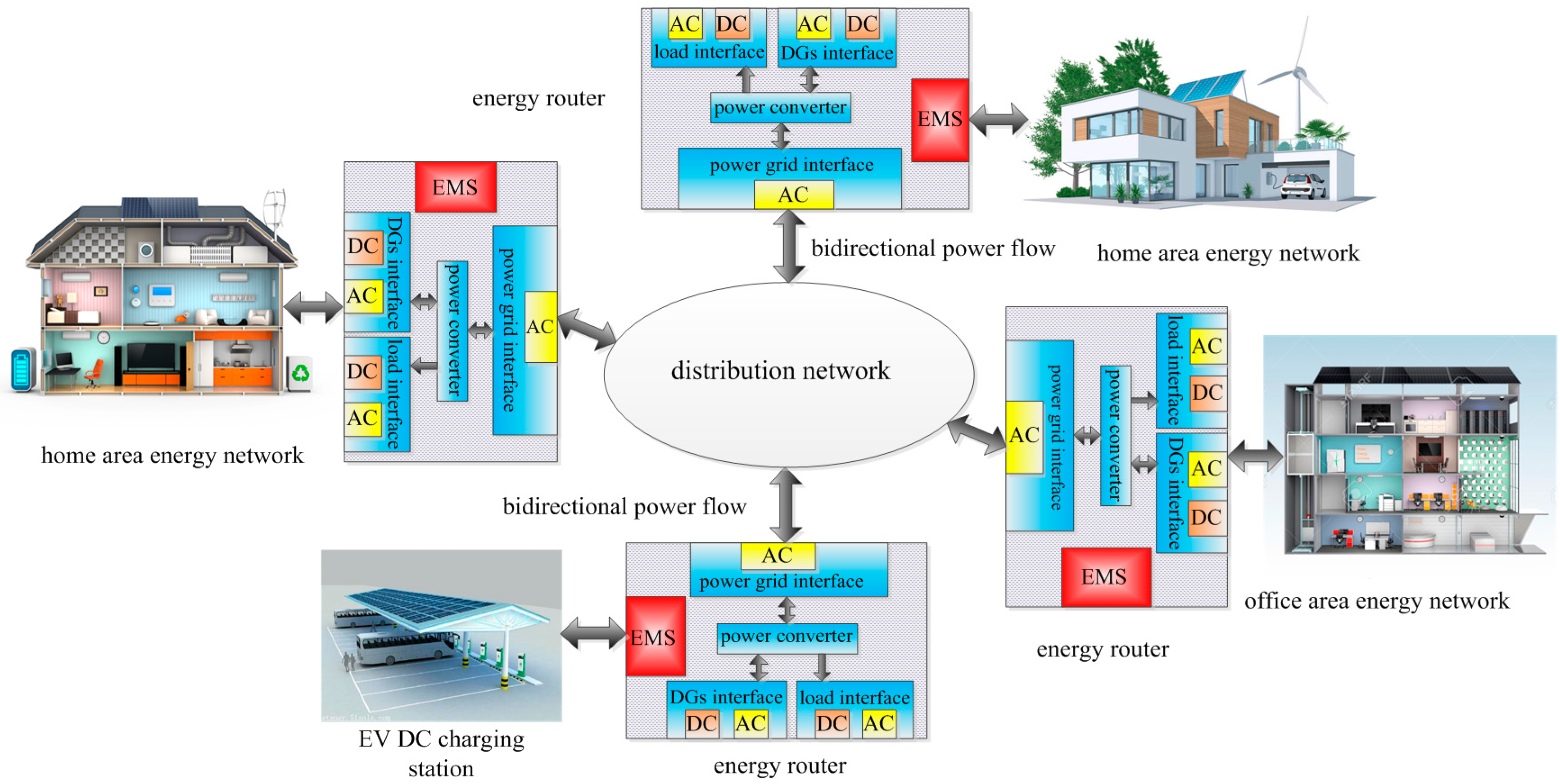

Home area energy networks will be an essential part of the future Energy Internet in terms of energy saving, demand-side management and stability improvement of the distribution network, while an energy router will be the perfect choice to serve as an intelligent and multi-functional energy interface between the home area energy network and power grid. This paper elaborates on the design, analysis and implementation of coordinated control of the low-voltage energy router-based smart home energy management system (HEMS). The main contribution of this paper is to develop a novel solution to make the energy router technically feasible and practical for the HEMS to make full use of the renewable energy sources (RESs), while maintaining “operational friendly and beneficial” to the power grid. The behaviors of the energy router-based HEMS in correlation with the power grid are investigated, then the coordinated control scheme composed of a reference voltage and current compensation strategy and a fuzzy logic control-based power management strategy is developed. The system model is built on the MATLAB/Simulink platform, simulation results have demonstrated that the presented control scheme is a strong performer in making full use of the RES generations for the HEMS while maintaining the operational stability of the whole system, as well as in collaboration with the power grid to suppress the impact of RES output fluctuations and load consumption variations. View Full-Text
Keywords: Energy Internet; home energy management system; prosumer; energy router; fuzzy logic control Energy Internet; home energy management system; prosumer; energy router; fuzzy logic control

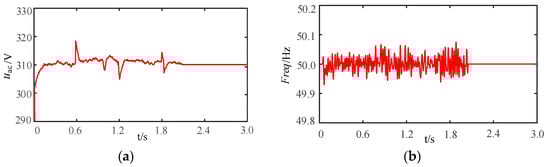

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
