Open AccessFeature PaperArticle
Appl. Sci. 2017, 7(8), 856; doi:10.3390/app7080856

Suppressing Salt Transport through Composite Pervaporation Membranes for Brine Desalination

1
The United Nations Educational, Scientific and Cultural Organization (UNESCO) Centre for Membrane Science and Technology, School of Chemical Engineering, University of New South Wales, Sydney 2052, Australia
2
Cooperative Research Centre for Polymers, Notting Hill 3168, Australia
3
School of Chemical Engineering and Energy, Zhengzhou University, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
Received: 30 June 2017 / Revised: 15 August 2017 / Accepted: 16 August 2017 / Published: 19 August 2017
(This article belongs to the Special Issue Wastewater Treatment and Reuse Technologies)
View Full-Text   |   Download PDF [8964 KB, uploaded 19 August 2017]   |

Abstract

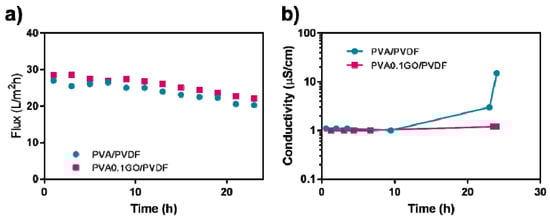

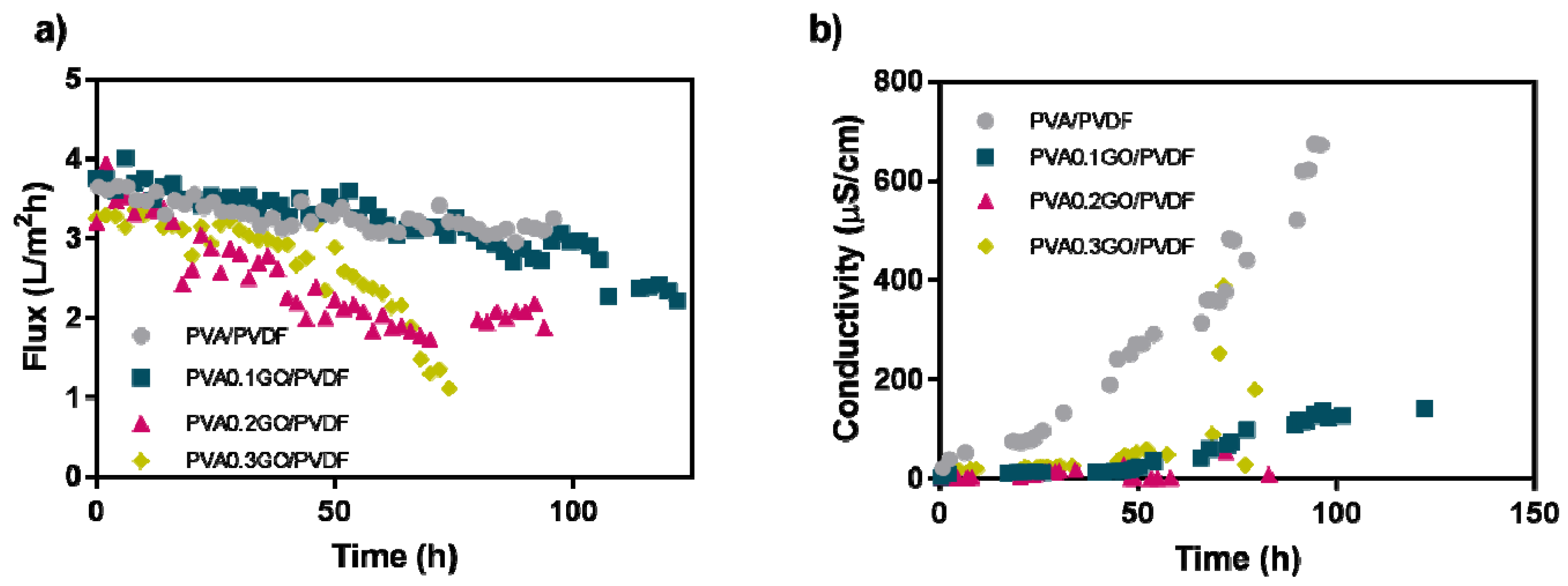

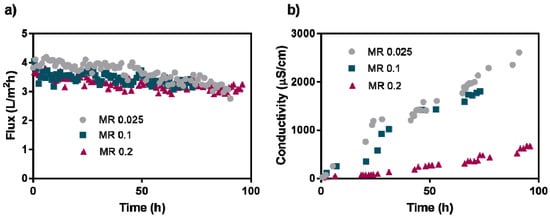

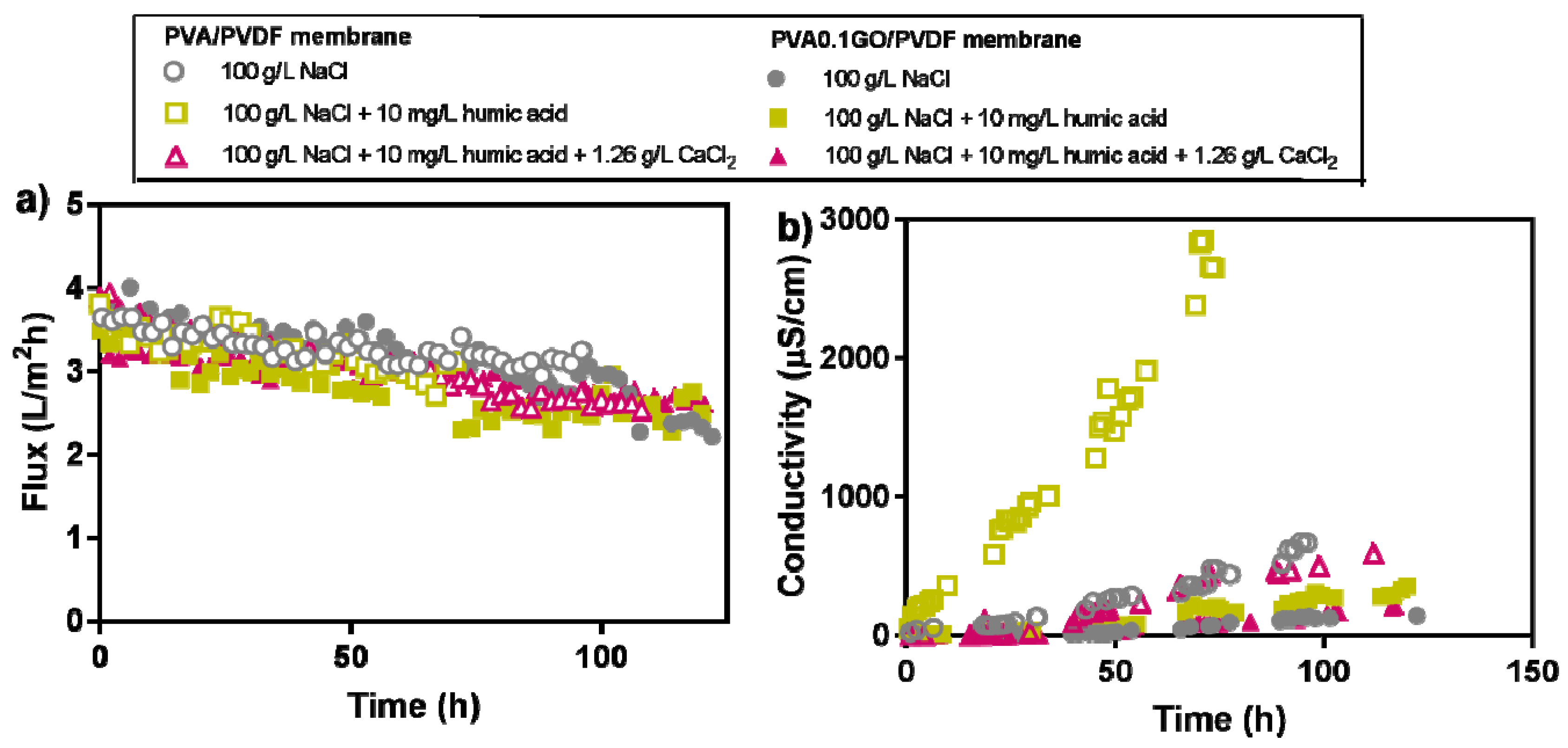

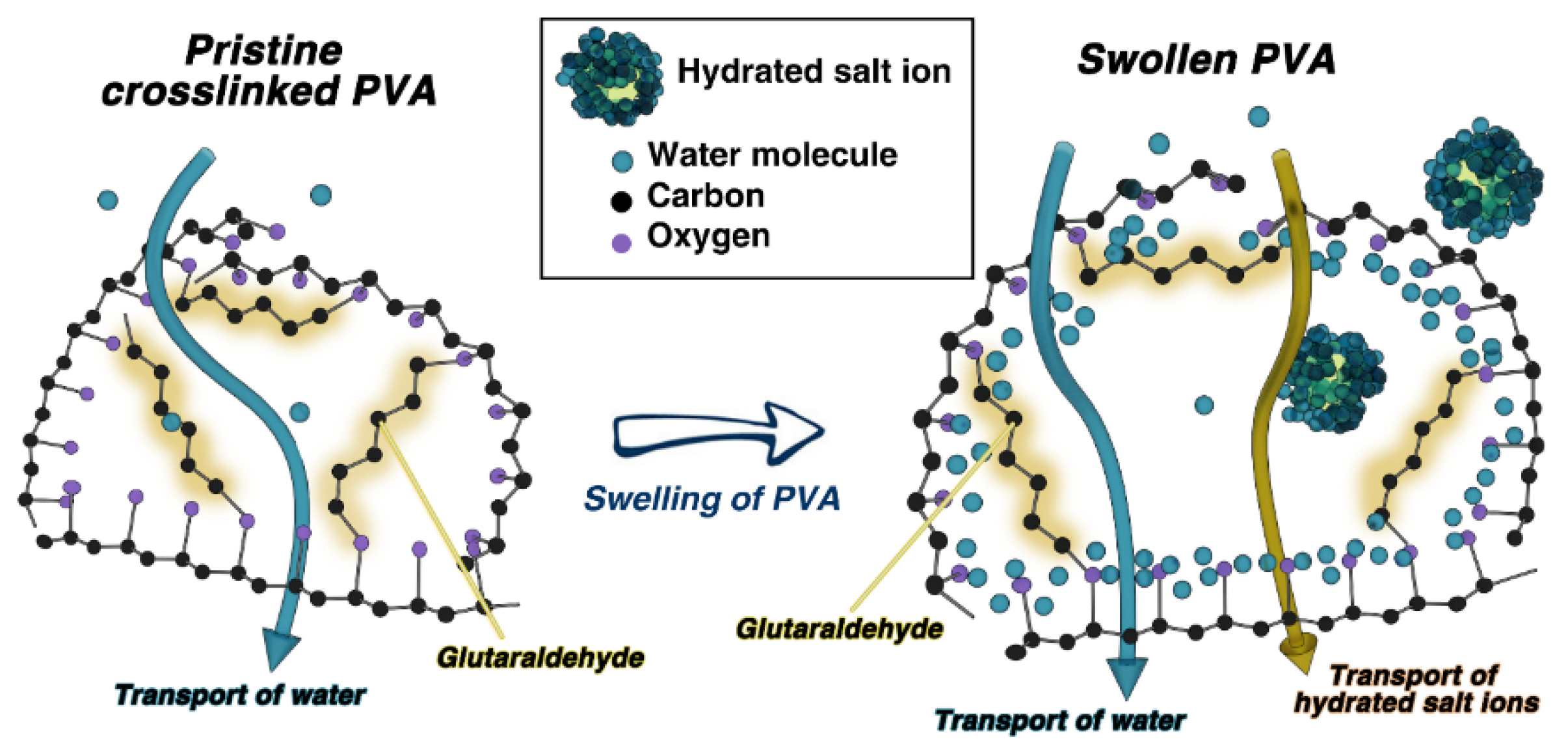

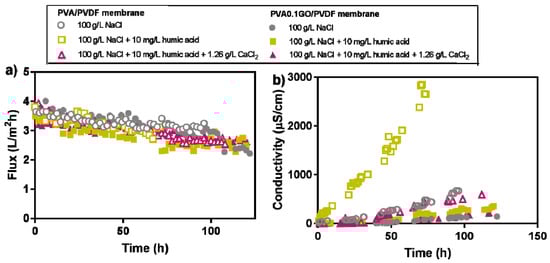

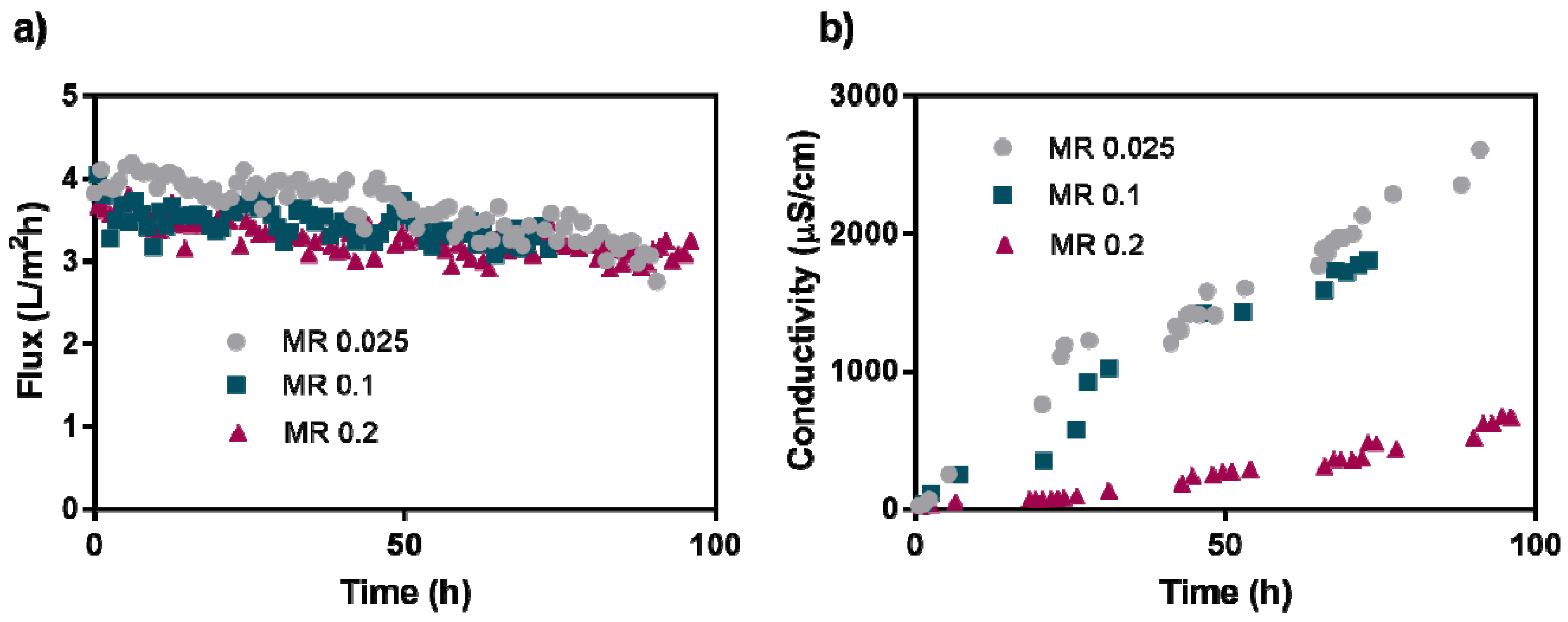

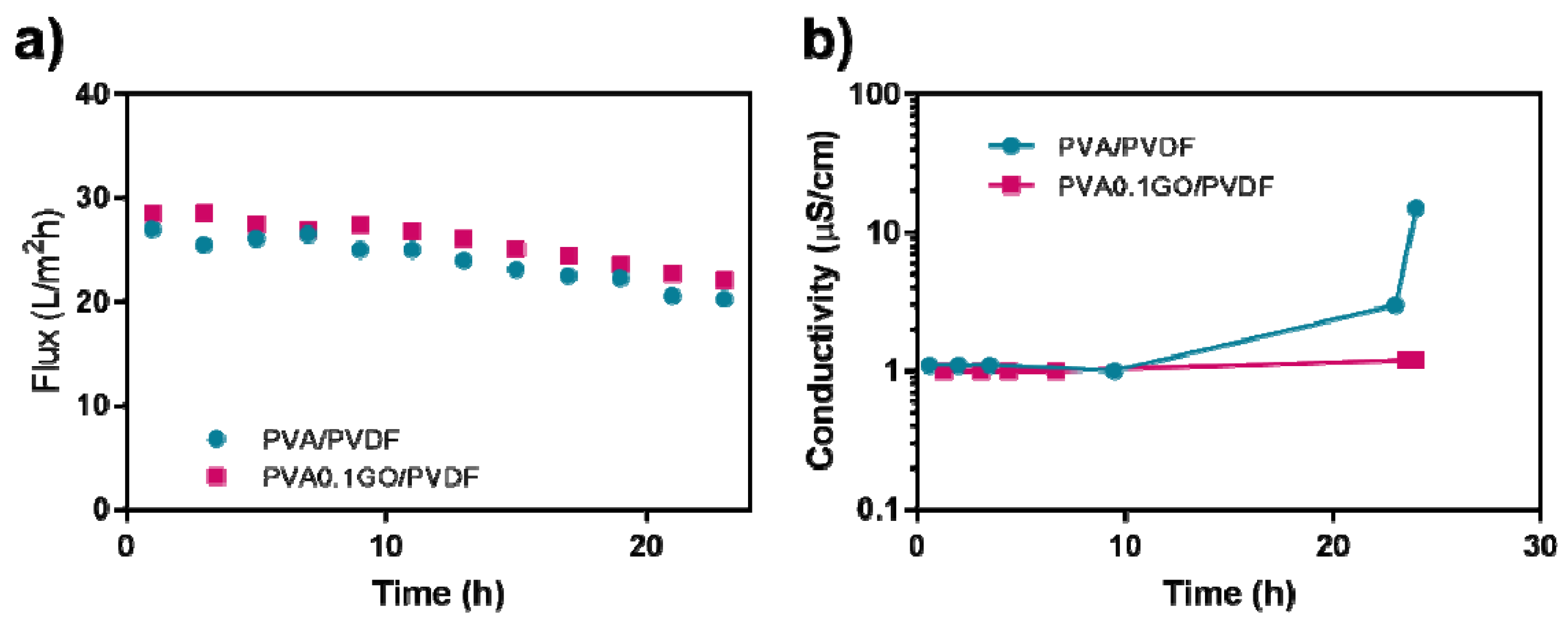

Pervaporation membranes have gained renewed interest in challenging feedwaters desalination, such as reverse osmosis (RO) concentrated brine wastewater. In this study, composite polyvinyl alcohol (PVA)/polyvinylidene fluoride (PVDF) pervaporation membranes were prepared for brine treatment. The composite membrane was firstly studied by adjusting the cross-linking density of PVA by glutaraldehyde: the membrane with higher cross-linking density exhibited much higher salt rejection efficiency for long-term operation. A trace of salt on the permeate side was found to diffuse through the membrane in the form of hydrated ions, following solution-diffusion mechanism. To further suppress the salt transport and achieve long-term stable operation, graphene oxide (GO) was incorporated into the PVA layer: the addition of GO had minor effects on water permeation but significantly suppressed the salt passage, compared to the pure PVA/PVDF membranes. In terms of brine wastewater containing organic/inorganic foulant, improved anti-fouling performance was also observed with GO-containing membranes. Furthermore, the highest flux of 28 L/m2h was obtained for the membrane with 0.1 wt. % of GO using 100 g/L NaCl as the feed at 65 °C by optimising the pervaporation rig, with permeate conductivity below 1.2 µS/cm over 24 h (equivalent to a salt rejection of >99.99%). View Full-Text
Keywords: brine wastewater treatment; pervaporation; composite PVA/PVDF membrane; graphene oxide; anti-fouling properties brine wastewater treatment; pervaporation; composite PVA/PVDF membrane; graphene oxide; anti-fouling properties
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Li, L.; Hou, J.; Ye, Y.; Mansouri, J.; Zhang, Y.; Chen, V. Suppressing Salt Transport through Composite Pervaporation Membranes for Brine Desalination. Appl. Sci. 2017, 7, 856.
