Appl. Sci. 2017, 7(8), 820; doi:10.3390/app7080820

High Conductivity and Adhesion of Cu-Cr-Zr Alloy for TFT Gate Electrode

1
Institute of Polymer Optoelectronic Materials and Devices, State Key Laboratory of Luminescent Materials and Devices, South China University of Technology, Guangzhou 510640, China
2
Institute for Advanced Materials and Guangdong Provincial Key Laboratory of Quantum Engineering and Quantum Materials, South China Normal University, Guangzhou 510006, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Hyun Jae Kim
Received: 10 June 2017 / Revised: 22 July 2017 / Accepted: 7 August 2017 / Published: 10 August 2017
(This article belongs to the Special Issue Thin-Film Transistors)
View Full-Text   |   Download PDF [3029 KB, uploaded 10 August 2017]   |

Abstract

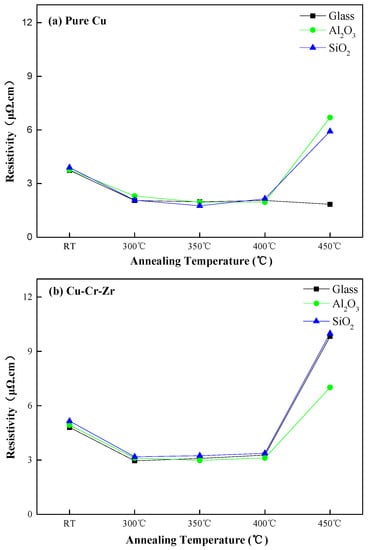

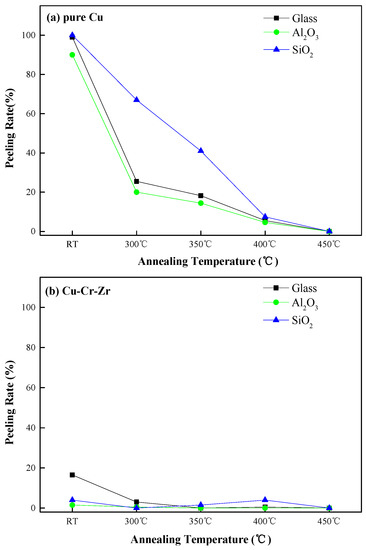

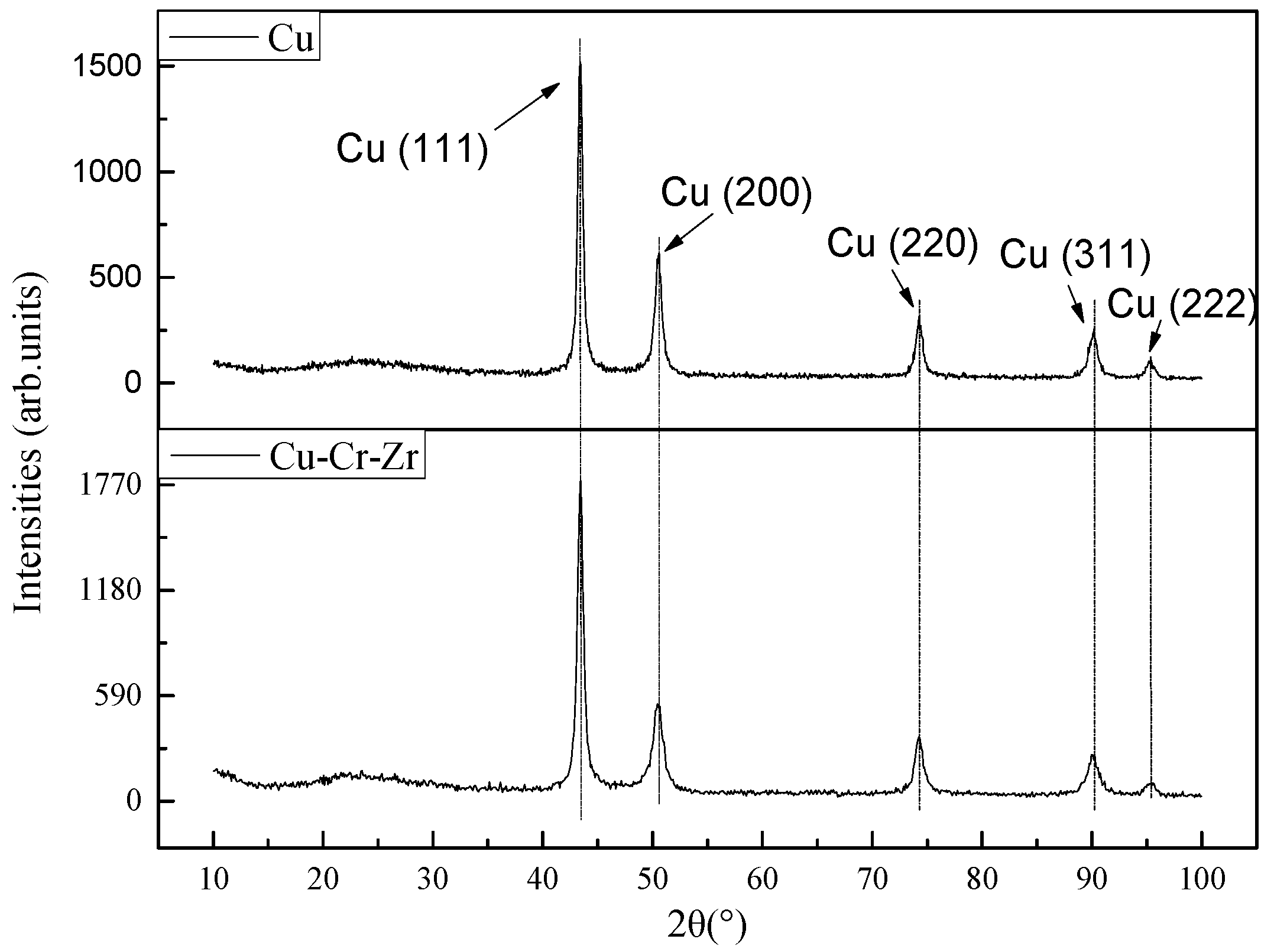

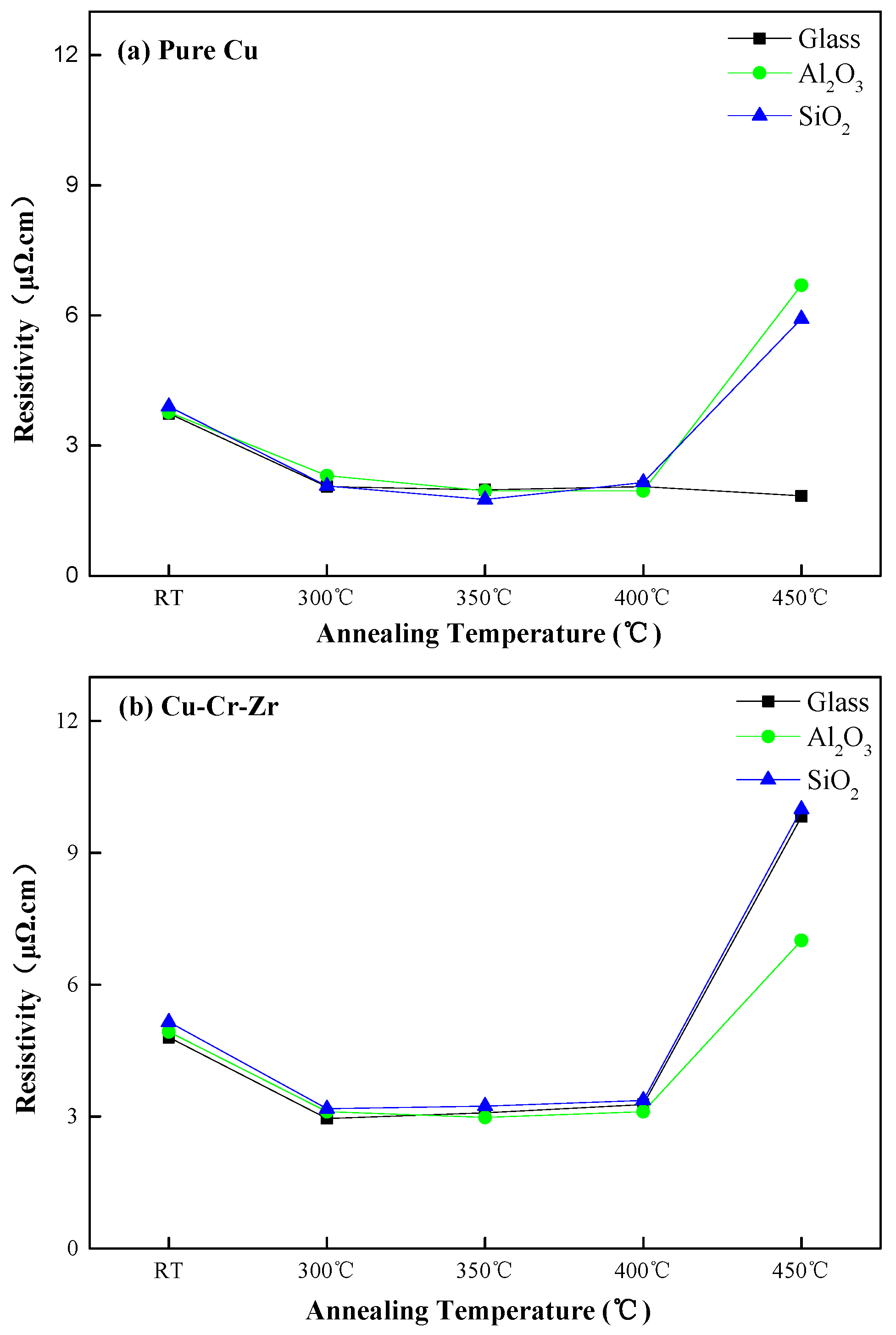

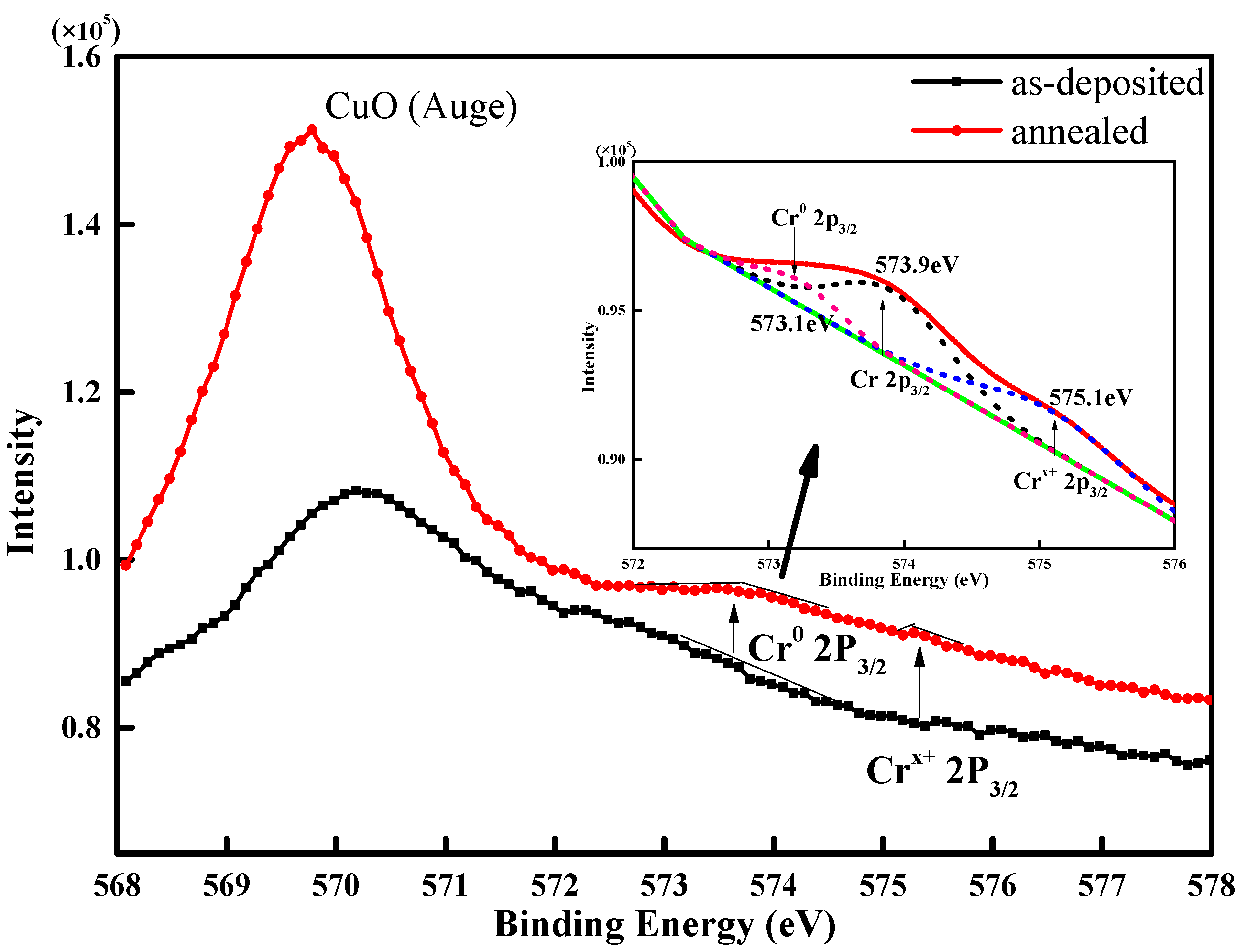

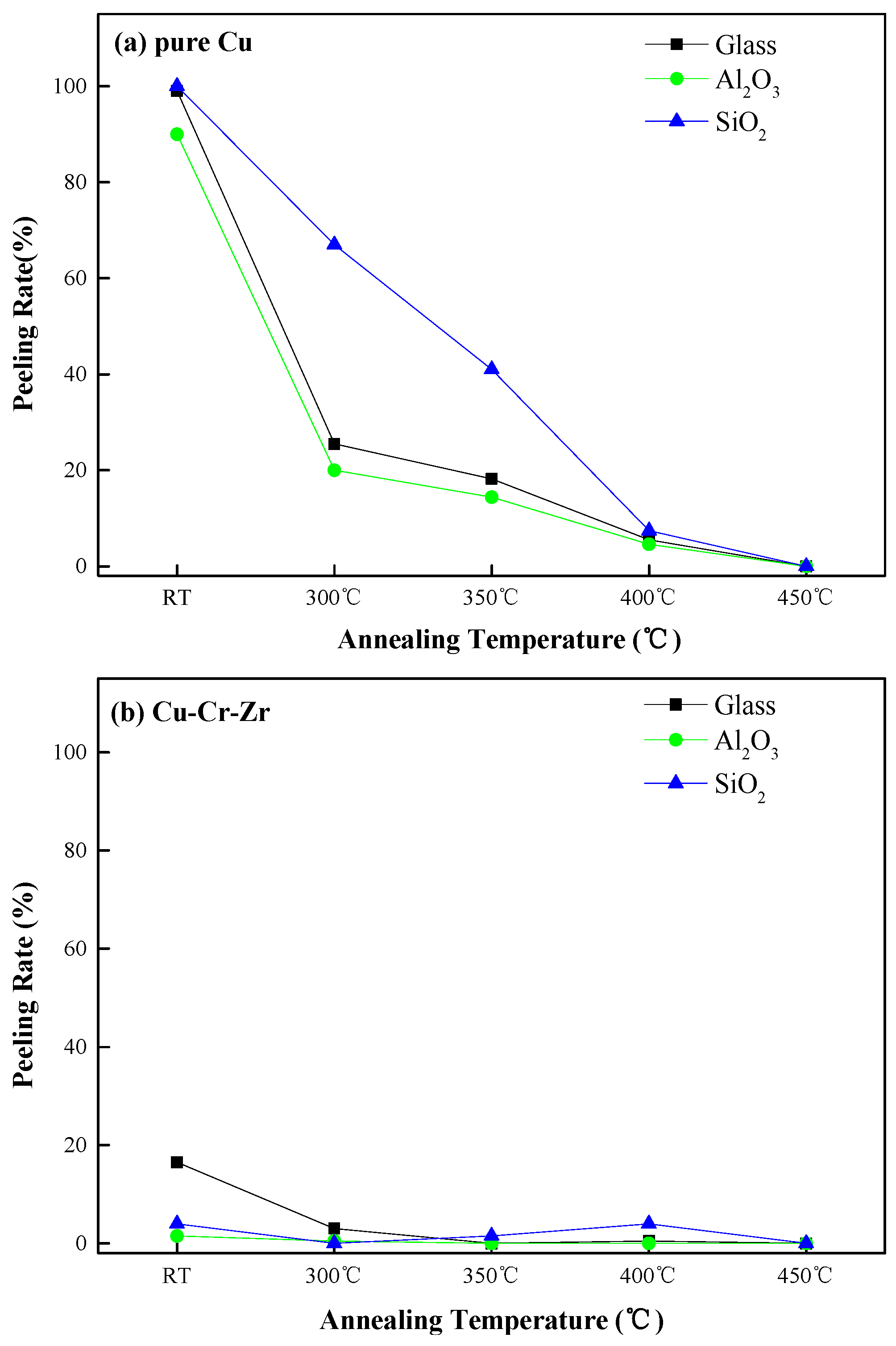

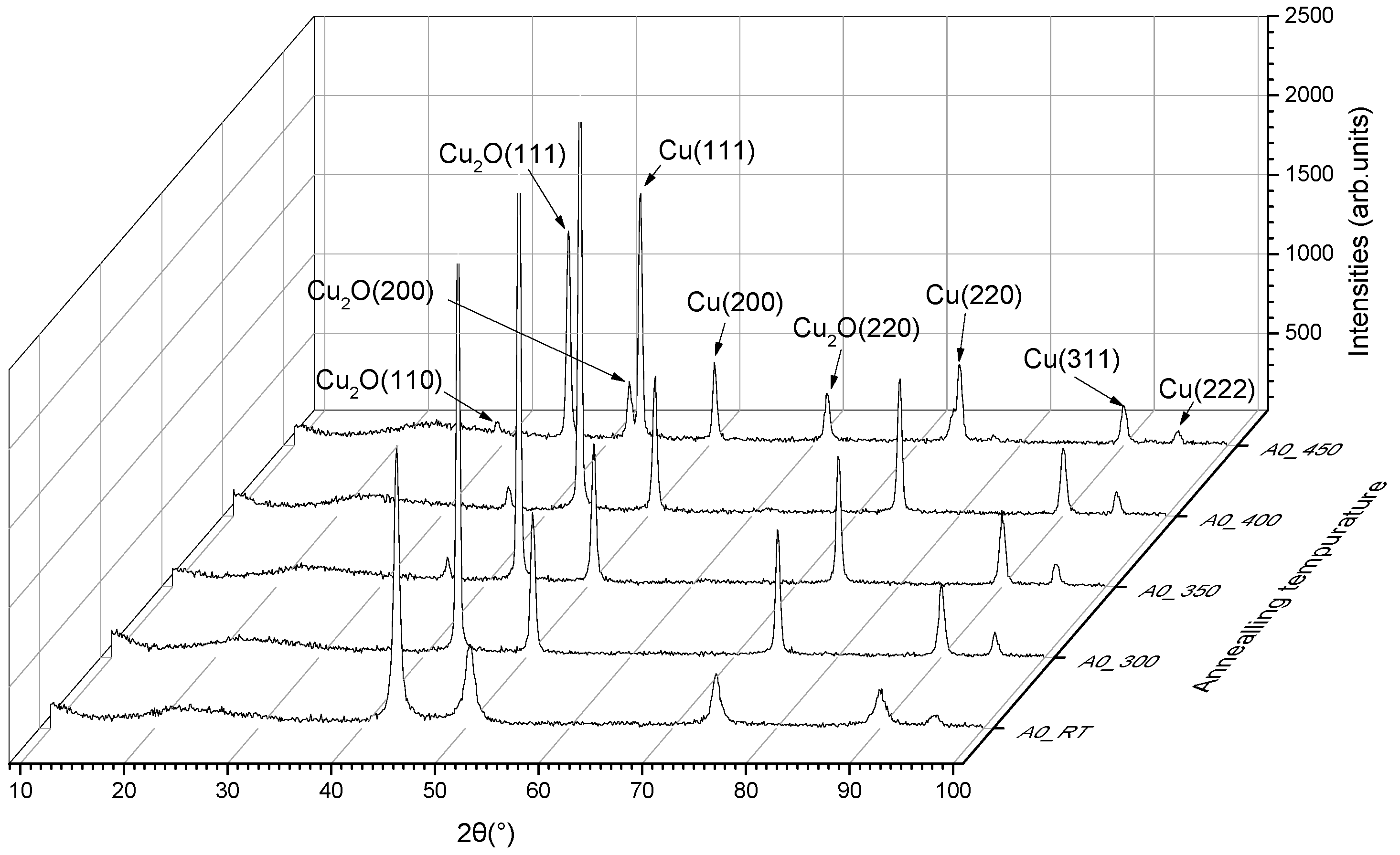

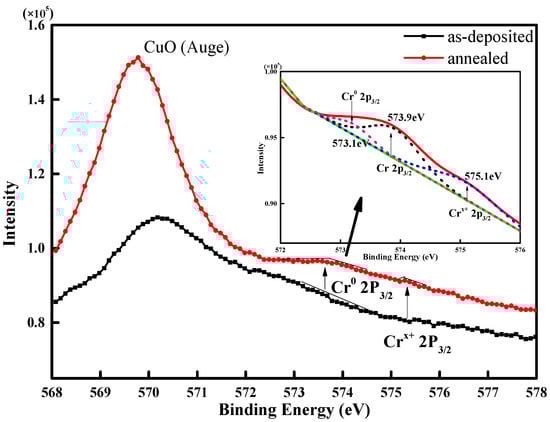

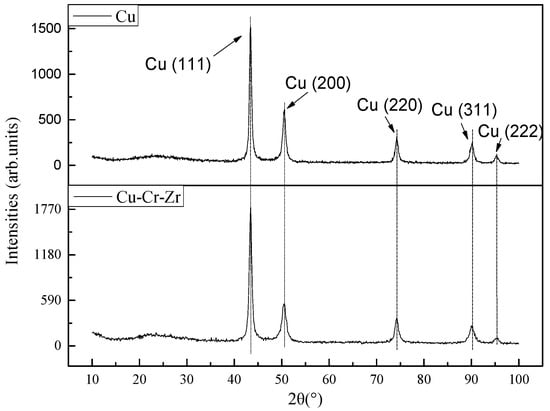

The characteristics of Cu alloy (0.3 wt. % Cr, 0.2 wt. % Zr) thin film deposited by direct current (DC) magnetron sputtering deposition were investigated. The conductivity and adhesion of the Cu-0.3%Cr-0.2%Zr films were optimized by increasing the sputter power to 150 W and reducing the sputter pressure to 2 mTorr. With an annealing process (at 300 °C for 1 h in argon ambient atmosphere), the resistivity of the alloy film decreased from 4.80 to 2.96 μΩ·cm, and the adhesion classification increased from 2B to 4B on glass substrate. X-ray photoelectron spectroscopy (XPS) analysis showed that Cr aggregated toward the surface of the film and formed a self-protection layer in the annealing process. Transmission electron microscopy (TEM) indicated the aggregation and migration of Cr in the annealing process. A further X-ray diffraction (XRD) analysis showed that Cu2O appeared when the annealing temperature reached above 350 °C, which accounts for the increase of the resistivity. Based on Al2O3 and SiO2 substrate surfaces, the Cu-0.3%Cr-0.2%Zr film also showed high conductivity and adhesion, which has a potential in the application of Cu gate electrodes for thin film transistor (TFT). View Full-Text
Keywords: Cu-Cr-Zr alloy; conductivity; adhesion; thin-film transistor; gate electrode Cu-Cr-Zr alloy; conductivity; adhesion; thin-film transistor; gate electrode
Figures

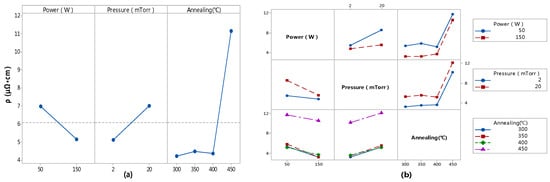

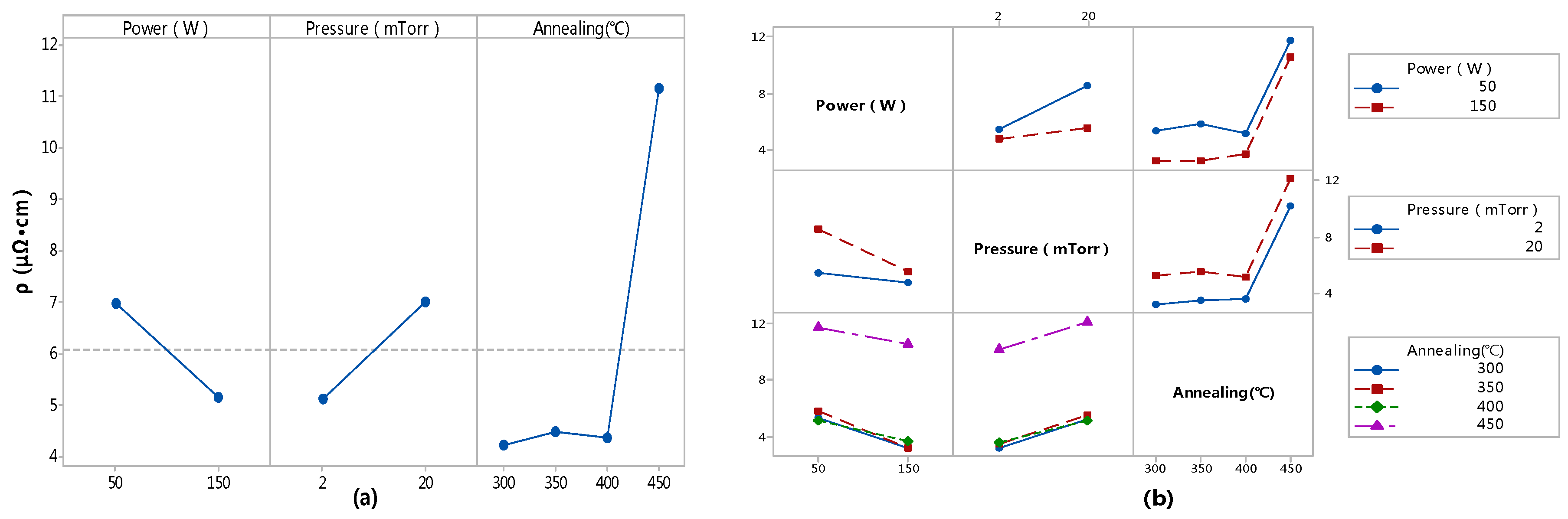

Figure 1
