Appl. Sci. 2017, 7(8), 772; doi:10.3390/app7080772

Monitoring of Land-Surface Deformation in the Karamay Oilfield, Xinjiang, China, Using SAR Interferometry

1
Department of Urban Environment Systems, Chiba University, Chiba 263-8522, Japan
2
Institute of Geographic Sciences and Tourism, Xinjiang Normal University, Urumqi 830054, Xinjiang, China
*
Author to whom correspondence should be addressed.
Received: 23 June 2017 / Revised: 26 July 2017 / Accepted: 27 July 2017 / Published: 30 July 2017
View Full-Text   |   Download PDF [9924 KB, uploaded 30 July 2017]   |

Abstract

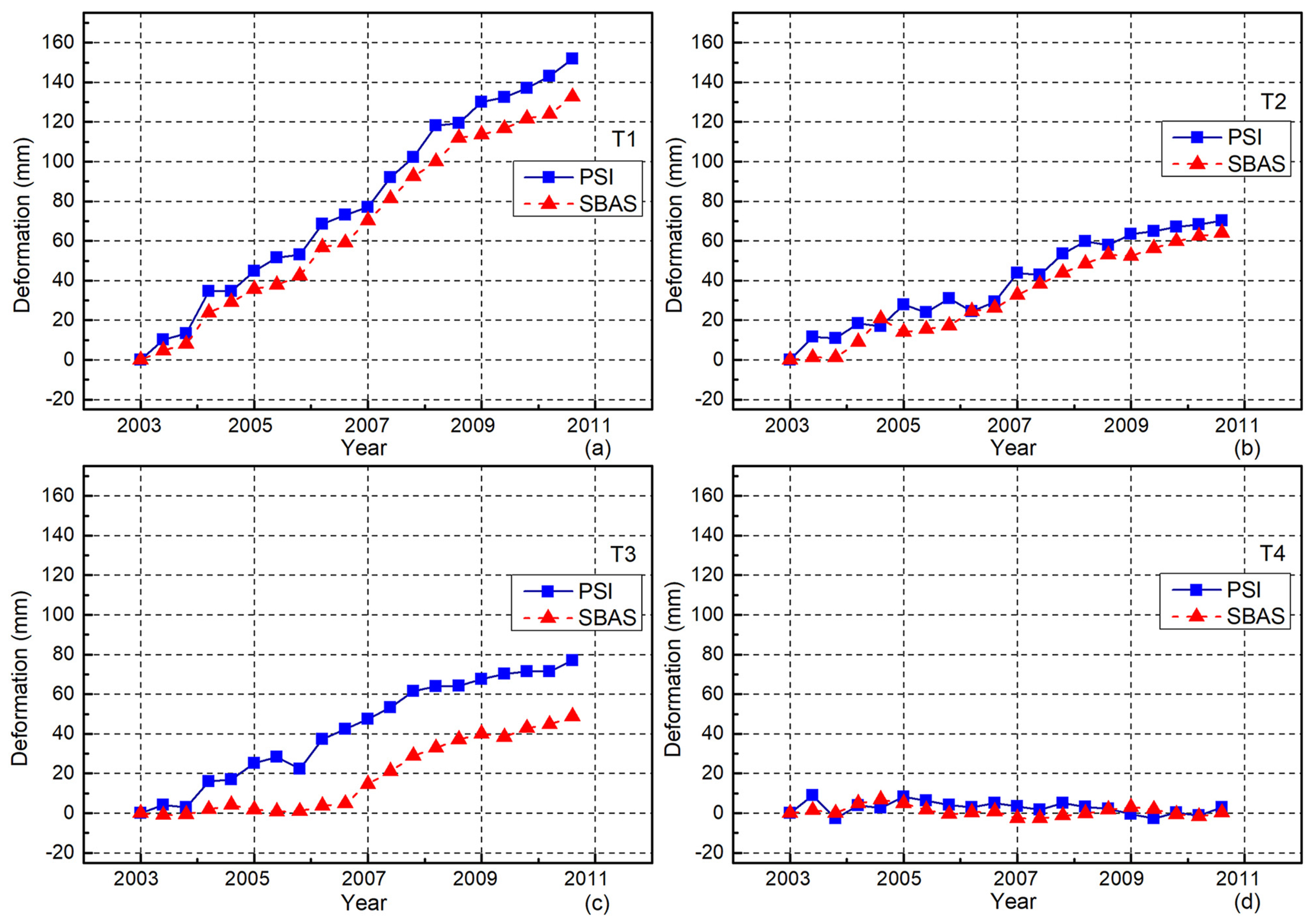

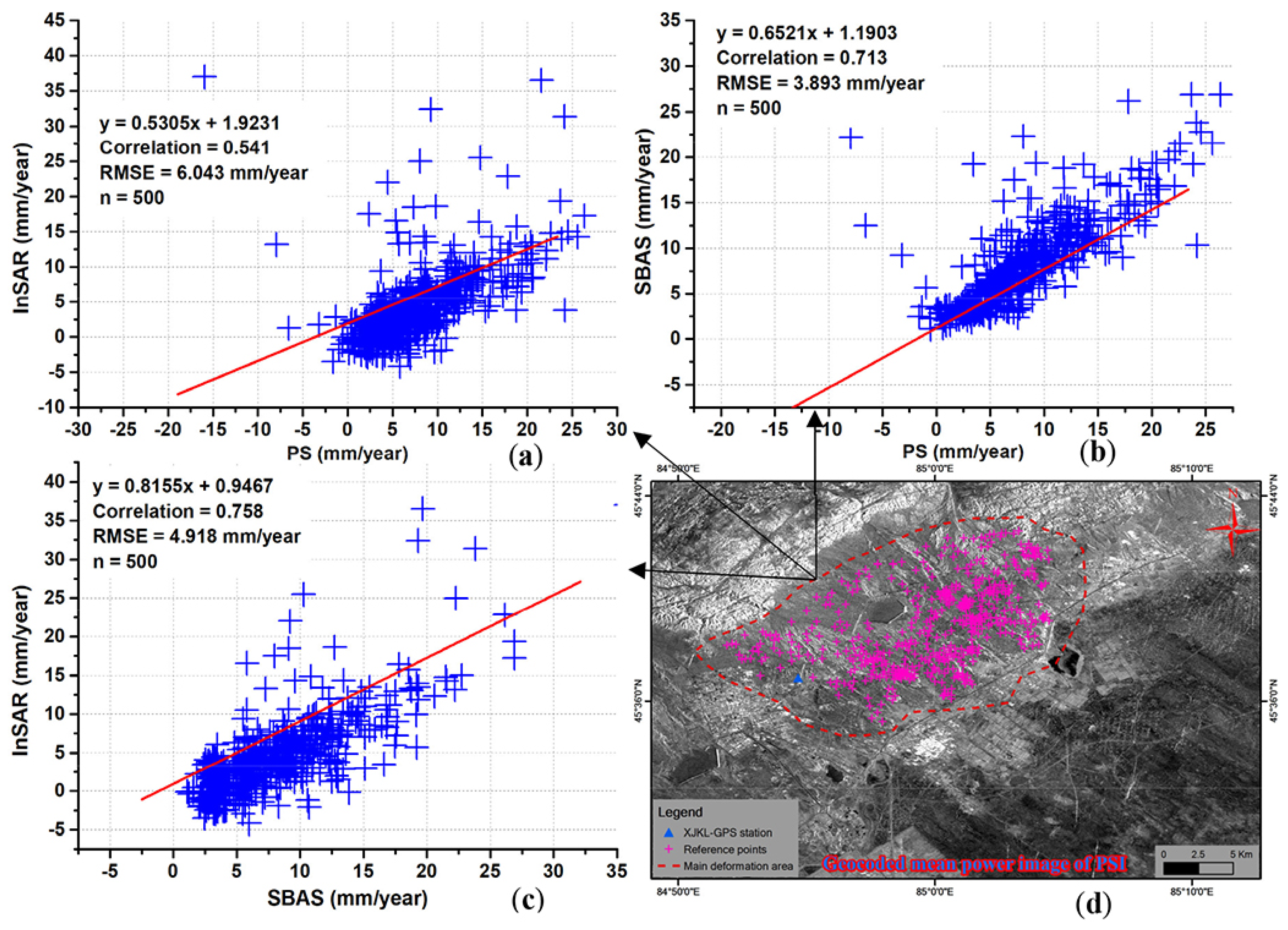

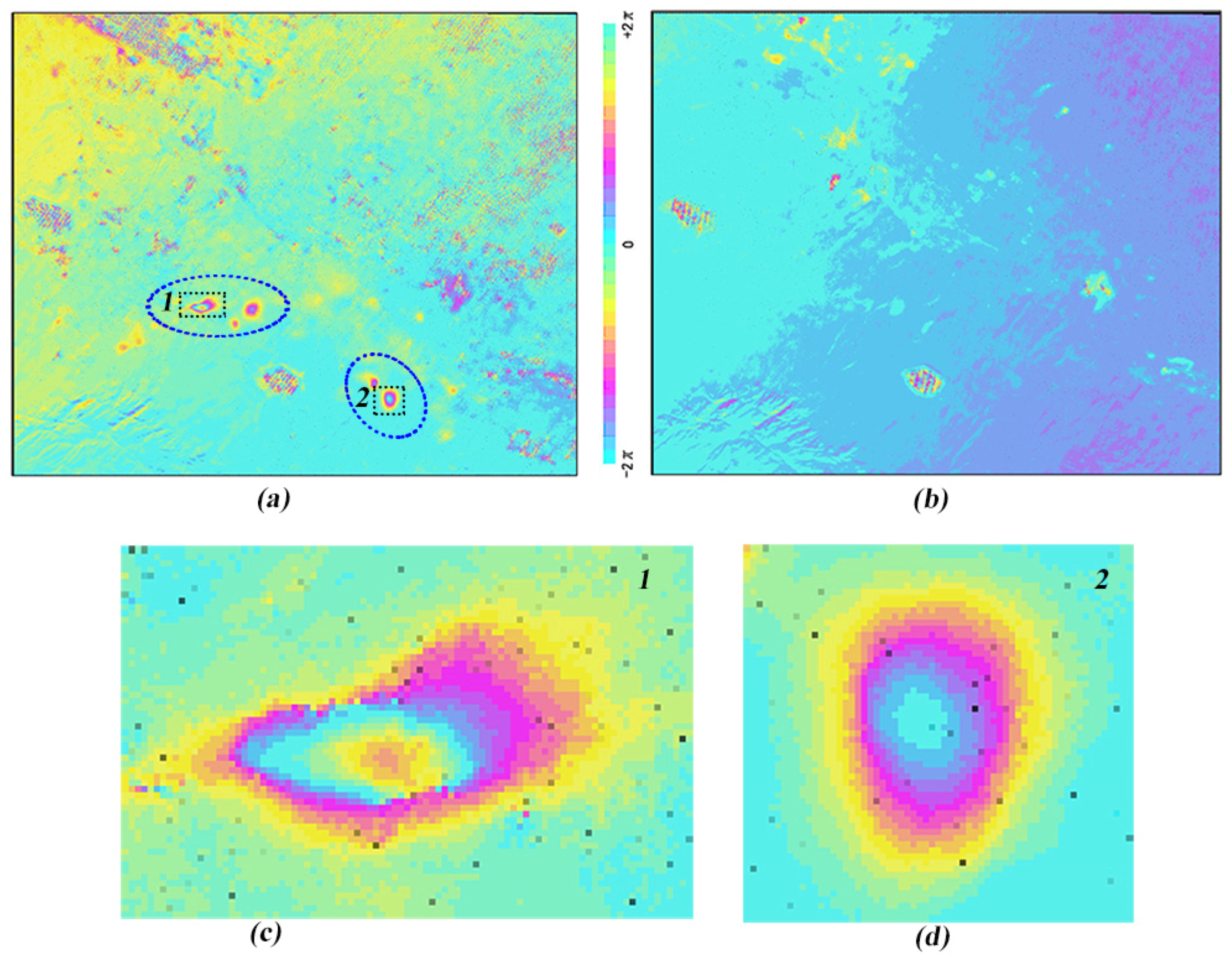

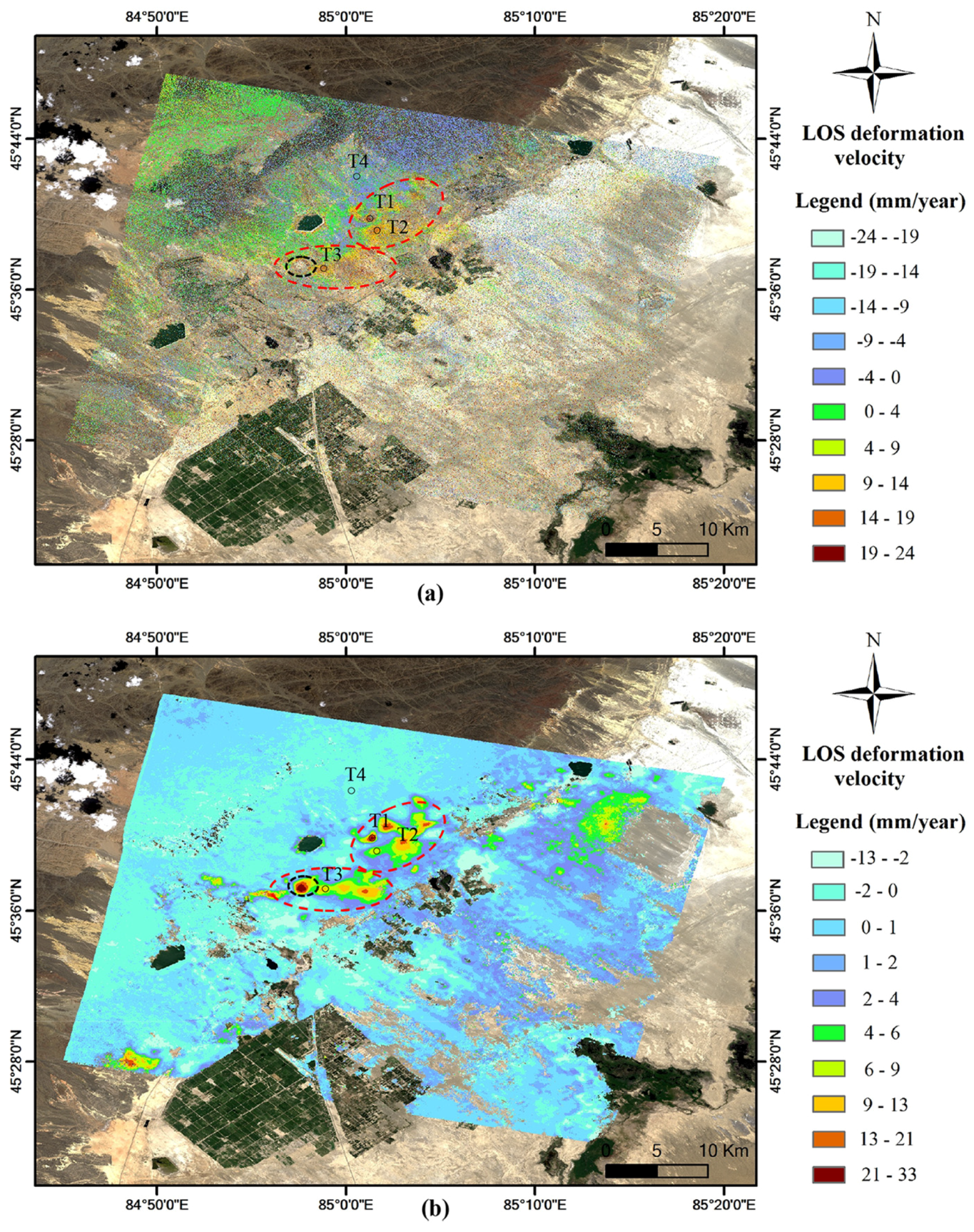

Synthetic Aperture Radar (SAR) interferometry is a technique that provides high-resolution measurements of the ground displacement associated with various geophysical processes. To investigate the land-surface deformation in Karamay, a typical oil-producing city in the Xinjiang Uyghur Autonomous Region, China, Advanced Land Observing Satellite (ALOS) Phased Array L-band Synthetic Aperture Radar (PALSAR) data were acquired for the period from 2007 to 2009, and a two-pass differential SAR interferometry (D-InSAR) process was applied. The experimental results showed that two sites in the north-eastern part of the city exhibit a clear indication of land deformation. For a further evaluation of the D-InSAR result, the Persistent Scatterer (PS) and Small Baseline Subset (SBAS)-InSAR techniques were applied for 21 time series Environmental Satellite (ENVISAT) C-band Advanced Synthetic Aperture Radar (ASAR) data from 2003 to 2010. The comparison between the D-InSAR and SBAS-InSAR measurements had better agreement than that from the PS-InSAR measurement. The maximum deformation rate attributed to subsurface water injection for the period from 2003 to 2010 was up to approximately 33 mm/year in the line of sight (LOS) direction. The interferometric phase change from November 2007 to June 2010 showed a clear deformation pattern, and the rebound center has been expanding in scale and increasing in quantity. View Full-Text
Keywords: ALOS-PALSAR; ENVISAT-ASAR; land-surface deformation; subsurface water injection; D-InSAR; PS-InSAR; SBAS-InSAR ALOS-PALSAR; ENVISAT-ASAR; land-surface deformation; subsurface water injection; D-InSAR; PS-InSAR; SBAS-InSAR
Figures

Figure 1
